简介

本文档介绍在安全防火墙上使用思科SD-WAN的基于路由的VPN在BGP中的路由控制。

先决条件

要求

Cisco 建议您了解以下主题：

IKEv2
基于路由的VPN
虚拟隧道接口(VTI)
IPsec
调试输出中显示“BGP
BGP属性，如社区标签和路由反射器
安全防火墙上的SD-WAN功能

使用的组件

本文档中的信息基于：

思科安全防火墙威胁防御7.7.10
思科安全防火墙管理中心7.7.10

本文档中的信息都是基于特定实验室环境中的设备编写的。本文档中使用的所有设备最初均采用原始（默认）配置。如果您的网络处于活动状态，请确保您了解所有命令的潜在影响。

功能信息

随着针对站点到站点、基于路由的VPN的新SD-WAN部署为重叠启用BGP，思科专注于关键BGP属性，以实施无环和安全重叠路由，从而确保底层网络和重叠网络在整个拓扑中保持分离。此部署还确保无需手动干预即可调整相关属性。

部署方案

选择在中心点和分支点之间同时包含iBGP和eBGP连接的拓扑。此方法可最大程度地查看作为SD-WAN解决方案一部分在思科安全防火墙上实施的路由控制。

双ISP的双中心辐射型

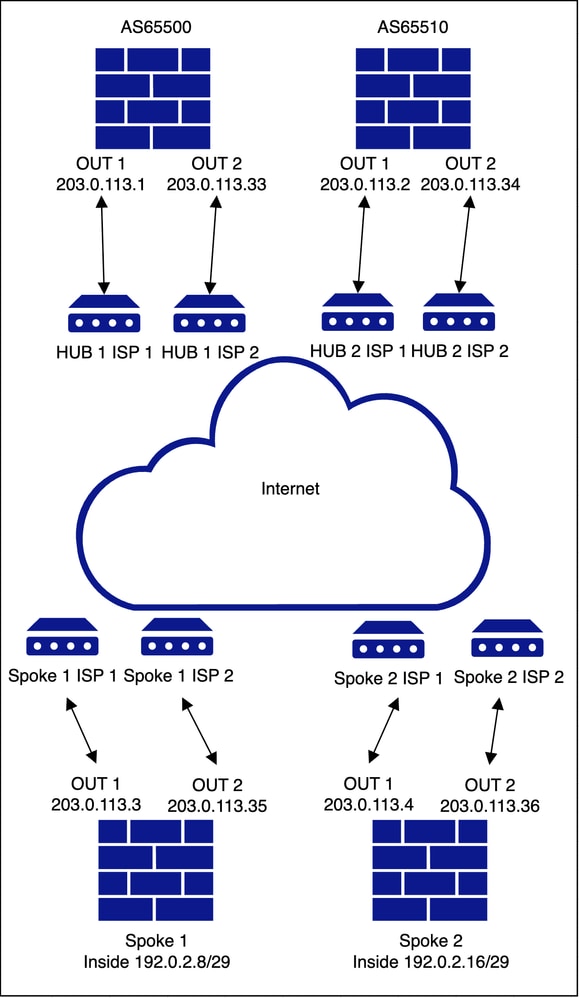

底层拓扑

Underlay Topology

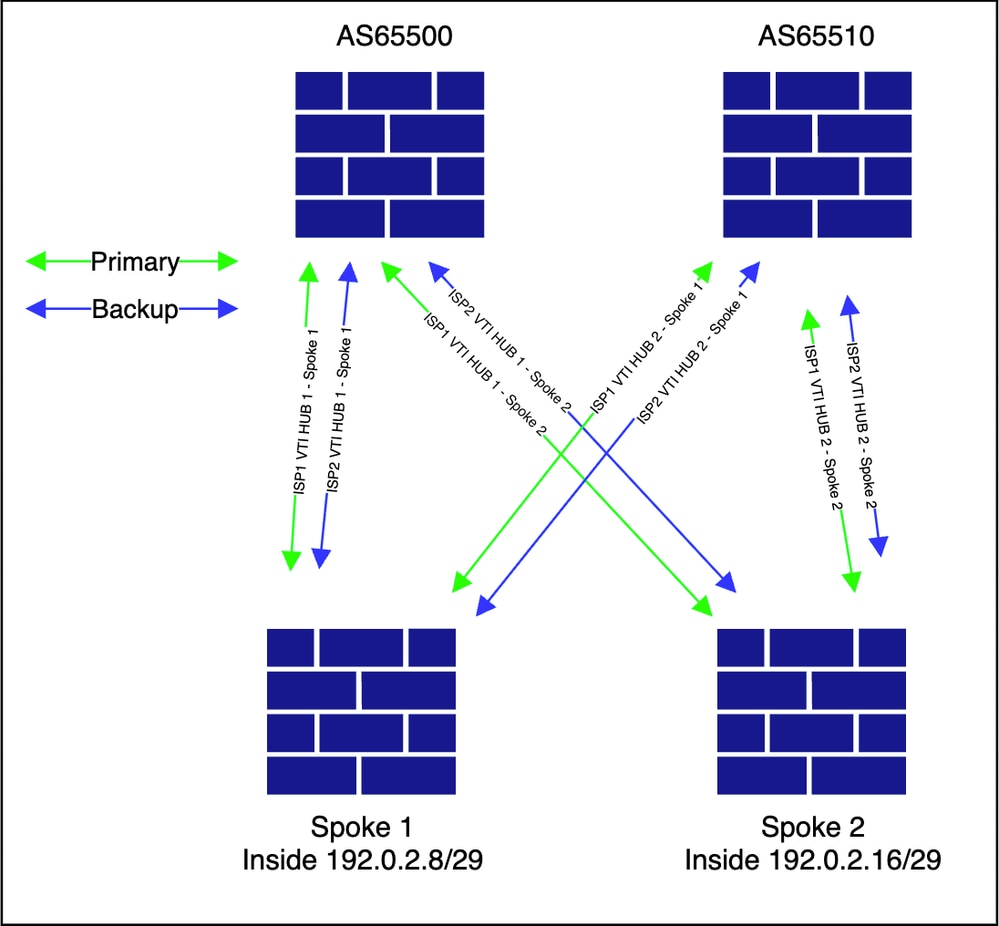

重叠拓扑

Overlay Topology

配置

由于本文档的主要目的是清楚地了解在安全防火墙上部署SD-WAN时实施的路由控制，因此不再重复介绍部署拓扑所需的基础配置步骤。有关初始设置的详细指导，请参阅我们之前发布的文档为通过安全防火墙的站点到站点VPN配置SD-WAN。

CLI部分中的所有配置均通过SD-WAN配置向导进行应用。不会单独对BGP配置或任何路由映射配置进行更改或修改。

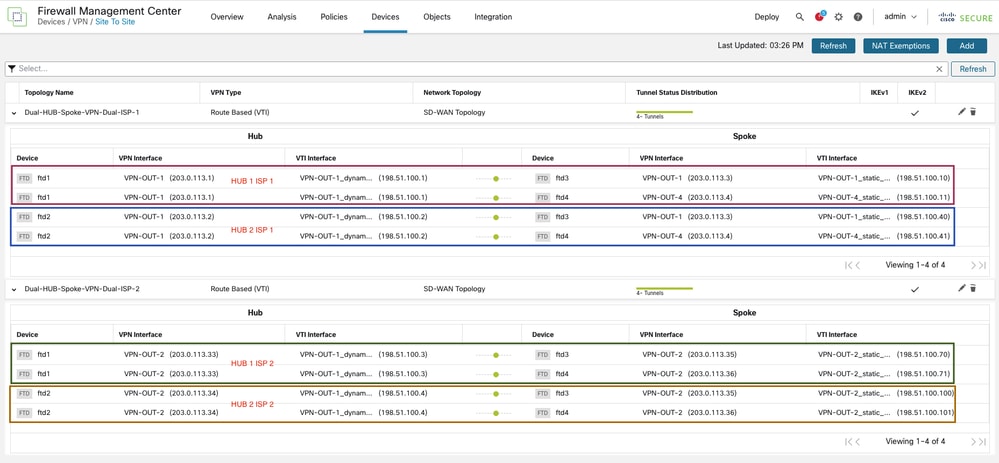

Configuration

验证与故障排除

社区列表负责过滤传入和传出前缀。有关详细说明，请参阅Cisco Secure Firewall Management Center Device Configuration Guide中cisco文档的社区列表部分。

所有设备的通用配置

firepower# show running-config community-list
community-list standard FMC_VPN_COMMUNITY_101010 permit 101010 <<<<<<<<<<
community-list standard FMC_VPN_COMMUNITY_202020 permit 202020 <<<<<<<<<<

请注意，每个拓扑有一对入站和出站路由映射，尽管两个拓扑的配置相同，但每个拓扑的命名约定是唯一的。在我们的方案中，FMC_VPN_RMAP_COMMUNITY_IN_858939614和FMC_VPN_RMAP_COMMUNITY_OUT_858939614用于拓扑1，而FMC_VPN_RMAP_COMMUNITY_IN_85894200和FMC_VPN Rmap_COMMUNITY_OUT_858942200用于拓扑2。

firepower# show running-config route-map

Topology 1
Inbound
route-map FMC_VPN_RMAP_COMMUNITY_IN_8589939614 permit 10
match community FMC_VPN_COMMUNITY_101010 exact-match

set community 202020

route-map FMC_VPN_RMAP_COMMUNITY_IN_8589939614 permit 20
match community FMC_VPN_COMMUNITY_202020 exact-match

Outbound
route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589939614 permit 10
match community FMC_VPN_COMMUNITY_101010 exact-match
set metric 1

route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589939614 permit 20
match community FMC_VPN_COMMUNITY_202020 exact-match
set metric 100

route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589939614 deny 100

Topology 2
Inbound
route-map FMC_VPN_RMAP_COMMUNITY_IN_8589942200 permit 10
match community FMC_VPN_COMMUNITY_101010 exact-match

set community 202020

route-map FMC_VPN_RMAP_COMMUNITY_IN_8589942200 permit 20
match community FMC_VPN_COMMUNITY_202020 exact-match

Outbound
route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589942200 permit 10
match community FMC_VPN_COMMUNITY_101010 exact-match
set metric 1

route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589942200 permit 20
match community FMC_VPN_COMMUNITY_202020 exact-match
set metric 100

route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589942200 deny 100

Common Across All The Hubs & Spokes Wherever Redistribution Of Inside Network Is Present

route-map FMC_VPN_CONNECTED_DIST_RMAP_101010 permit 10
match interface inside
set community 101010

拓扑中设备间的BGP配置如下所示：

Spoke1和2（使用HUB1的IBGP和使用HUB2的EBGP）

firepower# show running-config router bgp
router bgp 65500
bgp log-neighbor-changes
address-family ipv4 unicast
neighbor 198.51.100.1 remote-as 65500 <<<<< tunnel from spokes to HUB 1 via ISP1
neighbor 198.51.100.1 activate
neighbor 198.51.100.1 send-community
neighbor 198.51.100.1 route-map FMC_VPN_RMAP_COMMUNITY_IN_8589939614 in
neighbor 198.51.100.1 route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589939614 out
neighbor 198.51.100.2 remote-as 65510 <<<<< tunnel from spokes to HUB 2 via ISP1
neighbor 198.51.100.2 ebgp-multihop 2
neighbor 198.51.100.2 activate
neighbor 198.51.100.2 send-community
neighbor 198.51.100.2 route-map FMC_VPN_RMAP_COMMUNITY_IN_8589939614 in
neighbor 198.51.100.2 route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589939614 out
neighbor 198.51.100.3 remote-as 65500 <<<<< tunnel from spokes to HUB 1 via ISP2
neighbor 198.51.100.3 activate
neighbor 198.51.100.3 send-community
neighbor 198.51.100.3 route-map FMC_VPN_RMAP_COMMUNITY_IN_8589942200 in
neighbor 198.51.100.3 route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589942200 out
neighbor 198.51.100.4 remote-as 65510 <<<<< tunnel from spokes to HUB 2 via ISP2
neighbor 198.51.100.4 ebgp-multihop 2
neighbor 198.51.100.4 activate
neighbor 198.51.100.4 send-community
neighbor 198.51.100.4 route-map FMC_VPN_RMAP_COMMUNITY_IN_8589942200 in
neighbor 198.51.100.4 route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589942200 out
redistribute connected route-map FMC_VPN_CONNECTED_DIST_RMAP_101010 <<<<<<< route-map to redistribute inside network into BGP
maximum-paths 8
maximum-paths ibgp 8
no auto-summary
no synchronization
exit-address-family

HUB1（与辐射点的IBGP对等）

firepower# show running-config router bgp
router bgp 65500
bgp log-neighbor-changes
address-family ipv4 unicast
neighbor 198.51.100.10 remote-as 65500 <<<<< tunnel from HUB 1 to Spoke 1 via ISP 1
neighbor 198.51.100.10 activate
neighbor 198.51.100.10 send-community
neighbor 198.51.100.10 route-reflector-client
neighbor 198.51.100.10 next-hop-self
neighbor 198.51.100.10 route-map FMC_VPN_RMAP_COMMUNITY_IN_8589939614 in
neighbor 198.51.100.10 route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589939614 out
neighbor 198.51.100.11 remote-as 65500 <<<<< tunnel from HUB 1 to Spoke 2 via ISP 1
neighbor 198.51.100.11 activate
neighbor 198.51.100.11 send-community
neighbor 198.51.100.11 route-reflector-client
neighbor 198.51.100.11 next-hop-self
neighbor 198.51.100.11 route-map FMC_VPN_RMAP_COMMUNITY_IN_8589939614 in
neighbor 198.51.100.11 route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589939614 out
neighbor 198.51.100.70 remote-as 65500 <<<<< tunnel from HUB 1 to Spoke 1 via ISP 2
neighbor 198.51.100.70 activate
neighbor 198.51.100.70 send-community
neighbor 198.51.100.70 route-reflector-client
neighbor 198.51.100.70 next-hop-self
neighbor 198.51.100.70 route-map FMC_VPN_RMAP_COMMUNITY_IN_8589942200 in
neighbor 198.51.100.70 route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589942200 out
neighbor 198.51.100.71 remote-as 65500 <<<<< tunnel from HUB 1 to Spoke 2 via ISP 2
neighbor 198.51.100.71 activate
neighbor 198.51.100.71 send-community
neighbor 198.51.100.71 route-reflector-client
neighbor 198.51.100.71 next-hop-self
neighbor 198.51.100.71 route-map FMC_VPN_RMAP_COMMUNITY_IN_8589942200 in
neighbor 198.51.100.71 route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589942200 out
no auto-summary
no synchronization
exit-address-family

HUB2（与辐条的EBGP对等）

firepower# show running-config router bgp
router bgp 65510
bgp log-neighbor-changes
address-family ipv4 unicast
neighbor 198.51.100.40 remote-as 65500 <<<<< tunnel from HUB 2 to Spoke 1 via ISP 1
neighbor 198.51.100.40 ebgp-multihop 2
neighbor 198.51.100.40 activate
neighbor 198.51.100.40 send-community
neighbor 198.51.100.40 next-hop-self
neighbor 198.51.100.40 as-override
neighbor 198.51.100.40 route-map FMC_VPN_RMAP_COMMUNITY_IN_8589939614 in
neighbor 198.51.100.40 route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589939614 out
neighbor 198.51.100.41 remote-as 65500 <<<<< tunnel from HUB 2 to Spoke 2 via ISP 1
neighbor 198.51.100.41 ebgp-multihop 2
neighbor 198.51.100.41 activate
neighbor 198.51.100.41 send-community
neighbor 198.51.100.41 next-hop-self
neighbor 198.51.100.41 as-override
neighbor 198.51.100.41 route-map FMC_VPN_RMAP_COMMUNITY_IN_8589939614 in
neighbor 198.51.100.41 route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589939614 out
neighbor 198.51.100.100 remote-as 65500 <<<<< tunnel from HUB 2 to Spoke 1 via ISP 2
neighbor 198.51.100.100 ebgp-multihop 2
neighbor 198.51.100.100 activate
neighbor 198.51.100.100 send-community
neighbor 198.51.100.100 next-hop-self
neighbor 198.51.100.100 as-override
neighbor 198.51.100.100 route-map FMC_VPN_RMAP_COMMUNITY_IN_8589942200 in
neighbor 198.51.100.100 route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589942200 out
neighbor 198.51.100.101 remote-as 65500 <<<<< tunnel from HUB 2 to Spoke 2 via ISP 2
neighbor 198.51.100.101 ebgp-multihop 2
neighbor 198.51.100.101 activate
neighbor 198.51.100.101 send-community
neighbor 198.51.100.101 next-hop-self
neighbor 198.51.100.101 as-override
neighbor 198.51.100.101 route-map FMC_VPN_RMAP_COMMUNITY_IN_8589942200 in
neighbor 198.51.100.101 route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589942200 out
no auto-summary
no synchronization
exit-address-family

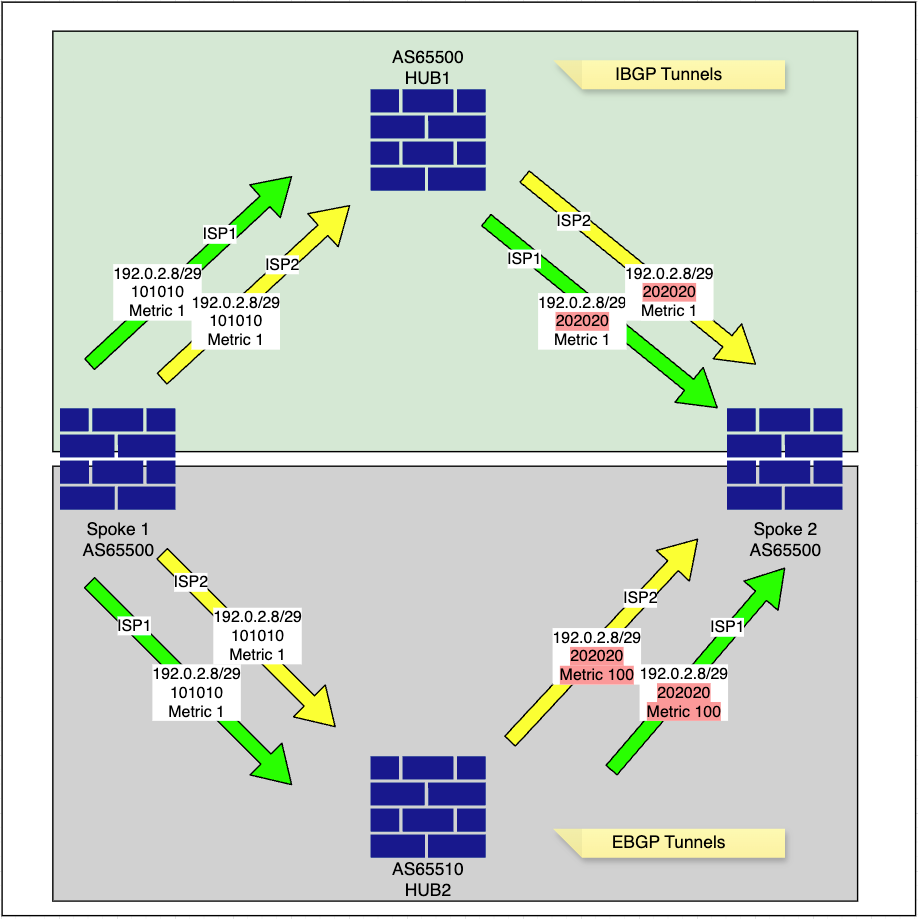

路由拓扑

Routing Topology

分支使用其特定社区标记101010将其内部网络192.0.2.8/29通告到BGP，如route-map FMC_VPN_CONNECTED_DIST_RMAP_1010中所配置。

分支1

Spoke1# show bgp community 101010 exact-match <<<< to verify the exact network redistributed into BGP

BGP table version is 4, local router ID is 203.0.113.35
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath
Origin codes: i - IGP, e - EGP, ? - incomplete

   Network          Next Hop        Metric LocPrf Weight  Path
*> 192.0.2.8/29     0.0.0.0              0         32768  ? <<<<<<<<<<< local inside network

辐条会修改其内部网络192.0.2.8/29的度量值，并将其通告到集线器，如路由映射FMC_VPN_RMAP_COMMUNITY_OUT_858939614和FMC_VPN_RMAP_COMMUNITY_OUT_85894200中所配置。

route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589942200 permit 10
match community FMC_VPN_COMMUNITY_101010 exact-match
set metric 1

route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589942200 permit 20
match community FMC_VPN_COMMUNITY_202020 exact-match
set metric 100

route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589942200 deny 100

HUB1使用社区标记101010获知分支1网络192.0.2.8/29，并将社区标记更改为202020，同时按照配置的路由映射中的定义保留度量，然后将其转发到其他分支。

集线器1

Route-Map for ISP1 DVTI
Inbound
route-map FMC_VPN_RMAP_COMMUNITY_IN_8589939614 permit 10
match community FMC_VPN_COMMUNITY_101010 exact-match
set community 202020

route-map FMC_VPN_RMAP_COMMUNITY_IN_8589939614 permit 20
match community FMC_VPN_COMMUNITY_202020 exact-match

Outbound
route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589939614 permit 10
match community FMC_VPN_COMMUNITY_101010 exact-match
set metric 1
set ip next-hop 198.51.100.1 <<<<<<<<<< only next-hop is changed in ISP2 tunnel route-map with ISP2 DVTI IP

route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589939614 permit 20
match community FMC_VPN_COMMUNITY_202020 exact-match
set metric 100
set ip next-hop 198.51.100.1 <<<<<<<<<< only next-hop is changed in ISP2 tunnel route-map with ISP2 DVTI IP

route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589939614 deny 100

Route-Map for ISP2 DVTI
Inbound
route-map FMC_VPN_RMAP_COMMUNITY_IN_8589942200 permit 10
match community FMC_VPN_COMMUNITY_101010 exact-match
set community 202020

route-map FMC_VPN_RMAP_COMMUNITY_IN_8589942200 permit 20
match community FMC_VPN_COMMUNITY_202020 exact-match

Outbound
route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589942200 permit 10
match community FMC_VPN_COMMUNITY_101010 exact-match
set metric 1
set ip next-hop 198.51.100.3 <<<<<<<<<< only next-hop is changed in ISP2 tunnel route-map with ISP2 DVTI IP

route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589942200 permit 20
match community FMC_VPN_COMMUNITY_202020 exact-match
set metric 100
set ip next-hop 198.51.100.3 <<<<<<<<<< only next-hop is changed in ISP2 tunnel route-map with ISP2 DVTI IP

route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589942200 deny 100

HUB1# show bgp community 202020 exact-match <<<< this will confirm if received prefixes have community tags flipped

BGP table version is 5, local router ID is 198.51.100.3
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath
Origin codes: i - IGP, e - EGP, ? - incomplete

   Network          Next Hop        Metric LocPrf Weight  Path
* i192.0.2.8/29     198.51.100.70        1    100      0  ?
*>i                 198.51.100.10        1    100      0  ?
* i192.0.2.16/29    198.51.100.71        1    100      0  ?
*>i                 198.51.100.11        1    100      0  ?

HUB1# show bgp 192.0.2.8 <<<< this will display available paths in BGP for the network

BGP routing table entry for 192.0.2.8/29, version 4
Paths: (2 available, best #2, table default)
  Advertised to update-groups:
              1          2
  Local, (Received from a RR-client)
    198.51.100.70 from 198.51.100.70 (203.0.113.35) <<<<< spoke 1 ISP 2 tunnel to HUB 1
      Origin incomplete, metric 1, localpref 100, valid, internal
      Community: 202020
  Local, (Received from a RR-client)
    198.51.100.10 from 198.51.100.10 (203.0.113.35) <<<<< spoke 1 ISP 1 tunnel to HUB 1
      Origin incomplete, metric 1, localpref 100, valid, internal, best
      Community: 202020 <<<<< community updated as per the route-map configured on spoke side

HUB1# show route 192.0.2.8

Routing entry for 192.0.2.8 255.255.255.248
  Known via "bgp 65500", distance 200, metric 1, type internal
  Last update from 198.51.100.10 0:09:18 ago
  Routing Descriptor Blocks:
  * 198.51.100.10, from 198.51.100.10, 0:09:18 ago
      Route metric is 1, traffic share count is 1
      AS Hops 0
      MPLS label: no label string provided

HUB1# show bgp ipv4 unicast neighbors 198.51.100.10 routes <<<<<< to check specific prefixes learnt via ISP1 spoke1 tunnel

BGP table version is 5, local router ID is 198.51.100.3
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath
Origin codes: i - IGP, e - EGP, ? - incomplete

   Network          Next Hop        Metric LocPrf Weight  Path
*>i192.0.2.8/29     198.51.100.10        1    100      0  ? <<< preferred route

Total number of prefixes 1

HUB1# show bgp ipv4 unicast neighbors 198.51.100.70 routes <<<<<< to check specific prefixes learnt via ISP2 spoke1 tunnel

BGP table version is 5, local router ID is 198.51.100.3
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath
Origin codes: i - IGP, e - EGP, ? - incomplete

   Network          Next Hop        Metric LocPrf Weight  Path
* i192.0.2.8/29     198.51.100.70        1    100      0  ?

Total number of prefixes 1

HUB2还使用社区标记101010获取分支1网络192.0.2.8/29，并将社区标记更改为202020，并将度量更新为100，然后将其转发到其他分支，如配置的路由映射中所指定。此指标更改由于eBGP对等而生效。这是因为MED(Multi-Exit Discriminator)是一个可选的非传递BGP属性，用于通过建议一个首选入口点进入AS来影响入站流量。MED通常不会在同一AS内的iBGP对等体之间传播，而是通告给不同自治系统中的外部BGP(eBGP)对等体。

集线器2

HUB2# show bgp community 202020 exact-match <<<< this will confirm if receieved prefixes have community tags flipped

BGP table version is 5, local router ID is 198.51.100.4
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath
Origin codes: i - IGP, e - EGP, ? - incomplete

   Network          Next Hop        Metric LocPrf Weight  Path
*  192.0.2.8/29     198.51.100.1       100             0  65500 ? <<<<<< advertised back by spoke 2 ISP1 to HUB2 previously learnt via HUB1 iBGP
*                   198.51.100.1       100             0  65500 ? <<<<<< advertised back by spoke 2 ISP2 to HUB2 previously learnt via HUB1 iBGP
*                   198.51.100.100       1             0  65500 ? <<<<<< advertised by spoke 2 ISP tunnel
*>                  198.51.100.40        1             0  65500 ? <<<<<< advertised and preferred by spoke 1 ISP 1 tunnel
*  192.0.2.16/29    198.51.100.1       100             0  65500 ?
*                   198.51.100.1       100             0  65500 ?
*                   198.51.100.101       1             0  65500 ?
*>                  198.51.100.41        1             0  65500 ?

HUB2# show bgp 192.0.2.8 <<<< this will display available paths in BGP for the network

BGP routing table entry for 192.0.2.8/29, version 4
Paths: (4 available, best #4, table default)
  Advertised to update-groups:
              1          2
  65500
    198.51.100.1 (inaccessible) from 198.51.100.41 (203.0.113.36) <<<<<< advertised back by spoke 2 ISP1 to HUB2 previously learnt via HUB1 iBGP
      Origin incomplete, metric 100, localpref 100, valid, external
      Community: 202020
  65500
    198.51.100.1 (inaccessible) from 198.51.100.101 (203.0.113.36) <<<<<< advertised back by spoke 2 ISP2 to HUB2 previously learnt via HUB1 iBGP
      Origin incomplete, metric 100, localpref 100, valid, external
      Community: 202020
  65500
    198.51.100.100 from 198.51.100.100 (203.0.113.35) <<<<<< advertised by spoke 1 ISP 2 tunnel
      Origin incomplete, metric 1, localpref 100, valid, external
      Community: 202020
  65500
    198.51.100.40 from 198.51.100.40 (203.0.113.35) <<<<<< advertised and preferred by spoke 1 ISP 1 tunnel
      Origin incomplete, metric 1, localpref 100, valid, external, best
      Community: 202020

HUB2# show bgp ipv4 unicast neighbors 198.51.100.40 routes <<<<<< to check specific prefixes learnt via ISP1 spoke1 tunnel

BGP table version is 5, local router ID is 198.51.100.4
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath
Origin codes: i - IGP, e - EGP, ? - incomplete

   Network          Next Hop        Metric LocPrf Weight  Path
*> 192.0.2.8/29     198.51.100.40        1             0  65500 ? <<<< preferred
*  192.0.2.16/29    198.51.100.1       100             0  65500 ?

Total number of prefixes 2

HUB2# show bgp ipv4 unicast neighbors 198.51.100.41 routes <<<<<< to check specific prefixes learnt via ISP1 spoke2 tunnel

BGP table version is 5, local router ID is 198.51.100.4
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath
Origin codes: i - IGP, e - EGP, ? - incomplete

   Network          Next Hop        Metric LocPrf Weight  Path
*  192.0.2.8/29     198.51.100.1       100             0  65500 ? <<<<<<
*> 192.0.2.16/29    198.51.100.41        1             0  65500 ?

Total number of prefixes 2

HUB2# show bgp ipv4 unicast neighbors 198.51.100.100 routes <<<<<< to check specific prefixes learnt via ISP2 spoke1 tunnel

BGP table version is 5, local router ID is 198.51.100.4
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath
Origin codes: i - IGP, e - EGP, ? - incomplete

   Network          Next Hop        Metric LocPrf Weight  Path
*  192.0.2.8/29     198.51.100.100       1             0  65500 ? <<<<<<
*  192.0.2.16/29    198.51.100.1       100             0  65500 ?

Total number of prefixes 2

HUB2# show bgp ipv4 unicast neighbors 198.51.100.101 routes <<<<<< to check specific prefixes learnt via ISP2 spoke2 tunnel

BGP table version is 5, local router ID is 198.51.100.4
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath
Origin codes: i - IGP, e - EGP, ? - incomplete

   Network          Next Hop        Metric LocPrf Weight  Path
*  192.0.2.8/29     198.51.100.1       100             0  65500 ? <<<<<<
*  192.0.2.16/29    198.51.100.101       1             0  65500 ?

Total number of prefixes 2

分支2从HUB1 ISP1和HUB1 ISP2隧道接收分支1网络192.0.2.8/29，度量为1，同时从HUB2 ISP1和HUB2 ISP2隧道接收同一网络，且其下一跳更新为HUB1。

分支2

Spoke2# show bgp community 202020 exact-match <<<< this will confirm if receieved prefixes have community tags flipped

BGP table version is 8, local router ID is 203.0.113.36
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath
Origin codes: i - IGP, e - EGP, ? - incomplete

   Network          Next Hop        Metric LocPrf Weight  Path
*mi192.0.2.8/29     198.51.100.3         1    100      0  ?
*>i                 198.51.100.1         1    100      0  ? <<<< HUB1 ISP1 route preferred
*                   198.51.100.2       100             0  65510 65510 ?
*                   198.51.100.4       100             0  65510 65510 ?
*  192.0.2.16/29    198.51.100.4       100             0  65510 65510 ?
*                   198.51.100.2       100             0  65510 65510 ?

route-map FMC_VPN_RMAP_COMMUNITY_IN_8589939614 permit 10
match community FMC_VPN_COMMUNITY_101010 exact-match

set community 202020

route-map FMC_VPN_RMAP_COMMUNITY_IN_8589956263 permit 20
match community FMC_VPN_COMMUNITY_202020 exact-match

分支2还会使用更新的度量将从HUB1获知的网络通告回HUB2（如配置的出站路由映射所定义）。

route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589939614 permit 10
match community FMC_VPN_COMMUNITY_101010 exact-match
set metric 1

route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589939614 permit 20
match community FMC_VPN_COMMUNITY_202020 exact-match
set metric 100 <<<<<

route-map FMC_VPN_RMAP_COMMUNITY_OUT_8589939614 deny 100

Spoke2# show bgp ipv4 unicast neighbors 198.51.100.2 advertised-routes <<<<< to check specific prefixes advertised via ISP1 HUB2 tunnel back to HUB2

BGP table version is 8, local router ID is 203.0.113.36
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath
Origin codes: i - IGP, e - EGP, ? - incomplete

   Network          Next Hop        Metric LocPrf Weight  Path
*>i192.0.2.8/29     198.51.100.1         1    100      0  ? <<<<<<<
*> 192.0.2.16/29    0.0.0.0              0         32768  ?

Total number of prefixes 2

Spoke2# show bgp ipv4 unicast neighbors 198.51.100.4 advertised-routes <<<<< to check specific prefixes advertised via ISP2 HUB2 tunnel back to HUB2

BGP table version is 8, local router ID is 203.0.113.36
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath
Origin codes: i - IGP, e - EGP, ? - incomplete

   Network          Next Hop        Metric LocPrf Weight  Path
*>i192.0.2.8/29     198.51.100.1         1    100      0  ? <<<<<<<
*> 192.0.2.16/29    0.0.0.0              0         32768  ?

Total number of prefixes 2

结论

本文档旨在介绍后端路由部署，重点介绍在BGP内实施的路由控制，以确保应急和冗余。

总之，分支2和拓扑中的任何其他分支在将其网络通告到BGP域时都使用相同的方法。在这种情况下，最重要的路由控制是社区列表过滤，它确保仅将此拓扑中的网络通告给其他对等体，防止意外的网络传播。

此外，MED Multi-exit Discriminator属性用于影响eBGP对等体的路由选择，确保通过配置为主HUB的iBGP对等体获知的路由优先于通过eBGP从辅助HUB获知的前缀。

通过进行拓扑调整（例如为辅助HUB配置iBGP），可以消除在将同一网络通告到其他分支之前对翻转社区标记的MED操作和入站路由映射的需要。
