Overview

Overview

The Cisco Nexus 9372PX switch (N9K-C9372PX) is a 1 rack unit (RU) switch that supports 48 1- and 10-Gigabit SFP+ downlink ports, six 40-Gigabit QSFP+ uplink ports, one 100/1000 network management ports, one RS-232 console port for setting the initial switch configuration, and two USB ports for saving or loading switch configurations. The chassis for this switch includes the following user-replaceable components:

  • Fan modules (four) with the following airflow choices:

    • Port-side exhaust fan module with blue coloring (NXA-FAN-30CFM-F)

    • Port-side intake fan module with burgundy coloring (NXA-FAN-30CFM-B)

  • Power supply modules (two—one for operations and one for redundancy [1+1]) with the following choices:

    • 650-W port-side exhaust AC power supply with blue coloring (N9K-PAC-650W-B)

    • 650-W port-side intake AC power supply with burgundy coloring (N9K-PAC-650W)

    • 930-W port-side intake DC power supply with green coloring (UCSC-PSU-930WDC)


    Note


    You can use 650-W AC power supplies and 930-W DC power supplies interchangeably so long as they have the same direction of airflow (if DC power supplies are used, all of the fan and power supply modules must have port-side intake airflow).


This switch supports connections to the following Fabric Extenders (FEXs):

  • Nexus 2248PQ

  • Nexus 2248TP

  • Nexus 2248TP-E

  • Nexus 2232PP

  • Nexus 2232TM

  • Nexus 2232TM-E

  • B22DELL

  • B22HP

The following figure shows the switch features on the port side of the chassis.

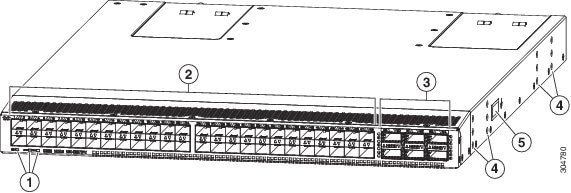

Figure 1. Chassis Features on the Port Side of the Chassis



1

Beacon (BCN), Status (STS), and Environment (ENV) LEDs

4

Screw holes for mounting brackets

2

1- and 10-Gigabit SFP+ interface ports (48)

5

Grounding pad

3

QSFP+ 40-Gigabit interface ports (6)

To determine which transceivers, adapters, and cables are supported by this switch, see the Cisco Nexus 9000 Series (Fixed 9300) at http:/​/​www.cisco.com/​c/​en/​us/​support/​interfaces-modules/​transceiver-modules/​products-device-support-tables-list.html.

The following figure shows the switch features on the power supply side of the chassis.

Figure 2. Chassis Features on the Power Supply Side of the Chassis



1

Power supply modules (1 or 2) (AC power supplies shown) with slots numbered 1 (left) and 2 (right)

5

Console port (1)

2

Fan modules (4) with slots numbered from 1 (left) and 4 (right)

6

Grounding pad

3

Beacon (BCN) and Status (STS) LEDs

7

Management port (1)

4

USB ports (2)

You can use the 1- and 10-Gigabit ports to connect this switch to up to 48 devices or to FEXs, which can be connected to additional servers (for the number of FEXs that can be supported, see the release notes for the NX-OS software that you are using). You can connect any of the following FEXs to the downlink ports:

  • Cisco Nexus B22DELL-P FEX

  • Cisco Nexus B22HP-P FEX

  • Cisco Nexus 2232PP FEX

  • Cisco Nexus 2232TM FEX

  • Cisco Nexus 2248PQ-10GE

  • Cisco Nexus 2248TP FEX

  • Cisco Nexus 2248TP-E FEX

For installation information on the Cisco Nexus 2000 Series FEXs, see the Cisco Nexus 2000 Series Hardware Installation Guide. For information on the Cisco Nexus B22-HP FEX, see the Cisco Nexus B22 Fabric Extender for HP Getting Started Guide.

Depending on whether you plan to position the ports in a cold or hot aisle, you can order the fan and power supply modules with port-side intake or port-side exhaust airflow. For port-side intake airflow, the fan and AC power supply modules have burgundy coloring (DC power supply modules have green coloring). For port-side exhaust airflow, the fan and AC power supplies have blue coloring.

The fan and power supply modules are field replaceable and you can replace one fan module or one power supply module during operations so long as the other modules are installed and operating. If you have only one power supply installed, you can install the replacement power supply in the open slot before removing the original power supply.

NOTE: All of the fan and power supply modules must have the same direction of airflow. Otherwise, the switch can overheat and shut down.

CAUTION: If the switch has port-side intake airflow (burgundy coloring for fan and AC power supply modules, and green coloring for DC power supply modules), you must locate the ports in the cold aisle. If the switch has port-side exhaust airflow (blue coloring for fan and AC power supply modules), you must locate the ports in the hot aisle. If you locate the air intake in a hot aisle, the switch can overheat and shut down.
