Contents

• Supported Versions
• Import the Device Package
• New Features in Version 1.0(2)
• Resolved Enhancement Requests in Version 1.0(2)
• Resolved Caveats in Version 1.0(2)
• Open Caveats in Version 1.0(2)
• Bug Search
• Features Not Supported in Version 1.0(2)
• Known Issues
• Related Documentation

---

Supported Versions

Table 1 Supported Versions of the Cisco FTD Software for Each Supported Platform

FTD Device Package Version	Platform	FTD/FMC Version	ACI/APIC Version
1.0.2	Firepower-93xx	6.2.2	2.3(1f) 3.0(1k)
1.0.2	Firepower-41xx	6.2.2	2.3(1f) 3.0(1k)
1.0.2	Firepower-21xx	6.2.2	2.3(1f) 3.0(1k)
1.0.2	vFTD	6.2.2	2.3(1f) 3.0(1k)

Import the Device Package

Sign in on Cisco.com to download and install the device package software. For instructions, see the Cisco FTD for ACI Quick Start Guide.

New Features in Version 1.0(2)

• Virtual FTD VLAN trunking support

• FTD High Availability (HA) support

• Dynamic EPG update

• Firepower 21xx support

• Performance enhancements (FTD-DP scalability)

Virtual FTD VLAN Trunking Support

1. Create the L4-L7 Device for the Virtual FTD, and click Submit.

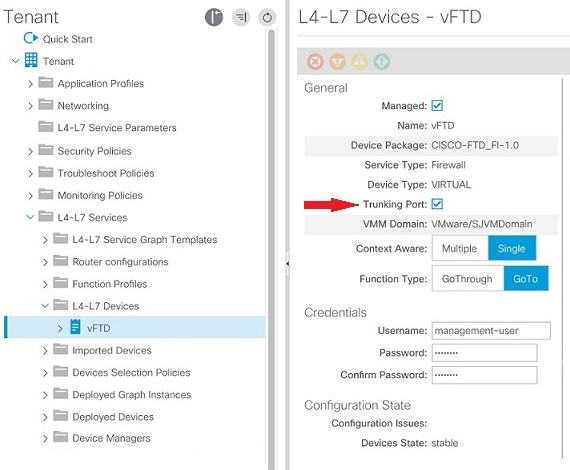

2. Navigate to the newly created vFTD, and notice the Trunking Port check box, which appears only after the virtual device has been created.

3. Select the Trunking Port check box to enable VLAN trunking on the vFTD.

FTD High Availability (HA) Support

Must be pre-configured on the FMC.

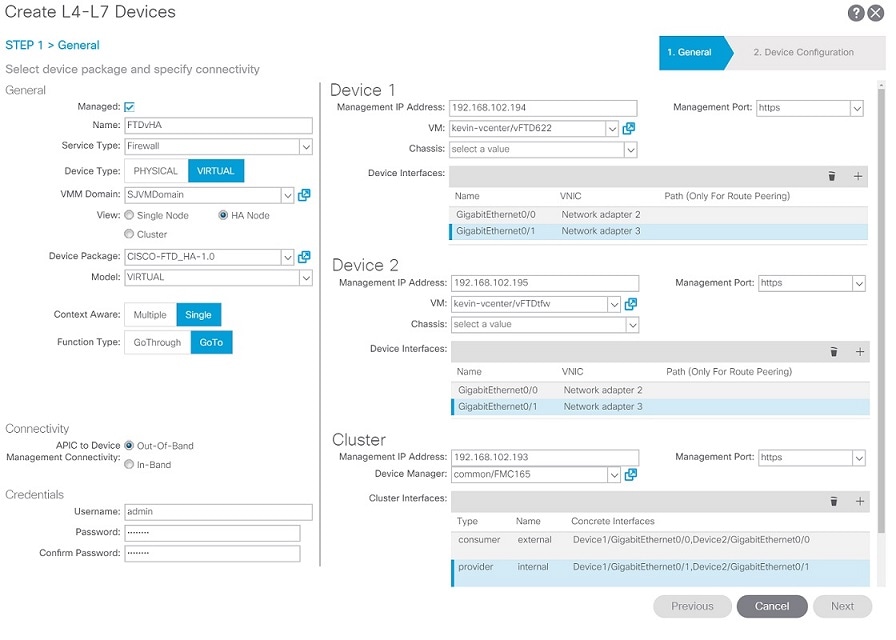

On the APIC, when you Create L4-L7 Devices, in the Cluster section:

• Management IP Address is the IP address of the FMC.

• Device Manager is pre-defined on the FMC.

• For Cluster Interfaces, specify the interfaces for both members of the HA pair.

  Click "+" to enter information for each interface.

  Click Update to add each interface.

  • Name: external

    Type: consumer

    Concrete Interfaces: Select Device1/GigabitEthernet0/0 and Device2/GigabitEthernet0/0

  • Name: internal

    Type: provider

    Concrete Interfaces: Select Device1/GigabitEthernet0/1 and Device2/GigabitEthernet0/1

Dynamic EPG Update

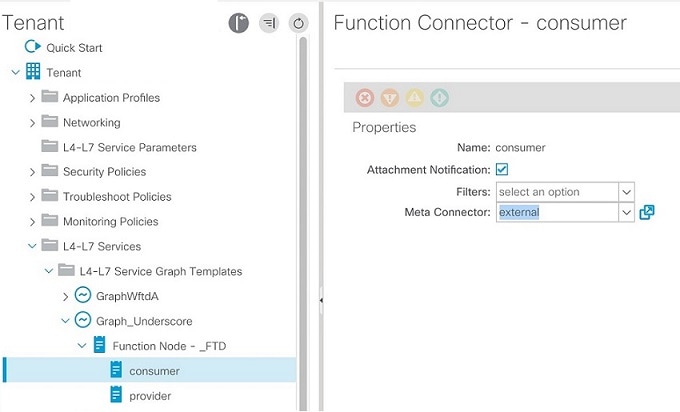

Select the Attachment Notification check box to enable Dynamic EPG on the APIC:

Existing Features From Version 1.0(1)

• Create interface configuration for FTD

  • Configure enabled

  • Configure logical name

  • Configure MTU

  • Configure security zone

  • Configure inline set

  • Configure static IPv4 addresses

• Create new bridge group interface for Transparent mode

  • Configure bridge group ID

  • Configure static IPv4 addresses

  • Configure interface reference

• Create new inline set

  • Configure snort fail open down

  • Configure snort fail open busy

  • Configure MTU

  • FTD physical appliance with Inline Set requires a specially designed ACI service graph with the same VLAN ID on both interfaces

• Create new or update existing access rule

  • Configure source and destination security zones

• Create new or update existing access policy

  • Configure name

• Create new security zone

  • Configure type

Resolved Enhancement Requests in Version 1.0(2)

Table 2 Enhancement Requests Resolved in the Cisco FTD Device Package, Version 1.0(2)

Caveat	Description
CSCvd94266	Handling serviceAudit call improved in FTD-DP ftd-device-pkg
CSCvf02605	Support automatic HA deployment in FTD-DP
CSCvf71967	Support VLAN Trunking on virtual FTDs ftd-device-pkg
CSCvf91529	Changed the '+' sign in the logical interface name to '_'
CSCvg50981	Add BVI logical name for IRB traffic to flow

Resolved Caveats in Version 1.0(2)

Table 3 Caveats Resolved in the Cisco FTD Device Package, Version 1.0(2)

Caveat	Description
CSCvd88598	Default MTU not getting updated in ftd-device-pkg
CSCvd88725	Logical name is not being cleared during inline graph dissassociation
CSCve40048	Stacktrace when device package gets 429 response code
CSCve40111	In command_interaction.py there is an error with function remove_value_from_dict
CSCve75140	Misspelling and incorrect description in device model file
CSCvg33615	Access rule not created if same name existed in another policy
CSCvg57189	Add upper limit for the number of retries when FMC gives 429-error
CSCvg58964	Interfaces associated with BVI shut down when IP address changed by FTD DP
CSCvg73120	Associated interfaces deleted if BVI interface ID changed

Open Caveats in Version 1.0(2)

Table 4 Open Caveats (severity 1 to 3) in the Cisco FTD Device Package, Version 1.0(2)

Caveat	Description
CSCve00407	Java Exception failure from FMC when GET request sent, graph fails to deploy
CSCvg06100	VLAN Trunking fails in Transparent mode on virtual FTD
CSCvg84142	Deployment error due to "Object Not Found" error on FMC

Bug Search

As a registered Cisco.com user, sign in to view more information about each bug or caveat using the Cisco Bug Search Tool.

Features Not Supported in Version 1.0(2)

The APIC cannot configure the following features using the FTD device package:

• Dynamic routing

• Static routing

• Port-channels

• Deploy configuration to FTD devices in clustering mode

• Access control policy rule ports, IPs, or inspections

• Network Address Translation (NAT)

Note	For any unsupported FTD feature, we recommended that you clean up the configuration manually before removing a service graph or deleting the tenant.

Known Issues

This section describes known issues and their workarounds.

CSCvf88494

When deleting a tenant with a large configuration, the device package process is killed before it can finish the service call, resulting in a configuration that may not be completely cleaned up on the FMC. This may occur when:

• Using the FTD device package, version 1.0.2

• The tenant contains a device that has more than 50 service graphs deployed

• Deleting the tenant directly before detaching the service graphs

Workaround

Detach the service graphs before deleting the tenant, or increase various timeout values on the APIC using its REST API. The REST payload is like this:

<polUni>
    <infraInfra>
        <vnsMDev vendor=CISCO model=FTD_FI version=1.0>
           <vnsDevScript auditTimeout=10800 modifyTimeout=10800  watchdogTimeout=10800/>
        </vnsMDev>
    </infraInfra>
</polUni>

You can use the Cisco-provided Python script to access the APIC REST API and modify the timeout values:

1. Before deleting the tenant, run the script to change the timeout value to its maximum number:

   set_timeout.py <APIC_IP> <USERNAME> <PASSWORD> maximum

2. Delete the tenant from the APIC.

3. Monitor the debug.log from the APIC to verify that the service call has completed. Or check the FMC to verify that all relevant configuration data has been cleaned up (such as access rules, security zones, sub-interfaces, and inline sets).

4. Run the script again to change the timeout value back to its default number. Otherwise, unexpected behavior may occur.

   set_timeout.py <APIC_IP> <USERNAME> <PASSWORD> default

Note	Note: If the “CISCO-FTD_FI-1.0” device package is not installed on the APIC, running the script results in a “Bad Request” error. This error message can be safely ignored, as the script is designed to affect this particular device package only.

For more information, see CSCvg00515, opened to track this issue.

CSCvg06100

VLAN trunking fails in Transparent mode on a virtual FTD.

Workaround

Opened to track the FMC issue in CSCvf90086.

Enable the trunking port after creating the L4-L7 device. Then, apply the service graph.

If the deployment fails:

1. On the FMC:

   1. Navigate to Devices, and select the FTD.

   2. Delete the new BVI and the associated sub-interfaces. Click Save. Click Deploy.

   3. Wait for the FMC to complete the deployment.

2. On the APIC:

   1. In the node tree on the left, navigate to L4-L7 Devices, and select the device.

   2. Verify that the Trunking Port check box is selected.

   3. Right-click the device, and select Re-Query For Device Validation.

CSCvc46536

Multiple graph deployment needs a different parameter name for an access rule.

Workaround

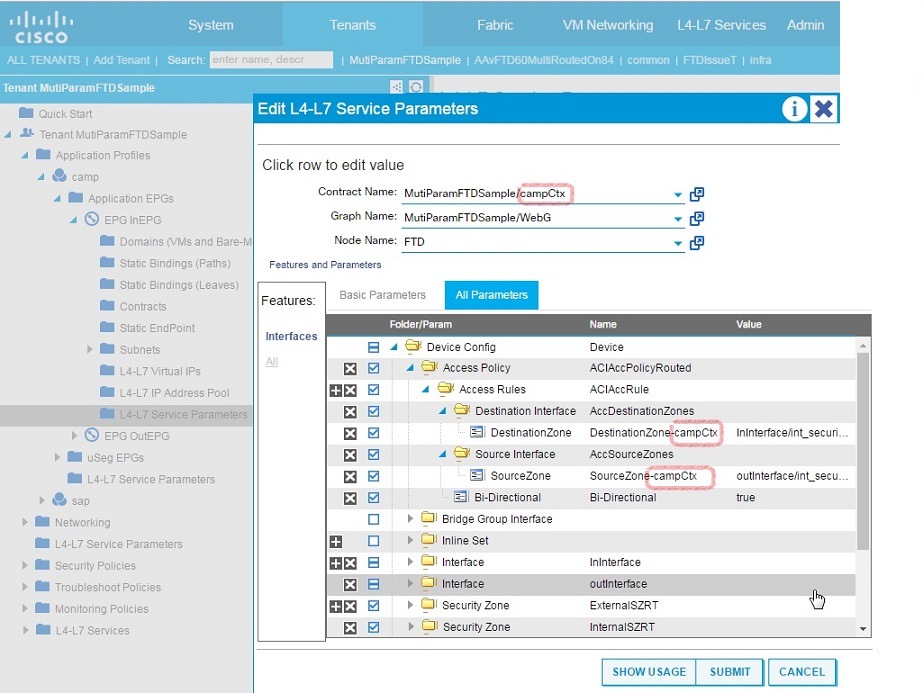

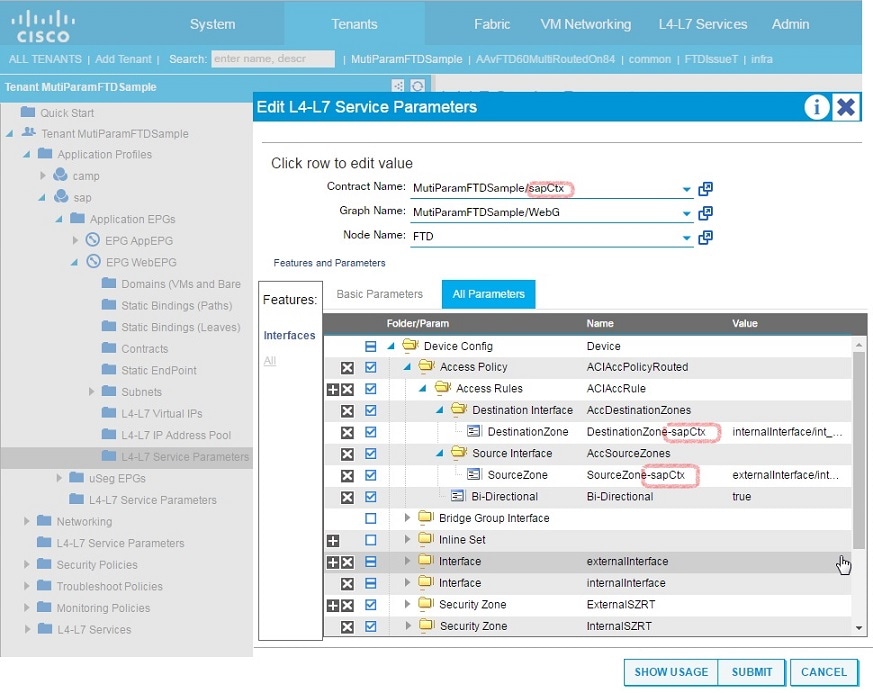

For instance, Access Rules is a common APIC configuration parameter that can be shared across multiple graph deployments on the same L4-L7 device. In order to attach each graph deployment's interface security zones to a common access rule, provide different names for the SourceZone and DestinationZone parameters. For example, append each parameter with a matching suffix name, such as SourceZone-campCtx and DestinationZone-campCtx in one case and SourceZone-sapCtx and DestinationZone-sapCtx in another.

•
•

For more information, see the FMC Configuration Guide in Related Documentation.

Related Documentation

• Cisco Application Centric Infrastructure Fundamentals

• Cisco APIC Layer 4 to Layer 7 Services Deployment Guide

• Cisco Firepower Threat Defense NGFW

• Cisco Firepower Management Center
