Installing Cisco VIM through Cisco VIM Unified Management

The VIM UM has an UI admin, who has the privilege to manage the UI offering. The Insight UI admin, has the rights to add the right users as Pod administrators. Post bootstrap, the URL for the UI will be: https://br_api:9000.

The following topics helps you to install and configure Cisco Virtual Infrastructure Manager with VIM Insight:

Unified Management Dashboard

When you login as UM admin, you will be redirected to the UM admin Dashboard.

The UM dashboard displays the following information about the pods it is currently managing:

Pod Status

  • Active - Number of Pods which has health status OK (Example: Mgmt Node health of the pod is good).

  • Inactive - Number of Pods whose health status is not good (Example:. Mgmt Node health of the pod is not good).

  • Total number of Pods - Number of Pods registered in the system.

Pod Users

  • Total – Total number of users registered who are associated with at-least one Pod.

  • Registered – Number of users who have completed the registration process and are associated with at-least one Pod.

  • Active – Number of Online users who are associated with at-least one Pod.

You can see the list of Pod with its Pod name, description, IP address, location, Pod status along with the Total users and Active users of each pod. You can search for a Pod using Name, IP and location in the search option.

If you click Get health of current nodes icon (spin) it does the health check of the Pod.

Pods

Pods allows you to check the health status (indicated through green and red dot) of the pod respectively.

To fetch the latest health status, click Refresh which is at the upper right corner.

  • Green dot – Pod is reachable and health is good.

  • Red dot – Pod is not reachable.

Pod Users

The Pod Users page, gives you the details associated the pod, status (Online or Offline) and their Roles.

UM admin has the right to manage all Pod users in the system. The user with UM admin access can manage the following actions:

  • Revoke User’s permission from a specific Pod.

  • Delete User from the system.

Revoking User

UM admin revokes the user’s permission from a Pod by clicking (undo) icon. If the user is the only user with a Full-Pod-Access role for that particular Pod, then the revoke operation is not permitted. In this case, another user is granted with a Full-Pod-Access role for that Pod and then proceeds with revoking the old user.


Note

If the user is revoked from the last associated Pod, then the user is deleted from the system.

Deleting Users

UM admin can delete any user from the system by clicking X from an Action column. The delete operation is not permitted if the user has Full-Pod-Access. In, such case another user is granted with Full-Pod-Access role for that Pod and then proceed with deleting the old user. UM admin must revoke respective permission first and then proceed further.

Pod Administrator

Pod admins are the users who has the permission to register new Pods in the system. UM admin can add any number of Pod admins in the system.

Adding Pod Admin

Procedure

Step 1

Log in as UI Admin and navigate to POD Administrator page.

Step 2

Click Add Pod Administrator .

Step 3

Enter the Email ID of the user.

  • If email is already registered, then Username gets populated automatically.

  • If not registered, an email is sent to the user email ID.
Step 4

Navigate to https://br_api :9000.
Step 5

Enter the Email ID and the Password of the Pod Admin and click Login as Pod User, it redirects to the landing page. Now the Pod admin can register a new Pod.

Revoking Pod Admin

UM admin can revoke Pod admin’s permission anytime. To revoke Pod admin permission for the user, click undo icon.


Note

You cannot revoke self permission.

Unified Management (UM) Administrator

UM admins have the access to the UM profile. Only a UM admin can add another UM admin in the system. There should be at least one UM admin in the system.

Adding UM Admin

To add a UM admin perform the following steps.

Procedure

Step 1

Log in as UI Admin and navigate to UM Administrator page.

Step 2

Click Add UM Administrator.

Step 3

Enter the Email ID of the user.

  • If email is already registered then Username gets populated automatically.

  • If not registered, an email is sent to the user Email ID.
Step 4

Navigate to https://br_api: 9000.
Step 5

Enter the Email ID and the Password of the UM Admin and click Log in as UM admin it will redirect to UM dashboard.

Revoking UM Admin

UM admin can revoke another UM admin’s permission. To revoke UM Admin permission for any user, click undo icon.


Note
You cannot revoke a self’s permission. You can revoke a user if the user is not associated with any pod. After, revoking the user is deleted from the system.

Registering New Pod to Insight

Following are the steps that are required for UI Admin to register a Pod Admin:

Before you begin

UI Admin has to register a Pod Admin to allow the user to access a pod.

Procedure

Step 1

Log in as UM Administrator, you will be redirected to UM Admin section.

Step 2

Navigate to Pod Administrator and click Add Pod Admin.

Step 3

Enter the Email ID and the Password of the Pod Admin and click Login as Pod User, it will redirect to landing page.

Step 4

Click Add New Pod to register a Pod. Add New Pod popup window appears on the screen.

Step 5

Enter the Add New Pod field values, and click Browse to browse the Root CA certificate and Upload it.

Step 6

Click Register to start the Pod registration process starts.

The newly created Pod appears on the Landing Page.

Configuring OpenStack Installation

Before you begin

You need to create a Blueprint (B or C Series) to initiate OpenStack Installation through the VIM.

Procedure

Step 1

In the navigation pane, choose Pre-Install > Blueprint Setup.

Step 2

To create a B Series Blueprint:

  1. On the Blueprint Initial Setup pane of the Cisco VIM Insight, complete the following fields:

    Name Description

    Blueprint Name field

    Enter blueprint configuration name.

    Platform Type drop-down list

    Choose one of the following platform types:

    • B-Series (By default) choose B series for this section.

    • C-Series

    Tenant Network drop-down list

    Choose one of the following tenant network types:

    • Linuxbridge/VXLAN

    • OVS/VLAN

    Pod Type drop-down list

    Choose one of the following pod types:

    • Fullon(By Default)

    Ceph Mode drop-down list

    Choose one of the following Ceph types:

    • Dedicated

    • Central (By Default) - Not supported in Production

    Optional Features and Services Checkbox

    Swiftstack, LDAP, Syslog Export Settings, Install Mode, ToR Switch Information, TLS, NFVMON, Pod Name, VMTP, NFV Bench, Auto-backup, Heat, Keystone v3, Enable Esc Priv.

    If any one is selected, the corresponding section is visible in various Blueprint sections.

    By default all features are disabled except Auto -backup.

    Import Existing YAML file

    Click Browse button to import the existing yaml file.

    If you have an existing B Series YAML file you can use this feature to upload the file.

    Unified Management automatically fill in the fields and if any mandatory field is missed then it gets highlighted in the respective section.

  2. Click Physical Setup to navigate to the Registry Setup configuration page. Fill in the following details for Registry Setup:

    Name Description

    Registry User Name text field

    Enter the User-Name for Registry (Mandatory).

    Registry Password text field

    Enter the Password for Registry (Mandatory).

    Registry Email text field

    Enter the Email ID for Registry (Mandatory).

    Once all mandatory fields are filled the Validation Check Registry Pane shows a Green Tick.

  3. Click UCSM Common Tab and complete the following fields:

    Name Description

    User name disabled field

    By default the value is Admin.

    Password text field

    Enter Password for UCSM Common (Mandatory).

    UCSM IP text field

    Enter IP Address for UCSM Common (Mandatory).

    Resource Prefix text field

    Enter the resource prefix(Mandatory).

    QOS Policy Type drop-down

    Choose one of the following types:

    • NFVI (Default)

    • Media

    Max VF Count text field

    Select the Max VF Count.

    <1-54> Maximum VF count 54, default is 20.

    If VF performance is enabled we recommend you to keep MAX_VF_COUNT to 20 else may fail on some VICs like 1240.

    Enable VF Performance optional checkbox

    Default is false. Set to true to apply adaptor policy at VF level.

    Enable Prov FI PIN optional checkbox

    Default is false.

    MRAID-CARD optional checkbox

    Enables JBOD mode to be set on disks. Applicable only if you have RAID controller configured on Storage C240 Rack servers.

    Enable UCSM Plugin optional checkbox

    Visible when Tenant Network type is OVS/VLAN.

    Enable QoS Policy optional checkbox

    Visible only when UCSM Plugin is enabled. If UCSM Plugin is disabled then this option is set to False.

    Enable QOS for Port Profile optional checkbox

    Visible only when UCSM Plugin is enabled.

    SRIOV Multi VLAN Trunk optional grid

    Visible when UCSM Plugin is enabled. Enter the values for network and vlans ranges. Grid can handle all CRUD operations such as Add, Delete, Edit and, Multiple Delete.

  4. Click Networking to advance to the networking section of the Blueprint:

    Name Description

    Domain Name field

    Enter the domain name (Mandatory).

    HTTP Proxy Server field

    If your configuration uses an HTTP proxy server, enter the IP address of the server.

    HTTPS Proxy Server field

    If your configuration uses an HTTPS proxy server, enter the IP address of the server.

    IP Tables on Management Pods

    Specifies the list of IP Address with Mask.

    NTP Server

    Enter a maximum of four and minimum of one IPv4 and /or IPv6 addresses in the table.

    Domain Name Server

    Enter a maximum of three and minimum of one IPv4 and/or IPv6 addresses.

    Network table

    Network table is pre-populated with segments. To add Networks you can either clear all the table using Delete All or click Edit icon for each segment and fill in the details.

    You can add, edit, or delete network information in the table:

    • Click + to enter new entries (networks) to the table.

    • Specify the following fields in the Edit Entry to Networks dialog box.

    Name Description

    VLAN field

    Enter the VLAN ID.

    For Segment - Provider, the VLAN ID value is always none.

    Segment drop-down list

    You can select any one segment from the drop-down list.

    • API

    • Management/Provision

    • Tenant

    • CIMC

    • Storage

    • External

    • Provider (optional)

    Note

    Some segments do not need some of the values listed in the preceding points.

    Subnet field

    Enter the IPv4 address for the subnet.

    IPv6 Subnet field

    Enter IPv6 address. This field is available only for Management provision and API.

    Gateway field

    Enter the IPv4 address for the Gateway.

    IPv6 Gateway field

    Enter IPv6 gateway. This field is available only for Management provision and API network.

    Pool field

    Enter the pool information in the following format. For example: 10.30.1.1 or 10.30.1.1 to 10.30.1.12

    IPv6 Pool field

    Enter the pool information in the following format. For example: 10.1.1.5-10.1.1.10,10.2.1.5-10.2.1.10

    This field is only available for the Mgmt/Provision.

    Click Save.

  5. On the Servers and Roles page of the Cisco VIM Suite wizard, you see a pre-populated table filled with Roles: Control, Compute and Block Storage (Only if CEPH Dedicated is selected in Blueprint Initial Setup.

    Name Description

    Server User Name field

    Enter the username of the server.

    Disable Hyperthreading

    Default value is false. You can set it as true or false.

    Cobbler

    Enter the Cobbler details in the following fields:

    Name

    Description

    Cobbler Timeout field

    The default value is 45 min.

    This is an optional parameter. Timeout is displayed in minutes, and its value ranges from 30 to 120.

    Block Storage Kickstart field

    Kickstart file for Storage Node.

    Admin Password Hash field

    Enter the Admin Password. Password must be Alphanumeric. Password should contain minimum 8 characters and maximum of 32 characters.

    Cobbler Username field

    Enter the cobbler username to access the cobbler server.

    Control Kickstart field

    Kickstart file for Control Node.

    Compute Kickstart field

    Kickstart file for Compute Node.

    Cobbler Admin Username field

    Enter the admin username of the Cobbler.

    Add Entry to Servers and Roles

    Click Edit or + to add a new server and role to the table.

    Server Name

    Enter a server name.

    Server Type drop-down list

    Choose Blade or Rack from the drop-down list.

    Rack ID

    The Rack ID for the server.

    Chassis ID

    Enter a Chassis ID.

    If Rack is chosen, the Rack Unit ID field is displayed.

    Enter a Rack Unit ID.

    If Blade is chosen, the Blade ID field is displayed.

    Enter a Blade ID.

    Select the Role from the drop-down list.

    If Server type is Blade then select Control and Compute. If server is Rack then select Block Storage.

    Management IP

    It is an optional field but if provided for one server then it is mandatory to provide details for other Servers as well.

    Management IPv6

    Enter the Management IPv6 Address.

    Click Save.

  6. Click ToR Switch checkbox in Blueprint Initial Setup to enable the TOR SWITCH configuration page. It is an Optional section in Blueprint Setup, but when all the fields are filled it is a part of the Blueprint.

    Name Description

    Configure ToR optional checkbox.

    Enabling this checkbox, changes the configure ToR section from false to true.

    ToR Switch Information mandatory table.

    Click (+) to add information for ToR Switch.

    Name

    Description

    Hostname

    ToR switch hostname.

    Username

    ToR switch username.

    Password

    ToR switch password.

    SSH IP

    ToR switch SSH IP Address.

    SSN Num

    ToR switch ssn num.

    VPC Peer Keepalive

    Peer Management IP. You do not define if there is no peer.

    VPC Domain

    Do not define if peer is absent.

    VPC Peer Port Info

    Interface for vpc peer ports.

    BR Management Port Info

    Management interface of the management node.

    BR Management PO Info

    Port channel number for management interface of the management node.

    ClickSave.

    On clicking save button, Add ToR Info Connected to Fabric field is visible.

    Port Channel field.

    Enter the Port Channel input.

    Switch Name field.

    Enter the name of the Switch.

  7. Click OpenStack Setup tab to advance to the OpenStack Setup Configuration page. On the OpenStack Setup page of the Cisco VIM Insight wizard, complete the following fields:

    Name

    Description

    HA Proxy

    Fill in the following details:

    External VIP Address field

    Enter the IP address of the External VIP.

    External VIP Address IPv6 field

    Enter the IPv6 address of the External VIP.

    Virtual Router ID field

    Enter the Router ID for the HA.

    Internal VIP Address IPv6 field

    Enter the IPv6 address of the Internal IP.

    Internal VIP Address field

    Enter the IP address of the Internal VIP.

    Keystone

    The following are the Pre-populated field values. This option is always set to be true.

    Admin Username field admin
    Admin Tenant Name field admin

    LDAP (Only if Keystonev3 is enabled)

    Note

    This option is only available with Keystone v3

    This is available only when Keystone v3 and LDAP both are enabled under Optional Features and Services in Blueprint Initial Setup.

    Domain Name field

    Enter the Domain name.

    Object Class for Users field

    Enter a string as input.

    Object Class for Groupsfield

    Enter a string.

    Domain Name Tree for Users field

    Enter a string.

    Domain Name Tree for Groups field

    Enter a string.

    Suffix for Domain Name field

    Enter a string.

    URL field

    Enter a URL with ending port number.

    Domain Name of bind user field

    Enter a string.

    Password field

    Enter Password as string format.

    User Filter field

    Enter filter name as string.

    User ID Attribute field

    Enter a string.

    User Name Attribute field

    Enter a string.

    User Mail Attribute field

    Enter a string.

    Group Name Attribute field

    Enter a string.

    Neutron

    Neutron fields change on the basis of Tenant Network Type selection from Blueprint Initial Setup. Following are the options available for Neutron for OVS/VLAN:

    Tenant Network Type field

    It is Auto-filled based on the Tenant Network Typeselected in the Blueprint Initial Setup page.

    Mechanism Drivers field

    It is Auto-filled based on the Tenant Network Type selected in Blueprint Initial Setup page.

    NFV Hosts field

    It is Auto-filled with the Compute you added in Server and Roles.

    If you select All in this section NFV_HOSTS: ALL is added to the Blueprint or you can select one particular compute. For Example:

    NFV_HOSTS: compute-server-1, compute-server-2.

    Tenant VLAN Ranges field

    List of ranges separated by comma form start:end.

    Provider VLAN Ranges field

    List of ranges separated by comma form start:end.

    VM Hugh Page Size (available for NFV_HOSTS option) field

    2M or 1G

    Enable Jumbo Frames field

    Enable the checkbox.

    For Tenant Network Type, Linux Bridge everything remains the same but Tenant VLAN Ranges is removed.

    CEPH

    1. 1. When Object Storage Backend is selected as Central in the blueprint initial setup.

      CEPH Mode By default Ceph Mode is Central.
      Cluster ID Enter the Cluster ID.
      Monitor Host Enter the Monitor Host for CEPH
      Monitor Members Enter the Monitor Members for CEPH
      Secret UUID Enter the Secret UUID for CEPH
      NOVA Boot from You can choose CEPH or local from the drop-down list.

      NOVA RBD POOL

      Enter the NOVA RBD Pool (default's to vms)

      CEPH NAT

      CEPH NAT is required for Central Ceph and when mgmt network is not routable.

    2. When Object Storage Backend is selected as Dedicated in the blueprint initial setup.

      • CEPH Mode: By default Dedicated.

      • NOVA Boot: From drop-down selection you can choose CEPH or local.

    3. When Object Storage Backend is selected as NetApp in the blueprint initial setup.

    GLANCE

    1. When Object Storage Backend is selected as Central in the blueprint initial setup.

    Store Backend By default CEPH.
    Glance RBD Pool field By default images.
    Glance Client Key

    Enter GLANCE Client Key

    2. When Object Storage Backend is selected as Dedicated in the blueprint initial setup.

    By default Populated for CEPH Dedicated with Store Backend value as CEPH.

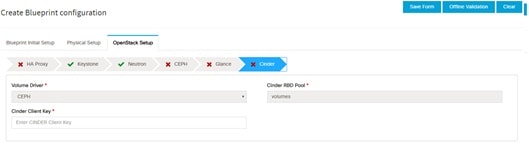

    CINDER

    By default Populated for CEPH Dedicated with Volume Driver value as CEPH.

    Volume Driver By default CEPH.
    Cinder RBD Pool field By default volumes.
    Cinder Client Key

    Enter Cinder Client Key
    VMTP

    VMTP optional section will only be visible once VMTP is selected from Blueprint Initial Setup.

    Check one of the check boxes to specify a VMTP network:

    • Provider Network

    • External Network

    For the Provider Network complete the following:

    Network Name field

    Enter the name for the external network.

    Subnet field

    Enter the Subnet for Provider Network.

    Network IP Start field

    Enter the start of the floating IPv4 address.

    Network IP End field

    Enter the end of the floating IPv4 address.

    Network Gatewayfield

    Enter the IPv4 address for the Gateway.

    DNS Server field

    Enter the DNS server IPv4 address.

    Segmentation ID field

    Enter the segmentation ID.

    For External Network fill in the following details:

    Network Name field

    Enter the name for the external network.

    Subnet field

    Enter the Subnet for the external Network.

    Network IP Start field

    Enter the start of the floating IPv4 address.

    Network IP End field

    Enter the endof the floating IPv4 address.

    Network Gateway field

    Enter the IPv4 address for the Gateway.

    DNS Server field

    Enter the DNS server IPv4 address.

    TLS This optional section will only be visible once TLS is selected from Blueprint Initial Setup Page.

    TLS has two options:

    • External LB VIP FQDN - -Text field.

    • External LB VIP TLS True/False. By default this option is false.

    Under the OpenStack setup tab, Vim_admins tab will be visible only when Vim_admins is selected from the Optional Features & Services under the Blueprint Initial setup tab

    Following are the field descriptions for VIM Admins:

    • User Name - Text field.

    • Password -Password field. Admin hash password should always start with $6.

    SwiftStack optional section will be visible once SwiftStack is selected from Blueprint Initial Setup Page. SwiftStack is only supported with KeyStonev2 . If you select Keystonev3, swiftstack will not be available for configuration.

    Following are the options that needs to be filled for SwiftStack:

    Cluster End Point field IP address of PAC (Proxy-Account-Container) endpoint.
    Admin User field Admin user for swift to authenticate in keystone.
    Admin Tenant field The service tenant corresponding to the Account-Container used by the Swiftstack.
    Reseller Prefix field Reseller_prefix as configured for Keysone Auth,AuthToken support in Swiftstack. Example: KEY_
    Admin Password field swiftstack_admin_password
    Protocol http or https

  8. If Syslog Export or NFVBENCH is selected in Blueprint Initial Setup, the Services Setup pane is enabled for the user to view.

    Following are the options under Services Setup Tab:

    Name Description

    Syslog Export

    Following are the options for Syslog Settings:

    Remote Host

    Enter Syslog IP address.

    Protocol

    Only UDP is supported.

    Facility

    Defaults to local5.

    Severity

    Defaults to debug.

    Clients

    Defaults to ELK.

    Port

    Defaults to 514 but can be modified by the User.

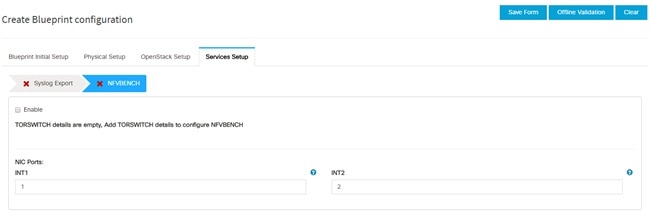

    NFVBENCH

    NFVBENCH enable checkbox which by default is False.

    Add ToR information connected to switch:

    • Select a TOR Switch and enter the Switch name.

    • Enter the port number. For example:eth1/5. VTEP VLANS (mandatory and needed only for VXLAN): Enter 2 different VLANs for VLAN1 and VLAN2

    • NIC Ports: INT1 and INT2 optional input. Enter the 2 port numbers of the 4-port 10G Intel NIC at the management node used for the NFVBench.

    ENABLE_ESC_PRIV

    Enable the checkbox to set it as True. By default it is False.

Step 3

To create a C Series Blueprint:

  1. On the Blueprint Initial Setup page of the Cisco VIM Insight, complete the following fields:
    Name Description

    Blueprint Name field.

    Enter the name for the blueprint configuration.

    Platform Type drop-down list

    Choose one of the following platform types:

    • B-Series (By default)
    • C-Series ( Select C Series)

    Tenant Network drop-down list

    Choose one of the following tenant network types:

    • Linux Bridge/VXLAN

    • OVS/VLAN

    • VTS/VLAN

    • VPP/VLAN

    • ACI/VLAN

    Note
    when VTS/VLAN or ACI/VLAN is selected then respective tabs are available on Blueprint setup. When Mechanism driver OVS or ACI is selected, VM_HUGEPAGE_PERCENTAGE field is enabled for all standalone compute nodes, when NFV_HOSTS is enabled.

    Pod Type drop-down list

    Choose one of the following pod type :

    • Fullon(By Default)

    • Micro

    • UMHC

    • NGENAHC

    Note

    • UMHC pod type is only supported for OVS/VLAN tenant type.

    • NGENAHC is supported for VPP/VLAN tenant type with no SRIOV

    • Pod type micro is supported for OVS/VLAN, ACI/VLAN,VPP/VLAN.

    Ceph Mode drop-down list

    Choose one of the following Ceph types:

    • Dedicated (By Default)
    • Central. Central is not supported in Production

    Optional and Services Features checkbox

    Swiftstack, LDAP, Syslog Export Settings, Install Mode, TorSwitch Information, TLS, NFVMON, Pod Name, VMTP, NFVBench, Autbackup, Heat, Keystone v3, Enable Esc Priv.

    If any one is selected, the corresponding section is visible in various Blueprint sections.

    By default all features are disabled except Auto Backup.

    Import Existing YAML file

    If you have an existing C Series YAML file you can use this feature to upload the file.

    Insight will automatically fill in the fields and any missed mandatory field will be highlighted in the respective section.

  2. Click Physical Setup to advance to the Registry Setup configuration page. Fill in the following details for Registry Setup:

    Name

    Description

    Registry User Name text field

    User-Name for Registry (Mandatory).

    Registry Password text field

    Password for Registry (Mandatory).

    Registry Email text field

    Email ID for Registry (Mandatory).

    Once all the mandatory fields are filled the Validation Check Registry Page will be changed to a Green Tick.

  3. Click CIMC Common Tab and complete the following fields:

    Name

    Description

    User Name disabled field

    By default value is Admin.

    Password text field

    Enter Password for UCSM Common (Mandatory).

  4. Click Networking to advance to the networking section of the Blueprint.

    Name

    Description

    Domain Name field

    Enter the domain name. (Mandatory)

    HTTP Proxy Server field

    If your configuration uses an HTTP proxy server, enter the IP address of the server.

    HTTPS Proxy Server field

    If your configuration uses an HTTPS proxy server, enter the IP address of the server.

    IP Tables on Management Pods

    Specifies the list of IP Address with Mask.

    NTP Servers field

    Enter a maximum of four and minimum of one IPv4 and/or IPv6 addresses in the table.

    Domain Name Servers field

    Enter a maximum of three and minimum of one IPv4 and/or IPV6 addresses.

    Networks table

    Network table is pre-populated with Segments. To add Networks you can either clear all the table with Delete all or click edit icon for each segment and fill in the details.

    You can add, edit, or delete network information in the table.

    • Click Add (+) to add new entries (networks) to the table.

    • Specify the following fields in the Edit Entry to Networks dialog:

    Name Description

    VLAN field

    Enter the VLAN ID.

    For Segment - Provider, the VLAN ID value is 'none'.

    Segment drop-down list

    When you add/edit new segment then following segments types are available in the form of dropdown list and you can select only one.

    • API

    • Management/provision

    • Tenant

    • Storage

    • External

    • Provider

    • ACIINFRA

    Note

    Aciinfra segment is available only when ACI/VLAN tenant type is selected) Depending upon the segment some of the entries below are not needed. Please refer to the example file in openstack-configs dir for details.

    Subnet field

    Enter the IPv4 address for the subnet.

    IPv6 Subnet field

    Enter IPv6 Address. This field will be available only for Management provision and API

    Gateway field

    Enter the IPv4 address for the Gateway.

    Gateway IPv6 field

    Enter the IPv6 address for the gateway. This will support for API and management provision.

    Pool field

    Enter the pool information in the required format, for example: 10.1.1.5-10.1.1.10,10.2.1.5-10.2.1.10

    This field is available only for the Mgmt/Provision, Storage, and Tenant segments.

    IPv6 Pool field

    Enter the pool information in the required format. For example: 10.1.1.5-10.1.1.10,10.2.1.5-10.2.1.10

    Click Save.

  5. On the Servers and Roles page of the Cisco VIM Suite wizard, a pre-populated table filled with Roles : Control, Compute and Block Storage (Only if CEPH Dedicated is selected in Blueprint Initial Setup is available.

    Note

    If you choose mechanism driver as OVS or ACI, VM_HUGEPAGE_PERCENTAGE field column is available for compute nodes, where you can fill values from 0 to 100%, when NFV_HOSTS: ALL is chosen.

    Name

    Description

    Server User Name field

    Enter the username of the Server.

    Disable Hyperthreading

    		Default value is false. You can set it as true or false.

    Cobbler

    Enter the Cobbler details in the following fields:

    Name

    Description

    Cobbler Timeout field

    The default value is 45 min.

    This is an optional parameter. Timeout is displayed in minutes, and its value ranges from 30 to 120.

    Block Storage Kickstart field

    Kickstart file for Storage Node.

    Admin Password Hash field

    Enter the Admin Password. Password should be Alphanumeric. Password should contain minimum 8 characters and maximum of 32 characters.

    Cobbler Username field

    Enter the cobbler username to access the cobbler server.

    Control Kickstart field

    Kickstart file for Control Node.

    Compute Kickstart field

    Kickstart file for Compute Node.

    Cobbler Admin Username field

    Enter the admin username of the Cobbler.

    Add Entry to Servers and Roles

    Note

    when Pod type micro is selected then all the three servers will be associated with control, compute and block storage role.

    For Example:

    Roles

    • Block Storage

      • -Server 1

      • -Server 2

      • -Server 3

    • Control

      • -Server 1

      • -Server 2

      • -Server 3

    • Compute

      • -Server 1

      • -Server 2

      • -Server 3

    Note

    When Pod type UMHC is selected then auto ToR configuration is not supported and the ToR info at server and roles level is not allowed to be entered.

    Click Edit or + to add a new server and role to the table.

    If mechanism driver is either OVS or ACI, an additional optional field VM_HUGEPAGE_PERCENTAGE is shown when compute role is chosen; This option is only valid when NFV_HOSTS is set to ALL; If no value is entered then the global value of VM_HUGEPAGE_PERCENTAGE is used.

    Server Name

    Entry the name of the server.

    Rack ID field

    The rack ID for the server.

    VIC Slot field

    Enter a VIC Slot.

    CIMC IP field

    Enter a IP address.

    CIMC Username field

    Enter a Username.

    CIMC Password field

    Enter a Password for CIMC.

    Select the Role from the drop down list

    Choose Control or Compute or Block Storage from the drop-down list.

    Management IP

    It is an optional field but if provided for one Server then it is mandatory to provide it for other Servers as well.

    Management IPv6

    Routable and valid IPv6 address. It is an optional field but if provided for one server then it is mandatory for all other servers as well.

    Click Save or Add .

    On clicking Save or Add all information related to Servers and Roles gets saved.

    If Configure ToR checkbox is Truewith at-least one switch detail, these fields will be displayed for each server and this is similar to DP Tor: Port Channel and Switch Name (Mandatory if Configure ToR is true)

    • Port Channel field

    • Switch Name field

    • Switch Port Info field

    • Enter the port channel input.

    • Enter the switch name.

    • Enter the switch port information.

    DP ToR (Only for Control and Compute) : Mandatory if Intel NIC and Configure TOR is True.

    • Port Channel field

    • Switch Name field

    • Switch Port Info field

    • Enter the port channel input.

    • Enter the switch name.

    • Enter the switch port information.

    SRIOV TOR INFO (Only for Compute Nodes). It is mandatory in server and roles if Intel NIC and Configure TOR is True. with TOR TYPE Nexus. For TOR TYPE NCS-5500 these fields are optional Switch Name (Mandatory if Configure ToR is true). This field appears only when Intel NIC support is true, as Auto TOR config is not supported in VIC_NIC combo

    • Switch Name field

    • Switch Port Info field

    • Enter the switch name.

    • Enter the switch port information.

    Intel SRIOV VFS (valid for Intel NIC testbeds) and can be integer.

    For SRIOV support for Intel NIC. By Default, SRIOV support is disabled. To enable, define a value in the range # * 1-32 when INTEL_NIC_SUPPORT is set True (X710 Max VFs = 32) # * 1-63 when CISCO_VIC_INTEL_SRIOV is set True (X520 Max VFs = 63)

    INTEL_SRIOV_PHYS_PORTS (valid for Intel NIC test beds) and can be of value 2 or 4 (default is 2)

    In some cases the # of Physical SRIOV port needed is 4; to meet that requirement, define the following: # this is optional, if nothing is defined code will assume it to be 2; the only 2 integer values this parameter # takes is 2 or 4 and is true when INTEL_NIC_SUPPORT is True and INTEL_SRIOV_VFS is valid.. For NCS-5500 this value is set to 4 and is non-editable.

    Click Save or Add .

    If all mandatory fields are filled click Save or Add to add information on Servers and Roles.

    Disable Hyperthreading

    		Default value is false. You can set it as true or false.

    Click Save

    Note
    Maximum two ToR info needs to be configured for each connection type on each node (control, compute and block_storage node).
    Note
    If pod type UMHC is selected then CISCO_VIC_INTEL_SRIOV is enabled to be TRUE. CISCO_VIC_INTEL_SRIOV is also supported on Micro pod with expanded computes
    Note
    For Tenant type ACI/VLAN, port channel for each ToR port will not be available in servers and roles, as APIC will automatically assign port-channel numbers. Also, for ACI in full on mode you can select Intel NIC Support in the “Servers and Roles” section.

  6. Click ToR Switch checkbox in Blueprint Initial Setup to enable the TOR SWITCH configuration page. It is an Optional section in Blueprint Setup but once all the fields are filled in then it will become a part of the Blueprint.

    Name

    Description

    Configure ToR optional checkbox.

    Note

    If UMHC is selected as podtype, configure TOR is not allowed.

    Enabling this checkbox, changes the configure ToR section from false to true.

    Note

    Configure tor is true then ToR switch info maps in servers

    ToR Switch Information mandatory table if you want to enter ToR information.

    Click (+) to add information for ToR Switch.

    Name

    Description

    Name

    ToR switch name.

    Username

    ToR switch username.

    Password

    ToR switch password.

    SSH IP

    ToR switch SSH IP.

    SSN Num

    ToR switch ssn num.

    VPC Peer Keepalive

    Peer Management IP. You cannot define if there is no peer.

    VPC Domain

    Cannot define if there is no peer.

    VPC Peer Port Info

    Interface for vpc peer ports.

    VPC Peer VLAN Info

    VLAN ids for vpc peer ports (optional).

    BR Management Port Info

    Management interface of build node.

    BR Management PO Info

    Port channel number for management interface of build node.

    BR Management VLAN info

    VLAN id for management interface of build node (access).

    Click Save.

    Note

    When tenant type ACI/VLAN is selected, the TOR switch information table differs and is mandatory.

    Name

    Description

    Configure ToR optional checkbox.

    Note

    If UMHC is selected as podtype, configure TOR is not allowed.

    Enabling this checkbox, changes the configure ToR section from false to true.

    Note

    Configure tor is true then ToR switch info maps in servers

    ToR Switch Information mandatory table if you want to enter ToR information.

    Click (+) to add information for ToR Switch.

    Name

    Description

    Name

    ToR switch name.

    Username

    ToR switch username.

    Password

    ToR switch password.

    SSH IP

    ToR switch SSH IP.

    SSN Num

    ToR switch ssn num.

    VPC Peer Keepalive

    Peer Management IP. You cannot define if there is no peer.

    VPC Domain

    Cannot define if there is no peer.

    VPC Peer Port Info

    Interface for vpc peer ports.

    VPC Peer VLAN Info

    VLAN ids for vpc peer ports (optional).

    BR Management Port Info

    Management interface of build node.

    BR Management PO Info

    Port channel number for management interface of build node.

    BR Management VLAN info

    VLAN id for management interface of build node (access).

    Click Save.

    Note

    When the Tenant type ACI/VLAN is selected, the ToR switch information table differs and is mandatory.

    Name

    Description

    Configure ToR

    Is not checked, as by default ACI will configure the ToRs

    Host Name

    ToR switch name.

    VPC Peer keep alive

    Enter Peer must be exist pair.

    VPC Domain

    Enter an integer.

    BR management port info

    Enter BR management port info eg. Eth1/19 ,atleast one pair to be exist.

    Enter Node ID

    Entered integer must be unique.

    Note

    If TOR_TYPE is selected as NCS-5500, the TOR switch information table differs and is mandatory.

    Name

    Description

    Configure ToR optional checkbox

    Note

    If NSC-5500 is selected as TOR_TYPE, configure TOR is set as mandatory.

    Enabling this checkbox, changes the configure ToR section from false to true.

    Note

    Configure TOR is true then ToR switchinfo maps in servers.

    If you want to enter NCS details fill in the NCS-5500 Information table.

    Click (+) to add information for NCS-500 Switch.

    Name

    Description

    Name

    Enter the NCS-5500 hostname.

    User Name

    Enter the NCS-5500 username.

    Password

    		Enter the NCS-5500 password.

    SSH IP

    Enter the NCS-5500 ssh IP Address.

    VPC Peer Link

    Peer management IP.

    BR Management PO Info

    Port channel number for management interface of build node.

    BR Management VLAN info

    VLAN id for management interface of build node (access).

    VPC Peer Port Info

    Interface for vpc peer ports.

    VPC Peer Port Address

    Address for ISIS exchange.

    ISIS Loopback Interface address

    ISIS loopack IP Address.

    ISIS net entity title

    Enter a String.

    ISIS prefix SID

    Integer between 16000 to 1048575.

    When TOR-TYPE selected as NCS-5500 and 2 NCS-5500 are configured it is mandatory to configure MULTI_SEGMENT_ROUTING_INFO

    Name

    Description

    BGP AS Number field

    Integer between 1 to 65535.

    ISIS Area Tagfield

    A valid string.

    Loopback Interface namefield

    Loopback Interface name.

    API bundle IDfield

    Integer between 1 to 65535.

    API bridge domain field

    String (Optional, only needed when br_api of mgmt node is also going through NCS-5500; this item and api_bundle_id are mutually exclusive).

    EXT bridge domain field

    A valid string (user pre-provisions physical, bundle interface, sub-interface and external BD for external uplink and provides external BD info setup_data).

  7. Click OpenStack Setup Tab to advance to the OpenStack Setup Configuration page. On the OpenStack Setup Configuration page of the Cisco VIM Insight wizard, complete the following fields:

    Name

    Description

    HA Proxy

    Fill in the following details:

    External VIP Address field

    Enter IP address of External VIP.

    External VIP Address IPv6 field

    Enter IPv6 address of External VIP.

    Virtual Router ID field

    Enter the Router ID for HA.

    Internal VIP Address IPv6 field

    Enter IPv6 address of Internal IP.

    Internal VIP Address field

    Enter IP address of Internal VIP.

    Keystone

    Mandatory fields are pre-populated.

    Admin User Name

    admin.

    Admin Tenant Name

    admin.

    LDAP

    LDAP enable checkbox which by default is false, if LDAP is enabled on keystone.

    Domain Name field

    Enter name for Domain name.

    Object Class for Users field

    Enter a string as input.

    Object Class for Groupsfield

    Enter a string.

    Domain Name Tree for Users field

    Enter a string.

    Domain Name Tree for Groups field

    Enter a string.

    Suffix for Domain Name field

    Enter a string.

    URL field

    Enter a URL with ending port number.

    Domain Name of Bind User field

    Enter a string.

    Password field

    Enter Password as string format.

    User Filter field

    Enter filter name as string.

    User ID Attribute field

    Enter a string.

    User Name Attribute field

    Enter a string.

    User Mail Attribute field

    Enter a string.

    Group Name Attribute field

    Enter a string.

    Neutron

    Neutron fields would change on the basis of Tenant Network Type Selection from Blueprint Initial Setup. Following are the options available for Neutron for OVS/VLAN:

    Tenant Network Type field

    Auto Filled based on the Tenant Network Type selected in the Blueprint Initial Setup page.

    Mechanism Drivers field

    Auto Filled based on the Tenant Network Type selected in Blueprint Initial Setup page.

    NFV Hosts field

    Auto filled with the Compute you added in Server and Roles.

    If you select All in this section NFV_HOSTS: ALL will be added to the Blueprint or you can select one particular compute. For Eg:

    NFV_HOSTS: compute-server-1, compute-server-2.

    Tenant VLAN Ranges field

    List of ranges separated by comma form start:end.

    Provider VLAN Ranges field

    List of ranges separated by comma form start:end.

    VM Hugh Page Size (available for NFV_HOSTS option) field

    2M or 1G (optional, defaults to 2M)

    VM_HUGHPAGE_PERCENTAGE

    Optional, defaults to 100%; can range between 0 and 100

    NR_RESERVED_VSWITCH_PCORES

    Allowed only for VPP

    Number of cores associated to VPP, defaults to 2.

    Enable Jumbo Frames field

    Enable the checkbox

    For Tenant Network Type Linux Bridge everything remains the same but Tenant VLAN Ranges will be removed.

    CEPH

    1. 1. When Object Storage Backend is selected Central in blueprint initial setup.

      CEPH Mode By default Central.
      Cluster ID Enter Cluster ID.
      Monitor Host Enter Monitor Host for CEPH
      Monitor Members Enter Monitor Members for CEPH
      Secret UUID Enter Secret UUID for CEPH
      NOVA Boot from Drop down selection. You can choose CEPH or local.

      NOVA RBD POOL

      Enter NOVA RBD Pool (default's to vms)

      CEPH NAT

      Optional, needed for Central Ceph and when mgmt network is not routable

    2. When Object Storage Backend is selected Dedicated in blueprint initial setup.

      • CEPH Mode: By default Dedicated.

      • NOVA Boot: From drop down selection you can choose CEPH or local.

    3. When Object Storage Backend is selected NetApp in blueprint initial setup.

    GLANCE

    1. When Object Storage Backend is selected Central in blueprint initial setup.

    When Object Storage Backend is selected Dedicated in blueprint initial setup.

    Note

    By default Populated for CEPH Dedicated with Store Backend value as CEPH.

    CINDER

    By default Populated for CEPH Dedicated with Volume Driver value as CEPH.

    2. When Object Storage Backend is selected Dedicated in blueprint initial setup.

    Note

    By default Populated for CEPH Dedicated with Volume Driver value as CEPH.

    VMTP optional section, this will be visible only if VMTP is selected from Blueprint Initial Setup. For VTS tenant type Provider network is only supported.

    Check one of the check boxes to specify a VMTP network:

    • Provider Network

    • External Network

    For the Provider Network complete the following:

    Network Name field

    Enter the name for the external network.

    Subnet field

    Enter the Subnet for Provider Network.

    Network IP Start field

    Enter the starting floating IPv4 address.

    Network IP End field

    Enter the ending floating IPv4 address.

    Network Gatewayfield

    Enter the IPv4 address for the Gateway.

    DNS Server field

    Enter the DNS server IPv4 address.

    Segmentation ID field

    Enter the segmentation ID.

    For External Network fill in the following details:

    Network Name field

    Enter the name for the external network.

    IP Start field

    Enter the starting floating IPv4 address.

    IP End field

    Enter the ending floating IPv4 address.

    Gateway field

    Enter the IPv4 address for the Gateway.

    DNS Server field

    Enter the DNS server IPv4 address.

    Subnet field

    Enter the Subnet for External Network.

    TLS optional section, this will be visible only if TLS is selected from Blueprint Initial Setup Page.

    TLS has two options:

    • External LB VIP FQDN - Text Field.

    • External LB VIP TLS - True/False. By default this option is false.

    Under the OpenStack setup tab, Vim_admins tab will be visible only when Vim_admins is selected from the Optional Features & Services under the Blueprint Initial setup tab

    Following are the field descriptions for VIM Admins:

    User Name

    Enter username

    Password

    Password field. Admin hash password should always start with $6.

    SwiftStack optional section will be visible only if SwiftStack is selected from Blueprint Initial Setup Page. SwiftStack is only supported with KeyStonev2. If you select Keystonev3, swiftstack will not be available to configure.

    Following are the options that needs to be filled for SwiftStack:

    Cluster End Point

    IP address of PAC (proxy-account-container) endpoint.

    Admin User

    Admin user for swift to authenticate in keystone.

    Admin Tenant

    The service tenant corresponding to the Account-Container used by Swiftstack.

    Reseller Prefix

    Reseller_prefix as configured for Keysone Auth,AuthToken support in Swiftstack E.g KEY_

    Admin Password

    swiftstack_admin_password

    Protocol

    http or https

    APICINFO tab is available in Openstack setup, when the Tenant type ACI/VLAN is selected in blueprint initial setup.

    Note

    When ACI/VLAN is selected then ToR switch from initial setup is mandatory.

    Name

    Description

    APIC Hosts field

    Enter host input. Example: <ip1|host1>:[port] . max of 3, min of 1, not 2;

    apic_username field

    Enter a string format.

    apic_password filed

    Enter Password.

    apic_system_id field

    Enter input as string. Max length 8.

    apic_resource_prefix field

    Enter string max length 6.

    apic_tep_address_ pool field

    Allowed only 10.0.0.0/16

    multiclass_address_pool field

    Allowed only 225.0.0.0/15

    apic_pod_id field

    Enter integer(1- 65535)

    apic_installer_tenant field

    Enter String, max length 32

    apic_installer_vrf field

    Enter String, max length 32

    api_l3out_network field

    Enter String, max length 32

    VTS tab is available in Openstack setup, when Tenant Type is VTS/VLAN selected.

    If vts day0 is enabled then SSH username and SSH password is mandatory.

    If SSH_username is input present then SSH password is mandatory vice-versa

    Name

    Description

    VTS Day0 (checkbox)

    True or false default is false.

    VTS User name

    Enter as string does not contain special characters.

    VTS Password

    Enter password

    VTS NCS IP

    Enter IP Address format.

    VTC SSH Username

    Enter a string

    VTC SHH Password

    Enter password

  8. If Syslog Export or NFVBENCH is selected in Blueprint Initial Setup Page, then Services Setup page will be enabled for user to view. Following are the options under Services Setup Tab:

    Name

    Description

    Syslog Export

    Following are the options for Syslog Settings:

    User can add maximum of three entries.

    To add new SysLog information, click on Add SysLog button, fill all the required information listed below and hit Save button.

    Remote Host

    Enter Syslog IP address.

    Protocol

    Only UDP is supported.

    Facility

    Defaults to local5.

    Severity

    Defaults to debug.

    Clients

    Defaults to ELK.

    Port

    Defaults to 514 but can be modified by the User.

    NFVBENCH

    NFVBENCH enable checkbox by default isfalse.

    Add ToR information connect to Switch:

    • Select a TOR Switch and enter the Switch name.

    • Enter the port number. For Example: eth1/5 . VTEP VLANS (mandatory and needed only for VTS/VXLAN,): Enter 2 different VLANs for VLAN1 and VLAN2.

    • NIC Ports: INT1 and INT2 optional input. Enter the 2 port numbers of the 4-port 10G Intel NIC at the management node used for NFVBench.

      NIC Slot: Optional input, indicates which NIC to use in case there are multiple NICs.

    ENABLE_ESC_PRIV

    Enable the checkbox to set it as True. By default it is False.

Step 4

Click Offlinevalidation, to initiate an offline validation of the Blueprint.

Step 5

Blueprint can also be created using an Upload functionality:

  • In Blueprint Initial Setup.

  • Click Browse in the blueprint initial setup.

  • Select the YAML file you want to upload.

  • Click Select button.

  • Clicking on load button in the Insight UI Application. All the fields present in the YAML file would be uploaded to the respective fields in UI.

  • Enter the name of the Blueprint (Make sure you enter unique name while saving Blueprints. There would be no two Blueprints with same name.)

  • Click Offline Validation.

  • If all the mandatory fields in the UI are populated, then Offline Validation of the Blueprint will start else a pop up would be visible which will inform which section of Blueprint Creation has a missing information error.

  • On Validation Success of Blueprint Save Blueprint button will be enabled with Cancel button

  • A pop up will be generated asking to initiate the deployment with Blueprint Name and the stages you need to run.

    On Validation Failure of Blueprint Cancel button will be enabled.

Once the Offlinevalidation is successful, Save option will be enabled which will redirect you to the Blueprint Management Page.

The wizard advances to the Blueprint Management page. On the Blueprint Management page you can select the recently added valid Blueprint and click Install button which is disabled by default.

A pop up will be generated asking to initiate the deployment with Blueprint Name and the stages you need to run.

By default all stages are selected but you can also do an incremented install.

In case of Incremented Install you should select stages in the order. For Example: If you select Validation Stage then the 2nd stage Management Node Orchestration will be enabled. You cannot skip stages and run a deployment.

Once you click Proceed the Cloud Deployment would be initiated and the progress can be viewed from "Dashboard".

Note

Once the Blueprint is in Active State, the Post-Install features listed in Navigation Bar will changed to Active stage.

Post Installation Features for Active Blueprint

This option is only available to a pod, which is successfully deployed. There are multiple sublinks available to manage the day-n operation of the pod. However, often Insight cross-launches the relevant services, through delegating the actual rendering to the individual services.

Monitoring the Pod

Cisco VIM uses ELK (elasticsearch, logstash and Kibana) to monitor the OpenStack services, by cross-launching the Kibana dashboard.

To cross launch Kibana, complete the following instructions:

Procedure

Step 1

Login as POD User.

Step 2

Naviagte to POD.

Step 3

Navigate to Post-install
Step 4

Click Monitoring

The Authentication Required browser pop up is displayed.
Step 5

Enter the username as admin.

Step 6

Enter the ELK_PASSWORD password obtained from /root/installer-<tagid>/openstack-configs/secrets.yaml in the management node.

Kibana is launched in an I-Frame
Note

Click Click here to view Kibana logs in new tab link to view Kibana Logs in a new tab.

Cross Launching Horizon

Horizon is the canonical implementation of Openstack's Dashboard, which provides a web based user interface to OpenStack services including Nova, Swift and, Keystone.

Procedure

Step 1

In the Navigation pane, click Post-Install > Horizon.

Step 2

Click Click here to view Horizon logs in new tab.

You will be redirected to Horizon landing page in a new tab.

NFVI Monitoring

NFVI monitoring is a Cross launch browser same as Horizon. NFVI monitoring link is available in the post install only if the setupdata has NFVI Monitoring configuration during the cloud deployment which basically pings the monitoring and checks status of Collector VM1 Info and Collector VM2 Info.

Procedure

Step 1

Login as POD User.

Step 2

Naviagte to POD.

Step 3

Navigate to Post-install
Step 4

Click Reconfigure.

Step 5

Click NFVI Monitoring
Step 6

Click the link Click here to view NFVI monitoring..

You will be redirected to NFVI monitoring page

Run VMTP

VIM 2.0, provides an integrated data and control plan test tool (called VMTP).VMTP helps you to test the cloud at any given time.

Run VMTP is divided in two sections:

  • Results for Auto Run: Auto run shows the results of VMTP which was run during the cloud deployment (Blueprint Installation).

  • Results for Manual Run: To run VMTP on demand click Run VMTP.


    Note

    If VMTP stage was skipped or not-run during Blueprint Installation, this section of POST Install gets disabled for the user.

Run CloudPulse

In VIM, we provide an integrated tool, called Cloud Pulse, that periodically checks the cloud services endpoint. The results of these tests are reflected under the Cloud Pulse link. You can also run these API endpoint tests on demand, and fetch the result of these tests by refreshing the table.

Endpoints Tests:

  1. cinder_endpoint

  2. glace_endpoint

  3. keystone_endpoint

  4. nova_endpoint

  5. neutron_endpoint

  6. all_endpoint_tests

Operator Tests:

  1. rabbitmq_check

  2. galera_check

  3. ceph_check

  4. node_check

  5. docker_check

  6. all_operator_tests

Run NFV Bench

One can Run NFV Bench for BandC series Pod, through Cisco VIM Insight. On a pod running with CVIM , click on the NFVbench link on the NAV-Menu.

You can run either fixed rate test or NDR/PDR test. As the settings and results for the test types differ, the options to run these tests are presented in two tabs, with its own settings and results .

NDR/PDR Test

Procedure

Step 1

Log-in to CISCO VIM Insight.

Step 2

In the Navigation pane, click Post-Install >Run NFV Bench.

Step 3

Click on NDR/PDR test and complete the following fields

Name

Description

Iteration Duration

Select duration from 10 to 60 sec. Default is 20 sec

Frame Size

Select the correct frame size to run

Run NDR/PDR test

Click on Run NDR/PDR test. Once NDR/PDR test is finished it will display each type of test with its own settings and results.

Fixed Rate Test

Procedure
Step 1

Log in as POD User.

Step 2

Navigate to POD.

Step 3

Navigate to Postinstall.
Step 4

Click Run NFV Bench.

Step 5

Click Fixed rate test and complete the following fields.

Name

Description

Rate

Rate: Select right configuration pps or bps from drop down-list and enter values:

For pps: minimum: 2500pps; maximum: 14500000pps (=14.5Mpps); default: 1000000pps (=1Mpps)

For bps: minimum: 1400000bps; maximum: 10000000000bps (=10Gbps); default: 1000000000 (=1Gbps)

Iteration Duration

Select duration from 10-60Sec. Default is 20sec.

Frame Size

Select the right frame size(64,IMIX,1518) to run.

Run Fixed Rate Test

Click Run Fixed Rate Test. Once Fixed rate test is finished, it displays each type of test with its own settings and results.

POD Management

One of the key aspects of Cisco VIM is that it provides the ability for the admin to perform pod life-cycle management from a hardware and software perspective. Nodes of a given pod corrupts at times and VIM provides the ability to add, remove or replace nodes, based on the respective roles with some restrictions. Details of pod management will be listed in the admin guide, however as a summary the following operations are allowed on a running pod:

Procedure

Step 1

Add or Remove Storage Nodes: You can add one node at a time, given that we run Ceph as a distributed storage offering.

Step 2

Add or Remove Computes Nodes: N-computes nodes can be replaced simultaneously; however at any given point, at least one compute node should be active.

Step 3

Replace Control Nodes: We do not support double fault scenarios, replacement of one controller at a time is supported.

System Update

As part of the lifecycle management of the cloud, VIM has the ability to bring in patches (bug fixes related to code, security, etc.), thereby providing the additional value of seamless cloud management from software perspective. Software update of the cloud is achieved by uploading a valid tar file following initiation of a System Update from the Insight as follows:

Procedure

Step 1

Login as POD User.

Step 2

Naviagte to POD.

Step 3

Navigate to Post-install
Step 4

Click System Update.

Step 5

Click Openstack Password
Step 6

Click Browse button.

Step 7

Select the valid tar file.

Step 8

Click Open > Upload and Update .

Message stating System Update has been initiated will be displayed. Logs front-ended by hyperlink would be visible in the section below before Update Logs to help see the progress of the update. During the software update, all other pod management activities will be disabled. Post-update, normal cloud management will commence.

Reconfiguring CIMC Password through Insight

Update the cimc_password in the CIMC-COMMON section, and/or the individual cimc_password for each server and then run the update password option.

To update a password, you need to follow the password rules:

  • Must contain at least one lower case letter.

  • Must contain at least one upper case letter.

  • Must contain at least one digit between 0 to 9.

  • One of these special characters !$#@%^-_+=*&

  • Your password has to be 8 to 14 characters long.

Before you begin

You must have a C-series pod up and running with Cisco VIM to reconfigure CIMC password.

Note

Reconfigure CIMC password section would be disabled if the pod is in failed state as indicated by ciscovim install-status.

Procedure

Step 1

Login as POD User.

Step 2

Naviagte to POD.

Step 3

Navigate to Post-install
Step 4

Click Reconfigure.

Step 5

Click Openstack Password

Name

Description

CIMC_COMMON old Password

CIMC_COMMON old password field cannot be edited.

CIMC-COMMON new Password

Enter new CIMC-COMMON password. Password should be alphanumeric according to the password rule.

Click Update Password

Old CIMC-COMMON password will be updated with new CIMC-COMMON password.

Reconfiguring OpenStack Password

Cisco VIM has been designed with security to accommodate users password policy.

There are two options to regenerate the Password:

  1. Regenerate all passwords: Check the Regenerate all passwords checkbox and click Set Password. This automatically regenerates all passwords in alphanumeric format.

  2. Regenerate single or more password: If you want to set a specific password for any service like Horizon's ADMIN_USER_PASSWORD you can add it by doing an inline edit. Double click field under Password and then enter the password which enables Set Password.


Note

During the reconfiguration of password, all other pod management activities are disabled. Postupdate, normal cloud management commences.

Reconfiguring OpenStack Services, TLS certs and ELK configurations

Cisco VIM supports the reconfiguration of OpenStack log level services, TLS certificates, and ELK configuration. Listed below are the steps to reconfigure the OpenStack and other services:

Procedure

Step 1

Login as POD User.

Step 2

Naviagte to POD.

Step 3

Navigate to Post-install
Step 4

Click Reconfigure OpenStack Config.

Step 5

Click on the specific item to be changed and updated; For TLS certificate it is the path to certificate location.

Step 6

Enter Set Config and the process will commence.

During the reconfiguration process, all other pod management activities will be disabled. Post-update, normal cloud management will commence.

Reconfiguring Optional Services

Cisco VIM offers optional services such as heat, migration to Keystone v3, NFVBench, NFVIMON and so on, that can be enabled as post-pod deployment. Optional services can be un-configured as post-deployment in Cisco VIM feature set. These services can be enabled in one-shot or selectively. Listed below are the steps to enable optional services:

Procedure

Step 1

Login as POD User.

Step 2

Naviagte to POD.

Step 3

Navigate to Post-install
Step 4

Click Reconfigure Optional Services.

Step 5

Choose the right service and update the fields with the right values.

Step 6

Enter Reconfigure to commence the process.

During the reconfiguration process, all other pod management activities will be disabled. Post-update, normal cloud management will commence. Once reconfigure is initiated than optional feature would be updated in active blueprint. If reconfigure of Optional Services fail in the time of reconfigure process then it is advised to contact CiscoTAC to resolve the situation through CLI.

Note

All reconfigure operation feature contains repeated deployment true or false.

  • Repeated re-deployment true - Feature can be re-deployed again.

  • Repeated re-deployment false- Deployment of feature allowed only once.

Deployment Status :

Optional Features

Repeated re-deployment Options

APICINFO

True

EXTERNAL_LB_VIP_FQDN

False

EXTERNAL_LB_VIP_TLS

False

INSTALL_MODE

True

LDAP

True

NETWORKING

True

NFVBENCH

False

NFVIMON

False

PODNAME

False

PROVIDER_VLAN_RANGES

True

SWIFTSTACK

True

SYSLOG_EXPORT_SETTINGS

False

TENANT_VLAN_RANGES

True

TORSWITCHINFO

False

VIM _ ADMINS

True

VMTP

False

VTS_PARAMETERS

False

AUTOBACKUP

`

True

Heat

False

Keystone v3

False

HTTP Proxy Server

True

HTTPS Proxy Server

True

Pod User Administration

Cisco VIM Insight offers Users (Pod Admin(s) or Pod Users) to manage Users and roles associated with them.

Managing Users

To add new User

Procedure
Step 1

Click Login as POD User.

Step 2

Navigate to POD User Administration.

Step 3

Click Manage Users.

Step 4

Click Add Users to add a new user.

Step 5

Complete the following fields in the Add Users page of the Cisco VIM Insight:

Field Name

Field Description

Email ID

Enter the Email ID of the User.

User Name

Enter the User Name if the User is new. If the User is already registered to the Insight the User-Name gets auto-populated.

Role

Select the Role from the drop-down list.

Step 6

Click Save.

Managing Roles

To create a new Role:

Procedure
Step 1

Click Log in as POD User.

Step 2

Navigate to Pod User Administration and click Manage Roles. By default you will see a full-pod-access role in the table.

Step 3

Click Add Role to create a new role.

Step 4

Complete the following fields on the Add Roles page in Cisco VIM Insight:

Field Name

Field Description

Role

Enter the name of the role.

Description

Enter the description of the role.

Permission Check the Permission checkbox to select the permission.
Step 5

Click Save. Once, the Blueprint is in an Active state all the permissions are same for C-series and B-series Pods other than Reconfigure CIMC Password which is missing for B-series Pod.

Note

Permissions are divided in the granular level where viewing Dashboard is the default role that is added while creating a role.

Managing Root CA Certificate

You can update the CA Certificate during the registration of the POD. Once, logged in as POD User and if you have the permission to update the certificate you can view under POD User Administration>> Manage Root CA Certificate.

To update the Certificate:

Procedure
Step 1

Click Login as POD User

Step 2

Navigate to POD User Administration>>Manage Root CA certificate.

Step 3

Click Browse and select the certificate that you want to upload.

Step 4

Click Upload.

  • If the certificate is Invalid, and does not matches with the certificate on the management node located at (var/www/mercury/mercury-ca.crt) then Insight will revert the certificate which was working previously.

  • If the Certificate is valid, Insight will run a management node health check and then update the certificate with the latest one.

Note

The CA Certificate which is uploaded should be same as the one which is in the management node.
