IOA Manager
The IOA Manager is a graphical user interface (GUI) for configuring and managing IOA. The IOA Manager user interface consists of a navigation pane on the left that displays a hierarchy and an information pane on the right that displays the contents of the item that you click in the navigation pane. The hierarchy is a tree structure that contains elements that you can configure with IOA Manager. It also consists of a toolbar for quick access to the most commonly used options and a Fabric drop-down list box. The Fabric drop-down list box allows you to directly access the fabrics managed by Cisco DCNM-SAN. The Fabric drop-down list box will be available only if more than one fabric is open.
![]() Note |
|

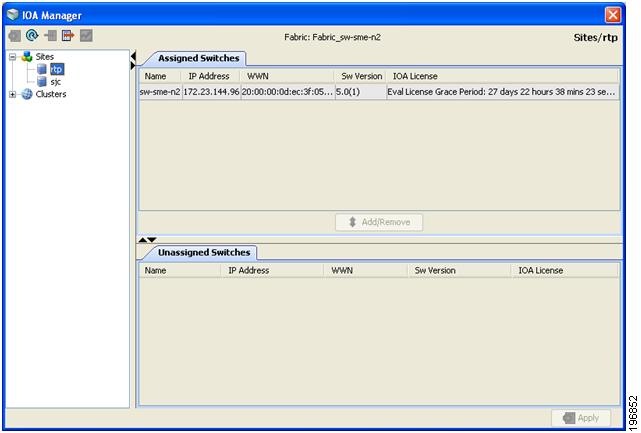

IOA Manager Main Window shows the IOA Manager interface.
![](/c/dam/en/us/td/i/100001-200000/190001-200000/196001-197000/196843.tif/_jcr_content/renditions/196843.jpg)
Toolbar
The IOA Manager main toolbar provides icons for accessing the most commonly used operations as shown in Table 1.
Icon |
Description |
---|---|
![]() |
Applies the changes. |
![]() |
Refreshes the window. |
![]() |
Adds a cluster or interface. |
![]() |
Deletes an existing entry. |
![]() |

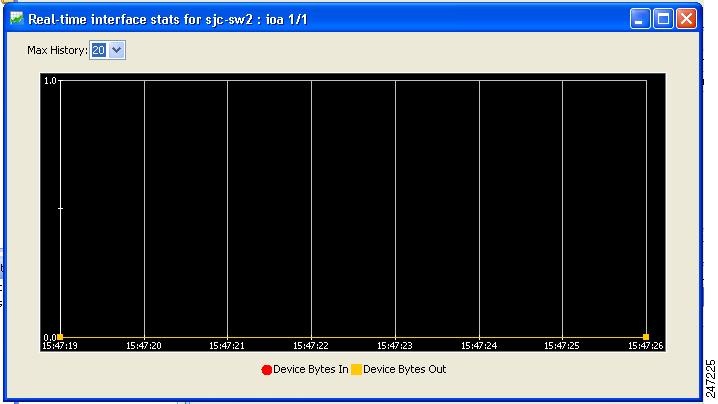

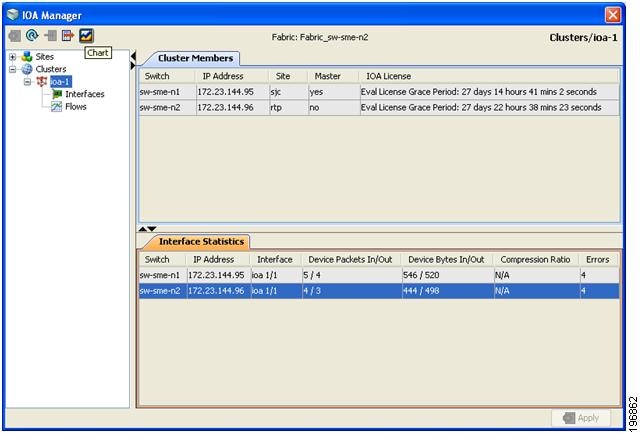

Displays a real-time chart of the selected switch. |
