This document is an installation guide for Cisco Crosswork Hierarchical Controller with or without High Availability. Cisco Crosswork Hierarchical Controller implements intra-node resiliency and a three-node cluster (which includes a witness node).
The document explains:
● Cisco Crosswork Hierarchical Controller Prerequisites
● Install Cisco Crosswork Hierarchical Controller Platform
● Upgrade Cisco Crosswork Hierarchical Controller Platform
● Install Cisco Network Services Orchestrator Crosswork Hierarchical Controller Function Pack
Cisco Crosswork Hierarchical Controller Prerequisites
All Crosswork Hierarchical Controller components and applications can be installed in the same instance and work seamlessly together.
Cisco Crosswork Hierarchical Controller is released with a single VMWare OVA file distribution. OVA is a disk image deployed using vCenter on any ESXi host. This OVA packages together several components including a file descriptor (OVF) and virtual disk files containing a basic operating system and the Cisco Crosswork Hierarchical Controller installation files.
OVA can be deployed using vCenter or ESXi web clients on ESXi hosts supporting both Standalone (SA) or High Availability (HA) deployment models.
The three VMs for HA can run on any single or multiple ESXi hosts. In case of multiple ESXi hosts, 10 Gbps is required for connecting each host. The control plane network is also associated with the same 10 Gbps interface and a 10 Gbps communication channel between the hosts is required.
● VMware vCenter Server 7.0 Update 3
● VMware ESXi 7.0 Update 3
● High Availability, version 8.0, requires a latency of up to P95 15ms (95% of the requests to the system must be served faster than this) between nodes.
Note: The system was tested with version 7.0 Update 3. The system is expected to function as expected with other 7.0 sub-versions as well. If you are using a sub-version other than 7.0 Update 3 and you encounter any issues, contact your Cisco support representative.
Hardware
This spec is for active, standby, and witness, or standalone instances of Crosswork Hierarchical Controller.
Hardware |
Requirement |
CPU |
10 Cores |
Memory |
96 GB |
Multiple ESXi hosts |
10 Gbps between hosts |
Storage |
500 GB SSD to 2 TB (Scale requirement) Note: This is without considering RAID configurations |
HW Reservation |
80% for CPU and memory |
NICs |
2 |
The client machine requirements are:
● PC or MAC
● GPU
● Web browser with GPU hardware acceleration support
● Recommended
◦ Screen resolution 1920x1080
◦ Google Chrome web browser
Note: GP U is mandatory to properly get all the benefits of the network 3D map.
The following are the default port requirements if the items listed in the Description column are used. You can configure these ports differently.
User |
Role |
Description |
Inbound |
TCP 22 |
SSH remote management |
TCP 8443 |
HTTPS for UI access |
|
Outbound |
TCP 22 |
NETCONF to routers |
TCP 389 |
LDAP if using Active Directory |
|
TCP 636 |
LDAPS if using Active Directory |
|
Customer Specific |
HTTP for access to an SDN controller |
|
Customer Specific |
HTTPS for access to an SDN controller |
|
TCP 3082, 3083, 2361, 6251 |
TL1 to optical devices |
|
Control Plane Ports (Internal network between cluster nodes, not exposed)
|
Kubernetes |
TCP 443 |
Kubernetes |
TCP 6443 |
|
Kubernetes |
TCP 10250 |
|
etcd |
TCP 2379 |
|
etcd |
TCP 2380 |
|
VXLAN |
UDP 8472 |
|
Ping between nodes (optional) |
ICMP |
The storage volume required for Crosswork Hierarchical Controller production depends on the amount of storage needed for performance counters and for daily DB backups.
The performance monitoring storage is calculated based on the number of client ports and the amount of time the counters are stored. The ballpark figure is 700 MB for 1000 ports.
The detailed formula to calculate the storage is:
<uncompressed data>=<number of ports>*<samples per day>*<number of days>*60
Storage = (<uncompressed data>*0.1)+<daily backup size>*<number of days>*<number of months>
Taking the following assumptions into account:
● Samples – samples per day
● Sample size per port – 60 bytes
● Days – number of days the PM data is stored
● Compression ratio – data is compressed in DB, at a ratio of ~10%
● Daily backup – ~60 MB per day
● Number of backup days – 14 days
● Number of backup months – default is 12 months
Control Plane and Northbound Networks Installation Requirements
The following list contains the pre-requisites of Cisco Crosswork Hierarchical Controller installation.
Before installing Cisco Crosswork Hierarchical Controller:
● Install the ESXi host on servers with vSphere to support creating VMs.
● Create two networks, one for the control plane and the other for the northbound network. The control plane network helps in the communication between the deployed VMs. The northbound network is used for communication between the client and the cluster.
● Ensure there is no firewall preventing Crosswork Hierarchical Controller adapters properly communicating southbound with the managed devices or domain controllers.
● Ensure that no firewalls prevent access between the Crosswork Hierarchical Controller platform and the remote hosts.
To create the control plane and northbound networks:
1. From the vSphere client, select the Datacenter where you want to add the ESXi host.
2. After adding the ESXi host, create the control plane and northbound network before deploying the SA or HA:
◦ HA has four IPs, where one is the primary and the others can join as secondary and tertiary IP addresses. The VIP is the IP that exposes the active node to the user.
◦ SA has two IPs.
Install Crosswork Hierarchical Controller Platform
Install Crosswork Hierarchical Controller
When you deploy the OVA template it installs the Crosswork Hierarchical Controller platform, 3D Explorer and the various Crosswork Hierarchical Controller applications.
Create three VMs for HA or one VM for SA. Repeat steps 1 to 10 for each of the VMs.
For HA, it is recommended that you create all three VMs before they are turned ON.
To install Crosswork Hierarchical Controller:
1. Right-click on the ESXi host in the vSphere client screen, and then click Deploy OVF Template.
2. On the Select an OVF template page, specify the location of the source OVA template:
◦ URL: A URL to an OVA template located online.
◦ Local file: A location with the OVA template.
3. Click Next.
4. On the Select a name and folder page, specify a unique name for the VM Instance (the virtual machine's name must be all lowercase). From the list of options select the location of the VM to be used as SA or HA (primary, secondary, or tertiary).
5. Click Next.
6. On the Select a compute resource page, select the destination compute resource on which you want to deploy the VM and click Next.
Note: While selecting the compute resource the compatibility check proceeds until it completes successfully.
7. On the Review details page, verify the template details and click Next.
8. On the Select storage page, select the virtual disk format based on SSD. Set the VM Storage Policy to Datastore Default and click Next.
9. In the Select networks page, set the control and management network to Control Plane and VM Network and click Next.
In the Customize template page, set the values as follows:
Key |
Value |
Instance Hostname |
<Instance hostname> |
SSH Public Key |
<ssh-public-key> This must be generated by the customer’s admin. For example: ssh-keygen -t ed25519 -f ~/.ssh/... |
Data Volume Size (GB) |
The data storage limit set for the host. See Requirements. |
Cluster Join Token |
<token-value> This is already filled in. |
Control Plane Node Count |
<CP-node-count> ● HA: 3 ● SA: 1 |
Control Plane IP |
<Private IP for the Instance> Control Plane Network. For standalone, this must be a local valid IP in the customer’s hypervisor. |
Initiator IP |
The IP of the initiator node of the Control Plane. The initiator installs the cluster, or in the case of standalone, the single node. For standalone, use the same IP set as the Control Plane IP. |
Protocol |
Select Static IP or DHCP from the menu. |
IP(ip[/subnet]) - if not using DHCP |
<Public IP for the Instance> Northbound Network. |
Gateway - if not using DHCP |
<Gateway IP for the Instance> Northbound Network. |
DNS |
DNS Server IP. |
Initiator Node |
For HA, set to True for the primary node. |
Northbound Virtual IP |
The Northbound Network: ● HA: The external virtual IP of the cluster. ● SA: The external public IP of the standalone instance. |
10. In the Review the details page, review the selections and click Finish.
11. Power on the VM.
12. Verify that the VM details are set to 96GB RAM and 10 vCPUs.
13. Try connecting to the VM. For this, use the private key associated with the public key used earlier during customizing public key options. Login to the VM:
# ssh -i <private-key_file> nxf@<hco_management_ip>
14. The nxf-boot process monitors the cluster (for standalone and HA):
journalctl -fu nxf-boot
15. The default user id or password can be retrieved from the nxf-boot process log on the primary node (this is randomly generated when the cluster boots). (You can use this password or log in via SSH and use sedo to change the password.)
16. Update the NTP configuration as shown in the example given below.
Example:
vi /etc/chrony/chrony.conf
NTP server IP/DNS iburst
# Apply the new ntp setting
systemctl enable chronyd
systemctl restart chronyd
## To Check the Server
chronyc sources
17. Change the default password:
sedo security user set --access role/admin admin
sedo security user set --password
18. Browse to the Crosswork Hierarchical Controller application using the following SA IP address or the HA VIP address, using the admin user account with the password just set.
View Installed Crosswork Hierarchical Controller Applications
To view the installed Crosswork Hierarchical Controller applications:
1. After the installation is complete, ssh to the server.
2. Run the following command to see which applications are installed:
sedo hco apps list

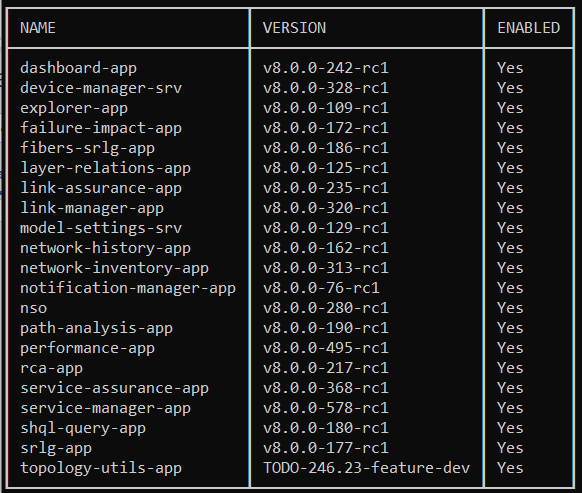

The output displays the installed applications with their name and version.
Add Network Adapters and Discover Network Devices
For instructions on how to add network adapters and discover network devices, refer to the Cisco Crosswork Hierarchical Controller Administration Guide.
Upgrade Cisco Crosswork Hierarchical Controller
Upgrading Crosswork Hierarchical Controller version 7.1 to version 8.0, requires you to install a new “upgrader” instance of Crosswork Hierarchical Controller version 7.1 (together with the hco-upgrader tool).
You then make a backup of your version 7.1 working environment and copy it to this upgrader instance.
Using the hco-upgrader, you create a version 8.0 backup file which can be copied on the Crosswork Hierarchical Controller version 8.0 environment.
The backup is then restored on the Crosswork Hierarchical Controller version 8.0 environment.
You also must install the adapters on Crosswork Hierarchical Controller version 8.0 with specific names, to match the adapters' name on version 7.1.
To upgrade Crosswork Hierarchical Controller:
1. Install another Crosswork Hierarchical Controller version 7.1 instance and install the hco-upgrader tool:
docker pull registry.sedona.ciscolabs.com/nxf/hco-upgrader:2.0
2. Create a backup on the Crosswork Hierarchical Controller version 7.1 system you want to migrate to version 8.0.
3. Copy the backup file to the Crosswork Hierarchical Controller version 7.1 upgrader instance you created in step #1.
4. Restore the backup file on the upgrader instance.
5. Run the upgrader to create a version 8.0 backup file.
docker run -it --rm -v $PWD:/pgdatanew -v sedona_data:/pgdataold registry.sedona.ciscolabs.com/nxf/hco-upgrader:2.0 --password PW -v
Note: All users must have read permissions in the folder where upgrader is executed.
6. Copy the version 8.0 backup file to the Crosswork Hierarchical Controller version 8.0 environment.
7. Upload the version 8.0 backup file to NxF:
sedo backup upload [file] --password PW
8. List all available backups on NxF:
sedo backup list
9. Use the backup to restore the Crosswork Hierarchical Controller version 8.0 system:
sedo backup restore [backup name]
To install adapters on Crosswork Hierarchical Controller version 8.0:
1. Download the adapter Service Pack.
2. Install it with the DYNAMIC_APP_GUID param:
sedo service install HCO-cisco-ios-xr-adpt-v8.0.0-rc1.tar.gz --param DYNAMIC_APP_GUID=[adapter name as it is displayed in Device Manager on v7.1]
Install a Cisco Network Services Orchestrator Crosswork Hierarchical Controller Function Pack
NSO Engine Embedded Inside Crosswork Hierarchical Controller
NSO runs as an Crosswork Hierarchical Controller micro-service, alongside the Crosswork Hierarchical Controller applications and adapters.
This exposes the NSO NBI from Crosswork Hierarchical Controller and the NSO UI as an Crosswork Hierarchical Controller application (which will mostly be used for configuration of Function Packs/NEDs).
Note: Crosswork Hierarchical Controller HA and embedded NSO integrate seamlessly. The NSO database exists on both the Crosswork Hierarchical Controller Active and Standby nodes, and the database is synchronized continuously. If the Crosswork Hierarchical Controller Active node fails, and the Standby node takes over and becomes the Active node, NSO is updated automatically and switches nodes too.
Network Services Orchestrator (NSO)
The Crosswork Hierarchical Controller Function Pack integrates Cisco NSO with a controller to deploy services on the controller. This integration is with either a Nokia Service Provider (NSP) controller or a Cisco Crosswork Network Controller (CNC). The NEDs are installed as part of the Function Pack installation.
For full details on installing and using the Network Services Orchestrator (NSO) Crosswork Hierarchical Controller Function Pack, see the:
● Cisco NSO Crosswork Hierarchical Controller - Function Pack Installation Guide
● Cisco NSO Crosswork Hierarchical Controller - Function Pack User Guide.
For full details on installing and using the Cisco NSO Routed Optical Networking Core Function Pack, see the:
● Cisco NSO Routed Optical Networking Core Function Pack Installation Guide
● Cisco NSO Routed Optical Networking Core Function Pack User Guide
● Cisco RON Solution Guide
Install NSO Function Pack in Crosswork Hierarchical Controller Embedded Instance
The embedded NSO instance is a fully functional standalone container installation of NSO. The installation procedure is the same as the standard installation with one difference: the file system of NSO is not readily available on the host server.
To load the new function pack, the administrator must copy the function pack files onto the NSO pod, and then log into the pod shell and place the files in the correct directories. Once the files are on the NSO pod, follow the instructions in the Function Pack Installation Guide.
To install NSO Function Pack in Crosswork Hierarchical Controller Embedded Instance:
1. Connect to the Crosswork Hierarchical Controller host server via SSH.
2. Download the NSO function pack.
3. Copy the NSO function pack into the NSO pod:
kubectl cp [function-pack-file] <zone-a/zone-b>/nso-manager-srv-0:/usr/app
4. Log into the pod shell:
sedo shell <zone-a/zone-b>/nso-manager-srv
cd /usr/app/nso-temp
5. Continue with function pack extraction and installation as specified in the Function Pack Installation Guide.
Considerations for a High Availability (HA) Deployment
HA in NSO needs to be disabled for installing and updating function packs.
1. On both the active and standby nodes, in the NSO CLI execute:
admin@ncs> request high-availability disable
2. On both the active and standby nodes, install the function pack.
3. Restart the NSO pods to reactive HA protection:
sudo kubectl --kubeconfig /etc/kubernetes/admin.conf -n zone-a scale statefulset nso-manager-srv --replicas=0
sudo kubectl --kubeconfig /etc/kubernetes/admin.conf -n zone-b scale statefulset nso-manager-srv --replicas=0
sudo kubectl --kubeconfig /etc/kubernetes/admin.conf -n zone-a scale statefulset nso-manager-srv --replicas=1
sudo kubectl --kubeconfig /etc/kubernetes/admin.conf -n zone-b scale statefulset nso-manager-srv --replicas=1
Example of How to Install the RON Function Pack
This describes an example of how to install a RON function pack on the NSO pod.
For the complete and most updated procedures, you must refer to the related Function Pack Installation Guide.
1. Copy the function pack file into the pod:
kubectl cp nso-6.1-ron-2.1.1.tar.gz zone-a/nso-manager-srv-0:/usr/app
2. Move into the NSO pod:
sedo shell zone-a/nso-manager-srv
cd /usr/app/nso-temp
3. Untar the function pack tar.gz file:
tar xvzf nso-6.1-ron-2.1.1.tar.gz
cd nso-6.1-ron-2.1.1/
4. Copy the function pack packages to the rundir:
cp ron/core-fp-packages/*.tar.gz $NCS_RUN_DIR/packages/
5. Initiate NSO CLI command from the specified path for loading packages:
cd $NCS_RUN_DIR/packages/
ncs_cli -u admin
6. Load the packages:
request packages reload
7. Verify that the function pack has successfully loaded:
show packages package package-version | select build-info ncs version | select build-info file | select build-info package sha1 | select oper-status error-info | select oper-status up | tab
8. Set SSH algorithms public-key:
configure
set devices global-settings ssh-algorithms public-key [ ssh-ed25519 ecdsa-sha2-nistp256 ecdsa-sha2-nistp384 ecdsa-sha2-nistp521 rsa-sha2-512 rsa-sha2-256 ssh-rsa ]
commit
9. Initiate NSO CLI command from the specified path to load merge XMLs:
cd /nso/run/packages/nso-6.1-ron-2.1.1/ron/bootstrap-data
ncs_cli -u admin
10. Load bootstrap data according to the function pack installation guide:
configure
unhide debug
unhide ron
load merge commit-queue-settings.xml
commit
...
<repeat for all files in installation guide>
...
load merge RON-status-codes.xml
commit
Add Devices
The device-type and ned-id depend on the actual device you want to connect, as well as the NED version installed on NSO. Update the commands below accordingly.
To add a device:
1. Add credentials:
set devices authgroups group <credential_name> default-map remote-name <username> remote-password <password>
commit
2. Add device:
set devices device <device_name> address <IP> authgroup <device_authgroup_name> device-type cli ned-id <cisco-iosxr-cli-7.49>
set devices device <device_name> state admin-state unlocked
commit
request devices device <device_name> ssh fetch-host-key
request devices device <device_name> connect
request devices device <device_name> sync-from
