Cisco Service Control Service Security: Outgoing Spam Mitigation Solution Guide

---

Revised: January, 2009, OL-18876-01

1 Introduction and Scope

The need for protection from various attacks and malicious traffic that originate from the Internet has gained focus. Denial of Service (DoS) and Distributed Dos (DDoS) attacks, worms, viruses, malicious HTTP content, and multiple types of intrusions are common.

Deep Packet Inspection (DPI) platforms, and specifically the Cisco Service Control Engine (SCE) are deployed inline and are stateful and programmable. These features position the SCE platform to detect and mitigate the effect of malicious traffic on service providers and their customers.

The Service Control Application for Broadband (SCA BB) includes service security functionality comprising anomaly detection, spam and mass-mailing detection, and signature detection. These detection features allow the SCE platform to address threats that exist in current networks.

The SCA BB solution is effective in providing an insight into malicious activity in an operator network, and in mitigating large scale eruptions of malicious activity that might compromise overall network performance and degrade user experience.

This guide describes the specifics of detecting and mitigating outgoing spam and mass-mailing based threats. For a full description of the service security functionality and relevant management modules, refer to the SCA BB user guides.

2 Functionality Overview

Overview

The Cisco SCE platform uses the Mass-Mailing activity detection approach to detect and mitigate outgoing spam.

Simple Mail Transfer Protocol (SMTP) is a protocol used for sending email. An excess rate of such sessions originating from an individual subscriber is usually indicative of malicious activity involving sending email: either mail-based viruses or spam-zombie activity. This mechanism is based on monitoring SMTP session rates for individual subscribers. It uses the SCE platform's subscriber-awareness and can work in subscriber-aware or anonymous subscribers mode.

This detection approach provides operators with several possible courses of action to be implemented based on their business needs.

•Monitor—Inspect the network for malicious activity detected by this method. This can be done using reports that are based on information collected for malicious activity that is detected.

•Block—Automatically block malicious activity that is detected by the SCE platform to avoid threat propagation and adverse effects to the network.

•Notify—Notify subscribers that they are detected as being involved in malicious activity by redirecting their web sessions to a captive portal.

Operators have flexibility in customizing the detection methods and actions to be taken based on their specific needs. The SCA BB Security Dashboard GUI application provides a front end for configuring and monitoring security functionality.

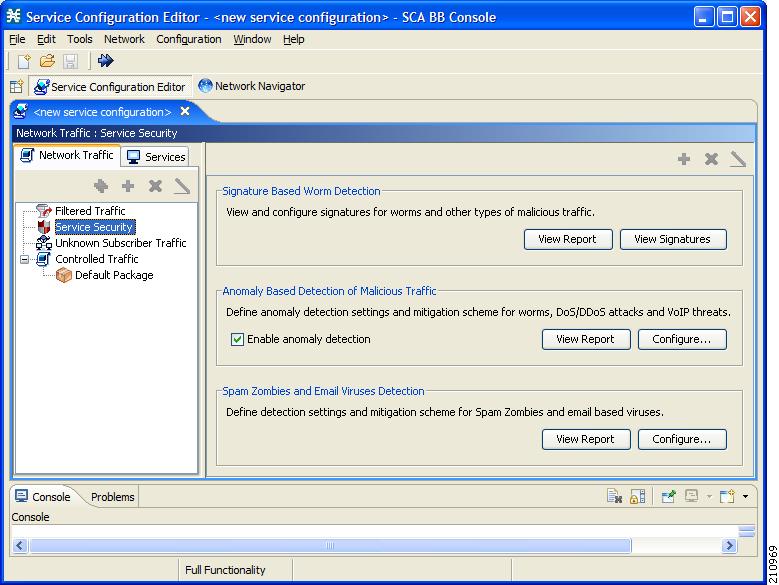

Figure 1 SCA BB Security Dashboard

Mass-Mailing Detection Process

The following is an overview of the mass-mailing detection process after configuration is complete.

The mass-mailing detection process is based on session quotas. A quota is a number of sessions for a given time interval.

1. The time interval begins with the first session.

2. When a second session is sent, if the time is still within the first interval, the session is counted within the first interval. If the time is beyond the first interval, then the second interval begins at that point, with the session.

3. After subscribers send more sessions than allotted within the time interval, they have exceeded their quota, and are marked as spammers. From that point on, all traffic sent from the subscriber is handled as spam, and the defined action (send Raw Data Record (RDR), block, notification, or mirror) is applied.

---

Note The action is only applied from that point on, and does not apply to any sessions that are still open from before the subscriber was marked as a spammer.

---

4. The subscriber is marked as a spammer until an interval elapses without the sessions exceeding the configured quota.

5. For example, the quota is defined as 6 sessions in 10 seconds. The 10 seconds begin when the first session is sent. If 5 more sessions are sent within 10 seconds, from that point on, the subscriber is marked as a spammer and the defined action (RDR, block, notification or mirror) is applied.

Note that if some of the 6 sessions are still open from before the subscriber was marked as a spammer, the actions are not applied to the open sessions.

When the next session is sent at, for example, 12 seconds, the time interval begins again at 0 and the sessions are again counted. If the subscriber sends fewer than 6 sessions in the 10 second interval then the subscriber is no longer considered a spammer and the specified action is removed. An RDR is sent to the Collection Manager indicating that the subscriber is no longer a spammer.

Related Topics

•Configuring Outgoing Spam Detection Settings

3 Mass-Mailing Based Threats

The mass-mailing based threat detection module is based on monitoring SMTP session rates for individual subscribers. It uses the SCE platform's subscriber-awareness and can work in subscriber-aware or anonymous subscribers mode.

SMTP is a protocol used for sending email; an excess rate of such sessions from an individual subscriber is usually indicative of malicious activity involving sending email: either mail-based viruses or spam-zombie activity.

Configuring Mass-Mailing Detection

Mass-mailing detection is based on a subscriber breaching a predefined SMTP session quota.

In order for the functionality to operate correctly, you must configure the system to subscriber-aware or anonymous subscribers mode. This allows the SCE platform to accurately count the number of SMTP sessions generated by each subscriber.

Configuration is based on the following stages:

•Configuring the service for detection—You should configure the appropriate service, which should have been built before this stage, for mass-mailing detection. It is common to use a service that includes only the SMTP protocol. Refinements can be made to narrow the scope of detection and to potentially reduce the detection threshold.

–"Outbound SMTP"—To account for only SMTP sessions generated by a subscriber. SMTP should not normally be seen as an inbound protocol because a subscriber is not expected to run an SMTP server on their own premises. Inbound SMTP connections may represent other kinds of malicious activity. To build such a service, a user should include the "Subscriber-Initiated" attribute in the service definition.

–"OffNet SMTP"—SMTP that is not targeted to a subscriber's "home SMTP server." Normal email clients send email through a home SMTP server, which later relays the email to wherever needed. Limiting the service to offNet can avoid accounting for "legitimate" sessions; that is sessions that subscribers conduct with the SMTP server of their ISP. One caveat is that prominent non-ISP email providers provide an SMTP based service either for a fee, or free of charge. OffNet is no longer a suitable differentiator between "legitimate" and "non-legitimate" activity. To build such a service, a user should define a Zone of IP ranges and then define a service that associates the SMTP protocol with the defined Zone.

–A combination of the two.

•Define the quota to be used for indicating anomalous email activity. The quota is defined as a number of sessions for a given period—number of sessions and period length are both configurable. It is suggested that the user should base the values for these fields on some baseline monitoring of subscriber activity.

•Define the action to be taken upon detecting mass-mailing activity. The action to be taken can be:

–Send RDR—The SCE sends a Raw Data Record (RDR) to the Collection Manager, and sends a second RDR when the subscriber's status as a spammer is removed. The Collection Manager collects these RDRs in comma separated value (CSV) files for logging purposes. Alternatively, you can implement your own RDR collectors to receive these RDRs and respond in real-time.

–Block—Block the spam SMTP traffic.

–Notify—Redirect the subscriber browsing sessions to a captive portal presenting a message from the operator. This is performed using "subscriber notification."

–Mirror—Divert spam SMTP traffic to an inline spam detection service.

---

Note For the send RDR action, the SCE sends one RDR when the subscriber is marked as a spammer and sends a second RDR once the subscriber is no longer considered a spammer. However, when using the block, notify, and mirror actions, the action begins when the subscriber is marked as a spammer and is maintained until the subscriber is no longer considered a spammer.

---

Configuring Outgoing Spam Detection Settings

---

Step 1 In the Service Security Dashboard, in the Spam Zombies and Email Viruses Detection pane, click Configure.

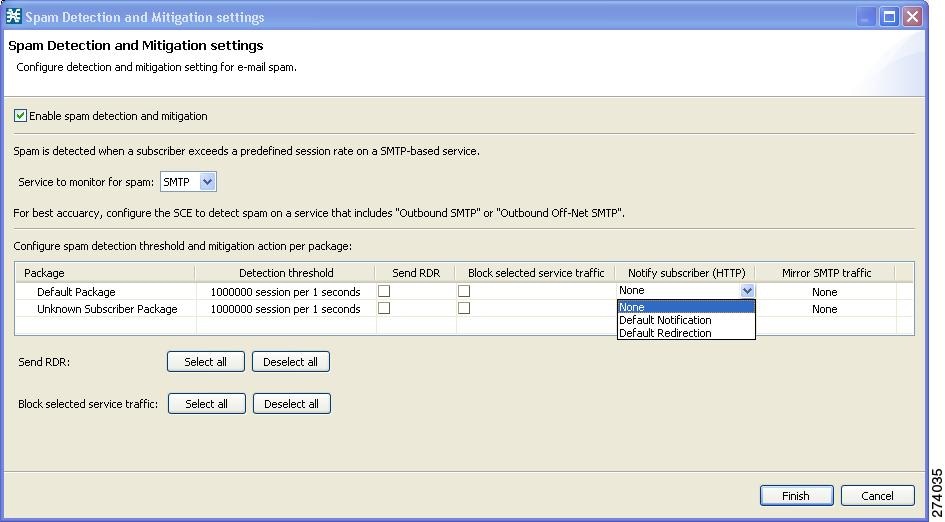

The Spam Detection and Mitigation settings dialog box appears.

Step 2 From the Service to monitor for spam drop-down list, choose a service.

---

Note Leave the default value for the monitored service (SMTP), unless you have defined a more specific service, such as Outbound SMTP or OffNet SMTP.

---

Step 3 For each package, do the following:

a. Define the quota to be used for indicating anomalous email activity. The quota is defined as a number of sessions for a given period—number of sessions and period length are both configurable. We recommend that you base the values for these fields on some baseline monitoring of subscriber activity.

–Click the Detection Threshold column.

A More () button appears.

–Click the More button.

The Spam detection threshold dialog box appears.

–Define the threshold email session rate for anomalous behavior.

–Click OK.

b. Define one or more actions to be taken upon detecting mass-mailing activity. Available actions are:

–Send RDR—The SCE sends a Raw Data Record (RDR) to the Collection Manager, and sends a second RDR when the subscriber's status as a spammer is removed. The Collection Manager collects these RDRs in CSV files for logging purposes. Alternatively, you can implement your own RDR collectors to receive these RDRs and respond in real-time.

–Block SMTP Traffic—Block the spam SMTP traffic.

–Notify Subscriber (HTTP)—Redirect the subscriber browsing sessions to a captive portal presenting a message from the operator. This is performed using subscriber notification.

–Mirror SMTP traffic—Copy spam SMTP traffic to an inline spam detection service.

---

Note For the send RDR action, the SCE sends one RDR when the subscriber is marked as a spammer and sends a second RDR once the subscriber is no longer considered a spammer. However, when using the block, notify, and mirror actions, the action begins when the subscriber is marked as a spammer and is maintained until the subscriber is no longer considered a spammer.

---

---

Note Block SMTP Traffic and Mirror SMTP traffic cannot both be selected. If you select one, the other is disabled.

---

To perform the Notify Subscriber (HTTP) action, choose or enter a notify subscriber.

To perform the Mirror SMTP traffic action, choose a Server Group.

Step 4 Click Finish.

Step 5 Apply the service configuration to the SCE platform.

a. From the toolbar, click (Apply Service Configuration to SCE Devices).

A Password Management dialog box appears.

b. Enter the username and password for managing the SCE and click Apply.

The service configuration is applied to the SCE platform.

---

Related Topics

•Monitoring Mass Mailing Activity

Disabling Outgoing Spam Detection

---

Step 1 In the Service Security Dashboard, in the Spam Zombies and Email Viruses Detection pane, click Configure.

The Spam Detection and Mitigation settings dialog box appears.

Step 2 Uncheck the Enable Spam detection and mitigation check box. All other fields are disabled.

Step 3 Click Finish.

---

Disabling Outgoing Spam Detection per Package

---

Step 1 In the Service Security Dashboard, in the Spam Zombies and Email Viruses Detection pane, click Configure. The Spam Detection and Mitigation settings dialog box appears.

Step 2 In the row of the package for which you want to disable outgoing spam detection, click inside the Detection Threshold column. A More button () appears.

Step 3 Click the More button. The Spam detection threshold dialog box appears.

Step 4 Uncheck the Enable Spam detection for this package check box. All fields are disabled.

Step 5 Click OK.

---

Monitoring Mass Mailing Activity

Mass mailing activity can be monitored based on information processed and stored in the Collection Manager database.

The most suitable report for detecting mass mailing activity by subscribers is the "Top Subscribers" report. This report is generated by running the Top Subscribers report with Metric=Aggregated sessions.

The Top Subscribers report is generated for the service that is used for mass-email detection (SMTP or a more granular service if it was defined). The report can be used to identify the IDs of subscribers most likely to be involved in mass mailing activity.

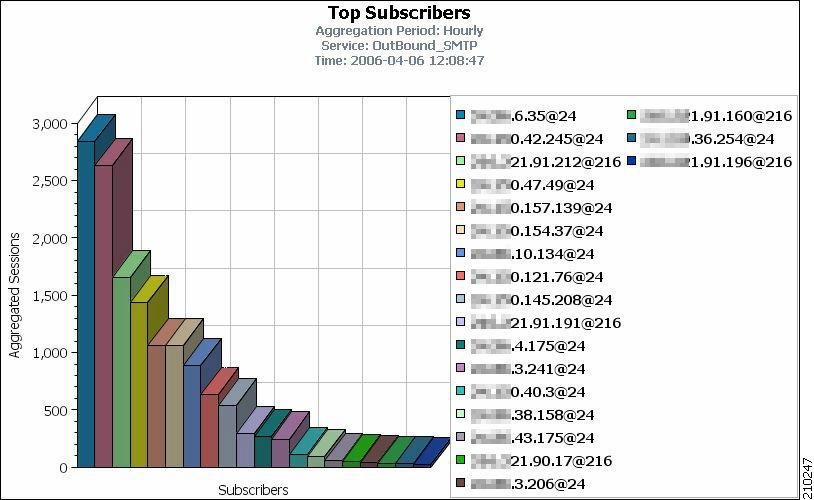

Figure 2 Top Subscribers Report

Following are examples of two commonly-used reports:

•Global Daily Usage Sessions per Service Report—Shows the distribution of sessions among the different service usage counters defined in the system, grouped by day.

•Global Hourly Usage Sessions per Service Report—Shows the distribution of sessions among the different service usage counters defined in the system, grouped by hour.

Figure 3 Global Daily Usage Sessions per Service Report

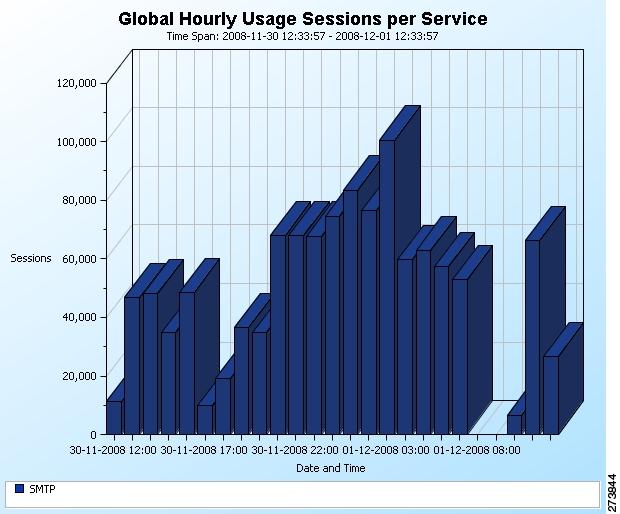

Figure 4 Global Hourly Usage Sessions per Service Report

Viewing a Service Security Mass Mailing Report

---

Step 1 In the Service Security Dashboard, in the Spam Zombies and Email Viruses Detection pane, click View Report.

A Choose a report dialog box appears, displaying a tree of relevant reports.

Step 2 Choose a report from the report tree.

Step 3 Click OK. The Choose a report dialog box closes.

The Reporter tool opens in the Console, and displays the requested report.

Step 4 For information about manipulating and saving the report, see the "Working with Reports" chapter of the Cisco Service Control Application Reporter User Guide.

---
