This module describes how to setup and schedule backups between a primary and secondary server and restore data between them.
■Prerequisites for Backing Up and Restoring Cisco Vision Director Servers
■Restrictions for Backing Up and Restoring Cisco Vision Director Servers
■Information About Backing Up and Restoring Cisco Vision Director Servers
Before you backup or restore Cisco Vision Director servers, be sure that the following requirements are met:
CAUTION: For any release 4.1 systems or releases prior to 5.0 SP2, imported logos as channel icons are not backed up (the channel icons will disappear during the upgrade procedure of backing up the primary and restoring to secondary if the icons are not already on the secondary server). A maintenance patch (SV-DIRECTOR-HOTFIX-CSCvd35309) is needed on both the primary and secondary servers before you run any backup and restore operations as part of an upgrade from any 4.1 release, or to Release 5.0 SP2. Otherwise, you will need to re-import the logos after upgrading to Release 5.0 SP2.
■You are familiar with using the Text Utility Interface (TUI) in Cisco Vision Director.
For more information, see Cisco Vision Dynamic Signage Director Server Text Utility Interface.
■You have a directly-connected console or an SSH client to access the primary active and secondary servers.
■You have the IP addresses of the active and secondary servers.
■You know the installer account credentials on the Cisco Vision Director active and secondary servers.
■The IP address of the secondary server must be reachable on the network from the active server or the TUI backup configuration will fail.
■You have determined an appropriate time on the network to schedule automatic backups and restores.
Consider the following restrictions when backing up and restoring Cisco Vision Director servers:
CAUTION: The tasks described in this document apply only to a redundant server environment where both servers are running Cisco Vision Director software.
■If you have to fail over to your secondary Cisco Vision Director server due to a problem on the primary, then your original backup configuration will be invalid.
Be aware that your scheduled backup process cannot fully operate by automatically transferring a copy of the backup to the secondary server until you use the TUI automatic backup configuration again to reset the backup configuration between the primary and secondary servers. However, a backup will continue to be saved on the primary server.
■When you fail back to the original primary server and are now using the original IP addressing configuration, use the TUI automatic backup configuration again, so that the backup directory can be re-established on the secondary server.
This section includes the following topics:
■What Cisco Vision Director Data is Backed Up
While you can run a backup for a network environment where there is only a single Cisco Vision Director server, we recommended a redundant environment for either Platform 2 or Platform 3 servers or a virtualized environment. In a redundant environment, you run Cisco Vision Director on a primary server, with a secondary server connected to the same subnet where the backup data from the primary server is saved.
The backup process can be scheduled or run manually. When a backup completes, the Content Management System (CMS) is automatically restarted.
Since Release 4.1, the backup task can run even while an event script is running. As part of this change, the database is no longer optimized or repaired during the backup process—a new TUI option is added to run database maintenance manually if needed.
Although it is not expected that database maintenance should be needed regularly, slow performance may indicate a need to run database maintenance.
Tip: You can look at the backup log (/var/log/svd-config/backup-YYYMMddHHMMSSz.log) to see if the table updates are “OK” and up-to-date. If not, then use the TUI option to run database maintenance. For more information, see the “Running Database Maintenance” topic in the Cisco Vision Dynamic Signage Director Operations Guide, Release 6.1.
There are several areas of Cisco Vision Director that need to be backed up. The backup process backs up the following areas of the Cisco Vision Director server:
■Cisco Vision Director Content Management System (CMS)
■Cisco Vision Director database
■Cisco Vision Director system configuration files
■Proof of Play report data in the /var/sv/pofp/data directory
Caution: The proof of play raw data in the /var/sv/pofp/raw directory is not backed up.
Note: To be sure that your system has enough disk space, Release 4.0 and later releases only retain one backup file by default.
For more information, see the “Managing Server Resources in Cisco Vision Director” module of the Cisco Vision Dynamic Signage Director Operations Guide, Release 6.1.
As with backups, schedule the restore process or run it manually. When the manual restore screen is displayed, it lists backups from both the backup and restore directories, concatenated together. This allows you to run a manual restore on either the primary or the secondary server. An automated restore always uses the most recent backup file in the restore directory.
Also, the schedule of tasks to run in the primary database and the secondary database will be different, due to the existence of the backup and restore tasks. Therefore, the schedule itself is not automatically restored.
This section includes the following tasks:
■Enabling the Backup Account on the Secondary Server (required)
■Setting Up the Primary Server for Automatic Backup and Restore (required)
■Scheduling a Regular Backup (required)
■Starting a Backup Manually for Immediate Execution (optional)
■Verifying Backup Completion (optional)
■Modifying the Number of Backup Files to Retain (optional)
Before you set up the primary Cisco Vision Director server for automatic backup and restore with a redundant secondary server, enable the backup account on the secondary server using the TUI.
For more information about using the TUI, see Cisco Vision Dynamic Signage Director Server Text Utility Interface.
To enable the backup account on the secondary server:
1. On the secondary server, log into the TUI by doing the following:
a. Use a directly connected console, or use an SSH client from a laptop computer that is connected to the Cisco Vision Director server network to run a secure login to the secondary Cisco Vision Director server using the IP address for your server.
b. When the login prompt appears, enter the installer userid followed by the installer password at the password prompt.
2. From the Main Menu, go to the System Accounts > Enable/Disable Backup User menu (Figure 1).

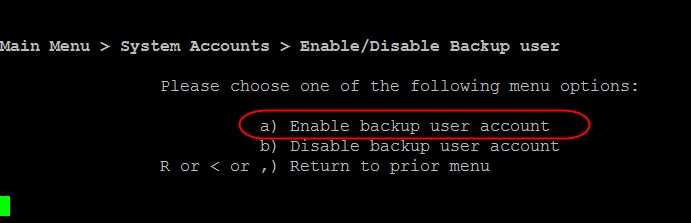

Figure 1 Enable/Disable Backup User Menu
1. Select Enable backup user account.
Tip: To navigate through the TUI menus, type the character that corresponds to the menu area where you want to go (a, b, c, and so on) and press Enter. To return to other menus, back out of the hierarchy of menus using one of the indicated keys to return you to prior menus.
When successfully created, the following messages display:
2. Press any key to return to the Enable/Disable Backup user menu.
Use a TUI menu option to automate the configuration of the backup accounts and directories between the primary and backup server. Use the TUI to setup the Cisco Vision Director Server environment to run the backup and restore processes.
Note: The TUI is only used to configure the backup environment. Use the Management Dashboard to schedule or run any manual backups. For more information, see Scheduling a Regular Backup and Starting a Backup Manually for Immediate Execution.
To set up the primary server for automatic backup and restore:
1. On the primary server, log into the TUI by doing the following:
a. Use a directly connected console, or use an SSH client from a laptop computer that is connected to the Cisco Vision Director Server network to run a secure login to the primary Cisco Vision Director server using the IP address for your server.
b. When the login prompt appears, enter the installer userid followed by the installer password at the password prompt.
2. From the Main Menu, go to Cisco Vision Server Administration > Setup automatic backup and restore.

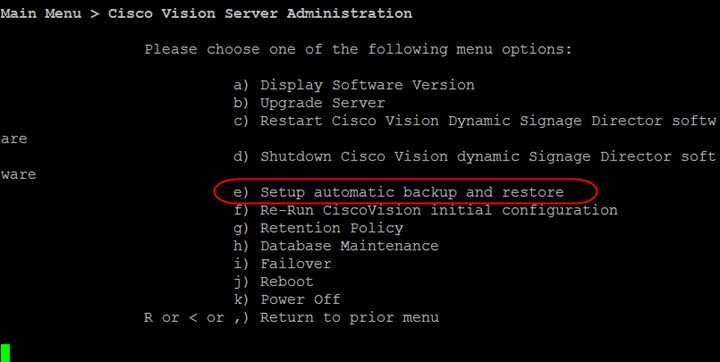

Figure 2 Setup Automatic Backup and Restore Menu Option
3. At the prompt type the IP address or hostname of your secondary server as shown in the example in Figure 3:
Figure 3 Secondary Server IP Address Configuration
4. At the prompt, type the password for the installer account on the secondary backup server.
5. When accepted, the system generates the RSA keys and the public key is copied to the secondary server. Confirm that the keys are created without errors as shown in (Figure 4):
Figure 4 Generation of RSA Keys
6. Wait until the “Press any key” message appears (there may be a short delay before it displays).
7. Press any key to return to the Cisco Vision Server Administration menu.
After you have configured the servers to support the backup process, schedule backups using the Management Dashboard in the Cisco Vision Director software.
To configure a backup to run on a regular schedule:
1. Log into the primary Cisco Vision Director server as an administrator.
2. From the Cisco Vision Director go to Tools > Management Dashboard.
The Cisco Vision Director Management Dashboard opens in a new window.
3. Select the Tools drawer > Advanced tab > Scheduled Tasks.
4. Click Add Row and scroll to the new blank line.
5. Click in the Task Type column and type BackupTask (Figure 5).
Note: Be sure to type the name of the task exactly as shown with upper and lowercase characters.

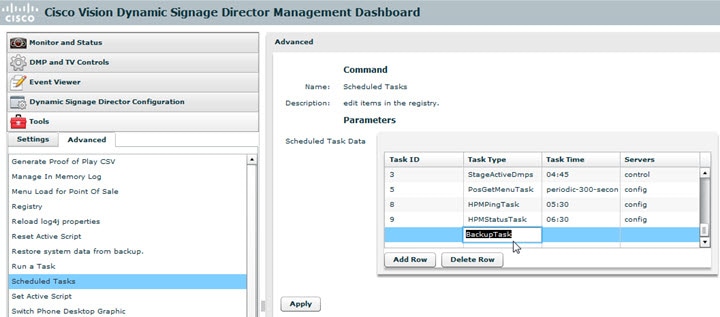

Figure 5 Adding a Backup Task to Run on a Regular Schedule
6. Click in the Task Time column and specify the time (in 24:00 format) when you want the backup to run.
If you want to start a backup right away, run a backup manually.
To start a backup manually for immediate execution:
1. Log into Cisco Vision Director as an administrator.
2. From the Cisco Vision Director main menu, go to Tools > Management Dashboard.
The Cisco Vision Director Management Dashboard opens in a new window.
3. Select Tools drawer > Advanced tab > Run a Task.
4. In the Tasks to Run box, select the BackupTask (Figure 6).

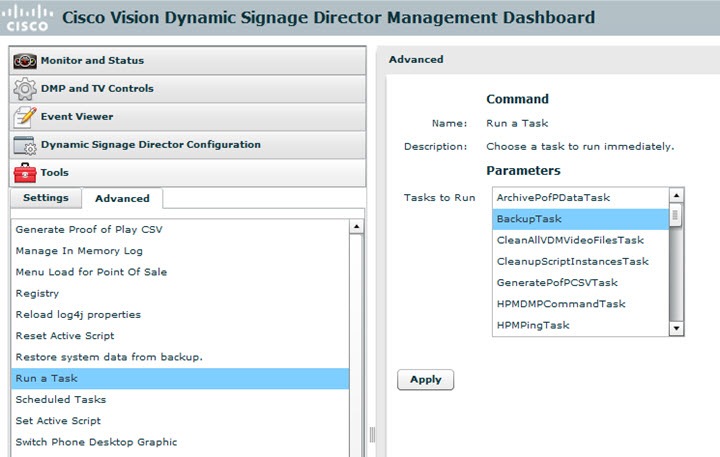

Figure 6 Running a Scheduled Backup Task Manually
The backup begins immediately. When completed, the CMS is automatically restarted.
Note: The “success” message that appears means that the backup task started. It does not mean that the backup is completed.
To verify backup completion, you should confirm that a backup file exists and also that no errors appear in the log file.
Note: Verifying the existence of a backup file only tells you that a backup was attempted, but not necessarily if there were any errors.
To verify that a backup file exists:
1. Log into Cisco Vision Director as an administrator.
2. From the Cisco Vision Director main menu, go to Tools > Management Dashboard.
The Cisco Vision Director Management Dashboard opens in a new window.
3. Select Tools drawer > Advanced tab > Restore system data from backup.
Note: Be aware that the messages “Starting backup” and “Backup completed” will always appear in the log regardless of success.
To find backup errors in the log file:
1. Open the /opt/sv/servers/config/logs/sv_dev_debug.log file.
Tip: You can access log files from the TUI, or by running a System State Report from the Cisco Vision Director Library (Main Menu). Click Tools > System State Report.
2. In the sv_dev_debug.log file, find messages that include the string “com.cisco.sv.backup.”
These are the backup process messages.
3. Find the “Starting backup” message.
4. After the “Starting backup” message (but before the “Backup completed” message), look for a “com.cisco.sv.backup” message that also includes “ERROR” in the string.
If you find this error, the backup did not complete successfully.
To reduce the amount of disk storage required in your system, the default backup retention policy is to keep one backup file. This retention policy can be modified to retain 2, 5, 7, or 10 backup files.
CAUTION : Be aware of your overall disk utilization and the size of your backup content so that the number of backup files you keep is supported by your system resources.
Note: This task must be run on both the primary server and secondary backup server.
To modify the number of backup files to retain:
1. Log into the TUI by doing the following:
a. Use a directly connected console, or use an SSH client from a laptop computer that is connected to the Cisco Vision Director server network to run a secure login to the primary Cisco Vision Directorserver using the IP address for your server.
b. When the login prompt appears, enter the installer userid followed by the installer password at the password prompt.
2. From the Main Menu, go to Cisco Vision Server Administration > Retention Policy > Backup/restore Files.
A menu of policy options is displayed (Figure 7), where you can choose to retain 1 (the default), 2, 5, 7, or 10 backup files.

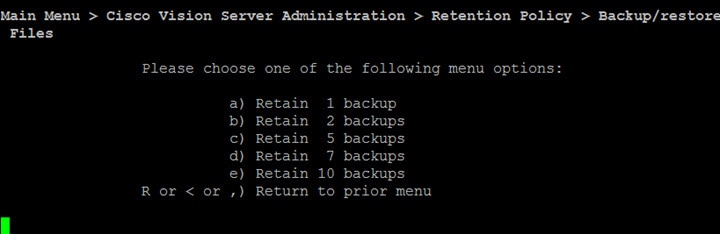

Figure 7 Backup Retention Policy Menu
3. Type the letter that corresponds to the number of days that you want to retain files and press Enter.
4. When the change of policy confirmation message displays, press any key to return to the Cisco Vision Server Administration menu.
Figure 8 Confirmation of Policy Change
The Cisco Vision Director software automatically copies backup files between the primary and secondary servers and when the restore process starts, verifies the MD5 checksum.
If you need to failover to the secondary server and do a restore, follow the procedures in Configuring Failover Between Redundant Cisco Vision Director Servers.
Note: If you need to manually copy files between the servers, copy both the.tar and.chksum files. The restore process automatically uses both files to verify the MD5 signature.
This section includes the following tasks:
■Starting a Restore Manually for Immediate Execution (optional)
■Restarting the Cisco Vision Director Software (required after restore run)
To start a restore other than at the regularly scheduled time, the Cisco Vision Director software also allows you to run a restore from backup to begin immediately.
CAUTION : You cannot successfully run the restore process while an event script is running. In addition, if your venue was running any script when the backup took place, then those scripts will begin running after the restore.
To start a restore manually for immediate execution:
1. Log into Cisco Vision Director as an administrator.
2. From the Cisco Vision Director main menu, go to Tools > Management Dashboard.
The Cisco Vision Director Management Dashboard opens in a new window.
3. Select Tools drawer > Advanced tab > Restore system data from backup.
4. For Components, select All components except Scheduled tasks (Figure 9).

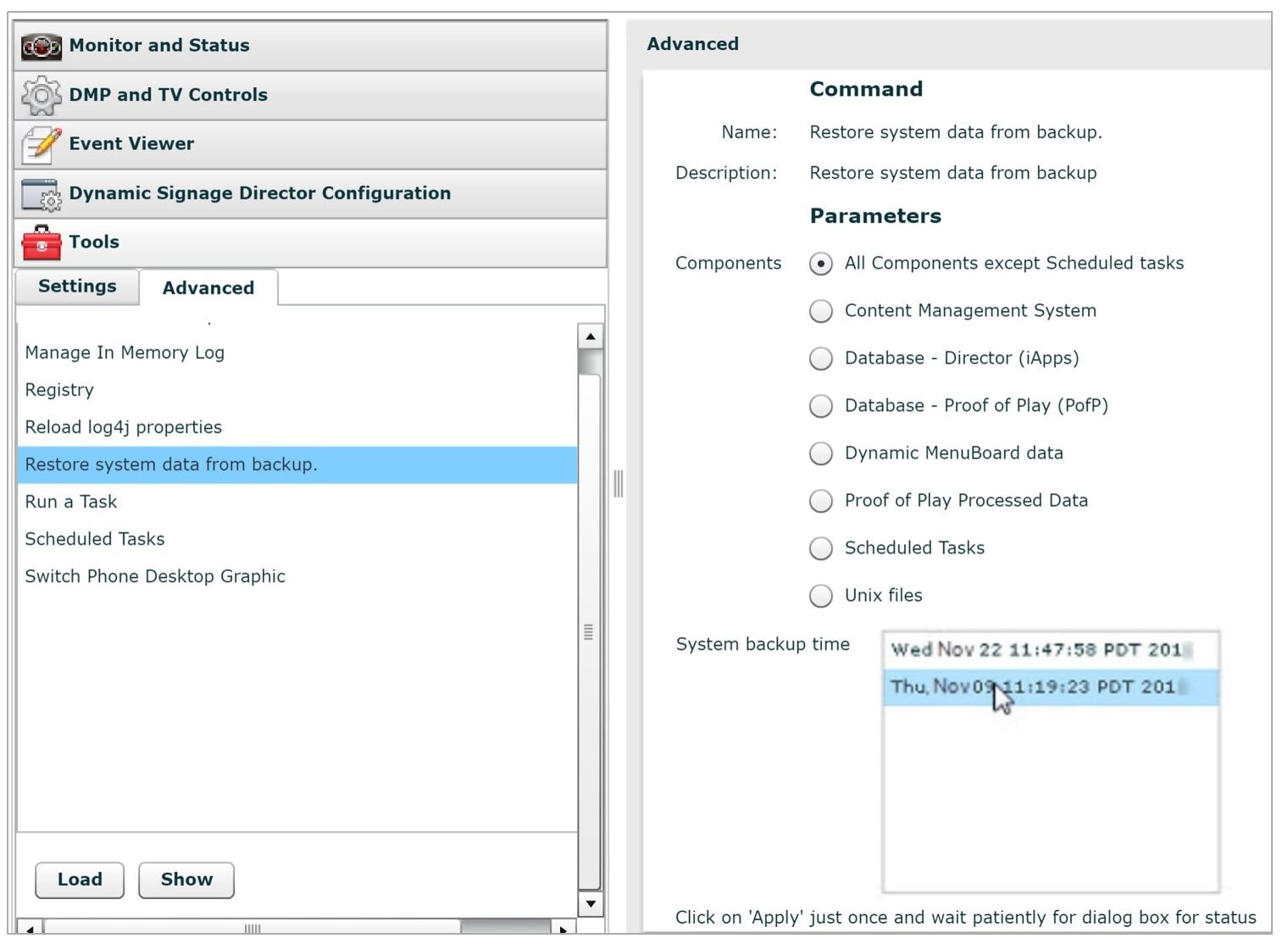

Figure 9 Running a Restore Task Manually
5. (Optional) If you do not want to restore the latest backup (the default), then in the System backup time box, select the date and time of the backup file that you want to restore (Figure 9).
The restore begins immediately.
Note: If you need to also restore the scheduled tasks, you can rerun the Restore system data from backup and for Components, select Scheduled Tasks.
After you perform any restore on a Cisco Vision Director server, you must restart the Cisco Vision Director software to resume normal operation of the services.
To restart the Cisco Vision Director software:
1. On the primary server, log into the TUI by doing the following:
a. Use a directly connected console, or use an SSH client from a laptop computer that is connected to the Cisco Vision Director server network to run a secure login to the primary Cisco Vision Director server using the IP address for your server.
b. When the login prompt appears, enter the installer userid followed by the installer password at the password prompt.
2. From the Main Menu, go to Cisco Vision Server Administration > Restart Dynamic Signage Director Software.
