RV260 Product Family Model Comparison

RV260

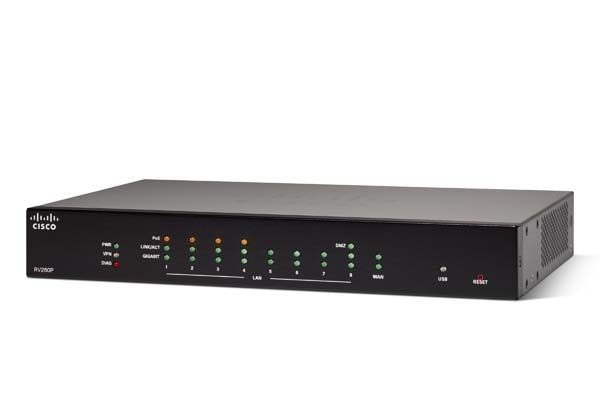

RV260P

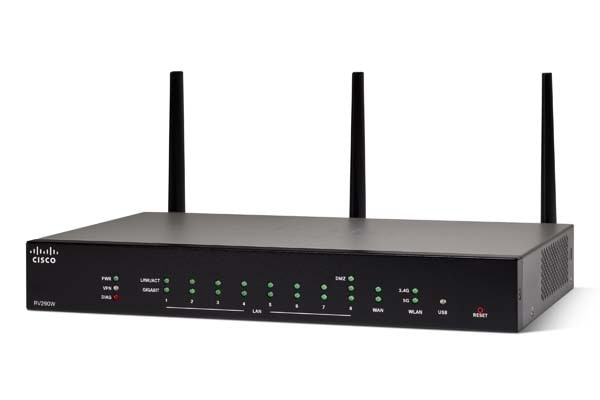

RV260W

Expand all

General
Device TypeWireless router - 8-port switch (integrated)Router, 8-port switch (integrated), PoEWireless router - 8-port switch (integrated)
Enclosure TypeDesktop, rack mountDesktop, rack mountDesktop
Connectivity TechnologyWiredWiredWireless, wired
Data Link ProtocolGigabit EthernetGigabit EthernetGigabit Ethernet
Frequency BandN/AN/A2.4 GHz, 5 GHz
PerformanceNAT throughput: 800 Mbps; VPN throughput (IPsec): 75 MbpsNAT throughput: 800 Mbps; VPN throughput (IPsec): 75 MbpsNAT throughput: 800 Mbps; VPN throughput (IPsec): 75 Mbps
Selectable Channels quantityN/AN/ANA: 32 ; ETSI: 29
CapacityTunnels: IPsec; VPN: 20; TCP concurrent sessions: 25,000Tunnels: IPsec; VPN: 20; TCP concurrent sessions: 25,001Tunnels: IPsec; VPN: 20; TCP concurrent sessions: 25,002
Network / Transport ProtocolPPTP, Layer 2 Transport Protocol (L2TP), IPsec, Point-to-Point Protocol over Ethernet (PPPoE), DHCPPPTP, Layer 2 Transport Protocol (L2TP), IPsec, Point-to-Point Protocol over Ethernet (PPPoE), DHCPPPTP, Layer 2 Transport Protocol (L2TP), IPsec, Point-to-Point Protocol over Ethernet (PPPoE), DHCP
Routing ProtocolRIP-1, RIP-2, RIPng for IPv6, inter-VLAN routing, static routing, IGMP proxyRIP-1, RIP-2, RIPng for IPv6, inter-VLAN routing, static routing, IGMP proxyRIP-1, RIP-2, RIPng for IPv6, inter-VLAN routing, static routing, IGMP proxy
Remote Management ProtocolSNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, REST APISNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, REST APISNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, REST API
Encryption AlgorithmTriple DES, Secure Hash Algorithm, Message Digest Algorithm (MD5), AESTriple DES, Secure Hash Algorithm, Message Digest Algorithm (MD5), AESTriple DES, Secure Hash Algorithm, Message Digest Algorithm (MD5), AES
Authentication methodLocal user; external radiusLocal user; external radiusLocal user; external radius
FeaturesFirewall protection, NAT support, PAT support, NAPT support, SPI, DoS attack prevention, port mirroring, IPv6 support, VPN passthrough, one year web filtering, content filtering, domain blocking, QoS, DHCP server, port forwarding, port triggering, DHCP client, PnP deployment, USB Modem FailoverFirewall protection, NAT support, PAT support, NAPT support, SPI, DoS attack prevention, port mirroring, IPv6 support, VPN passthrough, one year web filtering, content filtering, domain blocking, QoS, DHCP server, port forwarding, port triggering, DHCP client, PnP deploymentFirewall protection, NAT support, PAT support, NAPT support, SPI, DoS attack prevention, port mirroring, IPv6 support, VPN passthrough, one year web filtering, content filtering, domain blocking, QoS, DHCP server, port forwarding, port triggering, DHCP client, PnP deployment, USB modem failover
Compliance standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3abIEEE 802.3, IEEE 802.3u, IEEE 802.3abIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11a/b/g/n/ac
Status IndicatorsPowerr, VPN, diagnostic, LAN, WAN/SFP WAN, USBPower, VPN, diagnostic, LAN, WAN/SFP WAN, USBPower, VPN, diagnostic, LAN, WAN/SFP WAN, WLAN, USB
IP Telephony
Voice over IP (VoIP) protocols
Line Properties
Line Coding Format
Expansion and Connectivity
InterfacesLAN: 8 (RJ-45 10BASE-T/100BASE-TX/1000BASE-T); WAN: 1 (RJ45 10BASE-T/100BASE-TX/1000BASE-T, combination SFP); RJ-45 CLI console service use; USBLAN: 8 (RJ-45 10BASE-T/100BASE-TX/1000BASE-T); WAN: 1 (RJ45 10BASE-T/100BASE-TX/1000BASE-T, combination SFP); RJ-45 CLI console service use; USBLAN: 8 (RJ-45 10BASE-T/100BASE-TX/1000BASE-T); WAN: 1 (RJ45 10BASE-T/100BASE-TX/1000BASE-T, combination SFP); RJ-45 CLI console service use; USB
Antenna
AntennaN/AN/AExternal fixed
Antenna quantityN/AN/A3
DirectivityN/AN/AOmni
Gain LevelsN/AN/A2.4 GHz: 3 dBi for each antenna; 5 GHz: 5 dBi for each antenna
Power
Power DevicePower adapter - externalPower adapter - externalPower adapter - external
Voltage Required12V54V12V
Electric Current Required2A1.67A2.5A
Miscellaneous
Width279 mm279 mm279 mm
Depth170 mm170 mm170 mm
Height30 mm30 mm30 mm
Weight1230 g1260 g1360 g
Cables IncludedConsole cable, power cable, Ethernet cableConsole cable, power cable, Ethernet cableConsole cable, power cable, Ethernet cable
Compliance standardsFCC Class A, CE Class B, UL, cUL, CB, CCC, BSMI, KC, AnatelFCC Class A, CE Class B, UL, cUL, CB, CCC, BSMI, KC, AnatelFCC Class A, CE Class B, UL, cUL, CB, CCC, BSMI, KC, Anatel
LocalizationEnglishEnglishEnglish
Rack Mounting KitYesYesN/A
Software and System Requirements
OS ProvidedLinuxLinuxLinux
Software IncludedN/AN/AN/A
Manufacturer warranty
Service and SupportLimited lifetime warranty and 1 year of supportLimited lifetime warranty and 1 year of supportLimited lifetime warranty and 1 year of support
Service and support details
Environmental Parameters
Minimum operating temperature0°C, 32°F0°C, 32°F0°C, 32°F
Max Operating Temperature104°F104°F104°F
Humidity Range Operating10-85% noncondensing10-85% noncondensing10-85% noncondensing
