Cisco GainStar Accessories Data Sheet
Available Languages

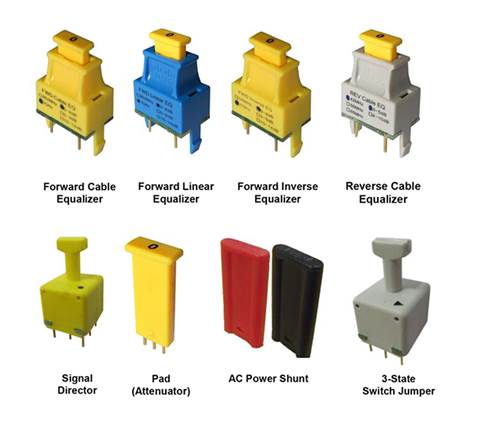

Cisco® GainStar accessories (Figure 1) are plug-in devices common to all Cisco GainStar nodes, amplifiers, mini nodes, and line extenders. They are typically field-installed in accordance with system design.
Specifications
Tables 1 through 14 provide product specifications for the Cisco GainStar accessories.
Cisco GainStar Forward Cable Equalizers
Cisco GainStar Forward cable equalizers produce a tilted frequency response opposite of that produced by coaxial cables. To achieve the desired output tilt, they are normally used during station balancing to counteract the tilt produced by coaxial cables. An equalizer’s “dB value” indicates the amount of tilt (in dB) that the equalizer produces from 54 MHz to the rated upper frequency. The rated upper frequency (862 MHz or 1 GHz) and rated equalizer (EQ) range are marked on the side of each equalizer. A PAD with the same value (in dB) is selected when a certain EQ value is needed. These accessories are used in the amplifier and line extenders only.
Table 1. Cisco GainStar Forward Cable Equalizers - 1000 MHz (Yellow Cover)
| EQ Value (dB) |
Part Number |
Typical Insertion Loss (dB) at Various Frequencies (MHz) |
||||||||
| 54 |
77 |
86 |
550 |
600 |
650 |
750 |
870 |
1000 |
||
| 0 |
4034453 |
0.6 |
0.6 |
0.6 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.3 |
| 1 |
1.6 |
1.6 |
1.6 |
0.7 |
0.7 |
0.6 |
0.5 |
0.5 |
0.6 |
|
| 2 |
2.6 |
2.3 |
2.2 |
1.2 |
1.1 |
1.0 |
0.9 |
0.9 |
0.8 |
|
| 3 |
3.6 |
3.5 |
3.5 |
1.6 |
1.5 |
1.4 |
1.2 |
1.0 |
0.9 |
|
| 4 |
4.6 |
4.5 |
4.4 |
2.0 |
1.9 |
1.8 |
1.5 |
1.2 |
0.9 |
|
| 5 |
4034454 |
5.9 |
5.8 |
5.7 |
2.7 |
2.6 |
2.3 |
2.0 |
1.5 |
0.9 |
| 6 |
6.8 |
6.7 |
6.7 |
3.1 |
2.9 |
2.6 |
2.2 |
1.6 |
0.9 |
|
| 7 |
7.8 |
7.7 |
7.6 |
3.6 |
3.3 |
2.9 |
2.4 |
1.7 |
0.9 |
|
| 8 |
8.8 |
8.7 |
8.6 |
4.0 |
3.7 |
3.2 |
2.6 |
1.8 |
0.9 |
|
| 9 |
9.8 |
9.6 |
9.5 |
4.3 |
4.0 |
3.5 |
2.8 |
1.9 |
0.9 |
|
| 10 |
4034455 |
10.7 |
10.5 |
10.4 |
4.7 |
4.3 |
3.9 |
3.1 |
2.1 |
1.0 |
| 11 |
11.7 |
11.5 |
11.4 |
5.0 |
4.6 |
4.1 |
3.2 |
2.1 |
1.0 |
|
| 12 |
12.7 |
12.4 |
12.3 |
5.3 |
4.8 |
4.3 |
3.4 |
2.2 |
1.0 |
|
| 13 |
13.6 |
13.3 |
13.2 |
5.5 |
5.0 |
4.5 |
3.5 |
2.2 |
1.0 |
|
| 14 |
14.6 |
14.2 |
14.0 |
5.8 |
5.2 |
4.6 |
3.5 |
2.2 |
1.0 |
|
Table 2. Cisco GainStar Forward Cable Equalizers - 862 MHz (Yellow Cover)
| EQ Value (dB) |
Part Number |
Typical Insertion Loss (dB) at Various Frequencies (MHz) |
|||||||
| 54 |
77 |
86 |
550 |
600 |
650 |
750 |
862 |
||
| 0 |
4034450 |
0.4 |
0.4 |
0.5 |
0.2 |
0.2 |
0.1 |
0.1 |
0.3 |
| 1 |
1.4 |
1.4 |
1.4 |
0.6 |
0.5 |
0.5 |
0.4 |
0.4 |
|
| 2 |
2.4 |
2.4 |
2.3 |
0.9 |
0.9 |
0.8 |
0.6 |
0.5 |
|
| 3 |
3.4 |
3.3 |
3.3 |
1.3 |
1.2 |
1.1 |
0.8 |
0.5 |
|
| 4 |
4.4 |
4.3 |
4.3 |
1.6 |
1.5 |
1.3 |
1.0 |
0.5 |
|
| 5 |
4034451 |
5.8 |
5.6 |
5.6 |
1.8 |
1.6 |
1.3 |
0.9 |
0.5 |
| 6 |
6.8 |
6.6 |
6.5 |
2.0 |
1.7 |
1.4 |
0.9 |
0.5 |
|
| 7 |
7.7 |
7.5 |
7.4 |
2.3 |
2.0 |
1.6 |
1.0 |
0.5 |
|
| 8 |
8.7 |
8.4 |
8.3 |
2.5 |
2.2 |
1.7 |
1.0 |
0.5 |
|
| 9 |
9.6 |
9.4 |
9.2 |
2.7 |
2.3 |
1.8 |
1.1 |
0.8 |
|
| 10 |
4034452 |
10.6 |
10.3 |
10.2 |
3.6 |
3.1 |
2.6 |
1.7 |
0.8 |
| 11 |
11.5 |
11.2 |
11.1 |
3.7 |
3.3 |
2.7 |
1.7 |
0.8 |
|
| 12 |
12.5 |
12.1 |
12.0 |
4.0 |
3.5 |
2.8 |
1.7 |
0.8 |
|
| 13 |
13.5 |
13.1 |
12.9 |
4.2 |
3.6 |
3.0 |
1.9 |
0.8 |
|
| 14 |
14.4 |
13.9 |
13.7 |
4.4 |
3.7 |
3.1 |
1.9 |
0.8 |
|
Cisco GainStar Forward Linear Equalizers
Cisco GainStar Forward linear equalizers produce linear tilt. A linear equalizer should be used in the plug-in input or output equalizer location if a node output tilt does not have the desired station output tilt. The rated upper frequency (862 MHz or 1000 MHz) and rated EQ range are marked on the side of each equalizer. A PAD with the same value (in dB) is selected when a certain EQ value is needed. These accessories are used in nodes and mini nodes only.
Table 3. Cisco GainStar Forward Linear Equalizers -1000 MHz (Blue Cover)
| EQ Value (dB) |
Part Number |
Typical Insertion Loss (dB) at Various Frequencies (MHz) |
||||||||
| 54 |
77 |
86 |
550 |
600 |
650 |
750 |
870 |
1000 |
||
| 0 |
4034459 |
0.6 |
0.6 |
0.6 |
0.3 |
0.3 |
0.2 |
0.2 |
0.2 |
0.4 |
| 1 |
1.6 |
1.6 |
1.6 |
0.8 |
0.8 |
0.7 |
0.7 |
0.6 |
0.8 |
|
| 2 |
2.6 |
2.6 |
2.6 |
1.4 |
1.3 |
1.2 |
1.1 |
1.0 |
1.0 |
|
| 3 |
3.6 |
3.6 |
3.5 |
1.9 |
1.8 |
1.7 |
1.5 |
1.3 |
1.0 |
|
| 4 |
4.6 |
4.5 |
4.5 |
2.4 |
2.3 |
2.2 |
2.0 |
1.8 |
1.2 |
|
| 5 |
4034460 |
5.8 |
5.8 |
5.7 |
2.9 |
2.7 |
2.5 |
2.1 |
1.6 |
1.0 |
| 6 |
6.8 |
6.7 |
6.7 |
3.4 |
3.0 |
2.8 |
2.4 |
1.7 |
1.0 |
|
| 7 |
7.8 |
7.7 |
7.7 |
3.8 |
3.5 |
3.2 |
2.6 |
1.9 |
1.0 |
|
| 8 |
8.8 |
8.7 |
8.6 |
4.2 |
3.9 |
3.5 |
2.9 |
2.0 |
1.0 |
|
| 9 |
9.8 |
9.6 |
9.5 |
4.6 |
4.2 |
3.8 |
3.1 |
2.0 |
1.0 |
|
| 10 |
4034461 |
10.8 |
10.7 |
10.6 |
5.8 |
5.4 |
4.9 |
4.0 |
2.8 |
1.0 |
| 11 |
11.8 |
11.7 |
11.6 |
6.1 |
5.7 |
5.2 |
4.2 |
2.8 |
1.0 |
|
| 12 |
12.8 |
12.6 |
12.5 |
6.5 |
6.0 |
5.5 |
4.3 |
2.9 |
1.0 |
|
| 13 |
13.8 |
13.6 |
13.5 |
6.9 |
6.3 |
5.7 |
4.4 |
2.9 |
1.0 |
|
| 14 |
14.7 |
14.5 |
14.4 |
7.2 |
6.7 |
6.0 |
4.5 |
3.0 |
1.0 |
|
Table 4. Cisco GainStar Forward Linear Equalizers - 862 MHz (Blue Cover)
| EQ Value (dB) |
Part Number |
Typical Insertion Loss (dB) at Various Frequencies (MHz) |
|||||||
| 54 |
77 |
86 |
550 |
600 |
650 |
750 |
862 |
||
| 0 |
4034456 |
0.5 |
0.5 |
0.5 |
0.2 |
0.2 |
0.1 |
0.1 |
0.3 |
| 1 |
1.5 |
1.5 |
1.4 |
0.7 |
0.6 |
0.5 |
0.4 |
0.6 |
|
| 2 |
2.5 |
2.4 |
2.4 |
1.1 |
1.0 |
0.9 |
0.8 |
0.7 |
|
| 3 |
3.4 |
3.4 |
3.3 |
1.6 |
1.4 |
1.3 |
1.0 |
0.7 |
|
| 4 |
4.4 |
4.4 |
4.3 |
2.0 |
1.8 |
1.6 |
1.2 |
0.7 |
|
| 5 |
4034457 |
5.8 |
5.8 |
5.7 |
2.8 |
2.7 |
2.3 |
1.7 |
1.0 |
| 6 |
6.8 |
6.7 |
6.7 |
3.3 |
3.0 |
2.7 |
1.9 |
1.0 |
|
| 7 |
7.8 |
7.7 |
7.6 |
3.8 |
3.4 |
3.1 |
2.1 |
1.0 |
|
| 8 |
8.8 |
8.7 |
8.6 |
4.2 |
3.8 |
3.3 |
2.3 |
1.0 |
|
| 9 |
9.8 |
9.6 |
9.6 |
4.5 |
4.1 |
3.5 |
2.5 |
1.0 |
|
| 10 |
4034458 |
10.8 |
10.6 |
10.5 |
5.0 |
4.5 |
3.8 |
2.6 |
1.0 |
| 11 |
11.8 |
11.6 |
11.5 |
5.3 |
4.8 |
4.1 |
2.7 |
1.0 |
|
| 12 |
12.7 |
12.5 |
12.4 |
5.6 |
5.0 |
4.3 |
2.8 |
1.0 |
|
| 13 |
13.7 |
13.5 |
13.3 |
5.9 |
5.3 |
4.5 |
2.9 |
1.0 |
|
| 14 |
14.7 |
14.4 |
14.2 |
6.2 |
5.5 |
4.7 |
3.0 |
1.0 |
|
Cisco GainStar Forward Inverse Equalizers
Cisco GainStar Forward Inverse Equalizers produce cable equivalent tilt. To achieve the desired output tilt, an inverse equalizer is normally used in place of a forward input equalizer during station balancing when an amplifier is short spaced. An inverse equalizer’s “dB value” indicates the amount of tilt (in dB) that would produce similar tilt (loss differential from low to high frequency). The rated lower frequency (54 MHz, 87 MHz, or 105 MHz) is marked on the side of each equalizer. A PAD with the same value (in dB) is selected when a certain EQ value is needed.
Table 5. Cisco GainStar Inverse Equalizers 54 - 1000 MHz (Yellow Cover)
| EQ Value (dB) |
Part Number |
Typical Insertion Loss (dB) at Various Frequencies (MHz) |
||||||||
| 54 |
77 |
86 |
550 |
600 |
650 |
750 |
862 |
1000 |
||
| 0 |
4035729 |
0.03 |
0.06 |
0.05 |
0.24 |
0.27 |
0.30 |
0.34 |
0.39 |
0.49 |
| 1 |
0.53 |
0.64 |
0.65 |
1.01 |
1.06 |
1.10 |
1.22 |
1.37 |
1.60 |
|
| 2 |
0.63 |
0.88 |
0.93 |
1.67 |
1.73 |
1.79 |
1.95 |
2.16 |
2.54 |
|
| 3 |
0.58 |
0.92 |
1.05 |
2.48 |
2.57 |
2.65 |
2.88 |
3.16 |
3.65 |
|
| 4 |
0.52 |
0.88 |
0.98 |
3.04 |
3.16 |
3.26 |
3.54 |
3.91 |
4.51 |
|
| 5 |
4035730 |
0.57 |
0.97 |
1.12 |
3.89 |
4.04 |
4.20 |
4.53 |
4.97 |
5.68 |
| 6 |
0.53 |
0.93 |
1.05 |
4.49 |
4.69 |
4.88 |
5.31 |
5.87 |
6.71 |
|
| 7 |
0.49 |
0.88 |
1.01 |
5.03 |
5.29 |
5.52 |
6.05 |
6.67 |
7.62 |
|
| 8 |
0.46 |
0.84 |
0.96 |
5.67 |
5.96 |
6.24 |
6.86 |
7.60 |
8.74 |
|
| 9 |
0.42 |
0.78 |
0.90 |
6.27 |
6.64 |
6.97 |
7.69 |
8.51 |
9.72 |
|
| 10 |
4035731 |
0.60 |
1.10 |
1.27 |
7.44 |
7.80 |
8.12 |
8.89 |
9.75 |
10.93 |
| 11 |
0.58 |
1.08 |
1.26 |
7.87 |
8.29 |
8.67 |
9.53 |
10.50 |
11.85 |
|
| 12 |
0.55 |
1.02 |
1.17 |
8.24 |
8.70 |
9.12 |
10.04 |
11.06 |
12.38 |
|
| 13 |
0.53 |
1.00 |
1.14 |
8.59 |
9.12 |
9.59 |
10.69 |
11.90 |
13.54 |
|
| 14 |
0.51 |
0.96 |
1.12 |
8.90 |
9.52 |
10.08 |
11.32 |
12.74 |
14.68 |
|
Table 6. Cisco GainStar Inverse Equalizers 87 - 1000 MHz (Yellow Cover)
| EQ Value (dB) |
Part Number |
Typical Insertion Loss (dB) at Various Frequencies (MHz) |
||||||||||
| 86 |
550 |
600 |
650 |
750 |
862 |
1000 |
||||||
| 4035732 |
0.05 |
0.22 |
0.24 |
0.27 |
0.30 |
0.35 |
0.43 |
|||||
| 1 |
0.37 |
0.94 |
0.99 |
1.03 |
1.15 |
1.28 |
1.56 |
|||||
| 2 |
0.42 |
1.56 |
1.63 |
1.70 |
1.87 |
2.10 |
2.49 |
|||||
| 3 |
0.38 |
2.31 |
2.41 |
2.50 |
2.70 |
3.01 |
3.54 |
|||||
| 4 |
0.33 |
2.82 |
2.94 |
3.07 |
3.36 |
3.80 |
4.48 |
|||||
| 5 |
4035733 |
0.25 |
3.43 |
3.60 |
3.75 |
4.11 |
4.59 |
5.38 |
||||
| 6 |
0.24 |
3.97 |
4.19 |
4.38 |
4.84 |
5.43 |
6.33 |
|||||
| 7 |
0.22 |
4.42 |
4.71 |
4.96 |
5.55 |
6.23 |
7.25 |
|||||
| 8 |
0.21 |
4.93 |
5.26 |
5.56 |
6.24 |
7.05 |
8.22 |
|||||
| 9 |
0.20 |
5.40 |
5.81 |
6.18 |
6.97 |
7.89 |
9.15 |
|||||
| 10 |
4035734 |
0.68 |
7.36 |
7.73 |
8.07 |
8.79 |
9.61 |
10.72 |
||||
| 11 |
0.63 |
7.83 |
8.28 |
8.68 |
9.49 |
10.42 |
11.68 |
|||||
| 12 |
0.60 |
8.21 |
8.73 |
9.21 |
10.15 |
11.18 |
12.49 |
|||||
| 13 |
0.58 |
8.59 |
9.18 |
9.73 |
10.86 |
12.09 |
13.69 |
|||||
| 14 |
0.56 |
8.78 |
9.45 |
10.08 |
11.42 |
12.88 |
14.85 |
|||||
Table 7. Cisco GainStar Inverse Equalizers 105 - 1000 MHz (Yellow Cover)
| EQ Value (dB) |
Part Number |
Typical Insertion Loss (dB) at Various Frequencies (MHz) |
||||||
| 105 |
550 |
600 |
650 |
750 |
862 |
1000 |
||
| 0 |
GS-FIEQ-105-00-04 |
0.19 |
0.33 |
0.34 |
0.36 |
0.42 |
0.45 |
0.49 |
| 1 |
0.62 |
1.10 |
1.13 |
1.17 |
1.27 |
1.37 |
1.54 |
|
| 2 |
0.86 |
1.88 |
1.93 |
2.00 |
2.15 |
2.33 |
2.64 |
|
| 3 |
0.75 |
2.50 |
2.57 |
2.60 |
2.86 |
3.11 |
3.52 |
|
| 4 |
0.77 |
3.14 |
3.25 |
3.36 |
3.62 |
3.94 |
4.47 |
|
| 5 |
GS-FIEQ-105-05-09 |
0.38 |
3.55 |
3.71 |
3.88 |
4.25 |
4.73 |
5.50 |
| 6 |
0.34 |
4.19 |
4.42 |
4.63 |
5.09 |
5.70 |
6.62 |
|
| 7 |
0.31 |
4.79 |
5.09 |
5.35 |
5.91 |
6.63 |
7.65 |
|
| 8 |
0.31 |
5.07 |
5.41 |
5.73 |
6.40 |
7.21 |
8.40 |
|
| 9 |
0.28 |
5.46 |
5.85 |
6.23 |
7.00 |
7.94 |
9.28 |
|
| 10 |
GS-FIEQ-105-10-14 |
0.55 |
7.03 |
7.42 |
7.81 |
8.52 |
9.31 |
10.62 |
| 11 |
0.53 |
7.64 |
8.04 |
8.51 |
9.31 |
10.21 |
11.44 |
|
| 12 |
0.50 |
8.24 |
8.79 |
9.32 |
10.27 |
11.32 |
12.60 |
|
| 13 |
0.51 |
8.47 |
9.50 |
10.12 |
11.21 |
12.33 |
13.68 |
|
| 14 |
0.47 |
8.81 |
9.54 |
10.21 |
11.52 |
12.93 |
14.60 |
|
Cisco GainStar Reverse Cable Equalizers
Cisco GainStar Reverse Cable Equalizers produce a tilted frequency response opposite of that produced by coaxial cable. They are normally used during station balancing to counteract the tilt produced by coaxial cable, in order to achieve the desired tilt. An equalizer’s “dB value” indicates the amount of tilt (in dB, at the rated high frequency) that the equalizer is designed to offset. The rated high frequency (42 MHz, 65 MHz, or 85 MHz) and rated EQ range are marked on the side of each equalizer. A PAD with the same value (in dB) is selected when a certain EQ value is needed.
Table 8. Cisco GainStar Reverse Equalizers - 42 MHz
| EQ Value (dB) |
Part Number |
Typical Insertion Loss (dB) at Various Frequencies (MHz) |
||
| 5 |
40 |
42 |
||
| 0 |
4034465 |
0.7 |
0.5 |
0.5 |
| 1 |
1.7 |
0.6 |
0.6 |
|
| 2 |
2.6 |
0.7 |
0.7 |
|
| 3 |
3.6 |
0.8 |
0.7 |
|
| 4 |
4.5 |
0.9 |
0.8 |
|
| 5 |
5.5 |
1.0 |
0.9 |
|
| 6 |
4034466 |
6.7 |
1.0 |
1.0 |
| 7 |
7.6 |
1.0 |
1.0 |
|
| 8 |
8.6 |
1.1 |
1.0 |
|
| 9 |
9.5 |
1.2 |
1.0 |
|
| 10 |
10.4 |
1.2 |
1.0 |
|
Table 9. Cisco GainStar Reverse Equalizers - 65 MHz
| EQ Value (dB) |
Part Number |
Typical Insertion Loss (dB) at Various Frequencies (MHz) |
|
| 5 |
65 |
||
| 0 |
4034462 |
0.8 |
0.6 |
| 1 |
1.8 |
0.7 |
|
| 2 |
2.8 |
0.8 |
|
| 3 |
3.8 |
0.9 |
|
| 4 |
4.8 |
1.0 |
|
| 5 |
5.7 |
1.0 |
|
| 6 |
4034463 |
6.7 |
0.6 |
| 7 |
7.7 |
0.6 |
|
| 8 |
8.6 |
0.6 |
|
| 9 |
9.6 |
0.6 |
|
| 10 |
10.6 |
0.7 |
|
Table 10. Cisco GainStar Reverse Equalizers - 85 MHz
| EQ Value (dB) |
Part Number |
Typical Insertion Loss (dB) at Various Frequencies (MHz) |
|
| 5 |
85 |
||
| 0 |
GS-REQ-85-00-05 |
0.68 |
0.31 |
| 1 |
1.68 |
0.33 |
|
| 2 |
2.65 |
0.32 |
|
| 3 |
3.67 |
0.34 |
|
| 4 |
4.65 |
0.35 |
|
| 5 |
5.65 |
0.34 |
|
| 6 |
GS-REQ-85-06-10 |
6.71 |
0.52 |
| 7 |
7.58 |
0.53 |
|
| 8 |
8.68 |
0.55 |
|
| 9 |
9.66 |
0.56 |
|
| 10 |
10.64 |
0.60 |
|
Cisco GainStar Signal Directors
Cisco GainStar Signal Directors are used as a two-way splitter to feed the signal into both “Main” and “Aux” ports, or as a jumper, to route all signals to a selected port (Main port).
Table 11. Cisco GainStar Signal Directors (yellow cover)
| Type |
Part Number |
Auxiliary/Through Leg |
Typical Insertion Loss (dB) at Various Frequencies (MHz) |
||||||||
| 52 |
70 |
86 |
550 |
600 |
650 |
750 |
870 |
1002 |
|||
| Jumper |
4034468 |
- |
0.1 |
0.1 |
0.2 |
0.3 |
0.3 |
0.4 |
0.5 |
0.5 |
0.7 |
| Two-way splitter |
Aux 1 |
3.2 |
3.2 |
3.2 |
3.4 |
3.5 |
3.5 |
3.6 |
3.7 |
3.8 |
|
| Aux 2 |
3.2 |
3.2 |
3.2 |
3.4 |
3.5 |
3.5 |
3.6 |
3.7 |
3.8 |
||
Cisco GainStar Pads (Attenuators)
Plug-in pads produce flat (even) loss across the forward and reverse frequency spectrums. Pads are used during station balancing to adjust signal levels as needed. The (dB) loss produced is equal to the pad value printed on the top of the pad. The pads listed below are rated for operation to 1 GHz. Specially, the pad with “75Ω” printed on the top will work as a 75Ω terminator.
Table 12. Cisco GainStar Pads
| Pad Value (dB) |
Part Number |
| 0 |
4036021 |
| 1 |
4036022 |
| 2 |
4036023 |
| 3 |
4036024 |
| 4 |
4036025 |
| 5 |
4036026 |
| 6 |
4036027 |
| 7 |
4036028 |
| 8 |
4036029 |
| 9 |
4036030 |
| 10 |
4036031 |
| 11 |
4036032 |
| 12 |
4036033 |
| 13 |
4036034 |
| 14 |
4036035 |
| 15 |
4036036 |
| 16 |
4036037 |
| 17 |
4036038 |
| 18 |
4036039 |
| 19 |
4036040 |
| 20 |
4036041 |
| 75Ω Terminator |
4036140 |
Cisco GainStar AC Power Shunt
To set the power direction, an AC power shunt will be installed for the ports through which the AC power would pass. The red shunt is used to activate the port that supplies power, and the black shunt is used for the output port to supply power for next stage.
Table 13. Cisco GainStar AC Power Shunt
| Type |
Part Number |
| Black |
4034476 |
| Red |
4034477 |
Cisco GainStar 3 - State Switch Jumper
Cisco GainStar 3 - State Switch Jumper is used in nodes and amplifiers only.
Table 14. Cisco GainStar 3 - State Switch Jumper
| Type |
Part Number |
| GainStar 3 - State Switch Jumper |
4034473 |
Ordering Information
To place an order, visit the Cisco Ordering Home Page and refer to the ordering number information provided in Tables 1 through 14.
For More Information
Cisco 1 GHz GainStar accessories offer the industry’s most complete range of high-performance components. For additional information on amplifiers, please go to:
http://www.cisco.com/c/en/us/products/video/gainstar-amplifiers/index.html
For additional information on nodes, please go to:
http://www.cisco.com/c/en/us/products/video/gainstar-nodes/index.html
Feedback
