Cisco GainMaker High Output High Gain Balanced Triple 1 GHz Node 85/102 MHz Data Sheet

Available Languages

Download Options

  • PDF     (884.2 KB)
    View with Adobe Reader on a variety of devices
Updated:January 15, 2016
Document ID:d5c36fde-905a-4535-9c7c-f98e473f42b2

Bias-Free Language

The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.

Looking for the ideal platform for delivering digital and analog video and high-speed data services over advanced hybrid fiber/coax (HFC) networks? Look no further. The GainMaker® High Output Node is designed to serve as an integral part of today's network architectures. It combines the proven technologies of both the GainMaker RF Amplifier and Prisma® optical components. The GainMaker High Output Node is capable of higher output levels than standard Cisco® GainMaker Nodes. With its modular design of fiber receiver, reverse fiber transmitter, and RF amplifier electronics, the GainMaker High Output Node station can provide a variety of functions required by advanced networks.

Figure 1.      GainMaker High Output Node

The GainMaker High Output Node accommodates a second forward receiver with an RF switch to provide forward path optical redundancy. Reverse traffic can be combined and routed to distributed feedback (DFB), coarse wavelength-division multiplexing (CWDM), dense wavelength-division multiplexing (DWDM), or Enhanced Digital Reverse (EDR) transmitters. The High Gain Balanced Triple (HGBT) launch amplifier module provides three high-level outputs. Additionally, the node is available with an optional DOCSIS status monitoring transponder. On-board temperature, automatic gain control (AGC) levels, RF switch position, power supply condition, as well as other features and parameters can be monitored through this transponder.

Features

●   Capable of higher output levels than standard GainMaker nodes

●   Forward redundancy available through a second 1310/1550 nm optical receiver (optional)

●   Uses plug-in accessories common to all GainMaker products

●   Cable to linear EQ in amplifiers I/S EQ spot provides 15.5 dB of internal Linear tilt

●   Local test points and LED indicators on optical receivers, transmitters, and optical interface board simplify installation and maintenance

●   AGC has thermal mode, eliminating disruptive RF output variation in the event of pilot loss

●   Optional plug-in for status monitoring

●   Optional 3-state reverse switch (on/off/-6 dB) allows each reverse input to be isolated for noise and ingress troubleshooting (status monitoring required)

●   Fiber management tray provides easy access to fiber connections and folds back to provide access to optical transmitter and receivers

●   Reverse input pad and RF test point for each reverse input port on launch amplifier allow optimum reverse path design and alignment

Block Diagrams

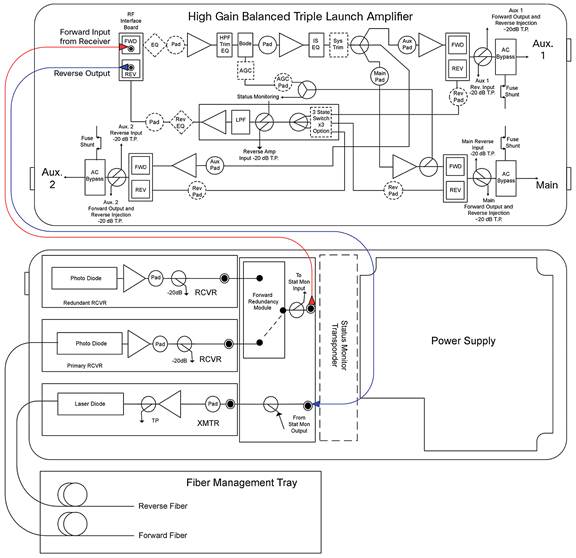

Figure 2.      High Gain Balanced Triple (HGBT) Diagram

Optical specifications for the GainMaker High Output Node are shown in Table 1.

Table 1.       Optical Section Specifications

Optical Section - Forward Receiver Module

Units

GainMaker Standard RX

Notes

Wavelength

nm

1310 and 1550



Optical Input Range

mW

dBm

0.5 to 1.6

-3 to + 2



Pass Band

MHz

105-1002



Frequency Response

dB

+/- 0.75

1

Tilt (+/- 1.0 dB)

dB

0



Optical Input Test Point (+/- 10%)

V DC

1V/mW



Redundant Optical Rx switching threshold (± 1.0 dB)

dBm

-6



RF Output Level @ 0 dBm Optical Input

dBmV

Refer to chart (below)

2

RF Output Test Point (± 1.0 dB)

dB

- 20

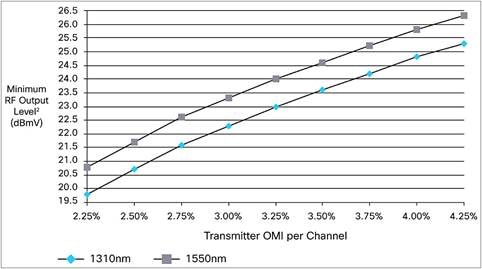

Figure 3.      Receiver RF Output Level vs. Transmitter OMI

Notes for Optical Section Specifications:

1 For forward receiver module only. Does not include frequency response contributions from forward optical transmitter.
2 Minimum receiver RF output level for the stated transmitter percent OMI/ch. (Optical Modulation Index per channel), with receiver optical input power of 0 dBm. To determine RF output levels at other optical input power, add (or subtract) 2 dB in RF level for each 1 dB increase (or decrease) in receiver optical input power.

For reverse optical transmitter and link performance, see the “Analog Reverse Optical Transmitters with Thermal Compensation” data sheet.









Unless otherwise noted, specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.

Table 2.       RF Section Specifications

General Station Performance

Units

Forward

Reverse

Notes

Pass Band

MHz

105-1002

5-85

14

Return Loss

dB

16

16

7

Hum Modulation @ 12 A

dB

70 (105-870 MHz)

60 (870-1002 MHz)

60 (5-10 MHz)

70 (11-85 MHz)



Hum Modulation @ 15 A

dB

65 (105-870 MHz)

60 (870-1002 MHz)

60 (5-10 MHz)

65 (11-85 MHz)



Test Points (±0.5 dB)

dB

-20

-20



Table 3.       Launch Amplifier Performance - Forward

Launch Amplifier Performance - Forward

Units

HGBT

Notes

Operational Gain (minimum)

dB

41

2, 14

Frequency Response

dB

+/- 0.5



Internal Tilt (±1 dB)

dB

15.5

1, 3

Noise Figure @… 105 MHz

1002 MHz

dB

8.5

8.0

2

Reference Output Levels @… 1002 MHz

870 MHz

750 MHz

650 MHz

550 MHz

105 MHz

dBmV

56.0

54.0

52.2

50.5

49.0

42.3



Reference Output Tilt (105-1002 MHz)

dB

13.7

1,4

73 NTSC channels (CW) with digital





9

Composite Triple Beat

dB

65

5

Cross Modulation

dB

59

5, 13

Composite Second Order (high side)

dB

64

5

Composite Intermodulation Distortion (CIN)

dB

57

5, 10

Table 4.       Forward Insertion Loss

Forward Insertion Loss
Optical Interface Board and Plug-Ins
(Loss from Specified Optical Receiver RF Output to Launch Amplifier RF Input)

Units

With Redundancy Module Installed

Notes

Receiver position 1

dB

1.5

11

Receiver position 2

dB

1.5

11







Unless otherwise noted, specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.

Table 5.       Launch Amplifier Performance - Reverse

Launch Amplifier Performance - Reverse

Units

Reverse

Notes

Amplifier Type

-

Push-Pull



Operational Gain (minimum)

dBmV

19

7, 12

Frequency Response

dB

+/- 0.5



Internal Tilt (+/- 1dB)

dB

-0.5



Noise Figure

dB

14.5

7, 12

Reference Output Levels @ 5 and 85 MHz

dBmV

35

6

6 NTSC Channels (CW)







Composite Triple Beat

dB

92



Cross Modulation

dB

80

13

Composite Second Order

dB

82



Station Performance - Reverse
(Station port input to optical transmitter input)

Units





Operational Gain (minimum)

dB

17

7, 8

Table 6.       Station Delay Characteristics and Frequency

Station Delay Characteristics 85/105 Split

Forward

(Chrominance to Luminance Delay)

Reverse

(Group Delay in 1.5 MHz BW)

Frequency (MHz)

Delay (nS)

Frequency (MHz)

Delay (nS)

109.25 - 112.83

13

5.0 - 6.5

60

115.25 - 118.83

7

6.5 - 8.0

22

121.25 - 124.83

5

8.0 - 9.5

12





80.5 - 82.0

10





82.0 - 83.5

13





83.5 - 85.0

18

Notes for RF Section Specifications:

1 Reference output tilt and internal tilt are both “linear” tilt.
2 Forward gain and noise figure measured with 0 dB input EQ and 1 dB input pad.
3 Forward internal tilt specified is primarily due to an on-board equalizer and a factory configured 10.5 dB cable to linear interstage equalizer (ISEQ).
4 The forward reference output tilt specified is achieved via field installation of appropriate input EQ, in conjunction with the internal tilt of the launch amplifier and the tilt associated with the optical link (transmitter/receiver combination).
5 Station performance can be determined by combining optic performance and launch amplifier performance. Stated distortion performance is for launch amplifier section operated at reference output levels and tilt. Consult Cisco System Engineering for CIN calculations.
6 Reverse output reference level at the RF output of the launch amplifier.
7 Reverse operational gain, noise figure, and return loss are specified without reverse switch option. If switch is installed, reduce gain by 0.5 dB, increase noise by 0.5 dB, and decrease return loss by 1 dB.
8 Station reverse gain from station input(s) to reverse transmitter input. With 0 dB reverse input pad, 1 dB reverse output pad, and 0 dB reverse EQ in launch amplifier. Includes optical interface board losses.
9 “Digital” refers to 550 - 1002 MHz loading with QAM carriers at -6 dB relative to analog video carrier levels.
10 Composite Intermodulation Noise is a broadband noise-like distortion product associated with QAM loading.
11 Insertion loss from optical receiver RF output to launch amplifier RF input, with specified forward plug-in module installed in the optical interface board. Subtract this loss from the launch amplifier operational gain to determine forward station gain from optical receiver output to station output.
12 Reverse Gain and Noise Figure for launch amp with 0 dB reverse input pad, 0 dB reverse output EQ, and 1 dB output pad.
13 X-mod (@ 15.75 kHz) specified using 100% synchronous modulation and frequency selective measurement device.
14 The gain at 102 MHz is < 1.5 dB below the gain at 105 MHz. 102 to 105 MHz is recommended for out of band communication only. No video carriers should be used between 102 and 105 MHz.
Unless otherwise noted, specifications reflect typical performance and are referenced to 68 °F (20 °C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.

Table 7.       Electrical and Component DC Power Consumption

Electrical

Units



Notes

Max. AC Through Current (continuous)

Amps

15



Max. AC Through Current (surge)

Amps

25



Component DC Power Consumption (Typical)



@ +24 VDC

@ +15 VDC

@ -6 VDC

1

Launch Amplifier High Gain Dual (thermal)

Amps

1.7

-

-



Status Monitoring Transponder

Amps

0.15

-

-



Standard Optical Receiver

Amps

0.25

0.01

0.035



Reverse Transmitter - Standard FP

Amps

0.14

-

0.07



Reverse Transmitter - Standard DFB

Amps

0.08

-

0.09



Power Supply DC Current Rating

Amps

3.4

0.05

0.3

1

Table 8.       Station Powering Data

Station Powering Data

High Output GainMaker HGBT

I DC
(Amps at 24V DC)



AC Voltage

90

85

80

75

70

65

60

55

50

45

40

1 or 2 RX,
1 TX, & Stat
Mon

2.8

AC Current (A)

1.04

1.08

1.09

1.14

1.20

1.28

1.56

1.63

1.77

1.97

2.23

AC Power (W)

78.50

78.10

77.60

77.90

78.00

77.30

77.60

77.70

77.90

78.40

78.80

Data is based on stations configured for 2-way operation with status monitoring transponder. AC currents specified are based on measurements made with typical CATV type ferro-resonant AC power supply (quasi-square wave), and GainMaker High Output Node DC power supply (3.4 amp, 24 V DC, pn 4022705).

DC supply has a user configurable 40 V or 50 V AC under-voltage lockout circuit.

Note:    1. The total DC Power consumption of installed components should not exceed the power supply DC current rating.

Table 9.       Environmental and Mechanical Housing Dimensions

Environmental

Units



Operating Temperature Range

degrees

-40°F to 140°F (-40°C to 60°C)

Relative Humidity Range

percent

5% to 95%

Mechanical

Housing Dimensions

Weight

17.5 in. L x 7.3 in. H x 7.5 in. D
(445 mm L x 185 mm H x 191 mm D)

Station with 1 RX, 1 TX, & power supply: 22 lbs (9.9 kg)











Unless otherwise noted, specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.

Ordering Information

The GainMaker High Gain Balanced Triple Node is available in a wide variety of configurations. The desired configuration is built by accessing the Cisco Commerce Workspace tool at https://cisco-apps.cisco.com/cisco/psn/commerce. The user specifies the new Assemble to Order (ATO) Product ID for the GainMaker High Gain Balanced Triple Node “GMN-HGBTand the tool steps through the available options. Services may also be selected during this process. Once all the desired options are selected, the configuration and price are displayed. When the “Done” radio button is clicked, the configuration can be exported and saved for future use or immediate ordering.

Table 10.     Required Accessories for RF Module

Required Accessories for RF Module

Part Number

Plug-in Pads (attenuators) - Available in 0.5 dB steps from 0 to 20 dB

●  1 required for forward input
●  1 required for AGC, if applicable*
●  4 required for reverse (3 input, 1 output)

*To determine AGC pad value, subtract 34dB from the design value main port RF output level at the AGC pilot frequency.

589693 (0 dB)

sequentially thru

589734 (20.5 dB)

Plug-in Forward Linear Equalizer - Available in 1.5 dB steps from 0 to 21 dB

●  1 required for forward input

See table below

Plug-in Reverse Equalizer - Available in 1 dB steps from 0 to 12 dB at 40 MHz

●  1 required for reverse output - unless design value is 0 dB (0 dB EQ is provided)

712719 (0 dB) and 589628

(1 dB) sequentially thru 589639
(12 dB)

Table 11.     Required Accessories for Optical Components

Required Accessories for Optical Components

Part Number

Plug-in Pads (attenuators) - Available in 0.5 dB steps from 0 to 20.5 dB

●  1 ea required for Transmitter and Receiver(s).

279500 (0 dB)sequentially thru

279513 (13 dB) in 1 dB steps

504151 (14 dB) sequentially thru 504157 (20 dB) in 1 dB steps

565231 (0.5 dB) sequentially thru 565251 (20.5 dB) in 1 dB steps

Table 12.     Forward Linear Equalizers

Forward Linear Equalizers

Part Number

0 dB 1GHz Forward Linear EQ

4007228

1.5 dB 1GHz Forward Linear EQ

4008778

3.0 dB 1GHz Forward Linear EQ

4008779

4.5 dB 1GHz Forward Linear EQ

4008780

6.0 dB 1GHz Forward Linear EQ

4008781

7.5 dB 1GHz Forward Linear EQ

4008782

9.0 dB 1GHz Forward Linear EQ

4008783

10.5 dB 1GHz Forward Linear EQ

4008784

12.0 dB 1GHz Forward Linear EQ

4008785

13.5 dB 1GHz Forward Linear EQ

4008786

15.0 dB 1GHz Forward Linear EQ

4008787

16.5 dB 1GHz Forward Linear EQ

4019258

18.0 dB 1GHz Forward Linear EQ

4019259

19.5 dB 1GHz Forward Linear EQ

4019260

21.0 dB 1GHz Forward Linear EQ

4019261

Table 13.     Optical Receivers

Optical Receivers (Available As Part of Configuration or Separately)

Part Number
on Module

Part Number for Ordering

GainMaker Node Optical Receiver with SC/APC Connector

4007501

4007671

GainMaker Node Optical Receiver with SC/UPC Connector

4007502

4007672

GainMaker Node Optical Receiver with FC/APC Connector

4007503

4007673

Optical Transmitters (Available As Part of Configuration or Separately)

Part Number on Module*

Part Number for Ordering*

All Listed Below Are Thermally Compensated Transmitters

1310 nm DFB Optical Transmitter - Standard Gain, with SC/APC connector

4013903.1310

590934

1310 nm DFB Optical Transmitter - Standard Gain, with SC/UPC connector

4013904.1310

590935

1310 nm DFB Optical Transmitter - Standard Gain, with FC/APC connector

4013905.1310

590932

1470 nm CWDM DFB Optical Transmitter - Standard Gain with SC/APC connector

4013903.1470

4006971

1490 nm CWDM DFB Optical Transmitter - Standard Gain with SC/APC connector

4013903.1490

4006972

1510 nm CWDM DFB Optical Transmitter - Standard Gain with SC/APC connector

4013903.1510

4006973

1530 nm CWDM DFB Optical Transmitter - Standard Gain with SC/APC connector

4013903.1530

4006974

1550 nm CWDM DFB Optical Transmitter - Standard Gain with SC/APC connector

4013903.1550

4006975

1570 nm CWDM DFB Optical Transmitter - Standard Gain with SC/APC connector

4013903.1570

4006976

1590 nm CWDM DFB Optical Transmitter - Standard Gain with SC/APC connector

4013903.1590

4006977

1610 nm CWDM DFB Optical Transmitter - Standard Gain with SC/APC connector

4013903.1610

4006978

1470 nm CWDM DFB Optical Transmitter - Standard Gain with SC/UPC connector

4013904.1470

4006979

1490 nm CWDM DFB Optical Transmitter - Standard Gain with SC/UPC connector

4013904.1490

4006980

1510 nm CWDM DFB Optical Transmitter - Standard Gain with SC/UPC connector

4013904.1510

4006981

1530 nm CWDM DFB Optical Transmitter - Standard Gain with SC/UPC connector

4013904.1530

4006982

1550 nm CWDM DFB Optical Transmitter - Standard Gain with SC/UPC connector

4013904.1550

4006983

1570 nm CWDM DFB Optical Transmitter - Standard Gain with SC/UPC connector

4013904.1570

4006984

1590 nm CWDM DFB Optical Transmitter - Standard Gain with SC/UPC connector

4013904.1590

4006985

1610 nm CWDM DFB Optical Transmitter - Standard Gain with SC/UPC connector

4013904.1610

4006986

1470 nm CWDM DFB Optical Transmitter - Standard Gain with FC/APC connector

4013905.1470

4006987

1490 nm CWDM DFB Optical Transmitter - Standard Gain with FC/APC connector

4013905.1490

4006988

1510 nm CWDM DFB Optical Transmitter - Standard Gain with FC/APC connector

4013905.1510

4006989

1530 nm CWDM DFB Optical Transmitter - Standard Gain with FC/APC connector

4013905.1530

4006990

1550 nm CWDM DFB Optical Transmitter - Standard Gain with FC/APC connector

4013905.1550

4006991

1570 nm CWDM DFB Optical Transmitter - Standard Gain with FC/APC connector

4013905.1570

4006992

1590 nm CWDM DFB Optical Transmitter - Standard Gain with FC/APC connector

4013905.1590

4006993

1610 nm CWDM DFB Optical Transmitter - Standard Gain with FC/APC connector

4013905.1610

4006994

Table 14.     Cisco GainMaker EDR CWDM Reverse Optical Transmitters

GainMaker EDR CWDM Reverse Optical Transmitter and Optical Pluggable Modules (OPMs)

Part Number Module

Part Number for Ordering

Digital 1:1 EDR CWDM Transmitters

EDR GM1185 transmitter module

800-4042187-01

4042881

EDR 1:1 transmitter OPM CWDM-1270

10-1022072-01

4042868.1270

EDR 1:1 transmitter OPM CWDM-1290

10-1022073-01

4042868.1290

EDR 1:1 transmitter OPM CWDM-1310

10-1022074-01

4042868.1310

EDR 1:1 transmitter OPM CWDM-1330

10-1022075-01

4042868.1330

EDR 1:1 transmitter OPM CWDM-1350

10-1022076-01

4042868.1350

EDR 1:1 transmitter OPM CWDM-1370

10-1022077-01

4042868.1370

EDR 1:1 transmitter OPM CWDM-1390

10-1022078-01

4042868.1390

EDR 1:1 transmitter OPM CWDM-1410

10-1022079-01

4042868.1410

EDR 1:1 transmitter OPM CWDM-1430

10-1022080-01

4042868.1430

EDR 1:1 transmitter OPM CWDM-1450

10-1022081-01

4042868.1450

EDR 1:1 transmitter OPM CWDM-1470

10-1022082-01

4042868.1470

EDR 1:1 transmitter OPM CWDM-1490

10-1022083-01

4042868.1490

EDR 1:1 transmitter OPM CWDM-1510

10-1022084-01

4042868.1510

EDR 1:1 transmitter OPM CWDM-1530

10-1022085-01

4042868.1530

EDR 1:1 transmitter OPM CWDM-1550

10-1022086-01

4042868.1550

EDR 1:1 transmitter OPM CWDM-1570

10-1022087-01

4042868.1570

EDR 1:1 transmitter OPM CWDM-1590

10-1022088-01

4042868.1590

EDR 1:1 transmitter OPM CWDM-1610

10-1022089-01

4042868.1610

Table 15.     Cisco GainMaker EDR DWDM Reverse Optical Transmitters

GainMaker EDR DWDM Reverse Optical Transmitter Optical Pluggable Modules (OPMs)

Part Number on Transmitter Module

Part Number for Ordering

Digital 1:1 EDR DWDM Transmitter OPMs

EDR GM1185 transmitter module

800-4042187-01

4042881

EDR 1:1 transmitter OPM DWDM-17

10-1022090-01

4042869.17

EDR 1:1 transmitter OPM DWDM-18

10-1022091-01

4042869.18

EDR 1:1 transmitter OPM DWDM-19

10-1022092-01

4042869.19

EDR 1:1 transmitter OPM DWDM-20

10-1022093-01

4042869.20

EDR 1:1 transmitter OPM DWDM-21

10-1022094-01

4042869.21

EDR 1:1 transmitter OPM DWDM-22

10-1022095-01

4042869.22

EDR 1:1 transmitter OPM DWDM-23

10-1022096-01

4042869.23

EDR 1:1 transmitter OPM DWDM-24

10-1022097-01

4042869.24

EDR 1:1 transmitter OPM DWDM-25

10-1022098-01

4042869.25

EDR 1:1 transmitter OPM DWDM-26

10-1022099-01

4042869.26

EDR 1:1 transmitter OPM DWDM-27

10-1022100-01

4042869.27

EDR 1:1 transmitter OPM DWDM-28

10-1022101-01

4042869.28

EDR 1:1 transmitter OPM DWDM-29

10-1022102-01

4042869.29

EDR 1:1 transmitter OPM DWDM-30

10-1022103-01

4042869.30

EDR 1:1 transmitter OPM DWDM-31

10-1022104-01

4042869.31

EDR 1:1 transmitter OPM DWDM-32

10-1022105-01

4042869.32

EDR 1:1 transmitter OPM DWDM-33

10-1022106-01

4042869.33

EDR 1:1 transmitter OPM DWDM-34

10-1022107-01

4042869.34

EDR 1:1 transmitter OPM DWDM-35

10-1022108-01

4042869.35

EDR 1:1 transmitter OPM DWDM-36

10-1022109-01

4042869.36

EDR 1:1 transmitter OPM DWDM-37

10-1022110-01

4042869.37

EDR 1:1 transmitter OPM DWDM-38

10-1022111-01

4042869.38

EDR 1:1 transmitter OPM DWDM-39

10-1022112-01

4042869.39

EDR 1:1 transmitter OPM DWDM-40

10-1022113-01

4042869.40

EDR 1:1 transmitter OPM DWDM-41

10-1022114-01

4042869.41

EDR 1:1 transmitter OPM DWDM-42

10-1022115-01

4042869.42

EDR 1:1 transmitter OPM DWDM-43

10-1022116-01

4042869.43

EDR 1:1 transmitter OPM DWDM-44

10-1022117-01

4042869.44

EDR 1:1 transmitter OPM DWDM-45

10-1022118-01

4042869.45

EDR 1:1 transmitter OPM DWDM-46

10-1022119-01

4042869.46

EDR 1:1 transmitter OPM DWDM-47

10-1022120-01

4042869.47

EDR 1:1 transmitter OPM DWDM-48

10-1022121-01

4042869.48

EDR 1:1 transmitter OPM DWDM-49

10-1022122-01

4042869.49

EDR 1:1 transmitter OPM DWDM-50

10-1022123-01

4042869.50

EDR 1:1 transmitter OPM DWDM-51

10-1022124-01

4042869.51

EDR 1:1 transmitter OPM DWDM-52

10-1022125-01

4042869.52

EDR 1:1 transmitter OPM DWDM-53

10-1022126-01

4042869.53

EDR 1:1 transmitter OPM DWDM-54

10-1022127-01

4042869.54

EDR 1:1 transmitter OPM DWDM-55

10-1022128-01

4042869.55

EDR 1:1 transmitter OPM DWDM-56

10-1022129-01

4042869.56

EDR 1:1 transmitter OPM DWDM-57

10-1022130-01

4042869.57

EDR 1:1 transmitter OPM DWDM-58

10-1022131-01

4042869.58

EDR 1:1 transmitter OPM DWDM-59

10-1022132-01

4042869.59

EDR 1:1 transmitter OPM DWDM-60

10-1022133-01

4042869.60

EDR 1:1 transmitter OPM DWDM-61

10-1022134-01

4042869.61

Table 16.     Related Equipment

Related Equipment (Available As Part of Configuration or Separately)

Part Number
on Module

Part Number for Ordering

GainMaker High Output Node - DC Power Supply 40 - 90 V AC

4022705

4026156

GainMaker - Crowbar Surge Protector

715973

4007682

GainMaker Reverse RF Switch

-

GM-3WSW=

GainMaker Node Status Monitoring Transponder (See Transponder Data Sheet)

Refer to the Cisco GainMaker Status Monitoring Transponder Data Sheet. http://www.cisco.com/c/en/us/products/video/transponders/index.html.















Was this Document Helpful?

FeedbackFeedback
