Cisco® Secure DDoS Edge Protection is an innovative software solution that stops cyberattacks at the service provider (SP) network edge. The Edge Protection solution consists of a controller and one (1) or more detectors across the network.
When deployed on supported Cisco IOS® XR–based routers, Edge Protection detects and mitigates distributed-denial-of-service (DDoS) attacks directly on the routers of an SP network. By moving DDoS protection to the network edge, service providers can mitigate DDoS attacks at the most efficient and lowest risk location, the ingress points. This minimizes the impact that DDoS attacks have on the network and applications, reduces core bandwidth requirements, and ensures customer quality of experience (QoE). DDoS detection at the network edge enables SPs to mitigate attacks at the source, eliminating the need to backhaul traffic to scrubbing centers.
The Edge Protection solution consists of two components:
1. Centralized controller – A service that manages a distributed network of detectors, analyzes trends across the network, and orchestrates cross-network visibility and mitigation. The controller also delivers a full system management lifecycle for the entire service.
2. A collection of detectors – An Edge Protection detector is a Docker container that runs on a Cisco IOS XR–based router.
Features and Customer Benefits
● Stop DDoS attacks at the ingress of the network
● No additional hardware required
● No changes to the architectures
● No need to overprovision network facilities such as links and routers to account for attack traffic
● No backhauling of malicious traffic
● Minimizes customer outages and optimizes the end-user experience
● No additional facilities requirements such as power, rack space, and cooling
● Allows SPs to meet low-latency application requirements
The diagram below depicts the use of Cisco Secure DDoS Edge Protection to detect and mitigate DDoS attacks at the network edge.

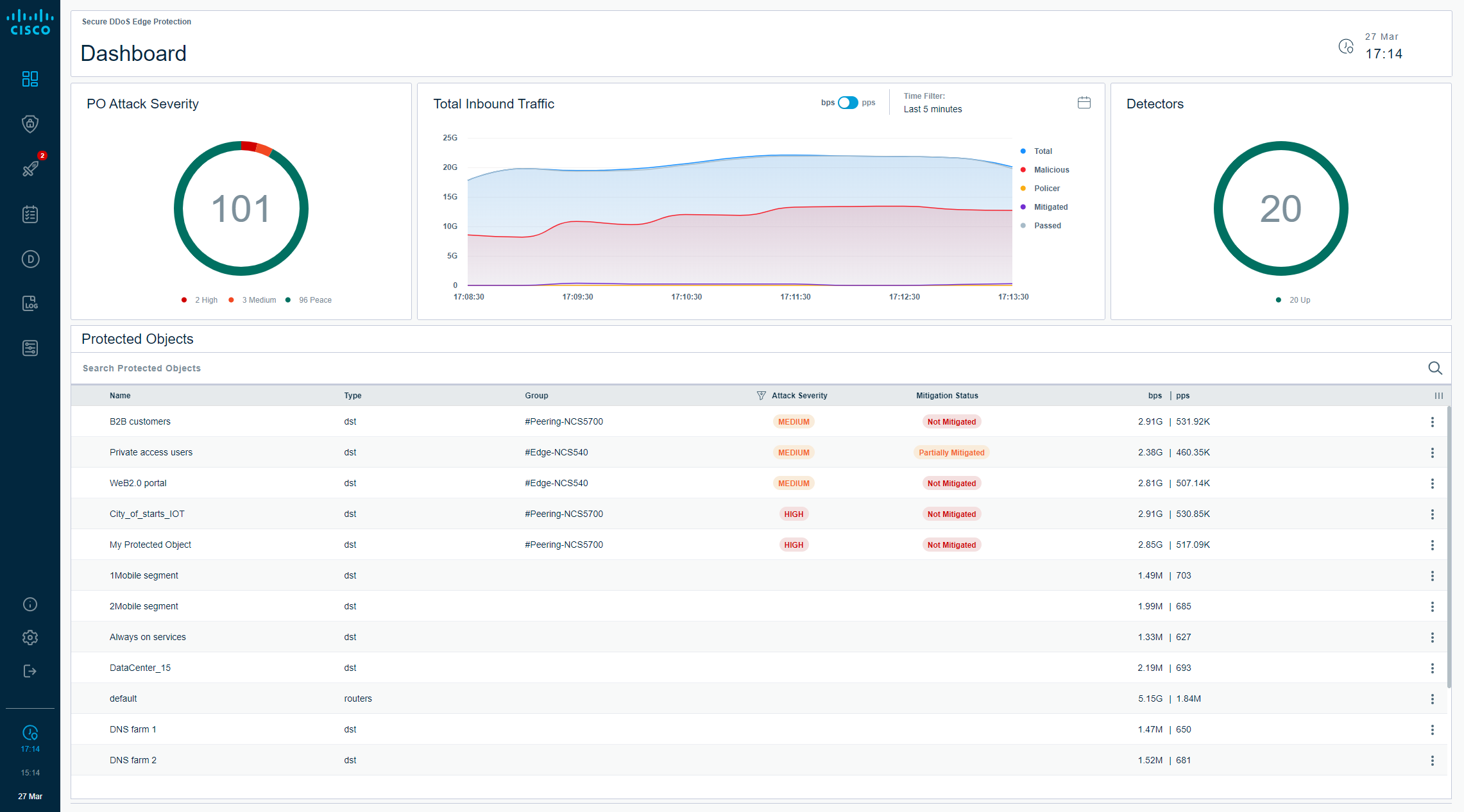

The Edge Protection controller is highly available central management software that manages a collection of detectors that have been deployed on the edge or peering routers. The controller is designed in a modular and containerized architecture to be deployed on a highly scalable Kubernetes cluster, allowing for containers to expand and be replicated in order to manage and support thousands of detectors.
Controller Functions
Key features and functions of the controller include the following:
● Manages container lifecycle for a fleet of detectors
● Configures and edits detector profiles and security settings
● Checks the health of detectors

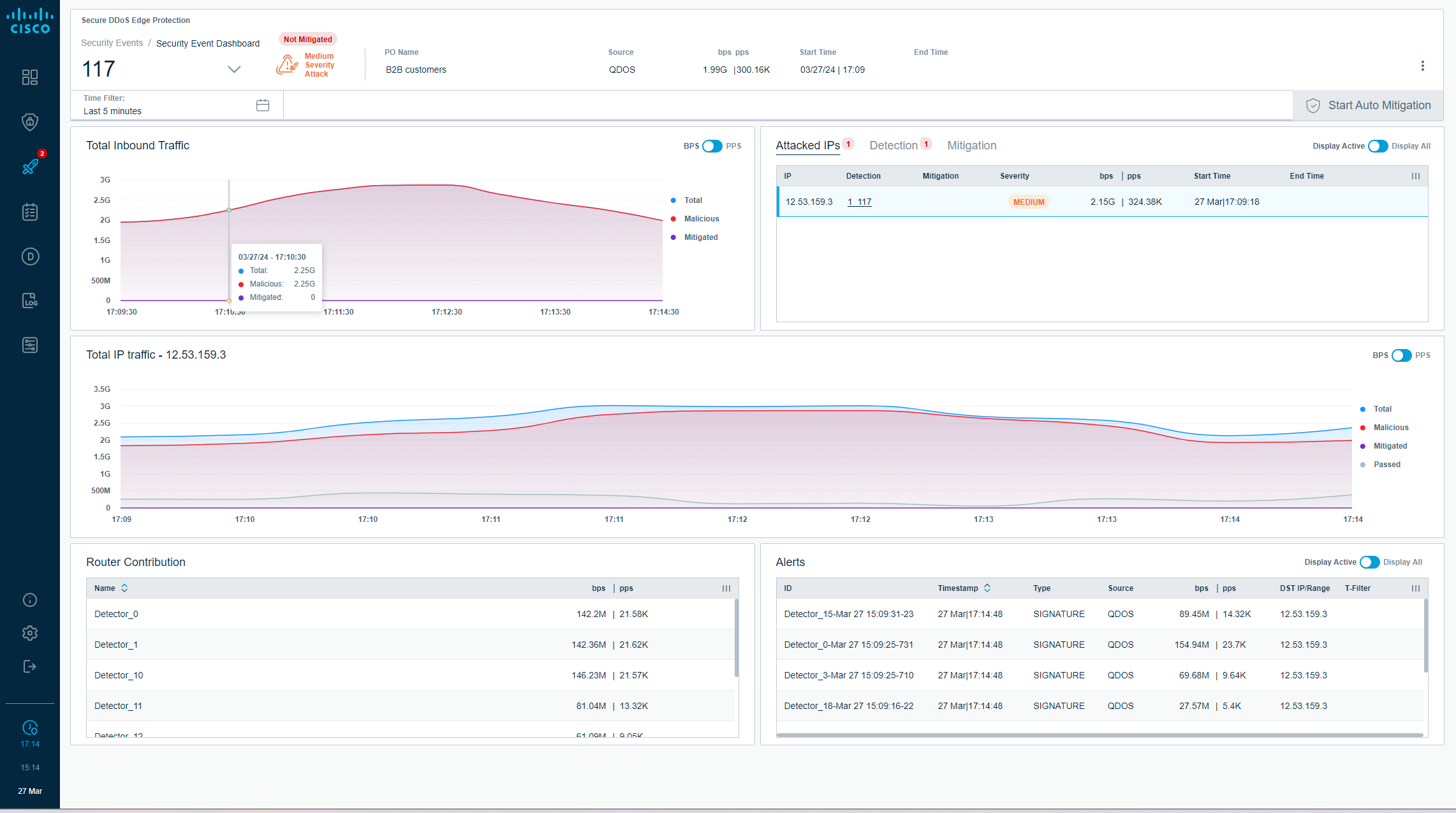

● Displays information about real-time attack forensics and threat intelligence analyses
● Controls the mitigation of DDoS attacks at the ingress point of the network
● Provides real-time reporting of events as well reporting on past events
● Provides operational control and incident response
Controller Specifications
The controller can be deployed using a provided OVA or on a customer-deployed Ubuntu Linux machine that meets the system requirements below and required software dependencies.
Provided OVA virtual machine minimum requirements:
● OVA: VMWare
● vCPU: 4 cores
● Memory: 8 GB
● Disk: 100 GB (7200 RPM or better)
● 1 network interface
Customer-deployed virtual machine minimum requirements:
● OS: Ubuntu Linux 20.04
● vCPU: 4 cores
● Memory: 8 GB
● Disk: 100 GB (7200 RPM or better)
● 1 network interface
Software packages required:
● Minimum Kubernetes v1.18.20 installed
Maximum detectors per controller: 50,000[1]
Management protocol: SSH, HTTP, HTTPS, REST API
Controller to/from detector communication protocol: gRPC
High availability: Yes, using Kubernetes clustering technology
The detector is a container deployed on Cisco IOS XR–based routers that utilizes spare management CPU and memory to avoid any negative impact on the performance of the router or traffic flow through the router. The detector analyzes flows received from the router and uses patented technology to determine whether the traffic is legitimate or a DDoS attack. Once an attack is detected, the mitigation can be implemented on the router ingress port either automatically or manually depending on the service provider’s preference.
Having all the flows inspected locally on each router provides better visibility, quicker response, and a more optimized network as malicious traffic is blocked at the source rather than being redirected to a centralized scrubbing center. Additionally, no additional hardware is required to be deployed for the detection and mitigation as they leverage the existing technology already installed at these ingress points into the service provider’s network.
Deployment of the detectors is controlled and managed by the Edge Protection centralized controller.
Detector Specifications
Router requirements:
Supported NCS 540[2], NCS 55xx/57xx, and Cisco 8000 routers running IOS-XR
Management protocols: SSH and NETCONF over SSH
NetFlow v9 support
Docker container support for third-party applications
Minimum 2 CPU cores and 1 GB RAM
Detector Scalability
The scalability of the Edge Protection detector is based on the number of flows ingested, not on the bandwidth consumed by the router. A single detector can ingest tens of thousands of flows per second (FPS) without impacting the data or management plane of the router. Flows forwarded to the Edge Protection detector are based on a sampling rate. The sampling rate used is usually dependent on the volume of traffic and flows on a device to provide good visibility into data without losing attack accuracy. Higher sampling results in more flows being forwarded to the detector and thereby increasing the total number of FPS received by the detector.
With ingress traffic on the router at 1.2 Tbps and a sampling rate of 1024:1, the 50,000 FPS received by the detector required less than 65% of available detector CPU cores and less than 200 MB of the allocated 1 GB detector RAM.
The figures below shows the increase in the detector’s CPU utilization as the number of flows per second increase for both GTP (Figure 4) and non-GTP traffic (Figure 5).
| UE FPS |
Sampling rate |
Detector FPS |
CPU |
| 100,000 |
10:1 |
10,000 |
20% |
| 100,000 |
100:1 |
1000 |
<5% |
| 1,000,000 |
100:1 |
10,000 |
20% |
| 10,000,000 |
1000:1 |
10,000 |
20% |
| 50,000,000 |
1000:1 |
50,000 |
65% |
| 100,000,000 |
4000:1 |
25,000 |
38% |
| 250,000,000 |
4000:1 |
62,500 |
80% |
| 1,000,000,000 |
20,000:1 |
50,000 |
65% |
Table 2. Non-GTP traffic use case on Cisco NCS 55xx/57xx
| Unique user traffic @ Flows Per Second (FPS) |
Total throughput |
NetFlow Sampling Rate |
Unique Flows Per Second (FPS) on Detector |
CPU(%) |
| 100,000 |
1200 Mbps |
1024:1 |
100 |
1 |
| 100,000 |
1200 Mbps |
2048:1 |
120 |
1 |
| 1 million |
1200 Mbps |
1024:1 |
1000 |
3 |
| 1 million |
1200 Mbps |
2048:1 |
600 |
3 |
| 1 million |
1200 Mbps |
4096:1 |
500 |
3 |
| 10 million |
1200 Mbps |
1024:1 |
10000 |
25 |
| 10 million |
1200 Mbps |
2048:1 |
5000 |
20 |
| 10 million |
1200 Mbps |
4096:1 |
2000 |
10 |
| 50 million |
1200 Mbps |
1024:1 |
48000 |
130 |
| 50 million |
1200 Mbps |
2048:1 |
24000 |
70 |
| 50 million |
1200 Mbps |
4096:1 |
12000 |
30 |
| 100 million |
1200 Mbps |
2048:1 |
49000 |
130 |
| 100 million |
1200 Mbps |
4096:1 |
24000 |
63 |
● The Edge Protection detector is licensed per router for a 3- or 5-year period.
● The controller is part of the overall solution package and therefore not licensed separately.
