October 31, 2011
THIS FIELD NOTICE IS PROVIDED ON AN "AS IS" BASIS AND DOES NOT IMPLY ANY KIND OF GUARANTEE OR WARRANTY, INCLUDING THE WARRANTY OF MERCHANTABILITY. YOUR USE OF THE INFORMATION ON THE FIELD NOTICE OR MATERIALS LINKED FROM THE FIELD NOTICE IS AT YOUR OWN RISK. CISCO RESERVES THE RIGHT TO CHANGE OR UPDATE THIS FIELD NOTICE AT ANY TIME.
Revision Date Comment 1.0 31-OCT-2011 Initial Public Release
Products Affected Part # Comments CTS-CTRL-DVC8 800-35343-02 to -04 Fixed in 800-35343-05 CTS-CTRL-DVP8 74-9543-01 Fixed in 74-9543-02 CTS-CTRL-DV8 800-35447-02 Fixed in 800-35447-03
Some Cisco TelePresence Touch (or TP Touch) units have been shipped with an incorrect board ID. After a software upgrade, the unit may be stuck in upgrade state with the "failed to extract/upgrade/pkg" message shown on the panel.
Cisco has identified a batch of Cisco Telepresence Touch (or TP Touch) units shipped from manufacturing with an incorrect board ID that makes the software upgrade fail. The TP Touch units are shipped to customers directly or via partners. The TP Touch unit works as normal when running the software corresponding to the Codec software (such as TC 4.1.0 and TT2.1.0). After the codec is upgraded, the TP touch unit may not upgrade to the new version and the TP Touch unit becomes unusable.
The suspect units were shipped from December, 2010 to July, 2011 to various customers and partners.
A number of Cisco TP Touch units may fail after upgrading the endpoint with new software. After the TP Touch unit fails to upgrade, the "failed to extract/upgrade/pkg" message on the TP Touch displays.
Cisco has determined that the incorrect board ID cannot be corrected in field and requires replacing the TP Touch Unit. See the "How to Identify Hardware" section to identify if the customer has an affected unit, then take action based on the table below.
TAN or Version Check Action 800-35343-02 to -04 If Affected, request replacement by filling FN Upgrade form. 74-9543-01 If Affected, request replacement by filling FN Upgrade form. 800-35447-02 If Affected, request replacement by filling FN Upgrade form. 800-35343-05 Not Required Unit is good. No replacement required. 74-9543-02 Not Required Unit is good. No replacement required. 800-35447-03 Not Required Unit is good. No replacement required.
Cisco recommends replacing all suspect TP Touch units.
To follow the bug ID link below and see detailed bug information, you must be a registered customer and you must be logged in.
DDTS Description CSCtr75206 (registered customers only)
Engineering Change Order (ECO)
Engineering Change Order (ECO) Description E106320
How To Identify Hardware Levels

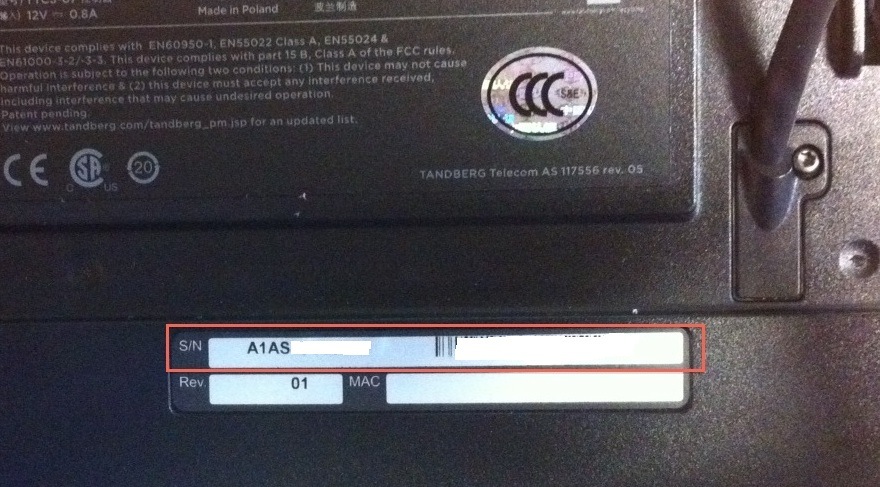

The Cisco TP Touch Unit's serial number can be obtained by physically checking the Labels. See screen capture below.
Note: The TP Touch Screen Menu or System Information provides the serial number for System and not TP Touch Unit.
Checking the Label at back of TP Touch unit.
