Revised November 10, 2008
November 15, 2007
THIS FIELD NOTICE IS PROVIDED ON AN "AS IS" BASIS AND DOES NOT IMPLY ANY KIND OF GUARANTEE OR WARRANTY, INCLUDING THE WARRANTY OF MERCHANTABILITY. YOUR USE OF THE INFORMATION ON THE FIELD NOTICE OR MATERIALS LINKED FROM THE FIELD NOTICE IS AT YOUR OWN RISK. CISCO RESERVES THE RIGHT TO CHANGE OR UPDATE THIS FIELD NOTICE AT ANY TIME.
|1.1||10-NOV-2008||Removed Upgrade form and updated Workaround?Solution section accordingly.|
|1.0||15-NOV-2007||Initial Public Release|
|Products Affected||Top Assembly Part Number||Hardware Revision|
|DS-X9032||68-1840-14||6.4 or lower|
|DS-X9032-SSM||68-2071-12||7.4 or lower|
Cisco Engineering has identified an issue with a specific vendor power brick installed on a very small number of DS-X9032 linecards and DS-X9032-SSM storage services modules shipped between September 4, 2007 and October 29, 2007.
The affected modules may fail to boot up or fail to stay powered on.
Cisco uses multiple vendors for the power brick. This issue is related to a specific vendor 3.3 VDC power brick installed on a very small number of DS-X9032 linecards and DS-X9032-SSM storage services modules, shipped between September 4, 2007 and October 29, 2007.
Customers may observe that the affected DS-X9032 and DS-X9032-SSM linecards may fail to boot up or fail to stay powered on. Customers may see the following error message:
2007 Nov 1 21:00:47 switch %PLATFORM-2-MOD_PWRFAIL: Module 1 failed to power up (Serial number JAE1133xxxx)
Cisco is recommending customers to identify the Serial Number and the hardware revision of their DS-X9032 linecards and DS-X9032-SSM storage service modules. Please refer to How to Identify Hardware Levels section of this field notice for details on serial numbers and hardware revision of the affected modules.
If the linecards serial number and the hardware revision are verified to be affected then customers should replace the linecard by calling the Cisco TAC and requesting an RMA replacement.
Important: When using the standard RMA process to replace these units please use the code ARFN (Administrative Request Field Notice).
How to verify if you are affected:
Step 1. Verify if you are within the range of affected serial numbers:
The affected DS-X9032 has a serial number within the range JAE1138xxxx and JAE1139xxxx
The affected DS-X9032-SSM has a serial number beginning with JAE1133xxxx
Note: Of the linecards that fall in these serial number ranges, only a few in each range are affected.
Step 2. Validate the serial number is affected by using the Serial Number Validation tool:
For DS-X9032: Serial Number Validation for DS-X9032
For DS-X9032-SSM: Serial Number Validation for DS-X9032-SSM
Step 3. Check the Hardware Revision of the linecards.
The issue has been fixed in the following hardware versions of the products:
DS-X9032 - Issue fixed in Hardware Revision 6.5 and higher.
DS-X9032-SSM - Issue fixed in Hardware Revision 7.5 and higher.
Customers can use the
show module command to obtain the Serial Number and Hardware revision of the linecards.

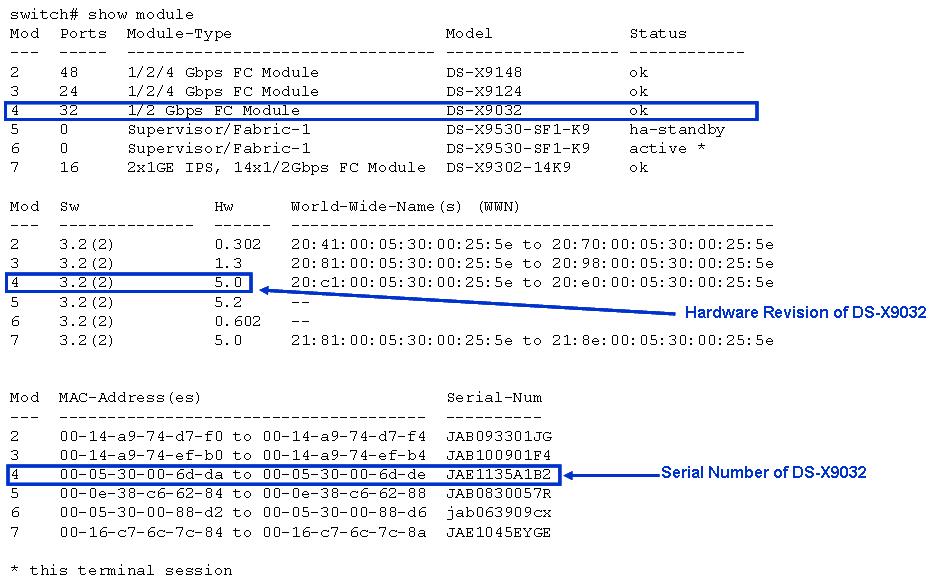

Example of Show Module Command Output:
Note: It is very important that customer uses both the Serial Number and the Hardware revision of the linecards DS-X9032 and DS-X9032-SSM to identify if the product is affected or not.
For Example: If the serial number of the DS-X9032 linecard comes out to be affected, but the HW revision is 6.5 or higher, then it is not affected as this issue has been fixed in the HW revision 6.5 and higher of DS-X9032.
