This guide describes how to configure, maintain, and troubleshoot Cisco® Networking Capabilities 2.1 for medianet.
Installation of Cisco switches, routers, and endpoint devices is beyond the scope of this document.
This guide is for network system administrators deploying and maintaining medianet capabilities. It assumes the following:
• You have a thorough understanding of data, voice, and video networking terminology and concepts.
• You have the required knowledge and skills to configure maintain and troubleshoot Cisco routers and switches.
Autoconfiguration is one of the Cisco Networking Capabilities 2.1 for medianet. Autoconfiguration automates device configuration and registration to simplify management, movement, additions, and changes of equipment
Autoconfiguration has three components.
• The first component allows an endpoint device to announce and identify itself to the network. Typical endpoint devices use the Cisco Discovery Protocol or MAC address to announce themselves.
• The second component is the auto-smartport feature implemented in the access switch images of Cisco IOS® Software. This component applies device-specific configuration and quality-of-service (QoS) macros to switch ports upon detection of a media endpoint. The switch software comes with a set of built-in best-practice configuration macros for a variety of media endpoints.
• The third component is the set up and transmission of location information. Cisco IOS Software allows network operators to configure device-specific location information on the switches. This location information is then propagated to the endpoint devices.

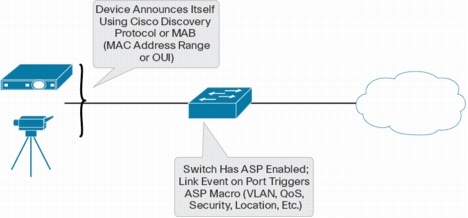

Figure 1 shows the autoconfiguration solution and its components. Endpoint devices announce themselves through the Cisco Discovery Protocol or MAC address. The auto-smartport feature in the access switch applies device-specific configuration macros to the connecting port.
Figure 1. Autoconfiguration Solution
Autoconfiguration Requirements
For more information about the requirements for using the autoconfiguration capability, please refer to the Cisco Networking Capabilities for Medianet data sheet.
Autoconfiguration Sample Topology and Configuration

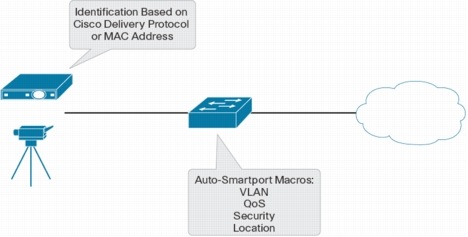

Figure 2 shows an example of a typical Cisco medianet deployment.
Figure 2. Typical Cisco Medianet Deployment
Design Considerations for Enabling Auto-Smartports
A medianet device announces or identifies itself to the switch when it is connected in two ways:
• If the device supports Cisco Discovery Protocol, then first thing it does after the physical layer come up is to send a Cisco Discovery Protocol packet identifying itself (product ID, capabilities, etc.).
• All other devices can be identified based on their MAC addresses; this process is tied to the MAC address learning process. To use this method of identifying devices, you need to configure the MAC authentication bypass (MAB) mechanism on the switch. Please refer to Configure Auto-Smartports with MAB later in this document.
After a device has been identified by one of these mechanisms. The auto-smartport feature on the switch triggers an event associated with the detection of the device. This event applies the appropriate configuration macro associated with the trigger.
Steps for Configuring Auto-Smartports
Auto-smartports macros dynamically configure ports based on the device type detected on the port. When the switch detects a new device on a port, it applies the appropriate auto-smartports macro on the port. When a link-down event occurs on the port (the device is disconnected or powered down), the switch removes the macro.
The steps for configuring auto-smartports are:
• Enable auto-smartports macros (required).
• Configure auto-smartports at the port level (optional).
• Configure auto-smartports parameter values (optional).
• Configure MAC address groups (optional).
• Configure auto-smartports with MAB (optional).
Enable Auto-Smartport Macros
Auto-smartports can be enabled globally on the switch. You can turn off auto-smartports on an individual port by using the no macro auto processing command.
Beginning in privileged EXEC mode, follow the required procedure shown in Table 1.
Table 1. Steps for Enabling Auto-Smartports on a Switch
To return to the default setting, use the no macro auto global processing global configuration command.
Configure Auto-Smartports at the Port Level
In some situations, it may be desirable not to have to the auto-smartports feature turned on for some ports because they may have special configurations on them: for example, a port connecting to an uplink switch or router, or ports configured as EtherChannels . On such ports, auto-smartports must be turned off.
This example shows how to enable macros on the switch and then how to disable macros on a specific interface:
CA3-SWITCH(config)#macro auto global processing
CA3-SWITCH(config)#int gi 1/0/13
CA3-SWITCH(config-if)#no macro auto processing
Configure Auto-Smartports Parameter Values
The switch automatically maps from event triggers to built-in device-specific macros. You can follow this optional procedure to replace macro default parameter values with values that are specific to your switch.
To change the default VLAN using macro parameters, you need to create a new VLAN on the switch.
Beginning in privileged EXEC mode, follow the steps shown in Table 2.
Table 2. Steps for Configuring Auto-Smartports Parameter Values
To return to the default setting, use the no macro auto device {macro name} parameter=value global configuration command.
Configure MAC Address Groups
For devices such as printers or third-party security cameras that do not support neighbor discovery protocols such as Cisco Discovery Protocol, use the MAC address-based trigger configurations. This optional procedure requires these steps:
1. Configure a MAC address-based trigger by using the macro auto mac-address global configuration command.
2. Associate the MAC address trigger with a built-in or user-defined macro by using the macro auto execute global configuration command.
Existing digital media players (DMPs) and devices that do not support Cisco Discovery Protocol should be configured using a MAC address-based trigger for autoconfiguration.
Beginning in privileged EXEC mode, follow the steps shown in Table 3.
Table 3. Steps for Configuring MAC Address Groups
* For more information about user-defined macros, please refer to the Cisco Auto-Smartports Configuration Guide.
To delete an address group, use the no macro auto mac-address-group name global configuration command. Enter no macro auto mac-address-group name to remove the macro trigger and any associated trigger that maps to a macro defined by the macro auto execute global configuration command. Entering no macro auto execute mac-address-group removes only the mapping of the trigger to the macro.
This example shows how to create a MAC address group event trigger called address_trigger and how to verify your entries:
This example shows how to create a MAC address group event trigger called address_trigger for third party IP cameras and how to verify it:
Switch(config)# macro auto mac-address-group ADDRESS_TRIGGER
Switch(config-addr-grp-mac)# mac-address list 2222.3333.3334 22.33.44 a.b.c
Switch(config-addr-grp-mac)# oui list 455555 233244
Switch(config-addr-grp-mac)# oui range 333333 size 2
Switch(config-addr-grp-mac)# exit
Switch(config)# macro auto execute ADDRESS_TRIGGER builtin macro
Switch(config)# macro auto execute mac-address-trigger builtin CISCO_IP_CAMERA_AUTO_SMARTPORT
Switch(config)# end
Switch# show running configuration | include macro
macro auto mac-address-group ADDRESS_TRIGGER
mac auto execute mac-address-trigger builtin CISCO_IP_CAMERA_AUTO_SMARTPORT
macro description CISCO_IP_CAMERA_EVENT
!
<output truncated>
The example shows how to create an OUI list with five sequential addresses starting with 00000A and how to verify your entries:
Switch(config)# macro auto mac-address-group size5ouilist
Switch(config-addr-grp-mac)# oui range 00000A size 5
Switch(config-addr-grp-mac)# exit
Switch(config)# mac auto execute size5-ouilist builtin macro
Switch(config)# macro auto execute mac-address-trigger builtin CISCO_IP_CAMERA_AUTO_SMARTPORT
Switch(config)# end
Configure Auto-Smartports with MAB
For devices that do not support neighbor discovery protocols such as Cisco Discovery Protocol and IEEE 802.1x authentication, the switch can be configured with MAB. It is assumed that RADIUS server and dot1x authentication is already configured on the switch. When using MAB or IEEE 802.1x authentication as an event trigger, create a trigger that corresponds to the Cisco attribute-value pair (auto-smart-port=event trigger) sent by the RADIUS server. This procedure is optional.
Beginning in privileged EXEC mode, follow the steps shown in Table 4.
Table 4. Steps for Configuring Auto-Smartports with MAB
Use the no shell trigger identifier global configuration command to remove the event trigger.
This example shows how to map a user-defined event trigger called RADIUS_MAB_EVENT generated by a third-party IP camera to the built-in macro CISCO_CAMERA_AUTO_SMARTPORT and replace the default ACCESS VLAN with VLAN 101.
1. On the RADIUS server, set the attribute-value pair to:
auto-smart-port=RADIUS_MAB_EVENT
2. Create a user-defined trigger and map a system-defined macro to it.
a. Create the trigger event:
Switch(config)# shell trigger RADIUS_MAB_EVENT MAC_AuthBypass Event
b. Map a system defined macro to the trigger event:
Switch(config)# macro auto execute RADIUS_MAB_EVENT builtin macro auto execute RADIUS_MAB_EVENT builtin CISCO_CAMERA_AUTO_SMARTPORT ACCESS_VLAN=101
3. Enable MAB and dot1x on the interface:
Switch(config)# interface GigabitEthernet1/5
Switch(config-interface)# mab
Switch(config-interface)# authentication port-control auto
Switch(config-interface)# dot1x pae authenticator
4. Enable authentication, authorization, and accounting (AAA) and RADIUS on the switch:
Switch(config)#aaa new-model
Switch(config)#aaa authentication dot1x default group radius
Switch(config)# radius-server host 10.10.10.1
Switch(config)#radius-server key cisco123
Switch(config)#radius-server vsa send authentication
The switch recognizes the attribute-value pair RADIUS_MAB_EVENT response from the RADIUS server and applies the macro CISCO_CAMERA_AUTO_SMARTPORT.
Troubleshooting Autoconfiguration Failure for a Newly Added Device with Port-Security Configuration
The switch remembers the MAC address of the previous device connected to a port with the port-security sticky configuration. A newly added endpoint will fail port security if a previously learned MAC address with a sticky configuration exists.
To disable sticky learning on an interface, use the no switchport port-security mac-address sticky interface configuration command. The interface converts the sticky secure MAC addresses to dynamic secure addresses. However, if you have previously saved the configuration with the sticky MAC addresses, you should save the configuration again after entering the no switchport port-security mac-address sticky command, or the sticky addresses will be restored if the switch reboots.
Use the clear port-security {all | configured | dynamic | sticky} privileged EXEC mode command to delete from the MAC address table all secure addresses or all secure addresses of a specific type (configured, dynamic, or sticky) on the switch or on an interface.
To delete a specific secure MAC address from the address table, use the no switchport port-security mac-address mac-address interface configuration command. To delete all dynamic secure addresses on an interface from the address table, enter the no switchport port-security interface configuration command followed by the switchport port-security command (to reenable port security on the interface). If you use the no switchport port-security mac-address sticky interface configuration command to convert sticky secure MAC addresses to dynamic secure MAC addresses before entering the no switchport port-security command, all secure addresses on the interface except those that were manually configured are deleted.
You must specifically delete configured secure MAC addresses from the address table by using the no switchport port-security mac-address mac-address interface configuration command.
Verifying Cisco Discovery Protocol
Making sure Cisco Discovery Protocol is enabled on the interface when the end device is being detected using Cisco Discovery Protocol:
SWITCH#sh cdp neighbors gi1/5 detail
-------------------------
Device ID: SEP1C17D34191EA
Entry address(es):
Platform: Cisco IP Phone 9971, Capabilities: Host Phone Two-port Mac Relay
Interface: GigabitEthernet1/5, Port ID (outgoing port): Port 1
Holdtime : 145 sec
Second Port Status: Down
Version :
sip9971.9-0-0-77
advertisement version: 2
Duplex: full
Power drawn: 11.700 Watts
Power request id: 60058, Power management id: 1
Power request levels are:11700 0 0 0 0
Management address(es):
Cisco Discovery Protocol can be enabled using the following commands at the global level and at the interface level:
Configure terminal
cdp run
interface GigabitEthernet1/0/1
cdp enable
The following debug messages are displayed by debug cdp events and debug cdp packets command:
Sep 21 15:50:40.896: CDP-EV: Packet Received from MGMT-SW-FF1424 with capability = 28 and Platform string = cisco WS-C3560-24TS on interface GigabitEthernet1/0/1
Sep 21 15:50:47.002: CDP-PA: Packet received from 8843E1397DA6 on interface GigabitEthernet1/0/3
Sep 21 15:50:47.002: **Entry found in cache**
Sep 21 15:50:47.011: CDP-EV: Packet Received from 8843E1397DA6 with capability = 10 and Platform string = CIVS-IPC-2500 on interface GigabitEthernet1/0/3
Sep 21 15:50:49.091: CDP-PA: Packet received from C-EDGE-SW-MOD on interface GigabitEthernet1/0/9
Sep 21 15:50:49.091: **Entry found in cache**
Sep 21 15:50:49.091: CDP-EV: Packet Received from C-EDGE-SW-MOD with capability = 29 and Platform string = cisco SM-ES3G-16-P on interface GigabitEthernet1/0/9
Verifying Shell Functions
To verify the list of commands generated for a macro, use the following commands:
Mediant-switch#sh shell functions CISCO_DMP_AUTO_SMARTPORT
function CISCO_DMP_AUTO_SMARTPORT () {
if [[ $LINKUP -eq YES ]]; then
conf t
interface $INTERFACE
macro description $TRIGGER
switchport access vlan $ACCESS_VLAN
switchport mode access
switchport block unicast
mls qos trust dscp
spanning-tree portfast
switchport port-security
switchport port-security maximum 1
switchport port-security violation shutdown
spanning-tree bpduguard enable
priority-queue out
exit
end
fi
if [[ $LINKUP -eq NO ]]; then
conf t
interface $INTERFACE
no macro description
no switchport access vlan $ACCESS_VLAN
no switchport block unicast
no switchport port-security
no switchport port-security maximum 1
no switchport port-security violation shutdown
no mls qos trust dscp
no spanning-tree portfast
no spanning-tree bpduguard enable
no priority-queue out
if [[ $AUTH_ENABLED -eq NO ]]; then
no switchport mode access
fi
exit
end
fi
}
You can use the following command to see all macro definitions currently active:
Mediant-switch#sh shell functions
Debugging MAB
If MAB fails, you can use the following command to identify the cause of the problem:
• show radius server-group all: Shows the definition and status of the server
• show radius statistics: Displays statistics information for packets exchanged
The following example shows RADIUS debugging output for a successful MAB authentication. The main parameters are highlighted.
Switch#
.Aug 4 19:30:00.499 EDT: %SYS-5-CONFIG_I: Configured from console by console
.Aug 4 19:30:26.675 EDT: %DOT1X-5-FAIL: Authentication failed for client (Unknown MAC) on Interface Gi1/5 AuditSessionID 0A1C150200000007004E6707
.Aug 4 19:30:26.675 EDT: %AUTHMGR-7-RESULT: Authentication result 'no-response' from 'dot1x' for client (Unknown MAC) on Interface Gi1/5 AuditSessionID 0A1C150200000007004E6707
.Aug 4 19:30:26.675 EDT: %AUTHMGR-7-FAILOVER: Failing over from 'dot1x' for client (Unknown MAC) on Interface Gi1/5 AuditSessionID 0A1C150200000007004E6707
.Aug 4 19:30:33.700 EDT: %AUTHMGR-5-START: Starting 'mab' for client (1c17.d341.91ea) on Interface Gi1/5 AuditSessionID 0A1C150200000007004E6707
.Aug 4 19:30:33.700 EDT: RADIUS/ENCODE(0000000C):Orig. component type = DOT1X
.Aug 4 19:30:33.700 EDT: RADIUS(0000000C): Config NAS IP: 0.0.0.0
.Aug 4 19:30:33.700 EDT: RADIUS/ENCODE(0000000C): acct_session_id: 11
.Aug 4 19:30:33.700 EDT: RADIUS(0000000C): sending
.Aug 4 19:30:33.700 EDT: RADIUS/ENCODE: Best Local IP-Address 10.28.21.2 for Radius-Server 10.29.18.103
.Aug 4 19:30:33.700 EDT: RADIUS(0000000C): Send Access-Request to 10.29.18.103:1812 id 1645/3, len 209
.Aug 4 19:30:33.700 EDT: RADIUS: authenticator 11 E3 54 71 E3 B2 2B 1C - 61 C8 E9 8A 71 F1 59 C3
.Aug 4 19:30:33.700 EDT: RADIUS: User-Name [1] 14 "1c17d34191ea"
.Aug 4 19:30:33.700 EDT: RADIUS: User-Password [2] 18 *
.Aug 4 19:30:33.700 EDT: RADIUS: Service-Type [6] 6 Call Check [10]
.Aug 4 19:30:33.700 EDT: RADIUS: Framed-MTU [12] 6 1500
.Aug 4 19:30:33.700 EDT: RADIUS: Called-Station-Id [30] 19 "00-15-C6-AA-54-D4"
.Aug 4 19:30:33.700 EDT: RADIUS: Calling-Station-Id [31] 19 "1C-17-D3-41-91-EA"
.Aug 4 19:30:33.700 EDT: RADIUS: Message-Authenticato[80] 18
.Aug 4 19:30:33.700 EDT: RADIUS: D9 CD 7C 9D B9 F1 BE 2D 3C F6 B6 B9 E0 18 41 44 [ |-<AD]
.Aug 4 19:30:33.700 EDT: RADIUS: EAP-Key-Name [102] 2 *
.Aug 4 19:30:33.700 EDT: RADIUS: Vendor, Cisco [26] 49
.Aug 4 19:30:33.700 EDT: RADIUS: Cisco AVpair [1] 43 "audit-session-id=0A1C150200000007004E6707"
.Aug 4 19:30:33.700 EDT: RADIUS: NAS-Port-Type [61] 6 Ethernet [15]
.Aug 4 19:30:33.700 EDT: RADIUS: NAS-Port [5] 6 50105
.Aug 4 19:30:33.700 EDT: RADIUS: NAS-Port-Id [87] 20 "GigabitEthernet1/5"
.Aug 4 19:30:33.700 EDT: RADIUS: NAS-IP-Address [4] 6 10.28.21.2
.Aug 4 19:30:33.720 EDT: RADIUS: Received from id 1645/3 10.29.18.103:1812, Access-Accept, len 60
.Aug 4 19:30:33.720 EDT: RADIUS: authenticator 33 24 0F 61 99 B2 CF 40 - 43 FE 3A 11 35 41 98 0E
.Aug 4 19:30:33.720 EDT: RADIUS: Vendor, Cisco [26] 40
.Aug 4 19:30:33.720 EDT: RADIUS: Cisco AVpair [1] 34 "auto-smart-port=RADIUS_MAB_EVENT"
.Aug 4 19:30:33.720 EDT: RADIUS(0000000C): Received from id 1645/3
.Aug 4 19:30:33.720 EDT: RADIUS/DECODE: Ignoring unknown attribute from protocol type RADIUS
.Aug 4 19:30:33.720 EDT: %MAB-5-SUCCESS: Authentication successful for client (1c17.d341.91ea) on Interface Gi1/5 AuditSessionID 0A1C150200000007004E6707
.Aug 4 19:30:33.720 EDT: %AUTHMGR-7-RESULT: Authentication result 'success' from 'mab' for client (1c17.d341.91ea) on Interface Gi1/5 AuditSessionID 0A1C150200000007004E6707
.Aug 4 19:30:34.770 EDT: %AUTHMGR-5-SUCCESS: Authorization succeeded for client (1c17.d341.91ea) on Interface Gi1/5 AuditSessionID 0A1C150200000007004E6707
.Aug 4 19:30:34.770 EDT: RADIUS/ENCODE(0000000C):Orig. component type = DOT1X
.
Showing Triggers and Macros
This example shows how to use the show shell triggers privileged EXEC command to view the event triggers in the switch software:
Switch# show shell triggers
User defined triggers
---------------------
Built-in triggers
-----------------
Trigger Id: CISCO_CUSTOM_EVENT
Trigger description: Custom macroevent to apply user defined configuration
Trigger environment: User can define the macro
Trigger mapping function: CISCO_CUSTOM_AUTOSMARTPORT
Trigger Id: CISCO_DMP_EVENT
Trigger description: Digital media-player device event to apply port configuration
Trigger environment: Parameters that can be set in the shell - $ACCESS_VLAN=(1)
The value in the parenthesis is a default value
Trigger mapping function: CISCO_DMP_AUTO_SMARTPORT
...
...
<Truncated CLI output>
Identifying MAC Addresses
You need to identify MAC address information from the endpoints to configure the Cisco Secure Access Control System (ACS) and Dynamic Host Configuration Protocol (DHCP). The easiest way to identify the MAC address after the endpoint is connected to the switch is by using the following command:
show mac address-table interface <interface>
Configuring Location
Use the following commands to configure civic location information on the switch:
Switch#configure terminal
Switch(config)#location civic-location identifier 1
Switch(config-civic)# building 1
Switch(config-civic)#city RTP
Switch(config-civic)# floor 1
Switch(config-civic)# room LAB1
Switch(config)#interface GigabitEthernet1/0/13
Switch(config-int)# location civic-location-id 1
Switch(config-int)# location additional-location-information Camp1
For more information on configuring location, please refer to the Configuring Location TLV and Wired Location Service.
Displaying Default Auto-Smartport Macros
You can use the show macro auto device, the show shell functions, and the show shell triggers privileged EXEC commands to display the event triggers and the built-in macros.
The default built in macro functions and associated devices are:
• CISCO_AP_AUTO_SMARTPORT: Cisco wireless access point macro
• CISCO_DMP_AUTO_SMARTPORT: Cisco Digital Media Player (DMP) macro
• CISCO_IPVSC_AUTO_SMARTPORT: Cisco Video Surveillance IP Camera macro
• CISCO_LWAP_AUTO_SMARTPORT: Cisco Lightweight Access Point macro
• CISCO_PHONE_AUTO_SMARTPORT: Cisco IP Phone macro
• CISCO_ROUTER_AUTO_SMARTPORT: Cisco router macro
• CISCO_SWITCH_AUTO_SMARTPORT: Cisco switch macro
This example shows how to see the Cisco DMP macro parameter values and how to change the default voice ACCESS_VLAN to 20. When you change the default values, they are not immediately applied on the interfaces with existing applied macros. The configured values are applied at the next link event. Note that the exact text string was used for ACCESS_VLAN. The entry is case sensitive.
CA3-SWITCH# #sh macro auto device media-player
Device:media-player
Default Macro:CISCO_DMP_AUTO_SMARTPORT
Current Macro:CISCO_DMP_AUTO_SMARTPORT
Configurable Parameters:ACCESS_VLAN
Defaults Parameters:ACCESS_VLAN=1
Current Parameters:ACCESS_VLAN=1
CA3-SWITCH# config t
CA3-SWITCH(config)# macro auto device media-player ACCESS_VLAN=20
CA3-SWITCH(config)# shutdown
CA3-SWITCH(config)# no shutdown
CA3-SWITCH(config)# end
CA3-SWITCH# #sh macro auto device media-player
Device:media-player
Default Macro:CISCO_DMP_AUTO_SMARTPORT
Current Macro:CISCO_DMP_AUTO_SMARTPORT
Configurable Parameters:ACCESS_VLAN
Defaults Parameters:ACCESS_VLAN=1
Current Parameters:ACCESS_VLAN=20
The following example shows a macro triggered configuration for the Cisco IP Camera on a Cisco Catalyst 3750 Series Switch:
CA3-SWITCH#sh run int gi 1/0/3
Building configuration...
Current configuration : 383 bytes
!
interface GigabitEthernet1/0/3
description TO IP-CAMERA
switchport mode access
switchport block unicast
switchport port-security
srr-queue bandwidth share 1 30 35 5
queue-set 2
priority-queue out
mls qos trust device ip-camera
mls qos trust dscp
macro description CISCO_IPVSC_EVENT
auto qos video ip-camera
spanning-tree portfast
spanning-tree bpduguard enable
end
For detailed, step-by-step configuration information, please see Cisco Auto-smartports Configuration Guide and Configuring Auto-QoS.
For design considerations, please refer to the section Auto-Smartports Configuration Guidelines in the document Configuring Auto-Smartport Macros.
