Introduction
- . This is an application note for connectivity of Ericsson MD-110 Release BC12 PBX with Cisco Unified CallManager Release 5.0 via Cisco 3845 w/ VWIC-2MFT-E1 as MGCP gateway using ISO QSIG protocol.
- The network topology diagram (Figure 1) shows the test setup for end-to-end interoperability with the Cisco Unified CallManager connected to the PBX via Cisco3845 w/ VWIC-2MFT-E1 link as MGCP gateway. Connectivity is achieved by using the PRI QSIG E1 protocol type on the MGCP gateway with CallManager Service parameter QSIG variant of ISO and ISO switch type on the Ericsson MD-110 PBX.
- This Application Note uses the Cisco3845 w/ VWIC-2MFT-E1 voice gateway, however other Cisco voice gateways are also an option to use since CallManager QSIG implementation does not depend on the physical interface.
Network Topology
Basic Call Setup End-to-End Configuration
Figure 1. Network Topology or Test Setup
Limitations
Calling/Connected Name Restrictions
Ericsson phone displayed Calling/Connected Name when Cisco CallManager sends it as restricted.
ANF-PR-Additional Network Feature Path Replacement for Call Diversion by join
The Ericsson MD-110 PBX did not initiate Path Replacement proposal for a call that originated from the Ericsson PBX and was diverted
from CallManager to another Ericsson MD-110 PBX node.
The Ericsson MD-110 PBX did not utilize the standard QSIG-MWI code to activate/deactivate MWI LED's at the far-end PINX stations. The Ericsson MD110 utilized a Manufacturer Specific code across the QSIG connection to support this feature.
System Components
Hardware Requirements
Cisco Hardware
Ericsson MD110 PBX Hardware
Software Requirements
Features
Features Supported
- CLIP-Calling Line (Number) Identification Presentation
- CLIR-Calling Line (Number) Identification Restriction
- CNIP-Calling Name Identification Presentation
- COLP-Connected Line (Number) Identification Presentation
- COLR- Connected Line (Number) Identification Restriction
- CONP-Connected Name Identification Presentation
- Sending Alerting Name
- Call Back/Call Completion
- CT-Call Transfer (by join)
- CFU-Call Forwarding Unconditional
- CFB-Call Forwarding Busy
- CFNR-Call Forwarding No Reply
- ANF-PR-Additional Network Feature Path Replacement (for Call Transfer by join)
- ANF-PR-Additional Network Feature Path Replacement (for Trombone connection)
Features Not Supported
- Ericsson PBX did not honor CNIR-Calling Name Identification Restriction
- Ericsson PBX did not honor CONR- Connected Name Identification Restriction
- Ericsson PBX did not support Network Call Forwarding (CFU, CFB, CFNR) by join. It always invoked Reroute on every external CF.
- Ericsson PBX did not support Q.SIG MWI- Message Waiting Indication (lamp ON, lamp OFF)
Configuration
Configuring the Ericsson MD-110 PBX
Warning: The Ericsson MD-110 PBX user interface is very precise. All parameters and options are mapped to position-dependent numeric
fields within the various commands listed below. The user must have the correct revision of the Ericsson MD-110 PBX administration manual
to be able to decipher each field position and determine its meaning. It is therefore not advisable to make changes to an MD-110 PBX unless
you know exactly what you are doing. A single number out of place in a command string can cause unusual behavior on the PBX.
Configure the Ericsson MD-110 PBX in the following sequence:
Configuration Menus and Commands
Ericson MD110 Configuration
Route Category Initiate
Setup internal characteristics for the route. Ex. Traffic direction, services, Bearer capabilities.
For Ericsson1 node
<ROCAP:ROU=100;
ROUTE CATEGORY DATA
ROU SEL TRM SERV NODG DIST DISL TRAF SIG BCAP
100 711000000000001 5 2110030000 0 30 128 03151515 111110000031 111111
END
<ROCAP:ROU=101;
ROUTE CATEGORY DATA
ROU SEL TRM SERV NODG DIST DISL TRAF SIG BCAP
101 711000000000001 5 2110030000 0 30 128 03151515 111110000031 111111
END
For Ericsson3 node
<ROCAP:ROU=1;
ROUTE CATEGORY DATA
ROU SEL TRM SERV NODG DIST DISL TRAF SIG BCAP
1 711000000000001 5 3110000000 0 30 128 03151515 111110000031 111111
END
<ROCAP:ROU=3;
ROUTE CATEGORY DATA
ROU SEL TRM SERV NODG DIST DISL TRAF SIG BCAP
3 711000000000001 5 3110000000 0 30 128 03151515 111110000031 111111
END
Route Data Initiate
For Ericsson1 node
E1-PRI QSIG Route Protocol Characteristics, protocol side "Network"
<RODAP:ROU=100;
ROUTE DATA
ROU TYPE VARC VARI VARO FILTER
100 SL60 H'00000310 H'55440000 H'06300000 NO
END
E1-PRI QSIG Route Protocol Characteristics, protocol side "User"
<RODAP:ROU=101;
ROUTE DATA
ROU TYPE VARC VARI VARO FILTER
101 SL60 H'00000310 H'55440000 H'06400000 NO
END
For Ericsson3 node
<RODAP:ROU=1;
ROUTE DATA
ROU TYPE VARC VARI VARO FILTER
1 SL60 H'00000310 H'55440000 H'06400000 NO
END
<RODAP:ROU=3;
ROUTE DATA
ROU TYPE VARC VARI VARO FILTER
3 SL60 H'00000310 H'55440000 H'06300000 NO
END
Route Equipment Initiate
For Ericsson1 node
E1-PRI QSIG trunk lines (B-channels)
<ROEDP:ROU=100,TRU=ALL;
ROUTE EQUIPMENT DATA
ROU TRU EQU SQU INDDAT
CNTRL
100 001-1 001-0-30-01 H'000000000000
100 001-2 001-0-30-02 H'000000000000
100 001-3 001-0-30-03 H'000000000000
100 001-4 001-0-30-04 H'000000000000
100 001-5 001-0-30-05 H'000000000000
100 001-6 001-0-30-06 H'000000000000
100 001-7 001-0-30-07 H'000000000000
100 001-8 001-0-30-08 H'000000000000
100 001-9 001-0-30-09 H'000000000000
100 001-10 001-0-30-10 H'000000000000
100 001-11 001-0-30-11 H'000000000000
100 001-12 001-0-30-12 H'000000000000
100 001-13 001-0-30-13 H'000000000000
100 001-14 001-0-30-14 H'000000000000
100 001-15 001-0-30-15 H'000000000000
100 001-16 001-0-30-17 H'000000000000
100 001-17 001-0-30-18 H'000000000000
100 001-18 001-0-30-19 H'000000000000
100 001-19 001-0-30-20 H'000000000000
100 001-20 001-0-30-21 H'000000000000
100 001-21 001-0-30-22 H'000000000000
100 001-22 001-0-30-23 H'000000000000
100 001-23 001-0-30-24 H'000000000000
100 001-24 001-0-30-25 H'000000000000
100 001-25 001-0-30-26 H'000000000000
100 001-26 001-0-30-27 H'000000000000
100 001-27 001-0-30-28 H'000000000000
100 001-28 001-0-30-29 H'000000000000
100 001-29 001-0-30-30 H'000000000000
100 001-30 001-0-30-31 H'000000000000
END
<ROEDP:ROU=101,TRU=ALL;
ROUTE EQUIPMENT DATA
ROU TRU EQU SQU INDDAT
CNTRL
101 001-1 001-0-40-01 H'000000000000
101 001-2 001-0-40-02 H'000000000000
101 001-3 001-0-40-03 H'000000000000
101 001-4 001-0-40-04 H'000000000000
101 001-5 001-0-40-05 H'000000000000
101 001-6 001-0-40-06 H'000000000000
101 001-7 001-0-40-07 H'000000000000
101 001-8 001-0-40-08 H'000000000000
101 001-9 001-0-40-09 H'000000000000
101 001-10 001-0-40-10 H'000000000000
101 001-11 001-0-40-11 H'000000000000
101 001-12 001-0-40-12 H'000000000000
101 001-13 001-0-40-13 H'000000000000
101 001-14 001-0-40-14 H'000000000000
101 001-15 001-0-40-15 H'000000000000
101 001-16 001-0-40-17 H'000000000000
101 001-17 001-0-40-18 H'000000000000
101 001-18 001-0-40-19 H'000000000000
101 001-19 001-0-40-20 H'000000000000
101 001-20 001-0-40-21 H'000000000000
101 001-21 001-0-40-22 H'000000000000
101 001-22 001-0-40-23 H'000000000000
101 001-23 001-0-40-24 H'000000000000
101 001-24 001-0-40-25 H'000000000000
101 001-25 001-0-40-26 H'000000000000
101 001-26 001-0-40-27 H'000000000000
101 001-27 001-0-40-28 H'000000000000
101 001-28 001-0-40-29 H'000000000000
101 001-29 001-0-40-30 H'000000000000
101 001-30 001-0-40-31 H'000000000000
END
For Ericsson3 node
<ROEDP:ROU=1,TRU=ALL;
ROUTE EQUIPMENT DATA
ROU TRU EQU SQU INDDAT
CNTRL
1 001-1 001-1-40-01 H'000000000000
1 001-2 001-1-40-02 H'000000000000
1 001-3 001-1-40-03 H'000000000000
1 001-4 001-1-40-04 H'000000000000
1 001-5 001-1-40-05 H'000000000000
1 001-6 001-1-40-06 H'000000000000
1 001-7 001-1-40-07 H'000000000000
1 001-8 001-1-40-08 H'000000000000
1 001-9 001-1-40-09 H'000000000000
1 001-10 001-1-40-10 H'000000000000
1 001-11 001-1-40-11 H'000000000000
1 001-12 001-1-40-12 H'000000000000
1 001-13 001-1-40-13 H'000000000000
1 001-14 001-1-40-14 H'000000000000
1 001-15 001-1-40-15 H'000000000000
1 001-16 001-1-40-17 H'000000000000
1 001-17 001-1-40-18 H'000000000000
1 001-18 001-1-40-19 H'000000000000
1 001-19 001-1-40-20 H'000000000000
1 001-20 001-1-40-21 H'000000000000
1 001-21 001-1-40-22 H'000000000000
1 001-22 001-1-40-23 H'000000000000
1 001-23 001-1-40-24 H'000000000000
1 001-24 001-1-40-25 H'000000000000
1 001-25 001-1-40-26 H'000000000000
1 001-26 001-1-40-27 H'000000000000
1 001-27 001-1-40-28 H'000000000000
1 001-28 001-1-40-29 H'000000000000
1 001-29 001-1-40-30 H'000000000000
1 001-30 001-1-40-31 H'000000000000
END
<ROEDP:ROU=3,TRU=ALL;
ROUTE EQUIPMENT DATA
ROU TRU EQU SQU INDDAT
CNTRL
3 001-1 001-1-50-01 H'000000000000
3 001-2 001-1-50-02 H'000000000000
3 001-3 001-1-50-03 H'000000000000
3 001-4 001-1-50-04 H'000000000000
3 001-5 001-1-50-05 H'000000000000
3 001-6 001-1-50-06 H'000000000000
3 001-7 001-1-50-07 H'000000000000
3 001-8 001-1-50-08 H'000000000000
3 001-9 001-1-50-09 H'000000000000
3 001-10 001-1-50-10 H'000000000000
3 001-11 001-1-50-11 H'000000000000
3 001-12 001-1-50-12 H'000000000000
3 001-13 001-1-50-13 H'000000000000
3 001-14 001-1-50-14 H'000000000000
3 001-15 001-1-50-15 H'000000000000
3 001-16 001-1-50-17 H'000000000000
3 001-17 001-1-50-18 H'000000000000
3 001-18 001-1-50-19 H'000000000000
3 001-19 001-1-50-20 H'000000000000
3 001-20 001-1-50-21 H'000000000000
3 001-21 001-1-50-22 H'000000000000
3 001-22 001-1-50-23 H'000000000000
3 001-23 001-1-50-24 H'000000000000
3 001-24 001-1-50-25 H'000000000000
3 001-25 001-1-50-26 H'000000000000
3 001-26 001-1-50-27 H'000000000000
3 001-27 001-1-50-28 H'000000000000
3 001-28 001-1-50-29 H'000000000000
3 001-29 001-1-50-30 H'000000000000
3 001-30 001-1-50-31 H'000000000000
END
Route External Destination Data Initiate
For Ericsson1 node
Route and Access Code for the trunk Information- Note Route 100 & 101 are the PRI QSIG
<RODDP:DEST=ALL;
EXTERNAL DESTINATION ROUTE DATA
DEST DRN ROU CHO CUST ADC TRC SRT NUMACK PRE
21 1 1225000000000250102001100 0 3 0
25 100 0606100000000250006000000 0 3 0
31 11 1005000000000250000000000 0 3 0
35 11 0606000000000250106001100 0 3 0
36 6 0115000000000250000000000 0 3 0
38 8 0115000000000250000000000 0 3 0
30 101 1707000000000250107001101 0 1 0
42 100 1707000000000250107001101 0 1 0
550 11 0606000000000250106001100 0 1 0
551 101 0707000000000250107001101 0 1 0
560 11 0606000000000250106001100 0 1 0
666 100 0707000000000250107001101 0 1 0
950 11 0606000000000250106001100 0 7 0
END
For Ericsson3 node
Route and Access Code for the trunk Information- Note Route 1 & 3 are the PRI QSIG
<RODDP:DEST=ALL;
EXTERNAL DESTINATION ROUTE DATA
DEST DRN ROU CHO CUST ADC TRC SRT NUMACK PRE
11 1 1707000000000250107001101 0 1 0
21 1 1727000000000250107001100 0 1 0
23 3 1727000000000250107001100 0 1 0
31 11 1005200000000250100001000 0 3 0
30 3 1707000000000250107001101 0 1 0
50 11 0606000000000250106001100 0 1 0
550 11 0606000000000250106001100 0 1 0
551 3 0707100000000250107001101 0 1 0
560 11 0606000000000250106001100 0 1 0
60 11 0606000000000250106001100 0 1 0
777 1 0707000000000250007001101 0 1 0
950 11 0606000000000250106001100 0 7 0
END
Overlap/Enbloc sending
For Ericsson1 node
First remove access code
<NANLR:EXL=30;
To do overlap sending
<NANLS:EXL=30,MIN=2,MAX=4;
To do Enbloc sending
<NANLS:EXL=30,MIN=4,MAX=4;
Key System Directory
For Ericsson1 node
<KSDDP:DIR=1151;
KEY SYSTEM DIRECTORY DATA
DIR CUST EQU CAT ADN ODN CALALT
1151 001-0-20-00 - 1
END
<KSDDP:DIR=1152;
KEY SYSTEM DIRECTORY DATA
DIR CUST EQU CAT ADN ODN CALALT
1152 001-0-20-01 - 1
END
For Ericsson3 node
<KSDDP:DIR=4204&&4205;
KEY SYSTEM DIRECTORY DATA
DIR CUST EQU CAT ADN ODN CALALT
4204 001-1-20-04 1 1
4205 001-1-20-05 1 1
Calling/Connected Name and Number Restrictions
To configure Calling/Connected Name and Number Restricted, use the following command:
<KSCAC:DIR=1154&&1155,ADC=00010013010000;
To configure Calling/Connected Name and Number Allowed, use the following command:
<KSCAC:DIR=1154&&1155,ADC=00100013010000;
To remove Name, use the following command:
<NIINE:DIR=1154;//REMOVE NAME
To add Name, use the following command:
<NIINI:DIR=1154,NAME1="BC12-1",NAME2="ONE",PRES=20; //ADD NAME
To print Station's Name, use the following command:
<NIINP:DIR=1154&&1155;
EXTENSION NAMES
DIR NAME1 NAME2 PRES INFO
1151 BC12-1 ONE 20
1152 BC12-1 TWO 20
END
Path Replacement (Route Optimization)
To enable/disable Path Replacement, use the following command:
Call Diversion on Busy/No Reply
Diversion Counter
Network Services
Ericsson MD-110 Software Version
For Ericsson1 node
For Ericsson3 node
Cisco CallManager Configuration
ISO Protocol Service Parameter

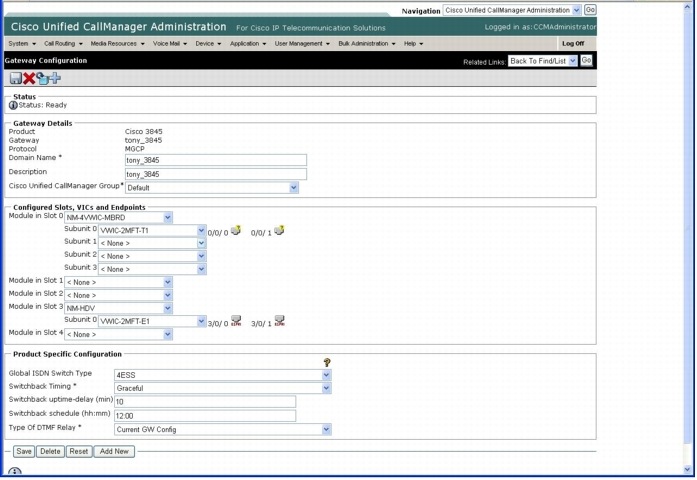

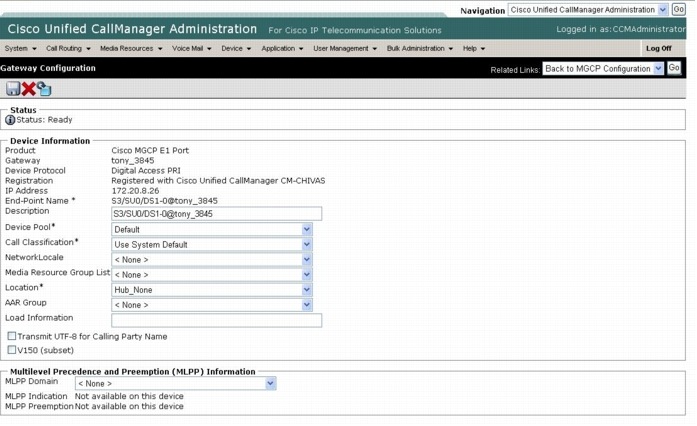

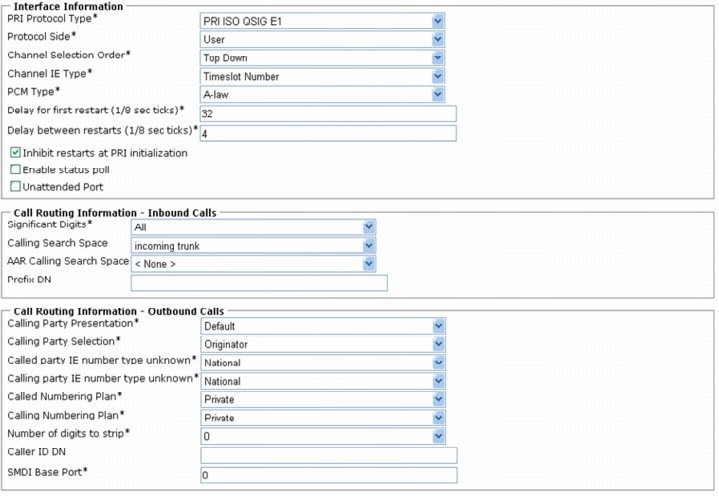

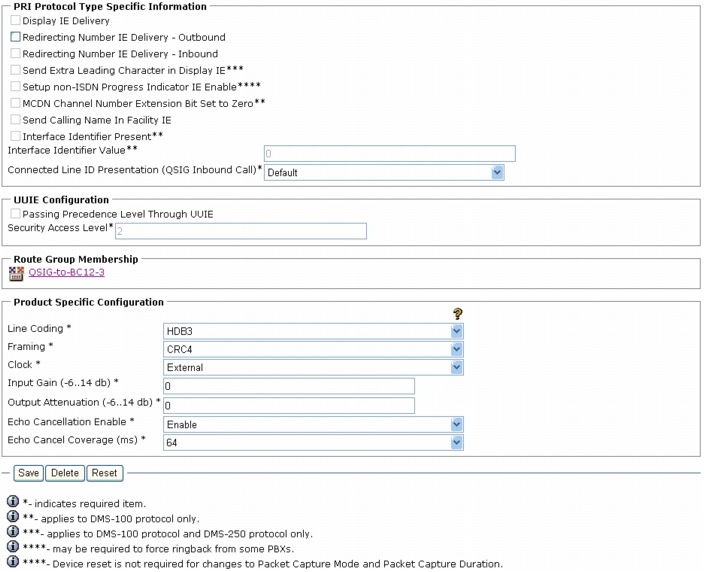

CCM Gateway configuration

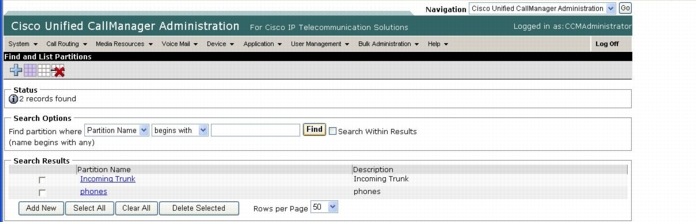

Partitions Configuration

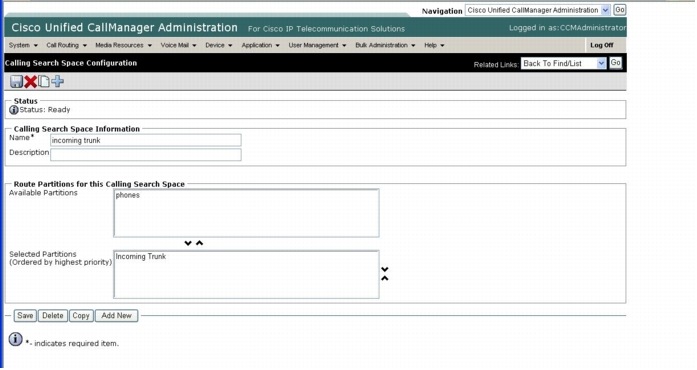

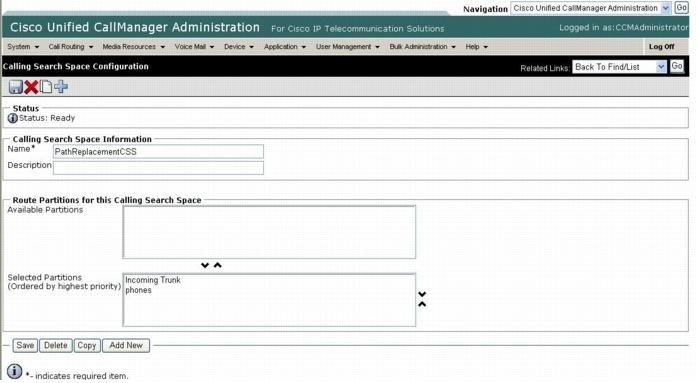

Calling Search Space Configuration

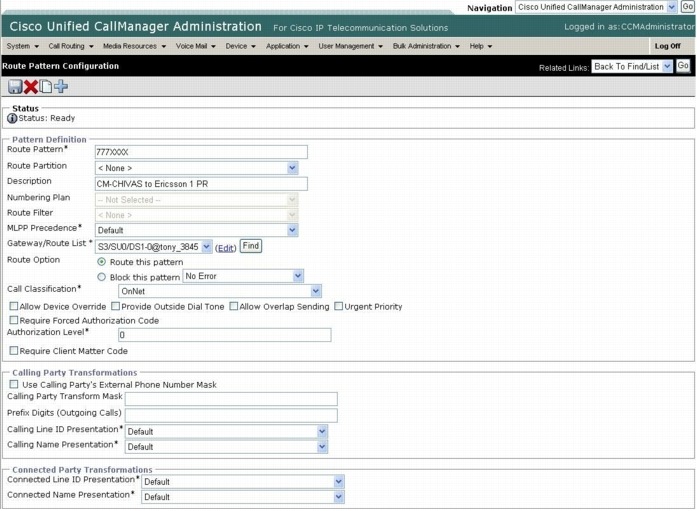

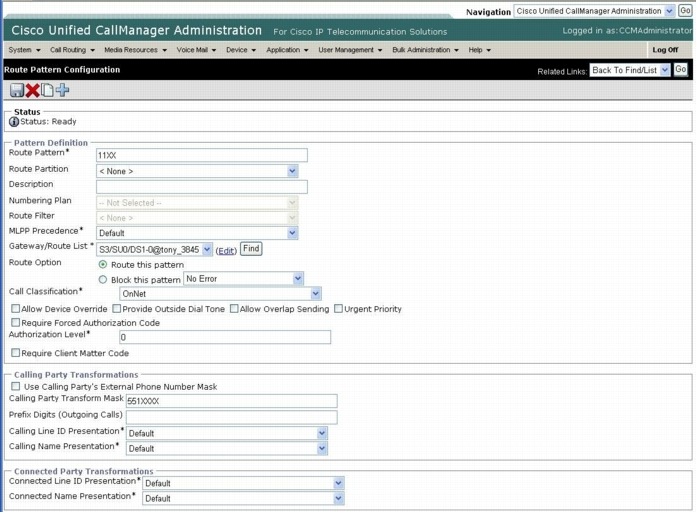

Enbloc Route Pattern Configuration

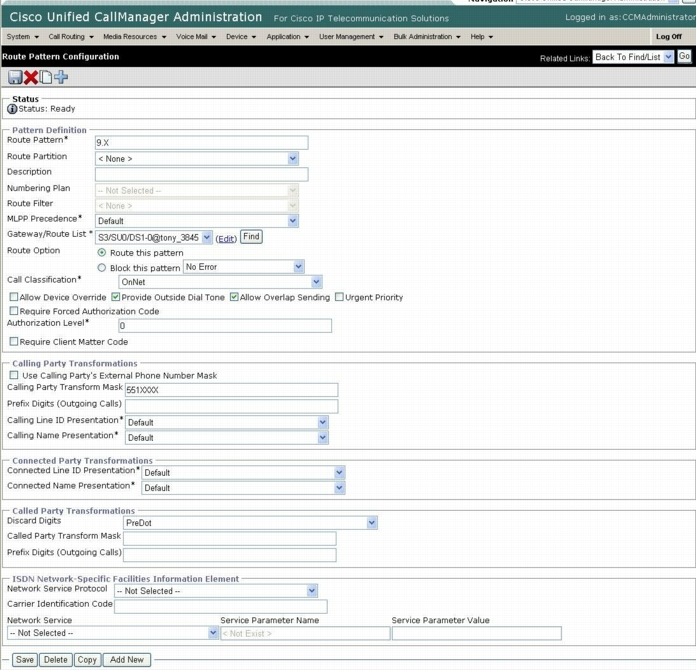

Overlap Sending Route Pattern

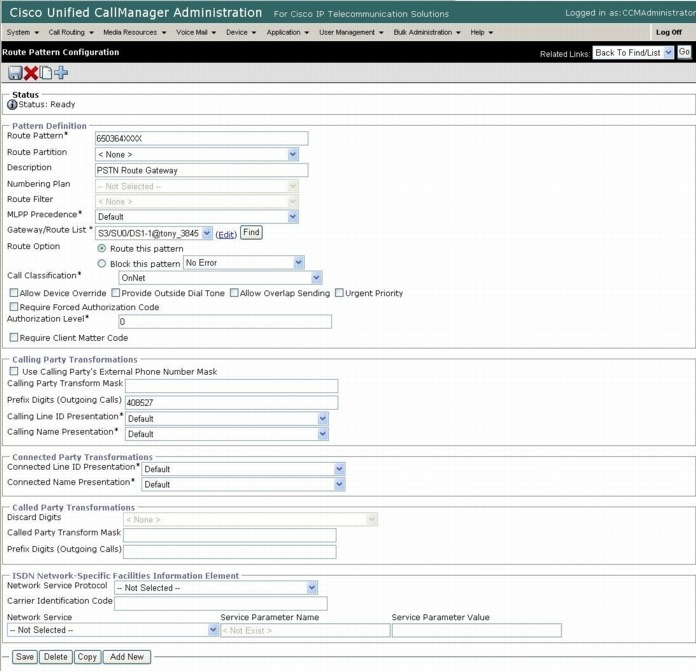

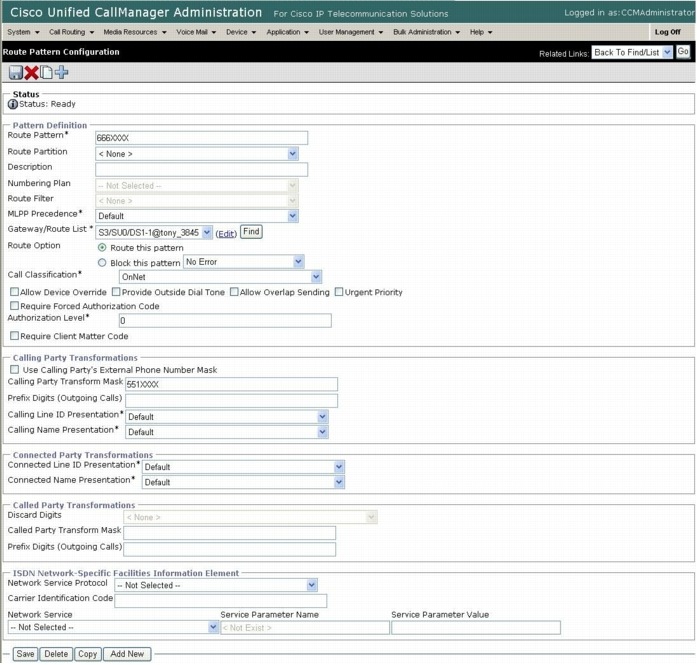

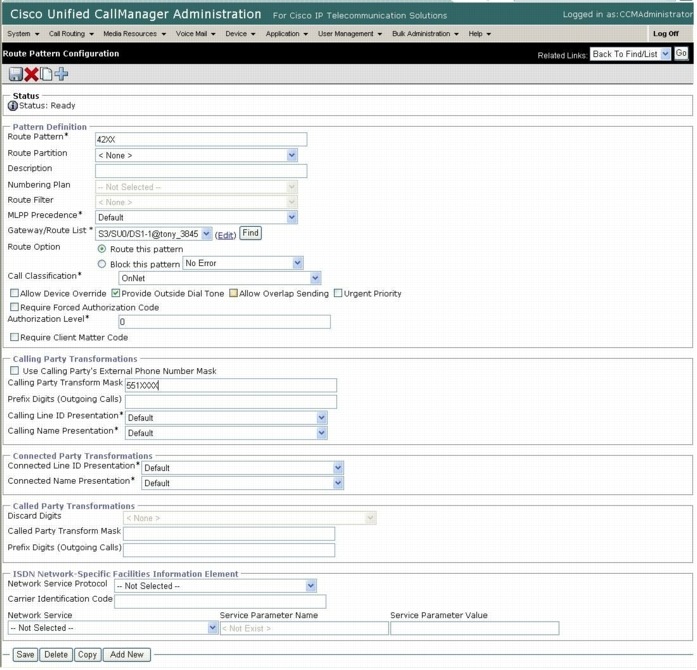

PSTN Route Pattern Configuration

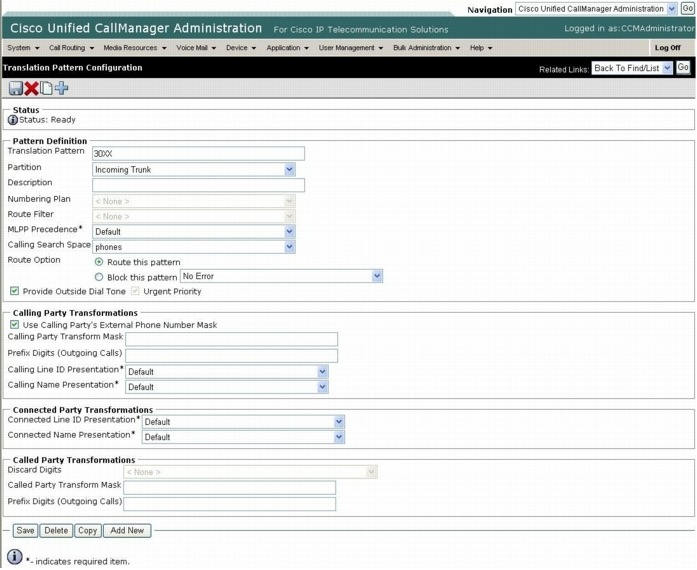

Translation Pattern for Incoming Calls

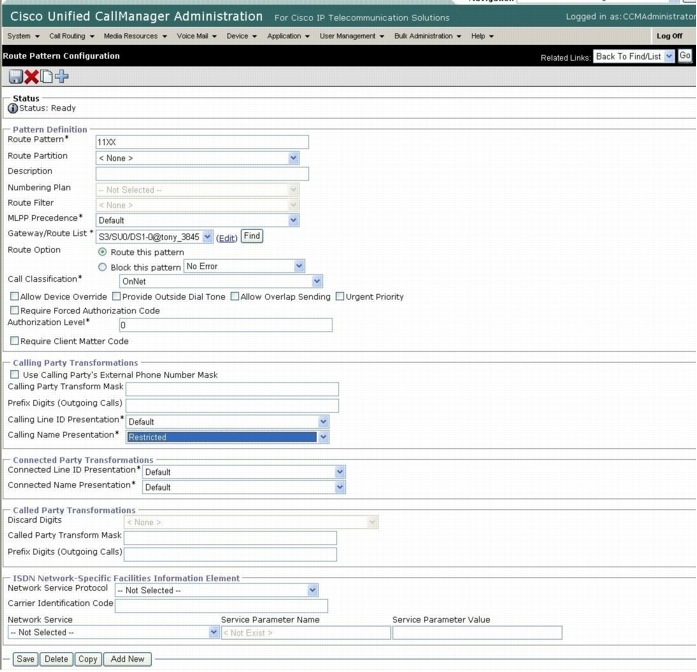

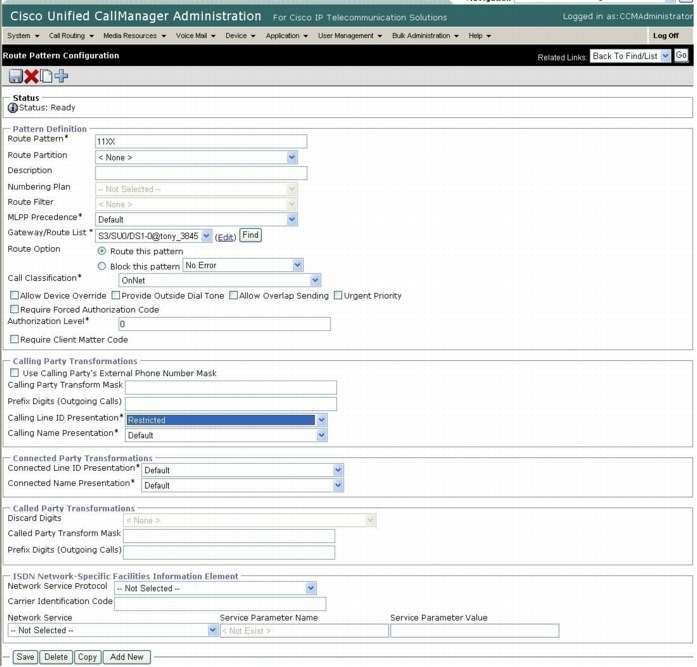

CLIR Route Pattern Config
CNIR Route Pattern Config

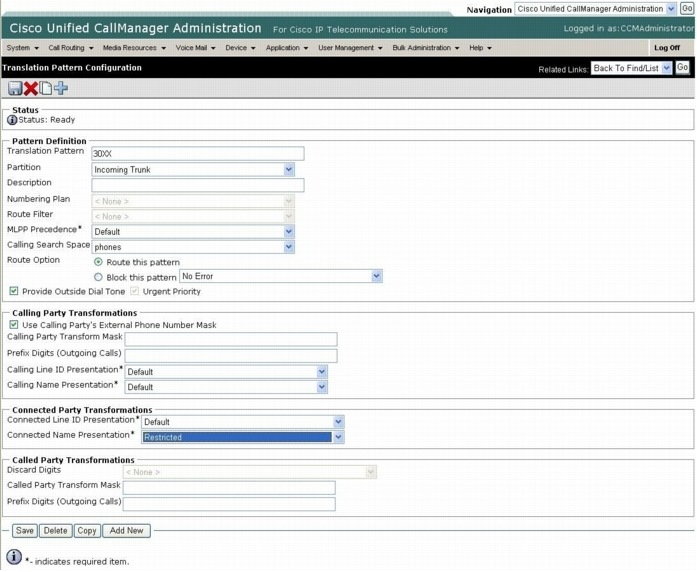

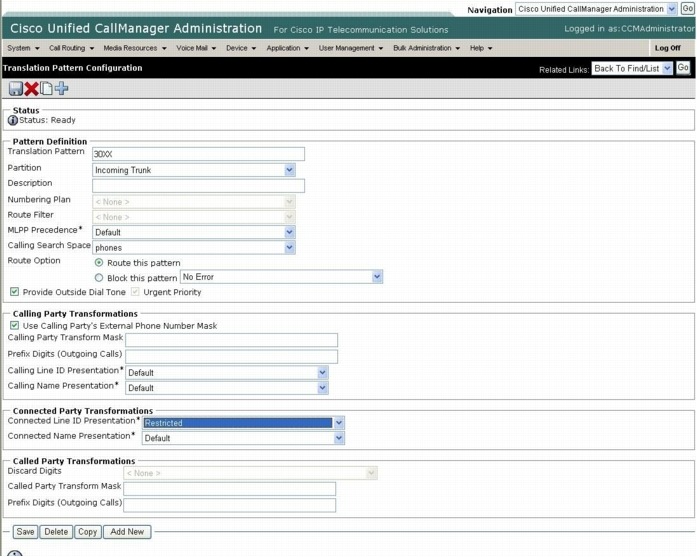

COLR Translation Pattern Config
CONR Route Pattern Configuration

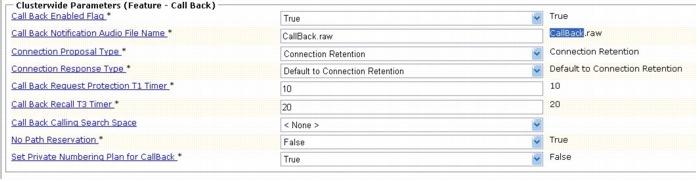

CallBack Service Parameters
Note: The field "Set Private Numbering Plan for CallBack" should only be set to `True' when the MD110 PRI-QSIG trunk connecting to CallManager is set to "7" (ADC parameter under RODDI set to TON LevelRegional1, private). CallManager Gateway should be set to Number type `National' and numbering plan `Private'. If this is not set the Callback feature will not function properly.

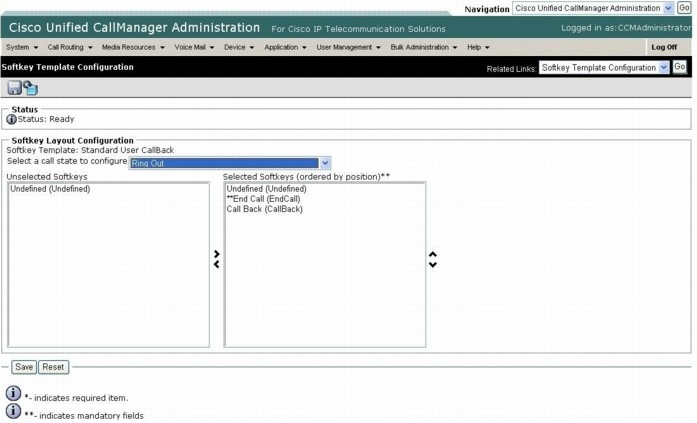

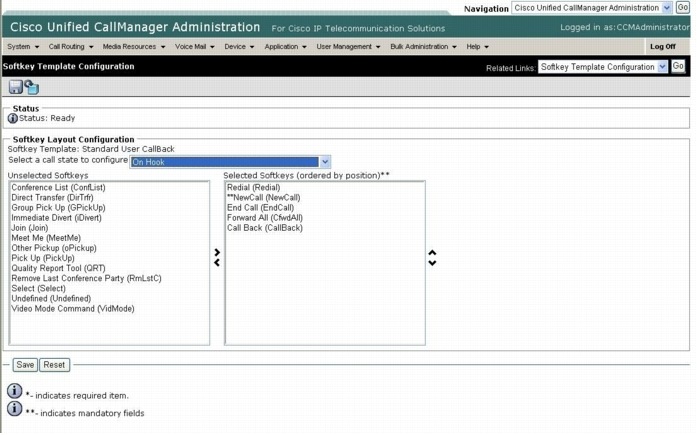

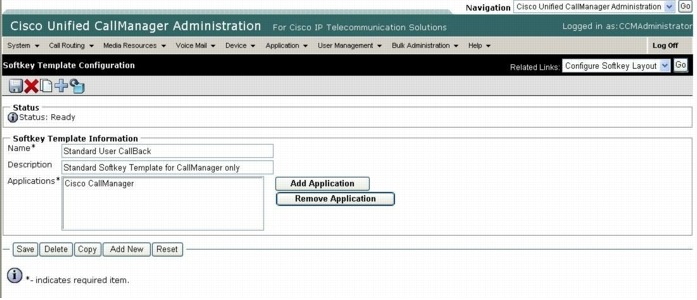

CallBack Softkey Config

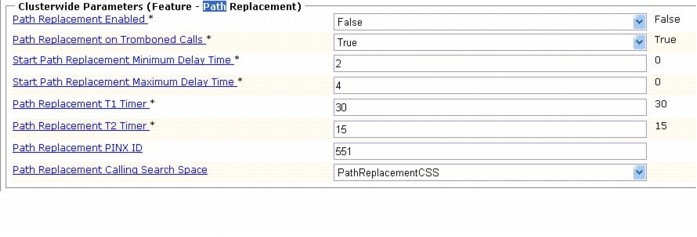

Path Replacement Service Parameter
MWI lamp On/Off Configuration
Note: Not Applicable. Standard QSIG SS-MWI is not supported on Ericsson MD110 BC12 SP5

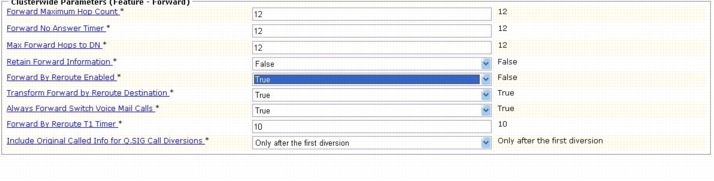

Forward by Reroute Service Parameter

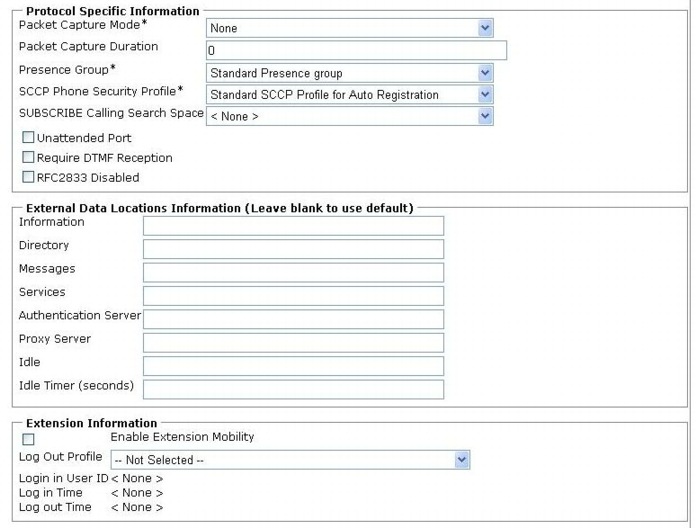

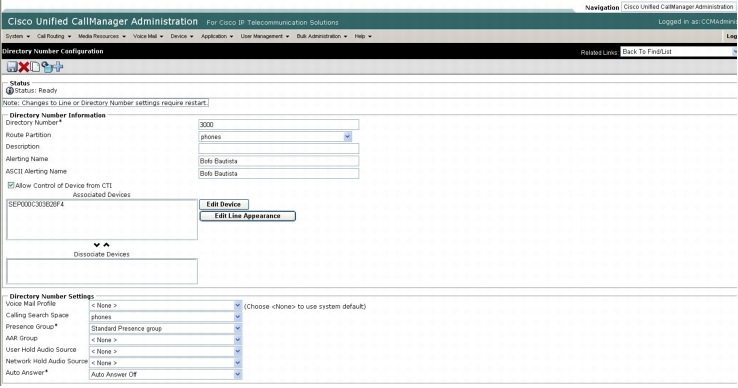

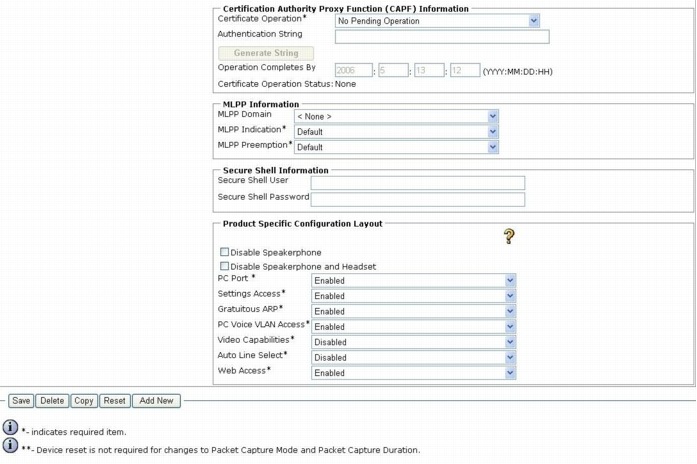

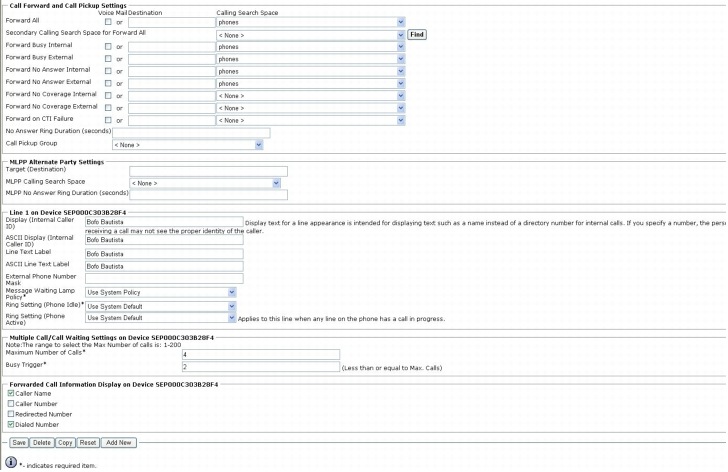

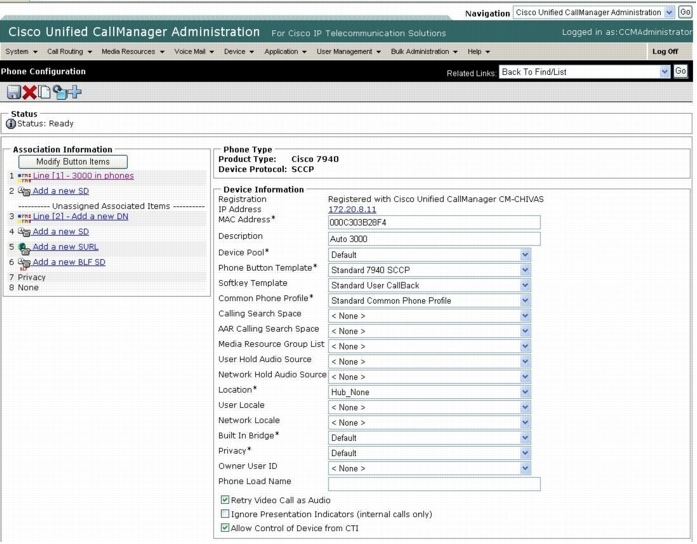

IP phone Configuration
Cisco 3845 w/ VWIC-2MFT-E1 Configuration
tony_3845#sh ver
Cisco IOS Software, 3800 Software (C3845-ENTSERVICESK9-M), Version 12.3(14)T6,
RELEASE SOFTWARE (fc2)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2006 by Cisco Systems, Inc.
Compiled Thu 05-Jan-06 02:57 by dchih
ROM: System Bootstrap, Version 12.3(11r)T2, RELEASE SOFTWARE (fc1)
tony_3845 uptime is 2 hours, 21 minutes
System returned to ROM by reload at 18:34:34 UTC Thu May 4 2006
System image file is "flash:c3845-entservicesk9-mz.123-14.T6.bin"
This product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.
A summary of U.S. laws governing Cisco cryptographic products may be found at:
http://www.cisco.com/wwl/export/crypto/tool/stqrg.html
If you require further assistance please contact us by sending email to
export@cisco.com.
Cisco 3845 (revision 1.0) with 486400K/37888K bytes of memory.
Processor board ID FTX0933A1JA
2 Gigabit Ethernet interfaces
62 Serial interfaces
2 Channelized E1/PRI ports
2 Channelized T1/PRI ports
DRAM configuration is 64 bits wide with parity enabled.
479K bytes of NVRAM.
125184K bytes of ATA System CompactFlash (Read/Write)
Configuration register is 0x2102
tony_3845#sh run
Building configuration...
Current configuration : 3246 bytes
!
version 12.3
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname tony_3845
!
boot-start-marker
boot system flash:c3845-entservicesk9-mz.123-14.T6.bin
boot-end-marker
!
logging buffered 100000000 debugging
enable password cisco
!
no aaa new-model
!
resource policy
!
no network-clock-participate slot 3
no network-clock-participate wic 0
voice-card 0
no dspfarm
!
voice-card 3
dspfarm
!
ip subnet-zero
ip cef
!
!
no ip dhcp use vrf connected
!
!
no ip domain lookup
ip host CM-BARZA 172.20.110.254
ip host CM-CHIVAS 172.20.8.254
no ftp-server write-enable
isdn switch-type primary-4ess
!
!
!
controller T1 0/0/0
framing esf
linecode b8zs
!
controller T1 0/0/1
framing esf
linecode b8zs
!
controller E1 3/0/0
pri-group timeslots 1-31 service mgcp
!
controller E1 3/0/1
pri-group timeslots 1-31 service mgcp
!
!
!
interface GigabitEthernet0/0
ip address 172.20.8.26 255.255.255.0
duplex auto
speed auto
media-type rj45
negotiation auto
!
interface GigabitEthernet0/1
no ip address
shutdown
duplex auto
speed auto
media-type rj45
negotiation auto
!
interface Serial3/0/0:15
no ip address
isdn switch-type primary-qsig
isdn protocol-emulate network
isdn incoming-voice voice
isdn T310 120000
isdn bind-l3 ccm-manager
no cdp enable
!
interface Serial3/0/1:15
no ip address
isdn switch-type primary-qsig
isdn incoming-voice voice
isdn bind-l3 ccm-manager
no cdp enable
!
ip default-gateway 172.20.8.1
ip classless
ip route 0.0.0.0 0.0.0.0 172.20.8.1
!
!
ip http server
no ip http secure-server
!
!
!
!
control-plane
!
!
!
voice-port 3/0/0:15
!
voice-port 3/0/1:15
!
ccm-manager mgcp
ccm-manager music-on-hold
ccm-manager config server CM-CHIVAS
ccm-manager config
!
mgcp
mgcp call-agent CM-CHIVAS 2427 service-type mgcp version 0.1
mgcp dtmf-relay voip codec all mode out-of-band
mgcp rtp unreachable timeout 1000 action notify
mgcp modem passthrough voip mode nse
mgcp package-capability rtp-package
no mgcp package-capability res-package
mgcp package-capability sst-package
no mgcp package-capability fxr-package
mgcp package-capability pre-package
no mgcp timer receive-rtcp
mgcp sdp simple
mgcp fax t38 inhibit
mgcp rtp payload-type g726r16 static
!
mgcp profile default
!
!
!
!
line con 0
password cisco
stopbits 1
line aux 0
stopbits 1
line vty 0 4
password cisco
login
!
scheduler allocate 20000 1000
!
end
tony_3845#
Acronyms
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
|
|
|||
|
Corporate Headquarters
Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 USA www.cisco.com Tel: 408 526-4000 800 553-NETS (6387) Fax: 408 526-4100 |
European Headquarters
Cisco Systems International BV Haarlerbergpark Haarlerbergweg 13-19 1101 CH Amsterdam The Netherlands www-europe.cisco.com Tel: 31 0 20 357 1000 Fax: 31 0 20 357 1100 |
Americas Headquarters
Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 USA www.cisco.com Tel: 408 526-7660 Fax: 408 527-0883 |
Asia Pacific Headquarters
Cisco Systems, Inc. Capital Tower 168 Robinson Road #22-01 to #29-01 Singapore 068912 www.cisco.com Tel: +65 317 7777 Fax: +65 317 7799 |
|
Cisco Systems has more than 200 offices in the following countries and regions. Addresses, phone numbers, and fax numbers are listed on
the Cisco Web site at www.cisco.com/go/offices. Argentina · Australia · Austria · Belgium · Brazil · Bulgaria · Canada · Chile · China PRC · Colombia · Costa Rica · Croatia · Czech Republic · Denmark · Dubai, UAE · Finland · France · Germany · Greece · Hong Kong SAR · Hungary · India · Indonesia · Ireland · Israel · Italy · Japan · Korea · Luxembourg · Malaysia · Mexico · The Netherlands · New Zealand · Norway · Peru · Philippines · Poland · Portugal · Puerto Rico · Romania · Russia · Saudi Arabia · Scotland · Singapore · Slovakia · Slovenia · South Africa · Spain · Sweden · Switzerland · Taiwan · Thailand · Turkey Ukraine · United Kingdom · United States · Venezuela · Vietnam · Zimbabwe
© © 2006 Cisco Systems, Inc. All rights reserved.
CCSP, CCVP, the Cisco Square Bridge logo, Follow Me Browsing, and StackWise are trademarks of Cisco Systems, Inc.; Changing the Way We Work, Live, Play, and Learn, and iQuick Study are service marks of Cisco Systems, Inc.; and Access Registrar, Aironet, BPX, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity, Enterprise/Solver, EtherChannel, EtherFast, EtherSwitch, Fast Step, FormShare, GigaDrive, GigaStack, HomeLink, Internet Quotient, IOS, IP/TV, iQ Expertise, the iQ logo, iQ Net Readiness Scorecard, LightStream, Linksys, MeetingPlace, MGX, the Networkers logo, Networking Academy, Network Registrar, Packet, PIX, Post-Routing, Pre-Routing, ProConnect, RateMUX, ScriptShare, SlideCast, SMARTnet, The Fastest Way to Increase Your Internet Quotient, and TransPath are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.
All other trademarks mentioned in this document or Website are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (0601R)
Printed in the USA |
|||
