Cisco Physical Access Output Module [Cisco Physical Access Gateways]

The Cisco® Physical Access Output Module (Figure 1) is an optional module that can be connected to the Cisco Physical Access Gateway to expand the solution to include additional outputs.

The Cisco Physical Access Output Module can connect up to 8 outputs, each of which can be configured as Normally Open (NO) or Normally Closed (NC). The module must be used in conjunction with a Cisco Physical Access Gateway, and cannot be used standalone.

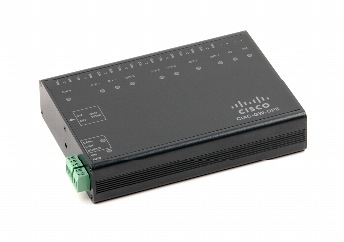

Figure 1. Cisco Physical Access Output Module

Connectors

Table 1 describes the connectivity and connectors of the Cisco Physical Output Module.

Table 1. Cisco Physical Access Output Module Connectors

Connector	Description
Outputs	Eight Form C relay outputs, with contacts rated 5A @ 30V DC or 125VAC (resistive). Each can be configured as either Normally Closed (NC) or Normally Open (NO).
Tamper Input	Unsupervised input; raises a "tamper" alarm when activated. Can be repurposed for general use by software configuration.
Power Fail Input	Unsupervised input; raises a "power fail" alarm when activated. Can be repurposed for general use by software configuration.
Power	2-pin connector for connecting a 12 to 24 VDC external power source.
CAN Bus	A 3-wire connection is used to connect to the controller area network (CAN) bus.
CAN Termination	A switch allows for the CAN bus to be terminated. This is needed for the last module on the CAN bus.

Specifications

Table 2 provides specifications of the Cisco Physical Access Output Module.

Table 2. Cisco Physical Access Output Module Mechanical Specifications

Item	Description
Housing	Aluminum
Dimensions (LxWxH)	• 5 x 7 x 1.46 in. • 127 x 178 x 37 mm
Weight	Without Plugs and Brackets	With Plugs	With Brackets	With Plugs and Brackets
	1.43 lb (648 g)	1.53 lb ( 716 g)	1.59 lb ( 722 g)	1.69 lb ( 790 g)
Certifications	• FCC • UL • CE
Operating Temperature	• Indoors only • 32 to 122°F (0 to 50°C)
Humidity	5 to 95% relative, non-condensing
Power	12 to 24 VDC (+/- 10%) through an external power supply

Package Contents

Table 3 describes the items that ship with the Cisco Physical Access Output Module.

Table 3. Package Contents

Item
Cisco Physical Access Output Module
Connector plugs	Pin	Qty
	3	9
	2	3
2 mounting brackets, with 4 screws for each bracket
Regulatory compliance and safety information
Quick start guide

Availability

The Cisco Physical Access Input Module is available through Cisco Authorized Technology Provider (ATP) Partners.

Ordering Information

Table 4 lists the part numbers for the Cisco Physical Output Module.

Table 4. Ordering Information

Part Number	Description
CIAC-GW-OP8	Cisco Physical Access Output Module

Service and Support

Cisco offers a wide range of services programs to accelerate customer success. These innovative programs are delivered through a unique combination of people, processes, tools, and partners, resulting in high levels of customer satisfaction. Cisco services help you to protect your network investment, optimize network operations, and prepare your network for new applications to extend network intelligence and the power of your business. For more information about Cisco services, visit Cisco Technical Support Services or Cisco Advanced Services.

For More Information

For more information about the Cisco Physical Access Output Module, visit http://www.cisco.com/go/eac or contact your local account representative.
