The Cisco® Unified CallConnector Personal Client is a desktop solution integrated with the Cisco Unified Communications Manager Express (CME) that delivers easy-to-use call control, access to the telephony features, click-to-dial integration with Microsoft Outlook contacts, and incoming-call screen pops. The Cisco Unified CallConnector Personal Clients facilitate increased productivity and more effective communications with the following features:
• Provide an easy-to-use toolbar within Microsoft Outlook and Internet Explorer for dialing numbers, controlling calls, and accessing contact information (Figure 1)
• Bring together all contacts for using auto-dialing or starting a new email message to a contact
• Provide inbound-call screen popup with Outlook contact names and clickable options to take the call, send it to voicemail, or send a quick message
• Provide contact directories and call logs showing the missed, incoming, and outgoing calls with click-to-call back capability
Cisco Unified CallConnector Personal Client uses toolbars within common applications such as Microsoft Outlook and Internet Explorer, providing integration of the contact data in your PC applications with the features of your Cisco Unified Communications Manager Express. As a desktop solution that you can deploy without the server, it is easy to install, configure, and use.

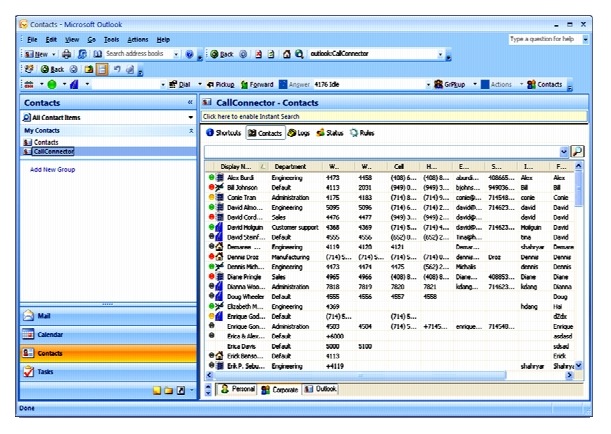

Figure 1. Cisco Unified CallConnector Personal Toolbars in Outlook
Experience Enhanced Outlook Integration
The Cisco Unified CallConnector Personal Client provides a toolbar (or ribbon for Outlook 2010), right-click menu in Outlook contacts, and a Contacts window for directories and logs to allow you to access all your communications services directly from within Outlook (Figure 2). You can locate contacts, manage calls, and view call logs without leaving Outlook. With Outlook integration, you can:
• Right click on an Outlook contact and auto-dial to make calls
• Use the toolbar to locate contacts from any directory and auto-dial or send messages
• Manage calls from the toolbar in Outlook without having to switch applications
• Update your availability status and location from pull-down menus (in server mode only)
• Highlight and click to auto-dial a number
Figure 2. Cisco Unified CallConnector Toolbar in Outlook 2010

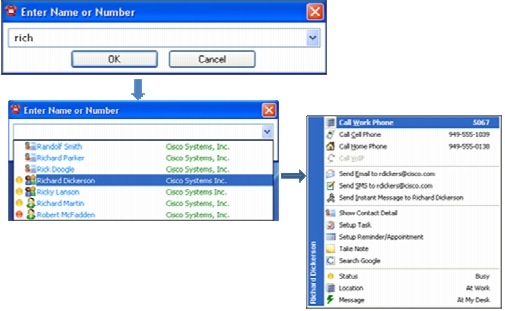

From within any application, you can quickly locate and set up communication sessions with your contacts using QuickSearch. Communication options include making calls to work or mobile numbers, sending email or Short Message Service (SMS) messages, or opening collaboration sessions. To use QuickSearch, enter the first few letters of the first name to find a matching contact and then select the communication method (Figure 3).
All of your call histories are archived on your PC while the Cisco Unified CallConnector Personal Client is running, and they are available for viewing in the log window. From this window, you can:
• View the incoming, missed, and outgoing calls made from your phone
• Search and locate calls in the call list
• Call back from the log entries
Cisco Unified CallConnector Personal Client Standalone Deployment
Cisco Unified CallConnector Personal Client is deployed as a standalone solution for the individual user's desktop using the Cisco Unified Communications Manager Express Telephony Application Programming Interface (TAPI) Telephony Service Provider (TSP). The Cisco Unified CallConnector Personal Client is installed and configured on each Windows workstation associated with a Cisco Unified IP Phone. The client delivers the call-control features listed in Table 1.
Table 1. Cisco Unified CallConnector Personal Client Features in Standalone Deployment
Cisco Unified CallConnector Personal Client Features
Call-control toolbars within Microsoft Outlook and Internet Explorer
Toolbars offer easy access to features without the need for any additional desktop applications. You can use them within Outlook or Internet Explorer.
The toolbars provide easy-to-use features such as finding contacts, executing phone features, and streamlining communications for you.
Cisco Unified CallConnector contacts
Within Outlook and Internet Explorer the solution brings together all personal and Outlook contacts.
Finding contacts within two commonly used applications is easy.
Quick dial from any contact
Use click-to-dial or click-to-send on any contact with the option to show all numbers (work, cell, and home) and send addresses (email and SMS) associated with the contact.
Quick dial saves time; calls or startup of other communication sessions are placed in a few seconds without manual number or address entry.
Quick transfer, hold, and conference
Easily transfer, hold, or set up conferences using context menus within Outlook or Explorer.
Transferring or setting up conference calls is easy using your PC mouse.
QuickSearch through contacts
Use the Pause-Break key on your PC to quickly find a contact and then auto-dial the number, or click to send an email message.
It is an easy way to search though all contacts without opening new applications or switching pages.
The solution offers an option to create icon-based speed dials for frequently called numbers.
Common numbers are easy to find and dial quickly.
New-call popup window with Outlook Caller ID Lookup
Incoming calls generate a screen pop with the caller's name lookup from Outlook contacts. The solution offers a clickable option to answer or send a call to voicemail.
You always know who is calling. The solution also provides an option to answer a call or ignore it and send it to voicemail.
QuickDial from any application
You can highlight a phone number in any application such as Microsoft Word, PowerPoint, email, or webpage, and then double click the phone icon to place a call.
Placing a call is quick and easy. You do not have to read the number and manually dial it, saving time and improving productivity.
Cisco Unified CallConnector call logs
Missed, received, and dialed calls are stored on your PC. You can use quick dial to return calls missed while out of the office.
You save time returning calls missed while away from the office. You can use the history log of calls received and placed for billing.
Cisco Unified CallConnector Personal Client Connected to Cisco Unified CallConnector Server
In the server mode, the Cisco Unified CallConnector Personal Client brings together easy-to-use call control, presence, instant messaging (IM), and directories to simplify the communication experience, helping work teams and colleagues share information faster and communicate in real time. Similar to popular IM, you can set your status from the Cisco Unified CallConnector toolbar. This status information is updated automatically for all users from the Cisco Unified CallConnector Server and is accessible from the toolbars in Internet Explorer, Outlook, or the QuickSearch results window. Knowing whether contacts are available helps reduce communication delays among workers, resulting in faster decision making and enhanced productivity. Table 2 lists the additional features available with the Cisco Unified CallConnector Server.
Table 2. Cisco Unified CallConnector Personal Client Features in Server Mode
Cisco Unified CallConnector Personal Features with Server
Dynamic presence information
The solution offers a real-time display of users' locations, availability, and IP phone status, plus an optional custom message.
The number of missed phone calls is reduced, and the application gives information about employees' locations.
You can show your location by icon (work, home, travel, and vacation) or create a custom message displayed to other users.
Others (including operator) can see who is in the office, out of the office, or away on travel.
You can show your status by color, available, busy, away, or other.
Fellow employees can know who is available to receive calls or instant messages.
Dynamic IP phone status
All phones connected to the Cisco Unified Communications Manager Express have status auto-updated for others to see.
The number of missed phone calls is reduced, resulting in more efficient communications.
Simple IM for the small office is launched though Cisco Unified CallConnector Contacts Quick Dial.
An easy-to-use, simple instant messaging client provides productivity gains among employees. An alternative to the use of external public IM clients eases security concerns.
Synchronization with Outlook Calendar
You can update your availability status automatically based on the Outlook Calendar.
The solution automatically tracks your schedule, reducing the need to manually update your availability.
QuickSearch with presence information
The QuickSearch results bar shows location, availability, and phone status for colleagues in addition to contact numbers.
Quickly find phone numbers and presence information about colleagues, so you know whether the person you are calling is available before you call.
Table 3 lists the computer requirements for the Cisco Unified CallConnector Personal Client, Table 4 lists the requirements for the Cisco Unified CallConnector Server, and Table 5 lists the software version needed for the Cisco Unified Communications Manager Express.
Table 3. Cisco Unified CallConnector Personal Client Requirements
100-MB free hard disk space
Reserve an additional 50 MB for upgrades.
1.8-GHz or faster processor for workstation
2-GB RAM minimum
Microsoft Windows XP Personal (Service Pack 2 or later), Windows Vista, or Windows 7 (Both 32- and 64-bit Windows versions are supported.)
Note: No virtual desktop environments, including VMWare, Windows 7 Terminal Server and Citrix client environments are supported.
Microsoft Outlook 2003, 2007, and 2010
Microsoft Internet Explorer 7.0 and 8.0
Cisco Unified IP Phone 7940G, 7960G, or 7970G Series models
Table 4. Cisco Unified CallConnector Server Minimum System Requirements
Smaller sites (up to 25 users): 2-GB free hard disk space
Sites with 25 to 75 users: 4-GB free hard disk space
Larger sites with 75 to 250 users: 8-GB free hard disk space
Smaller sites (up to 25 users): 2.66-GHz or faster multicore processor
Sites with 25 to 75 users: 2.66-GHz or faster quad-core processor
Larger sites with 75 to 250 users: Dedicated quad-core 3-GHz or faster processor
Smaller sites (up to 25 users): 2-GB system memory
Sites with 25 to 75 users: 4-GB system memory
Larger sites with 75 to 250 users: 8-GB system memory recommended
Microsoft Windows XP Professional (SP 2 or later)
Windows Server 2003 or 2008 (recommended)
Windows Small Business Server
Both 32- and 64-bit Windows OSs are supported.
Cisco Unified IP Phone 7940G, 7960G, or 7970G Series models
Microsoft Internet Explorer 6.0 with Service Pack 2 or Internet Explorer 7.0-8.0
