The Cisco® Video Surveillance 6020 IP Camera is an high-definition, full-functioned video endpoint with industry-leading image quality and processing power. The camera is capable of full 1080p resolution at 30 frames per second (fps) while optimizing network usage with either H.264 or MJPEG compression. Contact closures allow integration with access control systems. With its open, standards-based design, the camera provides an ideal platform for integration and operation as an independent device or as part of a Cisco Video Surveillance Network.
Figure 1. Cisco Video Surveillance 6020 IP Camera
The Cisco Video Surveillance 6020 IP Camera offers a variety of benefits, including:
• True high-definition video: The camera streams crisp and clear 1080p (1920 x 1080) (2.1 MP) video at 30 fps while maintaining low network bandwidth.
• Motorized focus and zoom: The lens on the 6020 IP Dome allows the focus and zoom to be controlled remotely, greatly simplifying installations and field of view adjustments.
• Dual streaming: The camera can stream H.264 and MJPEG video simultaneously. Each video stream can be configured with individual resolution, quality, and frame-rate settings.
• Day/night operation: The camera provides true day/night functionality, and includes an infrared (IR) filter that automatically switches to night mode in low-light scenes. This function can be set to manual, automatic, or scheduled control.
• Flexible power options: The camera supports Power over Ethernet (PoE) 802.3af, 12 VDC, or 24 VAC power through an optional external power supply.
• Medianet support: The camera supports the Medianet interface. When connected to a Cisco switch that also supports medianet, the switch recognizes the camera as a video endpoint, and then uses SmartPort macros to set the right network parameters for the video stream on the network. In addition, the camera can be automatically discovered and configured when connected to VSM 7.0, thereby minimizing installation time and cost.
Features
Table 1 describes the features of the Cisco Video Surveillance 6020 IP Camera.
Table 1. Cisco Video Surveillance 6020 IP Camera Features
Item
Specification
Imaging device
1/2.7-in. progressive-scan CMOS
Image control
Automatic white balance (AWB), automatic gain control (AGC), automatic exposure shutter (AES), and auto and manual iris
Dynamic range
69 dB
Minimum illumination
• Color mode: F1.2 @ 0.4 lux
• Black and white mode: F1.2 @ 0.2 lux
Lens
3-9 mm
DC-Iris
Remote focus and zoom
Field of view
37.5° ~ 103.7° (horizontal)
21.6° ~ 71.2° (vertical)
42.6°~111.21° (diagonal)
Camera angle adjustment
Pan: 350°
Tilt: 80°
Rotate: 350°
Shutter speed
1/5 to 1/32,000 sec
Video compression
H.264 and MJPEG
Resolution and frame rate (H.264)
• 1920 x 1080 @ 30 fps (1080p)
• 1280 x 720 @ 30 fps (720p)
• 1024 x 576 @ 30 fps
• 960 x 544 @ 30 fps
• 704 x 480 or 576 @ 30 or 25 fps (4CIF)
• 640 x 368 @ 30 fps
• 352 x 240 or 288 @ 30 or 25 fps (CIF)
Resolution and frame rate (MJPEG)
• 1280 x 720 @ 30 fps (720p)
• 1024 x 576 @ 30 fps
• 960 x 544 @ 30 fps
• 704 x 480 or 576 @ 30 or 25 fps (4CIF)
• 640 x 368 @ 30 fps
• 352 x 240 or 288 @ 30 or 25 fps (CIF)
Video streaming
• Single-stream H.264 up to 1080p (1920 x 1080) @ 30 fps
• Dual-stream H.264 and MJPEG
• H.264: Primary stream programmable up to 1280 x 720 @ 30 fps
• MJPEG: Secondary stream programmable up to 960 x 544 @15 fps
Protocols
Dynamic Host Control Protocol (DHCP), Hypertext Transfer Protocol (HTTP), Secure HTTP (HTTPS), Network Time Protocol (NTP), Real-Time Transport Protocol (RTP), Real-Time Streaming Protocol (RTSP), Simple Mail Transfer Protocol (SMTP), Secure Sockets Layer/Transport Layer Security (SSL/TLS), TCP/IP, Cisco Discovery Protocol, Bonjour, Simple Network Management Protocol (SNMP), and Secure Shell (SSH) Protocol
Quality of service (QoS)
Differentiated services code point (DSCP) marking and class of service (CoS) marking
Power
12 VDC or 24 VAC through optional external power supply, available separately
PoE (802.3af)
Power consumption (max)
DC: 4.7W
AC: 6.3W
PoE: 6.2W
Table 2 lists the video stream support for the Cisco Video Surveillance 6020 IP Camera for 16:9 Aspect Ratios.
Table 2. Cisco Video Surveillance 6020 IP Camera Video Stream Support for 16:9 Aspect Ratios
Primary (H264)
Maximum fps
Secondary (H264 or MJPEG)
Maximum fps
1920 x 1080
30
-
-
1920 x 1080
15
1024 x 576
960 x 544
640 x 368
15
1280 x 720
30
1024 x 576
960 x 544
640 x 368
15
1024 x 576
30
1024 x 576
960 x 544
640 x 368
15
960 x 544
30
960 x544
640 x 368
15
640 x 368
30
640 x 368
15
Table 3 lists the video stream support for the Cisco Video Surveillance 6020 IP Camera for 4:3 Aspect Ratio.
Table 3. Cisco Video Surveillance 6020 IP Camera Video Stream Support for 4:3 Aspect Ratio
Primary (H264)
Maximum fps
Secondary (H264 or MJPEG)
Maximum fps
720 x 480/576
30/25
720 x 480/576
704 x 480/576
352 x 240/288
15
704 x 480/576
30/25
704 x 480/576
352 x 240/288
15
352 x 240/288
30/25
352 x 240/288
15
Connectors
Table 4 describes the connectivity and connectors of the Cisco Video Surveillance 6020 IP Camera.
Table 4. Cisco Video Surveillance 6020 IP Camera Connectors
Item
Specification
Network connectivity
100 BASE-TX Ethernet with RJ-45 connector
Alarm input
One logic level programmable
Alarm output*
One logic level programmable
Power input
Terminal block
* Not supported when the camera is used with Cisco Video Surveillance Manager.
Software
Table 5 describes the primary features of the Cisco Video Surveillance 6020 IP Camera software.
Table 5. Cisco Video Surveillance 6020 IP Camera Primary Software Features
Item
Specification
Activity detection
User-definable alerts with configurable sensitivities and thresholds, email alert, and HTTP notifications
Video format
NTSC and PAL
Image settings
Configurable brightness, sharpness, contrast, saturation, hue, and white balance
Overlay capabilities
Time, date, and text
Selectable bit rate
Support for constant bit rate or variable bit rate
IP filtering
Ability for users to enter a list of allowed or blocked IP addresses for viewing video and configuring camera settings
Discovery
Cisco Discovery Protocol and Bonjour Zero-Configuration discovery
Configuration
• Browser-based using Internet Explorer 8.0 or later
• Two levels of user access with password protection
Security
Support for IEEE 802.1X authentication
Specifications
Table 6 provides specifications of the Cisco Video Surveillance 6020 IP Camera.
Table 6. Cisco Video Surveillance 6020 IP Camera Mechanical Specifications
Item
Specification
Housing
Aluminum
LEDs
Power and activity
Dimensions
(D x H)
6.3 x 4.3 inches (160 x 109 mm)
Weight
765g
Certifications
Safety:
UL60950-1 2nd edition
CSA22.2-No.60950-1
IEC/EN60950-1 2nd edition
IEC/EN60825
EMC Requirements:
CISPR22 Class B
ICES-003
EN55022
EN55024
EN61000-3-2/-3-3 Class A
VCCI Class B
KN22 Class B
KN24
Operating temperature
14 to 122°F (-10 to 50°C)

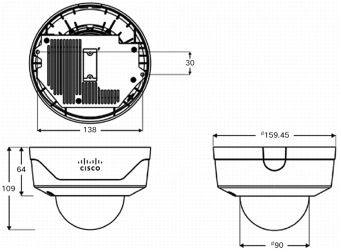

Figure 2 shows the dimensions of the Cisco Video Surveillance 6020 IP Cameras. Note that all dimensions are in millimeters.
Figure 2. Cisco Video Surveillance 6020 IP Camera Dimensions
Package Contents
Table 7 describes the items that ship with the Cisco Video Surveillance 6020 IP Camera.
Table 7. Package Contents
Item
Cisco Video Surveillance 6020
Installation Template/Alignment Sticker
Screws (T4x32)
Wall Anchors
DC Power Cable Connector
Ethernet Cable
Lens Hood
Cisco Pointer Doc
Cisco RoHs Doc
Camera Identification Labels x 3
Availability
The Cisco Video Surveillance 6020 IP Camera is available through Cisco Authorized Technology Provider (ATP) Partners.
Ordering Information
Table 8 lists the part numbers for the Cisco Video Surveillance 6020 IP Camera and for the lenses that the camera supports.
Table 8. Ordering Information
Part Number
Description
CIVS-IPC-6020
Cisco Video Surveillance IP Camera, Indoor HD Dome Body
CIVS-IPCA-PWR12V
12 VDC Power Supply
Using the Camera with Cisco Video Surveillance Manager
Cisco and our certified partners can help you accelerate success and improve the return on your investment in a Cisco Physical Security solution. The Cisco lifecycle approach to services defines the requisite activities at each phase of the solution lifecycle. This approach allows you to:
• Reduce deployment costs by identifying the features that will best meet your business requirements
• Accelerate migration by assessing the readiness of your network to support the system and by developing a sound design
• Support smooth implementation through effective planning and expert installation, configuration, and integration
• Increase operational efficiency and extend the value of your investment with award-winning technical support
For more information about the Cisco Video Surveillance 6020 IP Camera, visit http://www.cisco.com/go/physec or contact your local Cisco account representative.
