The Cisco Unified Computing System™ (Cisco UCS®) is a next-generation data center platform that unites compute, networking, storage access, and virtualization resources in a cohesive system designed to reduce total cost of ownership (TCO) and increase business agility. The system integrates a low-latency, lossless 10 Gigabit Ethernet unified network fabric with enterprise-class blade and rack x86-architecture servers. The system is an integrated, scalable, multichassis platform in which all resources participate in a unified management domain.
A Cisco® innovation, the Cisco UCS Virtual Interface Card (VIC) 1225 (Figure 1) is a dual-port Enhanced Small Form-Factor Pluggable (SFP+) 10 Gigabit Ethernet and Fibre Channel over Ethernet (FCoE)-capable PCI Express (PCIe) card designed exclusively for Cisco UCS C-Series Rack Servers. With its half-height design, the card preserves full-height slots in servers for third-party adapters certified by Cisco. It incorporates next-generation converged network adapter (CNA) technology from Cisco, providing investment protection for future feature releases. The card enables a policy-based, stateless, agile server infrastructure that can present up to 256 PCIe standards-compliant interfaces to the host that can be dynamically configured as either network interface cards (NICs) or host bus adapters (HBAs). In addition, the Cisco UCS VIC 1225 supports Cisco Data Center Virtual Machine Fabric Extender (VM-FEX) technology, which extends the Cisco UCS fabric interconnect ports to virtual machines, simplifying server virtualization deployment.
Figure 1. Cisco UCS VIC 1225
Features and Benefits
• Stateless and agile: The personality of the card is determined dynamically at boot time using the service profile associated with the server. The number, type (NIC or HBA), identity (MAC address and World Wide Name [WWN]), failover policy, bandwidth, and quality-of-service (QoS) policies of the PCIe interfaces are all determined using the service profile. The capability to define, create, and use interfaces on demand provides a stateless and agile server infrastructure (Figure 2).

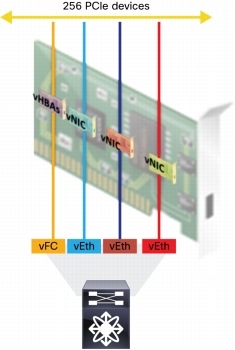

Figure 2. Virtual Device Support on the Cisco UCS VIC 1225
• Network interface virtualization: Each PCIe interface created on the VIC is associated with an interface on the Cisco UCS fabric interconnect, providing complete network separation for each virtual cable between a PCIe device on the VIC and the interface on the fabric interconnect (Figure 3).

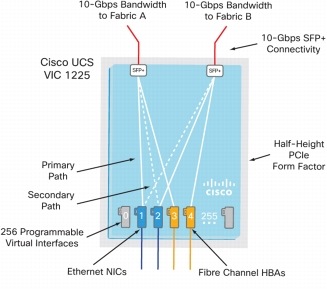

Figure 3. Cisco UCS VIC 1225 Architecture
• Cisco Data Center VM-FEX Technology: Cisco Data Center VM-FEX technology extends fabric interconnect ports directly to virtual machines, eliminating software-based switching in the hypervisor. Cisco Data Center VM-FEX technology collapses virtual and physical networking infrastructure into a single infrastructure that is fully aware of the virtual machines' locations and networking policies (Figure 4). Cisco Data Center VM-FEX technology is implemented by Cisco VICs with a pre-standard implementation of IEEE 802.1BR Port Extender.

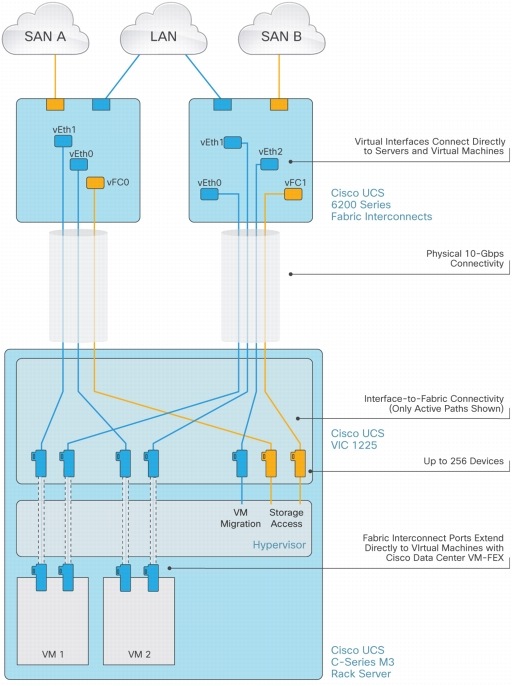

Figure 4. Cisco Data Center VM-FEX with Cisco UCS VIC 1225
Table 1 summarizes the main features and benefits of the Cisco UCS VIC 1225.
Table 1. Features and Benefits
x16 PCIe generation-2 interfaces
Delivers greater throughput
2 x 10-Gbps unified I/O
• Delivers 20 Gbps to the server
• Helps reduce TCO by consolidating the overall number of NICs, HBAs, cables, and switches because LAN and SAN traffic run over the same adapter card and fabric
Up to 256 dynamic virtual adapters and interfaces
• Creates fully functional unique and independent PCIe adapters and interfaces (NICs or HBAs) without requiring single-root I/O virtualization (SR-IOV) support from OSs or hypervisors
• Allows these virtual interfaces and adapters to be configured and operated independently, just like physical interfaces and adapters
• Creates a highly flexible I/O environment needing only one card for all I/O configurations
Note: Cisco UCS VIC 1225 hardware is SR-IOV capable, and you can enable SR-IOV after SR-IOV is broadly supported by the popular operating systems. Please refer to UCS Manager configuration limits for your specific OS and environment in the configuration guide.
Cisco Data Center VM-FEX technology
• Unifies virtual and physical networking in a single infrastructure
• Provides virtual machine visibility from the physical network and a consistent network operating model for physical and virtual servers
• Enables configurations and policies to follow the virtual machine during virtual machine migration
• Provides a pre-standard implementation of the IEEE 802.1BR Port Extender standard
Enables the card to be centrally managed and configured by Cisco UCS Manager
Provides a redundant path to the fabric interconnect using hardware-based fabric failover
More than 600,000 I/O operations per second (IOPS)
Provides high I/O performance for demanding applications
Support for lossless Ethernet
Uses Priority Flow Control (PFC) to enable FCoE as part of the Cisco unified fabric
Broad OS and hypervisor support
Supports customer requirements for Microsoft Windows, Red Hat Enterprise Linux, SUSE Linux, VMware vSphere, and Citrix XenServer
Table 2 lists the specifications for the Cisco UCS VIC 1225.
256 virtual interfaces (approximately 8 are reserved for internal use; other factors such as the OS and
hypervisor may limit this number further)
Length = 6.6 in (16.76 cm)
Width = 2.5 in. (6.35 cm)
12 watts (W)
The Cisco UCS VIC 1225 is designed for use only on Cisco UCS C-Series Rack Servers. A single Cisco UCS VIC 1225 is supported on Cisco UCS C260 M2, C460 M2, C220 M3, C240 M3, C22 M3, and C24 M3 rack servers. Up to three Cisco UCS VIC 1225 cards are supported on these servers depending on the slot configuration.
