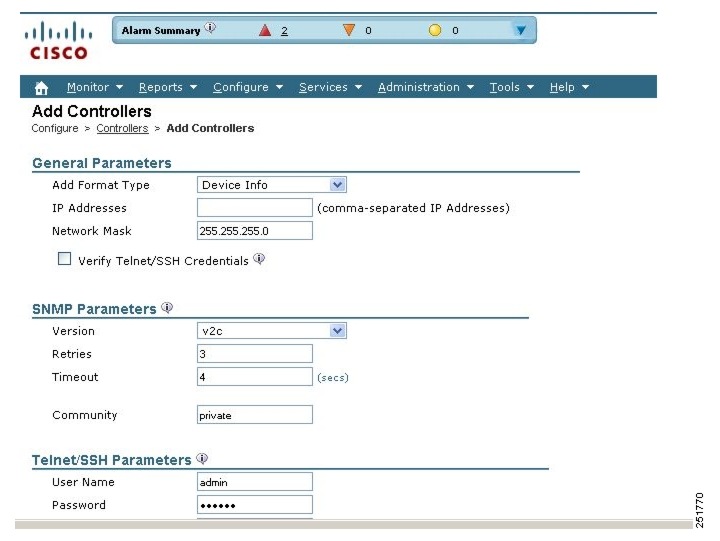

Adding Controllers
Removing Controllers from WCS
Rebooting Controllers
Rebooting Controllers and APs by Swapping AP Images
Rebooting Controllers and APs Without Swapping AP Images
Downloading Software to Controllers
Download Software (FTP)
Download Software (TFTP)
Configure IPaddr Upload Configuration/Logs from Controller
Downloading Signatures and Certificates to Controllers
Downloading IDS Signatures
Downloading a Customized WebAuthentication Bundle to a Controller
Downloading a Vendor Device Certificate
Downloading a Vendor CA Certificate
Saving the Configuration to Flash
Refreshing the Configuration from the Controller
Discovering Templates from the Controller
Viewing Templates Applied to a Controller
Using the Audit Now Feature
Viewing the Latest Network Audit Report
Configuring Existing Controllers
Viewing Controllers Properties
Configuring Controller System Parameters
Managing General System Properties for Controllers
Configuring Controller System Commands
Restoring Factory Defaults
Setting Controller Time and Date
Uploading Configuration/Logs from Controllers
Downloading Configurations to Controllers
Downloading Software to a Controller
Downloading a Web Admin Certificate to a Controller
Downloading IDS Signatures
Downloading a Customized Web Auth Bundle to a Controller
Configuring Controller System Interfaces
Adding an Interface
Viewing Current Interface Details
Deleting a Dynamic Interface
Configuring Controller System Interface Groups
Adding an Interface Group
Deleting an Interface Group
Viewing Interface Groups
NAC Out-of-Band Integration
Configuring Wired Guest Access
Creating an Ingress Interface
Creating an Egress Interface
Configuring Controller Network Routes
Viewing Existing Network Routes
Configuring Controller Spanning Tree Protocol Parameters
Configuring Controller Mobility Groups
Configuring Controller Network Time Protocol
Background Scanning on 1510s in Mesh Networks
Configuring Controller QoS Profiles
Configuring Controller DHCP Scopes
Configuring Controller User Roles
Configuring a Global Access Point Password
Configuring Global CDP
Configuring AP 802.1X Supplicant Credentials
Configuring Controller DHCP
Configuring Controller Multicast Mode
Configuring Access Point Timer Settings
Configuring Controller WLANs
Viewing WLAN Details
General Tab
Security Tab
QoS Tab
Advanced Tab
Adding a WLAN
Deleting a WLAN
Managing WLAN Status Schedules
Mobility Anchors
Configuring WLANs AP Groups
Adding Access Point Groups
Deleting Access Point Groups
Auditing Access Point Groups
Configuring Hybrid REAP Parameters
Configuring H-REAP AP Groups
Auditing an H-REAP Group
Configuring Security Parameters
Configuring Controller File Encryption
Configure Controllers > IPaddr > Security > AAA
Configuring AAA General Parameters
Configuring AAA RADIUS Auth Servers
Configuring AAA RADIUS Acct Servers
Configuring AAA RADIUS Fallback Parameters
Configuring AAA LDAP Servers
Configuring AAA TACACS+ Servers
Configuring AAA Local Net Users
Configuring AAA MAC Filtering
Configuring AAA AP/MSE Authorization
Configuring AAA Web Auth Configuration
Configuring AAA Password Policy
Configure Controllers > IPaddr > Security > Local EAP
Configuring Local EAP General Parameters
Configuring Local EAP Profiles
Configuring Local EAP General EAP-FAST Parameters
Configuring Local EAP General Network Users Priority
Configuring User Login Policies
Managing Manually Disabled Clients
Configuring Access Control Lists
Configure IPaddr > Access Control List > listname Rules
Configuring CPU Access Control Lists
Configuring the IDS Sensor List
Configuring CA Certificates
Configuring ID Certificates
Configure Controllers > IPaddr > Security > Web Auth Certificate
Configuring Wireless Protection Policies
Configuring Rogue Policies
Configuring Rogue AP Rules
Configuring Client Exclusion Policies
Configuring IDS Signatures
Configuring Controller Standard Signature Parameters
Configuring Custom Signatures
Configuring AP Authentication and MFP
Configuring Cisco Access Points
Sniffer feature
Configuring 802.11 Parameters
Configuring General Parameters for an 802.11 Controller

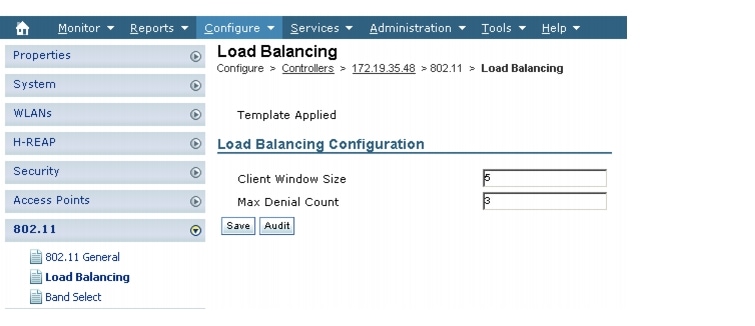

Configuring Aggressive Load Balancing

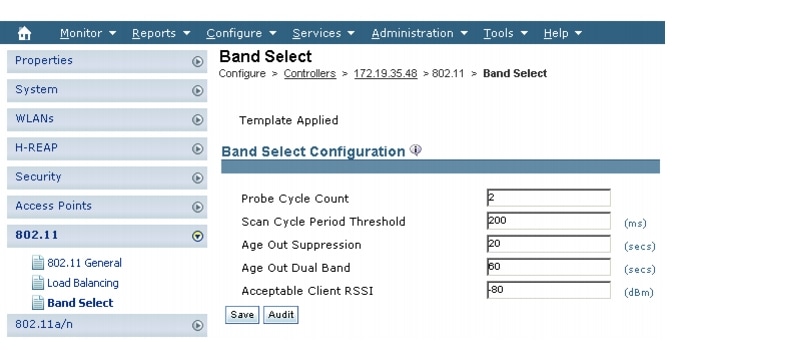

Configuring Band Selection

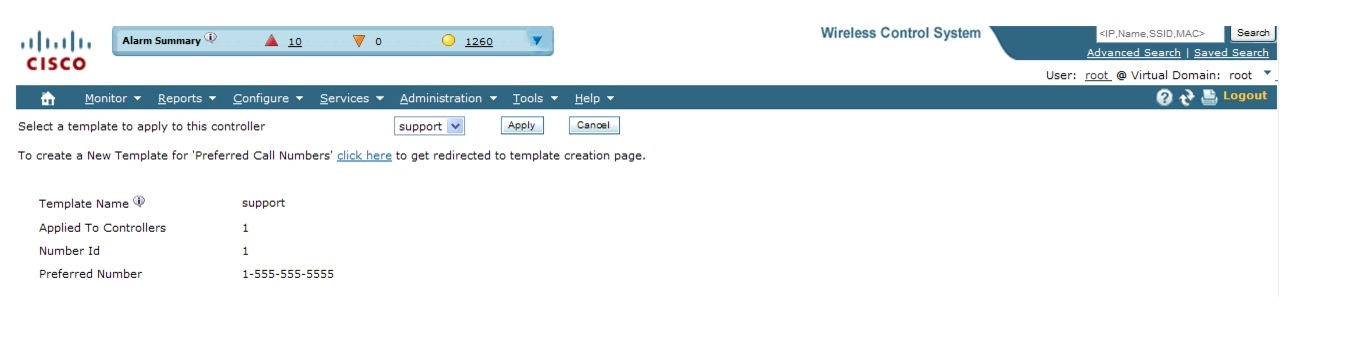

Configuring Preferred Call
Configuring 802.11 Media Parameters
Configuring 802.11a/n Parameters
Configuring 802.11a/n General Parameters
Configuring 802.11a/n RRM Thresholds
Configuring 802.11a/n RRM Intervals
Configuring 802.11a/n RRM Transmit Power Control
Configuring 802.11a/n RRM Dynamic Channel Allocation
Configuring 40-MHz Channel Bonding
Configuring 802.11a/n RRM Radio Grouping
Configuring 802.11a/n Media Parameters
Configuring 802.11a/n EDCA Parameters
Configuring 802.11a/n Roaming Parameters
Configuring 802.11a/n 802.11h Parameters
Configuring 802.11a/n High Throughput (802.11n) Parameters
Configuring 802.11a/n CleanAir Parameters
Configuring 802.11b/g/n Parameters
Configuring 802.11b/g/n General Parameters
Configuring 802.11b/g/n RRM Thresholds
Configuring 802.11b/g/n RRM Transmit Power Control
Configuring 802.11b/g/n RRM Intervals
Configuring an 802.11b/g/n RRM DCA
Configuring 802.11b/g/n RRM Radio Grouping
Configuring 802.11b/g/n Media Parameters
Configuring 802.11b/g/n EDCA Parameters
Configuring 802.11b/g/n Roaming Parameters
Configuring 802.11b/g/n High Throughput (802.11n) Parameters
Configuring 802.11b/g/n CleanAir Parameters
Configuring Mesh Parameters
Client Access on 1524SB Dual Backhaul
Backhaul Channel Deselection Using WCS
Configuring Port Parameters
Configuring Controllers Management Parameters
Configuring Trap Receivers
Configuring Trap Control Parameters
Configuring Telnet SSH Parameters
Configuring a Syslog for an Individual Controller
Configuring Multiple Syslog Servers
Configuring WEB Admin
Download Web Auth or Web Admin Certificate to Controller
Configuring Local Management Users
Configuring Authentication Priority
Configuring Location Configurations
Configuring Access Points
Setting AP Failover Priority
Configuring Global Credentials for Access Points
Configuring Ethernet Bridging and Ethernet VLAN Tagging
Ethernet VLAN Tagging Guidelines
Enabling Ethernet Bridging and VLAN Tagging
Autonomous to Lightweight Migration Support
Adding Autonomous Access Points to WCS
Viewing Autonomous Access Points in WCS
Downloading Images to Autonomous Access Points
Supporting Autonomous Access Points in Work Group Bridge (WGB) mode
Upgrading Autonomous Access Points
Viewing Current Status of Cisco IOS Access Points
Disabling Access Points that are Ineligible
Configuring Access Point Details
Configuring an Ethernet Interface
Downloading Autonomous AP Images
Importing AP Configuration
Exporting AP Configuration
Configuring Access Points 802.11n Antenna
Configuring CDP
Configuring CDP on Access Point
Configuring Access Point Radios for Tracking Optimized Monitor Mode
Copying and Replacing Access Points
Removing Access Points
Scheduling and Viewing Radio Status
Scheduling Radio Status
Viewing Scheduled Tasks
Viewing Audit Status (for Access Points)
Searching Access Points
Viewing Mesh Link Details
Viewing or Editing Rogue Access Point Rules
Configuring Ethernet Switches
Configuring Ethernet Switch Credentials
Removing Ethernet Switch Credentials
Configuring Spectrum Experts
Adding a Spectrum Expert
Monitoring Spectrum Experts
Viewing Spectrum Experts Summary
Viewing Interferers Summary
Viewing Spectrum Experts Details
OfficeExtend Access Point
Licensing for an OfficeExtend Access Point
Configuring Link Latency Settings for Access Points
Configuring Chokepoints
Configure New Chokepoints
Adding a Chokepoint to WCS Database
Adding a Chokepoint to a WCS Map
Removing a Chokepoint from a WCS Map
Removing a Chokepoint from WCS
Editing Current Chokepoints
Configuring WiFi TDOA Receivers
Using WiFi TDOA Receivers to Enhance Tag Location Reporting
Adding Wi-Fi TDOA Receivers to Cisco WCS and Maps
Viewing or Editing Current Wi-Fi TDOA Receivers
Removing Wi-Fi TDOA Receivers from Cisco WCS and Maps
Configuring Scheduled Configuration Tasks
AP Template Tasks
Modifying a Current AP Template Task
Viewing AP Status Report for the Scheduled Task
Enabling or Disabling a Current AP Template Task
Viewing AP Template Task History
Deleting a Current AP Template Task
Configuring Config Groups
Modifying a Current Config Group Task
Viewing Controller Status Report for the Scheduled Task
Enabling or Disabling a Current Config Group Task
Viewing Config Group Task History
Deleting a Current Config Group Task
Viewing WLAN Configuration Scheduled Task Results
Downloading Software
Adding a Download Software Task
Modifying a Download Software Task
Selecting Controllers for the Download Software Task
Viewing Download Software Results
Deleting a Download Software Task
Enabling or Disabling a Download Software Task
Configuring wIPS Profiles
Profile List
Adding a Profile
Profile Editor
Deleting a Profile
Applying a Current Profile
Configure > wIPS > SSID Group List
Global SSID Group List
SSID Groups
Configuring ACS View Servers
Configuring ACS View Server Credentials
Configuring TFTP Servers
Adding a TFTP Server
Deleting TFTP Servers
Interactive Graphs
Interactive Graphs Overview
Interactive Graph Features
Time-based Graphs
Configuring Wireless Devices
This chapter describes how to configure wireless devices in the WCS database. It contians the following sections:
•
Configuring Controllers
•Configuring Existing Controllers
•Configuring Access Points
•Configuring Ethernet Switches
•Configuring Spectrum Experts
•Configuring Chokepoints
•Configuring WiFi TDOA Receivers
•Configuring Scheduled Configuration Tasks
•Configuring wIPS Profiles
•Configuring ACS View Servers
•Configuring TFTP Servers
•Interactive Graphs
Configuring Controllers
This section describes how to configure controllers in the WCS database.
Choose Configure > Controllers to access the following:
•A summary of all controllers in the WCS database.
•The ability to add, remove, and reboot selected controllers.
•The ability to download software from the WCS server to selected controllers.
•The ability to save the current configuration to nonvolatile (flash) memory on selected controllers.
•The ability to view audit reports for selected controllers.
The controllers data table contains the following columns:
•Check box—Select the applicable controller.
•IP Address—Local network IP address of the controller .
–Click the title to sort the list items.
–Click a list item to display parameters for that IP address. See the "Viewing Controllers Properties" section.
–Click the icon to the right of the IP address to launch the controller Web user interface in a new browser window.
•Controller Name—Indicates the name of the controller. Click the Controller Name link to sort the list by controller name.
•Type—Click to sort by type. Based on the series, controller types are grouped. For example:
–WLC2100—21xx Series Wireless LAN Controllers
–2500—25xx Series Wireless LAN Controllers
–4400—44xx Series Wireless LAN Controllers
–5500—55xx Series Wireless LAN Controllers
–7500—75xx Series Wireless LAN Controllers
–WiSM—WiSM (slot number, port number)
–WiSM2—WiSM2 (slot number, port number)
•Location—Indicates the location of the controller.
•Software Version—The operating system release.version.dot.maintenance number of the code currently running on the controller.
•Mobility Group Name—Name of the mobility or WPS group.
•Reachability Status—Reachable or not reachable.
Note Reachability status is updated based on the last execution information of the Device Status background task. For updating the current status, choose Administration > Background Tasks, and choose Execute Now from the Select a command drop-down list.
•Audit Status
–Not Available—No audit occurred on this switch.
–Identical—No configuration differences were discovered.
–Mismatch—Configuration differences were discovered.
Click the Audit Status link to access the audit report. In the Audit Report page, choose Audit Now from the Select a command drop-down list to run a new audit for this controller. See the "Understanding the Controller Audit Report" section for more information on audit reports.
Note Audit status is updated based on the last execution information of either the Configuration Sync background task or the Audit Now option located in the Controllers page. To get the current status, either choose Administration > Background Tasks and choose Execute Now or Audit Now from the Select a command drop-down list.
Note Use the Search feature to search for a specific controller. See the "Using the Search Feature" section for more information.
This section contains the following topics:
•Understanding the Controller Audit Report
•Adding Controllers
•Removing Controllers from WCS
•Rebooting Controllers
•Rebooting Controllers and APs by Swapping AP Images
•Rebooting Controllers and APs Without Swapping AP Images
•Downloading Software to Controllers
•Downloading Signatures and Certificates to Controllers
•Saving the Configuration to Flash
•Refreshing the Configuration from the Controller
•Discovering Templates from the Controller
•Viewing Templates Applied to a Controller
•Using the Audit Now Feature
•Viewing the Latest Network Audit Report
Understanding the Controller Audit Report
The Controller Audit Report displays the following information depending on the type of audit selected in Administration > Settings > Audit and on which parameters the audit is performed:
•Applied template discrepancies (Template Based Audit only)
•Config group template discrepancies (Template Based Audit only)
•Total enforcements for config groups with background audit enabled (Template Based Audit only)
–If the total enforcement count is greater than zero, this number appears as a link. Click the link to view a list of the enforcements made from WCS.
•Failed for config groups with background audit enabled (Template Based Audit only)
–If the failed enforcement count is greater than zero, this number appears as a link. Click the link to view the failures returned from the device.
•Other WCS discrepancies
Note The controller audit report indicates if the audit was performed on all parameters or on a selected set of parameters.
Note See the "Configuring an Audit" section for more in depth information on the two types of audits and how to manage specific parameters for the audit.
A current Controller Audit Report can be accessed in the Configure > Controllers page by clicking a value in the Audit Status column.
You can audit a controller by choosing Audit Now from the Select a command drop-down list in the Configure > Controllers page (See the "Using the Audit Now Feature" section for more information) or by clicking Audit Now in the Controller Audit Report.
Adding Controllers
You can add controllers one at a time or in batches.
To add controllers, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 From the Select a command drop-down list, choose Add Controllers, and click Go. The Add Controller page appears (see Figure 9-1).
Figure 9-1 Add Controller Page
Step 3 Choose one of the following:
If you want to add one controller or use commas to separate multiple controllers, leave the Add Format Type drop-down list at Device Info.
If you want to add multiple controllers by importing a CSV file, choose File from the Add Format Type drop-down list. The CSV file allows you to generate your own import file and add the devices you want.
Note When a controller is removed from the system, the associated access points are not removed automatically and therefore remain in the system. These disassociated access points must be removed manually.
Note If you are adding a controller into WCS across a GRE link using IPsec or a lower MTU link with multiple fragments, you may need to adjust the MaxVar Binds Per SET PDU and MaxVar Binds Per GET PDU. If it is set too high, the controller may fail to be added into WCS. To adjust the MaxVar Binds Per SET PDU or MaxVar Binds Per GET PDU setting, do the following: Stop WCS, go to the location of the Open SnmpParameters.properties file on the server that is running WCS, edit MaxVar Binds Per SET PDU or MaxVar Binds Per GET PDU to 50 or lower, and Restart WCS.
Note If you reduce the Maximum VarBinds per Get PDU or Maximum VarBinds per Set PDU value, applying the configurations to the device might fail.
Step 4 If you chose Device Info, enter the IP address of the controller you want to add. If you want to add multiple controllers, use a comma between the string of IP addresses.
Note If a partial byte boundary is used and the IP address appears to be broadcast (without regard to the partial byte boundary), there is a limitation on adding the controllers into WCS. For example, 10.0.2.255/23 cannot be added but 10.0.2.254/23 can.
If you chose File, click Browse to find the location of the CSV file you want to import.
The first row of the CSV file is used to describe the columns included. The first row of the CSV file is used to describe the columns included. The IP Address column is mandatory. The following example shows a sample CSV file.
ip_address,network_mask,snmp_version,snmp_community,snmpv3_user_name,snmpv3_auth_type,snmp
v3_auth_password,snmpv3_privacy_type,snmpv3_privacy_password,snmp_retries,snmp_timeout,pro
tocol,telnet_username,telnet_password,enable_password,telnet_timeout
209.165.200.225,255.255.255.224,v2,public,,,,,,3,10,telnet,cisco,cisco,cisco,60
209.165.200.226,255.255.255.224,v2,public,,,,,,3,10,,cisco,cisco,cisco,60
209.165.200.227,255.255.255.224,v2,public,,,,,,3,10,telnet,cisco,cisco,cisco,60
The CSV files can contain the following fields:
•ip_address
•network_mask
•snmp_version
•snmp_community
•snmpv3_user_name
•snmpv3_auth_type
•snmpv3_auth_password
•snmpv3_privacy_type
•snmpv3_privacy_password
•snmp_retries
•snmp_timeout
•protocol
•telnet_username
•telnet_password
•enable_password
•telnet_timeout
Step 5 Select the Verify Telnet/SSH Credentials check box if you want this controller to verify Telnet/SSH credentials. You may want to leave this unselected (or disabled) because of the substantial time it takes for discovery of the devices.
Step 6 Use the Version drop-down list to choose v1, v2c, or v3.
Step 7 In the Retries parameter, enter the number of times that attempts are made to discover the controller.
Step 8 Provide the client session timeout value in seconds. This determines the maximum amount of time allowed for a client before it is forced to reauthenticate.
Step 9 In the Community parameter, enter either public or private (for v1 and v2 only).
Note If you go back and later change the community mode, you must perform a refresh config for that controller.
Step 10 Choose None, HMAC-SHA, or HMAC-MD5 (for v3 only) for the authorization type.
Step 11 Enter the authorization password (for v3 only).
Step 12 Enter None, CBC-DES, or CFB-AES-128 (for v3 only) for the privacy type.
Step 13 Enter the privacy password (for v3 only).
Step 14 Enter the Telnet credentials information for the controller. If you chose the File option and added multiple controllers, the information will apply to all specified controllers. If you added controllers from a CSV file, the username and password information is obtained from the CSV file.
Note The Telnet/SSH username must have sufficient privileges to execute commands in CLI templates.
The default username and password is admin.
Step 15 Enter the retries and timeout values. The default retries number is 3, and the default retry timeout is 1 minute.
Step 16 Click OK.
Note If you fail to add a device to WCS, and if the error message `Sparse table not supported' occurs, verify that WCS and WLC versions are compatible and retry. For information on compatible versions, see
http://www.cisco.com/en/US/docs/wireless/controller/5500/tech_notes/Wireless_Software_Compatibility_Matrix.html.
Note When a controller is added to the WCS, the WCS acts as a TRAP receiver and the following traps are enabled on the controller: 802.11 Disassociation, 802.11 Deauthentication, and 802.11 Authenticated.
Removing Controllers from WCS
To remove a controller, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Select the check box(es) of the applicable controller(s).
Step 3 From the Select a command drop-down list, choose Remove Controllers.
Step 4 Click Go.
Step 5 Click OK in the pop-up dialog box to confirm the deletion.
Note When a controller is removed from the system, the associated access points are not removed automatically and, therefore, remain in the system. These disassociated access points must be removed manually.
Rebooting Controllers
To reboot a controller, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Select the check box(es) of the applicable controller(s).
Step 3 From the Select a command drop-down list, choose Reboot Controllers.
Step 4 Click Go.
Note Save the current controller configuration prior to rebooting.
Step 5 Click OK in the pop-up dialog box to confirm the reboot.
Rebooting Controllers and APs by Swapping AP Images
To reboot controllers and APs by swapping AP images, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Select the check box(es) of the applicable controller(s).
Step 3 From the Select a command drop-down list, choose Reboot Controllers and APs(Swap AP Images).
Step 4 Click Go.
Note When you attempt to use this feature, a warning message appears noting that the selected controllers are going to be rebooted.
Step 5 Click OK in the pop-up dialog box to confirm the reboot.
Note This option is supported only when the selected controllers are using the version 7.0.x.x or later.
Rebooting Controllers and APs Without Swapping AP Images
To reboot controllers and APs without swapping AP images, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Select the check box(es) of the applicable controller(s).
Step 3 From the Select a command drop-down list, choose Reboot Controllers and APs(Do Not Swap AP Images).
Step 4 Click Go.
Note When you attempt to use this feature, a warning message appears noting that the selected controllers are going to be rebooted.
Step 5 Click OK in the pop-up dialog box to confirm the reboot.
Note This option is supported only when the selected controllers are using the version 7.0.x.x or later.
Downloading Software to Controllers
Both File Transfer Protocol (FTP) and Trivial File Transfer Protocol (TFTP) are supported for uploading and downloading files to and from WCS. In previous software releases, only TFTP was supported.
This section contains the following topics:
•Download Software (FTP)
•Download Software (TFTP)
•Configure IPaddr Upload Configuration/Logs from Controller
Download Software (FTP)
To download software to a controller, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Select the check box(es) of the applicable controller(s).
Step 3 From the Select a command drop-down list, choose Download Software (FTP).
Step 4 Click Go.
Note Software can also be downloaded by choosing Configure > Controllers > IPaddr > System > Commands > Upload/Download Commands > Download Software.
The IP address of the controller and its current status appears in the Download Software to Controller page.
Step 5 Select the download type.
Note The pre-download option is displayed only when all selected controllers are using the version 7.0.x.x or later.
•Now—Executes the download software operation immediately. If you select this option, proceed with Step 7.
Note After the download is successful, reboot the controllers to enable the new software.
•Scheduled—Specify the scheduled download options.
–Schedule download to controller—Select this check box to schedule download software to controller.
–Pre-download software to APs—Select this check box to schedule the pre-download software to APs. The APs download the image and then reboot when the controller reboots.
Note To see Image Predownload status per AP, enable the task in the Administration > Background Task > AP Image Predownload Task page, and run an AP Image Predownload report from the Report Launch Pad.
Step 6 If you selected the Scheduled option under Download type, enter the Schedule Details.
•Task Name—Enter a Scheduled Task Name to identify this scheduled software download task.
•Reboot Type—Indicates whether the reboot type is manual, automatic, or scheduled.
Note Reboot Type Automatic can be set when the only Download software to controller option is selected.
•Download date/time—Enter a date in the provided text box or click the calendar icon to open a calendar from which you can choose a date. Choose the time from the hours and minutes drop-down lists.
•Reboot date/time—This option appears only if you select the reboot type as "Scheduled". Enter a date in the provided text box or click the calendar icon to open a calendar from which you can choose a date to reboot the controller. Choose the time from the hours and minutes drop-down lists.
Note Schedule enough time (at least 30mins) between Download and Reboot so that all APs can complete the software pre-download.
Note If any one of the AP is in pre-download progress state at the time of scheduled reboot, the controller will not reboot. In such a case, wait for the pre-download to finish for all the APs and reboot the controller manually.
•Notification (Optional)—Enter the e-mail address of recipient to send notifications via e-mail.
Note To receive email notifications, configure the WCS mail server in the Administration > Settings > Mail Server Configuration page.
Step 7 Enter the FTP credentials including username, password, and port.
Step 8 In the File is located on parameter, click either the Local machine or FTP Server.
Note If you choose FTP Server, choose Default Server or New from the Server Name drop-down list.
Note The software files are uploaded to the FTP directory specified during the install.
Step 9 Specify the local file name or click Browse to navigate to the appropriate file.
Note If you chose FTP Server previously, specify the server filename.
Step 10 Click Download.
Note If the transfer times out for some reason, you can choose the FTP server option in the File is located on radio button; the server filename is populated and retried.
Download Software (TFTP)
To download software to a controller, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Select the check box(es) of the applicable controller(s).
Step 3 In the Select a command drop-down list, choose Download Software (TFTP).
Step 4 Click Go.
Note Software can also be downloaded from Configure > Controllers > IPaddr > System > Commands > Upload/Download Commands > Download Software.
The IP address of the controller and its current status are displayed in the Download Software to Controller page.
Step 5 Select the download type.
Note The pre-download option is displayed only when all selected controllers are using the version 7.0.x.x or later.
•Now—Executes the download software operation immediately. If you select this option, proceed with Step 7.
Note After the download is successful, reboot the controllers to enable the new software.
•Scheduled—Specify the scheduled download options.
–Download software to controller—Select this option to schedule download software to controller.
–Pre-download software to APs—Select this option to schedule the pre-download software to APs. The APs download the image and then reboot when the controller reboots.
Note To see Image Predownload status per AP, enable the task in the Administration > Background Task > AP Image Predownload Task page, and run an AP Image Predownload report from the Report Launch Pad.
Step 6 If you selected the Scheduled option under Download type, enter the Schedule Detail.
•Task Name—Enter a Scheduled Task Name to identify this scheduled software download task.
•Reboot Type—Indicates whether the reboot type is manual, automatic, or scheduled.
Note Reboot Type Automatic can be set when only Download software to controller option is selected.
•Download date/time—Enter a date in the provided text box or click the calendar icon to open a calendar from which you can choose a date. Choose the time from the hours and minutes drop-down lists.
•Reboot date/time—This option appears only if you select the reboot type as "Scheduled". Enter a date in the provided text box or click the calendar icon to open a calendar from which you can choose a date to reboot the controller. Choose the time from the hours and minutes drop-down lists.
Note Schedule enough time (at least 30 minutes) between Download and Reboot so that all APs can complete the software pre-download.
Note If any one of the AP is in pre-download progress state at the time of scheduled reboot, the controller will not reboot. In such a case, wait for the pre-download to finish for all the APs and reboot the controller manually.
•Notification (Optional)—Enter the e-mail address of recipient to send notifications via e-mail.
Note To receive email notifications, configure the WCS mail server in the Administration > Settings > Mail Server Configuration page.
Step 7 From the File is located on parameter, choose Local machine or TFTP server.
Note If you choose TFTP server, select the Default Server or add a New server using the Server Name drop-down list.
Step 8 From the Maximum Retries parameter, enter the maximum number of tries the controller should attempt to download the software.
Step 9 In the Timeout parameter, enter the maximum amount of time (in seconds) before the controller times out while attempting to download the software.
Note The software files are uploaded to the TFTP directory specified during the install.
Step 10 Specify the local file name or click Browse to navigate to the appropriate file.
Note If you selected TFTP server previously, specify the Server File Name.
Step 11 Click Download.
Tip If the transfer times out for some reason, you can choose the TFTP server option in the File is located on parameter; the Server File Name is populated and retried.
Configure IPaddr Upload Configuration/Logs from Controller
To upload files from the controller, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an IP address under the IP address column.
Step 3 From the left sidebar menu, choose System > Commands.
Step 4 Select the FTP or TFTP radio button.
Note Both File Transfer Protocol (FTP) and Trivial Transfer Protocol (TFTP) are supported for uploading and downloading files to and from WCS. In previous software releases, only TFTP was supported.
Step 5 From the Upload/Download Commands drop-down list, choose Upload File from Controller.
Step 6 Click Go to access this page.
•FTP Credentials Information—Enter the FTP username, password, and port if you selected the FTP radio button previously.
•TFTP or FTP Server Information:
–Server Name—From the drop-down list, choose Default Server or New.
–IP Address—IP address of the controller. This is automatically populated if the default server is selected.
–File Type—Select from configuration, event log, message log, trap log, crash file, signature files, or PAC.
–Enter the Upload to File from /(root)/wcs-tftp/ or /(root)/wcs-ftp/ filename.
–Select whether or not Cisco WCS saves before backing up the configuration.
Note The WCS uses an integral TFTP and FTP server. This means that third-party TFTP and FTP servers cannot run on the same workstation as the Cisco WCS, because the Cisco WCS and the third-party servers use the same communication port.
Step 7 Click OK. The selected file will be uploaded to your TFTP or FTP server and named what you entered in the File Name text box.
Downloading Signatures and Certificates to Controllers
You can download IDS signatures, customized webauthentication bundle, vendor device certificate, and vendor CA certificate to controllers.
This section contains the following topics:
•Downloading IDS Signatures
•Downloading a Customized WebAuthentication Bundle to a Controller
•Downloading a Vendor Device Certificate
•Downloading a Vendor CA Certificate
Downloading IDS Signatures
To download Intrusion Detection System (IDS) signature files to a controller, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Select the check box(es) of the applicable controller(s).
Step 3 From the Select a command drop-down list, choose Download IDS Signatures.
Step 4 Click Go.
Note IDS signature files can also be downloaded from Configure > Controllers > IPaddr > System > Commands > Upload/Download Commands > Download IDS Signatures.
In the Download IDS Signatures to Controller page, the controller IP address and its current status appears.
Step 5 Copy the signature file (*.sig) to the default directory on your TFTP server.
Step 6 In the File is located on parameter, select the Local machine radio button.
Note If you know the filename and path relative to the server root directory, you can also select the TFTP server radio button.
Step 7 In the Maximum Retries text box, enter the maximum number of tries the controller should attempt to download the signature file.
Step 8 In the Timeout text box, enter the maximum amount of time (in seconds) before the controller times out while attempting to download the signature file.
Note The signature files are uploaded to the c:\tftp directory.
Step 9 Specify the local file name or click Browse to navigate to the appropriate file. The controller uses this local file name as a base name and adds _custom.sgi as a suffix.
Note If you chose TFTP server previously, specify the server file name.
Step 10 Click Download.
Tip If the transfer times out for some reason, you can choose the TFTP server option in the File is located on parameter; the server file name is populated and retried.
Note The local machine option initiates a two-step operation. First, the local file is copied from the administrator workstation to WCS own built-in TFTP server. Then the controller retrieves that file. For later operations, the file is already in the WCS server TFTP directory, and the downloaded web page now automatically populates the filename.
Downloading a Customized WebAuthentication Bundle to a Controller
To download customized web authentication bundle to a controller, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Select the check box(es) of the applicable controller(s).
Step 3 From the Select a command drop-down list, choose Download Customized WebAuth.
Step 4 Click Go.
Note A customized web authentication bundle can also be downloaded from Configure > Controllers > IPaddr > System > Commands > Upload/Download Commands > Download Customized Web Auth.
In the Download Customized WebAuth bundle to Controller page, the controller IP address and its current status appears.
Step 5 Select the Local machine radio button in the File is located on parameter.
Note If you know the file name and path relative to the server root directory, you can also select the TFTP server radio button.
Note For a local machine download, either .zip or .tar file options exists but the WCS does the conversion of .zip to .tar automatically. If you choose a TFTP server download, only .tar files are specified.
Step 6 In the Maximum Retries text box, enter the maximum number of tries the controller should attempt to download the file.
Step 7 In the Timeout text box, enter the maximum amount of time (in seconds) before the controller times out while attempting to download the file.
Note The WCS Server Files In parameter specifies where the WCS server files are located.
Step 8 Specify the local file name or click Browse to navigate to the appropriate file. The controller uses this local file name as a base name and adds _custom.sgi as a suffix.
Step 9 Click Download.
Tip If the transfer times out for some reason, you can select the TFTP server radio button in the File is located on parameter; the server file name is populated and retried.
Step 10 The local machine option initiates a two-step operation. First, the local file is copied from the administrator workstation to WCS own built-in TFTP server. Then the controller retrieves that file. For later operations, the file is already in the WCS server TFTP directory, and the downloaded web page now automatically populates the filename.
Step 11 After completing the download, you are directed to a new page and are able to authenticate.
Downloading a Vendor Device Certificate
Each wireless device (controller, access point, and client) has its own device certificate. If you wish to use your own vendor-specific device certificate, it must be downloaded to the controller.
To download a vendor device certificate to a controller, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 You can download the certificate in one of two ways:
a. Select the check box(es) of the applicable controller(s).
b. From the Select a command drop-down list, choose Download Vendor Device Certificate.
c. Click Go.
-or-
a. Click the IP address of the desired controller.
b. Choose System > Commands from the left sidebar menu.
c. From the Upload/Download Commands drop-down list, choose Download Vendor Device Certificate.
d. Click Go.
Step 3 In the Certificate Password text box, enter the password used to protect the certificate.
Step 4 Re-enter the password in the Confirm Password text box.
Step 5 In the File is located on parameter, select the Local machine or TFTP server radio button.
Note If the certificate is located on the TFTP server, enter the Server File Name. If it is located on the local machine, enter the local file name by clicking Browse.
Step 6 Enter the TFTP server name in the Server Name parameter. The default is the WCS server.
Step 7 Enter the server IP address.
Step 8 In the Maximum Retries text box, enter the maximum number of times that the TFTP server attempts to download the certificate.
Step 9 In the Timeout text box, enter the amount of time (in seconds) that the TFTP server attempts to download the certificate.
Step 10 In the Local File Name text box, enter the directory path of the certificate.
Step 11 In the Server File Name text box, enter the name of the certificate.
Step 12 Click Download.
Downloading a Vendor CA Certificate
Controllers and access points have a certificate authority (CA) certificate that is used to sign and validate device certificates. The controller is shipped with a Cisco-installed CA certificate. This certificate may be used by EAP-TLS and EAP-FAST (when not using PACs) to authenticate wireless clients during local EAP authentication. However, if you wish to use your own vendor-specific CA certificate, it must be downloaded to the controller.
To download a vendor CA certificate to the controller, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 You can download the certificate in one of two ways:
a. Select the check box(es) of the applicable controller(s).
b. From the Select a command drop-down list, choose Download Vendor CA Certificate.
c. Click Go.
-or-
a. Click the IP address of the desired controller.
b. Choose System > Commands from the left sidebar menu.
c. From the Upload/Download Commands drop-down list, choose Download Vendor CA Certificate.
d. Click Go.
Step 3 In the File is located on parameter, Select the Local machine or TFTP server radio button.
Note If the certificate is located on the TFTP server, enter the server file name. If it is located on the local machine, enter the local file name by clicking the Browse button.
Step 4 Enter the TFTP server name in the Server Name text box. The default is the WCS server.
Step 5 Enter the server IP address.
Step 6 In the Maximum Retries text box, enter the maximum number of times that the TFTP server attempts to download the certificate.
Step 7 In the Timeout text box, enter the amount of time (in seconds) that the TFTP server attempts to download the certificate.
Step 8 In the Local File Name text box, enter the directory path of the certificate.
Step 9 In the Server File Name text box, enter the name of the certificate.
Step 10 Click OK.
Saving the Configuration to Flash
To save the configuration to flash memory, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Select the check box(es) for the applicable controller(s).
Step 3 From the Select a command drop-down list, choose Save Config to Flash.
Step 4 Click Go.
Refreshing the Configuration from the Controller
To refresh the configuration from the controller, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Select the check box(es) for the applicable controller(s).
Step 3 From the Select a command drop-down list, choose Refresh Config from Controller.
Step 4 Click Go.
Step 5 At the Configuration Change prompt, select the Retain or Delete radio button.
Step 6 Click Go.
Discovering Templates from the Controller
Prior to software release 5.1, templates were detected when a controller was detected, and every configuration found on WCS for a controller had an associated template. Now templates are not automatically detected with controller discovery, and you can specify which WCS configurations you want to have associated templates.
Note The templates that are discovered do not retrieve management or local user passwords.
The following rules apply for template discovery:
•Template Discovery discovers templates that are not found in WCS.
•Existing templates are not discovered.
•Discovered templates are not associated to the configuration on the device.
To discover current templates, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Select the check box of the controller for which you want to discover templates.
Step 3 From the Select a command drop-down list, choose Discover Templates from Controller.
Step 4 Click Go. The Discover Templates page displays the number of discovered templates, each template type and each template name.
Note Template discovery refreshes configuration from the controller prior to discovering templates. Click OK in the warning dialog box to continue with the discovery.
Viewing Templates Applied to a Controller
You can view all templates currently applied to a specific controller.
Note Only templates applied in this partition are displayed.
To view applied templates, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Select the check box for the applicable controller.
Step 3 From the Select a command drop-down list, choose Templates Applied to a Controller.
Step 4 Click Go. The Templates Applied to a Controller page displays each applied template name, template type, the date the template was last saved, and the date the template was last applied.
Note Click the template name link to view the template details. See the "Using Templates" section for more information.
Using the Audit Now Feature
You can audit a controller by choosing Audit Now from the Select a command drop-down list in the Configure > Controllers page or by choosing Audit Now directly from the Select a command drop-down list.
Note A current Controller Audit Report can be accessed in the Configure > Controllers page by clicking a value in the Audit Status column.
To audit a controller, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Select the check box for the applicable controller.
Step 3 From the Select a command drop-down list, choose Audit Now.
Step 4 Click Go.
Step 5 Click OK in the pop-up dialog box if you want to remove the template associations from configuration objects in the database as well as template associations for this controller from associated config groups (Template based audit only).
The Audit Report displays:
•Device Name
•Time of Audit
•Audit Status
•Applied and Config Group Template Discrepancies information including the following:
–Template type (template name)
–Template application method
–Audit status (For example, mismatch, identical)
–Template attribute
–Value in WCS
–Value in Controller
•Other WCS Discrepancies including:
–Configuration type (name)
–Audit Status (For example, mismatch, identical)
–Attribute
–Value in WCS
–Value in Controller
•Total enforcements for config groups with background audit enabled—If discrepancies are found during the audit in regards to the config groups enabled for background audit and if the enforcement is enabled, this section lists the enforcements made during the controller audit. Choose Config Groups > General for more information on enabling the background audit.
•Failed Enforcements for Config Groups with background audit enabled—Click the link to view a list of failure details (including the reason for the failure) returned by the device. See the "Configuring Config Groups" section for more information on enabling the background audit (ConfigAuditSet).
•Restore WCS Values to Controller or Refresh Config from Controller—If there are config differences found as a result of the audit, you can either click Restore WCS Values to controller or Refresh Config from controller to bring the WCS configuration in sync with the controller.
–If you choose Restore WCS Values, all of the WCS values are enforced on the controller in an attempt to resolve the discrepancies on the device. All of the applied templates and the templates that are part of the config group are applied to this controller.
Note Template discrepancies can be resolved by enforcing WCS templates on the device. See the "Configuring Config Groups" section for more information on enforcing configurations.
–If you choose Refresh Config from Controller, the Refresh Config page prompts you to choose between retaining the configuration or delete the configuration. Click Go to confirm your selection or Cancel to close the page without taking any action.
Note Templates are not refreshed as a result of clicking Refresh Config from Controller.
Viewing the Latest Network Audit Report
The Network Audit Report shows the time of the audit, the IP address of the selected controller, and the synchronization status.
Note This method shows the report from the network audit task and not an on-demand audit per controller.
To view the latest network audit report for the selected controllers, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Select the check box for the applicable controller.
Step 3 From the Select a command drop-down list, choose View Latest Network Configuration Audit Report.
Step 4 Click Go.
The Audit Summary displays the time of the audit, the IP address of the selected controller, and the audit status. The Audit Details display the config differences, if applicable.
Note Use the General and Schedule tabs to revise Audit Report parameters. See the "Understanding the Controller Audit Report" section section for more information.
Command Buttons
•Save—Click to save changes made to the current parameters.
•Save and Run—Click to save the changes to the current parameters and run the report.
•Run Now—Click to run the audit report based on existing parameters.
•Export Now—Click to export the report results. The supported export formats is PDF and CSV.
•Cancel—Click to cancel any changes made to the existing parameters.
Note From the All Controllers page, click the Audit Status column value to view the latest audit details page for the selected controller. This method has similar information as the Network Audit report on the Reports menu, but this report is interactive and per controller.
Note To run an on-demand audit report, choose which controller you want to run the report on and choose Audit Now from the Select a command drop-down list. If you run an on-demand audit report and configuration differences are detected, you are given the option to retain the existing controller or WCS values.
Configuring Existing Controllers
This section contains the following topics:
•Viewing Controllers Properties
•Configuring Controller System Parameters
•Configuring Controller WLANs
•Configuring Hybrid REAP Parameters
•Configuring Security Parameters
•Configuring Cisco Access Points
•Configuring 802.11 Parameters
•Configuring 802.11a/n Parameters
•Configuring 802.11b/g/n Parameters
•Configuring Mesh Parameters
•Configuring Port Parameters
•Configuring Controllers Management Parameters
•Configuring Location Configurations
Viewing Controllers Properties
To view the properties for current controllers, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Properties > Settings. The following parameters appear:
•General Parameters:
–Name—Name assigned to the controller.
–Type—Controller type.
–Restore on Cold Start Trap—Select to enable a restore on a cold start trap.
–Auto Refresh on Save Config Trap—Select to enable an automatic refresh on a Save Config trap.
–Trap Destination Port—Read-only.
–Software Version—Read-only.
–Location—Location of the controller.
–Contact—The contact person for this controller.
–Most Recent Backup—The date and time of the most recent backup.
–Save Before Backup—Select to enable a save before backup.
•SNMP Parameters:
Note SNMP write access parameters are needed for modifying controller configuration. With read-only access parameters, configuration can only be displayed.
–Version—Choose from v1, v2c, or v3.
–Retries—Indicates the number of controller discovery attempts.
–Timeout (seconds)—Client Session timeout. Sets the maximum amount of time allowed a client before it is forced to reauthenticate.
–Community—Public or Private.
–Access Mode—Read Write
Note Community settings only apply to v1 and v2c.
–User Name—Enter a username.
–Auth. Type—Choose an authentication type from the drop-down list or choose None.
–Auth. Password—Enter an authentication password.
–Privacy Type—Choose a privacy type from the drop-down list or choose None.
–Privacy Password—Enter a privacy password.
Note User Name, Auth. Type, Auth. Password, Privacy Type, and Privacy Password only display for v3.
•Telnet/SSH Parameters:
–User Name—Enter the user name. (Default username is admin.)
Note The Telnet/SSH username must have sufficient privileges to execute commands in CLI templates.
–Password/Confirm Password—Enter and confirm the password. (Default password is admin.)
–Retries—Indicate the number of allowed retry attempts. The default is three.
–Timeout—Indicate the amount of time (in seconds) allowed before the process time outs. The default is 60 seconds.
Note Default values are used if the Telnet/SSH parameters are left blank.
Step 4 If you made changes to this controller properties, click OK to confirm the changes, Reset to return to the previous or default settings, or Cancel to return to the Configure > Controllers page without making any changes to these settings.
Configuring Controller System Parameters
This section describes how to configure the controller system parameters and includes the following topics:
•Managing General System Properties for Controllers
•Configuring Controller System Commands
•Configuring Controller System Interfaces
•Configuring Controller System Interface Groups
•Configuring Controller Network Routes
•Configuring Controller Spanning Tree Protocol Parameters
•Configuring Controller Mobility Groups
•Configuring Controller Network Time Protocol
•Configuring Controller QoS Profiles
•Configuring Controller DHCP Scopes
•Configuring Controller User Roles
•Configuring a Global Access Point Password
•Configuring AP 802.1X Supplicant Credentials
•Configuring Controller DHCP
•Configuring Controller Multicast Mode
•Configuring Access Point Timer Settings
Managing General System Properties for Controllers
To view the general system parameters for a current controller, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose System > General. The following parameters appear:
•802.3x Flow Control Mode—Disable or enable. See the "802.3x Flow Control" section for more information.
•802.3 Bridging—Disable or enable. See the "Configuring 802.3 Bridging" section for more information.
•Web Radius Authentication—Choose PAP, CHAP, or MD5-CHAP.
–PAP—Password Authentication Protocol. Authentication method where user information (username and password) is transmitted in clear text.
–CHAP—Challenge Handshake Authentication Protocol. Authentication method where user information is encrypted for transmission.
–MD5-CHAP—Message Digest 5 Challenge Handshake Authentication Protocol. With MD5, passwords are hashed using the Message Digest 5 algorithm.
•AP Primary Discovery Timeout—Enter a value between 30 and 3600 seconds.
The access point maintains a list of backup controllers and periodically sends primary discovery requests to each entry in the list. When configured, the primary discovery request timer specifies the amount of time that a controller has to respond to the discovery request of the access point before the access point assumes that the controller cannot be joined and waits for a discovery response from the next controller in the list.
•CAPWAP Transport Mode—Layer 3 or Layer 2. See the "Lightweight Access Point Protocol Transport Mode" section for more information.
•Current LWAPP Operating Mode—Automatically populated.
•Broadcast Forwarding—Disable or enable.
•LAG Mode—Choose Disable if you want to disable LAG.
Link aggregation (LAG) is a partial implementation of the 802.3ad port aggregation standard. It bundles all of the controller distribution system ports into a single 802.3ad port channel, thereby reducing the number of IP addresses needed to configure the ports on your controller. When LAG is enabled, the system dynamically manages port redundancy and load balances access points transparently to the user.
Note LAG is disabled by default on the Cisco 5500 and 4400 series controllers but enabled by default on the Cisco WiSM and the controller in the Catalyst 3750G Integrated Wireless LAN Controller Switch.
See the "Link Aggregation" section for more information.
•Ethernet Multicast Support
–Disable—Select to disable multicast support on the controller.
–Unicast—Select if the controller, upon receiving a multicast packet, forwards the packets to all the associated access points.
Note H-REAP supports only unicast mode.
–Multicast—Select to enable multicast support on the controller.
•Aggressive Load Balancing—Disable or enable. See the "Aggressive Load Balancing" section for more information on load balancing.
•Peer to Peer Blocking Mode
–Disable—Same-subnet clients communicate through the controller.
–Enable—Same-subnet clients communicate through a higher-level router.
•Over Air Provision AP Mode—Disable or enable.
Over-the-air provisioning (OTAP) is supported by Cisco 5500 and 4400 series controllers. If this feature is enabled on the controller, all associated access points transmit wireless CAPWAP or LWAPP neighbor messages, and new access points receive the controller IP address from these messages. This feature is disabled by default and should remain disabled when all access points are installed.
Note Disabling OTAP on the controller does not disable it on the access point. OTAP cannot be disabled on the access point.
Note You can find additional information about OTAP at this URL:
http://www.cisco.com/en/US/products/ps6366/products_tech_note09186a008093d74a.shtml
•AP Fallback—Disable or enable.
Note Enabling AP Fallback causes an access point which lost a primary controller connection to automatically return to service when the primary controller returns.
•AP Failover Priority—Disable or enable.
Note To configure failover priority settings for access points, you must first enable the AP Failover Priority feature. See the "AP Failover Priority" section for more information.
•AppleTalk Bridging—Disable or enable.
•Fast SSID change—Disable or enable.
When fast SSID changing is enabled, the controller allows clients to move between SSIDs. When the client sends a new association for a different SSID, the client entry in the controller connection table is cleared before the client is added to the new SSID. When fast SSID changing is disabled, the controller enforces a delay before clients are allowed to move to a new SSID.
Note If enabled, the client connects instantly to the controller between SSIDs without having appreciable loss of connectivity.
•Master Controller Mode—Disable or enable.
Note Because the master controller is normally not used in a deployed network, the master controller setting is automatically disabled upon reboot or OS code upgrade.
•Wireless Management—Disable or enable. See the "Wireless Management" section for more information.
•Symmetric Tunneling Mode
•ACL Counters—Disable or enable. The number of hits are displayed in the ACL Rule page. See the "Configuring Access Control Lists" section or the "Configure IPaddr > Access Control List > listname Rules" section for more information.
•Multicast Mobility Mode—Disable or enable. See the "Setting the Mobility Scalability Parameters" section for more information.
•Default Mobility Domain Name—Enter domain name.
•Mobility Anchor Group Keep Alive Interval—Enter the amount of delay time allowed between tries for a client attempting to join another access point. See the "Mobility Anchor Group Keep Alive Interval" section for more information.
Tip When you hover your mouse cursor over the parameter text box, the valid range for that field appears.
•Mobility Anchor Group Keep Alive Retries—Enter number of allowable retries.
Tip When you hover your mouse cursor over the parameter text box, the valid range for that field appears.
•RF Network Name—Enter network name.
•User Idle Timeout (seconds)—Enter timeout in seconds.
•ARP Timeout (seconds)—Enter timeout in seconds.
•Global TCP Adjust MMS—Select the Global TCP Adjust MMS check box to start checking the TCP packets originating from the client, for the TCP SYN/ TCP ACK packets and MSS value and reset it to the configured value on the upstream and downstream side.
•Web Auth Proxy Redirect Mode—Choose enable or disable Web Auth Proxy Redirect Mode, if a manual proxy configuration is configured on the client's browser, all web traffic going out from the client will be destined to the PROXY IP and PORT configured on the browser.
•Web Auth Proxy Redirect Port—Enter the Web Auth Proxy Redirect Port. The default ports are 8080 and 3128. The range is 0 to 65535.
•AP Retransmit Count —Number of times that you want the access point to retransmit the request to controller and vice-versa. This parameter can take values between 3 and 8.
Note AP Retransmit Count and AP Retransmit Interval fields are applicable for controller version 7.0.116.0 onwards..
•AP Retransmit Interval—Time duration between retransmission of requests. This parameter can take values between 2 and 5 seconds.
When a controller goes out of service, the access point associated with it falls back to the next available controller. Before associating itself to a new controller, the access point first tries to establish a connection with the existing controller that it is associated with. It does so by sending a request (known as a retransmission) at regular intervals to the controller and for a specified number of times (retry count). If the access point does not get an acknowledgement from the controller, it tries to associate itself to the next available controller.
Note Retransmission intervals and retry counts are not applicable for mesh access points.
You can configure the retransmission intervals and retry counts both at a global as well as a specific access point level. A global configuration applies these configuration parameters to all the access points associated to a particular controller. That is, the retransmission interval and the retry count would be uniform for all access points on that controller. Alternatively, when you configure the retransmission level and retry counts at a specific access point level, the values are applied to that particular access point. Access point specific configurations have higher precedence compared to WLC global configurations.
AP Failover Priority
When a controller fails, the backup controller configured for the access point suddenly receives a number of Discovery and Join requests. If the controller becomes overloaded, it may reject some of the access points.
By assigning failover priority to an access point, you have some control over which access points are rejected. When the backup controller is overloaded, join requests of access points configured with a higher priority levels take precedence over lower-priority access points.
To configure failover priority settings for access points, you must first enable the AP Failover Priority feature.
To enable the AP Failover Priority feature, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose System > General.
Step 4 From the AP Failover Priority drop-down, select Enabled.
To configure an access point failover priority, follow these steps:
Step 1 Choose Configure > Access Points > AP Name.
Step 2 From the AP Failover Priority drop-down list, choose the applicable priority (Low, Medium, High, Critical).
Note The default priority is Low.
Configuring 802.3 Bridging
The controller supports 802.3 frames and applications that use them, such as those typically used for cash registers and cash register servers. However, to make these applications work with the controller, the 802.3 frames must be bridged on the controller.
Support for raw 802.3 frames allows the controller to bridge non-IP frames for applications not running over IP. Only this raw 802.3 frame format is currently supported.
To configure 802.3 bridging using WCS release 4.1 or later, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 Choose System > General to access the General page.
Step 4 From the 802.3 Bridging drop-down list, choose Enable to enable 802.3 bridging on your controller or Disable to disable this feature. The default value is Disable.
Step 5 Click Save to confirm your changes.
802.3x Flow Control
Flow control is a technique for ensuring that a transmitting entity, such as a modem, does not overwhelm a receiving entity with data. When the buffers on the receiving device are full, a message is sent to the sending device to suspend the transmission until the data in the buffers has been processed.
By default, flow control is disabled. You can only enable a Cisco switch to receive PAUSE frames but not to send them.
Lightweight Access Point Protocol Transport Mode
Lightweight Access Point Protocol transport mode indicates the communications layer between controllers and access points. Selections are Layer 2 or Layer 3.
To convert a Cisco Unified Wireless Network Solution from Layer 3 to Layer 2 lightweight access point transport mode using the WCS user interface, follow these steps:
Note Cisco IOS-based lightweight access points do not support Layer 2 lightweight access point mode. These access points can only be run with Layer 3.
Note This procedure causes your access points to go offline until the controller reboots and the associated access points reassociate to the controller.
Step 1 Make sure that all controllers and access points are on the same subnet.
Note You must configure the controllers and associated access points to operate in Layer 2 mode before completing the conversion.
Step 2 Log into the WCS user interface. Then follow these steps to change the lightweight access point transport mode from Layer 3 to Layer 2:
a. Choose Configure > Controllers.
b. Click the IP address of the applicable controller.
c. Choose System > General to access the General page.
d. Change lightweight access point transport mode to Layer2 and click Save.
e. If WCS displays the following message, click OK:
Please reboot the system for the CAPWAP Mode change to take effect.
Step 3 Follow these steps to restart WCS:
a. Choose System > Commands.
b. From the Administrative Commands drop-down list, choose Save Config To Flash, and click Go to save the changed configuration to the controller.
c. Click OK to continue.
d. From the Administrative Commands drop-down list, choose Reboot, and click Go to reboot the controller.
e. Click OK to confirm the save and reboot.
Step 4 After the controller reboots, follow these steps to verify that the CAPWAP transport mode is now Layer 2:
a. Choose Configure> Controllers.
b. Click the IP address of the applicable controller.
c. Verify that the current CAPWAP transport mode is Layer2 from the general drop-down list.
You have completed the CAPWAP transport mode conversion from Layer 3 to Layer 2. The operating system software now controls all communications between controllers and access points on the same subnet.
Aggressive Load Balancing
In routing, load balancing refers to the capability of a router to distribute traffic over all its network ports that are the same distance from the destination address. Good load-balancing algorithms use both line speed and reliability information. Load balancing increases the use of network segments, thus increasing effective network bandwidth.
Aggressive load balancing actively balances the load between the mobile clients and their associated access points.
Link Aggregation
Link aggregation allows you to reduce the number of IP addresses needed to configure the ports on your controller by grouping all the physical ports and creating a link aggregation group (LAG). In a 4402 model, two ports are combined to form a LAG whereas in a 4404 model, all four ports are combined to form a LAG.
If LAG is enabled on a controller, the following configuration changes occur:
•Any dynamic interfaces that you have created are deleted. This is done to prevent configuration inconsistencies in the interface database.
•Interfaces cannot be created with the "Dynamic AP Manager" flag set.
Note You cannot create more than one LAG on a controller.
The advantages of creating a LAG include:
•Assurance that, if one of the links goes down, the traffic is moved to the other links in the LAG. As long as one of the physical ports is working, the system remains functional.
•No need to configure separate backup ports for each interface.
•Multiple AP-manager interfaces are not required because only one logical port is visible to the application.
Note When you make changes to the LAG configuration, the controller has to be rebooted for the changes to take effect.
Tip When you hover your mouse cursor over over the parameter text box, the valid range for that field appears.
Wireless Management
Because of IPsec operation, management via wireless is only available to operators logging in across WPA, Static WEP, or VPN Pass-through WLANs. Wireless management is not available to clients attempting to log in via an IPsec WLAN.
Mobility Anchor Group Keep Alive Interval
Indicate the delay between tries for clients attempting to join another access point. This decreases the time it takes for a client to join another access point following a controller failure because the failure is quickly identified, the clients are moved away from the problem controller, and the clients are anchored to another controller.
Tip When you hover your mouse cursor over the parameter text box, the valid range for that field appears.
Configuring Controller System Commands
To view the System Command parameters for current controllers, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose System > Commands. The following parameters appear:
•Administrative
–Reboot—This command enables you to confirm the restart of your controller after saving your configuration changes. Open and confirm a new session and log into the controller to avoid loosing a system connection.
–Save Config to Flash—Data is saved to the controller in non-volatile RAM (NVRAM) and is preserved in the event of a power cycle. If the controller is rebooted, all applied changes are lost unless the configuration has been saved.
–Reset to Factory Default—Choose this command to return the controller to its original settings. See the "Restoring Factory Defaults" section for more information.
–Ping From Controller—Send a ping to a network element. This pop-up dialog box allows you to tell the controller to send a ping request to a specified IP address. This is useful for determining if there is connectivity between the controller and a particular IP station. If you click OK, three pings are sent and the results of the ping are displayed in the pop-up. If a reply to the ping is not received, it will show No Reply Received from IP xxx.xxx.xxx.xxx, otherwise it shows Reply received from IP xxx.xxx.xxx.xxx: (send count =3, receive count = n).
•Configuration
–Audit Config—See the "Viewing the Latest Network Audit Report" section.
–Refresh Config From Controller—See the "Refreshing the Configuration from the Controller" section.
–Restore Config To Controller—Choose this command to restore the configuration from the WCS database to the controller.
–Set System Time—See the "Setting Controller Time and Date" section.
•Upload/Download Commands
Note Select the FTP or TFTP radio button. Both File Transfer Protocol (FTP) and Trivial Transfer Protocol (TFTP) are supported for uploading and downloading files to and from WCS. In previous software releases, only TFTP was supported.
–Upload File from Controller—See the "Uploading Configuration/Logs from Controllers" section.
–Download Config—See the "Downloading Configurations to Controllers" section.
–Download Software—Choose this command to download software to the selected controller or all controllers in the selected groups after you have a configuration group established. See the "Downloading Software to a Controller" section.
–Download Web Auth Cert—Choose this command to access the Download Web Auth Certificate to Controller page. See the "Downloading a Web Admin Certificate to a Controller" section.
–Download Web Admin Cert—Choose this command to access the Download Web Admin Certificate to Controller page. See the "Downloading a Web Admin Certificate to a Controller" section.
–Download IDS Signatures—Choose this command to download customized signatures to the standard signature file currently on the controller. See the "Downloading Signature Files" section for more information.
–Download Customized Web Auth—Choose this command to download a customized Web authentication page to the controller. A customized web page is created to establish a username and password for user web access. See the "Downloading a Customized WebAuthentication Bundle to a Controller" section.
–Download Vendor Device Certificate—Choose this command to download your own vendor-specific device certificate to the controller to replace the current wireless device certificate. See the "Downloading a Vendor Device Certificate" section.
–Download Vendor CA Certificate—Choose this command to download your own vendor-specific certificate authority (CA) to the controller to replace the current CA. See the "Downloading a Vendor CA Certificate" section.
•RRM Commands
–RRM 802.11a/n Reset—Resets Remote Radio Management for 802.11a/n Cisco Radios.
–802.11b/g/n Reset—Resets Remote Radio Management for 802.11b/g/n Cisco Radios.
–802.11a/n Channel Update—Updates access point dynamic channel algorithm for 802.11a/n Cisco Radios.
–802.11b/g/n Channel Update—Updates access point dynamic channel algorithm for 802.11b/g/n Cisco Radios.
–802.11a/n Power Update—Updates access point dynamic transmit power algorithm for 802.11a/n Cisco Radios.
–802.11b/g/n Power Update—Updates access point dynamic transmit power algorithm for 802.11b/g/n Cisco Radios.
Restoring Factory Defaults
Choose Configure > Controllers, and click an IP address in the IP Address column. From the left sidebar menu, choose System > Commands, and from the Administrative Commands drop-down list, choose Reset to Factory Default, and click Go to access this page.
This command enables you to reset the controller configuration to the factory default. This overwrites all applied and saved configuration parameters. You are prompted for confirmation to re-initialize your controller.
All configuration data files are deleted, and upon reboot, the controller is restored to its original non-configured state. This will remove all IP configuration, and you will need a serial connection to restore its base configuration.
Note After confirming configuration removal, you must reboot the controller and select the "Reboot Without Saving" option.
Setting Controller Time and Date
Choose Configure > Controllers, and click an IP address under the IP Address column. From the left sidebar menu, choose System > Commands, and from the Configuration Commands drop-down list choose Set System Time, and click Go to access this page.
Use this command to manually set the current time and date on the controller. To use a Network Time Server to set or refresh the current time, see the "Configuring an NTP Server Template" section. The following parameters appear:
•Current Time—Shows the time currently being used by the system.
•Month/Day/Year—Choose the month/day/year from the drop-down list.
•Hour/Minutes/Seconds—Choose the hour/minutes/seconds from the drop-down list.
•Delta (hours)—Enter the positive or negative hour offset from GMT (Greenwich Mean Time).
•Delta (minutes)—Enter the positive or negative minute offset from GMT.
•Daylight Savings—Select to enable Daylight Savings Time.
Command Buttons
•Set Date and Time
•Set Time Zone
•Cancel
Uploading Configuration/Logs from Controllers
To upload files from the controller, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an IP address in the IP Address column.
Step 3 From the left sidebar menu, choose System > Commands.
Step 4 From the Upload/Download Commands drop-down list, choose Upload File from Controller.
Step 5 Click Go to access this page.
Use this command to upload files from your controller to a local TFTP (Trivial File Transfer Protocol) server. The following parameter appears:
•IP Address—IP address of the controller.
•Status—Upload NOT_INITIATED, or other state.
•Enter the TFTP server name, or New and the new TFTP server name.
•Verify and/or enter the IP Address of the TFTP server.
•Select the file type—Configuration file, Event Log, Message Log, Trap Log, Crash File.
•Enter the Upload to File from /(root)/wcs-tftp/ filename.
•Choose whether or not Cisco WCS saves before backing up the configuration.
Step 6 Click OK. The selected file will be uploaded to your TFTP server and named what you entered in the File Name text box.
Note The Cisco WCS uses an integral TFTP server. This means that third-party TFTP servers cannot run on the same workstation as the Cisco WCS, because the Cisco WCS and the third-party TFTP servers use the same communication port.
Downloading Configurations to Controllers
To download configuration files, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an IP address in the IP Address column.
Step 3 From the left sidebar menu, choose System > Commands.
Step 4 From the Upload/Download Commands drop-down list, choose Download Config.
Step 5 Click Go to access this page.
Use this command to download and install a configuration file to your controller from a local TFTP (Trivial File Transfer Protocol) server. The following parameters appear:
Note The Cisco WCS uses an integral TFTP server. This means that third-party TFTP servers cannot run on the same workstation as the Cisco WCS, because the Cisco WCS and the third-party TFTP servers use the same communication port.
•IP Address—IP address of the controller.
•Status—Status of the certificate, for example, NOT_INITIATED.
TFTP Servers
•Server Name—Choose Default Server or New from the drop-down list. When you choose New, type in the IP address.
•Server Address—IP address of the server.
•Maximum Retries—How many times to retry if the download fails.
•Timeout—How long to allow between retries.
•File Name—Enter or choose the filename to download by clicking the Browse button.
Downloading Software to a Controller
To download software, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an IP address in the IP Address column.
Step 3 From the left sidebar menu, choose System > Commands.
Step 4 From the Upload/Download Commands drop-down list, choose Download Software.
Step 5 Click Go to access this page.
Use this command to download and install a new Operating System software to your controller from a local TFTP (Trivial File Transfer Protocol) server.
Note The Cisco WCS uses an integral TFTP server. This means that third-party TFTP servers cannot run on the same workstation as the Cisco WCS, because the Cisco WCS and the third-party TFTP servers use the same communication port.
•IP Address—IP address of the controller to receive the software.
•Current Software Version—The software version currently running on the controller.
•Status—Status of the software, for example, NOT_INITIATED.
•TFTP Server on Cisco WCS System—Checkmark to enabled the built-in Cisco WCS TFTP server.
•Server IP Address—When you have disabled the built-in Cisco WCS TFTP server, IP Address of the TFTP server to send the software to the controller.
•Maximum Retries—Maximum number of unsuccessful attempts before the download is abandoned.
•Timeout—Maximum number of seconds before the download is abandoned.
•File Name—Enter or select the filename to download using the Browse button.
Downloading a Web Admin Certificate to a Controller
To download a Web Admin Certificate, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an IP address in the IP Address column.
Step 3 From the left sidebar menu, choose System > Commands.
Step 4 From the Upload/Download Commands drop-down list, choose Download WEB Admin Cert.
Step 5 Click Go to access this page.
This page enables you to download a web administration certificate to the controller. The following parameters appear:
Caution Each certificate has a variable-length embedded RSA Key. The RSA key length varies from 512 bits, which is relatively insecure, to thousands of bits, which is very secure. When you are obtaining a new certificate from a certificate authority (such as the Microsoft CA), Make sure the RSA key embedded in the certificate is at least 768 Bits.
•IP Address—IP address of the controller to receive the certificate.
•Status—Status of the certificate, for example, NOT_INITIATED.
TFTP Servers
•Server Name—Use the drop-down list to choose the Default Server or New. When you select New, type in the IP address.
•Server Address—IP address of the server.
•Maximum Retries—Maximum number of times each download operation can be attempted.
•Timeout (seconds)—The amount of time allowed for each download operation.
•File Name—File name of the certificate.
•Password—Password to access the certificate.
Downloading IDS Signatures
To download a IDS Signature, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an IP address in the IP Address column.
Step 3 From the left sidebar menu, choose System > Commands.
Step 4 From the Upload/Download Commands drop-down list, choose Download IDS Signatures.
Step 5 Click Go to access this page.
Use this command to download IDS (Intrusion Detection System) signature files from your controller to a local TFTP (Trivial File Transfer Protocol) server. The following parameters appear:
•IP Address—IP address of the controller.
•Status—Download NOT_INITIATED, TRANSFER_SUCCESSFUL or other state.
Downloading a Customized Web Auth Bundle to a Controller
To download a customized web authentication page to the controller, follow these steps:
Step 1 Choose Configure > Controllers
Step 2 Click an IP address in the IP Address column.
Step 3 From the left sidebar menu, choose System > Commands.
Step 4 From the Upload/Download Commands drop-down list, choose Download Customized Web Auth.
The following parameters appear:
•IP Address—IP address of the controller to receive the bundle.
•Status—State of download: NOT_INITIATED, TRANSFER_SUCCESSFUL, TRANSFER_FAILED, NOT_RESPONDING.
Before downloading the customized Web authentication bundle, follow these steps:
Step 1 Click the indicated link to download the example login.tar bundle file from the server.
The link is the highlighted word "here" near the bottom of the page.
Step 2 Edit the login.html file and save it as a .tar or .zip file.
Step 3 Download the .tar or .zip file to the controller.
The file contains the pages and image files required for the web authentication display.
Note The controller accepts a .tar or .zip file of up to 1 MB in size. The 1 MB limit includes the total size of uncompressed files in the bundle.
TFTP Servers
To set up one or more TFTP servers, configure the following parameters:
•File is located on—Choose Local machine or TFTP server. The default is local machine (WCS internal server).
•Server Name—Use the drop-down list to choose one of the following:
–New—Set up a new server. Enter the server name and IP address in the text boxes provided.
–Default Server—server name (editable) IP address (read-only) are automatically added.
•Server IP Address—IP address of the server.
•Maximum Retries—Maximum number of unsuccessful attempts before the download is abandoned.
•Timeout—Maximum number of seconds before the download is abandoned.
•WCS Server Files In—C:\tftp or other specified file directory on the local machine.
•Local File Name—Filename of the Web authentication bundle on the local machine. Click Browse to locate the file.
•Server File Name—Filename on a remote TFTP server.
When completed, these fields and settings are repopulated in the page and do not need to be entered again.
Command Buttons
•OK—The file is downloaded from the local machine or TFTP server with the name shown in the File Name text box.
•Cancel
Configuring Controller System Interfaces
This section describes how to configure controller system interfaces and contains the following topics:
•Adding an Interface
•Viewing Current Interface Details
•Deleting a Dynamic Interface
•NAC Out-of-Band Integration
•Configuring Wired Guest Access
To view existing interfaces, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose System > Interfaces. The following parameters appear:
•Check box—Select the dynamic interface for deletion. Choose Delete Dynamic Interfaces from the Select a command drop-down list.
•Interface Name—User-defined name for this interface (For example, Management, Service-Port, Virtual).
•VLAN Identifier—VLAN identifier between 0 (untagged) and 4096, or N/A.
•Quarantine—Select the check box if the interface has a quarantine VLAN ID configured on it.
•IP Address—IP address of this interface.
•Interface Type—Static (Management, AP-Manager, Service-Port, and Virtual interfaces) or Dynamic (operator-defined interfaces).
•AP Management Status—Displays the status of AP Management interfaces. The parameters include Enabled, Disabled, and N/A.
Adding an Interface
To add an interface, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose System > Interfaces.
Step 4 From the Select a command drop-down list, choose Add Interface.
Step 5 Enter the necessary parameters:
•Interface Name—User-defined name for this interface (Management, Service-Port, Virtual, and VLAN n).
•Wired Interface—Select the check box to mark the interface as wired.
•Interface Address
–VLAN Identifier—1 through 4096, or 0 = untagged.
–Quarantine—Enable/disable to quarantine a VLAN. Select the check box to enable.
–IP Address—IP address of the interface.
–Gateway—Gateway address of the interface.
•Physical Information
–Port Number—The port that is used by the interface.
–Primary Port Number (active)—The port that is currently used by the interface.
–Secondary Port Number—The port that is used by the interface when the primary port is down.
Note Primary and secondary port numbers are only present in Cisco 4400 Series Wireless LAN Controllers.
Note The secondary port is used when the primary port shuts down. When the primary port is reactivated, the Cisco 4400 Series Wireless LAN Controller transfers the interfaces back to the primary port.
–AP Management—Select to enable access point management.
•DHCP Information
–Primary DHCP Server—IP address of the primary DHCP server.
–Secondary DHCP Server—IP address of the secondary DHCP server.
•Access Control List—User-defined ACL name (or none).
Viewing Current Interface Details
To view details for a current interface, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose System > Interfaces.
Step 4 Select the Interface Name for the applicable interface. The Interface Details page opens.
Step 5 View or edit the following interface parameters:
Note Changing the Interface parameters causes the WLANs to be temporarily disabled and thus may result in loss of connectivity for some clients.
•Interface Address
–VLAN Identifier—1 through 4096, or 0 = untagged.
–Guest LAN
–Quarantine—Enable/disable to quarantine a VLAN. Select the check box to enable.
–IP Address—IP address of the interface.
–Gateway—Gateway address of the interface.
•Physical Information
–Primary Port Number (active)—The port that is currently used by the interface.
–Secondary Port Number—The port that is used by the interface when the primary port is down.
Note Primary and secondary port numbers are only present in Cisco 4400 Series Wireless LAN Controllers.
Note The secondary port is used when the primary port shuts down. When the primary port is reactivated, the Cisco 4400 Series Wireless LAN Controller transfers the interfaces back to the primary port.
–AP Management—Select to enable access point management.
•DHCP Information
–Primary DHCP Server—IP address of the primary DHCP server.
–Secondary DHCP Server—IP address of the secondary DHCP server.
•Access Control List
–ACL Name—User-defined name of the access control list (or none).
Step 6 Click Save to confirm any changes made. Click Audit to audit the device values.
Deleting a Dynamic Interface
To delete a dynamic interface, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose System > Interfaces.
Step 4 Select the check box of the dynamic interface that you want to delete.
Step 5 From the Select a command drop-down list, choose Delete Dynamic Interfaces.
Step 6 Click OK to confirm the deletion.
Note The dynamic interface cannot be deleted if it is been assigned to interface group.
Configuring Controller System Interface Groups
This section describes how to configure controller system interface groups and introduces the following topics:
•Adding an Interface Group
•Deleting an Interface Group
•Viewing Interface Groups
Adding an Interface Group
To add an interface group, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose System > Interface Groups.
Step 4 From the Select a command drop-down list, choose Add Interface Group.
Step 5 Enter the necessary parameters:
•Name—User-defined name for this interface group (group1, group2).
•Interface Group Type—Select/deselect to quarantine a VLAN.
•Description—(Optional) Description for the Interface group.
Step 6 Click Add.
The Interface dialog box appears.
Step 7 Select the interfaces that you want to add to the group, and click OK.
To remove an Interface from the Interface group, from the Interface Group page, select the Interface and click Remove.
Step 8 Once you are done with adding the interfaces in the Interface Group page, click any of these buttons:
•Save to confirm any changes made.
•Audit to audit the device values.
•Cancel to discard the changes.
Note•The number of interfaces that could be added to an interface group depends upon the type of the controller.
•Guest LAN interfaces cannot be part of interface groups.
•An Interface group name must be different from the Interface name.
Related Topics
•Adding an Interface
•Viewing Current Interface Details
•Deleting a Dynamic Interface
•Deleting an Interface Group
•Viewing Interface Groups
•Adding an Interface Group
Deleting an Interface Group
To delete an interface group, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose System > Interface Groups.
Step 4 Select the check box of the interface group that you want to delete.
Step 5 From the Select a command drop-down list, choose Delete Interface Group, and click Go.
Step 6 Click OK to confirm the deletion.
Note•The Interface Group cannot be deleted if it has been assigned to WLAN(s).
•The Interface Group cannot be deleted if it has been assigned to AP Group(s).
•The Interface Group cannot be deleted if it has been assigned to Foreign Controller Mapping for the WLAN(s).
•The Interface Group Template cannot be deleted if it has been assigned to WLAN Template(s).
•The Interface Group Template cannot be deleted if it has been assigned to AP Group Template(s).
•You cannot enable/disable quarantine for an interface if it has been assigned to an interface group.
Related Topics
•Adding an Interface
•Viewing Current Interface Details
•Deleting a Dynamic Interface
•Configuring Controller System Interface Groups
•Viewing Interface Groups
•Adding an Interface Group
Viewing Interface Groups
To view existing interface groups, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose System > Interface Groups. The following parameters appear:
•Name—User-defined name for the interface group (For example, group1, group2).
•Description—(Optional) Description for the Interface Group.
•Interfaces—Count of the number of interfaces belonging to the group.
Step 4 Click the Interface group name link.
The Interface Groups Details page appears with the Interface group details as well as the details of the Interfaces that form part of that particular Interface group.
Related Topics
•Adding an Interface
•Viewing Current Interface Details
•Deleting a Dynamic Interface
•Configuring Controller System Interface Groups
•Deleting an Interface Group
•Adding an Interface Group
NAC Out-of-Band Integration
The Cisco NAC appliance, also known as Cisco Clean Access (CCA), is a network admission control (NAC) product that allows network administrators to authenticate, authorize, evaluate, and remediate wired, wireless, and remote users and their machines prior to allowing users onto the network. It identifies whether machines are compliant with security policies and repairs vulnerabilities before permitting access to the network. The NAC appliance is available in two modes: in-band and out-of-band. Customers can deploy both modes if desired, each geared toward certain types of access (in-band for supporting wireless users and out-of-band for supporting wired users, for example).
For more information on NAC Out-of-Band Integration, see the applicable section in the Cisco Wireless Control System Configuration Guide.
•Guidelines for Using NAC Out-of-Band Integration
•Configuring NAC Out-of-Band Integration
Guidelines for Using NAC Out-of-Band Integration
Follow these guidelines when using NAC out-of-band integration:
•The NAC appliance supports up to 3500 users, and the controller supports up to 5000 users. Therefore, multiple NAC appliances might need to be deployed.
•Because the NAC appliance supports static VLAN mapping, you must configure a unique quarantine VLAN for each interface configured on the controller. For example, you might configure a quarantine VLAN of 110 on controller 1 and a quarantine VLAN of 120 on controller 2. However, if two WLANs or guest LANs use the same distribution system interface, they must use the same quarantine VLAN, provided they have one NAC appliance deployed in the network. The NAC appliance supports unique quarantine-to-access VLAN mapping.
•For posture reassessment based on session expiry, you must configure the session timeout on both the NAC appliance and the WLAN, making sure that the session expiry on the WLAN is greater than that on the NAC appliance.
•When a session timeout is configured on an open WLAN, the timing out of clients in the Quarantine state is determined by the timer on the NAC appliance. Once the session timeout expires for WLANs using web authentication, clients deauthenticate from the controller and must perform posture validation again.
•NAC out-of-band integration is supported only on WLANs configured for hybrid-REAP central switching. It is not supported for use on WLANs configured for hybrid-REAP local switching.
•If you want to enable NAC on an access point group VLAN, you must first enable NAC on the WLAN. Then you can enable or disable NAC on the access point group VLAN. If you ever decide to disable NAC on the WLAN, be sure to disable it on the access point group VLAN as well.
•NAC out-of-band integration is not supported for use with the WLAN AAA override feature.
•All Layer 2 and Layer 3 authentication occurs in the quarantine VLAN. To use external web authentication, you must configure the NAC appliance to allow HTTP traffic to and from external web servers and to allow the redirect URL in the quarantine VLAN.
Note See the Cisco NAC appliance configuration guides for configuration instructions: http://www.cisco.com/en/US/products/ps6128/products_installation_and_configuration_guides_list.html.
Configuring NAC Out-of-Band Integration
To configure NAC out-of-band integration, follow these steps:
Step 1 To configure the quarantine VLAN for a dynamic interface, follow these steps:
a. Choose Configure > Controller.
b. Choose which controller you are configuring for out-of-band integration by clicking it in the IP Address column.
c. Choose System > Interfaces from the left sidebar menu.
d. Choose Add Interface from the Select a command drop-down list.
e. In the Interface Name text box, enter a name for this interface, such as "quarantine."
f. In the VLAN Identifier text box, enter a non-zero value for the access VLAN ID, such as "10."
g. Select the Quarantine check box if the interface has a quarantine VLAN ID configured on it.
Note We recommend that you configure unique quarantine VLANs throughout your network. If multiple controllers are configured in the same mobility group and access interfaces on all controllers are in the same subnet, it is mandatory to have the same quarantine VLAN if there is only one NAC appliance in the network. If multiple controllers are configured in the same mobility group and access interfaces on all controllers are in different subnets, it is mandatory to have different quarantine VLANs if there is only one NAC appliance in the network.
h. Configure any remaining fields for this interface, such as the IP address, netmask, and default gateway.
i. Enter an IP address for the primary and secondary DHCP server.
j. Click Save. You are now ready to create a NAC-enabled WLAN or Guest LAN.
Step 2 To configure NAC out-of-band support on a WLAN or guest LAN, follow these steps:
a. Choose WLANs > WLAN from the left sidebar menu.
b. Choose Add a WLAN from the Select a command drop-down list and click Go.
c. If you have a template established that you want to apply to this controller, choose the guest LAN template name from the drop-down list. Otherwise, click the click here link to create a new template. For more information on setting up the template, see the "Configuring Wired Guest Access" section section.
d. Click the Advanced tab.
e. To configure NAC out-of-band support for this WLAN or guest LAN, select the NAC Support check box. To disable NAC out-of-band support, leave the check box unselected, which is the default value.
f. Click Apply to commit your changes.
Step 3 To configure NAC out-of-band support for a specific AP group, follow these steps:
a. Choose WLANs > AP Groups VLAN from the left sidebar menu to open the AP Groups page.
Note AP Groups (for 5.2 and later controllers) is referred to as AP Group VLANs for controllers prior to 5.2.
b. Click the name of the desired AP group.
c. From the Interface Name drop-down list, choose the quarantine enabled interface.
d. To configure NAC out-of-band support for this AP group, select the NAC Support check box. To disable NAC out-of-band support, leave the check box unselected, which is the default value.
e. Click Apply to commit your changes.
Step 4 To see the current state of the client (either Quarantine or Access), follow these steps:
a. Choose Monitor > Clients to open the Clients. Perform a search for Clients.
b. Click the MAC address of the desired client to open the Clients > Detail page. The NAC state appears as access, invalid, or quarantine in the Security Information section.
Configuring Wired Guest Access
Wired Guest Access enables guest users to connect to the guest access network from a wired Ethernet connection designated and configured for guest access. Wired guest access ports might be available in a guest office or specific ports in a conference room.
Like wireless guest user accounts, wired guest access ports are added to the network using the Lobby Ambassador feature. See the "Configuring a Guest Account" section.
Wired Guest Access can be configured in a standalone configuration or in a dual controller configuration employing an anchor and foreign controller. This latter configuration is used to further isolate wired guest access traffic but is not required for deployment of wired guest access.
Wired Guest Access ports initially terminate on a Layer 2 access switch or switch port which is configured with VLAN interfaces for wired guest access traffic.
The wired guest traffic is then trunked from the access switch to a wireless LAN controller. This controller is configured with an interface that is mapped to a wired guest access VLAN on the access switch.
If two controllers are being used, the controller (foreign) that receives the wired guest traffic from the switch then forwards the wired guest traffic to an anchor controller that is also configured for wired guest access. After successful hand off of the wired guest traffic to the anchor controller, a bidirectional Ethernet over IP (EoIP) tunnel is established between the foreign and anchor controllers to handle this traffic.
Note Although wired guest access is managed by anchor and foreign anchors when two controllers are deployed, mobility is not supported for wired guest access clients. In this case, DHCP and web authentication for the client are handled by the anchor controller.
Note You can specify how much bandwidth a wired guest user is allocated in the network by configuring and assigning a role and bandwidth contract. For details on configuring these features, see the "Configuring a Guest Account" section.
To configure and enable wired guest user access on the network, follow these steps:
Step 1 To configure a dynamic interface for wired guest user access, choose Configure > Controllers and after IP address, choose System > Interfaces.
Step 2 Choose Add Interface from the Select a command drop-down list, and click Go.
Step 3 Enter a name and VLAN ID for the new interface.
Step 4 Select the Guest LAN check box.
Step 5 Enter the primary and secondary port number.
Step 6 Click Save. You are now ready to create a wired LAN for guest access.
Step 7 To configure a wired LAN for guest user access, choose WLANs > WLAN configuration from the left sidebar menu.
Step 8 Choose Add a WLAN from the Select a command drop-down list, and click Go.
Step 9 If you have a template established that you want to apply to this controller, choose the guest LAN template name from the drop-down list. Otherwise, click the click here link to create a new template.
Step 10 In the WLAN > New Template general page, enter a name in the Profile Name text box that identifies the guest LAN. Do not use any spaces in the name entered.
Step 11 Select the Enabled check box for the WLAN Status parameter.
Step 12 From the Ingress Interface drop-down list, choose the VLAN that you created in Step 3. This VLAN provides a path between the wired guest client and the controller by way of the Layer 2 access switch.
Step 13 From the Egress Interface drop-down list, choose the name of the interface. This WLAN provides a path out of the controller for wired guest client traffic.
Note If you have only one controller in the configuration, choose management from the Egress Interface drop-down list.
Step 14 Choose Security > Layer 3 tab to modify the default security policy (web authentication) or to assign WLAN specific web authentication (login, logout, login failure) pages and the server source.
a. To change the security policy to passthrough, select the Web Policy check box and select the Passthrough radio button. This option allows users to access the network without entering a username or password.
An Email Input check box appears. Select this check box if you want users to be prompted for their email address when attempting to connect to the network.
b. To specify custom web authentication pages, unselect the Global WebAuth Configuration Enabled check box.
When the Web Auth Type drop-down list appears, choose one of the following options to define the web login page for the wireless guest users:
Default Internal—Displays the default web login page for the controller. This is the default value.
Customized Web Auth—Displays custom web login, login failure, and logout pages. When the customized option is selected, three separate drop-down lists for login, login failure, and logout page selection appear. You do not need to define a customized page for all three of the options. Choose None from the appropriate drop-down list if you do not want to display a customized page for that option.
These optional login, login failure, and logout pages are downloaded to the controller as webauth.tar files. For specifics on downloading custom pages, see the "Downloading a Customized WebAuthentication Bundle to a Controller" section.
External—Redirects users to an external server for authentication. If you choose this option, you must also enter the URL of the external server in the URL text box.
You can select specific RADIUS or LDAP servers to provide external authentication in the Security > AAA pane. To do so, continue with Step 17.
Note The RADIUS and LDAP external servers must be already configured to have selectable options in the Security > AAA pane. You can configure these servers on the RADIUS Authentication Servers, TACACS+ Authentication Servers page, and LDAP Servers page.
Step 15 If you selected External as the Web Authentication Type in Step 15, choose Security > AAA and choose up to three RADIUS and LDAP servers using the drop-down lists.
Step 16 Click Save.
Step 17 Repeat this process if a second (anchor) controller is being used in the network.
Creating an Ingress Interface
To create an Ingress interface, follow these step:
Step 1 Choose Add Interface from the Select a command drop-down list, and click Go.
Step 2 Click an interface name. The Interfaces Details : New Config page appears (see Figure 9-2).
Figure 9-2 Interfaces Details : New Config Page
Step 3 In the Interface Name text box, enter a name for this interface, such as guestinterface.
Step 4 Enter a VLAN identifier for the new interface.
Step 5 Select the Guest LAN check box.
Step 6 Enter the primary and secondary port numbers.
Step 7 Click Save.
Creating an Egress Interface
To create an Egress interface, follow these steps:
Step 1 Choose Add Interface from the Select a command drop-down list, and click Go.
Step 2 Click an interface name. The Interfaces Details : New Config page appears (see Figure 9-2).
Step 3 In the Interface Name text box, enter a name for this interface, such as quarantine.
Step 4 In the VLAN Identifier text box, enter a non-zero value for the access VLAN ID, such as 10.
Step 5 Select the Quarantine check box and enter a non-zero value for the quarantine VLAN ID, such as 110.
Note You can have NAC-support enabled on the WLAN or guest WLAN template Advanced tab for interfaces with Quarantine enabled.
Step 6 Enter the IP address, netmask, and default gateway.
Step 7 Enter the primary and secondary port numbers.
Step 8 Provide an IP address for the primary and secondary DHCP server.
Step 9 Configure any remaining fields for this interface, and click Save.
You are now ready to create a wired LAN for guest access.
Configuring Controller Network Routes
The Network Route page enables you to add a route to the controller service port. This route allows you to direct all Service Port traffic to the designated management IP address.
•Viewing Existing Network Routes
•Adding a Network Route
Viewing Existing Network Routes
To view existing network routes, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose System > Network Route. The following parameters appear:
•IP Address—The IP address of the network route.
•IP Netmask—Network mask of the route.
•Gateway IP Address—Gateway IP address of the network route.
Adding a Network Route
To add a network route, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose System > Network Route.
Step 4 From the Select a command drop-down list, choose Add Network Route.
Step 5 Click Go.
Step 6 Enter the IP address, IP Netmask, and Gateway IP address information.
Step 7 Click Save.
Configuring Controller Spanning Tree Protocol Parameters
Spanning Tree Protocol (STP) is a link management protocol that provides path redundancy while preventing undesirable loops in the network.
To view or manage current STP parameters, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose System > Spanning Tree Protocol. The Spanning Tree Protocol page displays the following parameters:
•Protocol Spec—The current protocol specification.
•Admin Status—Select this check box to enable.
•Priority—The numerical priority number of the ideal switch.
•Maximum Age (seconds)—The amount of time (in seconds) before the received protocol information recorded for a port is discarded.
•Hello Time (seconds)—Determines how often (in seconds) the switch broadcasts its hello message to other switches.
•Forward Delay (seconds)—The time spent (in seconds) by a port in the learning/listening states of the switches.
Configuring Controller Mobility Groups
By creating a mobility group, you can enable multiple network controllers to dynamically share information and forward data traffic when inter-controller or inter-subnet roaming occurs. Controllers can share the context and state of client devices and controller loading information. With this information, the network can support inter-controller wireless LAN roaming and controller redundancy.
Note If it is possible for a wireless client in your network to roam from an access point joined to one controller to an access point joined to another controller, both controllers should be in the same mobility group.
•Messaging Among Mobility Groups
•Mobility Group Prerequisites
•Viewing Current Mobility Group Members
•Adding Mobility Group Members from a List of Controllers
•Manually Adding Mobility Group Members
•Setting the Mobility Scalability Parameters
Messaging Among Mobility Groups
The controller provides inter-subnet mobility for clients by sending mobility messages to other member controllers:
•There can be up to 72 members in the list with up to 24 in the same mobility group.
•The controller sends a Mobile Announce message to members in the mobility list each time a new client associates to it.
•In WCS and controller software release 5.0, the controller uses multicast mode to send the Mobile Announce messages. This allows the controller to send only one copy of the message to the network, which delivers it to the multicast group containing all the mobility members.
Note For more information regarding mobility groups, see the Cisco Wireless Control System Configuration Guide.
Mobility Group Prerequisites
Before you add controllers to a mobility group, you must verify that the following requirements have been met for all controllers that are to be included in the group:
•All controllers must be configured for the same CAPWAP transport mode (Layer 2 or Layer 3).
•IP connectivity must exist between the management interfaces of all devices.
•All controllers must be configured with the same mobility group name.
•All devices must be configured with the same virtual interface IP address.
•Availability of MAC and IP addresses of each controller to be included in the mobility group (to configure the controllers with the MAC address and IP address of all the other mobility group members).
Viewing Current Mobility Group Members
To view current mobility group members, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose System > Mobility Groups.
Note To delete a group member, select a check box for the applicable group member, choose Delete Group Members, and click Go.
Adding Mobility Group Members from a List of Controllers
To add a mobility group member from a list of existing controllers, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose System > Mobility Groups.
Step 4 From the Select a command drop-down list, choose Add Group Members.
Step 5 Click Go.
Step 6 Select the check box(es) for the controller to be added to the mobility group.
Step 7 Click Save.
Manually Adding Mobility Group Members
If no controllers were found to add to the mobility group, you can add members manually. To manually add members to the mobility group, follow these steps:
Step 1 Click the click here link from the Mobility Group Member details page.
Step 2 In the Member MAC Address text box, enter the MAC address of the controller to be added.
Step 3 In the Member IP Address text box, enter the management interface IP address of the controller to be added.
Note If you are configuring the mobility group in a network where Network Address Translation (NAT) is enabled, enter the IP address sent to the controller from the NAT device rather than the controller management interface IP address. Otherwise, mobility fails among controllers in the mobility group.
Step 4 Enter the multicast group IP address to be used for multicast mobility messages in the Multicast Address text box. The local mobility member group address must be the same as the local controller group address.
Step 5 In the Group Name text box, enter the name of the mobility group.
Step 6 Click Save.
Step 7 Repeat the Steps 1 through 6 for the remaining WLC devices.
Setting the Mobility Scalability Parameters
Note Mobility Groups must be configured prior to setting the mobility scalability parameters.
To set the mobility message parameters, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Choose an IP address of a controller whose software version is 5.0 or later.
Step 3 From the left sidebar menu, choose System > General.
Step 4 At the Multicast Mobility Mode parameter, specify if you want to enable or disable the ability for the controller to use multicast mode to send Mobile Announce messages to mobility members.
Step 5 If you enabled multicast messaging by setting multicast mobility mode to enabled, you must enter the group IP address at the Mobility Group Multicast-address parameter to begin multicast mobility messaging. You must configure this IP address for the local mobility group but it is optional for other groups within the mobility list. If you do not configure the IP address for other (non-local) groups, the controllers use unicast mode to send mobility messages to those members.
Step 6 Click Save.
Configuring Controller Network Time Protocol
To add a new NTP Server, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose System > Network Time Protocol.
Step 4 From the Select a command drop-down list, choose Add NTP Server.
Step 5 Click Go.
Step 6 From the Select a template to apply to this controller drop-down list, select the applicable template to apply to this controller.
Command Buttons
•Apply
•Cancel
To create a New Template for NTP Servers, use the click here link to access the template creation page (Configure NTP Servers > New Template).
NTP general parameters include:
•Template Name—Enter the new NTP Template name.
Note Template Name is the unique key used to identify the template. A template name is mandatory to distinguish between two templates that have identical key attributes.
•Server Address—Enter the NTP server IP address.
•No. of Controllers Applied To—Number of controllers to which this template is applied (read-only).
Background Scanning on 1510s in Mesh Networks
Background scanning allows Cisco Aironet 1510 Access Points to actively and continuously monitor neighboring channels for more optimal paths and parents. Because the access points are searching on neighboring channels as well as the current channel, the list of optimal alternate paths and parents is greater.
Identifying this information prior to the loss of a parent results in a faster transfer and the best link possible for the access points. Additionally, access points might switch to a new channel if a link on that channel is found to be better than the current channel in terms of fewer hops, stronger signal-to-noise ratio (SNR), and so on.
Background scanning on other channels and data collection from neighbors on those channels are performed on the primary backhaul between two access points:
The primary backhaul for 1510s operate on the 802.11a link.
Background scanning is enabled on a global basis on the access point's associated controller.
Note Latency might increase for voice calls when they are switched to a new channel.
Note In the EMEA regulatory domain, locating neighbors on other channels might take longer given DFS requirements.
Background Scanning Scenarios
A few scenarios are provided below to better illustrate how background scanning operates.
In Figure 9-3, when the mesh access point (MAP1) initially comes up, it is aware of both root access points (RAP1 and RAP2) as possible parents. It chooses RAP2 as its parent because the route through RAP2 is better in terms of hops, SNR, and so on. After the link is established, background scanning (once enabled) continuously monitors all channels in search of a more optimal path and parent. RAP2 continues to act as parent for MAP1 and communicates on channel 2 until either the link goes down or a more optimal path is located on another channel.
Figure 9-3 Mesh Access Point (MAP1) Selects a Parent
In Figure 9-4, the link between MAP1 and RAP2 is lost. Data from ongoing background scanning identifies RAP1 and channel 1 as the next best parent and communication path for MAP1 so that link is established immediately without the need for additional scanning after the link to RAP2 goes down.
Figure 9-4 Background Scanning Identifies a New Parent
Enabling Background Scanning
To enable background scanning on an AP1510 RAP or MAP, follow these steps:
Step 1 Click Configure > Controllers.
Note You can also enable this on the Controllers template. See the "Configuring Mesh Templates" section.
Step 2 Choose Mesh > Mesh Settings from the left sidebar menu. The Mesh Settings page appears (see Figure 9-5).
Figure 9-5 Mesh Settings Page
Step 3 Select the Background Scanning check box to enable background scanning or unselect it to disable the feature. The default value is disabled.
Step 4 Click Save.
Configuring Controller QoS Profiles
To make modifications to the quality of service profiles, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose System > QoS Profiles. The following parameters appear:
•Bronze—For Background
•Gold—For Video Applications
•Platinum—For Voice Applications
•Silver—For Best Effort
Step 4 Click the applicable profile to view or edit profile parameters.
Step 5 Set the following values in the Per-User Bandwidth Contracts section (all have a default of 0 or Off):
•Average Data Rate—The average data rate for non-UDP traffic.
•Burst Data Rate—The peak data rate for non-UDP traffic.
•Average Real-time Rate—The average data rate for UDP traffic.
•Burst Real-time Rate—The peak data rate for UDP traffic.
Step 6 Set the following values for the Over-the-Air QoS section:
•Maximum QoS RF Usage Per AP (%)—The maximum air bandwidth available to clients. The default is 100%.
•QoS Queue Depth—The depth of queue for a class of client. The packets with a greater value are dropped at the access point.
Step 7 Set the following values in the Wired QoS Protocol section:
•Wired QoS Protocol—Choose 802.1P to activate 802.1P priority tags or None to deactivate 802.1P priority tags.
Step 8 Click Save.
Configuring Controller DHCP Scopes
•Viewing Current DHCP Scopes
•Adding a New DHCP Scope
Viewing Current DHCP Scopes
To view current DHCP (Dynamic Host Configuration Protocol) scopes, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose System > DHCP Scopes.
The following DHCP Scopes information appears:
•Pool Address
•Lease Time
•Status
Adding a New DHCP Scope
To add a new DHCP Scope, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose System > DHCP Scopes.
Step 4 From the Select a command drop-down list, choose Add DHCP Scope.
Step 5 Enter the following information:
•Scope Name
•Lease Time (in seconds)
•Network
•Netmask
•Pool Start Address
•Pool End Address
•DNS Domain Name
•Status
•Router Addresses—Enter which IP addresses are already in use and should therefore be excluded. For example, you should enter the IP address of your company router. In doing so, this IP address will be blocked from use by another client.
•DNS Servers—Enter the IP address of the DNS server(s). Each DNS server must be able to update a client DNS entry to match the IP address assigned by this DHCP scope.
•NetBios Servers—Enter the IP address of the Microsoft Network Basic Input Output System (NetBIOS) name server(s), such as a Windows Internet Naming Service (WINS) server.
Step 6 Click Save.
Configuring Controller User Roles
•Viewing Current Local Net User Roles
•Adding a New Local Net User Role
Viewing Current Local Net User Roles
To view current local net user roles, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose System > User Roles.
The following Local Net User Role parameters appear:
•Template Name
Note Template Name is the unique key used to identify the template. A template name is mandatory to distinguish between two templates that have identical key attributes.
•Role Name
•Average Data Rate—The average data rate for non-UDP traffic.
•Burst Data Rate—The peak data rate for non-UDP traffic.
•Average Real-time Rate—The average data rate for UDP traffic.
•Burst Real-time Rate—The peak data rate for UDP traffic.
Step 4 Click a Template Name to view the User Role details.
Adding a New Local Net User Role
To add a new local net user role, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose System > User Roles.
Step 4 From the Select a command drop-down list, choose Add User Role.
Step 5 Select a template from the Select a template to apply to this controller drop-down list.
Step 6 Click Apply.
Note To create a new template for local net user roles, click the click here link to access the template creation page. See the "Configuring User Roles Controller Templates" section for more information about User Role templates.
Configuring a Global Access Point Password
The AP Username Password page enables you to set a global password that all access points inherit as they join a controller. When you are adding an access point, you can also choose to accept this global username and password or override it on a per-access point basis. See the "Configuring AP Configuration Templates" section to view where the global password is displayed and how it can be overridden on a per-access point basis.
Also in controller software release 5.0, after an access point joins the controller, the access point enables console port security and you are prompted for your username and password whenever you log into the access point console port. When you log in, you are in non-privileged mode and you must enter the enable password to use the privileged mode.
To establish a global username and password, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an IP address of a controller with a version of 5.0 or later.
Step 3 From the left sidebar menu, choose System > AP Username Password.
Step 4 Enter the username and password that you want to be inherited by all access points that join the controller.
Note For Cisco IOS access points, you must also enter and confirm an enable password.
Step 5 Click Save.
Configuring Global CDP
Cisco Discovery Protocol (CDP) is a device-discovery protocol that runs on all Cisco network equipment. Each device sends identifying messages to a multicast address, and each device monitors the messages sent by other devices.
Note CDP is enabled on the bridge's Ethernet and radio ports by default.
Note Global Interface CDP Configuration will be applied to only the APs with CDP enabled at AP level.
To configure a Global CDP, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Choose the IP address of the desired controller.
Step 3 From the left sidebar menu, choose System > Global CDP Configuration from the left sidebar menu. The Global CDP Configuration page appears.
Step 4 In the Global CDP portion of the page, specify the following parameters:
•CDP on controller—Choose enable or disable CDP on the controller.
Note This configuration cannot be applied on WISM2 controllers.
•Global CDP on APs—Choose to enable or disable CDP on the access points.
•Refresh-time Interval (seconds)—At the Refresh Time Interval parameter, enter the time in seconds at which CDP messages are generated. The default is 60.
•Holdtime (seconds)—Enter the time in seconds before the CDP neighbor entry expires. The default is 180.
•CDP Advertisement Version—Enter which version of the CDP protocol to use. The default is v1.
Step 5 In the CDP for Ethernet Interfaces portion of the page, select the slots of Ethernet interfaces for which you want to enable CDP.
Note CDP for Ethernet Interfaces fields are supported for controller version 7.0.110.2 onwards.
Step 6 In the CDP for Radio Interfaces portion of the page, select the slots of Radio interfaces for which you want to enable CDP.
Note CDP for Radio Interfaces fields are supported for controller version 7.0.110.2 onwards.
Step 7 Click Save.
Configuring AP 802.1X Supplicant Credentials
You can configure 802.1X authentication between lightweight access points and the switch. The access point acts as an 802.1X supplicant and is authenticated by the switch using EAP-FAST with anonymous PAC provisioning. You can set global authentication settings that all access points inherit as they join the controller. This includes all access points that are currently joined to the controller and any that join in the future.
If desired, you can override the global authentication settings and assign unique authentication settings for a specific access point. See the "Configuring Access Point Details" section for more information.
To enable global supplicant credentials, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Choose the IP address of the desired controller.
Step 3 From the left sidebar menu, choose System > AP 802.1X Supplicant Credentials.
Step 4 Select the Global Supplicant Credentials check box.
Step 5 Enter the supplicant username.
Step 6 Enter and confirm the applicable password.
Step 7 Click Save.
Note Once saved, you can click Audit to perform an audit on this controller. See the "Understanding the Controller Audit Report" section or the "Configuring an Audit" section for more information.
Configuring Controller DHCP
To configure DHCP (Dynamic Host Configuration Protocol) information for a controller, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Choose the IP address of the desired controller.
Step 3 From the left sidebar menu, choose System > DHCP.
Step 4 Add or modify the following parameters:
•DHCP Option 82 Remote Id Field Format—Choose AP-MAC or AP-MAC-SSID from the drop-down list.
Note To set the format for RemoteID field in DHCP option 82: If `Ap-Mac' is selected, then set the RemoteID format as <AP-Mac>. If `Ap-Mac-ssid' is selected, then set the RemoteID format as <AP-Mac>:<SSID>.
•DHCP Proxy—Select the check box to enable DHCP by proxy.
Note When DHCP proxy is enabled on the controller, the controller unicasts DHCP requests from the client to the configured servers. Consequently, at least one DHCP server must be configured on either the interface associated with the WLAN or the WLAN itself.
Step 5 Enter the DHCP Timeout in seconds after which the DHCP request will time out. The default setting is 5. Allowed values range from 5 to 120 seconds.
Note DHCP Timeout is applicable from the controller version 7.0.114.74 onwards.
Step 6 Click Save.
Note Once saved, you can click Audit to perform an audit on this controller. See the "Understanding the Controller Audit Report" section or the "Configuring an Audit" section for more information.
Configuring Controller Multicast Mode
WCS provides an option to configure IGMP (Internet Group Management Protocol) snooping and timeout values on the controller.
To configure multicast mode and IGMP snooping for a controller, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the desired controller.
Step 3 From the left sidebar menu, choose System > Multicast.
Step 4 Choose Disable, Unicast, or Multicast from the Ethernet Multicast Support drop-down list.
Note IGMP Snooping and timeout can be set only if Ethernet Multicast mode is Enabled.
Step 5 If Multicast is selected, enter the multicast group IP address.
Step 6 Select the Enable Global Multicast Mode check box to make the multicast mode available globally.
Step 7 Select to enable IGMP Snooping.
Step 8 Choose Enable from the Multicast Mobility Mode drop-down list to change the IGMP snooping status or to set the IGMP timeout. When IGMP snooping is enabled, the controller gathers IGMP reports from the clients and then sends each access point a list of the clients listening to any multicast group. The access point then forwards the multicast packets only to those clients.
The timeout interval has a range of 3 to 300 and a default value of 60. When the timeout expires, the controller sends a query to all WLANs. Those clients which are listening in the multicast group then send a packet back to the controller.
Step 9 If you enabled the Multicast Mobility Mode, enter the mobility group multicast address.
Step 10 Select the Multicast Direct check box to enable videos to be streamed over a wireless network.
Step 11 Specify the Session Banner information, which is the error information sent to the client if the client is denied or dropped from a Media Stream.
a. State—Select the check box to activate the Session Banner. If not activated, the Session Banner is not sent to the client.
b. URL—A web address reported to the client
c. Email—An email address reported to the client
d. Phone—A telephone number reported to the client
e. Note—A note reported to the client
Note All Media Streams on a Controller share this configuration.
Step 12 Click Save.
Note Once saved, you can click Audit to perform an audit on this controller. See the "Understanding the Controller Audit Report" section or the "Configuring an Audit" section for more information.
Configuring Access Point Timer Settings
Advanced timer configuration for HREAP and local mode is available for the controller on WCS.
Note This feature is only supported on Release 6.0 controllers and later.
•Configuring Advanced Timers
•Access Point Timer Settings for Local Mode
•Access Point Timer Settings for HREAP Mode
Configuring Advanced Timers
To configure the advanced timers, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Choose the controller for which you want to set timer configuration.
Step 3 From the left sidebar menu, choose System > AP Timers.
Step 4 Select the applicable access point mode (Local mode or HREAP mode).
Step 5 See the "Access Point Timer Settings for Local Mode" section or the "Access Point Timer Settings for HREAP Mode" section for more information on each mode configuration.
Access Point Timer Settings for Local Mode
To reduce the failure detection time, you can configure the fast heartbeat interval (between the controller and the access point) with a smaller timeout value. When the fast heartbeat timer expires (at every heartbeat interval), the access point determines if any data packets have been received from the controller within the last interval. If no packets have been received, the access point sends a fast echo request to the controller. You can then enter a value between 10 and 15 seconds.
Access Point Timer Settings for HREAP Mode
Once selected, you can configure the HREAP timeout value. Select the AP Primary Discovery Timeout check box to enable the timeout value. Enter a value between 30 and 3600 seconds.
Note 5500 series controllers accept access point fast heartbeat timer values in the range of 10-15. All other controller models support a range of 1-10.
Configuring Controller WLANs
Since controllers can support 512 WLAN configurations, WCS provides an effective way to enable or disable multiple WLANs at a specified time for a given controller.
To view a summary of the wireless local access networks (WLANs) that you have configured on your network, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose WLANs > WLAN Configuration. The Configure WLAN Summary page appears (see Figure 9-6). This WLAN Configuration page contains the values found in Table 9-1.
Figure 9-6 WLAN Configuration Summary Page
Table 9-1 WLAN Configuration Summary Page
Parameter
|
Description
|
Check box
|
Select the WLAN for deletion. Choose Delete WLANs from the Select a command drop-down list.
|
WLAN ID
|
Identification number of the WLAN.
|
Profile Name
|
User-defined profile name specified when creating the WLAN template. Profile Name is the WLAN name.
|
SSID
|
Service Set Identifier being broadcast by.
|
WLAN/Guest LAN
|
Specifies if it is a WLAN or guest LAN.
|
Security Policies
|
Security policies enabled on the WLAN.
|
Status
|
Status of the WLAN is either enabled or disabled.
|
Task List
|
If a task is scheduled in Configure > Scheduled Configuration Tasks, you have a link to view the scheduled configuration task.
|
Viewing WLAN Details
To view WLAN details, choose WLANs. The WLAN Details page appears (see Figure 9-7).
Figure 9-7 WLAN Details Page
Use the tabs (General, Security, QoS, and Advanced) to view or edit parameters for the WLAN.
•General Tab
•Security Tab
•QoS Tab
•Advanced Tab
General Tab
The General tab includes the following information:
Note Depending on the WLAN template used for this controller, these parameters may or may not be available.
•Guest LAN—Indicates whether or not this WLAN is a Guest LAN.
•Profile Name
•SSID
•Status—Select the Enabled check box to enable this WLAN.
Note To configure a start time for the WLAN status to be enabled, select the Schedule Status check box. Select the hours and minutes from the drop-down lists. Click the calendar icon to select the applicable date.
•Schedule Status
•Security Policies—Identifies the security policies set using the Security tab (includes security policies such as None, 802.1X, Static WEP, Static WEP-802.1X, WPA+WPA2, and CKIP). Changes to the security policies appear in this section after the page is saved.
•Radio Policy—Choose any one of the following from the drop-down list.
–All, 802.11a only, 802.11g only, 802.11b/g only, 802.11a/g only.
•Interface/Interface Group—Choose from the drop-down list.
•Broadcast SSID—Select the check box to enable.
•Egress Interface—Select the name of the applicable interface. This WLAN provides a path out of the controller for wired guest client traffic.
Note If you only have one controller in the configuration, choose Management from the Egress Interface drop-down list.
•Ingress Interface—Choose the applicable VLAN from the drop-down list. This interface provides a path between the wired guest client and the controller by way of the Layer 2 access switch.
Security Tab
The Security tab includes three additional tabs: Layer 2, Layer 3, and AAA Servers.
Layer 2 Security
Use the Layer 2 Security drop-down list to choose between None, 802.1x, Static WEP, Cranite, Static WEP-802.1x, WPA1+WPA2, and CKIP. These parameters are described in the Table 9-2.
MAC Filtering—Select the check box if you want to filter clients by MAC address.
Table 9-2 Layer 2 Security Options
Parameter
|
Description
|
None
|
No Layer 2 security selected.
|
802.1x
|
802.11 Data Encryption:
•Type—WEP
•Key Size—40, 104, or 128 bits.
|
Static WEP
|
802.11 Data Encryption:
•Type
•Key Size—not set, 40, 104, or 128 bits.
•Key Index—1 to 4.
•Encryption Key
•Encryption Key Format—ASCII or HEX.
•Allowed Shared Key Authentication—Select the check box to enable.
|
Cranite
|
Configure the WLAN to use the FIPS140-2 compliant Cranite Wireless Wall Software Suite, which uses AES encryption and VPN tunnels to encrypt and verify all data frames carried by the Cisco Wireless LAN Solution.
|
Static WEP-802.1X
|
Use this setting to enable both Static WEP and 802.1X policies. If this option is selected, static WEP and 802.1X parameters are displayed at the bottom of the page.
Static WEP encryption parameters:
•802.11 Data Encryption
–Type
–Key Size—not set, 40, 104, or 128 bits.
–Key Index—1 to 4.
–Encryption Key
–Encryption Key Format—ASCII or HEX.
•Allowed Shared Key Authentication—Select the check box to enable.
|
| |
802.1X parameters:
•802.11 Data Encryption
–Type
–Key Size—40, 104, or 128 bits.
|
WPA+WPA2
|
Use this setting to enable WPA, WPA2, or both. WPA enables Wi-Fi Protected Access with TKIP-MIC Data Encryption or AES. When WPA+WPA2 is selected, you can use Cisco's Centralized Key Management (CCKM) authentication key management, which allows fast exchange when a client roams from one access point to another.
When WPA+WPA2 is selected as the Layer 2 security policy and Pre-Shared Key is enabled, neither CCKM or 802.1X can be enabled; although, both CCKM and 802.1X can be enabled at the same time.
WPA+WPA2 parameters:
•WPA1—Select the check box to enable.
•WPA2—Select the check box to enable.
Authentication Key Management:
•802.1X—Select the check box to enable.
•CCKM—Select the check box to enable.
•PSK—Select the check box to enable.
|
CKIP
|
Cisco Key Integrity Protocol. A Cisco access point advertises support for CKIP in beacon and probe response packets. CKIP can be configured only when Aironet IE is enabled on the WAN.
Note CKIP is not supported on 10xx access points.
CKIP parameters:
•802.11 Data Encryption
–Type
–Key Size—not set, 40, 104, or 128 bits.
–Key Index—1 to 4.
–Encryption Key
–Encryption Key Format—ASCII or HEX.
•MMH Mode—Select the check box to enable.
•Key Permutation—Select the check box to enable.
|
Layer 3 Security
Use the Layer 3 Security drop-down list to choose between None, VPN Pass Through, and IPsec (Internet Protocol Security). The page parameters change according to the selection you make.
Note Depending on the type of WLAN, the Layer 3 parameters may or may not be available.
Note If you choose VPN pass through, you must enter the VPN gateway address.
Note IPsec is a suite of protocols for securing IP communications by authenticating and/or encrypting each IP packet in a data stream. IPsec also includes protocols for establishing cryptographic keys.
Web Policy—Select the check box to specify policies such as authentication, pass through, or conditional web redirect. This section also allows you to enable guest users to view customized login pages.
Note If you choose Pass Through, the Email Input check box appears. Select this check box if you want users to be prompted for their email addresses when attempting to connect to the network.
To allow guest users to view customized login pages, follow these steps:
Step 1 Unselect the Global WebAuth Configuration check box.
Step 2 Choose Web Auth Type from the drop-down list on the Security > Layer 3 tab.
•Default Internal—The guest user receives the default login page.
•Customized WebAuth—Customized login pages can be downloaded from the Upload/Download Commands page. See the "Downloading a Customized Web Authentication Page" section for more information.
–Choose Web Auth Login Page, Web Auth Login Failure Page, or Web Auth Logout Page from the drop-down lists.
–Choose None from any of the drop-down lists if you do not want to display a customized page for that option.
•External—The guest user is redirected to an external login page. Enter the login page URL in the External Web Auth URL text box.
Note If External is selected, you can select up to three RADIUS and LDAP servers in the Security > AAA page. See the "AAA Servers" section for more information.
AAA Servers
Select RADIUS and LDAP servers to override use of default servers on the current WLAN.
–RADIUS Servers—Use the drop-down lists to choose authentication and accounting servers. With this selection, the default RADIUS server for the specified WLAN overrides the RADIUS server that is configured for the network. If all three RADIUS servers are configured for a particular WLAN, server 1 has the highest priority, and so on.
–LDAP Servers—If no LDAP servers are chosen from the drop-down lists, WCS uses the default LDAP server order from the database.
–Local EAP Authorization—Allows users and wireless clients to be authenticated locally. It is designed for use in remote offices that want to maintain connectivity to wireless clients when the back-end system becomes disrupted or the external authentication server fails.
Select the check box to enable if you have an EAP profile configured. Select the profile from the drop-down list.
–Allow AAA Override—When enabled, if a client has conflicting AAA and controller WLAN authentication parameters, client authentication is performed by the AAA server.
As part of this authentication, the operating system moves clients from the default Cisco WLAN solution to a VLAN returned by the AAA server and predefined in the controller interface configuration (only when configured for MAC filtering, 802.1X, or WPA operation).
In all cases, the operating system also uses QoS and ACL provided by the AAA server as long as they are predefined in the controller interface configuration. (This VLAN switching by AAA override is also referred to as identity networking.)
When AAA override is disabled, all client authentication defaults to the controller authentication parameter settings, and authentication is only performed by the AAA server if the controller WLANs do not contain any client-specific authentication parameters.
QoS Tab
•Quality of service (QoS)—From the drop-down list, choose Platinum (voice), Gold (video), Silver (best effort), or Bronze (background).
–Services such as VoIP should be set to gold. Non-discriminating services such as text messaging can be set to bronze.
•WMM Parameters
–WMM Policy—Choose Disabled, Allowed (to allow clients to communicate with the WLAN), or Required (to make it mandatory for clients to have WMM enabled for communication).
–7920 AP CAC—Select the check box to enable support on Cisco 7920 phones.
–7920 Client CAC—Select the check box to enable WLAN support for older versions of the software on 7920 phones. The CAC limit is set on the access point for newer versions of software.
•Media
–Multicast Direct—Select the Multicast Direct check box to enable the Multicast Direct feature on the WLAN.
Advanced Tab
•H-REAP Local Switching—Select the check box to enable Hybrid REAP local switching. When enabled, the H-REAP access point handles client authentication and switches client packets locally. See the "Configuring Hybrid REAP" section for more information.
Note•H-REAP local switching applies only to Cisco 1130/1240/1250 series access points. It is not supported with L2TP, PPTP, CRANITE, and FORTRESS authentications. It does not apply to WLAN IDs 9-16.
•H-REAP Local Authentication is applicable for controller version 7.0.116.0 onwards.
•H-REAP Local Authentication works with Layer2 MAC Filtering.
•The Layer2 security 802.1X+Static WEP is not supported with H-REAP Local Authentication.
•The Layer 3 Web policies are not supported with H-REAP Local Authentication.
•H-REAP Local Auth configuration can be enabled only when H-REAP Local Switching option is selected.
•Enable H-REAP local authentication by selecting the H-REAP Local Auth check box.
Local authentication is useful where you cannot maintain the criteria a remote office setup of minimum bandwidth of 128 kbps with the roundtrip latency no greater than 100 ms and the maximum transmission unit (MTU) no smaller than 500 bytes. In local switching, the authentication capabilities are present in the access point itself. Thus local authentication reduces the latency requirements of the branch office.
Note Local authentication can only be enabled on the WLAN of a HREAP AP that is in local switching mode.
Local authentication is not supported in the following scenarios:
–Guest Authentication cannot be performed on a HREAP local authentication enabled WLAN.
–RRM information is not available at the controller for the hybrid REAP local authentication enabled WLAN.
–Local radius is not supported.
–Once the client has been authenticated, roaming will only be supported after the WLC and the other hybrid REAPs in the group are updated with the client information.
•Session Timeout (secs)—Set the maximum time a client session can continue before re-authentication.
•Aironet IE—Select the check box to enable support for Aironet information elements (IEs) for this WLAN.
–If Aironet IE support is enabled, the access point sends an Aironet IE 0x85 (which contains the access point name, load, number of associated clients, and so on) in the beacon and probe responses of this WLAN, and the controller sends Aironet IEs 0x85 and 0x95 (which contains the management IP address of the controller and the IP address of the access point) in the reassociation response if it receives Aironet IE 0x85 in the association request.
•IPv6—Select the check box to enable IPv6.
Note Layer 3 security must be set to None for IPv6 to be enabled.
•Diagnostic Channel—Click to enable the diagnostics. When enabled, clients can connect to this WLAN for diagnostic purposes.
Note The results of the diagnostic tests are stored in the SNMP table, and WCS polls these tables to display the results.
•Override Interface ACL—Choose a defined access control list (ACL) from the drop-down list. When the ACL is selected, the WLAN associates the ACL to the WLAN.
Note Choosing an ACL is optional, and the default is None.
For more information, see the "Configuring an Access Control List Template" section.
•Peer to Peer Blocking—From the drop-down list, choose Disable, Drop, or Forward-Up Stream.
–This option allows users to configure peer-to-peer blocking for individual clients rather than universally for all WLAN clients.
•Client Exclusion—Select the check box to enable automatic client exclusion. If it is enabled, set the timeout value in seconds for disabled client machines.
–Client machines are excluded by MAC address, and their status can be observed.
–A timeout setting of 0 indicates that administrative control is required to re-enable the client.
Note When session timeout is not set, the excluded client remains and will not time out from the excluded state. It does not imply that the exclusion feature is disabled.
•Media Session Snooping—Click to enable Media Session Snooping. This feature enables access points to detect the establishment, termination, and failure of voice calls and then report them to the controller and WCS. It can be enabled or disabled for each WLAN.
When media session snooping is enabled, the access point radios advertise this WLAN snoop for Session Initiation Protocol (SIP) voice packets. Any packets destined to or originating from port number 5060 are considered for further inspection. The access point tracks whether Wi-Fi Multimedia (WMM) and non-WMM clients are establishing a call, already on an active call, or in the process of ending a call and then notify the controller of any major call events.
•NAC Support—Select the NAC Support check box to enable it. SIP errors that are discovered generate traps that appear on the client troubleshooting and alarms screens. The controller can integrate with the NAC appliance in out-of-band mode, where the NAC appliance remains in the data path only until clients have been analyzed and cleaned. Out-of-band mode reduces the traffic load on the NAC appliance and enables centralized NAC processing. See the "NAC Out-of-Band Integration" section for more information.
•Passive Client—If the check box is selected, it enables passive clients on your WLAN.
Passive clients are wireless devices like scales and printers that are configured with a static IP address. These clients do not transmit any IP information such as IP address, subnet mask, and gateway information during association with an access point. As a result, when passive clients are used, the controller will never know the IP address unless they use DHCP.
Wireless LAN controllers currently act as a proxy for ARP requests. On receiving an ARP request, the controller responds with an ARP response instead of passing the request directly to the client. This has two advantages:
–The upstream device that sends out the ARP request to the client cannot know where the client is located.
–Reserves power for battery-operated devices like mobile phones and printers as they do not need to respond to every ARP request.
Because the wireless controller does not have any IP-related information about passive clients, it cannot respond to any ARP requests. The current behavior does not allow the transfer of ARP requests to passive clients. Therefore, any application that tries to access a passive client will fail.
This feature enables ARP requests and responses to be exchanged between wired and wireless clients on a per-VLAN/WLAN basis. This feature enables the user to mark a desired WLAN for presence of proxy ARP thereby enabling the controller to pass the ARP requests until the client gets to RUN state.
Note This feature is supported only on the 5500 and 2100 series controllers.
•DTIM Period (in beacon intervals)—For 802.11a/n and 802.11b/g/n, specify the frequency of the DTIM packet sent in the wireless medium. This period can be configured for every WLAN (except guest WLAN) on all version 6.0 and above controllers.
•DHCP
–DHCP Server—Select the check box to override the DHCP server, and enter the IP address of the DHCP server.
Note For some WLAN configurations, this setting is required.
–DHCP Addr. Assignment—If you select the Required check box, clients connected to this WLAN will get an IP address from the default DHCP server.
•Management Frame Protection (MFP)
–MFP Signature Generation—If the check box is selected, it enables signature generation for the 802.11 management frames transmitted by an access point associated with this WLAN. With signature generation, changes to the transmitted management frames by an intruder are detected and reported.
–MFP Client Protection—From the drop-down list, choose Optional, Disabled, or Required for individual WLAN configurations.
–MFP Version—Displays the Management Frame Protection version.
Note Client-side MFP is available only for those WLANs configured to support CCXv5 (or later) clients. In addition, WPA1 must first be configured.
•Foreign Controller Mapping—Click this link to configure foreign controller mappings. This will take you to the Foreign Controller configuration page. In this configuration page, choose a foreign controller from the Foreign Controller drop-down list and choose an interface or interface group from the Interface/Interface Group drop-down list. After choosing the required options, click Add to complete the adding of a foreign controller.
Adding a WLAN
To add a WLAN, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the appropriate controller.
Step 3 From the left sidebar menu, choose WLANs > WLAN Configuration.
Step 4 From the Select a command drop-down list, choose Add a WLAN.
Step 5 Click Go to open the WLAN Details: Add from Template page (see Figure 9-8).
Figure 9-8 WLAN Details: Add From Template Page
Step 6 Choose a template from the Select a template to apply to this controller drop-down list.
Step 7 Click Apply.
Note To create a new template for WLANs, use the click here link in this page, or choose Configure > Controller Template Launch Pad > WLANs > WLAN.
Deleting a WLAN
To delete a WLAN, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the appropriate controller.
Step 3 From the left sidebar menu, choose WLANs > WLAN Configuration.
Step 4 Select the check boxes of the WLANs that you want to delete.
Step 5 From the Select a command drop-down list, choose Delete a WLAN.
Step 6 Click Go.
Step 7 Click OK to confirm the deletion.
Managing WLAN Status Schedules
WCS enables you to change the status of more than one WLAN at a time on a given controller. You can select multiple WLANs and select the date and time for that status change to take place.
To schedule multiple WLANs for a status change, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the appropriate controller.
Step 3 From the left sidebar menu, choose WLANs > WLAN Configuration.
Step 4 Select the check boxes of the WLANs that you want to schedule for a status change.
Step 5 From the Select a command drop-down list, choose Schedule Status to open the WLAN Schedule Task Detail page (see Figure 9-9).
Figure 9-9 WLAN Schedule Task Detail Page
The selected WLANs are listed at the top of the page.
Step 6 Enter a Scheduled Task Name to identify this status change schedule.
Step 7 Choose the new Admin Status (Enabled or Disabled) from the drop-down list.
Step 8 Choose the schedule time using the hours and minutes drop-down lists.
Step 9 Click the calendar icon to choose a schedule date or enter the date in the text box (MM/DD/YYYY).
Step 10 Select the appropriate Recurrence radio button to determine the frequency of the status change (Daily, Weekly, or No Recurrence).
Step 11 Click Submit to initiate the status change schedule.
Note For more information on the WLAN Configuration Scheduled Task results, see the "Viewing WLAN Configuration Scheduled Task Results" section.
Mobility Anchors
Mobility anchors are one or more controllers defined as anchors for the WLAN. Clients (802.11 mobile stations such as a laptop) are always attached to one of the anchors.
This feature can be used to restrict a WLAN to a single subnet, regardless of the client's entry point into the network. In this way, users can access a public or guest WLAN throughout an enterprise but still be restricted to a specific subnet. Guest WLAN can also be used to provide geographical load balancing because WLANs can represent a particular section of a building (such as a lobby, restaurant, and so on).
When a client first associates to a controller of a mobility group that has been preconfigured as a mobility anchor for a WLAN, the client associates to the controller locally, and a local session is created for the client. Clients can be anchored only to preconfigured anchor controllers of the WLAN. For a given WLAN, you should configure the same set of anchor controllers on all controllers in the mobility group.
When a client first associates to a controller of a mobility group that has not been configured as a mobility anchor for a WLAN, the client associates to the controller locally, a local session is created for the client, and the controller is announced to the other controllers in the same mobility group. If the announcement is not answered, the controller contacts one of the anchor controllers configured for the WLAN and creates a foreign session for the client on the local switch. Packets from the client are encapsulated and delivered to the wired network. Packets to the client are received by the anchor controller and forwarded to the foreign controller through a mobility tunnel using EitherIP. The foreign controller decapsulates the packets and forwards them to the client.
Note A 2000 series controller cannot be designated as an anchor for a WLAN. However, a WLAN created on a 2000 series controllers can have a 4100 series controller or a 4400 series controller as its anchor.
Note The L2TP Layer 3 security policies are unavailable for WLANs configured with a mobility anchor.
To view the real time status of mobility anchors for a specific WLAN, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the appropriate controller.
Step 3 From the left sidebar menu, choose WLANs > WLAN Configuration.
Step 4 Click a WLAN ID to view the parameters for a specific WLAN.
Step 5 Click the Advanced tab.
Step 6 Click the Mobility Anchors link. Table 9-3 describes the parameters that are displayed.
Table 9-3 Mobility Anchors
Parameter
|
Description
|
Mobility Anchor
|
The IP address of the anchor.
|
Status
|
The current status of the anchor. For example, reachable or unreachable.
|
Configuring WLANs AP Groups
Site-specific VLANs or AP groups limit the broadcast domains to a minimum by segmenting a WLAN into different broadcast domains. Benefits of this include more effective management of load balancing and bandwidth allocation.
To open this page, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click a controller IP address.
Step 3 From the left sidebar menu, choose WLAN > AP Groups.
This page displays a summary of the AP groups configured on your network. From here you can add, remove, or view details of an AP group. Click the AP group name on the Access Points tab to view or edit its access point(s). Click the WLAN Profiles tab to view, edit, add, or delete WLAN profiles.
Adding Access Point Groups
To add a new access point group, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click a controller IP address.
Step 3 From the left sidebar menu, choose WLAN > AP Groups.
Note AP Groups (for 5.2 and later controllers) is referred to as AP Group VLANs for controllers prior to 5.2.
Step 4 From the Select a command drop-down list, choose Add AP Groups.
Step 5 Click Go.
In the AP Groups details page, you can add access points and WLAN profiles to this access point group.
Step 6 Enter a name and group description for the access point group.
Note The group description is optional.
Step 7 To add access points to the group, follow these steps:
a. Click the Access Points tab.
b. Click Add. The access point page displays parameters for available access points. Click the access point name to view or edit parameters for one of the available access points.
c. Select the check box(es) of the access point(s) you want to add.
d. Click Select.
Step 8 To add a WLAN profile to this group, follow these steps:
a. Click the WLAN Profiles tab.
Note Each access point is limited to sixteen WLAN profiles. Each access point broadcasts all WLAN profiles unless the WLAN override feature is enabled. The WLAN override feature allows you to disable any of the 16 WLAN profiles per access point.
Note The WLAN override feature applies only to older controllers that do not support the 512 WLAN feature (can support up to 512 WLAN profiles).
Note OfficeExtend access points are limited to fifteen WLAN profiles because one is reserved as the personal or local SSID for the OfficeExtend access point.
Step 9 Enter a WLAN profile name or choose one from the WLAN Profile Name drop-down list.
Step 10 Choose the interface or interface group from the Interface/Interface Group drop-down list.
Note For more information about configuring interfaces, see the "Configuring Controller System Interfaces" section.
Step 11 Select the NAC Override check box, if applicable. NAC override is disabled by default.
Step 12 When access points and WLAN profiles are added, click Save.
Note After saving, use the edit icon from the WLAN Profiles tab to edit WLAN profile information.
Note Changing the WLAN-interface mapping in an AP Group will remove the local VLAN mapping for HREAP APs in this group. These mappings will need to be reconfigured after applying this change.
Deleting Access Point Groups
To delete an access point group, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click a controller IP address.
Step 3 From the left sidebar menu, choose WLAN > AP Groups.
Step 4 Select the check box(es) of the access point group(s) that you want to delete.
Step 5 From the Select a command drop-down list, choose Delete AP Groups.
Step 6 Click OK to confirm the deletion.
Auditing Access Point Groups
You can audit the access point group to determine if the WCS and device values differ.
To audit an access point group, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click a controller IP address.
Step 3 From the left sidebar menu, choose WLAN > AP Groups.
Step 4 Click the name of the access point group that you want to audit.
Note Click Audit located at the bottom of the page.
Configuring Hybrid REAP Parameters
Hybrid REAP enables customers to configure and control access points in a branch or remote office from the corporate office through a wide area network (WAN) link without deploying a controller in each office. There is no deployment restriction on the number of hybrid-REAP access points per location. The hybrid-REAP access points can switch client data traffic locally and perform client authentication locally when their connection to the controller is lost. When they are connected to the controller, they can also send traffic back to the controller.
•Configuring H-REAP AP Groups
•Auditing an H-REAP Group
Configuring H-REAP AP Groups
To view a list of existing H-REAP AP groups, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose H-REAP > H-REAP AP Groups. The H-REAP AP Groups page opens.
•Group Name—The name of the H-REAP AP group. Click the group name to view its details.
Note Use the check box to select a group for deletion.
Configuring a H-REAP AP Group
To configure a hybrid-REAP access point group, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose H-REAP > H-REAP AP Groups.
Step 4 From the Select a command drop-down list, choose Add H-REAP AP Group to open the H-REAP AP Group > Add From Template pane.
Step 5 Choose a template from the Select a template to apply to this controller drop-down list.
Step 6 Click Apply.
Note To make modifications to an existing H-REAP AP Group, click the existing group in the Group Name column of the H-REAP AP Group page.
To delete an existing group, select the check box of the group you want to remove, and choose Delete H-REAP AP Group from the Select a command drop-down list.
Step 7 Configure the following H-REAP AP Group parameters:
•General tab
–Template Name—The name of the template applied to this controller.
–Primary Radius—From the drop-down list, choose the primary radius authentication server present on the controller.
Note If a RADIUS authentication server is not present on the controller, the WCS configured RADIUS server does not apply.
Note You must configure the RADIUS server configuration on the controller before you apply H-REAP RADIUS server configuration from WCS.
–Secondary Radius—From the drop-down list, choose the secondary radius authentication server present on the controller.
Note If a RADIUS authentication server is not present on the controller, the WCS configured RADIUS server does not apply.
•H-REAP AP tab
–Ethernet MAC—Select this check box to apply to the H-REAP group.
Note An AP Ethernet MAC address cannot exist in more than one H-REAP group on the same controller. The controller will not allow you to set an AP Ethernet MAC in a hybrid-REAP group if it is already present in another H-REAP group.
–Add AP—Click to add an additional H-REAP AP (present in the WCS) to an existing H-REAP group.
Step 8 If you want to enable local authentication for a hybrid-REAP group, click the H-REAP Configuration tab.
Note Make sure that the Primary RADIUS Server and Secondary RADIUS Server parameters are set to None on the General tab.
Step 9 Select the H-REAP Local Authentication Enable check box to enable local authentication for this hybrid-REAP group. The default value is unseelcted.
Step 10 To allow a hybrid-REAP access point to authenticate clients using LEAP, select the LEAP check box. Otherwise, to allow a hybrid-REAP access point to authenticate clients using EAP-FAST, select the EAP-FAST check box.
Step 11 Perform one of the following, depending on how you want protected access credentials (PACs) to be provisioned:
•To use manual PAC provisioning, enter the key used to encrypt and decrypt PACs in the EAP=FAST Key text box. The key must be 32 hexadecimal characters.
•To allow PACs to be sent automatically to clients that do not have one during PAC provisioning, select the Ignore Server Key check box.
Step 12 In the EAP-FAST Authority ID text box, enter the authority identifier of the EAP-FAST server. The identifier must be 32 hexadecimal characters.
Step 13 In the EAP-FAST Authority Info text box, enter the authority identifier of the EAP-FAST server in text format. You can enter up to 32 hexadecimal characters.
Step 14 In the EAP-FAST PAC Timeout text box, specify a PAC timeout value by entering the number of seconds for the PAC to remain visible in the edit text box. The valid range is 2 to 4095 seconds.
Note To see if an individual access point belongs to a hybrid-REAP group, click the Users configured in the group link. It advances you to the H-REAP AP Group page which shows the names of the groups and the access points that belong in it.
Auditing an H-REAP Group
If the H-REAP configuration changes over a period of time either on WCS or the controller, you can audit the configuration. The changes are visible in subsequent pages. You can specify to refresh WCS or the controller to synchronize the configuration.
Configuring Security Parameters
This section contains the following topics:
•Configuring Controller File Encryption
•Configure Controllers > IPaddr > Security > AAA
•Configure Controllers > IPaddr > Security > Local EAP
•Configuring User Login Policies
•Managing Manually Disabled Clients
•Configuring Access Control Lists
•Configuring CPU Access Control Lists
•Configuring the IDS Sensor List
•Configuring CA Certificates
•Configuring ID Certificates
•Configure Controllers > IPaddr > Security > Web Auth Certificate
•Configuring Wireless Protection Policies
•Configuring Rogue Policies
•Configuring Rogue AP Rules
•Configuring Client Exclusion Policies
•Configuring Controller Standard Signature Parameters
•Configuring Custom Signatures
•Configuring AP Authentication and MFP
Configuring Controller File Encryption
To configure a controller file encryption, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > File Encryption. File encryption ensures that data is encrypted when you upload or download the controller configuration file from a TFTP server.
File Encryption parameters include:
•File Encryption—If this option is enabled, the data in the controller configuration file is encrypted when it is uploaded or downloaded through the TFTP server.
•Encryption Key—A text string of exactly 16 characters.
•Confirm Encryption Key—Enter the encryption key.
Configure Controllers > IPaddr > Security > AAA
This section describes how to configure controller security AAA parameters and contains the following topics:
•Configuring AAA General Parameters
•Configuring AAA RADIUS Auth Servers
•Configuring AAA RADIUS Acct Servers
•Configuring AAA RADIUS Fallback Parameters
•Configuring AAA LDAP Servers
•Configuring AAA TACACS+ Servers
•Configuring AAA Local Net Users
•Configuring AAA MAC Filtering
•Configuring AAA AP/MSE Authorization
•Configuring AAA Web Auth Configuration
•Configuring AAA Web Auth Configuration
Configuring AAA General Parameters
The General page allows you to configure the local database entries on a controller.
To configure the local database entries, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > AAA > General.
Step 4 Enter the maximum number of allowed database entries. This amount becomes effective on the next reboot. The valid range is 512 - 2048.
Configuring AAA RADIUS Auth Servers
To view a summary of existing RADIUS authentication servers, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > AAA > RADIUS Auth Servers. The following RADIUS Auth Servers parameters appear:
•Server Index—Access priority number for the RADIUS server (display only). Click to go to Configure IPaddr > RADIUS Authentication Server.
•Server Address—IP address of the RADIUS server (read-only).
•Port Number—Controller port number (read-only).
•Admin Status—Enable or Disable.
•Network User—Enable or Disable.
•Management User—Enable or Disable.
Adding an Authentication Server
To add an authentication server, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > AAA > RADIUS Auth Servers.
Step 4 From the Select a command drop-down list, choose Add Auth Server to open the Radius Authentication Server > Add From Template page.
Step 5 Choose a template from the Select a template to apply to this controller drop-down list.
Step 6 Click Apply.
Note To create a new template for Radius authentication servers, choose Configure > Controller Templates > Security > RADIUS Auth Servers.
Configuring AAA RADIUS Acct Servers
To view a summary of existing RADIUS accounting servers, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > AAA > RADIUS Acct Servers. RADIUS Acct Server parameters include the following:
•Server Index—Access priority number for the RADIUS server (read-only). Click to open the Radius Acct Servers Details page.
Note To edit or audit the current accounting server parameters, click the Server Index for the applicable accounting server.
•Server Address—IP address of the RADIUS server (read-only).
•Port Number—Controller port number (read-only).
•Admin Status—Enable or Disable.
•Network User—Enable or Disable.
Command Buttons
•Save
•Audit
Adding an Accounting Server
To add an accounting server, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > AAA > RADIUS Acct Servers.
Step 4 From the Select a command drop-down list, choose Add Acct Server to open the Radius Acct Servers Details > Add From Template page.
Step 5 Choose a template from the Select a template to apply to this controller drop-down list.
Step 6 From the drop-down list, choose a controller to apply to this template.
Step 7 Click Apply.
Note To create a new template for Radius accounting servers, choose Configure > Controller Templates Launch Pad > Security > RADIUS Acct Servers.
Deleting an Accounting Server
To delete an accounting server, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > AAA > RADIUS Acct Servers.
Step 4 Select the check box(es) for the applicable accounting server(s).
Step 5 From the Select a command drop-down list, choose Delete Acct Server.
Step 6 Click Go.
Step 7 Click OK in the pop-up dialog box to confirm the deletion.
Configuring AAA RADIUS Fallback Parameters
To configure RADIUS fallback parameters, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > AAA > RADIUS Fallback.
Step 4 Add or modify the following parameters:
•RADIUS FallbackMode
•Username
•Time Interval
Step 5 Click Save.
Note Click Audit to check the present configuration status of WCS and the controller.
Configuring AAA LDAP Servers
This page enables you to add and delete LDAP servers to this controller.
To access the LDAP Servers page, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > AAA > LDAP Servers.
This page displays LDAP servers currently used by this controller and contains the following parameters:
•Check box—Select the check box to choose an LDAP server for deletion.
•Server Index—A number assigned to identify the LDAP server.
Note Click the index number to go the LDAP server configuration page.
•Server Address—The LDAP server IP address.
•Port Number—The port number used to communicate with the LDAP server.
•Admin Status—Server template status.
Indicates if use of the LDAP server template is enabled o disabled.
Note If the title of a column is a link, click it to toggle between ascending and descending order.
Note WCS now supports LDAP configuration for both an anonymous or authenticated bind. For more information, see the "Configuring New LDAP Bind Requests" section.
LDAP Servers Select a command Drop-Down List Options
Adding LDAP Server
To add a LDAP Server, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > AAA > LDAP Servers.
Step 4 From the Select a command drop-down list, choose Add LDAP Server.
Step 5 Click Go.
Deleting LDAP Servers
To delete the LDAP Server, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > AAA > LDAP Servers.
Step 4 Select the check box(es) of the LDAP servers that you want to delete.
Step 5 From the Select a command drop-down list, choose Delete LDAP Servers.
Step 6 Click Go.
Configuring New LDAP Bind Requests
WCS now supports LDAP configuration for both an anonymous or authenticated bind. A bind is a socket opening that performs a lookup.
To configure LDAP bind requests, follow these steps:
Step 1 Choose Configure > Controller.
Step 2 From the left sidebar menu, choose Security > AAA > LDAP Servers.
Step 3 From the Bind Type drop-down list, choose Authenticated or Anonymous. If you choose Authenticated, you must enter a bind username and password as well.
Step 4 In the Server User Base DN text box, enter the distinguished name of the subtree in the LDAP server that contains a list of all the users.
Step 5 In the Server User Attribute text box, enter the attribute that contains the username in the LDAP server.
Step 6 In the Server User Type text box, enter the ObjectType attribute that identifies the user.
Step 7 In the Retransmit Timeout text box, enter the number of seconds between retransmissions. The valid range is 2 to 30 seconds, and the default value is 2 seconds.
Step 8 Select the Admin Status check box if you want the LDAP server to have administrative privileges.
Step 9 Click Save.
Configuring AAA TACACS+ Servers
This page enables you to add and delete TACACS+ servers to this controller.
To access the TACACS+ Servers page, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > AAA > TACACS+ Servers.
This page displays TACACS+ servers currently used by this controller and contains the following parameters:
•Check box—Select the check box to choose a TACACS+ server for deletion.
•Server Type—The TACACS+ server type.
•Displays Accounting, Authorization, or Authentication.
•Server Index—A number assigned to identify the TACACS+ server and set its use priority.
•Click the index number to go the TACACS+ server configuration page.
•Server Address—The TACACS+ server IP address.
•Port Number—The port number used to communicate with the TACACS+ server.
•Admin Status—Server template status.
Indicates if use of the TACACS+ server template is enabled.
If the title of a column is a link, click it to toggle between ascending and descending order.
The Select a command drop-down list has the following options:
•Add TACACS+ Server—Choose this option, then click Go to add a TACACS+ server to the controller.
•Delete TACACS+ Servers—Choose this option, then click Go to delete all TACACS+ servers with a selected check box from the controller.
Configuring AAA Local Net Users
This page provides a summary of the existing local network user controllers for clients who are allowed to access a specific WLAN. This is an administrative bypass of the RADIUS authentication process. Layer 3 Web Authentication must be enabled. The client information is passed to the RADIUS authentication server first, and if the client information does not match a RADIUS database entry, this local database is polled. Clients located in this database are granted access to network services if the RADIUS authentication fails or does not exist.
•Adding a Local Net User
•Deleting a Local Net User
To view existing local network users, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > AAA > Local Net Users. The Local Net Users page displays the following local net user parameters:
•Username—User-defined identification.
•WLAN ID—Any WLAN ID, 1 through 16; 0 for all WLANs; 17 for third-party WLAN that this local net user is allowed to access.
•Description—Optional user-defined description.
Adding a Local Net User
To add a local net user, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > AAA > Local Net Users.
Step 4 From the Select a command drop-down list, choose Add Local Net User to open the Local Net User > Add From Template page.
Step 5 Choose a template from the Select a template to apply to this controller drop-down list.
Step 6 Click Apply.
Note To create a new template for local net users, choose Configure > Controller Templates > Security > Local Net Users. See the "Configuring a Local Network Users Template" section for more information.
Deleting a Local Net User
To delete a local net user, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > AAA > Local Net Users.
Step 4 Select the check box(es) for the applicable local net user(s).
Step 5 From the Select a command drop-down list, choose Delete Local Net Users.
Step 6 Click Go.
Step 7 Click OK in the dialog box to confirm the deletion.
Configuring AAA MAC Filtering
This page enables you to view MAC Filter parameter information.
To access the MAC Filtering page, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > AAA > MAC Filtering. The MAC Filtering page displays the following parameters:
•MAC Filter Parameters
–RADIUS Compatibility Mode—User-defined RADIUS server compatibility: Cisco ACS, FreeRADIUS, or Other.
–MAC Delimiter—The MAC delimiters can be Colon (xx:xx:xx:xx:xx:xx), Hyphen (xx-xx-xx-xx-xx-xx), Single Hyphen (xxxxxx-xxxxxx), or No Delimiter (xxxxxxxxxxxx), as required by the RADIUS server.
•MAC Filters
–MAC Address—Client MAC address. Click to open Configure IPaddr > MAC Filter.
–WLAN ID—1 through 16, 17 = Third-party AP WLAN, or 0 = all WLANs.
–Interface—Displays the associated Interface Name.
–Description—Displays an optional user-defined description.
Step 4 From the Select a command drop-down list, choose Add MAC Filters to add a MAC Filter, Delete MAC Filters to delete the template(s), or Edit MAC Filter Parameters to edit the MAC Filters.
Step 5 Click Go.
Configuring AAA AP/MSE Authorization
The AP/MSE Authorization page displays the access point policies and the list of authorized access points along with the type of certificate that an access point uses for authorization.
To access the AP/MSE Authorization page, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > AAA > AP/MSE Authorization. The AP/MSE Authorization page displays the following parameters:
•AP Policies
–Authorize APs—Enabled or Disabled.
–Accept SSC-APs—Enabled or Disabled.
•AP/MSE Authorization
–AP/MSE Base Radio MAC Address—The MAC address of the authorized access point.
Note Click the AP/MSE Base Radio MAC Address to view AP/MSE Authorization details.
–Type
–Certificate Type—MIC or SSC.
–Key Hash—The 40-hex long SHA1 key hash.
Note The key hash is displayed only if the certificate type is SSC.
Command Buttons
•Add AP/MSE Auth Entry—Select this command, and click Go. See the "Configuring an Access Point or MSE Authorization Template" section.
•Delete AP/MSE Auth Entries—Select one or more access points, select this command, and click Go to delete the selected access point from the AP authorization list.
•Edit AP Policies—Select this command, and click Go. See the "Editing AP Policies" section.
Editing AP Policies
To edit AP/MSE Authorization access point policies, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > AAA > AP/MSE Authorization.
Step 4 In Edit AP Policies page, edit the following parameters, if necessary:
•Authorize APs—Select the check box to enable access point authorization.
•Accept SSC-APs—Select the check box to enable the acceptance of SSE access points.
Step 5 Click Save to confirm the changes, Audit to perform an audit on these device values, or Cancel to close this page with no changes.
Configuring AAA Web Auth Configuration
The Web Auth Configuration page enables the user to configure the Web auth configuration type. If the type is configured as customized, the user downloaded web auth replaces the controller-provided internal web auth page.
To access the Web Auth Configuration page, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > AAA > Web Auth Configuration.
Step 4 In the Web Authentication page, choose the Web Auth Type from the drop-down list. Web auth options include a default internal web page, a customized web authentication page, or an external web page.
Step 5 Configure the web auth parameters depending on the type chosen:
•Default Internal
–Logo Display—Enable or disable logo display.
–Web Auth Page Title—Title displayed on web authentication page.
–Web Auth Page Message—Message displayed on web authentication page.
–Custom Redirect URL—URL where the user is redirected after a successful authentication. For example, if the value entered for this text box is http://www.example.com, the user would be directed to the company home page.
•Customized Web Auth
You have the option of downloading an example login page and customizing the page. If you are using a customized web authentication page, it is necessary to download the example login.tar bundle file from the server, edit the login.html file and save it as either a .tar or .zip file, then download the .tar or .zip file to the controller.
Click the preview image to download this sample login page as a TAR. After editing the HTML you may click here to redirect to the Download Web Auth page. See the "Downloading a Customized WebAuthentication Bundle to a Controller" section for more information.
•External
–External Redirect URL—Location of the login.html on an external server on the network.
If there are not any external web auth servers configured, you have the option of configuring one.
No external Web Auth server(s) configured.
Note To configure an external web server template, see the "Configuring an External Web Auth Server Template" section.
Command Buttons
•Save—Save the current settings to the controller.
•Audit—Check the present configuration status of WCS and the controller.
Configuring AAA Password Policy
This page enables you to determine your password policy.
To make modifications to an existing password policy, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > AAA > Password Policy.
Step 4 Modify the password policy parameters as appropriate (see Figure 9-10).
Figure 9-10 Password Policy
Step 5 Click Save.
Note If you disable password policy options, you will see a "Disabling the strong password check(s) will be a security risk as it allows weak passwords" message.
Configure Controllers > IPaddr > Security > Local EAP
Local EAP is an authentication method that allows users and wireless clients to be authenticated locally. It is designed for use in remote offices that want to maintain connectivity to wireless clients when the backend system becomes disrupted or the external authentication server goes down.
When you enable local EAP, the controller serves as the authentication server and the local user database, making it independent of an external authentication server. Local EAP retrieves user credentials from the local user database or the LDAP backend database to authenticate users.
Configuring Local EAP General Parameters
This page allows you to specify a timeout value for local EAP. You can then add a template with this timeout value or make changes to an existing template.
Note If any RADIUS servers are configured on the controller, the controller tries to authenticate the wireless clients using the RADIUS servers first. Local EAP is attempted only if no RADIUS servers are found, either because the RADIUS servers timed out or no RADIUS servers were configured. If four RADIUS servers are configured, the controller attempts to authenticate the client with the first RADIUS server, then the second RADIUS server, and then local EAP. If the client attempts to then reauthenticate manually, the controller tries the third RADIUS server, then the fourth RADIUS server, and then local EAP.
To specify a timeout value for local EAP, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > Local EAP > General - Local EAP.
Step 4 Enter the Local Auth Active Timeout in the Local Auth Active Timeout text box (in seconds).
Note Local Auth Active Timeout refers to the timeout period during which Local EAP will always be used after all Radius servers are failed.
Step 5 The following values should be adjusted if you are using EAP-FAST, manual password entry, one-time password, or 7920/7921 phones.
Note You must increase the 802.1x timeout values on the controller (default=2 seconds) for the client to obtain the PAC using automatic provisioning. We recommend the default timeout on the Cisco ACS server of 20 seconds.
•Local EAP Identify Request Timeout =1 (in seconds)
•Local EAP Identity Request Maximum Retries=20 (in seconds)
•Local EAP Dynamic Wep Key Index=0
•Local EAP Request Timeout=20 (in seconds)
•Local EAP Request Maximum Retries=2
•EAPOL-Key Timeout=1000 (in milli-seconds)
•EAPOL-Key Max Retries=2
•Max-Login Ignore Identity Response
Note Roaming fails if these values are not set the same across multiple controllers.
Step 6 Click Save.
Command Buttons
•Save—Click to save the current template.
•Apply to Controllers—Click to apply the current template to controllers. In the Apply to Controllers page, choose the applicable controllers, and click OK.
•Delete—Click to delete the current template. If the template is currently applied to controllers, click OK to confirm that you want to remove the template from the selected controllers to which it is applied.
•Cancel—Click to cancel the current template creation or changes to the current template.
Configuring Local EAP Profiles
This page allows you to apply a template for a local EAP profile or make modifications to an existing template.
Note The LDAP backend database supports only these local EAP methods: EAP-TLS and EAP-FAST with certificates. LEAP and EAP-FAST with PACs are not supported for use with the LDAP backend database.
•Viewing Existing Local EAP Profiles
•Adding a Local Net User
Viewing Existing Local EAP Profiles
To view existing local EAP profiles, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > Local EAP > Local EAP Profiles. The Local EAP Profiles page displays the following parameters:
•EAP Profile Name—User-defined identification.
•LEAP—Authentication type that leverages Cisco Key Integrity Protocol (CKIP) and MMH message integrity check (MIC) for data protection. A username and password are used to perform mutual authentication with the RADIUS server through the access point.
•EAP-FAST—Authentication type (Flexible Authentication via Secure Tunneling) that uses a three-phased tunnel authentication process to provide advanced 802.1x EAP mutual authentication. A username, password, and PAC (protected access credential) are used to perform mutual authentication with the RADIUS server through the access point.
•TLS—Authentication type that uses a dynamic session-based WEP key derived from the client adapter and RADIUS server to encrypt data. It requires a client certificate for authentication.
•PEAP—Protected Extensible Authentication Protocol.
Adding a Local Net User
To add a local EAP profile, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > Local EAP > Local EAP Profile.
Step 4 From the Select a command drop-down list, choose Add Local EAP Profile to open the Local EAP Profile > Add From Template page.
Step 5 Choose a template from the Select a template to apply to this controller drop-down list.
Step 6 Click Apply.
Note To create a new template for local EAP profiles, choose Configure > Controller Templates > Security > Local EAP Profiles.
Configuring Local EAP General EAP-FAST Parameters
This authentication type (Flexible Authentication via Secure Tunneling) uses a three-phased tunnel authentication process to provide advanced 802.1x EAP mutual authentication. A username, password, and PAC are used to perform mutual authentication with the RADIUS server through the access point.
To set EAP-FAST Parameters, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > Local EAP > EAP-FAST Parameters.
Step 4 Enter the following parameters:
•Time to live for the PAC—The number of days for the PAC to remain viable. The valid range is 1 to 1000 days; the default setting is ten days.
•Authority ID—The authority identifier of the local EAP-FAST server in hexidecimal characters. You can enter up to 32 hexadecimal characters but it must be an even number of characters.
•Authority Info—The authority identifier of the local EAP-FAST server in text format.
•Server Key—The key (in hexadecimal characters) used to encrypt and decrypt PACs.
•Confirm Server Key—Verify the correct Server Key by re-typing it.
•Anonymous Provision—Select the check box to enable anonymous provisioning.
Note This feature allows PACs to be sent automatically to clients that do not have one during PAC provisioning. If this feature is disabled, PACs must be manually provisioned.
Step 5 Click Save.
Configuring Local EAP General Network Users Priority
To specify the order that LDAP and local databases use to retrieve user credential information, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > Local EAP > Network Users Priority.
Step 4 Use the left and right pointing arrows to include or exclude network credentials in the right-most list.
Step 5 Use the up and down buttons to determine the order credentials are attempted.
Step 6 Click Save.
Configuring User Login Policies
To configure the user login policies, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > User Login Policies.
Step 4 Enter the maximum number of concurrent logins allowed for a single username.
Step 5 Click Save.
Managing Manually Disabled Clients
The Disabled Clients page enables you to view excluded (blacklisted) client information.
Clients who fail to authenticate three times when attempting to associate are automatically blocked, or excluded, from further association attempts for an operator-defined timeout. After the Excluded timeout, the client is allowed to retry authentication until it associates or fails authentication and is excluded again.
To access the Manually Disabled Clients page, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose Security > Manually Disabled Clients. The Manually Disabled Clients page displays the following parameters:
•MAC Address—Disabled Client MAC addresses. Click a list item to edit the disabled client description.
•Description—Optional description of disabled client.
Manually Disabled Clients Select a command Drop-Down List Options
•Add Manually Disabled Client—Select this command, and click Go. See the "Configuring a Manually Disabled Client Template" section.
•Delete Manually Disabled Clients—Select the applicable controller check box, select this command, and click Go.
Configuring Access Control Lists
The Access Control Lists page displays access control lists (ACLs) available for this controller. It also enables you to add a new rule or edit an existing rule in an applied access control list.
To access the Access Control Lists page, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the applicable IP address under the IP Address column.
Step 3 From the left sidebar menu, choose Security > Access Control Lists.
•Check box—Use the check box to select one or more ACLs for deletion.
•ACL Name—User-defined name of this template. Click an ACL item to view its parameters. See the "Configure IPaddr > Access Control List > listname Rules" section.
Configure IPaddr > Access Control List > listname Rules
This page displays current access control list (ACL) rules applied to this access control list.
To access the Access Control Lists Rules page, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the applicable IP address under the IP address column.
Step 3 From the left sidebar menu, choose Security > Access Control Lists.
Step 4 Click an ACL name.
•Check box—Select to delete access control list rules.
•Seq#—The operator can define up to 64 Rules for each ACL. The Rules for each ACL are listed in contiguous sequence from 1 to 64. That is, if Rules 1 through 4 are already defined and you add Rule 29, it will be added as Rule 5.
Note If you add or change a Sequence number, operating system adjusts the other rule sequence numbers to retain the contiguous sequence. For instance, if you have Sequence numbers 1 through 7 defined and change number 7 to 5, operating system automatically reassigns Sequence 6 to 7 and Sequence 5 to 6.
•Action—Permit, Deny.
•Source IP/Mask—Source IP address and mask.
•Destination IP/Mask—Destination IP address and mask.
•Protocol—Protocol to use for this ACL:
–Any—All protocols
–TCP—Transmission Control Protocol
–UDP—User Datagram Protocol
–ICMP—Internet Control Message Protocol
–ESP—IP Encapsulating Security Payload
–AH—Authentication Header
–GRE—Generic Routing Encapsulation
–IP—Internet Protocol
–Eth Over IP—Ethernet over Internet Protocol
–Other Port OSPF—Open Shortest Path First
–Other—Any other IANA protocol (http://www.iana.org/)
If TCP or UDP is selected, Source Port and Dest Port parameters appear:
–Source Port—Source Port. Can be Any, HTTP, HTTPS, Telnet, RADIUS, DHCP Server, DHCP Client, DNS, L2TP, PPTP control, FTP control, SMTP, SNMP, LDAP, Kerberos, NetBIOS NS, NetBIOS DS, NetBIOS SS, MS Dir Server, Other and Port Range.
–Dest Port—Destination port. If TCP or UDP is selected, can be Any, HTTP, HTTPS, Telnet, RADIUS, DHCP Server, DHCP Client, DNS, L2TP, PPTP control, FTP control, SMTP, SNMP, LDAP, Kerberos, NetBIOS NS, NetBIOS DS, NetBIOS SS, MS Dir Server, Other and Port Range.
•DSCP (Differentiated Services Code Point)—Any, or 0 through 255.
•Direction—Any, Inbound (from client) or Outbound (to client).
To add a new ACL rule, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose Security > Access Control Lists.
Step 4 Click an ACL Name.
Step 5 Click an applicable Seq#, or choose Add New Rule to access this page.
Configuring CPU Access Control Lists
Access control lists (ACL) can be applied to the controller CPU to control traffic to the CPU.
The Access Control Lists Rules page displays the name of the CPU access control list template applied to the chosen controller.
To access the Access Control Lists Rules page, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click a controller IP address.
Step 3 From the left sidebar menu, choose Security > CPU Access Control Lists.
Step 4 Select the Enable CPU ACL check box to enable the CPU ACL.
If this check box is selected, the following parameters are available:
•ACL Name—Choose the ACL to use from the ACL Name drop-down list.
•CPU ACL Mode—Choose which data traffic direction this CPU ACL list controls.
The choices include: The wired side of the data traffic, the wireless side of the data traffic, or both wired and wireless.
Configuring the IDS Sensor List
When the sensors identify an attack, they alert the controller to shun the offending client. When you add a new IDS (Intrusion Detection System) sensor, you register the controller with that IDS sensor so that the sensor can send shunned client reports to the controller. The controller also polls the sensor periodically.
To view IDS sensors, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose Security > IDS Sensor Lists.
The IDS Sensor page lists all IDS sensors that have been configured for this controller. Click an IP address to view details for a specific IDS sensor.
Configuring CA Certificates
A CA certificate is a digital certificate issued by one certificate authority (CA) for another certification CA.
•Importing a CA Certificate
•Pasting a CA Certificate Directly
Importing a CA Certificate
To import a CA certificate from a file, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose Security > IP Sec Certificates > CA Certificate.
Step 4 Click Browse to navigate to the applicable certificate file.
Step 5 Click Open.
Step 6 Click Save.
Pasting a CA Certificate Directly
To paste a CA certificate directly, follow these steps:
Step 1 Copy the CA certificate to your computer clipboard.
Step 2 Choose Configure > Controllers.
Step 3 Click an applicable IP address.
Step 4 From the left sidebar menu, choose Security > IP Sec Certificates > CA Certificate.
Step 5 Select the Paste check box.
Step 6 Paste the certificate directly into the text box.
Step 7 Click Save.
Configuring ID Certificates
This page lists the existing network ID certificates by certificate name. An ID certificate can be used by web server operators to ensure secure server operation. This section contains the following topics:
•Importing a ID Certificate
•Pasting an ID Certificate
Importing a ID Certificate
To import an ID certificate from a file, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose Security > IP Sec Certificates > ID Certificate.
Step 4 From the Select a command drop-down list, choose Add Certificate.
Step 5 Click Go.
Step 6 Enter the Name and Password.
Step 7 Click Browse to navigate to the applicable certificate file.
Step 8 Click Open.
Step 9 Click Save.
Pasting an ID Certificate
To paste an ID certificate directly, follow these steps:
Step 1 Copy the ID certificate to your computer clipboard.
Step 2 Choose Configure > Controllers.
Step 3 Click an applicable IP address.
Step 4 From the left sidebar menu, choose Security > IP Sec Certificates > ID Certificate.
Step 5 From the Select a command drop-down list, choose Add Certificate.
Step 6 Click Go.
Step 7 Enter the Name and Password.
Step 8 Select the Paste check box.
Step 9 Paste the certificate directly into the text box.
Step 10 Click Save.
Note ID certificates are available only if the controller is running Cisco Unified Wireless Network Software Version 3.2 or higher.
Note To delete a certificate, select it, choose Delete Certificates from the Select a command drop-down list, and click Go.
Configure Controllers > IPaddr > Security > Web Auth Certificate
This page enables you to download a web authorization certificate or regenerate the internally-generated web auth certificate.
To access the Web Auth Certificate page, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose Security > Web Auth Certificate.
Caution Each certificate has a variable-length embedded RSA Key. The RSA key can vary from 512 bits, which is relatively insecure, through thousands of bits, which is very secure. When you are obtaining a new certificate from a certificate authority (such as the Microsoft CA), make sure the RSA key embedded in the certificate is at least 768 Bits.
•Download Web Auth Certificate—Click to access the Download Web Auth Certificate to Controller page. See the "Download Web Auth or Web Admin Certificate to Controller" section for additional information.
Command Buttons
•Regenerate Cert—Regenerate the internally-generated web auth certificate.
Configuring Wireless Protection Policies
This section describes the wireless protection policy configurations and contains the following topics:
•Configuring Rogue Policies
•Configuring Rogue AP Rules
•Configuring Client Exclusion Policies
•Configuring Controller Standard Signature Parameters
•Configuring Custom Signatures
•Configuring AP Authentication and MFP
Configuring Rogue Policies
This page enables you to set up policies for rogue access points.
To access the Rogue Policies page, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose Security > Wireless Protection Policies > Rogue Policies. The following parameters appear:
•Rogue Location Discovery Protocol—RLDP determines whether or not the rogue is connected to the enterprise wired network. Choose one of the following from the drop-down list:
–Disable—Disables RLDP on all access points. This is the default value.
–All APs—Enables RLDP on all access points.
–Monitor Mode APs—Enables RLDP only on access points in monitor mode.
Note Make sure that rogue detection is enabled on the desired access points. Rogue detection is enabled by default for all access points joined to a controller (except for OfficeExtend access points). However, in WCS software Release 6.0 or later, you can enable or disable rogue detection for individual access points by selecting or unselecting the Rogue Detection check box in the Access Point Details page. See the "Configuring Access Points" section for more information.
Note Rogue detection is disabled by default for OfficeExtend access points because these access points, which are deployed in a home environment, are likely to detect a large number of rogue devices.
•Rogue APs
–Expiration Timeout for Rogue AP and Rogue Client Entries (seconds)—Enter the number of seconds after which the rogue access point and client entries expire and are removed from the list.
The valid range is 240 to 3600 seconds and the default value is 1200 seconds.
Note If a rogue access point or client entry times out, it is removed from the controller only if its rogue state is Alert or Threat for any classification type.
•Rogue Clients
–Validate rogue clients against AAA—Select the check box to use the AAA server or local database to validate if rogue clients are valid clients. The default value is unselected.
–Detect and report Adhoc networks—Select the check box to enable ad-hoc rogue detection and reporting. The default value is selected.
Command Buttons
•Save—Save the changes made to the client exclusion policies and return to the previous page.
•Audit—Compare the WCS values with those used on the controller.
Configuring Rogue AP Rules
This page enables you to view and edit current Rogue AP Rules.
To access the Rogue AP Rules page, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose Security > Wireless Protection Policies > Rogue AP Rules. The Rogue AP Rules displays the Rogue AP Rules, the rule types (Malicious or Friendly), and the rule sequence.
Step 4 Click a Rogue AP Rule to view or edit its details. See the "Configuring a Rogue AP Rules Template" section for more information.
Configuring Client Exclusion Policies
This page enables you to set, enable, or disable the client exclusion policies applied to the controller.
To access the Client Exclusion Policies page, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose Security > Wireless Protection Policies > Client Exclusion Policies. The following parameters appear:
•Excessive 802.11a Association Failures—If enabled, clients are excluded on the sixth 802.11 association attempt, after five consecutive failures.
•Excessive 802.11a Authentication Failures—If enabled, clients are excluded on the sixth 802.11 authentication attempt, after five consecutive failures.
•Excessive 802.11x Authentication Failures—If enabled, clients are excluded on the fourth 802.1X authentication attempt, after three consecutive failures.
•Excessive 802.11 Web Authentication Failures—If enabled, clients are excluded on the fourth web authentication attempt, after three consecutive failures.
•IP Theft Or Reuse—If enabled, clients are excluded if the IP address is already assigned to another device.
Step 4 Click Save to save the changes made to the client exclusion policies and return to the previous page or click Audit to compare the WCS values with those used on the controller.
Configuring IDS Signatures
You can configure IDS Signatures, or bit-pattern matching rules used to identify various types of attacks in incoming 802.11 packets, on the controller. When the signatures are enabled, the access points joined to the controller perform signature analysis on the received 802.11 data or management frames and report any discrepancies to the controller. If an attack is detected, an appropriate mitigation action is initiated.
Cisco supports 17 standard signatures on the controller as shown on the Standard Signatures and Custom Signatures pages. For more information on these IDS Signatures, see the Cisco Wireless Control System Configuration Guide.
•Configuring Controller Standard Signature Parameters
•Configuring Custom Signatures
•Configuring AP Authentication and MFP
Configuring Controller Standard Signature Parameters
The Standard Signature Parameters page shows the list of Cisco-supplied signatures that are currently on the controller. This section contains the following topics:
•Downloading Signature Files
•Uploading Signature Files
•Global Settings for Standard and Custom Signatures
To access the Standard Signatures page, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose Security > Wireless Protection Policies > Standard Signatures. This page displays the following parameters:
•Precedence—The order in which the controller performs the signature checks.
•Name—The type of attack the signature is trying to detect.
•Frame Type—Management or data frame type on which the signature is looking for a security attack.
•Action—What the controller is directed to do when the signature detects an attack. For example:
–None—No action is taken.
–Report—Report the detection.
•State—Enabled or Disabled.
•Description—A more detailed description of the type of attack the signature is trying to detect.
Note Click a signature Name to view individual parameters and to enable or disable the signature.
Downloading Signature Files
To download a signature file, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose Security > Wireless Protection Policies > Standard Signatures or Security > Wireless Protection Policies > Custom Signatures.
Step 4 From the Select a command drop-down list, choose Download Signature Files.
Note This function can also be accessed by choosing System > Commands > Upload/Download Commands > Download IDS Signatures.
Step 5 Click Go.
Step 6 Copy the signature file (*.sig) to the default directory on your TFTP server.
Step 7 Choose Local Machine from the File is Located On. If you know the filename and path relative to the server root directory, you can also choose TFTP server.
Step 8 Enter the maximum number of times the controller should attempt to download the signature file in the Maximum Retries.
Step 9 Enter the maximum amount of time in seconds before the controller times out while attempting to download the signature file in the Timeout.
Step 10 The signature files are uploaded to the c:\tftp directory. Specify the local file name in that directory or click the Browse button to navigate to it. A "revision" line in the signature file specifies whether the file is a Cisco-provided standard signature file or a site-tailored custom signature file (custom signature files must always have revision=custom).
Note If the transfer times out for some reason, you can simply choose the TFTP server option in the File Is Located On parameter, and the server file name will be populated for you and retried. The local machine option initiates a two-step operation. First, the local file is copied from the administrator workstation to WCS own built-in TFTP server. Then the controller retrieves that file. For later operations, the file is already in the WCS server TFTP directory, and the downloaded web page now automatically populates the filename.
Step 11 Click OK.
Uploading Signature Files
To upload a signature file from the controller, follow these steps:
Step 1 Obtain a signature file from Cisco (hereafter called a standard signature file). You can also create your own signature file (hereafter called a custom signature file) by following the "Downloading Signature Files" section.
Step 2 Make sure you have a Trivial File Transfer Protocol (TFTP) server available for the signature download. Keep these guidelines in mind when setting up a TFTP server:
•If you are downloading through the service port, the TFTP server must be on the same subnet as the service port because the service port cannot be routed.
•If you are downloading through the distribution system network port, the TFTP server can be on the same or a different subnet because the distribution system port cannot be routed.
•A third-party TFTP server cannot run on the same computer as the Cisco WCS because WCS built-in TFTP server and third-party TFTP server use the same communication port.
Step 3 Choose Configure > Controllers.
Step 4 Click an applicable IP address.
Step 5 From the left sidebar menu, choose Security > Wireless Protection Policies > Standard Signatures or Security > Wireless Protection Policies > Custom Signatures.
Step 6 From the Select a command drop-down list, choose Upload Signature Files from controller.
Note This function can also be accessed by choosing Security > Custom Signatures > Select a command > Upload Signature Files from controller or System > Commands > Upload/Download Commands > Upload File from Controller.
Step 7 Specify the TFTP server name being used for the transfer.
Step 8 If the TFTP server is new, enter the TFTP IP address in the Server IP Address parameter.
Step 9 Choose Signature Files from the File Type drop-down list.
Step 10 The signature files are uploaded to the root directory which was configured for use by the TFTP server. You can change to a different directory at the Upload to File parameter (this parameter only shows if the Server Name is the default server). The controller uses this local file name as a base name and then adds _std.sig as a suffix for standard signature files and _custom.sig as a suffix for custom signature files.
Step 11 Click OK.
Global Settings for Standard and Custom Signatures
This command enables all signatures that were individually selected as enabled. If this text box remains unselected, all files will be disabled, even those that were previously enabled. When the signatures are enabled, the access points joined to the controller perform signature analysis on the received 802.11 data or management frames and report any discrepancies to the controller.
To enable all standard and custom signatures currently on the controller, follow these steps:
Step 1 From the Select a command drop-down list, choose Edit Signature Parameters.
Step 2 Click Go.
Step 3 Select the Enable Check for All Standard and Custom Signatures check box.
Step 4 Click Save.
To enable or disable an individual signature, follow these steps:
Step 1 Click an applicable Name for the type of attack you want to enable or disable.
The Standard Signature parameters page shows the list of Cisco-supplied signatures that are currently on the controller. The Custom Signatures page shows the list of customer-supplied signatures that are currently on the controller. The following parameters are displayed in both the signature page and the detailed signature page:
•Precedence—The order, or precedence, in which the controller performs the signature checks.
•Name—The type of attack the signature is trying to detect.
•Description—A more detailed description of the type of attack that the signature is trying to detect.
•Frame Type—Management or data frame type on which the signature is looking for a security attack.
•Action—What the controller is directed to do when the signature detects an attack. One possibility is None, where no action is taken, and another is Report, to report the detection.
•Frequency—The signature frequency or the number of matching packets per interval that must be identified at the detecting access point level before an attack is detected. The range is 1 to 32,000 packets per interval and the default value is 50 packets per interval.
•Quiet Time—The length of time (in seconds) after which no attacks have been detected at the individual access point level, and the alarm can stop. This time appears only if the MAC information is all or both. The range is 60 to 32,000 seconds and the default value is 300 seconds.
•MAC Information—Whether the signature is to be tracked per network or per MAC address or both at the detecting access point level.
•MAC Frequency—The signature MAC frequency or the number of matching packets per interval that must be identified at the controller level before an attack is detected. The range is 1 to 32,000 packets per interval and the default value is 30 packets per interval.
•Interval—Enter the number of seconds that must elapse before the signature frequency threshold is reached within the configured interval. The range is 1 to 3600 seconds and the default value is 1 second.
•Enable—Select this check box to enable this signature to detect security attacks or unselect it to disable this signature.
•Signature Patterns—The pattern that is being used to detect a security attack.
Step 2 From the Enable drop-down list, choose Yes. Because you are downloading a customized signature, you should enable the files named with the _custom.sgi and disable the standard signature with the same name but differing suffix. For example, if you are customizing broadcast probe flood, you want to disable broadcast probe flood in the standard signatures but enable it in custom signatures.
Step 3 Click Save.
Configuring Custom Signatures
The Custom Signature page shows the list of customer-supplied signatures that are currently on the controller.
•Downloading Signature Files
•Uploading Signature Files
•Global Settings for Standard and Custom Signatures
To access the Custom Signatures page, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose Security > Wireless Protection Policies > Custom Signatures. This page displays the following parameters:
•Precedence—The order in which the controller performs the signature checks.
•Name—The type of attack the signature is trying to detect.
•Frame Type—Management or data frame type on which the signature is looking for a security attack.
•Action—What the controller is directed to do when the signature detects an attack. For example:
–None—No action is taken.
–Report—Report the detection.
•State—Enabled or Disabled.
•Description—A more detailed description of the type of attack the signature is trying to detect.
Note Click a signature Name to view individual parameters and to enable or disable the signature.
Configuring AP Authentication and MFP
This page enables you to set the access point authentication policy.
To access the AP Authentication and MFP (Management Frame Protection) page, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose Security > Wireless Protection Policies > AP Authentication and MFP.
•RF Network Name—Not an editable text box. The RF Network Name entered in the general
parameters page (See Configure IPaddr > General) is displayed here.
•Protection Type—From the drop-down list, choose one of the following authentication policies:
–None—No access point authentication policy.
–AP Authentication—Apply authentication policy.
–MFP—Apply Management Frame Protection. See the "Monitoring Management Frame Protection Summary" section for more information.
•Alarm Trigger Threshold—(Appears only when AP Authentication is selected as the Protection Type). Set the number of hits to be ignored from an alien access point before raising an alarm.
The valid range is from 1 to 255. The default value is 255.
Command Buttons
•Save
•Audit
Configuring Cisco Access Points
You can use the Configure > Controllers page to view and configure Cisco access points for a specific controller.
To access the Cisco APs page, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose Access Points > Cisco APs. The Cisco APs page opens and displays the following parameters:
•AP Name—Click an access point name to view or configure access point details.
•Base Radio MAC
•Admin Status
•AP Mode
•Software Version
•Primary Controller Name
Step 4 Click an access point name to view or configure the access point details. The displayed information may vary depending on the access point type.
Note See the "Configuring Access Points" section for more detailed information.
Command Buttons
•Save—Save the current settings.
•Audit—Discover the present status of this access point.
Sniffer feature
When the sniffer feature is enabled on an access point, the access point functions as a sniffer and captures and forwards all the packets on a particular channel to a remote machine that runs AiroPeek. The packets contain information on timestamp, signal strength, packet size, and so on.
Note The sniffer feature can be enabled only if you are running AiroPeek, which is a third-party network analyzer software that supports decoding of data packets. For more information see the AiroPeek website.
Prerequisites for Using the Sniffer Feature
Before using the sniffer feature, you must have completed the following:
•Configured an access point in sniffer mode at the remote site. For information on how to configure an access point in sniffer mode, see AP mode in Configuring an AP in Sniffer Mode Using the Web User Interface.
•Installed AiroPeek version 2.05 or later on a Windows XP machine.
Note You must be a WildPackets Maintenance Member to download the following dll files. See the following URL:
https://wpdn.wildpackets.com/view_submission.php?id=30
•Copied the following dll files:
–socket.dll file to the Plugins folder (Example: C:\ProgramFiles\WildPackets\AiroPeek\Plugins)
–socketres.dll file to the PluginRes folder (Example:C:\ProgramFiles\WildPackets\AiroPeek\1033\PluginRes)
Configuring AiroPeek on the Remote Machine
To configure AiroPeek on the remote machine, follow these steps:
Step 1 Start the AiroPeek application and click Options on the Tools tab.
Step 2 Click Analysis Module in the Options page.
Step 3 Right-click inside the page and select Disable All option.
Step 4 Find the Cisco remote module column and enable it. Click OK to save the changes.
Step 5 Click New capture to bring up the capture option page.
Step 6 Choose the remote Cisco adapter and from the list of adapter modules.
Step 7 Expand it to locate the new remote adapter option. Double-click it to open a new page, enter a name in the text box provided and enter the controller management interface IP in the IP address column.
Step 8 Click OK. The new adapter will be added to the remote Cisco adapter.
Step 9 Select the new adapter for remote airopeek capture using the access point.
Step 10 Click start socket capture in the capture page to start the remote capture process.
Step 11 Go to the controller CLI, bring up an access point, and set it to sniffer mode by entering the config ap mode sniffer ap-name command.
The access point will reboot and come up in sniffer mode.
Configuring an AP in Sniffer Mode Using the Web User Interface
To configure an AP in Sniffer Mode using the web user interface, follow these steps:
Step 1 Choose Configure > Access Points, then click an item under AP Name list to navigate to this pane.
Step 2 In General parameters, set the AP mode to Sniffer using the drop-down list, and click Apply.
Step 3 Select a Protocol (802.11a/802.11b/g) under Radio Interfaces. This will open the
configuration page.
Step 4 Select the Sniff check box to bring up the Sniff parameters. Select the channel to be sniffed and enter the IP address of the server (The remote machine running AiroPeek).
Step 5 Click Save to save the changes.
Configuring 802.11 Parameters
•Configuring General Parameters for an 802.11 Controller
•Configuring Security Parameters
•Configuring Aggressive Load Balancing
•Configuring Band Selection
•Configuring 802.11 Media Parameters
Configuring General Parameters for an 802.11 Controller
This page enables you to edit country selection and timer information on a 802.11 controller. To access this page, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose 802.11 > General. The page opens and displays the following parameters:
•Country
–Country—Countries and the protocols allowed.
Note The maximum number of countries that you can select is 20.
–Selected Countries—Displays countries currently selected.
•Timers
–Authentication Response Timeout—Configures 802.11 authentication response timeout in seconds.
Setting Multiple Country Codes
To set multiple country support for a single controller(s) that is not part of a mobility group, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the controller for which you are adding countries.
Step 3 Choose 802.11 > General from the left sidebar menu.
Step 4 Select the check box to choose which country you want to add. Access points are designed for use in many countries with varying regulatory requirements. You can configure a country code to ensure that it complies with your country regulations.
Note Access points may not operate properly if they are not designed for use in your country of operation. For example, an access point with part number AIR-AP1030-A-K9 (which is included in the Americas regulatory domain) cannot be used in Australia. Always be sure to purchase access points that match your country regulatory domain. For a complete list of country codes supported per product, see http://www.cisco.com/warp/public/779/smbiz/wireless/approvals.html.
Step 5 Enter the time (in seconds) after which the authentication response will timeout.
Step 6 Click Save.
Configuring Aggressive Load Balancing
Enabling aggressive load balancing on the controller allows lightweight access points to load balance wireless clients across access points.
Note Clients are load balanced between access points on the same controller. Load balancing does not occur between access points on different controllers.
When a wireless client attempts to associate to a lightweight access point, association response packets are sent to the client with an 802.11 response packet including status code 17. This code indicates whether the access point can accept any more associations. If the access point is too busy, the client attempts to associate to a different access point in the area. The system determines if an access point is relatively more busy than its neighbor access points that are also accessible to the client.
For example, if the number of clients on AP1 is more than the number of clients on AP2 plus the load-balancing window, then AP1 is considered to be busier than AP2. When a client attempts to associate to AP1, it receives an 802.11 response packet with status code 17, indicating that the access point is busy, and the client attempts to associate to a different access point.
You can configure the controller to deny client associations up to 10 times (if a client attempted to associate 11 times, it would be allowed to assciate on the 11th try). You can also enable or disable load balancing on a particular WLAN, which is useful if you want to disable load balancing for a select group of clients (such as time-sensitive voice clients).
To configure aggressive load balancing, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Choose the controller that you need to configure.
Step 3 Choose 802.11 > Load Balancing from the left sidebar menu. The load balancing page appears (see Figure 9-11).
Figure 9-11 Load Balancing
Step 4 Enter a value between 1 and 20 for the client window size. The page size becomes part of the algorithm that determines whether an access point is too heavily loaded to accept more client associations:
load-balancing page + client associations on AP with lightest load = load-balancing threshold
In the group of access points accessible to a client device, each access point has a different number of client associations. The access point with the lowest number of clients has the lightest load. The client page size plus the number of clients on the access point with the lightest load forms the threshold. Access points with more client associations than this threshold is considered busy, and clients can associate only to access points with client counts lower than the threshold.
Step 5 Enter a value between 0 and 10 for the max denial count. The denial count sets the maximum number of association denials during load balancing.
Step 6 Click Save.
Step 7 To enable or disable aggressive load balancing on specific WLANs, browse to the WLAN Configuration page, and click the Advanced tab. For instructions on using the WLAN Configuration page, see the "Configuring Controller WLANs" section.
Configuring Band Selection
Band selection enables client radios that are capable of dual-band (2.4- and 5-GHz) operation to move to a less congested 5-GHz access point. The 2.4-GHz band is often congested. Clients on this band typically experience interference from Bluetooth devices, microwave ovens, and cordless phones as well as co-channel interference from other access points because of the 802.11b/g limit of three non-overlapping channels. To combat these sources of interference and improve overall network performance, you can configure band selection on the controller.
Band selection works by regulating probe responses to clients. It makes 5-GHz channels more attractive to clients by delaying probe responses to clients on 2.4-GHz channels.
You can enable band selection globally on a controller, or you can enable or disable band selection for a particular WLAN, which is useful if you want to disable it for a select group of clients (such as time-sensitive voice clients).
Note Band-selection-enabled WLANs do not support time-sensitive applications like voice and video because of roaming delays.
Guidelines for Using Band Selection
Follow these guidelines when using band selection:
•Band selection can be used only with Cisco Aironet 1140 and 1250 series access points.
•Band selection operates only on access points that are connected to a controller. A hybrid-REAP access point without a controller connection does not perform band selection after a reboot.
•The band-selection algorithm directs dual-band clients only from the 2.4-GHz radio to the 5-GHz radio of the same access point, and it only runs on an access point when both the 2.4-GHz and 5-GHz radios are up and running.
•You can enable both band selection and aggressive load balancing on the controller. They run independently and do not impact one another.
Configuration Steps
To configure band selection, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Choose the controller that you need to configure.
Step 3 Choose 802.11 > Band Select from the left sidebar menu. The band select page appears (see Figure 9-12).
Figure 9-12 Band Select
Step 4 Enter a value between 1 and 10 for the probe cycle count. The cycle count sets the number of suppression cycles for a new client. The default cycle count is 2.
Step 5 Enter a value between 1 and 1000 milliseconds for the scan cycle period threshold. This setting determines the time threshold during which new probe requests from a client come from a new scanning cycle. The default cycle threshold is 200 milliseconds.
Step 6 Enter a value between 10 and 200 seconds for the age out suppression parameter. Age-out suppression sets the expiration time for pruning previously known 802.11b/g clients. The default value is 20 seconds. After this time elapses, clients become new and are subject to probe response suppression.
Step 7 Enter a value between 10 and 300 seconds for the age out dual band parameter. The age-out period sets the expiration time for pruning previously known dual-band clients. The default value is 60 seconds. After this time elapses, clients become new and are subject to probe response suppression.
Step 8 Enter a value between -20 and -90 dBm for the acceptable client RSSI parameter. This parameter sets the minimum RSSI for a client to respond to a probe. The default value is -80 dBm.
Step 9 Click Save.
Step 10 To enable or disable band selection on specific WLANs, browse to the WLAN Configuration page and click the Advanced tab. For instructions on using the WLAN Configuration page, see the "Configuring Controller WLANs" section.
Configuring Preferred Call
The Preferred Call feature enables you to specify highest priority to SIP calls made to some specific numbers. The high priority is achieved by allocating bandwidth to such preferred SIP Calls even when there is no available voice bandwidth in the configured Voice Pool. This feature is supported only for those clients that use SIP based CAC for bandwidth allocation in WCS or WLC.
Note You can configure up to 6 numbers per controller.
To configure the preferred call support, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose 802.11 > Preferred Call. The following parameters appear if there is an exisiting preferred call:
•Description—Description for the preferred call.
•Number Id—Indicates the unique identifier for the controller and denotes one of the six preferred call numbers assigned to the controller.
•Preferred Number—Indicates the preferred call number.
Step 4 From the Select a command drop-down list, choose Add Number.
Figure 9-13 Preferred Call
Step 5 Select a template to apply to this controller.
Note You need to select a template to apply to the selected controller. To create a New Template for Preferred Call Numbers, see the "Configuring Preferred Call Templates" section.
Step 6 Click Apply.
Note To delete a preferred call, select the check box for the applicable preferred call number and choose Delete from the Select a command drop-down list. Click Go and then click OK to confirm the deletion.
Configuring 802.11 Media Parameters
To configure the media parameters for 802.11, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the applicable IP address.
Step 3 From the left sidebar menu, choose 802.11 > Media Parameters.
Step 4 In the Media Stream Configuration section, specify the following parameters
•Media Stream Name
•Multicast Destination Start IP—Start IP address of the media stream to be multicast
•Multicast Destination End IP—End IP address of the media stream to be multicast
•Maximum Expected Bandwidth—Maximum bandwidth that a media stream can use
Step 5 In the Resource Reservation Control (RRC) Parameters area, specify the following parameters:
•Average Packet Size—Average packet size that a media stream can use.
•RRC Periodical Update—Resource Reservation Control calculations that are updated periodically; if disabled, RRC calculations are done only once when a client joins a media stream.
•RRC Priority—Priority of RRC with the highest at 1 and the lowest at 8.
•Traffic Profile Violation—Appears if the stream is dropped or put in the best effort queue if the stream violates the QoS video profile.
•Policy—Appears if the media stream is admitted or denied.
Step 6 Click Save.
Configuring 802.11a/n Parameters
This section contains the following topics:
•Configuring 802.11a/n General Parameters
•Configuring 802.11a/n 802.11h Parameters
•Configuring 802.11a/n RRM Intervals
•Configuring 802.11a/n RRM Dynamic Channel Allocation
•Configuring 40-MHz Channel Bonding
•Configuring 802.11a/n RRM Radio Grouping
•Configuring 802.11a/n Media Parameters
•Configuring 802.11a/n EDCA Parameters
•Configuring 802.11a/n Roaming Parameters
•Configuring 802.11a/n 802.11h Parameters
•Configuring 802.11a/n High Throughput (802.11n) Parameters
•Configuring 802.11a/n CleanAir Parameters
Configuring 802.11a/n General Parameters
To view 802.11a/n parameters for a specific controller, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose 802.11a/n Parameters to view the following parameters:
•General
–802.11a/n Network Status—Select the check box to enable.
–Beacon Period—The amount of time between beacons. The valid range is from 100 to 600 milliseconds.
–DTIM Period—The number of beacon intervals that may elapse between transmission of beacon frames containing a traffic indicator message (TIM) element whose delivery count field is 0.
–Fragmentation Threshold (in bytes)—The size at which packets are fragmented. Use a low setting in areas where communication is poor or where there is a great deal of radio interference.
–Template Applied
•802.11a/n Band Status
–Low, Medium, and High Bands (read-only).
•802.11a/n Power Status
–Dynamic Assessment—Automatic, On Demand, or Disabled.
–Current Tx Level—Range includes: 1 (maximum power allowed per country code setting), 2 (50% power), 3 (25% power), 4 (6.25 to 12.5% power), and 5 (0.195 to 6.25% power).
Note The power levels and available channels are defined by the country code setting and are regulated on a country by country basis.
–Control Interval—In seconds (read-only).
–Dynamic Treatment Power Control—Select the check box to enable.
•802.11a/n Channel Status
–Assignment Mode—Automatic, On Demand, or Disabled.
–Update Interval—In seconds.
–Avoid Foreign AP Interference—Enable to have RRM consider interference from foreign Cisco access points (those non-Cisco access points outside RF/mobility domain) when assigning channels.
–Avoid Cisco AP load—Enable to have controllers consider the traffic bandwidth used by each access point when assigning channels to access points.
–Avoid non 802.11 Noise—Enable to have access points avoid channels that have interference from non-access point sources, such as microwave ovens or Bluetooth devices. Disable this parameter to have RRM ignore this interference.
–Signal Strength Contribution—Not configurable.
–Avoid Persistent Non-WiFi interface
•Data Rates
–Ranges between 6 Mbps and 54 Mbps—Supported, Mandatory, or Disabled.
•Noise/Interference/Rogue Monitoring Channels.
–Channel List—All Channels, Country Channels, DCA Channels.
Note Dynamic Channel Allocation (DCA) automatically selects a reasonably good channel allocation from a set of managed devices connected to the controller.
•CCX Location Measurement—When enabled, it enhances the location accuracy of clients.
–Mode—Select the check box to enable.
–Interval—In seconds.
Note The CCX Location Measurement Interval can be changed only when measurement mode is enabled.
Command Buttons
•Save—Save the changes made.
•Audit—Compare the WCS values with those used on the controller.
Configuring 802.11a/n RRM Thresholds
To configure a 802.11a/n RRM threshold controller, follow these steps:
Step 1 Choose Configure > Controller.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose 802.11a/n > RRM Thresholds.
Step 4 Make any necessary changes to Coverage Thresholds, Load Thresholds, Other Thresholds, and Noise/Interference/Rogue Monitoring Channels.
Note When the Coverage Thresholds Min SNR Level (dB) parameter is adjusted, the value of the Signal Strength (dB) automatically reflects this change. The Signal Strength (dB) parameter provides information regarding what the target range of coverage thresholds will be when adjusting the SNR value.
Step 5 Click Save.
Configuring 802.11a/n RRM Intervals
To configure 802.11a/n or 802.11b/g/n RRM intervals for an individual controller, follow these steps:
Step 1 Choose Configure > Controller.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose 802.11a/n > RRM Intervals or 802.11b/g/n > RRM Intervals.
Note The default for the following four RRM interval parameters is 300 seconds.
Step 4 Enter at which interval you want strength measurements taken for each access point.
Step 5 Enter at which interval you want noise and interference measurements taken for each access point.
Step 6 Enter at which interval you want load measurements taken for each access point.
Step 7 Enter at which interval you want coverage measurements taken for each access point.
Step 8 Click Save.
Configuring 802.11a/n RRM Transmit Power Control
The controller dynamically controls access point transmit power based on real-time wireless LAN conditions. Normally, power can be kept low to gain extra capacity and reduce interference. The controller attempts to balance the access points' transmit power according to how the access points are seen by their third strongest neighbor.
The transmit power control (TPC) algorithm both increases and decreases an access point's power in response to changes in the RF environment. In most instances TPC will seek to lower an access point's power to reduce interference, but in the case of a sudden change in the RF coverage—for example, if an access point fails or becomes disabled—TPC can also increase power on surrounding access points. This feature is different from Coverage Hole Detection, explained below. Coverage hole detection is primarily concerned with clients, while TPC is tasked with providing enough RF power to achieve desired coverage levels while avoiding channel interference between access points.
To configure 802.11a/n or 802.11b/g/n RRM TPC, follow these steps:
Step 1 Choose Configure > Controller.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose 802.11a/n-RRM > TPC.
Step 4 Configure the following TPC parameters:
•Template Applied—The name of the template applied to this controller.
•Dynamic Assignment—From the Dynamic Assignment drop-down list, choose one of three modes:
–Automatic - The transmit power is periodically updated for all access points that permit this operation.
–On Demand - Transmit power is updated when the Assign Now button is selected.
–Disabled - No dynamic transmit power assignments occur, and values are set to their global default.
•Maximum Power Assignment—Indicates the maximum power assigned.
–Range: -10 to 30 dB
–Default: 30 dB
•Minimum Power Assignment—Indicates the minimum power assigned.
–Range: -10 to 30 dB
–Default: 30 dB
•Dynamic Tx Power Control—Determine if you want to enable Dynamic Tx Power Control.
•Transmitted Power Threshold—Enter a transmitted power threshold between -50 and -80.
•Control Interval—In seconds (read-only).
Step 5 Click Save.
Configuring 802.11a/n RRM Dynamic Channel Allocation
The Radio Resource Management (RRM) Dynamic Channel Allocation (DCA) page allows you to select the DCA channels as well as the channel width for this controller.
RRM DCA supports 802.11n 40 MHz channel width in the 5 GHz band. 40 MHz channelization allows radios to achieve higher instantaneous data rates.
Note Selecting a larger bandwidth reduces the non-overlapping channels which could potentially reduce the overall network throughput for certain deployments.
To configure 802.11a/n or 802.11b/g/n RRM DCA channel width for an individual controller, follow these steps:
Step 1 Choose Configure > Controller.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose 802.11a/n-RRM > DCA.
Step 4 From the Channel width drop-down list, choose 20 MHz or 40 MHz.
Note To view the channel width for an access point radio, choose Monitor > Access Points > name > Interfaces tab.
Note Channel width can also be configured from the Configure Access Point. See the "RF Channel Assignment" section for more information.
Note The DCA channel width option is only available for the 802.11 a/n protocol.
Step 5 Select the check box(es) for the applicable DCA channel(s). The selected channels are listed in the Selected DCA channels text box.
Step 6 Enable or disable event-driven radio resource management (RRM). Event Driven RRM is used when a CleanAir-enabled access point detects a significant level of interference, follow these steps:
–Event Driven RRM—Enable or Disable spectrum event-driven RRM. By default, Event Driven RRM is enabled.
–Sensitivity Threshold—If Event Driven RRM is enabled, this text box displays the threshold level at which event-driven RRM is triggered. It can have a value of either Low, Medium, or High. When the interference for the access point rises above the threshold level, RRM initiates a local Dynamic Channel Assignment (DCA) run and changes the channel of the affected access point radio if possible to improve network performance. Low represents a decreased sensitivity to changes in the environment while High represents an increased sensitivity.
Step 7 Click Save.
Configuring 40-MHz Channel Bonding
The Radio Resource Management (RRM) Dynamic Channel Assignment (DCA) page allows you to choose the DCA channels as well as the channel width for this controller.
RRM DCA supports 802.11n 40-MHz channel width in the 5-GHz band. The higher bandwidth allows radios to achieve higher instantaneous data rates.
Note Choosing a larger bandwidth reduces the non-overlapping channels which could potentially reduce the overall network throughput for certain deployments.
To configure 802.11 a/n RRM DCA channels for an individual controller, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the appropriate controller.
Step 3 From the left sidebar menu, choose 802.11a/n > RRM DCA. The 802.11a/n RRM DCA page appears (see Figure 9-14).
Note You can also configure the channel width on the access point page by choosing Configure > Access Points, and clicking the 802.11a/n link in the Radio column. The Current RF Channel Assignment. is provided, and you can choose a Global assignment method or choose Custom to specify a channel.
Figure 9-14 802.11a/n RRM DCA Page
Step 4 From the Channel Width drop-down list, choose 20 MHz or 40 MHz. Prior to software release 5.1, 40-MHz channels were only statically configurable. Only radios with 20-MHz channels were supported by DCA. With 40 MHz, radios can achieve higher instantaneous data rates; however, larger bandwidths reduce the number of non-overlapping channels so certain deployments could have reduced overall network throughput.
Note Be cautious about deploying a mix of 20-MHz and 40-MHz devices. The 40-MHz devices have slightly different channel access rules which may negatively impact the 20-MHz devices.
Note To view the channel width for an access point's radio, go to Monitor > Access Points > name > Interfaces tab. You can also view the channel width and antenna selections by choosing Configure > Access Points and clicking on the desired radio in the Radio column.
Step 5 Select the check boxes for the appropriate DCA channels. The selected channels are listed in the Selected DCA channels list.
Step 6 Enable or disable event-driven Radio Resource Management (RRM) using the following parameters. Event Driven RRM is used when a CleanAir-enabled access point detects a significant level of interference.
•Event Driven RRM—Enable or Disable spectrum event-driven RRM. By default, Event Driven RRM is enabled.
•Sensitivity Threshold—If Event Driven RRM is enabled, this field displays the threshold level at which event-driven RRM is triggered. It can have a value of either Low, Medium, or High. When the interference for the access point rises above the threshold level, RRM initiates a local Dynamic Channel Assignment (DCA) run and changes the channel of the affected access point radio if possible to improve network performance. Low represents a decreased sensitivity to changes in the environment while High represents an increased sensitivity.
Step 7 Click Save.
Configuring 802.11a/n RRM Radio Grouping
To configure 802.11a/n or 802.11b/g/n RRM Radio Grouping for an individual controller, follow these steps:
Step 1 Choose Configure > Controller.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose 802.11a/n > RRM > RF Grouping.
Step 4 Choose a grouping mode from the drop-down list. The following parameters appear:
•Automatic—Allows you to activate the automatic RRM Grouping Algorithm. This is the default mode.
•Off—Allows you to deactivate the automatic grouping.
•Leader—Allows you to assign members to the group.
Step 5 Choose a group update interval (secs) from the drop-down list. When grouping is on, this interval (in seconds) represents the period with which the grouping algorithm is run by the Group Leader. Grouping algorithm will also run when the group contents changes and the automatic grouping is enabled. A dynamic grouping can be started upon request from the system administrator. Default value is 600 seconds.
Step 6 In the Group Members area, click Add >. The selected controller moves from the Available Controllers to the RF Group Members list.
Note The RF Group Members area appears only when the grouping mode is set to Leader.
Note The maximum number of controllers that can be added to a RF Group is 20.
Step 7 Click Save.
Configuring 802.11a/n Media Parameters
To configure the media parameters for 802.11a/n, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the applicable IP address.
Step 3 From the left sidebar menu, choose 802.11a/n > Media Parameters.
Step 4 In the Voice tab, specify the following parameters:
•Admission Control (ACM)—Select the check box to enable admission control.
For end users to experience acceptable audio quality during a VoIP phone call, packets must be delivered from one endpoint to another with low latency and low packet loss. To maintain QoS under differing network loads, call admission control (CAC) is required. CAC on an access point allows it to maintain controlled QoS when the network is experiencing congestion and keep the maximum allowed number of calls to an acceptable quantity.
•CAC Method—If Admission Control (ACM) is enabled, specify the CAC method as either load-based or static.
Load-based CAC incorporates a measurement scheme that takes into account the bandwidth consumed by all traffic types from itself, from co-channel access points, and by co-located channel interference. Load-based CAC also covers the additional bandwidth consumption resulting from PHY and channel impairment.
In load-based CAC, the access point periodically measures and updates the utilization of the RF channel, channel interference, and the additional calls that the access point can admit. The access point admits a new call only if the channel has enough unused bandwidth to support that call. By doing so, load-based CAC prevents over-subscription of the channel and maintains QoS under all conditions of WLAN loading and interference.
•Maximum Bandwidth Allowed—Specify the percentage of maximum bandwidth allowed. This option is only available when CAC is enabled.
•Reserved Roaming Bandwidth—Specify the percentage of reserved roaming bandwidth. This option is only available when CAC is enabled.
•Expedited Bandwidth—Select the check box to enable expedited bandwidth as an extension of CAC for emergency calls.
You must have an expedited bandwidth that is CCXv5 compliant so that a TSPEC request is given higher priority.
•SIP CAC—Select the check box to enable SIP CAC.
SIP CAC should be used only for phones that support status code 17 and do not support TSPEC-based admission control.
•SIP Codec—Specify the codec name you want to use on this radio. The available options are G.711, G.729, and User Defined.
•SIP Call Bandwidth—Specify the bandwidth in kilobits per second that you want to assign per SIP call on the network. This parameter can be configured only when the SIP Codec selected is User Defined.
•SIP Sample Interval—Specify the sample interval in milliseconds that the codec must operate in.
•Max Voice Calls per Radio—Specify the maximum number of voice calls that can be made per Radio.
•Max Roaming Reserved Calls per Radio—Specify the maximum number roaming calls that can be reserved per Radio.
Note The Max Voice Calls per Radio and Max Roaming Reserved Calls per Radio options are available only if the CAC Method is specified as Static and SIP CAC is enabled.
•Metric Collection—Select the check box to enable metric collection.
Traffic stream metrics are a series of statistics about VoIP over your wireless LAN which inform you of the QoS of the wireless LAN. For the access point to collect measurement values, traffic stream metrics must be enabled. When this is enabled, the controller begins collecting statistical data every 90 seconds for the 802.11b/g interfaces from all associated access points. If you are using VoIP or video, this feature should be enabled.
Step 5 On the Video tab, specify the following parameters:
•Admission Control (ACM)—Select the check box to enable admission control.
•Maximum Bandwidth Allowed—Specify the percentage of maximum bandwidth allowed. This option is only available when CAC is enabled.
•Reserved Roaming Bandwidth—Specify the percentage of reserved roaming bandwidth. This option is only available when CAC is enabled.
•Unicast Video Redirect—Select the Unicast Video Redirect check box to enable all non-media stream packets in video queue are redirected to the best effort queue. If disabled, all packets with video marking are kept in video queue.
•Client Minimum Phy Rate—Specify the physical data rate required for the client to join a media stream from the Client Minimum Phy Rate drop-down list.
•Multicast Direct Enable—Select the Multicast Direct Enable check box to set the Media Direct for any WLAN with Media Direct enabled on a WLAN on this radio.
•Maximum Number of Streams per Radio—Specify the maximum number of streams per Radio to be allowed.
•Maximum Number of Streams per Client—Specify the maximum number of streams per Client to be allowed.
•Best Effort QOS Admission—Select the Best Effort QOS Admission check box to redirect new client requests to the best effort queue. This happens only if all the video bandwidth has been used.
Note If disabled and maximum video bandwidth has been used, then any new client request is rejected.
Step 6 In the General tab, specify the following parameter:
•Maximum Media Bandwidth (0 to 85%)—Specify the percentage of maximum of bandwidth allowed. This option is only available when CAC is enabled.
Step 7 Click Save.
Note SIPs are available only on the following controllers: 4400, 5500 and on for the following access points: 1240, 1130, and 11n.
Command Buttons
•Save—Save the changes made.
•Audit—Compare the WCS values with those used on the controller.
Related Topics
•Configuring Media Parameters for Controller Templates
Configuring 802.11a/n EDCA Parameters
The EDCA parameters (EDCA profile and Streaming MAC Enable settings) for 802.11a/n and 802.11b/g/n can be configured either by individual controller or through a controller template to improve voice QoS support.
To configure 802.11a/n or 802.11b/g/n EDCA parameters for an individual controller, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose 802.11a/n > EDCA Parameters or 802.11b/g/n > EDCA Parameters.
Step 4 Choose the EDCA Profile from the drop-down list.
Note Profiles include Wi-Fi Multimedia (WMM), Spectralink Voice Priority (SVP), Voice Optimized, and Voice & Video Optimized. WMM is the default EDCA profile.
Note You must shut down radio interface before configuring EDCA Parameters.
Step 5 Select the Enable Streaming MAC check box to enable this feature.
Note Only enable Streaming MAC if all clients on the network are WMM compliant.
Configuring 802.11a/n Roaming Parameters
To configure 802.11a/n or 802.11b/g/n EDCA parameters for an individual controller, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose 802.11a/n > Roaming Parameters.
Step 4 From the Mode drop-down list, choose Default values or Custom values.
•Default values—The default values (read-only) are automatically displayed in the text boxes.
•Custom values—Activates the text boxes to enable editing of the roaming parameters.
Step 5 In the Minimum RSSI text box, enter a value for the minimum Received Signal Strength Indicator (RSSI) required for the client to associate to an access point.
•Range: -80 to -90 dBm
•Default: -85 dBm
Note If the client average received signal power dips below this threshold, reliable communication is typically impossible; clients must already have found and roamed to another access point with a stronger signal before the minimum RSSI value is reached.
Step 6 In the Hysteresis text box, enter a value to indicate how strong the signal strength of a neighboring access point must for the client to roam to it.
This parameter is intended to reduce the amount of "ping ponging" between access points if the client is physically located on or near the border between two access points.
•Range: 2 to 4 dB
•Default: 3 dB
Step 7 In the Adaptive Scan Threshold text box, enter the RSSI value, from a client associated access point, below which the client must be able to roam to a neighboring access point within the specified transition time.
This parameter provides a power-save method to minimize the time that the client spends in active or passive scanning. For example, the client can scan slowly when the RSSI is above the threshold and scan more rapidly when below the threshold.
•Range: -70 to -77 dB
•Default: -72 dB
Step 8 In the Transition Time text box, enter the maximum time allowed for the client to detect a suitable neighboring access point to roam to and to complete the roam, whenever the RSSI from the client associated access point is below the scan threshold.
The Scan Threshold and Transition Time parameters guarantee a minimum level of client roaming performance. Together with the highest expected client speed and roaming hysteresis, these parameters make it possible to design a wireless LAN network that supports roaming simply by ensuring a certain minimum overlap distance between access points.
•Range: 1 to 10 seconds
•Default: 5 seconds
Step 9 Click Save.
Configuring 802.11a/n 802.11h Parameters
To configure 802.11h parameters for an individual controller, follow these steps:
Step 1 Choose Configure > Controller.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose 802.11a/n > 802.11h or 802.11b/g/n > 802.11h.
Step 4 Select the power constraint check box to enable TPC.
Step 5 Select the channel announcement check box to enable channel announcement. Channel announcement is a method in which the access point announces when it is switching to a new channel and the new channel number.
Step 6 Click Save.
Configuring 802.11a/n High Throughput (802.11n) Parameters
To configure 802.11a/n or 802.11b/g/n high throughput parameters, follow these steps:
Step 1 Choose Configure > Controller.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose 802.11a/n > High Throughput or 802.11b/g/n > High Throughput.
Step 4 Select the 802.11n Network Status Enabled check box to enable high throughput.
Step 5 In the MCS (Data Rate) Settings, choose which level of data rate you want supported. MCS is modulation coding schemes which are similar to 802.11a data rate. As a default, 20 MHz and short guarded interval is used.
Note When you select the Supported check box, the chosen numbers appear in the Selected MCS Indexes page.
Step 6 Click Save.
Configuring 802.11a/n CleanAir Parameters
To configure 802.11a/n CleanAir parameters, follow these steps:
Step 1 Choose Configure > Controller.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose 802.11a/n > CleanAir to view the following information.
•CleanAir—Select the check box to enable CleanAir functionality on the 802.11 a/n network, or unselect to disable CleanAir functionality. The default value is selected.
•Reporting Configuration—Use the parameters in this section to configure the interferer devices you want to include for your reports.
–Report—Select the report interferers check box to enable CleanAir system to report and detect sources of interference, or unselect it to prevent the controller from reporting interferers. The default value is selected.
–Make sure that any sources of interference that need to be detected and reported by the CleanAir system appear in the Interferences to Detect text box and any that do not need to be detected appear in the Interferers to Ignore text box. Use the > and < buttons to move interference sources between these two text boxes. By default, all interference sources are detected.
•Alarm Configuration—This section enables you to configure triggering of air quality alarms.
–Air Quality Alarm—Select the Air Quality Alarm check box to enable the triggering of air quality alarms, or unselect the box to disable this feature. The default value is selected.
–Air Quality Alarm Threshold—If you selected the Air Quality Alarm check box, enter a value between 1 and 100 (inclusive) in the Air Quality Alarm Threshold text box to specify the threshold at which you want the air quality alarm to be triggered. When the air quality falls below the threshold level, the alarm is triggered. A value of 1 represents the worst air quality, and 100 represents the best. The default value is 35.
–Interferers For Security Alarm—Select the Interferers For Security Alarm check box to trigger interferer alarms when the controller detects specified device types, or unselect it to disable this feature. The default value is selected.
–Make sure that any sources of interference that need to trigger interferer alarms appear in the Interferers Selected for Security Alarms text box and any that do not need to trigger interferer alarms appear in the Interferers Ignored for Security Alarms text box. Use the > and < buttons to move interference sources between these two boxes. By default, all interference sources trigger interferer alarms.
•Event Driven RRM—To trigger spectrum event-driven Radio Resource Management (RRM) to run when a CleanAir-enabled access point detects a significant level of interference, follow these steps:
–Event Driven RRM—Displays the current status of spectrum event-driven RRM.
–Sensitivity Threshold—If Event Driven RRM is enabled, this text box displays the threshold level at which event-driven RRM is triggered. It can have a value of either Low, Medium, or High. When the interference for the access point rises above the threshold level, RRM initiates a local Dynamic Channel Assignment (DCA) run and changes the channel of the affected access point radio if possible to improve network performance. Low represents a decreased sensitivity to changes in the environment while High represents an increased sensitivity.
Command Buttons
•Save—Save the changes made.
•Audit—Compare the WCS values with those used on the controller.
Configuring 802.11b/g/n Parameters
This section contains the following topics:
•Configuring 802.11b/g/n General Parameters
•Configuring 802.11b/g/n RRM Thresholds
•Configuring 802.11b/g/n RRM Intervals
•Configuring an 802.11b/g/n RRM DCA
•Configuring 802.11b/g/n RRM Radio Grouping
•Configuring 802.11b/g/n Media Parameters
•Configuring 802.11b/g/n EDCA Parameters
•Configuring 802.11b/g/n Roaming Parameters
•Configuring 802.11b/g/n High Throughput (802.11n) Parameters
•Configuring 802.11b/g/n CleanAir Parameters
Configuring 802.11b/g/n General Parameters
To view 802.11b/g/n parameters for a specific controller, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose 802.11b/g/n Parameters to view the following parameters:
•General
–802.11b/g Network Status—Select the check box to enable.
–802.11g Support—Select the check box to enable.
–Beacon Period—In milliseconds.
–DTIM Period—The number of beacon intervals that may elapse between transmission of beacon frames containing a traffic indicator message (TIM) element whose delivery count field is 0.
–Fragmentation Threshold—In bytes.
–Short Preamble—Select the check box to enable.
–Template Applied
•802.11a/n Power Status
–Dynamic Assessment—Automatic, On Demand, or Disabled.
–Current Tx Level
–Control Interval—In seconds (Read-only).
–Dynamic Treatment Power Control—Select the check box to enable.
•802.11a/n Channel Status
–Assignment Mode—Automatic, On Demand, or Disabled.
–Update Interval—In seconds.
–Avoid Foreign AP Interference—Select the check box to enable.
–Avoid Cisco AP load—Select the check box to enable.
–Avoid non 802.11 Noise—Select the check box to enable.
–Signal Strength Contribution—Select the check box to enable.
•Data Rates
–Ranges between 1 Mbps and 54 Mbps—Supported, Mandatory, or Disabled.
•Noise/Interference/Rogue Monitoring Channels
–Channel List—All Channels, Country Channels, DCA Channels.
•CCX Location Measurement
–Mode—Select the check box to enable.
–Interval—In seconds.
Note The CCX Location Measurement Interval can be changed only when measurement mode is enabled.
Command Buttons
•Save—Save the changes made.
•Audit—Compare the WCS values with those used on the controller.
Configuring 802.11b/g/n RRM Thresholds
To configure a 802.11b/g/n RRM threshold controller, follow these steps:
Step 1 Choose Configure > Controller.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose 802.11b/g/n > RRM Thresholds.
Step 4 Make any necessary changes to Coverage Thresholds, Load Thresholds, Other Thresholds, and Noise/Interference/Rogue Monitoring Channels.
Note When the Coverage Thresholds Min SNR Level (dB) parameter is adjusted, the value of the Signal Strength (dB) automatically reflects this change. The Signal Strength (dB) parameter provides information regarding what the target range of coverage thresholds will be when adjusting the SNR value.
Step 5 Click Save.
Configuring 802.11b/g/n RRM Transmit Power Control
The controller dynamically controls access point transmit power based on real-time wireless LAN conditions. Normally, power can be kept low to gain extra capacity and reduce interference. The controller attempts to balance the access points' transmit power according to how the access points are seen by their third strongest neighbor.
The transmit power control (TPC) algorithm both increases and decreases an access point's power in response to changes in the RF environment. In most instances, TPC will seek to lower an access point's power to reduce interference, but in the case of a sudden change in the RF coverage—for example, if an access point fails or becomes disabled—TPC can also increase power on surrounding access points. This feature is different from Coverage Hole Detection, explained below. Coverage hole detection is primarily concerned with clients, while TPC is tasked with providing enough RF power to achieve desired coverage levels while avoiding channel interference between access points.
To configure 802.11b/g/n RRM TPC, follow these steps:
Step 1 Choose Configure > Controller.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose 802.11b/g/n-RRM > TPC.
Step 4 Configure the following TPC parameters:
•Template Applied—The name of the template applied to this controller.
•Dynamic Assignment—At the Dynamic Assignment drop-down list, choose one of three modes:
–Automatic - The transmit power is periodically updated for all access points that permit this operation.
–On Demand - Transmit power is updated when the Assign Now button is selected.
–Disabled - No dynamic transmit power assignments occur, and values are set to their global default.
•Maximum Power Assignment—Indicates the maximum power assigned.
–Range: -10 to 30 dB
–Default: 30 dB
•Minimum Power Assignment—Indicates the minimum power assigned.
–Range: -10 to 30 dB
–Default: 30 dB
•Dynamic Tx Power Control—Determine if you want to enable Dynamic Tx Power Control.
•Transmitted Power Threshold—Enter a transmitted power threshold between -50 and -80.
•Control Interval—In seconds (read-only).
Step 5 Click Save.
Configuring 802.11b/g/n RRM Intervals
To configure 802.11a/n or 802.11b/g/n RRM intervals for an individual controller, follow these steps:
Step 1 Choose Configure > Controller.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose 802.11a/n > RRM Intervals or 802.11b/g/n > RRM Intervals.
Note The default for the following four RRM interval parameters is 300 seconds.
Step 4 Enter at which interval you want strength measurements taken for each access point.
Step 5 Enter at which interval you want noise and interference measurements taken for each access point.
Step 6 Enter at which interval you want load measurements taken for each access point.
Step 7 Enter at which interval you want coverage measurements taken for each access point.
Step 8 Click Save.
Configuring an 802.11b/g/n RRM DCA
To configure 802.11a/n or 802.11b/g/n RRM DCA channels for an individual controller, follow these steps:
Step 1 Choose Configure > Controller.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose 802.11b/g/n-RRM > DCA.
Step 4 Select the check box(es) for the applicable DCA channel(s). The selected channels are listed in the Selected DCA channels text box.
Step 5 Enable or disable event-driven Radio Resource Management (RRM). Event Driven RRM is used when a CleanAir-enabled access point detects a significant level of interference, follow these steps:
–Event Driven RRM—Enable or Disable spectrum event-driven RRM. By default, Event Driven RRM is enabled.
–Sensitivity Threshold—If Event Driven RRM is enabled, this text box displays the threshold level at which event-driven RRM is triggered. It can have a value of either Low, Medium, or High. When the interference for the access point rises above the threshold level, RRM initiates a local Dynamic Channel Assignment (DCA) run and changes the channel of the affected access point radio if possible to improve network performance. Low represents a decreased sensitivity to changes in the environment while High represents an increased sensitivity
Step 6 Click Save.
Configuring 802.11b/g/n RRM Radio Grouping
To configure 802.11a/n or 802.11b/g/n RRM Radio Grouping for an individual controller, follow these steps:
Step 1 Choose Configure > Controller.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose 802.11b/g/n > RRM > RF Grouping.
Step 4 Choose a grouping mode from the drop-down list. The following parameters appear:
•Automatic—Allows you to activate the automatic RRM Grouping Algorithm. This is the default mode.
•Off—Allows you to deactivate the automatic grouping.
•Leader—Allows you to assign members to the group.
Step 5 Choose a group update interval (secs) from the drop-down list. When grouping is on, this interval (in seconds) represents the period with which the grouping algorithm is run by the Group Leader. Grouping algorithm will also run when the group contents changes and the automatic grouping is enabled. A dynamic grouping can be started upon request from the system administrator. Default value is 600 seconds.
Step 6 Under the Group Members area, click Add >. The selected controller moves from the Available Controllers to the RF Group Members list.
Note The RF Group Members area appears only when the grouping mode is set to Leader.
Note The maximum number of controllers that can be added to a RF Group is 20.
Step 7 Click Save.
Configuring 802.11b/g/n Media Parameters
To configure the media parameters for 802.11b/g/n, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the applicable IP address.
Step 3 From the left sidebar menu, choose 802.11b/g/n > Media Parameters.
Step 4 In the Voice tab, specify the following parameters:
•Admission Control (ACM)—Select the check box to enable admission control.
For end users to experience acceptable audio quality during a VoIP phone call, packets must be delivered from one endpoint to another with low latency and low packet loss. To maintain QoS under differing network loads, Call Admission Control (CAC) is required. CAC on an access point allows it to maintain controlled QoS when the network is experiencing congestion and keep the maximum allowed number of calls to an acceptable quantity.
•CAC Method—If Admission Control (ACM) is enabled, specify the CAC method as either load-based or static.
Load-based CAC incorporates a measurement scheme that takes into account the bandwidth consumed by all traffic types from itself, from co-channel access points, and by co-located channel interference. Load-based CAC also covers the additional bandwidth consumption resulting from PHY and channel impairment.
In load-based CAC, the access point periodically measures and updates the utilization of the RF channel, channel interference, and the additional calls that the access point can admit. The access point admits a new call only if the channel has enough unused bandwidth to support that call. By doing so, load-based CAC prevents over-subscription of the channel and maintains QoS under all conditions of WLAN loading and interference.
•Maximum Bandwidth Allowed—Specify the percentage of maximum bandwidth allowed. This option is only available when CAC is enabled.
•Reserved Roaming Bandwidth—Specify the percentage of reserved roaming bandwidth. This option is only available when CAC is enabled.
•Expedited Bandwidth—Select the check box to enable expedited bandwidth as an extension of CAC for emergency calls.
You must have an expedited bandwidth that is CCXv5 compliant so that a TSPEC request is given higher priority.
•SIP CAC—Select the check box to enable SIP CAC.
SIP CAC should be used only for phones that support status code 17 and do not support TSPEC-based admission control.
•SIP Codec—Specify the codec name you want to use on this radio. The available options are G.711, G.729, and User Defined.
•SIP Call Bandwidth—Specify the bandwidth in kilobits per second that you want to assign per SIP call on the network. This parameter can be configured only when the SIP Codec selected is User Defined.
•SIP Sample Interval—Specify the sample interval in milliseconds that the codec must operate in.
•Max Voice Calls per Radio—Indicates the maximum number of voice calls that can be made per Radio.
Note You cannot set the value of Max Voice Calls per Radio. This is automatically calculated based on the selected CAC method, Max BW allowed, and Roaming Bandwidth.
•Max Roaming Reserved Calls per Radio—Indicates the maximum number roaming calls that can be reserved per Radio.
Note The Max Voice Calls per Radio and Max Roaming Reserved Calls per Radio options are available only if the CAC Method is specified as Static and SIP CAC is enabled.
•Metric Collection—Select the check box to enable metric collection.
Traffic stream metrics are a series of statistics about VoIP over your wireless LAN which inform you of the QoS of the wireless LAN. For the access point to collect measurement values, traffic stream metrics must be enabled. When this is enabled, the controller begins collecting statistical data every 90 seconds for the 802.11b/g interfaces from all associated access points. If you are using VoIP or video, this feature should be enabled.
Step 5 In the Video tab, specify the following parameters:
•Admission Control (ACM)—Select the check box to enable admission control.
•Maximum Bandwidth—Specify the percentage of maximum bandwidth allowed. This option is only available when CAC is enabled.
•Reserved Roaming Bandwidth—Specify the percentage of reserved roaming bandwidth. This option is only available when CAC is enabled.
•Unicast Video Redirect—Select the Unicast Video Redirect check box to enable all non-media stream packets in video queue are redirected to the best effort queue. If disabled, all packets with video marking are kept in video queue.
•Client Minimum Phy Rate—Specify the physical data rate required for the client to join a media stream from the Client Minimum Phy Rate drop-down list.
•Multicast Direct Enable—Select the Multicast Direct Enable check box to set the Media Direct for any WLAN with Media Direct enabled on a WLAN on this radio.
•Maximum Number of Streams per Radio—Specify the maximum number of streams per Radio to be allowed.
•Maximum Number of Streams per Client—Specify the maximum number of streams per Client to be allowed.
•Best Effort QOS Admission—Select the Best Effort QOS Admission check box to redirect new client requests to the best effort queue. This happens only if all the video bandwidth has been used.
Note If disabled and maximum video bandwidth has been used, then any new client request is rejected.
Step 6 In the General tab, specify the following parameter:
•Maximum Media Bandwidth (0 to 85%)—Specify the percentage of maximum of bandwidth allowed. This option is only available when CAC is enabled.
Step 7 Click Save.
Note SIPs are available only on the following controllers: 4400, 5500 and on for the following access points: 1240, 1130, and 11n.
Command Buttons
•Save—Save the changes made.
•Audit—Compare the WCS values with those used on the controller.
Configuring 802.11b/g/n EDCA Parameters
The EDCA parameters (EDCA profile and Streaming MAC Enable settings) for 802.11a/n and 802.11b/g/n can be configured either by individual controller or through a controller template to improve voice QoS support.
To configure 802.11a/n or 802.11b/g/n EDCA parameters for an individual controller, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose 802.11a/n > EDCA Parameters or 802.11b/g/n > EDCA Parameters.
Step 4 Choose the EDCA Profile from the drop-down list.
Note Profiles include Wi-Fi Multimedia (WMM), Spectralink Voice Priority (SVP), Voice Optimized, and Voice & Video Optimized. WMM is the default EDCA profile.
Note You must shut down radio interface before configuring EDCA Parameters.
Step 5 Select the Enable Streaming MAC check box to enable this feature.
Note Only enable Streaming MAC if all clients on the network are WMM compliant.
Configuring 802.11b/g/n Roaming Parameters
To configure 802.11a/n or 802.11b/g/n EDCA parameters for an individual controller, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose 802.11a/n > Roaming Parameters or 802.11b/g/n > Roaming Parameters.
Step 4 From the Mode drop-down list, choose Default values or Custom values.
•Default values—The default values (read-only) are automatically displayed in the text boxes.
•Custom values—Activates the text boxes to enable editing of the roaming parameters.
Step 5 In the Minimum RSSI text box, enter a value for the minimum received signal strength indicator (RSSI) required for the client to associate to an access point.
•Range: -80 to -90 dBm
•Default: -85 dBm
Note If the client average received signal power dips below this threshold, reliable communication is typically impossible; clients must already have found and roamed to another access point with a stronger signal before the minimum RSSI value is reached.
Step 6 In the Hysteresis text box, enter a value to indicate how strong the signal strength of a neighboring access point must be in order for the client to roam to it.
This parameter is intended to reduce the amount of "ping ponging" between access points if the client is physically located on or near the border between two access points.
•Range: 2 to 4 dB
•Default: 3 dB
Step 7 In the Adaptive Scan Threshold text box, enter the RSSI value, from a client associated access point, below which the client must be able to roam to a neighboring access point within the specified transition time.
This parameter provides a power-save method to minimize the time that the client spends in active or passive scanning. For example, the client can scan slowly when the RSSI is above the threshold and scan more rapidly when below the threshold.
•Range: -70 to -77 dB
•Default: -72 dB
Step 8 In the Transition Time text box, enter the maximum time allowed for the client to detect a suitable neighboring access point to roam to and to complete the roam, whenever the RSSI from the client associated access point is below the scan threshold.
The Scan Threshold and Transition Time parameters guarantee a minimum level of client roaming performance. Together with the highest expected client speed and roaming hysteresis, these parameters make it possible to design a wireless LAN network that supports roaming simply by ensuring a certain minimum overlap distance between access points.
•Range: 1 to 10 seconds
•Default: 5 seconds
Step 9 Click Save.
Configuring 802.11b/g/n High Throughput (802.11n) Parameters
To configure 802.11a/n or 802.11b/g/n high throughput parameters, follow these steps:
Step 1 Choose Configure > Controller.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose 802.11a/n > High Throughput or 802.11b/g/n > High Throughput.
Step 4 Select the 802.11n Network Status Enabled check box to enable high throughput.
Step 5 In the MCS (Data Rate) Settings, choose which level of data rate you want supported. MCS is modulation coding schemes which are similar to 802.11a data rate. As a default, 20 MHz and short guarded interval is used.
Note When you select the Supported check box, the chosen numbers appear in the Selected MCS Indexes page.
Step 6 Click Save.
Configuring 802.11b/g/n CleanAir Parameters
To configure 802.11b/g/n CleanAir parameters, follow these steps:
Step 1 Choose Configure > Controller.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose 802.11b/g/n > CleanAir to view the following information.
•CleanAir—Select the check box to enable CleanAir functionality on the 802.11b/g/n network, or unselect to prevent the controller from detecting spectrum interference. The default value is selected.
•Reporting Configuration—Use the parameters in this section to configure the interferer devices you want to include for your reports.
–Report—Select the report interferers check box to enable CleanAir system to report and detect sources of interference, or unselect it to prevent the controller from reporting interferers. The default value is selected.
–Make sure that any sources of interference that need to be detected and reported by the CleanAir system appear in the Interferences to Detect text box and any that do not need to be detected appear in the Interferers to Ignore text box. Use the > and < buttons to move interference sources between these two text boxes. By default, all interference sources are detected.
•Alarm Configuration—This section enables you to configure triggering of air quality alarms.
–Air Quality Alarm—Select the Air Quality Alarm check box to enable the triggering of air quality alarms, or unselect the text box to disable this feature. The default value is selected.
–Air Quality Alarm Threshold—If you selected the Air Quality Alarm check box, enter a value between 1 and 100 (inclusive) in the Air Quality Alarm Threshold text box to specify the threshold at which you want the air quality alarm to be triggered. When the air quality falls below the threshold level, the alarm is triggered. A value of 1 represents the worst air quality, and 100 represents the best. The default value is 35.
–Interferers For Security Alarm—Select the Interferers For Security Alarm check box to trigger interferer alarms when the controller detects specified device types, or unselect it to disable this feature. The default value is selected.
–Make sure that any sources of interference that need to trigger interferer alarms appear in the Interferers Selected for Security Alarms text box and any that do not need to trigger interferer alarms appear in the Interferers Ignored for Security Alarms text box. Use the > and < buttons to move interference sources between these two text boxes. By default, all interference sources trigger interferer alarms.
•Event Driven RRM—To trigger spectrum event-driven Radio Resource Management (RRM) to run when a CleanAir-enabled access point detects a significant level of interference, use the following parameters:
–Event Driven RRM—Displays the current status of spectrum event-driven RRM.
–Sensitivity Threshold—If Event Driven RRM is enabled, this text box displays the threshold level at which event-driven RRM is triggered. It can have a value of either Low, Medium, or High. When the interference for the access point rises above the threshold level, RRM initiates a local Dynamic Channel Allocation (DCA) run and changes the channel of the affected access point radio if possible to improve network performance. Low represents a decreased sensitivity to changes in the environment while High represents an increased sensitivity.
Command Buttons
•Save—Save the changes made.
•Audit—Compare the WCS values with those used on the controller.
Configuring Mesh Parameters
To configure Mesh parameters for an individual controller, follow these steps:
Step 1 Choose Configure > Controller.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose Mesh > Mesh Settings.
Step 4 View or edit the following mesh parameters:
•RootAP to MeshAP Range (150 - 13200 ft)—By default, this value is 12,000 feet. You can enter a value between 150 and 132,000 feet. Enter the optimum distance (in feet) that should exist between the root access point and the mesh access point. This global parameter applies to all access points when they join the controller and all existing access points in the network.
•Client Access on Backhaul Link—Enabling this feature lets mesh access points associate with 802.11a wireless clients over the 802.11a backhaul. This client association is in addition to the existing communication on the 802.11a backhaul between the root and mesh access points. This feature is only applicable to access points with two radios. For more information, see the "Client Access on 1524SB Dual Backhaul" section.
Note Changing Backhaul Client Access reboots all mesh access points.
•Mesh DCA Channels—Enable or disable. This option is disabled by default. Enable this option to enable backhaul channel deselection on the Controller using the DCA channel list. Any change to the channels in the Controller DCA list is pushed to the associated access points. This option is only applicable for 1524SB mesh access points. For more information on this feature, see the "Backhaul Channel Deselection Using WCS" section.
•Background Scanning—Select the Background Scanning check box to enable background scanning or unselect it to disable the feature. The default value is disabled. Background scanning allows Cisco Aironet 1510 Access Points to actively and continuously monitor neighboring channels for more optimal paths and parents.
•Security Mode—Choose EAP (Extensible Authentication Protocol) or PSK (Pre-Shared Key) from the Security Mode drop-down list.
Note Changing Security reboots all mesh access points.
Step 5 Click Save.
Client Access on 1524SB Dual Backhaul
The 1524 Serial Backhaul (SB) access point consists of three radio slots. Radio in slot-0 operate in 2.4 GHz frequency band which is used for client access. Radios in slot-1 and slot-2 operate in 5.8 GHz band and are primarily used for backhaul. However, with the Universal Client Access feature, client access is also allowed over slot-1 and slot-2 radios.
The two 802.11a backhaul radios use the same MAC address. There may be instances where the same WLAN maps to the same BSSID in more than one slot.
By default, client access is disabled over both of the backhaul radios.
The following guidelines should be followed for enabling or disabling a radio slot:
•You can enable client access on slot-1 even if client access on slot-2 is disabled.
•You can enable client access on slot-2 only when client access on slot-1 is enabled.
•If you disable client access on slot-1 the client access on slot-2 is automatically disabled.
•All the Mesh Access Points reboot whenever the client access is enabled or disabled.
You can configure client access over backhaul radio from either one of the following:
•The Controller command-line interface (CLI)
•The Controller Graphical User Interface (GUI)
•The WCS GUI. For more information, see the "Configuring Client Access using WCS - GUI" section.
Note The procedure for configuring client access using the CLI and GUI is documented in the Controller Configuration Guide.
Configuring Client Access using WCS - GUI
To configure client access on the two backhaul radios, follow these steps:
Step 1 Choose Configure > Controllers > Controller IP > Mesh > Mesh Settings.
Step 2 Select the Client Access on Backhaul Link check box.
Step 3 Select the Extended Backhaul Client Access check box if you want to enable extended backhaul client access.
Step 4 Click Save.
A warning message is displayed:
Enabling client access on both backhaul slots will use same BSSIDs on both the slots.
Changing Backhaul Client Access will reboot all Mesh APs.
Step 5 Click OK.
The Universal Client access is configured on both the radios.
Backhaul Channel Deselection Using WCS
To configure backhaul channel deselection, follow these steps:
Step 1 You must first configure the Mesh DCA channels flag on the controllers. See the "Configuring Mesh DCA Channel Flag on Controllers Using WCS" section for more information.
Step 2 Then change the channel list using config groups. See the "Changing the Channel List Using Config Groups" section for more information.
Configuring Mesh DCA Channel Flag on Controllers Using WCS
You can configure the Mesh DCA Channel flag to push each channel change on one or more controllers to all the associated 1524SB access points. To configure this feature, follow these steps:
Step 1 Choose Configure > Controllers > ip address of controller > Mesh > Mesh Settings to configure this flag for a specific controller.
Or
Configure > Controller Template Launch Pad > Mesh > Mesh Settings to configure this flag for a list of controllers.
The Mesh Settings page appears.
Step 2 From the general options select the Mesh DCA Channels check box to enable channel selection. This option is unselected by default.
Now the channel changes in the controllers are pushed to the associated 1524SB access points.
Changing the Channel List Using Config Groups
You can use controller config groups to configure backhaul channel deselection. You can create a config group and add the required controllers into the group and use the Country/DCA tab to select or deselect channels for the controllers in that group.
To configure backhaul channel deselection using config groups, follow these steps:
Step 1 Choose Configure > Controller Config Groups.
Step 2 Select a config group to view its config group details.
Step 3 From the Config Group detail page, click the Country/DCA tab.
Step 4 Select or unselect the channels for the config group.
Note You can also configure backhaul channel deselection from controllers. For more information, see the Controller Online Help or Controller User Guide.
Configuring Port Parameters
To configure Port parameters for an individual controller, follow these steps:
Step 1 Choose Configure > Controller.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose Ports > Port Settings.
Step 4 Click the applicable Port Number to open the Port Settings Details page. The following parameters display:
•General Parameters:
–Port Number—Read-only.
–Admin Status—Choose Enabled or Disabled from the drop-down list.
–Physical Mode—Choose Auto Negotiate or Full Duplex 1 Gbps.
–STP Mode—Choose 802.1D, Fast, or Off.
–Mirror Mode—Choose Enabled or Disabled.
–Link Traps—Choose Enabled or Disabled.
–Power Over Ethernet
–Multicast Application Mode—Select Enabled or Disabled.
•Spanning Tree Protocol Parameters:
–Priority—The numerical priority number of the ideal switch.
–Path Cost—A value (typically based on hop count, media bandwidth, or other measures) assigned by a network administrator and used to determine the most favorable through an internetwork environment (the lower the cost, the better the path).
Step 5 Choose Save or Audit for General or Spanning Tree Protocol settings.
Configuring Controllers Management Parameters
•Configuring Trap Receivers
•Configuring Trap Control Parameters
•Configuring Telnet SSH Parameters
•Configuring a Syslog for an Individual Controller
•Configuring Multiple Syslog Servers
•Configuring WEB Admin
•Configuring Local Management Users
•Configuring Authentication Priority
Configuring Trap Receivers
This section contains the following topics:
•Configuring Trap Receivers for an Individual Controller
•Adding a New Receiver
Configuring Trap Receivers for an Individual Controller
To configure trap receivers for an individual controller, follow these steps:
Step 1 Choose Configure > Controller.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose Management > Trap Receivers.
Step 4 The following parameters are displayed for current trap receivers:
•Template Name—User-defined name of this template.
•IP Address—The IP address of the server.
•Admin Status—Status must be enabled for the SNMP traps to be sent to the receiver.
Step 5 Click a receiver Name to access its details.
Step 6 Select the Admin Status check box to enable the trap receiver. Unselect the check box to disable the trap receiver.
Step 7 Click Save.
Adding a New Receiver
To add a new receiver, follow these steps:
Step 1 From the Select a command drop-down list, choose Add Receiver.
Step 2 Click Go.
Step 3 From the Select a template to apply to this controller drop-down list, choose the applicable template to apply to this controller.
Note To create a new template for Trap Receivers, use the click here link to access the applicable template creation page.
Step 4 Click Apply.
Configuring Trap Control Parameters
To configure trap control parameters for an individual controller, follow these steps:
Step 1 Choose Configure > Controller.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose Management > Trap Control.
The applied template is identified (if applicable). See the "Configuring Trap Control Templates" section for more information.
The following traps can be enabled for this controller:
•Miscellaneous Traps
–SNMP Authentication—The SNMPv2 entity has received a protocol message that is not properly authenticated.
Note When a user who is configured in SNMP V3 mode tries to access the controller with an incorrect password, the authentication fails and a failure message is displayed. However, no trap logs are generated for the authentication failure.
–Link (Port) Up/Down—Link changes status from up or down.
–Multiple Users—Two users login with the same login ID.
–Spanning Tree—Spanning Tree traps. See the STP specifications for descriptions of individual parameters.
–Rogue AP—Whenever a rogue access point is detected this trap will be sent with its MAC Address; When a rogue access point that was detected earlier and it no longer exists this trap is sent.
–Config Save—Notification sent when the controller configuration is modified.
•Client Related Traps
–802.11 Association—The associate notification is sent when the client sends an association frame.
–802.11 Disassociation—The disassociate notification is sent when the client sends a disassociation frame.
–802.11 Deauthentication—The deauthenticate notification is sent when the client sends a deauthentication frame.
–802.11 Failed Authentication—The authenticate failure notification is sent when the client sends an authentication frame with a status code other than 'successful'.
–802.11 Failed Association—The associate failure notification is sent when the client sends an association frame with a status code other than 'successful'.
–Excluded—The associate failure notification is sent when a client is excluded.
•Cisco AP Traps
–AP Register—Notification sent when an access point associates or disassociates with the controller.
–AP Interface Up/Down—Notification sent when access point interface (802.11a or 802.11b/g) status goes up or down.
•Auto RF Profile Traps
–Load Profile—Notification sent when Load Profile state changes between PASS and FAIL.
–Noise Profile—Notification sent when Noise Profile state changes between PASS and FAIL.
–Interference Profile—Notification sent when Interference Profile state changes between PASS and FAIL.
–Coverage Profile—Notification sent when Coverage Profile state changes between PASS and FAIL.
•Auto RF Update Traps
–Channel Update—Notification sent when access point dynamic channel algorithm is updated.
–Tx Power Update—Notification sent when access point dynamic transmit power algorithm is updated.
•AAA Traps
–User Auth Failure—This trap is to inform that a client RADIUS Authentication failure has occurred.
–RADIUS Server No Response—This trap is to indicate that no RADIUS server(s) are responding to authentication requests sent by the RADIUS client.
•IP Security Traps
–ESP Authentication Failure—IPsec packets with invalid hashes were found in an inbound ESP SA.
–ESP Replay Failure—IPsec packets with invalid sequence numbers were found in an inbound ESP SA.
–Invalid SPI—A packet with an unknown SPI was detected from the specified peer with the specified SPI using the specified protocol.
–IKE Negotiation Failure—An attempt to negotiate a phase 1 IKE SA failed. The notification counts are also sent as part of the trap, along with the current value of the total negotiation error counters.
–IKE Suite Failure—An attempt to negotiate a phase 2 SA suite for the specified selector failed. The current total failure counts are passed as well as the notification type counts for the notify involved in the failure.
–Invalid Cookie—ISAKMP packets with invalid cookies were detected from the specified source, intended for the specified destination. The initiator and responder cookies are also sent with the trap.
•802.11 Security Traps
–WEP Decrypt Error—Notification sent when the controller detects a WEP decrypting error.
•WPS Traps
–Rogue Auto Containment—Notification sent when a rogue access point is auto-contained.
Step 4 After selecting the applicable parameters, click Save.
Configuring Telnet SSH Parameters
To configure Telnet SSH (Secure Shell) parameters for an individual controller, follow these steps:
Step 1 Choose Configure > Controller.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose Management > Telnet SSH.
The applied template is identified (if applicable). See the "Configuring Telnet SSH Templates" section for more information.
The following parameters can be configured:
•Session Timeout—Indicates the number of minutes a Telnet session is allowed to remain inactive before being logged off. A zero means there will be no timeout. May be specified as a number from 0 to 160. The factory default is 5.
•Maximum Sessions—From the drop-down list, choose a value from 0 to 5. This object indicates the number of simultaneous Telnet sessions allowed.
Note New Telnet sessions can be allowed or disallowed on the DS (network) port. New Telnet sessions are always allowed on the Service port.
•Allow New Telnet Sessions—Indicates that new Telnet sessions will not be allowed on the DS Port when set to no. The factory default value is no.
Note New Telnet sessions can be allowed or disallowed on the DS (network) port. New Telnet sessions are always allowed on the Service port.
•Allow New SSH Sessions—Indicates that new Secure Shell Telnet sessions will not be allowed when set to no. The factory default value is yes.
Step 4 After configuring the applicable parameters, click Save.
Configuring a Syslog for an Individual Controller
To enable a Syslog for an individual controller, follow these steps:
Step 1 Choose Configure > Controller.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose Management > Syslog.
The applied template is identified (if applicable). See the "Configuring Legacy Syslog Templates" section for more information.
•Syslog Enabled—Select the check box to enable the syslog.
Step 4 Click Save.
Configuring Multiple Syslog Servers
For version 5.0.148.0 controllers or later, you can configure multiple (up to three) syslog servers on the WLAN controller. With each message logged, the controller sends a copy of the message to each configured syslog host, provided the message has severity greater than or equal to the configured syslog filter severity level.
To enable syslogs for an individual controller, follow these steps:
Step 1 Choose Configure > Controller.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose Management > Multiple Syslog.
The applied template is identified:
Syslog Server Address—Indicates the server address of the applicable syslog.
Step 4 Click Save.
Configuring WEB Admin
This section provides instructions for enabling the distribution system port as a web port (using HTTP) or as a secure web port (using HTTPS). You can protect communication with the GUI by enabling HTTPS. HTTPS protects HTTP browser sessions by using the Secure Sockets Layer (SSL) protocol. When you enable HTTPS, the controller generates its own local web administration SSL certificate and automatically applies it to the GUI. You also have the option of downloading an externally generated certificate.
To enable WEB admin parameters for an individual controller, follow these steps:
Step 1 Choose Configure > Controller.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose Management > Web Admin.
The following parameters can be configured:
•Web Mode—Choose Enable or Disable from the drop-down list. When enabled, users can access the controller GUI using http:ip-address. The default is Disabled.
Note Web mode is not a secure connection.
•Secure Web Mode—Choose Enable or Disable from the drop-down list. When enabled, users can access the controller GUI using https://ip-address. The default is Enabled.
Note Secure web mode is a secure connection.
•Certificate Type
•Download Web Admin Certificate—Click to access the Download Web Admin Certificate to Controller page. See the "Download Web Auth or Web Admin Certificate to Controller" section for additional information.
Note The controller must be rebooted for the new Web Admin certificate to take effect.
Command Buttons
•Save
•Audit
•Regenerate Cert
Download Web Auth or Web Admin Certificate to Controller
To download a Web Auth or Web Admin Certificate to the controller, follow these steps:
Step 1 Click the Download Web Admin Certificate or Download Web Auth Certificate link.
Step 2 In the File is located on parameter, specify Local machine or TFTP server.
Note If the certificate is located on the TFTP server, enter the Server File Name. If it is located on the local machine, enter the Local File Name using the Browse button.
Step 3 Enter the TFTP server name in the Server Name parameter. The default is the WCS server.
Step 4 Enter the server IP address.
Step 5 In the Maximum Retries text box, enter the maximum number of times that the TFTP server attempts to download the certificate.
Step 6 In the Timeout text box, enter the amount of time (in seconds) that the TFTP server attempts to download the certificate.
Step 7 In the Local File Name text box, enter the directory path of the certificate.
Step 8 In the Server File Name text box, enter the name of the certificate.
Step 9 Enter the password in the Password text box.
Step 10 Click OK.
Configuring Local Management Users
This page lists the names and access privileges of the local management users.
To access the Local Management Users page, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose Management > Local Management Users.
Step 4 Click a user name.
•User Name (read-only)—Name of the user.
•Access Level (read-only)—Read Write or Read Only.
Configuring Authentication Priority
In this page, you can control the order in which authentication servers are used to authenticate a controller management users.
To access the Authentication Priority page, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose Management > Authentication Priority.
Step 4 The local database is searched first. Choose either RADIUS or TACACS+ for the next search. If authentication using the local database fails, the controller uses the next type of server.
Step 5 Click Save.
Command Buttons
•Save—Save the changes made to the management user authentication order and return to the previous page.
•Audit—Compare the WCS values with those used on the controller.
Configuring Location Configurations
In the Location Configuration page, you can configuration location parameters such as expiration times, notification interval, and other advanced configuration options.
You can set the following general and advanced parameters on the location template:
•General parameters—Enable RFID tag collection, set the location path loss for calibrating or normal (non-calibrating) clients, measurement notification for clients, tags, and rogue access points, set the RSSI expiry timeout value for clients, tags, and rogue access points.
•Advanced parameters-Set the RFID tag data timeout value and enable the location path loss configuration for calibrating client multi-band.
To configure location configurations for an individual controller, follow these steps:
Step 1 Choose Configure > Controller.
Step 2 Click an applicable IP address.
Step 3 From the left sidebar menu, choose Location Configuration > Location Configuration.
The Location Configuration page displays two tabs: General and Advanced.
Step 4 Add or modify the General parameters:
•RFID Tag Data Collection—Select the check box to enable the collection of data on tags.
Before the location server can collect asset tag data from controllers, you must enable the detection of active RFID tags using the CLI command config rfid status enable on the controllers.
•Location Path Loss Configuration
–Calibrating Client—Select the Enabled check box to enable calibration for the client. Controllers send regular S36 or S60 requests (depending on the client capability) by way of the access point to calibrate clients. Packets are transmitted on all channels. All access points gather RSSI data from the client at each location. These additional transmissions and channel changes might degrade contemporaneous voice or video traffic.
Note To use all radios (802.11a/b/g/n) available, you must enable multiband in the Advanced page.
–Normal Client—Select the Enabled check box to have a non-calibrating client. No S36 or S60 requests are transmitted to the client.
•Measurement Notification Interval (in secs)
–Tags, Clients, and Rogue APs/Clients—Allows you to set the NMSP measurement notification interval for clients, tags, and rogues. Specify how many seconds should elapse before notification of the found element (tags, clients, and rogue access points/clients).
Setting this value on the controller generates an out-of-sync notification which you can view in the Synchronize Servers page. When different measurement intervals exist between a controller and the mobility services engine, the largest interval setting of the two is adopted by the mobility services engine.
Once this controller is synchronized with the mobility services engine, the new value is set on the mobility services engine.
Note Synchronization to the mobility services engine is required if changes are made to measurement notification interval.
•RSS Expiry Timeout (in secs)
–For Clients—Enter the number of seconds after which RSSI measurements for normal (non-calibrating) clients should be discarded.
–For Calibrating Clients—Enter the number of seconds after which RSSI measurements for calibrating clients should be discarded.
–For Tags—Enter the number of seconds after which RSSI measurements for tags should be discarded.
–For Rogue APs—Enter the number of seconds after which RSSI measurements for rogue access points should be discarded.
Step 5 Add or modify the Advanced parameters:
•RFID Tag Data Timeout (in secs)—Enter a value (in seconds) to set the RFID tag data timeout setting.
•Location Path Loss Configuration
–Calibrating Client Multiband—Select the Enabled check box to send S36 and S60 packets (where applicable) on all channels. Calibrating clients must be enable in the general page.
Note To use all radios (802.11a/b/g/n) available, you must enable multiband.
Step 6 Click Save.
Command Buttons
•Save—Save the changes made to the management user authentication order and return to the previous page.
•Audit—Compare the WCS values with those used on the controller.uld be discarded.
Configuring Access Points
This section describes how to configure access points in the Cisco WCS database. This section contains the following topics:
•Setting AP Failover Priority
•Configuring Global Credentials for Access Points
•Configuring Ethernet Bridging and Ethernet VLAN Tagging
•Autonomous to Lightweight Migration Support
•Configuring Access Point Details
•Configuring CDP
•Configuring Access Point Radios for Tracking Optimized Monitor Mode
•Copying and Replacing Access Points
•Removing Access Points
•Scheduling Radio Status
•Viewing Audit Status (for Access Points)
•Searching Access Points
•Viewing Mesh Link Details
•Viewing or Editing Rogue Access Point Rules
•Configuring Spectrum Experts
•OfficeExtend Access Point
•Configuring Link Latency Settings for Access Points
Setting AP Failover Priority
When a controller fails, the backup controller configured for the access point suddenly receives a number of discovery and join requests. This may cause the controller to reach a saturation point and reject some of the access points.
By assigning priority to an access point, you have some control over which access points are rejected. In a failover situation when the backup controller is saturated, the higher priority access points are allowed to join the backup controller by disjoining the lower priority access points.
To configure priority settings for access points, you must first enable the AP Priority feature. To enable the AP Priority feature, follow these steps:
Step 1 Choose Configure > Controllers.
Step 2 Click the IP address of the applicable controller.
Step 3 From the left sidebar menu, choose System > General.
Step 4 From the AP Failover Priority drop-down list, choose Enable.
To configure an access point's priority, see the "Configuring Access Point Details" section.
Configuring Global Credentials for Access Points
Cisco autonomous access points are shipped from the factory with Cisco as the default enable password. This password allows users to log into the non-privileged mode and execute show and debug commands, posing a security threat. The default enable password must be changed to prevent unauthorized access and to enable users to execute configuration commands from the access point's console port.
In WCS and controller software releases prior to 5.0, you can set the access point enable password only for access points that are currently connected to the controller. In WCS and controller software release 5.0, you can set a global username, password, and enable password that all access points inherit as they join a controller. This includes all access points that are currently joined to the controller and any that join in the future. When you are adding an access point, you can also choose to accept this global username and password or override it on a per-access point basis and assign a unique username, password, and enable password. See the "Configuring AP Configuration Templates" section to see where the global password is displayed and how it can be overridden on a per-access point basis.
Also in controller software release 5.0, after an access point joins the controller, the access point enables console port security, and you are prompted for your username and password whenever you log into the access point's console port. When you log in, you are in non-privileged mode, and you must enter the enable password to use the privileged mode.
Note These controller software release 5.0 features are supported on all access points that have been converted to lightweight mode, except the 1100 series. VxWorks access points are not supported.
The global credentials that you configure on the controller are retained across controller and access point reboots. They are overwritten only if the access point joins a new controller that is configured with a global username and password. If the new controller is not configured with global credentials, the access point retains the global username and password configured for the first controller.
Note You need to keep careful track of the credentials used by the access points. Otherwise, you might not be able to log into an access point's console port. If necessary, you can clear the access point configuration to return the access point username and password to the default setting.
To establish a global username and password, follow these steps:
Step 1 Choose Configure > Controllers or Configure > Access Points.
Step 2 Choose an IP address of a controller with software release 5.0 or later or choose an access point associated with software release 5.0 or later.
Step 3 Choose System > AP Username Password from the left sidebar menu. The AP Username Password page appears (see Figure 9-15).
Figure 9-15 AP Username Password Page
Step 4 In the AP Username text box, enter the username that is to be inherited by all access points that join the controller.
Step 5 In the AP Password text box, enter the password that is to be inherited by all access points that join the controller. Re-enter in the Confirm AP Password text box.
Step 6 For Cisco autonomous access points, you must also enter and confirm an enable password. In the AP Enable Password text box, enter the enable password that is to be inherited by all access points that join the controller. Re-enter in the Confirm Enable Password text box.
Step 7 Click Save.
Configuring Ethernet Bridging and Ethernet VLAN Tagging
Ethernet bridging is used in two mesh network scenarios:
1. Point-to-point and point-to-multipoint bridging between MAPs (untagged packets). A typical trunking application might be bridging traffic between buildings within a campus (see Figure 9-16).
Note You do not need to configure VLAN tagging to use Ethernet bridging for point-to-point and point-to-multipoint bridging deployments.
Figure 9-16 Point-to-Multipoint Bridging
2. Ethernet VLAN tagging allows specific application traffic to be segmented within a wireless mesh network and then forwarded (bridged) to a wired LAN (access mode) or bridged to another wireless mesh network (trunk mode).
A typical public safety access application using Ethernet VLAN tagging is placement of video surveillance cameras at various outdoor locations within a city. Each of these video cameras has a wired connection to a MAP. The video of all these cameras is then streamed across the wireless backhaul to a central command station on a wired network (see Figure 9-17).
Figure 9-17 Ethernet VLAN Tagging
Ethernet VLAN Tagging Guidelines
•For security reasons, the Ethernet port on a mesh access point (RAP and MAP) is disabled by default. It is enabled by configuring Ethernet Bridging on the mesh access point port.
•You must enable Ethernet bridging on all the access points in the mesh network to allow Ethernet VLAN Tagging to operate.
•You must set VLAN Mode as non-VLAN transparent (global mesh parameter). See the "Configuring Ethernet Bridging and Ethernet VLAN Tagging" section.
–VLAN transparent is enabled by default. To set as non-VLAN transparent, you must unselect the VLAN transparent option in the Global Mesh Parameters page.
•VLAN configuration on a mesh access point is only applied if all the uplink mesh access points are able to support that VLAN.
–If uplink access points are not able to support the VLAN, then the configuration is stored rather than applied.
•VLAN tagging can only be configured on Ethernet interfaces.
–On 152x mesh access points, use three of the four ports as secondary Ethernet interfaces: port 0-PoE in, port 1-PoE out, and port 3- fiber. You cannot configure Port 2 - cable as a secondary Ethernet interface.
–In Ethernet VLAN tagging, port 0-PoE in on the RAP connects the trunk port of the switch of the wired network. Port 1-PoE out on the MAP connects external devices such as video cameras.
•Backhaul interfaces (802.11a radios) act as primary Ethernet interfaces. Backhauls function as trunks in the network and carry all VLAN traffic between the wireless and wired network. You are not required to configure the primary Ethernet interface.
•You must configure the switch port in the wired network that is attached to the RAP (port 0-PoE in) to accept tagged packets on its trunk port. The RAP forwards all tagged packets received from the mesh network to the wired network.
•Configuration to support VLAN tagging on the 802.11a backhaul Ethernet interface is not required within the mesh network.
–This includes the RAP uplink Ethernet port. The required configuration happens automatically using a registration mechanism.
–Any configuration changes to an 802.11a Ethernet link acting as a backhaul are ignored, and a warning results. When the Ethernet link no longer functions as a backhaul, the modified configuration is applied.
•You cannot configure VLANs on port-02-cable modem port of a 152x access point. Configure VLANs on ports 0 (PoE-in), 1 (PoE-out), and 3 (fiber).
•If bridging between two MAPs, enter the distance (mesh range) between the two access points that are bridging. (Not applicable to applications in which you are forwarding traffic connected to the MAP to the RAP, access mode.)
•Each sector supports up to 16 VLANs; therefore, the cumulative number of VLANs supported by a RAP's children (MAPs) cannot exceed 16.
•Ethernet ports on access points function as normal, access, or trunk ports in an Ethernet tagging deployment.
–Normal mode-In this mode, the Ethernet interface is VLAN-transparent by default and does not accept or send any tagged packets. Tagged frames from clients are dropped. Untagged frames are forwarded to the native VLAN on the RAP trunk port.
–Access mode-In this mode only untagged packets are accepted. You must tag all packets with a user-configured VLAN called access-VLAN. For this mode to take effect, the global VLAN mode should be non-VLAN transparent.
Use this option for applications in which information is collected from devices connected to the MAP such as cameras or PCs and then forwarded to the RAP. The RAP then applies tags and forwards traffic to a switch on the wired network.
–Trunk mode—This mode requires the user to configure a native VLAN and an allowed VLAN list (no defaults). In this mode, both tagged and untagged packets are accepted. You can accept untagged packets and tag them with the user-specified native VLAN. You can accept tagged packets if they are tagged with a VLAN in the allowed VLAN list. For this mode to take effect, the global VLAN mode should be non-VLAN transparent.
Use this option for bridging applications such as forwarding traffic between two MAPs resident on separate buildings within a campus.
•The switch port connected to the RAP must be a trunk.
–The trunk port on the switch and the RAP trunk port must match.
•A configured VLAN on a MAP Ethernet port cannot function as a Management VLAN.
•The RAP must always connect to the native VLAN (ID 1) on a switch.
–The RAP's primary Ethernet interface is by default the native VLAN of 1.
Enabling Ethernet Bridging and VLAN Tagging
To enable Ethernet Bridging and VLAN tagging on a RAP or MAP, follow these steps:
Step 1 Choose Configure > Access Points.
Step 2 Click the name of the mesh access point for which you want to enable Ethernet bridging. A configuration page for the access point appears.
Step 3 In the Bridging Information section, choose the appropriate backhaul rate from the Data Rate drop-down list. The default value is 24 Mbps for the 802.11a backhaul interface.
Step 4 In the Bridging Information section, choose Enable from the Ethernet Bridging drop-down list.
Step 5 Click the appropriate Ethernet interface link (such as FastEthernet or gigabitEthernet1). (See Figure 9-18.)
Figure 9-18 Configure > Access Points > AP Name Page
Step 6 Within the Ethernet interface page, perform one of the following (see Figure 9-19):
Figure 9-19 Access Point > Ethernet Interface Page
Note The configuration options vary for each of the VLAN modes (normal, access, and trunk).
a. If you are configuring a MAP and RAP normal ports and chose FastEthernet0, choose Normal from the VLAN Mode drop-down list.
In this mode, the Ethernet interface is VLAN-transparent by default and does not accept or send any tagged packets. Tagged frames from clients are dropped. Untagged frames are forwarded to the native VLAN on the RAP trunk port.
b. If you are configuring a MAP access port and chose gigabitEthernet1 (port 1-PoE out):
1. Choose Access from the VLAN Mode drop-down list.
2. Enter a VLAN ID. The VLAN ID can be any value between 1 and 4095.
3. Click Save.
Note VLAN ID 1 is not reserved as the default VLAN.
Note A maximum of 16 VLANs in total are supported across all of a RAP's subordinate MAPs.
c. If you are configuring a RAP or MAP trunk port and chose gigabitEthernet0 (or FastEthernet0)
(port 0-PoE in),
1. Choose trunk from the VLAN Mode drop-down list.
2. Enter a native VLAN ID for incoming traffic. The native VLAN ID can be any value between 1 and 4095. Do not assign any value assigned to a user-VLAN (access).
3. Enter a trunk VLAN ID for outgoing traffic, and click Add.
The added trunk appears in the summary column of allowed VLAN IDs.
If forwarding untagged packets, do not change the default trunk VLAN ID value of zero (such as MAP-to-MAP bridging, campus environment).
If forwarding tagged packets, enter a VLAN ID (1 to 4095) that is not already assigned (such as RAP to switch on wired network).
Note To remove a VLAN from the list, click Delete.
4. Click Save.
Note At least one mesh access point must be set to RootAP in the mesh network.
Autonomous to Lightweight Migration Support
The autonomous to lightweight migration support feature provides a common application (WCS) from which you can perform basic monitoring of autonomous access points along with current lightweight access points. The following autonomous access points are supported:
•Cisco Aironet 1130 Access Point
•Cisco Aironet 1200 Access Point
•Cisco Aironet 1240 Access Point
•Cisco Aironet 1310 Bridge
•Cisco Aironet 1410 Bridge
You may also choose to convert autonomous access points to lightweight. Once an access point is converted to lightweight, the previous status or configuration of the access point is not retained.
From WCS, the following functions are available when managing autonomous access points:
•Adding Autonomous Access Points to WCS
•Viewing Autonomous Access Points in WCS
•Adding and viewing autonomous access points from the Monitor > Maps page (see the "Monitoring Maps" section for more information)
•Monitoring associated alarms
•Performing an autonomous access point background task
–Checks the status of autonomous access points managed by WCS.
–Generates a critical alarm when an unreachable autonomous access point is detected.
•Running reports on autonomous access points
–See Reports > Inventory Reports and Reports > Client Reports > Client Count for more information
•Supporting Autonomous Access Points in Work Group Bridge (WGB) mode
•Migrating an Autonomous Access Point to a Lightweight Access Point
Adding Autonomous Access Points to WCS
From WCS, the following methods are available for adding autonomous access points:
•Adding Autonomous Access Points by Device Information (IP addresses and credentials).
•Adding Autonomous Access Points by CSV File.
Adding Autonomous Access Points by Device Information
Autonomous access points can be added to WCS by device information using comma-separated IP addresses and credentials.
To add autonomous access points using device information, follow these steps:
Step 1 Choose Configure > Access Points.
Step 2 From the Select a command drop-down list, choose Add Autonomous APs.
Step 3 Click Go.
Step 4 Choose Device Info from the Add Format Type drop-down list.
Step 5 Enter comma-separated IP addresses of autonomous access points.
Step 6 Select the Verify Telnet/SSH Credentials check box if you want this controller to verify Telnet/SSH credentials.
Note If you select the Verify Telnet/SSH checkbox, the migration analysis is run during the autonomous access point discovery process.
Step 7 Enter the SNMP parameters including version number, number of retries, and timeout in seconds.
Step 8 (Optional) Enter Telnet credentials for migration.
Note The Telnet credentials are required to convert the access points from autonomous to unified and for access point CLI templates.
Note If the autonomous access point already exists, WCS updates the credentials (SNMP and Telnet) to the existing device.
Step 9 Click OK.
Adding Autonomous Access Points by CSV File
Autonomous access points can be added to WCS using a CSV file exported from WLSE.
To add autonomous access points using a CSV file, follow these steps:
Step 1 Choose Configure > Access Points.
Step 2 From the Select a command drop-down list, choose Add Autonomous APs.
Step 3 Click Go.
Step 4 Choose File from the Add Format Type drop-down list.
Step 5 Enter or browse to the applicable CSV file.
The sample CSV files for V2 devices are as follows:
ip_address, network_mask, snmp_version, snmp_community, snmpv3_user_name, snmpv3_auth_type, snmpv3_auth_password, snmpv3_privacy_type, snmpv3_privacy_password, snmp_retries, snmp_timeout,telnet_username,telnet_password,telnet_retries,telnet_timeout
209.165.200.224,255.255.255.224,v2,public,,,,,,3,4
209.165.201.0,255.255.255.0,v2,public,,,,,,3,4,Cisco,Cisco,2,10
The sample CSV files for V3 devices are as follows:
ip_address, network_mask, snmp_version, snmpv3_user_name, snmpv3_auth_type, snmpv3_auth_password, snmpv3_privacy_type, snmpv3_privacy_password, snmp_retries, snmp_timeout,telnet_username,telnet_password,telnet_retries,telnet_timeout
209.165.200.224,255.255.255.224,v3,default,HMAC-MD5,default,None,,3,4
209.165.201.0,255.255.255.224,v3,default1,HMAC-MD5,default1,DES,default1,3,4,Cisco,Cisco,2,10
The CSV files can contain the following fields:
•ip_address
•network_mask
•snmp_version
•snmp_community
•snmpv3_user_name
•snmpv3_auth_type
•snmpv3_auth_password
•snmpv3_privacy_type
•snmpv3_privacy_password
•snmp_retries
•snmp_timeout
•telnet_username
•telnet_password
•enable_password
•telnet_retries
•telnet_timeout
Step 6 Click OK.
To remove an autonomous access point from WCS, follow these steps:
Step 1 Select the check boxes of the access points you want to remove.
Step 2 Choose Remove APs from the Select a command drop-down list.
Viewing Autonomous Access Points in WCS
Once added, the autonomous access points can be viewed on the Monitor > Access Points page.
Click the autonomous access point to view more detailed information such as the following:
–Operational status of the access points
–Key attributes including radio information, channel, power, and number of clients on the radio
–CDP neighbored information
The autonomous access points can also be viewed in Monitor > Maps.
They can be added to a floor area by choosing Monitor Maps > floor area and choosing Add Access Points from the Select a command drop-down list.
Downloading Images to Autonomous Access Points
Lightweight access point images are bundled with controller images and managed by the controller. Autonomous access point images must be handled by a NMS system such as WLSE, CiscoWorks, or WCS.
To download images to autonomous access points, follow these steps:
Step 1 Choose Configure > Access Points.
Step 2 Select the check box of the autonomous access point to which you want to download an image. The AP Type column displays whether the access point is autonomous or lightweight.
Step 3 From the Select a command drop-down list, choose Download Autonomous AP Image. The image download page appears.
To ensure that no more than ten access points are selected for download, a check is made. The image must be compatible with all of the selected access points. Scheduling an immediate task initiates the image download. It is periodically refreshed.
Supporting Autonomous Access Points in Work Group Bridge (WGB) mode
Workgroup Bridge (WGB) mode is a special mode where an autonomous access point functions as a wireless client and connects to a lightweight access point. The WGB and its wired clients are listed as client in WCS if the AP mode is set to Bridge, and the access point is bridge capable.
To view a list of all WCS clients that are WGBs, choose Monitor > Clients. From the Show drop-down list, choose WGB Clients, and click Go. The Clients (detected as WGBs) page appears. Click a User to view detailed information regarding a specific WGB and its wired clients.
Note The WCS provides WGB client information for the autonomous access point whether or not it is managed by the WCS. If the WGB access point is also managed by the WCS, WCS provides basic monitoring functions for the access point similar to other autonomous access points.
Upgrading Autonomous Access Points
You can choose to upgrade the autonomous access points manually or automatically. From the Migration Analysis page, you can choose the access point with the software version listed as failed and choose Upgrade Firmware (Manual or Automatic) from the Select a command drop-down list. This process upgrades the autonomous firmware image of the Cisco IOS access point to a supported version.
WCS uses a Telnet-based connection to upgrade the access point firmware. If you choose the automatic option, the internal TFTP server is used with the default images present in WCS. The default images as per device type are as follows:
•ap801-k9w7-tar.124-10b.JA3.tar
•ap802-k9w7-tar
•c1100-k9w7-tar.123-7.JA5.tar
•c1130-k9w7-tar.123-7.JA5.tar
•c1200-k9w7-tar.123-7.JA5.tar
•c1240-k9w7-tar.12307.JA5.tar
•c1250-k9w7-tar.124-10b.JA3.tar
•c1310-k9w7-tar.123-7.JA5.tar
If you choose the manual option, an additional screen with TFTP server IP, file path, and file path name appears. The final page is the report page.
Changing Station Role to Root Mode
Because a wired connection between the access point and controller is required to send the association request, the autonomous access point must be assigned the appropriate role. If the role shows as ineligible, you can choose Change Station Role to Root Mode from the Select a command drop-down list.
Running Migration Analysis
You can choose Run Migration Analysis from the Select a command drop-down list of the Migration Analysis Summary page. The resulting migration analysis summary shows the current status of different criteria. Initially, migration analysis is run automatically when the access point is discovered.
Generating the Migration Analysis Report
You can choose View Migration Analysis Report from the Select a command drop-down list of the Migration Analysis Summary page to generate a report. The report includes the following:
•Access point address
•Status
•Timestamp
•Access point logs
Viewing Current Status of Cisco IOS Access Points
Select View Current Status from the Select a command drop-down list of the Autonomous AP Migration Templates to view the status of Cisco IOS access point migration.
The following information is displayed:
•IP Address—IP address of the access point.
•Status—Current status of the migration.
•Progress—Summary of the migration progress.
Disabling Access Points that are Ineligible
If an autonomous access point is labelled as ineligible for conversion, you can disable it.
Configuring Access Point Details
Choose Configure > Access Points to see a summary of all access points in the Cisco WCS database. The summary information includes the following:
•Ethernet MAC
•IP Address
•Radio
•Map Location
•AP Type
•Controller
•Operation Status
•Alarm Status
•Audit Status
Note If you hover your mouse cursor over the Audit Status value, the time of the last audit is displayed.
Note You cannot configure the Cisco 600 Series Access Points from the this page. It can be configured from the AP Configuration Templates page only. For details on configuring AP Configuration Templates, see "Configuring AP Configuration Templates" section.
Step 1 Click the link under AP Name to see detailed information about that access point name. The Access Point Detail page appears (see Figure 9-20).
Figure 9-20 Detailed Access Point Information
.
Note The operating system software automatically detects and adds an access point to the Cisco WCS database as it associates with existing controllers in the Cisco WCS database.
Note Access point parameters may vary depending on the access point type.
Some of the parameters on the page are automatically populated.
•The General portion displays the Ethernet MAC, the Base Radio MAC, IP Address, and status.
•The Versions portion of the page displays the software and boot version.
•The Inventory Information portion displays the model, AP type, AP certificate type, serial number, and REAP mode support.
•The Ethernet Interfaces portion provides information such as interface name, slot ID, admin status, and CDP state.
•The Radio Interfaces portion provides the current status of the 802.11a/n and 802.11b/g/n radios such as admin status, channel number, power level, antenna mode, antenna diversity, and antenna type.
To set the configurable parameters, follow these steps:
Note Changing access point parameters causes the access point to be temporarily disabled and this may cause some clients to lose connectivity.
Step 2 Enter the name assigned to the access point.
Step 3 Use the drop-down list to choose a country code to establish multiple country support. Access points are designed for use in many countries with varying regulatory requirements. You can configure a country code to ensure that the access point complies with your country's regulations. Consider the following when setting the country code:
•You can configure up to 20 countries per controller.
•Because only one auto-RF engine and one list of available channels exist, configuring multiple countries limits the channels available to auto-RF in the common channels. A common channel is one that is legal in each and every configured country.
•When you configure access points for multiple countries, the auto-RF channels are limited to the highest power level available in every configured country. A particular access point may be set to exceed these limitations (or you may manually set the levels in excess of these limitations), but auto-RF does not automatically choose a non-common channel or raise the power level beyond that available in all countries.
Note Access points may not operate properly if they are not designed for use in your country of operation. For example, an (-A) access point with part number AIR-AP1030-A-K9 (which is included in the Americas regulatory domain) cannot be used in Europe (-E). Always be sure to purchase access points that match your country's regulatory domain. For a complete list of country codes supported per product, refer to this location:
http://www.cisco.com/en/US/prod/collateral/wireless/ps5679/ps5861/product_data_sheet0900aecd80537b6a_ps430_Products_Data_Sheet.html.
Step 4 If you want to enable the access point for administrative purposes, select the Enable check box.
Step 5 If you select Enable at the AP Static IP check box, a static IP address is always assigned to the access point rather than getting an IP address dynamically upon reboot.
Step 6 Choose the role of the access point from the AP Mode drop-down list. No reboot is required after the mode is changed except when monitor mode is selected. You are notified of the reboot when you click Save. The available modes are as follows:
•Local—This is the normal operation of the access point and the default AP Mode choice. With this mode, data clients are serviced while configured channels are scanned for noise and rogues. The access point goes off-channel for 50 ms and listens for rogues. It cycles through each channel for the period specified under the Auto RF configuration.
•H-REAP—Choose HREAP from the AP Mode drop-down list to enable Hybrid REAP for up to six access points. The H-REAP access points can switch client data traffic locally and perform client authentication locally when their connection to the controller is lost.
Note To configure Local or HREAP access points for Cisco Adaptive wIPS feature, choose Local or HREAP, and select the Enhanced wIPS Engine Enabled check box.
•Monitor—This is radio receive only mode and allows the access point to scan all configured channels every 12 seconds. Only deauthentication packets are sent in the air with an access point configured this way. A monitor mode access point detects rogues, but it cannot connect to a suspicious rogue as a client to prepare for the sending of RLDP packets.
Note You can expand the monitor mode for tags to include location calculation by enabling the tracking optimized monitor mode (TOMM) feature. When TOMM is enabled, you can specify which four channels within the 2.4 GHz band (802.11b/g radio) of an access point to use to monitor tags. This allows you to focus channel scans on only those channels for which tags are traditionally found (such as channels 1, 6, and 11) in your network. To enable TOMM, you must also make additional edits on the 802.11b/g radio of the access point. See the "Configuring Access Point Radios for Tracking Optimized Monitor Mode" section for configuration details.
Note You cannot enable both TOMM and wIPS at the same time. TOMM can be enabled only when wIPS is disabled.
Note To configure access points for Cisco Adaptive wIPS feature, choose Monitor and select the Enhanced wIPS Engine Enabled check box, and select wIPS from the Monitor Mode Optimization drop-down list.
•Rogue Detector—In this mode, the access point radio is turned off, and the access point listens to wired traffic only. The controllers that operate in this mode monitor the rogue access points. The controller sends all the rogue access point and client MAC address lists to the rogue detector, and the rogue detector forwards this information to the WLC. The MAC address list is compared to what the WLC access points expected. If the MAC addresses match, you can determine which rogue access points are connected on the wired network.
•Sniffer—Operating in sniffer mode, the access point captures and forwards all the packets on a particular channel to a remote machine that runs AiroPeek. These packets contain information such as timestamp, signal strength, packet size, and so on. This feature can only be enabled if you run AiroPeek, which is a third-party network analyzer software that supports the decoding of data packets. For more information on AiroPeek, see http://www.wildpackets.com/products.
•Bridge—Bridge mode is a special mode where an autonomous access point functions as a wireless client and connects to a lightweight access point. The bridge and its wired clients are listed as client in WCS if the AP mode is set to Bridge, and the access point is bridge capable.
•SE-Connect—This mode allows a CleanAir-enabled access point to be used extensively for interference detection on all monitored channels. All other functions such as IDS scanning and Wi-Fi are suspended.
Note This option is displayed only if the access point is CleanAir-capable.
Note Changing the AP mode reboots the access point.
Step 7 Disable any access point radios.
Step 8 From the AP Failover Priority drop-down list, choose Low, Medium, High, or Critical to indicate the access point's failover priority. The default priority is low. See the "Setting AP Failover Priority" section for more information.
Step 9 In the Primary, Secondary, and Tertiary Controller fields, you can define the order in which controllers are accessed.
Step 10 The AP Group Name drop-down shows all access point group names that have been defined using WLANs > AP Group VLANs, and you can specify whether this access point is tied to any group.
Note An access point group name to 31 characters for WLC versions earlier than 4.2.132.0 and 5.0.159.0.
Step 11 Enter a description of the physical location where the access point was placed.
Step 12 In the Stats Collection Period parameter, enter the time in which the access point sends .11 statistics to the controller. The valid range is 0 to 65535 seconds. A value of 0 means statistics should not be sent.
Step 13 Choose Enable for Mirror Mode if you want to duplicate (to another port) all of the traffic originating from or terminating at a single client device or access point. Mirror mode is useful in diagnosing specific network problems but should only be enabled on an unused port since any connections to this port become unresponsive.
Step 14 You can globally configure MFP on a controller. When you do, management frame protection and validation are enabled by default for each joined access point, and access point authentication is automatically disabled. After MFP is globally enabled on a controller, you can disable and re-enable it for individual WLANs and access points.
If you click to enable MFP Frame Validation, three main functions are performed:
•Management frame protection—When management frame protection is enabled, the access point protects the management frames it transmits by adding a message integrity check information element (MIC IE) to each frame. Any attempt to copy, alter, or replay the frame invalidates the MIC, causing those receiving access points which were configured to detect MFP frames to report the discrepancy.
•Management frame validation—When management frame validation is enabled, the access point validates every management frame it receives from other access points in the network. When the originator is configured to transmit MFP frames, the access point ensures that the MIC IE is present and matches the content of the management frame. If it receives any frame that does not contain a valid MIC IE, it reports the discrepancy to the network management system. To report this discrepancy, the access point must have been configured to transmit MFP frames. Likewise, for the timestamps to operate properly, all controllers must be Network Transfer Protocol (NTP) synchronized.
•Event reporting—The access point notifies the controller when it detects an anomaly, and the controller aggregates the received anomaly events and reports the results through SNMP traps to alert the network manager.
Step 15 Select the Cisco Discovery Protocol check box if you want to enable it. CDP is a device discovery protocol that runs on all Cisco-manufactured equipment, such as routers, bridges, and communication servers. Each device sends periodic messages to a multicast address and listens to the messages that others send to learn about neighboring devices. When the device boots, it sends a CDP packet specifying whether the device is inline power enabled so that the requested power can be supplied.
Note Changing access point parameters temporarily disables an access point and might result in loss of connectivity to some clients.
Step 16 Select the check box to enable rogue detection. See the "Rogue Access Point Location, Tagging, and Containment" section for more information on rogue detection.
Note Rogue detection is disabled automatically for OfficeExtend access points because these access points, which are deployed in a home environment, are likely to detect a large number of rogue devices. For more information regarding OfficeExtend access points, refer to the Cisco Wireless LAN Controller Configuration Guide.
Step 17 Select the Encryption check box to enable encryption.
Note Enabling or disabling encryption functionality causes the access point to reboot, which then causes clients to lose connectivity.
Note DTLS data encryption is enabled automatically for OfficeExtend access points to maintain security, but disabled by default for all other access points.
Note Cisco 5500 controllers can be loaded with one of the two types of images, AS_5500_LDPE_x_x_x_x.aes or AS_5500_x_x_x_x.aes. For the 5500 controller loaded with former image, you need to have DTLS License to show encryption.
Note For WiSM2 and 2500 controllers, it is mandatory to have DTLS license to show encryption.
Step 18 If rogue detection is enabled, the access point radio is turned off, and the access point listens to wired traffic only. The controllers that operate in this mode monitor the rogue access points. The controller sends all the rogue access point and client MAC address lists to the rogue detector, and the rogue detector forwards this information to the WLC. The MAC address list is compared to what the WLC access points expected. If the MAC addresses match, you can determine which rogue access points are connected on the wired network.
Step 19 Select the SSH Access check box to enable SSH access.
Step 20 Select the Telnet Access check box to enable Telnet access.
Note An OfficeExtend access point may be connected directly to the WAN which could allow external access if the default password is used by the access point. Therefore, Telnet and SSH access are disabled automatically for OfficeExtend access points.
Step 21 If you want to override credentials for this access point, select the Override Global Username Password check box. You can then enter a new supplicant AP username, AP password, and Enable password that you want to assign for this access point.
Note In the System > AP Username Password page, you can set global credentials for all access points to inherit as they join a controller. These established credentials appear in the lower right of the AP Parameters tab page.
The information that you enter is retained across controller and access point reboots and if the access point joins a new controller.
Step 22 Select the Enable Link Latency check box to enable link latency for this access point or unselect it to prevent the access point from sending the round-trip time to the controller after every echo response is received. See the "Configuring Link Latency Settings for Access Points" section for more information on link latency.
Step 23 You can now manipulate power injector settings through WCS without having to go directly to the controllers. In the Power Over Ethernet Settings section, select the check box to enable pre-standard or power injector state.
Pre-standard is chosen if the access point is powered by a high power Cisco switch; otherwise, it is disabled. If power injector state is selected, power injector options appear. The possible values are installed or override. If you choose override, you can either enter a MAC address or leave it empty so that it is supplied by WLC.
Note To determine which source of power is running WCS, choose Monitor > Access Points, click Edit View, and then choose and move POE Status to the View Information box. After you click Submit, the POE status appears in the last column. If the device is powered by an injector, the POE status appears as Not Applicable.
Step 24 Select the Enable check box to enable the following H-REAP configurations:
Note H-REAP settings cannot be changed when the access point is enabled.
•OfficeExtend AP—The default is Enabled.
Note Unselecting the check box simply disables OfficeExtend mode for this access point. It does not undo all of the configuration settings on the access point, but it does put the access point at risk since it becomes remotely deployed. If you want to clear the access point's configuration and return it to factory default settings, click Clear Config at the bottom of the access point details page. If you want to clear only the access point's personal SSID, click Reset Personal SSID at the bottom of the access point details page.
When you select Enabled for the OfficeExtend AP, a warning message provides the following information:
•Configuration changes that automatically occur. Encryption and Link Latency are enabled. Rogue Detection, SSH Access, and Telnet Access are disabled.
•A reminder to configure at least one primary, secondary, and tertiary controller (including name and IP address).
Note Typically, an access point first looks for the primary controller to join. After that, the controller tries the secondary and then the tertiary controller. If none of these controllers are configured, the access point switches to a default discovery mode in an attempt to join whatever controller it may find.
An OfficeExtend access point searches only for a primary, secondary, or tertiary controller to join. It does not look any further for a configured controller. Because of this, it is important that you configure at least one primary, secondary, or tertiary controller name and IP address.
–A warning the enabling encryption causes the access point to reboot and causes clients to lose connectivity.
•Least Latency Controller Join—When enabled, the access point switches from a priority order search (primary, secondary, and then tertiary controller) to a search for the controller with the best latency measurement (least latency). The controller with the least latency provides the best performance.
Note The access point only performs this search once when it initially joins the controller. It does not recalculate the primary, secondary, and tertiary controllers' latency measurements once joined to see if the measurements have changed.
•Enable VLAN—When selected, enter the Native VLAN identifier.
When Enable VLAN is selected, WCS displays locally switched VLANs.
Step 25 Select the role of the mesh access point from the Role drop-down list. The default setting is MAP.
Note An access point in a mesh network functions as either a root access point (RAP) or mesh access point (MAP).
Step 26 Enter the name of the bridge group to which the access point belongs. The name can have up to 10 characters.
Note Bridge groups are used to logically group the mesh access points to avoid two networks on the same channel from communicating with each other.
Note For mesh access points to communicate, they must have the same bridge group name.
Note For configurations with multiple RAPs, make sure that all RAPs have the same bridge group name to allow failover from one RAP to another.
Note For configurations where separate sectors are required, make sure that each RAP and its associated MAPs have separate bridge group names.
The Type parameter appears whether the mesh access point is an indoor or outdoor access point, and the Backhaul Interface parameter displays the access point radio that is being used as the backhaul for the access point.
Step 27 Choose the data rate for the backhaul interface from the drop-down list. Data rates available are dictated by the backhaul interface. The default rate is 18 Mbps.
Note This data rate is shared between the mesh access points and is fixed for the whole mesh network.
Note Do NOT change the data rate for a deployed mesh networking solution.
Step 28 Choose Enable from the Ethernet Bridging drop-down list to enable Ethernet bridging for the mesh access point.
•AP Retransmit Count —Number of times that you want the access point to retransmit the request to controller and vice-versa. This parameter can take values between 3 and 8.
Note
Feedback
