SFP Fibre Channel Transceivers
Product Overview
This describes the Cisco UCS Fabric Interconnects and their components, and includes the following sections:
Interconnect Features
A Cisco UCS 6100 series fabric interconnect is a top-of-rack fabric interconnect that provides Ethernet and Fibre Channel to all servers in the rack. Servers connect to the fabric interconnect, and it connects to the LAN or SAN.
This family of fabric interconnects connect UCS servers to 10 Gigabit Ethernet 1, 2, and 4 Gbps Fibre Channel networks, and provides consolidated I/O connectivity to both production Ethernet LANs and Fibre Channel SANs in a cost-effective, high-performance, low-latency environment.
The Cisco UCS 6100 series has the following characteristics:
•
Depending on the model and expansion modules used, 20 to56 ports are on the back of the chassis. The Cisco UCS 6120XP has 20 ports on the base system and can be upgraded with one expansion module. The Cisco UCS 6140XP has 40 ports on the base system and can be upgraded with two expansion modules.
•
•
•
The Ethernet connector port exposes four Ethernet ports that are in a 2x2 stacked RJ-45 jack. Figure 1-1 shows a close-up view of the Ethernet connector port.
Figure 1-1 Ethernet Connector Port
Table 1-1 lists the LED descriptions for all Ethernet LEDs.
Table 1-1 Ethernet LED Descriptions
Left
Off
No link
Solid green
Physical link
Right
Off
No activity
Blinking green
Activity
Cisco UCS 6120XP Chassis

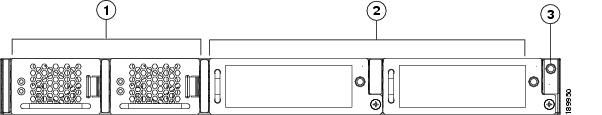

The Cisco UCS 6120XP chassis is 1 RU, 1.72 inches tall, 17.3 inches wide and 30.0 inches deep. It mounts in a standard 19-inch rack (the Cisco R Series Rack is an ideal choice). The chassis has two power supplies and two fan modules on the front of the chassis, and it has network ports on the rear of the chassis. The airflow is front to back. Figure 1-2 shows the front of the Cisco UCS 6120XP.
Figure 1-2 Cisco UCS 6120XP Front View
Figure 1-3 shows a close-up view of the front of the chassis.
Figure 1-3 Cisco UCS 6120XP Front View Close-up
The rear of the Cisco UCS 6120XP chassis has 20 fixed 10-Gigabit, Fiber Channel over Ethernet-capable SFP+ Ethernet ports, 1 slot for an optional expansion module, an Ethernet connector with 2 cross-connect ports and 2 management ports, a console port, and 2 AC power connectors. Up to eight of the 20 ports can be 1Gbps SFP ports if necessary. Figure 1-4 shows the rear of the Cisco UCS 6120XP.
Figure 1-4 Cisco UCS 6120XP Rear View
Cisco UCS 6140XP Chassis

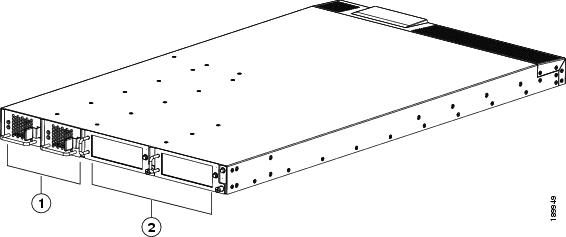

The Cisco UCS 6140XP chassis is 2 RU, 3.45 inches tall, 17.3 inches wide and 30.0 inches deep. It mounts in a standard 19-inch rack (the Cisco R Series Rack is an ideal choice). The chassis has two power supplies and two fan modules on the front of the chassis, and it has network ports on the rear of the chassis. The airflow is front to back. Figure 1-5 shows the front of the Cisco UCS 6140XP.
Figure 1-5 Cisco UCS 6140XP Front View
Figure 1-3 shows a close-up view of the front of the chassis.
Figure 1-6 Cisco UCS 6140XP Front View Close-up
The rear of the Cisco UCS 6140XP chassis has 40 fixed 10-Gigabit, FCoE-capable Ethernet ports, 2 slots for an optional expansion module, an Ethernet connector with 2 cross-connect ports and 2 management ports, a console port, and 2 AC power connectors. Up to sixteen of the 40 ports can be 1Gbps SFP ports if necessary. Figure 1-4 shows the rear of the Cisco UCS 6140XP.
Figure 1-7 Cisco UCS 6140XP Rear View
Expansion Modules
Expansion modules allow Cisco UCS 6100 Series Fabric Interconnect to be configured as cost-effective 10-Gigabit Ethernet fabric interconnects and as I/O consolidation platforms with native Fibre Channel connectivity. The Cisco UCS 6120XP has one slot for an optional uplink expansion module. The Cisco UCS 6140XP has two slot for an optional uplink expansion module.There are several modules that can be accommodated in this slot:
•
•
•
•
The chassis supports hot swapping of the expansion modules. If the expansion modules are not in place, a cover plate should be used to ensure proper airflow in the chassis.
N10-E0440
The N10-E0440 supports four SFP+ transceiver modules and four 1-, 2-, 4-Gbps Fibre Channel transceivers. The Fibre Channel plus Ethernet expansion module is a field-replaceable unit (FRU). Figure 1-8 shows the Fibre Channel plus Ethernet expansion module.
Figure 1-8 N10-E0440 Expansion Module
Figure 1-9 shows the front of the Fibre Channel plus Ethernet expansion module, and shows how ports are numbered on the Fibre Channel plus Ethernet expansion module.
Figure 1-9 Front of the N10-E0440 Expansion Module
N10-E0600
The N10-E0600 expansion module supports 6 10G SFP+ based uplink connections. Figure 1-10 shows the N10-E0600 expansion module.
Figure 1-10 N10-E0600 Expansion Module
See Figure 1-15 for an illustration of how ports are grouped and numbered on the Ethernet expansion module.
N10-E0080
The N10-E0080 expansion module supports 8 1/2/4G Fibre Channel, SFP-based uplink connection. Figure 1-11 shows the N10-E0080 expansion module. Figure 1-12 shows LED and port locations for the N10-E0080 expansion module.
Figure 1-11 N10-E0080 Expansion Module
Figure 1-12 Front of the N10-E0080 Expansion Module
N10-E0060
The N10-E0060 expansion module supports 6 1/2/4/ 8 G Fibre Channel, SFP-based uplink connections. Figure 1-11 shows the N10-E0060 expansion module. Figure 1-12 shows LED and port locations for the N10-E0060 expansion module.
Figure 1-13 N10-E0060 Expansion Module
Figure 1-14 Front of the N10-E0060 Expansion Module
Ports
Each individual port is numbered, and groups of ports are numbered based on their function. The ports are numbered top to bottom and left to right.
Cisco UCS 6120XP
There are 20 to 28 ports on the Cisco UCS 6120XP, depending on which expansion module is installed. The fixed ports form group 1 and are named 1/port_number. Ports 1 through 20 are unencrypted Ethernet ports. Of these, ports 1 through 8 are 10-Gigabit Ethernet and 1-Gigabit Ethernet-capable ports. Group 2 includes the ports in the expansion module or modules. Group 2 ports 1 through 4 are Ethernet ports. Group 2 ports 5 through 8 are Fibre Channel ports.
Figure 1-15 shows how ports are numbered and grouped by function on a Cisco UCS 6120XP with the N10-E0440 expansion module installed.
Figure 1-15 Port Numbering of the Cisco UCS 6120XP Configured with the N10-E0440 Expansion Module
Figure 1-16 shows how ports are numbered and grouped by function with the N10-E0600 expansion module installed.
Figure 1-16 Port Numbering of the Cisco UCS 6120XP Configured with the N10-E0600 Expansion Module

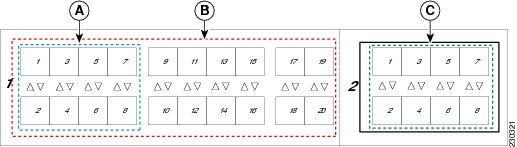

Figure 1-17 shows how ports are numbered and grouped by function with the N10-E0080 expansion module installed.
Figure 1-17 Port Numbering of the Cisco UCS 6120XP Configured with the N10-E0080 Expansion Module
Group 1 ports 1 through 8: 10-Gigabit or 1-Gigabit Ethernet capable unencrypted ports
Group 2 ports 1 through 8: Fibre Channel ports
Group 1 ports 1 through 20: Unencrypted Ethernet ports

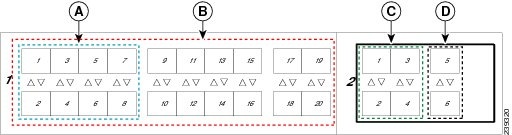

Figure 1-18 shows how ports are numbered and grouped by function with the N10-E0060 expansion module installed.
Figure 1-18 Port Numbering of the Cisco UCS 6120XP Configured with the N10-E0060 Expansion Module
Group 1 ports 1 through 8: 10-Gigabit or 1-Gigabit Ethernet capable unencrypted ports
Group 2 ports 1 through 6: Fibre Channel ports
Group 1 ports 1 through 20: Unencrypted Ethernet ports
Cisco UCS 6140XP
There are 40 to 56 ports on the Cisco UCS 6140XP, depending on which expansion module is installed. The fixed ports form group 1 and are named 1/port_number. Ports 1 through 40 are unencrypted Ethernet ports. Of these, ports 1 through 16 are 10-Gigabit Ethernet and 1-Gigabit Ethernet-capable ports. Group 2 includes the ports in the top-most expansion module. Group 2 ports 1 through 4 are encrypted Ethernet ports. Group 2 ports 5 through 8 are Fibre Channel ports. Group 3 includes the ports in the bottom-most expansion module. Group 3 ports 1 through 4 are encrypted Ethernet ports. Group 3 ports 5 through 8 are Fibre Channel ports.
Figure 1-19 shows how ports are numbered and grouped by function for both the fixed ports and the Fibre Channel plus Ethernet expansion module ports.
Figure 1-19 Port Numbering of the Cisco UCS 6140XP Configured with the N10-E0080 Expansion Module
Figure 1-20 shows how ports are numbered and grouped by function for both the fixed ports and the Ethernet expansion module ports.
Figure 1-20 Port Numbering of the Cisco UCS 6140XP Configured with the N10-E0600 Expansion Module
Power Supply
Table 1-2 Power Supply Models
N10-PAC1-550W =
Cisco UCS 6120XP
110 VAC
550
N10-PAC2-750W=
Cisco UCS 6140XP
110 VAC
750
The fabric interconnect uses a front-end power supply. The chassis has slots for two power supplies. Two power supplies can be used for redundancy, but the fabric interconnect is fully functional with one power supply. Figure 1-21 shows the 550 W power supply, which has two LEDs: one for power status and one for failure condition. Figure 1-22 shows the 750 W power supply, which has two LEDs: one for power status and one for failure condition.
Figure 1-21 550W Power Supply (N10-PAC1-550W =)
Figure 1-22 750W Power Supply (N10-PAC2-750W=)
Table 1-3 describes the status of the two power supply LEDs.
If one power supply is installed in the chassis, but the other power supply slot is empty, a blank filler panel should be used to cover the empty slot. Figure 1-23 shows a blank power supply filler panel.
Figure 1-23 Blank Power Supply Filler Panel (N10-S1BLKP= Shown)
Fan Module
TheCisco UCS 6120XP fabric interconnect has slots for two fan modules. Each fan module houses 6 fans. The combination of 6 fans per module and 2 modules provides the chassis with 12 fans. Figure 1-24 shows the fan module for the Cisco UCS 6120XP.
Figure 1-24 Cisco UCS 6120XP Fan Module (N10-FAN1=)

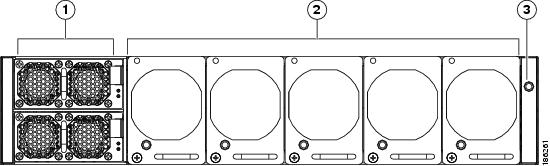

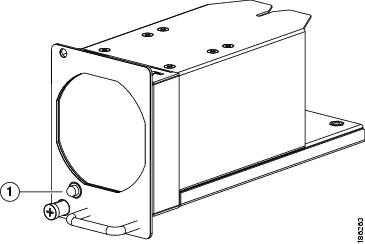

The Cisco UCS 6140XP fabric interconnect has five fan modules. Figure 1-25 shows the fan module.
Figure 1-25 Cisco UCS 6140XP Fabric Interconnect Fan Module (N10-FAN2=)
The bi-color fan module LED indicates fan tray health. Green indicates normal operation, while amber indicates a fan failure.
LED Descriptions
Table 1-4 describes the LEDs.
Port Level LEDs
There are port activity LEDs on the chassis and on the expansion modules. Table 1-5 summarizes the behavior of the port LEDs.
Table 1-5 Port LEDs
Green (blinking)
Link is up, enabled, and active.
Amber
Link is administratively disabled.
Amber (blinking)
POST or operational error.
Off
Link is down.
Supported Transceivers
The fabric interconnect supports SFP+ Ethernet transceivers, SFP transcievers, and SFP Fibre Channel transceivers. Specifications for these transcievers is at:
SFP+ Transceivers
The enhanced SFP+ 10-Gigabit Ethernet transceiver module is a bidirectional device with a transmitter and receiver in the same physical package. It has a 20-pin connector on the electrical interface and duplex LC connector on the optical interface. Table 1-6 lists the supported SFP+ optical transceivers.
Note
SFP Transceivers
The SFP 1 -Gigabit Ethernet transceiver module is a bidirectional device with a transmitter and receiver in the same physical package. Table 1-6 lists the supported SFP optical transceivers.
Note
SFP+ Copper Cables
Copper cables are available for use with the 10-Gigabit Ethernet SFP+ module. See Table 1-8 for a description of these cables.
SFP Fibre Channel Transceivers
The Cisco UCS 61oo series fabric interconnects support multimode 850nm 4Gbps SFPs with 150m reach (see Table 1-9).
Note
