The term network virtualization refers to the creation of logical isolated network partitions overlaid on top of a common enterprise physical network infrastructure, as shown in Figure 1.

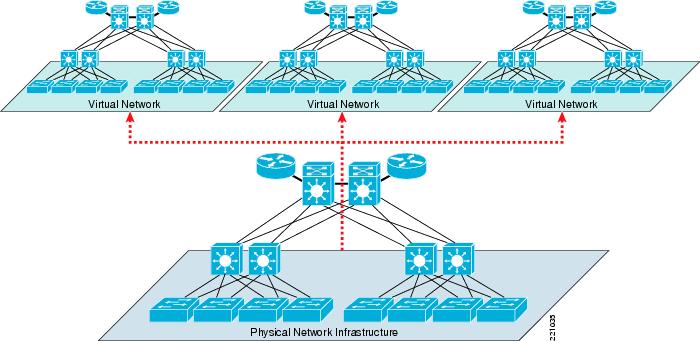

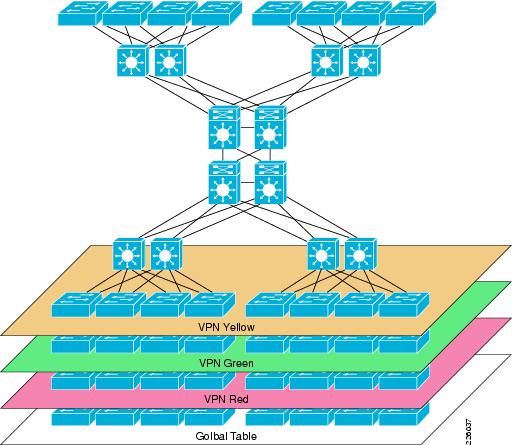

Figure 1 Creation of Virtual Networks
Each partition is logically isolated from the others, and must provide the same services that are available in a traditional dedicated enterprise network. The end user experience should be as if connected to a dedicated network providing privacy, security, an independent set of policies, service level, and even routing decisions. At the same time, the network administrator can easily create and modify virtual work environments for various user groups, and adapt to changing business requirements adequately. The latter is possible because of the ability to create security zones that are governed by policies enforced centrally; these policies usually control (or restrict) the communication between separate virtual networks or between each logical partition and resources that can be shared across virtual networks. Because policies are centrally enforced, adding or removing users and services to or from a VPN requires no policy reconfiguration. Meanwhile, new policies affecting an entire group can be deployed centrally at the VPN perimeter. Thus, virtualizing the enterprise network infrastructure provides the benefits of using multiple networks but not the associated costs, because operationally they should behave like one network (reducing the relative OPEX costs).
Network virtualization provides multiple solutions to business problems and drivers that range from simple to complex. Simple scenarios include enterprises that want to provide Internet access to visitors (guest access). The stringent requirement in this case is to allow visitors external Internet access, while simultaneously preventing any possibility of unauthorized connection to the enterprise internal resources and services. This can be achieved by dedicating a logical "virtual network" to handle the entire guest communication path. Internet access can also be combined with connectivity to a subset of the enterprise internal resources, as is typical in partner access deployments.
Another simple driver for network virtualization is the creation of a logical partition dedicated to the machines that have been quarantined as a result of a Network Admission Control (NAC) posture validation. In this case, it is essential to guarantee isolation of these devices in a remediation segment of the network, where only access to remediation servers is possible until the process of cleaning and patching the machine is successfully completed.
Complex scenarios include enterprise IT departments acting as a service provider, offering access to the enterprise network to many different "customers" that need logical isolation between them. In the future, users belonging to the same logical partitions will be able to communicate with each other and to share dedicated network resources. However, some direct inter-communication between groups may be prohibited. Typical deployment scenarios in this category include retail stores that provide on-location network access for kiosks or hotspot providers.
The architecture of an end-to-end network virtualization solution targeted to satisfy the requirements listed above can be separated in the following three logical functional areas:
•
Access control
•
•
Each area performs several functions and must interface with the other functional areas to provide the end-to-end solution (see Figure 2).

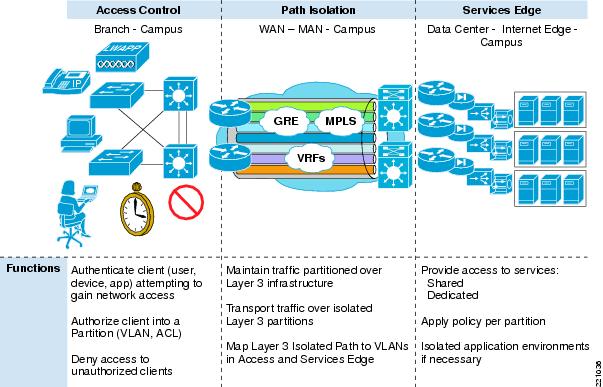

Figure 2 Network Virtualization Framework
The functionalities highlighted in Figure 2 are discussed in great detail in separate design guides, each one dedicated to a specific functional area.
•
•
The path isolation functional area is the focus of this guide.
This guide mainly discusses two approaches for achieving virtualization of the routed portion of the network:
•
•
Various path isolation alternatives technologies are discussed in the sections of this guide; for the reader to make good use of this guide, it is important to underline two important points:
•
•
•
•
Path Isolation Overview
Path isolation refers to the creation of independent logical traffic paths over a shared physical network infrastructure. This involves the creation of VPNs with various mechanisms as well as the mapping between various VPN technologies, Layer 2 segments, and transport circuits to provide end-to-end isolated connectivity between various groups of users.
The main goal when segmenting the network is to preserve and in many cases improve scalability, resiliency, and security services available in a non-segmented network. Any technology used to achieve virtualization must also provide the necessary mechanisms to preserve resiliency and scalability, and to improve security.
A hierarchical IP network is a combination of Layer 3 (routed) and Layer 2 (switched) domains. Both types of domains must be virtualized and the virtual domains must be mapped to each other to keep traffic segmented. This can be achieved when combining the virtualization of the network devices (also referred to as "device virtualization") with the virtualization of their interconnections (known as "data path virtualization").

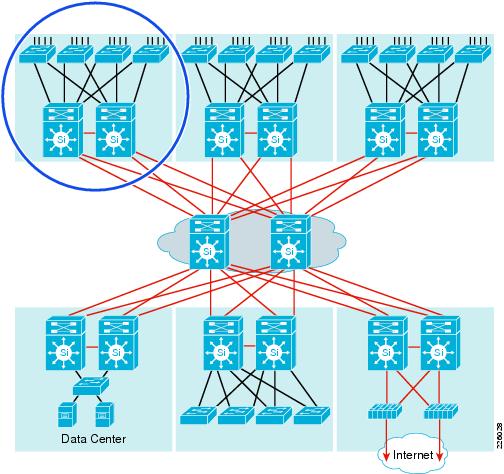

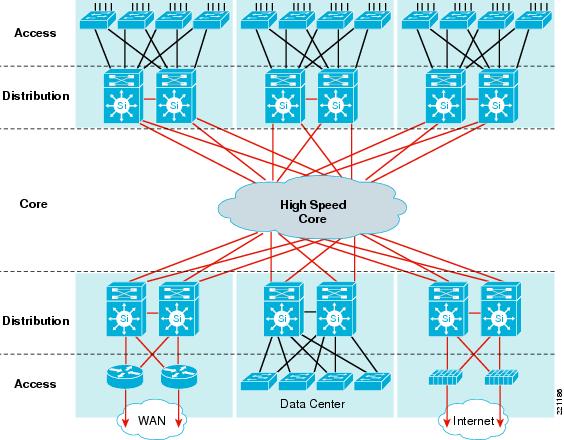

In traditional (that is, not virtualized) deployments, high availability and scalability are achieved through a hierarchical and modular design based on the use of three layers: access, distribution, and core.
Note

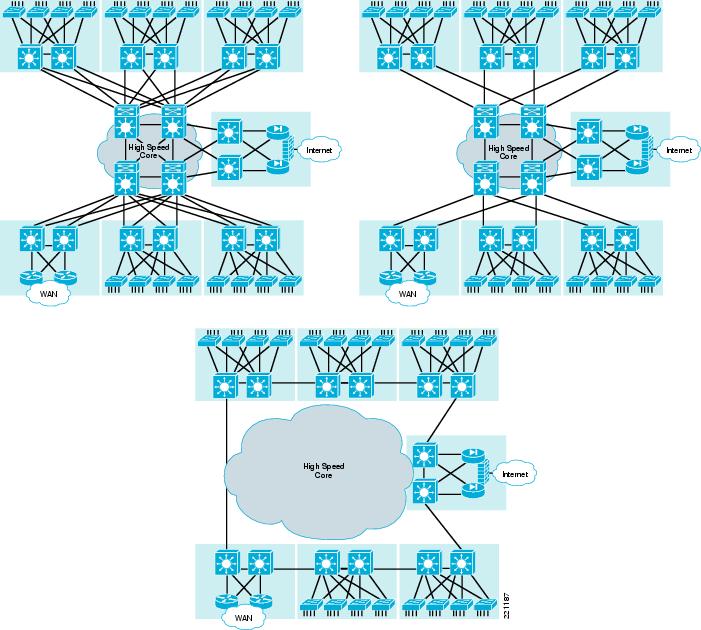

Much of the hierarchy and modularity discussed in the documents referenced above rely on the use of a routed core. Nevertheless, some areas of the network continue to benefit from the use of Layer 2 technologies such as VLANs (typically in a campus environment) and ATM or Frame Relay circuits (over the WAN). Thus, a hierarchical IP network is a combination of Layer 3 (routed) and Layer 2 (switched) domains. Both types of domains must be virtualized and the virtual domains must be mapped to each other to keep traffic segmented.
Virtualization in the Layer 2 domain is not a new concept: VLANs have been used for years. What is now required is a mechanism that allows the extension of the logical isolation over the routed portion of the network. Path isolation is the generic term referring to this logical virtualization of the transport. This can be achieved in various ways, as is discussed in great detail in the rest of this guide.
Virtualization of the transport must address the virtualization of the network devices as well as their interconnection. Thus, the virtualization of the transport involves the following two areas of focus:
•
•
In addition, within each networking device there are two planes to virtualize:
•
•
Furthermore, the control and forwarding planes can be virtualized at different levels, which map directly to different layers of the OSI model. For instance, a device can be VLAN-aware and therefore be virtualized at Layer 2, yet have a single routing table, which means it is not virtualized at Layer 3. The various levels of virtualization are useful, depending on the technical requirements of the deployment. There are cases in which Layer 2 virtualization is enough, such as a wiring closet. In other cases, virtualization of other layers may be necessary; for example, providing virtual firewall services requires Layer 2, 3, and 4 virtualization, plus the ability to define independent services on each virtual firewall, which perhaps is Layer 7 virtualization.
Policy-Based Path Isolation
Policy-based path isolation techniques restrict the forwarding of traffic to specific destinations, based on a policy and independently of the information provided by the forwarding control plane. A classic example of this uses an ACL to restrict the valid destination addresses to subnets that are part of the same VPN.
Policy-based segmentation is limited by two main factors:
•
•
The configuration of distributed policies can be a significant administrative burden, is error prone, and causes any update in the policy to have widespread impact.
Because of the diverse nature of IP addresses, and because policies must be configured pervasively, building policies based on IP addresses does not scale very well. Thus, IP-based policy-based segmentation has limited applicability.
As discussed subsequently in Path Isolation Using Distributed Access Control Lists, using policy-based path isolation with the tools available today (ACLs) is still feasible for the creation of virtual networks with many-to-one connectivity requirements, but it is very difficult to provide any-to-any connectivity with such technology For example, hub-and-spoke topologies are required to provide an answer to the guest access problem, where all the visitors need to have access to a single resource (the Internet). Using ACLs in this case is still manageable because the policies are identical everywhere in the network (that is, allow Internet access, deny all internal access). The policies are usually applied at the edge of the Layer 3 domain. Figure 3 shows ACL policies applied at the distribution layer to segment a campus network.

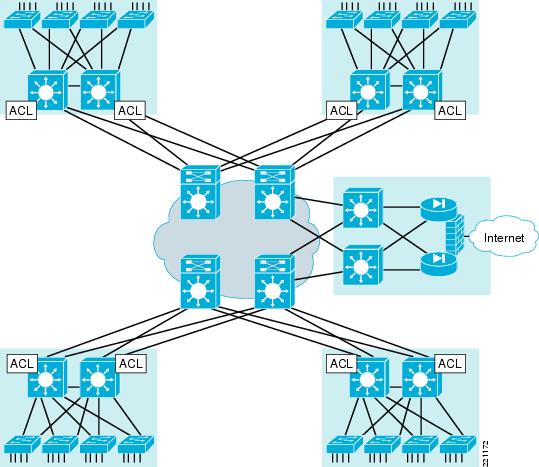

Figure 3 Policy-Based Path Isolation with Distributed ACLs
Control Plane-Based Path Isolation

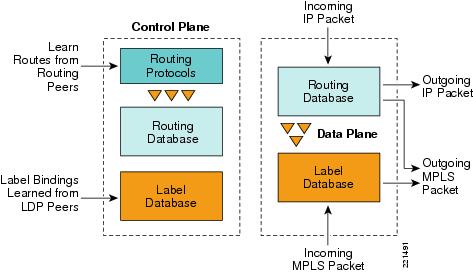

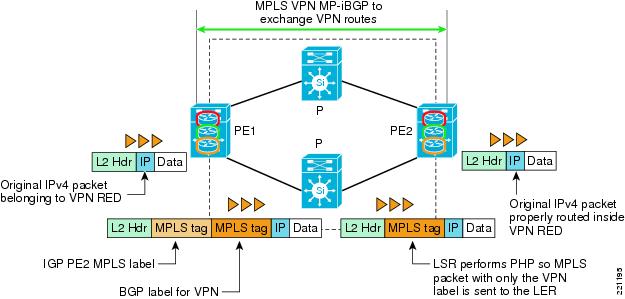

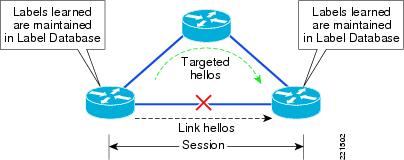

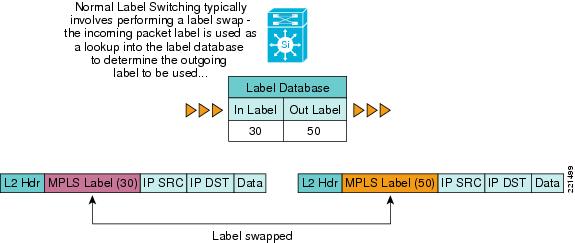

Control plane-based path isolation techniques restrict the propagation of routing information so that only subnets that belong to a virtual network (VPN) are included in any VPN-specific routing tables and updates. To achieve control plane virtualization, a device must have many control/forwarding instances, one for each VPN. This is possible when using the virtual routing and forwarding (VRF) technology that allows for the virtualization of the L3 devices.
Network Device Virtualization with VRF
A VRF instance consists of an IP routing table, a derived forwarding table, a set of interfaces that use the forwarding table, and a set of rules and routing protocols that determine what goes into the forwarding table. As shown in Figure 4, the use of VRF technology allows the customer to virtualize a network device from a Layer 3 standpoint, creating different "virtual routers" in the same physical device.
Note

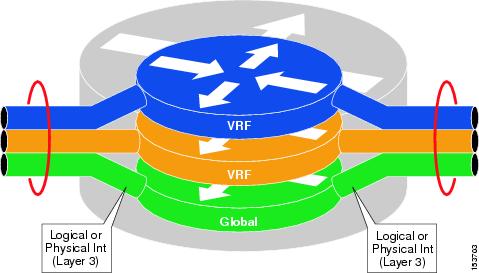

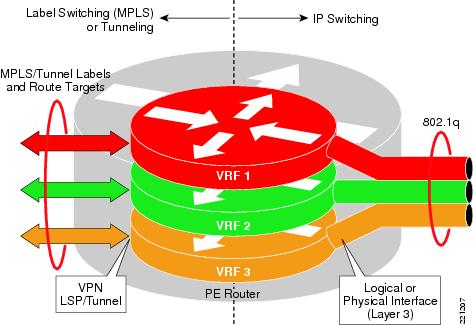

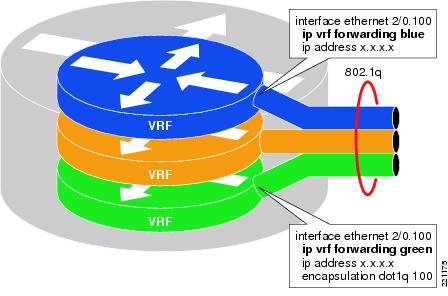

Figure 4 Virtualization of a Layer 3 Network Device

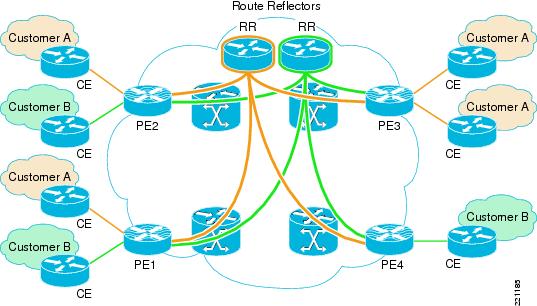

Table 1 provides a listing of the VRF-lite support on the various Cisco Catalyst platforms that are typically found in an enterprise campus network. As is clarified in following sections, VRF-lite and MPLS support are different capabilities that can be used to provide separate path isolation mechanisms (VRF-lite + GRE, MPLS VPN, and so on.)
Table 1 VRF-Lite Support on Cisco Catalyst Switches
Catalyst 3550
12.1(11)EA1
(EMI resp. IP Svc.)71
Yes
No
Catalyst 3560
12.2(25)SEC
(min. IP Svc.)261
Yes
No
Catalyst 3750
12.2(25)SEC
(min. IP Svc.)261
Yes
No
Catalyst 3750 Metro
12.1(14)AX
(min. IP Svc.)26
Yes
Yes
(min. Adv. IP Svc.)Catalyst 4500-SupIII/IV/V/V-10GE
Catalyst 4948/4948-10GE
Catalyst ME-X4924-10GE
12.2(18)EW2
12.2(20)EWA2
12.2(31)SGA
641
641
641
Yes
Yes
Yes
No
No
No
Catalyst 6500/7600-Sup720 (PFC3A)
Catalyst 6500/7600-Sup720-3B
Catalyst 6500/7600-Sup720-3BXL
Catalyst 6500/7600-Sup32
Catalyst ME-C6524 (currently DC only)
12.2(17b)SXA
12.2(18)SXD
12.2(17b)SXA
12.2(18)SXF
12.2(18)ZU
1000
1000
1000
1000
1000
Yes
Yes
Yes
Yes
Yes
No!
Yes (min. Adv. IP Svc.)
Yes (min. Adv. IP Svc.)
Yes (min. Adv. IP Svc.)
Yes (min. Adv. IP Svc.)
1 No multicast support within VRFs
2 Starting with 12.2(25)SG, VRF-lite is only supported in Enhanced Service Image -> SupII+ no longer provides VRFs.

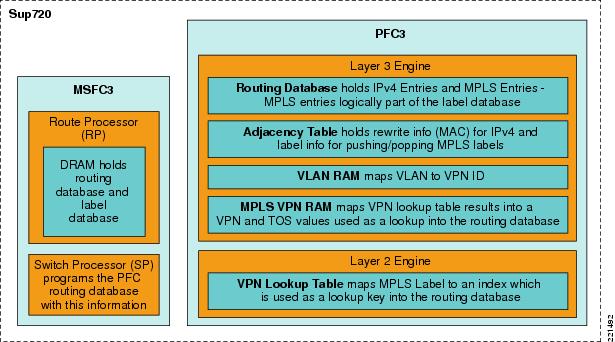

One important thing to consider with regard to the information above is that a Catalyst 6500 equipped with Supervisor 2 is capable of supporting VRFs only when using optical switching modules (OSMs). The OSM implementation is considered legacy and more applicable to a WAN environment. As a consequence, a solution based on VRF should be taken into consideration in a campus environment only if Catalyst 6500 platforms are equipped with Supervisors 32 or 720 (this is why this option is not displayed in Table 1).
The use of Cisco VRF-Lite technology has the following advantages:
•
•
•
In this example, employee connectivity to the Internet is usually achieved by using a web proxy device, which can require a specific browser configuration on all the machines attempting to connect to the Internet or having the need to provide valid credentials. Although support for web proxy servers on employee desktops is common practice, it is not desirable to have to reconfigure a guest browser to point to the proxy servers. As a result, the customer can configure a separate forwarding table for using an alternative default route in the context of a VRF, to be used exclusively for a specific type of traffic, such as guest traffic. In this case, the default browser configuration can be used.
Data Path Virtualization—Single- and Multi-Hop Techniques

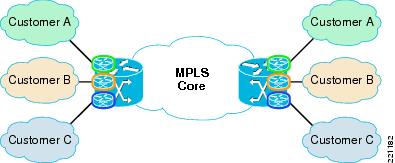

The VRF achieves the virtualization of the networking devices at Layer 3. When the devices are virtualized, the virtual instances in the various devices must be interconnected to form a VPN. Thus, a VPN is a group of interconnected VRFs. In theory, this interconnection can be achieved by using dedicated physical links for each VPN (a group of interconnected VRFs). In practice, this is very inefficient and costly. Thus, it is necessary to virtualize the data path between the VRFs to provide logical interconnectivity between the VRFs that participate in a VPN.
The type of data path virtualization varies depending on how far the VRFs are from each other. If the virtualized devices are directly connected to each other (single hop), link or circuit virtualization is necessary. If the virtualized devices are connected through multiple hops over an IP network, a tunneling mechanism is necessary. Figure 5 illustrates single-hop and multi-hop data path virtualization.

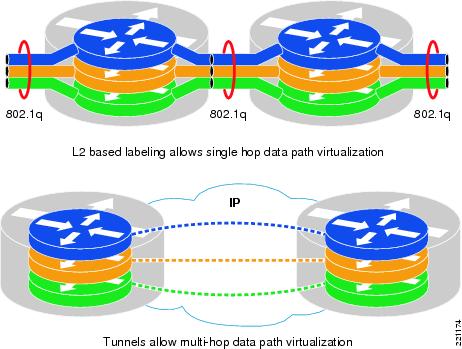

Figure 5 Single- and Multi-Hop Data Path Virtualization

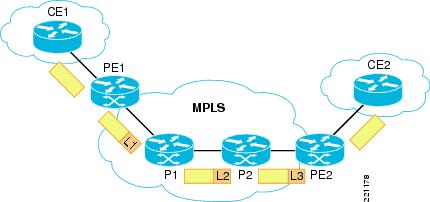

The many technologies that virtualize the data path and interconnect VRFs are discussed in the next sections. The various technologies have benefits and limitations depending on the type of connectivity and services required. For instance, some technologies are very good at providing hub-and-spoke connectivity, while others provide any-to-any connectivity. The support for encryption, multicast, and other services also determine the choice of technologies to be used for the virtualization of the transport.

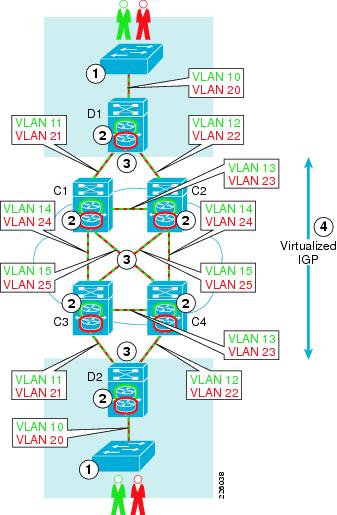

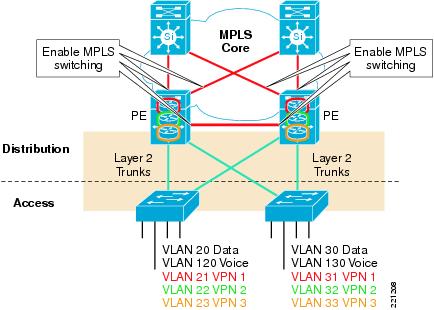

The VRFs must also be mapped to the appropriate VLANs at the edge of the network. This mapping provides continuous virtualization across the Layer 2 and Layer 3 portions of the network. The mapping of VLANs to VRFs is as simple as placing the corresponding VLAN interface at the distribution switch into the appropriate VRF. The same type of mapping mechanism applies to Layer 2 virtual circuits (ATM, Frame Relay) or IP tunnels that are handled by the router as a logical interface. The mapping of VLAN logical interfaces (Switch Virtual Interface [SVI]) and of sub-interfaces to VRFs is shown in Figure 6.

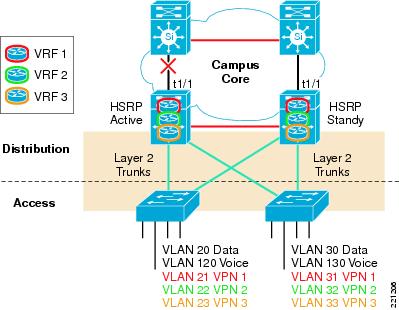

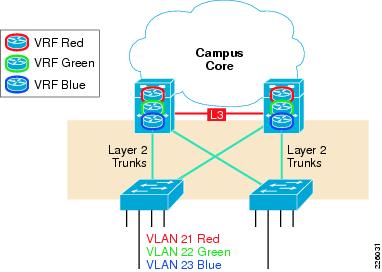

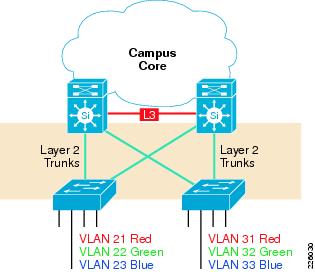

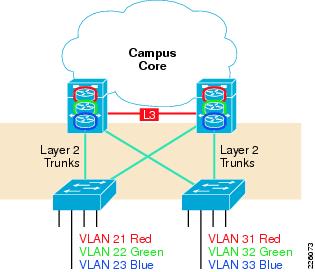

Figure 6 VLAN to VRF Mapping
Path Isolation Initial Design Considerations
Before discussing the various path isolation alternatives in more detail, it is important to highlight some initial considerations that affect the overall design presented in the rest of this guide. These assumptions are influenced by several factors, including the current status of the technology and the specific business requirements driving each specific solution. As such, they may change or evolve in the future; this guide will be accordingly updated to reflect this fact.
•
The first basic assumption is that even in a virtualized network environment, the global table is where most of the enterprise traffic is still handled. This means that logical partitions (virtual networks) are created to provide response to specific business problems (as, for example, guest Internet access), and users/entities are removed from the global table and assigned to these partitions only when meeting specific requirements (as, for example, being a guest and not an internal enterprise employee). The routing protocol traditionally used to provide connectivity to the various enterprise entities in global table (IGP) is still used for that purpose. In addition, the global IGP may also be used to provide the basic IP connectivity allowing for the creation of the logical overlay partitions; this is, for example, the case when implementing tunneling technologies such as VRF-Lite and GRE or MPLS VPN. In summary, the idea is to maintain the original global table design and "pull out" entities from the global table only for satisfying specific requirements (the business drivers previously discussed). This strategy allows support for gradual evolution to a virtualized from a non-virtualized network; also, it reduces the risk to existing production applications.
•
When deploying a VoIP architecture to be integrated in a virtualized network, the current best practice design recommends to keep the main components of the voice infrastructure (VoIP handsets, Cisco CallManagers, Cisco Unity Servers, and so on) in the global table, together with all the users that use voice services (using Cisco Communicator software, VT Advantage, and so on). Reasons for following this recommendation in this phase of the technology include the following:
–
- Complex configuration required at the services edge of the network to allow the establishment of voice flows between entities belonging to separate VPNs. This would also require "punching" holes in the firewall deployed in this area of the network, increasing the security concerns of the overall solution.
- VoIP can be secured without requiring the creation of a dedicated logical partition for the voice infrastructure. There are proven tools and design recommendations that can be used for hardening the voice systems that are inherent in the system and do not require any form of network virtualization to be implemented. For more information, see the design guides at the following URL: http://www.cisco.com/en/US/netsol/ns818/networking_solutions_program_home.html.
When the VoIP infrastructure is deployed in the global table, the direct consequence is the recommendation of keeping all the internal users that make use of VoIP applications (such as Cisco Communicator clients, for example) in the same domain, to not complicate the design too much when there is a need to establish voice flows between these users and, for example, the VoIP handsets. This is inline with the recommendation given in the first bullet point dictating the creation of virtual networks only for specific purposes.
•
Another important initial assumption is that the deployment of a virtualized infrastructure constitutes an overlay design rather than a "rip-and-replace" approach. This means that the goal is the deployment of network virtualization without impacting (or just with limited impact to) network design that customers may already have in place. For example, if routing is already deployed using a specific IGP, the design should focus on demonstrating how to add services to that specific environment, rather than suggesting to tear apart the network and put a new network in place. This guide is focused on networks characterized by a single autonomous system (AS) and a single IGP-based environment, rather than large backbones with dual-redundant BGP cores.
•
Consider the following with regard to security and VRF:
–
–
–
However, it is important to highlight the requirement for integrating other security components, such as Catalyst Integrated Security Features (CISF) including DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, or Port Security. In addition to these, Control Plane Policing (CPP) also needs to be considered to protect the CPU of the network devices. Another factor is that, as explained in the previous point above, a problem in a specific VRF may affect the CPU of the virtualized devices causing outages also in the other VRFs defined in the network device.
•

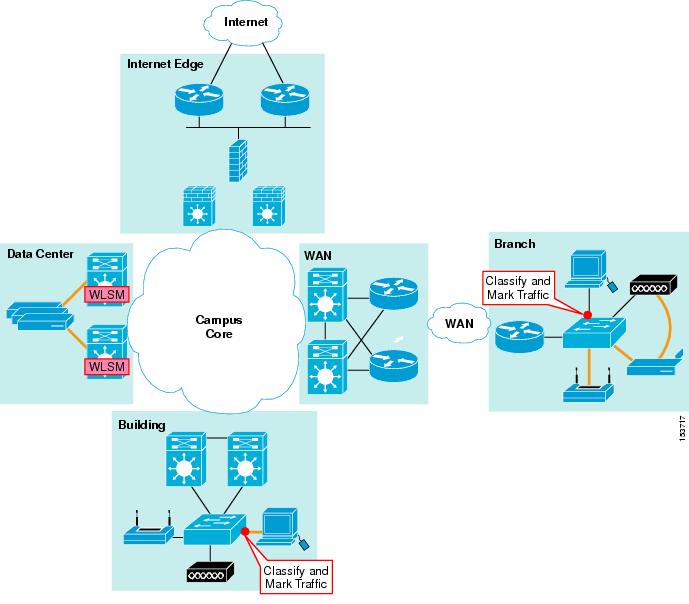

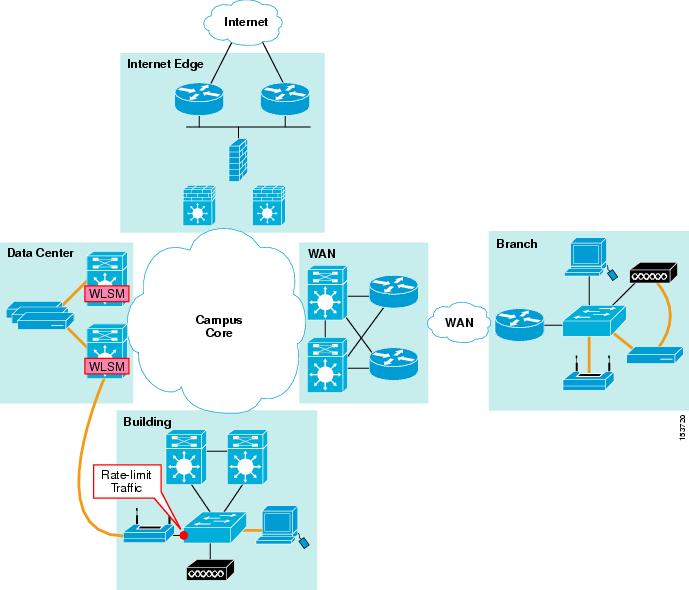

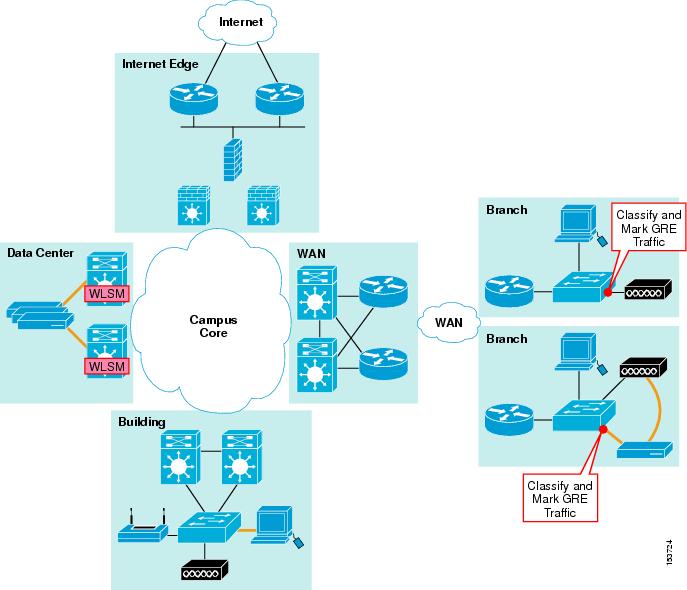

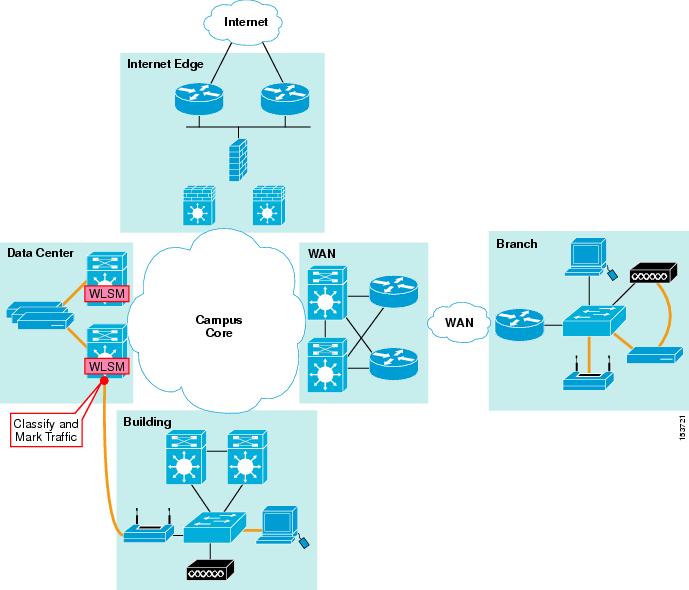

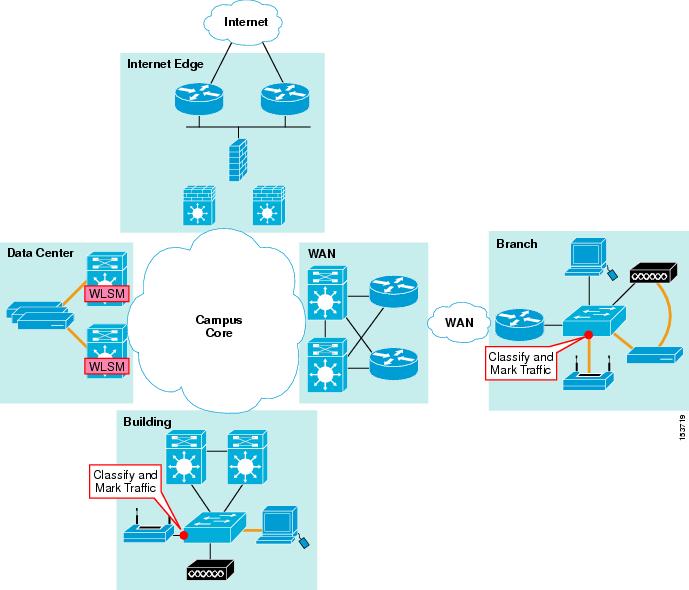

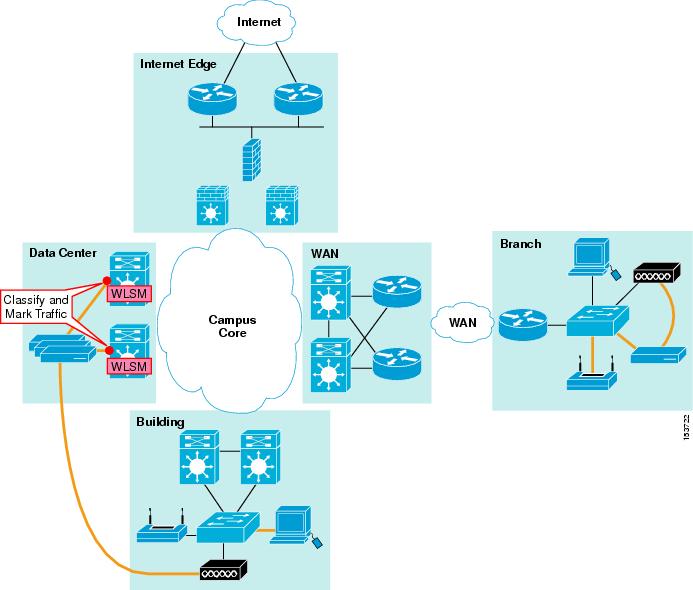

QoS and network virtualization are orthogonal problems in this phase of the technology. The main reason is that the DiffServ architecture has been deployed to be oriented around applications. Traffic originated by different applications (such as voice and video) is classified and marked at the edge of the network, and this marking information is used across the network to provide it with an appropriate level of service.
In this phase of the technology, most enterprise routers and switches lack a virtual QoS mechanism. This means, for example, that the various input and output queues available on the network devices are not VRF-aware, which essentially implies that there is no capability to treat differently traffic originated by the same type of application in two different VPNs. For this reason, when discussing the deployment of QoS technologies in a virtualized network, there are two main strategies that can be adopted and that are applied to the various path isolation alternatives discussed in this paper:
–
–
The following sections provide more details on various path isolation techniques. The first is the use of distributed ACLs that, as previously mentioned, can be considered a policy-based mechanism, and is here discussed as a "legacy" way of limiting communication between users belonging to different network partitions. Various control plan-based techniques are then analyzed: first the use of VRF-Lite in conjunction with GRE tunneling, specifically recommended for deployments where an hub-and-spoke type of connectivity must be provided. For scenarios requiring any-to-any connectivity, the use of MPLS VPNs is discussed, highlighting the main differences between the enterprise deployments versus the more traditional service provider deployment.
Path Isolation Using Distributed Access Control Lists
The use of distributed ACLs represents a classic example of a policy-based path isolation mechanism to restrict the forwarding of traffic to specific destinations, based on a policy and independently of the information provided by the control plane. This allows restricting the group of valid destination addresses to the subnets that are configured as part of the same VPN (or virtual network).
Connectivity Requirements
The use of static ACLs at the edge of the network is the quickest way to provide traffic isolation, controlling and restricting communications between the various user groups. Most customers are comfortable with the use of ACLs to enforce security policies.
At the same time, using ACLs is recommended only in very specific scenarios where the network connectivity requirements are hub-and-spoke (multi-to-one). The main limitation of the ACL approach is the lack of scalability. The complexity of each distributed ACL is directly related to two main factors:
•
•
Defining ACLs in scenarios with a large number of groups requiring any-to-any connectivity can quickly become cumbersome from a management point of view. The goal is to propose this approach when the connectivity requirement is hub-and-spoke, so that it is possible to create a portable ACL template to be used across different spoke devices. Two typical applications that require this type of connectivity are guest access (where the target is providing access to the Internet as a centralized resource), and Network Admission Control (NAC) remediation (where connectivity must be restricted between unhealthy endpoints and a centralized remediation server). The common characteristic for these applications is the very limited number of user groups required (two in both cases), which makes the ACL approach a feasible technical candidate.
Configuration Details
The main goal is to create a generic ACL template that can be seamlessly used on all the required edge devices. This approach minimizes configuration and management efforts, and enhances the scalability of the overall solution. The same generic ACL should also be applied for both wired and wireless deployments. The specific wireless solution in place should affect the network device where the policy is applied, but not the format of the ACL itself.
Using ACLs to logically isolate traffic for specific categories of users (for example, employees and guests) on the same physical network implies that the control and data plan of the network needs to be shared between these different groups. The most immediate consequence is a limited freedom in assigning IP addresses to the various categories of users. The root of this problem is shown in Figure 7, which represents a generic campus network. This example refers to a guest access deployment where the hub devices are located in the Internet edge, but it can also be generic.

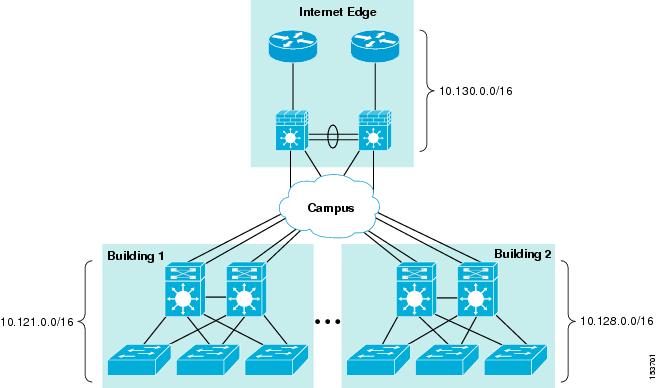

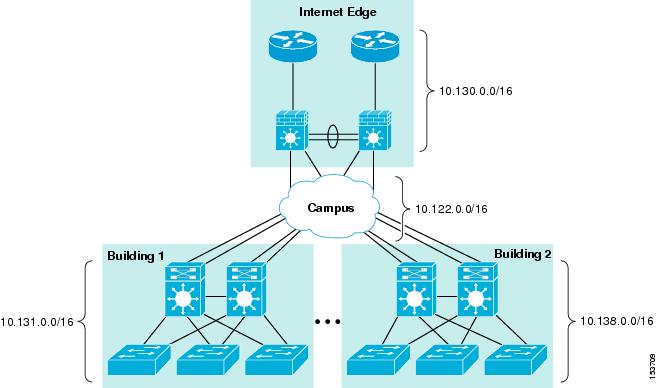

Figure 7 IP Addressing in the Campus Network

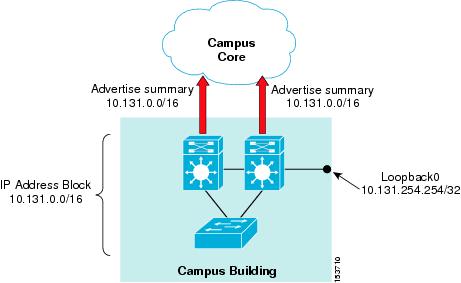

As shown in Figure 7, the recommended campus design dictates the assignment of IP addresses to various campus buildings in such a way that a summary route can be sent to the core (independent of the specific routing protocol being used). This isolates the buildings from a routing control point of view, contributing to the overall scalability and stability of the design. For example, 10.121.0.0/16 is the summary sent toward the core by the distribution layer devices belonging to Building 1.
Note
As a result, all the IP subnets defined in each specific building block should be part of the advertised summary. This implies that subnets associated to the same user group but defined in separate buildings are part of different class B subnets. This clearly poses a challenge in defining a generic ACL template to be applied to devices belonging to different campus building blocks. The best way to achieve this is to define the edge policies without including the subnets from which the traffic is originated.
The recommended design described in this guide is based on the use of router ACLs (RACLs), which must be applied to Layer 3 interfaces. This means that in the multilayer campus design, the RACLs are applied to the distribution layer devices (representing the demarcation between Layer 2 and Layer 3 domains). The format of these ACLs remains the same, even in campus routed access deployments where the demarcation between Layer 2 and Layer 3 is pushed down to the access layer. The only difference is that, in this case, the RACLs need to be applied on the switched virtual interface (SVI) defined on the access layer devices.
RACLs are supported in hardware on Cisco Catalyst 6500 and 4500 platforms, which represent the devices most commonly deployed in the distribution layer of each campus building block. The simplest RACL that can be deployed for a generic hub-and-spoke scenario is as follows:
ip access-list extended SEGM-RACL10 permit udp any any eq bootps20 permit udp any host <DNS-Server-IP> eq domain30 deny ip any <protected_prefixes>40 permit ip any <target_prefixes>•
•
•
Note
RACLs derive their name from the fact that they need to be applied on Layer 3 (routed) interfaces. The Layer 3 interface where the RACL is applied depends on the specific type of network access used. For wired clients, the Layer 3 interfaces are the SVI (VLAN interface) defined on the distribution layer device (traditional design) or on the access layer devices (routed access design). The configuration for a generic SVI is as follows:
interface Vlan50description Wired-client-floor1ip address 10.124.50.2 255.255.255.0ip access-group SEGM-RACL inFor wireless clients, it depends on the specific deployment in place. For traditional Cisco Aironet deployments and deployments using WLAN controllers, the situation is very similar to the wired case, and the ACL is applied on the SVIs defined on the distribution or access layer devices. For WLSM designs, where all the data traffic is tunneled from each distributed access point to a centralized Catalyst 6500 equipped with WLSM, the RACL can be directly applied on the receiving multipoint GRE (mGRE) interfaces defined on this centralized device, as follows:
interface Tunnel160description mGRE for clients-floor1ip address 10.121.160.1 255.255.255.0ip access-group SEGM-RACL inPath Differentiation
Another aspect to consider is the problem of path differentiation. In some scenarios, you might need to redirect the traffic to a specific direction when it gets to the hub device. For example, this can be relevant in a guest access scenario where traffic might need to be enforced through a web authentication appliance. The solution uses policy-based routing (PBR). The following configuration samples and considerations refer to a guest access application, but their validity can easily be extended to other applications. Without going into specific detail on the problems associated with web authentication, note that web authentication appliances are usually deployed in-band, so you must devise a way to enforce the guest traffic through them, as illustrated in Figure 8.

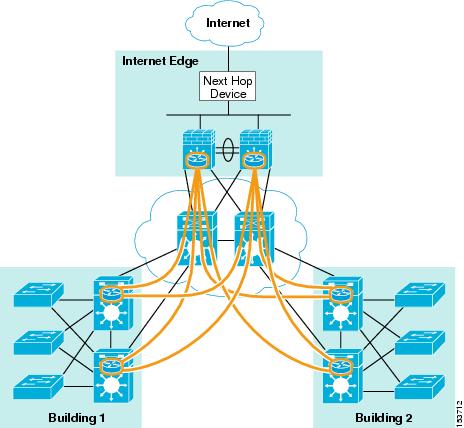

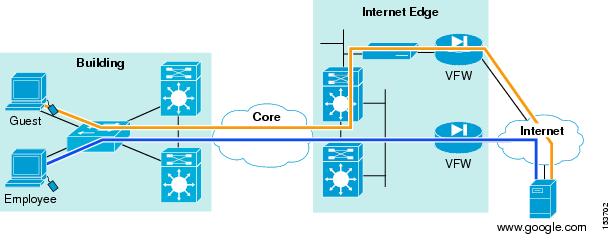

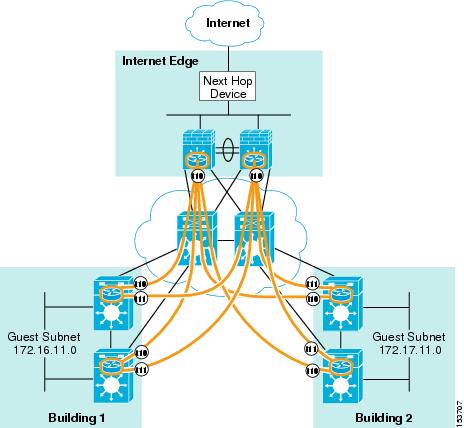

Figure 8 Traffic Flows for Various Categories of Users
An internal employee and a guest pointing to the same final destination (in this example, www.google.com) must take two different paths. The employee can connect directly to the Internet after going through a firewall (or a firewall context, as shown in Figure 8). The guest must first be forced through the web authentication appliance to complete an authentication process. The recommended way to accomplish this is by using PBR on the network devices in the Internet edge, connecting to the campus core (two Catalyst 6500s in this example).
²
Note
The considerations about the IP range assignment to the guest subnets made in the previous section also have an impact on the configuration of the ACL to be used for policing the traffic in the Internet edge. It is unlikely that you can summarize all the guest subnets in a limited number of statements. More likely, a separate ACL statement needs to be added for each specific guest subnet defined in each campus building block, as shown in the following configuration sample:
ip access-list extended TO-WEB-AUTH-DEVICEpermit ip 10.121.150.0 0.0.0.255 anypermit ip 10.121.160.0 0.0.0.255 anypermit ip 10.122.150.0 0.0.0.255 any............................................................................................................permit ip 10.128.160.0 0.0.0.255 any!route-map guest-to-WEB-AUTH-DEVICE permit 10match ip address TO-WEB-AUTH-DEVICEset ip next-hop 172.18.3.30
Note
The route map must then be applied on all the physical interfaces connecting the Internet edge devices to the core of the network, as follows:
interface TenGigabitEthernet3/1description 10GigE link to Core Switch 1ip address 10.122.0.7 255.255.255.254ip policy route-map guest-to-WEB-AUTH-DEVICEHigh Availability Considerations

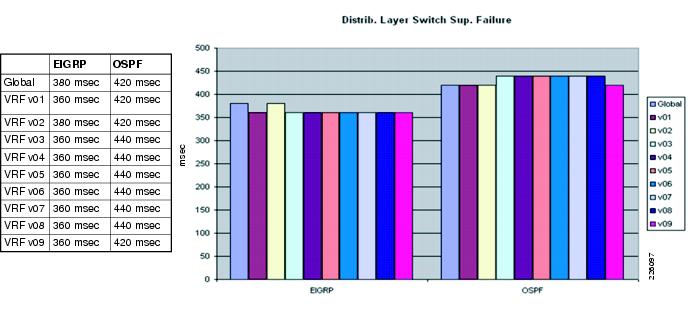

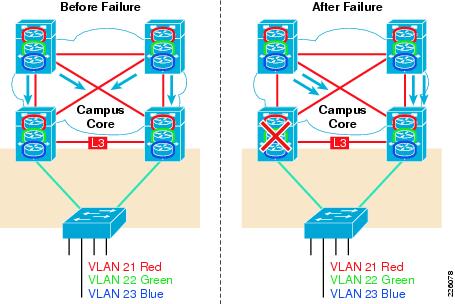

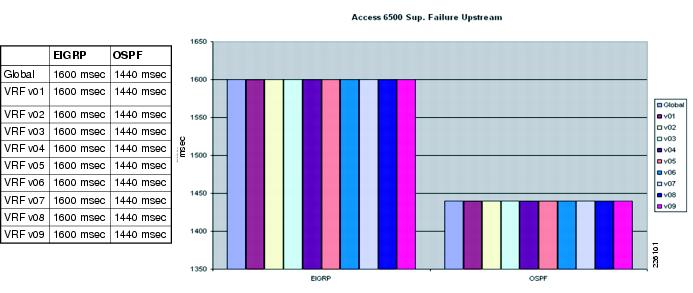

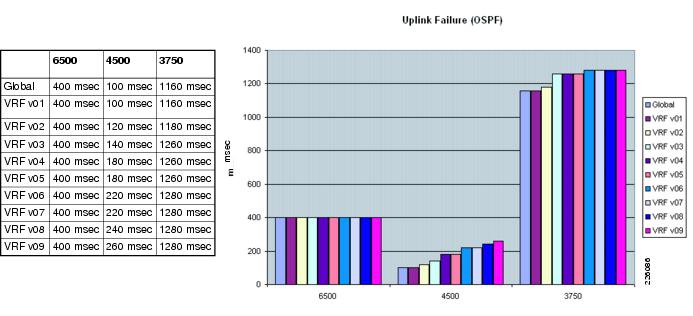

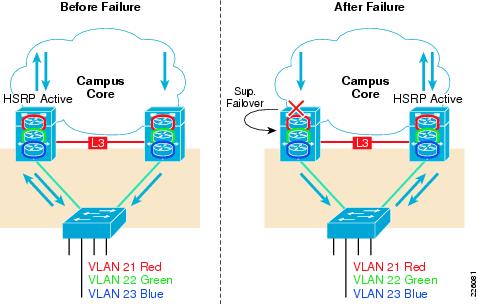

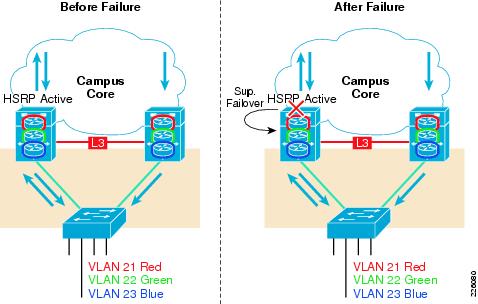

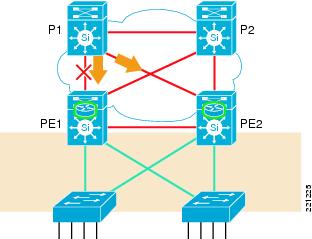

The resiliency of a solution based on the use of distributed ACLs is achieved by implementing the recommended campus design. More information on this subject is beyond the scope of this guide. For more information, see the campus HA documents at the following URL: http://www.cisco.com/en/US/netsol/ns815/networking_solutions_program_home.html.
Challenges and Limitations of Distributed ACLs
Some of the challenges and limitations of the distributed ACL approach are as follows:
•
•
•
You can eliminate all the previously described limitations associated with using distributed ACLs if you can separate the data and control plans for each separate category of users. The following section describes a different network virtualization approach aimed at achieving this through the use of the Cisco VPN Routing and Forwarding (VRF) technology.
Path Isolation over the WAN using Distributed ACLs
The previous sections described the use of distributed ACLs to provide path isolation mechanisms to be implemented in a campus network to logically separate the traffic belonging to various categories of users. A similar scenario applies to the WAN when there is a need to extend the VPNs up to remote branch locations, as shown in Figure 9.

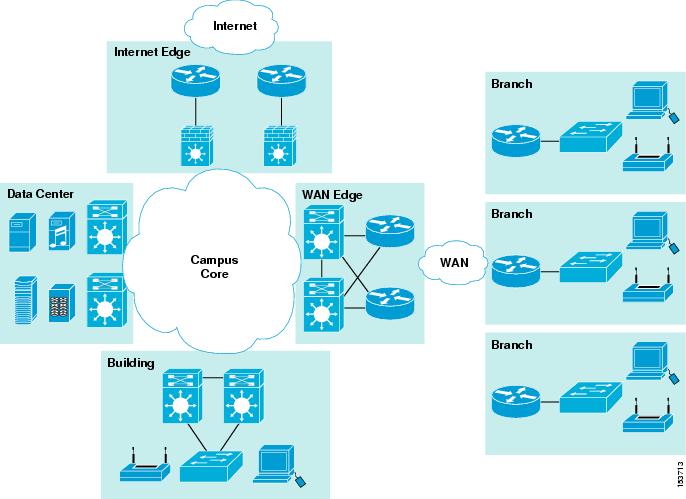

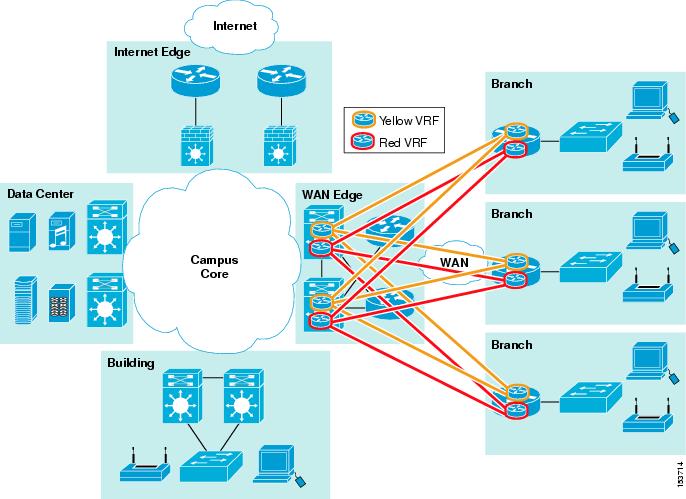

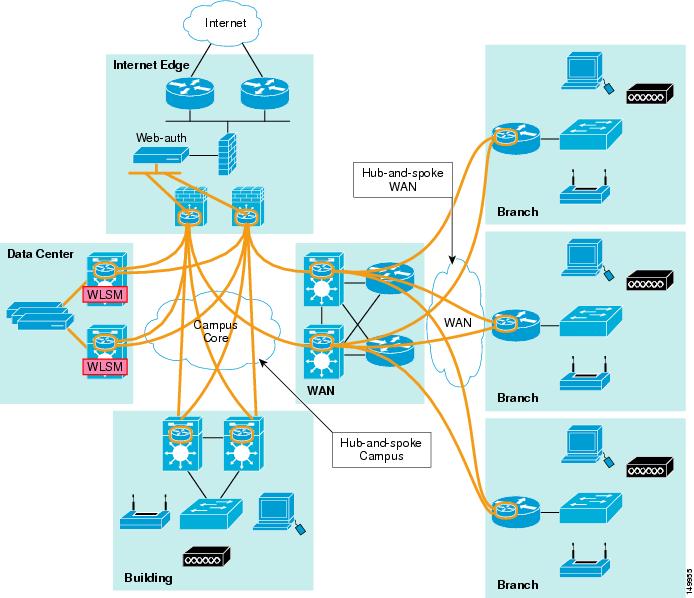

Figure 9 Connecting Branch Offices to the Main Campus
The various branch offices can connect to the WAN edge block of the campus network, either through a legacy WAN cloud (based, for example, on Frame Relay or ATM), or through an IP WAN cloud. In the second case, IPsec is more likely used to guarantee privacy of the traffic over the WAN. The details of IPsec deployments over the WAN are beyond the scope of this guide, but the following are some deployment alternatives:
•
•
•
•
Corresponding design guides can be found at the following URL: http://www.cisco.com/en/US/netsol/ns817/networking_solutions_program_home.html.
The use of distributed ACLs to provide path isolation over the WAN presents the same characteristics and limitations described for the campus scenario in Path Isolation Using Distributed Access Control Lists. As a result, it is positioned again for applications requiring hub-and-spoke connectivity. The following assumptions are considered valid in this context:
•
•
In these scenarios, the format of the ACL that is required on the ISR router located at each branch location is identical to the one implemented in each campus distribution block, as follows:
ip access-list extended SEGM-RACL10 permit udp any any eq bootps20 permit udp any host <DNS-Server-IP> eq domain30 deny ip any <protected_prefixe>40 permit ip any <target_prefixes>•
•
•
The RACL can be applied on all the router interfaces associated to each specific user group defined at the branch location. Only traffic directed to the specified target is allowed into the WAN toward the main campus.
Path Isolation using VRF-Lite and GRE
Connectivity Requirements
This particular solution is recommended in cases where there is a requirement for connectivity of many-to-one. This is most likely the scenario for applications such as guest access or NAC remediation, where the traffic originated on the edge of the network (campus buildings or branch offices) must be gathered to a centralized location (represented by the enterprise Internet edge or by the data center where a remediation server can be deployed).
In such scenarios, a hub-and-spoke topology is the recommended design. In a campus network, GRE tunnels can be used to transport the guest VLAN traffic from the first Layer 3 hop to a hub location, which is typically the Internet DMZ for an enterprise network. By placing the guest VLAN subnet (SVI) and the GRE interface into a VRF, you can separate the IP address space and routing from the rest of the enterprise network. Note that VRFs have to be defined only on the GRE tunnel endpoints (hub-and-spoke devices). One of the benefits of using GRE tunnels is that they can traverse multiple Layer 3 hops, but the VRF configuration is required only at the tunnel edges of the network.
A solution using GRE tunnels as a mechanism to segment the guest traffic has platform capability limitations. Table 2 provides a comparison of the GRE tunneling capabilities offered by the various Cisco switching platforms.
The information presented in Table 2 limits the applicability of this solution, depending on the specific Catalyst switches in place:
•
•
–
–
Figure 10 shows the definition of various VRFs on the distribution layer device, with the corresponding mapping to the VRF for the VLANs defined on the Layer 2 domain of the network and the GRE tunnels part of the Layer 3 domain.

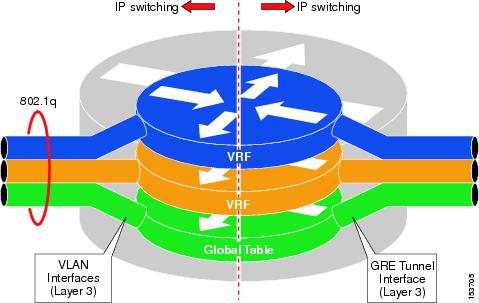

Figure 10 VRF-Lite

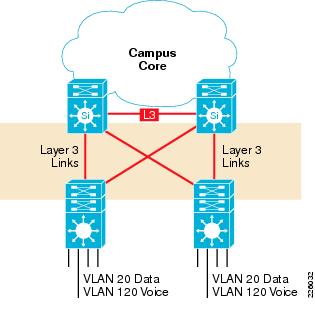

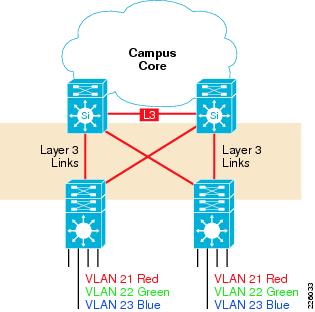

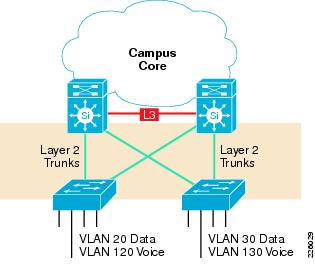

The diagram in Figure 10 is valid for both traditional and routed access designs when GRE tunnels are originated on the distribution layer switches. When deploying routed access designs where GRE tunnels can be originated from the access layer devices, the only difference is the absence of the trunk connection on the left, because each switch port is mapped to a specific VLAN.
To deploy end-to-end network virtualization across the network, a mapping between VLANs to VRFs and then VRFs to GRE on one side, as well as between the GRE tunnel interfaces and VRFs on the other side is required. The next two paragraphs provide a more detailed description of the configuration required to implement this form of traffic isolation.
Configuration Details
This section describes two options to build logical overlay networks using GRE and VRF. The first approach uses point-to-point GRE connections between devices, and the second one introduces the use of mGRE interfaces. The use of mGRE technology is particularly suited for applications requiring hub-and-spoke connectivity, as described in this section.
Using Point-to-Point GRE
The traditional configuration for GRE tunnels requires the creation of point-to-point tunnel interfaces on both sides of the tunnel. When building a hub-and-spoke topology, the use of point-to-point GRE tunnels requires that you to create a separate logical interface on the hub switches every time a new spoke needs to be added. This is both configuration-intensive and router resource-intensive. To address the performance considerations, Cisco recommends using a Catalyst 6500 with a Supervisor 720 that has GRE support in hardware. To address the configuration challenges associated with supporting multiple GRE tunnels at the hub site, an alternative network design based on mGRE and Next Hop Resolution Protocol (NHRP) is introduced. However, in some cases, point-to-point GRE might be the only option because mGRE and NHRP are not supported on all platforms (for example, they are not supported on Catalyst 4500 switches).
The following configuration steps accompany the network diagram shown in Figure 11. Keep in mind the following considerations when considering the required configuration:
•
•
•
•

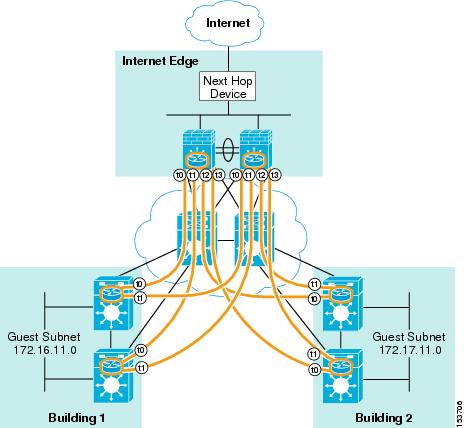

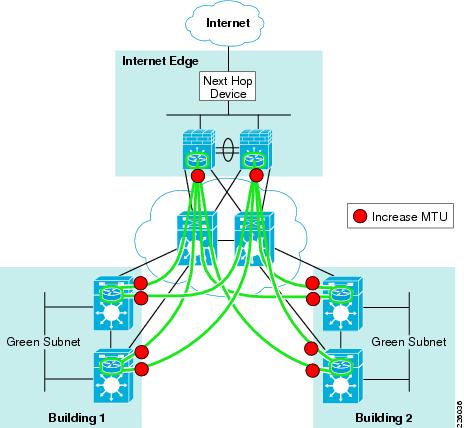

Figure 11 Hub-and-Spoke with Point-to-Point GRE Tunnels
Note
Hub GRE Configuration
On each hub device, a separate tunnel (and corresponding loopback) interface is required for each spoke switch. In the previous example, there are four spokes devices, representing the two pairs of distribution layer switches for two campus buildings.
Note
ip vrf guestrd 100:1!interface Loopback0description src GRE p2p tunnel 1ip address 10.122.200.1 255.255.255.255!interface Loopback1description src GRE p2p tunnel 2ip address 10.122.200.2 255.255.255.255!interface Loopback2description src GRE p2p tunnel 3ip address 10.122.200.3 255.255.255.255!interface Loopback3description src GRE p2p tunnel 4ip address 10.122.200.4 255.255.255.255!interface Tunnel0description GRE p2p tunnel 1ip vrf forwarding guestip address 172.32.1.1 255.255.255.252tunnel source Loopback0tunnel destination 10.122.210.1!interface Tunnel1description GRE p2p tunnel 2ip vrf forwarding guestip address 172.32.1.5 255.255.255.252tunnel source Loopback1tunnel destination 10.122.210.2!interface Tunnel2description GRE p2p tunnel 3ip vrf forwarding guestip address 172.32.1.9 255.255.255.252tunnel source Loopback2tunnel destination 10.122.210.3!interface Tunnel3description GRE p2p tunnel 4ip vrf forwarding guestip address 172.32.1.13 255.255.255.252tunnel source Loopback3tunnel destination 10.122.210.4Note that each tunnel interface is mapped to the guest VRF using the ip vrf forwarding command, which is the key starting point in building the overlay logical network. The use of VRF allows great flexibility when planning the IP addressing for the guest subnets. In the preceding example, the overlay logical network is using a 172.16.0.0 address space, whereas all the addresses used in the global table (loopback interfaces, and so on) are part of the 10.0.0.0/8 subnet. This means that the IP addresses assigned to each defined user group can be independently selected from the block of addresses associated to that specific building block in the global table. Overlapping IP address space is also supported on different VRFs. For example, network 10.1.1.0/24 can exist in multiple VRFs in multiple locations.

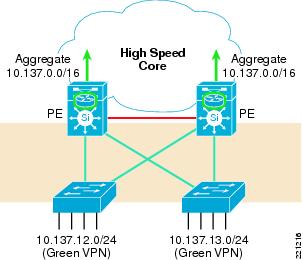

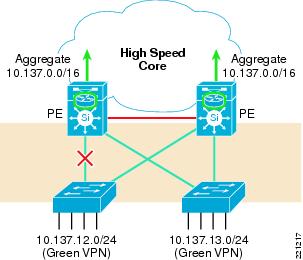

The addresses to be used for the loopback interfaces used as source and destination of the GRE traffic should be carefully selected to avoid the creation of routing black holes. See Loopback IP Address Considerations for more information on this subject.
Spoke GRE Configuration
The configuration required on each spoke is very similar to the one described previously: two tunnel interfaces are configured to connect to the pair of redundant hub devices in the Internet edge block. Referring to Figure 11, the following configuration sample is valid for one of the two spokes in Building 1:
ip vrf guestrd 100:1!interface Loopback0description src GRE tunnel to hub-1ip address 10.122.210.1 255.255.255.255!interface Loopback1description src GRE tunnel to hub-2ip address 10.122.211.1 255.255.255.255!interface Tunnel0description GRE tunnel to hub-1ip vrf forwarding guestip address 172.32.1.2 255.255.255.252tunnel source Loopback0tunnel destination 10.122.200.1!interface Tunnel1description GRE tunnel to hub-2ip vrf forwarding guestip address 172.32.2.2 255.255.255.252tunnel source Loopback1tunnel destination 10.122.201.1Again, the logical tunnel interfaces must be mapped to the VRF to force the Internet-bound guest traffic into the GRE tunnel that carries the traffic to the Internet edge at the hub site. All the guest traffic originates from users deployed in a dedicated guest VLAN (at least for wired users, as previously described). To maintain an end-to-end segregation of guest traffic, the corresponding VLAN interface (logical SVI) must also be mapped to the guest VRF, as shown in the following configuration sample.
Note
interface Vlan11description Wired Guest subnetip vrf forwarding guestip address 172.16.11.2 255.255.255.0ip helper-address 172.18.2.10standby 11 ip 172.16.11.1standby 11 timers msec 250 msec 800standby 11 priority 105standby 11 preempt delay minimum 180
Note
Enabling a Routing Protocol
When the VRFs identifying the same user group have been linked together by GRE tunnels (creating the logical overlay network), it is time to start entering routing information into the routing tables for each defined group. The easiest way to do this is through static routing; a default static route pointing to the hubs can be configured on each spoke device. In this way, all the traffic originating, for example, from the guest subnets and directed to the Internet is GRE-encapsulated and conveyed toward the enterprise Internet edge.
The use of static routing also requires the configuration of specific static routes on the hub to allow return traffic directed to the edge subnets. Introducing a dynamic routing protocol in the overlay network brings the following two main advantages:
•
•
The configuration details for how to enable a routing protocol in the context of a specific VRF differ, depending on the chosen protocol. Some routing protocols (such as EIGRP and BGP) introduce the concept of address families. The idea is to have a single routing process running on the device and to define a separate address family that is mapped to each VRF. Other routing protocols (such as OSPF) allow a different routing process for each VRF to be created.
This guide considers EIGRP and OSPF because they are the most common routing protocols found in enterprise networks. The following configuration samples refer to the same network diagram shown in Figure 11.
Note
EIGRP
To run EIGRP in the context of a VRF, the VRF-specific address family needs to be configured. The configuration is slightly different for hub-and-spoke because the hubs must also advertise a default route to the spokes. Because of this default route, all the traffic that originates from the edge subnets is forced to the hubs.
The static default route configured on the hub is pointing to the next hop device shown in Figure 11.
•
ip route vrf guest 0.0.0.0 0.0.0.0 172.18.1.30!router eigrp 100passive-interface defaultno passive-interface Tunnel0no passive-interface Tunnel1no passive-interface Tunnel2no passive-interface Tunnel3no auto-summary!address-family ipv4 vrf guestredistribute static metric 1000000 500 255 1 1500network 172.32.1.0 0.0.0.255no auto-summaryautonomous-system 100
Guest
