VMware View 4.5 on FlexPod for VMware Design Guide
This document reports the results of a study evaluating the scalability of VMware® View 4.5™ on FlexPod™, a best-of-breed bundling of Cisco® Unified Computing System™ (UCS) B-series blade servers connected to the NetApp® FAS Storage array. It is an update of a previously published document that includes new scaling findings, which were achieved with performance enhancements that are included in this document. Best practice design recommendations and sizing guidelines for large-scale customer deployments are also provided.
This document is intended to assist solution architects, sales engineers, field engineers, and consultants in planning, designing, and deploying VMware View hosted VDI solutions on the Cisco UCS. This document assumes the reader has an architectural understanding of the Cisco UCS, VMware View 4.5 software, NetApp storage system, and related software.
Updated Content in this Document Version
Summary of Main Findings
•Scale test findings—160 Windows 7 desktops (1.5 GB) running knowledge worker load were supported with one blade server.
•Scale findings increased from the previous study through the use of kernel adjustments detailed in VMware vSphere Kernel Adjustments for High CPU Environments.
•The large memory blade (B250 M2) delivers the best price performance.
•Linear scalability from 1 to 8 servers, with the following results:
–One server supported 160 desktops
–Eight servers supported 1280 desktops (with similar response times)
•Pure Virtualization—The validated environment consists of all virtual machines hosted by VMware vSphere. All the virtual desktop and supporting infrastructure components, including Active Directory and vCenter Server, are hosted on VMware vSphere.
•VMware View allows simplified management of large numbers of automatically standardized desktop resources.
•Rapid provisioning with Cisco UCS Manager makes it easy to scale from one chassis to two and so on.
•The 10G unified fabric delivers tremendous performance with respect to user response times during the load test.
•The low latency Cisco Virtual Interface (VIC) cards enable more robust configurations with virtual NICs and contributes to the excellent response time.
•The validated design provides linear scalability without changing the reference architecture.
•The B250 M2 blade with 192 GB of memory delivers optimal memory for desktop virtualization that allows full CPU utilization of the server without restricting the amount memory allocated to the desktops.
•Advanced Storage Technologies simplify management, enable scalable designs, and reduce TCO:
–Storage efficiency with multiple levels of storage (thin provisioning, data deduplication, and FlexClone®)
–Performance enhanced with Transparent Storage Cache Sharing (TSCS) and extended with Flash Cache (PAM II)
Note For the remainder of this document, the term Flash Cache will represent the Flash Cache (PAM II) module.
–Enhanced VDI solution management for operational efficiency
This section describes the infrastructure components used in the system design.
FlexPod from Cisco and NetApp
Figure 1 FlexPod
FlexPod is a predesigned, base configuration that is built on the Cisco Unified Computing System (UCS), Cisco Nexus® data center switches, NetApp FAS storage components, and a range of software partners. FlexPod can scale up for greater performance and capacity or it can scale out for environments that need consistent, multiple deployments. FlexPod is a baseline configuration, but also has the flexibility to be sized and optimized to accommodate many different use cases.
•Low-risk, standardized, shared infrastructure supporting a wide range of environments
•Highest possible data center efficiency
•IT flexibility providing the business agility to scale out or up and manage resource pools
•Complete data center in a single rack
•Step-by-step deployment guides
•Solutions guide for multiple environments
•Multiple classes of computing and storage supported in a single FlexPod
•Centralized management with NetApp OnCommand and Cisco UCS Manager
As the name suggests, the FlexPod architecture is highly modular or "pod" like. While each customer's FlexPod may vary in its exact configuration, once a FlexPod unit is built it can easily be scaled as requirements and demand change. This includes scaling both up (adding additional resources within a FlexPod unit) and out (adding additional FlexPod units). FlexPods are created to be "flexed" to the customer's application needs.
FlexPod for VMware
•FlexPod infrastructure with VMware vSphere and vCenter to support virtualized application workloads
•Complex solutions can be layered on top of FlexPod for VMware.
–With this environment the ESMT reference architecture was implemented on FlexPod for VMware (http://www.cisco.com/en/US/docs/solutions/Enterprise/Data_Center/Virtualization/securecldg_V2.html).
•Optional components include the Nexus 1010 and the Nexus 1000v
•This FlexPod for VMware was "flexed" with:
–High memory availability within the Cisco UCS B250 M2 blades
–Storage acceleration achieved through NetApp Flash Cache
For more information on FlexPod, see:

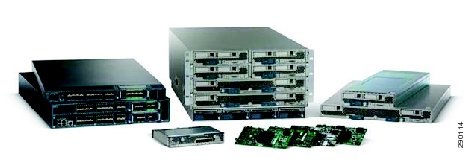

Cisco Unified Computing System
The Cisco UCS is a next-generation data center platform that unites compute, network, storage access, and virtualization into a cohesive system designed to reduce total cost of ownership (TCO) and increase business agility. The system integrates a low-latency, lossless 10 Gigabit Ethernet unified network fabric with enterprise-class, x86-architecture servers. The system is an integrated, scalable, multi-chassis platform in which all resources participate in a unified management domain.
The main system components include:
•Compute—The system is based on an entirely new class of computing system that incorporates blade servers based on Intel® Xeon® 5600 Series processors. The blade servers offer patented Cisco Extended Memory Technology to support applications with large datasets and allow more virtual machines per server.
•Network—The system is integrated onto a low-latency, lossless, 10-Gbps unified network fabric. This network foundation consolidates what today are three separate networks: LANs, SANs, and high-performance computing networks. The unified fabric lowers costs by reducing the number of network adapters, switches, and cables and by decreasing power and cooling requirements.
•Virtualization—The system unleashes the full potential of virtualization by enhancing the scalability, performance, and operational control of virtual environments. Cisco security, policy enforcement, and diagnostic features are now extended into virtualized environments to better support changing business and IT requirements.
•Storage access—The system provides consolidated access to both SAN storage and network attached storage (NAS) over the unified fabric. Unifying storage access means that the Cisco UCS can access storage over Ethernet, Fibre Channel, Fibre Channel over Ethernet (FCoE), and iSCSI, providing customers with choice and investment protection. In addition, administrators can pre-assign storage access policies for system connectivity to storage resources, simplifying storage connectivity and management while helping increase productivity.
•Management—The system uniquely integrates all the system components, enabling the entire solution to be managed as a single entity through Cisco UCS Manager software. Cisco UCS Manager provides an intuitive graphical user interface (GUI), a command-line interface (CLI), and a robust application-programming interface (API) to manage all system configuration and operations. Cisco UCS Manager helps increase IT staff productivity, enabling storage, network, and server administrators to collaborate on defining service profiles for applications. Service profiles are logical representations of desired physical configurations and infrastructure policies. They help automate provisioning and increase business agility, allowing data center managers to provision resources in minutes instead of days.
Working as a single, cohesive system, these components unify technology in the data center. They represent a radical simplification in comparison to traditional systems, helping simplify data center operations while reducing power and cooling requirements. The system amplifies IT agility for improved business outcomes. The Cisco UCS components illustrated in Figure 2 include, from left to right, Fabric Interconnects, blade server chassis, blade servers, and in the foreground, fabric extenders and network adapters.
Figure 2 Cisco Unified Computing System
Cisco Unified Computing System Components
The Cisco UCS 6100 Series Fabric Interconnects are a core part of the Cisco UCS, providing both network connectivity and management capabilities for the system (Figure 3). The Cisco UCS 6100 Series offers line-rate, low-latency, lossless 10 Gigabit Ethernet and Fibre Channel over Ethernet (FCoE) functions.
The Cisco UCS 6100 Series provides the management and communication backbone for the Cisco UCS B-Series Blade Servers and UCS 5100 Series Blade Server Chassis. All chassis, and therefore all blades, attached to the Cisco UCS 6100 Series Fabric Interconnects become part of a single, highly available management domain. In addition, by supporting unified fabric, the Cisco UCS 6100 Series provides both the LAN and SAN connectivity for all blades within its domain.
From a networking perspective, the Cisco UCS 6100 Series uses a cut-through architecture, supporting deterministic, low-latency, line-rate 10 Gigabit Ethernet on all ports, independent of packet size and enabled services. The product family supports Cisco low-latency, lossless 10 Gigabit Ethernet unified network fabric capabilities, which increase the reliability, efficiency, and scalability of Ethernet networks. The Fabric Interconnect supports multiple traffic classes over a lossless Ethernet fabric from the blade through the interconnect. Significant TCO savings come from an FCoE-optimized server design in which network interface cards (NICs), host bus adapters (HBAs), cables, and switches can be consolidated.
The Cisco UCS 6100 Series is also built to consolidate LAN and SAN traffic onto a single unified fabric, saving the capital and operating expenses associated with multiple parallel networks, different types of adapter cards, switching infrastructure, and cabling within racks. Fibre Channel expansion modules in the interconnect support direct connections from the Cisco UCS to existing native Fibre Channel SANs. The capability to connect FCoE to native Fibre Channel protects existing storage system investments while dramatically simplifying in-rack cabling.

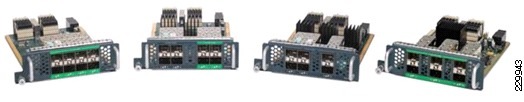

Figure 3 Cisco UCS 6120XP 20-Port Fabric Interconnect (Top) and Cisco UCS 6140XP 40-Port Fabric Interconnect
The Cisco UCS 6100 Series is equipped to support the following module options:
•Ethernet module that provides 6 ports of 10 Gigabit Ethernet using the SFP+ interface
•Fibre Channel plus Ethernet module that provides 4 ports of 10 Gigabit Ethernet using the SFP+ interface and 4 ports of 1/2/4-Gbps native Fibre Channel connectivity using the SFP interface
•Fibre Channel module that provides 8 ports of 1/2/4-Gbps native Fibre Channel using the SFP interface for transparent connectivity with existing Fibre Channel networks
•Fibre Channel module that provides 6 ports of 1/2/4/8-Gbps native Fibre Channel using the SFP or SFP+ interface for transparent connectivity with existing Fibre Channel networks
Figure 4 From Left to Right—8-Port 1/2/4-Gbps Native Fibre Channel Expansion Module; 4-Port Fibre Channel plus 4-Port 10 Gigabit Ethernet Module; 6-Port 10 Gigabit Ethernet Module; and 6-Port 1/2/4/8-Gbps Native Fibre Channel Expansion Module
Cisco Fabric Extenders Module
Cisco UCS 2100 Series Fabric Extenders bring the unified fabric into the blade server enclosure, providing 10 Gigabit Ethernet connections between blade servers and the Fabric Interconnect, simplifying diagnostics, cabling, and management.
The Cisco UCS 2100 Series extends the I/O fabric between the Cisco UCS 6100 Series Fabric Interconnects and the Cisco UCS 5100 Series Blade Server Chassis, enabling a lossless and deterministic Fibre Channel over Ethernet (FCoE) fabric to connect all blades and chassis together. Since the fabric extender is similar to a distributed line card, it does not do any switching and is managed as an extension of the Fabric Interconnects. This approach removes switching from the chassis, reducing overall infrastructure complexity and enabling the Cisco UCS to scale to many chassis without multiplying the number of switches needed, reducing TCO and allowing all chassis to be managed as a single, highly available management domain.
The Cisco 2100 Series also manages the chassis environment (the power supply and fans as well as the blades) in conjunction with the Fabric Interconnect. Therefore, separate chassis management modules are not required.
Cisco UCS 2100 Series Fabric Extenders fit into the back of the Cisco UCS 5100 Series chassis. Each Cisco UCS 5100 Series chassis can support up to two fabric extenders, enabling increased capacity as well as redundancy.
Figure 5 Rear View of the Cisco UCS 5108 Blade Server Chassis with Two Cisco UCS 2104XP Fabric Extenders
The Cisco UCS 2104XP Fabric Extender has four 10 Gigabit Ethernet, FCoE-capable, Small Form-Factor Pluggable Plus (SFP+) ports that connect the blade chassis to the Fabric Interconnect. Each Cisco UCS 2104XP has eight 10 Gigabit Ethernet ports connected through the midplane to each half-width slot in the chassis. Typically configured in pairs for redundancy, two fabric extenders provide up to 80 Gbps of I/O to the chassis.
Figure 6 Cisco UCS 2104XP Fabric Extender
Cisco UCS Chassis
The Cisco UCS 5100 Series Blade Server Chassis is a crucial building block of the Cisco UCS, delivering a scalable and flexible blade server chassis for today's and tomorrow's data center while helping reduce TCO.
Cisco's first blade server chassis offering, the Cisco UCS 5108 Blade Server Chassis, is six rack units (6RU) high and can mount in an industry-standard 19-inch rack. A chassis can house up to eight half-width Cisco UCS B-Series Blade Servers and can accommodate both half- and full-width blade form factors.
Four single-phase, hot-swappable power supplies are accessible from the front of the chassis. These power supplies are 92 percent efficient and can be configured to support non-redundant, N+ 1 redundant and grid-redundant configuration. The rear of the chassis contains eight hot-swappable fans, four power connectors (one per power supply), and two I/O bays for Cisco UCS 2104XP Fabric Extenders.
A passive mid-plane provides up to 20 Gbps of I/O bandwidth per half-width server slot and up to 40 Gbps of I/O bandwidth per full-width server slot. The chassis is capable of supporting future 40 Gigabit Ethernet standards.

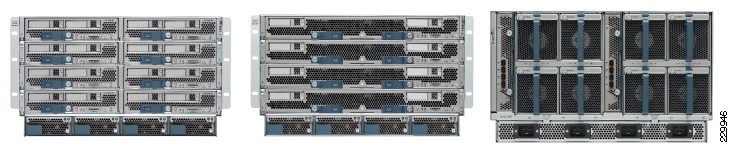

Figure 7 Cisco Blade Server Chassis (Front and Back View)
Intel Xeon 5600 Series Processor
As data centers reach the upper limits of their power and cooling capacity, efficiency has become the focus of extending the life of existing data centers and designing new ones. As part of these efforts, IT needs to refresh existing infrastructure with standard enterprise servers that deliver more performance and scalability, more efficiently. The Intel Xeon processor 5600 series automatically regulates power consumption and intelligently adjusts server performance according to your application needs, maximizing both energy efficiency and performance. The secret to this compelling combination is Intel's new 32nm Nehalem micro-architecture. Featuring Intel Intelligent Power Technology that automatically shifts the CPU and memory into the lowest available power state, while delivering the performance you need, the Intel Xeon processor 5600 series with Intel Micro-architecture Nehalem delivers the same performance as previous-generation servers but uses up to 30 percent less power. You can achieve up to a 93 percent reduction in energy costs when consolidating your single-core infrastructure with a new infrastructure built on Intel Xeon processor 5600.
This ground breaking intelligent server technology features:
•Intel's new 32nm Microarchitecture Nehalem built with second-generation high-k and metal gate transistor technology.
•Intelligent Performance that automatically optimizes performance to fit business and application requirements and delivers up to 60 percent more performance per watt than Intel Xeon processor 5500 series.
•Automated Energy Efficiency that scales energy usage to the workload to achieve optimal performance/watt and with new 40 Watt options and lower power DDR3 memory, you can lower your energy costs even further.
•Flexible virtualization that offers best-in-class performance and manageability in virtualized environments to improve IT infrastructure and enable up to 15:1 consolidation over two socket, single-core servers. New standard enterprise servers and workstations built with this new generation of Intel process technology offer an unprecedented opportunity to dramatically advance the efficiency of IT infrastructure and provide unmatched business capabilities.

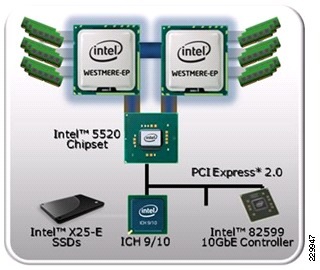

Figure 8 Intel Xeon 5600 Series Processor
Cisco UCS B200 M2 Blade Server
The Cisco UCS B200 M2 Blade Server is a half-width, two-socket blade server. The system uses two Intel Xeon 5600 Series processors, up to 96 GB of DDR3 memory, two optional hot-swappable small form factor (SFF) serial attached SCSI (SAS) disk drives, and a single mezzanine connector for up to 20 Gbps of I/O throughput. The server balances simplicity, performance, and density for production-level virtualization and other mainstream data center workloads.
Figure 9 Cisco UCS B200 M2 Blade Server
Cisco UCS B250 M2 Blade Server
The Cisco UCS B250 M2 Extended Memory Blade Server is a full-width, two-socket blade server featuring Cisco Extended Memory Technology. The system supports two Intel Xeon 5600 Series processors, up to 384 GB of DDR3 memory, two optional SFF SAS disk drives, and two mezzanine connections for up to 40 Gbps of I/O throughput. The server increases performance and capacity for demanding virtualization and large dataset workloads with greater memory capacity and throughput.
Figure 10 Cisco UCS B250 M2 Extended Memory Blade Server
Cisco UCS Virtual Interface Card (VIC)
Cisco Virtual Interface Cards were developed ground up to provide acceleration for the various new operational modes introduced by server virtualization. The Virtual Interface Cards are highly configurable and self-virtualized adapters that can create up 128 PCIe endpoints per adapter. These PCIe endpoints are created in the adapter firmware and present fully compliant standard PCIe topology to the host OS or hypervisor.
Each of these PCIe endpoints the Virtual Interface Card creates can be configured individually for the following attributes:
•Interface type—FCoE, Ethernet, or Dynamic Ethernet interface device
•Resource maps that are presented to the host—PCIe BARs, interrupt arrays
•The Network presence and attributes—MTU, VLAN membership
•Quality of Service (QoS) parameters—802.1p class, ETS attributes, rate limiting, and shaping
Figure 11 Cisco UCS Virtual Interface Card
Note The Virtual Interface Cards are SR-IOV-capable at the hardware level and Cisco will provide a smooth transition to SR-IOV based solution when operating systems and hypervisors support it.
Cisco VN-Link in Hardware
The Virtual Interface Cards are also the first implementations of Cisco's VN-Link in Hardware technology. VN-Link in Hardware eliminates the virtual switch within the hypervisor by providing individual virtual machine virtual ports on the physical network switch. The virtual machine I/O is sent directly to the upstream physical network switch, the Cisco UCS Fabric Interconnect in this case, which takes full responsibility for virtual machine switching and policy enforcement.
In any supported hypervisor environment the Virtual Interface Card presents itself as three distinct device types, a FC interface, a standard Ethernet interface, and a special Dynamic Ethernet interface. The FC and Ethernet interfaces are consumed by standard vmkernel components and provide standard functionality. The Dynamic interfaces are not visible to vmkernel layers and are preserved as raw PCIe devices.
Using Cisco vDS ESX plug-in and VN-Link in Hardware, the Virtual Interface Card provides a solution that is capable of discovering the Dynamic Ethernet interfaces and registering all of them as uplink interfaces for internal consumption of the vDS. As shown in Figure 12, the vDS component on each host discovers the number of uplink interfaces that it has and presents a switch to the virtual machines running on that host. All traffic from an interface on a virtual machine is sent to the corresponding port of the vDS switch. The traffic is mapped immediately to a unique Dynamic Ethernet interface presented by the Virtual Interface Card. This vDS implementation guarantees the 1:1 relationship with a virtual machine interface and an uplink port. The Dynamic Ethernet interface selected is a precise proxy for the virtual machine's interface.
The Dynamic Ethernet interface presented by the Virtual Interface Card has a corresponding virtual port on the upstream network switch, the Cisco UCS Fabric Interconnect.

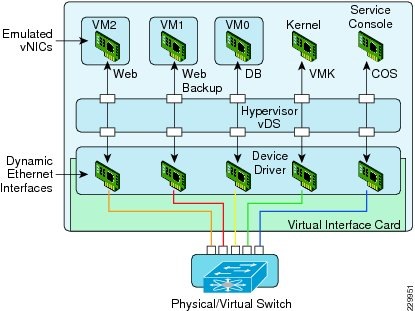

Figure 12 Each Virtual Machine Interface has Its Own Virtual Port on the Physical Switch
Cisco UCS Manager running on the Cisco UCS Fabric Interconnect works in conjunction with VMware vCenter software to coordinate the creation and movement of virtual machines. Port profiles are used to describe the virtual machine interface attributes such as VLAN, port security, rate limiting, and QoS marking. Port profiles are managed and configured by network administrators using the Cisco UCS Manager. To facilitate integration with the vCenter, the Cisco UCS Manager pushes the catalog of port profiles into vCenter, where they are represented as distinct port groups. This integration allows virtual machine administrators to simply select from a menu of port profiles as they create virtual machines. When a virtual machine is created or moved to a different host, it communicates its port group to the Virtual Interface Card. The Virtual Interface Card asks Cisco UCS Manager for the port profile corresponding to the requested profile and the virtual port on the Fabric Interconnect switch is configured according to the attributes defined in the port profile.
Extended Memory Architecture
Modern CPUs with built-in memory controllers support a limited number of memory channels and slots per CPU. The need for virtualization software to run multiple OS instances demands large amounts of memory and that, combined with the fact that CPU performance is outstripping memory performance, can lead to memory bottlenecks. Even some traditional non-virtualized applications demand large amounts of main memory: database management system performance can be improved dramatically by caching database tables in memory and modeling and simulation software can benefit from caching more of the problem state in memory.
To obtain a larger memory footprint, most IT organizations are forced to upgrade to larger, more expensive, four-socket servers. CPUs that can support four-socket configurations are typically more expensive, require more power, and entail higher licensing costs. Cisco Extended Memory Technology expands the capabilities of CPU-based memory controllers by logically changing the geometry of main memory while still using standard DDR3 memory. The technology makes every four DIMM slots in the expanded memory blade server appear to the CPU's memory controller as a single DIMM that is four times the size (Figure 13). For example, using standard DDR3 DIMMs, the technology makes four 8-GB DIMMS appear as a single 32-GB DIMM.
This patented technology allows the CPU to access more industry-standard memory than ever before in a two-socket server:
•For memory-intensive environments, data centers can better balance the ratio of CPU power to memory and install larger amounts of memory without having the expense and energy waste of moving to four-socket servers simply to have a larger memory capacity. With a larger main-memory footprint, CPU utilization can improve because of fewer disk waits on page-in and other I/O operations, making more effective use of capital investments and more conservative use of energy.
•For environments that need significant amounts of main memory but which do not need a full 384 GB, smaller-sized DIMMs can be used in place of 8-GB DIMMs, with resulting cost savings: two 4-GB DIMMS are typically less expensive than one 8-GB DIMM.

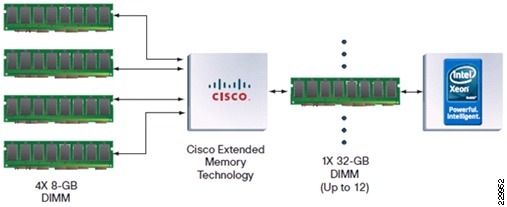

Figure 13 Extended Memory Architecture
VMware vSphere4 and VCenter Server
VMware vSphere is a virtualization platform for holistically managing large collections of infrastructure-CPUs, storage, networking-as a seamless, flexible, and dynamic operating environment. Unlike traditional operating systems that manage an individual machine, VMware vSphere aggregates the infrastructure of an entire data center to create a single powerhouse with resources that can be allocated quickly and dynamically to any application in need.
VMware vSphere provides revolutionary benefits, but with a practical, non-disruptive evolutionary process for legacy applications. Existing applications can be deployed on VMware vSphere with no changes to the application or the OS on which they are running.
VMware vSphere delivers the performance required to run business-critical applications in large-scale environments. VMware vSphere provides two-four times the performance of the previous generation platform (VMware Infrastructure 3) while keeping virtualization overhead at a very limited 2-10 percent. With these performance numbers, VMware vSphere is able to run large, resource-intensive databases and, in many cases, enables applications to scale better on newer multicore servers.
VMware vSphere provides a set of application services that enable applications to achieve unparalleled levels of availability, security, and scalability. For example, with VMware vSphere, all applications can be protected from downtime with VMware High Availability (HA) and VMware Fault Tolerance (FT), without the complexity of conventional clustering. In addition, applications can be scaled dynamically to meet changing loads with capabilities such as Hot Add and VMware Distributed Resource Scheduler (DRS).
The VMware vCenter Product Family is an advanced virtualization management platform, which unlocks the power of virtualization through proactive management and centralized control of virtual infrastructure. For example, VMware vCenter AppSpeed enables IT operations to monitor and ensure the service levels of distributed multi-tier applications running on VMware vSphere. VMware vCenter Lab Manager 4 provides developers and application owners on-demand, self-service access to a library of application and development environments to accelerate develop and test cycles.
Cisco Nexus 1000v
Cisco Nexus 1000V Series Switches are virtual machine access switches that are an intelligent software switch implementation for VMware vSphere environments running the Cisco NX-OS Software operating system. Operating inside the VMware ESX hypervisor, the Cisco Nexus 1000V Series supports Cisco VN-Link server virtualization technology to provide:
•Policy-based virtual machine connectivity
•Mobile virtual machine security and network policy
•Nondisruptive operational model for your server virtualization and networking teams
The Cisco Nexus 1000V Series provides an ideal model in which network administrators define network policy that virtualization or server administrators can use as new similar virtual machines are added to the infrastructure. Policies defined on the Cisco Nexus 1000V Series are exported to VMware vCenter Server to be used and reused by server administrators, as new virtual machines require access to a specific network policy. This concept is implemented on the Cisco Nexus 1000V Series using a feature called port profiles. The Cisco Nexus 1000V Series with the port profile feature eliminates the requirement for the virtualization administrator to create or maintain vSwitch and port group configurations on any of their VMware ESX hosts.
Port profiles create a unique collaborative model, giving server administrators the autonomy to provision new virtual machines without waiting for network reconfigurations to be implemented in the physical network infrastructure. For network administrators, the combination of the Cisco Nexus 1000V Series feature set and the capability to define a port profile using the same syntax as for existing physical Cisco switches helps ensure that consistent policy is enforced without the burden of managing individual switch ports. The Cisco Nexus 1000V Series solution also provides a consistent network management, diagnostic, and troubleshooting interface to the network operations team, allowing the virtual network infrastructure to be managed like the physical infrastructure.
VMware View 4.5 desktop virtualization platform enables you to run virtual desktops in the data center and deliver desktops to employees as a secure managed service. End users gain a familiar, personalized environment that they can access from any number of devices anywhere throughout the enterprise or from home. Administrators gain centralized control, efficiency, and security by having desktop data in the data center.
Types of Users
There are many reasons to consider a virtual desktop solution, such as an ever growing and diverse base of user devices, management complexity of traditional desktops, security, and user owned/non-IT supported devices. It is important to understand the requirements of the user community to design and deploy a successful Virtual Desktop environment. Following are some typical types of users:
•Knowledge workers today do not just work in their offices all day; they attend meetings, visit branch offices, and work from home and even coffee shops. These anywhere workers expect access to all of their same applications and data wherever they are.
•External contractors are increasingly part of everyday business. They need access to many applications and data, yet administrators have little control over the devices they use or the locations from which they work. Consequently, IT must trade off the cost of providing these workers a device versus the security risk of allowing them access from their own devices.
•Task workers perform a set of well-defined tasks. These workers access a small set of applications and have limited requirements from their PCs. Since these workers interact with customers, partners, and employees, they often have access to critical data.
•Road warriors need access to their virtual desktop from everywhere, regardless of how they are connected to a network. These workers expect the ability to personalize their PCs by installing their own applications and storing their own data, such as photos and music, on these devices.
•Shared workstation users are typically found in university and business computer labs, in conference rooms, and in training centers. Shared workstation environments require desktop re-provisioning with the latest operating systems or applications, as the needs of the organization change.
The Virtual Desktop user community requirements will drive system design decisions.
VMware View consists of the following major components which work together to deliver a flexible and robust Virtual Desktop environment.
View Connection Server
This software service acts as a broker for client connections. The View Connection Server authenticates users through Windows Active Directory and directs the request to the appropriate virtual machine, physical or blade PC, or Windows Terminal Services server.
View Connection Server provides the following management capabilities:
•Entitling users to specific desktops and pools
•Assigning applications packaged with VMware ThinApp to specific desktops and pools
•Managing local and remote desktop sessions
•Establishing secure connections between users and desktops
•Enabling single sign-on
•Setting and applying policies
Inside the corporate firewall, you install and configure a group of two or more View Connection Server instances. Their configuration data is stored in an embedded LDAP directory and is replicated among members of the group.
Outside the corporate firewall, in the DMZ, you can install and configure View Connection Server as a security server. Security servers in the DMZ communicate with View Connection Servers inside the corporate firewall. Security servers offer a subset of functionality and are not required to be in an Active Directory domain.
You install the View Agent service on all virtual machines, physical systems, and Terminal Service servers that you use as sources for View desktops. This agent communicates with View Client to provide features such as connection monitoring, virtual printing, and access to locally connected USB devices.
If the desktop source is a virtual machine, you first install the View Agent service on that virtual machine and then use the virtual machine as a template or as a parent of linked clones. When you create a pool from this virtual machine, the agent is automatically installed on every virtual desktop.
You can install the agent with an option for single sign-on. With single sign-on, users are prompted to log in only when they connect to View Connection Server and are not prompted a second time to connect to a virtual desktop.
The client software for accessing View desktops runs either on a Windows or Mac PC as a native application or on a thin client if you have View Client for Linux.
After logging in, users select from a list of virtual desktops that they are authorized to use. Authorization can require Active Directory credentials, a UPN, a smart card PIN, or an RSA SecurID token.
An administrator can configure View Client to allow end users to select a display protocol. Protocols include PCoIP, Microsoft RDP, and HP RGS. The speed and display quality of PCoIP rival that of a physical PC.
View Client with Local Mode (formerly called Offline Desktop) is a version of View Client that has been extended to allow end users to download virtual machines and use them on their local systems regardless of whether they have a network connection.
This Web-based application allows administrators to configure View Connection Server, deploy and manage View desktops, control user authentication, troubleshoot end user issues, initiate and examine system events, and carry out analytical activities.
When you install a View Connection Server instance, the View Administrator application is also installed. This application allows administrators to manage View Connection Server instances from anywhere without having to install an application on their local computer.
This service acts as a central administrator for VMware ESX servers that are connected on a network. vCenter Server, formerly called VMware VirtualCenter, provides the central point for configuring, provisioning, and managing virtual machines in the data center.
In addition to using these virtual machines as sources for View desktop pools, you can use virtual machines to host the server components of VMware View, including Connection Server instances, Active Directory servers, and vCenter Server instances.
View Composer installs as a software service on a vCenter Server instance to manage the virtual machines. View Composer can then create a pool of linked clones from a specified parent virtual machine. This strategy reduces storage costs by up to 90 percent.
Each linked clone acts like an independent desktop, with a unique host name and IP address, yet the linked clone requires significantly less storage because it shares a base image with the parent.
Because linked-clone desktop pools share a base image, you can quickly deploy updates and patches by updating only the parent virtual machine. End users' settings, data, and applications are not affected. As of View 4.5, you can also use linked-clone technology for View desktops that you download and check out to use on local systems.
VMware View also provides the option to use tiered storage. This allows placement of important data on high I/O storage and infrequently used data on less expensive drives. Configuring View Composer replicas to a SSDD can yield high read performance for linked clone provisioning and concurrent references from linked clones.
View Transfer Server
This software manages and streamlines data transfers between the data center and View desktops that are checked out for use on end users' local systems. View Transfer Server is required to support desktops that run View client with Local Mode (formerly called Offline Desktop).
Several operations use View Transfer Server to send data between the View desktop in vCenter Server and the corresponding local desktop on the client system.
View Transfer Server synchronized local desktops with the corresponding desktops in the data center by replicating user-generated changes to the data center. Replications occur at intervals that you specify in local-mode policies. You can also initiate replications in View Administrator. You can set a policy that allows users to initiate replications from their local desktops.
View Transfer Server keeps local desktops up-to-date by distributing common system data from the data center to local clients. View Transfer Server download View Composer base images from the image repository to local desktops.
If a local computer is corrupted or lost, View Transfer Server can provision the local desktop and recover the user data by downloading the data and system image to the local desktop.
NetApp Storage Solution and Components
NetApp provides a scalable, unified storage and data management solution for VDI. The unique benefits of the NetApp solution are:
•Storage efficiency—Significant cost savings with multiple levels of storage efficiency for all the virtual machine data components.
•Performance—Enhanced user experience with transparent read and write I/O optimization that strongly complements NetApp's storage efficiency capabilities.
•Operational agility—Enhanced VDI solution management with tight partner integration.
•Data protection—Enhanced protection of both the virtual desktop OS data and the user data with very low overhead for both cost and operations.
Single Scalable Unified Architecture
The NetApp unified storage architecture provides customers with an agile and scalable storage platform. All NetApp storage systems utilize the Data ONTAP operating system to provide SAN (FCoE, FC, iSCSI), NAS (CIFS, NFS), primary storage, and secondary storage within a single unified platform so that all virtual desktop data components can be hosted on the same storage array. A single process for activities such as installation, provisioning, mirroring, backup, and upgrading is used throughout the entire product line from the entry level to enterprise-class controllers. Having a single set of software and processes brings great simplicity to even the most complex enterprise data management challenges. Unifying storage and data management software and processes reduces the complexity of data ownership, enables companies to adapt to their changing business needs without interruption, and results in a reduction in total cost of ownership.
One of the critical barriers to VDI adoption is the increased cost of using shared storage to obtain a highly available enterprise quality infrastructure. Virtual desktop deployment creates a high level of data redundancy, especially for the VM OS data. With traditional storage, the total storage required equals the sum of the storage required by each virtual machine. For example, if each virtual machine is 20GB in size and there are 1000 virtual machines in the solution, it would require at least 20TB usable data on the shared storage.
Thin provisioning, data deduplication, and FlexClone® are the critical components of the NetApp solution and offer multiple levels of storage efficiency across the virtual desktop OS data, installed applications, and user data. This helps customers save on average 50% to 90% on the cost associated with shared storage (based on existing customer deployments and NetApp solutions lab validation).
Thin provisioning is a way of logically presenting more storage to hosts than is physically available. With thin provisioning, the storage administrator is able to utilize a pool of physical disks (known as an aggregate) and create logical volumes for different applications to use, while not preallocating space to those volumes. The space gets allocated only when the host needs it. The unused aggregate space is available for the existing thinly provisioned volumes to expand or for use in creation of new volumes. For more details on thin provisioning, review NetApp TR-3563: NetApp Thin Provisioning.

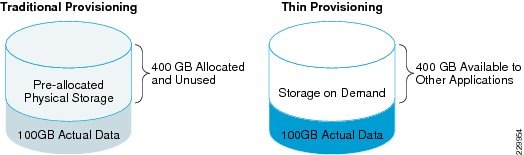

Figure 14 Traditional and Thin Provisioning

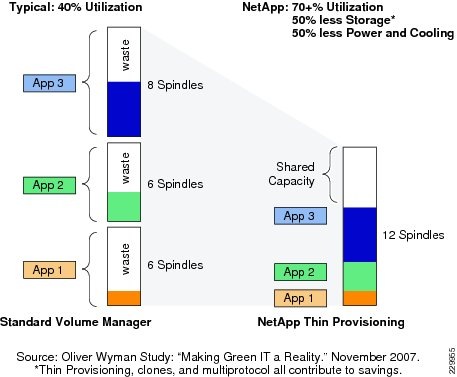

Figure 15 Increased Disk Utilization with NetApp Thin Provisioning
NetApp deduplication saves space on primary storage by removing redundant copies of blocks within a volume hosting hundreds of virtual desktops. This process is transparent to the application and user and can be enabled and disabled on the fly. In a VDI environment, deduplication provides significant space savings, given that each virtual machine has an identical copy of the OS, applications, and patches. The savings are also achieved for the user data hosted on CIFS home directories. For more information on NetApp deduplication, refer to NetApp TR-3505: NetApp Deduplication for FAS, Deployment and Implementation Guide.
Figure 16 NetApp Deduplication
Using NetApp deduplication and file FlexClone can reduce the overall storage footprint of VDI desktops and improve performance by leveraging transparent storage cache sharing. Data that is deduplicated or nonduplicated, in the case of file FlexClone data, on disk will only exist in storage array cache once per volume. All subsequent reads from any of the virtual machine disks of a block that is already in cache will be read from cache and not from disk, therefore improving performance by 10X. Any nondeduplicated data that is not in cache must be read from disk. Data that is deduplicated but does not have as many block references as a heavily deduped VMDK will appear in cache only once, but based on the frequency of access might be evicted earlier than data that has many references or is heavily used.

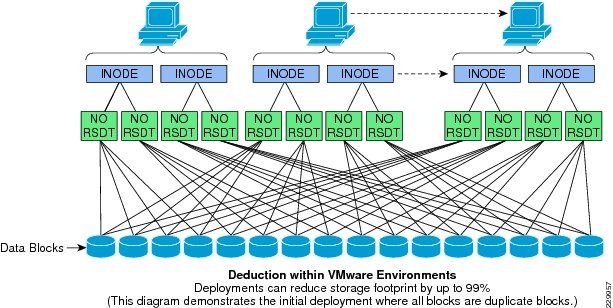

Figure 17 NetApp Deduplication in VMware Environments
•Deduplication is configured and operates on the flexible volumes only.
•Data can be deduplicated up to 255:1 without consuming additional space.
•Each storage platform has different deduplication limits.
•Each volume has dense and non-dense size limits.
•Deduplication is configured using the command line.
•Requires Data ONTAP 18.104.22.168, 7.3P1, or later.
•Both a_sis and NearStore® must be licensed for deduplication to work.
•Run deduplication prior to creating Snapshot copies or running SnapMirror or SnapVault updates.
For more detailed information on deduplication, refer to NetApp TR-3505: NetApp Deduplication for FAS, Deployment and Implementation Guide.
Data Protection via RAID-DP
With any VMware View deployment, data protection is critical because any RAID failure could result in hundreds to thousands of end users being disconnected from their desktops, resulting in lost productivity. RAID-DP provides performance that is comparable to that of RAID 10, yet requires fewer disks to achieve equivalent protection. RAID-DP provides protection against double disk failure as compared to RAID 5, which can only protect against one disk failure per RAID group. For more information on RAID-DP, see NetApp TR-3298: RAID-DP: NetApp Implementation of RAID Double Parity for Data Protection.
Another critical barrier to VDI adoption is performance issues associated with hosting thousands of virtual machines on shared storage, specifically performance associated with events that produce a large influx of simultaneous I/O such as login storms, boot storms, and antivirus operations. With physical desktops, this was not a problem as each machine had its own disks and I/O was contained within a single desktop. With VDI using a shared storage infrastructure, significant performance issues might arise during these critical operations. This means the solution could require a large number of additional spindles to meet the performance requirements, resulting in increased overall solution cost.
To solve this problem, the NetApp solution contains transparent storage cache sharing (TSCS). Transparent storage cache sharing is a core component of Data ONTAP and is extended with Flash Cache. These solution components save customers money by:
•Requiring far less disks and cache
•Serving read data from cache freeing up disk I/O to perform writes
•Providing better throughput and system utilization
•Providing faster response times and a better overall end user experience
Transparent Storage Cache Sharing
Transparent storage cache sharing (TSCS) allows customers to benefit from NetApp's storage efficiency and at the same time significantly increase I/O performance. TSCS is natively built into the Data ONTAP operating system and works by leveraging block-sharing technologies, such as NetApp primary storage deduplication and file/volume FlexClone to reduce the amount of cache required and eliminate duplicate disk reads. Only one instance of any duplicate block is read into cache, thus requiring less cache than traditional storage solutions. VDI implementations can see as great as 99% initial space savings (validated in the NetApp solutions lab) using NetApp space-efficient cloning technologies. This translates into higher cache deduplication and high cache hit rates. TSCS is especially effective in addressing the simultaneous system boot or "boot storm" of hundreds to thousands of virtual desktop systems that can overload a traditional legacy storage system.
The following are some of the key benefits of transparent storage cache sharing:
•Increased performance—With transparent storage cache sharing, in combination with FlexClone and deduplication, latencies decrease significantly by a factor of 10X versus serving data from the fastest spinning disks available, giving submillisecond data access. Decreasing the latency results in higher throughput and lower disk utilization, which directly translate into fewer disk reads.
•Lowering TCO—Requiring fewer disks and getting better performance allow customers to increase the number of virtual machines on a given storage platform, resulting in a lower total cost of ownership.
•Green benefits—Power and cooling costs are reduced as the overall energy needed to run and cool the Flash Cache module is significantly less than even a single shelf of Fibre Channel disks. A standard DS14mk4 disk shelf of 300GB 15K RPM disks can consume as much as 340 watts (W)/hr. and generate heat up to 1394BTU/hr. In contrast, the Flash Cache module consumes only 18W/hr. and generates 90BTU/hr. By not deploying an additional shelf, the power savings alone can be as much as 3000kWh/year per shelf. In addition to the environmental benefits of heating and cooling, each shelf not used saves 3U of rack space. For a real-world deployment, a NetApp solution (with Flash Cache as a key component) would typically replace several such storage shelves; therefore, the savings could be considerably higher than one disk shelf.
NetApp Flash Cache are hardware devices that extend the native Data ONTAP TSCS capabilities. Flash Cache increases the amount of available cache which helps reduce virtual desktop storm activities. More details of Flash Cache will be discussed later in this document. For more details on NetApp Flash Cache technology, see: http://www.netapp.com/us/products/storage-systems/flash-cache/flash-cache-tech-specs.html.
FlexScale is the tunable software component to Flash Cache. It is a licensed feature of Data ONTAP 7.3 or greater. FlexScale allows different caching modes to be used based on the type of workload. The different modes of caching are metadata only, normal user data, and low-priority blocks. FlexScale will allow system administrators to tune their NetApp controllers for VMware View environments.
NetApp Write Optimization
Virtual desktop I/O patterns are often very random in nature. Random writes are the most expensive operation for almost all RAID types because each write operation requires more than one disk operation. The ratio of VDI client operation to disk operation also depends on the RAID type for the back-end storage array. In a RAID 5 configuration on a traditional storage array, each client write operation requires up to four disk operations. Large write cache might help, but traditional storage arrays still require at least two disk operations. (Some coalescing of requests will happen if you have a big enough write cache. Also, there is a chance that one of the reads might come from read cache.) In a RAID 10 configuration, each client write operation requires two disk operations. The cost of RAID 10 is very high compared to RAID 5. However, RAID 5 offers lower resiliency (protection against single disk failure). Imagine dual disk failure in the middle of the day, making hundreds to thousands of users unproductive.
NetApp write operations have been optimized for RAID-DP by the core operating system Data ONTAP and WAFL® since their invention. NetApp arrays coalesce multiple client write operations and send them to disk as a single IOP. Therefore, the ratio of client operations to disk operations is always less than 1, as compared to traditional storage arrays with RAID 5 or RAID 10 which require at least 2X disk operations per client operation. Also, RAID-DP provides the desired resiliency (protection against dual disk failure) and performance, comparable to RAID 10 but at the cost of RAID 5. For more information on RAID DP, see NetApp TR-3298: RAID-DP: NetApp Implementation of RAID Double Parity for Data Protection.
Flexible Volumes and Aggregates
Aggregates are NetApp's virtualization layer, which abstracts physical disks from logical datasets, which are referred to as flexible volumes (also known as FlexVol volumes). Aggregates offer pooled disk resources including IOPS to storage administrators. The flexible volumes each aggregate contains has its own unique logical capacity. Flexible volumes can be thin-provisioned and the logical capacity resized as needed by the storage administrator.
FlexVols are shared out as file level (NFS or CIFS) mount points or are further allocated as LUNs for block level (iSCSI or FCP) access. FlexVols can be readily offered to the VMware environment as datastores; it is recommended that there be a one-to-one alignment between the FlexVol and ESX datastore assets to provide an easy mapping between the VMware server administrator's view and the storage administrator's view of the virtual environment. NetApp also suggests large aggregates to support most VMware environments. VMware environments often have random I/O requirements; large aggregates provide maximum flexibility to VMware administrators as a large pool of I/O resources is readily made available. With NetApp's inherent storage virtualization techniques, all data sets or virtual machines housed within a shared storage infrastructure take advantage of RAID-DP from a performance and protection standpoint.
NetApp Operations Manager
Implementation and management complexities associated with deploying a VDI solution are another potential barrier to VDI adoption. The NetApp management solution is operationally agile and provides tight integration with VMware vCenter for rapidly provisioning, managing, configuring, and backing up a VDI implementation.
NetApp Operations Manager provides a comprehensive monitoring and management solution for the VDI storage infrastructure. It provides comprehensive reports of utilization and trends for capacity planning and space usage. It also monitors system performance, storage capacity, and health to resolve potential problems. For further details on Operations Manager, see: http://www.netapp.com/us/products/management-software/operations-manager.html.

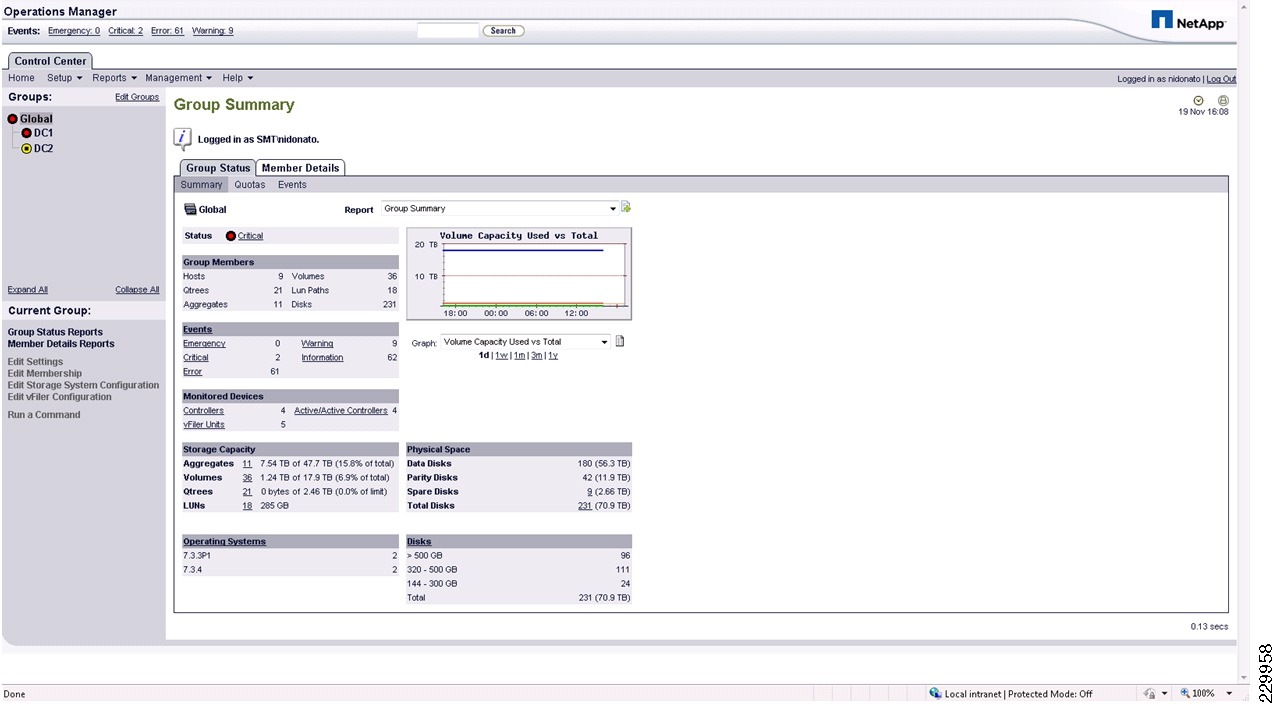

Figure 18 NetApp Operations Manager
Storage Architecture Best Practices
In a VDI environment, the availability and performance of the storage infrastructure is critical because thousands of users will be affected by storage outages or performance issues. The storage architecture must provide a high level of availability and performance. For detail deployment guidance for VMware View, and highly resilient storage designs, see:
•NetApp TR-3770: VMware View on NetApp Deployment Guide
•NetApp TR-3437: Storage Best Practices and Resiliency Guide
•NetApp TR-3450: Active-Active Controller Overview and Best Practices Guidelines
•NetApp TR-3749: NetApp and VMware vSphere Storage Best Practices
•Netapp TR-3705: Netapp and VMware View Solution Guide
Cisco Networking Infrastructure
Cisco Nexus 5020 28-Port Switch
The Cisco Nexus 5020 Switch is a 1RU, 10 Gigabit Ethernet/FCoE access layer switch built to provide more than 1 Terabit per second (Gbps) throughput with very low latency. It has 40 fixed 10 Gigabit Ethernet/FCoE ports that accept modules and cables meeting the Small Form-Factor Pluggable Plus (SFP+) form factor. One expansion module slot can be configured to support up to six additional 10 Gigabit Ethernet/FCoE ports, up to eight Fibre Channel ports, or a combination of both. The switch has a single serial console port and a single out-of-band 10/100/1000-Mbps Ethernet management port. Two N+1 redundant, hot-pluggable power supplies and five N+1 redundant, hot-pluggable fan modules provide highly reliable front-to-back cooling.
Cisco Nexus 5000 Series Feature Highlights
Features and Benefits
The switch family's rich feature set makes the series ideal for rack-level, access-layer applications. It protects investments in data center racks with standards-based Ethernet and FCoE features that allow IT departments to consolidate networks based on their own requirements and timing.
•The combination of high port density, wire-speed performance, and extremely low latency makes the switch an ideal product to meet the growing demand for 10 Gigabit Ethernet at the rack level. The switch family has sufficient port density to support single or multiple racks fully populated with blade and rack-mount servers.
•Built for today's data centers, the switches are designed just like the servers they support. Ports and power connections are at the rear, closer to server ports, helping keep cable lengths as short and efficient as possible. Hot-swappable power and cooling modules can be accessed from the front panel, where status lights offer an at-a-glance view of switch operation. Front-to-back cooling is consistent with server designs, supporting efficient data center hot- and cold-aisle designs. Serviceability is enhanced with all customer-replaceable units accessible from the front panel. The use of SFP+ ports offers increased flexibility to use a range of interconnect solutions, including copper for short runs and fiber for long runs.
•Fibre Channel over Ethernet and IEEE Data Center Bridging features supports I/O consolidation, eases management of multiple traffic flows, and optimizes performance. Although implementing SAN consolidation requires only the lossless fabric provided by the Ethernet pause mechanism, the Cisco Nexus 5000 Series provides additional features that create an even more easily managed, high-performance, unified network fabric.
10 Gigabit Ethernet and Unified Fabric Features
The Cisco Nexus 5000 Series is first and foremost a family of outstanding access switches for 10 Gigabit Ethernet connectivity. Most of the features on the switches are designed for high performance with 10 Gigabit Ethernet. The Cisco Nexus 5000 Series also supports FCoE on each 10 Gigabit Ethernet port that can be used to implement a unified data center fabric, consolidating LAN, SAN, and server clustering traffic.
The cut-through switching technology used in the Cisco Nexus 5000 Series ASICs enables the product to offer a low latency of 3.2 microseconds, which remains constant regardless of the size of the packet being switched. This latency was measured on fully configured interfaces, with access control lists (ACLs), QoS, and all other data path features turned on. The low latency on the Cisco Nexus 5000 Series enables application-to-application latency on the order of 10 microseconds (depending on the network interface card [NIC]). These numbers, together with the congestion management features described next, make the Cisco Nexus 5000 Series a great choice for latency-sensitive environments.
Other features include: Nonblocking Line-Rate Performance, Single-Stage Fabric, Congestion Management, Virtual Output Queues, Lossless Ethernet (Priority Flow Control), Delayed Drop Fibre Channel over Ethernet, Hardware-Level I/O Consolidation, and End-Port Virtualization. For more information, see: http://www.cisco.com/en/US/products/ps9670/prod_white_papers_list.html.
Microsoft Windows 7
Microsoft introduced Windows 7 in the Autumn of 2009 as their next-generation desktop operating system to succeed Windows XP, their other flagship software. According to IDC report, around 70 percent of the enterprise users are using Windows XP and a majority of them are already looking to migrate to Windows 7 (see the IDC report Deployment Opportunities for Windows 7).
Microsoft Windows 7 Golden Image Creation and Provisioning
Microsoft Windows 7 can be provisioned for View 4.5 with two methods:
•The traditional guest OS install and application configuration.
•Using the Microsoft Deployment Toolkit (MDT).
Each of these methods provide different optimization modes and configurations. Detailed step-by-step configuration information for both methods can be found at: http://www.vmware.com/files/pdf/VMware-View-OptimizationGuideWindows7-EN.pdf. This paper describes the two methods in detail and explains optimization techniques for each method.
This section discusses the preparation for the creation of the validation environment.
Topology Configuration for Scalability of VMware View 4.5 on Cisco Unified System and NetApp Storage
The View scalability testing was conducted as a tenant on a buildout of the Enhanced Secure Multi-Tenancy (ESMT) architecture: http://www.cisco.com/en/US/solutions/ns340/ns414/ns742/ns743/ns1050/landing_dcVDDC.html.
Figure 19 Enhanced Secure Multi-Tenancy Components
The Enhanced Secure Multi-Tenancy architecture was created through a design partnership between Cisco, NetApp, and VMware to provide secure isolation and high performance within an IaaS setting.
A detailed architectural diagram is shown in Figure 20 with all the interconnections.
Figure 20 Enhanced Secure Multi-Tenancy Architecture
Cisco UCS Configuration
This section discusses the Cisco UCS configuration that was done as part of the infrastructure build out. The racking, power, and installation of the chassis are described in the install guide (see http://www.cisco.com/en/US/docs/unified_computing/ucs/hw/chassis/install/ucs5108_install.html) and are beyond the scope of this document. More details on each step can be found in:
•Cisco UCS CLI Configuration guide: http://www.cisco.com/en/US/docs/unified_computing/ucs/sw/cli/config/guide/1.3.1/b_CLI_Config_Guide_1_3_1.html
•Cisco UCS M-Series GUI Configuration guide: http://www.cisco.com/en/US/docs/unified_computing/ucs/sw/gui/config/guide/1.3.1/b_UCSM_GUI_Configuration_Guide_1_3_1.html
The configuration of the Cisco UCS Service Profiles was implemented following the steps detailed in the Secure Multi-Tenancy Deployment Guide: http://www.cisco.com/en/US/docs/solutions/Enterprise/Data_Center/Virtualization/securecldeployg.html#wp99931. Figure 21 shows the high level flow of the configuration process.
Figure 21 UCS Manager High Level Flow
The UCS Service Profile allows hardware to be presented in a stateless manner that is completely transparent to the OS and the applications that run on it. The Service Profile boots from a LUN that is tied to the WWPN specified, allowing an installed OS instance to be locked with the Service Profile. The independence from server hardware allows installed systems to be re-deployed between blades. Through the use of pools and templates, UCS hardware can be deployed quickly to scale.
QoS and CoS in Cisco Unified Computing System
Cisco UCS provides different system classes of service to implement QoS including:
•System classes that specify the global configuration for certain types of traffic across the entire system.
•QoS policies that assign system classes for individual vNICs.
•Flow control policies that determine how uplink Ethernet ports handle pause frames.
Voice, video, and other time-sensitive applications experience optimal performance where QoS policies are enforced across the fabric.
System Class Configuration
Systems Class is the global operation where the entire system interfaces with defined QoS rules.
•By default the system has Best Effort Class and FCoE Class.
–Best effort is equivalent in MQC terminology as "match any".
–FCoE is special Class define for FCoE traffic. In MQC terminology "match cos 3".
•System classes allowed with four or more users defined have the following configurable rules:
–CoS to Class Map
–Per class MTU
–Property of Class (Drop versus no-drop)
•Max MTU per Class allowed is 9216.
•Through the Cisco UCS we can map one CoS value to a particular class.
•Apart from FcoE class there can be only one more class configured as no-drop property.
•Weight can be configured based on 0 to 10 numbers. Internally the system will calculate the bandwidth based on the following equation (there will be rounding off of the number):
% b/w shared of given Class = (Weight of the given priority * 100)
Sum of weights of all priority
Cisco UCS System Class Configuration
Cisco UCS defines user class names as follows.
Table 1 Name Table Map between Cisco Unified Computing System and the NXOS
Cisco UCS Names NXOS Names
Table 2 Class to CoS Map by Default in Cisco Unified Computing System
Cisco UCS Class Names Cisco UCS Default Class Value
Table 3 Default Weight in Cisco Unified Computing System
Cisco UCS Class Names Weight

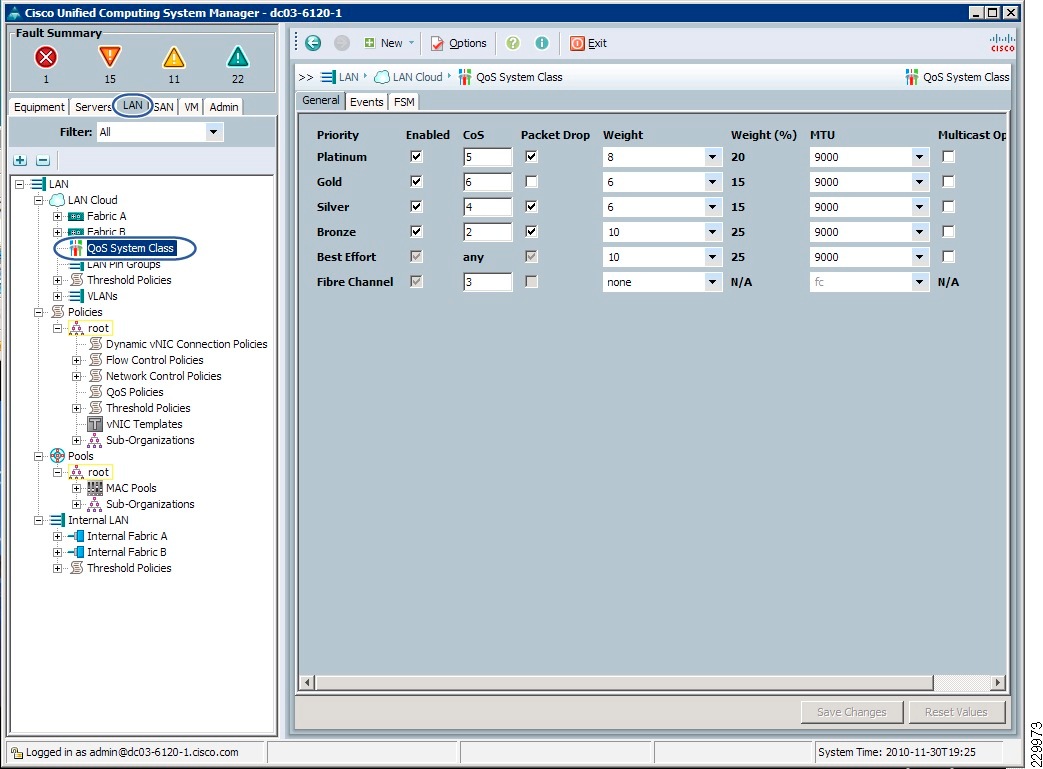

To enable QoS on the Cisco UCS:

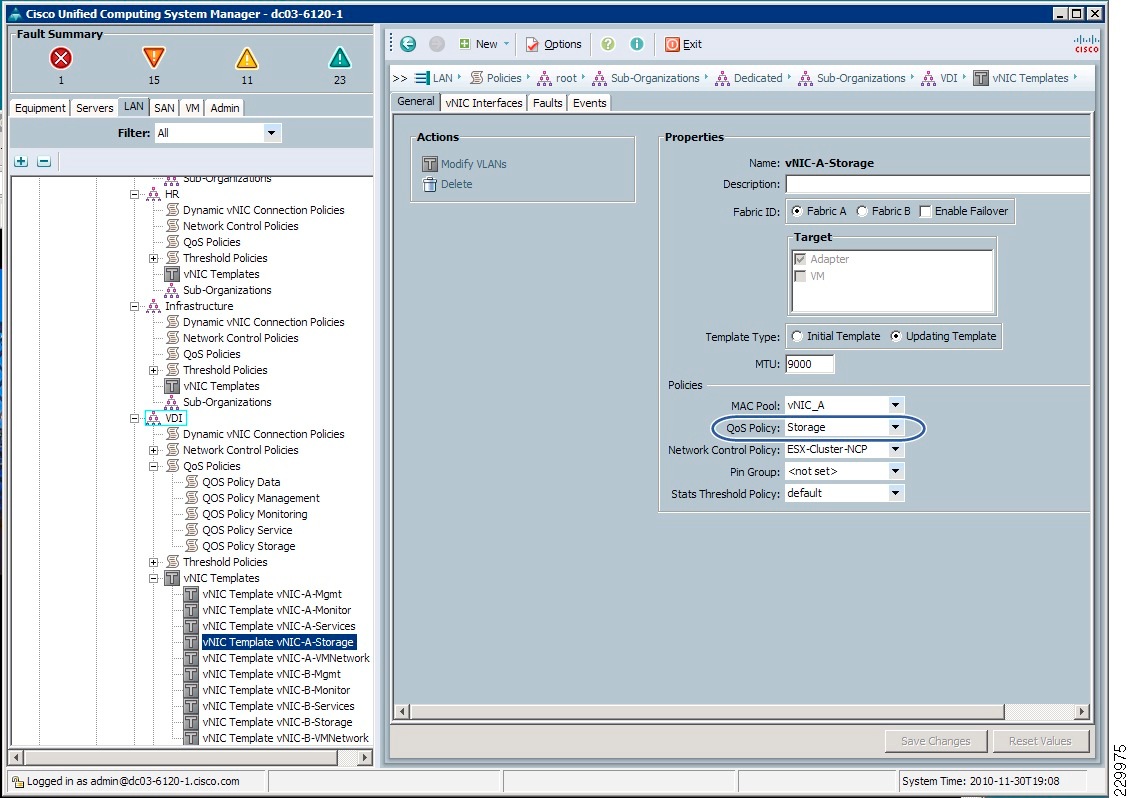

Step 1 Configure Platinum policy by checking the Platinum policy box and, if you want jumbo frames enabled, change MTU from normal to 9000. Notice the option to set no packet drop policy during this configuration.
Step 2 In the LAN tab under policies, define a platinum-policy and select Platinum as the priority.
Step 3 Include this policy into the vNIC template under the QoS policy.
This is a unique value proposition of the Cisco UCS with respect to end-to-end QoS. For example, you could have a VLAN for the NetApp storage and configure Platinum policy and jumbo frames and get an end-to-end QoS and performance guarantee. You can configure the NIC to have a no-drop class along with the Platinum policy.
VMware View 4.5 Configuration
The topology of the network in the test environment is shown in Figure 22.
Figure 22 Test Network Layer 3 Topology
Figure 22 legend:
1. View Connection Server
2. vCenter Server
3. SQL 2008 Server for vCenter, View Composer, and View Events
4. 1 vSphere Cluster holding 1280 Virtual Desktops
5. CentOS IMAP mailserver
6. AD/DHCP server
7. RAWC Controller
8. RAWC Session Launchers
Table 5 VMware vCenter 4.1
VMware vSphere vCenter 4.1.0 Build 258902 OS:
Windows 2008 Enterprise R2 64bit
2 x vCPU
2 x 40GB Virtual Disk
2 x 10GbE
View Composer 2.5.0-291081
Table 6 VMware vCenter, View, VUM Database Server
MSSQL 2008 R2 OS:
Windows 2008 Enterprise R2 64bit
2 x vCPU
2 x 40GB Virtual Disk
1 x 10GbE
Table 7 VMware View Connection Server
VMware View 4.5 Connection Server OS:
Windows 2008 Enterprise R2 64bit
2 x vCPU
1 x 40GB Virtual Disk
1 x 10GbE
View Connection Server 4.5.0-293049
Table 8 VMware View Desktop Agent
VMware View Desktop Agent (Virtual Desktops) OS:
Windows7 Enterprise 32bit
1 x vCPU
1 x 40GB
1 x 1GbE
View Agent 4.5.0-293049
Table 9 Active Directory/DHCP Server
MS Active Directory/DHCP Server OS:
Windows 2008 Enterprise R2 64bit
2 x vCPU
1 x 40GB Virtual Disk
1 x 10GbE
Table 10 Mail Server
CentOS 5.3 Dovecot IMAP Server OS:
1 x vCPU
1 x 15GB Virtual Disk
1 x 10GbE
Table 11 RAWC Controller
VMware RAWC 1.2 OS:
Windows 2003 R2 Enterprise 64bit
4 x vCPU
1 x 20GB Virtual Disk
2 x 10GbE
Table 12 Session Launcher
VMware RAWC 1.2 Session Launcher OS:
Windows XP 32bit
2 x vCPU
1 x 8GB
1 x 1GbE
VMware View components were configured following the guidelines specified in the VMware View 4.5 Installation Guide: http://www.vmware.com/pdf/view45_installation_guide.pdf.
This configuration consists of a pair of Cisco Nexus 5020s, a family of low-latency, line-rate, 10 Gigabit Ethernet and Fibre Channel over Ethernet (FCoE) switches for data center applications. Four 10G Ethernet uplink ports are configured on each of the Cisco UCS Fabric Interconnects and they are connected to the Nexus 5020 pair in a bow tie manner as shown in Figure 23. The Fabric Interconnect is in End host mode, as we are doing both FC as well as Ethernet data access per the recommended best practice for Cisco UCS. We have provisioned more than 40G per Fabric Interconnect as we are building a scalable and expandable system.

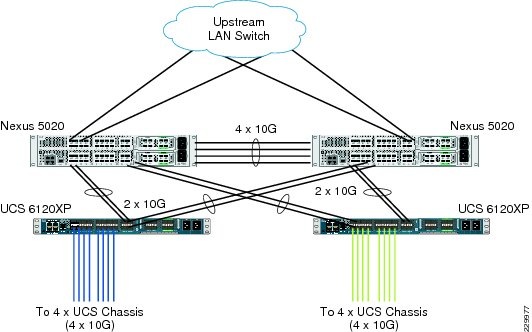

The upstream configuration is beyond the scope of this document, but is discussed in the Secure Multi-Tenancy Deployment Guide: http://www.cisco.com/en/US/docs/solutions/Enterprise/Data_Center/Virtualization/securecldeployg.html#wp998369.
Figure 23 Network Configuration with Upstream Cisco Nexus 5000 from Cisco Unified Computing System

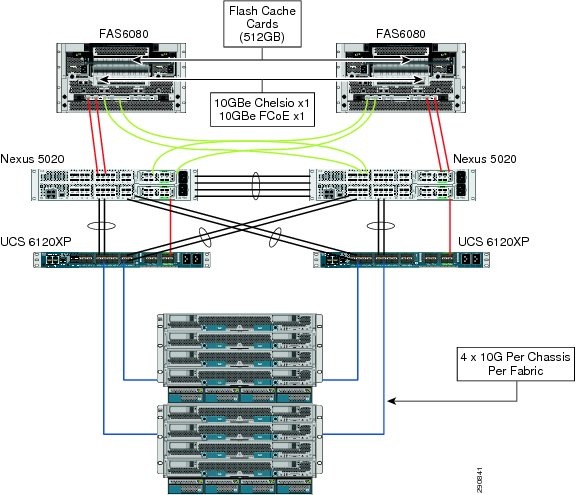

The Cisco Nexus 5000 is used to connect to the NetApp FAS 6080 storage system for NAS access. NetApp supports dual-port 10G Chelsio cards which are configured in a portchannel and connected to the pair of Cisco Nexus 5000s downstream. This allows end-to-end 10G access; we have implemented jumbo frames on the ports and have priority flow control on with platinum CoS for NetApp storage data access. The NetApp connectivity diagram is shown in Figure 24. Again, we have a total of 40G bandwidth available for the servers.
Refer to Appendix A—Select Configurations for a detailed configuration of one of the Cisco Nexus 5000s used in this setup.
Figure 24 Network Configuration for NetApp NAS or Filer Storage

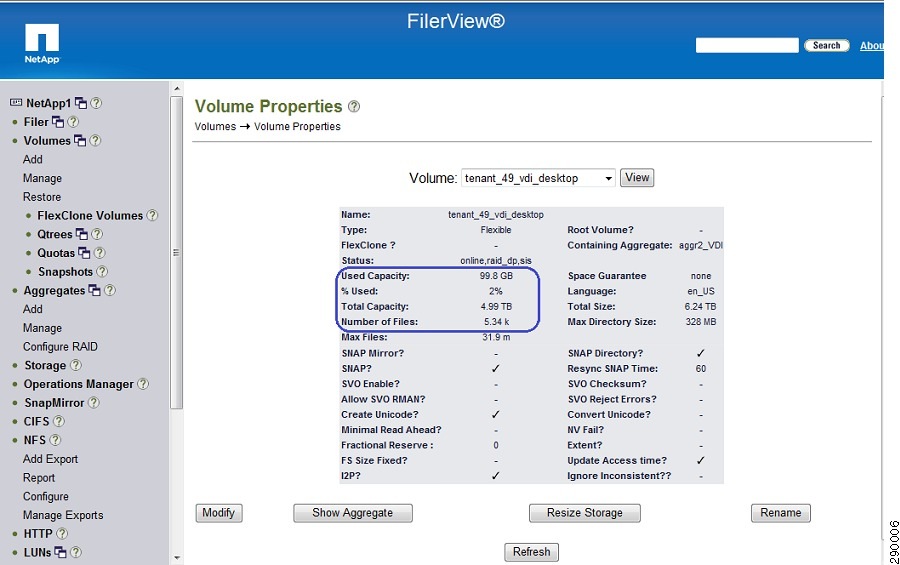

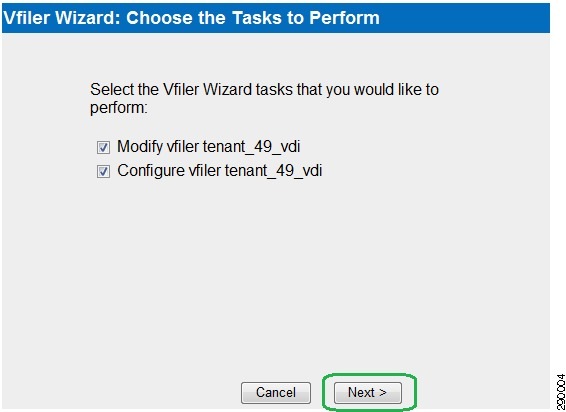

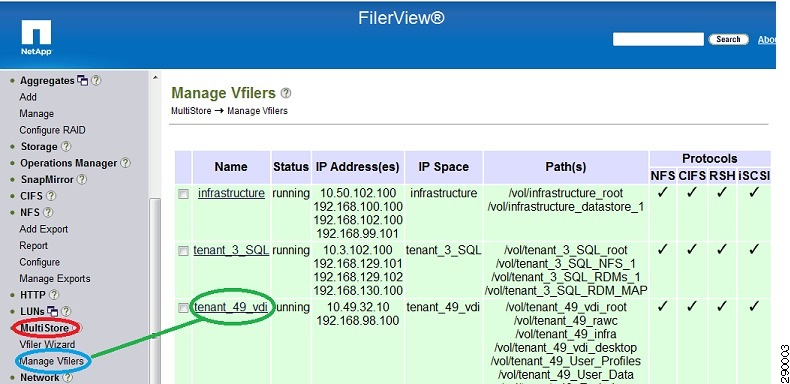

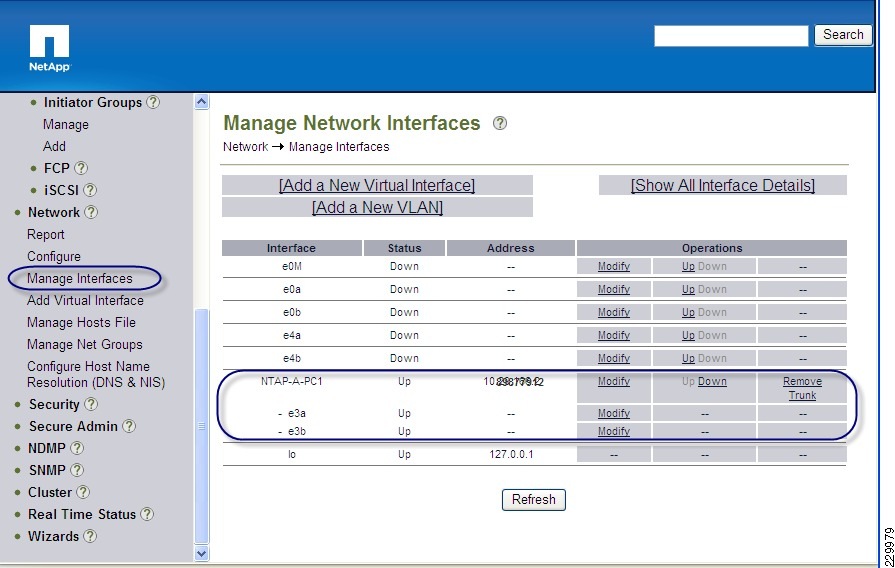

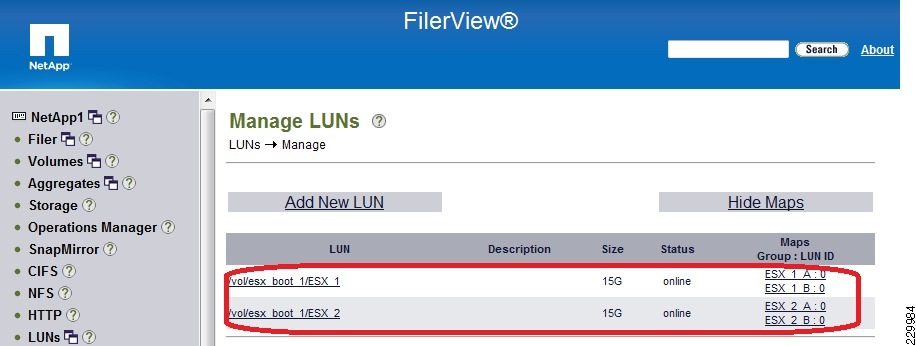

The configuration on the NetApp storage as gathered from the filer view is shown in Figure 25.

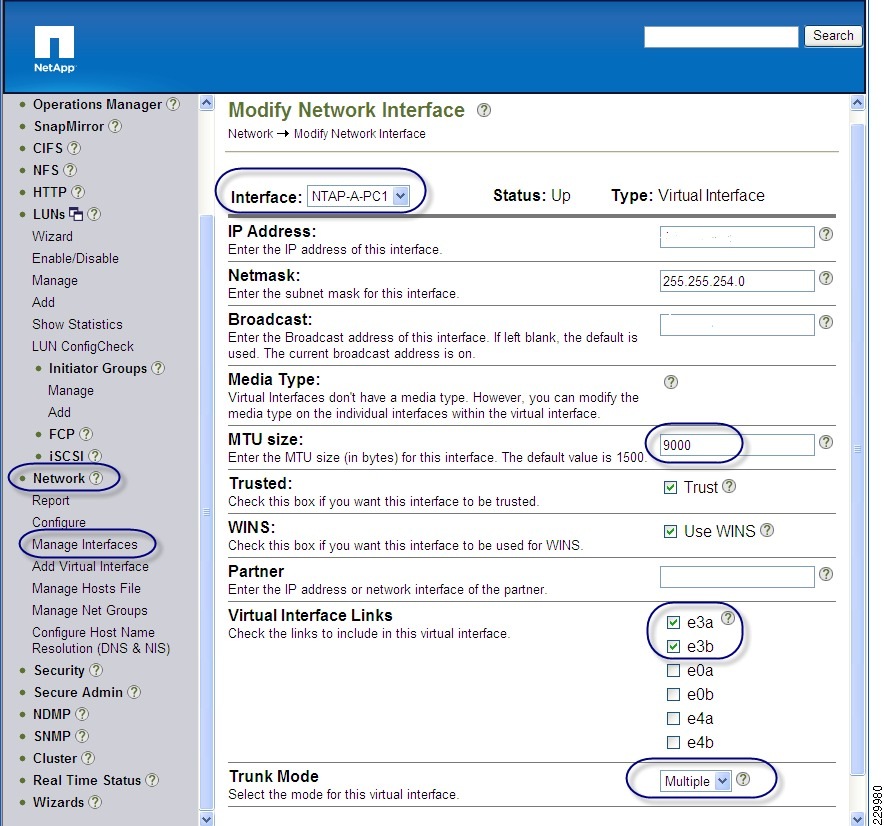

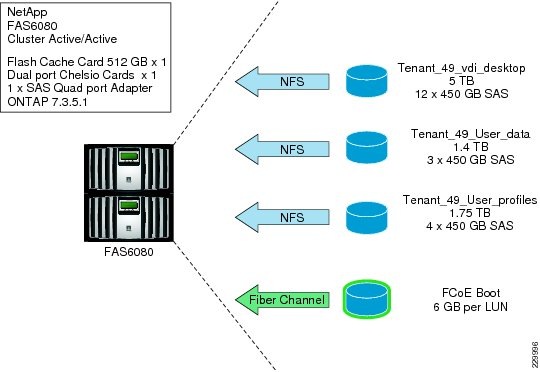

Figure 25 Network Configuration on the NetApp Storage Array Side—1
Figure 26 Network Configuration on the NetApp Storage Array Side—2
In this section we discuss stateless environments. A stateful environment is when a blade boots from local disk. The stateless environment starting with boot from SAN allows a more robust fix on a failure state. If a blade fails, you simply swap it out for a new one since the profile is tagged to the slot(s) and the newly inserted hardware will simply take the configuration that the previous failed blade had.
Boot from SAN
Booting from SAN is another key feature which helps in moving towards stateless computing in which there is no static binding between a physical server and the OS/applications it is supposed to run. The OS is installed on a SAN LUN and boot from SAN policy is applied to the service profile template or the service profile. If the service profile were to be moved to another server, the Port World Wide Name (pWWN) of the HBAs and the BFS (Boot From SAN) policy would also move along with it. The new server now takes the same exact view of the old server, the true stateless nature of the blade server.
The key benefits of booting from the network are:
•Reduce server footprints—Boot from SAN alleviates the need for each server to have its own direct-attached disk, eliminating internal disks as a potential point of failure. Thin diskless servers also take up less facility space, require less power, and are generally less expensive because they have fewer hardware components.
•Disaster and server failure recovery—All the boot information and production data stored on a local SAN can be replicated to a SAN at a remote disaster recovery site. If a disaster destroys the functionality of the servers at the primary site, the remote site can take over with minimal downtime.
Recovery from server failures is simplified in a SAN environment. With the help of snapshots, mirrors of a failed server can be recovered quickly by booting from the original copy of its image. As a result, boot from SAN can greatly reduce the time required for server recovery.
•High availability—A typical data center is highly redundant in nature—redundant paths, redundant disks, and redundant storage controllers. When operating system images are stored on disks in the SAN, it supports high availability and eliminates the potential for mechanical failure of a local disk.
•Rapid redeployment—Businesses that experience temporary high production workloads can take advantage of SAN technologies to clone the boot image and distribute the image to multiple servers for rapid deployment. Such servers may only need to be in production for hours or days and can be readily removed when the production need has been met. Highly efficient deployment of boot images makes temporary server usage a cost effective endeavor.
•Centralized image management—When operating system images are stored on networked disks, all upgrades and fixes can be managed at a centralized location. Changes made to disks in a storage array are readily accessible by each server.
Configuring Boot from SAN on Cisco Unified Computing System
When you boot from SAN, the image resides on the SAN and the server communicates with the SAN through a host bus adapter (HBA). The HBAs BIOS contain the instructions that enable the server to find the boot disk. All FC capable CNA cards supported on Cisco UCS B-series blade servers support boot from SAN. After power on self test (POST), the server hardware component fetches the boot device that is designated as the boot device in the hardware BIOS settings. Once the hardware detects the boot device, it follows the regular boot process.
Note that the two SAN fabrics are disjoint from a data perspective and, with the dual port HBAs and storage controller, redundancy is provided.
There are three distinct portions of the BFS procedure:
•Storage array configuration
•SAN zone configuration
•Cisco UCS configuration of service profile

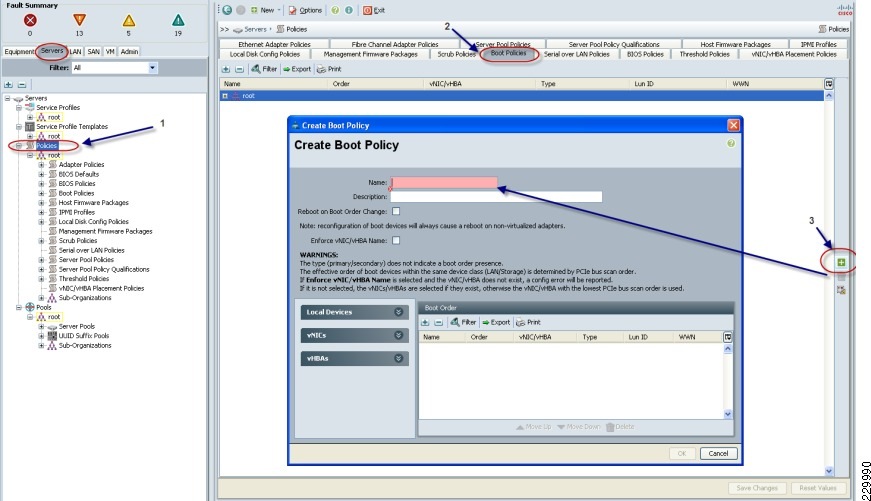

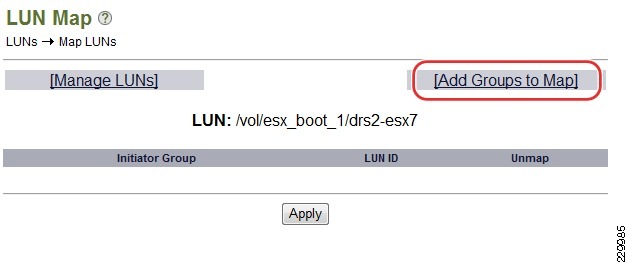

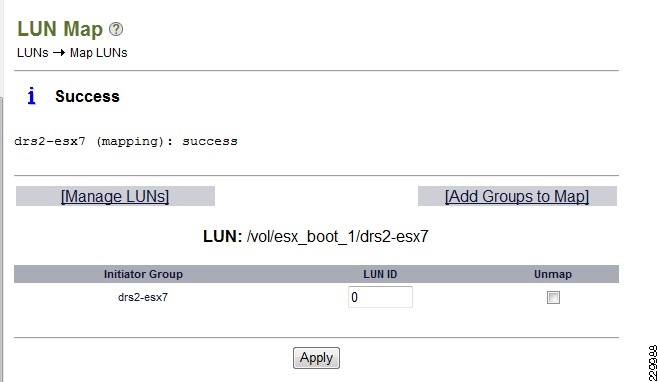

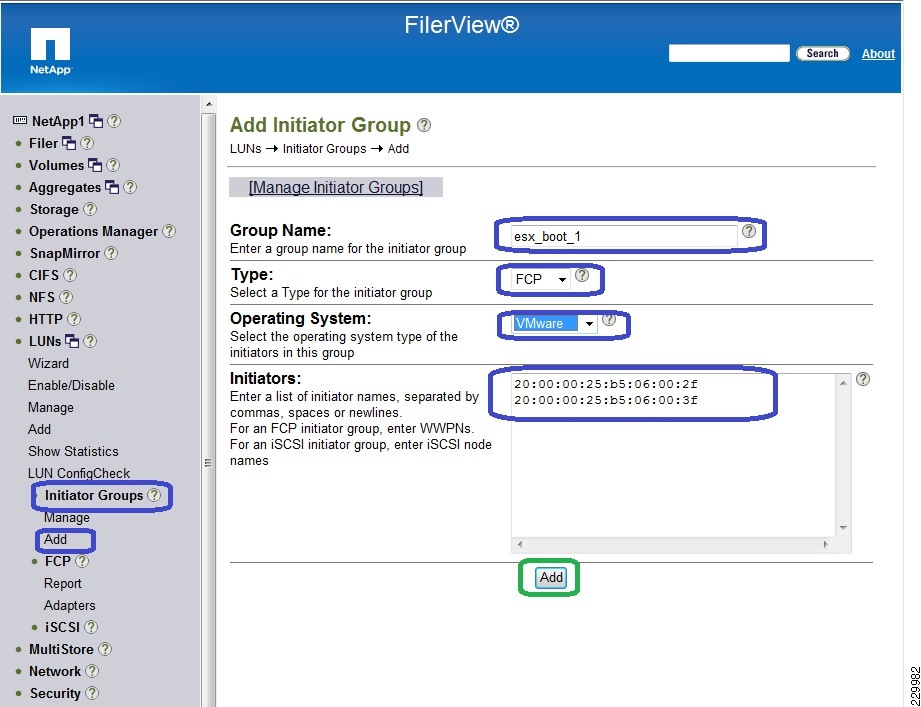

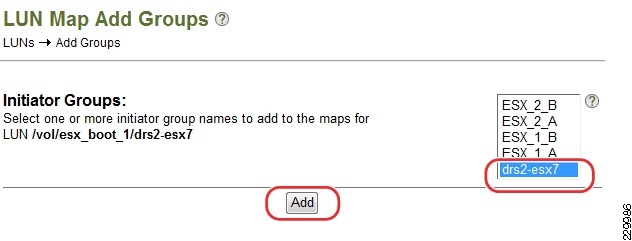

Storage Array configuration—First, the storage array admin has to provision LUNs of the required size for installing the OS and to enable the boot from SAN. The boot from SAN LUN is usually LUN 0. The SAN admin also need to know the port world-wide name of the adapter so that the necessary LUN masking is put in place. The LUN masking is also a critical step in the SAN LUN configuration.
For example, in case of a NetApp 6080 storage array, the storage admin has to create a BootVolume and then include the blade WWPNs into an initiator group and add them to the port WWNs where the storage is configured, as shown below.
Step 1 Create a separate boot from SAN Aggregate.
Step 2 Create a Volume on top of that named BootVolumes.
Step 3 Add LUN on the BootVolumes (named, for example, BFS-Server-9) and 50 GB of space:
Step 4 Now add the LUN to the initiator group:

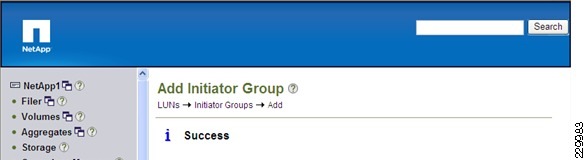

Step 5 Make sure the add initiator group succeeds:
Step 6 Next, mask the LUN. Select LUN—>Manage LUN and select the new LUN which needs to be added. Select the "no map" section as shown below:
Step 7 Add the group to the map:
Step 8 Select the new initiator group, drs2-esx7, and click Add:

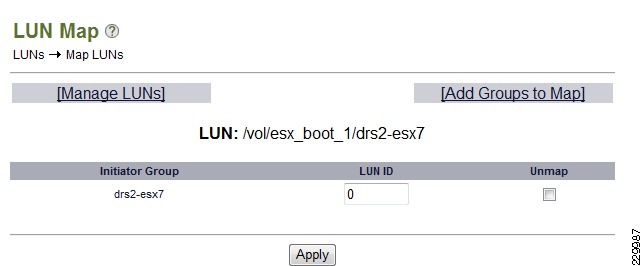

Step 9 Now assign a LUN ID to the initiator group:

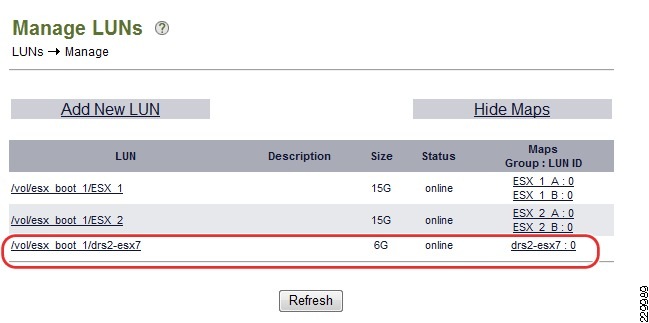

Step 10 Make sure the mapping succeeded:
Step 11 After the LUN map is successfully updated, check to see if the Manage LUNs show a correct mapping:
Step 12 Repeat steps 3 through 11 for the number of servers you want to boot from SAN.
SAN Zone Configuration
The NPIV feature has to be turned on in the SAN switch. Also make sure you have 4 GB SPF+ modules connected to the Cisco UCS 6120 XP Fabric Interconnect. The port mode is set to AUTO and the speed is set to AUTO. VSAN configuration can be done either in the SAN switch CLI or the GUI (Cisco Nexus 5020 Device Manager). Cisco Fabric Manager can also be used to get an overall picture of the SAN configuration and zoning information. As discussed earlier, SAN zoning is done upfront for all the pWWN of the initiators with the NetApp target pWWN.
Cisco UCS Manager Configuration
To enable boot from SAN from a Cisco UCS M-Series perspective, perform the following steps:
Step 1 Create a boot policy in the "Servers" tab. To do this, select the policies, on the right plane select boot policies, and select the "Add" button. Enter the name, select reboot on change, and do not select "enforce vHBA name":

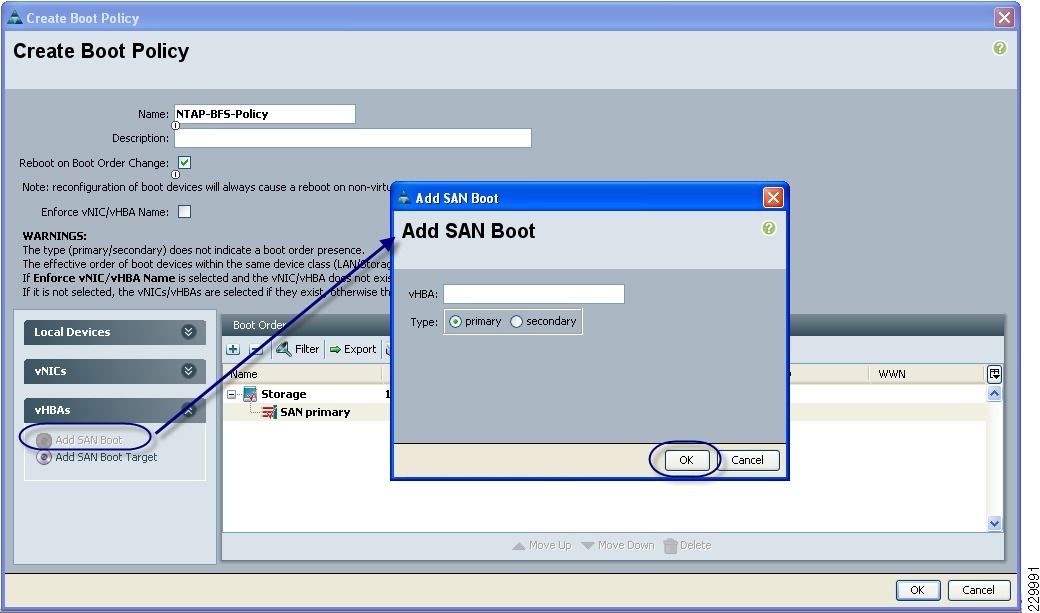

Step 2 Add SAN boot for primary. The vHBA is optional; it could be left blank and we do not have to enforce the vHBA name:

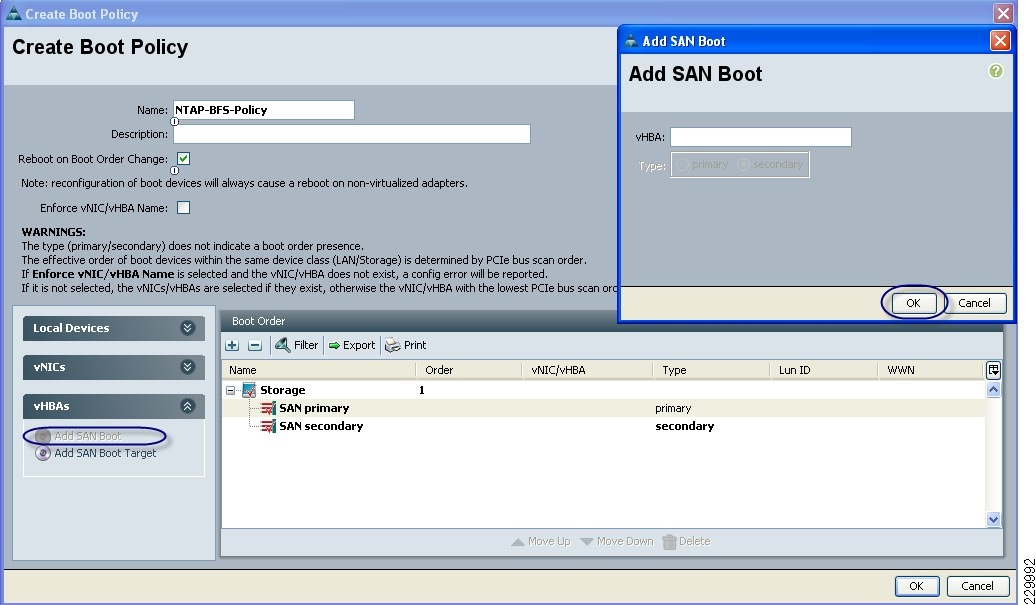

Step 3 Add SAN boot for SAN secondary:

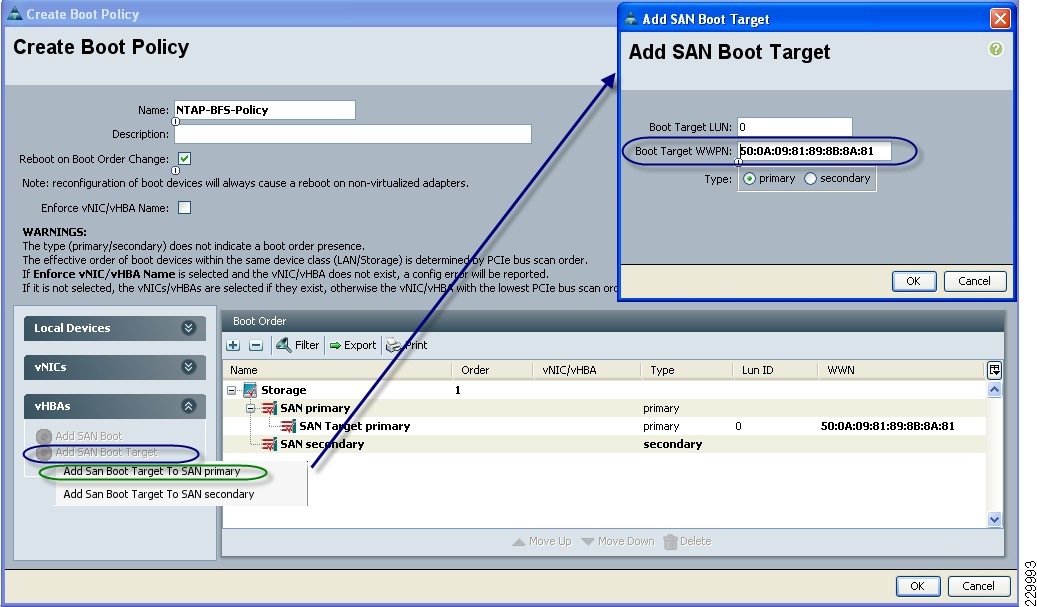

Step 4 Now add Boot target WWPN to the SAN primary, ensuring that this is the exact pWWN for the NetApp FAS 6080. To avoid any typos, copy and paste from Nexus 5000 "show flogi da".DC04-N5K-1# sh fcns da vsan 906 | incl Net0x860002 N 50:0a:09:87:87:49:9a:b4 (NetApp) scsi-fcp0x860005 N 50:0a:09:83:89:49:9a:b4 (NetApp) scsi-fcpDC05-N5K-1# sh fcns da vsan 907 | incl Net0x950002 N 50:0a:09:88:87:49:9a:b4 (NetApp) scsi-fcp0x950005 N 50:0a:09:88:97:49:9a:b4 (NetApp) scsi-fcp
Step 5 Repeat step 4 for SAN primary's SAN Target Secondary.
Step 6 Repeat step 4 for SAN Secondary's SAN Target Primary.
Step 7 Repeat step 4 for SAN Secondary's SAN Target Secondary.

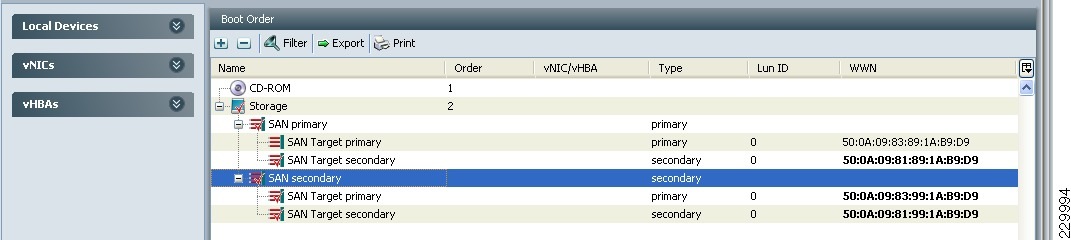

Step 8 At the end your Boot from SAN policy should look like:

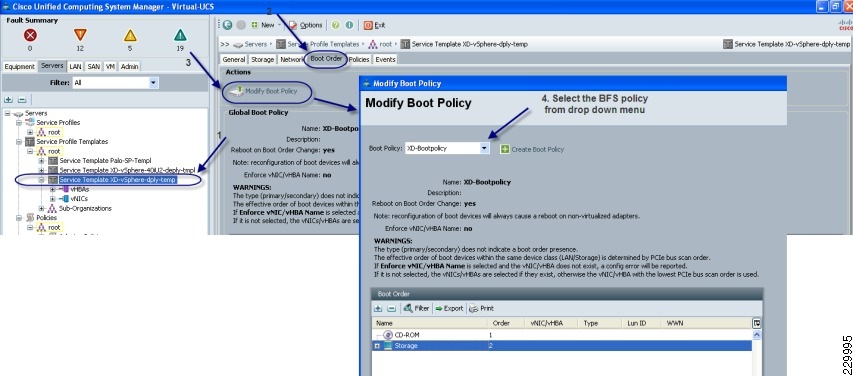

Step 9 The last step is to make the association of the service profile template to the Boot from SAN policy during the service profile template configuration.
You could also modify the Boot order as shown:
This completes the BFS configuration on Cisco UCS-M. When the service profile is created out of the template, each server will be ready to boot from SAN provided the appropriate OS installation steps have taken place.
NetApp Storage Configuration
A pair of NetApp FAS 6080 storage arrays were used for test scenarios scaling up to 14 hosts:
FAS6080 was used to host:
•All infrastructure Virtual Servers on a single Volume provided by a single controller (2)
•Three VDA Volumes—Two from one Controller (1) and one from controller (2)
•Boot volume for 4 vSphere 4.1 Hosts
Figure 27 NetApp Storage Configuration
Example of a NetApp NFS Volume Configuration
Step 1 Login to the NetApp storage using a Web browser and click FilerView. It starts the NetApp filer configuration application.
Step 2 Once in the FilerView, select the aggregates section and click Add to create a large aggregate. It is best practice to create a large aggregate on top of all the system disks and carve volumes and LUNs from it. We created a large aggregate out of 46 disks and called it aggr1.

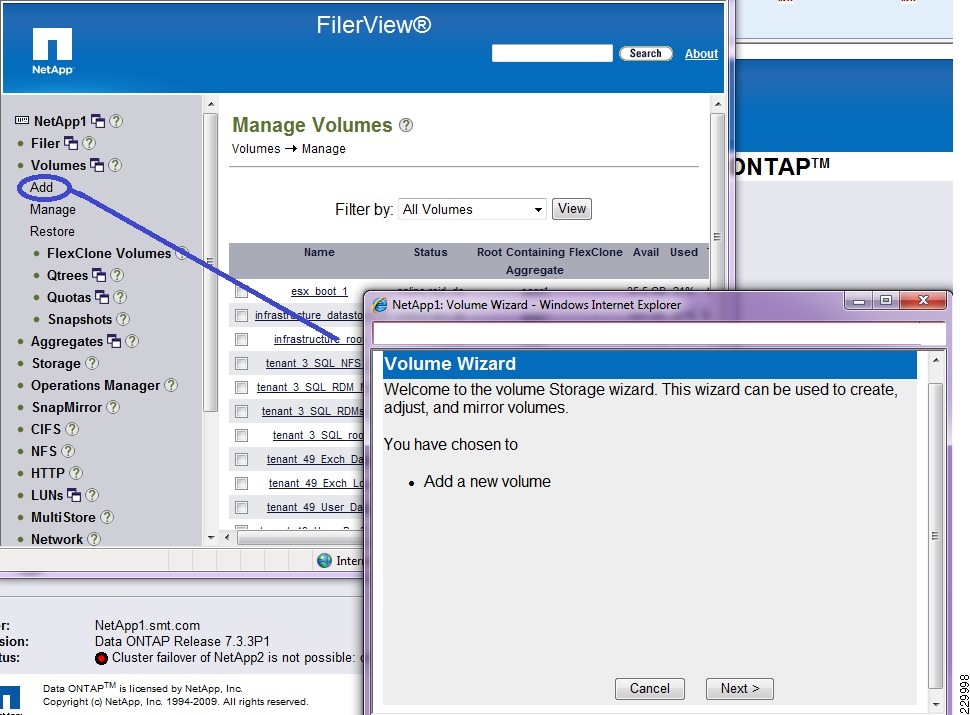

Step 3 Now from the volumes section, click Add to add a volume. An add Volume Wizard pops up:

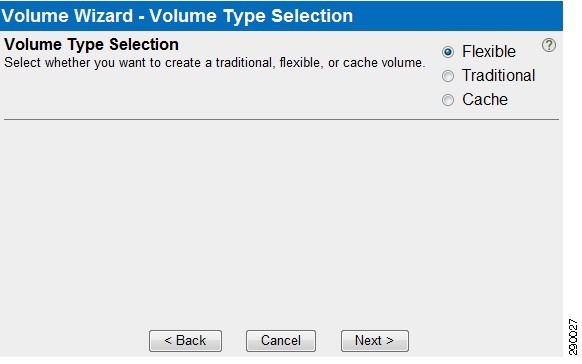

Step 4 Select Flexible for the Volume Type Selection:

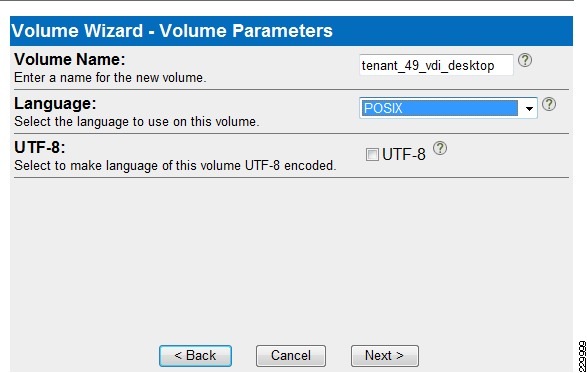

Step 5 Input volume name and language (the default POSIX is fine):
Step 6 Select the aggregate to contain this volume and set space guarantee as none for thin provisioning:
Step 7 Input the volume size and set snapshot reserve to 0:
Step 8 You are now finished, so click Commit:
Step 9 After the volume is added, go to the Multi-store, click Manage Vfilers, and add the path for the volume you just created. For more on Vfilers in the ESMT solution, see the ESMT CVD (http://www.cisco.com/en/US/solutions/ns340/ns414/ns742/ns743/ns1050/landing_dcVDDC.html). In our example below, our Vfiler is tenant 49 VDI.

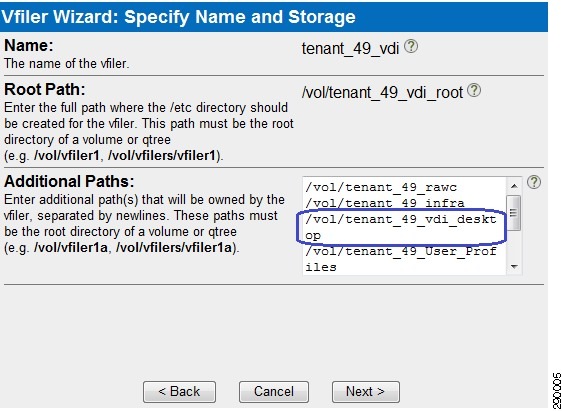

Step 10 After clicking on the vfiler name circled above, on specific tenant add your path:
Step 11 Click Next all the way through to complete the wizard.
NetApp Deduplication in Practice
As described in NetApp Deduplication, NetApp deduplication saves space on primary storage by removing redundant copies of blocks within a volume hosting hundreds of virtual desktops. An example is shown in Figure 28 for 5 TB volume hosting 1540 desktops each with 40 GB capacity.
Figure 28 NetApp Deduplication
As described in FlexScale, NetApp FlexScale allows administrators to customize the Flash Cache operations to meet their environment requirements. Extensive scalable VMware View testing within the NetApp solution labs has shown that significant performance improvements can be gained by turning on metadata and normal user data caching modes in FlexScale. The following configuration is recommended:options flexscale.enable onoptions flexscale.normal_data_blocks on
Note Configuration recommendations are based on TR-3705.

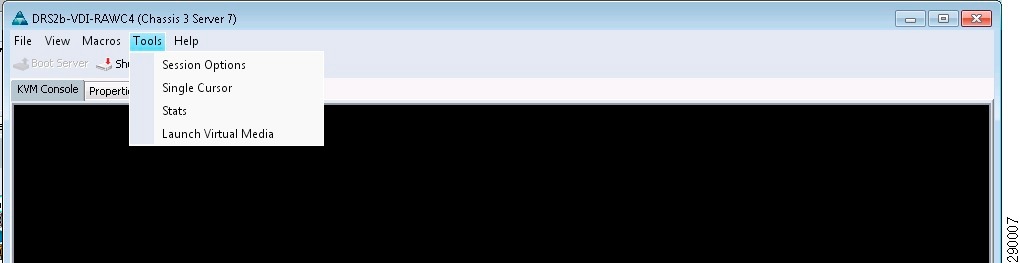

ESXi installs were performed via Virtual Media through KVM from UCSM. UCS blades mounted the ESXi ISO and were installed to SAN boot targets.
PXE installation can be used as a more efficient alternative. When installing from PXE, the management VLAN will need to be set as the default VLAN of the first vNIC.
VMware vSphere Kernel Adjustments for High CPU Environments
The default CPU fairness algorithm in vSphere tries to help VMs catch up by setting aside the other logical processor in a hyperthreaded environment. This is configured through a parameter called HaltingIdleMsecPenalty (HIMP). HIMP is a number of milliseconds that is multiplied by the number of vCPUs. The derived number is used as a cumulative value across vCPUs that the vCPUs can fall behind before logical processors become reserved to help a VM catch up.
The default implementation is to start reserving logical processors after a vCPU falls behind more than 100 milliseconds. This may be more aggressive than is needed in certain environments. These reserved logical CPUs can lead to excessive amounts of dormant CPU threads in systems that:
•Have more than 50% CPU utilization
•Are very close to exactly committed (number of vCPUs = number of pCPUs +/- 25%)
•Have particular kinds of bursty CPU usage patterns
To allow more flexibility, an adjustment to HaltingIdleMsecPenalty was made:# vicfg-advcfg --set 2000 /Cpu/HaltingIdleMsecPenalty
And:# vicfg-advcfg --set 80000 /Cpu/HaltingIdleMsecPenaltyMax
Where HaltingIdleMsecPenaltyMax is an upper level of cumulative milliseconds that HIMP multiplied by the number of vCPUs is allowed to reach. For more information, see:
Optional Memory Reclamation in VMware vSphere
There is a default of 6% of physical memory reserved for the ESX/ESXi host in vSphere 4.1. This is needed in systems with less than 64GB of memory, but can be an over commitment in a system like the B250 M2 with 192GB or more of memory. This reservation of memory can be reduced with the vsish command within the tech support mode of ESXi 4.1. A reduction to 2% memory reserved on a host could be achieved with the command:vsish -e set /sched/freeMemoryState/minFreePct 2
This example memory reclamation would free up almost 8GB of memory on a B250 with 192GB of RAM, allowing a VDI deployment to support 5-10 more desktops per blade, amounting to a significant increase in large-scale deployments.
The vsish command is available along with the general distribution of ESXi and can be used to tune the memory as per KB article 1033687 (see URL below) and this is the recommended best practices to achieve better utilization of memory and more than 160 desktops per UCS blade.
The vsish command is not available in the general distribution of the ESX server package and the debug packages have to be installed in order to obtain vsish and is not recommended for production use.
The need for memory and CPU tuning (HIMP settings) will not be necessary in the newer releases of vSphere as this is being handled internally by the kernel.
The vsish command was not implemented in the View testbed from which these results were generated, but is mentioned as an option to consider to reduce host ballooning in high utilization environments. The current implementation of vsish would not persist through a reboot of the host and would need to be added to the /etc/rc.local file of the system. For more information, see:
VMware vMA or Virtual Management Assistant
The VMware vSphere Management Assistant (vMA) is a prebuilt Linux virtual machine in which administrators can deploy scripts to manage ESX and ESXi systems. Software included in vMA includes vSphere CLI, an authentication component that supports non-interactive login, and a log collection component. While vMA is optional, we used this extensively to collect resxtop output from the ESX4i host. This appliance is also used for making configuration changes and the ease of using it very apparent from the time saved in managing 16+ hosts.
By registering each installed host with the VIFastPass through vifpinit on the vMA, redundant tasks can be looped through with the default bash shell of the vMA.
Nexus 1000V VSM and VEM Module Installation
ESXi hosts were installed with the Nexus 1000V Virtual Ethernet Module (VEM) and added to the Nexus 1000V Virtual Supervisor Module (VSM) that was created and joined to vCenter as a vNetwork Distributed Switch.
For more information on the installation and configuration of the Cisco Nexus 1000V and VEM, see:
•For a quick video walkthrough of the Nexus VSM installation, watch:
The Cisco VIC vNIC interfaces were created as discussed in the Enhanced Secure Multi-Tenancy Design Guide (http://www.cisco.com/en/US/solutions/ns340/ns414/ns742/ns743/ns1050/landing_dcVDDC.html).
Different VLANS were used to separate the desktop traffic from the management traffic, NetApp storage traffic, and the vMotion traffic. Hosts were installed with the Cisco Virtual Ethernet Module (VEM), joined to the Nexus 1000V VSM, and VMkernel NICs were created for NFS and vMotion.
For example on an ESX4i host, the following configuration was done:
Using the Cisco Nexus 1000V for network configuration provides advanced capabilities to do DHCP snooping and other smart network switch capabilities in the hypervisor itself. These features have a huge benefit in a virtual desktop environment where a vSwitch would not be able to provide such features.
Setup NTP Server and NAS Datastores with vMA
One of the important aspects of running benchmark in a virtualized environment is configuring and setting up a NTP server and configuring from the vCenter for each server. This is important from a time lag perspective and maintains synchronization of performance data collected across various components.
The configuration of NTP and NAS resources can be set through the vMA:esxcfg-ntp -a x.x.x.6esxcfg-ntp -a x.x.x.9esxcfg-ntp --stopesxcfg-ntp --startesxcfg-nas -a -o 192.168.98.100 -s /vol/tenant_49_infra tenant_49_infraesxcfg-nas -a -o 192.168.98.100 -s /vol/tenant_49_rawc tenant_49_rawcesxcfg-nas -a -o 192.168.98.100 -s /vol/tenant_49_vdi_desktop tenant_49_vdi_desktop
VMware vSphere Configuration
For single server scale testing, one ESXi 4.1.0 server was configured with boot from SAN. One NetApp storage volume was configured for this test.
For two chassis testing a cluster was created and eight servers were made part of that cluster with DRS mode set to manual. One NAS device was mounted on the eight servers as NFS mounts and the launcher VMs were used to generate the load to the desktops on the eight servers.
Figure 29 VMware vSphere Configuration

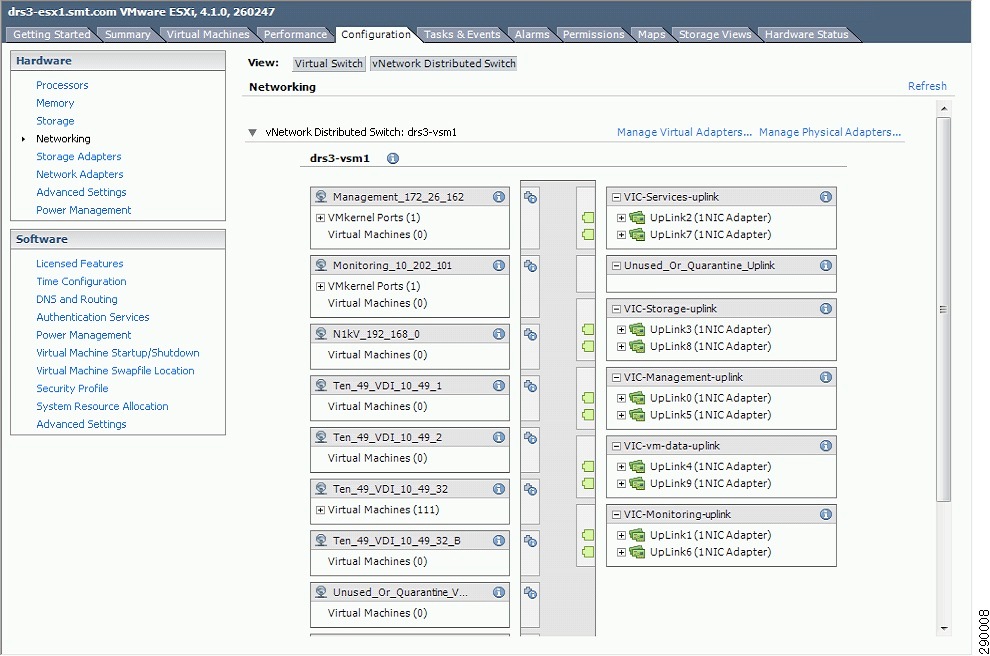

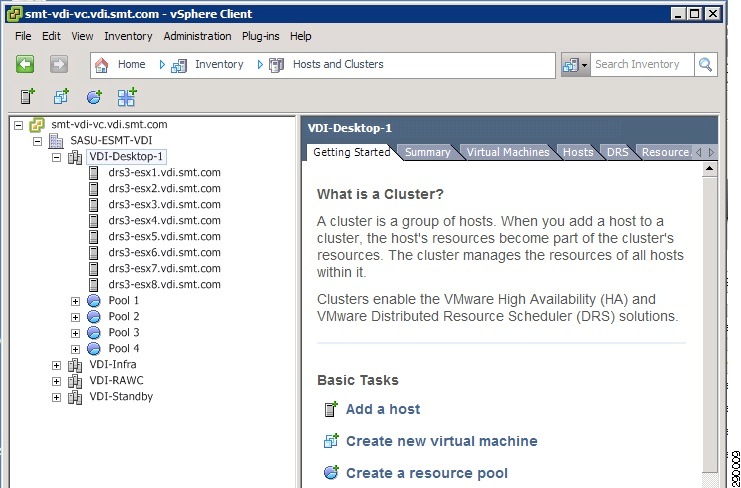

Figure 29 shows the vSphere environment described above as seen through the vSphere Client.
VMware View Configuration
VMware View is composed of:
•View Connection Server
•View Transfer Server
•View Security Server
The Transfer and Security servers were not used in our test environment.
For more detailed instructions and requirements, refer to the VMware View 4.5 Installation Guide at: http://www.vmware.com/pdf/view45_installation_guide.pdf. For scaling beyond what was demonstrated in this environment, refer to the VMware View 4.5 Architecture Planning Guide at:
VMware View Composer
View Composer is an application that will run as a service on the hosting vCenter(s). A View Composer SQL database must be created for Composer, which can be MS SQL or Oracle.
VMware View Connection Server
View Connection Server installs to a dedicated system and requires an Event Database that can be hosted from an MS SQL or Oracle instance. The Connection server will need an SSL certificate that can be self signed for testing purposes.
The first Connection server will be a Standard installation (supporting up to 2000 desktops). Subsequent Connection servers can be configured as Replicas that pull their configuration from a designated View Connection Server Standard install.
VMware View Agent
View Agent installs to the VM configured to be the Client Desktop Golden Image to provide access to enabled users through the Connection Server.
Once the Golden image has been optimized according the VMware recommendations specified in Microsoft Windows 7 Golden Image Creation and Provisioning, a snapshot is taken of the VM. This snapshot will be referenced by any pools created from it. Pool creation and administration occurs through the VMware View Administrator interface, which can be found at https://<View Connection Server>admin/.

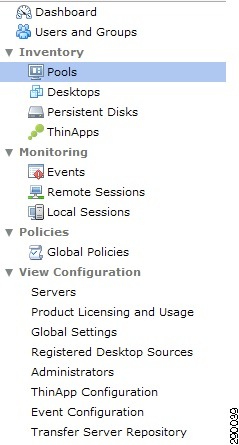

The pool is created from the Pools option under the Inventory tab of View Administrator:
Figure 30 Pool Creation
The type of pool selected is "Automated Pool":

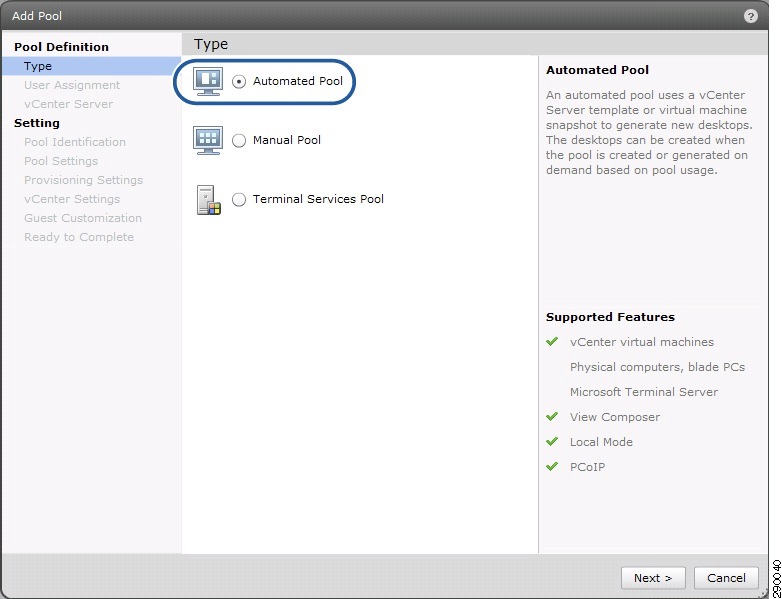

Figure 31 Automated Pool

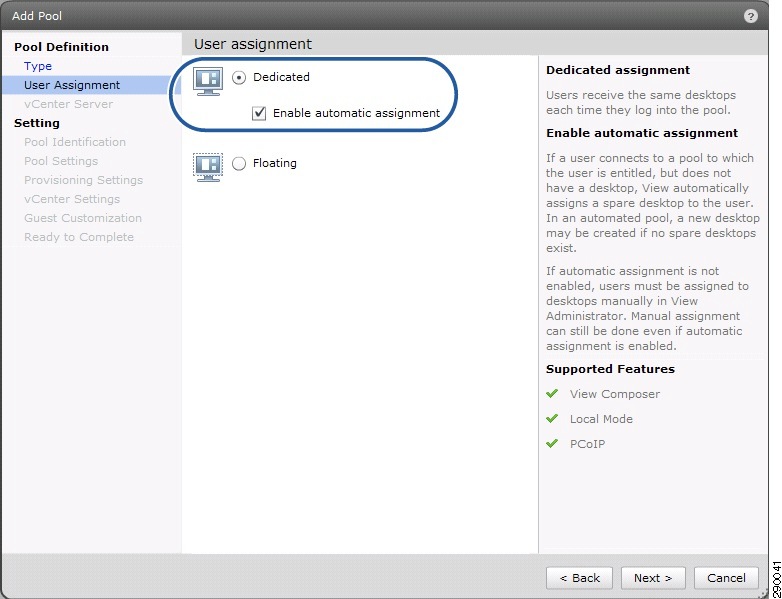

User Assignment is left as "Dedicated":
Figure 32 User Assignment—Dedicated

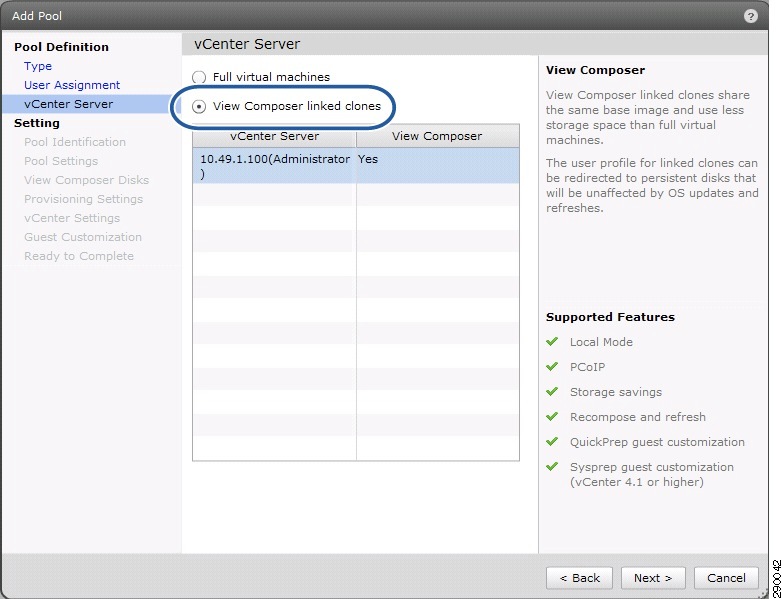

vCenter Server specification is changed from "Full virtual machines" to "View Composer linked clones":
Figure 33 vCenter Server Specification
The Pool Identification ID and Display name was set to pool1 to match a resource pool that had been set within the cluster:

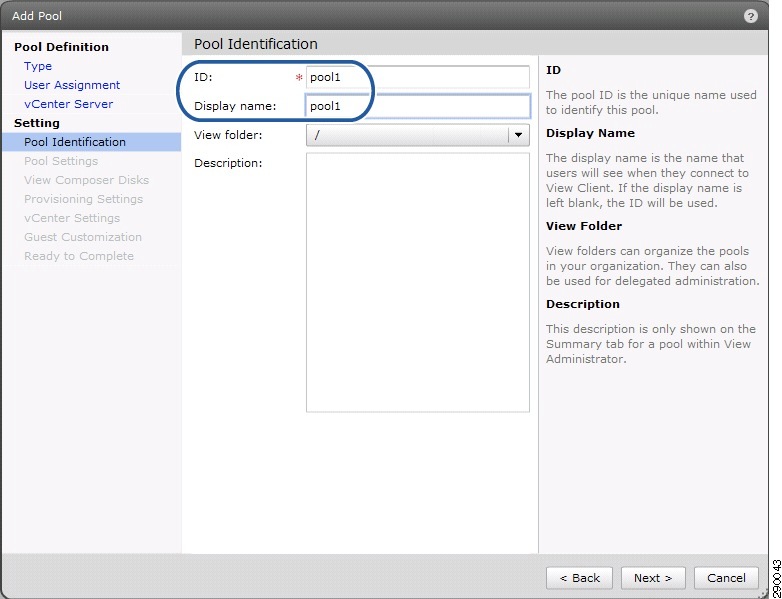

Figure 34 Pool Identification ID and Display Name
Pool Settings were left unchanged with the exception of "Automatically logoff after disconnect:", which was changed to "Immediate":

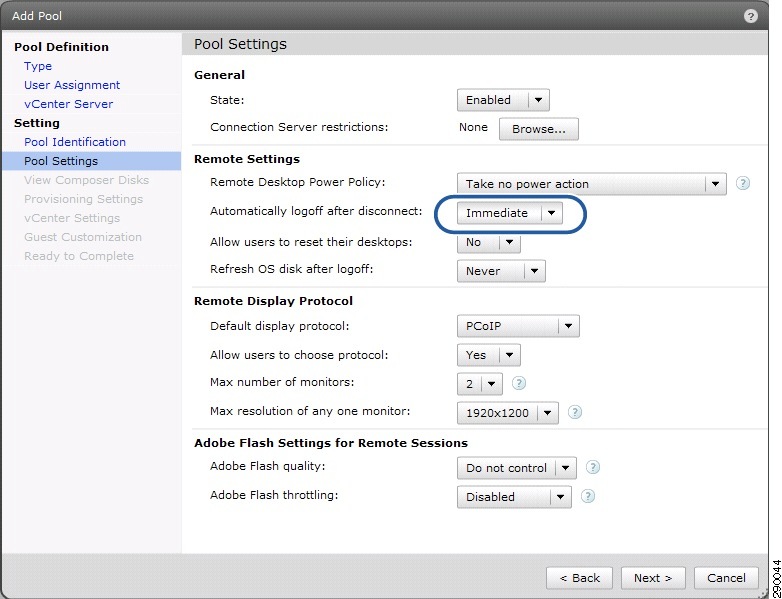

Figure 35 Pool Settings
View Composer Disks was set to "Do not redirect Windows profile" and the `"Disposable File Redirection" was left to "Redirect disposable files to a non-persistent disk":

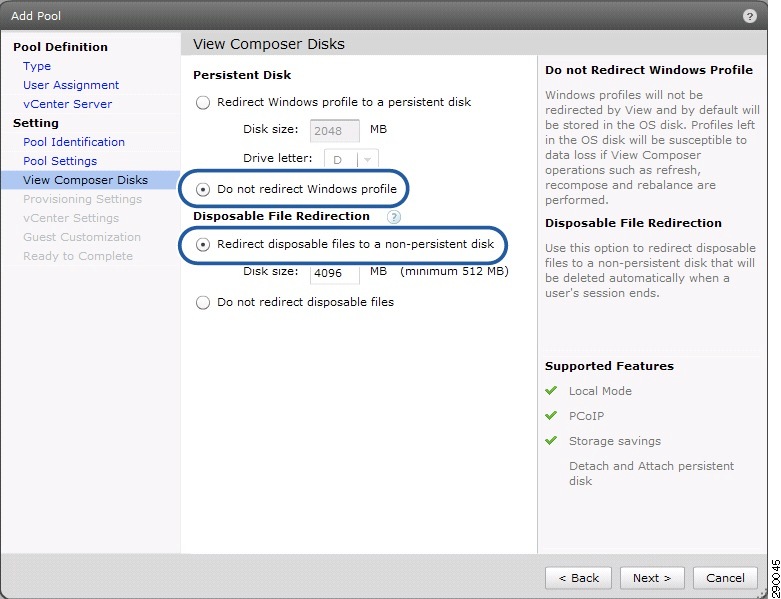

Figure 36 Settings for View Componser Disks and Disposable File Redirection
Provisioning Settings specified a naming pattern of "vdi-pool1-" to help correlate the created linked clones to the desktop pool with which they are associated. "Max number of desktops:" specifies the number of VMs to create for the pool:

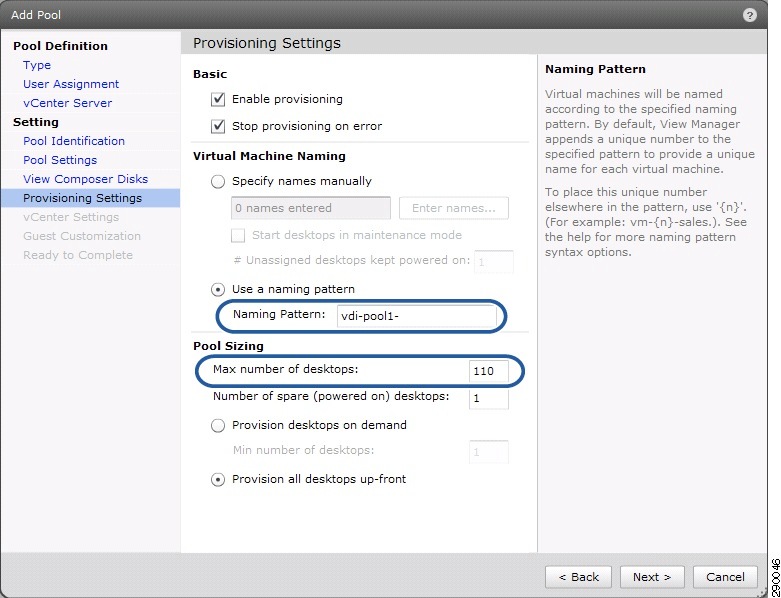

Figure 37 Provisioning Settings and Maximum Number of Desktops
vCenter Settings specified the:
•Default Image and the appropriate snapshot from which to create the linked clones.
•VM folder on vCenter to place the pool VMs
•Host or Cluster on which to create the VMs
•Resource Pool if created on a cluster
•Datastore and the over subscription policy, which was selected as Aggressive

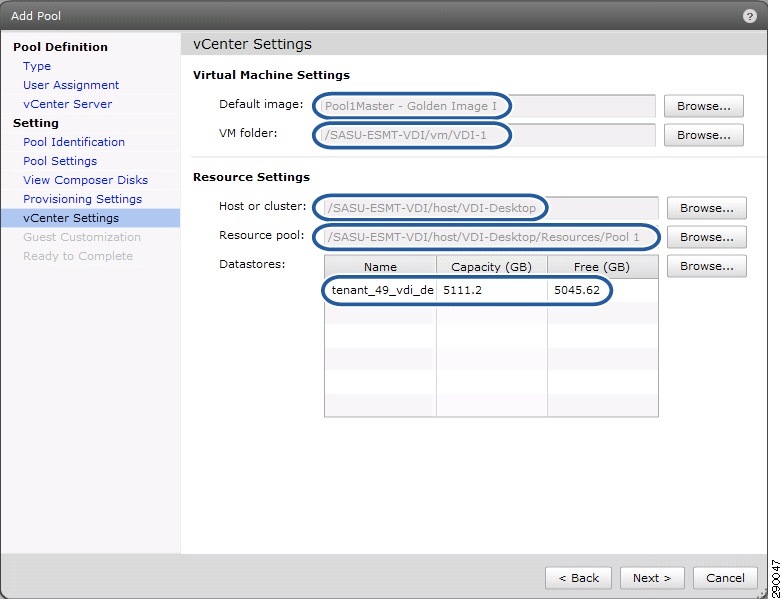

Figure 38 vCenter Settings
Guest Customization requires the selection of the Domain to which the VMs will be joined and the AD container in which they will be placed:

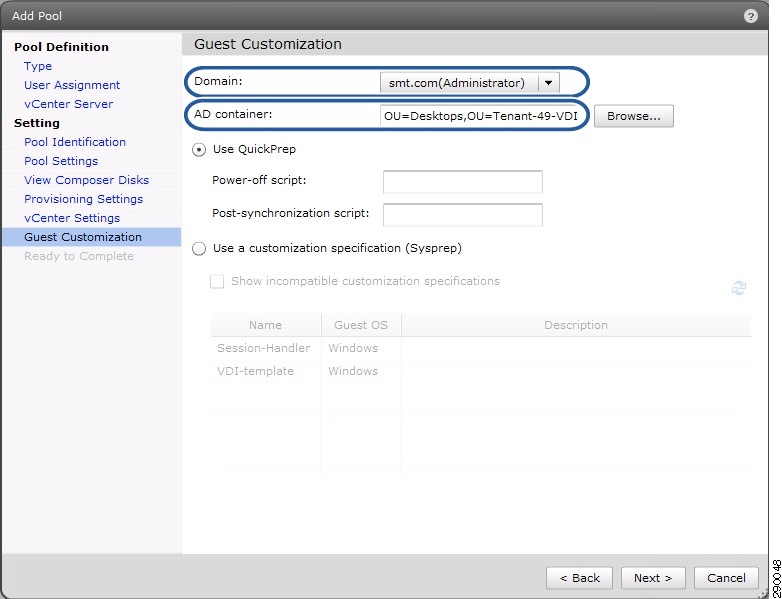

Figure 39 Guest Customization

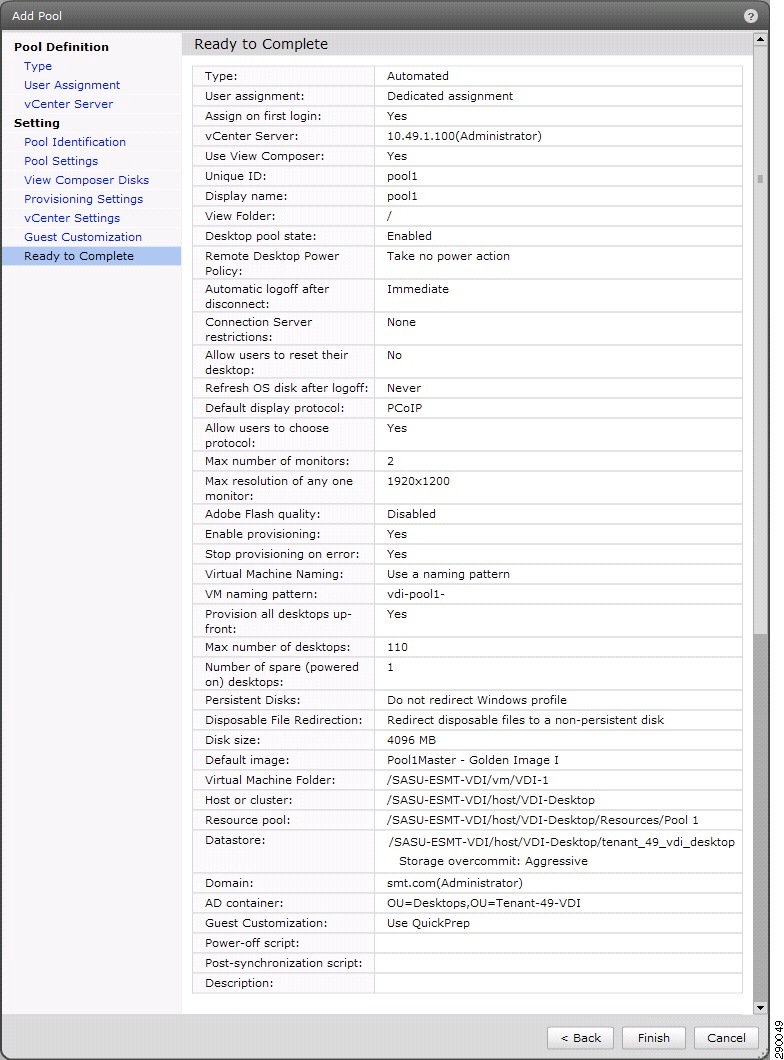

A summary of the selected options is presented before the pool is created:
Figure 40 Summary of Selected Options

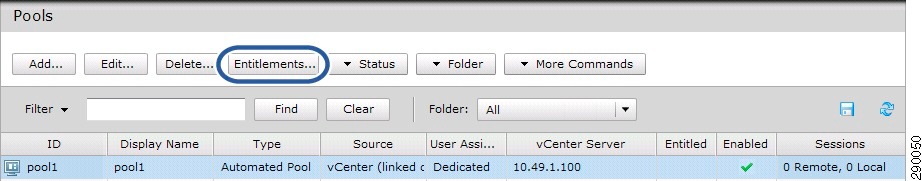

After the pool has been created, it must be entitled to an AD group of intended users:
Figure 41 Group of Intended Users
With the pool created and entitled, desktops are ready for access by specified users with the View Client, which can be downloaded from the base URL of the Connection Server.
Test Setup and Configurations
Figure 42 Test Environment Used for Server Scalability Testing
Cisco UCS Test Configuration for Single Server Scalability Test Setup
•1 X Cisco UCS B250-M2 (5680 @ 3.33 GHz) blade servers with 192 GB of memory (4 GB X 48 DIMMS @ 1333 MHz)
•Two Cisco Virtual Interface Card Adapters
•Cisco Nexus 5000 and 7000
•NetApp FAS 6080 storage array, two controllers, 2 X Dual port 10G Chelsio cards with 70 SAS drives
•Cisco UCS firmware 1.3(1n)
•VMware vSphere 4.1, Virtual Center 4.1
•VMware View 4.5
•Windows 7—32 bit, 1vCPU, 1.5 GB of memory, 40 GB/VM
Cisco UCS Configuration for Two-Chassis Test
•8 X Cisco UCS B250-M2 (5680 @ 3.33 GHz) blade servers with 192 GB of memory (4 GB X 48 DIMMS @ 1333 MHz)
•Two Cisco Virtual Interface Card Adapters on each blade server
•Cisco Nexus 5000 and 7000
•NetApp FAS 6080 storage array, two controllers, 2 X Dual port 10G Chelsio cards with 70 SAS drives
•Cisco UCS firmware 1.3(1n)
•VMware vSphere 4.1 (ESXi), Virtual Center 4.1
•VMware View 4.5
•Windows 7—32 bit, 1vCPU, 1.5 GB of memory, 40 GB/VM
Testing Methodology and Success Criteria
VMware's RAWC tool was used to simulate Virtual Desktop Users. This tool is composed of three main components:
•RAWC Controller—Built on Windows 2003 R2 and includes a package known as RAWC controller interface. The interface enables selecting the workload for each desktop login.
•Session Launcher—Built on Windows XP SP1 and .net platforms. The session launcher is installed on and accesses a share on the RAWC Controller. The Session Launcher serves two functions:
–Captures the login information.
–Records successful login by writing a log file of the session instance which is started.
•Workload Simulator—Starts running on the Desktop at logon from the View Client and launches applications in real time. The simulator begins reading, writing, and producing data through the specified applications to simulate the activity which a real user would produce.
VMware has developed a user profile for the RAWC tool to simulate a knowledge worker. This user profile includes typical office applications, as shown in Figure 43.

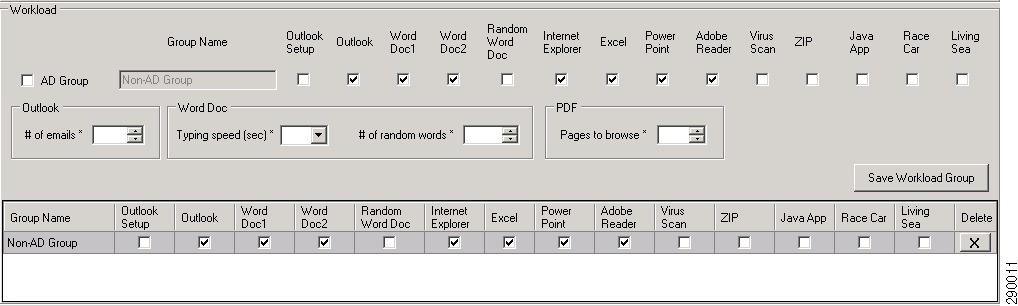

Figure 43 User Profile for RAWC Tool
Each Session Launcher can handle up to 20 user sessions. To begin operation, the Session Launcher starts sessions to the VMware View Server. Each session launches with a specific user account. A process starts on each user session which loads the script to launch specified application activity. The VDI desktop machine mounts a share on the RAWC controller which serves two functions. First the Microsoft Windows 7 Desktop logs a successful login, then it reads the configuration from the output file and begins the workload process.
User Workload Simulation
The RAWC tool is designed to simulate the activity of typical desktop users. Most users check their E-mail first after logging in; hence Outlook is the first application to run. Thereafter, applications are run in random order and with various operations, including opening and closing files, creating files, entering data, and saving files. The applications included in the workload are Microsoft Office 2007 Professional Plus products: Outlook, two Microsoft Word documents, Multiple Microsoft Excel Spreadsheets, and Microsoft PowerPoint. It also includes opening and browsing a document with Adobe Reader and surfing the Web with Microsoft Internet Explorer.
For more information about the VMware RAWC tool, see: http://www.vmware.com/files/pdf/VMware-WP-WorkloadConsiderations-WP-EN.pdf.
Workload Verification Criteria
The test procedure determined a successful workload run by evaluating three criteria:
•Workload completion and timing written to log files on a share from the RAWC Controller
•Visual verification of View Client logins within the RDP sessions initiated to the Session Launchers by the RAWC Controller
•Data collected from remote esxtop generated from a vMA appliance
The purpose of this testing is to provide the data needed to validate VMware View 4.5 in VMware vSphere 4.1 virtualizing Microsoft Windows 7 desktops on Cisco UCS blade servers implemented with NetApp's FAS6080 storage system. The test results are divided into two sections:
The information contained in this section provides data points that a customer may reference in designing their own implementations. These validation results are an example of what is possible under the specific environment conditions outlined in this paper and do not represent the full characterization of VMware View 4.5 with VMware vSphere 4.1 scalability.
VMware View 4.5 VDI Test Results
This section details the results from the VMware View 4.5 VDI validation testing. The key success criteria metrics are provided to validate the overall success of each test cycle with all the supporting validation data listed in the validation of the final eight blade (two chassis) configuration.
Results for Single Cisco UCS Blade Server Validation
The first process in the validation was to find out how many Virtual desktops could be hosted on a single Cisco UCS blade server. When identifying how many virtual desktops per server, it was important to assess the total available RAM, the amount of CPU, IO, and network overheads. Each virtual desktop was configured with 1.5 GB of RAM and the blade had 192 GB of RAM available.
The three criteria used for validation were:
•Application Open time, measured in RAWC, is less than 2.5 seconds average for each application in the workload.
•Scaling of the desktops until a point was reached where the average Physical CPU Percent Utilization was less than 80%. This was determined between the steady state period where all desktops were running the workload.
•System Ballooning is less than 20% of aggregate memory.
The Physical CPU Percent Utilization of the server hosting each of the desktop configurations was captured. As shown in Figure 44, the processor utilization pattern is consistent across each of the test iterations. It was determined that the 160 desktop count allowed approximately 30% of the physical processor capacity to be available for workload spikes and unforeseen failure conditions.

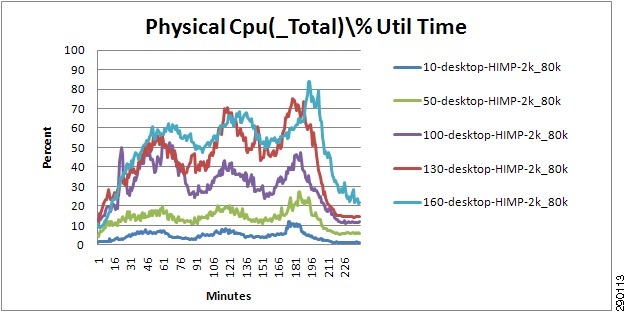

Figure 44 ESX Host Physical CPU Percentage Utilization Time
Figure 45 shows the physical hardware execution context or Physical CPU Percent Utilization (PCPU) values versus the Physical CPU % Core Utilization (Core Util) values captured during testing. The Core Util is the percent of time that at least one of the threads on a hyperthreaded core is used, averaged over all cores. The PCPU is the percent of time each individual thread is used, averaged over all threads. The PCPU may refer to a physical CPU core if hyperthreading is unavailable or a logical CPU (LCPU) if hyperthreading is enabled, which makes PCPU a better metric for what is commonly thought of as CPU utilization.
The Intel Westmere processors employ hyperthreading, so the B250-M2 platforms with two six core Westmere processors will have a total of 24 LCPU. The PCPU utilization percentage is available for each LCPU and represents the percentage of real time that the PCPU (LCPU) was not idle. Figure 45 indicates the percentage CPU utilization averaged over all Physical CPUs for the 160 desktop workload. The values observed in Figure 45 confirm the LCPU processors have resources available to manage workload spikes and unforeseen failure conditions.

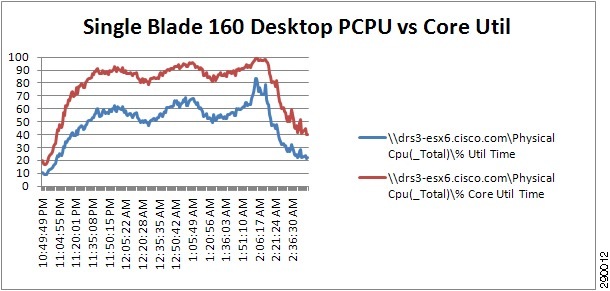

Figure 45 ESX Host Physical CPU Percent Utilization for Single B250 160 User Workload
Memory utilization on the ESX host falls into two general categories, either it is consumed by the ESX host kernel or it is dedicated to the virtual machines, i.e., desktops. Without vsish memory reclamation in place, the default of 6% leaves approximately 180GB of memory available to the virtual desktops. With 1.5 GB allocated per desktop, little to no ballooning can be seen up to the 120 desktop level. At the 160 desktop load level, swapping was observed, but at a level that accounted for less than 1% of aggregate memory.
For more information on memory resource management in vSphere, see: http://www.vmware.com/pdf/usenix_resource_mgmt.pdf.
Figure 46 shows that at and beyond 130 desktops, all of the available non-kernel memory is being used by the desktop VMs. vSphere responds to this memory pressure by using the ballooning mechanism to reclaim memory from the VMs, as shown in Figure 47.

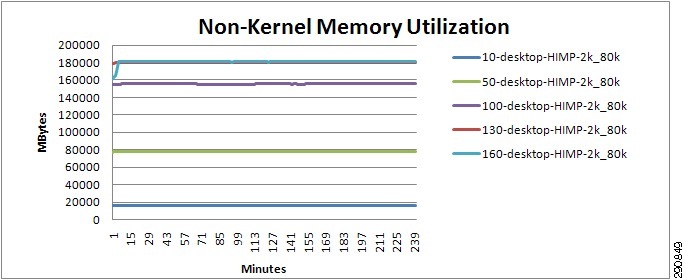

Figure 46 Non-Kernel Memory Utilization
Figure 47 shows the amount of memory ballooning that was observed during differing workloads. With 160 desktops, the peak ballooning was 7-11GB (4-6%), which is well below the 20% criteria.

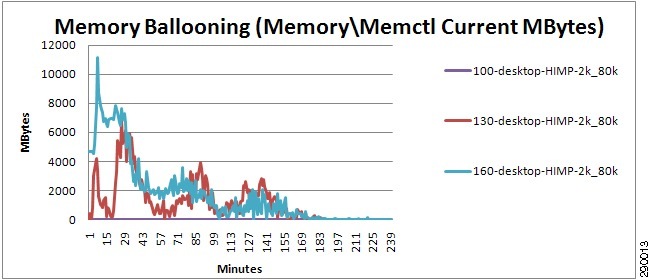

Figure 47 Memory Ballooning
User experience was analyzed as a metric of average open times of the applications within the workload, with an objective of keeping application access consistent with a non-constrained environment that stayed under 2.5 seconds for each application. As shown in Figure 48, application open times remained consistent through the 160 desktop runs.

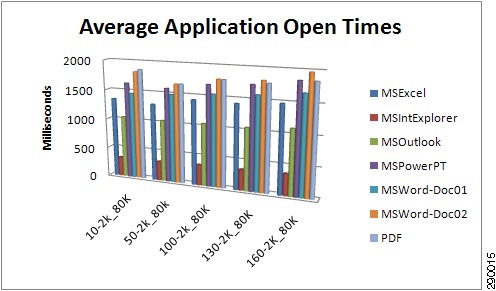

Figure 48 Average Application Open Time

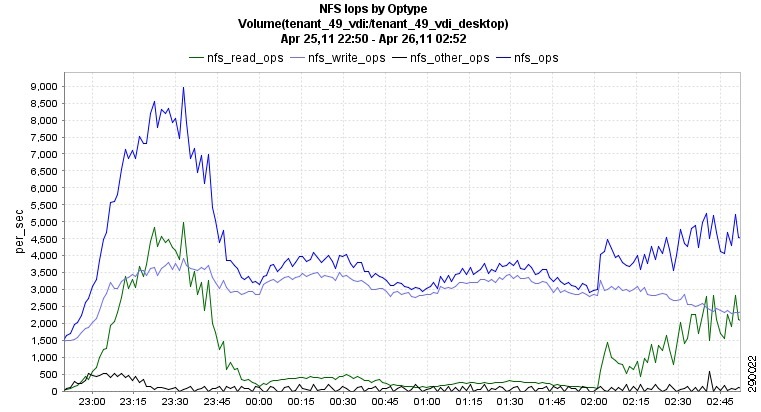

The NetApp FAS controllers record the number of IOPS which occurred during each test case. The NFS-based IOPS for the 160 desktop iteration are shown in Figure 49; this chart depicts the NFS IOPS for the VDI vFiler. This number represents the mix of reads, writes, and other operations taking place during the knowledge worker workload.

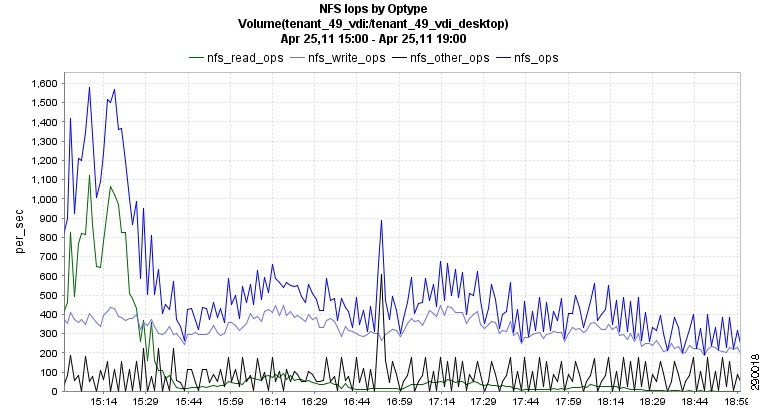

Figure 49 Single Blade NFS IOPS for the VDI vFiler
Results for Eight Cisco UCS Blade Server Validation
The eight blade load test focused on the scalability and predictability of the VDI environment. The eight blade test scenario leveraged the findings of the single blade tests by deploying 160 virtual desktops per blade. The following test conditions were created:
•Each host was provisioned with 160 Desktops VMs.
•Four pools of 320 VMs were used within the cluster of eight hosts.
•Automated vMotion was turned off within DRS.
•Test workloads were continued at a 0-24 minute delay.
•Session Launchers were increased to 20 users per Launcher.
•Delay of the RDP connection between each Session Launcher was increased from 3 seconds to 20 seconds.
The eight blade tests showed predictable resource utilization well aligned with the single blade test results. The processor and memory utilization of each blade performed within the performance expectations derived from the single blade tests. The network utilization and IOPS rate grew in a predictable manner.
Note Each of the combined performance charts depicted below correspond to the single blade server charts previously described.

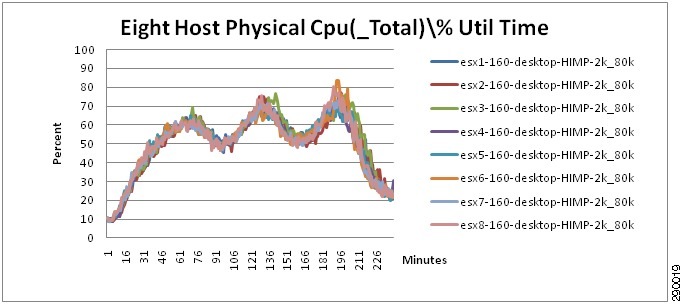

Figure 50 Eight Host Physical CPU Percentage Utilization Time—1280 Desktop Run
Figure 51 Eight Blade NFS IOPS for the VDI vFiler
Scaling and Sizing Guidelines
There are many factors to consider when you begin to scale beyond two chassis or eight servers, which this reference architecture has successfully tested. In this section we give guidance to scale beyond two UCS chassis.
Scalability Considerations and Guidelines
The 160 Desktop load for the single blade characterization was selected as our baseline because it met the three criteria of:
•Application Open time, measured in RAWC, was less than 2.5 seconds average for each application in the workload.
•The desktops were scaled until a point was reached where the average Physical CPU Percent Utilization was less than 80%. This was determined between the steady state period where all desktops were running the workload.
•System Ballooning was less than 20% of aggregate memory.
Cisco UCS System Configuration
As the results indicate, we are seeing linear scalability in the Cisco UCS reference architecture implementation.
Table 13 UCS System Configuration—Servers Tested
vSphere No. of Chassis No. of B250-M2 Servers Tested No. of VMs VMs/Core
Extrapolating the values we got during the testing onto a dedicated desktop chassis, we get the following results:
Table 14 UCS System Configuration—Server Extrapolation
vSphere No. of Chassis No. of B250-M2 Servers No. of VMs VMs/Core
The backend storage has to be scaled accordingly, based on the IOP considerations described in NetApp TR-3770, referenced in Storage Architecture Best Practices.
VMware has additional references in its architecture planning guide that details how to scale their components as you scale the number of desktops: http://www.vmware.com/pdf/view45_architecture_planning.pdf. You should also refer to Storage Architecture Best Practices.
On vSphere 4.1, the configuration maximums have to be taken in to consideration while doing scaling calculations. Refer to the Configuration Maximums for VMware vSphere 4.1: http://www.vmware.com/pdf/vsphere4/r41/vsp_41_config_max.pdf.
The main parameters are:
–Hosts per DRS cluster1
–Virtual machines per DRS cluster
–Virtual machines per host in DRS cluster
If you are implementing a HA cluster:
–Hosts per HA cluster1
–Virtual machines per host in HA cluster with 8 or fewer hosts
–Virtual machines per host in HA cluster with 9 or more hosts
The vCenter scalability is another important criteria as we may have to add another vCenter if we are scaling beyond the capability of single VC. Using Linked vCenter concept one can have more than one VC to manage a large number of ESX hosts and clusters.
One of the key findings from this study was the characterization of Microsoft Windows 7 desktop profile with respect to CPU and memory. All of the physical memory of the single blade server with 192 GB of memory was consumed by the 160 active desktop sessions with each Windows 7 virtual desktop configured with 1.5 GB of RAM.
Extending beyond the physical memory required over-subscription. VMware supports a ratio of up to 1.5 memory oversubscription. The 160 desktop load ran at a 1.33 memory oversubscription ratio. This was primarily resolved through memory ballooning, though less than 1% of the memory required swapping. With this ballooning and swapping there was little to no user experience degradation observed.
•CPU in MHz for each desktop = (number of cores * frequency in GHz)*percentage CPU utilization*1000/total number of desktops.
•CPU in MHz for each desktop = (12 * 3.33)*0.80*1000/160 = 199.8 MHz
If your workload is similar to the knowledge worker workload used, then each desktop will consume approximately 200 MHz on average.
VMware vSphere reserves approximately six percent of the total physical memory available for system memory and the remaining non-kernel memory can be used by the desktops. This amount has to be subtracted from the total memory during memory calculations.
Let us consider the scalability of Windows 7 with 1.5 GB RAM on a different UCS blade server. The Cisco B200-M2 blade server with 96 GB of memory and Intel 5680 processor at 3.33 GHz speed will be limited by memory and not by CPU when running the knowledge worker load.
Number of desktops/blade = (total memory on the system * 0.94)/(memory for one Windows 7 desktop).
In our example, the recommended load of desktops/blade to avoid memory oversubscription = (96 * 0.94) / 1.5 = 61 desktops (approximately).
In this case a lower series CPUs could be used instead of the 3.33 GHz (5680) or retained to have spare CPU cycles for load spikes.
This testing provides sizing recommendations based on a specific, controlled workload. The results were focused on keeping an environment that provided peak performance to desktop users.
Your workload will vary from the workload used in this testing. The 160 desktops per blade allows a good rule of thumb for sizing, but the scalability of the VDI solution brought together with Cisco, NetApp, and VMware allows you to easily expand your environment when needed.
FlexPod for VMware Deployment Model: http://www.cisco.com/en/US/docs/solutions/Enterprise/Data_Center/Virtualization/flexpod_vmware.html
Cisco Enhanced Secure Multi-Tenancy (ESMT) architecture: http://www.cisco.com/en/US/solutions/ns340/ns414/ns742/ns743/ns1050/landing_dcVDDC.html.
Cisco Secure Multi-Tenancy Deployment Guide: http://www.cisco.com/en/US/docs/solutions/Enterprise/Data_Center/Virtualization/securecldeployg.html#wp99931
Cisco UCS chassis install guide: :http://www.cisco.com/en/US/docs/unified_computing/ucs/hw/chassis/install/ucs5108_install.html)
Cisco UCS CLI Configuration guide: http://www.cisco.com/en/US/docs/unified_computing/ucs/sw/cli/config/guide/1.3.1/b_CLI_Config_Guide_1_3_1.html
Cisco UCS M-Series GUI Configuration guide: http://www.cisco.com/en/US/docs/unified_computing/ucs/sw/gui/config/guide/1.3.1/b_UCSM_GUI_Configuration_Guide_1_3_1.html
Cisco Nexus 5000 Series features: http://www.cisco.com/en/US/products/ps9670/prod_white_papers_list.html
Installation and configuration of the Cisco Nexus 1000V and VEM:
NetApp Flash Cache technology: http://www.netapp.com/us/products/storage-systems/flash-cache/flash-cache-tech-specs.html
NetApp Operations Manager: http://www.netapp.com/us/products/management-software/operations-manager.html
NetApp TR-3563: NetApp Thin Provisioning: http://media.netapp.com/documents/tr-3563.pdf
NetApp TR-3505: NetApp Deduplication for FAS, Deployment and Implementation Guide: http://media.netapp.com/documents/tr-3505.pdf
NetApp TR-3298: RAID-DP: NetApp Implementation of RAID Double Parity for Data Protection: http://media.netapp.com/documents/tr-3298.pdf
NetApp TR-3770: VMware View on NetApp Deployment Guide: http://media.netapp.com/documents/tr-3770.pdf
NetApp TR-3437: Storage Best Practices and Resiliency Guide: http://media.netapp.com/documents/tr-3437.pdf
NetApp TR-3450: Active-Active Controller Overview and Best Practices Guidelines: http://media.netapp.com/documents/tr-3450.pdf
NetApp TR-3749: NetApp and VMware vSphere Storage Best Practices: http://media.netapp.com/documents/tr-3749.pdf
Netapp TR-3705: Netapp and VMware View Solution Guide: http://media.netapp.com/documents/tr-3705.pdf
Configuration Maximums for VMware vSphere 4.1: http://www.vmware.com/pdf/vsphere4/r41/vsp_41_config_max.pdf.
Provisioning Microsoft Windows 7 for View 4.5: http://www.vmware.com/files/pdf/VMware-View-OptimizationGuideWindows7-EN.pdf
VMware architecture planning guide: http://www.vmware.com/pdf/view45_architecture_planning.pdf.
VMware View 4.5 Installation Guide: http://www.vmware.com/pdf/view45_installation_guide.pdf.
VMware RAWC tool: http://www.vmware.com/files/pdf/VMware-WP-WorkloadConsiderations-WP-EN.pdf.
Appendix A—Select Configurations
Cisco Nexus 5000 Configuration!Command: show running-config!Time: Tue Nov 23 16:49:14 2010version 4.2(1)N1(1)feature fcoefeature npivfeature telnetfeature tacacs+feature udldfeature lacpfeature vpcfeature lldplogging level aaa 5logging level cdp 6logging level vpc 6logging level radius 5logging level tacacs 5logging level monitor 6logging level port-channel 6logging level spanning-tree 6role feature-group name Network-Operatorfeature zonefeature cdpfeature arpfeature pingfeature vsanfeature vlanfeature fdmifeature fcnsfeature fspffeature rscnrole feature-group name Network-Adminfeature aaafeature arpfeature cdpfeature l3vmfeature pingfeature snmpfeature radiusfeature tacacsfeature installfeature licensefeature callhomefeature platformfeature access-listfeature svifeature eth-spanfeature ethanalyzerfeature spanning-treefeature aclfeature sfmfeature fcnsfeature fcspfeature fdmifeature fspffeature rlirfeature rscnfeature spanfeature vsanfeature wwnmfeature zonefeature fcanalyzerrole name Network-Operatorrule 1 permit read feature-group Network-Operatorrole name Network-Adminrule 1 permit read-write feature-group Network-Adminusername admin password 5 $1$43gsLyBb$Xsht0lHW7wbbq9nMGo1HX. role network-adminip domain-lookupip host DC05-N5K-1 x.x.x.28tacacs-server key 7 "K1kmN0gy"ip tacacs source-interface mgmt0tacacs-server host x.x.x.214tacacs-server host x.x.x.216 timeout 3aaa group server tacacs+ TacacsServerserver x.x.x.216deadtime 1use-vrf managementsource-interface mgmt0hostname DC05-N5K-1logging event link-status defaultservice unsupported-transceiverip access-list classify_COS_510 permit ip 192.168.98.100/32 any20 permit ip 10.49.32.10/32 any30 permit ip any 192.168.98.100/3240 permit ip any 10.49.32.10/32class-map type qos Platinum_Trafficmatch access-group name classify_COS_5class-map type qos Gold_Transactionalmatch cos 6class-map type qos Bronze_Transactionalmatch cos 2class-map type qos Silver_Transactionalmatch cos 4class-map type qos Platinum_Transactionalmatch cos 5class-map type queuing Gold_Traffic_Qmatch qos-group 3class-map type queuing Bronze_Traffic_Qmatch qos-group 5class-map type queuing Silver_Traffic_Qmatch qos-group 4class-map type queuing Platinum_Traffic_Qmatch qos-group 2policy-map type qos Global_Classify_NFS_Applicationclass Platinum_Trafficset qos-group 2class Platinum_Transactionalset qos-group 2class Gold_Transactionalset qos-group 3class Silver_Transactionalset qos-group 4class Bronze_Transactionalset qos-group 5policy-map type queuing Global_BW_Queuingclass type queuing Platinum_Traffic_Qprioritybandwidth percent 20class type queuing Gold_Traffic_Qbandwidth percent 20class type queuing Silver_Traffic_Qbandwidth percent 20class type queuing Bronze_Traffic_Qbandwidth percent 15class type queuing class-fcoebandwidth percent 15class type queuing class-defaultbandwidth percent 10class-map type network-qos Gold_Traffic_NQmatch qos-group 3class-map type network-qos Bronze_Traffic_NQmatch qos-group 5class-map type network-qos Silver_Traffic_NQmatch qos-group 4class-map type network-qos Platinum_Traffic_NQmatch qos-group 2policy-map type network-qos Netapp_Qosclass type network-qos Platinum_Traffic_NQset cos 5queue-limit 30000 bytesmtu 9000class type network-qos Gold_Traffic_NQset cos 6mtu 9000class type network-qos Silver_Traffic_NQset cos 4mtu 9000class type network-qos Bronze_Traffic_NQset cos 2mtu 9000class type network-qos class-defaultmtu 9000system qosservice-policy type qos input Global_Classify_NFS_Applicationservice-policy type queuing output Global_BW_Queuingservice-policy type network-qos Netapp_Qossnmp-server user admin network-admin auth md5 0xfcb3ba35cacbdb0b2b72f5ea4dea6364 priv 0xfcb3ba35cacbdb0b2b72f5ea4dea6364 localizedkeysnmp-server host x.x.x.204 traps version 2c public udp-port 2162snmp-server host x.x.x.34 traps version 2c public udp-port 1163snmp-server host x.x.x.34 traps version 2c public udp-port 1164snmp-server enable traps entity frusnmp-server community public group network-operatoraaa authentication login default group TacacsServer localvrf context managementip route 0.0.0.0/0 x.x.x.1vlan 1vlan 2name default-nativevlan 101name ten1-101vlan 105name ten1-105vlan 106name ten1-106vlan 107name ten1-107vlan 109name ten1-109vlan 110name ten1-110vlan 113name ten2-113vlan 119name ten2-119vlan 120name ten2-120vlan 122name ten3-122vlan 123name ten3-123vlan 124name ten3-124vlan 129name ten3-129vlan 130name ten3-130vlan 132name ten4-132vlan 140name ten4-140vlan 162name mgmtvlan 581name ten49-VDI-Infra-581vlan 582name ten49-VDI-RAWC-582vlan 583name ten49-VDI-Desktop-583vlan 584name ten49-584vlan 585name ten49-585vlan 586name ten49-586vlan 587name ten49-587vlan 588name ten49-588-iscsivlan 589name ten49-589-nfsvlan 590name ad-servicesvlan 592name ten50-592vlan 599name ten50-599vlan 600name ten50-600vlan 900name drs1-ctrl-unlimitedvlan 901name drs1-ctrl-limitedvlan 902name drs1-monitoringvlan 905name drs1-vc-snapvlan 907fcoename drs1-fabric-bspanning-tree pathcost method longspanning-tree port type edge bpduguard defaultspanning-tree port type edge bpdufilter defaultvpc domain 100peer-keepalive destination x.x.x.25vsan databasevsan 907 name "drs1-fabric-b"cfs ipv4 distributecfs eth distributedevice-alias databasedevice-alias name ESX1_B pwwn 20:00:00:25:b5:06:b1:2fdevice-alias name ESX2_B pwwn 20:00:00:25:b5:06:b1:3fdevice-alias name ESX31_B pwwn 20:00:00:25:b5:03:b2:2fdevice-alias name ESX32_B pwwn 20:00:00:25:b5:03:b2:3fdevice-alias name NetApp1_7b pwwn 50:0a:09:88:87:49:9a:b4device-alias name NetApp2_7b pwwn 50:0a:09:88:97:49:9a:b4device-alias commitfcdomain fcid databasevsan 907 wwn 20:41:00:05:9b:74:b5:80 fcid 0x950000 dynamicvsan 907 wwn 20:41:00:0d:ec:cf:e5:00 fcid 0x950001 dynamicvsan 907 wwn 50:0a:09:88:87:49:9a:b4 fcid 0x950002 dynamic! [NetApp1_7b]vsan 907 wwn 20:00:00:25:b5:0b:01:0f fcid 0x950003 dynamicvsan 907 wwn 20:00:00:25:b5:0b:01:0e fcid 0x950004 dynamicvsan 907 wwn 50:0a:09:88:97:49:9a:b4 fcid 0x950005 dynamic! [NetApp2_7b]vsan 907 wwn 20:00:00:25:b5:06:b1:2f fcid 0x950006 dynamic! [ESX1_B]vsan 907 wwn 20:00:00:25:b5:06:b2:2f fcid 0x950007 dynamicvsan 907 wwn 20:00:00:25:b5:06:b1:3f fcid 0x950008 dynamic! [ESX2_B]vsan 907 wwn 20:00:00:25:b5:03:b2:2f fcid 0x950009 dynamic! [ESX31_B]vsan 907 wwn 20:00:00:25:b5:03:b2:3f fcid 0x95000a dynamic! [ESX32_B]vsan 907 wwn 20:00:00:25:b5:13:b2:0e fcid 0x95000b dynamicvsan 907 wwn 20:00:00:25:b5:13:b2:0a fcid 0x95000c dynamicvsan 907 wwn 20:00:00:25:b5:13:b2:0c fcid 0x95000d dynamicvsan 907 wwn 20:00:00:25:b5:13:b2:0f fcid 0x95000e dynamicvsan 907 wwn 20:00:00:25:b5:13:b2:0b fcid 0x95000f dynamicvsan 907 wwn 20:00:00:25:b5:13:b2:0d fcid 0x950010 dynamicvsan 907 wwn 20:00:00:25:b5:13:b2:19 fcid 0x950011 dynamicinterface port-channel1switchport mode trunkvpc peer-linkswitchport trunk native vlan 2switchport trunk allowed vlan 1-103,105-579,581-905,908-3967,4048-4093spanning-tree port type networkspeed 10000interface port-channel11description NetApp1 vPC 11 link Eth1/33 NetApp2 6/aswitchport mode trunkvpc 11switchport trunk allowed vlan 106,109-110,115,119-120,124,129-130switchport trunk allowed vlan add 140,582-583,589-590,592,599-600switchport trunk allowed vlan add 1101-1112,1199-1200spanning-tree port type edge trunkspanning-tree bpdufilter enablespeed 10000interface port-channel12description NetApp2 vPC 12 link Eth1/35 NetApp2 6/bswitchport mode trunkvpc 12switchport trunk allowed vlan 106,109-110,115,119-120,124,129-130switchport trunk allowed vlan add 140,582-583,589-590,592,599-600switchport trunk allowed vlan add 1101-1112,1199-1200spanning-tree port type edge trunkspanning-tree bpdufilter enablespeed 10000interface port-channel31description ** vPC 31 Eth2/2,Eth3/2 dc03-6120-1-A Eth 2/3,Eth2/4 **switchport mode trunkvpc 31switchport trunk native vlan 2switchport trunk allowed vlan 2,101,105-107,109-110,113,115,119-120switchport trunk allowed vlan add 122-124,129-130,132,140,162,581-590switchport trunk allowed vlan add 592,599-600,900-902,905spanning-tree port type edge trunkspanning-tree bpdufilter enablespeed 10000interface port-channel32description ** vPC 32 to dc03-6120-1-B Po32 Eth2/1,Eth2/2 **switchport mode trunkvpc 32switchport trunk native vlan 2switchport trunk allowed vlan 2,101,105-107,109-110,113,115,119-120switchport trunk allowed vlan add 122-124,129-130,132,140,162,581-590switchport trunk allowed vlan add 592,599-600,900-902,905spanning-tree port type edge trunkspanning-tree bpdufilter enablespeed 10000interface port-channel45description ** Port Channel to Aggregation Nexus 7000 dc09 , dc10 **switchport mode trunkvpc 45switchport trunk native vlan 2switchport trunk allowed vlan 2,101,105-107,109-110,113,115,119-120switchport trunk allowed vlan add 122-124,129-130,132,140,162,581-590switchport trunk allowed vlan add 592,599-600,900-902,905speed 10000interface port-channel61description ** vPC61 Eth2/4,Eth3/4 dc06-6120-1-A Eth2/3-4 **switchport mode trunkvpc 61switchport trunk native vlan 2switchport trunk allowed vlan 2,101,105-107,109-110,113,115,119-120switchport trunk allowed vlan add 122-124,129-130,132,140,162,581-590switchport trunk allowed vlan add 592,599-600,900-902,905spanning-tree port type edge trunkspanning-tree bpdufilter enablespeed 10000interface port-channel62switchport mode trunkvpc 62switchport trunk native vlan 2switchport trunk allowed vlan 2,101,105-107,109-110,113,115,119-120switchport trunk allowed vlan add 122-124,129-130,132,140,162,581-590switchport trunk allowed vlan add 592,599-600,900-902,905spanning-tree port type edge trunkspanning-tree bpdufilter enablespeed 10000interface vfc34bind interface Ethernet1/34no shutdowninterface vfc36bind interface Ethernet1/36no shutdownvsan databasevsan 907 interface vfc34vsan 907 interface vfc36vsan 907 interface fc2/1vsan 907 interface fc2/2vsan 907 interface fc2/3vsan 907 interface fc2/4vsan 907 interface fc3/1vsan 907 interface fc3/2vsan 907 interface fc3/3vsan 907 interface fc3/4interface fc2/1switchport trunk mode autoswitchport trunk allowed vsan 907no shutdowninterface fc2/2switchport trunk mode autoswitchport trunk allowed vsan 907no shutdowninterface fc2/3switchport trunk mode autoswitchport trunk allowed vsan 907no shutdowninterface fc2/4switchport trunk mode autoswitchport trunk allowed vsan 907no shutdowninterface fc3/1switchport trunk mode autoswitchport trunk allowed vsan 907no shutdowninterface fc3/2switchport trunk mode autoswitchport trunk allowed vsan 907no shutdowninterface fc3/3switchport trunk mode autoswitchport trunk allowed vsan 907no shutdowninterface fc3/4switchport trunk mode autoswitchport trunk allowed vsan 907no shutdowninterface Ethernet1/1description mgmt12-c250-3 nic4switchport mode trunkswitchport trunk allowed vlan 581-582speed 1000interface Ethernet1/2description mgmt12-c250-4 nic4switchport mode trunkswitchport trunk allowed vlan 581-582spanning-tree port type edge trunkspeed 1000interface Ethernet1/3description smt05-n1010-1 port 1switchport mode trunkswitchport trunk allowed vlan 162spanning-tree port type edge trunkspanning-tree bpdufilter enablespeed 1000interface Ethernet1/4description smt04-n1010-1 port 2switchport mode trunkswitchport trunk allowed vlan 162spanning-tree port type edge trunkspanning-tree bpdufilter enablespeed 1000interface Ethernet1/5description smt05-n1010-1 port 3switchport mode trunkswitchport trunk allowed vlan 900spanning-tree port type edge trunkspanning-tree bpdufilter enablespeed 1000interface Ethernet1/6description smt04-n1010-1 port 4switchport mode trunkswitchport trunk allowed vlan 900spanning-tree port type edge trunkspanning-tree bpdufilter enablespeed 1000interface Ethernet1/7interface Ethernet1/8interface Ethernet1/9interface Ethernet1/10interface Ethernet1/11interface Ethernet1/12interface Ethernet1/13interface Ethernet1/14interface Ethernet1/15interface Ethernet1/16interface Ethernet1/17interface Ethernet1/18interface Ethernet1/19interface Ethernet1/20interface Ethernet1/21interface Ethernet1/22interface Ethernet1/23interface Ethernet1/24interface Ethernet1/25interface Ethernet1/26interface Ethernet1/27interface Ethernet1/28interface Ethernet1/29interface Ethernet1/30interface Ethernet1/31interface Ethernet1/32interface Ethernet1/33switchport mode trunkswitchport trunk allowed vlan 106,109-110,115,119-120,124,129-130switchport trunk allowed vlan add 140,582-583,589-590,592,599-600switchport trunk allowed vlan add 1101-1112,1199-1200spanning-tree port type edge trunkchannel-group 11 mode activeinterface Ethernet1/34description ** Eth 1/34,Eth1/36 Netapp1 Controller ports 7/0-1 **switchport mode trunkswitchport trunk allowed vlan 1,907spanning-tree port type edge trunkinterface Ethernet1/35switchport mode trunkswitchport trunk allowed vlan 106,109-110,115,119-120,124,129-130switchport trunk allowed vlan add 140,582-583,589-590,592,599-600switchport trunk allowed vlan add 1101-1112,1199-1200spanning-tree port type edge trunkchannel-group 12 mode activeinterface Ethernet1/36description ** Eth 1/34,Eth1/36 Netapp1 Controller ports 7/0-1 **switchport mode trunkswitchport trunk allowed vlan 1,907spanning-tree port type edge trunkinterface Ethernet1/37switchport mode trunkswitchport trunk native vlan 2switchport trunk allowed vlan 2,101,105-107,109-110,113,115,119-120switchport trunk allowed vlan add 122-124,129-130,132,140,162,581-590switchport trunk allowed vlan add 592,599-600,900-902,905channel-group 45 mode passiveinterface Ethernet1/38switchport mode trunkswitchport trunk native vlan 2switchport trunk allowed vlan 1-103,105-579,581-905,908-3967,4048-4093channel-group 1 mode activeinterface Ethernet1/39switchport mode trunkswitchport trunk native vlan 2switchport trunk allowed vlan 2,101,105-107,109-110,113,115,119-120switchport trunk allowed vlan add 122-124,129-130,132,140,162,581-590switchport trunk allowed vlan add 592,599-600,900-902,905channel-group 45 mode passiveinterface Ethernet1/40switchport mode trunkswitchport trunk native vlan 2switchport trunk allowed vlan 1-103,105-579,581-905,908-3967,4048-4093channel-group 1 mode activeinterface Ethernet2/1description ** vPC 32 Eth2/1,Eth3/1 dc03-6120-1-B Eth 2/1,Eth2/2 **switchport mode trunkswitchport trunk native vlan 2switchport trunk allowed vlan 2,101,105-107,109-110,113,115,119-120switchport trunk allowed vlan add 122-124,129-130,132,140,162,581-590switchport trunk allowed vlan add 592,599-600,900-902,905channel-group 32 mode activeinterface Ethernet2/2description ** vPC 31 Eth2/2,Eth3/2 dc03-6120-1-A Eth 2/3,Eth2/4 **switchport mode trunkswitchport trunk native vlan 2switchport trunk allowed vlan 2,101,105-107,109-110,113,115,119-120switchport trunk allowed vlan add 122-124,129-130,132,140,162,581-590switchport trunk allowed vlan add 592,599-600,900-902,905channel-group 31 mode activeinterface Ethernet2/3description ** vPC62 Eth2/3,Eth3/3 dc06-6120-1-B Eth2/1,Eth2/2 **switchport mode trunkswitchport trunk native vlan 2switchport trunk allowed vlan 2,101,105-107,109-110,113,115,119-120switchport trunk allowed vlan add 122-124,129-130,132,140,162,581-590switchport trunk allowed vlan add 592,599-600,900-902,905channel-group 62 mode activeinterface Ethernet2/4description ** vPC61 Eth2/4,Eth3/4 dc06-6120-1-A Eth2/3-4 **switchport mode trunkswitchport trunk native vlan 2switchport trunk allowed vlan 2,101,105-107,109-110,113,115,119-120switchport trunk allowed vlan add 122-124,129-130,132,140,162,581-590switchport trunk allowed vlan add 592,599-600,900-902,905channel-group 61 mode activeinterface Ethernet3/1description ** vPC 32 Eth2/1,Eth3/1 dc03-6120-1-B Eth 2/1,Eth2/2 **switchport mode trunkswitchport trunk native vlan 2switchport trunk allowed vlan 2,101,105-107,109-110,113,115,119-120switchport trunk allowed vlan add 122-124,129-130,132,140,162,581-590switchport trunk allowed vlan add 592,599-600,900-902,905channel-group 32 mode activeinterface Ethernet3/2description ** vPC 31 Eth2/2,Eth3/2 dc03-6120-1-A Eth 2/3,Eth2/4 **switchport mode trunkswitchport trunk native vlan 2switchport trunk allowed vlan 2,101,105-107,109-110,113,115,119-120switchport trunk allowed vlan add 122-124,129-130,132,140,162,581-590switchport trunk allowed vlan add 592,599-600,900-902,905channel-group 31 mode activeinterface Ethernet3/3description ** vPC62 Eth2/3,Eth3/3 dc06-6120-1-B Eth2/1,Eth2/2 **switchport mode trunkswitchport trunk native vlan 2switchport trunk allowed vlan 2,101,105-107,109-110,113,115,119-120switchport trunk allowed vlan add 122-124,129-130,132,140,162,581-590switchport trunk allowed vlan add 592,599-600,900-902,905channel-group 62 mode activeinterface Ethernet3/4description ** vPC61 Eth2/4,Eth3/4 dc06-6120-1-A Eth2/3-4 **switchport mode trunkswitchport trunk native vlan 2switchport trunk allowed vlan 2,101,105-107,109-110,113,115,119-120switchport trunk allowed vlan add 122-124,129-130,132,140,162,581-590switchport trunk allowed vlan add 592,599-600,900-902,905channel-group 61 mode activeinterface mgmt0description *** DC05-N5k-1 Mgmt0 To zone10-6504 G3/8ip address x.x.x.28/23line consoleboot kickstart bootflash:/n5000-uk9-kickstart.4.2.1.N1.1.binboot system bootflash:/n5000-uk22.214.171.124.N1.1.bininterface fc2/1interface fc2/2interface fc2/3interface fc2/4interface fc3/1interface fc3/2interface fc3/3interface fc3/4logging logfile messages 6zoneset distribute full vsan 907!Full Zone Database Section for vsan 907zone name ESX3_B vsan 907member pwwn 20:00:00:25:b5:03:b2:2f! [ESX31_B]member pwwn 50:0a:09:88:97:49:9a:b4! [NetApp2_7b]zone name ESX1_B vsan 907member pwwn 20:00:00:25:b5:06:b1:2f! [ESX1_B]member pwwn 50:0a:09:88:87:49:9a:b4! [NetApp1_7b]zone name ESX2_B vsan 907member pwwn 20:00:00:25:b5:06:b1:3f! [ESX2_B]member pwwn 50:0a:09:88:87:49:9a:b4! [NetApp1_7b]zone name ESX4_B vsan 907member pwwn 20:00:00:25:b5:03:b2:3f! [ESX32_B]member pwwn 50:0a:09:88:97:49:9a:b4! [NetApp2_7b]zone name drs3-esx8 vsan 907member pwwn 50:0a:09:88:97:49:9a:b4! [NetApp2_7b]member pwwn 20:00:00:25:b5:13:b2:0fzone name drs3-esx9 vsan 907member pwwn 50:0a:09:88:97:49:9a:b4! [NetApp2_7b]member pwwn 20:00:00:25:b5:13:b2:0ezone name drs3-esx10 vsan 907member pwwn 50:0a:09:88:97:49:9a:b4! [NetApp2_7b]member pwwn 20:00:00:25:b5:13:b2:0dzone name drs3-esx11 vsan 907member pwwn 50:0a:09:88:97:49:9a:b4! [NetApp2_7b]member pwwn 20:00:00:25:b5:13:b2:0czone name drs3-esx12 vsan 907member pwwn 50:0a:09:88:97:49:9a:b4! [NetApp2_7b]member pwwn 20:00:00:25:b5:13:b2:0bzone name drs3-esx13 vsan 907member pwwn 50:0a:09:88:97:49:9a:b4! [NetApp2_7b]member pwwn 20:00:00:25:b5:13:b2:0azone name drs3-esx14 vsan 907member pwwn 20:00:00:25:b5:13:b2:19member pwwn 50:0a:09:88:97:49:9a:b4! [NetApp2_7b]zoneset name DC05-N5K-1_active vsan 907member ESX3_Bmember ESX1_Bmember ESX2_Bmember ESX4_Bmember drs3-esx8member drs3-esx9member drs3-esx10member drs3-esx11member drs3-esx12member drs3-esx13member drs3-esx14zoneset name DC-5-N5K-1_active vsan 907member drs3-esx8member drs3-esx9member drs3-esx10member drs3-esx11member drs3-esx12member drs3-esx13member drs3-esx14zoneset name dc05-n5k-1_active vsan 907member drs3-esx8zoneset activate name DC05-N5K-1_active vsan 907
Cisco Nexus 1000 Configurationversion 4.0(4)SV1(3a)username admin password 5 $1$hyEqTfoB$YfrRymcg.TgMBa.RMN0Ae/ role network-adminssh key rsa 2048ntp server x.x.x.9ip domain-lookupip host drs3-vsm1 172.26.163.143kernel core target 0.0.0.0kernel core limit 1system default switchportlogging event link-status defaultpolicy-map type qos Gold_C0S_6class class-defaultset cos 6policy-map type qos Bronze_CoS_2class class-defaultset cos 2policy-map type qos Silver_CoS_4class class-defaultset cos 4policy-map type qos Platinum_CoS_5class class-defaultset cos 5vem 3host vmware id 6a40d3aa-7346-11df-0003-10000000000fvem 4host vmware id 6a40d3aa-7346-11df-0003-10000000000dvem 5host vmware id 6a40d3aa-7346-11df-0003-10000000001fvem 6host vmware id 6a40d3aa-7346-11df-0003-10000000001dvem 7host vmware id 6a40d3aa-7346-11df-0003-10000000001evem 8host vmware id 6a40d3aa-7346-11df-0003-10000000000cvem 9host vmware id 6a40d3aa-7346-11df-0003-10000000000evem 10host vmware id 6a40d3aa-7346-11df-0003-100000000019vem 11host vmware id 6a40d3aa-7346-11df-0003-100000000009vem 12host vmware id 6a40d3aa-7346-11df-0003-10000000001avem 13host vmware id 6a40d3aa-7346-11df-0003-100000000028vem 14host vmware id 6a40d3aa-7346-11df-0003-10000000001bvem 15host vmware id 6a40d3aa-7346-11df-0003-10000000000avem 16host vmware id 6a40d3aa-7346-11df-0003-100000000018snmp-server user admin network-admin auth md5 0x7ccf323f71b74c6cf1cba6d255e9ded9priv 0x7ccf323f71b74c6cf1cba6d255e9ded9 localizedkeysnmp-server enable traps licensesnmp-server community public group vdc-operatorvrf context managementip route 0.0.0.0/0 x.x.x.1hostname drs3-vsm1flow exporter namsm-1description dc08-namsm-1 netflow collectordestination x.x.x.63transport udp 3000source mgmt0version 9flow monitor NFMonitorrecord netflow-originalexporter namsm-1timeout active 1800cache size 4096vlan 1vlan 162name Flash-Managementvlan 581name ten49-VDI_Mgmtvlan 582name ten49-VDI_RAWCvlan 583name ten49-VDI_Desktopvlan 589name ten49-VDI_NFSvlan 900name n1k-ctrl-pktvlan 901name vmotionvlan 902name monitoringvdc drs3-vsm1 id 1limit-resource vlan minimum 16 maximum 513limit-resource monitor-session minimum 0 maximum 64limit-resource vrf minimum 16 maximum 8192limit-resource port-channel minimum 0 maximum 256limit-resource u4route-mem minimum 32 maximum 80limit-resource u6route-mem minimum 16 maximum 48port-profile type vethernet Management_172_26_162vmware port-groupvmware max-ports 64switchport mode accessswitchport access vlan 162service-policy type qos input Gold_CoS_6no shutdownsystem vlan 162state enabledport-profile type vethernet Monitoring_10_202_101capability l3controlvmware port-groupswitchport mode accessswitchport access vlan 902no shutdownsystem vlan 902state enabledport-profile type vethernet N1kV_192_168_0vmware port-groupswitchport mode accessswitchport access vlan 900service-policy type qos input Platinum_CoS_5no shutdownsystem vlan 900state enabledport-profile type vethernet Ten_49_VDI_10_49_1vmware port-groupswitchport mode accessswitchport access vlan 581service-policy type qos input Gold_CoS_6no shutdownstate enabledport-profile type vethernet Ten_49_VDI_10_49_2vmware port-groupswitchport mode accessswitchport access vlan 582service-policy type qos input Bronze_CoS_2no shutdownstate enabledport-profile type vethernet Ten_49_VDI_10_49_32vmware port-groupvmware max-ports 1024switchport mode accessswitchport access vlan 583service-policy type qos input Bronze_CoS_2no shutdownstate enabledport-profile type vethernet Ten_49_VDI_10_49_32_Bvmware port-groupvmware max-ports 1024switchport mode accessswitchport access vlan 583service-policy type qos input Bronze_CoS_2no shutdownstate enabledport-profile type ethernet Unused_Or_Quarantine_Uplinkdescription Port-group created for Nexus1000V internal usage. Do not use.vmware port-groupshutdownstate enabledport-profile type vethernet Unused_Or_Quarantine_Vethdescription Port-group created for Nexus1000V internal usage. Do not use.vmware port-groupshutdownstate enabledport-profile type vethernet VDI_NFS_192_168_98vmware port-groupswitchport mode accessswitchport access vlan 589service-policy type qos input Platinum_CoS_5no shutdownstate enabledport-profile type ethernet VIC-Management-uplinkvmware port-groupswitchport mode trunkswitchport trunk allowed vlan 162,581channel-group auto mode on mac-pinningno shutdownsystem vlan 162state enabledport-profile type ethernet VIC-Monitoring-uplinkvmware port-groupswitchport mode trunkswitchport trunk allowed vlan 902system mtu 9000channel-group auto mode on mac-pinningno shutdownstate enabledport-profile type ethernet VIC-Services-uplinkvmware port-groupswitchport mode trunkswitchport trunk allowed vlan 900-901system mtu 9000channel-group auto mode on mac-pinningno shutdownsystem vlan 900-901state enabledport-profile type ethernet VIC-Storage-uplinkvmware port-groupswitchport mode trunkswitchport trunk allowed vlan 589system mtu 9000channel-group auto mode on mac-pinningno shutdownstate enabledport-profile type ethernet VIC-vm-data-uplinkvmware port-groupswitchport mode trunkswitchport trunk allowed vlan 582-583channel-group auto mode on mac-pinningno shutdownstate enabledport-profile type vethernet vMotion_192_168_1vmware port-groupswitchport mode accessswitchport access vlan 901service-policy type qos input Silver_CoS_4no shutdownstate enabled......interface control0logging logfile messages 6boot kickstart bootflash:/nexus-1000v-kickstart-mz.4.0.4.SV1.3a.bin sup-1boot system bootflash:/nexus-1000v-mz.4.0.4.SV1.3a.bin sup-1boot kickstart bootflash:/nexus-1000v-kickstart-mz.4.0.4.SV1.3a.bin sup-2boot system bootflash:/nexus-1000v-mz.4.0.4.SV1.3a.bin sup-2logging level cdp 6monitor session 1 type erspan-sourcedescription ** VDI desktops **destination ip 10.202.101.200erspan-id 49ip ttl 64ip prec 0ip dscp 0mtu 1500header-type 2no shutlogging level eth_port_channel 6svs-domaindomain id 103control vlan 900packet vlan 900svs mode L2svs connection vcenterprotocol vmware-vimremote ip address x.x.x.221 port 80vmware dvs uuid "f0 3b 0e 50 b2 0a d9 99-1b 68 e2 bf 6f 2d f4 f0" datacenter-name SASU-ESMT-VDIconnect1 vSphere supports up to 32 hosts in a DRS/HA cluster, while View 4.5 does not allow more than eight hosts in a cluster.
