Application Networking—Optimizing Oracle E-Business Suite 12i Across the WAN
October 6, 2008
This document presents network design practices to enhance an Oracle E-Business Suite12i application environment across the WAN. It introduces key concepts and options regarding application deployment and detailed designs strategies available to a data center leveraging Cisco application and networking technologies.
Today's organizations face a host of challenges from the new global economy. With Oracle E-Business Suite Release 12, applications and technology come together to ensure that your company can compete effectively in the worldwide marketplace.
Oracle E-Business Suite Release 12 enables businesses to think globally to make better decisions, work globally to be more competitive, and manage globally to lower costs and increase performance. With a new user experience and hundreds of cross-industry capabilities spanning enterprise resource planning, customer relationship management, and supply chain planning, this new release helps you manage the complexities of global business environments.
The enterprise data center is an intricate system of computing power and storage resources that supports enterprise business applications. A data center is not simply a facility, but represents a competitive edge that is strategic to achieving the real business objectives that the associated applications collectively address. The physical and logical design of the data center network must provide a flexible, secure, and highly available environment to optimize critical business applications and to assist the enterprise in achieving its goals; goals that are not confined to the local data center campus, but extend to encompass remote locations and users.
Enterprises are addressing IT infrastructure and management costs through the consolidation of branch and data center resources. Consolidation centralizes application environments and storage assets in the data center to make them accessible to remote users via the WAN. The introduction of detached applications to the enterprise is significant because distance might negatively affect performance, availability, and the overall end-user experience.
Cisco data center and Cisco branch architectures are established enterprise designs that deliver highly available and robust network infrastructures. This document describes the deployment of the Oracle E-Business Suite in a Cisco data center through the use of services available in the Cisco branch and local LAN. This end-to-end solution design employs many integrated network services—including load balancing, security, and application optimization.
This section describes the application architecture of the Oracle E-Business Suite 12i.
Enterprise Application Overview
The data center is a repository for enterprise software applications that are continuously changing to meet business requirements and to accommodate the latest technological advances and methods. Consequently, the logical and physical structure of the data center server farm and of the network infrastructure hosting associated software applications is also continuously changing.
The server farm has evolved from the classic client/server model to an N-tier approach, where N implies any number, such as two-tier or four-tier—any number of distinct tiers used in the architecture. The N-tier model logically or physically separates the enterprise application by creating functional areas. These areas are generally defined as the web frontend, the application business logic, and the database tiers.
Figure 1 Client/Server Model
Figure 2 The N-Tier Model
The N-tier model provides a more scalable and manageable enterprise application environment because it creates distinct serviceable areas in the software application. The application is distributed and becomes more resilient as single points of failure are removed from the design.
The Oracle application architecture uses the N-tier model by distributing application services across nodes in the server farm. The Oracle application architecture, as shown in Figure 3, uses the logical separation of tiers as desktop, application, and database. It is important to remember that each tier can consist of one or more physical host(s) to provide the enterprise with the required performance or application availability.
Figure 3 N-Tier Oracle Model
The desktop tier, traditionally called the presentation layer, consists of the client user interface (a web browser). The browser connects to the application tier via HTTP or HTTPS to the web server or the forms server. Historically, the forms server required the use of a client-side applet, Oracle JInitiator, which runs as an Active-X or plug-in on the client browser using a direct socket connection to the forms server. This direct-connect environment requires two logical connections to the applications tier: one connection to the web server listener and the other to the forms services (see Figure 4). This exposes an enterprise to potential security risks when connectivity is allowed beyond the confines of the corporate LAN or WAN by requiring holes in firewalls. These holes must open another port in the firewall—in addition to HTTP port allowing the connection between the client and the forms server. This becomes more of a security risk when Secure Socket Layer (SSL) is used. In the SSL environment, additional certificate requirements are necessary because certificates are required for the HTTP traffic and forms server.
Figure 4 Traditional Desktop to Form Server Connections
In 2002, Oracle E-Business Suite offered a more Internet-friendly forms server application by allowing a Java forms-listener servlet to intercept forms server requests via the web listener. The forms listener servlet allows a single HTTP or HTTPS connection between the client, desktop tier, and the application tier. Figure 5 shows the more secure forms-listener servlet deployment model, which can also take advantage of standard SSL offload and load balancing approaches.

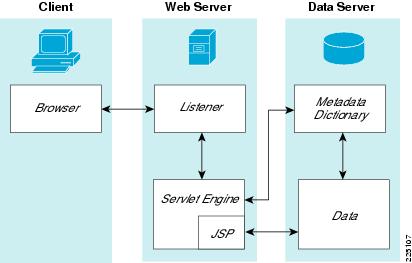

Figure 5 Forms Listener Servlet Architecture
Note The forms-listener servlet deployment model is now common in enterprise data centers. The remainder of this document assumes the use of this forms strategy.
The application tier of the Oracle E-Business Suite provides administrative services and business logic, allowing end users at the desktop tier to make use of the information found at the database tier.
Figure 3 shows the primary servers residing in this layer:
•Concurrent processing server
•Daily business intelligence
Each of the application servers provides business process logic or management services to the Oracle E-Business Suite-enabled enterprise. The desktop tier communicates with the application tier via the web server listener (see Forms Listener Servlet Architecture).
The application tier is commonly referred to as the APPL_TOP. The APPL_TOP is a file system that can reside on a single physical node or span multiple nodes in a shared multi-node application tier deployment. A shared APPL_TOP resides on a common disk mounted by each node in the Oracle 12i installation. A shared APPL_TOP allows any of the nodes to invoke the five primary server functions, such as the web server and forms server. The primary advantage to a shared application tier deployment is the ability to patch and/or modify a single file system in a multi-node deployment, propagating those changes to all nodes simultaneously.
In addition, the use of a single file system requires the backup of only a single file system despite the use of multiple nodes. The shared application file system shows three server nodes sharing the application file system via NFS. The shared mount point in this case is a storage device located in the network.
Figure 6 Shared Application File System
Note Windows systems do not support a shared application tier in an Oracle 12i environment. For more information on shared application tier file systems, see Oracle Metalink Document 384248.1.
The database tier contains the Oracle database server that stores all the data maintained by Oracle applications. The database also stores the Oracle applications online help information. More specifically, the database tier contains the Oracle data server files and Oracle applications database executables that physically store the tables, indexes, and other database objects for your system. The database server does not communicate directly with the desktop clients, but rather with the servers on the application tier that mediate the communications between the database server and the clients. To provide increased performance, scalability, and availability, Oracle offers real application clusters (RAC) that allow multiple nodes to support a single database instance.
Enterprise Network Architecture
Data Center Network Components
The logical topology of the data center infrastructure can be divided into the frontend network and the backend network, depending on their role:
•The frontend network provides the IP routing and switching environment, including client-to-server, server-to-server, and server-to-storage network connectivity.
•The backend network supports the storage area network (SAN) fabric and connectivity between servers and other storage devices, such as storage arrays and tape drives.
Note For more information on Cisco data center designs or other places in the network, refer to the following URL: http://www.cisco.com/en/US/netsol/ns743/networking_solutions_program_home.html. Content at that location provides an introduction to data center designs.
The frontend network contains three distinct functional layers:
Figure 7 shows a multi-tier frontend network topology and a variety of services that are available at each of these layers.

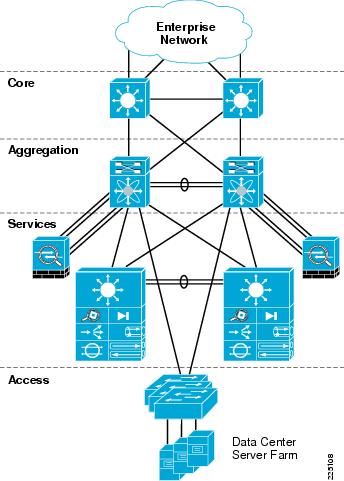

Figure 7 Data Center Multi-Tier Model Topology
The core layer is a gateway that provides high-speed connectivity to external entities such as the WAN, intranet, and extranet of the campus. The data center core is a Layer-3 domain where efficient forwarding of packets is the fundamental objective. To this end, the data center core is built with high-bandwidth links (10-Gigabit Ethernet) and uses routing best practices to optimize traffic flows. The data center core is connected to the WAN (Internet) edge; this is where acceleration devices can be placed.
The aggregation layer is a point of convergence for network traffic that provides connectivity between the services layer and the server farms at the access layer to the rest of the enterprise. The aggregation layer supports Layer 2 and Layer 3 functionality.
The services layer provides services that are shared across the access layer server farms. It provides common services in a way that is efficient, scalable, predictable, and deterministic. The services layer provides a comprehensive set of features for the data center. The following devices support these features:
•Multilayer aggregation switches
•Load balancing devices
•Wide area application
•Intrusion detection systems
•Network analysis devices
The primary role of the access layer is to provide the server farms with the required port density. In addition, the access layer must be a flexible, efficient, and predictable environment to support client-to-server and server-to-server traffic. A Layer-2 domain meets these requirements by providing the following:
•Layer-2 adjacency between servers and service devices
•A deterministic, fast converging, loop-free topology
Layer-2 adjacency in the server farm lets you deploy servers or clusters that require the exchange of information at Layer 2 only. It also readily supports access to network services in the services layer, such as load balancers and firewalls. This enables an efficient use of shared, centralized network services by the server farms.
In contrast, if services are deployed at each access switch, the benefit of those services is limited to the servers directly attached to the switch. Through access at Layer 2, it is easier to insert new servers into the access layer. The services layer is responsible for data center services, while the Layer-2 environment focuses on supporting scalable port density.
Layer-3 access designs are not widely deployed in current data centers. However, to minimize fault domains and provide rapid convergence, network administrators are seeking to leverage the benefits of Layer 3. Layer-3 designs do not exclude the introduction of network services, but the transparency of the service at the services layer is more difficult to maintain. As with all access layer designs, the requirements of the application environments drive the decision for either model. The access layer must provide a deterministic environment to ensure a stable Layer-2 domain regardless of its size. A predictable access layer allows spanning tree to converge and recover quickly during failover and fallback.
The backend SAN consists of core and edge SAN storage layers to facilitate high-speed data transfers between hosts and storage devices. SAN designs are based on the FiberChannel (FC) protocol. Speed, data integrity, and high availability are key requirements in an FC network. In some cases, in-order delivery must be guaranteed. Traditional routing protocols are not necessary on FC. Fabric Shortest Path First (FSFP), similar to Open Shortest Path First (OSPF), runs on all switches for fast fabric convergence and best path selection. Redundant components are present from the hosts to the switches and to the storage devices. Multiple paths exist and are in use between the storage devices and the hosts. Completely separate physical fabrics are a common practice to guard against control plane instability, ensuring high availability in the event of any single component failure. Figure 8 illustrates a general SAN topology.

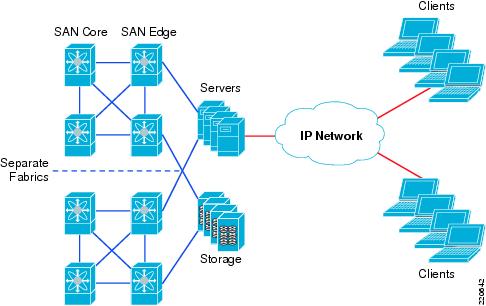

Figure 8 SAN Topology
SAN Core Layer
The SAN core layer provides high-speed connectivity to the edge switches and external connections. Connectivity between core and edge switches are 10 Gbps links or trunking of multiple full-rate links for maximum throughput. Core switches also act as master devices for selected management functions, such as the primary zoning switch and Cisco fabric services. In addition, advanced storage functions such as virtualization, continuous data protection, and iSCSI reside in the SAN core layer.
SAN Edge Layer
The SAN edge layer is analogous to the access layer in an IP network. End devices such as hosts, storage, and tape devices connect to the SAN edge layer. Compared to IP networks, SANs are much smaller in scale, but the SAN must still accommodate connectivity from all hosts and storage devices in the data center. Over-subscription and planned core-to-edge fan out ratio result in high port density on SAN switches. On larger SAN installations, it is common to segregate the storage devices to additional edge switches.
Branch Network Components
The enterprise branch provides remote users connectivity to corporate resources such as the centralized application services residing in the enterprise data center. The architectural design of the enterprise branch varies depending on the availability, scalability, security, and other service requirements of the organization.
The Cisco enterprise branch architecture framework defines the network infrastructure, network services, and application optimization capabilities of three typical branch deployment models. Figure 9 shows these three common branch solutions. Each of these profiles provides varying degrees of scalability and resiliency in addition to integrated network and application services.
Figure 9 Network Infrastructure Layer -Three Models
Note This document does not focus on enterprise branch design. For more information on Cisco data center designs or other places in the network, refer to the following URL:
This section provides an overview of the significant Cisco products and technologies leveraged in this design. The following products are addressed:
Cisco Wide Area Application Engine
To appreciate how Wide Area Application Services (WAAS) provides WAN and application optimization benefits to the enterprise, consider the basic types of centralized application messages that are transmitted between remote branches. For simplicity, two basic types are identified:
•Bulk transfer applications—Transfer of files and objects, such as FTP, HTTP, and IMAP. In these applications, the number of round-trip messages may be few and may have large payloads with each packet. Examples include web portal or thin client versions of Oracle, SAP, Microsoft (SharePoint, OWA) applications, e-mail applications (Microsoft Exchange, Lotus Notes), and other popular business applications.
•Transactional applications—High number of messages transmitted between endpoints. Chatty applications with many round-trips of application protocol messages that may or may not have small payloads. Examples include Microsoft Office applications (Word, Excel, PowerPoint, and Project).
WAAS uses the technologies described in the following subsections to provide a number of features, including application acceleration, file caching, print service, and DHCP to benefit both types of applications.
Advanced Compression using DRE and Lempel-Ziv Compression
Data Redundancy Elimination (DRE) is an advanced form of network compression that allows Cisco WAAS to maintain an application-independent history of previously-seen data from TCP byte streams. Lempel-Ziv (LZ) compression uses a standard compression algorithm for lossless storage. The combination of using DRE and LZ reduces the number of redundant packets that traverse the WAN, thereby conserving WAN bandwidth, improving application transaction performance, and significantly reducing the time for repeated bulk transfers of the same application.
Transport File Optimizations
Cisco WAAS Transport File Optimizations (TFO) uses a robust TCP proxy to safely optimize TCP at the WAE device by applying TCP-compliant optimizations to shield the clients and servers from poor TCP behavior because of WAN conditions. Cisco WAAS TFO improves throughput and reliability for clients and servers in WAN environments through increases in the TCP window sizing and scaling enhancements as well as implementing congestion management and recovery techniques to ensure that the maximum throughput is restored if there is packet loss.
Common Internet File System Caching Services
Common Internet File System (CIFS), used by Microsoft applications, is inherently a highly chatty transactional application protocol where it is not uncommon to find several hundred transaction messages traversing the WAN just to open a remote file. WAAS provides a CIFS adapter that can inspect and to some extent predict what follow-up CIFS messages are expected. By doing this, the local WAE caches these messages and sends them locally, significantly reducing the number of CIFS messages traversing the WAN.
WAAS provides native SMB-based Microsoft print servers locally on the WAE device. Along with CIFS optimizations, this allows for branch server consolidation at the data center. Having full-featured local print services means less traffic transiting the WAN. Without WAAS print services, print jobs are sent from a branch client to the centralized server(s) across the WAN, then back to the branch printer(s), thus transiting the WAN twice for a single job. WAAS eliminates the need for either WAN trip.
Cisco Application Control Engine
The Cisco Application Control Engine (ACE) provides a highly available and scalable data center solution from which the Oracle E-Business Suite application environment may benefit. Currently, the ACE is available as an appliance or integrated service module in the Catalyst 6500 platform. ACE features and benefits include the following:
•Device partitioning (up to 250 virtual ACE contexts)
•Load balancing services (up to 16 Gbps of throughput capacity, 345,000 L4 connections/second)
•Security services via deep packet inspection, access control lists (ACLs), unicast reverse path forwarding (URPF), Network Address Translation (NAT)/Port Address Translation (PAT) with fix-ups, syslog, and so on
•Centralized role-based management via Application Network Manager (ANM) GUI or CLI
• SSL Offload (up to 15,000)
•SSL sessions via licensing
•Support for redundant configurations (intra-chassis, inter-chassis, inter-context)
The ACE support the following modes of operation:
The following sections describe some of the features and functionalities found on the ACE and employed in the Oracle E-Business Suite application environment.
Virtualization is a prevalent trend in the enterprise today. From virtual application containers to virtual machines, the ability to optimize the use of physical resources and provide logical isolation is gaining momentum. The advancement of virtualization technologies includes the enterprise network and the intelligent services it offers.
The ACE supports device partitioning where a single physical device may provide multiple logical devices. This virtualization functionality allows system administrators to assign a single virtual ACE device to a business unit or application to achieve application performance goals or service-level agreements (SLAs). The flexibility of virtualization allows the system administrator to deploy network-based services according to the individual business requirements of the customer and technical requirements of the application. Service isolation is achieved without purchasing another dedicated appliance that consumes more space and power in the data center.
Figure 10 shows the use of virtualized network services afforded via the ACE and Cisco Firewall Services Module (FWSM). In Figure 10, a Catalyst 6500 housing a single ACE and FWSM supports the business processes of five independent business units. The system administrator determines the requirements of the application and assigns the appropriate network services as virtual contexts. Each context contains its own set of policies, interfaces, resources, and administrators. The ACE and FWSMs allow routed, one-arm, and transparent contexts to co-exist on a single physical platform.
Figure 10 Service Chaining via Virtualized Network Services
Note For more information on ACE virtualization, see the Application Control Engine Module Virtualization Configuration Guide at the following URL: http://www.cisco.com/en/US/docs/interfaces_modules/services_modules/ace/v3.00_A2/configuration/virtualization/guide/config.html
Session persistence is the ability to forward client requests to the same server for the duration of a session. Oracle recommends HTTP session persistence for their E-Business Suite environment via the following:
ACE supports each of these methods, but given the presence of proxy services in the enterprise, Cisco recommends using the cookie sticky method to guarantee load distribution across the server farm. HTTP Header Insertion Example shows the ACEOptimized cookie inserted into the client E-Business request.
In addition, ACE supports the replication of sticky information between devices and their respective virtual contexts. This provides a highly available solution that maintains the integrity of each session.
Load balancers typically perform a NAT function to conceal the real server IP addresses residing in the enterprise data center, which means that the virtual IP address (VIP) is transformed and the request is forwarded to a real server. In addition to supporting this functionality, the ACE allows the system administrator to disable NAT for particular server farms, which is a desirable behavior for both firewall load balancing deployments and WAAS server farms.
Note Transparent interception allows the WAE devices to perform their application optimization functionality without changing the Layer 3 information of the session.
The ACE device is capable of tracking the state of a server and determining its eligibility for processing connections in the server farm. The ACE uses a simple pass/fail verdict but has many recovery and failures configurations, including probe intervals, timeouts, and expected results. Each of these features contributes to an intelligent load balancing decision by the ACE context.
Following are the predefined probe types currently available on the ACE module:
•Scripted (TCL support)
Note that the potential probe possibilities available via scripting make the ACE an even more flexible and powerful application-aware device. In terms of scalability, the ACE module can support 1000 open probe sockets simultaneously.
Note In the E-Business Suite environment, the HTTP probe verified the state of the entire application stack by requesting a page requiring APPL_TOP and database services.
Untested Cisco ACE Features
The following additional features of the Cisco ACE that were not tested with Oracle 12i EBS during the creation of this document:
These features are described briefly in the following subsections.
TCP reuse allows the ACE to recycle TCP connections to the server farm, essentially reducing the load on the application servers. Servers use RAM to open and maintain connections to clients. RAM is a finite resource that directly impacts server performance. The ACE module allows persistent TCP connections to the application server and reclaims them for use by multiple clients.
Note It is important to verify that the MSS and TCP options on the server and ACE are identical. For logging consistency, use HTTP header insertion to maintain the source IP address of clients when TCP reuse is in use.
HTTP Header Insertion
The ACE HTTP header insertion feature allows a system administrator to insert a generic string value or to capture the following request specific values:
•Source IP address
•Destination IP address
HTTP header insertion is especially useful when TCP reuse or the source address of the request may be determined via NAT. HTTP header insertion allows service logs to reflect the original source IP address of the request. Figure 11 shows the insertion of an HTTP header under the name X-forwarder, reflecting the source IP address of the request.
Figure 11 HTTP Header Insertion Example
The ACE is capable of Reverse Path Forwarding (RPF) based on the source MAC address on a VLAN interface of the request. This feature allows for transparency at Layer 3 and provides deterministic traffic flows at Layer 2 through the ACE. Cisco WAAS devices deployed as a server farm under the ACE take advantage of this feature, guaranteeing that the same WAE device consistently manages each TCP session.
Note This feature is not compatible with Layer 3 (IP)-based Reverse Path Forwarding (RPF).
Allowed Server Connections
Enterprise data centers typically perform due diligence on all deployed server and network devices, determining the performance capabilities to create a more deterministic, robust, and scalable application environment. The ACE allows the system administrator to establish the maximum number of active connections values on a per-server basis and/or globally to the server farm. This functionality protects the end device, whether it is an application server or network application optimization device such as the WAE.
Route Health Injection
Route health injection (RHI) allows the ACE to advertise host routes to any number of virtual IP addresses hosted by the device. The injection of the host route to the remaining network offers Layer 3 availability and convergence capabilities to the application environment.
Packet Flow with WAAS and ACE
Figure 12 illustrates the handshake between a client and the server farm and the data transfer phase.
Figure 12 Packet Flow with WAAS and ACE
The following process description summarizes the steps illustrated in Figure 12:
1. The client sends a SYN packet to the server farm VIP address. The packet is forwarded to the branch router. The branch router intercepts the packet with WCCP and forwards it to the branch WAE.
2. 2a). The branch WAE applies a new TCP option (0x21) to the packet if the application is identified for optimization by an application classifier. The branch WAE adds its device ID and application policy support to the new TCP option field. This option is examined and understood by other WAEs in the path as the ID and policy fields of the initial WAE device. The initial ID and policy fields are not altered by another WAE. The packet is forwarded to the branch router and then to the WAN.
2b). During the data transfer phase, if the requested data is in its cache, the branch WAE returns its cached data to the client. Traffic does not travel through the WAN to the server farm. Therefore, both response time and WAN-link utilization are improved.
3. The packet arrives on the WAN edge router. The WAN edge router intercepts the packet with WCCP and forwards the packet to the data center WAE.
4. The data center WAE inspects the packet. Finding that the first device ID and policy is populated, it updates the last device ID field (first device ID and policy parameters are unchanged). The data center WAE forwards the packet to the WAN edge router. The edge router forwards it to the ACE. The ACE forwards the packet to the server farm VLAN with TCP option 21 removed. TCP options are usually ignored by the server, even if it is still in place. The ACE performs load balancing to the data traffic. Other functions the ACE performs include SSL offload, TCP reuse, cookie and IP sticky pertinence.
5. The following steps are for reverse traffic flow. The server farm sends the SYN/ACK packet back to the client with no TCP option. The packet from the server farm VLAN is matched and forwarded to the ACE and then to the WAN edge router. The WAN edge router forwards the packet to the data center WAE. The data center WAE marks the packet with TCP option 0x21. During the data transfer phase, the data center WAE caches the data if the data is not in its cache.
6. The data center WAE sends the packet to the WAN edge router.
7. The packet travels through the WAN and arrives at the branch router. The branch router intercepts the packet and forwards it to the branch WAE. The branch WAE is aware of the WAE in the data center because the SYN/ACK TCP option 0x21 contains an ID and application policy. The auto-negotiation of the policy occurs as the branch WAE compares its application-specific policy to that of its remote peer defined in the TCP option. At this point, the data center WAE and branch WAE have determined the application optimizations to apply on this specific TCP flow. During the data transfer phase, the branch WAE caches the data if the data are not in its cache.
8. The packet is forwarded to the branch router and then to the client.
Firewall Services Module
The Cisco Firewall Services Module (FWSM) is a stateful packet inspection engine that delivers access control security between network segments. The FWSM is an integrated service module available on the Catalyst 6500 platform that supports the following two modes of operation:
•Routed mode—The FWSM is considered a next hop in the network.
•Transparent mode—The FWSM bridges traffic between VLAN segments.
The FWSM supports device partitioning, allowing a single FWSM to be virtualized into multiple security contexts. The security contexts are logically isolated using independent security rules and routing tables. The system administrator can define up to 100 security contexts on a single FWSM. In addition, security context deployments support either routed or transparent mode. Service Chaining via Virtualized Network Services shows several configuration options available with the security contexts of the FWSM. FWSM security contexts provide a flexible, scalable solution for data center application deployments.
Note The Oracle E-Business Suite application environment set up for this test document used security contexts in front of the APPL_TOP and database servers.
Design and Implementation Details
The enterprise network is a platform constructed to support a myriad of business functions; more specifically, applications. The traditional perception of the network relegates its role to one of data transport, providing a reliable fabric for the enterprise. This is a fundamental responsibility of the network infrastructure and should be enhanced rather than neglected. In addition to transport, the ubiquitous nature of the enterprise network fabric allows the introduction of intelligent network services to support business applications. This evolution of the network as an enterprise service platform is natural and supports the following Oracle application objectives:
The Cisco data center architecture is a holistic approach that allows the network and the applications it supports to work together. The primary goals of this design are to increase the performance, availability, scalability, and manageability of enterprise applications in the data center, while simultaneously providing a secure environment. In addition, this design reduces the complexity and implementation time of enterprise applications in the data center using virtualization technologies and network design best practices. The remainder of this document focuses on each of these objectives when deploying an Oracle E-Business Suite 12i application using the services of the Cisco data center infrastructure and Cisco empowered branch solutions.
The WAAS solution requires a minimum of two WAE devices to auto-discover and deliver applicable application optimizations. To leverage these transparent optimizations across the WAN, deploy one or more WAEs at the remote branch and one or more WAEs at the enterprise data center, depending on availability and scalability requirements.
Within the existing branch topologies, the WAE devices may be positioned in one of the following models:
Figure 13 shows each of these design models. The extended services branch offloads the WAE device from the local branch router and leverages the available ports on a local switch. The consolidated branch model uses an integrated services router, providing a comprehensive solution within a single platform. Each of these models provides application optimization services. The enterprise must consider the scalability and availability requirements of each branch for WAAS and other network services before choosing a deployment model.
Note The testing performed to create this document used extended branch design model. For more information on Cisco WAE branch deployments, see Enterprise Branch Wide Area Application Services Design Guide at the following URL: http://www.cisco.com/application/pdf/en/us/guest/netsol/ns477/c649/ccmigration_09186a008081c7d5.pdf
Figure 13 WAE Branch Deployment Models
WAAS technology requires the efficient and predictable interception of application traffic to produce results. It is critical that the WAE device see the entire TCP conversation. At the WAN edge, Cisco routers support the following four methods of traffic interception:
•Policy-based routing (PBR)
•Web Cache Communications Protocol (WCCP) v2
•Service policy with ACE
WCCPv2 is the most common method used in the remote branch environment; therefore, WCCPv2 has been leveraged for this documentation.
This section focuses on the different methods of deploying the ACE and FWSM in the Oracle 12i EBS environment. The Cisco Wide Area Application Engine (WAE) will not change, because it will be placed in the data center WAN edge and in the branch. The section is broken out as follows:
These designs specifically address a multi-tier deployment of the Oracle E-Business Suite application in the Cisco data center infrastructure architecture. The designs provide centralized load balancing, security, and optimization services for the application. In addition, the virtualization capabilities of both the FWSM and the ACE allow a single physical device to provide multiple logical devices to support a variety of application environments.
Design Architecture Details
This section describes the application and network components of the test bed and includes the following sub-topics:
Oracle E-Business Suite 12i Environment
This subsection details the application environment used during testing as well as identify the hardware and software components of the test bed.
•A single Penguin Altus 1300 server supports the Oracle 12i database. Accessing this database server is a set of three HP DL580 servers housing the APPL_TOP nodes of this deployment. NFS services at the APPL_TOP layer allowed for a shared environment across the nodes.
•Red Hat Enterprise Linux AS Release 4 (Update 5) is the operating system used for all nodes in the test bed. The Oracle test environment consists of the following software packages:
–E-Business Suite 12i version 12 r 4
–Oracle Database version 10.1.2
The Oracle E-Business Suite contains a sample database named Vision. The Vision database allows the generation of valid application traffic in the test bed using production-ready applications in the Oracle 12i Suite.
Oracle E-Business Suite 12i Environment with Integrated Network Services
This section covers the introduction of network services into the Oracle E-Business Suite solution topology. The network-related hardware and software components are shown in Table 1.
ACE Server Load Balancing (SLB) Algorithms
The ACE virtual context determines the state of the Oracle environment via health probes. Using this information, the ACE context manages the workload for each Oracle server and the state of the VIP, making the environment highly available and scalable by potentially supporting thousands of E-Business servers. The ACE module currently supports the following load balancing algorithms:
For this test environment, least connections was used.
Additional Integrated Service Options
This document addresses the integration of network services with the Oracle enterprise class application, E-Business Suite 12i. Server load balancing and security are fundamental services that may be leveraged by data center applications. In addition, this document details the integration of network-based application optimization services in the data center and remote branch. However, these are not the only integrated network services available for the enterprise. The following network services are also accessible as service modules or appliances:
•SSL offloading (hardware-based option integrated into the ACE platform)
•Intrusion prevention systems (IPS)
•Intrusion detection systems (IDS)
•Network analysis devices
•Alternative WAN optimization systems such as the Application Velocity System
The management aspect of the data center and branch network environments is critical to the success of the enterprise. In the test bed, the following Cisco management tools were used to monitor and configure the network environment:
•Cisco Application Networking Manager (ANM) to monitor and manage the ACE module
•Cisco Fabric Manager for the SAN configurations
•Cisco Network Analysis Module (NAM)
•Cisco Application Analysis Solution (AAS)
Bridged vs. Routed ACE and FWSM
Both the ACE and the FWSM can be deployed in routed or bridged (transparent) mode. For this test, environment bridged mode was selected. The choice to use either method is dependent on the customer's design requirements. The following list summarizes some considerations to review when deciding whether to deploy the ACE and FWSM in either bridged or routed mode:
•Ease of configuration and deployment when using the ACE in bridge mode.
•The ACE does not support routing protocols, only static routes.
•The FWSM only supports OSPF and static routes when used in routed mode.
•By using bridged (transparent) mode for the ACE and the FWSM, there are no routing constraints as the Multilayer Switch Feature Card (MSFC) performs all the routing functions.
•Only a single IP address is required when using bridge mode, whereas multiple IPs are required for routing mode.
•The ACE can support multiple contexts (license dependent). Each context can be either routed or bridged.
•The FWSM can support bridged or routed but not both.
•The FWSM is limited to eight bridged interface pairs with FWSM version 3.1; if more than eight interfaces are required then routed mode must be used.
•If active-active is a requirement when using the service modules in bridged mode, the possibility of loops is introduced. This can happen when the heartbeat messages are lost due to the interswitch link (ISL) failure or a configuration error that causes both contexts to believe the other is down. This can be mitigated by forwarding Bridge Protocol Data Units (BPDU) across the service modules. However, to completely remove the possibility of a loop, one of the contexts (ACE or FWSM) must be placed in routed mode.
ACE Transparent Mode Design

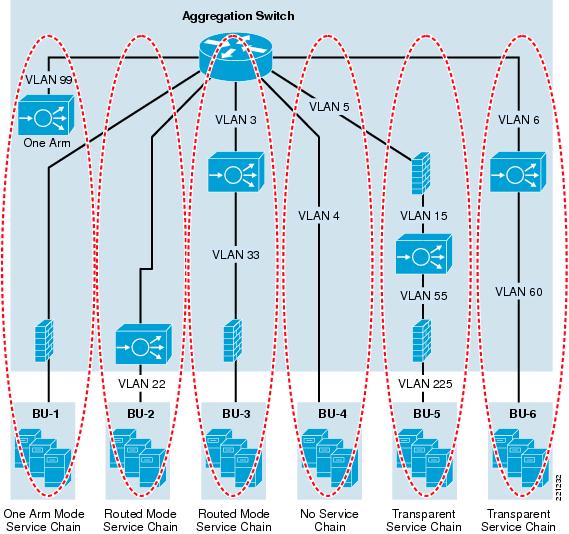

Figure 14 details the data center networking topology used in the test Oracle application environment. The extended test branch connects to the data center across the WAN and leverage the services of the enterprise edge and data center core (not pictured here) that attach to the aggregation layer of the data center.
Best practices for the Cisco data center infrastructure offer predictable Layer-2 and Layer-3 traffic patterns, permitting the efficient application of network services. From a Layer-2 perspective, the data center must be scalable, flexible, and robust. Given current application clustering, network interface card (NIC) teaming, and virtual machine requirements, the presence of a Layer-2 redundancy protocol is required and will be for the foreseeable future. At this time, Cisco recommends the use of Rapid Per VLAN Spanning Tree (RPVST)+ to achieve sub-second Layer-2 convergences and deterministic flows in the data center.

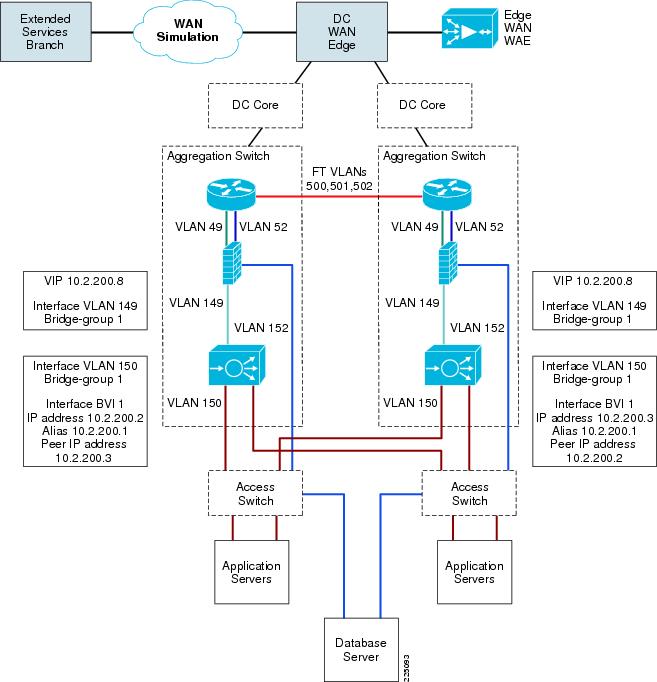

Figure 14 Logical Topology using ACE in Transparent Mode
The Layer-3 devices in the aggregation layer use a redundancy protocol such as Hot Standby Routing Protocol (HSRP) or Virtual Router Redundancy Protocol (VRRP) to create a robust IP network. The MSFC employs an Interior Gateway Protocol (IGP), for instance OSPF or Enhanced Interior Gateway Routing Protocol (IGRP), to distribute route information to the external network—including updates relative to the state of the E-Business Suite applications. This information is derived from the RHI messages received from the active ACE context. In addition to Layer-2 and Layer-3 functionality, the data center aggregation switches together create a natural convergence area in the network and therefore present an ideal location to apply intelligent network services.
Note For more information on data center infrastructure design best practices, refer to the following URL: http://www.cisco.com/go/designzone.
The ACE virtual context in this design is in transparent mode and the default gateway of the APPL_TOP servers points to an IP address existing on a VLAN on the MSFC. This IP address is redundant (via HSRP) between the data center aggregation layer switches, offering a redundant Layer-3 topology for the server farms.
FWSM Transparent (Bridged) Design
In Figure 14, multiple FWSM contexts provide security services to the Oracle APPL_TOP and database tiers. The segmented traffic patterns between tiers in the multi-tier Cisco data center infrastructure allows for granular security policies, as well as application services, to be applied at each layer of the stack. In this instance, there are two transparent firewall contexts deployed. Transparent firewalls are bumps-in-the-wire, bridging traffic between VLAN segments. Transparent firewalls allow the construction advanced Layer-2 topologies by passing Bridge Protocol Data Units (BPDUs) between VLAN segments.
ACE Routed Mode Design
Figure 15 shows the Oracle E-Business Suite 12i application environment with the ACE virtual context in a routed mode design. The ACE context provides load balancing, session persistence, and security services to the application.

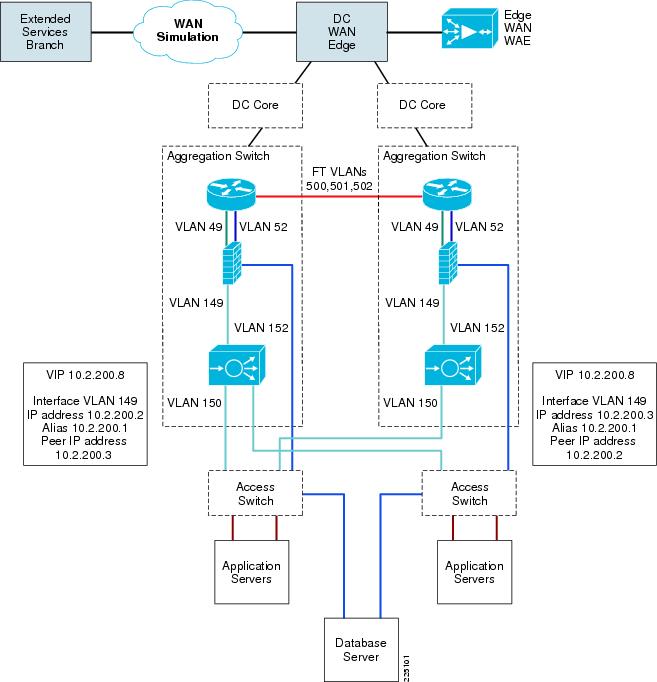

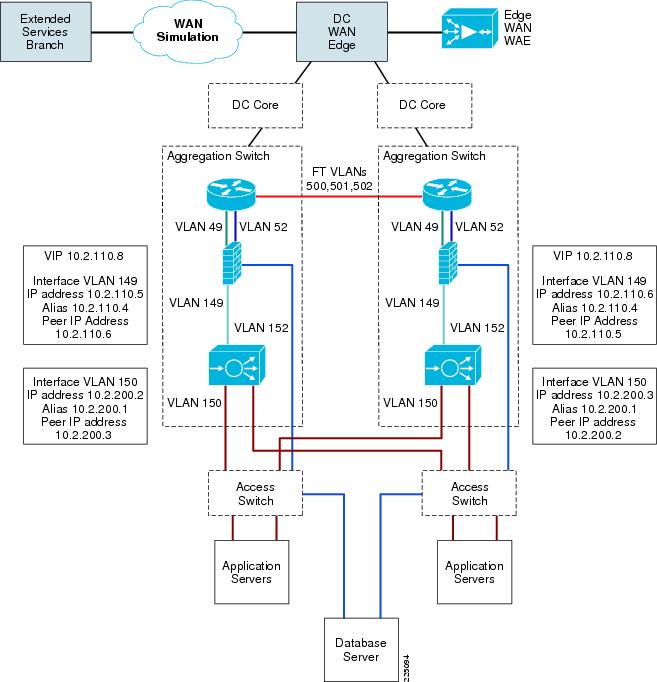

Figure 15 ACE Routed Mode Test Bed Topology
The routed mode design implies that the ACE is the default gateway for the APPL_TOP server farm. The gateway is accessible via the services of a transparent firewall context. The ACE and firewall context are deployed in an active/standby scenario with stateful failover. An independent pair of transparent virtual firewalls secures the database environment as well. The ability to segment and enforce granular traffic policies at each tier of the application topology is a powerful characteristic of this design.
At the foundation, the application leverages the high availability, scalability, and security features of the Cisco data center infrastructure at Layer 2 and Layer 3. The aggregation switch on the left in Figure 15 represents the root of the spanning tree domain and the active HSRP Layer-3 interface. To provide efficient traffic patterns in the data center, we recommend keeping active network service contexts aligned with the Layer-2 and -3 topologies. This prevents overutilization of ISLs that might support fault-tolerant protocols in addition to traffic relevant to the application.
The ISLs in the test bed are all 10-Gigabit Ethernet. The access layer switches are dual-homed to the aggregation switches and carry the APPL_TOP and database subnets. The servers are dual-homed to the access layer using an active/standby NIC teaming configuration.
FWSM Routed Design
On the MSFC, static routes are used to push the traffic to the FWSM. These routes are redistributed into the dynamic routing protocol used by the enterprise and become external routes. The FWSM is configured to route traffic to the MSFC. The FWSM acts as a router between connected networks, and each interface requires an IP address on a different subnet. In single context mode, the routed firewall supports Routing Information Protocol (RIP) in passive mode and OSPF. Multiple context mode supports static routes only, although it is recommended that you use the advanced routing capabilities of the upstream and downstream routers instead of relying on the FWSM for extensive routing needs.
WAAS and ACE SSL Offload Performance Summary
This section describes performance testing conducted using the Oracle E-Business Suite application environment using the transparent mode design. The tests were conducted using the Mercury LoadRunner application test tool. Two LoadRunner scripts were created to determine the potential benefits of the Cisco WAAS solution in an Oracle E-Business deployment. The data center and branch environments described earlier provide the end-to-end network connectivity, while using Pagent to inject selected delays for each 30-minute test iteration. These tests simulate a remote branch user accessing applications homed in the data center. The tests used the following WAN variables: T1 and 512Kbps simulating a large branch office and a small branch office, respectively. Figure 16 through Figure 19 illustrate test results.
Figure 16 illustrates the average performance impact on a non-optimized native WAN, and the improvements provided with the Cisco WAAS solution. As the charts in Figure 17 and Figure 19 illustrate, the non-optimized WAN has a negative impact on the user experience. The WAAS solution provides an improved user experience, as indicated by allowing more transactions to occur due to increased throughput. Note that the increased throughput and transactions result from the WAE caching data at the local and remote locations. In addition, the WAE compresses data that traverses the WAN—which also contributes to reduced overall total data being sent over the WAN.

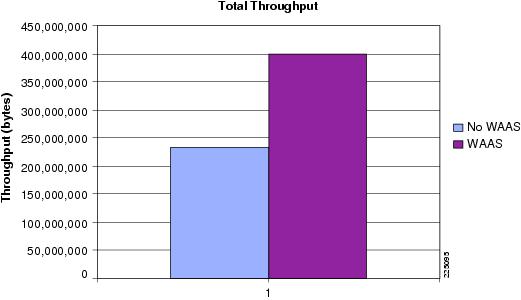

Figure 16 Total Throughput Summary Using a T1 with 100mec Delay, 0.1 Packet Loss, and 10 Users

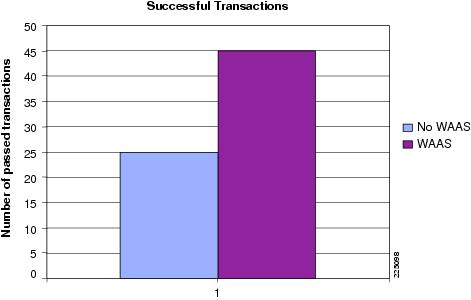

Figure 17 Total Transaction Throughput Summary Using a T1 with 100mse Delay, 0.1 Packet Loss, and 10 Users

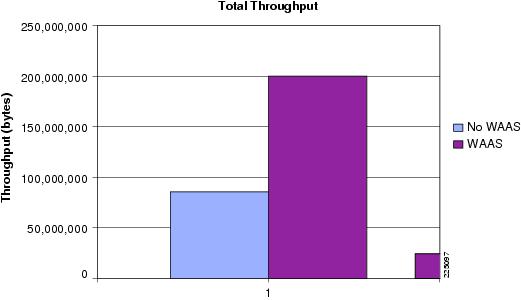

Figure 18 Total Throughput Summary Using a 512Kbps Link with 200msec Delay, 0.2 Packet Loss, and 5 Users

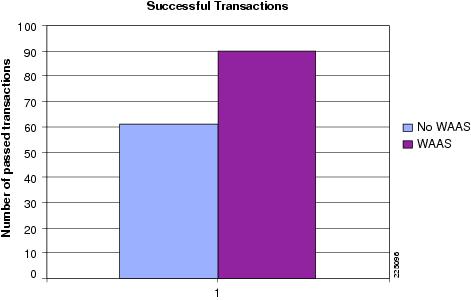

Figure 19 Total Transaction Throughput Summary Using a 512K Link with 200msec Delay, 0.2 Packet Loss, and 5 Users
The ACE was tested for Server Load Balancing (SLB) and SSL offload. When using the ACE to perform SSL offload, the ACE communicates with the clients via SSL and communicates with the servers in clear text. This allows the ACE to remove the additional workload that would be needed to be performed by the servers. The ACE performs the encryption and decryption of the SSL traffic between the clients and the ACE. The test used a single Oracle 12i EBS application server configured for SSL using a load balancer. Table 2 summarizes the required changes when configuring SSL on the Oracle 12i EBS application server and connected to load balancer to perform SSL offload.
Note For more information on configuring the Oracle 12i EBS application server for SSL offload, refer to the following URL: https://metalink.oracle.com/metalink/plsql/f?p=130:14:9627043080427676175::::p14_database_id,p14_docid,p14_show_header,p14_show_help,p14_black_frame,p14_font:NOT,376700.1,1,1,1,helvetica#midtier (requires Oracle Metalink access)
Table 3 Statistics Summary for SSL Direct
Maximum Running Vusers
Total Throughput (bytes)
Average Throughput (bytes / second)
Average Hits per Second
Total Passed Transactions
Figure 20 Output Example Showing Statistics for SSL Direct
Figure 21 Output Example Showing Statistics for SSL Offload
Performance Observation Results
The performance test results indicate that with SSL offload, the number of transactions increased. Due to the increased transactions, the CPU utilization, average load, and paging rate increased as compared to SSL direct.
Application Configuration Details
Oracle E-Business Suite requires modifications to the APPL_TOP tier to employ network-based load balancing and SSL offload services. The autoconfiguration file retains the APPL_TOP tier configuration information and must be modified to support these advanced services.
•HTTP load balancing
•Forms listener servlet
•SSL acceleration (Configuration changes shown in the performance section)
Note that the MFSC configuration section only indicates the service line card (SVCLC) configuration. The virtual LANs (VLAN) and routing must also be configured.
MFSC Configurationsvclc autostatesvclc multiple-vlan-interfacessvclc module 3 vlan-group 1,3,4,5svclc vlan-group 1 150,151,158-161,190,191,210,211,220,221,230,231,240,241svclc vlan-group 1 500svclc vlan-group 2 49,52,152svclc vlan-group 3 82,105svclc vlan-group 4 110svclc vlan-group 5 149firewall multiple-vlan-interfacesfirewall module 1 vlan-group 2,3,5
ACE Admin Contextlogging enablelogging fastpathlogging standbylogging console 0logging timestamplogging trap 5logging history 3logging supervisor 6logging buffered 3logging persistent 3logging monitor 3logging device-id context-namelogging reject-newconn tcp-queue-fulllogging reject-newconn rate-limit-reachedlogging reject-newconn cp-buffer-fulllogging host 172.28.196.75 udp/514 format emblemlogin timeout 60line vtysession-limit 100hostname ACE1-Slot3boot system image:c6ace-t1k9-mz.A2_1.binresource-class Goldlimit-resource all minimum 10.00 maximum unlimitedlimit-resource conc-connections minimum 10.00 maximum unlimitedlimit-resource sticky minimum 10.00 maximum unlimitedresource-class Silverlimit-resource all minimum 0.00 maximum unlimitedlimit-resource conc-connections minimum 10.00 maximum equal-to-minaccess-list anyone line 10 extended permit ip any anyaccess-list anyone line 20 extended permit icmp any anyparameter-map type connection WANtcp-options selective-ack allowclass-map type management match-any remote-accessdescription remote access traffic match rule10 match protocol telnet any20 match protocol ssh any30 match protocol icmp any31 match protocol https any32 match protocol snmp anypolicy-map type management first-match remote-mgtclass remote-accesspermitinterface vlan 82description To OOB Management Networkip address 172.28.196.150 255.255.255.0peer ip address 172.28.196.142 255.255.255.0access-group input anyoneservice-policy input remote-mgtno shutdownft interface vlan 500ip address 192.168.50.1 255.255.255.252peer ip address 192.168.50.2 255.255.255.252no shutdownft peer 1heartbeat interval 300heartbeat count 10ft-interface vlan 500ft group 1peer 1no preemptpriority 200associate-context Admininservicecontext ebsdescription Oracle 12i EBSallocate-interface vlan 82allocate-interface vlan 149-150member Goldft group 8peer 1no preemptpeer priority 200associate-context ebsinservice
ACE Oracle12i Transparent Mode ContextGenerating configuration....crypto csr-params EBSPARMScountry USstate Californialocality SJorganization-name CMOorganization-unit ANSteamcommon-name teamserial-number cisco123crypto csr-params EBPARMScountry USstate Californialocality SJorganization-name CMOorganization-unit ANSteamcommon-name ebsvipserial-number cisco123crypto csr-params EPARMScountry USstate Californialocality SJorganization-name CMOorganization-unit ANSteamcommon-name ebsvip.cisco.comserial-number cisco123access-list bdpu ethertype permit bpduaccess-list all line 10 extended permit icmp any anyaccess-list all line 20 extended permit ip any anyprobe http webdescription This is a basic HTTP Probeport 8000interval 5faildetect 15passdetect interval 15receive 2expect status 200 200open 2parameter-map type ssl SSLPARMScipher RSA_WITH_RC4_128_MD5version SSL3rserver host app1ip address 10.2.200.10inservicerserver host app2ip address 10.2.200.11inservicerserver host app3ip address 10.2.200.12inservicessl-proxy service SSLPROXYssl-proxy service sslproxykey esslcert ebslssl advanced-options SSLPARMSserverfarm host httpebs! The application servers listen on port 8000 by default.serverfarm host httpebs farmdescription This is the httpsebs server farmprobe webrserver app1 8000inservicerserver app2 8000inservicerserver app3 8000inservice! HTTP cookie sticky is employed for the httpebs farmsticky http-cookie acecookie sticky-insert-cookiecookie insertreplicate stickyserverfarm httpebsclass-map match-all ACL2 match access-list all! Oracle httpebs HTTP VIP addressclass-map match-all ebsVIP10 match virtual-address 10.2.200.8 tcp eq 8000! Oracle httpebs HTTPS VIP addressclass-map match-all ebssslvip10 match virtual-address 10.2.200.8 tcp eq 4443class-map type management match-any remote-mgmt10 match protocol ssh any20 match protocol telnet any30 match protocol icmp any40 match protocol http any50 match protocol https anyclass-map match-all server-initiateddescription server initiated connections2 match source-address 10.2.200.0 255.255.255.03 match destination-address 10.2.200.8 255.255.255.255policy-map type management first-match remote-accessclass remote-mgmtpermit! This policy refrences the sticky server farm created to support the HTTP httpebs serverspolicy-map type loadbalance first-match VIP-HTTPclass class-defaultsticky-serverfarm sticky-insert-cookie! This policy refrences the sticky server farm created to support the HTTPS httpebs serverspolicy-map type loadbalance first-match VIP-HTTPSclass class-defaultsticky-serverfarm sticky-insert-cookie! This policy map is enforced when the destination is the Oracle (HTTP or HTTPS) VIP (10.2.200.8). Traffic matching that destination has the VIP-HTTP or VIP-HTTPS applied. This policy references the sticky httpebs farmpolicy-map multi-match HTTP-SLBclass server-initiatednat dynamic 1 vlan 150class ebsVIPloadbalance vip inserviceloadbalance policy VIP-HTTPloadbalance vip icmp-replyclass ebssslviploadbalance vip inserviceloadbalance policy VIP-HTTPSloadbalance vip icmp-replyssl-proxy server sslproxyinterface vlan 149description to the client sidebridge-group 1access-group input bdpuaccess-group input allservice-policy input remote-accessservice-policy input HTTP-SLBno shutdowninterface vlan 150description to the server sidebridge-group 1access-group input bdpuaccess-group input allnat-pool 1 10.2.200.250 10.2.200.254 netmask 255.255.255.0 patservice-policy input remote-accessservice-policy input HTTP-SLBno shutdowninterface bvi 1 (Transparent Mode Bridge Connection)ip address 10.2.200.2 255.255.255.0alias 10.2.200.1 255.255.255.0peer ip address 10.2.200.3 255.255.255.0no shutdown!Default Route to HSRP Address on the Aggregation Catalyst 6500's MSFCip route 0.0.0.0 0.0.0.0 10.2.200.4
ACE Oracle12i Routed Mode ContextGenerating configuration....crypto csr-params EBSPARMScountry USstate Californialocality SJorganization-name CMOorganization-unit ANSteamcommon-name teamserial-number cisco123crypto csr-params EBPARMScountry USstate Californialocality SJorganization-name CMOorganization-unit ANSteamcommon-name ebsvipserial-number cisco123crypto csr-params EPARMScountry USstate Californialocality SJorganization-name CMOorganization-unit ANSteamcommon-name ebsvip.cisco.comserial-number cisco123access-list bdpu ethertype permit bpduaccess-list all line 10 extended permit icmp any anyaccess-list all line 20 extended permit ip any anyprobe http webdescription This is a basic HTTP Probeport 8000interval 5faildetect 15passdetect interval 15receive 2expect status 200 200open 2parameter-map type ssl SSLPARMScipher RSA_WITH_RC4_128_MD5version SSL3rserver host app1ip address 10.2.200.10inservicerserver host app2ip address 10.2.200.11inservicerserver host app3ip address 10.2.200.12inservicessl-proxy service SSLPROXYssl-proxy service sslproxykey esslcert ebslssl advanced-options SSLPARMSserverfarm host httpebs! The application servers listen on port 8000 by default.serverfarm host httpebs farmdescription This is the httpsebs server farmprobe webrserver app1 8000inservicerserver app2 8000inservicerserver app3 8000inservice! HTTP cookie sticky is employed for the httpebs farmsticky http-cookie acecookie sticky-insert-cookiecookie insertreplicate stickyserverfarm httpebsclass-map match-all ACL2 match access-list all! Oracle httpebs HTTP VIP addressclass-map match-all ebsVIP10 match virtual-address 10.2.110.8 tcp eq 8000! Oracle httpebs HTTPS VIP addressclass-map match-all ebssslvip10 match virtual-address 10.2.110.8 tcp eq 4443class-map type management match-any remote-mgmt10 match protocol ssh any20 match protocol telnet any30 match protocol icmp any40 match protocol http any50 match protocol https anyclass-map match-all server-initiateddescription server initiated connections2 match source-address 10.2.200.0 255.255.255.03 match destination-address 10.2.110.8 255.255.255.255policy-map type management first-match remote-accessclass remote-mgmtpermit! This policy references the sticky server farm created to support the HTTP httpebs serverspolicy-map type loadbalance first-match VIP-HTTPclass class-defaultsticky-serverfarm sticky-insert-cookie! This policy references the sticky server farm created to support the HTTPS httpebs serverspolicy-map type loadbalance first-match VIP-HTTPSclass class-defaultsticky-serverfarm sticky-insert-cookie! This policy map is enforced when the destination is the Oracle (HTTP or HTTPS) VIP (10.2.200.8). Traffic matching that destination has the VIP-HTTP or VIP-HTTPS applied. This policy references the sticky httpebs farmpolicy-map multi-match HTTP-SLBclass server-initiatednat dynamic 1 vlan 150class ebsVIPloadbalance vip inserviceloadbalance policy VIP-HTTPloadbalance vip icmp-replyclass ebssslviploadbalance vip inserviceloadbalance policy VIP-HTTPSloadbalance vip icmp-replyssl-proxy server sslproxyinterface vlan 149description to the client sideip address 10.2.110.5 255.255.255.0alias 10.2.110.1 255.255.255.0peer ip address 10.2.110.6 255.255.255.0access-group input bdpuaccess-group input allservice-policy input remote-accessservice-policy input HTTP-SLBno shutdowninterface vlan 150description to the server sideip address 10.2.200.2 255.255.255.0alias 10.2.200.1 255.255.255.0peer ip address 10.2.200.3 255.255.255.0access-group input bdpuaccess-group input allnat-pool 1 10.2.200.250 10.2.200.254 netmask 255.255.255.0 patservice-policy input remote-accessservice-policy input HTTP-SLBno shutdown!Default Route to HSRP Address on the Aggregation Catalyst 6500's MSFCip route 0.0.0.0 0.0.0.0 10.2.110.4
FWSM Administrative Configuration (Admin Context)
The following example shows the configuration for the FWSM:FWSM(config)# show run: Saved:FWSM Version 3.1(6) <system>!resource acl-partition 12hostname FWSM-AGG1enable password 8Ry2YjIyt7RRXU24 encrypted!interface Vlan49!interface Vlan52description bot_database!interface Vlan82!interface Vlan100shutdown!interface Vlan105!interface Vlan149!interface Vlan152description top_database!interface Vlan501description LAN Failover Interface!interface Vlan502description STATE Failover Interface!passwd 2KFQnbNIdI.2KYOU encryptedclass defaultlimit-resource IPSec 5limit-resource Mac-addresses 65535limit-resource ASDM 5limit-resource SSH 5limit-resource Telnet 5limit-resource All 0!ftp mode passivepager lines 24failoverfailover lan unit primaryfailover lan interface failover Vlan501failover polltime unit msec 500 holdtime 3failover polltime interface 3failover replication httpfailover link state Vlan502failover interface ip failover 192.168.51.1 255.255.255.0 standby 192.168.51.2no asdm history enablearp timeout 14400console timeout 0admin-context admincontext adminallocate-interface Vlan82config-url disk:/admin.cfg!context databaseallocate-interface Vlan152allocate-interface Vlan52config-url disk:/db.cfg!context appsallocate-interface Vlan149allocate-interface Vlan49config-url disk:/ap.cfg!prompt hostname contextCryptochecksum:a0ac614cb829ab6933a5fd2889c17b2b: end
FWSM Transparent Mode Configuration (Database Context)
The following example shows the configuration for the FWSM in transparent mode:FWSM/db(config)# show run: Saved:FWSM Version 3.1(6) <context>!firewall transparenthostname dbdomain-name cisco.comenable password 2KFQnbNIdI.2KYOU encryptednames!interface Vlan152nameif insidebridge-group 1security-level 100!interface Vlan152nameif outsidebridge-group 1security-level 0!interface BVI1ip address 10.2.30.4 255.255.0.0!passwd 2KFQnbNIdI.2KYOU encryptedaccess-list outside extended permit ip any any logaccess-list inside extended permit ip any any logaccess-list BPDU ethertype permit bpdupager lines 35logging enablelogging timestamplogging buffered informationallogging trap informationallogging asdm informationallogging queue 0logging device-id hostnamemtu outside 1500mtu inside 1500icmp permit any outsideicmp permit any insideno asdm history enablearp timeout 14400access-group BPDU in interface outsideaccess-group outside in interface outsideaccess-group BPDU in interface insideaccess-group inside in interface insideroute outside 0.0.0.0 0.0.0.0 10.2.30.1 1timeout xlate 3:00:00timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 icmp 0:00:02timeout sunrpc 0:10:00 h323 0:05:00 h225 1:00:00 mgcp 0:05:00timeout mgcp-pat 0:05:00 sip 0:30:00 sip_media 0:02:00timeout uauth 0:05:00 absoluteno snmp-server locationno snmp-server contactsnmp-server enable traps snmp authentication linkup linkdown coldstarttelnet timeout 360ssh timeout 5!class-map inspection_defaultmatch default-inspection-traffic!!policy-map global_policyclass inspection_defaultinspect dns maximum-length 512inspect ftpinspect h323 h225inspect h323 rasinspect rshinspect smtpinspect skinnyinspect sunrpcinspect xdmcpinspect sipinspect netbiosinspect tftpinspect sqlnet!service-policy global_policy globalCryptochecksum:c74e5affba450ceb83052cf618bf7996: end
FWSM Transparent Mode Configuration (Applications Context)
The following example shows the configuration for the FWSM APPS context:FWSM/appltop(config)# show run: Saved:FWSM Version 3.1(6) <context>!firewall transparenthostname appsdomain-name cisco.comenable password 2KFQnbNIdI.2KYOU encryptednames!interface Vlan49nameif outsidebridge-group 1security-level 0!interface Vlan149nameif insidebridge-group 1security-level 100!interface BVI1ip address 10.2.200.40 255.255.0.0!passwd 2KFQnbNIdI.2KYOU encryptedaccess-list outside extended permit ip any any logaccess-list inside extended permit ip any any logaccess-list BPDU ethertype permit bpdupager lines 24logging enablelogging timestamplogging buffered informationallogging trap informationallogging asdm informationallogging queue 0logging device-id hostnamemtu outside 1500mtu inside 1500icmp permit any outsideicmp permit any insideno asdm history enablearp timeout 14400access-group BPDU in interface outsideaccess-group outside in interface outsideaccess-group BPDU in interface insideaccess-group inside in interface insideroute outside 0.0.0.0 0.0.0.0 10.2.200.5 1timeout xlate 3:00:00timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 icmp 0:00:02timeout sunrpc 0:10:00 h323 0:05:00 h225 1:00:00 mgcp 0:05:00timeout mgcp-pat 0:05:00 sip 0:30:00 sip_media 0:02:00timeout uauth 0:05:00 absoluteno snmp-server locationno snmp-server contactsnmp-server enable traps snmp authentication linkup linkdown coldstarttelnet timeout 5ssh timeout 5!class-map inspection_defaultmatch default-inspection-traffic!!policy-map global_policyclass inspection_defaultinspect dns maximum-length 512inspect ftpinspect h323 h225inspect h323 rasinspect rshinspect smtpinspect sqlnetinspect skinnyinspect sunrpcinspect xdmcpinspect sipinspect netbiosinspect tftp!service-policy global_policy globalCryptochecksum:822088e52ddf41626a20bf206a13b80c: end
WAE Configuration! WAAS version 4.0.13 (build b12 Aug 9 2007)!device mode application-accelerator!!hostname ANS-CoreWAE!!clock timezone US/Pacific -7 0!!ip domain-name cisco.com!!!primary-interface GigabitEthernet 1/0!!!interface GigabitEthernet 1/0ip address 10.1.20.2 255.255.255.0exitinterface GigabitEthernet 2/0shutdownexit!!!ip default-gateway 10.1.20.1!no auto-register enable!! ip path-mtu-discovery is disabled in WAAS by default!ip name-server 126.96.36.199!!logging console enable!ntp server 10.1.3.2!!wccp router-list 1 10.1.20.1wccp tcp-promiscuous router-list-num 1wccp version 2!central-manager address 10.1.21.2cms enable!tfo tcp optimized-send-buffer 8192tfo tcp optimized-receive-buffer 8192!!adapter epm enable!! The httpebs traffic is traversing the WAN using port 8000. The default policy configured on the WAE will be applied. Note that the httpebs configuration can be modified to any port.policy-engine applicationclassifier HTTPmatch dst port eq 80match dst port eq 8080match dst port eq 8000match dst port eq 8001match dst port eq 3128name Web...! Full optimization is applied to the APPl_TOP WAN trafficmap basicname Web classifier HTTP action optimize full!!! End of WAAS configuration
Appendix B—One-Armed Mode Configuration
This topology is used when the device that makes the connection to the virtual IP address (VIP) enters the ACE on the same VLAN on which the servers reside. The server reply traffic must return to the ACE before it is sent to the device that initiated the connection. This can be done with either source NAT or policy based routing.
Figure 22 One-Armed Mode Design
Oracle One-Armed Context Configurationaccess-list ANYONE line 10 extended permit ip any anyaccess-list ANYONE line 20 extended permit icmp any anyprobe http webport 8081interval 5faildetect 15passdetect interval 15receive 2expect status 200 200open 2parameter-map type http persistpersistence-rebalanceset header-maxparse-length 8096rserver host test1ip address 188.8.131.52inservicerserver host test2ip address 184.108.40.206inserviceserverfarm host oraclelabpredictor leastconnsprobe webrserver test1 8081inservicerserver test2 8081inservicesticky http-cookie acecookie sticky-cookie-insertcookie insertreplicate stickyserverfarm oraclelabclass-map type management match-any REMOTE-MANAGEMENT2 match protocol telnet any3 match protocol icmp any4 match protocol ssh any5 match protocol snmp any6 match protocol http any7 match protocol https anyclass-map match-all VIP-HTTP2 match virtual-address 10.2.200.8 tcp eq 8081class-map match-all server-initiateddescription server initiated connections2 match source-address 10.2.220.0 255.255.255.03 match destination-address 10.2.220.8 255.255.255.255policy-map type management first-match REMOTE-MANAGEMENTclass REMOTE-MANAGEMENTpermitpolicy-map type loadbalance first-match vip-oracleclass class-defaultsticky-serverfarm sticky-cookie-insertpolicy-map multi-match lb-vipclass VIP-HTTPloadbalance vip inserviceloadbalance policy vip-oracleloadbalance vip icmp-replyappl-parameter http advanced-options persistnat dynamic 1 vlan 149policy-map multi-match server-sideclass server-initiatednat dynamic 1 vlan 149interface vlan 149description one armed modeip address 10.2.220.2 255.255.255.0alias 10.2.220.1 255.255.255.0peer ip address 10.2.220.3 255.255.255.0access-group input ANYONEnat-pool 1 10.2.220.250 10.2.220.254 netmask 255.255.255.0 patservice-policy input REMOTE-MANAGEMENTservice-policy input lb-vipservice-policy input server-sideno shutdownip route 0.0.0.0 0.0.0.0 10.2.200.4
Application Networking Services documentation
Oracle Metalink document ID 384248.1—"Sharing the Application Tier File System in Oracle E-Business Suite Release 12."
Oracle Applications Installation Guide: Using Rapid Install Release 12 (Part No. B31295-02)
