Deploying IPv6 in Branch Networks
This document is intended to guide customers in planning or deploying IPv6 in branch networks. This document is not meant to introduce you to branch design fundamentals and best practices, IPv6, transition mechanisms, or IPv4 and IPv6 feature comparisons. The user must be familiar with the Cisco branch design best practices recommendations and the basics of IPv6 and associated transition mechanisms. For information about the enterprise design architecture, refer to the following documents:
•
Enterprise Branch Architecture Design Overview
http://www.cisco.com/en/US/docs/solutions/Enterprise/Branch/EnBrOver.html
•
http://www.cisco.com/en/US/docs/solutions/Enterprise/Branch/E_B_SDC1.html
Introduction
This document requires a basic understanding of Cisco branch design, security, and the basics of IPv6. This prerequisite knowledge can be acquired through many documents and training opportunities that are available through Cisco Systems, Inc. and through the networking industry at large. References contains resources for these areas of interest.
Scope
This document provides a brief overview of the various branch IPv6 deployment profiles and general deployment considerations. This document also covers the implementation details for each branch profile individually.
This document focuses on the branch side of the WAN, but the basic configurations used on the head-end WAN routers are shown when appropriate. These configurations were used for testing only and are not necessarily the recommended WAN router configurations that customers should use. Updates to this document and new IPv6-related documents can be found at: http://www.cisco.com/en/US/products/ps6553/products_ios_technology_home.html.
Branch Deployment Overview
This section provides a high-level overview of the two mostly commonly deployed Cisco branch profiles to provide a basic understanding of how IPv6 can be integrated into these two branch profiles.
The branch IPv6 deployment profiles that are described in this section:
Single-Tier Profile
The single-tier branch profile is a fully-integrated solution. The requirements for LAN and WAN connectivity and security are met by a single Integrated Services Router (ISR). Figure 1 shows a high-level view of the single-tier branch profile.

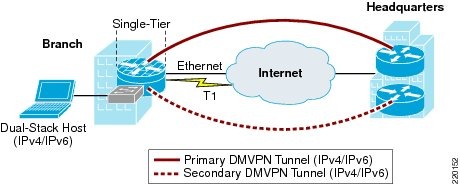

Figure 1 Single-Tier Profile
In the single-tier profile described in this document, a single ISR is used to provide WAN connectivity via an Ethernet hand-off from an Internet Service Provider (ISP). The Ethernet link is used as the primary link to the headquarters (HQ) site. For WAN redundancy, a backup connection is made via a T1/E1 circuit.
IPv4 and IPv6 connectivity to the HQ site is provided by IPv4 IPSec using Dynamic Multi-Point Virtual Private Network (DMVPN) technologies. The DMVPN tunnels traverse the Ethernet link as the primary path and establish backup tunnels over the T1/E1 link.
All traffic leaving the branch traverses the VPN connections to the HQ, including the Internet-bound traffic. Generally, Cisco does not recommend the use of split-tunneling at the branch site. If the customer requires split-tunneling, then Cisco recommends a careful analysis and testing of the routing and the security implications of such a deployment.
Note
LAN connectivity is provided by an integrated switch module (EtherSwitch Service Module). Dual-stack (running both IPv4 TCP/IP stack and IPv6 TCP/IP stack) is used on the VLAN interfaces at the branch.
In addition to all of the security policies in place at the HQ, local security for both IPv4 and IPv6 is provided by a common set of infrastructure security features and configurations, in addition to the use of the Cisco IOS Zone-Based Firewall (an optional deployment). QoS for IPv4 and IPv6 is integrated into a single policy.
The obvious disadvantage of the single-tier profile is the lack of router and switch redundancy. There is redundancy for the link to the Internet and the VPN connections to HQ. However, because there is a single integrated switch and single router, if either component fails, then the site is completely disconnected from HQ. The multi-tier profile is the solution for customers requiring complete redundancy for all components (switches, routers, firewalls, and HQ connections).
Solution Requirements
The solution requirements for the single-tier profile are:
•
•
•
•
•
•
Tested Components
Table 1 lists the components that were used and tested in the single-tier profile.

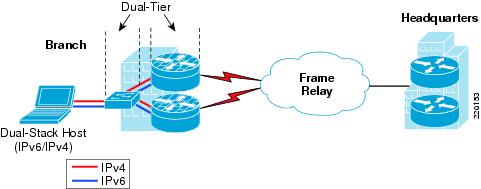

Multi-Tier Profile
The multi-tier profile extends the single-tier profile by separating not only routing and switching, but also security. There is also a dedicated Access Tier that provides more scalability for sites with a larger number of hosts.
Figure 2 shows a high-level view of the multi-tier profile.

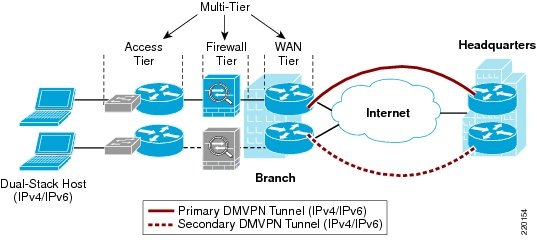

Figure 2 Multi-Tier Profile
Figure 2 shows how the tiers or roles are distributed. Several changes are evident with the multi-tier vs. the single-tier:
•
•
•
Solution Requirements
The solution requirements for the multi-tier profile are:
•
•
•
•
•
•
Tested Components
Table 2 lists the components that were used and tested in the multi-tier profile.
General Considerations
There are some general considerations that apply to all of the deployment profiles described in the implementation sections of this document. This section describes the general considerations to take into account when deploying IPv6 in a branch network, regardless of the deployment profile being used. If a specific consideration should be understood, then the specific profile is called out, along with the consideration for that profile. Also, the specific configurations for any profile-specific considerations can be found in that profile's implementation section.
All branch IPv6 profiles described in this document leverage the existing Cisco branch network design best practices as the foundation for all aspects of the deployment. The IPv6 components of the profiles are deployed in the same way as IPv4 whenever possible. When the same or similar features are not available for IPv6 as for IPv4, alternatives are used. In some cases, no alternatives are available and a reference for where to track feature support is given.
It is critical to understand the Cisco branch best practices recommendations before deploying the IPv6 in the branch profiles described in this document. The Cisco branch design best practice documents can be found under the "Branch Office" and "WAN" sections at: http://www.cisco.com/en/US/netsol/ns816/networking_solutions_program_home.html.
Addressing
As previously mentioned, this document is not an introductory document and does not describe the basics of IPv6 addressing. However, it is important to describe a few addressing considerations for network devices.
There are several combinations of addressing for various link/interface types. In many cases, a customer will use a "64 everywhere" model where a /64 is used on links that have hosts as well as on point-to-point (P2P) links. It is also fine to use /64 on links with hosts and a /126 or /127 on P2P links. However, there are certain precautions that needed to be taken when using /127 on links. These precautions are documented in both RFC 3627 and a draft (at the time of writing this paper the draft was named: "Using 127-bit IPv6 Prefixes on Inter-Router Links") draft-kohno-ipv6-prefixlen-p2p. In all cases the use of /128 on Loopback interfaces is the recommendation.
The dynamic assignment of host IPv6 addresses can either be done by DHCPv6 or via RA-based (Router Advertisement) assignment from the VLAN or routed interface.
Physical Connectivity
Considerations for physical connectivity with IPv6 are the same as with IPv4 plus three additional elements:
•
•
Another aspect of MTU relates to the use of IPSec VPNs with GRE, manual tunnels, or DMVPN. When IPSec is used with these tunnels, it is important to account for the adjustment of the MTU value on the routers to ensure that the router is not forced to perform fragmentation of the IPv4 traffic due to the IPSec header and the additional tunnel overhead. More information on this can be found in any of the IPSec design guides at: http://www.cisco.com/en/US/tech/tk583/tk372/tech_design_guides_list.html.
•
It is important to point out that Cisco supports the use of IPv6-enabled hosts that are directly attached to Cisco IP phone ports. These IP phone ports are switch ports and operate in much the same way as plugging the host directly into a Catalyst Layer 2 switch.
In addition to the previous considerations, Cisco recommends that a thorough analysis of the existing traffic profiles, memory, and CPU use on both the hosts and network equipment and also the Service Level Agreement (SLA) language be completed prior to implementing any of the IPv6 models described in this document.
VLANs
VLAN considerations for IPv6 are the same as for IPv4. When dual-stack configurations are used then both IPv4 and IPv6 traverse the same VLAN. The use of Private VLANs is not included in any of the deployment profiles described in this document and it was not tested.
The use of IPv6 on data VLANs that are trunked along with voice VLANs (behind IP phones) is fully supported. For the current VLAN design recommendations, refer to the Cisco branch-LAN design best practice documents at: http://www.cisco.com/en/US/netsol/ns816/networking_solutions_program_home.html.
Routing
Choosing an IGP to run in the campus network is based on a variety of factors—platform capabilities, IT staff expertise, and the size of network are just a few. In this document the IGP for both IPv4 and IPv6 is EIGRP. OSPFv2 for IPv4 and OSPFv3 for IPv6 can also be used.
EIGRP has been configured to provide authentication for both IPv4 and IPv6 adjacencies and updates.
High Availability
There are many aspects of High-Availability (HA) that are not applicable to or are outside the scope of this document. Many of the HA requirements and recommendations are met by leveraging the existing Cisco branch design best practices. The primary HA components described in this document are:
•
•
•
QoS
Cisco recommends that QoS policies be implemented application- or service-dependent instead of protocol (IPv4 or IPv6)-dependent. Basically, if the existing QoS policy has specific classification, policing, and queuing for an application, then that policy should treat the IPv4 and IPv6 traffic for that application equally.
The key consideration as far as Modular QoS CLI (MQC) is concerned is the removal of the ip keyword in the QoS match and set statements when IPv6 QoS is required. Modification in the QoS syntax to support IPv6 and IPv4 allows for new configuration criteria (see Table 3).
Table 3 Qos Syntax Modifications
match ip dscp
match dscp
match ip precedence
match precedence
set ip dscp
set dscp
set ip precedence
set precedence
There are QoS features that work for both IPv6 and IPv4 and require no modification to the CLI (such as WRED, policing, and WRR).
The implementation section for each profile does not go into great detail on QoS configuration as far as the definition of classes for certain applications, the associated mapping of DSCP values, and the bandwidth and queuing recommendations.
Cisco has an extensive collection of QoS recommendations for the branch and you are encouraged to seek guidance from the CCO documentation and also the Cisco Press book, End-to-End QoS Network Design.
Security
Many of the common threats and attacks on existing IPv4 campus networks also apply to IPv6. Unauthorized access, spoofing, routing attacks, viruses, worms, DoS, and man-in-the-middle attacks are just a few that plague both IPv4 and IPv6.
There are many new threats with IPv6 that do not exist with IPv4 or they operate differently than IPv4. There are inherent differences in how IPv6 handles neighbor and router advertisement and discovery, headers, and even fragmentation. Based on all of these variables and possibilities, IPv6 security is a very involved topic in general and detailed security recommendations and configurations are outside the scope of this document. There are numerous efforts both within Cisco and the industry to identify, understand, and resolve IPv6 security threats. This document points out some possible areas to address within the branch and gives basic examples of how to provide protection of IPv6 dual-stack and tunneled traffic.
Note
General security considerations for network device protection that apply to both branch profiles are:
•
–
interface Loopback0ipv6 address 2001:DB8:CAFE:1000::BAD1:A001/128no ipv6 redirectsTo more tightly restrict access to a particular switch/router via IPv6, an ACL is used to permit access to the management interface (line vty) by way of the loopback interface. The permitted source network is from the enterprise IPv6 prefix. To make ACL generation more scalable for a wide range of network devices, the ACL definition can permit the entire enterprise prefix as the primary method for controlling management access to the device instead of filtering to a specific interface on the device. The IPv6 prefix used in this enterprise site (for example only) is 2001:db8:cafe::/48.
ipv6 access-list MGMT-INremark Permit MGMT only to Loopback0permit tcp 2001:DB8:CAFE::/48 host 2001:DB8:CAFE:1000::BAD1:A001deny ipv6 any any log-input!line vty 0 4session-timeout 3access-class MGMT-IN-v4 inpassword 7 08334D400E1C17ipv6 access-class MGMT-IN in #Apply IPv6 ACL to restrict accesslogging synchronouslogin localexec prompt timestamptransport input ssh #Accept access to VTY via SSH–
•
More information on CoPP can be found at: http://www.cisco.com/en/US/docs/ios/sec_control_plane/configuration/guide/15_1/cps_15_1_book.html.
•
ipv6 access-list HOST_PACLremark Deny Rogue DHCPdeny udp any eq 547 any eq 546remark Deny RA From Clientdeny icmp any any router-advertisementpermit ipv6 any any!interface GigabitEthernet1/0/6ipv6 traffic-filter HOST_PACL inThe following shows an example of RA Guard:
interface GigabitEthernet1/0/6ipv6 nd raguardYou need to verify the Cisco platform and code version that supports these and other first hop security features. More information can be found at: http://www.cisco.com/en/US/docs/ios/ipv6/configuration/guide/ip6-first_hop_security_ps10592_TSD_Products_Configuration_Guide_Chapter.html.
•
•
•
•
IPv6 ACL and firewall configuration details can be found at: http://www.cisco.com/en/US/docs/ios/ipv6/configuration/guide/ip6-sec_trfltr_fw_ps10592_TSD_Products_Configuration_Guide_Chapter.html.
Multicast
IPv6 multicast is an important service for any enterprise network design. One of the most important factors to IPv6 multicast deployment is to ensure that host/group control is handled properly in the branch LAN. Multicast Listener Discovery (MLD) in IPv6 is the equivalent to Internet Group Management Protocol (IGMP) in IPv4. Both are used for host multicast group membership control. MLD-snooping is the ability to control the distribution of multicast traffic only to the ports that have listeners. Without it, multicast traffic meant for only a single receiver (or group of receivers) would be flooded to all ports on the branch LAN switch belonging to the same VLAN. In the branch LAN it is important that the switches support MLD-snooping for MLD version 1 and/or version 2.
Today, Cisco IOS supports the following PIM implementations: PIM-SM, PIM-BSR, PIM-SSM, Bidirectional PIM, Embedded-RP, and Multiprotocol BGP for the IPv6 Multicast Address Family.
In this document, IPv6 multicast-enabled applications are supported in both branch profiles. The multicast-enabled applications tested in this design are: Windows Media Services and VLC (VideoLAN Media client) using PIM-SSM. The multicast sources are running on Microsoft Windows Server 2008 servers located in the HQ data center.
For more information, refer to the following:
•
http://www.cisco.com/en/US/technologies/tk648/tk828/tk363/technologies_white_paper0900aecd8014d6dd.html.•
http://www.cisco.com/en/US/docs/ios/ipv6/configuration/guide/ip6-multicast_ps10591_TSD_Products_Configuration_Guide_Chapter.html.Management
Management for IPv6 is almost the same as for IPv4 with the exception of a specific Management Information Base (MIBs) used for IPv6. Many of the traditional management tools used today also support IPv6. In this document the only considerations for management of the branch network are related to basic control of management services (Telnet, SSH, FTP, and SNMP) and the feature IP Service Level Agreement (SLA). All of the IPv6-enabled devices in the two branch profiles described are manageable over IPv6.
The configuration and support of telnet, SSH, and FTP are the same as with IPv4. Commands such as ip ftp source-interface equally apply to IPv4 and IPv6. There is no special consideration to make other than ensuring the platform and code version you are running support these features with IPv6.
The deployment of SNMP for IPv6 is the same as with IPv4. In the branch profiles described in this paper, SNMPv3 (AuthNoPriv) is used to provide polling capabilities for the Cisco NMS servers located in the HQ data center. Here is an example of the SNMPv3 configuration used in the branch routers in this document:
snmp-server contact John Doe - ipv6rocks@cisco.comsnmp-server group IPv6-ADMIN v3 auth write v1defaultsnmp-server user jdoe IPv6-ADMIN v3 auth md5 cisco1234If information needs to be sent to a Cisco NMS server, then an SNMP host can be defined. The host can be defined to send SNMP information over IPv4 and/or IPv6:
snmp-server host 2001:DB8:CAFE:11:2E0:81FF:FE2C:9332 version 3 auth jdoeWhen using the IP SLA feature for IPv6, you can monitor the service levels of IPv6 applications in services. Various operations can be monitored over ICMP, TCP, UDP, and UDP jitter. In this document the routers are configured for IP SLA over IPv6 with object tracking. The following is a basic example configuration that can be used for monitoring an IPv6 host (2001:db8:cafe:1251:bad1:a002):
track 150 ip sla 150...ip sla 150icmp-echo 2001:DB8:CAFE:1251::BAD1:A002 source-ip 2001:DB8:CAFE:1250::ACE1:F000ip sla schedule 150 life forever start-time nowAnother area of management that you must thoroughly research is that of address management. Anyone who analyzed IPv6 even at an elementary level understands the size and potential complexity of deploying and managing the IPv6 address space. The process of assigning large hexadecimal addresses to many network devices should, at some point, be automated or at least made more user-friendly than it is today. Cisco is in the forefront of several efforts underway within the industry to provide recommendations and solutions to the address management issues.
Today, one way to help with the deployment of address prefixes on a Cisco ISR is through the use of the general prefix feature. The general prefix feature allows the customer to define a prefix or prefixes in the global configuration of the router with a user-friendly name. That user-friendly name can be used on a per-interface basis to replace the usual IPv6 prefix definition on the interface. The following is an example of how to use the general prefix feature:
Define the general prefix:
2900-br1-1(config)# ipv6 general-prefix ESE-BR-1 2001:DB8:CAFE::/48Configure the general prefix named "ESE-BR-1" on a per-interface basis:2900-br1-1(config-if)# ipv6 address ESE-BR-1 ::1100:0:0:BAD1:A001/64Verify that the general prefix was correctly assigned to the interface:
2900-br1-1# show ipv6 interface g1/0.100GigabitEthernet1/0.100 is up, line protocol is upIPv6 is enabled, link-local address is FE80::217:94FF:FE90:2829No Virtual link-local address(es):Description: DATA VLAN for ComputersGlobal unicast address(es):2001:DB8:CAFE:1100::BAD1:A001, subnet is 2001:DB8:CAFE:1100::/64More information on the general prefix feature can be found at the Cisco IOS IPv6 documentation page at: http://www.cisco.com/en/US/docs/ios/ipv6/configuration/guide/ip6-addrg_bsc_con_ps10591_TSD_Products_Configuration_Guide_Chapter.html#wp1132473.
Cisco supports the management of IPv6-enabled network devices via a variety of Network Management Products to include DNS, DHCPv6, device management and monitoring, and also network management, troubleshooting, and reporting. More information on the various Cisco Network Management solutions can be found at: http://www.cisco.com/en/US/products/sw/netmgtsw/index.html.
Scalability and Performance
This document is not meant to analyze scalability and performance information for the various platforms tested. The coverage of scale and performance is more focused on general considerations when planning and deploying IPv6 in the branch versus a platform-specific view.
In general, you should understand the link, memory, and CPU use of the existing branch network devices. If any of these aspects are already stressed, then adding IPv6 or any new technology, feature, or protocol into the design is a recipe for disaster.
Scalability and performance considerations for branch network devices include:
•
•
ARP entry for the host in the branch:
Internet 10.124.2.4 2 0014.c2e1.e679 ARPA FastEthernet0/0.100IPv6 Neighbor Cache entry for the host in the branch:
IPv6 Address Age Link-layer Addr State Interface2001:DB8:CAFE:2100:DDD6:5CC5:3178:F038 0 0014.c2e1.e679 REACH Fa0/0.100FE80::D48A:B1B6:8861:812C 0 0014.c2e1.e679 DELAY Fa0/0.100The IPv6 neighbor cache shows that there are two entries listed for the host. The first address is a global IPv6 address (optional) that is assigned by DHCP for IPv6 (could also be statically defined or assigned via stateless autoconfiguration) and the second address is the link-local address (mandatory) generated by the host. The number of entries can decrease to a minimum of one (link-local address) to a multitude of entries for a single host depending on the address types used on the host.
It is important to understand the neighbor table capabilities of the branch network devices being used to ensure that the tables are not being filled during regular network operation.
Another consideration is with IPv6 multicast. As previously mentioned, it is important to ensure that MLD-Snooping is supported in the branch LAN switch when IPv6 multicast is used to ensure that IPv6 multicast frames at Layer 2 are not flooded to all of the ports.
•
•
Single-Tier Implementation
This section focuses on the configuration of a single-tier deployment profile. The configurations are broken down into specific areas, such as WAN and LAN connectivity, DMVPN, routing, and security. IPv4 configurations are shown when the deployment of IPv6 is dependent upon IPv4 for access, such as with DMVPN.
Network Topology
Figure 3 serves as a reference for all of the configurations for the single-tier profile. Figure 3 shows the interface and addressing layout for the branch router and integrated switch. IPv4 addressing is shown only when IPv4 is required for connectivity by IPv6 (DMVPN).

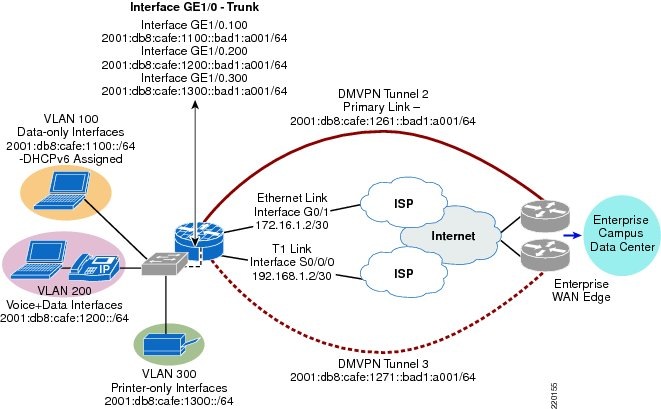

Figure 3 Single-Tier Profile—Interface/Addressing Layout
A single router (2900-br1-1) is used with an integrated switch (sw-br1-1) to provide WAN and LAN connectivity for the three VLANs in the branch.
•
–
–
All of the tunnels use IPv4 IPSec with DMVPN for tunnel protection.
•
–
–
–
WAN Configuration
The WAN configurations are not specific to IPv6, but are used to provide the underlying transport for the DMVPN tunnels between the branch and HQ routers.
2900-br1-1
interface GigabitEthernet0/1description Ethernet Handoff to ISP (PRIMARY)ip address 172.16.1.2 255.255.255.252!interface Serial0/0/0description T1 Backup Link (Secondary)ip address 192.168.1.2 255.255.255.252LAN Configuration
The LAN IPv6 configurations for 2900-br1-1 and sw-br1-1 follow. The configurations show the internal switch links between the router and the EtherSwitch module and also the interface and VLAN configurations on the switch itself.
There are many ways to provide address assignment to hosts to include DHCP in local pools (shown below), DHCP at a central site with the local router/switch acting as a "relay", SLAAC/RA-based assignment, or static.
Note
For more information about the SDM prefer command and associated templates, refer to: http://www.cisco.com/en/US/docs/switches/lan/catalyst3750e_3560e/software/release/12.2_55_se/configuration/guide/swsdm.html.
2900-br1-1
ipv6 unicast-routing #Globally enable IPv6 Unicast Routingipv6 cef #Globally enable IPv6 CEF!ipv6 dhcp pool DATA_CLIENTS #DHCP for IPv6 pool nameaddress prefix 2001:DB8:CAFE:1100::/64 #DHCP address prefixdns-server 2001:DB8:CAFE:10:20D:9DFF:FE93:B25D #Primary IPv6 DNS server at HQdns-server 2001:DB8:CAFE:10:51A1:5B1:4A85:B3DA #Secondary IPv6 DNS server at HQdomain-name cisco.com #DNS domain name passed to client!ipv6 dhcp pool IP_PHONES #DHCP pool for IP Phones (options below)address prefix 2001:DB8:CAFE:1200::/64dns-server 2001:DB8:CAFE:10:20D:9DFF:FE93:B25Ddns-server 2001:DB8:CAFE:10:51A1:5B1:4A85:B3DAdomain-name cisco.comvendor-specific 9 #Vendor ID (Cisco is "9")suboption 1 address 2001:DB8:CAFE:10::11AA #TFTP server address (suboption 1)!interface GigabitEthernet1/0description to INTERNAL SW-BR1-1ip address 1.1.1.1 255.255.255.0!interface GigabitEthernet1/0.100description DATA VLAN for Computersencapsulation dot1Q 100ipv6 address 2001:DB8:CAFE:1100::BAD1:A001/64 #Define the router IPv6 address#for VLAN100.ipv6 nd managed-config-flag #Set flag in RA to instruct host#to use DHCPv6ipv6 dhcp server DATA_CLIENTS #Enables DHCP for IPv6 on this interfaceipv6 nd router-preference High #Make RAs from this interface the highest!interface GigabitEthernet1/0.200description to Voice VLAN for IP Phonesencapsulation dot1Q 200ipv6 address 2001:DB8:CAFE:1200::BAD1:A001/64ipv6 nd managed-config-flagipv6 dhcp server IP_PHONESipv6 nd router-preference High!interface GigabitEthernet1/0.300description to Printer VLANencapsulation dot1Q 300ipv6 address 2001:DB8:CAFE:1300::BAD1:A001/64ipv6 nd router-preference High!sw-br1-1
vtp domain ce_branchvtp mode transparent!spanning-tree mode rapid-pvstspanning-tree loopguard defaultspanning-tree portfast bpduguard defaultspanning-tree extend system-id!vlan internal allocation policy ascending!vlan 100name DATA!vlan 200name VOICE!vlan 300name PRINTERS!interface GigabitEthernet1/0/2description TRUNK to 2900-br1-1switchport trunk encapsulation dot1qswitchport trunk allowed vlan 100,200,300switchport mode trunk!interface FastEthernet1/0/3description PHONE + PCswitchport access vlan 100switchport mode accessswitchport voice vlan 200spanning-tree portfastspanning-tree bpduguard enable!interface Vlan100description VLAN100 for PCs and Switch managementip address 10.124.1.126 255.255.255.128ipv6 address 2001:DB8:CAFE:1100::BAD2:F126/64More information regarding IPv6 with DHCP and how to properly configure the network to support IPv6-enabled IP phones can be found at: http://www.cisco.com/en/US/docs/voice_ip_comm/cucm/srnd/ipv6/netstruc.html#wp1052756.
Also, there may be times when RA messages are sent to the voice VLAN from the router and "bleed" over to the data VLAN and impact hosts attached to the data port of an IP phone. This may happen if the host attached to the data port of the IP phone has 802.1q tagging intelligence and processes the voice VLAN tag. Normally, the host should drop any packet with a tag set (i.e., from the voice VLAN). You can resolve this issue on the network side by one of two methods:
•
•
DMVPN
The single-tier profile uses DMVPN for both IPv4 and IPv6. The design and configuration is basically just a dual stack deployment where both protocols are enabled on the DMVPN tunnel interface.
Both sides of the tunnel (branch and HQ) have statically-defined public IPv4 addresses that are used for tunnel sources. Only one of the two tunnels is shown in the configuration. The second tunnel has a nearly identical configuration as the first, with the exception of a tuned IGP that lowers the priority of the secondary tunnel and that the tunnel is sourced to the serial interface for the T1/E1 link.
Refer to the Cisco IOS IPv6 DMVPN for more information regarding DMVPN: http://www.cisco.com/en/US/docs/ios/ipv6/configuration/guide/ip6-dmvpn_ps10591_TSD_Products_Configuration_Guide_Chapter.html.
2900-br1-1
crypto isakmp policy 1 #Create ISAKMP policyencr aes 256 #Encryption methodauthentication pre-share #Pre-shared keys (passwords) usedgroup 2crypto isakmp key CISCO address 0.0.0.0 0.0.0.0 #Pre-shared key of "CISCO" used with any IPv4 peercrypto isakmp keepalive 10 #Dead Peer Detection (DPD) enabled!crypto ipsec transform-set SPOKETrans esp-aes 256 esp-sha-hmaccrypto ipsec transform-set SPOKE-BUTrans esp-aes 256 esp-sha-hmac!crypto ipsec profile DMVPNProfset transform-set SPOKETranscrypto ipsec profile BACKUPProfset transform-set SPOKEBUTraninterface Tunnel2 #If PIMv6 is used, tunnel 0 and 1 are used by default#It is recommended to start at "2"description DMVPN to HQ Head-end 1ipv6 address 2001:DB8:CAFE:1261::BAD1:A001/64 #Only IPv6 portion of interface is shownipv6 mtu 1416 #Lower MTU to account for tunnel#and IPSec overhead - Neither are#detected when host performs#PMTUD for IPv6ipv6 nhrp authentication SECRETipv6 nhrp map multicast dynamicipv6 nhrp map multicast 172.16.2.3ipv6 nhrp map 2001:DB8:CAFE:1261::ACE1:F000/128 172.16.2.3 #Static address mapping#v6-to-NBMAipv6 nhrp network-id 70809ipv6 nhrp nhs 2001:DB8:CAFE:1261::ACE1:F000 #NHRP Server address is HQ routeripv6 nhrp holdtime 600ipv6 nhrp shortcuttunnel source 172.16.1.2tunnel mode gre multipointtunnel key 123tunnel protection ipsec profile DMVPNProfHQ Router
crypto isakmp policy 1encr aes 256authentication pre-sharegroup 2crypto isakmp key CISCO address 0.0.0.0 0.0.0.0crypto isakmp keepalive 10!crypto ipsec transform-set HUBTrans esp-aes 256 esp-sha-hmac!crypto ipsec profile DMVPNProfset transform-set HUBTransinterface Tunnel2description DMVPN to Spokeipv6 address 2001:DB8:CAFE:1261::ACE1:F000/64ipv6 mtu 1416ipv6 nhrp authentication SECRETipv6 nhrp map multicast dynamicipv6 nhrp network-id 70809ipv6 nhrp holdtime 600ipv6 nhrp redirecttunnel source GigabitEthernet0/1tunnel mode gre multipointtunnel key 123tunnel protection ipsec profile DMVPNProfRouting
The IPv6 routing configuration for the single-tier profile is straightforward. There is a default route for IPv4 that points to ISP. EIGRP for IPv4 and IPv6 is used within the DMVPN tunnels and also the LAN interfaces to provide routing information to/from the HQ site and within the branch. The branch router is configured as an EIGRP stub router.
For more information on configuring EIGRP for IPv6, refer to the Cisco IOS IPv6 EIGRP routing configuration page at: http://www.cisco.com/en/US/docs/ios/ipv6/configuration/guide/ip6-eigrp_ps10591_TSD_Products_.onfiguration_Guide_Chapter.html.
2900-br1-1
ipv6 unicast-routing!key chain CISCO #Enable EIGRP Authentication key chainkey 1key-string 7 111B180B101719!interface Loopback0ipv6 address 2001:DB8:CAFE:1000::BAD1:A001/128ipv6 eigrp 1interface Tunnel2ipv6 eigrp 1 #Enable EIGRP for IPv6 on tunnelipv6 hold-time eigrp 1 35 #Adjust the hold time for EIGRPipv6 authentication mode eigrp 1 md5 #Authentication type of MD5ipv6 authentication key-chain eigrp 1 CISCO #Enables authentication of EIGRPno ipv6 split-horizon eigrp 1 #Disable EIGRP split-horizon for this multi-point intf.!interface GigabitEthernet1/0.100description DATA VLAN for Computersencapsulation dot1Q 100ipv6 eigrp 1!interface GigabitEthernet1/0.200description to Voice VLAN for IP Phonesencapsulation dot1Q 200ipv6 eigrp 1!interface GigabitEthernet1/0.300description to Printer VLANencapsulation dot1Q 300ipv6 eigrp 1!ipv6 router eigrp 1 #Router configuration mode - process 1router-id 10.124.100.1stub connected summary #This branch is a stubno shutdownpassive-interface GigabitEthernet1/0.100passive-interface GigabitEthernet1/0.200passive-interface GigabitEthernet1/0.300passive-interface Loopback0!ip route 0.0.0.0 0.0.0.0 GigabitEthernet0/1 #Primary IPv4 static route used for WANip route 0.0.0.0 0.0.0.0 Serial0/0/0 200 #Backup IPv4 static routesw-1-br1ipv6 route ::/0 Vlan100 FE80::217:94FF:FE90:2829 #Default route out VLAN100 to the#link-local address of the 2900 VLAN100 interfaceSecurity
The security configurations for IPv6 in the single-tier profile are very similar to the IPv4 configurations. In an "untrusted model" where the private WAN between the branch and the HQ site is not considered to be "trusted", additional security measures can be deployed. This is rare as most deployments consider a private WAN or VPN-based deployment to be trusted and therefore ACLs or a dedicated firewall at the branch site are unnecessary (except for protecting the site on the Internet-facing port).
The focus of the security configuration for IPv6 is to protect the infrastructure (router and switch) and optionally offer an additional line of defense for the branch site via either ACLs or an IPv6 stateful firewall. In a "trusted" model, the security is much less in-depth at the branch site as the central security policies at the HQ are considered to be good enough and no additional protection such as stateful firewalls are needed at each branch site.
The profiles described in this document are protected by a comprehensive security policy and design at the HQ site. However, the single-tier does use the Internet as a means of WAN connectivity and it is important to provide basic security at the local branch router in case of an Internet-based attack via the branch ISP links.
Note

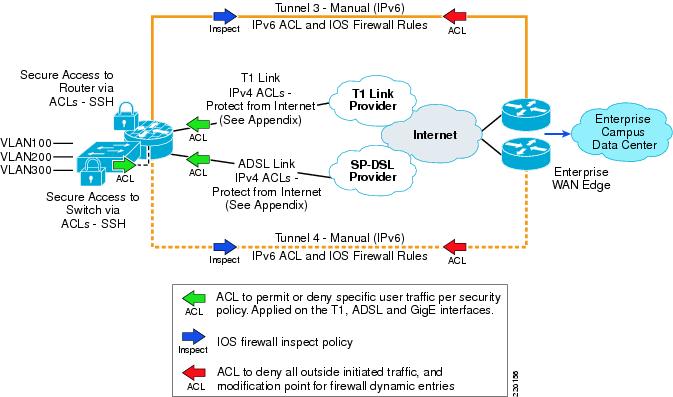

ACL policies can be applied to various interfaces in the single-tier profile. The ACL placement is summarized here:
•
•
•
•
As was stated earlier, if you consider the WAN links to the HQ site to be trusted, then ACLs and/or stateful firewall are not really needed. However, if you consider the WAN links to the HQ site to be untrusted, then ACLs or a stateful firewall (both shown below) may be used.
The following single-tier profile configurations are for the 2900-br1-1 router and sw-br1-1 switch.
2900-br1-1—PACL
ipv6 access-list HOST_PACLremark Deny Rogue DHCPdeny udp any eq 547 any eq 546remark Deny RA From Clientdeny icmp any any router-advertisementpermit ipv6 any any!interface GigabitEthernet1/0.100ipv6 traffic-filter HOST_PACL in!interface GigabitEthernet1/0.200ipv6 traffic-filter HOST_PACL in!interface GigabitEthernet1/0.300ipv6 traffic-filter HOST_PACL in2900-br1-1—Infrastructure ACLs (only relevant IPv4 and IPv6 configurations are shown)
interface Tunnel2description DMVPN to HQ Head-end 1ipv6 traffic-filter INET-WAN-v6 in!interface GigabitEthernet0/1description Ethernet Handoff to ISP (PRIMARY)ip access-group WAN-link in!interface Serial0/0/0ip access-group WAN-link in!ip access-list extended WAN-link #IPv4 ACL on ISP facing link - permit for DMVPNpermit esp any anypermit gre any anypermit udp any host 172.16.1.2 eq isakmppermit icmp any host 172.16.1.2permit icmp any host 172.16.1.2 packet-too-bigpermit icmp any host 172.16.1.2 unreachablepermit udp any host 192.168.1.2 eq isakmppermit icmp any host 192.168.1.2permit icmp any host 192.168.1.2 packet-too-bigpermit icmp any host 192.168.1.2 unreachablepermit icmp any any echo-replypermit icmp any any time-exceededdeny tcp any anydeny udp any anydeny ip host 255.255.255.255 anydeny ip any any!ipv6 access-list INET-WAN-v6 #IPv6 ACL for internal WAN/Application traffic from HQremark PERMIT EIGRP for IPv6permit 88 any anyremark PERMIT PIM for IPv6permit 103 any anyremark PERMIT ALL ICMPv6 PACKETS SOURCED USING THE LINK-LOCAL PREFIXpermit icmp FE80::/10 anyremark PERMIT SSH TO LOCAL LOOPBACKpermit tcp any host 2001:DB8:CAFE:1000::BAD1:A001 eq 22remark PERMIT ALL ICMPv6 PACKETS TO LOCAL LOOPBACKpermit icmp any host 2001:DB8:CAFE:1000::BAD1:A001remark PERMIT ALL ICMPv6 PACKETS TO TUNNEL2permit icmp any host 2001:DB8:CAFE:1261::BAD1:A001remark PERMIT ALL ICMPv6 PACKETS TO TUNNEL3permit icmp any host 2001:DB8:CAFE:1271::BAD1:A001remark PERMIT ALL ICMPv6 PACKETS TO DATA VLANpermit icmp any 2001:DB8:CAFE:1100::/64remark PERMIT ALL ICMPv6 PACKETS TO VOICE VLANpermit icmp any 2001:DB8:CAFE:1200::/64remark PERMIT ALL ICMPv6 PACKETS TO PRINTER VLANpermit icmp any 2001:DB8:CAFE:1300::/64remark PERMIT ALL IPv6 PACKETS TO DATA VLANpermit ipv6 any 2001:DB8:CAFE:1100::/64remark PERMIT ALL IPv6 PACKETS TO VOICE VLANpermit ipv6 any 2001:DB8:CAFE:1200::/64remark PERMIT ALL IPv6 PACKETS TO PRINTER VLANpermit ipv6 any 2001:DB8:CAFE:1300::/64deny ipv6 any any log2900-br1-1 - Management
banner login ^CUnauthorized access to this device and/or network is prohibited.^Cipv6 access-list MGMT-INremark Permit MGMT only to Loopback0permit tcp 2001:DB8:CAFE::/48 host 2001:DB8:CAFE:1000::BAD1:A001deny ipv6 any any log-inputline vty 0 4ipv6 access-class MGMT-IN intransport input ssh2900-br1-1 - Zone-Based Firewall
As an alternative to basic ACLs, you can use the Cisco IOS Zone-Based Firewall that supports both IPv4 and IPv6. There are many ways to configure the Cisco IOS Zone-Based IPv6 firewall inspection policies. A very basic example is given here just to show the syntax, but the policy shown is by no means a recommended configuration. The example basically shows the same inspection policy in both directions (in/out), but uses a combination of protocol matching and ACL-based matching. More information about the Zone-Based Firewall can be found at: http://www.cisco.com/en/US/docs/ios/ipv6/configuration/guide/ip6-sec_trfltr_fw_ps10591_TSD_Products_Configuration_Guide_Chapter.html#wp1078659 and http://www.cisco.com/en/US/products/sw/secursw/ps1018/products_tech_note09186a00808bc994.shtml.
parameter-map type inspect globalsessions maximum 1000alert offone-minute low 2000one-minute high 2000parameter-map type inspect alart-onalert onparameter-map type inspect defaulttcp max-incomplete host 100 block-time 0!class-map type inspect match-any v6-class #Protocol matching outboundmatch protocol tcpmatch protocol udpmatch protocol icmpmatch protocol ftp!class-map type inspect match-all v6-map-in #Protocol and ACL matching inboundmatch protocol icmpmatch access-group name v6-FWIN!class-map type inspect match-any EIGRP-v6 #ACL match just for EIGRPmatch access-group name v6-route!policy-map type inspect FWIN #Inbound policy with class maps/inspection appliedclass type inspect v6-map-ininspectclass type inspect EIGRP-v6passclass class-defaultdrop!policy-map type inspect FWOUT #Outbound policy with class maps/inspection appliedclass type inspect v6-classinspectclass type inspect EIGRP-v6passclass class-defaultdrop!zone security inside #Security zones createddescription inside of branchzone security outsidedescription to WANzone-pair security in-out source inside destination outside #Zone pairs applied based on#directionservice-policy type inspect FWOUT #Policy appliedzone-pair security out-in source outside destination insideservice-policy type inspect FWIN!ipv6 access-list v6-route #EIGRP ACLpermit 88 any any!ipv6 access-list v6-FWIN #IPv6 ACL (basically same as v6-class)permit ipv6 any anysw-br1-1
interface Vlan100ipv6 address 2001:DB8:CAFE:1100::BAD2:F126/64!ipv6 access-list MGMT-IN #Management ACL - Permit management access#for cafe::/48 prefix only to the switch#VLAN100 interfacepermit tcp 2001:DB8:CAFE::/48 host 2001:DB8:CAFE:1100::BAD2:F126deny ipv6 any any log-input!banner login ^CUnauthorized access to this device and/or network is prohibited.^C!line vty 0 4ipv6 access-class MGMT-IN intransport input sshQoS
The QoS configurations for the single-tier profile are almost the same for IPv4 and IPv6. In the configuration shown below, there are Network Based Application Recognition (NBAR) functions for IPv4. Because of the lack of NBAR awareness of IPv6, ACLs are used to statically define the application type and map the ACL match to a class-map used for setting the appropriate DCSP value.
The following configurations are meant to show where the QoS policies are applied for IPv6 and any specific match/set modifications. The Cisco QoS Design Guide can be found at: http://www.cisco.com/en/US/docs/solutions/Enterprise/WAN_and_MAN/QoS_SRND/QoS-SRND-Book.html.
For the sake of completeness, the QoS policy configuration is shown for both IPv4 and IPv6. This policy is an example used in the lab and your policy may vary.
2900-br1-1
class-map match-any BRANCH-BULK-DATAmatch access-group name BULK-DATA-APPSmatch access-group name BULK-DATA-APPS-V6 #Match IPv6 ACL in from branch hostsclass-map match-all SQL-SLAMMERmatch protocol custom-02match packet length min 404 max 404class-map match-all BULK-DATA #Match previously set value or "trusted" valuematch dscp af11 af12class-map match-all INTERACTIVE-VIDEOmatch dscp af41 af42class-map match-any CALL-SIGNALLINGmatch dscp cs3match dscp af31class-map match-any BRANCH-TRANSACTIONAL-DATAmatch protocol citrixmatch protocol ldapmatch protocol sqlnetmatch protocol http url "*cisco.com"match access-group name BRANCH-TRANSACTIONAL-V6 #Match IPv6 ACL in from branch hostsmatch protocol sapclass-map match-any BRANCH-MISSION-CRITICALmatch access-group name MISSION-CRITICAL-SERVERSmatch access-group name MISSION-CRITICAL-V6 #Match IPv6 ACL in from branch hostsclass-map match-any WORMSmatch protocol http url "*.ida*"match protocol http url "*cmd.exe*"match protocol http url "*root.exe*"match protocol http url "*readme.eml*"match class-map SQL-SLAMMERmatch protocol exchangematch protocol netbiosmatch protocol custom-03class-map match-all VOICEmatch dscp efclass-map match-all MISSION-CRITICAL-DATAmatch dscp 25class-map match-any BRANCH-NET-MGMTmatch protocol snmpmatch protocol syslogmatch protocol telnetmatch protocol nfsmatch protocol dnsmatch protocol icmpmatch protocol tftpmatch access-group name BRANCH-NET-MGMT-V6 #Match IPv6 ACL in from branch hostsclass-map match-all ROUTINGmatch dscp cs6class-map match-all SCAVENGERmatch dscp cs1class-map match-all NET-MGMTmatch dscp cs2class-map match-any BRANCH-SCAVENGERmatch protocol gnutellamatch protocol fasttrackmatch protocol kazaa2match access-group name BRANCH-SCAVENGER-V6 #Match IPv6 ACL in from branch hostsclass-map match-all TRANSACTIONAL-DATAmatch dscp af21 af22!policy-map BRANCH-LAN-EDGE-IN-CHILDclass WORMSdropclass class-defaultset dscp defaultpolicy-map BRANCH-WAN-EDGE-CHILD #Apply queuing/bandwidth policy egressclass VOICEpriority percent 18class INTERACTIVE-VIDEOpriority percent 15class CALL-SIGNALLINGbandwidth percent 5class ROUTINGbandwidth percent 3class NET-MGMTbandwidth percent 2class MISSION-CRITICAL-DATAbandwidth percent 15random-detect dscp-basedclass TRANSACTIONAL-DATAbandwidth percent 12random-detect dscp-basedclass BULK-DATAbandwidth percent 4random-detect dscp-basedclass SCAVENGERbandwidth percent 1class class-defaultbandwidth percent 25random-detectpolicy-map BRANCH-LAN-EDGE-OUT #Copy DSCP value to COS for local branch LANclass class-defaultset cos dscppolicy-map BRANCH-LAN-EDGE-IN-PARENT #Set DSCP values based on ingress NBAR/ACLclass BRANCH-MISSION-CRITICALset dscp 25class BRANCH-TRANSACTIONAL-DATAset dscp af21class BRANCH-NET-MGMTset dscp cs2class BRANCH-BULK-DATAset dscp af11class BRANCH-SCAVENGERset dscp cs1class class-defaultset dscp defaultservice-policy BRANCH-LAN-EDGE-IN-CHILDpolicy-map BRANCH-WAN-EDGE-PARENT #Class-based shaping & egress policy appliedclass class-defaultshape average percent 90service-policy BRANCH-WAN-EDGE-CHILD!interface GigabitEthernet0/1service-policy output BRANCH-WAN-EDGE-PARENT #Apply policy!interface Serial0/0/0service-policy output BRANCH-WAN-EDGE-PARENT #Apply policy!interface GigabitEthernet1/0.100 #Data VLANservice-policy input BRANCH-LAN-EDGE-IN-PARENT #Apply ingress classification policyservice-policy output BRANCH-LAN-EDGE-OUT #Apply egress classification policy!interface GigabitEthernet1/0.200 #Voice VLANservice-policy output BRANCH-LAN-EDGE-OUT #Apply egress classification policy!interface GigabitEthernet1/0.300 #Printer VLANservice-policy input BRANCH-LAN-EDGE-IN-PARENTservice-policy output BRANCH-LAN-EDGE-OUTipv6 access-list BULK-DATA-APPS-V6 #IPv6 ACL for bulk appspermit tcp any any eq ftppermit tcp any any eq ftp-datapermit tcp any any eq pop3permit tcp any any eq 143!ipv6 access-list MISSION-CRITICAL-V6 #IPv6 ACL for dst prefix of serversremark Data-Center traffic-mark dscp 25permit ipv6 any 2001:DB8:CAFE:10::/64permit ipv6 any 2001:DB8:CAFE:11::/64!ipv6 access-list BRANCH-SCAVENGER-V6remark Gnutella, Kazaa, Doom, iTunes traffic-mark dscp cs1permit tcp any any range 6346 6347permit udp any any range 6346 6347permit tcp any any eq 1214permit tcp any any eq 666permit udp any any eq 666permit tcp any any eq 3689permit udp any any eq 3689!ipv6 access-list BRANCH-NET-MGMT-V6remark Common management traffic plus vmware console-mark dscp cs2permit udp any any eq syslogpermit udp any any eq snmppermit tcp any any eq telnetpermit tcp any any eq 22permit tcp any any eq 2049permit udp any any eq 2049permit tcp any any eq domainpermit udp any any eq tftppermit tcp any any eq 902!ipv6 access-list BRANCH-TRANSACTIONAL-V6remark Microsoft RDP traffic-mark dscp af21permit tcp any any eq 3389permit udp any any eq 3389Multicast
The configuration for IPv6 multicast in the single-tier profile is quite simple. IPv6 multicast design is outside the scope of this document and there are many options that can be selected for PIM, multicast availability, and security. In this document, only basic configurations are shown for IPv6 multicast on the 2900-br1-1 router and sw-br1-1 switch. The configurations allow for PIM-SSM or Embedded-RP to be used. The IPv6 multicast streams originate in the data center at the HQ site.
sw-br1-1
ipv6 mld snooping #Globally enable MLD snooping (see following note)2900-br1-1
ipv6 multicast-routing #Globally enable IPv6 multicast routingThe first thing to be aware of is the lack of CLI input required to enable IPv6 multicast when using PIM-SSM or Embedded-RP. If PIM-SSM is used exclusively, then the only thing required to enable is ipv6 multicast-routing globally, which automatically enables PIM on all IPv6-enabled interfaces. This is a dramatic difference from what is required with IPv4 multicast.
Note
http://www.cisco.com/en/US/docs/ios/ipv6/configuration/guide/ip6-multicast_ps10591_TSD_Products_Configuration_Guide_Chapter.html#wp1058805.
SSM-Mapping is not required in this document because the switches fully support MLDv2-Snooping.
In the previous example, the Layer 2 switch (sw-br1-1) needs to have IPv6 multicast awareness in order to control the distribution of multicast traffic only on ports that are actively listening. This is accomplished by enabling MLD-Snooping. With MLD-Snooping enabled on the switch and with IPv6 multicast routing enabled on the branch router, it can be seen that sw-br1-1 can see 2900-br1-1as a locally-attached multicast router.
sw-br1-1# show ipv6 mld snooping mrouterVlan ports---- -----100 Gi1/0/2(dynamic)200 Gi1/0/2(dynamic)300 Gi1/0/2(dynamic)When a group is active on the branch switch, information about the group can be displayed:
sw-br1-1# show ipv6 mld snooping addressVlan Group Type Version Port List-------------------------------------------------------------100 FF35::1111 mld v2 Gi1/0/2On 2900-br1-1, information about PIM, multicast route, RPF, and groups can be viewed in much the same way as with IPv4. Here is the output of an active group using PIM-SSM (FF35::1111). This stream is coming in from the HQ data center and going out the VLAN100 (2900-br1-1 G1/0.100) interface:
2900-br1-1# show ipv6 mroute #show ipv6 pim topology can also be usedMulticast Routing TableFlags: D - Dense, S - Sparse, B - Bidir Group, s - SSM Group,C - Connected, L - Local, I - Received Source Specific Host Report,P - Pruned, R - RP-bit set, F - Register flag, T - SPT-bit set,J - Join SPTTimers: Uptime/ExpiresInterface state: Interface, State(2001:DB8:CAFE:11:2E0:81FF:FE2C:9332, FF35::1111), 00:01:28/00:03:10, flags: sTIIncoming interface: Tunnel3RPF nbr: FE80::230:F2FF:FE15:9C1BImmediate Outgoing interface list:GigabitEthernet1/0.100, Forward, 00:01:28/00:03:02Multi-Tier Implementation
This section focuses on the configuration of the multi-tier profile.
Network Topology
Figure 4 serves as a reference for all of the configurations described in the dual-tier profile. It shows the interface and IPv6 addressing layout for the two branch routers and Catalyst switch.
Figure 4 Multi-Tier Profile—Interface/Addressing Layout
Two WAN tier branch routers (2900-br2-1 and 2900-br2-2) are used with internal network switch modules (or can be an external switch) to provide WAN and LAN connectivity.
•
•
Two firewall tier branch firewalls (asa-1 and asa-2) are connected via EtherSwitch modules to the WAN tier as well as inward facing via EtherSwitch modules at the access tier. The ASAs are configured for a primary (asa-1) and secondary (asa-2) role. As was mentioned in the single tier profile, this tier and configuration is optional. If the DMVPN or other private WAN deployment is considered to be a trusted link, then no additional firewall services are needed except for the native Internet-facing link and/or if a split-tunneling deployment is used. The firewall tier is shown in this document for the sake of completeness.
Two access tier routers (2900-br2-3 and 2900-br2-4) with integrated EtherSwitch modules are acting as distribution\access layer devices, as you would find in a campus network. They simply aggregate the Layer 2 access switches and provide routing and first-hop redundancy for the access VLANs. The access tier routers use the internal EtherSwitch modules for connections to the firewall tier and the branch hosts.
In the single-tier profile we looked at configurations based on role or technology (i.e., routing, security, QoS). In the multi-tier profile the configurations are broken down by the tier in the network (i.e., WAN tier, firewall tier).
WAN Tier
The following configurations are for the WAN tier devices. Only the IPv6 and generic network portion of the configuration are shown and only one side of the device pair is shown (i.e., 2900-br2-1<>EtherSwitch). The other device pair (i.e., 2900-br2-2<>EtherSwitch) are identically configured with the exception of addressing, HSRP priority, and routing preference. Also, there are many different options in this arrangement. The EtherSwitch module can be doing routing instead of doing it via the sub-interfaces of the router. Also, there could be a dedicated pair of external switches instead of the EtherSwitch module. The design and configuration shown is just one of many ways to do this.
Most of the configurations are not explained as they mirror very closely what was discussed in the single-tier profile. Because of this the QoS configuration is not shown here for the sake of brevity. The QoS configuration in the multi-tier is the exact same as the single-tier.
2900-br2-1
ipv6 unicast-routingipv6 cefipv6 multicast-routing!key chain CISCOkey 1key-string 7 111B180B101719!track 150 ip sla 150 #Enable IP SLA!crypto ipseccrypto isakmp policy 1encr aes 256authentication pre-sharegroup 2crypto isakmp key CISCO address 0.0.0.0 0.0.0.0crypto isakmp keepalive 10!crypto ipsec transform-set SPOKETrans esp-aes 256 esp-sha-hmac!crypto ipsec profile DMVPNProfset transform-set SPOKETrans!interface Tunnel2description DMVPN to HQ Head-end 1ipv6 address 2001:DB8:CAFE:1252::ACE1:F000/64ipv6 mtu 1416no ipv6 redirectsno ipv6 unreachablesipv6 eigrp 1ipv6 authentication mode eigrp 1 md5ipv6 authentication key-chain eigrp 1 CISCOipv6 hold-time eigrp 1 35no ipv6 split-horizon eigrp 1ipv6 nhrp authentication SECRETipv6 nhrp map multicast dynamicipv6 nhrp map multicast 172.16.3.3ipv6 nhrp map 2001:DB8:CAFE:1252::ACE3:F003/128 172.16.3.3ipv6 nhrp network-id 10ipv6 nhrp nhs 2001:DB8:CAFE:1252::ACE3:F003ipv6 nhrp holdtime 600ipv6 nhrp shortcuttunnel source 172.16.1.2tunnel mode gre multipointtunnel key 123tunnel protection ipsec profile DMVPNProf!track 2 interface GigabitEthernet0/1 line-protocol #HSRP Interface Tracking!interface GigabitEthernet0/1description Ethernet-Handoff to ISPip address 172.16.1.2 255.255.255.0!interface GigabitEthernet1/0description Internal EtherSwitch Linkip address 1.1.1.1 255.255.255.0!interface GigabitEthernet1/0.10description L2 Network for RTR-ASAencapsulation dot1Q 10ipv6 address 2001:DB8:CAFE:1250::ACE1:F000/64standby version 2standby 2 ipv6 FE80::5:73FF:FEA0:2 #Statically defined HSRP address (can be autoconfig)standby 2 priority 105standby 2 preemptstandby 2 authentication CISCOstandby 2 track 2 decrement 10 #Link to tracking interfaceipv6 eigrp 1ipv6 authentication mode eigrp 1 md5ipv6 authentication key-chain eigrp 1 CISCOipv6 hold-time eigrp 1 35!ip route 172.16.3.3 255.255.255.255 172.16.1.1 #Static route for HQ WAN address!ip sla 150icmp-echo 2001:DB8:CAFE:10::15 source-ip 2001:DB8:CAFE:1250::ACE1:F000 #Probe server at HQip sla schedule 150 life forever start-time now!ipv6 route 2001:DB8:CAFE:1251::/64 2001:DB8:CAFE:1250::ACE2:F000 #Static routes to ASA#outside interfaceipv6 route 2001:DB8:CAFE:1255::/64 2001:DB8:CAFE:1250::ACE2:F000ipv6 route 2001:DB8:CAFE:1256::/64 2001:DB8:CAFE:1250::ACE2:F000ipv6 route 2001:DB8:CAFE:1257::/64 2001:DB8:CAFE:1250::ACE2:F000!ipv6 router eigrp 1 #EIGRP for Tunnel and redist of local routeseigrp router-id 10.122.1.1redistribute staticpassive-interface Loopback0wan-tier-switch-br2-1
ipv6 mld snooping!vlan 10name ASA!interface GigabitEthernet1/0/1 #Interface to other EtherSwitchdescription TRUNK to 2900-br2-2switchport trunk encapsulation dot1qswitchport trunk allowed vlan 10switchport mode trunk!interface GigabitEthernet1/0/2 #Internal interface to 2900-br2-1description TRUNK to 2900-br2-1switchport trunk encapsulation dot1qswitchport trunk allowed vlan 10switchport mode trunk!interface FastEthernet1/0/1 #Connecting to ASA-1description ASA-1switchport access vlan 10Firewall Tier
This tier is optional and used only when the connections to the HQ site are not considered to be fully trusted or if you use a split-tunneling deployment and need comprehensive security facing the Internet.
The following Cisco ASA configuration is for the primary unit only (with a special note on the failover configuration for the secondary unit). Only the relevant IPv6 configurations are shown.
ASA-1
interface GigabitEthernet0/0nameif outsidesecurity-level 0ipv6 address 2001:db8:cafe:1250::ace2:f000/64 standby 2001:db8:cafe:1250::ace2:f001!interface GigabitEthernet0/1nameif insidesecurity-level 100ipv6 address 2001:db8:cafe:1251::ace2:f000/64 standby 2001:db8:cafe:1251::ace2:f001!ipv6 route inside 2001:db8:cafe:1255::/64 fe80::5:73ff:fea0:1 #Static routes to Access#tier HSRPipv6 route inside 2001:db8:cafe:1256::/64 fe80::5:73ff:fea0:1ipv6 route inside 2001:db8:cafe:1257::/64 fe80::5:73ff:fea0:1ipv6 route outside ::/0 fe80::5:73ff:fea0:2 #Default route to WAN tier HSRP address!failoverfailover lan unit primaryfailover lan interface FO GigabitEthernet0/2failover key ****failover link FO-LINK GigabitEthernet0/3failover interface ip FO 2001:db8:cafe:bad::ace2:f000/64 standby 2001:db8:cafe:bad::ace2:f001failover interface ip FO-LINK 2001:db8:cafe:bad1::ace2:f000/64 standby 2001:db8:cafe:bad1::ace2::f001!ipv6 access-list v6-ALLOW permit icmp6 any any echo #Basic ACL exampleipv6 access-list v6-ALLOW permit icmp6 any any echo-replyipv6 access-list v6-ALLOW permit tcp any any eq ftpipv6 access-list v6-ALLOW permit tcp any any eq ftp-dataipv6 access-list v6-ALLOW permit tcp any any eq telnetipv6 access-list v6-ALLOW permit tcp any any eq smtpipv6 access-list v6-ALLOW permit tcp any any eq wwwipv6 access-list v6-ALLOW permit udp any any eq domainipv6 access-list v6-ALLOW permit tcp any any eq httpsipv6 access-list v6-ALLOW permit tcp any any eq sshipv6 access-list v6-ALLOW deny ip any any log!access-group v6-ALLOW in interface outside!ssh 2001:db8:cafe::/48 insideThe following configuration is specific to the ASA-2 (standby) for the failover configuration.
ASA-2
failoverfailover lan unit secondaryfailover lan interface FO GigabitEthernet0/2failover key ****failover link FO-LINK GigabitEthernet0/3failover interface ip FO 2001:db8:cafe:bad::ace2:f000/64 standby 2001:db8:cafe:bad::ace2:f001failover interface ip FO-LINK 2001:db8:cafe:bad1::ace2:f000/64 standby 2001:db8:cafe:bad1::ace2::f001Access Tier
The following configuration is for the access tier devices. This tier can be deployed via a pair of Layer 2/Layer 3 switches, routers plus external switches, or as shown here with routers and internal EtherSwitch modules. There are many possible options for providing distribution layer functions within the branch.
In the access tier shown in this document, two 2900 series routers have internal EtherSwitch modules that have trunk connections between them for VLANs 100, 200, 300, which represent the data VLAN (100), voice VLAN (200), and printer VLAN (300).
In the single-tier profile, IPv6 addressing was assigned via a combination of local DHCPv6 pools and RA-based assignment. Those are fully supported in the multi-tier profile. However, to show a slightly different configuration, all hosts will obtain IPv6 addressing and options via a centralized DHCPv6 server located at the HQ.
As was stated before, Layer 3 functionality can be enabled on the EtherSwitch module that terminates the VLANs, but in this design the EtherSwitch module is performing basic Layer 2 functions and the router is terminating the VLANs on sub-interfaces. The EtherSwitch modules connects hosts in VLANs 100, 200, 300 as well as the ASAs in the firewall tier.
Also, configurations for QoS and local LAN security are identical to those configured in the single-tier profile and are not shown for the sake of brevity.
Note
2900-br2-3
ipv6 unicast-routingipv6 cefipv6 multicast-routing!key chain CISCOkey 1key-string 7 111B180B101719!interface GigabitEthernet1/0description to INTERNAL SW-BR1-1ip address 1.1.1.1 255.255.255.0!interface GigabitEthernet1/0.20description L2 Network for RTR-ASAencapsulation dot1Q 20ipv6 address 2001:DB8:CAFE:1251::BAD1:A001/64standby version 2standby 2 ipv6 FE80::5:73FF:FEA0:1standby 2 priority 105standby 2 preemptstandby 2 authentication CISCOno ipv6 redirectsno ipv6 unreachablesipv6 eigrp 1ipv6 authentication mode eigrp 1 md5ipv6 authentication key-chain eigrp 1 CISCOipv6 hold-time eigrp 1 35!interface GigabitEthernet1/0.100description DATA VLAN for Computersencapsulation dot1Q 100standby version 2standby 4 ipv6 autoconfigstandby 4 preemptstandby 4 authentication CISCOno ipv6 redirectsno ipv6 unreachablesipv6 address 2001:DB8:CAFE:1255::BAD1:A001/64ipv6 nd managed-config-flag #Set flag in RA to instruct host#how to use DHCPv6ipv6 dhcp relay destination 2001:DB8:CAFE:10::2 #DHCPv6 relay to server at HQipv6 eigrp 1ipv6 authentication mode eigrp 1 md5ipv6 authentication key-chain eigrp 1 CISCOipv6 hold-time eigrp 1 35!interface GigabitEthernet1/0.200description to Voice VLAN for IP Phonesencapsulation dot1Q 200standby version 2standby 6 ipv6 autoconfigstandby 6 preemptstandby 6 authentication CISCOno ipv6 redirectsno ipv6 unreachablesipv6 address 2001:DB8:CAFE:1256::BAD1:A001/64ipv6 nd managed-config-flagipv6 dhcp relay destination 2001:DB8:CAFE:10::2ipv6 eigrp 1ipv6 authentication mode eigrp 1 md5ipv6 authentication key-chain eigrp 1 CISCOipv6 hold-time eigrp 1 35!interface GigabitEthernet1/0.300description to Printer VLANencapsulation dot1Q 300standby version 2standby 8 ipv6 autoconfigstandby 8 preemptstandby 8 authentication CISCOno ipv6 redirectsno ipv6 unreachablesipv6 address 2001:DB8:CAFE:1257::BAD1:A001/64ipv6 nd managed-config-flagipv6 dhcp relay destination 2001:DB8:CAFE:10::2ipv6 eigrp 1ipv6 authentication mode eigrp 1 md5ipv6 authentication key-chain eigrp 1 CISCOipv6 hold-time eigrp 1 35!ipv6 route ::/0 2001:DB8:CAFE:1251::ACE2:F000 #IPv6 default route to ASA interface!ipv6 router eigrp 1eigrp router-id 10.122.1.3redistribute staticpassive-interface GigabitEthernet1/0.100passive-interface GigabitEthernet1/0.200passive-interface GigabitEthernet1/0.300passive-interface Loopback0accesss-tier-switch-br2-1
ipv6 mld snooping!vlan 20name ASA!vlan 100name DATA!vlan 200name VOICE!vlan 300name PRINTERS!interface GigabitEthernet1/0/1 #Interface to other EtherSwitchdescription TRUNK to 2900-br2-4switchport trunk encapsulation dot1qswitchport trunk allowed vlan 20switchport mode trunk!interface GigabitEthernet1/0/2 #Internal interface to 2900-br2-1description TRUNK to 2900-br2-3switchport trunk encapsulation dot1qswitchport trunk allowed vlan 20,100,200,300switchport mode trunk!interface FastEthernet1/0/1 #Connecting to ASA-1description ASA-1switchport access vlan 20!interface FastEthernet1/0/3 #Example of Data/Voice access interfacedescription PHONE + PCswitchport access vlan 100switchport mode accessswitchport voice vlan 200spanning-tree portfastspanning-tree bpduguard enable!interface Vlan100description VLAN100 for PCs and Switch managementipv6 address 2001:DB8:CAFE:1255::BAD1:F128/64Multicast in the Multi-Tier Profile
One note to make regarding IPv6 multicast in the multi-tier profile concerns the Cisco ASA. At the time this document was published, the Cisco ASA did not support IPv6 multicast routing/forwarding. If you want IPv6 multicast support for the branch hosts in the access tier (acting as receivers) with IPv6 multicast sources in the HQ, then you must enable a manually-configured or GRE tunnel between the access tier routers and the WAN tier routers—through the Cisco ASA.
Careful testing needs to be completed when doing this as unicast routing between the dual stack Ethernet interfaces between the WAN tier, firewall tier, and access tier can cause issues with unicast routing over the tunnel interfaces.
A basic example of the tunnel configuration might look similar to this:
2900-br2-1
ipv6 multicast-routing!interface Tunnel4description Manual tunnel to Access Tieripv6 address 2001:DB8:CAFE:1258::1/127tunnel source 10.124.10.1 #Tunnel source is 2900-br2-1 LAN intf (WAN tier)tunnel destination 10.124.100.1 #Tunnel destination is 2900-br2-3 LAN intf (Access tier)tunnel mode ipv6ip #IPv6-in-IPv4 tunnel mode2900-br2-3
ipv6 multicast-routing!interface Tunnel4description Manual tunnel to WAN Tieripv6 address 2001:DB8:CAFE:1258::2/127tunnel source 10.124.100.1tunnel destination 10.124.10.1tunnel mode ipv6ipYou need to configure routing in such a way as to ensure that unicast traffic is traversing the dual stack Ethernet interfaces between the access tier and firewall tier, but multicast is traversing the tunnel. In order to do that, it is critical to configure a static multicast route to ensure proper Reverse Path Forwarding (RPF) behavior. If the access tier router attempts to perform an RPF check against the Ethernet interface connecting towards the source at the HQ (via the ASA), it will fail as no multicast forwarding is supported. The command below enables a simple multicast route so that RPF checks for the multicast source network (at the HQ - 2001:DB8:CAFE:11::/64) are done against the tunnel (next hop is the address of the WAN tier tunnel interface address) instead of the Ethernet link facing the ASA.
ipv6 route 2001:DB8:CAFE:11::/64 2001:DB8:CAFE:1258::1 multicastFinally, you need to configure the Cisco ASA to allow for the tunnel in the security policy.
access-list MCAST extended permit 41 host 10.124.10.1 host 10.124.100.1 #Protocol 41 is#for v6-in-v4 tunnelaccess-group MCAST in interface outsideConclusion
This document describes how to deploy IPv6 in the branch network. The branch profiles described were single-tier and multi-tier. The configurations were mostly based on the existing Cisco branch design best practices. The profiles described are certainly not the only ways to deploy IPv6 in this environment, but they provide options that can be leveraged based on the branch environment.
References
There are many notes and disclaimers in this document that describe the need to fully understand the technology and protocol aspects of IPv6. There are many design considerations associated with the implementation of IPv6, including security, QoS, availability, management, IT training, and application support.
This section provides additional resources for IPv6, Cisco design recommendations, products, and solutions, and industry activity.
Cisco-Specific References
•
http://www.cisco.com/en/US/products/ps6553/products_ios_technology_home.html•
http://www.cisco.com/en/US/netsol/ns816/networking_solutions_program_home.html•
http://www.cisco.com/en/US/docs/ios/ipv6/configuration/guide/15_0/ipv6_15_0_book.html•
http://www.cisco.com/en/US/partner/docs/switches/lan/catalyst3750e_3560e/software/release/12.2_55_se/configuration/guide/3750escg.html•
http://www.cisco.com/en/US/docs/solutions/Enterprise/WAN_and_MAN/QoS_SRND/QoS-SRND-Book.html•
http://www.cisco.com/en/US/partner/docs/security/asa/asa84/configuration/guide/asa_84_cli_config.htmlIPv6 Industry References
•
http://www.ciscopress.com/bookstore/product.asp?isbn=1587142279•
http://www.ciscopress.com/bookstore/product.asp?isbn=1587052105&rl=1•
http://www.ciscopress.com/bookstore/product.asp?isbn=1587055945
Feedback
