Verifying PAP-PDP Installation

---

To quickly verify whether the PAP and PDP have been installed successfully, use the procedures in this chapter.

Verifying PAP Installation

---

Step 1 Open your web browser and type the following URL: http://host:port/cepm

where you need to replace the host name and port number arguments in the URL with the correct values corresponding to where you have deployed the administration console. For Administrator login, the default User ID and password are superuser and admin respectively.

If the Home screen displays the Prime group and Prime portal as default application group and application respectively, the PAP is considered to be installed successfully.

Figure 13-1 CEPM PAP UI Home Page

---

Verifying PDP Installation

---

Step 1 After login, choose Home > System Config > PDP. Initially, the list of PDPs is empty by default.

Step 2 Click Add. The Create PDP page is displayed.

Figure 13-2 Verifying PDP Details

Step 3 Enter the following details:

•Name of the PDP.

•Description of the new PDP.

•Check No for In Process PDP.

•Enter the PDP Server details, for example, host URL and port number.

•Select HTTP as the transport protocol.

•Select Local as Authentication Type.

•Enter the server username and password.

•Click Create.

The required PDP is created and is included in the list of PDPs.

Figure 13-3 List of PDPs

Step 4 Copy the End Point URL of the newly created PDP, paste it in a new browser instance, and click Go.

If the PDPService screen is displayed, the PDP is considered to be installed successfully.

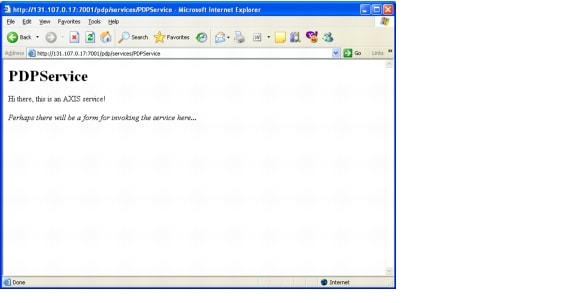

Figure 13-4 PDP Service Screen

For further information on using the administration console, see the Cisco Enterprise Policy Manager Quick Start Guide or the Cisco Enterprise Policy Manager User Guide.

---
