This configuration creates three security contexts plus the admin context, each with an inside and an outside interface. The Customer C context includes a DMZ interface where a Websense server for HTTP filtering resides on the service provider premises (see Figure B-1).

Inside hosts can access the Internet through the outside using dynamic NAT or PAT, but no outside hosts can access the inside.

The Customer A context has a second network behind an inside router.

The admin context allows SSH sessions to the security appliance from one host.

Although inside IP addresses can be the same across contexts when the interfaces are unique, keeping them unique is easier to manage.

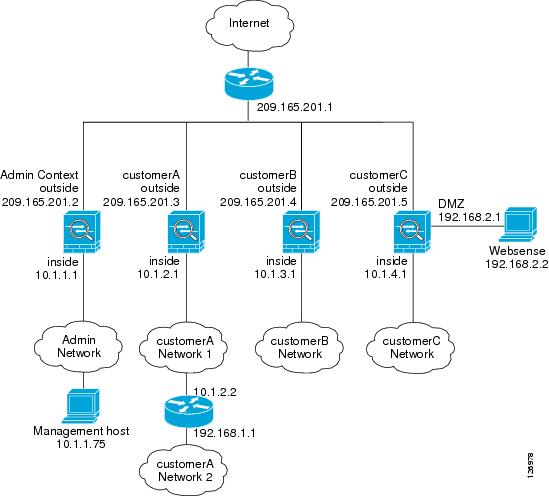

Figure B-1 Example 1

See the following sections for the configurations for this scenario:

•Example 1: System Configuration

•Example 1: Admin Context Configuration

•Example 1: Customer A Context Configuration

•Example 1: Customer B Context Configuration

•Example 1: Customer C Context Configuration

Example 1: System Configuration

You must first enable multiple context mode using the mode multiple command. The mode is not stored in the configuration file, even though it endures reboots. Enter the show mode command to view the current mode.

hostname Farscape

password passw0rd

enable password chr1cht0n

mac-address auto

asdm image disk0:/asdm.bin

boot system disk0:/image.bin

admin-context admin

interface gigabitethernet 0/0

   shutdown

interface gigabitethernet 0/0.3

   vlan 3

   no shutdown

interface gigabitethernet 0/1

   no shutdown

interface gigabitethernet 0/1.4

   vlan 4

   no shutdown

interface gigabitethernet 0/1.5

   vlan 5

   no shutdown

interface gigabitethernet 0/1.6

   vlan 6

   no shutdown

interface gigabitethernet 0/1.7

   vlan 7

   no shutdown

interface gigabitethernet 0/1.8

   vlan 8

   no shutdown

class gold

   limit-resource rate conns 2000

   limit-resource conns 20000

class silver

   limit-resource rate conns 1000

   limit-resource conns 10000

class bronze

   limit-resource rate conns 500

   limit-resource conns 5000

context admin

   allocate-interface gigabitethernet 0/0.3

   allocate-interface gigabitethernet 0/1.4

   config-url disk0://admin.cfg

   member default

context customerA

   description This is the context for customer A

   allocate-interface gigabitethernet 0/0.3

   allocate-interface gigabitethernet 0/1.5

   config-url disk0://contexta.cfg

   member gold

context customerB

   description This is the context for customer B

   allocate-interface gigabitethernet 0/0.3

   allocate-interface gigabitethernet 0/1.6

   config-url disk0://contextb.cfg

   member silver

context customerC

   description This is the context for customer C

   allocate-interface gigabitethernet 0/0.3

   allocate-interface gigabitethernet 0/1.7-gigabitethernet 0/1.8

   config-url disk0://contextc.cfg

   member bronze

Example 1: Admin Context Configuration

The host at 10.1.1.75 can access the context using SSH, which requires a key to be generated using the crypto key generate command.

hostname Admin

domain isp

interface gigabitethernet 0/0.3

   nameif outside

   security-level 0

   ip address 209.165.201.2 255.255.255.224

   no shutdown

interface gigabitethernet 0/1.4

   nameif inside

   security-level 100

   ip address 10.1.1.1 255.255.255.0

   no shutdown

passwd secret1969

enable password h1andl0

route outside 0 0 209.165.201.1 1

ssh 10.1.1.75 255.255.255.255 inside

nat (inside) 1 10.1.1.0 255.255.255.0

! This context uses dynamic NAT for inside users that access the outside

global (outside) 1 209.165.201.10-209.165.201.29

! The host at 10.1.1.75 has access to the Websense server in Customer C, so

! it needs a static translation for use in Customer C's access list

static (inside,outside) 209.165.201.30 10.1.1.75 netmask 255.255.255.255

Example 1: Customer A Context Configuration

interface gigabitethernet 0/0.3

   nameif outside

   security-level 0

   ip address 209.165.201.3 255.255.255.224

   no shutdown

interface gigabitethernet 0/1.5

   nameif inside

   security-level 100

   ip address 10.1.2.1 255.255.255.0

   no shutdown

passwd hell0!

enable password enter55

route outside 0 0 209.165.201.1 1

! The Customer A context has a second network behind an inside router that requires a

! static route. All other traffic is handled by the default route pointing to the router.

route inside 192.168.1.0 255.255.255.0 10.1.2.2 1

nat (inside) 1 10.1.2.0 255.255.255.0

! This context uses dynamic PAT for inside users that access that outside. The outside

! interface address is used for the PAT address

global (outside) 1 interface

Example 1: Customer B Context Configuration

interface gigabitethernet 0/0.3

   nameif outside

   security-level 0

   ip address 209.165.201.4 255.255.255.224

   no shutdown

interface gigabitethernet 0/1.6

   nameif inside

   security-level 100

   ip address 10.1.3.1 255.255.255.0

   no shutdown

passwd tenac10us

enable password defen$e

route outside 0 0 209.165.201.1 1

nat (inside) 1 10.1.3.0 255.255.255.0

! This context uses dynamic PAT for inside users that access the outside

global (outside) 1 209.165.201.9 netmask 255.255.255.255

access-list INTERNET remark Inside users only access HTTP and HTTPS servers on the outside

access-list INTERNET extended permit tcp any any eq http

access-list INTERNET extended permit tcp any any eq https

access-group INTERNET in interface inside

Example 1: Customer C Context Configuration

interface gigabitethernet 0/0.3

   nameif outside

   security-level 0

   ip address 209.165.201.5 255.255.255.224

   no shutdown

interface gigabitethernet 0/1.7

   nameif inside

   security-level 100

   ip address 10.1.4.1 255.255.255.0

   no shutdown

interface gigabitethernet 0/1.8

   nameif dmz

   security-level 50

   ip address 192.168.2.1 255.255.255.0

   no shutdown

passwd fl0wer

enable password treeh0u$e

route outside 0 0 209.165.201.1 1

url-server (dmz) vendor websense host 192.168.2.2 url-block block 50

url-cache dst 128

filter url http 10.1.4.0 255.255.255.0 0 0

! When inside users access an HTTP server, the security appliance consults with a

! Websense server to determine if the traffic is allowed

nat (inside) 1 10.1.4.0 255.255.255.0

! This context uses dynamic NAT for inside users that access the outside

global (outside) 1 209.165.201.9 netmask 255.255.255.255

! A host on the admin context requires access to the Websense server for management using

! pcAnywhere, so the Websense server uses a static translation for its private address

static (dmz,outside) 209.165.201.6 192.168.2.2 netmask 255.255.255.255

access-list MANAGE remark Allows the management host to use pcAnywhere on the Websense
server

access-list MANAGE extended permit tcp host 209.165.201.30 host 209.165.201.6 eq
pcanywhere-data

access-list MANAGE extended permit udp host 209.165.201.30 host 209.165.201.6 eq
pcanywhere-status

access-group MANAGE in interface outside

Example 2: Single Mode Firewall Using Same Security Level

This configuration creates three internal interfaces. Two of the interfaces connect to departments that are on the same security level, which allows all hosts to communicate without using access lists. The DMZ interface hosts a Syslog server. The management host on the outside needs access to the Syslog server and the security appliance. To connect to the security appliance, the host uses a VPN connection. The security appliance uses RIP on the inside interfaces to learn routes. The security appliance does not advertise routes with RIP; the upstream router needs to use static routes for security appliance traffic (see Figure B-2).

The Department networks are allowed to access the Internet, and use PAT.

Figure B-2 Example 2

passwd g00fba11

enable password gen1u$

hostname Buster

asdm image disk0:/asdm.bin

boot system disk0:/image.bin

interface gigabitethernet 0/0

   nameif outside

   security-level 0

   ip address 209.165.201.3 255.255.255.224

   no shutdown

interface gigabitethernet 0/1

   nameif dept2

   security-level 100

   ip address 10.1.2.1 255.255.255.0

   mac-address 000C.F142.4CDE standby 000C.F142.4CDF

   no shutdown

   rip authentication mode md5

   rip authentication key scorpius key_id 1

interface gigabitethernet 0/2

   nameif dept1

   security-level 100

   ip address 10.1.1.1 255.255.255.0

   no shutdown

interface gigabitethernet 0/3

   nameif dmz

   security-level 50

   ip address 192.168.2.1 255.255.255.0

   no shutdown

same-security-traffic permit inter-interface

route outside 0 0 209.165.201.1 1

nat (dept1) 1 10.1.1.0 255.255.255.0

nat (dept2) 1 10.1.2.0 255.255.255.0

! The dept1 and dept2 networks use PAT when accessing the outside

global (outside) 1 209.165.201.9 netmask 255.255.255.255

! Because we perform dynamic NAT on these addresses for outside access, we need to perform

! NAT on them for all other interface access. This identity static statement just

! translates the local address to the same address.

static (dept1,dept2) 10.1.1.0 10.1.1.0 netmask 255.255.255.0

static (dept2,dept1) 10.1.2.0 10.1.2.0 netmask 255.255.255.0

! The syslog server uses a static translation so the outside management host can access

! the server

static (dmz,outside) 209.165.201.5 192.168.2.2 netmask 255.255.255.255

access-list MANAGE remark Allows the management host to access the syslog server

access-list MANAGE extended permit tcp host 209.165.200.225 host 209.165.201.5 eq telnet

access-group MANAGE in interface outside

! Advertises the security appliance IP address as the default gateway for the downstream

! router. The security appliance does not advertise a default route to the upstream

! router. Listens for RIP updates from the downstream router. The security appliance does

! not listen for RIP updates from the upstream router because a default route to the

! upstream router is all that is required.

router rip

   network 10.0.0.0

   default information originate

   version 2

! The client uses a pre-shared key to connect to the security appliance over IPSec. The

! key is the password in the username command following.

isakmp policy 1 authentication pre-share

isakmp policy 1 encryption 3des

isakmp policy 1 group 2

isakmp policy 1 hash sha

isakmp enable outside

crypto ipsec transform-set vpn_client esp-3des esp-sha-hmac

username admin password passw0rd

crypto ipsec transform-set vpn esp-3des esp-sha-hmac

crypto dynamic-map vpn_client 1 set transform-set vpn

crypto map telnet_tunnel 1 ipsec-isakmp dynamic vpn_client

crypto map telnet_tunnel interface outside

ip local pool client_pool 10.1.1.2

access-list VPN_SPLIT extended permit ip host 209.165.201.3 host 10.1.1.2

telnet 10.1.1.2 255.255.255.255 outside

telnet timeout 30

logging trap 5

! System messages are sent to the syslog server on the DMZ network

logging host dmz 192.168.2.2

logging enable

Example 3: Shared Resources for Multiple Contexts

This configuration includes multiple contexts for multiple departments within a company. Each department has its own security context so that each department can have its own security policy. However, the syslog, mail, and AAA servers are shared across all departments. These servers are placed on a shared interface (see Figure B-3).

Department 1 has a web server that outside users who are authenticated by the AAA server can access.

Figure B-3 Example 3

See the following sections for the configurations for this scenario:

•Example 3: System Configuration

•Example 3: Admin Context Configuration

•Example 3: Department 1 Context Configuration

•Example 3: Department 2 Context Configuration

Example 3: System Configuration

hostname Ubik

password pkd55

enable password deckard69

asdm image disk0:/asdm.bin

boot system disk0:/image.bin

mac-address auto

admin-context admin

interface gigabitethernet 0/0

   no shutdown

interface gigabitethernet 0/0.200

   vlan 200

   no shutdown

interface gigabitethernet 0/1

   shutdown

interface gigabitethernet 0/1.201

   vlan 201

   no shutdown

interface gigabitethernet 0/1.202

   vlan 202

   no shutdown

interface gigabitethernet 0/1.300

   vlan 300

   no shutdown

context admin

   allocate-interface gigabitethernet 0/0.200

   allocate-interface gigabitethernet 0/1.201

   allocate-interface gigabitethernet 0/1.300

   config-url disk0://admin.cfg

context department1

   allocate-interface gigabitethernet 0/0.200

   allocate-interface gigabitethernet 0/1.202

   allocate-interface gigabitethernet 0/1.300

   config-url ftp://admin:passw0rd@10.1.0.16/dept1.cfg

context department2

   allocate-interface gigabitethernet 0/0.200

   allocate-interface gigabitethernet 0/1.203

   allocate-interface gigabitethernet 0/1.300

   config-url ftp://admin:passw0rd@10.1.0.16/dept2.cfg

Example 3: Admin Context Configuration

hostname Admin

interface gigabitethernet 0/0.200

   nameif outside

   security-level 0

   ip address 209.165.201.3 255.255.255.224

   no shutdown

interface gigabitethernet 0/0.201

   nameif inside

   security-level 100

   ip address 10.1.0.1 255.255.255.0

   no shutdown

interface gigabitethernet 0/0.300

   nameif shared

   security-level 50

   ip address 10.1.1.1 255.255.255.0

   no shutdown

passwd v00d00

enable password d011

route outside 0 0 209.165.201.2 1

nat (inside) 1 10.1.0.0 255.255.255.0

! This context uses PAT for inside users that access the outside

global (outside) 1 209.165.201.6 netmask 255.255.255.255

! This context uses PAT for inside users that access the shared network

global (shared) 1 10.1.1.30

! Because this host can access the web server in the Department 1 context, it requires a

! static translation

static (inside,outside) 209.165.201.7 10.1.0.15 netmask 255.255.255.255

! Because this host has management access to the servers on the Shared interface, it

! requires a static translation to be used in an access list

static (inside,shared) 10.1.1.78 10.1.0.15 netmask 255.255.255.255

access-list SHARED remark -Allows only mail traffic from inside to exit shared interface

access-list SHARED remark -but allows the admin host to access any server.

access-list SHARED extended permit ip host 10.1.1.78 any

access-list SHARED extended permit tcp host 10.1.1.30 host 10.1.1.7 eq smtp

! Note that the translated addresses are used.

access-group SHARED out interface shared

! Allows 10.1.0.15 to access the admin context using Telnet. From the admin context, you

! can access all other contexts.

telnet 10.1.0.15 255.255.255.255 inside

aaa-server AAA-SERVER protocol tacacs+

aaa-server AAA-SERVER (shared) host 10.1.1.6

   key TheUauthKey

   server-port 16

! The host at 10.1.0.15 must authenticate with the AAA server to log in

aaa authentication telnet console AAA-SERVER

aaa authorization command AAA-SERVER LOCAL

aaa accounting command AAA-SERVER

logging trap 6

! System messages are sent to the syslog server on the Shared network

logging host shared 10.1.1.8

logging enable

Example 3: Department 1 Context Configuration

interface gigabitethernet 0/0.200

   nameif outside

   security-level 0

   ip address 209.165.201.4 255.255.255.224

   no shutdown

interface gigabitethernet 0/0.202

   nameif inside

   security-level 100

   ip address 10.1.2.1 255.255.255.0

   no shutdown

interface gigabitethernet 0/0.300

   nameif shared

   security-level 50

   ip address 10.1.1.2 255.255.255.0

   no shutdown

passwd cugel

enable password rhialto

nat (inside) 1 10.1.2.0 255.255.255.0

! The inside network uses PAT when accessing the outside

global (outside) 1 209.165.201.8 netmask 255.255.255.255

! The inside network uses dynamic NAT when accessing the shared network

global (shared) 1 10.1.1.31-10.1.1.37

! The web server can be accessed from outside and requires a static translation

static (inside,outside) 209.165.201.9 10.1.2.3 netmask 255.255.255.255

access-list WEBSERVER remark -Allows the management host (its translated address) on the
access-list WEBSERVER remark -admin context to access the web server for management

access-list WEBSERVER remark -it can use any IP protocol

access-list WEBSERVER extended permit ip host 209.165.201.7 host 209.165.201.9

access-list WEBSERVER remark -Allows any outside address to access the web server

access-list WEBSERVER extended permit tcp any eq http host 209.165.201.9 eq http

access-group WEBSERVER in interface outside

access-list MAIL remark -Allows only mail traffic from inside to exit out the shared int

! Note that the translated addresses are used.

access-list MAIL extended permit tcp host 10.1.1.31 eq smtp host 10.1.1.7 eq smtp

access-list MAIL extended permit tcp host 10.1.1.32 eq smtp host 10.1.1.7 eq smtp

access-list MAIL extended permit tcp host 10.1.1.33 eq smtp host 10.1.1.7 eq smtp

access-list MAIL extended permit tcp host 10.1.1.34 eq smtp host 10.1.1.7 eq smtp

access-list MAIL extended permit tcp host 10.1.1.35 eq smtp host 10.1.1.7 eq smtp

access-list MAIL extended permit tcp host 10.1.1.36 eq smtp host 10.1.1.7 eq smtp

access-list MAIL extended permit tcp host 10.1.1.37 eq smtp host 10.1.1.7 eq smtp

access-group MAIL out interface shared

aaa-server AAA-SERVER protocol tacacs+

aaa-server AAA-SERVER (shared) host 10.1.1.6

   key TheUauthKey

   server-port 16

! All traffic matching the WEBSERVER access list must authenticate with the AAA server

aaa authentication match WEBSERVER outside AAA-SERVER

logging trap 4

! System messages are sent to the syslog server on the Shared network

logging host shared 10.1.1.8

logging enable

Example 3: Department 2 Context Configuration

interface gigabitethernet 0/0.200

   nameif outside

   security-level 0

   ip address 209.165.201.5 255.255.255.224

   no shutdown

interface gigabitethernet 0/0.203

   nameif inside

   security-level 100

   ip address 10.1.3.1 255.255.255.0

   no shutdown

interface gigabitethernet 0/0.300

   nameif shared

   security-level 50

   ip address 10.1.1.3 255.255.255.0

   no shutdown

passwd maz1r1an

enable password ly0ne$$e

route outside 0 0 209.165.201.2 1

nat (inside) 1 10.1.3.0 255.255.255.0

! The inside network uses PAT when accessing the outside

global (outside) 1 209.165.201.10 netmask 255.255.255.255

! The inside network uses PAT when accessing the shared network

global (shared) 1 10.1.1.38

access-list MAIL remark -Allows only mail traffic from inside to exit out the shared int

access-list MAIL extended permit tcp host 10.1.1.38 host 10.1.1.7 eq smtp

! Note that the translated PAT address is used.

access-group MAIL out interface shared

logging trap 3

! System messages are sent to the syslog server on the Shared network

logging host shared 10.1.1.8

logging enable

Example 4: Multiple Mode, Transparent Firewall with Outside Access

This configuration creates three security contexts plus the admin context. Each context allows OSPF traffic to pass between the inside and outside routers (see Figure B-4).

Inside hosts can access the Internet through the outside, but no outside hosts can access the inside.

An out-of-band management host is connected to the Management 0/0 interface.

The admin context allows SSH sessions to the security appliance from one host.

Although inside IP addresses can be the same across contexts, keeping them unique is easier to manage.

Figure B-4 Example 4

See the following sections for the configurations for this scenario:

•Example 4: System Configuration

•Example 4: Admin Context Configuration

•Example 4: Customer A Context Configuration

•Example 4: Customer B Context Configuration

•Example 4: Customer C Context Configuration

Example 4: System Configuration

firewall transparent

hostname Farscape

password passw0rd

enable password chr1cht0n

asdm image disk0:/asdm.bin

boot system disk0:/image.bin

admin-context admin

interface gigabitethernet 0/0

   no shutdown

interface gigabitethernet 0/0.150

   vlan 150

   no shutdown

interface gigabitethernet 0/0.151

   vlan 151

   no shutdown

interface gigabitethernet 0/0.152

   vlan 152

   no shutdown

interface gigabitethernet 0/0.153

   vlan 153

   no shutdown

interface gigabitethernet 0/1

   shutdown

interface gigabitethernet 0/1.4

   vlan 4

   no shutdown

interface gigabitethernet 0/1.5

   vlan 5

   no shutdown

interface gigabitethernet 0/1.6

   vlan 6

   no shutdown

interface gigabitethernet 0/1.7

   vlan 7

   no shutdown

interface management 0/0

   no shutdown

context admin

   allocate-interface gigabitethernet 0/0.150

   allocate-interface gigabitethernet 0/1.4

   allocate-interface management 0/0

   config-url disk0://admin.cfg

context customerA

   description This is the context for customer A

   allocate-interface gigabitethernet 0/0.151

   allocate-interface gigabitethernet 0/1.5

   config-url disk0://contexta.cfg

context customerB

   description This is the context for customer B

   allocate-interface gigabitethernet 0/0.152

   allocate-interface gigabitethernet 0/1.6

   config-url disk0://contextb.cfg

context customerC

   description This is the context for customer C

   allocate-interface gigabitethernet 0/0.153

   allocate-interface gigabitethernet 0/1.7

   config-url disk0://contextc.cfg

Example 4: Admin Context Configuration

The host at 10.1.1.75 can access the context using SSH, which requires a key pair to be generated using the crypto key generate command.

hostname Admin

domain isp

interface gigabitethernet 0/0.150

   nameif outside

   security-level 0

   no shutdown

interface gigabitethernet 0/1.4

   nameif inside

   security-level 100

   no shutdown

interface management 0/0

   nameif manage

   security-level 50

   ip address 10.2.1.1 255.255.255.0

   no shutdown

passwd secret1969

enable password h1andl0

ip address 10.1.1.1 255.255.255.0

route outside 0 0 10.1.1.2 1

ssh 10.1.1.75 255.255.255.255 inside

access-list OSPF remark -Allows OSPF

access-list OSPF extended permit 89 any any

access-group OSPF in interface outside

Example 4: Customer A Context Configuration

interface gigabitethernet 0/0.151

   nameif outside

   security-level 0

   no shutdown

interface gigabitethernet 0/1.5

   nameif inside

   security-level 100

   no shutdown

passwd hell0!

enable password enter55

ip address 10.1.2.1 255.255.255.0

route outside 0 0 10.1.2.2 1

access-list OSPF remark -Allows OSPF

access-list OSPF extended permit 89 any any

access-group OSPF in interface outside

Example 4: Customer B Context Configuration

interface gigabitethernet 0/0.152

   nameif outside

   security-level 0

   no shutdown

interface gigabitethernet 0/1.6

   nameif inside

   security-level 100

   no shutdown

passwd tenac10us

enable password defen$e

ip address 10.1.3.1 255.255.255.0

route outside 0 0 10.1.3.2 1

access-list OSPF remark -Allows OSPF

access-list OSPF extended permit 89 any any

access-group OSPF in interface outside

Example 4: Customer C Context Configuration

interface gigabitethernet 0/0.153

   nameif outside

   security-level 0

   no shutdown

interface gigabitethernet 0/1.7

   nameif inside

   security-level 100

   no shutdown

passwd fl0wer

enable password treeh0u$e

ip address 10.1.4.1 255.255.255.0

route outside 0 0 10.1.4.2 1

access-list OSPF remark -Allows OSPF

access-list OSPF extended permit 89 any any

access-group OSPF in interface outside

Example 5: WebVPN Configuration

This configuration shows the commands needed to create WebVPN connections to the security appliance.

WebVPN lets users establish a secure, remote-access VPN tunnel to the security appliance using a web browser. There is no need for either a software or hardware client. WebVPN provides easy access to a broad range of web resources and web-enabled applications from almost any computer that can reach HTTP(S) Internet sites. WebVPN uses Secure Socket Layer Protocol and its successor, Transport Layer Security (SSL/TLS1) to provide a secure connection between remote users and specific, supported internal resources that you configure at a central site. The security appliance recognizes connections that need to be proxied, and the HTTP server interacts with the authentication subsystem to authenticate users.

Step 1 Configure the security appliance for WebVPN.

webvpn

! WebVPN sessions are allowed on the outside and dmz1 interfaces, ASDM is not allowed.

 enable outside

 enable dmz161

 title-color green

 secondary-color 200,160,0

 text-color black

 default-idle-timeout 3600

! The NetBios Name server used for CIFS resolution.

 nbns-server 172.31.122.10 master timeout 2 retry 2

 accounting-server-group RadiusACS1

! WebVPN sessions are authenticated to a RADIUS aaa server.

 authentication-server-group RadiusACS2

Step 2 You must enable WebVPN access lists to be enforced on a group-policy or user policy. The access lists are defined with the filter value and functions commands in the group or user configuration.

access-list maia2 remark -deny access to url and send a syslog every 300 seconds

access-list maia2 remark -containing the hit-count (how many times the url was accessed)

access-list maia2 webtype deny url https://sales.example.com log informational interval
300

access-list maia2 remark -Permits access to the URL.

access-list maia2 webtype permit url http://employee-connection.example.com

access-list maia2 remark -Permits access to the site using ssh.

access-list maia2 remark -To be enforced via Port-Forwarding application.

access-list maia2 webtype permit tcp asa-35.example.com 255.255.255.255 eq ssh

access-list maia2 remark -Denies access to the application on port 1533.

access-list maia2 webtype deny tcp im.example.com 255.255.255.255 eq 1533

access-list maia2 remark -Permits access to files on this file share via

access-list maia2 remark -WebVPN Common Internet File System (CIFS).

access-list maia2 webtype permit url cifs://server-bos/people/mkting log informational
3600

Step 3 You can configure a list of pre-configured URLs presented on the WebVPN user's home page after login, which are defined per user or per group.

url-list HomeURL "Sales" https://sales.example.com

url-list HomeURL "VPN3000-1" http://vpn3k-1.example.com

url-list HomeURL "OWA-2000" http://10.160.105.2/exchange

url-list HomeURL "Exchange5.5" http://10.86.195.113/exchange

url-list HomeURL " Employee Benefits" http://benefits.example.com

url-list HomeURL "Calendar" http://http://eng.example.com/cal.html

Step 4 Configure a list of non-web TCP applications that will be port-forwarded over WebVPN and enforced per user or per group-policy. These are defined globally but can be enforced per user or per group-policy.

port-forward Apps1 4001 10.148.1.81 telnet term-servr

port-forward Apps1 4008 router1-example.com ssh

port-forward Apps1 10143 flask.example.com imap4

port-forward Apps1 10110 flask.example.com pop3

port-forward Apps1 10025 flask.example.com smtp

port-forward Apps1 11533 sametime-im.example.com 1533

port-forward Apps1 10022 secure-term.example.com ssh

port-forward Apps1 21666 tuscan.example.com 1666 perforce-f1

port-forward Apps1 1030 sales.example.com https

Step 5 Configure the policy attributes enforced for users of the SSLVPNusers group-policy.

group-policy SSLVPNusers internal

group-policy SSLVPNusers attributes

   banner value Welcome to Web Services !!!

   vpn-idle-timeout 2

   vpn-tunnel-protocol IPSec webvpn

   webvpn

      functions url-entry file-access file-entry file-browsing port-forward filter

      url-list value HomeURL

      port-forward value Apps1

Step 6 Next, configure the interface(s) where ASDM and WebVPN HTTPS sessions will terminate. Note that The security appliance can support both WebVPN and an ASDM administrative session simultaneously on the same interface. To do so, you must assign different port numbers to these functions.

! Enables the HTTP server to allow ASDM and WebVPN HTTPS sessions.

http server enable

! Allows ASDM session(s) from host 10.20.30.47 on the inside interface ; WebVPN sessions

! are not allowed on this interface.

http 10.10.10.45 255.255.255.255 inside

! Allows WebVPN sessions on outside interfce using HTTP to be re-directed to HTTPS.

! ASDM session is not allowed on this interface.

http redirect outside 80

! Allows WebVPN sessions on dmz1 interfce using HTTP to be re-directed to HTTPS.

http redirect dmz161 80

Step 7 Next, allow HTTPS ASDM and WebVPN sessions to terminate on the security appliance using the 3DES-sha1 cipher. Requires that a proper 3DES activation-key be previously installed.

ssl encryption 3des-sha1

ssl trust-point CA-MS inside

Step 8 Finally, configure the email proxy settings.

imap4s

   enable outside

   enable inside

   enable dmz161

   default-group-policy DfltGrpPolicy

pop3s

   enable outside

   enable inside

   enable dmz161

   default-group-policy DfltGrpPolicy

smtps

   enable outside

   enable inside

   enable dmz161

   default-group-policy DfltGrpPolicy

Example 6: IPv6 Configuration

This sample configuration shows several features of IPv6 support on the security appliance:

•Each interface is configured with both IPv6 and IPv4 addresses.

•The IPv6 default route is set with the ipv6 route command.

•An IPv6 access list is applied to the outside interface.

•The enforcement of Modified-EUI64 format interface identifiers in the IPv6 addresses of hosts on the inside interface.

•The outside interface suppresses router advertisement messages.

•An IPv6 static route.

Figure B-5 IPv6 Dual Stack Configuration

enable password myenablepassword

passwd mypassword

hostname coyupix

asdm image flash:/asdm.bin

boot system flash:/image.bin

interface Ethernet0

   nameif outside

   security-level 0

   ip address 10.142.10.100 255.255.255.0

   ipv6 address 2001:400:3:1::100/64

   ipv6 nd suppress-ra

   ospf mtu-ignore auto

   no shutdown

interface Ethernet1

   nameif inside

   security-level 100

   ip address 10.140.10.100 255.255.255.0

   ipv6 address 2001:400:1:1::100/64

   ospf mtu-ignore auto

   no shutdown

access-list allow extended permit icmp any any

ssh 10.140.10.75 255.255.255.255 inside

logging enable

logging buffered debugging

ipv6 enforce-eui64 inside

ipv6 route outside 2001:400:6:1::/64 2001:400:3:1::1

ipv6 route outside ::/0 2001:400:3:1::1

ipv6 access-list outacl permit icmp6 2001:400:2:1::/64 2001:400:1:1::/64

ipv6 access-list outacl permit tcp 2001:400:2:1::/64 2001:400:1:1::/64 eq telnet

ipv6 access-list outacl permit tcp 2001:400:2:1::/64 2001:400:1:1::/64 eq ftp

ipv6 access-list outacl permit tcp 2001:400:2:1::/64 2001:400:1:1::/64 eq www

access-group allow in interface outside

access-group outacl in interface outside

route outside 0.0.0.0 0.0.0.0 16.142.10.1 1

Example 7: Cable-Based Active/Standby Failover (Routed Mode)

Figure B-6 shows the network diagram for a failover configuration using a serial Failover cable. This configuration is only available on the PIX security appliance.

Figure B-6 Cable-Based Failover Configuration

The following are the typical commands in a cable-based failover configuration.

enable password myenablepassword

passwd mypassword

hostname pixfirewall

asdm image flash:/asdm.bin

boot system flash:/image.bin

interface Ethernet0

   nameif outside

   security-level 0

   speed 100

   duplex full

   ip address 209.165.201.1 255.255.255.224 standby 209.165.201.2

   no shutdown

interface Ethernet1

   nameif inside

   security-level 100

   speed 100

   duplex full

   ip address 192.168.2.1 255.255.255.0 standby 192.168.2.2

   no shutdown

interface Ethernet3

   description STATE Failover Interface

telnet 192.168.2.45 255.255.255.255 inside

access-list acl_in permit tcp any host 209.165.201.5 eq 80

access-group acl_in in interface outside

failover

failover link state Ethernet3

failover interface ip state 192.168.253.1 255.255.255.252 standby 192.168.253.2

global (outside) 1 209.165.201.3 netmask 255.255.255.224

nat (inside) 1 0.0.0.0 0.0.0.0

static (inside,outside) 209.165.201.5 192.168.2.5 netmask 255.255.255.255 0 0

route outside 0.0.0.0 0.0.0.0 209.165.201.4 1

Example 8: LAN-Based Active/Standby Failover (Routed Mode)

Figure B-7 shows the network diagram for a failover configuration using an Ethernet failover link. The units are configured to detect unit failures and to fail over in under a second (see the failover polltime unit command in the primary unit configuration).

Figure B-7 LAN

Table Of Contents

Sample Configurations

Example 1: Multiple Mode Firewall With Outside Access

Example 1: System Configuration

Example 1: Admin Context Configuration

Example 1: Customer A Context Configuration

Example 1: Customer B Context Configuration

Example 1: Customer C Context Configuration

Example 2: Single Mode Firewall Using Same Security Level

Example 3: Shared Resources for Multiple Contexts

Example 3: System Configuration

Example 3: Admin Context Configuration

Example 3: Department 1 Context Configuration

Example 3: Department 2 Context Configuration

Example 4: Multiple Mode, Transparent Firewall with Outside Access

Example 4: System Configuration

Example 4: Admin Context Configuration

Example 4: Customer A Context Configuration

Example 4: Customer B Context Configuration

Example 4: Customer C Context Configuration

Example 5: WebVPN Configuration

Example 6: IPv6 Configuration

Example 7: Cable-Based Active/Standby Failover (Routed Mode)

Example 8: LAN-Based Active/Standby Failover (Routed Mode)
