Implementing Adjacencies on Cisco Unified Border Element (SP Edition)

---

Accounts and adjacencies are the key objects used to control signaling. An account represents a service relationship with a remote organization on the signaling border element (SBE), with which Cisco Unified Border Element (SP Edition) will interact. Within each account, the user defines one or more signaling adjacencies, which connect Cisco Unified Border Element (SP Edition) to devices within that organization. The account is used to:

•Define customer-specific admission control

•Define routing policy configurations

•Organize billing records

An adjacency represents a signaling relationship with a remote call agent. There is one adjacency defined per external call agent. The adjacency is used to define protocol-specific parameters as well as admission control and routing policy. Each adjacency belongs within an account.

Each incoming call is matched to an adjacency, and each outgoing call is routed out over a second adjacency. Adjacencies can also be associated with a media gateway location, so that the most appropriate virtual data border element (vDBE) can be selected for a given call leg. Typically, an Cisco Unified Border Element (SP Edition) has at least one account representing the internal network.

You can assign each adjacency to an adjacency group, so you can enable and disable features per interface. For example, you can turn off high bandwidth features on all adjacencies to customers on a known low-bandwidth link.

This chapter also discusses the SIP Over Transport Layer Security (TLS) feature, an encryption feature that provides a secure, encrypted transport to carry all SIP messages from the caller to the callee's domain.

---

Note Cisco Unified Border Element (SP Edition) was formerly known as Integrated Session Border Controller and may be commonly referred to in this document as the session border controller (SBC).

---

---

Note For Cisco IOS XE Release 2.4, this feature is supported in the unified model only.

---

For a complete description of commands used in this chapter, refer to the Cisco Unified Border Element (SP Edition) Command Reference: Unified Model at http://www.cisco.com/en/US/docs/ios/sbc/command/reference/sbcu_book.html.

For information about all Cisco IOS commands, use the Command Lookup Tool at http://tools.cisco.com/Support/CLILookup or a Cisco IOS master commands list.

Feature History for Implementing Adjacencies and SIP Over TLS

Release	Modification
Cisco IOS XE Release 2.4	This feature and SIP over TLS were introduced on the Cisco ASR 1000 Series Aggregation Services Routers along with support for the unified model.

Contents

This module contains the following sections:

•Prerequisites for Implementing Adjacencies

•Information About Implementing Adjacencies

•How to Implement Adjacencies

•Configuration Examples for Implementing Adjacencies

•SIP UAS Failure Detection

•SIP Outbound Flood Protection

•SIP Over TLS

Prerequisites for Implementing Adjacencies

The following prerequisite is required to implement adjacencies:

•Before implementing adjacencies, Cisco Unified Border Element (SP Edition) must already be configured. See the procedures described in Chapter 2, "Configuring Cisco Unified Border Element (SP Edition)."

Restrictions

H.323 adjacencies are not supported in Cisco IOS XE Release 2.4 and earlier.

Information About Implementing Adjacencies

Adjacencies are used to enable call signaling between the SBE and other voice over IP (VoIP) devices. Cisco Unified Border Element (SP Edition) supports adjacencies in Session Initiation Protocol (SIP) network deployments.

In a SIP network, the devices might be user agents, proxies, softswitches, or back-to-back user agents (B2BUAs). When you configure a SIP adjacency, the SBE functions as a B2BUA within the SIP network.

Adjacencies can represent both trunking and subscriber signaling relationships. The network topology and configuration of an adjacency determine its role.

The adjacency accepts packets from either the UDP or TCP socket specified in the signaling port configuration line. For SIP, the default is port 5060. When sending packets out the adajacency, the transport used is specified using the preferred-transport [ tcp | udp] command. The default is to use UDP. Note that there is no dependency betweed the input and output adjacencies. It is valid to have one adjacency use TCP for the signaling and the other use UDP.

Further overview details about implementing adjacencies are described in the following sections:

•Properties Common to SIP Adjacencies

•About SIP Adjacencies in the Deployment

•How Adjacencies Affect Media Routing

Properties Common to SIP Adjacencies

The following properties are common to SIP adjacencies:

•Adjacencies are known by name. The name makes it easy for a Cisco Unified Border Element (SP Edition) policy to reference the adjacency.

•An adjacency has a local address and port for incoming call setup.

•An adjacency has a peer address and port. This is the point of contact for outgoing calls. In the SIP case, this is only true if the "force-signaling-peer" option is set for that adjacency.

•An adjacency forms the output of a routing policy decision. In other words, the routing phase for a call results in selection of an outgoing adjacency for that call. Normally, adjacency selection is done based on a destination telephone number prefix. However, two adjacencies can also be bridged together by using a source adjacency as a routing input.

About SIP Adjacencies in the Deployment

Figure 9-1 shows a simple SIP network where:

•SIP subscribers register with the SIP proxy, which acts as a single point of contact for all of them.

•The softswitch is a gateway between the SIP network and the public switched telephone network (PSTN).

•The softswitch routing policy assigns a particular phone prefix to each SIP proxy, allowing calls from the PSTN network to be routed through the proxy to a given subscriber. (In other deployments, subscribers may register directly with a softswitch without going through a proxy first.)

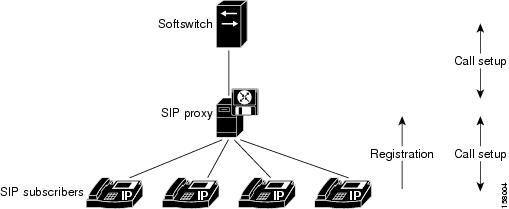

Figure 9-1 SIP Network

Figure 9-2 shows placement of a Cisco Unified Border Element (SP Edition) in two possible positions within the SIP network, with the adjacencies noted. Each adjacency enables call setup to one or more neighboring devices, as follows:

•ADJ_SIP1A allows call setup between SBC1 and the softswitch.

•ADJ_SIP1B allows call setup between SBC1 and the proxy.

•ADJ_SIP2A allows call setup between SBC2 and the proxy.

•ADJ_SIP_SUBSCRIBERS allows call setup between SBC2 and the subscribers.

In the case of SBC2, SIP registrations are being routed through the SBC. Registrations received on ADJ_SIP_SUBSCRIBERS are being routed to the proxy over ADJ_SIP2A.

The key difference between subscriber and nonsubscriber adjacencies is that:

•Nonsubscriber adjacencies have a configured single point of contact, the peer address for the adjacency.

•Subscriber adjacencies do not have a single point of contact and are instead configured to accept registrations.

SIP registrations require a routing policy to determine which is the correct outgoing adjacency for a given registration. This works in a very similar way to a call routing policy. See the procedures described in the Implementing Cisco Unified Border Element (SP Edition) Policies module.

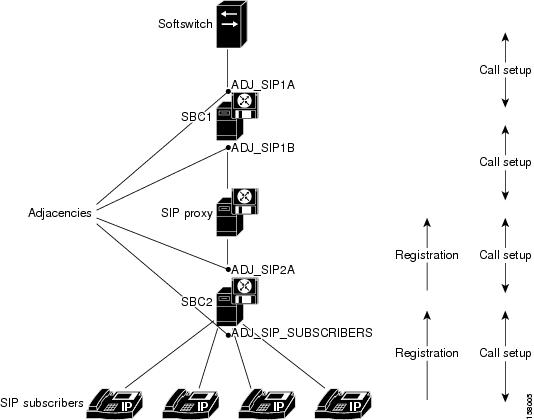

Figure 9-2 Adjacencies in a SIP Network Deployment

How Adjacencies Affect Media Routing

For a distributed Cisco Unified Border Element (SP Edition) deployment, each adjacency is configured with a media location. The media location is an ID used to select the data border elements (DBEs) suitable for relaying media traffic for calls set up over the adjacency.

If a call is routed out over the same or different adjacency, the media may bypass a DBE. The media bypass feature allows the media packets to bypass the Cisco Unified Border Element (SP Edition) to enable the endpoints to communicate directly to each other. Media packets flow directly without going through the DBE component of the SBC after the call signaling is done. Signaling packets still flow through the SBC as usual.

The configuration is set per adjacency, and allows media bypass across different adjacencies. Media-bypass configuration is enabled under adjacency configuration. Media bypass is useful when two endpoints are on the same subnet, but the DBE is located elsewhere on the network.

Figure 9-3 and Figure 9-4 illustrate how adjacency configuration controls media routing. In this example:

•Adjacency A connects to Peer1

•Adjacency B connects to Peer2a and 2b

•Adjacency C connects to Peer3

Adjacencies A and B are configured with media location 1. In other words, calls routed over them will use the same DBE (or set of DBEs) for media. Adjacency C is configured with media location 2.

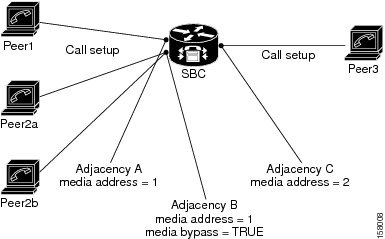

Figure 9-3 How Adjacency Configuration Controls Media Routing

Now consider three calls: Peer1-Peer3, Peer1-Peer2a, and Peer2a-Peer2b. The media for these calls is routed as shown in Figure 9-4.

•The first call traverses two adjacencies with different media locations. Its media is relayed through two DBEs.

•The second call traverses two adjacencies with the same media location. Its media is relayed through a single DBE.

•The third call traverses a single adjacency with media by pass enabled. Its media is sent directly between the two peers without involving a DBE.

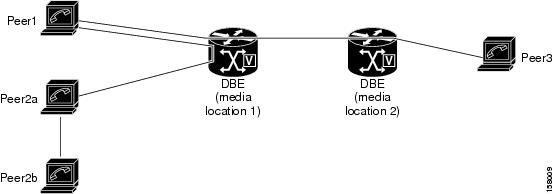

Figure 9-4 Media Routing for Three Calls: Peer1-Peer3, Peer1-Peer2a, and Peer2a-Peer2b

How to Implement Adjacencies

Adjacencies are the key objects used to control signaling. The user defines one or more signaling adjacencies, which connect the Cisco Unified Border Element (SP Edition) to devices within that organization. Each incoming call is matched to an adjacency, and each outgoing call is routed out over an adjacency. The adjacencies are then attached to the appropriate account. Adjacencies can be associated with a media gateway DBE location, so that the most appropriate DBE can be selected to route media for a given call leg.

---

Note The default behavior for Cisco Unified Border Element (SP Edition) is to route INVITE requests to the device specified in the Request URI. If instead, the user wishes requests to be routed to the signaling peer, then 'force-next-hop' behavior should be enabled by configuring the force-signaling-peer command on the outbound adjacency.

---

The following sections describe implementing a SIP adjacency, depending on your implementation requirements:

•Configuring Force-Signaling-Peer Adjacency

•Configuring a SIP Adjacency

•Assigning SIP Adjacencies to Adjacency Groups

Configuring Force-Signaling-Peer Adjacency

This task configures a force-signaling-peer adjacency.

SUMMARY STEPS

1. configure

2. sbc service-name

3. sbe

4. adjacency sip adjacency-name

5. force-signaling-peer

6. attach

7. exit

DETAILED STEPS

	Command or Action	Purpose
Step 1	configure Example: Router# configure	Enables global configuration mode.
Step 2	sbc service-name Example: Router(config)# sbc umsbc-node10	Enters the mode of an SBC service. Use the service-name argument to define the name of the service.
Step 3	sbe Example: Router(config-sbc)# sbe	Enters the mode of an SBE entity within an SBC service.
Step 4	adjacency sip adjacency-name Example: Router(config-sbc-sbe)# adjacency sip 2651XM-5	Enters the mode of an SBE SIP adjacency. Use the adjacency-name argument to define the name of the SIP adjacency.
Step 5	force-signaling-peer Example: Router(config-sbc-sbe-adj-sip)# force-signaling-peer	Forces SIP messages to go to the configured signaling peer.
Step 6	attach Example: Router(config-sbc-sbe-adj-sip)# attach	Attaches the adjacency.
Step 7	exit Example: Router(config-sbc-sbe-adj-sip)# exit	Exits the sip mode to the sbe mode.

Configuring a SIP Adjacency

You can only modify adjacencies when the adjacency is detached. Before modifying an adjacency, you can detach the adjacency first with the no attach command. The adjacency stays in the going down state when a call is active or when the ping enable feature is running. During this state, existing calls are not torn down and new calls are not accepted. The adjacency does not go to detached state until all calls have ended. An adjacency cannot be attached until the adjacency is in detached state.

If you wish to override the option to wait till active calls on the adjacency end, the adjacency can be detached immediately using the following commands:

•no attach force abort—Executes a forced detach, tearing down calls without signaling their end.

•no attach force normal—Executes a forced detach, tearing down calls gracefully.

To check the state of the adjacency, you can use the show sbc sbe adjacencies command.

---

Caution Adjacencies can only be modified when the status is detached. Before modifying an adjacency, use the no attach command first.

---

---

Note For User-to-Network Interface (UNI) registration support for a SIP inherit profile, you have the option of using the default value or a preset-access or a preset-core value. When using the default value for those adjacencies without specific per adjacency configuration, the sip inherit profile preset-standard-non-ims command in the SBE configuration mode (config-sbc-sbe) is applied to the adjacencies by default, and UNI registration support is enabled for this default configuration.When configuring a a preset-access or a preset-core value, use the inherit profile preset-p-cscf-access command on the adjacency facing subscribers and the inherit profile preset-p-cscf-core command on the adjacency facing the the SIP proxy. If you use other combinations (for example, if both the inbound and outbound adjacencies are configured as preset-core, Cisco Unified Border Element (SP Edition) will not store the registration information, nor will it rewrite the Contact: header to make sure it's on the signaling path of future messages.

---

This task configures two session initiation protocol (SIP) adjacencies. The first adjacency is configured for a gateway/endpoint. The second adjacency is configured with proxy/softswitch.

SUMMARY STEPS

1. configure

2. sbc service-name

3. sbe

4. sip inherit profile {preset-ibcf-ext-untrusted | preset-ibcf-external | preset-ibcf-internal | preset-p-cscf-access | preset-p-cscf-core | preset-standard-non-ims}

5. adjacency sip adjacency-name

6. signaling-address ipv4 ipv4_IP_address

7. signaling-port port_num

8. remote-address ipv4 ipv4_IP_address/prefix

9. signaling-peer peer_address

10. signaling-peer-port port_num

11. account account-name

12. registration rewrite-register

13. attach

14. exit

15. adjacency sip adjacency-name

16. inherit profile {preset-access | preset-core | preset-ibcf-ext-untrusted | preset-ibcf-external | preset-ibcf-internal | preset-p-cscf-access | preset-p-cscf-core | preset-peering | preset-standard-non-ims}

17. signaling-address ipv4 ipv4_IP_address

18. signaling-port port_num

19. remote-address ipv4 ipv4_IP_address/prefix

20. fast-register disable

21. signaling-peer peer_name

22. signaling-peer-port port_num

23. account account-name

24. registration target address host_address

25. registration target port port_num

26. attach

27. exit

28. end

29. show

DETAILED STEPS

	Command or Action	Purpose
Step 1	configure Example: Router# configure	Enables global configuration mode.
Step 2	sbc service-name Example:Router Router(config)# sbc mysbc	Enters the mode of an SBC service. Use the service-name argument to define the name of the service.
Step 3	sbe Example: Router(config-sbc)# sbe	Enters the mode of an SBE entity within an SBC service.
Step 4	sip inherit profile {preset-ibcf-ext-untrusted | preset-ibcf-external | preset-ibcf-internal | preset-p-cscf-access | preset-p-cscf-core | preset-standard-non-ims} Example: Router(config-sbc-sbe)# sip inherit profile preset-standard-non-ims	Configures the global default inherit profile for all adjacencies.
Step 5	adjacency sip adjacency-name Example: Router(config-sbc-sbe)# adjacency sip sipGW	Enters the mode of an SBE SIP adjacency. Use the adjacency-name argument to define the name of the service.
Step 6	signaling-address ipv4 ipv4_IP_address Example: Router(config-sbc-sbe-adj-sip)# signaling-address ipv4 88.88.141.3	Specifies the local IPv4 signaling address of the SIP adjacency.
Step 7	signaling-port port_num Example: Router(config-sbc-sbe-adj-sip)# signaling-port 5060	Specifies the local signaling port of the SIP adjacency.
Step 8	remote-address ipv4 ipv4_IP_address/prefix Example: Router(config-sbc-sbe-adj-sip)# remote-address ipv4 10.10.121.0/24	Restricts the set of remote signaling peers contacted over the adjacency to those with the given IP address prefix.
Step 9	signaling-peer peer_address Example: Router(config-sbc-sbe-adj-sip)# signaling-peer 10.10.121.10	Specifies the remote signaling peer for the SIP adjacency to use.
Step 10	signaling-peer-port port_num Example: Router(config-sbc-sbe-adj-sip)# signaling-peer-port 5060	Specifies the remote signaling-peer port for the SIP adjacency to use.
Step 11	account account_name Example: Router(config-sbc-sbe-adj-sip)# account iosgw	Defines the SIP adjacency as belonging to an account on an SBE.
Step 12	registration rewrite-register Example: Router(config-sbc-sbe-adj-sip)# registration rewrite-register	Configures SIP REGISTER request rewriting.
Step 13	attach Example: Router(config-sbc-sbe-adj-sip)# attach	Attaches the adjacency.
Step 14	exit Example: Router(config-sbc-sbe-adj-sip)# exit	Exits adj-sip mode to sbe mode.
Step 15	adjacency sip adjacency-name Example: Router(config-sbc-sbe)# adjacency sip sipPROXY	Enters the mode of an SBE SIP adjacency. Use the adjacency-name argument to define the name of the service.
Step 16	inherit profile {preset-access | preset-core | preset-ibcf-ext-untrusted | preset-ibcf-external | preset-ibcf-internal | preset-p-cscf-access | preset-p-cscf-core | preset-peering | preset-standard-non-ims} Example: Router(config-sbc-sbe-adj-sip)# inherit profile preset-standard-non-ims	Configures an inherit profile for the SIP adjacency.
Step 17	signaling-address ipv4 ipv4_IP_address Example: Router(config-sbc-sbe-adj-sip)# signaling-address ipv4 88.88.141.11	Specifies the local IPv4 signaling address of the SIP adjacency.
Step 18	signaling-port port_num Example: Router(config-sbc-sbe-adj-sip)# signaling-port 5060	Specifies the local signaling port of the SIP adjacency.
Step 19	remote-address ipv4 ipv4_IP_address/prefix Example: Router(config-sbc-sbe-adj-sip)# remote-address ipv4 200.200.200.0/24	Restricts the set of remote signaling peers contacted over the adjacency to those with the given IP address prefix.
Step 20	fast-register disable Example: Router(config-sbc-sbe-adj-sip)# fast-register disable	Disables fast register support on the SIP adjacency.
Step 21	signaling-peer peer_address Example: Router(config-sbc-sbe-adj-sip)# signaling-peer 200.200.200.98	Specifies the remote signaling peer for the SIP adjacency to use.
Step 22	signaling-peer-port port_num Example: Router(config-sbc-sbe-adj-sip)# signaling-peer-port 5060	Specifies the remote signaling-peer port for the SIP adjacency to use.
Step 23	account account_name Example: Router(config-sbc-sbe-adj-sip)# account COREvlan	Defines the SIP adjacency as belonging to an account on an SBE.
Step 24	registration target address host_address Example: Router(config-sbc-sbe-adj-sip)# registration target address 200.200.200.98	Sets the address to use if rewriting an outbound SIP REGISTER request.
Step 25	registration target port port_num Example: Router(config-sbc-sbe-adj-sip)# registration target port 5060	Sets the port to use if rewriting an outbound SIP REGISTER request.
Step 26	attach Example: Router(config-sbc-sbe-adj-sip)# attach	Attaches the adjacency.
Step 27	exit Example: Router(config-sbc-sbe-adj-sip)# exit	Exits adj-sip mode to sbe mode.
Step 28	end Example: Router(config-sbc-sbe)# end	Exits the sbe mode and returns to Privileged EXEC mode.
Step 29	show Example: Router# show	Shows contents of configuration.

Assigning SIP Adjacencies to Adjacency Groups

Use the procedure in this section to assign an SIP adjacency to an adjacency group.

SUMMARY STEPS

1. configure

2. sbc service-name

3. sbe

4. adjacency sip adjacency-name

5. group adjacency-group-name

6. end

7. show

DETAILED STEPS

	Command or Action	Purpose
Step 1	configure Example: Router# configure	Enables global configuration mode.
Step 2	sbc service-name Example: Router(config)# sbc mysbc	Enters the mode of an SBC service. Use the service-name argument to define the name of the service.
Step 3	sbe Example: Router(config-sbc)# sbe	Enters the mode of an SBE entity within an SBC service.
Step 4	adjacency sip adjacency-name Example: Router(config-sbc-sbe)# adjacency sip sipGW	Enters the mode of an SBE SIP adjacency. Use the adjacency-name argument to define the name of the service.
Step 5	group adjacency-group-name Example: Router(config-sbc-sbe-adj-sip)# group InternetEth0	Assigns the SIP adjacency to an adjacency group. Use the adjacency-group-name argument to define the group name.
Step 6	end Example: Router(config-sbc-sbe-adj-sip)# end	Exits adj-sip mode to sbe mode and returns to Privileged EXEC mode.
Step 7	show Example: Router# show	Shows contents of configuration.

Configuration Examples for Implementing Adjacencies

This section provides the following configuration examples:

•Configuring a SIP Adjacency: Example

Configuring a SIP Adjacency: Example

The following example configures two SIP adjacencies. The first adjacency is configured for a gateway/endpoint. The second adjacency is configured with proxy/softswitch.

1. Activate SBE, as follows:

    sbc sip-signal

     sbe

      activate

      exit

2. Activate DBE, as follows:

    sbc mySbc dbe

     media-address ipv4 88.88.141.2

     activate

     exit

!

3. Create the SIP adjacencies, as follows:

    sbc sip-signal

     sbe

4. Create the SIP adjacency for gateway/endpoint:

      adjacency sip sipGW

       signaling-address ipv4 88.88.141.3

       signaling-port 5060

       remote-address ipv4 10.10.121.0/24

       signaling-peer 10.10.121.10

       signaling-peer-port 5060

       account iosgw

       registration rewrite-register

      attach

      exit

      !

      !

5. Create the SIP adjacency for proxy/softswitch:

      adjacency sip sipPROXY

       signaling-address ipv4 88.88.141.11

       signaling-port 5060

       remote-address ipv4 200.200.200.0/24

       fast-register disable

       signaling-peer 200.200.200.98

       signaling-peer-port 5060

       account COREvlan

       registration target address 200.200.200.98

       registration target port 5060

       attach

SIP UAS Failure Detection

A User Agent Server (UAS) is a logical entity that generates a response to a SIP request. UAS failure detection is used to periodically monitor the state of a SIP network entity specified as the signaling peer on a SIP adjacency. SIP OPTIONS messages are sent to these network entities as a ping mechanism and a response from the device is expected. If a response is not received from the device, it is considered unreachable and removed from the routing calculations. Calls which cannot be routed through an alternate device are immediately responded to with a 604 Does Not Exist Anywhere message.

Cisco Unified Border Element (SP Edition) by default acts as an UAS that responds to OPTION pings when OPTION pings are sent to it. SIP UAS Failure Detection enables Cisco Unified Border Element (SP Edition) to send a SIP OPTIONS message to the device specified in the SIP Adjacency Destination Address. If an acceptable response is received within the SIP transaction timeout period then the routing tables are updated and the device is considered routable.

A ping failure occurs when no acceptable response is received within the SIP transaction timeout period. If ping-fail-count failures occur, then the device is considered to be unreachable. The signaling peer is considered offline as far as routing is concerned. Cisco Unified Border Element (SP Edition) sends pings at the rate specified in the period.

Use the procedure in this section to configure SIP UAS Failure Detection:

SUMMARY STEPS

1. configure

2. sbc service-name

3. sbe

4. adjacency sip adjacency-name

5. ping-enable

6. ping-interval interval

7. ping-lifetime duration

8. ping-fail-count fail-count

9. exit

DETAILED STEPS

	Command or Action	Purpose
Step 1	configure Example: Router# configure	Enables global configuration mode.
Step 2	sbc service-name Example: Router(config)# sbc mysbc	Enters the mode of an SBC service. Use the service-name argument to define the name of the service.
Step 3	sbe Example: Router(config-sbc)# sbe	Enters the mode of an SBE entity within an SBC service.
Step 4	adjacency sip adjacency-name Example: Router(config-sbc-sbe)# adjacency sip sipGW	Enters the mode of an SBE SIP adjacency. Use the adjacency-name argument to define the name of the service.
Step 5	ping-enable Example: Router(config-sbc-sbe-adj-sip)# ping-enable	Configures the adjacency to poll its remote peer by sending SIP OPTIONS pings to it and enters the ping option submode.
Step 6	ping-interval interval Example: Router(config-sbc-sbe-adj-sip-ping)# ping-interval 100	Configures the interval between SIP OPTIONS pings sent to the remote peer.
Step 7	ping-lifetime duration Example: Router(config-sbc-sbe-adj-sip-ping)# ping-lifetime 100	Configures the duration for which SBC waits for a response to an options ping for the adjacency.
Step 8	ping-fail-count fail-count Example: Router(config-sbc-sbe-adj-sip-ping)# ping-fail-count 10	Configures the number of consecutive pings that must fail before the adjacencies peer is deemed to be unavailable.
Step 9	exit Example: Router(config-sbc-sbe-adj-sip)# exit	Exits adj-sip mode to sbe mode.

SIP UAS Failure Detection: Example

In the following configuration example, PING is enabled on each of three adjacencies. A round robin call policy is set so that calls are distributed between the three adjacencies in a weighted random manner. If a UAS is unreachable, calls will be distributed between the remaining two adjacencies.

sbc mySBC

  sbe

    adjacency sip CallMgrA

      signaling-address ipv4 88.103.29.100

      remote-address ipv4 200.200.200.0 255.255.255.0

      signaling-peer 200.200.200.118

      ping-enable

        ping-interval 5

        ping-fail-count 3

        ping-lifetime 32

      attach

    adjacency sip CallMgrB

      signaling-address ipv4 88.103.29.100

      remote-address ipv4 200.200.200.0 255.255.255.0

      signaling-peer 200.200.200.200.117

      ping-enable

        ping-interval 5

        ping-fail-count 3

        ping-lifetime 32

      attach

    adjacency sip CallMgrC

      signaling-address ipv4 88.103.29.100

      remote-address ipv4 200.200.200.0 255.255.255.0

      signaling-peer 200.200.200.200.115

      ping-enable

        ping-interval 5

        ping-fail-count 3

        ping-lifetime 32

      attach

    call-policy-set 1

      first-call-routing-table DestAddr

      rtg-dst-address-table DestAddr

        entry 1

          action next-table RoundRobin

          match-address 12

          prefix

      rtg-round-robin-table RoundRobin

        entry 1

          action complete

          dst-adjacency CallMgrB

        entry 2

          action complete

          dst-adjacency CallMgrC

        entry 3

          action complete

          dst-adjacency CallMgrA

      complete

    active-call-policy-set 1

SIP Outbound Flood Protection

SIP Outbound Flood Protection protects other network elements from excessively high valid traffic in unusual situations, such as a protection from a flood of generated BYE messages when a neighboring network element fails.

SIP Outbound Flood Protection sets a maximum rate of outgoing request messages and prevents the rate of outgoing request messages exceeding this maximum rate. If the limit is reached, outgoing requests are failed or dropped instead.

SIP Outbound Flood Protection is an addition to the normal CAC policy mechanisms and does not replace CAC policy. CAC policy allows fine grain control of calls, like, for example, rate limiting of INVITE requests at configurable scopes. SIP Outbound Flood Protection is intended to provide a simple overall rate limit for outgoing requests and is especially useful for requests that currently do not involve CAC policy (such as BYE requests).

Flood protection may be required in the following situations:

•Adjacent network element terminating — If an adjacent network element terminates (either normally or due to error) Cisco Unified Border Element (SP Edition) is likely to detect that the calls that used this element are dead at approximately the same time and attempt to tear the calls down. With many active calls this can generate a flood of BYE requests (normally two BYEs for each call).

Rather than allow these BYE messages to transiently overload other network signaling elements the network administrator may prefer to drop or fail some BYE requests at the Cisco Unified Border Element (SP Edition).

•Local removal of configuration in the Cisco Unified Border Element (SP Edition) — If a SIP adjacency is deconfigured using normal deactivation mode then BYE requests will be sent for all active calls using the adjacency before they are destroyed.

Again it may be desirable for to limit the rate of outgoing requests prevent other network elements getting overloaded.

Use the procedure in this section to configure SIP Outbound Flood Protection:

SUMMARY STEPS

1. configure

2. sbc service-name

3. sbe

4. adjacency sip adjacency-name

5. outbound-flood-rate rate

6. exit

DETAILED STEPS

	Command or Action	Purpose
Step 1	configure Example: Router# configure	Enables global configuration mode.
Step 2	sbc service-name Example: Router(config)# sbc mysbc	Enters the mode of an SBC service. Use the service-name argument to define the name of the service.
Step 3	sbe Example: Router(config-sbc)# sbe	Enters the mode of an SBE entity within an SBC service.
Step 4	adjacency sip adjacency-name Example: Router(config-sbc-sbe)# adjacency sip sipGW	Enters the mode of an SBE SIP adjacency. Use the adjacency-name argument to define the name of the service.
Step 5	outbound-flood-rate rate Example: Router(config-sbc-sbe-adj-sip)# outbound-flood-rate 1000	Configures the maximum desired rate of outbound request signals on this adjacency (excluding ACK/PRACK requests) in signals per second.
Step 6	exit Example: Router(config-sbc-sbe-adj-sip)# exit	Exits adj-sip mode to sbe mode.

SIP Outbound Flood Protection: Example

The following configuration example sets an outbound flood rate of 100 outbound request signals per second.

sbc mySBC

  sbe

    adjacency sip CallMgrA

      signaling-address ipv4 88.103.29.100

      remote-address ipv4 200.200.200.0 255.255.255.0

      signaling-peer 200.200.200.118

      outbound-flood rate 100

      attach

SIP Over TLS

This section describes the concepts for SIP over Transport Layer Security (TLS):

SIP Over TLS Overview

SIP Over Transport Layer Security (TLS) encryption provides a secure, encrypted transport to carry all SIP messages from the caller to the callee's domain. From there, the request is sent securely to the callee. Cisco Unified Border Element (SP Edition) provides the following support for SIP Over TLS:

•Secured SIP calls can flow through Cisco Unified Border Element (SP Edition).

•A SIP adjacency can be secured by encryption or by another mechanism (for example, a single trusted physical-layer link or an interface to a trusted network).

•Inbound and outbound connections are immediately closed if a remote peer attempts to use encryption when encryption is not supported.

•Inbound and outbound connections are immediately closed if a remote peer fails to use encryption when encryption is required.

•You can view the level of security support configured for a given SIP adjacency by using the show sbc sbc-name sbe adjacencies adj name detail command.

•Calls received on untrusted adjacencies are not routed over outbound secure-encrypted adjacencies.

•Adjacencies secured by means of encryption can listen by default on port 5061. The port is configured to a different value.

•The fully-qualified domain name (FQDN) in the certificate offered by the remote peer is checked against the domain from which the request is received. The signal is dropped if the two do not match.

•Advanced Encryption Standard (AES) 128-bit Secure Hash Algorithm (SHA) is supported.

The following are main security factors that are used in routing or rejecting a call:

•Calls to a SIPS URI must be secure. Calls to a SIP URI do not have to be secure.

•Signals received on a trusted adjacency are considered secure. Signals received on an untrusted adjacency are considered unsecured.

The following security factors apply to untrusted encrypted adjacencies:

•Secure calls may not be received on untrusted adjacencies of any type.

–Cisco Unified Border Element (SP Edition) allows unsecured calls to be received over the untrusted encrypted adjacency.

–Cisco Unified Border Element (SP Edition) rejects secured call that it receives over the untrusted encrypted adjacency.

•Secure calls cannot be routed to untrusted adjacencies.

–Cisco Unified Border Element (SP Edition) can route unsecured calls over the untrusted encrypted adjacency.

–Cisco Unified Border Element (SP Edition) does not route secured calls over the untrusted encrypted adjacency.

Table 1 and Table 2 summarize how Cisco Unified Border Element (SP Edition) handles inbound and outbound calls based on the call type, trust relationship, and encryption.

Table 1 Inbound Call Policy

SIP Call Type	Trusted Adjacency		Untrusted Adjacency
	Encrypted	Unencrypted	Encrypted	Unencrypted
Secure SIP	Allow	Allow	Reject	Reject
Unsecured SIP	Allow	Allow	Allow	Allow

Table 2 Outbound Call Policy

SIP Call Type	Trusted Adjacency		Untrusted Adjacency
	Encrypted	Unencrypted	Encrypted	Unencrypted
Secure SIP	Allow	Allow	Reject	Reject
Unsecured SIP	Allow	Allow	Allow	Allow

Security Configuration on an Adjacency

You can independently configure client and server security support on a SIP adjacency, using the following options:

•Untrusted—Specifies that this adjacency is not secured by any means. Only unsecured calls (not the calls to SIPS URIs) are made out of this adjacency.

•Untrusted-Encrypted—Specifies that the adjacency is untrusted and SSL/TLS encryption is used.

•Trusted-Encrypted—Specifies that the encrypted signaling is used to ensure security on this adjacency. The default certificate and key of the router are used for encryption. Only secure calls (calls to SIPS URIs) are made out of this adjacency.

•Trusted-Unencrypted—Specifies that a non-encryption mechanism is used to guarantee secure signaling for all messages on this adjacency. For example, this mechanism could be a single trusted physical link. Either secure or unsecured calls are made out of this adjacency. This configuration allows endpoints that do not support encryption to participate in secure SIP calls.

User Agent Server Side Processing

Inbound requests are marked according to two factors: whether the caller is trusted, and whether the call is intended for a secure target.

The caller-trust is determined in the following ways:

•SIP requests arriving over trusted adjacencies are marked as trusted.

•SIP requests arriving over untrusted adjacencies are marked as untrusted.

Desired target security is determined in the following ways:

•Requests for SIPS URIs are marked to require the outbound-security.

•Requests for SIP URIs are marked not to require the outbound-security.

Inbound requests are rejected if the caller is untrusted and the target requires security. All other combinations are forwarded to routing processing.

Routing Processing

The Routing Policy System (RPS) policy determines where the requests are routed next, with the following default behaviors:

•If a call requires the outbound security, the RPS considers only the trusted outbound adjacencies.

•If a call does not require the outbound security, the RPS considers only untrusted or trusted-unencrypted outbound adjacencies.

If the RPS is unable to find a suitable outbound adjacency for a call, the call is rejected.

User Agent Client-side Processing

Outbound adjacencies preserve the URI scheme of the original request, ensuring that if a call is originally targeted at a SIPS URI, it is sent out to a SIPS URI. Or, if the call is originally targeted at a SIP URI, it is sent out to a SIP URI.

Upon receipt of 3xx class responses and target-refresh indications, the contact set is examined. Untrusted adjacencies do not permit the target of the call to be rerouted to a SIPS target. Likewise, trusted adjacencies do not permit the target of the call to be rerouted to a SIP target. If this is attempted by the remote peer, the call is brought down.

Configuring SIP Over TLS on Cisco Unified Border Element (SP Edition)

Use the procedure in this section to configure SIP over TLS on Cisco Unified Border Element (SP Edition):

SUMMARY STEPS

1. configure

2. sbc service-name

3. sbe

4. adjacency sip adjacency-name

5. security trusted-encrypted

6. redirect-mode {pass-through | recurse}

7. authentication nonce

8. signaling-address ipv4 ipv4_IP_address

9. signaling-port port-num

10. remote-address ipv4 ip-address ip-mask

11. signaling-peer peer-name

12. signaling-peer-port port-num

13. dbe-location-id dbe-location-id

14. reg-min-expiry period

15. attach force [abort | normal]

DETAILED STEPS

	Command or Action	Purpose
Step 1	configure Example: Router# configure	Enables global configuration mode.
Step 2	sbc service-name Example: Router(config)# sbc mysbc	Enters the mode of an SBC service. Use the service-name argument to define the name of the service.
Step 3	sbe Example: Router(config-sbc)# sbe	Enters the mode of an SBE entity within an SBC service.
Step 4	adjacency sip adjacency-name Example: Router(config-sbc-sbe)# adjacency sip sipGW	Enters the mode of an SBE SIP adjacency. Use the adjacency-name argument to define the name of the service.
Step 5	security trusted-encrypted Example: Router(config-sbc-sbe-adj-sip)# security trusted-encrypted	Configures transport-level security on a Session Initiation Protocol (SIP) adjacency.
Step 6	redirect-mode {pass-through | recurse} Example: Router(config-sbc-sbe-adj-sip)# redirect-mode recurse	Configurse the behavior of SBC on receipt of a 3xx response to an invite from the SIP adjacency.
Step 7	authentication nonce timeout Example: Router(config-sbe-adj-sip)# authentication nonce timeout 10	Configures the authentication nonce timeout for a SIP adjacency.
Step 8	signaling-address ipv4 ipv4_IP_address Example: Router(config-sbc-sbe-adj-sip)# signaling-address ipv4 10.10.10.10	Defines the local IPv4 signaling address of a SIP or an H.323 adjacency.
Step 9	signaling-port port-num Example: Router(config-sbc-sbe-adj-sip)# signaling-port 5000	Defines the local port of signaling address of a SIP adjacency.
Step 10	remote-address ipv4 ip-address ip-mask Example: Router((config-sbc-sbe-adj-sip)# remote-address ipv4 36.36.36.20 255.255.255.0	Configures a SIP adjacency to restrict the set of remote signaling peers that can be contacted over the adjacency to those with the given IP address prefix.
Step 11	signaling-peer peer-name Example: Router(config-sbc-sbe-adj-sip)# signaling-peer 10.1.2.3	Configures a SIP adjacency to use the given remote signaling-peer.
Step 12	signaling-peer-port port-num Example: Router(config-sbc-sbe-adj-sip)# signaling-peer-port 123	Configures a SIP adjacency to use the given remote signaling-peer's port.
Step 13	dbe-location-id dbe-location-id Example: Router(config-sbc-sbe-adj-sip)# dbe-location-id 1	Configures an adjacency to use a given media gateway DBE location when routing media.
Step 14	reg-min-expiry period Example: Router(config-sbc-sbe-adj-sip)# reg-min-expiry 300	Configures the minimum registration period in seconds on the SIP adjacency.
Step 15	attach force [abort | normal] Example: Router(config-sbc-sbe-adj-h323)# attach	Attaches an adjacency to an account on an SBE.

SIP Over TLS Configuration Example

The following example shows a SIP over TLS configuration:

crypto pki trustpoint CA

 enrollment terminal

 serial-number

 subject-name ST=Some-State, C=AU, O=Internet Widgits Pty Ltd  revocation-check none
rsakeypair the_default !

!

crypto pki certificate chain CA

 certificate 01

  308201D7 30820140 A0030201 02020101 300D0609 2A864886 F70D0101 04050030

  46310B30 09060355 04061302 5553310C 300A0603 55040813 03525450 310B3009

  06035504 07130253 4A310E30 0C060355 040A1305 43495343 4F310C30 0A060355

  040B1303 53424330 1E170D30 39303230 35313030 3832385A 170D3130 30323035

  31303038 32385A30 45311330 11060355 0408130A 536F6D65 2D537461 7465310B

  30090603 55040613 02415531 21301F06 0355040A 1318496E 7465726E 65742057

  69646769 74732050 7479204C 7464305C 300D0609 2A864886 F70D0101 01050003

  4B003048 024100DC 18647810 B82F521B 40762B30 31646EB1 D567F0A6 E38DAD77

  1C41D825 E5274FFC A1F59E98 DCDFA617 161EA4D4 DBDC06E9 E1142752 9212D34D

  646E6B37 99D26502 03010001 A31A3018 30090603 551D1304 02300030 0B060355

  1D0F0404 030205A0 300D0609 2A864886 F70D0101 04050003 81810084 7E9A479B

  018F93F0 E683AA41 D3303705 6D89D44B 7798BD5F 15BCFAD5 EF55D72E 03365CD9

  BBCD955E 3C6D78B3 8E8C0675 772A7DE2 BCFBD6DF 760F9683 F0AB6F62 A87D9AC1

  AB2EA7E0 D831D33D 2F54582F 9E39F81D CBA33BD9 2466296C 4DCDAD0C 7D697AF7

  797AFEAA 05C3021F A7E89044 EA1796DC F422C82E 2B3894F6 3B98A7

        quit

 certificate ca 00F2D75C678DC7F7F2

  3082021A 30820183 A0030201 02020900 F2D75C67 8DC7F7F2 300D0609 2A864886

  F70D0101 04050030 46310B30 09060355 04061302 5553310C 300A0603 55040813

  03525450 310B3009 06035504 07130253 4A310E30 0C060355 040A1305 43495343

  4F310C30 0A060355 040B1303 53424330 1E170D30 39303230 35303931 3032395A

  170D3134 30323034 30393130 32395A30 46310B30 09060355 04061302 5553310C

  300A0603 55040813 03525450 310B3009 06035504 07130253 4A310E30 0C060355

  040A1305 43495343 4F310C30 0A060355 040B1303 53424330 819F300D 06092A86

  4886F70D 01010105 0003818D 00308189 02818100 BD3DBEEE A8CB6C51 9E2BBEC4

  35C2644F 92055B30 3543CA9D A1E1C0CB F59A2490 9296304D 43C19913 2A12EA80

  BDC6A1E3 0C164059 2C0DF132 E4AFF260 E88F38DC F23E866C DAFDD1BD F888BE90

  B74C49DA 4712E1E2 E249F444 FB3226B2 A5963DCD E75467B3 83669794 13BB8E7B

  CAFE3830 85091839 9658999B C72395E1 07AB35D1 02030100 01A31030 0E300C06

  03551D13 04053003 0101FF30 0D06092A 864886F7 0D010104 05000381 8100A7E5

  662FDE66 01FC63BA 399D1D17 0336C35B F9D9AEAF 87DA9E05 6AD13B90 D11CB984

  9B90FF8E 123F03B3 4E035D6B AC79D399 FF92A09C 2E62B759 E716D1D5 ABA46796

  41BB570F 96B7EE47 FB779AD4 0C8790FC 15FC65D6 47F60BE4 EB498B63 6DC2FBD3

  9DD51D82 0EB80125 D5A8F71B F7B61A63 5B601A6D FEFCAEB6 B33BF38B 9A10

        quit

The Cisco Unified Border Element (SP Edition) configuration example is illustrated here.

Router# configure

Router(config)# sbc sbc-3

Router(config-sbc)# sbe

Router(config-sbc-sbe)# adjacency sip adj1

Router(config-sbc-sbe-adj-sip)# security trusted-encrypted

Router(config-sbc-sbe-adj-sip)# redirect-mode pass-through

Router(config-sbc-sbe-adj-sip)# authentication nonce timeout 300

Router(config-sbc-sbe-adj-sip)# signaling-address ipv4 10.130.10.25

Router(config-sbc-sbe-adj-sip)# signaling-port 5060

Router(config-sbc-sbe-adj-sip)# remote-address ipv4 10.74.49.145 255.255.255.255

Router(config-sbc-sbe-adj-sip)# signaling-peer 10.74.49.145

Router(config-sbc-sbe-adj-sip)# signaling-peer-port 5060

Router(config-sbc-sbe-adj-sip)# dbe-location-id 4294967295

Router(config-sbc-sbe-adj-sip)# reg-min-expiry 3000

Router(config-sbc-sbe-adj-h323)# attach

SIP Over TLS Verification

Use the following commands to check certificates on the node:

show crypto pki certificates—displays information about your certificate, the certification authority certificate (CA), and any registration authority (RA) certificates.

show crypto key pubkey-chain rsa—enters public key configuration mode (so you can manually specify and show other devices' RSA public keys).

show crypto key mypubkey rsa—displays the RSA public keys of your router.
