Configuring SIP SDP Attribute Passthrough

Restrictions for Configuring SIP SDP Attribute Passthrough

Information about SIP SDP Attribute Passthrough

Configuring SIP SDP Attribute Passthrough

Example of SIP SDP Attribute Passthrough

Configuring SIP SDP Attribute Passthrough

Cisco Unified Border Element (SP Edition) by default passes through all a= lines in SIP messages containing SDP offers and answers that it forwards. You can also configure Cisco Unified Border Element (SP Edition) to block certain a= lines, either by specifying a whitelist (a finite set of a=lines that are passed through, with all others blocked), or alternatively a blacklist (a finite set of a=lines that are blocked, with all others passed through). Additionally, user exits in the Cisco Unified Border Element (SP Edition) code base allow customers to write their own code to insert and/or strip one or more media-level a= lines when processing an offer on an answer.

Cisco Unified Border Element (SP Edition) was formerly known as Integrated Session Border Controller and may be commonly referred to in this document as the session border controller (SBC).

For a complete description of commands used in this chapter, refer to the Cisco Unified Border Element (SP Edition) Command Reference: Unified Model at http://www.cisco.com/en/US/docs/ios/sbc/command/reference/sbcu_book.html.

For information about all Cisco IOS commands, use the Command Lookup Tool at http://tools.cisco.com/Support/CLILookup or a Cisco IOS master commands list.

Feature History for SIP SDP Attribute Passthrough

Release

Modification

Cisco IOS XE Release 2.4

The SIP SDP Attribute Passthrough feature was introduced on the Cisco ASR 1000 Series Aggregation Services Routers.

Restrictions for Configuring SIP SDP Attribute Passthrough

Review the following restrictions forSIP SDP Attribute Passthrough:

•The existing reflect behavior is not supported.

•Wildcard or prefix matching of attribute lines is not supported.

•Distinguishing media-level from session-level a-lines for the purposes of matching is not supported.

•Sophisticated matching conditions (for example, apply only to video streams or apply only to offers) are not supported.

•Attribute blocking in media bypass calls is not supported.

•Blocking function is restricted to unknown attributes.

•The following attributes are ignored by unknown attribute policy because this may interfere with the correct operation of the SBC.

–a=rtpmap

–a=fmtp

–a=sendonly

–a=recvonly

–a=inactive

–a=sendrecv

–a=ptime

–a=mid

–a=group

–a=curr

–a=des

–a=conf

–a=crypto.

At the point where the policy is applied, a (rate-limited) warning log is issued if the policy attempts to delete one of these lines.

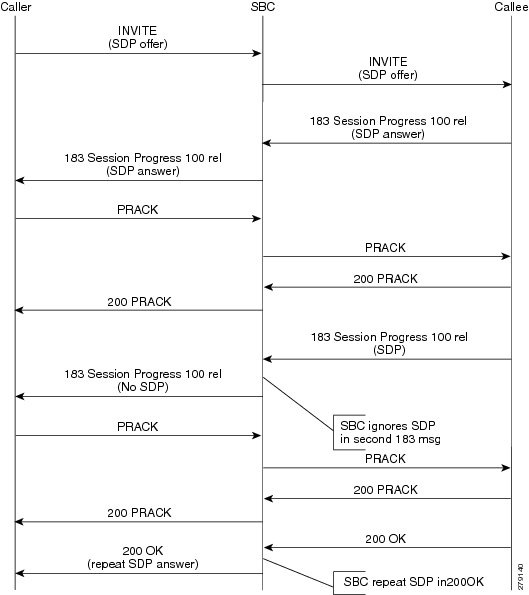

Information about SIP SDP Attribute Passthrough

Additional per-call storage is needed to store the SDP policy that is being applied. This is expected to be ~160 bytes per call.

Configuring SIP SDP Attribute Passthrough

This section contains the steps for implementing SIP SDP Attribute Passthrough.

SUMMARY STEPS

1. configure

2. sbc service-name

3. sbe

4. sip sdp-match-table table-name1

5. action whitelist/blacklist

6. match-string attribute-name1

7. match-string attribute-name2

8. exit

9. sip sdp-match-table table-name2

10. action whitelist/blacklist

11. match-string attribute-name1

12. match-string attribute-name3

13. exit

14. sip sdp-policy-table table-name1

15. match-table table-name 1

16. exit

17. sip sdp-policy-table table-name2

18. match-table table-name2

19. exit

20. cac-policy-set number

21. first-cac-table table-name

22. first-cac-scope scope

23. cac-table table-name

24. table-type {policy-set | limit {list of limit tables}}

25. entry number

26. match-value value

27. action action-name

28. caller-inbound-policy policytab-name

29. caller-outbound-policy policytab-name

30. callee-inbound-policy policytab-name

31. callee-outbound-policy policytab-name

32. exit

33. exit

34. complete

35. exit

36. active-cac-policy-set number

37. end

38. show sbc service-name sbe cac-policy-set number table number entry number

DETAILED STEPS
Command or Action

Purpose

Step 1

configure
Example:

Router# configure

Enables global configuration mode.

Step 2

sbc service-name
Example:

Router(config)# sbc mysbc

Enters the mode of an SBC service.

•Use the service-name argument to define the name of the service.

Step 3

sbe
Example:

Router(config-sbc)# sbe

Enters the mode of the signaling border element (SBE) function of the SBC.
Step 4
sip sdp-match-table table-name
Example:
Router(config-sbc-sbe)# sip sdp-match-table 1
Adds an existing sdp-match-table into policy.
Step 5

action whitelist/blacklist
Example:

Router(config-sbc-sbe-sdp-match-tbl)# action blacklist

Specifies an SDP policy table action.

Step 6

match-string attribute-name1
Example:

Router(config-sbc-sbe-sdp-match-tbl)# match-string X-sqn1

Configures an SDP attribute matching string.

Step 7

match-string attribute-name1
Example:

Router(config-sbc-sbe-sdp-match-tbl)# match-string X-sqn2

Configures an SDP attribute matching string.

Step 8

exit
Example:

Router(config-sbc-sbe-sdp-match-tbl)# exit

Returns to the previous submode.
Step 9
sip sdp-match-table table-name
Example:
Router(config-sbc-sbe)# sip sdp-match-table 2
Adds an existing sdp-match-table into policy.
Step 10

action whitelist/blacklist
Example:

Router(config-sbc-sbe-sdp-match-tbl)# action blacklist

Adds an action allowing a defined set of attributes and blocking the remaining attributes.

Step 11

match-string attribute-name1
Example:

Router(config-sbc-sbe-sdp-match-tbl)# match-string X-sqn1

Configures an SDP attribute matching string.

Step 12

match-string attribute-name1
Example:

Router(config-sbc-sbe-sdp-match-tbl)# match-string X-sqn2

Configures an SDP attribute matching string.

Step 13

exit
Example:

Router(config-sbc-sbe-sdp-match-tbl)# exit

Returns to the previous submode.

Step 14

sip sdp-policy-table table-name
Example:

Router(config-sbc-sbe-sip)# sip sdp-policy-table foo

Configures an SDP policy table.

Step 15

match-table table-name
Example:

Router(config-sbc-sbe-sdp-policy-tbl)# match-ta- ble matchtab2

Configure an SDP match table used in a policy.

Step 16

exit
Example:

Router(config-sbc-sbe-sip-adj)# exit

Returns to the previous submode.

Step 17

sip sdp-policy-table table-name
Example:

Router(config-sbc-sbe)# sip sdp-policy-table foo2

Configures an SDP policy table.

Step 18

match-table table-name
Example:

Router(config-sbc-sbe-sdp-policy-tbl)# match-ta- ble matchtab3

Configure an SDP match table used in a policy.

Step 19

exit
Example:

Router(config-sbc-sbe-sdp-policy-tbl)# exit

Returns to the previous submode.

Step 20

cac-policy-set number
Example:

Router(config-sbc-sbe)# cac-policy-set 1

Enters the submode of CAC policy set configuration.

Step 21

first-cac-table table-name
Example:

Router(config-sbc-sbe-cacpolicy)# first-cac-ta- ble RootCacTable

Configures the name of the first policy table to process when performing the admission control stage of policy.

Step 22

first-cac-scope scope
Example:

Router(config-sbc-sbe-cacpolicy)# first-cac-scope src-adjacency

Configures the scope at which to begin defining limits when performing the admission control stage of policy.

Step 23

cac-table table-name
Example:

Router(config-sbc-sbe-cacpolicy)# cac-table Root- CacTable

Creates or configures an admission control table.
Step 24
table-type {policy-set | limit {list of limit tables}}
Example:

Router(config-sbc-sbe-cacpolicy-cactable)# ta- ble-type limit call-priority
Configures the table type of a CAC table within the context of an SBE policy set.

The list of limit tables argument controls the syntax of the match-value fields of the entries in the table. Available Limit tables are:

•account—Compare the name of the account.

•adj-group—Compare the name of the adjacency group.

•adjacency—Compare the name of the adjacency.

•all—No comparison type. All events match this type.

•call-priority—Compare with call priority.

•category—Compare the number analysis assigned category.

•dst-account—Compare the name of the destination account.

•dst-adj-group—Compare the name of the destination adjacency group.

•dst-adjacency—Compare the name of the destination adjacency.

•dst-prefix—Compare the beginning of the dialed digit string.

•event-type—Compare with CAC policy event types.

•src-account—Compare the name of the source account.

•src-adj-group—Compare the name of the source adjacency group.

•src-adjacency—Compare the name of the source adjacency.

•src-prefix—Compare the beginning of the calling number string.

Features can be enabled or disabled per adjacency group through CAC configuration the same way this is done per individual adjacencies. The adj-group table type matches on either source or destination adjacency group.
Step 25

entry number
Example:

Router(config-sbc-sbe-cacpolicy-cactable)# entry 1

Creates or modifies an entry in a table.

Step 26

match-value key
Example:

Router(config-sbc-sbe-cacpolicy-cactable-entry)# match-value immediate

Configures the match-value of an entry in a CAC Limit table. It is only relevant for Limit table types.

The key argument is a string or a keyword based on the table type. The format of the key is determined by the Limit table type (for example, Limit event-type tables or Limit call-priority tables).

For Limit event-type tables (table-type limit event-type), the match value string options are the following:

call-update—Compare the beginning of the calling number string.

endpoint-reg—Compare the name of the destination adjacency.

new-call—Compare the beginning of the dialed digit string.

For Limit call-priority tables (table-type limit call-priority), the match value string options are the following:

critical—Match calls with resource priority 'critical'.

flash—Match calls with resource priority 'flash'.

flash-override—Match calls with resource priority 'flash-override'.

immediate—Match calls with resource priority 'immediate'.

priority—Match calls with resource priority 'priority'.

routine—Match calls with resource priority 'routine'.

For all other Limit tables, enter a name or digit string

WORD—Name or digit string to match. (Max Size 255).

Step 27

action action-name
Example:

Router(config-sbc-sbe-cacpolicy-cactable-entry)# action cac-complete

Specifies the action to take if this entry is chosen.

Step 28

caller-inbound-policy policytab-name
Example:

Router(config-sbc-sbe-cacpolicy-cactable-entry)# caller-inbound-policy policytab1

Configures a caller inbound SDP policy table.

Step 29

caller-outbound-policy policytab-name
Example:

Router(config-sbc-sbe-cacpolicy-cactable-entry)# caller-outbound-policy policytab1

Configures a caller outbound SDP policy table.

Step 30

callee-inbound-policy policytab-name
Example:

Router(config-sbc-sbe-cacpolicy-cactable-entry)# callee-inbound-policy policytab2

Configures a callee inbound SDP policy table.

Step 31

callee-outbound-policy policytab-name
Example:

Router(config-sbc-sbe-cacpolicy-cactable-entry)# callee-outbound-policy policytab2

Configures a callee outbound SDP policy table.

Step 32

exit
Example:

Router(config-sbc-sbe-cacpolicy-cactable-entry)# exit

Returns to the previous submode.

Step 33

exit
Example:

Router(config-sbc-sbe-cacpolicy-cactable)# exit

Returns to the previous submode.

Step 34

complete
Example:

Router(config-sbc-sbe-cacpolicy)# complete

Performs a consistency check on the CAC policy set.

Step 35

exit
Example:

Router(config-sbc-sbe-cacpolicy)# exit

Returns to the previous submode.

Step 36

active-cac-policy-set number
Example:

Router(config-sbc-sbe)# active-cac-policy-set 1

Enters the active CAC policy set.

Step 37

end
Example:

Router(config-sbc-sbe)# end

Exits SBE mode and enters Privileged EXEC mode.

Step 38

show sbc service-name sbe cac-policy-set number table number entry number
Example:

Router# do show sbc interwork sbe cac-policy-set 1 table 1 entry 1

Displays detailed information for a given entry in a CAC policy table.
Example of SIP SDP Attribute Passthrough

This section provides a sample configuration and output for SIP SDP Attribute Passthrough.
Router# config t
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)# sbc interwork
Router(config-sbc)# sbe
Router(config-sbc-sbe)# sip sdp-match-table matchtab1
Router(config-sbc-sbe-sdp-match-tbl)# action blacklist
Router(config-sbc-sbe-sdp-match-tbl)# match-string X-sqn
Router(config-sbc-sbe-sdp-match-tbl)# match-string X-cap
Router(config-sbc-sbe-sdp-match-tbl)# exit
Router(config-sbc-sbe)# sip sdp-match-table matchtab2
Router(config-sbc-sbe-sdp-match-tbl)# action blacklist
Router(config-sbc-sbe-sdp-match-tbl)# match-string X-sqn
Router(config-sbc-sbe-sdp-match-tbl)# match-string X-pc-csuites-rtp
Router(config-sbc-sbe-sdp-match-tbl)# exit
Router(config-sbc-sbe)# sdp-policy-table policytab1
Router(config-sbc-sbe-sdp-policy-tbl)# match-table matchtab1
Router(config-sbc-sbe-sdp-policy-tbl)# exit
Router(config-sbc-sbe)# sip sdp-policy-table policytab2
Router(config-sbc-sbe-sdp-policy-tbl)# match-table matchtab2
Router(config-sbc-sbe-sdp-policy-tbl)# exit
Router(config-sbc-sbe)# cac-policy-set 1
Router(config-sbc-sbe-cacpolicy)# first-cac-table 1
Router(config-sbc-sbe-cacpolicy)# first-cac-scope global
Router(config-sbc-sbe-cacpolicy)# cac-table 1
Router(config-sbc-sbe-cacpolicy-cactable)# table-type limit src-adjacency
Router(config-sbc-sbe-cacpolicy-cactable)# entry 1
Router(config-sbc-sbe-cacpolicy-cactable-entry)# match-value sipp1
Router(config-sbc-sbe-cacpolicy-cactable-entry)# action cac-complete
Router(config-sbc-sbe-cacpolicy-cactable-entry)# caller-inbound-policy policytab1
Router(config-sbc-sbe-cacpolicy-cactable-entry)# caller-outbound-policy policytab1
Router(config-sbc-sbe-cacpolicy-cactable-entry)# callee-inbound-policy policytab2
Router(config-sbc-sbe-cacpolicy-cactable-entry)# callee-outbound-policy policytab2
Router(config-sbc-sbe-cacpolicy-cactable-entry)# exit
Router(config-sbc-sbe-cacpolicy-cactable)# exit
Router(config-sbc-sbe-cacpolicy)# complete
Router(config-sbc-sbe-cacpolicy)# exit
Router(config-sbc-sbe)# active-cac-policy-set 1
This section provides a sample configuration and output for SIP SDP Attribute Passthrough.
Router(config-sbc-sbe)# do show sbc interwork sbe cac-policy-set 1 table 1 entry 1
SBC Service "interwork"
Policy set 1 table 1 entry 1
  Match value               sipp1
  Action                    CAC policy complete
  Max calls                 Unlimited
  Max call rate             Unlimited
  Max in-call rate          Unlimited
  Max out-call rate         Unlimited
  Max registrations         Unlimited
  Max reg. rate             Unlimited
  Max bandwidth             Unlimited
  Max channels              Unlimited
  Transcoder                Allowed
  Caller privacy setting    Never hide
  Callee privacy setting    Never hide
  Early media               Allowed
  Early media direction     Both
  Early media timeout       0
  Restrict codecs to list   default
  Restrict caller codecs to list   default
  Restrict callee codecs to list   default
  Media bypass              Allowed
  SRTP Transport            Not Set
  Callee hold setting       Standard
  Caller hold setting       Standard
  Number of calls rejected by this entry    0
  Caller inbound SDP policy                 policytab1
  Caller outbound SDP policy                policytab1
  Callee inbound SDP policy                 policytab2
  Callee outbound SDP policy                policytab2
