BFCP Support

Binary Floor Control Protocol (BFCP), defined in RFC 4582, is a protocol for controlling the access to the media resources in a conference.

Cisco Unified Border Element (SP Edition) was earlier known as Integrated Session Border Controller. It is referred to in this document as the session border controller (SBC).

For a complete description of the commands used in this chapter, refer to the Cisco Unified Border Element (SP Edition) Command Reference: Unified Model at:

http://www.cisco.com/en/US/docs/ios/sbc/command/reference/sbcu_book.html

For information about all the Cisco IOS commands, use the Command Lookup Tool at http://tools.cisco.com/Support/CLILookup or a Cisco IOS master commands list.

Feature History for BFCP Support

Release
Modification

Cisco IOS XE Release 3.3S

This feature was introduced on the Cisco ASR 1000 Series Routers.


Contents

This chapter contains the following sections:

•Prerequisite for BFCP Support

•Restrictions for BFCP Support

•Information About BFCP Support

•Configuring BFCP Support

•Configuration Example of BFCP Support

Prerequisite for BFCP Support

Following is the prerequisite pertaining to the BFCP Support feature:

•The SBC must pass through the b=CT line and the a=rtcp-fb:* nack pli RTCP feedback information included in the Session Description Protocol (SDP).

Restrictions for BFCP Support

Following are the restrictions pertaining to the BFCP Support feature:

•The SBC treats a generic media stream the same way it treats other media streams. Therefore, a call is released only if all the media streams are reported as being inactive. The Media Packet Forwarder (MPF) media timer is processed in the same way as the other voice or video streams pertaining to the BFCP stream.

•A BFCP media stream and a generic media stream do not have a bandwidth specified. Therefore, it can be policed only by the MPF, and not the Call Admission Control (CAC) total bandwidth limits.

•The SBC does not support the generic TCP streams or BFCP over TCP. Therefore, a request to add a TCP stream to the generic media stream configuration gets rejected.

•H.323 calls or H.323-SIP interworking calls are not supported.

Information About BFCP Support

The BFCP Support feature supports BFCP over UDP in the SBC by configuring BFCP as a recognized generic media stream that can be forwarded using the best-effort traffic class.

Generic media streams are media streams in which the media (m)-line definition uses * instead of a codec list, for example, m=application port UDP/BFCP *. By default, the SBC cuts these m-lines out of the SDP offers and replies by setting the port to zero. These media lines carry no bandwidth information and therefore, cannot be policed against CAC limits, denial of service, or media theft attacks of the SBC.

The BFCP Support feature introduces the best-effort traffic class that allows policing of these media lines in the media forwarder.

The SBC can be configured to accept specific generic media streams. After this, the accepted generic media streams are added to the best-effort traffic class. MPF implementation supports the best-effort traffic class by policing the actual usage of the aggregate of these streams.

Best-Effort Traffic Class

Prior to Cisco IOS XE Release 3.3S, the media streams had their bandwidth specified for audio and video streams, or were not subjected to any policing, such as T120. From Cisco IOS XE Release 3.3S, the SBC is configured to accept arbitrary type and number of generic media streams. Some of the BFCP streams can now have low bandwidth protocol messages. The best-effort traffic class simplifies packet policing because it allows a media forwarder to handle such streams cumulatively. The best-effort traffic class rate limit is 1Mbps cumulatively.

Deploying BFCP Support

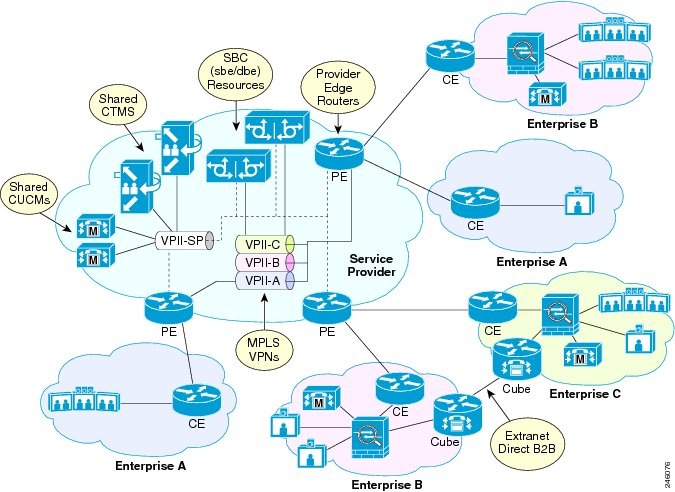

Figure 1 shows a scenario where the SBC can be deployed for the BFCP Support feature. In this scenario, the SBC is located in the Service Provider network, allows interenterprise calls between different VPNs, and protects the core network.

Figure 1 BFCP Deployment Scenario

Configuring BFCP Support

This section describes how to configure the BFCP Support feature on the SBC.

SUMMARY STEPS

1. configure terminal

2. sbc service-name

3. sbe

4. stream-list stream-list-name

5. description description

6. generic-stream media-type {application | message} transport udp protocol protocol-name

7. exit

8. cac-policy-set policy-set-id

9. cac-table table-name

10. table-type {policy-set | limit {list of limit tables}}

11. entry entry-id

12. action [next-table goto-table-name | cac-complete]

13. generic-stream caller generic-stream-list

14. generic-stream callee generic-stream-list

15. match-value key

16. exit

17. exit

18. complete

19. end

20. show sbc service-name sbe stream-list

21. show sbc service-name sbe cac-policy-set id table name entry entry

DETAILED STEPS


Command or Action
Purpose

Step 1

configure terminal

Example:

Router# configure terminal

Enables the global configuration mode.

Step 2

sbc sbc-name

Example:

Router(config)# sbc mysbc

Enters the SBC service mode.

Use the sbc-name argument to define the name of the service.

Step 3

sbe

Example:

Router(config-sbc)# sbe

Enters the SBE entity mode within an SBC service.

Step 4

stream-list stream-list-name

Example:

Router(config-sbc-sbe)# stream-list my_stream

Configures a stream list and enters the stream list configuration mode.

•stream-list-name—The name of the stream list. The stream list name can be upto 30 characters.

Step 5

description description

Example:

Router(config-sbc-sbe-stream-list)# description "This is my first stream list"

Configures descriptive text for the stream list.

Step 6

generic-stream media-type {application | message} transport udp protocol protocol-name

Example:

Router(config-sbc-sbe-stream-list)# generic-stream media-type application transport udp protocol BFCP

Configures the media type for a generic stream.

•application—Specifies application as media type for the generic stream.

•message—Specifies message as media type for the generic stream.

•transport—Configures the transport protocol for the generic stream.

•udp—Specifies the UDP protocol for the generic stream.

•protocol—Specifies the protocol name for the generic stream.

•protocol-name—The protocol name for the generic stream. The protocol name is case sensitive.

Step 7

exit

Example:

Router(config-sbc-sbe-stream-list)# exit

Exits from the stream list configuration mode and enters the SBE configuration mode.

Step 8

cac-policy-set policy-set-id

Example:

Router(config-sbc-sbe)# cac-policy-set 2

Enters the CAC policy set configuration mode within an SBE entity, creating a new policy set, if necessary.

•policy-set-id—The call policy set number that can range from 1 to 2147483647.

Step 9

cac-table table-name

Example:

Router(config-sbc-sbe-cacpolicy)# cac-table 2

Enters the admission control table configuration mode (creating one, if necessary) within the context of an SBE policy set.

Step 10

table-type {policy-set | limit {list of limit tables}}

Example:

Router(config-sbc-sbe-cacpolicy-cactable)# table-type src-adjacency

Configures a limit to the table types that are to be matched by the match-value command. For the multiple SBC media bypass feature, use the following table type:

•src-adjacency—Compares the name of the source adjacency.

Step 11

entry entry-id

Example:

Router(config-sbc-sbe-cacpolicy-cactable)# entry 1

Enters the CAC table entry mode to create or modify an entry in an admission control table.

Step 12

action [next-table goto-table-name | cac-complete]

Example:

Router(config-sbc-sbe-cacpolicy-cactable-entry) # action cac-complete

Configures the action to be performed after the entry, in an admission control table. Possible actions are:

•Identifies the next CAC table to be processed using the next-table keyword and the goto-table-name argument.

•Stops the processing for the scope using the cac-complete keyword.

Step 13

generic-stream caller generic-stream-list

Example:

Router(config-sbc-sbe-cacpolicy-cactable-entry) # generic-stream caller my-stream

Configures the generic media stream list settings for a caller.

•generic-stream-list—The name of the generic stream list. This generic stream list should be defined during the configuration of the stream list.

Step 14

generic-stream callee generic-stream-list

Example:

Router(config-sbc-sbe-cacpolicy-cactable-entry) # generic-stream callee my-stream

Configures the generic media stream list settings for a callee.

•generic-stream-list—The name of the generic stream list. This generic stream list should be defined during the configuration of the stream list.

Step 15

match-value key

Example:

Router(config-sbc-sbe-cacpolicy-cactable-entry) # match-value SIP-adj-test

Configures the match value of an entry in a CAC limit table.

•key—The keyword used to match events. The format of the key is determined by the table type limit.

Step 16

exit

Example:

Router(config-sbc-sbe-cacpolicy-cactable-entry) # exit

Exits from the CAC table entry configuration mode and enters the CAC table mode.

Step 17

exit

Example:

Router(config-sbc-sbe-cacpolicy-cactable)# exit

Exits from the CAC table configuration mode and enters the CAC policy set configuration mode.

Step 18

complete

Example:

Router(config-sbc-sbe-cacpolicy)# complete

Completes the CAC policy set after you have committed the complete set.

Step 19

end

Example:

Router(config)# end

Exits from the CAC policy set configuration mode and enters the Privileged EXEC mode.

Step 20

show sbc sbc-name sbe stream-list

Example:

Router# show sbc mysbc sbe stream-list my-stream

Displays the stream lists that are present on the SBE.

Step 21

show sbc service-name sbe cac-policy-set id table name entry entry

Example:

Router# show sbc mysbc sbe cac-policy-set 1 table MyTable entry 1

Displays detailed information about a specific entry in a CAC policy table.

The following example shows the output of the show sbc sbe stream-list command:

Router# show sbc Mysbc sbe stream-list

SBC Service "sbc"

  Stream list: my-stream

    Description This is my first stream list

    Media-type application Transport udp protocol Streambased

    Media-type message Transport udp protocol BFCP

The following example shows the output of the show sbc sbe cac-policy-set table entry
command:

Router# show sbc Mysbc sbe cac-policy 25 table 2 entry 1

SBC Service "Mysbc"

CAC Averaging period 1: 60 sec

CAC Averaging period 2: 0 sec

CAC Policy Set 25

  Global policy set: No

  Description:

  First CAC table:

  First CAC scope: global

  Table name: 2

    Description:

    Table type: limit src-adjacency

    Total call setup failures (due to non-media limits): 0

    Entry 1

    Match value:

    Match prefix length: 0

    Action: CAC complete

    Number of call setup failures (due to non-media limits): 0

    No. of registrations rejected (due to registration limits): 0

    Max calls per scope:                                 Unlimited

    No. of events rejected due to Max Call Limit:        0

    Max reg. per scope:                                  Unlimited

    No. of events rejected due to Max Reg limit:         0

    Max channels per scope:                              Unlimited

    Max updates per scope:                               Unlimited

    Max bandwidth per scope:                             Unlimited

                                                  Averaging-period 1      Averaging-period
2

    Max call rate per scope:                         Unlimited               Unlimited

    No. of events rejected due to Max call rate:     0                       0

    Max reg. rate per scope:                         Unlimited               Unlimited

    No. of events rejected due to Max reg rate:      0                       0

    Max in-call message rate:                        Unlimited               Unlimited

    No. of events rejected due to Max in-call rate:  0                       0

    Max out-call message rate:                       Unlimited               Unlimited

    No. of events rejected due to Max Out call rate: 0                       0

    Timestamp when the rejection counts were last reset: 2011/01/03 22:29:40

    Early media:             Allowed         Early media direction:   Both

    Early media timeout:     None            Transcoder per scope:    Allowed

    Callee Bandwidth-Field:  None            Caller Bandwidth-Field:  None

    Media bypass:            Allowed         Asymmetric Payload Type: Not Set

    Renegotiate Strategy:            Delta

    SRTP Transport:                  Trusted-Only (by default)

    Caller hold setting:             Standard

    Callee hold setting:             Standard

    Caller limited-privacy-service:  Never hide identity

    Callee limited-privacy-service:  Never hide identity

    Caller privacy-service:  Not set

    Callee privacy-service:  Not set

    Caller edit-privacy-request:  Not set

    Callee edit-privacy-request:  Not set

    Caller edit-privacy-request sip strip:  Not set

    Callee edit-privacy-request sip strip:  Not set

    Caller edit-privacy-request sip insert:  Not set

    Callee edit-privacy-request sip insert:  Not set

    Caller voice QoS profile:        Default

    Callee voice QoS profile:        Default

    Caller video QoS profile:        Default

    Callee video QoS profile:        Default

    Caller sig QoS profile:          Default

    Callee sig QoS profile:          Default

    Caller inbound SDP policy:       None

    Callee inbound SDP policy:       None

    Caller outbound SDP policy:      None

    Callee outbound SDP policy:      None

    SDP Media Profile         :      None

    Caller Generic Stream     :      my-stream

    Callee Generic Stream     :      my-stream

    Caller media disabled:           None

    Callee media disabled:           None

    Caller unsignaled secure media:  Not Allowed

    Callee unsignaled secure media:  Not Allowed

    Caller response downgrade support:  No

    Callee response downgrade support:  No

    Caller retry rtp support:           No

    Callee retry rtp support:           No

    Resend sdp answer in 200ok:      No

    Caller tel-event payload type:   Default

    Callee tel-event payload type:   Default

    Media flag:                      None

    Restrict codecs to list:         Default

    Restrict caller codecs to list:  Default

    Restrict callee codecs to list:  Default

    Codec preference list:           Default

    Caller Codec profile:           None

    Callee Codec profile:           None

    Caller media caps list:          None

    Callee media caps list:          None

    TCS extra codec list:            None

    Caller media-type:               Inherit (default)

    Callee media-type:               Inherit (default)

    Caller Media Bypass:             Inherit (default)

    Callee Media Bypass:             Inherit (default)

    Media Bypass Type:               Not set

    Callee local transfer support:   Inherit (default)

    Maximum Call Duration:           Unlimited

    Caller SRTP support:             Inherit (default)

    Callee SRTP support:             Inherit (default)

    SRTP Interworking:               Inherit (default)

    SRTP media Interworking:         Inherit (default)

    Ims rx preliminary-aar:          Disabled(default)

    Ims media-service:               None(default)

    media bandwidth policing:        Inherit(default)

    Billing filter:                  Inherit(default)

    Caller ptime:                    None (default)

    Callee ptime:                    None (default)

    Caller codec variant conversion: Disabled (default)

    Callee codec variant conversion: Disabled (default)

    Caller inband DTMF mode:         Inherit(default)

    Callee inband DTMF mode:         Inherit(default)

    Caller Port Range Tag:           Inherit (default)

    Callee Port Range Tag:           Inherit (default)

    Session refresh renegotiation: Inherit(default)

Configuration Example of BFCP Support

Following is a configuration example of the BFCP Support feature on the SBC:

sbc sbc

      sbe

        stream-list my-stream

         description voip stream list

		 generic-stream media-type application transport udp protocol BFCP

  		 generic-stream media-type application transport udp protocol test

		 exit

	 cac-policy-set 2

       	 cac-table 2

          table-type limit src-adjacency

          entry 1

           action cac-complete

           generic-stream caller my-stream

           generic-stream callee my-stream

           match-value SIP-adj-test

		 exit

		exit

        complete
