Release Notes for the Cisco 831, 836 and 837 Routers and SOHO 91, 96 and 97 Routers
This document describes new and changed information for the following documents:
•Cisco 837 Router and SOHO 97 Router Hardware Installation Guide
•Cisco 831 Router and SOHO 91 Router Cabling and Setup Quick Start Guide
•Regulatory Compliance and Safety Information for Cisco 800 Series and SOHO Series Routers
•Cisco 836 Router and SOHO 96 Router Hardware Installation Guide
•Cisco 836 Router and SOHO 96 Router Cabling and Setup Quick Start Guide
The documentation title for the Cisco 837 Router and SOHO 97 Router on the top of page xii of the Preface chapter is incorrect. The correct documentation title should be Cisco 837 Router and SOHO 97 Router Hardware Installation Guide.
Quick Start Guide: Setting Up the Cisco 831 and SOHO 91 Routers
In the Cisco 831 Router and SOHO 91 Router Cabling and Setup Quick Start Guide, the explanation of the purpose of the document Cisco 800 Series Routers Software Configuration Guide is incorrect. This error is on page 2 of the "Easy Installation: Try These Steps First" section. The correct explanation should be as follows:
Cisco 800 Series Routers Software Configuration Guide—Provides detailed configuration instructions for the Cisco 800 series router.
In the Cisco 837 Router and SOHO 97 Router Hardware Installation Guide, the lavender ADSL cable mentioned in the "Unpacking the Box" section on page 2-5" of the Installation chapter is an item included with the router. The default lavender ADSL cable that goes with the router box is a straight-through cable. Upon request, the ADSL cable can be changed to a lavender with blue stripe crossover cable.
ADSL Connector Pinouts (RJ-11)
In the Cisco 837 Router and SOHO 97 Router Hardware Installation Guide, the description of the ADSL connector pinouts on page A-3 of Appendix A is incorrect. The correct description is as follow:
Table 1 ADSL Connector Pinouts (RJ-11)
Warning Information for China
The Cisco 837 Router and SOHO 97 Router passed the compliance and safety test in China in January, 2003. The following new safety and warning information written in Simplified Chinese should therefore be included in the "Compliance Statement" section starting from page 8 of the Regulatory Compliance and Safety Information for Cisco 800 Series and SOHO Series Routers.
Two of the warning messages listed in the Cisco 836 Router and SOHO 96 Router Hardware Installation Guide and the Regulatory Compliance and Safety Information for Cisco 800 Series and SOHO Series Routers do not exactly match to the router's specification. They should be removed from the warning list.
The first warning message is as follows:
Warning This equipment contains a ring signal generator (ringer), which is a source of hazardous voltage. Do not touch the RJ-11 (phone) port wires (conductors), the conductors of a cable connected to the RJ-11 port, or the associated circuit-board when the ringer is active. The ringer is activated by an incoming call.
It appears on page 2-3, Chapter 2 Installation of the Cisco 836 Router and SOHO 96 Router Hardware Installation Guide and page 16 of the Regulatory Compliance and Safety Information for Cisco 800 Series and SOHO Series Routers. The warning message is not necessary because the Cisco 836 router and SOHO 96 router do not have a ring signal generator embedded.
The second warning message is as follows:
Warning Network hazardous voltages are present in the ISDN cable. If you detach the ISDN cable, detach the end away from the router first to avoid possible electric shock. Network hazardous voltages also are present on the system card in the area of the ISDN port (RJ-45 connector), regardless of when power is turned off (by pressing power switch to standby).
It appears on page 2-4, Chapter 2 Installation of the Cisco 836 Router and SOHO 96 Router Hardware Installation Guide and page 22 of the Regulatory Compliance and Safety Information for Cisco 800 Series and SOHO Series Routers. The warning is not necessary because the ISDN cable does not connect to the ISDN wall jack directly, instead, it connects to a NT1 box first, and the NT1 box to the ADSL splitter. The ADSL splitter then connects to the ISDN wall jack through an unshielded Category 5 cable. Therefore, no network hazardous voltages are present in the ISDN cable.
Correction of the Switch
The switch cover wording on the back panel of the Cisco 831, 836 and 837 routers, and the Cisco SOHO 91, 96 and 97 routers is not correct. The words "ON" and "OFF" shown on the switch cover should be "1" and "0" as depicted in Figure 1, Figure 2, and Figure 3. "1" represents power on, while "0" represents power off. The back panel of the Cisco 831, 836 and 837 routers is almost identical to the back panel of the Cisco SOHO 91, 96 and 97 routers. The change on the switch cover will not affect any functionality of the router.

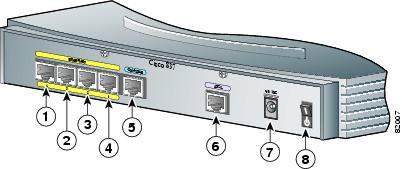

Figure 1 Back Panel of the Cisco 837 Router

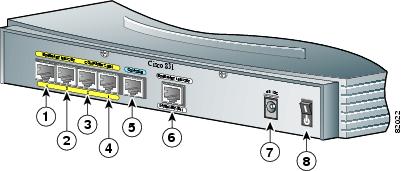

Figure 2 Back Panel of the Cisco 831 Router

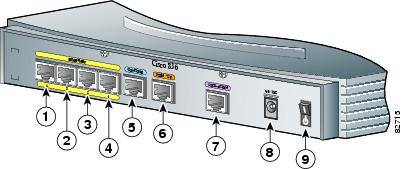

Figure 3 Back Panel of the Cisco 836 Router
New Warning Tag on Desktop Power Adapter
A new yellow tag will be attached to the power cord of the desktop power adapter. This tag contains the correct input voltage information to help avoid using the wrong power supply cable when connecting to the Cisco 831, 836 and 837 routers and Cisco SOHO 91, 96 and 97 routers. Always use the desktop power adapter shipped with your router to connect to the router. Refer to Figure 4 for details on the warning message.
Figure 4 Warning Message on Desktop Power Adapter Power Cord
Connecting the Power Plug to the Router
Use the power latch provided in the accessory kit to prevent the power adapter plug from disconnecting from the Cisco 831, 836 and 837 routers and Cisco SOHO 91, 96 and 97 routers.
Perform the steps below to slide the power adapter plug into the power latch and connect the plug to the router.
Step 1 Place the cable of the power adapter through the ditch of the power latch as shown in Figure 5.

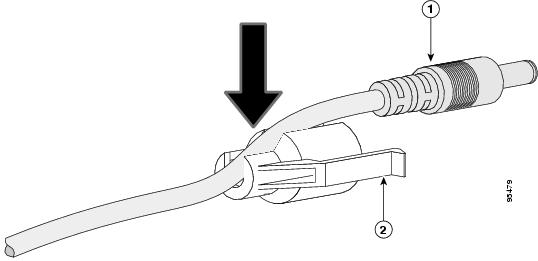

Figure 5 Power Latch Assembly
Figure 6 Power Plug and Power Latch
Figure 7 Power Plug in Power Latch Ditch
Step 3 Turn the power latch upside down as shown in Figure 8.
Figure 8 Upside-Down Power Latch
Step 4 Connect the plug to the Cisco 837 router as shown in Figure 9.

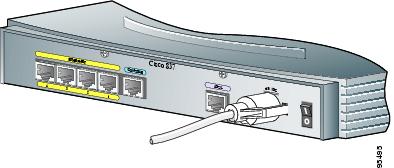

Figure 9 Connect the Plug to the Cisco 837 Router
Step 5 Connect the plug to the power jack of the router and hook the latches to the holes on the router as shown in Figure 10. Figure 10 shows a Cisco 837 router, but this step can be applied to the Cisco 831 and 836 routers and Cisco SOHO 91, 96 and 97 routers.
Step 6 The power plug is connected to the router firmly with the help of power latch as shown in Figure 10.

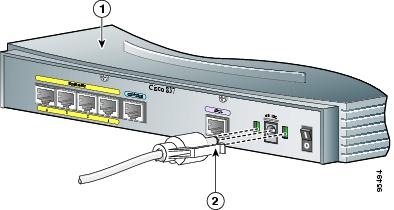

Figure 10 Power Plug Connects to Router
