The Cisco 826 and Cisco SOHO 76 series routers can connect a corporate telecommuter or small office to a central office or an Internet service provider (ISP) over an asymmetric digital subscriber line (ADSL).
The router is capable of bridging and multiprotocol routing between the LAN and WAN ports.
This chapter provides information on the following topics:
Provides a connection to 10BASE-T Ethernet networks.
ADSLoISDN port
Provides connection to an ADSL over ISDN network.
Flash memory
8 MB of Flash memory.
Dynamic RAM (DRAM)
16 MB of DRAM.
Ease of installation
Color-coded ports and cables reduce the chance of error.
IOS software
Supports standard IOS software.
Cisco Router Web Setup
Already loaded on most Cisco 826 and Cisco SOHO 76 series routers, Cisco Router Web Setup provides a Windows web browser-based software tool for basic router configuration.
Console port
Provides a connection from the router to a terminal or a PC running terminal emulation software for the purpose of configuring and troubleshooting the device.
Lockable cable connection
Provides a means for physically securing the router.
Locking power connector
Locks the power connector in place.
Wall-mounting brackets
Mount the router on a wall or other vertical surface.
Cisco 826 Router
The front and back panels of the Cisco 826 series router are shown in this section. Figure 1-1 shows the front panel of the Cisco 826 series router.

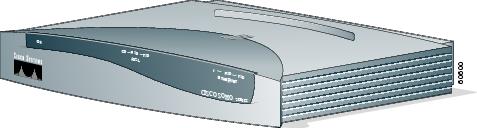

Figure 1-1 Cisco 826 Front Panel
Figure 1-2 shows the back panel of the Cisco 826 series router.

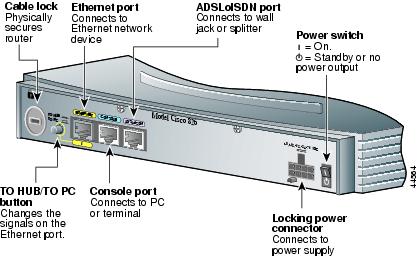

Figure 1-2 Cisco 826 Back Panel
Cisco SOHO 76 Router
The front and back panels of the Cisco SOHO 76 series router are shown in this section. Figure 1-3 shows the front panel of the Cisco SOHO 76 series router.
Figure 1-3 Cisco SOHO 76 Front Panel
Figure 1-4 shows the back panel of the Cisco SOHO 76 series router.
Figure 1-4 Cisco SOHO 76 Back Panel
LEDs
Table 1-2 summarizes the functions of the LEDs, which are located on the front panel of the router.
Table 1-2 Router LED Functions
LED
Color
Function
OK LED
Green
On when power is supplied to the router. On when the router completes the power-on self-test (POST) procedure and begins normal operations.
ADSL CD
Green
On when the ADSL port is connected to the port or splitter. Blinks when the connection has a problem.
ADSL RXD
Green
On when an ADSLoISDN port receives data.
ADSL TXD
Green
On when an ADSLoISDN port sends data.
ETHERNET 1
Green
On when an Ethernet device, such as a hub, is properly connected and powered on. Blinks when the connection has a problem.
LEDs
