Product Overview
This chapter provides an overview of the features available for the Cisco 819 and Cisco 819H Integrated Services Routers (ISRs) and contains the following sections:
Note
For compliance and safety information, see Regulatory Compliance and Safety Information Roadmap that ships with the router and Regulatory Compliance and Safety Information for Cisco 800 Series and SOHO Series Routers.
General Description
The Cisco 819 Integrated Services Router, part of the Cisco Integrated Services Routers Generation 2 (ISR G2) Family designed in compact hardened and non-hardened form factors, is the smallest Cisco IOS Software router with support for integrated fourth-generation (4G LTE) and third-generation (3G) wireless WAN (mobile broadband backhaul). The 3G Cisco 819 now supports Dual 802.11 a/b/g/n radios WiFi. The Cisco 819 ISR machine-to-machine gateway provides a rapidly deployable, highly available, reliable, and secure solution into machine-to-machine applications for financial, telemetry, utility, retail, industrial automation, and transportation with comprehensive management capability. Transparently integrated into Cisco IOS Software as an enterprise-class feature, the Cisco 819 Hardened ISR provides highly secure data, voice, and video communications to stationary and mobile network nodes across wired and wireless links.
Available in both non-hardened (Cisco 819G) and hardened (Cisco 819HG) versions, the Cisco 819 supporting 4G LTE and 3G wireless WAN (WWAN) speeds offers a cost-effective, rapidly deployable, reliable, and secure primary or backup solution. With support for industrial-grade components, the hardened Cisco 819HG extends the ISR machine-to-machine gateway footprint and provides the flexibility for deployment in many different stationary and mobile environments where space, heat dissipation, exposure to extreme temperatures, harsher environments, and low power consumption are critical factors. For mobile applications, Mobile IP delivers transparent roaming across multiple wireless networks capable of covering wide geographic areas.
The Cisco 819 ISR is a standard form factor with a commercial operating range. The 3G Cisco 819 ISRs support the 3G speeds (High-Speed PacketAccess Plus [HSPA+] enabling up to 4G speeds and Evolution Data Optimized [EVDO Rev A]). They are backward-compatible with High-Speed Packet Access (HSPA), Universal Mobile Telecommunications Service (UMTS), Enhanced Data Rates for Global Evolution (EDGE), General Packet Radio Service (GPRS), and EVDO Rev 0/1xRTT.
The 4G LTE C819 supports the latest Third-Generation Partnership Project (3GPP) Release 8 LTE standards. The Cisco 4G multimode LTE WWAN C819 provides persistent and reliable LTE connectivity with fallback and transparent handoff to earlier technologies. The Cisco 819HG-4G and Cisco 819G-4G support multimode 4G LTE and have embedded Sierra Wireless multimode modem.
The Cisco 819 ISR is a desktop form factor with built-in wall-mount features, floor mount, and DIN rail mount features in selected SKUs. These routers are powered by an external AC power or optional DC adapter. Figure 1-1 shows the Cisco 819HG ISR.
Beginning with IOS release 15.2(4)M1, the new 3G Cisco 819HGW and Cisco 819HWD ISRs support WiFi radios with a higher memory density and a new barrel-type power connector. A Wireless Local Area Network (WLAN) implements a flexible data communication system frequently augmenting rather than replacing a wired LAN within a building or campus. WLANs use radio frequency to transmit and receive data over the air, minimizing the need for wired connections. Figure 1-2 shows the Cisco 819HGW ISR.
The WLAN for 3G Cisco 819HGW and Cisco 819HWD ISRs have the following additional features:
•
•
•
Note

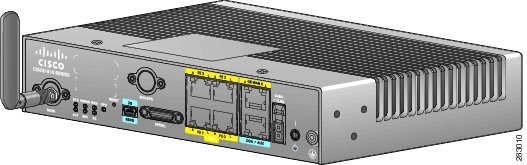

Figure 1-1 Cisco 819HG Integrated Services Router

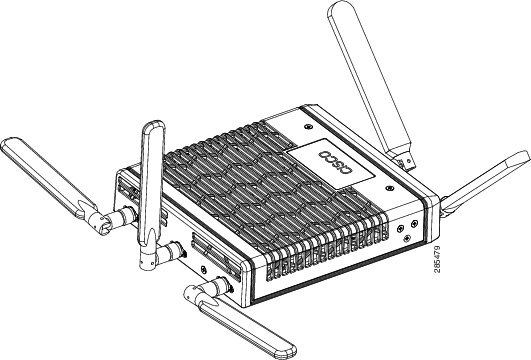

Figure 1-2 Cisco 819HGW Integrated Services Router

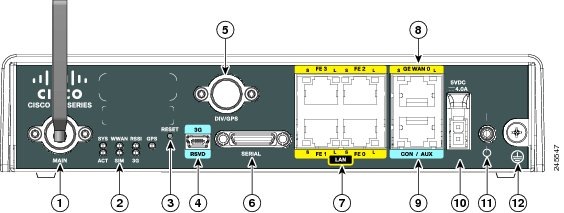

Figure 1-3 shows the front panel details of the Cisco 819HG ISR.
Figure 1-3 Cisco 819HG ISR Front Panel

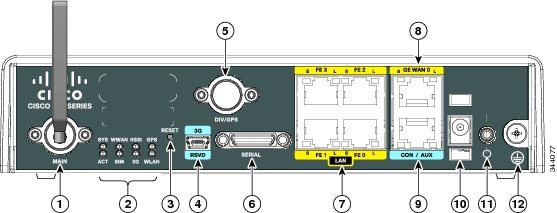

Figure 1-4 shows the front panel details of the Cisco 819HGW ISR.
Figure 1-4 Cisco 819HGW ISR Front Panel
Figure 1-5 shows the front panel details of the Cisco 819 4G LTE ISR.
Figure 1-5 Cisco 819 4G LTE ISR Front Panel
SKU Information
Table 1-1 lists the different 3G SKUs available for the Cisco 819HG and Cisco 819G ISRs. All SKUs support external antenna.
Note
Table 1-2 lists the different SKUs available for the Cisco 819HGW, Cisco 819H, and Cisco 819HWD ISRs.
Table 1-3 lists the different 4G LTE SKUs available for the Cisco 819HG and Cisco 819G ISRs.
Rebranding of C8xx-B and EHWIC-3G-EVDO-B
The C881G-B-K9, C819G-B-K9, and EHWIC-EVDO-B (Bharat) SKUs are introduced as an umbrella SKU to cover BSNL, Tata, and Reliance service providers in India.
Software based mechanism is introduced to identify specific carrier.
Carrier ID and name are displayed under "show cellular <unit> hardware".
The software mechanism is backward compatible with other existing CDMA SKUs such as HWIC-3G-CDMA(-S,-V) and PCEX-3G-CDMA(-S,-V).
Cisco IOS Requirement
15.3(2)T, 15.3(3)M or later. New MIB objects for carrier ID and name will be introduced in later release.
Sample CLI Output
Router#show cellular 0/0/0 hardwareModem Firmware Version = p2813301Modem Firmware built = 06-24-10Hardware Version = MC5728V Rev 1.0Electronic Serial Number (ESN) = 0x60E62C87 [09615084679] Preferred Roaming List (PRL) Version = 10 PRI SKU ID = 535479 Carrier ID = 19 Carrier Name = Reliance Current Modem Temperature = 30 degrees Celsius Endpoint Port Map = 75Router#Router#show cellular 0/1/0 hardwareModem Firmware Version = p2813301Modem Firmware built = 06-24-10Hardware Version = MC5728V Rev 1.0Electronic Serial Number (ESN) = 0x60E62431 [09615082545] Preferred Roaming List (PRL) Version = 10 PRI SKU ID = 535479 Carrier ID = 29 Carrier Name = Tata Current Modem Temperature = 30 degrees Celsius Endpoint Port Map = 75Router#Hardware Features
This section provides an overview of the following hardware features for the Cisco 819 ISR.
•
•
•
Note
Platform Features for Cisco 819 ISRs
Table 1-4 lists the platform features comparison for the Cisco 819 ISRs.
Table 1-4 Cisco 819 ISRs Platform Features
512 MB DRAM
Yes
—
—
1 GB DRAM
—
Yes
Yes
1 Gigabit Ehernet WAN port
Yes
Yes
Yes
12-in-1 serial interface
Yes
Yes
Yes
256 KB of NVRAM storage
Yes
Yes
Yes
256 Compact Flash support in IDE mode (internal)
Yes
—
—
1 GB Compact Flash support in IDE mode (internal)
—
Yes
Yes
Cisco EnergyWise
Yes
Yes
—
Dual 802.11 a/b/g/n Radios with Cisco DFS, CleanAir, and Client Link support
—
Yes
—
Embedded 3G modem
Yes
Yes
—
Embedded 4G LTE modem
—
—
Yes
Environmental monitoring and temperature logging
Yes
Yes
—
Four ports FE interconnect switch support
Yes
Yes
Yes
LED indicators for the platform
Yes
Yes
Yes
Onboard crypto acceleration
Yes
Yes
—
Power cord retention lock
—
Yes
Yes
Power switch lock
—
Yes
Cisco 819HG-4G ISRs only
Reset button
Yes
Yes
Yes
Real Time Clock (RTC)1
Yes
Yes
Yes
ScanSafe
Yes
Yes
—
Single console/AUX port
Yes
Yes
Yes
SNMP
Yes
Yes
—
TFTP support with Ethernet WAN interface
—
Yes
—
Warm reload
Yes
Yes
—
1 A real-time clock (RTC) with battery backup provides date and time when the system is powered on. The RTC is used to verify the validity of the Certification Authority stored on the router.
Antennas
The Cisco 819 3G routers provide two standard panel-mount TNC connectors to support the 3G antenna and the diversity and GPS external antenna. The main antenna is used for the primary 3G antenna. The second can be used as a diversity receive only 3G antenna or GPS antenna that does not require power supply from the router.
The Cisco 819 4G routers provide two standard panel-mount TNC connectors on the router front panel for the main and diversity antennas. The main antenna connector is used for the primary 4G antenna. The second antenna connector can be used as a diversity receive only 4G antenna. An SMA connector for active GPS antenna is also available on the front panel of the router.
The Cisco 819HGW and Cisco 819HWD ISRs also support Cisco WiFi external antennas. See the "Supported Cisco Antennas and Cables" section for more information.
WiFi External Antenna
The external WiFi antenna is used to support better WiFi coverage. All external antenna supports the following:
•
•
•
Power Switch
The power switch shuts down the router. A power switch lock is available to prevent accidental turning off of the router in the hardened SKUs.
Reset Button
The Reset button resets the router configuration to the default configuration set by the factory. To restore the router configuration to the default configuration set by the factory, use a standard size #1 paper clip with wire gauge 0.033 inch or smaller and simultaneously press the reset button while applying power to the router.
LEDs
The LEDs are located on the front panel of the router. Table 1-5 describes the 3G LEDs for the Cisco 819 ISR.
1 Not applicable to Verizon and Sprint EVDO modems.
2 There is only one LED to indicate the status of two SIMs. A one-blink pattern represents the status of the SIM in slot 0, followed by a two-blink pattern for the SIM in slot 1.
Table 1-6 describes the WLAN LEDs for the Cisco 819HGW and Cisco 819HWD ISRs.
Table 1-7 describes the 4G LTE LEDs for the Cisco 819 ISR.
Memory
The Cisco 819HG and Cisco 819G ISRs uses non-upgradable flash memory and main memory. The onboard flash memory contains the Cisco IOS software image and the boot flash contains the ROMMON boot code. Table 1-8 lists the memory requirements for Cisco 819 ISRs.
Embedded 3G Modem
The 3G cellular interface is the primary WAN data link, but it can also be used as a backup data link. The 3G technology is third-generation wide-area cellular technology that is used in broadband wireless data in a mobile environment.
Embedded 4G LTE Modem
The Cisco 819HG-4G and Cisco 819G-4G routers have an embedded 4G LTE modem provided by Sierra Wireless. The Verizon SKUs come with an MC7750 modem, the AT&T SKUs come with an MC7700 modem, and the Global SKUs come with an MC7710 modem.
SIM Card
Table 1-9 lists the SIM Card slots available for Cisco the 819 ISRs.
Supported Cisco Antennas and Cables
The Cisco 819 ISR provides two standard panel-mount TNC connectors to support the 3G antenna and the diversity and GPS external antenna. The main antenna is used for the primary 3G antenna. The second can be used as a diversity receive only 3G antenna or GPS antenna that does not require power supply from the router.
Table 1-10 lists the Cisco 3G antennas that are supported for use on Cisco 819 ISRs.
Table 1-10 Supported Cisco 3G Antennas
3G-ANTM1919D
Dipole omnidirectional
0 dBi
(806-960 MHz)0 dBi
(1710-2170 MHz)This is the default antenna with dual faceplate mount. Multiband faceplate-mounted dipole antenna. For more information, see Cisco Multiband Swivel Mount Dipole Antenna (3G-ANTM1919D).
3G-ANTM1916-CM
High-gain
ceiling-mount omnidirectional1.5 dBi
(806-960 MHz)2.5 dBi
(1710-2170 MHz)Multiband ceiling-mounted omnidirectional antenna. For more information, see Cisco Multiband Omnidirectional Ceiling Mount Antenna (3G-ANTM1916-CM).
3G-AE015-R (Antenna Extension)
Extension base
0.8-6.0 GHz
This antenna extension is a base with a 15-foot cable included for use with a dipole omnidirectional antenna. For more information, see Cisco Single-Port Antenna Stand for Multiband TNC Male-Terminated Portable Antenna (3G-AE015-R).
3G-ANTM-OUT-OM
Outdoor Omnidirectional
+2 dBi
800/900 MHz+4 dBi
1800/1900/2100 MHzThis is an outdoor low-profile omindirectional mast antenna. For more information, see Cisco 3G Omnidirectional Outdoor Antenna (3G-ANTM-OUT-OM).
3G-ANTM-OUT-LP
Low Profile Stick Antenna
-1.5 dBi
850, 900 MHz-2.5 dBi
1800, 1900, 2100 MHzThis is an omindirectional stick antenna. For more information, see Cisco 3G Low Profile Outdoor Antenna (3G-ANTM-OUT-LP).
3G-ACC-OUT-LA (Lightning Arrestor)
Lightning Arrestor
800-2200 MHz
This is a quarter-wave lightning protector with integrated high-pass filter. For more information, see Cisco 3G Lightning Arrestor (3G-ACC-OUT-LA).
.
Table 1-11 lists the supported Cisco WiFi antenna for Cisco 819HGW and Cisco 819HWD ISRs.
Table 1-11 Supported Cisco WiFi Antenna
AIR-ANTM2050D-R
2.4-2.5 GHz
4.9-5.9 GHz
Faceplate
Dipole
IP 41
1.4
4.5
This is the default antenna. For more information, see Cisco Multiband Swivel-Mount Dipole Antenna (AIR-ANTM2050D-R).
AIR-ANT2430V-R
2.4 GHz
Ceiling
IP 41
3
—
For more information, see Cisco Aironet 3-dBi Omnidirectional Antenna (AIR-ANT2430V-R).
AIR-ANT5140V-R
5 GHz
Ceiling
IP 41
—
4
For more information, see Cisco Aironet 4-dBi Omnidirectional Antenna (AIR-ANT5140V-R).
AIR-ANT2440NV-R
2.4 GHz
Multi-mount (Wall/Ceiling/Mast)
IP 54
4
—
For more information, see Cisco Aironet 2.4-GHz MIMO Wall-Mounted Omnidirectional Antenna (AIR-ANT2440NV-R).
AIR-ANT5140NV-R
5 GHz
Multi-mount (Wall/Ceiling/Mast)
IP 54
—
4
For more information, see Cisco Aironet 5-GHz MIMO Wall Mount Omnidirectional Antenna (AIR-ANT5140NV-R).
Table 1-12 lists the Cisco 4G LTE antennas that are supported for use on Cisco 819 ISRs.
Table 1-12 Supported 4G LTE Antennas
4G-LTE-ANTM-D
Indoor 4G dipole omnidirectional antenna
•
–
–
–
–
–
–
–
Multiband dipole antenna. For more information, see Cisco 4G/3G Omnidirectional Dipole Antenna (4G-LTE-ANTM-D).
4G-ANTM-OM-CM
Indoor ceiling-mount omnidirectional antenna
698 to 2690 MHz
Multiband omnidirectional ceiling-mount antenna. For more information, see Cisco 4G Indoor Ceiling-Mount Omnidirectional Antenna (4G-ANTM-OM-CM).
ANT-4G-OMNI-OUT-N
Multiband outdoor omnidirectional stick antenna
•
–
•
–
–
Multiband outdoor omnidirectional stick antenna. For more information, see Cisco Outdoor Omnidirectional Antenna for 2G/3G/4G Cellular (ANT-4G-OMNI-OUT-N).
ANT-4G-SR-OUT-TNC
Multiband outdoor omnidirectional saucer antenna
•
–
•
–
Low-profile outdoor saucer antenna. For more information, see Cisco Integrated 4G Low-Profile Outdoor Saucer Antenna (ANT-4G-SR-OUT-TNC).
CGR-LA-NF-NF
Lighning Arrestor
800 to 2200 MHz
4G lightning arrestor kit for use on Cisco 4G wireless devices. For more information, see Lightning Arrestor for the Cisco 1240 Connected Grid Router.
4G-ACC-OUT-LA
Lightning Arrestor
800 to 2200 MHz
4G lightning arrestor kit for use on Cisco 4G wireless devices. For more information, see Cisco 4G Lightning Arrestor (4G-ACC-OUT-LA).
Table 1-13 to Table 1-15 list the extension cables for use with 3G, WiFi, and 4G LTE antennas. The tables include the insertion loss information for the ultra-low-loss (ULL) LMR 400 extension cables.
Table 1-15 Cisco Extension Cables for Use with 4G LTE Antennas
4G-AE010-R
10 ft (3 m)
1.4 dB at 700 MHz
2.0 dB at 1.9 GHz
2.1 dB at 2.1 GHz
2.3 dB at 2.5 GHz
700 to 2600 MHz
Black
No
4G-AE015-R
15 ft (4.6 m)
2.3 dB at 700 MHz
3.3 dB at 1.9 GHz
3.7 dB at 2.1 GHz
4.0 dB at 2.5 GHz
700 to 2600 MHz
Black
No
4G-CAB-LMR240-25
25 ft (7.6 m)
2.1 dB at 700 MHz
4.0 dB at 2.6 GHz
700 to 1000 MHz
1700 to 2600 MHz
Black
Yes
4G-CAB-LMR240-50
50 ft (15 m)
4.1 dB at 700 MHz
7.4 dB at 2.6 GHz
700 to 1000 MHz
1700 to 2600 MHz
Black
Yes
4G-CAB-LMR240-75
75 ft (23 m)
6.1 dB at 700 MHz
11.0 dB at 2.6 GHz
700 to 1000 MHz
1700 to 2600 MHz
Black
Yes
4G-CAB-LMR240-25N
25 ft (7.6 m)
2.1 dB at 700 MHz
4.0 dB at 2600 MHz
700 to 1000 MHz
1700 to 2600 MHz
Black
No
4G-CAB-ULL-20
20 ft (6 m)
1.8 dB
700 to 2600 MHz
Black
Yes
4G-CAB-ULL-50
50 ft (15 m)
4.2 dB
700 to 2600 MHz
Black
Yes
CAB-L400-20-TNC-N
20 ft (6 m)
1.75 dB
700 to 2600 MHz
Black
No
CAB-L400-50-TNC-N
50 ft (15 m)
4.0 dB
700 to 2600 MHz
Black
No
CAB-L400-20-N-N
20 ft (6 m)
2.75 dB
700 to 2600 MHz
Black
No
1 Cable can be routed within building plenum spaces.
Serial Port
The Cisco standard High Speed Smart Serial 12-in-1 connector allows the highest flexibility of connections to various DTE/DCE devices. The 12-in-1 serial interface pins connect to the FPGA. The FPGA configures the pin directions based on the cable type used. Figure 1-6 shows the magnified view of the 12-in-1 serial port. For more information, see About Serial Connections.

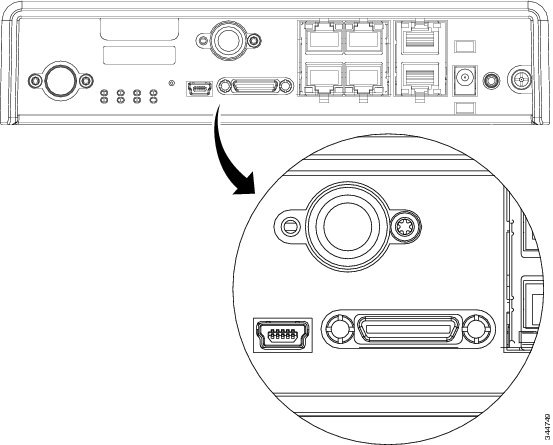

Figure 1-6 12-in-1 Serial Port
Power Supply
All SKUs require a 5 VDC power source. Cisco 819HG and Cisco 819G ISRs have a self-locking Molex mini-fit connector. Cisco 819HGW and Cisco 819HWD ISRs use a 5.5 mm barrel-type connector with separate locking clip. An external AC power adapter is supported by default. The optional external power adapters are available to support a variety of DC power sources, suitable for fixed, vehicle, or railway installations. The 5 VDC power input of the router is protected from over-voltage up to 20 VDC. The router will not power up if excessive voltage (for example, a 12 VDC adapter) is connected.
AC Power Adapter
The default configuration includes an external AC adapter that supplies up to 20 W of power. The AC power connection is a two-pin IEC 320 C8 receptacle. A mating AC power cord is supplied. The AC adapter does not provide chassis grounding to the router. A 1.3-meter long output cable connects to the router.
DC Power Adapters
The optional external DC power adapters are available for 12 VDC and 24 VDC nominal vehicle power.
•
•
The vehicle power adapters may be used for fixed or mobile installations. They do not provide electrical isolation; the input negative is connected to the output negative (chassis ground). Input cable is 1-meter long with stripped and tinned bare wire connections. The input positive connection is a white wire and the input negative is a black wire.
Note
Railway Power Adapters
The optional external power adapters meeting Railway Standards are available from a third-party supplier, Martek Power. Contact Martek Power directly to order and for detailed specifications. The use of Martek Power adapters listed in the "Supported Power Adapters" section will maintain Cisco warranty and support of the router; the power adapter itself is covered by Martek warranty. Input connection to the railway adapters is by a 1-meter long wire with stripped and tinned bare wire connection. A 1.3-meter long output cable connects to the router.
Accessories
Table 1-16 lists the accessories available for the Cisco 819 ISRs. For a complete list of SKUs that support these accessories, see the "Platform Features for Cisco 819 ISRs" section.
Table 1-16 Cisco 819 ISR Accessories
69-2453-01
Power cord retention lock
69-2454-01
Power switch lock cover
