Installing the Router
Equipment, Tools, and Connections
Items Shipped with your Router
Additional Items
Connections
Ethernet Devices
Installing the Router
Warnings
Accessing the SIM Card
Installing Antennas
Installing a WiFi External Antenna
Installing on a Table
Mounting on a Wall
Installing a DIN Rail
Installing the Router Ground Connection
Installing the Power Cord Retention Lock
Installing the Power Switch Lock
Mounting the DC Power Supply
Installing the Router
This chapter describes the equipment and the procedures for successfully installing the Cisco 819 ISR and contains the following sections:
•
Equipment, Tools, and Connections
•Installing the Router
•Mounting the DC Power Supply
Note For compliance and safety information, see the Regulatory Compliance and Safety Information Roadmap that ships with the router and the Regulatory Compliance and Safety Information for Cisco 800 Series and SOHO Series Routers.
 |
Warning Read the installation instructions before connecting the system to the power source. Statement 1004
|
|
Warning This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available. Statement 1024
|
|
Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
|
|
Warning No user-serviceable parts inside. Do not open. Statement 1073
|
|
Warning Ultimate disposal of this product should be handled according to all national laws and regulations. Statement 1040
|
|
Warning Read the wall-mounting instructions carefully before beginning installation. Failure to use the correct hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system. Statement 378
|
|
Warning The covers are an integral part of the safety design of the product. Do not operate the unit without the covers installed. Statement 1077
|
|
Warning Do not locate the antenna near overhead power lines or other electric light or power circuits, or where it can come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits, because they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada: Canadian Electrical Code, Section 54). Statement 1052
|
|
Warning This product is not intended to be directly connected to the Cable Distribution System. Additional regulatory compliance and legal requirements may apply for direct connection to the Cable Distribution System. This product may connect to the Cable Distribution System ONLY through a device that is approved for direct connection. Statement 1078
|
Equipment, Tools, and Connections
This section describes the equipment, tools, and connections necessary for installing your Cisco 819 ISR. It contains the following topics:
•Items Shipped with your Router
•Additional Items
•Connections
•Ethernet Devices
Items Shipped with your Router
Unpack the box and verify that all items listed on the invoice were shipped with the Cisco 819 ISR.
The following items are shipped with your router:
•AC power supply (default)
•AC power supply cable (default)
•Cisco Configuration Professional (Cisco CP) CD
•DC power supply (optional)
•Power cord retention lock (available in Cisco 819HGW, Cisco 819HWD, Cisco 819HG-4G, and Cisco 819G-4G ISRs only)
•Power switch lock (available in Cisco 819HGW, Cisco 819HWD, and Cisco 819HG-4G ISRs only)
•RJ-45-to-DB-9 console cable.
•Straight-through RJ-45 Ethernet cable
•Two cellular multiband swivel mount dipole antennas
•Three WiFi antennas for Cisco 819HGW and Cisco 819HWD ISRs
Note AC or DC Power supply is included based on what is ordered.
Additional Items
The following items are not shipped with the router but are required for installation:
•ESD-preventive cord and wrist strap.
•Screws for mounting the router on a wall.
•Two number-10 wood screws (round- or pan-head) with number-10 washers or two number-10 washer-head screws, for mounting on a wall stud. The screws must be long enough to penetrate at least 3/4 inch (20 mm) into the supporting wood or metal wall stud.
•Two number-10 wall anchors with washers, for mounting the router on a hollow wall.
•Wire crimper for chassis grounding.
•Wire for connecting the chassis to an earth ground.
•AWG 14 (2 mm2) or larger wire for NEC-compliant chassis grounding.
•AWG 18 (1 mm2) or larger wire for EN/IEC 60950-compliant chassis grounding.
•Ring terminal with an inner diameter of 1/4 inch. (5 to 7 mm) for NEC-compliant chassis grounding.
•Ethernet cables for connecting to the Fast Ethernet (FE) WAN and LAN ports.
Connections
Obtain a broadband or Ethernet connection from your service provider.
Ethernet Devices
Identify the Ethernet devices that you will connect to the router: hub, servers, and workstations or PCs. Ensure that each device has a network interface card (NIC) for connecting to Ethernet ports.
If you plan to configure the software using Cisco IOS commands through the console port, provide an ASCII terminal or a PC that is running terminal emulation software to connect to the console port.
If you plan to connect a modem, provide the modem and modem cable.
Installing the Router
This section describes how to install the Cisco 819 ISR. These routers can be installed on a table top or other flat horizontal surface mounted on a wall or DIN rail.
The recommended clearance when horizontally mounted is 1.5 inches on both sides for floor mount bracket clearance and 2 inches on top. Top clearance is not required but stacking heat-dissipating objects on top of the router is not allowed. I/O side clearance is needed as it is required to access the cable connections. Clearance is not required on the backside (opposite side from I/O face) unless DIN rail mounting is required. Clearance is required to attach and mount the DIN rail bracket. The same clearances apply when mounted vertically.
This section also describes how to attach external antennas to the routers and contains the following topics:
•Warnings
•Accessing the SIM Card
•Installing Antennas
•Installing a WiFi External Antenna
•Installing on a Table
•Mounting on a Wall
•Installing a DIN Rail
•Installing the Router Ground Connection
•Installing the Power Cord Retention Lock
•Installing the Power Switch Lock
Warnings
|
Warning This equipment needs to be grounded. Use a green and yellow 12 to 14 AWG ground wire to connect the host to earth ground during normal use. Statement 242
|
|
Warning This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available. Statement 1024
|
|
Warning Read the wall-mounting instructions carefully before beginning installation. Failure to use the correct hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system. Statement 378
|
|
Warning Do not cover or obstruct the router vents located on both sides of the router; otherwise, overheating could occur and cause damage to the router.
|
|
Warning Do not place anything on top of the router that weighs more than 10 pounds (4.5 kilograms), and do not stack routers on a desktop. Excessive weight on top of the router could damage the chassis.
|
|
Warning Do not install the router or power supplies next to a heat source of any kind, including heating vents.
|
Accessing the SIM Card
This section describes how to install and replace the SIM card. Ensure that the router is not mounted to a wall, floor, or DIN rail.
Caution Do not touch any part of the exposed PCB circuit area when the SIM cover is removed.
|
Warning Hot surface. Statement 1079
|
To access the SIM card in the Cisco 819 ISR, follow these steps:
Step 1 Power off the router and disconnect the power cable from the power source.
Step 2 Place the router on its side and ensure that any installed antennas are carefully oriented.
Step 3 Remove the SIM access panel using four flat head #6 screws. (See Figure 2-1.)
Step 4 Remove the SIM card and install the new cards.

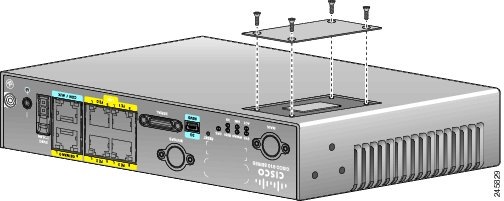

Figure 2-1 Accessing the SIM Cards
Step 5 Replace the panel and the screws.
Installing Antennas
Note Before you install the Cisco 819 ISR on a table, wall, or DIN rail, install the antennas on the front panel. It is difficult to install the antennas after the router is installed.
Orient the antennas. For optimum wireless performance, the antennas should be perpendicular with respect to the floor.
If the router is being mounted on a desk, orient the antennas straight up.
To attach the radio antennas to your wireless router, follow these steps:
Step 1 Manually screw the antenna tight to the TNC connectors on the back of the router. (See Figure 2-2.)

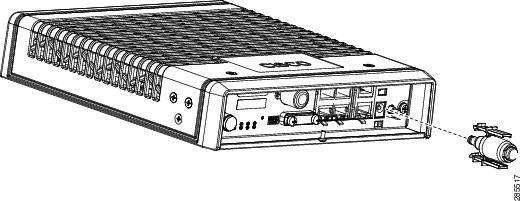

Figure 2-2 Installing the Antenna
Step 2 Orient the antennas. For optimum wireless performance, antennas should be generally perpendicular to each other.
Installing a WiFi External Antenna
This section describes how to install a WiFi external antenna.
Step 1 Install the lightning arrestor. For details in installing lightning arrestor, see Cisco Aironet Lightning Arrestor (AIR-ACC245LA-R).
Step 2 Rotate the knurled portion of the WiFi external antenna clockwise to screw the antenna to the RP-TNC. (See Figure 2-3.)
Note WiFi antennas should be generally perpendicular to each other to achieve best coverage.

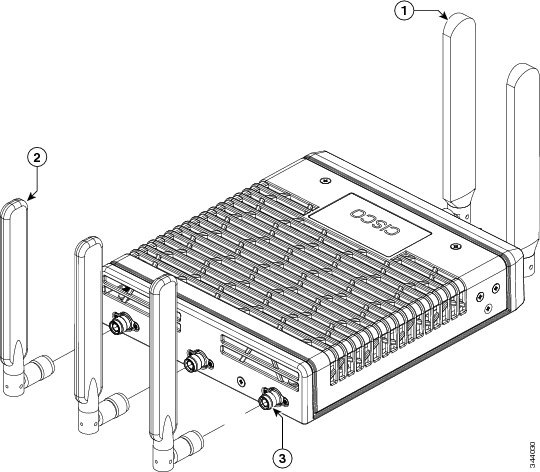

Figure 2-3 Cisco WiFi Antenna Assembly
1
|
3G Dipole External Antenna
|
3
|
RP-TNC Connector
|
2
|
WiFi 2.4/5 Ghz Dipole External Antenna
|
|
|
Installing on a Table
To install the router on a table or other flat horizontal surface, firmly place the router on a table or other horizontal surface. Keep at least 1 inch (2.5 centimeters) of clear space for heat dissipation.
Connect the chassis to a reliable earth ground. For the chassis ground connection procedures, see the "Installing the Router Ground Connection" section.
Mounting on a Wall
The Cisco 819 ISR has mounting holes on the bottom of the chassis for mounting the unit on a wall or other vertical surface. The attachment hardware is provided.
Tip When choosing a location for wall-mounting the router, consider cable limitations and wall structure.
To mount the router on a wall, follow these steps:
Step 1 Remove the screws on the sides of the routers.
Step 2 Attach the standard brackets to the chassis using the three screws provided for each bracket. (See Figure 2-4.)

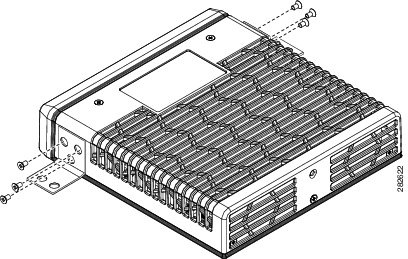

Figure 2-4 Attaching the Standard Brackets
Step 3 Install the router to a wall stud using two number-10 wood screws, round- or pan-head, with number-10 washers or two number-10 washer-head screws. The screws must be long enough to penetrate at least 1.0 inch (25.4 mm) into the supporting wood or metal wall stud. (See Figure 2-5.)
Note The orientation of the Cisco 819 ISR products is critical when wall-mounting. The router must be oriented as shown in Figure 2-5 with the left side of the router rotated up (as viewed from the IO side) to comply with IP41 and safety criteria. No other wall mounting orientation is supported.

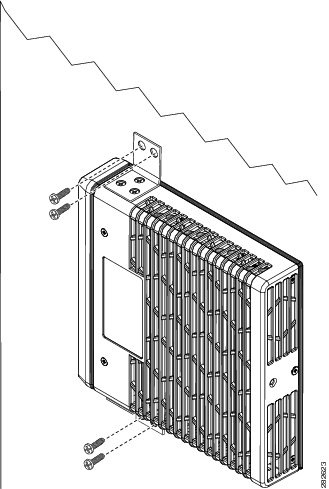

Figure 2-5 Installing the Router to the Wall
Note For hollow-wall mounting, each bracket requires two wall anchors with washers. Wall anchors and washers must be size number 10.
Step 4 Route the cables so that they do not put a strain on the connectors or mounting hardware. To comply with IP 41, cables should be routed down relative to the router to prevent water from travelling on the cables.
Installing a DIN Rail
You can use either the 7.5-mm or the 15-mm thick DIN rail for the Cisco 819 ISR. Secure the DIN rail to the mounting surface approximately every 7.8 inches (200 mm) and use end-anchors appropriately.
Note DIN rail mounting is not supported on Cisco 819HGW and Cisco 819HWD ISRs.
To attach the Cisco 819 ISR to a 35-mm wide DIN rail, follow these steps.
Step 1 Attach the DIN rail to the back of the router using the three screws provided. (See Figure 2-6.)
Figure 2-6 Attaching the DIN Rail to the Cisco 819 ISR
Step 2 Find the tab on the end of the DIN rail that extends past the router. (See Figure 2-7.) Press the tab in and slide the DIN rail out while the tab is pressed down.

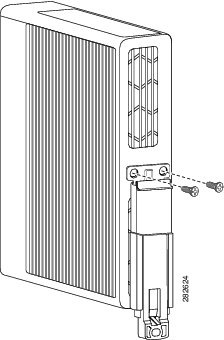

Figure 2-7 DIN Rail Tab
Step 3 Turn the router sideways so that the antenna is at the top.
Step 4 Position the rear edge of the router directly in front of the DIN rail, making sure that the DIN rail fits in the space between the latch and hook.
Step 5 Position the router so that the hook on the DIN rail bracket hooks onto the top edge of the DIN rail. The weight of the product can rest on the hook temporarily while the DIN rail bracket latches are secured.
Step 6 Push the DIN rail bracket latch up after the router is over the DIN rail to secure it. The router is now installed in the DIN rail. (See Figure 2-8.)

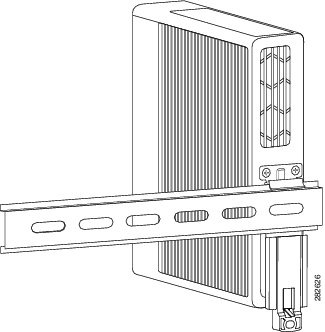

Figure 2-8 Cisco 819 ISR Installed with the DIN Rail
Installing the Router Ground Connection
The router must be connected to a reliable earth ground. Install the ground wire in accordance with local electrical safety standards.
•For NEC-compliant grounding, use size 14 AWG (2 mm2) or larger copper wire and a ring terminal with an inner diameter of 1/4 in. (5 to 7 mm).
•For EN/IEC 60950-compliant grounding, use size 18 AWG (1 mm2) or larger copper wire.
|
Warning This equipment needs to be grounded. Use a green and yellow 12 to 14 AWG ground wire to connect the host to earth ground during normal use. Statement 242
|
To install the ground connection, follow these steps:
Step 1 Strip one end of the ground wire to the length required for the terminal.
Step 2 Crimp the ground wire to the ring terminal using the wire crimper.
Step 3 If you choose to install the power switch lock, perform Step 5 to Step 7.
If you choose not to install power switch lock, perform Step 4 and Step 6 to Step 7.
Step 4 Attach the ring terminal to the chassis. Use the single screw provided. Tighten the screws to a torque of 8 to 10 inch-pound (0.9 to 1.1 newton meter). (See Figure 2-9.)

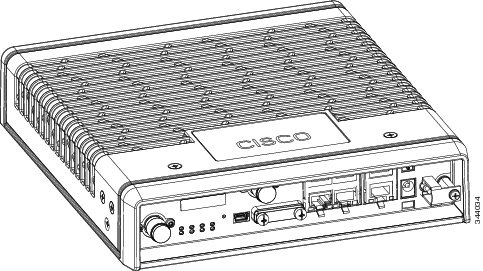

Figure 2-9 Chassis Ground Connection Using Ring Terminal
Step 5 Install the power switch lock, see the "Installing the Power Switch Lock" section. Tighten the screws to a torque of 8 to 10 in-lb (0.9 to 1.1 N-m). Torque the hex standoff to the same torque.
Step 6 Connect the other end of the ground wire to a known reliable earth ground point at your site.
Step 7 If you are using this router in a vehicle, attach the ring terminal to the chassis using one of the screws provided and the green or green and yellow striped wire. Connect the other end of the wire to the vehicle ground.
After you install and properly ground the router, you can connect the power wiring, the LAN cables, and the cables for administrative access as required for your installation.
Installing the Power Cord Retention Lock
The Cisco 819 ISRs have a power cord retention mechanism as an accessory. It locks the power cord to the router so when a user accidentally pulls out the power cord, the power cord will not come out from the router. For the complete list of Cisco 819 ISRs that support power cord retention lock, see Table 1-4.
This section describes how to install the power cord retention lock.
Step 1 Pre-assemble the o-ring onto the barrel of the power cord as shown in Figure 2-10.
Figure 2-10 Pre-assemble the O-Ring onto the Barrel
1
|
O-ring
|
3
|
Power cord lock
|
2
|
Power cord connector
|
|
|
Step 2 Place the power cord lock onto the power cord behind the connector overmold as shown in Figure 2-11. Slide the power cord lock forward so that it captures the overmold and is fully seated.
Figure 2-11 Place the Power Cord Lock onto the Power Cord
1
|
O-ring
|
2
|
Power cord lock
|
Step 3 Install the power cord with power cord lock and the pre-installed o-ring to mate with the power jack on the router while making sure that the two arms of the power cord lock slide into the corresponding slots on the router and are fully seated with both arms locking into the slots as shown in Figure 2-12.
Figure 2-12 Installing Power Cord Lock onto the Router
Step 4 To remove the power cord lock, use your thumb and index fingers to squeeze ends of tabs while pulling away from the router. (See Figure 2-13.)
Figure 2-13 End of Tabs
Installing the Power Switch Lock
The Cisco 819 ISRs have a power switch lock as an accessory. The power switch lock prevents unauthorized access to a tampered proof router (for example, router in a bus). For the complete list of Cisco 819 ISRs that support power switch lock, see Table 1-4.
This section describes how to install the power switch lock.
Step 1 Install the power switch lock by following the parts listed in Figure 2-14. All these parts are in the accessory kit in their own bag. The ring terminal does not have to be installed. Figure 2-15 shows the power switch lock installed.

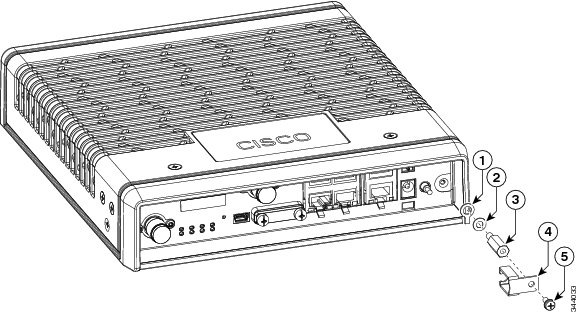

Figure 2-14 Installing Power Switch Lock
1
|
Ring terminal
|
4
|
Power switch lock
|
2
|
Power switch lock washer
|
5
|
Pan-head screw
|
3
|
Power switch lock standoff
|
|
|
Figure 2-15 Power Switch Lock Installed
Mounting the DC Power Supply
|
Warning Read the wall-mounting instructions carefully before beginning installation. Failure to use the correct hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system. Statement 378
|
The Cisco 800 ISR DC power supply may be mounted to a wall using four #6 pan- or round-head wood screws for the mounting holes on the supply.
Caution Each mounting screw must go into a wall stud (wood) or a wall anchor of the appropriate type for the wall. Screws into drywall is not sufficient to support the DC power supply.
For attaching to a wall stud, the power supply requires #6 wood screws (round- or pan-head). The screws must be long enough to penetrate and tap at least 0.75 inches (19.1 mm) into the supporting wood or metal wall stud.
For hollow-wall mounting, the power supply requires the use of appropriate-sized wall anchors that work with the drywall thickness the unit is to be installed in. Use hollow-wall anchors that support using #6 screws and use #6 pan- or round-head screws to secure the power supply to the wall. Each wall anchor should be rated for at least 30 lbs.
Caution If the screws are not properly anchored, the strain of the DC supply cables could pull the router from the wall.

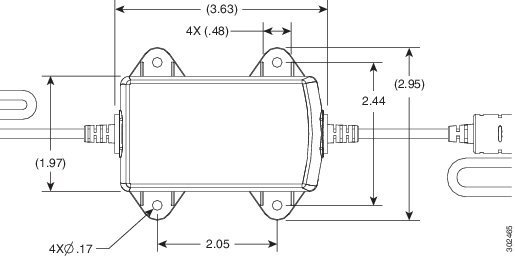

Figure 2-16 DC Power Supply Wall-Mounting Features
To mount the DC power supply to the wall, follow these instructions:
Step 1 Install the four screws into the mounting holes on the DC power supply (see Figure 2-16) before being secured to the wall studs or wall anchors.
Step 2 Hang the DC power supply by securing the screws to the wall stud or into the wall anchors.
Note The DC supply is IP 41 compliant in all six orthogonal directions. The mounting orientation will not affect IP 41 compliance.
