NTP-G114 Inspect and Replace the Air Filter
NTP-G274 Replace the Air Filter of the ONS 15454 M2 Shelf Assembly
NTP-G262 Replace the Air Filter of the ONS 15454 M6 Shelf Assembly
NTP-G263 Replace the Air Filter of the AC Power Module in the ONS 15454 M6 Shelf Assembly
NTP-G115 Clean Fiber Connectors
DLP-G261 Clean Multi Fiber-Optic Cable Connectors
DLP-G262 Clean Fiber Connectors with CLETOP
DLP-G263 Clean the Fiber Adapters
NTP-G40 Replace the Front Door
NTP-G116 Replace the Fan-Tray Assembly of the ONS 15454 Shelf Assembly
NTP-G272 Replace the Fan-Tray Assembly of the ONS 15454 M2 Shelf Assembly
NTP-G260 Replace the Fan-Tray Assembly of the ONS 15454 M6 Shelf Assembly
NTP-G117 Replace the ANSI Shelf Alarm Interface Panel
NTP-G118 Replace the ANSI Shelf Plastic Lower Backplane Cover
Maintaining the ONS 15454 (ANSI and ETSI), ONS 15454 M2 and ONS 15454 M6 Shelf
This chapter explains how to maintain the ONS 15454 (ANSI and ETSI), ONS 15454 M2 and ONS 15454 M6 shelf installations.
NTP-G114 Inspect and Replace the Air Filter
Purpose
|
This procedure ensures that the air filter is free from dirt and dust, which allows optimum air flow and prevents dirt and dust from entering the shelf.
|
Tools/Equipment
|
New air filter, pinned hex key tool
|
Prerequisite Procedures
|
None
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite
|
Security Level
|
None
|
 |
Warning  Do not reach into a vacant slot or chassis while you install or remove a module or a fan. Exposed circuitry could constitute an energy hazard. Statement 206
|
Note The air filters are single-use only. They must not be cleaned and reused. This is a Telcordia NEBS requirement, GR-63-CORE Issue 4.
Note Air filters must be inspected every month. If they are dirty or clogged with dust, they must be replaced with a new air filter.
Note If you install the air filter below 15454E-CC-FTA or 15454-CC-FTA, only filters with part numbers 700-23193-01 and 700-23194-01 can be used in this configuration.
Caution Although the air filter can work with older fan trays if it is installed with either side facing up, it is recommended that you install it with the metal bracing facing up to preserve the surface of the filter. You must install the air filter with the metal bracing facing up with 15454E-CC-FTA or 15454-CC-FTA.
Note To install the air filter inside the air ramp unit (15454E-AIR-RAMP or 15454-AIR-RAMP), use the ETSI version of the air filter (15454-FTF2 or 15454E-FTF4).
Step 1 If the air filter is installed in the external filter brackets, slide the filter out of the brackets while being careful not to dislodge any dust that might have collected on the filter and proceed to Step 8. Figure 6-1 shows the fan-tray air filter in an external filter bracket on an ANSI shelf. Figure 6-2 shows the fan-tray air filter in an external filter bracket on an ETSI shelf.
Step 2 If the filter is installed below the fan tray and not in the external filter brackets, open the front door of the shelf assembly. If the front door is already open, proceed to Step 3.
a. Open the front door lock.
The ONS 15454 comes with a pinned hex key for locking and unlocking the front door. Turn the key counterclockwise to unlock the door and clockwise to lock it.
b. Press the door button to release the latch.
c. Swing the door open.
Step 3 (Optional) Remove the front door using the "DLP-G10 Remove the Front Door" procedure". If you do not want to remove the door or it is already removed, proceed to Step 4.
Figure 6-1 ANSI Shelf Fan-Tray Air Filter in an External Filter Bracket (Front Door Removed)
Figure 6-2 ETSI Shelf Fan-Tray Air Filter in an External Filter Bracket (Front Door Removed)
Step 4 Push the outer side of the handles on the fan-tray assembly to expose the handles.
Step 5 Pull the handles and slide the fan-tray assembly one half inch (12.7 mm) out of the shelf assembly and wait until the fans stop.
Step 6 When the fans have stopped, pull the fan-tray assembly completely out of the shelf assembly.
Step 7 Gently remove the air filter from the shelf assembly. Be careful not to dislodge any dust that might have collected on the filter.
Step 8 Visually inspect the air filter material for dirt and dust.
Step 9 Replace the air filter with a new one if the air filter is dirty or clogged with dust.
Caution Do not leave the fan tray out of the chassis for an extended period of time because excessive heat can damage the ONS 15454 cards.
Step 10 Replace the air filter:
a. If the air filter is installed in the external filter brackets, slide the new air filter all the way to the back of the brackets.
b. If the filter is installed below the fan-tray assembly, slide the new air filter into the recessed compartment at the bottom of the shelf assembly. Put the front edge of the air filter flush against the front edge of the recessed compartment. Push the fan tray back into the shelf assembly.
Caution If the fan tray does not slide all the way to the back of the shelf assembly, pull the fan tray out and readjust the position of the air filter until the fan tray fits correctly.
Note On a powered-up ONS 15454, the fans start immediately after the fan-tray assembly is correctly inserted.
Step 11 To verify that the tray is plugged into the backplane, ensure that the LCD on the front of the fan-tray assembly is activated and displays node information.
Step 12 Rotate the retractable handles back into their compartments.
Step 13 If you removed the door, complete the "NTP-G40 Replace the Front Door" procedure. If not, close and lock the door.
Stop. You have completed this procedure.
NTP-G274 Replace the Air Filter of the ONS 15454 M2 Shelf Assembly
Note The air filters are single-use only. They must not be cleaned and reused. This is a Telcordia NEBS requirement, GR-63-CORE Issue 4.
Note Air filters must be inspected every month. If they are dirty or clogged with dust, they must be replaced with a new air filter.
Step 1 Untighten the screw on the air-filter (see Figure 6-3).

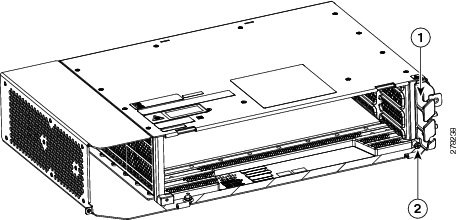

Figure 6-3 Replacing the Air Filter
Step 2 Extract the air filter from the shelf assembly as shown in Figure 6-4.

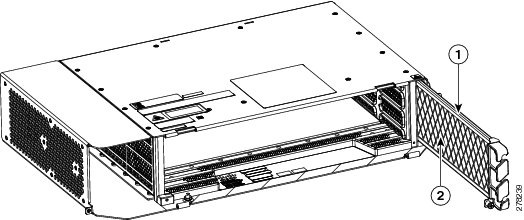

Figure 6-4 Replacing the Air Filter
1
|
Air filter
|
2
|
Filter grid
|
Step 3 Separate the cable guides from the air filter as shown in Figure 6-5.
Figure 6-5 Replacing the Air Filter
Step 4 Replace the air filter with a new one if the air filter is dirty or clogged with dust.
Step 5 Attach the cable guide and insert the air filter into the shelf assembly.
Note The air filter must be inserted with the grid facing the shelf assembly as shown in Figure 6-5.
Step 6 Tighten the screw on the air-filter.
Stop. You have completed this procedure.
NTP-G262 Replace the Air Filter of the ONS 15454 M6 Shelf Assembly
Note The air filters are single-use only. They must not be cleaned and reused. This is a Telcordia NEBS requirement, GR-63-CORE Issue 4.
Note Air filters must be inspected every month. If they are dirty or clogged with dust, they must be replaced with a new air filter.
Step 1 Open the front door of the shelf assembly (see "NTP-G259 Open and Remove the Standard Door of the ONS 15454 M6 Shelf" procedure"). If the shelf assembly does not have a front door, continue with Step 3.
Step 2 (Optional) Complete the "DLP-G577 Remove the Standard Door of the ONS 15454 M6 Shelf" procedure to remove the front door. If you do not want to remove the door, proceed to Step 3.
Step 3 Push the retention feature present on the right side of the shelf assembly to the left side (see Figure 6-6).

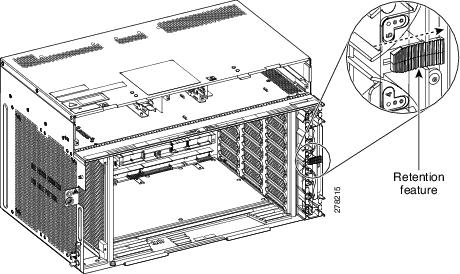

Figure 6-6 Replacing the Air Filter
Step 4 Extract the air filter from the shelf assembly (see Figure 6-7).

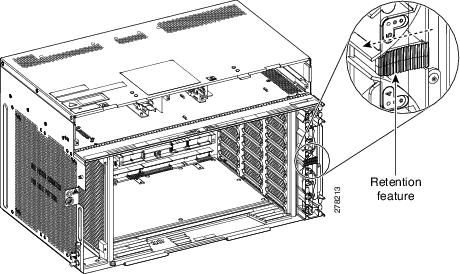

Figure 6-7 Extracting the Air Filter
Step 5 Replace the air filter with a new one if the air filter is dirty or clogged with dust.
Step 6 Insert the air filter into the shelf assembly (see Figure 6-7).
Note The air filter must be inserted with the grid facing the shelf assembly as shown in Figure 6-7.
Step 7 Push the retention feature to the right side (see Figure 6-8).
Figure 6-8 Replacing the Air Filter
Step 8 Close the front door. If you removed the door, complete the "NTP-G258 Install the Standard Door of the ONS 15454 M6 Shelf" procedure.
Stop. You have completed this procedure.
NTP-G263 Replace the Air Filter of the AC Power Module in the ONS 15454 M6 Shelf Assembly
Note The air filters are single-use only. They must not be cleaned and reused. This is a Telcordia NEBS requirement, GR-63-CORE Issue 4.
Note Air filters must be inspected every month. If they are dirty or clogged with dust, they must be replaced with a new air filter.
Step 1 Open the front door of the shelf assembly (see "DLP-G576 Open the Standard Door of the ONS 15454 M6 Shelf" procedure). If the shelf assembly does not have a front door, continue with Step 3.
Step 2 (Optional) Complete the "DLP-G577 Remove the Standard Door of the ONS 15454 M6 Shelf" procedure to remove the front door. If you do not want to remove the door, proceed to Step 3.
Step 3 Remove the air filter on the AC power module (see Figure 6-6).
Figure 6-9 Replacing the Air Filter—AC Power Module
Step 4 Replace the air filter with a new one if the air filter is dirty or clogged with dust.
Step 5 Close the front door. If you removed the door, complete the "NTP-G258 Install the Standard Door of the ONS 15454 M6 Shelf" procedure.
Stop. You have completed this procedure.
NTP-G115 Clean Fiber Connectors
Purpose
|
This procedure cleans the fiber connectors.
|
Tools/Equipment
|
Inspection microscope
Type A Fiber Optic Connector Cleaner (CLETOP reel)
Optical swab
Optical receiver cleaning stick
|
Prerequisite Procedures
|
None
|
Required/As Needed
|
Required
|
Onsite/Remote
|
Onsite
|
Security Level
|
None
|
|
Warning Invisible laser radiation may be emitted from the end of the unterminated fiber cable or connector. Do not view directly with optical instruments. Viewing the laser output with certain optical instruments (for example, eye loupes, magnifiers, and microscopes) within a distance of 100 mm may pose an eye hazard. Statement 1056
|
Step 1 Using an inspection microscope, inspect each fiber connector for dirt, cracks, or scratches.
Step 2 Replace any damaged fiber connectors.
Note Replace all dust caps whenever the equipment is unused for 30 minutes or more.
Step 3 Complete the "DLP-G262 Clean Fiber Connectors with CLETOP" task as necessary.
Step 4 Complete the "DLP-G263 Clean the Fiber Adapters" task as necessary.
Note To clean multi-fiber optic connectors, complete the "DLP-G261 Clean Multi Fiber-Optic Cable Connectors" task as necessary.
Stop. You have completed this procedure.
DLP-G261 Clean Multi Fiber-Optic Cable Connectors
Purpose
|
This task cleans the multi fiber optic connectors
|
Tools/Equipment
|
Cleaning Cartridge for multi fiber optic connectors
|
Prerequisite Procedures
|
None
|
Required/As Needed
|
Required
|
Onsite/Remote
|
Onsite
|
Security Level
|
None
|
|
Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments. Statement 1051
|
Step 1 Remove the protective cap on the optical fiber cable connector.
Step 2 Read the manufacturer (cleaning cartridge) instructions to insert the connector into the cleaning cartridge.
Step 3 Slide the lever on the cartridge to swipe the connector surface.
Step 4 Insert the fiber connector into the applicable adapter or attach a dust cap to the fiber connector.
Note If you must replace a dust cap on a connector, first verify that the dust cap is clean.
Step 5 Return to your originating procedure (NTP).
DLP-G262 Clean Fiber Connectors with CLETOP
Purpose
|
This task cleans the fiber connectors with CLETOP.
|
Tools/Equipment
|
Type A Fiber Optic Connector Cleaner (CLETOP reel)
Optical receiver cleaning stick
|
Prerequisite Procedures
|
None
|
Required/As Needed
|
Required
|
Onsite/Remote
|
Onsite
|
Security Level
|
None
|
Step 1 Remove the dust cap from the fiber connector.
Step 2 Press the lever up to open the shutter door. Each time you press the lever, you expose a clean wiping surface.
Step 3 Insert the connector into the CLETOP cleaning cassette slot, rotate one quarter turn, and gently swipe downwards.
Step 4 Use an inspection microscope to inspect each fiber connector for dirt, cracks, or scratches. If the connector is not clean, repeat Steps 1 to 3.
Step 5 Insert the fiber connector into the applicable adapter or attach a dust cap to the fiber connector.
Note If you must replace a dust cap on a connector, first verify that the dust cap is clean. To clean the dust cap, wipe the outside of the cap using a dry, lint-free wipe and the inside of the dust cap using a CLETOP stick swab (14100400).
Step 6 Return to your originating procedure (NTP).
DLP-G263 Clean the Fiber Adapters
Purpose
|
This task cleans the fiber adapters.
|
Tools/Equipment
|
CLETOP stick swab
|
Prerequisite Procedures
|
None
|
Required/As Needed
|
Required
|
Onsite/Remote
|
Onsite
|
Security Level
|
None
|
Step 1 Remove the dust plug from the fiber adapter.
Step 2 Insert a CLETOP stick swab (14100400) into the adapter opening and rotate the swab.
Step 3 Place dust plugs on the fiber adapters when not in use.
Step 4 Return to your originating procedure (NTP).
NTP-G40 Replace the Front Door
Note Be careful not to crimp any fiber cables that are connected to the MXP/TXP cards or DWDM cards. Some might not have the fiber boot attached.
Step 1 Insert the front door into the hinges on the shelf assembly.
Step 2 (ANSI only) Attach one end of the ground strap terminal lug (72-3622-01) to the male stud on the inside of the door. Attach and tighten the #6 Kepnut (49-0600-01) using the open-end wrench (Figure 6-10).
Figure 6-10 Installing the Door Ground Strap Retrofit Kit
Step 3 (ANSI only) Attach the other end of the ground strap to the longer screw on the fiber guide.
a. Attach the lock washer.
b. Attach the terminal lug.
c. Using the open-end wrench, attach and tighten the #4 Kepnut (49-0337-01) on the terminal lug.
Note To avoid interference with the traffic (line) card, make sure the ground strap is in a flat position when the door is open. To move the ground strap into a flat position, rotate the terminal lug counterclockwise before tightening the Kepnut.
Step 4 Replace the left cable-routing channel if it was removed. If not, continue with Step 5.
Step 5 Using a Phillips screwdriver, insert and tighten the screws for the cable-routing channel.
Figure 6-11 shows the shelf assembly with the front door and ground strap installed.
Figure 6-11 Shelf Assembly with Door Ground Strap Retrofit Kit Installed (ANSI)
Step 6 Swing the door closed and lock the door with the provided pinned-hex key. Turn the key clockwise to lock the door; counterclockwise to unlock it.
Stop. You have completed this procedure.
NTP-G116 Replace the Fan-Tray Assembly of the ONS 15454 Shelf Assembly
Caution The 15454-FTA3 fan-tray assembly can only be installed in ONS 15454 R3.1 and later shelf assemblies (15454-SA-ANSI, P/N: 800-19857; 15454-SA-HD, P/N: 800-24848). The fan-tray assembly includes a pin that prevents it from being installed in ONS 15454 shelf assemblies released before ONS 15454 R3.1 (15454-SA-NEBS3E, 15454-SA-NEBS3, and 15454-SA-R1, P/N: 800-07149). Equipment damage can result from attempting to install the 15454-FTA3 in a incompatible shelf assembly.
Caution Do not force a fan-tray assembly into place. Doing so can damage the connectors on the fan tray and/or the connectors on the backplane.
Caution 15454-CC-FTA (ANSI) is compatible with Software R2.2.2 and greater, and shelf assemblies 15454-SA-ANSI and 15454-SA-HD. 15454E-CC-FTA (ETSI) is compatible with Software R4.0 and greater, and shelf assembly 15454-SA-ETSI.
Caution As with the FTA3, the 15454E-CC-FTA and 15454-CC-FTA Fan Fail LED on the front of the fan-tray assembly illuminates when one or more fans fail to indicate that a fan-tray assembly or AIP replacement is required. But the Fan Fail LED on the 15454E-CC-FTA and 15454-CC-FTA will also illuminate when only one power source is connected to the chassis, and or any fuse blows. In such conditions, the Fan Alarm is triggered and the fans run at maximum speed.
Note To replace the fan-tray assembly, it is not necessary to move any of the cable management facilities.
Step 1 Review Table 6-1 (ANSI) or Table 6-2 (ETSI) to ensure that you have compatible components when replacing the fan-tray assembly. Note the alarms that will be generated when an incompatibility occurs.
Note If you need to determine the hardware that has been installed on a node, click the Inventory tab in node view.
Table 6-1 Incompatibility Alarms for ONS 15454 ANSI
|
|
|
|
|
|
Alarms
|
—
|
—
|
No fuse
|
—
|
—
|
Mismatch of equipment attributes (MEA) on the alarm interface panel (AIP)
|
NEBS3E or NEBS3
|
2A
|
2A
|
No
|
—
|
None
|
NEBS3E or NEBS3
|
2A
|
2A
|
Yes
|
—
|
MEA on 10G
|
NEBS3E or NEBS3
|
2A
|
5A
|
No
|
—
|
None
|
NEBS3E or NEBS3
|
2A
|
5A
|
Yes
|
—
|
MEA on 10G
|
ANSI or HD
|
2A
|
2A
|
No
|
—
|
None
|
ANSI or HD
|
2A
|
2A
|
Yes
|
2.5G compatible
|
MEA on fan tray, AIP, and Ethernet
|
ANSI or HD
|
2A
|
2A
|
Yes
|
10G compatible
|
MEA on fan tray and AIP
|
ANSI or HD
|
2A
|
5A
|
No
|
Either
|
None
|
ANSI or HD
|
2A
|
5A
|
Yes
|
2.5G compatible
|
MEA on fan tray and Ethernet
|
ANSI or HD
|
2A
|
5A
|
Yes
|
10G compatible
|
MEA on fan tray
|
ANSI or HD
|
5A
|
2A
|
No
|
Either
|
MEA on AIP
|
ANSI or HD
|
5A
|
2A
|
Yes
|
2.5G compatible
|
MEA on AIP and Ethernet
|
ANSI or HD
|
5A
|
2A
|
Yes
|
10G compatible
|
MEA on AIP
|
ANSI or HD
|
5A
|
5A
|
No
|
Either
|
None
|
ANSI or HD
|
5A
|
5A
|
Yes
|
Either
|
None
|
Table 6-2 Incompatibility Alarms for ONS 15454 ETSI
|
|
|
|
Ethernet Cards
|
Alarms
|
15454E-SA-ETSI
|
2A
|
No
|
—
|
None
|
15454E-SA-ETSI
|
2A
|
Yes
|
—
|
MEA on 10G
|
15454E-SA-ETSI
|
2A
|
No
|
—
|
None
|
15454E-SA-ETSI
|
2A
|
Yes
|
—
|
MEA on 10G
|
15454E-SA-ETSI
|
5A
|
No
|
—
|
MEA on fan tray
|
15454E-SA-ETSI
|
5A
|
Yes
|
—
|
MEA on fan tray and 10G cards
|
15454E-SA-ETSI
|
5A
|
No
|
—
|
None
|
15454E-SA-ETSI
|
5A
|
Yes
|
—
|
MEA on 10G
|
ETSI
|
2A
|
No
|
—
|
None
|
ETSI
|
2A
|
Yes
|
2.5G compatible
|
MEA on fan tray or Ethernet
|
ETSI
|
2A
|
Yes
|
10G compatible
|
MEA on fan tray
|
ETSI
|
2A
|
No
|
Either
|
None
|
ETSI
|
2A
|
Yes
|
2.5G compatible
|
MEA on fan tray, Ethernet
|
ETSI
|
2A
|
Yes
|
10G compatible
|
MEA on fan tray
|
ETSI
|
5A
|
Yes
|
2.5G compatible
|
MEA on Ethernet
|
ETSI
|
5A
|
No
|
Either
|
None
|
ETSI
|
5A
|
Yes
|
Either
|
None
|
Step 2 Open the front door of the shelf assembly. If the shelf assembly does not have a front door, continue with Step 4.
a. Open the front door lock.
The ONS 15454 comes with a pinned hex key for locking and unlocking the front door. Turn the key counterclockwise to unlock the door and clockwise to lock it.
b. Press the door button to release the latch.
c. Swing the door open.
Step 3 (Optional) Complete the "DLP-G577 Remove the Standard Door of the ONS 15454 M6 Shelf" procedure to remove the front door. If you do not want to remove the door, proceed to Step 4.
Step 4 Push the outer side of the handles on the fan-tray assembly to expose the handles.
Step 5 Fold out the retractable handles at the outside edges of the fan tray.
Step 6 Pull the handles and slide the fan-tray assembly one inch (25.4 mm) out of the shelf assembly and wait until the fans stop.
Step 7 When the fans have stopped, pull the fan-tray assembly completely out of the shelf assembly. Figure 6-12 shows the location of the fan tray on the ONS 15454 ANSI shelf.
Figure 6-12 Removing or Replacing the Fan-Tray Assembly (Front Door Removed) (ANSI)
Figure 6-13 shows the location of the fan tray on the ONS 15454 ETSI shelf.
Figure 6-13 Removing or Replacing the Fan-Tray Assembly (Front Door Removed) (ETSI)
Step 8 If you are replacing the fan-tray air filter and it is installed beneath the fan-tray assembly, slide the existing air filter out of the shelf assembly and replace it before replacing the fan-tray assembly.
If you are replacing the fan-tray air filter and it is installed in the external bottom bracket (ANSI shelf only), you can slide the existing air filter out of the bracket and replace it at anytime. For more information on the fan-tray air filter, see the "NTP-G114 Inspect and Replace the Air Filter" procedure.
Step 9 Slide the new fan tray into the shelf assembly until the electrical plug at the rear of the tray plugs into the corresponding receptacle on the backplane.
Step 10 To verify that the tray has plugged into the backplane, ensure that the LCD on the front of the fan tray is activated.
If you removed the door, complete the "NTP-G40 Replace the Front Door" procedure.
Stop. You have completed this procedure.
Note The estimated time of replacement by a skilled technician is 2 minutes.
NTP-G272 Replace the Fan-Tray Assembly of the ONS 15454 M2 Shelf Assembly
Caution Do not force a fan-tray assembly into place. Doing so can damage either the connectors on the fan tray or the connectors on the back panel of the shelf assembly, or both.
Note The estimated time required to change a fan-tray assembly is 2 minutes.
Step 1 Loosen the screw on the fan-tray assembly (see Figure 6-14).

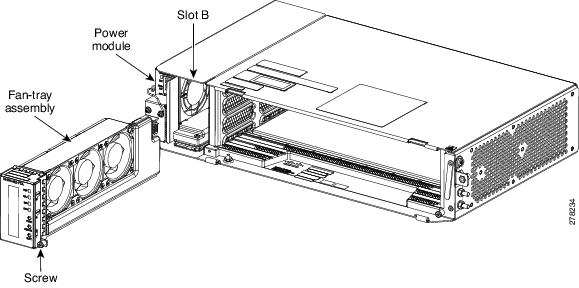

Figure 6-14 Fan-Tray Assembly installed in the ONS 15454 M2 Shelf Assembly
Step 2 Extract the fan-tray assembly partially to disconnect the backplane connector and wait until the fan stops (see Figure 6-15)

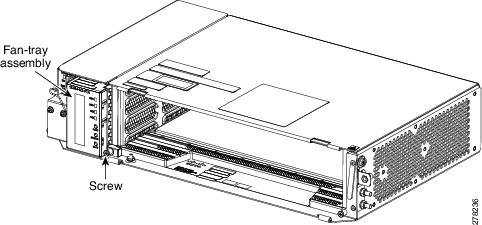

Figure 6-15 Fan -Tray Extracted Partially with Power Connector Disconnected
Step 3 When the fans have stopped, pull the fan-tray assembly completely out of the shelf assembly (see Figure 6-16).

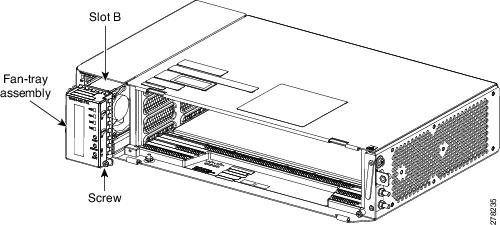

Figure 6-16 Fan-Tray Extracted
Step 4 Slide the new fan-tray assembly into the shelf assembly until the electrical plug at the rear of the tray plugs into the corresponding receptacle on the backplane.
Step 5 To verify that the tray has plugged into the backplane, ensure that the LCD on the front of the fan-tray is activated.
Stop. You have completed this procedure.
NTP-G260 Replace the Fan-Tray Assembly of the ONS 15454 M6 Shelf Assembly
Caution Do not force a fan-tray assembly into place. Doing so can damage either the connectors on the fan tray or the connectors on the back panel of the shelf assembly, or both.
Note The estimated time required to change a fan-tray assembly is 2 minutes.
Step 1 Open the front door of the shelf assembly (see "DLP-G576 Open the Standard Door of the ONS 15454 M6 Shelf" procedure). If the shelf assembly does not have a front door, continue with Step 3.
Step 2 (Optional) Complete the "DLP-G577 Remove the Standard Door of the ONS 15454 M6 Shelf" procedure to remove the front door. If you do not want to remove the door, proceed to Step 3.
Step 3 Untighten the screws on the fan-tray assembly (see Figure 6-17).
Figure 6-17 Extract the Fan-Tray Assembly
Step 4 Extract the fan tray partially using the handle in order to disconnect the backplane connector and wait until the fan stops (see Figure 6-18)
Figure 6-18 Fan-Tray Assembly Extracted Partially with Power Connector Disconnected
Step 5 When the fans have stopped, pull the fan-tray assembly completely out of the shelf assembly (see Figure 6-19).
Figure 6-19 Fan-Tray Extracted
Step 6 Slide the new fan-tray into the shelf assembly until the electrical plug at the rear of the tray plugs into the corresponding receptacle on the backplane.
Step 7 To verify that the tray has plugged into the backplane, ensure that the LED on the front of the fan-tray is activated.
If you removed the door, complete the "NTP-G258 Install the Standard Door of the ONS 15454 M6 Shelf" task.
Stop. You have completed this procedure.
NTP-G117 Replace the ANSI Shelf Alarm Interface Panel
Purpose
|
This procedure replaces the AIP on the ONS 15454 ANSI shelf assembly.
|
Tools/Equipment
|
#2 Phillips screwdriver
|
Prerequisite Procedures
|
None
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Caution Do not use a 2A AIP with a 5A fan-tray assembly; doing so will cause a blown fuse on the AIP.
Step 1 Review Table 6-1 to ensure that you have compatible components when replacing the ANSI shelf AIP and note the alarms that will occur when an incompatibility occurs.
Step 2 Ensure that all nodes in the affected network are running the same software version before replacing the AIP and repairing circuits:
a. In network view or multishelf view (multishelf mode), click, click the Maintenance > Software tabs. The working software version for each node is listed in the Working Version column.
b. If you need to upgrade the software on a node, refer to the release-specific software upgrade document. No hardware should be changed or circuit repair performed until after the software upgrade is complete. If you do not need to upgrade software or have completed the software upgrade, proceed to Step 3.
Step 3 Record the MAC address of the old AIP:
a. Log into the node where you will replace the AIP. See the "DLP-G46 Log into CTC" task.
b. In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > Network tabs.
c. Record the MAC address shown in the General tab.
Step 4 Call Cisco TAC for assistance in replacing the AIP and maintaining the original MAC address. See the "Obtaining Documentation, Obtaining Support, and Security Guidelines" section.
Step 5 Complete the "DLP-G13 Remove the Lower Backplane Cover" in the Cisco ONS 15454 Hardware Installation Guide.
Step 6 Unscrew the two screws that hold the AIP cover in place.
Step 7 Grip the cover and gently pull away from the backplane.
Note On the 15454-SA-HD (P/N: 800-24848), 15454-SA-NEBS3E, 15454-SA-NEBS3, and 15454-SA-R1 (P/N: 800-07149) shelves, the AIP cover is clear plastic. On the 15454-SA-ANSI shelf (P/N: 800-19857), the AIP cover is metal.
Step 8 Grip the AIP and gently pull it away from the backplane.
Step 9 Disconnect the fan-tray assembly power cable from the AIP.
Step 10 Set the old AIP aside for return to Cisco.
Caution The type of shelf that the AIP resides in determines the version of AIP that should replace the failed AIP. The 15454-SA-ANSI shelf (P/N: 800-19857) and 15454-SA-HD (P/N: 800-24848) currently use the 5A AIP, (P/N: 73-7665-01). The 15454-SA-NEBS3E, 15454-SA-NEBS3, and 15454-SA-R1 (P/N: 800-07149) shelves and earlier use the 2A AIP (P/N: 73-5262-01).
Caution Do not put a 2A AIP (P/N: 73-5262-01) into a 15454-SA-ANSI (P/N: 800-19857) or 15454-SA-HD (P/N: 800-24848) shelf; doing so will cause a blown fuse on the AIP.
Step 11 Attach the fan-tray assembly power cable to the new AIP.
Step 12 Place the new AIP on the backplane by plugging the panel into the backplane using the DIN connector.
Step 13 Replace the AIP cover over the AIP and secure the cover with the two screws.
Step 14 Replace the lower backplane cover and secure the cover with the five screws.
Step 15 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > Network tabs.
Caution Cisco recommends that TCC2/TCC2P/TCC3/TNC/TSC card resets be performed in a maintenance window to avoid any potential service disruptions.
Step 16 Reset the standby TCC2/TCC2P/TCC3/TNC/TSC card:
a. Right-click the standby TCC2/TCC2P/TCC3/TNC/TSC card and choose Reset Card.
b. Click Yes in the Resetting Card dialog box. As the card resets, a loading (Ldg) indication appears on the card in CTC.
Note The reset takes approximately five minutes. Do not perform any other steps until the reset is complete.
Step 17 Complete the "DLP-G250 Reset the TCC2/TCC2P/TCC3/TNC/TSC Card" task in the Cisco ONS 15454 DWDM Configuration Guide to reset the active TCC2/TCC2P/TCC3/TNC/TSC card.
Step 18 From the File drop-down list, choose Exit to exit the CTC session.
Step 19 Log back into the node. In the Login dialog box, choose (None) from the Additional Nodes drop-down list.
Step 20 Record the new MAC address:
a. In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > Network tabs.
b. Record the MAC address shown in the General tab.
Step 21 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Circuits tab. Note that all circuits listed have a status of PARTIAL.
Step 22 In node view (single-shelf mode) or multishelf view (multishelf mode), choose Repair Circuits from the Tools drop-down list. The Circuit Repair dialog box appears.
Step 23 Read the instructions in the Circuit Repair dialog box. If all the steps in the dialog box have been completed, click Next. Ensure that you have the old and new MAC addresses.
Step 24 The Node MAC Addresses dialog box appears:
a. From the Node drop-down list, choose the name of the node where you replaced the AIP.
b. In the Old MAC Address field, enter the old MAC address that was recorded in Step 3.
c. Click Next.
Step 25 The Repair Circuits dialog box appears. Read the information in the dialog box and click Finish.
Note The CTC session freezes until all circuits are repaired. Circuit repair can take up to five minutes or more depending on the number of circuits provisioned.
When the circuit repair is complete, the Circuits Repaired dialog box appears.
Step 26 Click OK.
Step 27 In node view of the new node, click the Circuits tab. Check to ensure that all circuits listed have a status of DISCOVERED. If all circuits listed are not DISCOVERED, call the Cisco TAC at (800) 553-2447 to open a Return Material Authorization (RMA).
Stop. You have completed this procedure.
NTP-G118 Replace the ANSI Shelf Plastic Lower Backplane Cover
Purpose
|
This procedure replaces the metal cover with the plastic cover located at the bottom rear of the ONS 15454 ANSI shelf.
|
Tools/Equipment
|
Phillips screwdriver
|
Prerequisite Procedures
|
None
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite
|
Security Level
|
None
|
Step 1 Use the Phillips screwdriver to unscrew the five retaining screws that hold the metal cover in place.
Step 2 Grasp the metal cover on each side.
Step 3 Gently pull the metal cover away from the backplane.
Step 4 Place the plastic cover against the shelf assembly and align the screw holes on the cover and the shelf assembly (Figure 6-20).
Figure 6-20 Attaching Plastic Lower Backplane Cover
Step 5 Tighten the five retaining screws that hold the plastic cover in place.
Stop. You have completed this procedure.
Feedback
