Manage Control Center
This section explains how to view and change the properties in the Dynamic Component Properties Library (DCPL); how to view status information about a host, servers, the WatchDog, and logs; how to define collection zones; and how to install license keys.

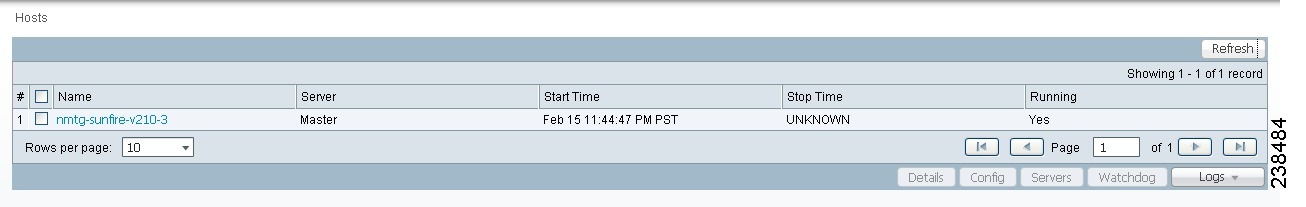

Choose Administration > Control Center > Hosts and you go to the default page of Hosts, as shown in Figure 68-1.
Figure 68-1 Control Center > Hosts
From Administration > Control Center > Hosts, you have the following choices:
•Hosts—Hosts allows you to manage the various servers.
•Licensing—Licensing is where you install license keys, which is the only way to access services and APIs.
Hosts
Choose Administration > Control Center > Hosts.
A window as shown in Figure 68-1 appears.
Note Only the Logs buttons are enabled by default when there is no host selected. When the host is selected by checking the check box, the Logs buttons is disabled and the other buttons are enabled.
Click any of the buttons and proceed as follows:
•Details—Available only when the host system is chosen.
•Config—Available only when the host system is chosen.
•Servers—Available only when the host system is chosen.
•Watchdog—Available only when the host system is chosen.
•Logs—Available only when no host system selection is made.
Details
For details about a chosen host, follow these steps:
Step 1 Choose a host by checking the check box to the left of the hostname and then click the Details button.

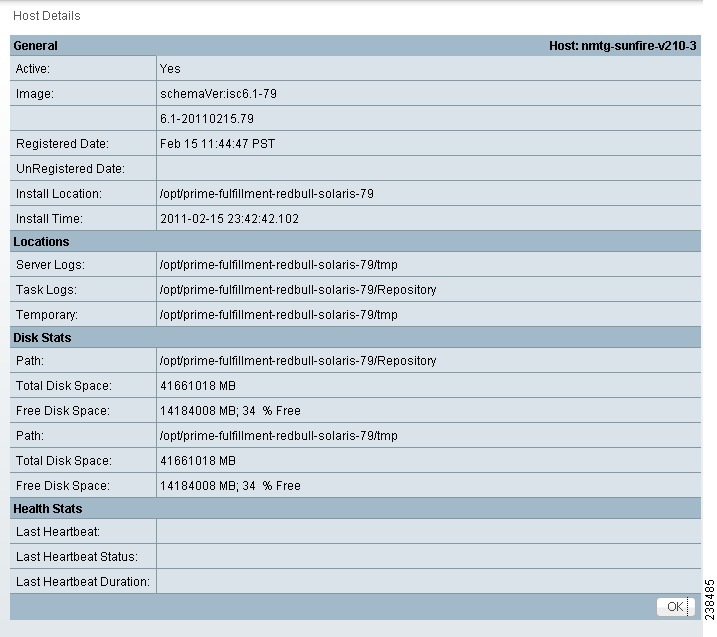

You receive a window as shown in Figure 68-2. This shows the details about the chosen host.
Figure 68-2 Host Details
Step 2 Click OK and you return to Figure 68-1.
Config
To view or change the Dynamic Component Properties Library (DCPL) properties, follow these steps:
Step 1 From Figure 68-1, check a check box next to a hostname for which you want to know the existing properties and then click the Config button.

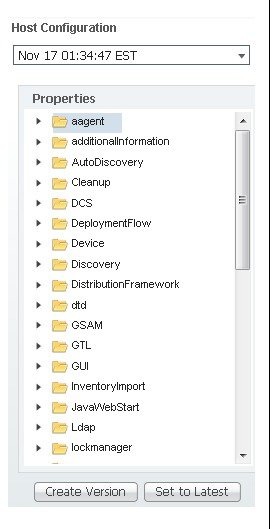

A window as shown in Figure 68-3, appears. It is a list of all the folders with all the properties. See Appendix B, "Property Settings" for a list of all the properties with explanations, defaults, and ranges/rules. If you do not know the property name, you can use a key word and do a Find on the pdf version of this appendix.
Figure 68-3 Properties
Step 2 Click the + sign to expand each folder.
The result could be more subfolders and the final level is the property name.
Step 3 Position the mouse over the folder or property name and you see a description.

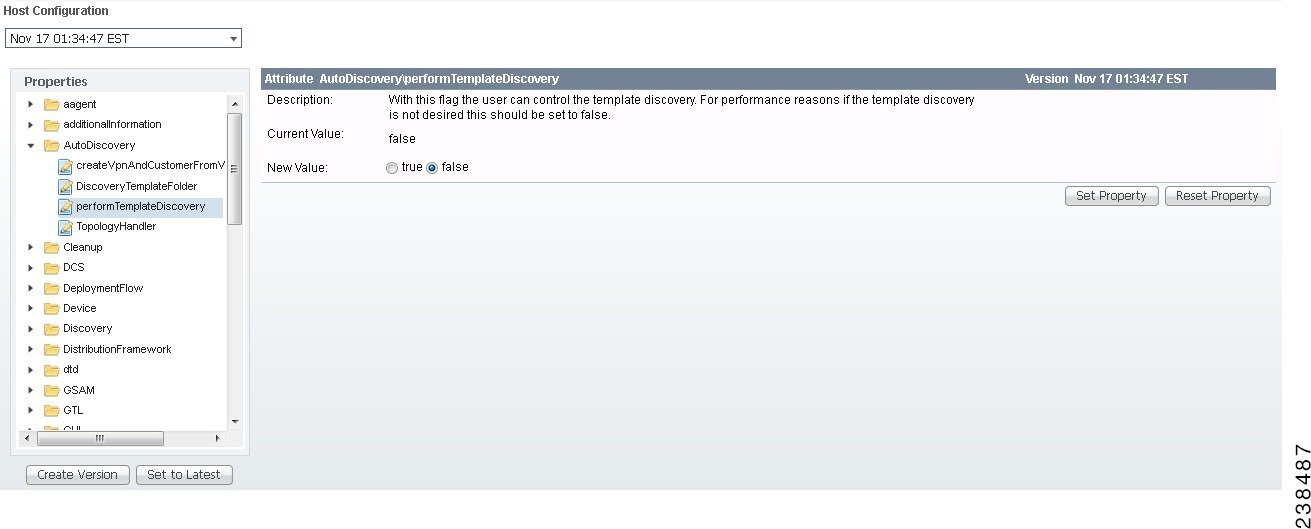

Step 4 Click on an entry to get details and instructions on how to change the value, as shown in the example in Figure 68-4.
Figure 68-4 Properties Detail Example
Step 5 For each property that can be modified, you can modify the value and click Set Property. If when making your modifications, you want to return to the previous settings, click Reset Property.
Step 6 After making all the changes you choose in each of the specific properties, you can click Create Version to create a new version of these properties. This feature gives you the option of saving multiple property sets for future use.
Step 7 To view the values of previous versions of property sets, click the drop-down list in Version and select any version you choose.
Step 8 When you click Set to Latest after selecting a version in Step 7, this version is dated as the most current.
Step 9 To return, click to the navigation path you want to use next.
Servers
To view the status information about the servers, follow these steps:
Step 1 From Figure 68-1, check a check box next to a hostname for which you want to know the server statistics and then click the Servers button.
A window as shown in Figure 68-5, appears.
Figure 68-5 Servers
Step 2 Check any one check box next to the server you want to address and you have access to Start, Stop, Restart, and Logs. When you click on a specific server name or the Logs button, you get a list of server logs. If you then click on the log name for which you want details, the log viewer appears. You can filter this information in the log viewer. After you complete the task of your choice, you return to Figure 68-5.
Step 3 You can click a different server and click the button for the process of your choice. Or you can unclick the server choice and click OK.
Step 4 After you click OK in Figure 68-5, you return to Figure 68-1.
Watchdog
To view the log information about WatchDog, follow these steps:
Step 1 From Figure 68-1, check a check box next to a hostname for which you want to know the WatchDog logs and then click the Watchdog button.

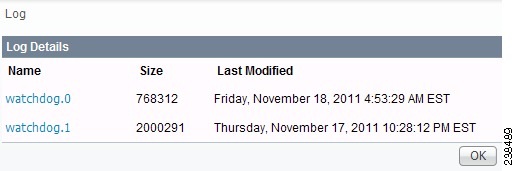

A window as shown in Figure 68-6, "WatchDog Logs," appears.
Figure 68-6 WatchDog Logs
Step 2 Click on a specific WatchDog log name in the Name column to get the contents of that log. You can filter the information in this log. Click OK to return to Figure 68-6.
Step 3 You can repeat the process in Step 2 or click OK to return to Figure 68-1.
Logs
To view install and uninstall logs for the Master server, follow these steps:
Step 1 From Figure 68-1, be sure that no check boxes are checked.
Step 2 Click the Logs drop-down list and select Install or Uninstall.
The window that appears is the log of installations or uninstallations, dependent on your selection in Step 2.
Step 3 Click the link in the Name column to view the detailed log information.
Step 4 Click OK to return to the window in .
Step 5 Click OK again to return to Figure 68-1.
Licensing
Choose Administration > Control Center > Licensing.
To install license keys, follow these steps:

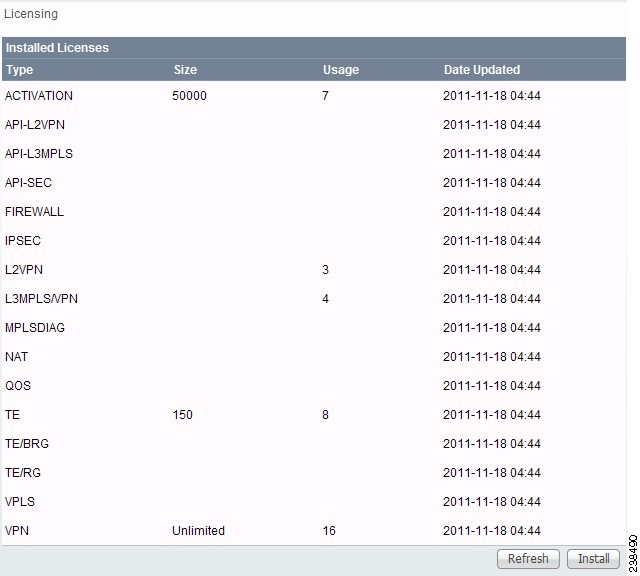

Step 1 Choose Administration > Control Center > Licensing, and a window as shown in Figure 68-7, appears.
Figure 68-7 Choose Administration > Control Center > Licensing
Step 2 From the Installed Licenses table, click the Install button, as shown in Figure 68-7. The Installed Licenses table explains the current statistics. The columns of information tell the Type of license keys you have installed (which can include ACTIVATION, API-L2VPN, API-L3MPLS, L2VPN, L3MPLS/VPN,MPLSDIAG, TE, TE/BRG, TE/RG, VPLS, VPN); the Size, which is valid for the ACTIVATION (licensed maximum global count of services), TE (number of TE-enabled nodes), or the VPN (maximum number of VPNs licensed); the Usage, which gives the number currently used for the rows; and the Date Updated, which reflects the refresh of the license usage (on an hourly basis, by default).
Note When you purchase Traffic Engineering Management (TEM), you automatically receive TE, TE/BRG, and TE/RG licenses. All of these licenses must be installed to have access to all the Cisco Prime Fulfillment TEM features, including Planning Tools for protection planning (backup tunnels). The TE license serves as an activation license for the maximum number of TE-enabled nodes to be managed by TEM (you purchase licenses and upgrade licenses based on a range of nodes); the TE/RG license enables primary tunnel placement; and the TE/BRG license enables the Fast ReRoute (FRR) protection function.
Note Click Refresh to give the most current status.

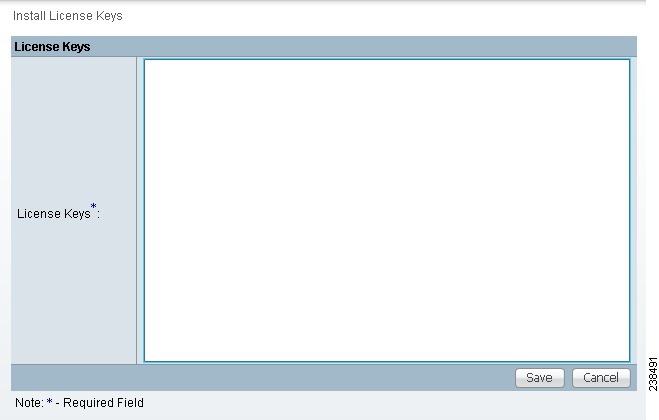

Step 3 In the resulting window, as shown in Figure 68-8, "Enter License Key," enter a License Key that you received on your Right to Use paperwork with your product.
Figure 68-8 Enter License Key
Step 4 Click Save.
Your newly installed license appears in an updated version o f the Installed License table, as shown in Figure 68-7.
Step 5 Repeat Step 2, Step 3, and Step 4 for each of the Right to Use documents shipped with your product.
Note When you receive multiple Right to Use documents to upgrade either the ACTIVATION License, which activates and sets the maximum global count of the services, or VPN licenses, which activates and set the maximum number of VPNs, be sure to enter the licenses in the correct order. For example, if you are upgrading from 500 to 3000 global count of the services and there are two steps to get there, enter the license to upgrade from 500 to 1500 and then the license key to upgrade from 1500 to 3000.
