debug qbm
To display debugging output for quality of service (QoS) bandwidth manager (QBM) options, use the debug qbm command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug qbm {api | events}
no debug qbm {api | events}
Syntax Description
api
Displays information about QBM client requests and notifications. See the "Usage Guidelines" section for additional information.
events
Displays information about QBM pool events.
Command Modes
Privileged EXEC (#)
Command History
12.2(33)SRC
This command was introduced.
Cisco IOS XE Release 2.6
This command was integrated into Cisco IOS XE Release 2.6.
Usage Guidelines
Use the debug qbm command to troubleshoot QBM behavior.
Examples of client requests are when a client creates or destroys a bandwidth pool and when a client attempts to admit bandwidth into a pool. An example of a notification is when a client's previously admitted bandwidth gets preempted from a pool.
Examples
The following example shows how to enable the debug qbm api command:
Router# debug qbm apiQBM client requests and notifications debugging is onThe following example show how to enable the debug qbm events command:
Router# debug qbm eventsQBM pool events debugging is onThe following example shows how to verify that QBM debugging is enabled:
Router# show debugQoS Bandwidth Manager:QBM client requests and notifications debugging is onQBM pool events debugging is onRelated Commands
show qbm client
Displays registered QBM clients.
show qbm pool
Displays allocated QBM pools and associated objects.
debug qllc error
To display quality link line control (QLLC) errors, use the debug qllc error command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug qllc error
no debug qllc error
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC (#)
Usage Guidelines
This command helps you track down errors in the QLLC interactions with X.25 networks. Use the debug qllc error command in conjunction with the debug x25 all command to see the connection. The data shown by this command only flows through the router on the X.25 connection. Some forms of this command can generate a substantial amount of output and network traffic.
Examples
The following is sample output from the debug qllc error command:
Router# debug qllc error%QLLC-3-GENERRMSG: qllc_close - bad qllc pointer Caller 00407116 Caller 00400BD2QLLC 4000.1111.0002: NO X.25 connection. Discarding XID and calling outThe following line indicates that the QLLC connection was closed:
%QLLC-3-GENERRMSG: qllc_close - bad qllc pointer Caller 00407116 Caller 00400BD2The following line shows the virtual MAC address of the failed connection:
QLLC 4000.1111.0002: NO X.25 connection. Discarding XID and calling outdebug qllc event
To enable debugging of quality link line control (QLLC) events, use the debug qllc event command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug qllc event
no debug qllc event
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC (#)
Usage Guidelines
Use the debug qllc event command to display primitives that might affect the state of a QLLC connection. An example of these events is the allocation of a QLLC structure for a logical channel indicator when an X.25 call has been accepted with the QLLC call user data. Other examples are the receipt and transmission of LAN explorer and exchange identification (XID) frames.
Examples
The following is sample output from the debug qllc event command:
Router# debug qllc eventQLLC: allocating new qllc lci 9QLLC: tx POLLING TEST, da 4001.3745.1088, sa 4000.1111.0001QLLC: rx explorer response, da 4000.1111.0001, sa c001.3745.1088, rif 08B0.1A91.1901.A040QLLC: gen NULL XID, da c001.3745.1088, sa 4000.1111.0001, rif 0830.1A91.1901.A040, dsap 4, ssap 4QLLC: rx XID response, da 4000.1111.0001, sa c001.3745.1088, rif 08B0.1A91.1901.A040The following line indicates that a new QLLC data structure has been allocated:
QLLC: allocating new qllc lci 9The following lines show transmission and receipt of LAN explorer or test frames:
QLLC: tx POLLING TEST, da 4001.3745.1088, sa 4000.1111.0001QLLC: rx explorer response, da 4000.1111.0001, sa c001.3745.1088, rif 08B0.1A91.1901.A040The following lines show XID events:
QLLC: gen NULL XID, da c001.3745.1088, sa 4000.1111.0001, rif 0830.1A91.1901.A040, dsap 4, ssap 4QLLC: rx XID response, da 4000.1111.0001, sa c001.3745.1088, rif 08B0.1A91.1901.A040debug qllc packet
To display quality link line control (QLLC) events and QLLC data packets, use the debug qllc packet command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug qllc packet
no debug qllc packet
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC (#)
Usage Guidelines
This command helps you to track down errors in the QLLC interactions with X.25 networks. The data shown by this command only flows through the router on the X25 connection. Use the debug qllc packet command in conjunction with the debug x25 all command to see the connection and the data that flows through the router.
Examples
The following is sample output from the debug qllc packet command:
Router# debug qllc packet14:38:05: Serial2/5 QLLC I: Data Packet.-RSP 9 bytes.14:38:07: Serial2/6 QLLC I: Data Packet.-RSP 112 bytes.14:38:07: Serial2/6 QLLC O: Data Packet. 128 bytes.14:38:08: Serial2/6 QLLC I: Data Packet.-RSP 9 bytes.14:38:08: Serial2/6 QLLC I: Data Packet.-RSP 112 bytes.14:38:08: Serial2/6 QLLC O: Data Packet. 128 bytes.14:38:08: Serial2/6 QLLC I: Data Packet.-RSP 9 bytes.14:38:12: Serial2/5 QLLC I: Data Packet.-RSP 112 bytes.14:38:12: Serial2/5 QLLC O: Data Packet. 128 bytes.The following lines indicate that a packet was received on the interfaces:
14:38:05: Serial2/5 QLLC I: Data Packet.-RSP 9 bytes.14:38:07: Serial2/6 QLLC I: Data Packet.-RSP 112 bytes.The following lines show that a packet was sent on the interfaces:
14:38:07: Serial2/6 QLLC O: Data Packet. 128 bytes.14:38:12: Serial2/5 QLLC O: Data Packet. 128 bytes.debug qllc state
To enable debugging of quality link line control (QLLC) events, use the debug qllc state command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug qllc state
no debug qllc state
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC (#)
Usage Guidelines
Use the debug qllc state command to show when the state of a QLLC connection has changed. The typical QLLC connection goes from states ADM to SETUP to NORMAL. The NORMAL state indicates that a QLLC connection exists and is ready for data transfer.
Examples
The following is sample output from the debug qllc state command:
Router# debug qllc stateSerial2 QLLC O: QSM-CMDSerial2: X25 O D1 DATA (5) Q 8 lci 9 PS 4 PR 3QLLC: state ADM -> SETUPSerial2: X25 I D1 RR (3) 8 lci 9 PR 5Serial2: X25 I D1 DATA (5) Q 8 lci 9 PS 3 PR 5Serial2 QLLC I: QUA-RSPQLLC: addr 00, ctl 73QLLC: qsetupstate: recvd qua rspQLLC: state SETUP -> NORMALThe following line indicates that a QLLC connection attempt is changing state from ADM to SETUP:
QLLC: state ADM -> SETUPThe following line indicates that a QLLC connection attempt is changing state from SETUP to NORMAL:
QLLC: state SETUP -> NORMALdebug qllc timer
To display quality link line control (QLLC) timer events, use the debug qllc timer command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug qllc timer
no debug qllc timer
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC (#)
Usage Guidelines
The QLLC process periodically cycles and checks status of itself and its partner. If the partner is not found in the desired state, an LAPB primitive command is re-sent until the partner is in the desired state or the timer expires.
Examples
The following is sample output from the debug qllc timer command:
Router# debug qllc timer14:27:24: Qllc timer lci 257, state ADM retry count 0 Caller 00407116 Caller 00400BD214:27:34: Qllc timer lci 257, state NORMAL retry count 014:27:44: Qllc timer lci 257, state NORMAL retry count 114:27:54: Qllc timer lci 257, state NORMAL retry count 1The following line of output shows the state of a QLLC partner on a given X.25 logical channel identifier:
14:27:24: Qllc timer lci 257, state ADM retry count 0 Caller 00407116 Caller 00400BD2Other messages are informational and appear every ten seconds.
debug qllc x25
To display X.25 packets that affect a quality link line control (QLLC) connection, use the debug qllc x25 command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug qllc x25
no debug qllc x25
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC (#)
Usage Guidelines
This command is helpful to track down errors in the QLLC interactions with X.25 networks. Use the debug qllc x25 command in conjunction with the debug x25 events or debug x25 all commands to see the X.25 events between the router and its partner.
Examples
The following is sample output from the debug qllc x25 command:
Router# debug qllc x2515:07:23: QLLC X25 notify lci 257 event 115:07:23: QLLC X25 notify lci 257 event 515:07:34: QLLC X25 notify lci 257 event 3 Caller 00407116 Caller 00400BD215:07:35: QLLC X25 notify lci 257 event 4Table 293 describes the significant fields shown in the display.
debug qos ha
To debug quality of service (QoS) information on the networking device, use the debug qos ha command in privileged EXEC mode. To disable the display of debugging output, use the no form of this command.
debug qos ha [detail]
no debug qos ha [detail]
Syntax Description
Command Modes
Privileged EXEC (#)
Command History
Usage Guidelines
Use to determine that QoS in running properly on your networking device.
Examples
The following example enables QoS debugging:
Router# debug qos hadebug radius
To enable debugging for Remote Authentication Dial-In User Service (RADIUS) configuration, use the debug radius command in privileged EXEC mode. To disable debugging, use the no form of this command.
debug radius [accounting | authentication | brief | elog | failover | retransmit | verbose]
no debug radius [accounting | authentication | brief | elog | failover | retransmit | verbose]
Syntax Description
Defaults
RADIUS event logging and debugging output in ASCII format are enabled.
Command Modes
Privileged EXEC (#)
Command History
Usage Guidelines
RADIUS is a distributed security system that secures networks against unauthorized access. Cisco supports RADIUS under the authentication, authorization, and accounting (AAA) security system. When RADIUS is used on the router, you can use the debug radius command to display debugging and troubleshooting information in ASCII format. Use the debug radius brief command for abbreviated output displaying client/server interaction and minimum packet information. Only the input and output transactions are recorded. Use the debug radius verbose command to include non-essential RADIUS debugs.
Examples
The following is sample output from the debug radius command:
Router# debug radiusRadius protocol debugging is onRadius packet hex dump debugging is offRouter# show debug00:19:20: RADIUS/ENCODE(00000015):Orig. component type = AUTH_PROXY00:19:20: RADIUS(00000015): Config NAS IP: 0.0.0.000:19:20: RADIUS/ENCODE(00000015): acct_session_id: 2100:19:20: RADIUS(00000015): sending00:19:20: RADIUS/ENCODE: Best Local IP-Address 33.0.0.2 for Radius-Server 33.2.0.100:19:20: RADIUS(00000015): Send Access-Request to 33.2.0.1:1645 id 1645/21, len 15900:19:20: RADIUS: authenticator 2D 03 E5 A6 A5 30 1A 32 - F2 C5 EE E2 AC 5E 5D 2200:19:20: RADIUS: User-Name [1] 11 "authproxy"00:19:20: RADIUS: User-Password [2] 18 *00:19:20: RADIUS: Service-Type [6] 6 Outbound [5]00:19:20: RADIUS: Message-Authenticato[80] 1800:19:20: RADIUS: 85 EF E8 43 03 88 58 63 78 D2 7B E7 26 61 D3 3C [ CXcx{&a<]00:19:20: RADIUS: Vendor, Cisco [26] 4900:19:20: RADIUS: Cisco AVpair [1] 43 "audit-session-id=0D00000200000013001112FD"00:19:20: RADIUS: NAS-Port-Type [61] 6 Ethernet [15]00:19:20: RADIUS: NAS-Port [5] 6 1648000:19:20: RADIUS: NAS-Port-Id [87] 19 "FastEthernet1/0/3"00:19:20: RADIUS: NAS-IP-Address [4] 6 33.0.0.200:19:20: RADIUS(00000015): Started 5 sec timeout00:19:20: RADIUS: Received from id 1645/21 33.2.0.1:1645, Access-Accept, len 31300:19:20: RADIUS: authenticator E6 6E 1D 64 5A 15 FD AE - C9 60 C0 68 F5 10 E9 B700:19:20: RADIUS: Filter-Id [11] 800:19:20: RADIUS: 31 30 30 2E 69 6E [ 100.in]00:19:20: RADIUS: Vendor, Cisco [26] 1900:19:20: RADIUS: Cisco AVpair [1] 13 "priv-lvl=15"00:19:20: RADIUS: Termination-Action [29] 6 100:19:20: RADIUS: Vendor, Cisco [26] 4500:19:20: RADIUS: Cisco AVpair [1] 39 "supplicant-name=Port-description test"00:19:20: RADIUS: Vendor, Cisco [26] 3800:19:20: RADIUS: Cisco AVpair [1] 32 "security-group-tag=2468-C0FFEE"00:19:20: RADIUS: Vendor, Cisco [26] 3300:19:20: RADIUS: Cisco AVpair [1] 27 "supplicant-group=engineer"00:19:20: RADIUS: Vendor, Cisco [26] 3600:19:20: RADIUS: Cisco AVpair [1] 30 "supplicant-group=idf_testing"00:19:20: RADIUS: Vendor, Cisco [26] 2800:19:20: RADIUS: Cisco AVpair [1] 22 "authz-directive=open"00:19:20: RADIUS: Vendor, Cisco [26] 3200:19:20: RADIUS: Cisco AVpair [1] 26 "supplicant-group=group-9"00:19:20: RADIUS: Class [25] 3000:19:20: RADIUS: 43 41 43 53 3A 63 2F 61 37 31 38 38 61 2F 32 31 [CACS:c/a7188a/21]00:19:20: RADIUS: 30 30 30 30 30 32 2F 31 36 34 38 30 [ 000002/16480]00:19:20: RADIUS: Message-Authenticato[80] 1800:19:20: RADIUS: 24 13 29 95 A1 5E 9F D3 CB ED 78 F1 F6 62 2B E3 [ $)^xb+]00:19:20: RADIUS(00000015): Received from id 1645/2100:19:20: RADIUS/DECODE: parse unknown cisco vsa "supplicant-group" - IGNORE00:19:20: RADIUS/DECODE: parse unknown cisco vsa "supplicant-group" - IGNORE00:19:20: RADIUS/DECODE: parse unknown cisco vsa "authz-directive" - IGNORE00:19:20: RADIUS/DECODE: parse unknown cisco vsa "supplicant-group" - IGNORE00:19:20: RADIUS/ENCODE(00000015):Orig. component type = AUTH_PROXY00:19:20: RADIUS(00000015): Config NAS IP: 0.0.0.000:19:20: RADIUS(00000015): sending00:19:20: RADIUS/ENCODE: Best Local IP-Address 33.0.0.2 for Radius-Server 33.2.0.100:19:20: RADIUS(00000015): Send Accounting-Request to 33.2.0.1:1646 id 1646/1, len 20400:19:20: RADIUS: authenticator A7 6B A0 94 F4 63 30 51 - 8A CE 8C F4 8A 8E 0B CC00:19:20: RADIUS: Acct-Session-Id [44] 10 "00000015"00:19:20: RADIUS: Calling-Station-Id [31] 10 "13.1.0.1"00:19:20: RADIUS: Vendor, Cisco [26] 4900:19:20: RADIUS: Cisco AVpair [1] 43 "audit-session-id=0D00000200000013001112FD"The following is sample output from the debug radius brief command:
Router# debug radius briefRadius protocol debugging is onRadius packet hex dump debugging is offRadius protocol in brief format debugging is on00:05:21: RADIUS: Initial Transmit ISDN 0:D:23 id 6 10.0.0.1:1824, Accounting-Request, len 35800:05:21: %ISDN-6-CONNECT: Interface Serial0:22 is now connected to 408527420600:05:26: RADIUS: Retransmit id 600:05:31: RADIUS: Tried all servers.00:05:31: RADIUS: No valid server found. Trying any viable server00:05:31: RADIUS: Tried all servers.00:05:31: RADIUS: No response for id 700:05:31: RADIUS: Initial Transmit ISDN 0:D:23 id 8 10.0.0.0:1823, Access-Request, len 17100:05:36: RADIUS: Retransmit id 800:05:36: RADIUS: Received from id 8 1.7.157.1:1823, Access-Accept, len 11500:05:47: %ISDN-6-DISCONNECT: Interface Serial0:22 disconnected from 4085274206, call lasted 26 seconds00:05:47: RADIUS: Initial Transmit ISDN 0:D:23 id 9 10.0.0.1:1824, Accounting-Request, len 77500:05:47: RADIUS: Received from id 9 1.7.157.1:1824, Accounting-response, len 20The following example shows how to enable debugging of RADIUS accounting collection:
Router# debug radius accountingRadius protocol debugging is onRadius protocol brief debugging is offRadius protocol verbose debugging is offRadius packet hex dump debugging is offRadius packet protocol (authentication) debugging is offRadius packet protocol (accounting) debugging is onRadius packet retransmission debugging is offRadius server fail-over debugging is offRadius elog debugging is offRelated Commands
debug aaa accounting
Displays information on accountable events as they occur.
debug aaa authentication
Displays information on AAA/TACACS+ authentication.
debug radius local-server
To control the display of debug messages for the local authentication server, use the debug radius local-server command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug radius local-server {client | error | packets}
no debug radius local-server {client | error | packets}
Syntax Description
Defaults
No default behavior or values
Command Modes
Privileged EXEC (#)
Command History
Usage Guidelines
Use this command to control the display of debug messages for the local authentication server.
Examples
The following command shows how to display messages regarding failed client authentication:
Router# debug radius local-server clientRelated Commands
debug radius-proxy
To display debugging messages for Intelligent Service Gateway (ISG) RADIUS proxy functionality, use the debug radius-proxy command in privileged EXEC mode. To disable debugging, use the no form of this command.
debug radius-proxy {events | errors}
no debug radius-proxy {events | errors}
Syntax Description
events
Displays debug messages related to ISG RADIUS proxy events.
errors
Displays debug messages related to ISG RADIUS proxy errors.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
See the following caution before using debug commands.
CautionBecause debugging output is assigned high priority in the CPU process, it can render the system unusable. For this reason, only use debug commands to troubleshoot specific problems or during troubleshooting sessions with Cisco technical support staff. Moreover, it is best to use debug commands during periods of lower network flows and fewer users.
Examples
The following example shows output for the debug radius-proxy command with the events keyword:
Router# debug radius-proxy events*Nov 7 07:53:11.411: RP-EVENT: Parse Request: Username = 12345679@cisco*Nov 7 07:53:11.411: RP-EVENT: Parse Request: Caller ID = 12345679@cisco*Nov 7 07:53:11.411: RP-EVENT: Parse Request: NAS id = localhost*Nov 7 07:53:11.411: RP-EVENT: Found matching context for user Caller ID:12345679@cisco Name:aa*Nov 7 07:53:11.411: RP-EVENT: Received event client Access-Request in state activated*Nov 7 07:53:11.411: RP-EVENT: User Caller ID:12345679@cisco Name:12 re-authenticating*Nov 7 07:53:11.411: RP-EVENT: Forwarding Request to method list (handle=1979711512)*Nov 7 07:53:11.411: RP-EVENT: Sending request to server group EAP*Nov 7 07:53:11.411: RP-EVENT: State changed activated --> wait for Access-Responsedebug rai
To enable debugging for Resource Allocation Indication (RAI), use the debug rai command in privileged EXEC mode. To disable debugging for RAI, use the no form of this command.
debug rai
no debug rai
Syntax Description
This command has no arguments or keywords.
Command Default
Debugging is disabled.
Command Modes
Privileged EXEC (#)
Command History
Usage Guidelines
You can use the debug rai command along with the debug ccsip all command to get the complete debugging information for RAI.
Examples
The following example shows how to enable resource allocation debugging:
Router# debug raiResource Availability debugging is on*Dec 16 05:50:34.863: //1/rai_new_resource_index:New index created 1*Dec 16 05:50:34.863: //1/rai_main:- event code:7*Dec 16 05:50:34.863: //1/rai_process_new_rsc_group:New Resource Index created*Dec 16 05:50:34.907: //1/rai_set_resource_info_config:Resource type 0*Dec 16 05:50:34.907: //1/rai_set_resource_info_config:New system resource created 0x4961A38C*Dec 16 05:50:34.907: //1/rai_set_resource_info_config:Resource New Config Event passed*Dec 16 05:50:34.907: //1/rai_set_resource_info_config:Resource Type CPU Subtype 1-min-avg Low watermark 30High watermark 50*Dec 16 05:50:34.907: //1/rai_main:- event code:4Related Commands
debug ras
To display the types and addressing of Registration, Admission and Status (RAS) messages sent and received, use the debug ras command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug ras
no debug ras
Syntax Description
This command has arguments or keywords.
Defaults
This command is disabled.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
Use the debug ras command to display the types and addressing of RAS messages sent and received. The debug output lists the message type using mnemonics defined in International Telecommunications Union-Telecommunication (ITU-T) specification H.225.
Examples
In the following output, gateway GW13.cisco.com sends a RAS registration request (RRQ) message to gatekeeper GK15.cisco.com at IP address 10.9.53.15. GW13.cisco.com then receives a registration confirmation (RCF) message from the gatekeeper. If there is no response, it could mean that the gatekeeper is offline or improperly addressed. If you receive a reject (RRJ) message, it could mean that the gatekeeper is unable to handle another gateway or that the registration information is incorrect.
Router# debug ras*Mar 13 19:53:34.231: RASlib::ras_sendto:msg length 105 from10.9.53.13:8658 to 10.9.53.15:1719*Mar 13 19:53:34.231: RASLib::RASSendRRQ:RRQ (seq# 36939) sentto 10.9.53.15*Mar 13 19:53:34.247: RASLib::RASRecvData:successfully rcvdmessage of length 105 from 10.9.53.15:1719*Mar 13 19:53:34.251: RASLib::RASRecvData:RCF (seq# 36939) rcvdfrom [10.9.53.15:1719] on sock [0x6168356C]debug redundancy application group config
To display the redundancy application group configuration, use the debug redundancy application group config command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug redundancy application group config {all | error | event | func}
no debug redundancy application group config {all | error | event | func}
Syntax Description
Command Modes
Privileged EXEC (#)
Command History
Examples
The following is sample output from the debug redundancy application group config all command:
Router# debug redundancy application group config allRG config all debugging is onRelated Commands
debug redundancy application group faults
To display the redundancy application group faults, use the debug redundancy application group faults command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug redundancy application group faults {all | error | event | fault | func}
no debug redundancy application group faults {all | error | event | fault | func}
Syntax Description
Command Modes
Privileged EXEC (#)
Command History
Examples
The following is sample output from the debug redundancy application group faults error command:
Router# debug redundancy application group faults errorRG Faults error debugging is onRelated Commands
debug redundancy application group media
To display the redundancy application group media information, use the debug redundancy application group media command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug redundancy application group media {all | error | event | nbr | packet {rx | tx} | timer}
no debug redundancy application group media {all | error | event | nbr | packet {rx | tx} | timer}
Syntax Description
Command Modes
Privileged EXEC (#)
Command History
Examples
The following is sample output from the debug redundancy application group media timer command:
Router# debug redundancy application group media timerRG Media timer debugging is onRelated Commands
debug redundancy application group protocol
To display the redundancy application group protocol information, use the debug redundancy application group protocol command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug redundancy application group protocol {all | detail | error | event | media | peer}
no debug redundancy application group protocol {all | detail | error | event | media | peer}
Syntax Description
Command Modes
Privileged EXEC (#)
Command History
Examples
The following is sample output from the debug redundancy application group protocol peer command:
Router# debug redundancy application group protocol peerRG Protocol peer debugging is onRelated Commands
debug redundancy application group rii
To display the redundancy application group redundancy interface identifier (RII) information, use the debug redundancy application group rii command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug redundancy application group rii {error | event}
no debug redundancy application group rii {error | event}
Syntax Description
error
Displays RII error information of a redundancy group.
event
Displays RII event information of a redundancy group.
Command Modes
Privileged EXEC (#)
Command History
Examples
The following is sample output from the debug redundancy application group rii event command:
Router# debug redundancy application group rii eventRG RII events debugging is onRelated Commands
debug redundancy application group transport
To display the redundancy application group transport information, use the debug redundancy application group transport command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug redundancy application group transport {db | error | event | packet | timer | trace}
no debug redundancy application group transport {db | error | event | packet | timer | trace}
Syntax Description
Command Modes
Privileged EXEC (#)
Command History
Examples
The following is sample output from the debug redundancy application group transport trace command:
Router# debug redundancy application group transport traceRG Transport trace debugging is onRelated Commands
debug redundancy application group vp
To display the redundancy application group virtual platform (VP) information, use the debug redundancy application group vp command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug redundancy application group vp {error | event}
no debug redundancy application group vp {error | event}
Syntax Description
error
Displays VP error information of a redundancy group.
event
Displays VP event information of a redundancy group.
Command Modes
Privileged EXEC (#)
Command History
Examples
The following is sample output from the debug redundancy application group vp event command:
Router# debug redundancy application group vp eventRG VP events debugging is onRelated Commands
debug redundancy (RP)
To enable the display of events for troubleshooting dual Route Processors (RPs), use the debug redundancy command in privileged EXEC mode. To disable the display of debugging output, use the no form of this command.
debug redundancy {ehsa | errors | fsm | kpa | msg | progression | status | timer}
no debug redundancy {ehsa | errors | fsm | kpa | msg | progression | status | timer}
Syntax Description
Command Modes
Privileged EXEC
Command History
Examples
The following example enables debugging information for RF keepalive events:
Router# debug redundancy kpadebug redundancy application group config
To display the redundancy application group configuration, use the debug redundancy application group config command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug redundancy application group config {all | error | event | func}
no debug redundancy application group config {all | error | event | func}
Syntax Description
Command Modes
Privileged EXEC (#)
Command History
Examples
The following is sample output from the debug redundancy application group config all command:
Router# debug redundancy application group config allRG config all debugging is onRelated Commands
debug redundancy application group faults
To display the redundancy application group faults, use the debug redundancy application group faults command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug redundancy application group faults {all | error | event | fault | func}
no debug redundancy application group faults {all | error | event | fault | func}
Syntax Description
Command Modes
Privileged EXEC (#)
Command History
Examples
The following is sample output from the debug redundancy application group faults error command:
Router# debug redundancy application group faults errorRG Faults error debugging is onRelated Commands
debug redundancy application group media
To display the redundancy application group media information, use the debug redundancy application group media command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug redundancy application group media {all | error | event | nbr | packet {rx | tx} | timer}
no debug redundancy application group media {all | error | event | nbr | packet {rx | tx} | timer}
Syntax Description
Command Modes
Privileged EXEC (#)
Command History
Examples
The following is sample output from the debug redundancy application group media timer command:
Router# debug redundancy application group media timerRG Media timer debugging is onRelated Commands
debug redundancy application group protocol
To display the redundancy application group protocol information, use the debug redundancy application group protocol command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug redundancy application group protocol {all | detail | error | event | media | peer}
no debug redundancy application group protocol {all | detail | error | event | media | peer}
Syntax Description
Command Modes
Privileged EXEC (#)
Command History
Examples
The following is sample output from the debug redundancy application group protocol peer command:
Router# debug redundancy application group protocol peerRG Protocol peer debugging is onRelated Commands
debug redundancy application group rii
To display the redundancy application group RII information, use the debug redundancy application group rii command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug redundancy application group rii {error | event}
no debug redundancy application group rii {error | event }
Syntax Description
error
Displays RII errors information about the redundancy group's .
event
Dispalys information about the redundancy group's RII events.
Command Modes
Privileged EXEC (#)
Command History
Examples
The following is sample output from the debug redundancy application group rii event command:
Router# debug redundancy application group rii eventRG RII events debugging is onRelated Commands
debug redundancy application group transport
To display the redundancy application group transport information, use the debug redundancy application group transport command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug redundancy application group transport {db | error | event | packet | timer | trace}
no debug redundancy application group transport {db | error | event | packet | timer | trace}
Syntax Description
Command Modes
Privileged EXEC (#)
Command History
Examples
The following is sample output from the debug redundancy application group transport trace command:
Router# debug redundancy application group transport traceRG Transport trace debugging is onRelated Commands
debug redundancy application group vp
To display the redundancy application group virtual platform (VP) information, use the debug redundancy application group VP command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug redundancy application group vp {error | event}
no debug redundancy application group vp{error | event}
Syntax Description
error
Displays VP errors information of a redundancy group.
event
Displays VP event information of a redundancy group.
Command Modes
Privileged EXEC (#)
Command History
Examples
The following is sample output from the debug redundancy application group vp event command:
Router# debug redundancy application group vp eventRG VP events debugging is onRelated Commands
debug redundancy as5850
To enable specific redundancy-related debug options, use the debug redundancy as5850 command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug redundancy as5850 {fsm | lines | master | mode | rf-client}
no debug redundancy as5850
Syntax Description
Defaults
This command is disabled
Command Modes
Privileged EXEC
Command History
Usage Guidelines
Use the master form of the command to view redundancy-related debug entries. All debug entries continue to be logged even if you do not specify an option here, and you can always use the show redundancy debug-log command to view them.
Examples
The output from this command consists of event announcements that can be used by authorized troubleshooting personnel.
Related Commands
debug registry
To turn on the debugging output for registry events or errors when Cisco IOS Software Modularity software is running, use the debug registry command in privileged EXEC mode. To turn off debugging output, use the no form of this command or the undebug command.
debug registry {events | errors} [process-name | pid]
no debug registry {events | errors} [process-name | pid]
Syntax Description
Command Modes
Privileged EXEC
Command History
Usage Guidelines
Use the debug registry command to troubleshoot Software Modularity registry operations.
Caution
Examples
The following example turns on debugging messages for Software Modularity registry events for the TCP process:
Router# debug registry events tcp.procDebug registry events debugging is onThe following example turns on debugging messages for Software Modularity registry errors:
Router# debug registry errorsDebug registry errors debugging is ondebug resource policy notification
To trace the Embedded Resource Manager (ERM) notification activities for resources using the ERM feature, use the debug resource policy notification command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug resource policy notification [owner resource-owner-name]
no debug resource policy notification [owner resource-owner-name]
Syntax Description
Command Default
Disabled
Command Modes
Privileged EXEC (#)
Command History
Examples
The following example shows different instances of the debug resource policy notification command:
Router# debug resource policy notificationEnabled notif. debugs on all ownersWhen a threshold is violated, the following messages are displayed:
*Mar 3 09:50:44.081: Owner: 'memory' initiated a notification:*Mar 3 09:50:44.081: %SYS-4-RESMEMEXCEED: Resource user usrr1 has exceeded the Major memory thresholdPool: Processor Used: 42932864 Threshold :42932860*Mar 3 09:50:46.081: Notification from Owner: 'memory' is dispatched for User: 'usrr1' (ID: 0x10000B9)*Mar 3 09:50:46.081: %SYS-4-RESMEMEXCEED: Resource user usrr1 has exceeded the Major memory thresholdPool: Processor Used: 42932864 Threshold :42932860Router# no debug resource manager notificationDisabled notif. debugs on all ownersRouter# debug resource manager notification owner cpuEnabled notif. debugs on owner 'cpu'Router# no debug resource manager notification owner cpuDisabled notif. debugs on owner 'cpu'Router# debug resource manager notification owner memoryEnabled notif. debugs on owner 'memory'Router# no debug resource manager notification owner memoryDisabled notif. debugs on owner 'memory'Router# debug resource manager notification owner BufferEnabled notif. debugs on owner 'Buffer'Router# no debug resource manager notification owner BufferDisabled notif. debugs on owner 'Buffer'Router# no debug resource manager notification owner BufferDisabled notif. debugs on owner 'Buffer'Related Commands
debug resource policy registration
Displays the resource policy registration debug information for the ERM resources.
debug resource policy registration
To trace the Embedded Resource Manager (ERM) registration activities for resources using the ERM feature, use the debug resource policy registration command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug resource policy registration
no debug resource policy registration
Syntax Description
This command has no arguments or keywords.
Command Default
Disabled
Command Modes
Privileged EXEC (#)
Command History
Examples
The following example shows output from the debug resource policy registration command:
Router# debug resource policy registrationRegistrations debugging is onWhen a Resource User (RU) is created, the following message is displayed:
*Mar 3 09:35:58.304: resource_user_register: RU: ruID: 0x10000B8, rutID: 0x1, rg_ID: 0x0 name: usrr1When an RU is deleted, the following message is displayed:
*Mar 3 09:41:09.500: resource_user_unregister: RU: ruID: 0x10000B8, rutID: 0x1, rg_ID: 0x0 name: usrr1Related Commands
debug resource policy notification
Displays the resource policy notification debug information for the ERM resources.
debug resource-pool
To see and trace resource pool management activity, use the debug resource-pool command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug resource-pool
no debug resource-pool
Syntax Description
This command has no arguments or keywords.
Defaults
Disabled.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
Enter the debug resource-pool command to see and trace resource pool management activity. Table 294 describes the resource pooling states.
You can use the resource pool state to isolate problems. For example, if a call fails authorization in the RM_RES_AUTHOR state, investigate further with AAA authorization debugs to determine whether the problem lies in the resource-pool manager, AAA, or dispatcher.
Examples
The following example shows different instances where you can use the debug resource-pool command:
Router# debug resource-poolRM general debugging is onRouter# show debugGeneral OS:AAA Authorization debugging is onResource Pool:resource-pool general debugging is onRouter #Router #ping 21.1.1.10Type escape sequence to abort.Sending 5, 100-byte ICMP Echos to 21.1.1.10, timeout is 2 seconds:*Jan 8 00:10:30.358: RM state:RM_IDLE event:DIALER_INCALL DS0:0:0:0:1*Jan 8 00:10:30.358: RM: event incoming call/* An incoming call is received by RM */*Jan 8 00:10:30.358: RM state:RM_DNIS_AUTHOR event:RM_DNIS_RPM_REQUESTDS0:0:0:0:1/* Receives an event notifying to proceed with RPM authorization whilein DNIS authorization state */*Jan 8 00:10:30.358: RM:RPM event incoming call*Jan 8 00:10:30.358: RPM profile cp1 found/* A customer profile "cp1" is found matching for the incoming call, inthe local database */*Jan 8 00:10:30.358: RM state:RM_RPM_RES_AUTHORevent:RM_RPM_RES_AUTHOR_SUCCESS DS0:0:0:0:1/* Resource authorization success event received while in resourceauthorization state*/*Jan 8 00:10:30.358: Allocated resource from res_group isdn1*Jan 8 00:10:30.358: RM:RPM profile "cp1", allocated resource "isdn1"successfully*Jan 8 00:10:30.358: RM state:RM_RPM_RES_ALLOCATINGevent:RM_RPM_RES_ALLOC_SUCCESS DS0:0:0:0:1/* Resource allocation sucess event received while attempting toallocate a resource */*Jan 8 00:10:30.358: Se0:1 AAA/ACCT/RM: doing resource-allocated(local) (nothing to do)*Jan 8 00:10:30.366: %LINK-3-UPDOWN: Interface Serial0:1, changed stateto up*Jan 8 00:10:30.370: %LINK-3-UPDOWN: Interface Serial0:1, changed stateto down*Jan 8 00:10:30.570: Se0:1 AAA/ACCT/RM: doing resource-update (local)cp1 (nothing to do)*Jan 8 00:10:30.578: %LINK-3-UPDOWN: I.nterface Serial0:0, changedstate to up*Jan 8 00:10:30.582: %DIALER-6-BIND: Interface Serial0:0 bound toprofile Dialer0...Success rate is 0 percent (0/5)Router #*Jan 8 00:10:36.662: %ISDN-6-CONNECT: Interface Serial0:0 is nowconnected to 71017*Jan 8 00:10:52.990: %DIALER-6-UNBIND: Interface Serial0:0 unbound fromprofile Dialer0*Jan 8 00:10:52.990: %ISDN-6-DISCONNECT: Interface Serial0:0disconnected from 71017 , call lasted 22 seconds*Jan 8 00:10:53.206: %LINK-3-UPDOWN: Interface Serial0:0, changed stateto down*Jan 8 00:10:53.206: %ISDN-6-DISCONNECT: Interface Serial0:1disconnected from unknown , call lasted 22 seconds*Jan 8 00:10:53.626: RM state:RM_RPM_RES_ALLOCATED event:DIALER_DISCONDS0:0:0:0:1/* Received Disconnect event from signalling stack for a call whichhas a resource allocated. */*Jan 8 00:10:53.626: RM:RPM event call drop/* RM processing the disconnect event */*Jan 8 00:10:53.626: Deallocated resource from res_group isdn1*Jan 8 00:10:53.626: RM state:RM_RPM_DISCONNECTINGevent:RM_RPM_DISC_ACK DS0:0:0:0:1/* An intermediate state while the DISCONNECT event is being processedby external servers, before RM goes back into IDLE state.*/Table 295 describes the significant fields shown in the display.
debug rif
To display information on entries entering and leaving the routing information field (RIF) cache, use the debug rif command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug rif
no debug rif
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
In order to use the debug rif command to display traffic source-routed through an interface, fast switching of source route bridging (SRB) frames must first be disabled with the no source-bridge route-cache interface configuration command.
Examples

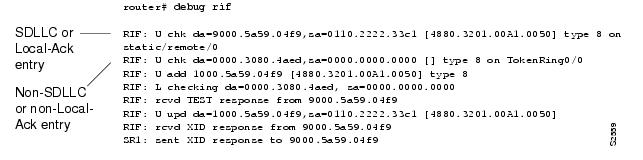

The following is sample output from the debug rif command:
The first line of output is an example of a RIF entry for an interface configured for SDLC Logical Link Control (SDLLC) or Local-Ack. Table 296 describes significant fields shown in the display.
The following line of output is an example of a RIF entry for an interface that is not configured for SDLLC or Local-Ack:
RIF: U chk da=0000.3080.4aed,sa=0000.0000.0000 [] type 8 on TokenRing0/0Notice that the source address contains only zero values (0000.0000.0000), and that the RIF string is null ([ ]). The last element in the entry indicates that this route was learned from a virtual ring, rather than a real Token Ring port.
The following line shows that a new entry has been added to the RIF cache:
RIF: U add 1000.5a59.04f9 [4880.3201.00A1.0050] type 8The following line shows that a RIF cache lookup operation has taken place:
RIF: L checking da=0000.3080.4aed, sa=0000.0000.0000The following line shows that a TEST response from address 9000.5a59.04f9 was inserted into the RIF cache:
RIF: rcvd TEST response from 9000.5a59.04f9The following line shows that the RIF entry for this route has been found and updated:
RIF: U upd da=1000.5a59.04f9,sa=0110.2222.33c1 [4880.3201.00A1.0050]The following line shows that an XID response from this address was inserted into the RIF cache:
RIF: rcvd XID response from 9000.5a59.04f9The following line shows that the router sent an XID response to this address:
SR1: sent XID response to 9000.5a59.04f9Table 297 explains the other possible lines of debug rif command output.
Related Commands
debug list
Filters debugging information on a per-interface or per-access list basis.
debug route-map ipc
To display a summary of the one-way Inter-process Communications (IPC) messages set from the route processor (RP) to the Versatile Interface Processor (VIP) about NetFlow policy routing when distributed Cisco Express Forwarding (dCEF) is enabled, use the debug route-map ipc command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug route-map ipc
no debug route-map ipc
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
This command is especially helpful for policy routing with dCEF switching.
This command displays a summary of one-way IPC messages from the RP to the VIP about NetFlow policy routing. If you execute this command on the RP, the messages are shown as "Sent." If you execute this command on the VIP console, the IPC messages are shown as "Received."
Examples
The following is sample output from the debug route-map ipc command executed at the RP:
Router# debug route-map ipcRoutemap related IPC debugging is onRouter# configure terminalEnter configuration commands, one per line. End with CNTL/Z.Router(config)# ip cef distributedRouter(config)#^ZRouter#RM-IPC: Clean routemap config in slot 0RM-IPC: Sent clean-all-routemaps; len 12RM-IPC: Download all policy-routing related routemap config to slot 0RM-IPC: Sent add routemap test(seq:10); n_len 5; len 17RM-IPC: Sent add acl 1 of routemap test(seq:10); len 21RM-IPC: Sent add min 10 max 300 of routemap test(seq:10); len 24RM-IPC: Sent add preced 1 of routemap test(seq:10); len 17RM-IPC: Sent add tos 4 of routemap test(seq:10); len 17RM-IPC: Sent add nexthop 50.0.0.8 of routemap test(seq:10); len 20RM-IPC: Sent add default nexthop 50.0.0.9 of routemap test(seq:10); len 20RM-IPC: Sent add interface Ethernet0/0/3(5) of routemap test(seq:10); len 20RM-IPC: Sent add default interface Ethernet0/0/2(4) of routemap test(seq:10); len 20The following is sample output from the debug route-map ipc command executed at the VIP:
VIP-Slot0# debug route-map ipcRoutemap related IPC debugging is onVIP-Slot0#RM-IPC: Rcvd clean-all-routemaps; len 12RM-IPC: Rcvd add routemap test(seq:10); n_len 5; len 17RM-IPC: Rcvd add acl 1 of routemap test(seq:10); len 21RM-IPC: Rcvd add min 10 max 300 of routemap test(seq:10); len 24RM-IPC: Rcvd add preced 1 of routemap test(seq:10); len 17RM-IPC: Rcvd add tos 4 of routemap test(seq:10); len 17RP-IPC: Rcvd add nexthop 50.0.0.8 of routemap test(seq:10); len 20RP-IPC: Rcvd add default nexthop 50.0.0.9 of routemap test(seq:10); len 20RM-IPC: Rcvd add interface Ethernet0/3 of routemap tes; len 20RM-IPC: Rcvd add default interface Ethernet0/2 of routemap test(seq:10); len 20debug rpms-proc preauth
To enable diagnostic reporting of preauthentication information, use the debug rpms-proc preauth command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug rpms-proc preauth {all | h323 | sip}
no debug rpms-proc preauth {all | h323 | sip}
Syntax Description
all
Provides information for all calls.
h323
Provides information for H.323 calls.
sip
Provides information for Session Initiation Protocol (SIP) calls.
Defaults
No default behavior or values
Command Modes
Privileged EXEC
Command History
Examples
The following example shows debugging output for two calls. The first is a leg 3 SIP call, and the second is a leg 3 H.323 call:
Router# debug rpms-proc preauth allAll RPMS Process preauth tracing is enabledFeb 10 14:00:07.236: Entering rpms_proc_print_preauth_reqFeb 10 14:00:07.236: Request = 0Feb 10 14:00:07.236: Preauth id = 8Feb 10 14:00:07.236: EndPt Type = 1Feb 10 14:00:07.236: EndPt = 192.168.80.70Feb 10 14:00:07.236: Resource Service = 1Feb 10 14:00:07.236: Call_origin = answerFeb 10 14:00:07.236: Call_type = voipFeb 10 14:00:07.236: Calling_num = 2220001Feb 10 14:00:07.236: Called_num = 1120001Feb 10 14:00:07.236: Protocol = 1Feb 10 14:00:07.236:rpms_proc_create_node:Created node with preauth_id = 8Feb 10 14:00:07.236:rpms_proc_send_aaa_req:uid got is 19Feb 10 14:00:07.240:rpms_proc_preauth_response:Context is for preauth_id 8, aaa_uid 19Feb 10 14:00:07.240:rpms_proc_preauth_response:Deleting Tree node for preauth id 8 uid 19Feb 10 14:00:07.284: Entering rpms_proc_print_preauth_reqFeb 10 14:00:07.284: Request = 0Feb 10 14:00:07.284: Preauth id = 9Feb 10 14:00:07.284: EndPt Type = 1Feb 10 14:00:07.284: EndPt = 192.168.81.102Feb 10 14:00:07.284: Resource Service = 1Feb 10 14:00:07.284: Call_origin = answerFeb 10 14:00:07.284: Call_type = voipFeb 10 14:00:07.284: Calling_num = 2210001Feb 10 14:00:07.284: Called_num = 1#1110001Feb 10 14:00:07.284: Protocol = 0Feb 10 14:00:07.288:rpms_proc_create_node:Created node with preauth_id = 9Feb 10 14:00:07.288:rpms_proc_send_aaa_req:uid got is 21Feb 10 14:00:07.300:rpms_proc_preauth_response:Context is for preauth_id 9, aaa_uid 21Feb 10 14:00:07.300:rpms_proc_preauth_response:Deleting Tree node for preauth id 9 uid 21The following example shows the output for a single leg 3 H.323 call:
Router# debug rpms-proc preauth h323RPMS Process H323 preauth tracing is enabledFeb 10 14:04:57.867: Entering rpms_proc_print_preauth_reqFeb 10 14:04:57.867: Request = 0Feb 10 14:04:57.867: Preauth id = 10Feb 10 14:04:57.867: EndPt Type = 1Feb 10 14:04:57.867: EndPt = 192.168.81.102Feb 10 14:04:57.867: Resource Service = 1Feb 10 14:04:57.867: Call_origin = answerFeb 10 14:04:57.867: Call_type = voipFeb 10 14:04:57.867: Calling_num = 2210001Feb 10 14:04:57.867: Called_num = 1#1110001Feb 10 14:04:57.867: Protocol = 0Feb 10 14:04:57.867:rpms_proc_create_node:Created node with preauth_id = 10Feb 10 14:04:57.867:rpms_proc_send_aaa_req:uid got is 25Feb 10 14:04:57.875:rpms_proc_preauth_response:Context is for preauth_id 10, aaa_uid 25Feb 10 14:04:57.875:rpms_proc_preauth_response:Deleting Tree node for preauth id 10 uid 25The following example shows output for a single leg 3 SIP call:
Router# debug rpms-proc preauth sipRPMS Process SIP preauth tracing is enabledFeb 10 14:08:02.880: Entering rpms_proc_print_preauth_reqFeb 10 14:08:02.880: Request = 0Feb 10 14:08:02.880: Preauth id = 11Feb 10 14:08:02.880: EndPt Type = 1Feb 10 14:08:02.880: EndPt = 192.168.80.70Feb 10 14:08:02.880: Resource Service = 1Feb 10 14:08:02.880: Call_origin = answerFeb 10 14:08:02.880: Call_type = voipFeb 10 14:08:02.880: Calling_num = 2220001Feb 10 14:08:02.880: Called_num = 1120001Feb 10 14:08:02.880: Protocol = 1Feb 10 14:08:02.880:rpms_proc_create_node:Created node with preauth_id = 11Feb 10 14:08:02.880:rpms_proc_send_aaa_req:uid got is 28Feb 10 14:08:02.888:rpms_proc_preauth_response:Context is for preauth_id 11, aaa_uid 28Feb 10 14:08:02.888:rpms_proc_preauth_response:Deleting Tree node for preauth id 11 uid 28Table 298 describes the significant fields shown in the display.
debug rtpspi all
To debug all Routing Table Protocol (RTP) security parameter index (SPI) errors, sessions, and in/out functions, use the debug rtpspi all command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug rtpspi all
no debug rtpspi all
Syntax Description
This command has no arguments or keywords.
Defaults
No default behavior or values
Command Modes
Privileged EXEC
Command History
Usage Guidelines
Caution
Examples
The following example shows a debug trace for RTP SPI errors, sessions, and in/out functions on a gateway:
Router# debug rtpspi allRTP SPI Error, Session and function in/out tracings are enabled.*Mar 1 00:38:59.381:rtpspi_allocate_rtp_port:Entered.*Mar 1 00:38:59.381:rtpspi_allocate_rtp_port:allocated RTP port 16544*Mar 1 00:38:59.381:rtpspi_allocate_rtp_port:Success. port = 16544. Leaving.*Mar 1 00:38:59.381:rtpspi_call_setup_request:entered.Call Id = 5, dest = 0.0.0.0; callInfo:final dest flag = 0,rtp_session_mode = 0x2,local_ip_addrs = 0x5000001,remote_ip_addrs = 0x0,local rtp port = 16544, remote rtp port = 0*Mar 1 00:38:59.381:rtpspi_call_setup_request:spi_info copied for rtpspi_app_data_t.*Mar 1 00:38:59.385:rtpspi_call_setup_request:leaving*Mar 1 00:38:59.385:rtpspi_call_setup() entered*Mar 1 00:38:59.385:rtpspi_initialize_ccb:Entered*Mar 1 00:38:59.385:rtpspi_initialize_ccb:leaving*Mar 1 00:38:59.385:rtpspi_call_setup:rtp_session_mode = 0x2*Mar 1 00:38:59.385:rtpspi_call_setup:mode = CC_CALL_NORMAL.destianation number = 0.0.0.0*Mar 1 00:38:59.385:rtpspi_call_setup:Passed local_ip_addrs=0x5000001*Mar 1 00:38:59.385:rtpspi_call_setup:Passed local_rtp_port = 16544*Mar 1 00:38:59.385:rtpspi_call_setup:Saved RTCP Session = 0x1AF57E0*Mar 1 00:38:59.385:rtpspi_call_setup:Passed remote rtp port = 0.*Mar 1 00:38:59.389:rtpspi_start_rtcp_session:entered. rtp session mode=0x2, rem rtp=0, rem ip=0x0*Mar 1 00:38:59.389:rtpspi_get_rtcp_mode:entered. rtp_mode = 0x2*Mar 1 00:38:59.389:rtpspi_start_rtcp_session:Starting RTCP session.Local IP addr = 0x5000001, Remote IP addr = 0x0,Local RTP port = 16544, Remote RTP port = 0, mode = 0x2*Mar 1 00:38:59.389:rtpspi_start_rtcp_session:RTP Session creation Success.*Mar 1 00:38:59.389:rtpspi_call_setup:RTP Session creation Success.*Mar 1 00:38:59.389:rtpspi_call_setup:calling cc_api_call_connected()*Mar 1 00:38:59.389:rtpspi_call_setup:Leaving.*Mar 1 00:38:59.393:rtpspi_bridge:entered. conf id = 1, src i/f = 0x1859E88,dest i/f = 0x1964EEC, src call id = 5, dest call id = 4call info = 0x1919140, xmit fn = 0xDA7494, tag = 0*Mar 1 00:38:59.393:rtpspi_get_rtcp_mode:entered. rtp_mode = 0x2*Mar 1 00:38:59.393:rtpspi_modify_rtcp_session_parameters():xmit fn=0xDA7494,dstIF=0x1964EEC, dstCallID=4, voip_mode=0x2, rtp_mode=0x2, ssrc_status=0*Mar 1 00:38:59.393:rtpspi_bridge:Calling cc_api_bridge_done() for 5(0x1AF5400) and 4(0x0).*Mar 1 00:38:59.393:rtpspi_bridge:leaving.*Mar 1 00:38:59.397:rtpspi_caps_ind:Entered. vdb = 0x1859E88 call id = 5, srcCallId = 4*Mar 1 00:38:59.397:rtpspi_caps_ind:caps from VTSP:codec=0x83FB, codec_bytes=0x50,fax rate=0x7F, vad=0x3 modem=0x0*Mar 1 00:38:59.397:rtpspi_get_rtcp_session_parameters():CURRENT VALUES:dstIF=0x1964EEC, dstCallID=4, current_seq_num=0x0*Mar 1 00:38:59.397:rtpspi_get_rtcp_session_parameters():NEW VALUES:dstIF=0x1964EEC, dstCallID=4, current_seq_num=0x261C*Mar 1 00:38:59.397:rtpspi_caps_ind:Caps Used:codec=0x1, codec bytes=80,fax rate=0x1, vad=0x1, modem=0x1, dtmf_relay=0x1, seq_num_start=0x261D*Mar 1 00:38:59.397:rtpspi_caps_ind:calling cc_api_caps_ind().*Mar 1 00:38:59.397:rtpspi_caps_ind:Returning success*Mar 1 00:38:59.397:rtpspi_caps_ack:Entered. call id = 5, srcCallId = 4*Mar 1 00:38:59.397:rtpspi_caps_ack:leaving.*Mar 1 00:38:59.618:rtpspi_call_modify:entered. call-id=5, nominator=0x7, params=0x18DD440*Mar 1 00:38:59.618:rtpspi_call_modify:leaving*Mar 1 00:38:59.618:rtpspi_do_call_modify:Entered. call-id = 5*Mar 1 00:38:59.622:rtpspi_do_call_modify:Remote RTP port changed. New port=16432*Mar 1 00:38:59.622:rtpspi_do_call_modify:Remote IP addrs changed. New IP addrs=0x6000001*Mar 1 00:38:59.622:rtpspi_do_call_modify:new mode 2 is the same as the current mode*Mar 1 00:38:59.622:rtpspi_do_call_modify:Starting new RTCP session.*Mar 1 00:38:59.622:rtpspi_start_rtcp_session:entered. rtp session mode=0x2, rem rtp=16432, rem ip=0x6000001*Mar 1 00:38:59.622:rtpspi_get_rtcp_mode:entered. rtp_mode = 0x2*Mar 1 00:38:59.622:rtpspi_start_rtcp_session:Removing old RTCP session.*Mar 1 00:38:59.622:rtpspi_start_rtcp_session:Starting RTCP session.Local IP addr = 0x5000001, Remote IP addr = 0x6000001,Local RTP port = 16544, Remote RTP port = 16432, mode = 0x2*Mar 1 00:38:59.622:rtpspi_start_rtcp_session:RTCP Timer creation Success. (5)*(5000)*Mar 1 00:38:59.622:rtpspi_start_rtcp_session:RTP Session creation Success.*Mar 1 00:38:59.622:rtpspi_do_call_modify:RTP Session creation Success.*Mar 1 00:38:59.622:rtpspi_do_call_modify:Calling cc_api_call_modify(), result=0x0*Mar 1 00:38:59.626:rtpspi_do_call_modify:success. leaving*Mar 1 00:39:05.019:rtpspi_call_modify:entered. call-id=5, nominator=0x7, params=0x18DD440*Mar 1 00:39:05.019:rtpspi_call_modify:leaving*Mar 1 00:39:05.019:rtpspi_do_call_modify:Entered. call-id = 5*Mar 1 00:39:05.019:rtpspi_do_call_modify:New remote RTP port = old rtp port = 16432*Mar 1 00:39:05.019:rtpspi_do_call_modify:New remote IP addrs = old IP addrs = 0x6000001*Mar 1 00:39:05.019:rtpspi_do_call_modify:Mode changed. new = 3, old = 2*Mar 1 00:39:05.019:rtpspi_get_rtcp_mode:entered. rtp_mode = 0x3*Mar 1 00:39:05.023:rtpspi_modify_rtcp_session_parameters():xmit fn=0xDA7494,dstIF=0x1964EEC, dstCallID=4, voip_mode=0x3, rtp_mode=0x3, ssrc_status=2*Mar 1 00:39:05.023:rtpspi_do_call_modify:RTCP Timer start.*Mar 1 00:39:05.023:rtpspi_do_call_modify:Calling cc_api_call_modify(), result=0x0*Mar 1 00:39:05.023:rtpspi_do_call_modify:success. leaving*Mar 1 00:40:13.786:rtpspi_bridge_drop:entered. src call-id=5, dest call-id=4, tag=0*Mar 1 00:40:13.786:rtpspi_get_rtcp_mode:entered. rtp_mode = 0x3*Mar 1 00:40:13.786:rtpspi_modify_rtcp_session_parameters():xmit fn=0x0,dstIF=0x0, dstCallID=0, voip_mode=0x3, rtp_mode=0x3, ssrc_status=2*Mar 1 00:40:13.786:rtpspi_bridge_drop:leaving*Mar 1 00:40:13.790:rtpspi_call_disconnect:entered. call-id=5, cause=16, tag=0*Mar 1 00:40:13.790:rtpspi_call_disconnect:leaving.*Mar 1 00:40:13.790:rtpspi_do_call_disconnect:Entered. call-id = 5*Mar 1 00:40:13.790:rtpspi_do_call_disconnect:calling rtpspi_call_cleanup(). call-id=5*Mar 1 00:40:13.794:rtpspi_call_cleanup:entered. ccb = 0x1AF5400, call-id=5, rtp port = 16544*Mar 1 00:40:13.794:rtpspi_call_cleanup:releasing ccb cache. RTP port=16544*Mar 1 00:40:13.794:rtpspi_store_call_history_entry():Entered.*Mar 1 00:40:13.794:rtpspi_store_call_history_entry():Leaving.*Mar 1 00:40:13.794:rtpspi_call_cleanup:RTCP Timer Stop.*Mar 1 00:40:13.794:rtpspi_call_cleanup:deallocating RTP port 16544.*Mar 1 00:40:13.794:rtpspi_free_rtcp_session:Entered.*Mar 1 00:40:13.794:rtpspi_free_rtcp_session:Success. Leaving*Mar 1 00:40:13.794::rtpspi_call_cleanup freeing ccb (0x1AF5400)*Mar 1 00:40:13.794:rtpspi_call_cleanup:leaving*Mar 1 00:40:13.794:rtpspi_do_call_disconnect:leavingRelated Commands
debug rtpspi errors
To debug Routing Table Protocol (RTP) security parameter index (SPI) errors, use the debug rtpspi errors command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug rtpspi errors
no debug rtpspi errors
Syntax Description
This command has no arguments or keywords.
Defaults
No default behavior or values
Command Modes
Privileged EXEC
Command History
Usage Guidelines
Caution
Examples
This example shows a debug trace for RTP SPI errors on two gateways. The following example shows the debug trace on the first gateway:
Router# debug rtpspi errors00:54:13.272:rtpspi_do_call_modify:new mode 2 is the same as the current mode00:54:18.738:rtpspi_do_call_modify:New remote RTP port = old rtp port = 1645200:54:18.738:rtpspi_do_call_modify:New remote IP addrs = old IP addrs = 0x6000001The following example shows the debug trace on the second gateway:
Router# debug rtpspi errors00:54:08:rtpspi_process_timers:00:54:08:rtpspi_process_timers:Timer 0x1A5AF9C expired.00:54:08:rtpspi_process_timers:Timer expired for callID 0x300:54:08:rtpspi_process_timers:00:54:08:rtpspi_process_timers:Timer 0x1A5AF9C expired.00:54:08:rtpspi_process_timers:Timer expired for callID 0x300:54:08:rtpspi_process_timers:00:54:08:rtpspi_process_timers:Timer 0x1A5AF9C expired.00:54:08:rtpspi_process_timers:Timer expired for callID 0x300:54:09:rtpspi_process_timers:00:54:09:rtpspi_process_timers:Timer 0x1A5AFBC expired.00:54:09:rtpspi_process_timers:Timer expired for callID 0x300:54:09:rtpspi_process_timers:00:54:09:rtpspi_process_timers:Timer 0x1A5B364 expired.00:54:09:rtpspi_process_timers:Timer expired for callID 0x3Related Commands
debug rtpspi inout
To debug Routing Table Protocol (RTP) security parameter index (SPI) in/out functions, use the debug rtpspi inout command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug rtpspi inout
no debug rtpspi inout
Syntax Description
This command has no arguments or keywords.
Defaults
No default behavior or values
Command Modes
Privileged EXEC
Command History
Usage Guidelines
Caution
Examples
The following example shows a debug trace for RTP SPI in/out functions on a gateway:
Router# debug rtpspi inout*Mar 1 00:57:24.565:rtpspi_allocate_rtp_port:Entered.*Mar 1 00:57:24.565:rtpspi_allocate_rtp_port:Success. port = 16520. Leaving.*Mar 1 00:57:24.565:rtpspi_call_setup_request:entered.Call Id = 9, dest = 0.0.0.0; callInfo:final dest flag = 0,rtp_session_mode = 0x2,local_ip_addrs = 0x5000001,remote_ip_addrs = 0x0,local rtp port = 16520, remote rtp port = 0*Mar 1 00:57:24.565:rtpspi_call_setup_request:spi_info copied for rtpspi_app_data_t.*Mar 1 00:57:24.565:rtpspi_call_setup_request:leaving*Mar 1 00:57:24.569:rtpspi_call_setup() entered*Mar 1 00:57:24.569:rtpspi_initialize_ccb:Entered*Mar 1 00:57:24.569:rtpspi_initialize_ccb:leaving*Mar 1 00:57:24.569:rtpspi_start_rtcp_session:entered. rtp session mode=0x2, rem rtp=0, rem ip=0x0*Mar 1 00:57:24.569:rtpspi_get_rtcp_mode:entered. rtp_mode = 0x2*Mar 1 00:57:24.569:rtpspi_call_setup:Leaving.*Mar 1 00:57:24.573:rtpspi_bridge:entered. conf id = 3, src i/f = 0x1859E88,dest i/f = 0x1964EEC, src call id = 9, dest call id = 8call info = 0x1919140, xmit fn = 0xDA7494, tag = 0*Mar 1 00:57:24.573:rtpspi_get_rtcp_mode:entered. rtp_mode = 0x2*Mar 1 00:57:24.573:rtpspi_bridge:leaving.*Mar 1 00:57:24.573:rtpspi_caps_ind:Entered. vdb = 0x1859E88 call id = 9, srcCallId = 8*Mar 1 00:57:24.577:rtpspi_caps_ind:Returning success*Mar 1 00:57:24.577:rtpspi_caps_ack:Entered. call id = 9, srcCallId = 8*Mar 1 00:57:24.577:rtpspi_caps_ack:leaving.*Mar 1 00:57:24.818:rtpspi_call_modify:entered. call-id=9, nominator=0x7, params=0x18DD440*Mar 1 00:57:24.818:rtpspi_call_modify:leaving*Mar 1 00:57:24.818:rtpspi_do_call_modify:Entered. call-id = 9*Mar 1 00:57:24.818:rtpspi_start_rtcp_session:entered. rtp session mode=0x2, rem rtp=16396, rem ip=0x6000001*Mar 1 00:57:24.822:rtpspi_get_rtcp_mode:entered. rtp_mode = 0x2*Mar 1 00:57:24.822:rtpspi_do_call_modify:success. leaving*Mar 1 00:57:30.296:rtpspi_call_modify:entered. call-id=9, nominator=0x7, params=0x18DD440*Mar 1 00:57:30.296:rtpspi_call_modify:leaving*Mar 1 00:57:30.300:rtpspi_do_call_modify:Entered. call-id = 9*Mar 1 00:57:30.300:rtpspi_get_rtcp_mode:entered. rtp_mode = 0x3*Mar 1 00:57:30.300:rtpspi_do_call_modify:success. leaving*Mar 1 00:58:39.055:rtpspi_bridge_drop:entered. src call-id=9, dest call-id=8, tag=0*Mar 1 00:58:39.055:rtpspi_get_rtcp_mode:entered. rtp_mode = 0x3*Mar 1 00:58:39.055:rtpspi_bridge_drop:leaving*Mar 1 00:58:39.059:rtpspi_call_disconnect:entered. call-id=9, cause=16, tag=0*Mar 1 00:58:39.059:rtpspi_call_disconnect:leaving.*Mar 1 00:58:39.059:rtpspi_do_call_disconnect:Entered. call-id = 9*Mar 1 00:58:39.059:rtpspi_call_cleanup:entered. ccb = 0x1AF5400, call-id=9, rtp port = 16520*Mar 1 00:58:39.059:rtpspi_store_call_history_entry():Entered.*Mar 1 00:58:39.059:rtpspi_store_call_history_entry():Leaving.*Mar 1 00:58:39.059:rtpspi_free_rtcp_session:Entered.*Mar 1 00:58:39.059:rtpspi_free_rtcp_session:Success. Leaving*Mar 1 00:58:39.063:rtpspi_call_cleanup:leaving*Mar 1 00:58:39.063:rtpspi_do_call_disconnect:leavingRelated Commands
debug rtpspi send-nse
To trigger the Routing Table Protocol (RTP) security parameter index (SPI) software module to send a triple redundant NSE, use the debug rtpspi send-nse command in privileged EXEC mode. To disable this action, use the no form of the command.
debug rtpspi send-nse call-ID NSE-event-ID
no debug rtpspi send-nse call-ID NSE-event-ID
Syntax Description
call-ID
Specifies the call ID of the active call. The valid range is from 0 to 65535.
NSE-event-ID
Specifies the NSE Event ID. The valid range is from 0 to 255.
Defaults
No default behavior or values
Command Modes
Privileged EXEC
Command History
Examples
The following example shows the RTP SPI software module set to send an NSE:
Router# debug rtpspi send-nseRelated Commands
debug rtpspi session
To debug all Routing Table Protocol (RTP) security parameter index (SPI) sessions, use the debug rtpspi session command in privileged EXEC mode. To disable debugging, use the no form of this command.
debug rtpspi session
no debug rtpspi session
Syntax Description
This command has no arguments or keywords.
Defaults
No default behavior or values
Command Modes
Privileged EXEC
Command History
Examples
The following example shows a debug trace for RTP SPI sessions on a gateway:
Router# debug rtpspi session*Mar 1 01:01:51.593:rtpspi_allocate_rtp_port:allocated RTP port 16406*Mar 1 01:01:51.593:rtpspi_call_setup:rtp_session_mode = 0x2*Mar 1 01:01:51.593:rtpspi_call_setup:mode = CC_CALL_NORMAL.destianation number = 0.0.0.0*Mar 1 01:01:51.593:rtpspi_call_setup:Passed local_ip_addrs=0x5000001*Mar 1 01:01:51.593:rtpspi_call_setup:Passed local_rtp_port = 16406*Mar 1 01:01:51.593:rtpspi_call_setup:Saved RTCP Session = 0x1AFDFBC*Mar 1 01:01:51.593:rtpspi_call_setup:Passed remote rtp port = 0.*Mar 1 01:01:51.598:rtpspi_start_rtcp_session:Starting RTCP session.Local IP addr = 0x5000001, Remote IP addr = 0x0,Local RTP port = 16406, Remote RTP port = 0, mode = 0x2*Mar 1 01:01:51.598:rtpspi_start_rtcp_session:RTP Session creation Success.*Mar 1 01:01:51.598:rtpspi_call_setup:RTP Session creation Success.*Mar 1 01:01:51.598:rtpspi_call_setup:calling cc_api_call_connected()*Mar 1 01:01:51.598:rtpspi_modify_rtcp_session_parameters():xmit fn=0xDA7494,dstIF=0x1964EEC, dstCallID=10, voip_mode=0x2, rtp_mode=0x2, ssrc_status=0*Mar 1 01:01:51.598:rtpspi_bridge:Calling cc_api_bridge_done() for 11(0x1AF5400) and 10(0x0).*Mar 1 01:01:51.602:rtpspi_caps_ind:caps from VTSP:codec=0x83FB, codec_bytes=0x50,fax rate=0x7F, vad=0x3 modem=0x0*Mar 1 01:01:51.602:rtpspi_get_rtcp_session_parameters():CURRENT VALUES:dstIF=0x1964EEC, dstCallID=10, current_seq_num=0x0*Mar 1 01:01:51.602:rtpspi_get_rtcp_session_parameters():NEW VALUES:dstIF=0x1964EEC, dstCallID=10, current_seq_num=0xF1E*Mar 1 01:01:51.602:rtpspi_caps_ind:Caps Used:codec=0x1, codec bytes=80,fax rate=0x1, vad=0x1, modem=0x1, dtmf_relay=0x1, seq_num_start=0xF1F*Mar 1 01:01:51.602:rtpspi_caps_ind:calling cc_api_caps_ind().*Mar 1 01:01:51.822:rtpspi_do_call_modify:Remote RTP port changed. New port=16498*Mar 1 01:01:51.822:rtpspi_do_call_modify:Remote IP addrs changed. New IP addrs=0x6000001*Mar 1 01:01:51.822:rtpspi_do_call_modify:Starting new RTCP session.*Mar 1 01:01:51.822:rtpspi_start_rtcp_session:Removing old RTCP session.*Mar 1 01:01:51.822:rtpspi_start_rtcp_session:Starting RTCP session.Local IP addr = 0x5000001, Remote IP addr = 0x6000001,Local RTP port = 16406, Remote RTP port = 16498, mode = 0x2*Mar 1 01:01:51.822:rtpspi_start_rtcp_session:RTCP Timer creation Success. (5)*(5000)*Mar 1 01:01:51.826:rtpspi_start_rtcp_session:RTP Session creation Success.*Mar 1 01:01:51.826:rtpspi_do_call_modify:RTP Session creation Success.*Mar 1 01:01:51.826:rtpspi_do_call_modify:Calling cc_api_call_modify(), result=0x0*Mar 1 01:01:57.296:rtpspi_do_call_modify:Mode changed. new = 3, old = 2*Mar 1 01:01:57.296:rtpspi_modify_rtcp_session_parameters():xmit fn=0xDA7494,dstIF=0x1964EEC, dstCallID=10, voip_mode=0x3, rtp_mode=0x3, ssrc_status=2*Mar 1 01:01:57.296:rtpspi_do_call_modify:RTCP Timer start.*Mar 1 01:01:57.296:rtpspi_do_call_modify:Calling cc_api_call_modify(), result=0x0*Mar 1 01:03:06.108:rtpspi_modify_rtcp_session_parameters():xmit fn=0x0,dstIF=0x0, dstCallID=0, voip_mode=0x3, rtp_mode=0x3, ssrc_status=2*Mar 1 01:03:06.112:rtpspi_do_call_disconnect:calling rtpspi_call_cleanup(). call-id=11*Mar 1 01:03:06.112:rtpspi_call_cleanup:releasing ccb cache. RTP port=16406*Mar 1 01:03:06.112:rtpspi_call_cleanup:RTCP Timer Stop.*Mar 1 01:03:06.112:rtpspi_call_cleanup:deallocating RTP port 16406.*Mar 1 01:03:06.112::rtpspi_call_cleanup freeing ccb (0x1AF5400)Related Commands
debug rtr error
Note
To enable debugging output of Cisco IOS IP Service Level Agreements (SLAs) operation run-time errors, use the debug rtr error command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug rtr error [operation-number]
no debug rtr error [operation-number]
Syntax Description
operation-number
(Optional) Identification number of the operation for which debugging output is to be enabled.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
The debug rtr error command displays run-time errors. When an operation number other than 0 is specified, all run-time errors for that operation are displayed when the operation is active. When the operation number is 0, all run-time errors relating to the IP SLAs scheduler process are displayed. When no operation number is specified, all run-time errors for all active operations configured on the router are displayed.
Note
Examples
The following is sample output from the debug rtr error command. The output indicates failure because the target is not there or because the responder is not enabled on the target. All debugging output for IP SLAs (including the output from the debug rtr trace command) has the format shown in Table 299.
Router# debug rtr errorMay 5 05:00:35.483: control message failure:1May 5 05:01:35.003: control message failure:1May 5 05:02:34.527: control message failure:1May 5 05:03:34.039: control message failure:1May 5 05:04:33.563: control message failure:1May 5 05:05:33.099: control message failure:1May 5 05:06:32.596: control message failure:1May 5 05:07:32.119: control message failure:1May 5 05:08:31.643: control message failure:1May 5 05:09:31.167: control message failure:1May 5 05:10:30.683: control message failure:1Table 299 describes the significant fields shown in the display.
Related Commands
debug rtr mpls-lsp-monitor
Note
To enable debugging output for the IP Service Level Agreements (SLAs) label switched path (LSP) Health Monitor, use the debug rtr mpls-lsp-monitor command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug rtr mpls-lsp-monitor [operation-number]
no debug rtr mpls-lsp-monitor [operation-number]
Syntax Description
operation-number
(Optional) Number of the LSP Health Monitor operation for which the debugging output will be displayed.
Command Default
Debug is not enabled.
Command Modes
Privileged EXEC
Command History
Examples
The following is sample output from the debug rtr mpls-lsp-monitor command. This output shows that three VPNs associated with router 10.10.10.8 (red, blue, and green) were discovered and that this information was added to the LSP Health Monitor scan queue. Also, since router 10.10.10.8 is a newly discovered Border Gateway Protocol (BGP) next hop neighbor, a new IP SLAs operation for router 10.10.10.8 (Probe 100005) is being created and added to the LSP Health Monitor multioperation schedule. Even though router 10.10.10.8 belongs to three VPNs, only one IP SLAs operation is being created.
Router# debug rtr mpls-lsp-monitorSAA MPLSLM debugging for all entries is on*Aug 19 19:59: SAA MPLSLM(1):Next hop 10.10.10.8 added in AddQ*Aug 19 19:59: SAA MPLSLM(1):Next hop 10.10.10.8 added in AddQ*Aug 19 19:59: SAA MPLSLM(1):Next hop 10.10.10.8 added in AddQ*Aug 19 19:59: SAA MPLSLM(1):Adding vrf red into tree entry 10.10.10.8*Aug 19 19:59: SAA MPLSLM(1):Adding Probe 100005*Aug 19 19:59: SAA MPLSLM(1):Adding ProbeID 100005 to tree entry 10.10.10.8 (1)*Aug 19 19:59: SAA MPLSLM(1):Adding vrf blue into tree entry 10.10.10.8*Aug 19 19:59: SAA MPLSLM(1):Duplicate in AddQ 10.10.10.8*Aug 19 19:59: SAA MPLSLM(1):Adding vrf green into tree entry 10.10.10.8*Aug 19 19:59: SAA MPLSLM(1):Duplicate in AddQ 10.10.10.8*Aug 19 19:59: SAA MPLSLM(1):Added Probe(s) 100005 will be scheduled after 26 secs over schedule period 60Related Commands
rtr mpls-lsp-monitor
Begins configuration for an IP SLAs LSP Health Monitor operation and enters SAA MPLS configuration mode.
debug rtr trace
Note
To trace the execution of a Cisco IOS IP Service Level Agreements (SLAs) operation, use the debug rtr trace command in privileged EXEC mode. To disable trace debugging output, use the no form of this command.
debug rtr trace [operation-number]
no debug rtr trace [operation-number]
Syntax Description:
operation-number
(Optional) Identification number of the operation for which debugging output is to be enabled.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
When an operation number other than 0 is specified, execution for that operation is traced. When the operation number is 0, the IP SLAs scheduler process is traced. When no operation number is specified, all active operations are traced.
The debug rtr trace command also enables debug rtr error command for the specified operation. However, the no debug rtr trace command does not disable the debug rtr error command. You must manually disable the command by using the no debug rtr error command.
All debuggng output (including debug rtr error command output) has the format shown in the debug rtr error command output example.
Note
Examples
The following is sample output from the debug rtr trace command. In this example, an operation is traced through a single operation attempt: the setup of a connection to the target, and the attempt at an echo to calculate UDP packet response time.
Router# debug rtr traceRouter# RTR 1:Starting An Echo Operation - IP RTR Probe 1May 5 05:25:08.584:rtt hash insert :3.0.0.3 3383May 5 05:25:08.584: source=3.0.0.3(3383) dest-ip=5.0.0.1(9)May 5 05:25:08.588:sending control msg:May 5 05:25:08.588: Ver:1 ID:51 Len:52May 5 05:25:08.592:cmd:command:RTT_CMD_UDP_PORT_ENABLE, ip:5.0.0.1, port:9, duration:5000May 5 05:25:08.607:receiving replyMay 5 05:25:08.607: Ver:1 ID:51 Len:8May 5 05:25:08.623: local delta:8May 5 05:25:08.627: delta from responder:1May 5 05:25:08.627: received <16> bytes and responseTime = 3 (ms)May 5 05:25:08.631:rtt hash remove:3.0.0.3 3383RTR 1:Starting An Echo Operation - IP RTR Probe 1May 5 05:26:08.104:rtt hash insert :3.0.0.3 2974May 5 05:26:08.104: source=3.0.0.3(2974) dest-ip=5.0.0.1(9)May 5 05:26:08.108:sending control msg:May 5 05:26:08.108: Ver:1 ID:52 Len:52May 5 05:26:08.112:cmd:command:RTT_CMD_UDP_PORT_ENABLE, ip:5.0.0.1, port:9, duration:5000May 5 05:26:08.127:receiving replyMay 5 05:26:08.127: Ver:1 ID:52 Len:8May 5 05:26:08.143: local delta:8May 5 05:26:08.147: delta from responder:1May 5 05:26:08.147: received <16> bytes and responseTime = 3 (ms)May 5 05:26:08.151:rtt hash remove:3.0.0.3 2974RTR 1:Starting An Echo Operation - IP RTR Probe 1Related Commands
debug rtsp
To show the status of the Real-Time Streaming Protocol (RTSP) client or server, use the debug rtsp command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug rtsp type [all | api | error | pmh | session | socket]
[no] debug rtsp type [all | api | pmh | session | socket]
Syntax Description
Defaults
This command is disabled by default.
Command Modes
Privileged EXEC (#)
Command History
Examples
The following is sample output that displays when the debug rtsp command is entered with the api keyword:
Router# debug rtsp api!RTSP client API debugging is on!Jan 1 00:23:15.775:rtsp_api_create_session:sess_id=0x61A07C78,evh=0x60D6E62C context=0x61A07B28Jan 1 00:23:15.775:rtsp_api_request:msg=0x61C2B10CJan 1 00:23:15.775:rtsp_api_handle_req_set_params:msg=0x61C2B10CJan 1 00:23:15.775:rtsp_api_free_msg_buffer:msg=0x61C2B10CJan 1 00:23:15.775:rtsp_api_request:msg=0x61C293CCJan 1 00:23:15.775:rtsp_api_handle_req_set_params:msg=0x61C293CCJan 1 00:23:15.775:rtsp_api_free_msg_buffer:msg=0x61C293CCJan 1 00:23:15.775:rtsp_api_request:msg=0x61C2970CJan 1 00:23:15.775:rtsp_api_handle_req_set_params:msg=0x61C2970CJan 1 00:23:15.775:rtsp_api_free_msg_buffer:msg=0x61C2970C!Jan 1 00:23:15.775:rtsp_api_request:msg=0x61C29A4C!Jan 1 00:23:22.099:rtsp_api_free_msg_buffer:msg=0x61C29A4CJan 1 00:23:22.115:rtsp_api_request:msg=0x61C2A40CJan 1 00:23:22.115:rtsp_api_free_msg_buffer:msg=0x61C2A40CRelated Commands
debug rtsp all
To display all related information about the Real Time Streaming Protocol (RTSP) data, use the debug rtsp all command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug rtsp all
no debug rtsp all
Syntax Description
This command has no arguments or keywords.
Defaults
Debug is not enabled.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
We recommend that you log output from the debug rtsp all command to a buffer rather than sending the output to the console; otherwise, the size of the output could severely impact the performance of the gateway.
Examples
The following example shows debugging output for the debug rtsp all command. The show debug command shows which RTSP modules are traced.
Router# debug rtsp allAll RTSP client debugging is onRouter# show debugRTSP:RTSP client Protocol Error debugging is onRTSP client Protocol Message Handler debugging is onRTSP client API debugging is onRTSP client socket debugging is onRTSP client session debugging is onRouter#Router#!call initiatedRouter#*Mar 11 03:14:23.471: //-1//RTSP:/rtsp_get_new_scb:*Mar 11 03:14:23.471: //-1//RTSP:/rtsp_initialize_scb:*Mar 11 03:14:23.471: //-1//RTSP:/rtsplib_init_svr_session: 0x63A5FE6C*Mar 11 03:14:23.471: //-1//RTSP:/rtsp_api_create_session: evh=0x6155F0D4 context=0x6345042C*Mar 11 03:14:23.471: //-1//RTSP:/rtsp_get_new_scb:*Mar 11 03:14:23.471: //-1//RTSP:/rtsp_initialize_scb:*Mar 11 03:14:23.471: //-1//RTSP:/rtsplib_init_svr_session: 0x63A5D874*Mar 11 03:14:23.471: //-1//RTSP:/rtsp_api_create_session: evh=0x6155F204 context=0x6345046C*Mar 11 03:14:23.471: //-1//RTSP:RS45:/rtsp_api_request: msg=0x63A59FB8*Mar 11 03:14:23.471: //-1//RTSP:RS45:/rtsp_api_handle_req_set_params: msg=0x63A59FB8*Mar 11 03:14:23.475: //-1//RTSP:RS45:/rtsp_api_free_msg_buffer: msg=0x63A59FB8*Mar 11 03:14:23.475: //-1//RTSP:RS45:/rtsp_api_request: msg=0x63A5A304*Mar 11 03:14:23.475: //-1//RTSP:RS45:/rtsp_api_handle_req_set_params: msg=0x63A5A304*Mar 11 03:14:23.475: //-1//RTSP:RS45:/rtsp_api_free_msg_buffer: msg=0x63A5A304*Mar 11 03:14:23.475: //-1//RTSP:RS45:/rtsp_api_request: msg=0x63A5A650*Mar 11 03:14:23.475: //-1//RTSP:RS45:/rtsp_api_handle_req_set_params: msg=0x63A5A650*Mar 11 03:14:23.475: //166//RTSP:LP:RS45:/rtsp_api_handle_req_set_params:*Mar 11 03:14:23.475: //-1//RTSP:RS45:/rtsp_api_free_msg_buffer: msg=0x63A5A650*Mar 11 03:14:23.475: //-1//RTSP:RS46:/rtsp_api_request: msg=0x63A5A99C*Mar 11 03:14:23.475: //-1//RTSP:RS46:/rtsp_api_handle_req_set_params: msg=0x63A5A99C*Mar 11 03:14:23.475: //166//RTSP:LP:RS46:/rtsp_api_handle_req_set_params:*Mar 11 03:14:23.475: //-1//RTSP:RS46:/rtsp_api_free_msg_buffer: msg=0x63A5A99CRouter#Router#!call answeredRouter#Router#!digits dialedRouter#Router#!call terminatedRouter#*Mar 11 03:14:51.603: //-1//RTSP:RS45:/rtsp_api_request: msg=0x63A5ACE8*Mar 11 03:14:51.603: //-1//RTSP:RS46:/rtsp_api_request: msg=0x63A5B034*Mar 11 03:14:51.607: //-1//RTSP:RS45:/rtsp_control_process_msg:*Mar 11 03:14:51.607: //166//RTSP:/rtsp_control_process_msg: received MSG request of TYPE 0*Mar 11 03:14:51.607: //166//RTSP:/rtsp_set_event: api_req_msg_type=RTSP_API_REQ_DESTROY*Mar 11 03:14:51.607: //166//RTSP:/rtsp_session_cleanup:*Mar 11 03:14:51.607: //-1//RTSP:/rtsplib_free_svr_session:*Mar 11 03:14:51.607: //-1//RTSP:/rtsplib_stop_timer: timer(0x638D5DDC) stops*Mar 11 03:14:51.611: //166//RTSP:/rtsp_create_session_history: scb=0x63A5FE6C, callID=0xA6*Mar 11 03:14:51.611: //166//RTSP:/rtsp_create_session_history: No streams in session control block*Mar 11 03:14:51.611: //166//RTSP:/rtsp_session_cleanup: deleting session: scb=0x63A5FE6C*Mar 11 03:14:51.611: //-1//RTSP:RS45:/rtsp_api_free_msg_buffer: msg=0x63A5ACE8*Mar 11 03:14:51.611: //-1//RTSP:RS46:/rtsp_control_process_msg:*Mar 11 03:14:51.611: //166//RTSP:/rtsp_control_process_msg: received MSG request of TYPE 0*Mar 11 03:14:51.611: //166//RTSP:/rtsp_set_event: api_req_msg_type=RTSP_API_REQ_DESTROY*Mar 11 03:14:51.611: //166//RTSP:/rtsp_session_cleanup:*Mar 11 03:14:51.611: //-1//RTSP:/rtsplib_free_svr_session:*Mar 11 03:14:51.611: //-1//RTSP:/rtsplib_stop_timer: timer(0x63A60110) stops*Mar 11 03:14:51.611: //166//RTSP:/rtsp_create_session_history: scb=0x63A5D874, callID=0xA6*Mar 11 03:14:51.611: //166//RTSP:/rtsp_create_session_history: No streams in session control block*Mar 11 03:14:51.611: //166//RTSP:/rtsp_session_cleanup: deleting session: scb=0x63A5D874*Mar 11 03:14:51.611: //-1//RTSP:RS46:/rtsp_api_free_msg_buffer: msg=0x63A5B034Table 300 describes the significant fields shown in the display.
Related Commands
debug rtsp api
To display information about the Real Time Streaming Protocol (RTSP) application programming interface (API) messages passed down to the RTSP client, use the debug rtsp api command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug rtsp api
no debug rtsp api
Syntax Description
This command has no arguments or keywords.
Defaults
Debug is not enabled.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
We recommend that you log output from the debug rtsp api command to a buffer rather than sending the output to the console; otherwise, the size of the output could severely impact the performance of the gateway.
Examples
The following example shows output from the debug rtsp api command:
Router# debug rtsp apiRTSP client API debugging is onRouter# !call initiated*Mar 11 03:04:41.699: //-1//RTSP:/rtsp_api_create_session: evh=0x6155F0D4 context=0x6345088C*Mar 11 03:04:41.699: //-1//RTSP:/rtsp_api_create_session: evh=0x6155F204 context=0x634508CC*Mar 11 03:04:41.699: //-1//RTSP:RS35:/rtsp_api_request: msg=0x63A59FB8*Mar 11 03:04:41.699: //-1//RTSP:RS35:/rtsp_api_handle_req_set_params: msg=0x63A59FB8*Mar 11 03:04:41.699: //-1//RTSP:RS35:/rtsp_api_free_msg_buffer: msg=0x63A59FB8*Mar 11 03:04:41.699: //-1//RTSP:RS35:/rtsp_api_request: msg=0x63A5A304*Mar 11 03:04:41.699: //-1//RTSP:RS35:/rtsp_api_handle_req_set_params: msg=0x63A5A304*Mar 11 03:04:41.699: //-1//RTSP:RS35:/rtsp_api_free_msg_buffer: msg=0x63A5A304*Mar 11 03:04:41.703: //-1//RTSP:RS35:/rtsp_api_request: msg=0x63A5A650*Mar 11 03:04:41.703: //-1//RTSP:RS35:/rtsp_api_handle_req_set_params: msg=0x63A5A650*Mar 11 03:04:41.703: //146//RTSP:LP:RS35:/rtsp_api_handle_req_set_params:*Mar 11 03:04:41.703: //-1//RTSP:RS35:/rtsp_api_free_msg_buffer: msg=0x63A5A650*Mar 11 03:04:41.703: //-1//RTSP:RS36:/rtsp_api_request: msg=0x63A5A99C*Mar 11 03:04:41.703: //-1//RTSP:RS36:/rtsp_api_handle_req_set_params: msg=0x63A5A99C*Mar 11 03:04:41.703: //146//RTSP:LP:RS36:/rtsp_api_handle_req_set_params:*Mar 11 03:04:41.703: //-1//RTSP:RS36:/rtsp_api_free_msg_buffer: msg=0x63A5A99CRouter!call answeredRouter#!digits dialedRouter#!call terminated*Mar 11 03:05:15.367: //-1//RTSP:RS35:/rtsp_api_request: msg=0x63A5ACE8*Mar 11 03:05:15.367: //-1//RTSP:RS36:/rtsp_api_request: msg=0x63A5B034*Mar 11 03:05:15.367: //-1//RTSP:RS35:/rtsp_api_free_msg_buffer: msg=0x63A5ACE8*Mar 11 03:05:15.367: //-1//RTSP:RS36:/rtsp_api_free_msg_buffer: msg=0x63A5B034Table 301 describes the significant fields shown in the display.
Related Commands
debug rtsp client
Note
To display client information and stream information for the stream that is currently active for the Real Time Streaming Protocol (RTSP) client, use the debug rtsp client command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug rtsp client
no debug rtsp client
Syntax Description
This command has no arguments or keywords.
Defaults
Debug is not enabled.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
We recommend that you log output from the debug rtsp client command to a buffer rather than sending the output to the console; otherwise, the size of the output could severely impact the performance of the gateway.
Related Commands
debug rtsp client session
Note
To display debug messages about the Real Time Streaming Protocol (RTSP) client or the current session, use the debug rtsp command. To disable debugging output, use the no form of this command.
debug rtsp [client | session]
no debug rtsp [client | session]
Syntax Description
Defaults
Debug is not enabled.
Command History
Examples
The following example displays the debug messages of the RTSP session:
Router# debug rtsp sessionRTSP client session debugging is onrouter#Jan 1 00:08:36.099:rtsp_get_new_scb:Jan 1 00:08:36.099:rtsp_initialize_scb:Jan 1 00:08:36.099:rtsp_control_process_msg:Jan 1 00:08:36.099:rtsp_control_process_msg:received MSG request of TYPE 0Jan 1 00:08:36.099:rtsp_set_event:Jan 1 00:08:36.099:rtsp_set_event:api_req_msg_type=RTSP_API_REQ_PLAYJan 1 00:08:36.103:rtsp_set_event:url:[rtsp://rtsp-cisco.cisco.com:554/en_welcome.au]Jan 1 00:08:36.103:rtsp_process_async_event:SCB=0x62128F08Jan 1 00:08:36.103:rtsp_process_async_event:rtsp_state = RTSP_SES_STATE_IDLErtsp_event = RTSP_EV_PLAY_OR_RECJan 1 00:08:36.103:act_idle_event_play_or_rec_req:Jan 1 00:08:36.103:rtsp_resolve_dns:Jan 1 00:08:36.103:rtsp_resolve_dns:IP Addr = 1.13.79.6:Jan 1 00:08:36.103:rtsp_connect_to_svr:Jan 1 00:08:36.103:rtsp_connect_to_svr:socket=0, connection_state = 2Jan 1 00:08:36.103:rtsp_start_timer:timer (0x62128FD0)starts - delay (10000)Jan 1 00:08:36.107:rtsp_control_main:SOCK= 0 Event=0x1Jan 1 00:08:36.107:rtsp_stop_timer:timer(0x62128FD0) stopsJan 1 00:08:36.107:rtsp_process_async_event:SCB=0x62128F08Jan 1 00:08:36.107:rtsp_process_async_event:rtsp_state = RTSP_SES_STATE_IDLErtsp_event = RTSP_EV_SVR_CONNECTEDJan 1 00:08:36.107:act_idle_event_svr_connected:Jan 1 00:08:36.107:rtsp_control_main:SOCK= 0 Event=0x1Jan 1 00:08:36.783:rtsp_control_main:SOCK= 0 Event=0x1Jan 1 00:08:36.783:rtsp_process_async_event:SCB=0x62128F08Jan 1 00:08:36.783:rtsp_process_async_event:rtsp_state = RTSP_SES_STATE_READYrtsp_event = RTSP_EV_SVR_DESC_OR_ANNOUNCE_RESPJan 1 00:08:36.783:act_ready_event_desc_or_announce_resp:Jan 1 00:08:36.783:act_ready_event_desc_or_announce_resp:RTSP_STATUS_DESC_OR_ANNOUNCE_RESP_OKJan 1 00:08:37.287:rtsp_control_main:SOCK= 0 Event=0x1Jan 1 00:08:37.287:rtsp_process_async_event:SCB=0x62128F08Jan 1 00:08:37.287:rtsp_process_async_event:rtsp_state = RTSP_SES_STATE_READYrtsp_event = RTSP_EV_SVR_SETUP_RESPJan 1 00:08:37.287:act_ready_event_setup_resp:Jan 1 00:08:37.287:act_ready_event_setup_resp:Remote RTP Port=13344Jan 1 00:08:37.287:rtsp_rtp_stream_setup:scb=0x62128F08, callID=0x7 record=0Jan 1 00:08:37.287:rtsp_rtp_stream_setup:Starting RTCP session.Local IP addr = 1.13.79.45, Remote IP addr = 1.13.79.6,Local RTP port = 18748, Remote RTP port = 13344 CallID=8Jan 1 00:08:37.291:xmit_func = 0x0 vdbptr = 0x61A0FC98Jan 1 00:08:37.291:rtsp_control_main:CCAPI Queue EventJan 1 00:08:37.291:rtsp_rtp_associate_done:ev=0x62070E08, callID=0x7Jan 1 00:08:37.291:rtsp_rtp_associate_done:scb=0x62128F08Jan 1 00:08:37.291:rtsp_rtp_associate_done:callID=0x7, pVdb=0x61F4FBC8,Jan 1 00:08:37.291: spi_context=0x6214145CJan 1 00:08:37.291: disposition=0, playFunc=0x60CA2238,Jan 1 00:08:37.291: codec=0x5, vad=0, mediaType=6,Jan 1 00:08:37.291: stream_assoc_id=1Jan 1 00:08:37.291:rtsp_rtp_modify_session:scb=0x62128F08, callID=0x7Jan 1 00:08:37.291:rtsp_process_async_event:SCB=0x62128F08Jan 1 00:08:37.291:rtsp_process_async_event:rtsp_state = RTSP_SES_STATE_READYrtsp_event = RTSP_EV_ASSOCIATE_DONEJan 1 00:08:37.291:act_ready_event_associate_done:Jan 1 00:08:37.291:rtsp_get_stream:Jan 1 00:08:37.783:rtsp_control_main:SOCK= 0 Event=0x1Jan 1 00:08:37.783:rtsp_process_async_event:SCB=0x62128F08Jan 1 00:08:37.783:rtsp_process_async_event:rtsp_state = RTSP_SES_STATE_READYrtsp_event = RTSP_EV_SVR_PLAY_OR_REC_RESPJan 1 00:08:37.783:act_ready_event_play_or_rec_resp:Jan 1 00:08:37.783:rtsp_start_timer:timer (0x62128FB0)starts - delay (4249)rtsp-5#Jan 1 00:08:42.035:rtsp_process_timer_events:Jan 1 00:08:42.035:rtsp_process_timer_events:PLAY OR RECORD completedJan 1 00:08:42.035:rtsp_process_async_event:SCB=0x62128F08Jan 1 00:08:42.035:rtsp_process_async_event:rtsp_state = RTSP_SES_STATE_PLAY_OR_RECrtsp_event = RTSP_EV_PLAY_OR_REC_TIMER_EXPIREDJan 1 00:08:42.035:act_play_event_play_done:Jan 1 00:08:42.035:act_play_event_play_done:elapsed play time = 4249 total play time = 4249Jan 1 00:08:42.035:rtsp_send_teardown_to_svr:Jan 1 00:08:42.487:rtsp_control_main:SOCK= 0 Event=0x1Jan 1 00:08:42.487:rtsp_process_async_event:SCB=0x62128F08Jan 1 00:08:42.487:rtsp_process_async_event:rtsp_state = RTSP_SES_STATE_PLAY_OR_RECrtsp_event = RTSP_EV_SVR_TEARDOWN_RESPJan 1 00:08:42.487:act_play_event_teardown_resp:Jan 1 00:08:42.487:rtsp_server_closed:Jan 1 00:08:42.487:rtsp_send_resp_to_api:Jan 1 00:08:42.487:rtsp_send_resp_to_api:sending RESP=RTSP_STATUS_PLAY_COMPLETEJan 1 00:08:42.491:rtsp_rtp_teardown_stream:scb=0x62128F08, callID=0x7Jan 1 00:08:42.491:rtsp_rtp_stream_cleanup:scb=0x62128F08, callID=0x7Jan 1 00:08:42.491:rtsp_update_stream_stats:scb=0x62128F08, stream=0x61A43350,Jan 1 00:08:42.491:call_info=0x6214C67C, callID=0x7Jan 1 00:08:42.491:rtsp_update_stream_stats:rx_bytes = 25992Jan 1 00:08:42.491:rtsp_update_stream_stats:rx_packetes = 82Jan 1 00:08:42.491:rtsp_reinitialize_scb:Jan 1 00:08:42.503:rtsp_control_process_msg:Jan 1 00:08:42.503:rtsp_control_process_msg:received MSG request of TYPE 0Jan 1 00:08:42.503:rtsp_set_event:Jan 1 00:08:42.503:rtsp_set_event:api_req_msg_type=RTSP_API_REQ_DESTROYJan 1 00:08:42.503:rtsp_session_cleanup:Jan 1 00:08:42.503:rtsp_create_session_history:scb=0x62128F08, callID=0x7Jan 1 00:08:42.503:rtsp_insert_session_history_record:current=0x6214BDC8, callID=0x7Jan 1 00:08:42.503:rtsp_insert_session_history_record:count = 3Jan 1 00:08:42.503:rtsp_insert_session_history_record:starting history record deletion_timer of10 minutesJan 1 00:08:42.503:rtsp_session_cleanup:deleting session:scb=0x62128F08Router#Related Commands
debug rtsp error
To display error information about the Real-Time Streaming Protocol (RTSP) client, use the debug rtsp error command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug rtsp error
no debug rtsp error
Syntax Description
This command has no arguments or keywords.
Defaults
Debug is not enabled.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
We recommend that you log output from the debug rtsp error command to a buffer rather than sending the output to the console; otherwise, the size of the output could severely impact the performance of the gateway.
Related Commands
debug rtsp pmh
To display debugging information about the Protocol Message Handler (PMH), use the debug rtsp pmh command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug rtsp pmh
no debug rtsp pmh
Syntax Description
This command has no arguments or keywords.
Defaults
Debug is not enabled.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
We recommend that you log output from the debug rtsp pmh command to a buffer rather than sending the output to the console; otherwise, the size of the output could severely impact the performance of the gateway.
Related Commands
debug rtsp session
To display client information and stream information for the stream that is currently active for the Real Time Streaming Protocol (RTSP) client, use the debug rtsp session command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug rtsp session
no debug rtsp session
Syntax Description
This command has no arguments or keywords.
Defaults
Debug is not enabled.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
We recommend that you log output from the debug rtsp session command to a buffer rather than sending the output to the console; otherwise, the size of the output could severely impact the performance of the gateway.
Examples
The following example shows the display of the debugging messages of the RTSP session:
Router# debug rtsp sessionRTSP client session debugging is onRouter#Router#!call initiatedRouter#*Mar 11 03:09:58.123: //-1//RTSP:/rtsp_get_new_scb:*Mar 11 03:09:58.123: //-1//RTSP:/rtsp_initialize_scb:*Mar 11 03:09:58.123: //-1//RTSP:/rtsplib_init_svr_session: 0x63A5FE6C*Mar 11 03:09:58.123: //-1//RTSP:/rtsp_get_new_scb:*Mar 11 03:09:58.123: //-1//RTSP:/rtsp_initialize_scb:*Mar 11 03:09:58.123: //-1//RTSP:/rtsplib_init_svr_session: 0x63A5D874Router#Router#!call answeredRouter#Router#!digits dialedRouter#Router#!call terminatedRouter#*Mar 11 03:10:38.139: //-1//RTSP:RS41:/rtsp_control_process_msg:*Mar 11 03:10:38.139: //158//RTSP:/rtsp_control_process_msg: received MSG request of TYPE 0*Mar 11 03:10:38.139: //158//RTSP:/rtsp_set_event: api_req_msg_type=RTSP_API_REQ_DESTROY*Mar 11 03:10:38.139: //158//RTSP:/rtsp_session_cleanup:*Mar 11 03:10:38.139: //-1//RTSP:/rtsplib_free_svr_session:*Mar 11 03:10:38.139: //-1//RTSP:/rtsplib_stop_timer: timer(0x638D5DDC) stops*Mar 11 03:10:38.143: //158//RTSP:/rtsp_create_session_history: scb=0x63A5FE6C, callID=0x9E*Mar 11 03:10:38.143: //158//RTSP:/rtsp_create_session_history: No streams in session control block*Mar 11 03:10:38.143: //158//RTSP:/rtsp_session_cleanup: deleting session: scb=0x63A5FE6C*Mar 11 03:10:38.143: //-1//RTSP:RS42:/rtsp_control_process_msg:*Mar 11 03:10:38.143: //158//RTSP:/rtsp_control_process_msg: received MSG request of TYPE 0*Mar 11 03:10:38.143: //158//RTSP:/rtsp_set_event: api_req_msg_type=RTSP_API_REQ_DESTROY*Mar 11 03:10:38.143: //158//RTSP:/rtsp_session_cleanup:*Mar 11 03:10:38.143: //-1//RTSP:/rtsplib_free_svr_session:*Mar 11 03:10:38.143: //-1//RTSP:/rtsplib_stop_timer: timer(0x63A60110) stops*Mar 11 03:10:38.143: //158//RTSP:/rtsp_create_session_history: scb=0x63A5D874, callID=0x9E*Mar 11 03:10:38.143: //158//RTSP:/rtsp_create_session_history: No streams in session control block*Mar 11 03:10:38.143: //158//RTSP:/rtsp_session_cleanup: deleting session: scb=0x63A5D874Table 302 describes the significant fields shown in the display.
Related Commands
debug rtsp socket
To display debugging messages about the packets received or sent on the TCP or User Datagram Protocol (UDP) sockets, use the debug rtsp socket command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug rtsp socket
no debug rtsp socket
Syntax Description
This command has no arguments or keywords.
Defaults
Debug is not enabled.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
Each Real-Time Streaming Protocol (RTSP) session has a TCP port for control and a UDP (RTP) port for delivery of data. The control connection (TCP socket) is used to exchange a set of messages (request from the RTSP client and the response from the server) for displaying a prompt. The debug rtsp socket command enables the user to debug the message exchanges being done on the TCP control connection.
Note
Related Commands
debug rudpv1
For debug information for Reliable User Datagram Protocol (RUDP), use the debug rudpv1 command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug rudpv1 {application | performance | retransmit | segment | signal | state | timer | transfer}
no debug rudpv1 {application | performance | retransmit | segment | signal | state | timer | transfer}
Syntax Description
Defaults
Debugging for rudpv1 is not enabled.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
Use this command only during times of low traffic.
Examples
The following is sample output from the debug rudpv1 application command:
Router# debug rudpv1 applicationRudpv1:Turning application debugging on*Jan 1 00:20:38.271:Send to appl (61F72B6C), seq 12*Jan 1 00:20:48.271:Send to appl (61F72B6C), seq 13*Jan 1 00:20:58.271:Send to appl (61F72B6C), seq 14*Jan 1 00:21:08.271:Send to appl (61F72B6C), seq 15*Jan 1 00:21:18.271:Send to appl (61F72B6C), seq 16*Jan 1 00:21:28.271:Send to appl (61F72B6C), seq 17*Jan 1 00:21:38.271:Send to appl (61F72B6C), seq 18*Jan 1 00:21:48.275:Send to appl (61F72B6C), seq 19*Jan 1 00:21:58.275:Send to appl (61F72B6C), seq 20*Jan 1 00:22:08.275:Send to appl (61F72B6C), seq 21*Jan 1 00:22:18.275:Send to appl (61F72B6C), seq 22*Jan 1 00:22:28.275:Send to appl (61F72B6C), seq 23*Jan 1 00:22:38.275:Send to appl (61F72B6C), seq 24*Jan 1 00:22:48.279:Send to appl (61F72B6C), seq 25*Jan 1 00:22:58.279:Send to appl (61F72B6C), seq 26*Jan 1 00:23:08.279:Send to appl (61F72B6C), seq 27*Jan 1 00:23:18.279:Send to appl (61F72B6C), seq 28*Jan 1 00:23:28.279:Send to appl (61F72B6C), seq 29The following is sample output from the debug rudpv1 performance command:
Router# debug rudpv1 performanceRudpv1:Turning performance debugging oncorsair-f#*Jan 1 00:44:27.299:*Jan 1 00:44:27.299:Rudpv1 Sent:Pkts 11, Data Bytes 236, Data Pkts 9*Jan 1 00:44:27.299:Rudpv1 Rcvd:Pkts 10, Data Bytes 237, Data Pkts 9*Jan 1 00:44:27.299:Rudpv1 Discarded:0, Retransmitted 0*Jan 1 00:44:27.299:*Jan 1 00:44:37.299:*Jan 1 00:44:37.299:Rudpv1 Sent:Pkts 11, Data Bytes 236, Data Pkts 9*Jan 1 00:44:37.299:Rudpv1 Rcvd:Pkts 10, Data Bytes 237, Data Pkts 9*Jan 1 00:44:37.299:Rudpv1 Discarded:0, Retransmitted 0*Jan 1 00:44:37.299:*Jan 1 00:44:47.299:*Jan 1 00:44:47.299:Rudpv1 Sent:Pkts 11, Data Bytes 236, Data Pkts 9*Jan 1 00:44:47.299:Rudpv1 Rcvd:Pkts 11, Data Bytes 236, Data Pkts 9*Jan 1 00:44:47.299:Rudpv1 Discarded:0, Retransmitted 0*Jan 1 00:44:47.299:The following is sample output from the debug rudpv1 retransmit command:
Router# debug rudpv1 retransmitRudpv1:Turning retransmit/softreset debugging on*Jan 1 00:52:59.799:Retrans timer, set to ack 199*Jan 1 00:52:59.903:Retrans timer, set to ack 200*Jan 1 00:53:00.003:Retrans timer, set to ack 201*Jan 1 00:53:00.103:Retrans timer, set to ack 202*Jan 1 00:53:00.203:Retrans timer, set to ack 203*Jan 1 00:53:00.419:Retrans timer, set to ack 97*Jan 1 00:53:00.503:Retrans handler fired, 203*Jan 1 00:53:00.503:Retrans:203:205:*Jan 1 00:53:00.503:*Jan 1 00:53:00.607:Retrans timer, set to ack 207*Jan 1 00:53:00.907:Retrans timer, set to ack 210*Jan 1 00:53:01.207:Retrans handler fired, 210*Jan 1 00:53:01.207:Retrans:210:211:212:*Jan 1 00:53:01.207:*Jan 1 00:53:01.207:Retrans timer, set to ack 213*Jan 1 00:53:01.311:Retrans timer, set to ack 214*Jan 1 00:53:01.419:Retrans timer, set to ack 98*Jan 1 00:53:01.611:Retrans timer, set to ack 215*Jan 1 00:53:01.711:Retrans timer, set to ack 218*Jan 1 00:53:01.811:Retrans timer, set to ack 219*Jan 1 00:53:01.911:Retrans timer, set to ack 220*Jan 1 00:53:02.011:Retrans timer, set to ack 221*Jan 1 00:53:02.311:Retrans handler fired, 221*Jan 1 00:53:02.311:Retrans:221:*Jan 1 00:53:02.311:*Jan 1 00:53:02.311:Retrans timer, set to ack 222*Jan 1 00:53:02.415:Retrans timer, set to ack 225The following is sample output from the debug rudpv1 segment command:
Router# debug rudpv1 segmentRudpv1:Turning segment debugging on*Jan 1 00:41:36.359:Rudpv1: (61F72DAC) Rcvd ACK 61..198 (32)*Jan 1 00:41:36.359:Rudpv1: (61F72DAC) Send ACK 199..61 (32)*Jan 1 00:41:36.459:Rudpv1: (61F72DAC) Rcvd ACK 62..199 (8)*Jan 1 00:41:36.459:Rudpv1: (61F72DAC) Rcvd ACK 62..199 (32)*Jan 1 00:41:36.459:Rudpv1: (61F72DAC) Send ACK 200..62 (32)*Jan 1 00:41:36.559:Rudpv1: (61F72DAC) Rcvd ACK 63..200 (32)*Jan 1 00:41:36.559:Rudpv1: (61F72DAC) Send ACK 201..63 (32)*Jan 1 00:41:36.659:Rudpv1: (61F72DAC) Rcvd ACK 64..201 (32)*Jan 1 00:41:36.659:Rudpv1: (61F72DAC) Send ACK 202..64 (32)*Jan 1 00:41:36.759:Rudpv1: (61F72DAC) Rcvd ACK 65..202 (32)*Jan 1 00:41:36.759:Rudpv1: (61F72DAC) Send ACK 203..65 (32)*Jan 1 00:41:36.859:Rudpv1: (61F72DAC) Rcvd ACK 66..202 (32)*Jan 1 00:41:36.859:Rudpv1: (61F72DAC) Send ACK 204..66 (32)*Jan 1 00:41:36.959:Rudpv1: (61F72DAC) Rcvd ACK 67..202 (32)*Jan 1 00:41:36.959:Rudpv1: (61F72DAC) Rcvd ACK EAK 68..202 (9)*Jan 1 00:41:36.959:Rudpv1: (61F72DAC) Send ACK 203..67 (32)*Jan 1 00:41:36.963:Rudpv1: (61F72DAC) Send ACK 205..67 (32)*Jan 1 00:41:36.963:Rudpv1: (61F72DAC) Rcvd ACK 68..204 (8)*Jan 1 00:41:37.051:Rudpv1: (61F72B6C) Send ACK NUL 118..96 (8)*Jan 1 00:41:37.051:Rudpv1: (61F72B6C) Rcvd ACK 97..118 (8)*Jan 1 00:41:37.059:Rudpv1: (61F72DAC) Rcvd ACK 68..205 (32)*Jan 1 00:41:37.063:Rudpv1: (61F72DAC) Send ACK 206..68 (32)*Jan 1 00:41:37.263:Rudpv1: (61F72DAC) Rcvd ACK 70..206 (32)*Jan 1 00:41:37.363:Rudpv1: (61F72DAC) Send ACK EAK 207..68 (9)*Jan 1 00:41:37.363:Rudpv1: (61F72DAC) Rcvd ACK 71..206 (32)*Jan 1 00:41:37.363:Rudpv1: (61F72DAC) Rcvd ACK 69..206 (32)*Jan 1 00:41:37.363:Rudpv1: (61F72DAC) Send ACK 207..71 (8)*Jan 1 00:41:37.363:Rudpv1: (61F72DAC) Send ACK 207..71 (32)*Jan 1 00:41:37.363:Rudpv1: (61F72DAC) Send ACK 208..71 (32)*Jan 1 00:41:37.363:Rudpv1: (61F72DAC) Send ACK 209..71 (32)*Jan 1 00:41:37.367:Rudpv1: (61F72DAC) Rcvd ACK 72..209 (8)*Jan 1 00:41:37.463:Rudpv1: (61F72DAC) Rcvd ACK 72..209 (32)*Jan 1 00:41:37.463:Rudpv1: (61F72DAC) Send ACK 210..72 (32)*Jan 1 00:41:37.563:Rudpv1: (61F72DAC) Rcvd ACK 73..210 (32)*Jan 1 00:41:37.563:Rudpv1: (61F72DAC) Send ACK 211..73 (32)The following is sample output from the debug rudpv1 signal command:
Router# debug rudpv1 signalRudpv1:Turning signal debugging on*Jan 1 00:39:59.551:Rudpv1:Sent CONN_FAILED to connID 61F72DAC, sess 33*Jan 1 00:39:59.551:*Jan 1 00:39:59.551:Rudpv1:Sent CONN_TRANS_STATE to connID 61F72B6C, sess 34*Jan 1 00:39:59.551:*Jan 1 00:39:59.551:Rudpv1:Sent CONN_TRANS_STATE to connID 61F72DAC, sess 33*Jan 1 00:39:59.551:*Jan 1 00:39:59.551:Rudpv1:Sent CONN_OPEN to connID 61F72B6C, sess 34*Jan 1 00:39:59.551:Rudpv1:Sent AUTO_RESET to connID 61F72DAC, sess 33*Jan 1 00:39:59.551:*Jan 1 00:40:00.739:%LINK-5-CHANGED:Interface FastEthernet0, changed stateto administratively down*Jan 1 00:40:01.739:%LINEPROTO-5-UPDOWN:Line protocol on InterfaceFastEthernet0, changed state to down*Jan 1 00:40:04.551:Rudpv1:Sent CONN_RESET to connID 61F72DAC, sess 33*Jan 1 00:40:04.551:*Jan 1 00:40:05.051:Rudpv1:Clearing conn rec values, index 2, connid61F72DAC*Jan 1 00:40:10.051:Rudpv1:Sent CONN_RESET to connID 61F72DAC, sess 33*Jan 1 00:40:10.051:*Jan 1 00:40:10.551:Rudpv1:Clearing conn rec values, index 2, connid61F72DAC*Jan 1 00:40:15.551:Rudpv1:Sent CONN_RESET to connID 61F72DAC, sess 33*Jan 1 00:40:15.551:*Jan 1 00:40:16.051:Rudpv1:Clearing conn rec values, index 2, connid61F72DAC*Jan 1 00:40:21.051:Rudpv1:Sent CONN_RESET to connID 61F72DAC, sess 33*Jan 1 00:40:21.051:*Jan 1 00:40:21.551:Rudpv1:Clearing conn rec values, index 2, connid61F72DAC*Jan 1 00:40:25.587:%LINK-3-UPDOWN:Interface FastEthernet0, changed stateto up*Jan 1 00:40:26.551:Rudpv1:Sent CONN_RESET to connID 61F72DAC, sess 33*Jan 1 00:40:26.551:*Jan 1 00:40:26.587:%LINEPROTO-5-UPDOWN:Line protocol on InterfaceFastEthernet0, changed state to up*Jan 1 00:40:27.051:Rudpv1:Clearing conn rec values, index 2, connid61F72DAC*Jan 1 00:40:28.051:Rudpv1:Sent CONN_OPEN to connID 61F72DAC, sess 33The following is sample output from the debug rudpv1 state command:
Router# debug rudpv1 stateRudpv1:Turning state debugging on*Jan 1 00:38:37.323:Rudpv1: (61F72DAC) State Change:OPEN -> CONN_FAILURE*Jan 1 00:38:37.323:Rudpv1: (61F72B6C) State Change:OPEN -> TRANS_STATE*Jan 1 00:38:37.323:Rudpv1: (61F72DAC) State Change:CONN_FAILURE ->TRANS_STATE*Jan 1 00:38:37.323:Rudpv1: (61F72B6C) State Change:TRANS_STATE -> OPEN*Jan 1 00:38:37.323:Rudpv1: (61F72DAC) State Change:TRANS_STATE -> SYN_SENT*Jan 1 00:38:37.455:%LINK-5-CHANGED:Interface FastEthernet0, changed stateto administratively down*Jan 1 00:38:38.451:%LINEPROTO-5-UPDOWN:Line protocol on InterfaceFastEthernet0, changed state to down*Jan 1 00:38:42.323:Rudpv1: (61F72DAC) State Change:SYN_SENT -> CLOSED*Jan 1 00:38:42.823:Rudpv1: (61F72DAC) State Change:INACTIVE -> SYN_SENT*Jan 1 00:38:47.823:Rudpv1: (61F72DAC) State Change:SYN_SENT -> CLOSED*Jan 1 00:38:48.323:Rudpv1: (61F72DAC) State Change:INACTIVE -> SYN_SENT*Jan 1 00:38:53.323:Rudpv1: (61F72DAC) State Change:SYN_SENT -> CLOSED*Jan 1 00:38:53.823:Rudpv1: (61F72DAC) State Change:INACTIVE -> SYN_SENT*Jan 1 00:38:56.411:%LINK-3-UPDOWN:Interface FastEthernet0, changed stateto up*Jan 1 00:38:57.411:%LINEPROTO-5-UPDOWN:Line protocol on InterfaceFastEthernet0, changed state to up*Jan 1 00:38:57.823:Rudpv1: (61F72DAC) State Change:SYN_SENT -> OPENThe following is sample output from the debug rudpv1 timer command:
Router# debug rudpv1 timerRudpv1:Turning timer debugging on*Jan 1 00:53:40.647:Starting Retrans timer for connP = 61F72B6C, delay = 300*Jan 1 00:53:40.647:Stopping SentList timer for connP = 61F72B6C*Jan 1 00:53:40.747:Starting NullSeg timer for connP = 61F72B6C, delay = 1000*Jan 1 00:53:40.747:Stopping Retrans timer for connP = 61F72B6C*Jan 1 00:53:40.747:Starting Retrans timer for connP = 61F72B6C, delay = 300*Jan 1 00:53:40.747:Stopping SentList timer for connP = 61F72B6C*Jan 1 00:53:40.847:Starting NullSeg timer for connP = 61F72B6C, delay = 1000*Jan 1 00:53:40.847:Stopping Retrans timer for connP = 61F72B6C*Jan 1 00:53:40.847:Starting Retrans timer for connP = 61F72B6C, delay = 300*Jan 1 00:53:40.847:Stopping SentList timer for connP = 61F72B6C*Jan 1 00:53:40.947:Starting NullSeg timer for connP = 61F72B6C, delay = 1000*Jan 1 00:53:40.947:Stopping Retrans timer for connP = 61F72B6C*Jan 1 00:53:40.947:Starting Retrans timer for connP = 61F72B6C, delay = 300*Jan 1 00:53:40.947:Stopping SentList timer for connP = 61F72B6C*Jan 1 00:53:41.047:Starting NullSeg timer for connP = 61F72B6C, delay = 1000*Jan 1 00:53:41.147:Starting NullSeg timer for connP = 61F72B6C, delay = 1000*Jan 1 00:53:41.151:Starting NullSeg timer for connP = 61F72B6C, delay = 1000*Jan 1 00:53:41.151:Starting NullSeg timer for connP = 61F72B6C, delay = 1000*Jan 1 00:53:41.151:Stopping Retrans timer for connP = 61F72B6C*Jan 1 00:53:41.151:Starting SentList timer for connP = 61F72B6C, delay = 300*Jan 1 00:53:41.419:Timer Keepalive (NullSeg) triggered for conn = 61F72DAC*Jan 1 00:53:41.419:Starting Retrans timer for connP = 61F72DAC, delay = 300*Jan 1 00:53:41.419:Stopping SentList timer for connP = 61F72DAC*Jan 1 00:53:41.419:Starting NullSeg timer for connP = 61F72DAC, delay = 1000*Jan 1 00:53:41.419:Stopping Retrans timer for connP = 61F72DAC*Jan 1 00:53:41.451:Timer SentList triggered for conn = 61F72B6C*Jan 1 00:53:41.451:Starting SentList timer for connP = 61F72B6C, delay = 300*Jan 1 00:53:41.451:Starting NullSeg timer for connP = 61F72B6C, delay = 1000*Jan 1 00:53:41.451:Stopping SentList timer for connP = 61F72B6C*Jan 1 00:53:41.551:Starting NullSeg timer for connP = 61F72B6C, delay = 1000*Jan 1 00:53:41.551:Starting NullSeg timer for connP = 61F72B6C, delay = 1000*Jan 1 00:53:41.551:Starting NullSeg timer for connP = 61F72B6C, delay = 1000*Jan 1 00:53:41.551:Starting NullSeg timer for connP = 61F72B6C, delay = 1000The following is sample output from the debug rudpv1 transfer command:
Router# debug rudpv1 transferRudpv1:Turning transfer debugging on*Jan 1 00:37:30.567:Rudpv1:Send TCS, connId 61F72B6C, old connId 61F72DAC*Jan 1 00:37:30.567:Rudpv1:Initiate transfer state, old conn 61F72DAC tonew conn 61F72B6C*Jan 1 00:37:30.567:Rudpv1:Old conn send window 51 .. 52*Jan 1 00:37:30.567:Rudpv1:New conn send window 255 .. 2*Jan 1 00:37:30.567:Rudpv1:Rcvd TCS 142, next seq 142*Jan 1 00:37:30.567:Rudpv1:Rcv'ing trans state, old conn 61F72DAC to newconn 61F72B6C*Jan 1 00:37:30.567:Rudpv1:Seq adjust factor 148*Jan 1 00:37:30.567:Rudpv1:New rcvCur 142*Jan 1 00:37:30.567:Rudpv1:Send transfer state, old conn 61F72DAC to newconn 61F72B6C*Jan 1 00:37:30.567:Rudpv1:Send TCS, connId 61F72B6C, old connId 61F72DAC,seq adjust 208, indication 0*Jan 1 00:37:30.567:Rudpv1:Transfer seg 51 to seg 3 on new conn*Jan 1 00:37:30.567:Rudpv1:Finishing transfer state, old conn 61F72DAC tonew conn 61F72B6C*Jan 1 00:37:30.567:Rudpv1:Send window 2 .. 4Related Commands
clear rudpv1 statistics
Clears RUDP statistics and failure counters.
show rudpv1
Displays RUDP failures, parameters, and statistics.
debug saa apm
Note
To enable debugging output for Cisco IOS IP Service Level Agreements (SLAs) Application Performance Monitor (APM) operations, use the debug saa apm command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug saa apm
no debug saa apm
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Command History
Examples
The following is sample output from the debug saa apm command:
Router# debug saa apmRouter# configure terminalRouter(config)# saa apm operation 123 start ftp://apm/config/iptv.cf21:40:27: SAA-APM-123: downloading file (apm/config/iptv.cf) of size (534)21:40:29: SAA-APM-123: downloading file (apm/scheduler/master.sch) of size (2500)21:40:30: SAA-APM-123: downloading file (apm/scripts/iptv.scr) of size (1647)21:40:32: SAA-APM-123: downloading file (apm/data/iptv.dat) of size (118)21:40:32: SAA-APM-123: sending APM_CAPABILITIES_REQUEST message21:40:32: sending control msg:21:40:32: Ver: 1 ID: 29 Len: 4821:40:32: SAA-APM-123: apm_engine version: major<1>, minor<0>21:40:32: SAA-APM-123: sending APM_SCRIPT_DNLD message21:40:32: sending control msg:21:40:32: Ver: 1 ID: 30 Len: 14821:40:37: SAA-APM-123: sending APM_SCRIPT_DNLD_STATUS message21:40:37: sending control msg:21:40:37: Ver: 1 ID: 31 Len: 14821:40:38: SAA-APM-123: starting the operation21:40:38: SAA-APM-123: sending APM_SCRIPT_START message21:40:38: sending control msg:21:40:38: Ver: 1 ID: 32 Len: 14821:40:41: SAA-APM: 0,2144,0...21:49:42: SAA-APM-123: waiting for ageout timer to expire21:55:13: SAA-APM-123: sending APM_SCRIPT_DONE message21:55:13: sending control msg:21:55:13: Ver: 1 ID: 42 Len: 14821:55:13: SAA-APM-123: operation doneRouter(config)# no saa apm21:55:13: SAA-APM-123: sending APM_SCRIPT_DONE message21:55:13: sending control msg:21:55:13: Ver: 1 ID: 42 Len: 14821:55:13: SAA-APM-123: operation donedebug saa slm
Note
To enable debugging output of detailed event messages for Cisco IOS IP Service Level Agreements (SLAs) Service Level Monitoring (SLM) Asynchronous Transfer Mode (ATM) operations, use the debug saa slm command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug saa slm
no debug saa slm
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
IP SLAs SLM ATM performance statistics cannot be retrieved from Cisco IOS devices using Simple Network Management Protocol (SNMP). The IP SLAs SLM ATM feature was designed to provide data by responding to extensible markup language (XML) requests.
Note
Examples
In the following example, debugging is enabled for the IP SLAs SLM ATM feature and the IP SLAs XML feature for the purposes of debugging the XML requests and responses:
debug saa slmdebug saa xmlRelated Commands
debug saa xml
Enables debugging output of XML requests and responses for IP SLAs operations.
debug saa xml
Note
To enable debugging output of eXtensible Markup Language (XML) requests and responses for Cisco IOS IP Service Level Agreements (SLAs) operations, use the debug saa xml command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug saa xml
no debug saa xml
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Command History
Examples
In the following example, debugging is enabled for the IP SLAs SLM ATM feature and the IP SLAs eXtensible Markup Language (XML) feature for the purposes of debugging the XML requests and responses:
debug saa slmdebug saa xmlRelated Commands
debug saa slm
Enables debugging output of detailed event messages for IP SLAs SLM ATM operations.
debug sampler
To enable debugging output for Flexible NetFlow samplers, use the debug sampler command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug sampler [[name] sampler-name [detailed] [error] | [name] sampler-name sampling samples]
no debug sampler [[name] sampler-name [detailed] [error] | [name] sampler-name sampling samples]
Syntax Description
Command Default
Debugging output for Flexible NetFlow samplers is disabled.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
You must have already enabled traffic monitoring with Flexible NetFlow using a sampler before you can use the debug sampler command.
Examples
The following output shows that the debug process obtained the ID for the sampler named SAMPLER-1:
Router# debug sampler detailed*Oct 28 04:14:30.883: Sampler: Sampler(SAMPLER-1: flow monitor NFC-DC-PHOENIX (ip,Et1/0,O) get ID succeeded:1*Oct 28 04:14:30.971: Sampler: Sampler(SAMPLER-1: flow monitor NFC-DC-PHOENIX (ip,Et0/0,I) get ID succeeded:1Related Commands
debug satellite
To enable debugging output for the Cisco IP VSAT satellite WAN network module (NM-1VSAT-GILAT), use the debug satellite command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug satellite {all | errors | events | hsrp | rbcp}
no debug satellite {all | errors | events | hsrp | rbcp}
Syntax Description
Defaults
No default behavior or values
Command Modes
Privileged EXEC
Command History
Usage Guidelines
The debug satellite errors command is useful for catching unusual conditions when troubleshooting unexpected behavior. Because this command typically generates very little output, you can enter the debug satellite errors command every time you troubleshoot satellite network connectivity.
Examples
This section provides the following examples:
•
•
•
•
Sample Output for the debug satellite rbcp Command
Every 2 minutes, the NM-1VSAT-GILAT network module sends the router an RBCP message requesting any updates to the routing table. The following example shows how to monitor the route-update messages:
Router# debug satellite rbcp...The NM-1VSAT-GILAT network module requests IP route information:
*May 16 09:18:54.475:Satellite1/0 RBCP Request msg Recd:IPROUTE_REQ(0x22)The Cisco IOS software acknowledges that it received the message from the NM-1VSAT-GILAT network module:
*May 16 09:18:54.475:Satellite1/0 RBCP Response msg Sent:IPROUTE_REQ(0x22)The Cisco IOS software sends the IP route information to the NM-1VSAT-GILAT network module:
*May 16 09:18:54.475:Satellite1/0 RBCP Request msg Sent:IPROUTE_UPD(0x23)The NM-1VSAT-GILAT network module acknowledges that it received the routing update from the Cisco IOS software:
*May 16 09:18:54.475:Satellite1/0 RBCP Response msg Recd:IPROUTE_UPD(0x23)Sample Output for the debug satellite events Command
The following example shows how to monitor the periodic heartbeats that the NM-1VSAT-GILAT network module sends to the Cisco IOS software:
Router# debug satellite eventssatellite major software events debugging is on.Dec 16 12:57:52.108:Satellite1/0 FSM transition LINK_UP-->LINK_UP, ev=got_heartbeat.Dec 16 12:58:08.888:Satellite1/0 FSM transition LINK_UP-->LINK_UP, ev=got_heartbeat.Dec 16 12:58:25.664:Satellite1/0 FSM transition LINK_UP-->LINK_UP, ev=got_heartbeat.Dec 16 12:58:42.440:Satellite1/0 FSM transition LINK_UP-->LINK_UP, ev=got_heartbeatSample Output for the debug satellite hsrp Command
The following example shows the debug satellite hsrp command messages that appear when the active router is forced to standby status because the HSRP-tracked satellite interface is shut down:
Router# configure terminalEnter configuration commands, one per line. End with CNTL/Z.Router(config)# interface satellite 1/0Router(config-if)# shutdownRouter(config-if)# endRouter#01:03:48:%SYS-5-CONFIG_I:Configured from console by console01:03:49:%LINK-5-CHANGED:Interface Satellite1/0, changed state to administratively down01:03:50:%LINEPROTO-5-UPDOWN:Line protocol on Interface Satellite1/0, changed state to down01:04:22:%HSRP-6-STATECHANGE:FastEthernet0/0 Grp 1 state Active -> Speak01:04:22:HSRP-sat:IPred group grp-x update state ACTIVE --> SPEAK01:04:22:Satellite1/0 HSRP-sat:fsm crank ACTIVE-->STANDBY01:04:22:Satellite1/0 HSRP-sat:send standby msg STANDBY01:04:32:HSRP-sat:IPred group grp-x update state SPEAK --> STANDBY01:04:32:Satellite1/0 HSRP-sat:fsm crank STANDBY-->STANDBY01:04:32:Satellite1/0 HSRP-sat:send standby msg STANDBY01:04:42:Satellite1/0 HSRP-sat:send standby msg STANDBY01:04:52:Satellite1/0 HSRP-sat:standby msg STANDBY deferred, not in operational state01:05:02:Satellite1/0 HSRP-sat:standby msg STANDBY deferred, not in operational state01:05:12:Satellite1/0 HSRP-sat:standby msg STANDBY deferred, not in operational state01:05:22:Satellite1/0 HSRP-sat:standby msg STANDBY deferred, not in operational state01:05:32:Satellite1/0 HSRP-sat:standby msg STANDBY not sent, already in state01:06:47:%VSAT-5-STANDBY_MODE:Satellite1/0 module configured for standby mode01:09:32:Satellite1/0 HSRP-sat:fsm crank STANDBY-->STANDBY-UPCombined Sample Output for the debug satellite hsrp and debug standby Commands
The following example shows HSRP-related debug output for both the router and the NM-1VSAT-GILAT network module when the router goes from standby to active state because the HSRP-tracked satellite interface is reenabled:
Router# show debuggingSATCOM:satellite HSRP events debugging is onHSRP:HSRP Errors debugging is onHSRP Events debugging is onHSRP Packets debugging is onThe satellite interface is reenabled:
Router# configure terminalRouter(config)# interface satellite 1/0Router(config-if)# no shutdownRouter(config-if)# endRouter#The effective HSRP priority of the router changes as the tracked satellite interface comes up:
02:14:37:HSRP:Fa0/0 Grp 1 Hello in 10.123.96.2 Active pri 90 vIP 10.123.96.10002:14:39:HSRP:Fa0/0 API 10.1.0.6 is not an HSRP address02:14:39:HSRP:Fa0/0 Grp 1 Hello out 10.123.96.3 Standby pri 90 vIP 10.123.96.10002:14:39:HSRP:Fa0/0 Grp 1 Track 1 object changed, state Down -> Up02:14:39:HSRP:Fa0/0 Grp 1 Priority 90 -> 100Router#The router changes from standby to active state because its priority is now highest in the hot standby group, and preemption is enabled:
02:14:40:HSRP:Fa0/0 Grp 1 Hello in 10.123.96.2 Active pri 90 vIP 10.123.96.10002:14:40:HSRP:Fa0/0 Grp 1 Standby:h/Hello rcvd from lower pri Active router (90/10.123.96.2)02:14:40:HSRP:Fa0/0 Grp 1 Active router is local, was 10.123.96.202:14:40:HSRP:Fa0/0 Grp 1 Standby router is unknown, was local02:14:40:HSRP:Fa0/0 Redirect adv out, Active, active 1 passive 302:14:40:HSRP:Fa0/0 Grp 1 Coup out 10.123.96.3 Standby pri 100 vIP 10.123.96.10002:14:40:HSRP:Fa0/0 Grp 1 Standby -> Active02:14:40:%HSRP-6-STATECHANGE:FastEthernet0/0 Grp 1 state Standby -> ActiveThe HSRP status of the satellite interface also changes from standby to active state because the service-module ip redundancy command was previously entered to link the HSRP status of the satellite interface to the primary HSRP interface, Fast Ethernet 0/0.
02:14:40:HSRP:Fa0/0 Grp 1 Redundancy "grp-x" state Standby -> Active02:14:40:HSRP-sat:IPred group grp-x update state STANDBY --> ACTIVE02:14:40:Satellite1/0 HSRP-sat:fsm crank STANDBY-UP-->ACTIVE-COND02:14:40:HSRP:Fa0/0 Redirect adv out, Active, active 1 passive 202:14:40:HSRP:Fa0/0 Grp 1 Hello out 10.123.96.3 Active pri 100 vIP 10.123.96.10002:14:40:HSRP:Fa0/0 REDIRECT adv in, Passive, active 0, passive 2, from 10.123.96.202:14:40:HSRP:Fa0/0 REDIRECT adv in, Passive, active 0, passive 1, from 10.123.96.1502:14:40:HSRP:Fa0/0 Grp 1 Hello in 10.123.96.2 Speak pri 90 vIP 10.123.96.100Line protocols come up, and HSRP states become fully active:
02:14:41:%LINK-3-UPDOWN:Interface Satellite1/0, changed state to up02:14:42:%LINEPROTO-5-UPDOWN:Line protocol on Interface Satellite1/0, changed state to up02:14:43:HSRP:Fa0/0 Grp 1 Hello out 10.123.96.3 Active pri 100 vIP 10.123.96.10002:14:43:HSRP:Fa0/0 Grp 1 Redundancy group grp-x state Active -> Active02:14:43:HSRP-sat:IPred group grp-x update state ACTIVE --> ACTIVE02:14:43:Satellite1/0 HSRP-sat:fsm crank ACTIVE-COND-->ACTIVE-COND02:14:43:HSRP:Fa0/0 Grp 1 Hello in 10.123.96.2 Speak pri 90 vIP 10.123.96.10002:14:46:HSRP:Fa0/0 Grp 1 Hello out 10.123.96.3 Active pri 100 vIP 10.123.96.10002:14:46:HSRP:Fa0/0 Grp 1 Redundancy group grp-x state Active -> Active02:14:46:HSRP-sat:IPred group grp-x update state ACTIVE --> ACTIVE02:14:46:Satellite1/0 HSRP-sat:fsm crank ACTIVE-COND-->ACTIVE-COND02:14:46:HSRP:Fa0/0 Grp 1 Hello in 10.123.96.2 Speak pri 90 vIP 10.123.96.10002:14:49:HSRP:Fa0/0 Grp 1 Hello out 10.123.96.3 Active pri 100 vIP 10.123.96.10002:14:49:HSRP:Fa0/0 Grp 1 Hello in 10.123.96.2 Speak pri 90 vIP 10.123.96.10002:14:50:HSRP:Fa0/0 Grp 1 Hello in 10.123.96.2 Standby pri 90 vIP 10.123.96.10002:14:50:HSRP:Fa0/0 Grp 1 Standby router is 10.123.96.202:14:51:Satellite1/0 HSRP-sat:send standby msg ACTIVE02:14:52:HSRP:Fa0/0 Grp 1 Hello out 10.123.96.3 Active pri 100 vIP 10.123.96.10002:14:53:HSRP:Fa0/0 Grp 1 Hello in 10.123.96.2 Standby pri 90 vIP 10.123.96.10002:14:55:HSRP:Fa0/0 Grp 1 Hello out 10.123.96.3 Active pri 100 vIP 10.123.96.100Related Commands
debug satellite firmware
To enable debugging output for the Cisco IP VSAT satellite WAN network module (NM-1VSAT-GILAT) firmware, use the debug satellite firmware command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug satellite firmware {all | level number | option}
no debug satellite firmware
Syntax Description
all
Displays all satellite firmware events.
level number
Satellite debug level. The debug level affects what information is displayed for subsequently entered debug satellite firmware commands. See Table 303.
option
One of the following options. See Table 303.
•
•
•
•
•
•
•
•
•
Defaults
No default behavior or values.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
The output from this command is generally useful for diagnostic tasks performed by technical support.
The level number affects which debug messages the system displays for subsequently entered debug satellite firmware commands. Table 303 describes what each command option displays at each debug level.
Note
Examples
This section provides the following sample output for the debug satellite firmware command:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Sample Output for the debug satellite firmware all Command
The following example shows all satellite firmware events and statistics:
Router# debug satellite firmware all2d06h: Satellite2/0buffers 4856 min 4486 list_str 683798 list_end 6885c8emp 686030 fil 685de0 start 6885c8 end fb4fe82d06h: Satellite2/0TCP stats: NetRXBytes=223 NetTXBytes=4775126 NetRxPkts=104213 ToIOSPkts=1041662d06h: Satellite2/0SAT stats: OUTbound_pkts=114131, INbound_pkts=1823472d06h: Satellite2/0RBCP statistics: TXcount=975 RXCount=9752d06h: Satellite2/0RPA stats: ToTunnel=0 FromTunnel=0TunnelGets=0 TunnelNotGets=0BlksUsed=0 BlksIn-Use=0 Max=3002d06h: Satellite2/0EN:RX encrypted bytes received = 0RX: compressed=0 -> Uncompressed=0TX: compressed=0 -> Uncompressed=02d06h: Satellite2/0BB 6 LINK state=INFO_STATEStatus = 0x79, LOW NOT READY, HI PRI READYRSP Q free=230, Max HI=228, Max LOW=224, Max DG=232IN RA modeCurr DG BW=50000, HighDG BW=100000, Curr BW=98094MaxDG BW=1250000, Max BW=2500000PD Queue lengths:q_wtog=0, q_wtos=57, q_wtos_high=0, q_defrag=dDG Queue lengths:q_dg_wtos=0, q_dg_wtos_hi=0, q_dg_defrag=0Congestion Levels: TX LOCAL = 7, TX NET = 02d06h: Satellite2/0IP stats: ToIOS_Pkts=234193, ToIOS_Bytes=183444492 FromIOS_Pkts=143 From_IOS_Bytes=122042d06h: Satellite2/0 NO Trace at levels 1 or 22d06h: Satellite2/0 NO Trace at levels 1 or 2Sample Output for the bb Option at Level 1
The following example shows backbone link information:
Router# debug satellite firmware level 1Router# debug satellite firmware bbsatellite BackBone events debugging is onRouter#2d06h: Satellite2/0BB 6 LINK state=INFO_STATEStatus = 0x79, LOW NOT READY, HI PRI READYRSP Q free=240, Max HI=228, Max LOW=224, Max DG=232IN RA modeCurr DG BW=50000, HighDG BW=100000, Curr BW=96188MaxDG BW=1250000, Max BW=2500000PD Queue lengths:q_wtog=0, q_wtos=95, q_wtos_high=0, q_defrag=dDG Queue lengths:q_dg_wtos=0, q_dg_wtos_hi=0, q_dg_defrag=0Congestion Levels: TX LOCAL = 7, TX NET = 02d06h: Satellite2/0BB 6 LINK state=INFO_STATEStatus = 0x7b, LOW READY, HI PRI READYRSP Q free=27, Max HI=228, Max LOW=224, Max DG=232IN RA modeCurr DG BW=50000, HighDG BW=100000, Curr BW=92376MaxDG BW=1250000, Max BW=2500000PD Queue lengths:q_wtog=0, q_wtos=24, q_wtos_high=0, q_defrag=dDG Queue lengths:q_dg_wtos=0, q_dg_wtos_hi=0, q_dg_defrag=0Congestion Levels: TX LOCAL = 4, TX NET = 0Sample Output for the bb Option at Level 2
The following example shows frame statistics for the backbone link to the hub:
Router# debug satellite firmware level 2Router# debug satellite firmware bbsatellite BackBone events debugging is onRouter#2d06h: Satellite2/0 BB link statisticsFrame Type # Received # Transmitted------------ ---------- -------------INFORMATION 00096238 00184811UNNUMBERED 00000000 00000067RETRANSMITTED 00000000 00000000POLLS 00000000 00000000ACKS 00006640 00000455NAKS 00000000 00000000PACKS 00000000 00000000UA 00000001 00000000SABME 00000000 00000001DISC 00000000 00000000Sample Output for the buf Option at Level 1
The following example shows buffer information:
Router# debug satellite firmware level 1Router# debug satellite firmware buf*May 13 15:58:54.498:Satellite1/0buffers 4951 min 4945 list_str 681858 list_end 686688emp 683abc fil 6839e8 start 686688 end fb30a8Sample Output for the buf Option at Level 2
The following example shows buffer owners:
Router# debug satellite firmware level 2Router# debug satellite firmware buf*May 13 15:59:13.438:Satellite1/0 inuse 49 free 4951Trace byte 1Trace byte = 0x169 Count = 49Trace byte 2Trace byte = 0x 0 Count = 490 buffers with BB Rel only0 buffers with in lower layer set0 buffers with do not transmit set0 buffers on BB retransmit queuesSample Output for the ip Option at Level 1
The following example shows IP statistics:
Router# debug satellite firmware level 1Router# debug satellite firmware ip*Nov 7 08:27:56.440: Satellite3/0IP stats: ToIOS_Pkts=0, ToIOS_Bytes=0 FromIOS_Pkts=84751 From_IOS_Bytes=5941124Sample Output for the rbcp Option at Level 1
The following example shows the number of RBCP messages transmitted and received since the most recent reset of the Cisco IOS software on the router or the VSAT software on the NM-1VSAT-GILAT network module:
Router# debug satellite firmware level 1Router# debug satellite firmware rbcpRBCP statistics:TXcount=301154 RXCount=301155Sample Output for the rpa Option at Level 1
The following example shows RPA statistics:
Router# debug satellite firmware level 1Router# debug satellite firmware rpa*Nov 7 08:27:13.488:Satellite3/0RPA stats:ToTunnel=0 FromTunnel=0TunnelGets=0 TunnelNotGets=0BlksUsed=0 BlksIn-Use=0 Max=400Sample Output for the rpa Option at Level 2
The following example shows a tunnel being disconnected:
Router# debug satellite firmware level 2Router# debug satellite firmware rpa*May 13 18:27:59.779:Satellite1/0 RPA Tunnel DOWNRPA:InitTunnelConn Successful locIP e000006 locPort 1090, RemIP c0a80186,RemPort 9876RPA Tunnel DOWNRPA:InitTunnelConn Successful locIP e000006 locPort 1091, RemIP c0a80186,RemPort 9876RPA Tunnel DOWNRPA:InitTunnelConn Successful locIP e000006 locPort 1092, RemIP c0a80186,RemPort 9876RPA Tunnel DOWNRPA:InitTunnelConn Successful locIP e000006 locPort 1093, RemIP c0a80186,RemPort 9876RPA Tunnel DOWNRPA:InitTunnelConn Successful locIP e000006 locPort 1094, RemIP c0a80186,RemPort 9876Sample Output for the sat Option at All Levels
The following example shows inbound and outbound packet statistics. Note that for all levels, the debug output is the same for the sat option.
Router# debug satellite firmware level 1Router# debug satellite firmware satsatellite related trace events debugging is onRouter#1d16h: Satellite2/0SAT stats: OUTbound_pkts=25660796, INbound_pkts=32359321d16h: Satellite2/0SAT stats: OUTbound_pkts=25660800, INbound_pkts=32359341d16h: Satellite2/0SAT stats: OUTbound_pkts=25660803, INbound_pkts=32359341d16h: Satellite2/0SAT stats: OUTbound_pkts=25660803, INbound_pkts=3235934Sample Output for the tcp Option at Level 1
The following example shows TCP statistics:
Router# debug satellite firmware level 1Router# debug satellite firmware tcpsatellite tcp events debugging is onRouter#2d06h: Satellite2/0TCP stats: NetRXBytes=631292 NetTXBytes=4009436 NetRxPkts=49244 ToIOSPkts=492462d06h: Satellite2/0TCP stats: NetRXBytes=1154356 NetTXBytes=4086106 NetRxPkts=49621 ToIOSPkts=49629Sample Output for the tcp Option at Level 2
The following example shows the TCP connections:
Router# debug satellite firmware level 2Router# debug satellite firmware tcpsatellite tcp events debugging is onRouter#2d06h: Satellite2/0 TCP connections:ID=48, locIP=192.168.107.2 remIP=172.25.1.2, locP=2962, remP=21 state=17 iosQ=0ID=49, locIP=192.168.107.2 remIP=172.25.1.2, locP=2963, remP=20 state=17 iosQ=0ID=58, locIP=192.168.107.2 remIP=172.25.1.28, locP=2972, remP=21 state=17 iosQ=0ID=59, locIP=192.168.107.2 remIP=172.25.1.28, locP=2973, remP=20 state=17 iosQ=72d06h: Satellite2/0 TCP connections:ID=48, locIP=192.168.107.2 remIP=172.25.1.2, locP=2962, remP=21 state=17 iosQ=0ID=49, locIP=192.168.107.2 remIP=172.25.1.2, locP=2963, remP=20 state=7 iosQ=0ID=60, locIP=192.168.107.2 remIP=172.25.1.28, locP=2974, remP=21 state=3 iosQ=0Sample Output for the tcp Option at Level 3
The following example shows TCP statistics and connections:
Router# debug satellite firmware level 3Output may be extensive and affect performance. Continue? [yes]: yesRouter# debug satellite firmware tcpsatellite tcp events debugging is onRouter#2d06h: Satellite2/0TCP stats: NetRXBytes=279 NetTXBytes=9436111 NetRxPkts=64991 ToIOSPkts=649992d06h: Satellite2/0 TCP connections:ID=48, locIP=192.168.107.2 remIP=172.25.1.2, locP=2962, remP=21 state=7 iosQ=0ID=49, locIP=192.168.107.2 remIP=172.25.1.2, locP=2963, remP=20 state=7 iosQ=0ID=62, locIP=192.168.107.2 remIP=172.25.1.28, locP=2976, remP=21 state=7 iosQ=02d06h: Satellite2/0TCP stats: NetRXBytes=382 NetTXBytes=9582924 NetRxPkts=64993 ToIOSPkts=650012d06h: Satellite2/0 TCP connections:ID=48, locIP=192.168.107.2 remIP=172.25.1.2, locP=2962, remP=21 state=17 iosQ=0ID=49, locIP=192.168.107.2 remIP=172.25.1.2, locP=2963, remP=20 state=17 iosQ=0ID=62, locIP=192.168.107.2 remIP=172.25.1.28, locP=2976, remP=21 state=7 iosQ=0Sample Output for the trc Option at Level 3
The following example shows detailed receive and transmit traces for the backbone link:
Router# debug satellite firmware level 3Output may be extensive and affect performance. Continue? [yes]: yesRouter# debug satellite firmware trcsatellite BackBone trace debugging is onRouter#2d06h: Satellite2/0 strrec 0, rec 0, count 256, trc 1a6dd78, str 1a5c600, end 1a74600count 4096, emp 1a6dd78, fil 1a6d8b0, lnknum=60 xmt 6 len 951 9 pd con 0 PF 3 ns 169 nr 15 a c12 0 0.0001 xmt 6 len 951 9 pd con 0 PF 3 ns 170 nr 15 a c12 0 0.0102 xmt 6 len 951 9 pd con 0 PF 3 ns 171 nr 15 a c12 0 0.0103 xmt 6 len 951 9 pd con 0 PF 3 ns 172 nr 15 a c12 0 0.0104 xmt 6 len 951 9 pd con 0 PF 3 ns 173 nr 15 a c12 0 0.0305 xmt 6 len2d06h: Satellite2/0 9512d06h: Satellite2/0 9 pd con 0 PF 3 ns 174 nr 15 a c12 0 0.0106 xmt 6 len 951 9 pd con 0 PF 3 ns 175 nr 15 a c12 0 0.0107 xmt 6 len 951 9 pd con 0 PF 3 ns 176 nr 15 a c12 0 0.0108 xmt 6 len 951 9 pd con 0 PF 3 ns 177 nr 15 a c12 0 0.0109 xmt 6 len 951 9 pd con 0 PF 3 ns 178 nr 15 a c12 0 0.01010 xmt 6 len 951 9 pd con 0 PF 3 ns 179 nr 15 a c12 0 0.01011 xmt 6 len 951 9 pd con 0 PF 3 ns 180 nr 15 a c12 0 0.010Related Commands
debug satellite
Enables debugging output for the Cisco IP VSAT satellite WAN network module (NM-1VSAT-GILAT).
debug sccp
To display debugging information for Simple Client Control Protocol (SCCP) and its related applications (transcoding and conferencing), use the debug sccp command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug sccp {all | errors | events | packets | parser}
no debug sccp
Syntax Description
all
All SCCP debug-trace information.
errors
SCCP errors.
events
SCCP events.
packets
SCCP packets.
parser
SCCP parser and builder.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
The router on which this command is used must be equipped with one or more digital T1/E1 packet voice trunk network modules (NM-HDVs) or high-density voice (HDV) transcoding and conferencing digital signal processor (DSP) farms (NM-HDV-FARMs) to provide DSP resources.
Debugging is turned on for all DSP farm service sessions. You can debug multiple sessions simultaneously, with different levels of debugging for each.
Examples
The following is sample output from the debug sccp events command:
Router# debug sccp eventsSkinny Client Control Protocol events debugging is on*Mar 1 00:46:29: sccp_create_application: send keepalive msg, appl 6248F760, appl_type 1, count 0*Mar 1 00:46:29: sccp_keepalive: send keepalive id 0, len 4*Mar 1 00:46:29: sccp_process_mtp_pdu: appl - 6248F760, mbuf - 6248F7D4*Mar 1 00:46:29: sccp_process_mtp_pdu: msg_ptr 6248F7DC, len 4, offset 12, msg_id 256*Mar 1 00:46:30: sccp_create_application: send keepalive msg, appl 6248FC10, appl_type 2, count 0*Mar 1 00:46:30: sccp_keepalive: send keepalive id 0, len 4*Mar 1 00:46:30: sccp_process_mtp_pdu: appl - 6248FC10, mbuf - 6248FC84*Mar 1 00:46:30: sccp_process_mtp_pdu: msg_ptr 6248FC8C, len 4, offset 12, msg_id 256*Mar 1 00:46:37: sccp_create_application: send keepalive msg, appl 6248F760, appl_type 1, count 0*Mar 1 00:46:37: sccp_keepalive: send keepalive id 0, len 4*Mar 1 00:46:37: sccp_process_mtp_pdu: appl - 6248F760, mbuf - 6248F7D4*Mar 1 00:46:37: sccp_process_mtp_pdu: msg_ptr 6248F7DC, len 4, offset 12, msg_id 256*Mar 1 00:46:37: sccp_create_application: send keepalive msg, appl 6248FC10, appl_type 2, count 0*Mar 1 00:46:37: sccp_keepalive: send keepalive id 0, len 4*Mar 1 00:46:38: sccp_process_mtp_pdu: appl - 6248FC10, mbuf - 6248FC84*Mar 1 00:46:38: sccp_process_mtp_pdu: msg_ptr 6248FC8C, len 4, offset 12, msg_id 256*Mar 1 00:46:43: sccp_process_mtp_pdu: appl - 6248FC10, mbuf - 6248FC84*Mar 1 00:46:43: sccp_process_mtp_pdu: msg_ptr 6248FC8C, len 28, offset 36, msg_id 261*Mar 1 00:46:43: xapp_open_receive_chnl: SCCP orc_msg - 6248FC8C, appl - 6248FC10*Mar 1 00:46:43: xapp_search_for_chnl_rec: sess_id 27, conn_id 2769*Mar 1 00:46:43: xapp_add_chnl_rec: chnl 631142BC*Mar 1 00:46:43: xapp_add_sess_rec: Add sess_rec (63114360) record*Mar 1 00:46:43: xapp_open_receive_chnl: stat 0, eve 0, sid 27, cid 2769, codec 1, pkt-period 20*Mar 1 00:46:43: xapp_open_chnl_request: chnl_rec 631142BC*Mar 1 00:46:43: xapp_open_chnl_request: chnl_rec 631142BC, sess_id 27, conn_id 2769, cstate 0, nstate 1*Mar 1 00:46:43: xapp_dequeue_and_process_dspf_events: chnl_rec 631142BC, state 1, eve_id 1*Mar 1 00:46:43: xapp_open_chnl_success: chnl_rec 631142BC*Mar 1 00:46:43: xapp_open_chnl_success: chnl_rec 631142BC, sess_id 27, conn_id 2769, cstate 1, nstate 2, lc_ipaddr 10.10.1.1, lport 21066*Mar 1 00:46:43: sccp_process_mtp_pdu: appl - 6248FC10, mbuf - 6248FC84*Mar 1 00:46:43: sccp_process_mtp_pdu: msg_ptr 6248FC8C, len 28, offset 36, msg_id 261*Mar 1 00:46:43: xapp_open_receive_chnl: SCCP orc_msg - 6248FC8C, appl - 6248FC10*Mar 1 00:46:43: xapp_search_for_chnl_rec: sess_id 27, conn_id 2785*Mar 1 00:46:43: xapp_add_chnl_rec: chnl 631142E4*Mar 1 00:46:43: xapp_open_receive_chnl: stat 0, eve 0, sid 27, cid 2785, codec 1, pkt-period 20*Mar 1 00:46:43: xapp_open_chnl_request: chnl_rec 631142E4*Mar 1 00:46:43: xapp_open_chnl_request: chnl_rec 631142E4, sess_id 27, conn_id 2785, cstate 0, nstate 1*Mar 1 00:46:43: xapp_dequeue_and_process_dspf_events: chnl_rec 631142E4, state 1, eve_id 1*Mar 1 00:46:43: xapp_open_chnl_success: chnl_rec 631142E4*Mar 1 00:46:43: xapp_open_chnl_success: chnl_rec 631142E4, sess_id 27, conn_id 2785, cstate 1, nstate 2, lc_ipaddr 10.10.1.1, lport 25706*Mar 1 00:46:43: sccp_process_mtp_pdu: appl - 6248FC10, mbuf - 6248FC84*Mar 1 00:46:43: sccp_process_mtp_pdu: msg_ptr 6248FC8C, len 44, offset 52, msg_id 138*Mar 1 00:46:43: xapp_start_media_transmission: SCCP stmt_msg - 6248FC8C, appl - 6248FC10*Mar 1 00:46:43: xapp_search_for_chnl_rec: sess_id 27, conn_id 2769*Mar 1 00:46:43: xapp_start_media_transmission: chnl_rec 631142BC, stat 2, sid 27, cid 2769, ripaddr 10.10.1.5, rport 32148, codec 1, pkt-period 20, pre 11, silen 16777500, mfpp 1*Mar 1 00:46:43: xapp_modify_chnl_request: chnl_rec 631142BC*Mar 1 00:46:43: xapp_modify_chnl_request: chnl_rec 631142BC, sess_id 27, conn_id 2769, cstate 2, nstate 2*Mar 1 00:46:43: xapp_dequeue_and_process_dspf_events: chnl_rec 631142BC, state 2, eve_id 4*Mar 1 00:46:43: xapp_modify_chnl_success: chnl_rec 631142BC, sess_id 27, conn_id 2769, cstate 2*Mar 1 00:46:43: sccp_process_mtp_pdu: appl - 6248FC10, mbuf - 6248FC84*Mar 1 00:46:43: sccp_process_mtp_pdu: msg_ptr 6248FC8C, len 44, offset 52, msg_id 138*Mar 1 00:46:43: xapp_start_media_transmission: SCCP stmt_msg - 6248FC8C, appl - 6248FC10*Mar 1 00:46:43: xapp_search_for_chnl_rec: sess_id 27, conn_id 2785*Mar 1 00:46:43: xapp_start_media_transmission: chnl_rec 631142E4, stat 2, sid 27, cid 2785, ripaddr 10.10.1.7, rport 16422, codec 1, pkt-period 20, pre 11, silen 16777501, mfpp 1*Mar 1 00:46:43: xapp_modify_chnl_request: chnl_rec 631142E4*Mar 1 00:46:43: xapp_modify_chnl_request: chnl_rec 631142E4, sess_id 27, conn_id 2785, cstate 2, nstate 2*Mar 1 00:46:43: xapp_dequeue_and_process_dspf_events: chnl_rec 631142E4, state 2, eve_id 4*Mar 1 00:46:43: xapp_modify_chnl_success: chnl_rec 631142E4, sess_id 27, conn_id 2785, cstate 2*Mar 1 00:46:44: sccp_create_application: send keepalive msg, appl 6248F760, appl_type 1, count 0*Mar 1 00:46:44: sccp_keepalive: send keepalive id 0, len 4*Mar 1 00:46:45: sccp_process_mtp_pdu: appl - 6248F760, mbuf - 6248F7D4*Mar 1 00:46:45: sccp_process_mtp_pdu: msg_ptr 6248F7DC, len 4, offset 12, msg_id 256*Mar 1 00:46:45: sccp_create_application: send keepalive msg, appl 6248FC10, appl_type 2, count 0*Mar 1 00:46:45: sccp_keepalive: send keepalive id 0, len 4*Mar 1 00:46:46: sccp_process_mtp_pdu: appl - 6248FC10, mbuf - 6248FC84*Mar 1 00:46:46: sccp_process_mtp_pdu: msg_ptr 6248FC8C, len 4, offset 12, msg_id 256*Mar 1 00:46:47: sccp_process_mtp_pdu: appl - 6248FC10, mbuf - 6248FC84*Mar 1 00:46:47: sccp_process_mtp_pdu: msg_ptr 6248FC8C, len 28, offset 36, msg_id 261*Mar 1 00:46:47: xapp_open_receive_chnl: SCCP orc_msg - 6248FC8C, appl - 6248FC10*Mar 1 00:46:47: xapp_search_for_chnl_rec: sess_id 27, conn_id 2817*Mar 1 00:46:47: xapp_add_chnl_rec: chnl 6311430C*Mar 1 00:46:47: xapp_open_receive_chnl: stat 0, eve 0, sid 27, cid 2817, codec 1, pkt-period 20*Mar 1 00:46:47: xapp_open_chnl_request: chnl_rec 6311430C*Mar 1 00:46:47: xapp_open_chnl_request: chnl_rec 6311430C, sess_id 27, conn_id 2817, cstate 0, nstate 1*Mar 1 00:46:47: xapp_dequeue_and_process_dspf_events: chnl_rec 6311430C, state 1, eve_id 1*Mar 1 00:46:47: xapp_open_chnl_success: chnl_rec 6311430C*Mar 1 00:46:47: xapp_open_chnl_success: chnl_rec 6311430C, sess_id 27, conn_id 2817, cstate 1, nstate 2, lc_ipaddr 10.10.1.1, lport 16730*Mar 1 00:46:47: sccp_process_mtp_pdu: appl - 6248FC10, mbuf - 6248FC84*Mar 1 00:46:47: sccp_process_mtp_pdu: msg_ptr 6248FC8C, len 44, offset 52, msg_id 138*Mar 1 00:46:47: xapp_start_media_transmission: SCCP stmt_msg - 6248FC8C, appl - 6248FC10*Mar 1 00:46:47: xapp_search_for_chnl_rec: sess_id 27, conn_id 2817*Mar 1 00:46:47: xapp_start_media_transmission: chnl_rec 6311430C, stat 2, sid 27, cid 2817, ripaddr 10.10.1.6, rport 18160, codec 1, pkt-period 20, pre 11, silen 16777502, mfpp 1*Mar 1 00:46:47: xapp_modify_chnl_request: chnl_rec 6311430C*Mar 1 00:46:47: xapp_modify_chnl_request: chnl_rec 6311430C, sess_id 27, conn_id 2817, cstate 2, nstate 2*Mar 1 00:46:47: xapp_dequeue_and_process_dspf_events: chnl_rec 6311430C, state 2, eve_id 4*Mar 1 00:46:47: xapp_modify_chnl_success: chnl_rec 6311430C, sess_id 27, conn_id 2817, cstate 2*Mar 1 00:46:52: sccp_create_application: send keepalive msg, appl 6248F760, appl_type 1, count 0*Mar 1 00:46:52: sccp_keepalive: send keepalive id 0, len 4*Mar 1 00:46:52: sccp_process_mtp_pdu: appl - 6248F760, mbuf - 6248F7D4*Mar 1 00:46:52: sccp_process_mtp_pdu: msg_ptr 6248F7DC, len 4, offset 12, msg_id 256*Mar 1 00:46:53: sccp_create_application: send keepalive msg, appl 6248FC10, appl_type 2, count 0*Mar 1 00:46:53: sccp_keepalive: send keepalive id 0, len 4*Mar 1 00:46:54: sccp_process_mtp_pdu: appl - 6248FC10, mbuf - 6248FC84*Mar 1 00:46:54: sccp_process_mtp_pdu: msg_ptr 6248FC8C, len 4, offset 12, msg_id 256*Mar 1 00:46:59: sccp_create_application: send keepalive msg, appl 6248F760, appl_type 1, count 0*Mar 1 00:46:59: sccp_keepalive: send keepalive id 0, len 4*Mar 1 00:47:00: sccp_process_mtp_pdu: appl - 6248F760, mbuf - 6248F7D4*Mar 1 00:47:00: sccp_process_mtp_pdu: msg_ptr 6248F7DC, len 4, offset 12, msg_id 256*Mar 1 00:47:01: sccp_create_application: send keepalive msg, appl 6248FC10, appl_type 2, count 0*Mar 1 00:47:01: sccp_keepalive: send keepalive id 0, len 4*Mar 1 00:47:01: sccp_process_mtp_pdu: appl - 6248FC10, mbuf - 6248FC84*Mar 1 00:47:01: sccp_process_mtp_pdu: msg_ptr 6248FC8C, len 4, offset 12, msg_id 256*Mar 1 00:47:07: sccp_create_application: send keepalive msg, appl 6248F760, appl_type 1, count 0*Mar 1 00:47:07: sccp_keepalive: send keepalive id 0, len 4*Mar 1 00:47:07: sccp_process_mtp_pdu: appl - 6248F760, mbuf - 6248F7D4*Mar 1 00:47:07: sccp_process_mtp_pdu: msg_ptr 6248F7DC, len 4, offset 12, msg_id 256*Mar 1 00:47:08: sccp_create_application: send keepalive msg, appl 6248FC10, appl_type 2, count 0*Mar 1 00:47:08: sccp_keepalive: send keepalive id 0, len 4*Mar 1 00:47:09: sccp_process_mtp_pdu: appl - 6248FC10, mbuf - 6248FC84*Mar 1 00:47:09: sccp_process_mtp_pdu: msg_ptr 6248FC8C, len 4, offset 12, msg_id 256*Mar 1 00:47:14: sccp_create_application: send keepalive msg, appl 6248F760, appl_type 1, count 0*Mar 1 00:47:14: sccp_keepalive: send keepalive id 0, len 4*Mar 1 00:47:15: sccp_process_mtp_pdu: appl - 6248F760, mbuf - 6248F7D4*Mar 1 00:47:15: sccp_process_mtp_pdu: msg_ptr 6248F7DC, len 4, offset 12, msg_id 256*Mar 1 00:47:16: sccp_create_application: send keepalive msg, appl 6248FC10, appl_type 2, count 0*Mar 1 00:47:16: sccp_keepalive: send keepalive id 0, len 4*Mar 1 00:47:16: sccp_process_mtp_pdu: appl - 6248FC10, mbuf - 6248FC84*Mar 1 00:47:16: sccp_process_mtp_pdu: msg_ptr 6248FC8C, len 4, offset 12, msg_id 256*Mar 1 00:47:22: sccp_create_application: send keepalive msg, appl 6248F760, appl_type 1, count 0*Mar 1 00:47:22: sccp_keepalive: send keepalive id 0, len 4*Mar 1 00:47:22: sccp_process_mtp_pdu: appl - 6248F760, mbuf - 6248F7D4*Mar 1 00:47:22: sccp_process_mtp_pdu: msg_ptr 6248F7DC, len 4, offset 12, msg_id 256*Mar 1 00:47:23: sccp_create_application: send keepalive msg, appl 6248FC10, appl_type 2, count 0*Mar 1 00:47:23: sccp_keepalive: send keepalive id 0, len 4*Mar 1 00:47:24: sccp_process_mtp_pdu: appl - 6248FC10, mbuf - 6248FC84*Mar 1 00:47:24: sccp_process_mtp_pdu: msg_ptr 6248FC8C, len 4, offset 12, msg_id 256*Mar 1 00:47:29: sccp_create_application: send keepalive msg, appl 6248F760, appl_type 1, count 0*Mar 1 00:47:29: sccp_keepalive: send keepalive id 0, len 4*Mar 1 00:47:30: sccp_process_mtp_pdu: appl - 6248F760, mbuf - 6248F7D4*Mar 1 00:47:30: sccp_process_mtp_pdu: msg_ptr 6248F7DC, len 4, offset 12, msg_id 256*Mar 1 00:47:31: sccp_create_application: send keepalive msg, appl 6248FC10, appl_type 2, count 0*Mar 1 00:47:31: sccp_keepalive: send keepalive id 0, len 4*Mar 1 00:47:31: sccp_process_mtp_pdu: appl - 6248FC10, mbuf - 6248FC84*Mar 1 00:47:31: sccp_process_mtp_pdu: msg_ptr 6248FC8C, len 4, offset 12, msg_id 256Related Commands
debug sccp config
To enable Skinny Client Control Protocol (SCCP) event debugging, use the debug sccp config command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug sccp config {all | errors | events | parser}
no debug sccp config {all | errors | events | parser}
Syntax Description
all
Displays all SCCP auto-config debug trace.
errors
Displays SCCP auto-config errors.
events
Displays SCCP auto-config events.
parser
Displays SCCP auto-config parser.
Command Default
Disabled
Command Modes
Privileged EXEC
Command History
Examples
The following example shows the debug sccp config command used to enable SCCP event debugging and to display SCCP auto-configuration events:
Router# debug sccp config events...Feb 8 02:17:31.119: mp_auto_cfg_request(req_id=2, prof=995, ccm_group_id=0)Feb 8 02:17:31.123: mp_auto_cfg_is_up: SCCP auto-config is enabled & registered...Table 304 describes the significant fields shown in the display.
Related Commands
debug sccp keepalive
To display granular debugging information by Cisco Call Manager (CCM) group for Simple Client Control Protocol (SCCP) and its related applications (transcoding and conferencing), use the debug sccp keepalive command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug sccp keepalive [identifier]
no debug sccp keepalive
Syntax Description
identifier
Requests that only keepalive traffic from a specific CCM be reported, for more granular debugging.
Command Modes
Privileged EXEC (#)
Command History
Examples
The following example shows output from the debug sccp keepalive command:
Router# debug sccp keepaliveSkinny Client Control Protocol keepalive messages debugging is onMay 18 13:53:39.242 EDT: SCCP:send KeepAliveMessage to ccm identifier 1May 18 13:53:39.242 EDT: SCCP:rcvd KeepAliveAckMessage from ccm identifier 1May 18 13:53:39.570 EDT: SCCP:send KeepAliveMessage to ccm identifier 2May 18 13:53:39.570 EDT: SCCP:rcvd KeepAliveAckMessage from ccm identifier 2May 18 13:54:09.243 EDT: SCCP:send KeepAliveMessage to ccm identifier 1May 18 13:54:09.243 EDT: SCCP:rcvd KeepAliveAckMessage from ccm identifier 1May 18 13:54:09.571 EDT: SCCP:send KeepAliveMessage to ccm identifier 2May 18 13:54:09.571 EDT: SCCP:rcvd KeepAliveAckMessage from ccm identifier 2May 18 13:54:39.243 EDT: SCCP:send KeepAliveMessage to ccm identifier 1May 18 13:54:39.243 EDT: SCCP:rcvd KeepAliveAckMessage from ccm identifier 1May 18 13:54:39.571 EDT: SCCP:send KeepAliveMessage to ccm identifier 2May 18 13:54:39.571 EDT: SCCP:rcvd KeepAliveAckMessage from ccm identifier 2Related Commands
debug sdlc
To display information on Synchronous Data Link Control (SDLC) frames received and sent by any router serial interface involved in supporting SDLC end station functions, use the debug sdlc command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug sdlc
no debug sdlc
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
Note
Examples
The following is sample output from the debug sdlc command:
Router# debug sdlcSDLC: Sending RR at location 4Serial3: SDLC O (12495952) C2 CONNECT (2) RR P/F 6Serial3: SDLC I (12495964) [C2] CONNECT (2) RR P/F 0 (R) [VR: 6 VS: 0]Serial3: SDLC T [C2] 12496064 CONNECT 12496064 0SDLC: Sending RR at location 4Serial3: SDLC O (12496064) C2 CONNECT (2) RR P/F 6Serial3: SDLC I (12496076) [C2] CONNECT (2) RR P/F 0 (R) [VR: 6 VS: 0]Serial3: SDLC T [C2] 12496176 CONNECT 12496176 0The following line of output indicates that the router is sending a Receiver Ready packet at location 4 in the code:
SDLC: Sending RR at location 4The following line of output describes a frame output event:
Serial1/0: SDLC O 04 CONNECT (285) IFRAME P/F 6Table 305 describes the significant fields shown in the display.
The following line of output describes a frame input event:
Serial1/0: SDLC I 02 CONNECT (16) IFRAME P 7 0,[VR: 7 VS: 0]Table 306 describes the significant fields shown in the display.
The following line of output describes a frame timer event:
Serial1/0: SDLC T 02 CONNECT 0x9CB69E8 P 0Table 307 describes the significant fields shown in the display.
Related Commands
debug list
Filters debugging information on a per-interface or per-access list basis.
debug sdlc local-ack
To display information on the local acknowledgment feature, use the debug sdlc local-ack command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug sdlc local-ack [number]
no debug sdlc local-ack [number]
Syntax Description
Command Modes
Privileged EXEC
Usage Guidelines
You can select the frame types you want to monitor; the frame types correspond to bit flags. You can select 1, 2, 4, or 7, which is the decimal value of the bit flag settings. If you select 1, the octet is set to 00000001. If you select 2, the octet is set to 0000010. If you select 4, the octet is set to 00000100. If you want to select all frame types, select 7; the octet is 00000111. The default is 7 for all events. Table 308 defines these bit flags.
Caution
Examples

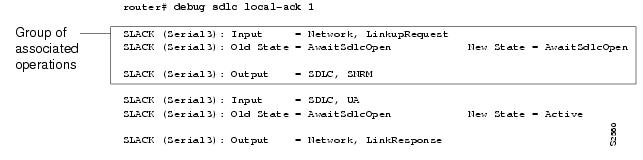

The following is sample output from the debug sdlc local-ack command:
The first line shows the input to the SDLC local acknowledgment state machine:
SLACK (Serial3): Input = Network, LinkupRequestTable 309 describes the significant fields shown in the display.
The second line shows the change in the SDLC local acknowledgment state machine. In this case the AwaitSdlcOpen state is an internal state that has not changed while this display was captured.
SLACK (Serial3): Old State = AwaitSdlcOpen New State = AwaitSdlcOpenThe third line shows the output from the SDLC local acknowledgment state machine:
SLACK (Serial3): Output = SDLC, SNRMdebug sdlc packet
To display packet information on Synchronous Data Link Control (SDLC) frames received and sent by any router serial interface involved in supporting SDLC end station functions, use the debug sdlc packet command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug sdlc packet [max-bytes]
no debug sdlc packet [max-bytes]
Syntax Description
Command Modes
Privileged EXEC
Usage Guidelines
This command requires intensive CPU processing; therefore, we recommend not using it when the router is expected to handle normal network loads, such as in a production environment. Instead, use this command when network response is noncritical. We also recommend that you use this command by itself, rather than in conjunction with other debug commands.
Examples
The following is sample output from the debug sdlc packet command with the packet display limited to 20 bytes of data:
Router# debug sdlc packet 20Serial3 SDLC Output00000 C3842C00 02010010 019000C5 C5C5C5C5 Cd.........EEEEE00010 C5C5C5C5 EEEESerial3 SDLC Output00000 C3962C00 02010011 039020F2 Co.........2Serial3 SDLC Output00000 C4962C00 0201000C 039020F2 Do.........2Serial3 SDLC Input00000 C491 Djdebug serial interface
To display information on a serial connection failure, use the debug serial interface command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug serial interface
no debug serial interface
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
If the show interface serial EXEC command shows that the line and protocol are down, you can use the debug serial interface command to isolate a timing problem as the cause of a connection failure. If the keepalive values in the mineseq, yourseen, and myseen fields are not incrementing in each subsequent line of output, there is a timing or line problem at one end of the connection.
Caution
The output of the debug serial interface command can vary, depending on the type of WAN configured for an interface: Frame Relay, High-Level Data Link Control (HDL) , High-Speed Serial Interface (HSSI), SMDS, or X.25. The output also can vary depending on the type of encapsulation configured for that interface. The hardware platform also can affect debug serial interface output.
Examples
The following sections show and describe sample debug serial interface output for various configurations.
Debug Serial Interface for Frame Relay Encapsulation
The following message is displayed if the encapsulation for the interface is Frame Relay (or HDLC) and the router attempts to send a packet containing an unknown packet type:
Illegal serial link type code xxxDebug Serial Interface for HDLC

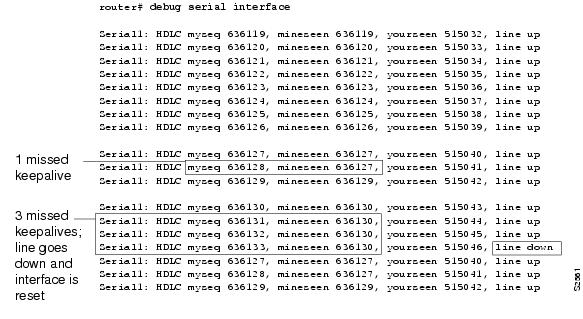

The following is sample output from the debug serial interface command for an HDLC connection when keepalives are enabled. This output shows that the remote router is not receiving all the keepalives the router is sending. When the difference in the values in the myseq and mineseen fields exceeds three, the line goes down and the interface is reset.
Table 310 describes the significant fields shown in the display.
Table 311 describes additional error messages that the debug serial interface command can generate for HDLC.
Debug Serial Interface for HSSI
On an HSSI interface, the debug serial interface command can generate the following additional error message:
HSSI0: Reset from 0xnnnnnnnThis message indicates that the HSSI hardware has been reset. The 0xnnnnnnn variable is the address of the routine requesting that the hardware be reset; this value is useful only to development engineers.
Debug Serial Interface for ISDN Basic Rate
Table 312 describes error messages that the debug serial interface command can generate for ISDN Basic Rate.
Debug Serial Interface for an MK5025 Device
Table 313 describes the additional error messages that the debug serial interface command can generate for an MK5025 device.
Debug Serial Interface for SMDS Encapsulation
When encapsulation is set to SMDS, the debug serial interface command displays SMDS packets that are sent and received, and any error messages resulting from SMDS packet transmission.
The error messages that the debug serial interface command can generate for SMDS follow.
The following message indicates that a new protocol requested SMDS to encapsulate the data for transmission. SMDS is not yet able to encapsulate the protocol.
SMDS: Error on Serial 0, encapsulation bad protocol = xThe following message indicates that SMDS was asked to encapsulate a packet, but no corresponding destination E.164 SMDS address was found in any of the static SMDS tables or in the ARP tables:
SMDS send: Error in encapsulation, no hardware address, type = xThe following message indicates that a protocol such as Connectionless Network Service (CLNS) or IP has been enabled on an SMDS interface, but the corresponding multicast addresses have not been configured. The n variable displays the link type for which encapsulation was requested.
SMDS: Send, Error in encapsulation, type=nThe following messages can occur when a corrupted packet is received on an SMDS interface. The router expected x, but received y.
SMDS: Invalid packet, Reserved NOT ZERO, x ySMDS: Invalid packet, TAG mismatch x ySMDS: Invalid packet, Bad TRAILER length x yThe following messages can indicate an invalid length for an SMDS packet:
SMDS: Invalid packet, Bad BA length xSMDS: Invalid packet, Bad header extension length xSMDS: Invalid packet, Bad header extension type xSMDS: Invalid packet, Bad header extension value xThe following messages are displayed when the debug serial interface command is enabled:
Interface Serial 0 Sending SMDS L3 packet:SMDS: dgsize:x type:0xn src:y dst:zIf the debug serial interface command is enabled, the following message can be displayed when a packet is received on an SMDS interface, but the destination SMDS address does not match any on that interface:
SMDS: Packet n, not addressed to usdebug serial lead-transition
To activate the leads status transition debug capability for all capable ports, use the debug serial lead-transition command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug serial lead-transition
no debug serial lead-transition
Syntax Description
This command has no arguments or keywords.
Defaults
Debugging is not turned on.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
To control which port is to be reported and therefore reduce the risk of flooding the console screen with debug information, enter the debug condition interface serial slot/port command after using the debug serial lead-transition command to set the condition.
Caution
Examples
The following example shows the serial control leads reported for slot 1, port 1:
Router# debug serial lead-transitionRouter# debug condition interface serial 1/1*Mar 1 00:17:15.040:slot(1) Port(1):DSR/DTR is Deasserted*Mar 1 00:17:15.040:slot(1) Port(1):CTS/RTS is Deasserted*Mar 1 00:17:47.955:slot(1) Port(1):DCD/Local Loop is Deasserted*Mar 1 00:17:47.955:slot(1) Port(1):DSR/DTR is Deasserted*Mar 1 00:17:47.955:slot(1) Port(1):CTS/RTS is DeassertedRouter# no shut down serial 1/1*Mar 1 00:16:52.298:slot(1) Port(1):DSR/DTR is Asserted*Mar 1 00:16:52.298:slot(1) Port(1):CTS/RTS is Asserted*Mar 1 00:16:31.648:slot(1) Port(1):DCD/Local Loop is Asserted*Mar 1 00:16:31.648:slot(1) Port(1):DSR/DTR is Asserted*Mar 1 00:16:31.648:slot(1) Port(1):CTS/RTS is AssertedTable 314 describes significant fields shown in the displays.
Related Commands
debug condition interface serial
Enables conditional debugging on a serial interface.
debug serial packet
To display more detailed serial interface debugging information than you can obtain using the debug serial interface command, use the debug serial packet command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug serial packet
no debug serial packet
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
The debug serial packet command generates output that is dependent on the type of serial interface and the encapsulation running on that interface. The hardware platform also can impact debug serial packet output.
The debug serial packet command displays output for only Switched Multimegabit Data Service (SMDS) encapsulations.
Examples
The following is sample output from the debug serial packet command when SMDS is enabled on the interface:
Router# debug serial packetInterface Serial2 Sending SMDS L3 packet:SMDS Header: Id: 00 RSVD: 00 BEtag: EC Basize: 0044Dest:E18009999999FFFF Src:C12015804721FFFF Xh:04030000030001000000000000000000SMDS LLC: AA AA 03 00 00 00 80 38SMDS Data: E1 19 01 00 00 80 00 00 0C 00 38 1F 00 0A 00 80 00 00 0C 01 2B 71SMDS Data: 06 01 01 0F 1E 24 00 EC 00 44 00 02 00 00 83 6C 7D 00 00 00 00 00SMDS Trailer: RSVD: 00 BEtag: EC Length: 0044As the output shows, when encapsulation is set to SMDS, the debug serial packet command displays the entire SMDS header (in hexadecimal notation), and some payload data on transmit or receive. This information is useful only when you have an understanding of the SMDS protocol. The first line of the output indicates either Sending or Receiving.
debug service-group
To enable debugging of service-group events and errors, use the debug service-group command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug service-group {all | error | feature | group | interface | ipc | member | qos | stats}
no debug service-group {all | error | feature | group | interface | ipc | member | qos | stats}
Syntax Description
Command Modes
Privileged EXEC (#)
Command History
Examples
In the following example, service-group debugging for service-group member events has been enabled:
Router> enableRouter# debug service-group member%Service Group membership debugging is ondebug service-module
To display debugging information that monitors the detection and clearing of network alarms on the integrated channel service unit/data service unit (CSU/DSU) modules, use the debug service-module command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug service-module
no debug service-module
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
Use this command to enable and disable debug logging for the serial 0 and serial 1 interfaces when an integrated CSU/DSU is present. This command enables debugging on all interfaces.
Network alarm status can also be viewed through the use of the show service-module command.
Note
Examples
The following is sample output from the debug service-module command:
Router# debug service-moduleSERVICE_MODULE(1): loss of signal ended after duration 00:05:36SERVICE_MODULE(1): oos/oof ended after duration 01:05:14SERVICE_MODULE(0): Unit has no clockSERVICE_MODULE(0): detects loss of signalSERVICE_MODULE(0): loss of signal ended after duration 00:00:33debug sgbp dial-bids
To display large-scale dial-out negotiations between the primary network access server (NAS) and alternate NASs, use the debug sgbp dial-bids command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug sgbp dial-bids
no debug sgbp dial-bids
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
Use this command only when the sgbp dial-bids command has been configured.
Examples
The following is sample output from the debug sgbp dial-bids command:
Router# debug sgbp dial-bids*Jan 1 00:25:03.643: SGBP-RES: New bid add request: 4B0 8 2 1 DAC0 1 1This indicates a new dialout bid has started.*Jan 1 00:25:03.643: SGBP-RES: Sent Discover message to ID 7B09B71E 49 bytesThe bid request has been sent.*Jan 1 00:25:03.647: SGBP-RES: Received Message of 49 length:*Jan 1 00:25:03.647: SGBP-RES: header 5 30 0 312 0 0 2D 0 0 0 0 0 0 0 3 0 0 0 1 1E AF 3A 41 7B 9 B7 1E 8 15 B 3 2 C 6 0 0 DA C0 D 4 0 0 E 3 1 F 3 1*Jan 1 00:25:03.647:*Jan 1 00:25:03.647: SGBP RES: Scan: Message type: Offer*Jan 1 00:25:03.647: SGBP RES: Scan: Len is 45*Jan 1 00:25:03.647: SGBP RES: Scan: Transaction ID: 3*Jan 1 00:25:03.647: SGBP RES: Scan: Message ID: 1*Jan 1 00:25:03.647: SGBP RES: Scan: Client ID: 1EAF3A41*Jan 1 00:25:03.651: SGBP RES: Scan: Server ID: 7B09B71E*Jan 1 00:25:03.651: SGBP RES: Scan: Resource type 8 length 21*Jan 1 00:25:03.651: SGBP RES: Scan: Phy-Port Media type: ISDN*Jan 1 00:25:03.651: SGBP RES: Scan: Phy-Port Min BW: 56000*Jan 1 00:25:03.651: SGBP RES: Scan: Phy-Port Num Links: 0*Jan 1 00:25:03.651: SGBP RES: Scan: Phy-Port User class: 1*Jan 1 00:25:03.651: SGBP RES: Scan: Phy-Port Priority: 1*Jan 1 00:25:03.651: SGBP-RES: received 45 length Offer packet*Jan 1 00:25:03.651: SGBP-RES: Offer from 7B09B71E for Transaction 3 accepted*Jan 1 00:25:03.651: SGBP RES: Server is uncongested. Immediate winAn alternate network access server has responded and won the bid.*Jan 1 00:25:03.651: SGBP-RES: Bid Succeeded handle 7B09B71E Server-id 4B0*Jan 1 00:25:03.651: SGBP-RES: Sent Dial-Req message to ID 7B09B71E 66 bytesThe primary network access server has asked the alternate server to dial.*Jan 1 00:25:04.651: SGBP-RES: QScan: Purging entry*Jan 1 00:25:04.651: SGBP-RES: deleting entry 6112E204 1EAF3A41 from list...debug sgbp error
To display debugging messages about routing problems between members of a stack group, use the debug sgbp error command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug sgbp error
no debug sgbp error
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
Enter the debug sgbp error command to enable the display of debugging messages about routing problems between members of a stack group.
Note
Examples
One common configuration error is setting a source IP address for a stack member that does not match the locally defined IP address for the same stack member. The following debugging output shows the error message that results from this misconfiguration:
Systema# debug sgbp error%SGBP-7-DIFFERENT - systemb's addr 10.1.1.2 is different from hello's addr 10.3.4.5This error means that the source IP address of the Stack Group Bidding Protocol (SGBP) hello message received from systemb does not match the IP address configured locally for systemb (through the sgbp member command). Correct this configuration error by going to systemb and checking for multiple interfaces by which the SGBP hello can send the message.
Another common error message is:
Systema# debug sgbp error%SGBP-7-MISCONF, Possible misconfigured member routerk (10.1.1.6)This error message means that routerk is not defined locally, but is defined on another stack member. Correct this configuration error by defining routerk across all members of the stack group using the sgbp member command.
The following error message indicates that an SGBP peer is leaving the stack group:
Systema# debug sgbp error%SGBP-7-LEAVING:Member systemc leaving group stack1This error message indicates that the peer systemc is leaving the stack group. Systemc could be leaving the stack group intentionally, or a connectivity problem may exist.
The following error message indicates that an SGBP event was detected from an unknown peer:
Systema# debug sgbp error%SGBP-7-UNKNOWPEER:Event 0x10 from peer at 172.21.54.3An SGBP event came from a network host that was not recognizable as an SGBP peer. Check to see if a network media error could have corrupted the address, or if peer equipment is malfunctioning to generate corrupted packets. Depending on the network topology and firewall of your network, SGBP packets from a nonpeer host could indicate probing and attempts to breach security.
Note
Related Commands
debug sgbp hellos
To display debugging messages for authentication between stack members, use the debug sgbp hellos command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug sgbp hellos
no debug sgbp hellos
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
Use the debug sgbp hellos command to enable the display of debugging messages for authentication between routers configured as members of a stack group.
Note
Examples
The following output from the debug sgbp hellos command shows systema sending a successful Challenge Handshake Authentication Protocol (CHAP) challenge to and receiving a response from systemb. Similarly, systemb sends out a challenge and receives a response from systema.
systema# debug sgbp hellos%SGBP-7-CHALLENGE: Send Hello Challenge to systemb group stack1%SGBP-7-CHALLENGED: Hello Challenge message from member systemb (10.1.1.2)%SGBP-7-RESPONSE: Send Hello Response to systemb group stack1%SGBP-7-CHALLENGE: Send Hello Challenge to systemb group stack1%SGBP-7-RESPONDED: Hello Response message from member systemb (10.1.1.2)%SGBP-7-AUTHOK: Send Hello Authentication OK to member systemb (10.1.1.2)%SGBP-7-INFO: Addr = 10.1.1.2 Reference = 0xC347DF7%SGBP-5-ARRIVING: New peer event for member systembThis debug output is self-explanatory.
If authentication fails, you may see one of the following messages in your debug output:
%SGBP-7-AUTHFAILED - Member systemb failed authenticationThis error message means that the remote systemb password for the stack group does not match the password defined on systema. To correct this error, make sure that both systema and systemb have the same password defined using the username command.
%SGBP-7-NORESP -Fail to respond to systemb group stack1, may not have password.This error message means that systema does not have a username or password defined. To correct this error, define a common group password across all stack members using the username command.
Related Commands
debug sgcp
To debug the Simple Gateway Control Protocol (SGCP), use the debug sgcp command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug sgcp {errors | events | packet}
no debug sgcp {errors | events | packet}
Syntax Description
errors
Displays debug information about SGCP errors.
events
Displays debug information about SGCP events.
packet
Displays debug information about SGCP packets.
Command Modes
Privileged EXEC
Command History
Examples
See the following examples to enable and disable debugging at the specified level:
Router# debug sgcp errorsSimple Gateway Control Protocol errors debugging is onRouter# no debug sgcp errorsSimple Gateway Control Protocol errors debugging is offRouter#Router# debug sgcp eventsSimple Gateway Control Protocol events debugging is onRouter# no debug sgcp eventsSimple Gateway Control Protocol events debugging is offRouter#Router# debug sgcp packetSimple Gateway Control Protocol packets debugging is onRouter# no debug sgcp packetSimple Gateway Control Protocol packets debugging is offRelated Commands
debug sgcp errors
To debug Simple Gateway Control Protocol (SGCP) errors, use the debug sgcp errors command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug sgcp errors [endpoint string]
no debug sgcp errors
Syntax Description
Defaults
No default behavior or values
Command Modes
Privileged EXEC
Command History
Examples
The following example shows the debugging of SGCP errors being enabled:
Router# debug sgcp errorsSimple Gateway Control Protocol errors debugging is onno errors since call went through successfully.The following example shows a debug trace for SGCP errors on a specific endpoint:
Router# debug sgcp errors endpoint DS1-0/1End point name for error debug:DS1-0/1 (1)00:08:41:DS1 = 0, DS0 = 100:08:41:Call record found00:08:41:Enable error end point debug for (DS1-0/1)Related Commands
debug sgcp events
To debug Simple Gateway Control Protocol (SGCP) events, use the debug sgcp events command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug sgcp events [endpoint string]
no debug sgcp events
Syntax Description
Defaults
No default behavior or values
Command Modes
Privileged EXEC
Command History
Examples
The following example shows a debug trace for SGCP events on a specific endpoint:
Router# debug sgcp events endpoint DS1-0/1End point name for event debug:DS1-0/1 (1)00:08:54:DS1 = 0, DS0 = 100:08:54:Call record found00:08:54:Enable event end point debug for (DS1-0/1)The following example shows a debug trace for all SGCP events on a gateway:
Router# debug sgcp events*Mar 1 01:13:31.035:callp :19196BC, state :0, call ID :-1, event :23*Mar 1 01:13:31.035:voice_if->call_agent_ipaddr used as Notify entityNotify entity available for Tx SGCP msgNTFY send to ipaddr=1092E01 port=2427*Mar 1 01:13:31.039:Push msg into SGCP wait ack queue* (1)[25]*Mar 1 01:13:31.039:Timed Out interval [1]:(2000)*Mar 1 01:13:31.039:Timed Out interval [1]:(2000)(0):E[25]*Mar 1 01:13:31.075:Removing msg :NTFY 25 ds1-1/13@mc1 SGCP 1.1X:358258758O:hd*Mar 1 01:13:31.075:Unqueue msg from SGCP wait ack q** (0)[25]DS1 = 1, DS0 = 13*Mar 1 01:13:31.091:callp :19196BC, vdbptr :1964EEC, state :1*Mar 1 01:13:31.091:Checking ack (trans ID 237740140) :*Mar 1 01:13:31.091:is_capability_ok:caps.codec=5, caps.pkt=10, caps.nt=8*Mar 1 01:13:31.091:is_capability_ok:supported signal=0x426C079C, signal2=0x80003,event=0x6003421F, event2=0x3FDrequested signal=0x0, signal2=0x0,event=0x20000004, event2=0xC*Mar 1 01:13:31.091:Same digit map is download (ds1-1/13@mc1)*Mar 1 01:13:31.091:R:requested trans_id (237740140)*Mar 1 01:13:31.091:process_signal_ev:seizure possible=1, signal mask=0x4, mask2=0x0*Mar 1 01:13:32.405:SGCP Session Appl:ignore CCAPI event 10*Mar 1 01:13:32.489:callp :19196BC, state :1, call ID :16, event :9*Mar 1 01:13:32.610:SGCP Session Appl:ignore CCAPI event 10*Mar 1 01:13:32.670:callp :19196BC, state :1, call ID :16, event :9*Mar 1 01:13:32.766:SGCP Session Appl:ignore CCAPI event 10*Mar 1 01:13:32.810:callp :19196BC, state :1, call ID :16, event :9*Mar 1 01:13:32.931:SGCP Session Appl:ignore CCAPI event 10*Mar 1 01:13:32.967:callp :19196BC, state :1, call ID :16, event :9*Mar 1 01:13:33.087:SGCP Session Appl:ignore CCAPI event 10*Mar 1 01:13:33.132:callp :19196BC, state :1, call ID :16, event :9*Mar 1 01:13:33.240:SGCP Session Appl:ignore CCAPI event 10*Mar 1 01:13:33.280:callp :19196BC, state :1, call ID :16, event :9*Mar 1 01:13:33.389:SGCP Session Appl:ignore CCAPI event 10*Mar 1 01:13:33.433:callp :19196BC, state :1, call ID :16, event :9*Mar 1 01:13:33.537:SGCP Session Appl:ignore CCAPI event 10*Mar 1 01:13:33.581:callp :19196BC, state :1, call ID :16, event :9*Mar 1 01:13:33.702:SGCP Session Appl:ignore CCAPI event 10*Mar 1 01:13:33.742:callp :19196BC, state :1, call ID :16, event :9*Mar 1 01:13:33.742:voice_if->call_agent_ipaddr used as Notify entityNotify entity available for Tx SGCP msgNTFY send to ipaddr=1092E01 port=2427*Mar 1 01:13:33.742:Push msg into SGCP wait ack queue* (1)[26]*Mar 1 01:13:33.742:Timed Out interval [1]:(2000)*Mar 1 01:13:33.742:Timed Out interval [1]:(2000)(0):E[26]*Mar 1 01:13:33.786:Removing msg :NTFY 26 ds1-1/13@mc1 SGCP 1.1X:440842371O:k0, 4081037, s0*Mar 1 01:13:33.786:Unqueue msg from SGCP wait ack q** (0)[26]DS1 = 1, DS0 = 13*Mar 1 01:13:33.802:callp :19196BC, vdbptr :1964EEC, state :1*Mar 1 01:13:33.802:Checking ack (trans ID 698549528) :*Mar 1 01:13:33.802:is_capability_ok:caps.codec=5, caps.pkt=10, caps.nt=8*Mar 1 01:13:33.802:is_capability_ok:supported signal=0x426C079C, signal2=0x80003,event=0x6003421F, event2=0x3FDrequested signal=0x0, signal2=0x0,event=0x4, event2=0x0*Mar 1 01:13:33.802:R:requested trans_id (698549528)*Mar 1 01:13:33.802:set_up_voip_call_leg:peer_addr=0, peer_port=0.*Mar 1 01:13:33.806:call_setting_crcx:Enter CallProceeding state rc = 0, call_id=16*Mar 1 01:13:33.806:callp :19196BC, state :4, call ID :16, event :31*Mar 1 01:13:33.810:callp :1AF5798, state :2, call ID :17, event :8call_pre_bridge!*Mar 1 01:13:33.810:send_oc_create_ack:seizure_possiblle=1, ack-lready-sent=0, ack_send=0*Mar 1 01:13:33.814:callp :1AF5798, state :4, call ID :17, event :28*Mar 1 01:13:33.814:Call Connect:Raw Msg ptr=0x1995360, no-offhook=0; call-id=17*Mar 1 01:13:33.814:SGCP Session Appl:ignore CCAPI event 37*Mar 1 01:13:33.947:callp :19196BC, state :5, call ID :16, event :32process_nse_on_origDS1 = 1, DS0 = 13*Mar 1 01:13:34.007:callp :19196BC, vdbptr :1964EEC, state :5*Mar 1 01:13:34.007:Checking ack (trans ID 123764791) :*Mar 1 01:13:34.007:is_capability_ok:caps.codec=5, caps.pkt=10, caps.nt=8*Mar 1 01:13:34.007:is_capability_ok:supported signal=0x426C079C, signal2=0x80003,event=0x6003421F, event2=0x3FDrequested signal=0x0, signal2=0x0,event=0x4, event2=0x0*Mar 1 01:13:34.007:R:requested trans_id (123764791)*Mar 1 01:13:34.007:process_signal_ev:seizure possible=1, signal mask=0x0, mask2=0x0*Mar 1 01:13:34.007:modify_connection:echo_cancel=1.*Mar 1 01:13:34.007:modify_connection:vad=0.*Mar 1 01:13:34.007:modify_connection:peer_addr=6000001, peer_port=0->16500.*Mar 1 01:13:34.007:modify_connection:conn_mode=2.*Mar 1 01:13:34.011:callp :19196BC, state :5, call ID :16, event :31*Mar 1 01:13:34.011:callp :1AF5798, state :5, call ID :17, event :31process_nse_event*Mar 1 01:13:34.051:callp :19196BC, state :5, call ID :16, event :39*Mar 1 01:13:34.051:call_id=16, ignore_ccapi_ev:ignore 19 for state 5DS1 = 1, DS0 = 13*Mar 1 01:13:39.497:callp :19196BC, vdbptr :1964EEC, state :5*Mar 1 01:13:39.497:Checking ack (trans ID 553892443) :*Mar 1 01:13:39.497:is_capability_ok:caps.codec=5, caps.pkt=10, caps.nt=8*Mar 1 01:13:39.497:is_capability_ok:supported signal=0x426C079C, signal2=0x80003,event=0x6003421F, event2=0x3FDrequested signal=0x8, signal2=0x0,event=0x4, event2=0x0*Mar 1 01:13:39.497:R:requested trans_id (553892443)*Mar 1 01:13:39.497:process_signal_ev:seizure possible=1, signal mask=0x0, mask2=0x0*Mar 1 01:13:39.497:modify_connection:echo_cancel=1.*Mar 1 01:13:39.497:modify_connection:vad=0.*Mar 1 01:13:39.497:modify_connection:peer_addr=6000001, peer_port=16500->16500.*Mar 1 01:13:39.497:modify_connection:conn_mode=3.*Mar 1 01:13:39.497:callp :19196BC, state :5, call ID :16, event :31*Mar 1 01:13:39.501:callp :1AF5798, state :5, call ID :17, event :31*Mar 1 01:14:01.168:Removing ack (trans ID 237740140) :200 237740140 OK*Mar 1 01:14:03.883:Removing ack (trans ID 698549528) :200 698549528 OKI:7v=0c=IN IP4 5.0.0.1m=audio 16400 RTP/AVP 0*Mar 1 01:14:04.087:Removing ack (trans ID 123764791) :200 123764791 OKI:7v=0c=IN IP4 5.0.0.1m=audio 16400 RTP/AVP 0*Mar 1 01:14:09.573:Removing ack (trans ID 553892443) :200 553892443 OKI:7v=0c=IN IP4 5.0.0.1m=audio 16400 RTP/AVP 0*Mar 1 01:14:48.091:callp :19196BC, state :5, call ID :16, event :12*Mar 1 01:14:48.091:voice_if->call_agent_ipaddr used as Notify entityNotify entity available for Tx SGCP msgNTFY send to ipaddr=1092E01 port=2427*Mar 1 01:14:48.091:Push msg into SGCP wait ack queue* (1)[27]*Mar 1 01:14:48.091:Timed Out interval [1]:(2000)*Mar 1 01:14:48.091:Timed Out interval [1]:(2000)(0):E[27]*Mar 1 01:14:48.128:Removing msg :NTFY 27 ds1-1/13@mc1 SGCP 1.1X:97849341O:hu*Mar 1 01:14:48.128:Unqueue msg from SGCP wait ack q** (0)[27]DS1 = 1, DS0 = 13*Mar 1 01:14:48.212:callp :19196BC, vdbptr :1964EEC, state :5*Mar 1 01:14:48.212:Checking ack (trans ID 79307869) :*Mar 1 01:14:48.212:is_capability_ok:caps.codec=5, caps.pkt=10, caps.nt=8*Mar 1 01:14:48.212:is_capability_ok:supported signal=0x426C079C, signal2=0x80003,event=0x6003421F, event2=0x3FDrequested signal=0x4, signal2=0x0,event=0x0, event2=0x0*Mar 1 01:14:48.212:delete_call:callp:19196BC, call ID:16*Mar 1 01:14:48.212:sgcp delete_call:Setting disconnect_by_dlcx to 1*Mar 1 01:14:48.216:callp :1AF5798, state :6, call ID :17, event :29*Mar 1 01:14:48.216:Call disconnect:Raw Msg ptr = 0x0, call-id=17*Mar 1 01:14:48.216:disconnect_call_leg O.K. call_id=17*Mar 1 01:14:48.216:SGCP:Call disconnect:No need to send onhook*Mar 1 01:14:48.216:Call disconnect:Raw Msg ptr = 0x19953B0, call-id=16*Mar 1 01:14:48.216:disconnect_call_leg O.K. call_id=16*Mar 1 01:14:48.220:callp :1AF5798, state :7, call ID :17, event :13*Mar 1 01:14:48.220:Processing DLCX signal request :4, 0, 0*Mar 1 01:14:48.220:call_disconnected:call_id=17, peer 16 is not idle yet.DS1 = 1, DS0 = 13*Mar 1 01:14:48.272:callp :19196BC, vdbptr :1964EEC, state :7*Mar 1 01:14:48.272:Checking ack (trans ID 75540355) :*Mar 1 01:14:48.272:is_capability_ok:caps.codec=5, caps.pkt=10, caps.nt=8*Mar 1 01:14:48.272:is_capability_ok:supported signal=0x426C079C, signal2=0x80003,event=0x6003421F, event2=0x3FDrequested signal=0x0, signal2=0x0,event=0x8, event2=0x0*Mar 1 01:14:48.272:R:requested trans_id (75540355)*Mar 1 01:14:48.272:process_signal_ev:seizure possible=1, signal mask=0x4, mask2=0x0*Mar 1 01:14:49.043:callp :19196BC, state :7, call ID :16, event :27*Mar 1 01:14:49.043:process_call_feature:Onhook event*Mar 1 01:14:49.043:callp :19196BC, state :7, call ID :16, event :13*Mar 1 01:15:18.288:Removing ack (trans ID 79307869) :250 79307869 OK*Mar 1 01:15:18.344:Removing ack (trans ID 75540355) :200 75540355 OKRelated Commands
debug sgcp packet
To debug the Simple Gateway Control Protocol (SGCP), use the debug sgcp packet command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug sgcp packet [endpoint string]
no debug sgcp packet
Syntax Description
Defaults
No default behavior or values
Command Modes
Privileged EXEC
Command History
Examples
The following example shows a debug trace for SGCP packets on a specific endpoint:
Router# debug sgcp packet endpoint DS1-0/1End point name for packet debug:DS1-0/1 (1)00:08:14:DS1 = 0, DS0 = 100:08:14:Enable packet end point debug for (DS1-0/1)The following example shows a debug trace for all SGCP packets on a gateway:
Router# debug sgcp packet*Mar 1 01:07:45.204:SUCCESS:Request ID string building is OK*Mar 1 01:07:45.204:SUCCESS:Building SGCP Parameter lines is OK*Mar 1 01:07:45.204:SUCCESS:SGCP message building OK*Mar 1 01:07:45.204:SUCCESS:END of building*Mar 1 01:07:45.204:SGCP Packet sent --->NTFY 22 ds1-1/13@mc1 SGCP 1.1X:550092018O:hd<---*Mar 1 01:07:45.204:NTFY Packet sent successfully.*Mar 1 01:07:45.240:Packet received -200 22*Mar 1 01:07:45.244:SUCCESS:SGCP Header parsing was OK*Mar 1 01:07:45.244:SUCCESS:END of Parsing*Mar 1 01:07:45.256:Packet received -RQNT 180932866 ds1-1/13@mc1 SGCP 1.1X:362716780R:hu,k0(A),s0(N),[0-9T](A) (D)D:(9xx|xxxxxxx)*Mar 1 01:07:45.256:SUCCESS:SGCP Header parsing was OK*Mar 1 01:07:45.256:SUCCESS:Request ID string(362716780) parsing is OK*Mar 1 01:07:45.260:SUCCESS:Requested Event parsing is OK*Mar 1 01:07:45.260:SUCCESS:Digit Map parsing is OK*Mar 1 01:07:45.260:SUCCESS:END of Parsing*Mar 1 01:07:45.260:SUCCESS:SGCP message building OK*Mar 1 01:07:45.260:SUCCESS:END of building*Mar 1 01:07:45.260:SGCP Packet sent --->200 180932866 OK<---*Mar 1 01:07:47.915:SUCCESS:Request ID string building is OK*Mar 1 01:07:47.915:SUCCESS:Building SGCP Parameter lines is OK*Mar 1 01:07:47.919:SUCCESS:SGCP message building OK*Mar 1 01:07:47.919:SUCCESS:END of building*Mar 1 01:07:47.919:SGCP Packet sent --->NTFY 23 ds1-1/13@mc1 SGCP 1.1X:362716780O:k0, 4081037, s0<---*Mar 1 01:07:47.919:NTFY Packet sent successfully.*Mar 1 01:07:47.955:Packet received -200 23*Mar 1 01:07:47.955:SUCCESS:SGCP Header parsing was OK*Mar 1 01:07:47.955:SUCCESS:END of Parsing*Mar 1 01:07:47.971:Packet received -CRCX 938694984 ds1-1/13@mc1 SGCP 1.1M:recvonlyL:p:10,e:on,s:off, a:G.711uR:huC:6*Mar 1 01:07:47.971:SUCCESS:SGCP Header parsing was OK*Mar 1 01:07:47.971:SUCCESS:Connection Mode parsing is OK*Mar 1 01:07:47.971:SUCCESS:Packet period parsing is OK*Mar 1 01:07:47.971:SUCCESS:Echo Cancellation parsing is OK*Mar 1 01:07:47.971:SUCCESS:Silence Supression parsing is OK*Mar 1 01:07:47.971:SUCCESS:CODEC strings parsing is OK*Mar 1 01:07:47.971:SUCCESS:Local Connection option parsing is OK*Mar 1 01:07:47.971:SUCCESS:Requested Event parsing is OK*Mar 1 01:07:47.975:SUCCESS:Call ID string(6) parsing is OK*Mar 1 01:07:47.975:SUCCESS:END of Parsing*Mar 1 01:07:47.979:SUCCESS:Conn ID string building is OK*Mar 1 01:07:47.979:SUCCESS:Building SGCP Parameter lines is OK*Mar 1 01:07:47.979:SUCCESS:SGCP message building OK*Mar 1 01:07:47.979:SUCCESS:END of building*Mar 1 01:07:47.979:SGCP Packet sent --->200 938694984 OKI:6v=0c=IN IP4 5.0.0.1m=audio 16538 RTP/AVP 0<---*Mar 1 01:07:48.188:Packet received -MDCX 779665338 ds1-1/13@mc1 SGCP 1.1I:6M:recvonlyL:p:10,e:on,s:off,a:G.711uR:huC:6v=0c=IN IP4 6.0.0.1m=audio 16392 RTP/AVP 0*Mar 1 01:07:48.188:SUCCESS:SGCP Header parsing was OK*Mar 1 01:07:48.188:SUCCESS:Conn ID string(6) parsing is OK*Mar 1 01:07:48.192:SUCCESS:Connection Mode parsing is OK*Mar 1 01:07:48.192:SUCCESS:Packet period parsing is OK*Mar 1 01:07:48.192:SUCCESS:Echo Cancellation parsing is OK*Mar 1 01:07:48.192:SUCCESS:Silence Supression parsing is OK*Mar 1 01:07:48.192:SUCCESS:CODEC strings parsing is OK*Mar 1 01:07:48.192:SUCCESS:Local Connection option parsing is OK*Mar 1 01:07:48.192:SUCCESS:Requested Event parsing is OK*Mar 1 01:07:48.192:SUCCESS:Call ID string(6) parsing is OK*Mar 1 01:07:48.192:SUCCESS:SDP Protocol version parsing OK*Mar 1 01:07:48.192:SUCCESS:SDP Conn Data OK*Mar 1 01:07:48.192:SUCCESS:END of Parsing*Mar 1 01:07:48.200:SUCCESS:Conn ID string building is OK*Mar 1 01:07:48.200:SUCCESS:Building SGCP Parameter lines is OK*Mar 1 01:07:48.200:SUCCESS:SGCP message building OK*Mar 1 01:07:48.200:SUCCESS:END of building*Mar 1 01:07:48.200:SGCP Packet sent --->200 779665338 OKI:6v=0c=IN IP4 5.0.0.1m=audio 16538 RTP/AVP 0<---*Mar 1 01:07:53.674:Packet received -MDCX 177780432 ds1-1/13@mc1 SGCP 1.1I:6M:sendrecvX:519556004L:p:10,e:on, s:off,a:G.711uC:6R:huS:hdv=0c=IN IP4 6.0.0.1m=audio 16392 RTP/AVP 0*Mar 1 01:07:53.674:SUCCESS:SGCP Header parsing was OK*Mar 1 01:07:53.674:SUCCESS:Conn ID string(6) parsing is OK*Mar 1 01:07:53.674:SUCCESS:Connection Mode parsing is OK*Mar 1 01:07:53.674:SUCCESS:Request ID string(519556004) parsing is OK*Mar 1 01:07:53.678:SUCCESS:Packet period parsing is OK*Mar 1 01:07:53.678:SUCCESS:Echo Cancellation parsing is OK*Mar 1 01:07:53.678:SUCCESS:Silence Supression parsing is OK*Mar 1 01:07:53.678:SUCCESS:CODEC strings parsing is OK*Mar 1 01:07:53.678:SUCCESS:Local Connection option parsing is OK*Mar 1 01:07:53.678:SUCCESS:Call ID string(6) parsing is OK*Mar 1 01:07:53.678:SUCCESS:Requested Event parsing is OK*Mar 1 01:07:53.678:SUCCESS:Signal Requests parsing is OK*Mar 1 01:07:53.678:SUCCESS:SDP Protocol version parsing OK*Mar 1 01:07:53.678:SUCCESS:SDP Conn Data OK*Mar 1 01:07:53.678:SUCCESS:END of Parsing*Mar 1 01:07:53.682:SUCCESS:Conn ID string building is OK*Mar 1 01:07:53.682:SUCCESS:Building SGCP Parameter lines is OK*Mar 1 01:07:53.682:SUCCESS:SGCP message building OK*Mar 1 01:07:53.682:SUCCESS:END of building*Mar 1 01:07:53.682:SGCP Packet sent --->200 177780432 OKI:6v=0c=IN IP4 5.0.0.1m=audio 16538 RTP/AVP 0<---*Mar 1 01:09:02.401:SUCCESS:Request ID string building is OK*Mar 1 01:09:02.401:SUCCESS:Building SGCP Parameter lines is OK*Mar 1 01:09:02.401:SUCCESS:SGCP message building OK*Mar 1 01:09:02.401:SUCCESS:END of building*Mar 1 01:09:02.401:SGCP Packet sent --->NTFY 24 ds1-1/13@mc1 SGCP 1.1X:519556004O:hu<---*Mar 1 01:09:02.401:NTFY Packet sent successfully.*Mar 1 01:09:02.437:Packet received -200 24*Mar 1 01:09:02.441:SUCCESS:SGCP Header parsing was OK*Mar 1 01:09:02.441:SUCCESS:END of Parsing*Mar 1 01:09:02.541:Packet received -DLCX 865375036 ds1-1/13@mc1 SGCP 1.1C:6S:hu*Mar 1 01:09:02.541:SUCCESS:SGCP Header parsing was OK*Mar 1 01:09:02.541:SUCCESS:Call ID string(6) parsing is OK*Mar 1 01:09:02.541:SUCCESS:Signal Requests parsing is OK*Mar 1 01:09:02.541:SUCCESS:END of Parsing*Mar 1 01:09:02.545:SUCCESS:SGCP message building OK*Mar 1 01:09:02.545:SUCCESS:END of building*Mar 1 01:09:02.545:SGCP Packet sent --->250 865375036 OK<---*Mar 1 01:09:02.577:Packet received -RQNT 254959796 ds1-1/13@mc1 SGCP 1.1X:358258758R:hd*Mar 1 01:09:02.577:SUCCESS:SGCP Header parsing was OK*Mar 1 01:09:02.577:SUCCESS:Request ID string(358258758) parsing is OK*Mar 1 01:09:02.577:SUCCESS:Requested Event parsing is OK*Mar 1 01:09:02.581:SUCCESS:END of Parsing*Mar 1 01:09:02.581:SUCCESS:SGCP message building OK*Mar 1 01:09:02.581:SUCCESS:END of building*Mar 1 01:09:02.581:SGCP Packet sent --->200 254959796 OKRelated Commands
debug shared-line
To display debugging information about SIP shared lines, use the debug shared-line command in privileged EXEC mode. To disable debugging messages, use the no form of this command.
debug shared-line {all | errors | events | info}
no debug shared-line {all | errors | events | info}
Syntax Description
all
Displays all shared-line debugging messages.
errors
Displays shared-line error messages.
events
Displays shared-line event messages.
info
Displays general information about shared lines.
Command Modes
Privileged EXEC (#)
Command History
Examples
The following example shows output from the debug shared-line all command:
Router# debug shared-line all
Aug 21 21:56:56.949: //Shared-Line/EVENT/shrl_validate_newcall_outgoing:Outgoing call validation request from AFW for user = 20143, usrContainer = 4A7CFBDC
.Aug 21 21:56:56.949: //Shared-Line/INFO/shrl_find_ccb_by_dn:Searching Shared-Line table for dn '20143'
.Aug 21 21:56:56.949: //Shared-Line/INFO/shrl_find_ccb_by_dn:Entry not found for dn '20143'
.Aug 21 21:56:56.949: //Shared-Line/INFO/shrl_find_ccb_by_demote_dn:Demoted dn: 20143
.Aug 21 21:56:56.949: //Shared-Line/INFO/shrl_validate_newcall_outgoing:User '20143' doesn't exist in Shared-Line table
.Aug 21 21:56:56.957: //Shared-Line/EVENT/shrl_validate_newcall_incoming:Incominging call validation request from AFW for user = 20141
.Aug 21 21:56:56.957: //Shared-Line/INFO/shrl_find_ccb_by_dn:Searching Shared-Line table for dn '20141'
.Aug 21 21:56:56.957: //Shared-Line/INFO/shrl_find_ccb_by_dn:Entry found [ccb = 4742EAD4] for dn '20141'
.Aug 21 21:56:56.957: //Shared-Line/INFO/shrl_validate_newcall_incoming:User '20141' found: ccb = 4742EAD4, mem_count = 2
.Aug 21 21:56:56.957: //Shared-Line/EVENT/shrl_validate_newcall_incoming:Obtained call instance inst: 0 for incoming call, incoming leg (peer_callid): 5399)
.Aug 21 21:56:56.957: //Shared-Line/INFO/shrl_update_barge_calltype:Updating shared-line call -1 with calltype = 1
.Aug 21 21:56:56.961: //Shared-Line/INFO/shrl_find_ccb_by_dn:Searching Shared-Line table for dn '20141'
.Aug 21 21:56:56.961: //Shared-Line/INFO/shrl_find_ccb_by_dn:Entry found [ccb = 4742EAD4] for dn '20141'
.Aug 21 21:56:56.961: //Shared-Line/INFO/shrl_find_ccb_by_dn:Searching Shared-Line table for dn '20141'
.Aug 21 21:56:56.961: //Shared-Line/INFO/shrl_find_ccb_by_dn:Entry found [ccb = 4742EAD4] for dn '20141'
.Aug 21 21:57:01.689: %IPPHONE-6-REG_ALARM: 24: Name=SEP00141C48E126 Load=8.0(5.0) Last=Phone-Reg-Rej
.Aug 21 21:57:04.261: //Shared-Line/EVENT/shrl_app_event_notify_handler:Event notification received: event = 9, callID = 5401, dn = 20141
.Aug 21 21:57:04.261: //Shared-Line/INFO/shrl_find_ccb_by_dn:Searching Shared-Line table for dn '20141'
.Aug 21 21:57:04.261: //Shared-Line/INFO/shrl_find_ccb_by_dn:Entry found [ccb = 4742EAD4] for dn '20141'
.Aug 21 21:57:04.261: //Shared-Line/EVENT/shrl_process_connect:called with state = 3, callID = 5401, peer callID = 5399, dn = 20141, usrContainer = 4A7CACA4
.Aug 21 21:57:04.261: //Shared-Line/INFO/shrl_connect_upd_callinfo:Parsed To: 20141@15.6.0.2, to-tag: 2ed5b927-6ad6
.Aug 21 21:57:04.261: //Shared-Line/INFO/shrl_connect_upd_callinfo:Parsed Contact: 20141@15.6.0.2 for sipCallId: E8583537-6F0211DD-96A69BA1-1228BEFB@15.10.0.1
.Aug 21 21:57:04.261: //Shared-Line/EVENT/shrl_connect_upd_callinfo:Obtained call instance inst: 0
.Aug 21 21:57:04.261: //Shared-Line/INFO/shrl_connect_upd_callinfo:CONNECT from shared line for incoming shared-line call.
.Aug 21 21:57:04.261: //Shared-Line/INFO/shrl_find_peer_by_ipaddr:Trying to match peer for member 20141@15.6.0.2
.Aug 21 21:57:04.261: //Shared-Line/INFO/shrl_find_peer_by_ipaddr:Matching peer [40002] session target parsed = 15.6.0.2
.Aug 21 21:57:04.261: //Shared-Line/INFO/shrl_connect_upd_callinfo:Matching member found: 20141@15.6.0.2
.Aug 21 21:57:04.261: //Shared-Line/INFO/shrl_update_remote_name:Updating shared-line call dialog info 5401
.Aug 21 21:57:04.261: //Shared-Line/INFO/shrl_process_connect:Updated callinfo for callid: 5401, member: '20141@15.6.0.2', peer-tag: 40002
.Aug 21 21:57:04.261: //Shared-Line/INFO/shrl_process_connect:Notify remote users about CALL-CONNECT.
.Aug 21 21:57:04.261: //Shared-Line/EVENT/shrl_send_dialog_notify:Sending NOTIFY to remote user: 20141@15.6.0.1
.Aug 21 21:57:04.261: //Shared-Line/INFO/shrl_send_dialog_notify:Sending NOTIFY to remote user: 20141@15.6.0.1 about state 3 on incoming call from 20141@15.6.0.2 privacy OFF
.Aug 21 21:57:04.261: //Shared-Line/INFO/shrl_send_dialog_notify:Dialog msg: dir: 1, orient: 2, local_tag: 2ed5b927-6ad6, remote_tag: 89DCF0-139B, local_uri: 20141@15.6.0.2, remote_uri: 20143@15.10.0.1
.Aug 21 21:57:04.261: //Shared-Line/INFO/shrl_send_dialog_notify:Dialog notify sent successfully
.Aug 21 21:57:04.261: //Shared-Line/INFO/shrl_process_connect:Shared-Line '20141': Successfully sent notify for callid: 5401
.Aug 21 21:57:04.265: //Shared-Line/INFO/shrl_find_ccb_by_dn:Searching Shared-Line table for dn '20141'
.Aug 21 21:57:04.265: //Shared-Line/INFO/shrl_find_ccb_by_dn:Entry found [ccb = 4742EAD4] for dn '20141'
.Aug 21 21:57:04.265: //Shared-Line/INFO/shrl_find_ccb_by_dn:Searching Shared-Line table for dn '20143'
.Aug 21 21:57:04.265: //Shared-Line/INFO/shrl_find_ccb_by_dn:Entry not found for dn '20143'
.Aug 21 21:57:04.269: //Shared-Line/INFO/shrl_find_ccb_by_demote_dn:Demoted dn: 20143
.Aug 21 21:57:04.269: //Shared-Line/INFO/shrl_update_totag:Shared-Line not enabled for '20143'
.Aug 21 21:57:04.269: //Shared-Line/EVENT/shrl_app_event_notify_handler:Event notification received: event = 21, callID = 5401, dn = 20141
.Aug 21 21:57:04.269: //Shared-Line/INFO/shrl_find_ccb_by_dn:Searching Shared-Line table for dn '20141'
.Aug 21 21:57:04.269: //Shared-Line/INFO/shrl_find_ccb_by_dn:Entry found [ccb = 4742EAD4] for dn '20141'
.Aug 21 21:57:04.269: //Shared-Line/EVENT/shrl_process_callerid_update:called with state = 7, callID = 5401, peer callID = 5399, dn = 20141
.Aug 21 21:57:04.269: //Shared-Line/INFO/shrl_process_callerid_update:Updated callinfo for callid: 5401, member: '20141@15.6.0.2', peer-tag: 40002
.Aug 21 21:57:04.269: //Shared-Line/EVENT/shrl_is_outbound:Check for shared line call type callid 5401for user = 20141
.Aug 21 21:57:04.269: //Shared-Line/INFO/shrl_find_ccb_by_dn:Searching Shared-Line table for dn '20141'
.Aug 21 21:57:04.269: //Shared-Line/INFO/shrl_find_ccb_by_dn:Entry found [ccb = 4742EAD4] for dn '20141'
.Aug 21 21:57:04.269: //Shared-Line/EVENT/shrl_barge_type:Check for shared line call type callid 5401for user = 20141
.Aug 21 21:57:04.269: //Shared-Line/INFO/shrl_find_ccb_by_dn:Searching Shared-Line table for dn '20141'
.Aug 21 21:57:04.269: //Shared-Line/INFO/shrl_find_ccb_by_dn:Entry found [ccb = 4742EAD4] for dn '20141'
.Aug 21 21:57:04.273: //Shared-Line/INFO/shrl_find_ccb_by_dn:Searching Shared-Line table for dn '20141'
.Aug 21 21:57:04.273: //Shared-Line/INFO/shrl_find_ccb_by_dn:Entry found [ccb = 4742EAD4] for dn '20141'
.Aug 21 21:57:04.281: //Shared-Line/EVENT/shrl_notify_done_handler:NOTIFY_DONE received for subID: 5 respCode: 17
.Aug 21 21:57:04.281: //Shared-Line/INFO/shrl_find_ccb_by_subid:Search ccb for subid: 5
.Aug 21 21:57:04.281: //Shared-Line/INFO/shrl_find_ccb_by_subid:Found the entry ccb: 4742EAD4 member: 20141@15.6.0.1
.Aug 21 21:57:04.281: //Shared-Line/INFO/shrl_free_spi_respinfo:Free ASNL resp info for subID = 5
Related Commands
shared-line
Creates a directory number to be shared by multiple SIP phones.
show shared-line
Displays information about active calls using SIP shared lines.
debug smrp all
To display information about Simple Multicast Routing Protocol (SMRP) activity, use the debug smrp all privileged EXEC command. The no form of this command disables debugging output.
debug smrp all
no debug smrp all
Syntax Description
This command has no arguments or keywords.
Command History
Usage Guidelines
Because the debug smrp all command displays all SMRP debugging output, it is processor intensive and should not be enabled when memory is scarce or in very high traffic situations.
For general debugging, use the debug smrp all command and turn off excessive transactions with the no debug smrp transaction command. This combination of commands will display various state changes and events without displaying every transaction packet. For debugging a specific feature such as a routing problem, use the debug smrp route and debug smrp transaction commands to learn if packets are sent and received and which specific routes are affected. The show smrp traffic EXEC command is highly recommended as a troubleshooting method because it displays the SMRP counters.
For examples of the type of output you may see, refer to each of the commands listed in the "Related Commands" section.
Related Commands
debug smrp group
To display information about SMRP group activity, use the debug smrp group privileged EXEC command. The no form of this command disables debugging output.
debug smrp group
no debug smrp group
Syntax Description
This command has no arguments or keywords.
Command History
Usage Guidelines
The debug smrp group command displays information when a group is created or deleted and when a forwarding entry for a group is created, changed, or deleted. For more information, refer to the show smrp group command described in the Cisco IOS AppleTalk and Novell IPX Command Reference.
Examples
The following is sample output from the debug smrp group command showing a port being created and deleted on group AT 20.34. (AT signifies that this is an AppleTalk network group.)
Router# debug smrp groupSMRP: Group AT 20.34, created on port 20.1 by 20.2SMRP: Group AT 20.34, deleted on port 20.1Table 315 lists the messages that may be generated with the debug smrp group command concerning the forwarding table.
Related Commands
debug sgbp dial-bids
Displays large-scale dial-out negotiations between the primary NAS and alternate NASs.
debug smrp mcache
To display information about SMRP multicast fast-switching cache entries, use the debug smrp mcache privileged EXEC command. The no form of this command disables debugging output.
debug smrp mcache
no debug smrp mcache
Syntax Description
This command has no arguments or keywords.
Command History
Usage Guidelines
Use the show smrp mcache EXEC command (described in the Cisco IOS AppleTalk and Novell IPX Command Reference to display the entries in the SMRP multicast cache, and use the debug smrp mcache command to learn whether the cache is being populated and invalidated.
Examples
The following is sample output from the debug smrp mcache command. In this example, the cache is created and populated for group AT 11.124. (AT signifies that this is an AppleTalk network group.)
Router# debug smrp mcacheSMRP: Cache createdSMRP: Cache populated for group AT 11.124mac - 090007400b7c00000c1740d9net - 001fef7500000014ff020a0a0aSMRP: Forward cache entry created for group AT 11.124SMRP: Forward cache entry validated for group AT 11.124SMRP: Forward cache entry invalidated for group AT 11.124SMRP: Forward cache entry deleted for group AT 11.124Table 316 lists all the messages that can be generated with the debug smrp mcache command concerning the multicast cache.
Related Commands
debug sgbp dial-bids
Displays large-scale dial-out negotiations between the primary NAS and alternate NASs.
debug smrp neighbor
To display information about SMRP neighbor activity, use the debug smrp neighbor privileged EXEC command. The no form of this command disables debugging output.
debug smrp neighbor
no debug smrp neighbor
Syntax Description
This command has no arguments or keywords.
Command History
Usage Guidelines
The debug smrp neighbor command displays information when a neighbor operating state changes. A neighbor is an adjacent router. For more information, refer to the show smrp neighbor EXEC command described in the Cisco IOS AppleTalk and Novell IPX Command Reference.
Examples
The following is sample output from the debug smrp neighbor command. In this example, the neighbor on port 30.02 has changed state from normal operation to secondary operation.
Router# debug smrp neighborSMRP: Neighbor 30.2, state changed from "normal op" to "secondary op"Table 317 lists all the messages that can be generated with the debug smrp neighbor command concerning the neighbor table.
Related Commands
debug sgbp dial-bids
Displays large-scale dial-out negotiations between the primary NAS and alternate NASs.
debug smrp port
To display information about SMRP port activity, use the debug smrp port privileged EXEC command. The no form of this command disables debugging output.
debug smrp port
no debug smrp port
Syntax Description
This command has no arguments or keywords.
Command History
Usage Guidelines
The debug smrp port command displays information when a port operating state changes. For more information, refer to the show smrp port command described in the Cisco IOS AppleTalk and Novell IPX Command Reference.
Examples
The following is sample output from the debug smrp port command. In this example, port 30.1 has changed state from secondary negative to secondary operation to primary negative:
Router# debug smrp portSMRP: Port 30.1, state changed from "secondary neg" to "secondary op"SMRP: Port 30.1, secondary router changed from 0.0 to 30.1SMRP: Port 30.1, state changed from "secondary op" to "primary neg"Table 318 lists all the messages that can be generated with the debug smrp port command concerning the port table.
Related Commands
debug sgbp dial-bids
Displays large-scale dial-out negotiations between the primary NAS and alternate NASs.
debug smrp route
To display information about SMRP routing activity, use the debug smrp route privileged EXEC command. The no form of this command disables debugging output.
debug smrp route
no debug smrp route
Syntax Description
This command has no arguments or keywords.
Command History
Usage Guidelines
For more information, refer to the show smrp route EXEC command described in the
Cisco IOS AppleTalk and Novell IPX Command Reference.Examples
The following is sample output from the debug smrp route command. In this example, poison notification is received from port 30.2. Poison notification is the receipt of a poisoned route on a nonparent port.
Router# debug smrp routeSMRP: Route AT 20-20, poison notification from 30.2SMRP: Route AT 30-30, poison notification from 30.2Table 319 lists all the messages that can be generated with the debug smrp route command concerning the routing table. In Table 319, the term route does not refer to an address but rather to a network range.
Related Commands
debug sgbp dial-bids
Displays large-scale dial-out negotiations between the primary NAS and alternate NASs.
debug smrp transaction
To display information about SMRP transactions, use the debug smrp transaction privileged EXEC command. The no form of this command disables debugging output.
debug smrp transaction
no debug smrp transaction
Syntax Description
This command has no arguments or keywords.
Examples
The following is sample output from the debug smrp transaction command. In this example, a secondary node request is sent out to all routers on port 30.1.
Router# debug smrp transactionSMRP: Transaction for port 30.1, secondary node request (seq 8435) sent to all routersSMRP: Transaction for port 30.1, secondary node request (seq 8435) sent to all routersSMRP: Transaction for port 30.1, secondary node request (seq 8435) sent to all routersSMRP: Transaction for port 30.1, secondary node request (seq 8435) sent to all routersTable 320 lists all the messages that can be generated with the debug smrp route command.
Related Commands
debug sgbp dial-bids
Displays large-scale dial-out negotiations between the primary NAS and alternate NASs.
debug snasw dlc
To display frame information entering and leaving the Systems Network Architecture (SNA) switch in real time to the console, use the debug snasw dlc command in privileged EXEC mode.
debug snasw dlc detail
Syntax Description
detail
Indicates that in addition to a one-line description of the frame being displayed, an entire hexadecimal dump of the frame will follow.
Defaults
By default, a one-line description of the frame is displayed.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
Caution
Examples
The following shows sample output from the debug snasw dlc command:
Router# debug snasw dlcSequenceNumber Size of ISR/Link SNA BTU HPR Description of frame343 MVSD In sz:134 ISR fmh5 DLUR Rq ActPU NETA.APPNRA29344 MVSD Out sz:12 ISR +Rsp IPM slctd nws:0008345 @I000002 Out sz:18 ISR Rq ActPU346 MVSD Out sz:273 ISR fmh5 TOPOLOGY UPDATE347 @I000002 In sz:9 ISR +Rsp Data348 @I000002 In sz:12 ISR +Rsp IPM slctd nws:0002349 @I000002 In sz:29 ISR +Rsp ActPU350 MVSD Out sz:115 ISR fmh5 DLUR +Rsp ActPU351 MVSD In sz:12 ISR +Rsp IPM slctd nws:0007352 MVSD In sz:88 ISR fmh5 DLUR Rq ActLU NETA.MARTLU1353 MVSD Out sz:108 ISR fmh5 REGISTER354 @I000002 Out sz:27 ISR Rq ActLU NETA.MARTLU1Related Commands
debug snasw ips
To display internal signal information between the Systems Network Architecture (SNA) switch and the console in real time, use the debug snasw ips command in privileged EXEC mode.
debug snasw dlc
Syntax Description
This command has no arguments or keywords.
Defaults
By default, a one-line description of the interprocess signal is displayed.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
Caution
Examples
The following is an example of the debug snasw ips command output:
Router# debug snasw ipsSequenceNumber Sending ReceivingSignal Name Process Process Queue11257 : DEALLOCATE_RCB : --(0) -> RM(2130000) Q 411258 : RCB_DEALLOCATED : RM(2130000) -> PS(22E0000) Q 211259 : RCB_DEALLOCATED : --(0) -> PS(22E0000) Q 211260 : VERB_SIGNAL : PS(22E0000) -> DR(20F0000) Q 211261 : FREE_SESSION : --(0) -> RM(2130000) Q 211262 : BRACKET_FREED : RM(2130000) -> HS(22FB0001) Q 211263 : BRACKET_FREED : --(0) -> HS(22FB0001) Q 211264 : VERB_SIGNAL : --(0) -> DR(20F0000) Q 211265 : DLC_MU : DLC(2340000) -> PC(22DD0001) Q 211266 : DLC_MU : --(0) -> PC(22DD0001) Q 2Related Commands
snasw ipstrace
Captures interprocess signal information between Switching Services components.
debug snmp bulkstat
To enable debugging messages for the Simple Network Management Protocol (SNMP) bulk statistics, use the debug snmp bulkstat command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug snmp bulkstat
no debug snmp bulkstat
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC (#)
Command History
Usage Guidelines
This command is intended primarily for Cisco support personnel. Debugging output for the Periodic MIB Data Collection and Transfer Mechanism (Bulk Statistics feature) includes messages for data collection, local file generation, and transfer attempts.
Examples
In the following example, debugging command output is enabled for the Periodic MIB Data Collection and Transfer Mechanism (Bulk Statistics feature). Note that the references to a VFile indicate a local bulk statistics file, usually followed by the filename. The filename uses the format specified-filename_device-name_date_time-stamp.
Router# debug snmp00:17:38:BULKSTAT-DC:Poll timer fired for ifmib00:17:38:BULKSTAT-DC:In pollDataGroup00:17:38:BULKSTAT-DC:creating new filevfile:IfMIB_objects_ios108_030307_10111973900:17:38:BULKSTAT-DC:Too small state buffer for ifmib10200:17:38:BULKSTAT-DC:Increased buffer state to 102400:17:38:BULKSTAT-DC:Interface type data group00:17:38:BULKSTAT-DC:polling done00:18:38:BULKSTAT-DC:Poll timer fired for ifmib00:18:38:BULKSTAT-DC:In pollDataGroup00:18:38:BULKSTAT-DC:Interface type data group00:18:38:BULKSTAT-DC:polling done00:19:26:BULKSTAT-DC:Collection timer fired for IfMIB_objects00:19:26:BULKSTAT-TP:Transfer request forvfile:IfMIB_objects_ios108_030307_10111973900:19:30:BULKSTAT-TP:written vfileIfMIB_objects_ios108_030307_10111973900:19:30:BULKSTAT-TP:retained vfilevfile:IfMIB_objects_ios108_030307_10111973900:19:38:BULKSTAT-DC:Poll timer fired for ifmib00:19:38:BULKSTAT-DC:In pollDataGroup00:19:38:BULKSTAT-DC:creating new filevfile:IfMIB_objects_ios108_030307_10131973900:19:38:BULKSTAT-DC:Interface type data group00:19:38:BULKSTAT-DC:polling done00:20:38:BULKSTAT-DC:Poll timer fired for ifmib00:20:38:BULKSTAT-DC:In pollDataGroup00:20:38:BULKSTAT-DC:Interface type data group00:20:38:BULKSTAT-DC:polling done00:21:38:BULKSTAT-DC:Poll timer fired for ifmib00:21:38:BULKSTAT-DC:In pollDataGroup00:21:38:BULKSTAT-DC:Interface type data group00:21:38:BULKSTAT-DC:polling done00:22:26:BULKSTAT-DC:Collection timer fired for IfMIB_objects00:22:26:BULKSTAT-TP:Transfer request forvfile:IfMIB_objects_ios108_030307_10131973900:22:26:BULKSTAT-TP:written vfileIfMIB_objects_ios108_030307_10131973900:22:26:BULKSTAT-TP:retained vfilevfile:IfMIB_objects_ios108_030307_10131973900:22:38:BULKSTAT-DC:Poll timer fired for ifmib00:22:38:BULKSTAT-DC:In pollDataGroup00:22:38:BULKSTAT-DC:creating new filevfile:IfMIB_objects_ios108_030307_10161973900:22:38:BULKSTAT-DC:Interface type data group00:22:38:BULKSTAT-DC:polling done00:23:38:BULKSTAT-DC:Poll timer fired for ifmib00:23:38:BULKSTAT-DC:In pollDataGroup00:23:38:BULKSTAT-DC:Interface type data group00:23:38:BULKSTAT-DC:polling done00:24:38:BULKSTAT-DC:Poll timer fired for ifmib00:24:38:BULKSTAT-DC:In pollDataGroup00:24:38:BULKSTAT-DC:Interface type data group00:24:38:BULKSTAT-DC:polling done00:25:26:BULKSTAT-DC:Collection timer fired for IfMIB_objects00:25:26:BULKSTAT-TP:Transfer request forvfile:IfMIB_objects_ios108_030307_10161973900:25:26:BULKSTAT-TP:written vfileIfMIB_objects_ios108_030307_10161973900:25:26:BULKSTAT-TP:retained vfilevfile:IfMIB_objects_ios108_030307_10161973900:25:38:BULKSTAT-DC:Poll timer fired for ifmib00:25:38:BULKSTAT-DC:In pollDataGroup00:25:38:BULKSTAT-DC:creating new filevfile:IfMIB_objects_ios108_030307_10191973900:25:38:BULKSTAT-DC:Interface type data group00:25:38:BULKSTAT-DC:polling done00:26:38:BULKSTAT-DC:Poll timer fired for ifmib00:26:38:BULKSTAT-DC:In pollDataGroup00:26:38:BULKSTAT-DC:Interface type data group00:26:38:BULKSTAT-DC:polling doneRelated Commands
debug snmp detail
To display Simple Network Management Protocol (SNMP) debug messages, use the debug snmp detail command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug snmp detail
no debug snmp detail
Syntax Description
This command has no arguments or keywords.
Command Default
SNMP debug messages are not displayed.
Command Modes
Privileged EXEC (#)
Command History
Usage Guidelines
Before running the debug snmp detail command, connect the device to the Network Management System (NMS). The command output displays debug messages for errors occurred during SNMP operations. The debug messages help in identifying and debugging errors.
Examples
The following is sample output from the debug snmp detail command:
Router# debug snmp detailSNMP Detail Debugs debugging is onprocess_mgmt_req_int: UDP packet being de-queuedfindContextInfo: Authentication failure, bad community stringSrDoSnmp: Bad Community name.process_mgmt_req_int: UDP packet being de-queuedSrParseV3SnmpMessage: No matching Engine ID.SrParseV3SnmpMessage: Failed.SrDoSnmp: authentication failure, Unknown Engine IDprocess_mgmt_req_int: UDP packet being de-queuedParseSequence, Unexpected type: 4SrParseV3SnmpMessage: ParseSequence:SrParseV3SnmpMessage: Failed.SrDoSnmp: authentication failure, Unsupported security modelQ:Related Commands
debug snmp packet
Displays information about every SNMP packet sent or received by the router.
debug snmp mib nhrp
To display messages about Simple Network Management Protocol (SNMP) Next Hop Resolution Protocol (NHRP) MIB, use the debug snmp mib nhrp command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug snmp mib nhrp {error | events | internal | notif [detail]}
no debug snmp mib nhrp {error | events | internal | notif [detail]}
Syntax Description
Command Modes
Privileged EXEC (#)
Command History
12.4(20)T
This command was introduced.
15.0(1)M
This command was modified. The notif and detail keywords were added.
Usage Guidelines
The debug snmp mib nhrp internal command can generate many output messages. Due to the increased command processing and its effect on system usage, the use of this command is not advisable under normal circumstances.
Examples
The following is sample output from the debug snmp mib nhrp notif command:
*May 10 12:52:01.245: NHRP_SNMP-NOTIF[1488]: Retrieved values from instrumentation*May 10 12:52:01.245: NHRP_SNMP-NOTIF[1646]: Varbind list created*May 10 12:52:01.245: NHRP_SNMP-NOTIF[1665]: NHRP trap queued: cneNotifNextHopRegClientUpThe following is sample output from the debug snmp mib nhrp notif detail command:
*May 10 12:52:44.461: NHRP_SNMP-NOTIF[695]: Address parameters'extraction for local and remote endpoints successful*May 10 12:52:44.461: NHRP_SNMP-NOTIF[1488]: Retrieved values from instrumentation*May 10 12:52:44.461: NHRP_SNMP-NOTIF[1589]: Instance OIDs populated*May 10 12:52:44.461: NHRP_SNMP-NOTIF[1608]: Value types and values populated*May 10 12:52:44.461: NHRP_SNMP-NOTIF[1625]: Varbind created for nhrpServerInternetworkAddrType*May 10 12:52:44.461: NHRP_SNMP-NOTIF[1643]: Varbind created for nhrpServerInternetworkAddr*May 10 12:52:44.461: NHRP_SNMP-NOTIF[1643]: Varbind created for nhrpServerNbmaAddrType*May 10 12:52:44.461: NHRP_SNMP-NOTIF[1643]: Varbind created for nhrpServerNbmaAddr*May 10 12:52:44.461: NHRP_SNMP-NOTIF[1643]: Varbind created for nhrpServerNbmaSubaddr*May 10 12:52:44.461: NHRP_SNMP-NOTIF[1643]: Varbind created for nhrpServerNhcInternetworkAddrType*May 10 12:52:44.461: NHRP_SNMP-NOTIF[1643]: Varbind created for nhrpServerNhcInternetworkAddr*May 10 12:52:44.461: NHRP_SNMP-NOTIF[1643]: Varbind created for nhrpServerNhcNbmaAddrType*May 10 12:52:44.461: NHRP_SNMP-NOTIF[1643]: Varbind created for nhrpServerNhcNbmaAddr*May 10 12:52:44.461: NHRP_SNMP-NOTIF[1643]: Varbind created for nhrpServerNhcNbmaSubaddr*May 10 12:52:44.461: NHRP_SNMP-NOTIF[1643]: Varbind created for nhrpServerNhcPrefixLength*May 10 12:52:44.461: NHRP_SNMP-NOTIF[1643]: Varbind created for nhrpServerNhcInUse*May 10 12:52:44.461: NHRP_SNMP-NOTIF[1643]: Varbind created for nhrpServerCacheUniqueness*May 10 12:52:44.461: NHRP_SNMP-NOTIF[1646]: Varbind list created*May 10 12:52:44.461: NHRP_SNMP-NOTIF[1665]: NHRP trap queued: cneNotifNextHopRegClientUpThe following is sample output from the debug snmp mib nhrp events command:
Router# debug snmp mib nhrp events*Apr 10 13:34:46.175: NHRP_SNMP-EVE[2097]: In Get nhrpClientEntry for VRFID [0] ClientIndex [0] NHS [0] Req [1]*Apr 10 13:34:46.175: NHRP_SNMP-EVE[2148]: In here as expected.*Apr 10 13:34:46.175: NHRP_SNMP-EVE[1050]: In Extract Client Entry Info*Apr 10 13:34:46.223: NHRP_SNMP-EVE[2097]: In Get nhrpClientEntry for VRFID [0] ClientIndex [2] NHS [0] Req [1]*Apr 10 13:34:46.223: NHRP_SNMP-EVE[2140]: Could not find the Node*Apr 10 13:34:46.223: NHRP_SNMP-EVE[2097]: In Get nhrpClientEntry for VRFID [0] ClientIndex [0] NHS [0] Req [1]*Apr 10 13:34:46.223: NHRP_SNMP-EVE[2148]: In here as expected.*Apr 10 13:34:46.223: NHRP_SNMP-EVE[1050]: In Extract Client Entry InfoThe following is sample output from the debug snmp mib nhrp internal command:
Router# debug snmp mib nhrp internal*Apr 10 13:36:33.267: NHRP_SNMP-INTR[2089]: In nhrpClientEntry*Apr 10 13:36:33.323: NHRP_SNMP-INTR[2089]: In nhrpClientEntry*Apr 10 13:36:33.323: NHRP_SNMP-INTR[2089]: In nhrpClientEntryTable 321 describes the significant fields shown in the displays.
Related Commands
show snmp mib nhrp status
Indicates the status of the NHRP MIB and whether the NHRP MIB is enabled or disabled.
debug snmp overhead
To display the list of Simple Network Management Protocol (SNMP) MIBs that take more than the threshold time to perform an SNMP get or get-next operation, use the debug snmp overhead command in privileged EXEC mode. To disable debugging, use the no form of this command.
debug snmp overhead
no debug snmp overhead
Syntax Description
This command has no arguments or keywords.
Command Default
SNMP debug messages are not displayed.
Command Modes
Privileged EXEC (#)
Command History
Examples
The following is sample output from the debug snmp overhead command:
Router# debug snmp overheadSNMP overhead debugging is on*Nov 11 16:35:02.579 PDT: Process exceeds 1000ms threshold (200ms IOS quantum)*Nov 11 16:35:02.579 PDT: GETNEXT of ciscoFlashFileEntry.2.1.1.1--result ciscoFlashFileEntry.2.1.1.2Table 322 describes the significant fields shown in the display.
debug snmp packet
To display information about every Simple Network Management Protocol (SNMP) packet sent or received by the router, use the debug snmp packet command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug snmp packet
no debug snmp packet
Syntax Description
This command has no arguments or keywords.
Command Default
The command is disabled by default.
Command Modes
Privileged EXEC (#)
Command History
Examples
The following is sample output from the debug snmp packet command. In this example, the router receives a get-next request from the host at 192.10.2.10 and responds with the requested information.
Router# debug snmp packetSNMP: Packet received via UDP from 192.10.2.10 on Ethernet0SNMP: Get-next request, reqid 23584, errstat 0, erridx 0sysUpTime = NULL TYPE/VALUEsystem.1 = NULL TYPE/VALUEsystem.6 = NULL TYPE/VALUESNMP: Response, reqid 23584, errstat 0, erridx 0sysUpTime.0 = 2217027system.1.0 = Cisco Internetwork Operating System Softwaresystem.6.0 =SNMP: Packet sent via UDP to 192.10.2.10Based on the kind of packet sent or received, the output may vary. For get-bulk requests, a line similar to the following is displayed:
SNMP: Get-bulk request, reqid 23584, nonrptr 10, maxreps 20For traps, a line similar to the following is displayed:
SNMP: V1 Trap, ent 1.3.6.1.4.1.9.1.13, gentrap 3, spectrap 0Table 323 describes the significant fields shown in the display.
debug snmp requests
To display information about every Simple Network Management Protocol (SNMP) request made by the SNMP manager, use the debug snmp requests command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug snmp requests
no debug snmp requests
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Examples
The following is sample output from the debug snmp requests command:
Router# debug snmp requestsSNMP Manager API: requestdest: 171.69.58.33.161, community: publicretries: 3, timeout: 30, mult: 2, use session rttuserdata: 0x0Table 324 describes the significant fields shown in the display.
debug snmp sync
To debug Simple Network Management Protocol (SNMP) synchronization and faults in synchronization, use the debug snmp sync command in privileged EXEC mode. To disable the display of debugging output, use the no form of this command.
debug snmp sync
no debug snmp sync
Syntax Description
This command has no arguments or keywords.
Defaults
Disabled.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
The debug snmp sync command can be used to debug SNMP synchronization and faults in synchronization. The standby Route Processor (RP) may sometimes reset as a result of synchronization faults. If the fault occurs when SNMP activities such as SNMP sets are in progress, enter the debug snmp sync command to identify whether a synchronization fault caused the reset.
SNMP synchronizations (dynamic and bulk) are performed only if the router is configured to be in stateful switchover (SSO) mode.
Examples
The following example enables debugging of SNMP synchronization activity:
Router# debug snmp syncRelated Commands
debug snmp packets
Displays information about every SNMP packet sent or received by the networking device.
mode
Configures the redundancy mode of operation.
debug snmp tunnel-mib
To enable the debugging for configuring the IP Tunnel Management Information Base (MIB) through Simple Network Management Protocol (SNMP), use the debug snmp tunnel-mib command in privileged EXEC mode. To disable debugging, use the no form of this command.
debug snmp tunnel-mib
no debug snmp tunnel-mib
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC (#)
Command History
Usage Guidelines
Use the debug snmp tunnel-mib command to verify whether a tunnel is created or deleted.
Examples
The following is sample output from the debug snmp tunnel-mib command. The output shows that a tunnel is created through SNMP.
Router# debug snmp tunnel-mibSNMP TUNNEL-MIB debugging is onk_tunnelInetConfigEntry_get: Enteringk_tunnelInetConfigEntry_get: Exact searchtim_client_tunnel_endpoint_data_get: Enteringtim_client_tunnel_endpoint_data_get: Exact searchtim_client_tunnel_endpoint_data_get: No element foundk_tunnelInetConfigEntry_get: Client service failedk_tunnelInetConfigEntry_test: Enteringk_tunnelInetConfigEntry_test: Completedk_tunnelInetConfigEntry_set: Enteringtim_client_tunnel_endpoint_data_get: Enteringtim_client_tunnel_endpoint_data_get: Exact searchtim_client_tunnel_endpoint_data_get: No element foundk_tunnelInetConfigEntry_set: Calling tunnel createtim_client_tunnel_create: Enteringtim_client_tunnel_create: Completed
