Configuring AAA for VPDNs
This module describes how to configure authentication, authorization, and accounting (AAA) for Virtual Private Dialup Networks (VPDNs).
Module History
This module was first published on September 26, 2005, and last updated on November 20, 2006.
Finding Feature Information in This Module
Your Cisco IOS software release may not support all features. To find information about feature support and configuration, use the "Feature Information for AAA for VPDNs" section.
Contents
•
Prerequisites for Configuring AAA for VPDNs
•
•
•
Prerequisites for Configuring AAA for VPDNs
•
•
•
•
•
You can configure virtual private dialup network (VPDN) preauthentication to occur globally or per VPDN group. For global VPDN preauthentication, authentication and authorization should be done using an authentication server. For per-VPDN group-level preauthentication, authentication and authorization should be done locally.
Information About AAA for VPDNs
Before configuring AAA for VPDNs, you should understand the following concepts:
•
•
•
•
•
•
VPDN Tunnel Authorization Search Order
When a call to a network access server (NAS) is to be tunneled to a tunnel server, the NAS must identify which tunnel server to forward the call to. The router can authorize users and select the outgoing tunnel based on the domain portion of the username, the Dialed Number Identification Service (DNIS) number, the multihop hostname, or any combination of these three parameters in a specified order. The default search order for VPDN tunnel authorization is to first search by DNIS, then by domain.
The following sections contain information on VPDN tunnel lookup criteria:
•
•
•
•
•
VPDN Tunnel Lookup Based on Domain Name
When a NAS is configured to forward VPDN calls on the basis of the user domain name, the user must use a username of the form username@domain. The NAS then compares the user domain name to the domain names it is configured to search for. When the NAS finds a match, it forwards the user call to the proper tunnel server.
VPDN Tunnel Lookup Based on L2TP Domain Screening
You can modify the domain portion of the username seamlessly when you enter into a Virtual Private Network (VPN) service. The L2TP Domain Screening feature ensures that the appropriate domain has been screened before access is allowed to an L2TP tunnel for the user session.
For additional information on configuring L2TP Domain Screening tunnel authentication into a VPN, refer to the "L2TP Domain Screening" section.
VPDN Tunnel Lookup Based on DNIS Information
When a NAS is configured to forward VPDN calls on the basis of the user DNIS information, the NAS identifies the user DNIS information, which is provided on ISDN lines, and then forwards the call to the proper tunnel server.
The ability to select a tunnel on the basis of DNIS information provides additional flexibility to network service providers that offer VPDN services and to the companies that use the services. Instead of using only the domain name for tunnel selection, the NAS can use dialed number information for tunnel selection.
With this feature, a company—which might have only one domain name—can provide multiple specific phone numbers for users to dial in to the NAS at the service provider point of presence (POP). The service provider can select the tunnel to the appropriate services or portion of the company network on the basis of the dialed number.
VPDN Tunnel Lookup Based on Both Domain Name and DNIS Information
When a service provider has multiple AAA servers configured, VPDN tunnel authorization searches based on domain name can be time consuming and might cause the client session to time out.
To provide more flexibility, service providers can configure the NAS to perform tunnel authorization searches by domain name only, by DNIS only, or by both in a specified order.
VPDN Tunnel Lookup Based on the Multihop Hostname
If a device will function as a multihop tunnel switch, tunnel authorization searches may be performed based on the multihop hostname. Configuring a multihop hostname on a tunnel switch allows authorization searches to be based on the identity of the peer device that initiated the tunnel. The multihop hostname can be the hostname of the remote peer that initiated the ingress tunnel, or the tunnel ID associated with the ingress tunnel.
A multihop tunnel switch can be configured to perform authorization searches by multihop hostname only, by domain name only, by DNIS only, or by any combination of these searches in a specified order.
L2TP Domain Screening
The Layer 2 Tunnel Protocol (L2TP) Domain Screening feature provides a flexible mechanism for controlling session access to an L2TP tunnel. This feature provides the ability to modify the domain portion of the username seamlessly when a subscriber enters into a virtual private network (VPN) service. The L2TP Domain Screening feature allows per-user L2TP tunnel setup by combining the following two features:
•
•
These two commands work together in the L2TP Domain Screening feature to make sure that the appropriate domain has been screened before access is allowed to an L2TP tunnel for the user session.
With Cisco Software Release 12.2(31)SB2 or higher, you can modify the domain portion of the username seamlessly when you enter into a VPN service. The L2TP Domain Screening, Rules Based feature allows per-user L2TP tunnel setup by creating customized Policy Manager match rules. For more information on the L2TP Domain Screening, Rules Based, see L2TP Domain Screening, Rules Based.
L2TP Tunnel Authentication

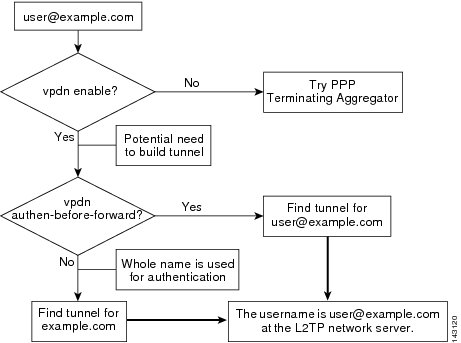

Figure 11 shows the general process flow for tunnel authentication. In this case, the vpdn authen-before-forward process is called if necessary to authenticate the username and domain name to find the correct L2TP tunnel for the session. If no authentication is required, the tunnel match for the domain name is found for the session. In either case, the original username with the original domain is used for session authentication at the L2TP network server.
Figure 11 Normal Tunnel Authentication Without VPN Service

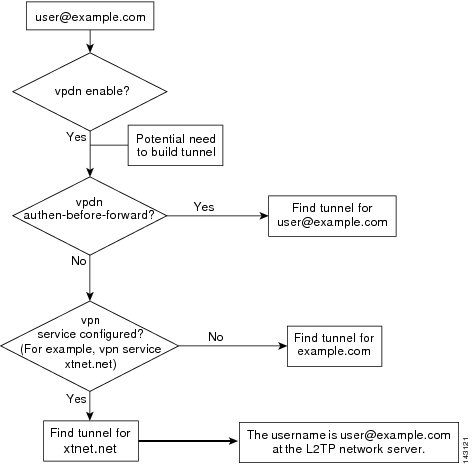

In Figure 12, the same authentication flow proceeds, this time with the VPN service applied to the configuration. Just as before, if the vpdn authen-before-forward process determines that the session must be locally authenticated before being placed into the correct tunnel, authentication proceeds as normal. However, with the vpn service statement applied, the session is placed into the appropriate tunnel for the VPN domain.
Figure 12 Normal Tunnel Authentication with VPN Service Configured

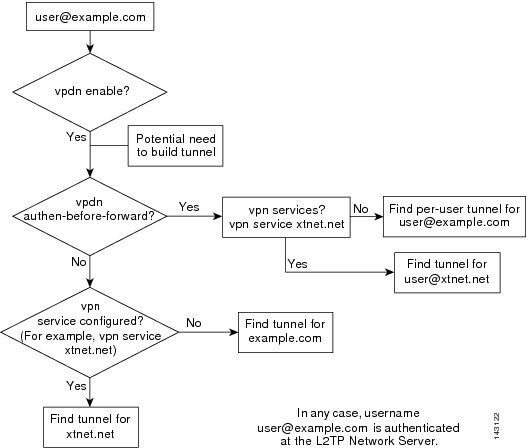

Figure 13 shows the full VPN service application flow. If local authentication at the LAC is required and a VPN service is configured, a local authentication is done with the username provided and the domain of the VPN service provider. This step returns the necessary L2TP tunnel for this VPN session. If VPN service is not configured, local authentication is provided on the username and domain name provided by the subscriber.
If the session does not require local authentication but there is a configured VPN service, the session is placed into the L2TP tunnel for the VPN service provider. Otherwise, the session will be placed into the tunnel for the specified domain name.
In any of these scenarios, the username and domain name for the subscriber session stay the same at the L2TP network server (LNS). This allows a wholesale provider to dedicate a service provider for providing all VPN services to its subscribers without the need for complex configuration for each VPN.
The vpn service command binds a physical incoming interface to a certain tunnel. The result is that no matter what username or domain is presented, the user is always forwarded to the specified tunnel configured by the vpn service command.
Figure 13 New Operation with VPN Service
L2TP Domain Screening, Rules Based
With Cisco Software Release 12.2(31)SB2 or later releases, you can modify the domain portion of the username seamlessly when you enter into a VPN service. The L2TP Domain Screening, Rules Based feature allows per-user L2TP tunnel setup by creating customized Policy Manager match rules. The L2TP Domain Screening, Rules Based feature allows you to construct rules to customize specific policy behavior. You can use the following commands to construct specific policy behavior.
•
•
•
These commands work together in the L2TP Domain Screening, Rules Based feature to make sure that the appropriate domain has been screened before access is allowed to an L2TP tunnel for the user session.
L2TP Tunnel Authentication, Rules Based

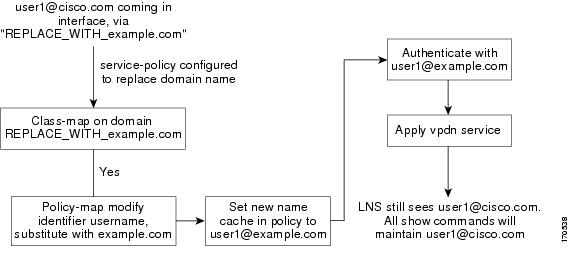

Figure 14 shows the general process flow for tunnel authentication, rules based.
Figure 14
Normal Tunnel Authentication, Rules Based
For all users with service policy "REPLACE_WITH_abc.com, this configuration, following a policy-map session-start event, replaces the domain field of username with abc.com, with the new domain name cached in policy manager. Users authenticate based on username@abc.com, and the per-user profile is retrieved as authorization data. Finally, service abc applies to the user.
Per-User VPDN AAA
If remote AAA is used for VPDN, the NAS that receives the call from a user forwards information about that user to its remote AAA server. With basic VPDN, the NAS sends the user domain name when performing authentication based on domain name or the telephone number the user dialed in from when performing authentication based on DNIS.
When per-user VPDN is configured, the entire structured username is sent to a RADIUS AAA server the first time the router contacts the AAA server. This enables Cisco IOS software to customize tunnel attributes for individual users that use a common domain name or DNIS.
Without VPDN per-user configuration, Cisco IOS software sends only the domain name or DNIS to determine VPDN tunnel attribute information. Then, if no VPDN tunnel attributes are returned, Cisco IOS software sends the entire username string.
VPDN Authorization for Directed Request Users
Directed requests allow users logging in to a NAS to select a RADIUS server for authorization. With directed requests enabled, only the portion of the username before the "@" symbol is sent to the host specified after the "@" symbol. Using directed requests, authorization requests can be directed to any of the configured servers, and only the username is sent to the specified server.
Domain Name Prefix and Suffix Stripping
When a user connects to a NAS configured to use a remote server for AAA, the NAS forwards the username to the remote AAA server. Some RADIUS or TACACS+ servers require the username to be in a particular format, which may be different from the format of the full username. For example, the remote AAA server may require the username to be in the format user@domain.com, but the full username could be prefix/user@domain.com@suffix. Configuring domain name stripping allows the NAS to strip incompatible portions from the full username before forwarding the reformatted username to the remote AAA server.
Beginning in Cisco IOS Release 12.2(13)T, the NAS can be configured to strip generic suffixes from the full username using the suffix delimiter character @. Any portion of the full username that follows the first delimiter that is parsed will be stripped.
Beginning in Cisco IOS Release 12.3(4)T, the NAS can be configured to use a different character or set of characters as the suffix delimiter.
Beginning in Cisco IOS Release 12.4(4)T, the NAS can be configured to strip both suffixes and prefixes from the full username. The NAS can also be configured to strip only specified suffixes instead of performing generic suffix stripping.
VPDN Tunnel Authentication
VPDN tunnel authentication enables routers to authenticate the other tunnel endpoint before establishing a VPDN tunnel. VPDN tunnel authentication is required for Layer 2 Forwarding (L2F) tunnels, and optional for Layer 2 Tunneling Protocol (L2TP) tunnels.
For additional information on configuring VPDN tunnel authentication for client-initiated VPDN tunneling deployments, refer to the "Configuring VPDN Tunnel Authentication" section.
VPDN tunnel authentication can be performed in the following ways:
•
•
•
For L2TP tunnels only, a remote RADIUS AAA server can be used to perform VPDN tunnel authentication on the VPDN tunnel terminator as follows:
•
•
For detailed information on configuring remote RADIUS or TACACS+ servers, refer to the Cisco IOS Security Configuration Guide, Release 12.4.
RADIUS Tunnel Accounting for L2TP VPDNs
RADIUS tunnel accounting for VPDNs is supported by RFC 2867, which introduces six new RADIUS accounting types beginning in Cisco IOS 12.3(4)T. Without RADIUS tunnel accounting support, VPDN with network accounting will not report all possible attributes to the accounting record file. RADIUS tunnel accounting support allows users to determine tunnel-link status changes. Because all possible attributes can be displayed, users can better verify accounting records with their Internet service providers (ISPs).
VPDN-Specific Remote RADIUS AAA Server Configurations
The following RADIUS attributes are specific to VPDN configurations. For detailed information on configuring remote RADIUS or TACACS+ servers, refer to the Cisco IOS Security Configuration Guide, Release 12.4.
VPDN-specific RADIUS attributes provide the following functionality:
•
•
•
•
•
Shell-Based Authentication of VPDN Users
The NAS and tunnel server can be configured to perform shell-based authentication of VPDN users. Shell-based authentication of VPDN users provides terminal services (shell login or exec login) for VPDN users to support rollout of wholesale dial networks. Authentication of users occurs via shell or exec login at the NAS before PPP starts and the tunnel is established.
A character-mode login dialog is provided before PPP starts, and the login dialog supports schemes such as token-card synchronization and initialization, challenge-based password, and so on. After a user is authenticated in this way, the connection changes from character mode to PPP mode to connect the user to the desired destination. The AAA server that authenticates the login user can be selected based on the dialed DNIS or the domain-name part of the username.
VPDN profiles can be kept by a Resource Pool Manager Server (RPMS), RADIUS-based AAA server, or on the NAS.
How to Configure AAA for VPDNs
To configure AAA for VPDNs, perform the following tasks:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Enabling VPDN on the NAS and the Tunnel Server
Before performing any VPDN configuration tasks, you must enable VPDN on the NAS and the tunnel server. If you are deploying a multihop VPDN tunnel switching architecture, VPDN must be enabled on the tunnel switch as well.
Perform this task on all required devices to enable VPDN.
SUMMARY STEPS
1.
2.
3.
DETAILED STEPS
What to Do Next
You may perform the optional task in the "Configuring the VPDN Tunnel Authorization Search Order" section.
•
•
Configuring the VPDN Tunnel Authorization Search Order
The default search order for VPDN tunnel authorization is to first search by DNIS, then by domain.
Perform this task on the NAS or the tunnel switch to configure the VPDN tunnel authorization search order if you prefer to use an order other than the default order.
Prerequisites
You must perform the task in the "Enabling VPDN on the NAS and the Tunnel Server" section.
Restrictions
•
•
SUMMARY STEPS
1.
2.
3.
DETAILED STEPS
What to Do Next
•
•
Configuring L2TP Domain Screening
To configure L2TP Domain Screening, enable VPN service and VPDN preauthentication on the LAC. You can enable VPDN preauthentication globally or for specific VPDN groups.
This section contains the following procedures:
•
•
•
Configuring L2TP Domain Screening with Global Preauthentication
To configure L2TP Domain Screening with global preauthentication, enable VPN service and enable VPDN preauthorization globally. RADIUS authentication and authorization are required for per-user tunnels.
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
DETAILED STEPS
L2TP Domain Screening with Global Preauthentication: Example
Global preauthentication for L2TP domain screening requires RADIUS authentication and authorization. Each user must have a RADIUS user profile that enables per-user L2TP tunneling.
The following example shows a user profile for user-1@example.net; the IP address in the profile is the LNS interface connected to the LAC.
[ /Radius/UserLists/Default/user-1@example.net ]Name = user_1@xnet.netDescription = TESTPassword = <encrypted>Enabled = TRUEcisco-avpair = vpdn:tunnel-type=l2tpcisco-avpair = vpdn:l2tp-tunnel-password=tunnelcisco-avpair = vpdn:l2tp-hello-interval=60cisco-avpair = vpdn:ip-addresses=10.1.1.1cisco-avpair = vpdn:tunnel-id=LAC1-1Framed-protocol = PPPService-Type = OutboundConfiguring L2TP Domain Screening with per-VPDN Group Preauthentication
To configure L2TP Domain Screening with per-VPDN group preauthentication, enable VPN service and enable VPDN preauthentication by specific VPDN group.
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
DETAILED STEPS
Configuring L2TP Domain Screening, Rules Based
To configue domain screening, rules based, proceed with the following steps.
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
7.
8.
9.
Note that if you specify the default method list for any of the control policy actions, the default list will not appear in the output of the show running-config command. For example, if you configure the following command:
Router(config-control-policymap-class-control)# 1 authenticate aaa list defaultthe following will display in the output for the show running-config command:
1 authenticateNamed method lists will display in the show running-config command output.
DETAILED STEPS
Configuring L2TP Domain Screening, Rules Based: Example
The following examples shows a policy map configuration for L2TP domain screening, rules based:
policy-map type control REPLACE_WITH_example.comclass type control always event session-start1 collect identifier unauthenticated-username2 set NEWNAME identifier unauthenticated-username3 substitute NEWNAME "(.*@).*" "\1example.com"4 authenticate variable NEWNAME aaa list EXAMPLE5 service-policy type service name examplepolicy-map type service abcservice vpdn group 1bba-group pppoe globalvirtual-template 1!interface Virtual-Template1service-policy type control REPLACE_WITH_example.comConfiguring per-User VPDN on the NAS
If remote AAA is used for VPDN, the NAS that receives the call from a user forwards information about that user to its remote AAA server. With basic VPDN, the NAS sends the user domain name when performing authentication based on domain name or the telephone number the user dialed in from when performing authentication based on DNIS.
When per-user VPDN is configured, the entire structured username is sent to a RADIUS AAA server the first time the router contacts the AAA server. This enables Cisco IOS software to customize tunnel attributes for individual users that use a common domain name or DNIS.
Without VPDN per-user configuration, Cisco IOS software sends only the domain name or DNIS to determine VPDN tunnel attribute information. Then, if no VPDN tunnel attributes are returned, Cisco IOS software sends the entire username string.
Per-user VPDN can be configured globally, or for individual VPDN groups. The VPDN group configuration will take precedence over the global configuration.
Perform one of the following tasks on the NAS to configure per-user VPDN:
•
•
Prerequisites
The NAS remote RADIUS server must be configured for AAA. For more information on configuring remote RADIUS AAA servers refer to the Cisco IOS Security Configuration Guide, Release 12.4.
Restrictions
•
•
Configuring Global per-User VPDN
Configuring per-user VPDN on a NAS causes the NAS to send the entire structured username of the user to a RADIUS AAA server the first time the NAS contacts the AAA server. Per-user VPDN can be configured globally, or for individual VPDN groups. Configuring per-user VPDN globally will apply per-user VPDN to all request-dialin VPDN groups configured on the NAS.
Perform this task on the NAS to configure global per-user VPDN.
SUMMARY STEPS
1.
2.
3.
DETAILED STEPS
