HSRP Support for MPLS VPNs
Feature History
1
This feature module describes the Hot Standby Router Protocol (HSRP) Support for Multiprotocol Label Switching (MPLS) Virtual Private Networks (VPNs) feature and includes the following sections:
•
Supported Standards, MIBs, and RFCs
Feature Overview
HSRP support on an MPLS VPN interface is useful when an Ethernet is connected between two provider edges (PEs) with either of the following:
•
A customer edge (CE) with a default route to the HSRP virtual IP address
•
One or more hosts with the HSRP virtual IP address configured as the default gateway
Each VPN is associated with one or more VPN routing/forwarding (VRF) instances. A VRF consists of the following:
•
IP routing table
•
Cisco Express Forwarding (CEF) table
•
Set of interfaces that use the CEF forwarding table
•
Set of rules and routing protocol parameters to control the information in the routing tables
VPN routing information is stored in the IP routing table and the CEF table for each VRF. A separate set of routing and CEF tables is maintained for each VRF. These tables prevent information from being forwarded outside a VPN and also prevent packets that are outside a VPN from being forwarded to a router within the VPN.
HSRP currently adds Address Resolution Protocol (ARP) entries and IP hash table entries (aliases) using the default routing table instance. However, a different routing table instance is used when VRF forwarding is configured on an interface, causing ARP and Internet Control Message Protocol (ICMP) echo requests for the HSRP virtual IP address to fail.
The HSRP Support for MPLS VPNs feature ensures that the HSRP virtual IP address is added to the correct IP routing table and not to the default routing table.
Benefits
•
Allows MPLS VPNs to make use of HSRP
•
Provides transparent "first-hop IP routing" redundancy for workstations or routers connected to interfaces within MPLS VPNs
Supported Platforms
•
Cisco 3600 series
•
Cisco 4500 family routers
•
Cisco 4700 family routers
•
Cisco 7100 series
•
Cisco 7200 series
•
Cisco 7500 series
•
Cisco 10000 series
•
Cisco 12000 series (for the ST and S releases only)
Supported Standards, MIBs, and RFCs
Standards
No new or modified standards are supported by this feature.
MIBs
No new or modified MIBs are supported by this feature. To obtain lists of MIBs supported by platform and Cisco IOS release and to download MIB modules, go to the Cisco MIB web site on Cisco Connection Online (CCO) at
http://www.cisco.com/public/sw-center/netmgmt/cmtk/mibs.shtml.
RFCs
No new or modified RFCs are supported by this feature.
Configuration Tasks
See the following sections for configuration tasks for this feature. Each task in the list is identified as either optional or required:
•
Defining VPNs (Required)
•
Enabling HSRP (Required)
•
Configuring HSRP Group Attributes (Optional)
Defining VPNs
To define VPNs, use the following commands on the PE routers beginning in global configuration mode:
Enabling HSRP
To enable the HSRP on an interface, use the following command in interface configuration mode:
Configuring HSRP Group Attributes
To configure other HSRP group attributes that affect how the local router participates in HSRP, use the following commands in interface configuration mode:
Verifying HSRP Support for MPLS VPNs
The following example shows how to use show commands to verify that the HSRP virtual IP address is in the correct ARP and CEF tables:
Router# show ip arp vrf vrf1Protocol Address Age (min) Hardware Addr Type InterfaceInternet 10.2.0.1 - 00d0.bbd3.bc22 ARPA Ethernet0/2Internet 10.2.0.20 - 0000.0c07.ac01 ARPA Ethernet0/2
Router# show ip cef vrf vrf1Prefix Next Hop Interface0.0.0.0/0 10.3.0.4 Ethernet0/30.0.0.0/32 receive10.1.0.0/16 10.2.0.1 Ethernet0/210.2.0.0/16 attached Ethernet0/210.2.0.1/32 receive10.2.0.20/32 receive
224.0.0.0/24 receive255.255.255.255/32 receiveConfiguration Examples

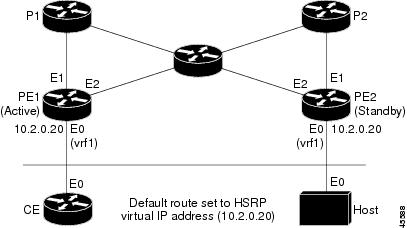

Figure 1 shows two PEs with HSRP running between their VRF interfaces. The CE is configured with the HSRP virtual IP address as its default route. HSRP is configured to track the interfaces connecting the PEs to the rest of the provider network. For example, if interface E1 of PE1 fails, the HSRP priority will be reduced such that PE2 takes over forwarding packets to the HSRP virtual IP address.
Figure 1 Topology Showing HSRP Support Between Two VRF Interfaces
Router PE1 Configuration
conf t!ip cef!ip vrf vrf1rd 100:1route-target export 100:1route-target import 100:1!interface ethernet0ip vrf forwarding vrf1ip address 10.2.0.1 255.255.0.0standby 1 ip 10.2.0.20standby 1 priority 105 preempt delay 10standby 1 timers 3 1standby 1 track ethernet1 10standby 1 track ethernet2 10Router PE2 Configuration
conf t!ip cef!ip vrf vrf1rd 100:1route-target export 100:1route-target import 100:1!interface ethernet0ip vrf forwarding vrf1ip address 10.2.0.2 255.255.0.0standby 1 ip 10.2.0.20standby 1 priority 100 preempt delay 10standby 1 timers 3 1standby 1 track ethernet1 10standby 1 track ethernet2 10Command Reference
No new or modified commands are required for this feature.
Glossary
CE router—customer edge router. A router that is part of a customer network and that interfaces to a provider edge (PE) router. CE routers are not aware of associated VPNs.
HSRP—Hot Standby Router Protocol. Provides high network availability and transparent network topology changes. HSRP creates a Hot Standby router group with a lead router that services all packets sent to the Hot Standby address. The lead router is monitored by other routers in the group, and if it fails, one of these standby routers inherits the lead position and the Hot Standby group address.
MPLS—Multiprotocol Label Switching. Emerging industry standard upon which tag switching is based.
PE router—provider edge router. A router that is part of a service provider network connected to a customer edge (CE) router. All VPN processing occurs in the PE router.
VPN—Virtual private network. Enables IP traffic to use tunneling to travel securely over a public TCP/IP network.
VRF—VPN routing/forwarding instance. A VRF consists of an IP routing table, a derived forwarding table, a set of interfaces that use the forwarding table, and a set of rules and routing protocols that determine what goes into the forwarding table. In general, a VRF includes the routing information that defines a customer VPN site that is attached to a PE router.
