Configuring ATM
This chapter describes how to configure ATM on the Cisco 2600 series, Cisco 3600 series, Cisco 4500, Cisco 4700, Cisco 7200 series, Cisco 7500 and Cisco 12000 series routers. For further general information about ATM, see the "Wide-Area Networking Overview" chapter at the beginning of this book.
To configure routers that use a serial interface for ATM access through an ATM data service unit (ADSU), see the section "Configuring ATM Access over a Serial Interface" later in this chapter.
Note
Beginning in Cisco IOS Release 11.3, all commands supported on the Cisco 7500 series routers are also supported on Cisco 7000 series routers equipped with RSP7000.
For a complete description of the ATM commands in this chapter, refer to the "ATM Commands" chapter in the Cisco IOS Wide-Area Networking Command Reference. To locate documentation of other commands that appear in this chapter, use the command reference master index or search online.
For information about Switched Multimegabit Data Service (SMDS) support, refer to the "SMDS Commands" chapter in the Cisco IOS Wide-Area Networking Command Reference.
For information about configuring LAN emulation (LANE) for ATM, refer to the "Configuring LAN Emulation" chapter in the Cisco IOS Switching Services Configuration Guide. For information about LANE commands, refer to the "LAN Emulation Commands" chapter in the Cisco IOS Switching Services Command Reference.
For information about configuring IP to ATM class of service, refer to the "IP to ATM Class of Service Overview" and "Configuring IP to ATM Class of Service" chapters in the Cisco IOS Quality of Service Solutions Configuration Guide.
ATM Configuration Task List
To configure ATM, complete the tasks in the following sections. The first task is required, and then you must configure at least one PVC or SVC. The virtual circuit options you configure must match in three places: on the router, on the ATM switch, and at the remote end of the PVC or SVC connection. The remaining tasks are optional.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
See the "ATM Configuration Examples" section at the end of this chapter for configuration examples.
Enabling the ATM Interface
This section describes how to configure an ATM interface. For the AIP, all ATM port adapters, and the 1-port ATM-25 network module, the port number is always 0. For example, the slot/port address of an ATM interface on an AIP installed in slot 1 is 1/0.
To configure the ATM interface, use the following commands beginning in privileged EXEC mode:
Step 1
configure terminal
At the privileged EXEC prompt, enter global configuration mode from the terminal.
Step 2
interface atm slot/0
or
interface atm slot/port-adapter/0
or
interface atm number
Specify the ATM interface using the appropriate format of the interface atm command.1
Step 3
ip address ip-address mask
If IP routing is enabled on the system, optionally assign a source IP address and subnet mask to the interface.
.1 To determine the correct form of the interface atm command, consult your ATM network module, port adapter, or router documentation.
To enable the ATM interface, use the following command in interface configuration mode:
no shutdown
Change the shutdown state to up and enable the ATM interface, thereby beginning the segmentation and reassembly (SAR) operation on the interface.
The no shutdown command passes an enable command to the ATM interface, which then begins segmentation and reassembly (SAR) operations. It also causes the ATM interface to configure itself based on the previous configuration commands sent.
Configuring PVCs
To use a permanent virtual circuit (PVC), you must configure the PVC into both the router and the ATM switch. PVCs remain active until the circuit is removed from either configuration.
Note
All virtual circuit characteristics listed in the "Wide-Area Networking Overview" chapter apply to these PVCs. When a PVC is configured, all the configuration options are passed on to the ATM interface. These PVCs are writable into the nonvolatile RAM (NVRAM) as part of the Route Processor (RP) configuration and are used when the RP image is reloaded.
Some ATM switches might have point-to-multipoint PVCs that do the equivalent of broadcasting. If a point-to-multipoint PVC exists, then that PVC can be used as the sole broadcast PVC for all multicast requests.
To configure a PVC, perform the tasks in the following sections. The first two tasks are required; the other tasks are optional.
•
•
•
•
•
•
•
•
•
•
Creating a PVC
To create a PVC on the ATM interface and enter interface-ATM-VC configuration mode, use the following command beginning in interface configuration mode:
Note
Once you specify a name for a PVC, you can reenter the interface-ATM-VC configuration mode by simply entering pvc name.
Note
See examples of PVC configurations in the section "ATM Configuration Examples" at the end of this chapter.
Mapping a Protocol Address to a PVC
The ATM interface supports a static mapping scheme that identifies the network address of remote hosts or routers. This section describes how to map a PVC to an address, which is a required task for configuring a PVC.
To map a protocol address to a PVC, use the following command in interface-ATM-VC configuration mode:
protocol protocol protocol-address [[no] broadcast]
Map a protocol address to a PVC.
Note
See examples of PVC configurations in the section "ATM Configuration Examples" at the end of this chapter.
Configuring the AAL and Encapsulation Type
To configure the ATM adaptation layer (AAL) and encapsulation type, use the following command beginning in interface-ATM-VC configuration mode:
encapsulation aal5encap
Configure the ATM adaptation layer (AAL) and encapsulation type.
For a list of AAL types and encapsulations supported for the aal-encap argument, refer to the encapsulation aal5 command in the "ATM Commands" chapter of the Cisco IOS Wide-Area Networking Command Reference. The global default is AAL5 with SNAP encapsulation.
Configuring PVC Traffic Parameters
The supported traffic parameters are part of the following service categories: Available Bit Rate (ABR), Unspecified Bit Rate (UBR), UBR+, Variable Bit Rate Non Real-Time (VBR-NRT), and real-time Variable Bit Rate (VBR). Only one of these categories can be specified per PVC connection so if a new one is entered, it will replace the existing one.
To configure PVC traffic parameters, use one of the following commands beginning in interface-ATM-VC configuration mode:
The -pcr and -mcr arguments are the peak cell rate and minimum cell rate, respectively. The -scr and -mbs arguments are the sustainable cell rate and maximum burst size, respectively.
For an example of how to configure an ABR PVC, refer to the section "Configuring an ABR PVC Example" at the end of this chapter.
For a description of how to configure traffic parameters in a VC class and apply the VC class to an ATM interface or subinterface, refer to the section "Configuring VC Classes."
Note
For ABR VCs, you can optionally configure the amount that the cell transmission rate increases or decreases in response to flow control information from the network or destination. To configure this option, use the following command in interface-ATM-VC configuration mode:
atm abr rate-factor [rate-increase-factor] [rate-decrease-factor]
Specify the ABR rate factors. The default increase and decrease rate factors is 1/16.
For an example of configuring an ABR PVC, see the section "Configuring an ABR PVC Example" later in this chapter.
Configuring PVC Discovery
You can configure your router to automatically discover PVCs that are configured on an attached adjacent switch. The discovered PVCs and their traffic parameters are configured on an ATM main interface or subinterface that you specify. Your router receives the PVC parameter information using Interim Local Management Interface (ILMI).
To configure PVC discovery on an ATM interface, use the following commands beginning in global configuration mode:
Step 1
interface atm slot/0
or
interface atm slot/port-adapter/0
or
interface atm number
Specify the ATM interface using the appropriate format of the interface atm command.1
Step 2
pvc [name] 0/16 ilmi
Configure an ILMI PVC on the main interface.
Step 3
exit
Return to interface configuration mode.
Step 4
atm ilmi-pvc-discovery [subinterface]
Configure PVC Discovery on the main interface and optionally specify that discovered PVCs will be assigned to a subinterface.
Step 5
exit
Return to global configuration mode.
Step 6
interface atm slot/0[.subinterface-number
{multipoint | point-to-point}]or
interface atm slot/port-adapter/0[.subinterface-number {multipoint | point-to-point}]
or
interface atm number[.subinterface-number {multipoint | point-to-point}]
Specify the ATM main interface or subinterface that discovered PVCs will be assigned to.
Step 7
ip address ip-address mask
(Optional) Specify the protocol address for the subinterface.
.1 To determine the correct form of the interface atm command, consult your ATM network module, port adapter, or router documentation.
Use the subinterface keyword in Step 4 if you want the discovered PVCs to reside on an ATM subinterface that you specify in Step 6. The discovered PVCs are assigned to the subinterface number that matches the VPI number of the discovered PVC. For example, if subinterface 2/0.1 is specified using the interface atm command in Step 6, then all discovered PVCs with a VPI value of 1 will be assigned to this subinterface. For an example, see the section "Configuring PVC Discovery Example" later in this chapter.
Repeat Steps 6 and 7 if you want discovered PVCs to be assigned to more than one subinterface. If no subinterfaces are configured, discovered PVCs will be assigned to the main interface specified in Step 1.
For an example of configuring PVC discovery, refer to the section "Configuring PVC Discovery Example" at the end of this chapter.
Enabling Inverse ARP
Inverse ARP is enabled by default when you create a PVC using the pvc command. Once configured, a protocol mapping between an ATM PVC and a network address is learned dynamically as a result of the exchange of ATM Inverse ARP packets.
Inverse ARP is supported on PVCs running IP or IPX and no static map is configured. If a static map is configured, Inverse ARP will be disabled.
To enable Inverse ARP on an ATM PVC, use the following commands beginning in global configuration mode:
Step 1
interface atm slot/0[.subinterface-number {multipoint | point-to-point}]
or
interface atm slot/port-adapter/0[.subinterface-number {multipoint | point-to-point}]
or
interface atm number[.subinterface-number {multipoint | point-to-point}]
Specify the ATM interface using the appropriate format of the interface atm command.1
Step 2
pvc [name] vpi/vci
Specify an ATM PVC by name (optional) and VPI/VCI numbers.
Step 3
encapsulation aal5snap
Configure AAL5 LLC-SNAP encapsulation if it is not already configured.
Step 4
inarp minutes
(Optional) Adjust the Inverse ARP time period.
.1 To determine the correct form of the interface atm command, consult your ATM network module, port adapter, or router documentation.
When PVC discovery is enabled on an active PVC and the router terminates that PVC, the PVC will generate an ATM Inverse ARP request. This allows the PVC to resolve its own network addresses without configuring a static map.
Address mappings learned through Inverse ARP are aged out. However, mappings are refreshed periodically. This period is configurable using the inarp command, which has a default of 15 minutes.
You can also enable Inverse ARP using the protocol command. This is necessary only if you disabled Inverse ARP using the no protocol command. For more information about this command, refer to the "ATM Commands" chapter in the Cisco IOS Wide-Area Networking Command Reference.
For an example of configuring Inverse ARP, see the section "Enabling Inverse ARP Example" at the end of this chapter.
Configuring Generation of End-to-End F5 OAM Loopback Cells to Verify Connectivity
You can optionally configure the PVC to generate end-to-end F5 OAM loopback cells to verify connectivity on the virtual circuit. The remote end must respond by echoing back such cells. If OAM response cells are missed (indicating the lack of connectivity), the PVC state goes down. If all the PVCs on a subinterface go down, the subinterface goes down.
To configure transmission of end-to-end F5 OAM cells on a PVC, use the following commands in interface-ATM-VC configuration mode:
Use the up-count argument to specify the number of consecutive end-to-end F5 OAM loopback cell responses that must be received in order to change a PVC connection state to up. Use the down-count argument to specify the number of consecutive end-to-end F5 OAM loopback cell responses that are not received in order to tear down a PVC. Use the retry-frequency argument to specify the frequency (in seconds) that end-to-end F5 OAM loopback cells should be transmitted when a change in UP/DOWN state is being verified. For example, if a PVC is up and a loopback cell response is not received after the frequency (in seconds) specified using the oam-pvc command, then loopback cells are sent at the retry-frequency to verify whether or not the PVC is down.
For information about managing PVCs using OAM, see the section "Configuring OAM Management" later in this chapter.
For an example of OAM loopback cell generation, see the section "Configuring Generation of End-to-End F5 OAM Loopback Cells Example" at the end of this chapter.
Configuring Broadcast on a PVC
To send duplicate broadcast packets for all protocols configured on a PVC, use the following command in interface-ATM-VC configuration mode:
Note
Assigning a VC Class to a PVC
By creating a VC class, you can preconfigure a set of default parameters that you may apply to a PVC. To create a VC class, refer to the section "Configuring VC Classes" later in this chapter.
Once you have created a VC class, use the following command in interface-ATM-VC configuration mode to apply the VC class to a PVC:
The vc-class-name argument is the same as the name argument you specified when you created a VC class using the vc-class atm command. Refer to the section "Configuring VC Classes" later in this chapter for a description of how to create a VC class.
Configuring PVC Trap Support
You can configure the PVC to provide failure notification by sending a trap when a PVC on an ATM interface fails or leaves the UP operational state.
PVC Failure Notification
Only one trap is generated per hardware interface, within the specified interval defined by the interval atmIntPvcNotificationInterval. If other PVCs on the same interface go DOWN during this interval, traps are generated and held until the interval has elapsed. Once the interval has elapsed, the traps are sent if the PVCs are still DOWN.
No trap is generated when a PVC returns to the UP state after having been in the DOWN state. If you need to detect the recovery of PVCs, you must use the SNMP management application to regularly poll your router.
PVC Status Tables
When PVC trap support is enabled, the SNMP manager can poll the SNMP agent to get PCV status information. The table atmInterfaceExtTable provides PVC status on an ATM interface. The table atmCurrentlyFailingPVclTable provides currently failing and previously failed PVC time-stamp information.
Note
Prerequisites
Before you enable PVC trap support, you must configure SNMP support and an IP routing protocol on your router. See the "ATM Configuration Examples" section later in this document. For more information about configuring SNMP support, refer to the chapter "Monitoring the Router and Network" in the Cisco IOS Configuration Fundamentals Configuration Guide for Cisco IOS Release 12.1. For information about configuring IP routing protocols, refer to the section "IP Routing Protocols" in the Cisco IOS Configuration Guide for Cisco IOS Release 12.1.
To receive PVC failure notification and access to PVC status tables on your router, you must have the Cisco PVC trap MIB called CISCO-IETF-ATM2-PVCTRAP-MIB.my compiled in your NMS application. You can find this MIB on the Web at Cisco's MIB website that has the URL http://www.cisco.com/public/mibs.
Enabling PVC Trap Support
When you configure PVC trap support, you must also enable OAM management on the PVC. To enable PVC trap support and OAM management, use the following commands beginning in global configuration mode:
Step 1
snmp-server enable traps atm pvc interval seconds fail-interval seconds
Enable PVC trap support.
Step 2
interface atm slot/0[.subinterface-number {multipoint | point-to-point}]
or
interface atm slot/port-adapter/0[.subinterface-number {multipoint | point-to-point}]
or
interface atm number[.subinterface-number {multipoint | point-to-point}]
Specify the ATM interface using the appropriate form of the interface atm command.1
Step 3
pvc [name] vpi/vci
Enable the PVC.
Step 4
oam-pvc manage
Enable end-to-end OAM management for an ATM PVC.
.1 To determine the correct form of the interface atm command, consult your ATM network module, port adapter, or router documentation.
For more information on OAM management, see the section "Configuring OAM Management" later in this chapter.
The new objects in this feature are defined in the IETF draft The Definitions of Supplemental Managed Objects for ATM Management, which is an extension to the AToM MIB (RFC 1695). You can find this draft on the Web at the following URL: http://www.ietf.org/internet-drafts/.
For an example of configuring PVC trap support, see the section "Configuring PVC Trap Support Example" at the end of this chapter.
Configuring SVCs
ATM switched virtual circuit (SVC) service operates much like X.25 SVC service, although ATM allows much higher throughput. Virtual circuits are created and released dynamically, providing user bandwidth on demand. This service requires a signalling protocol between the router and the switch.
The ATM signalling software provides a method of dynamically establishing, maintaining, and clearing ATM connections at the User-Network Interface (UNI). The ATM signalling software conforms to ATM Forum UNI 3.0 or ATM Forum UNI 3.1 depending on what version is selected by ILMI or configuration.
In UNI mode, the user is the router and the network is an ATM switch. This is an important distinction. The Cisco router does not perform ATM-level call routing. Instead, the ATM switch does the ATM call routing, and the router routes packets through the resulting circuit. The router is viewed as the user and the LAN interconnection device at the end of the circuit, and the ATM switch is viewed as the network.
Figure 1 illustrates the router position in a basic ATM environment. The router is used primarily to interconnect LANs via an ATM network. The workstation connected directly to the destination ATM switch illustrates that you can connect not only routers to ATM switches, but also any computer with an ATM interface that conforms to the ATM Forum UNI specification.
Figure 1 Basic ATM Environment
You must complete the tasks in the following sections to use SVCs:
•
•
•
•
The tasks in the following sections are optional SVC tasks for customizing your network. These tasks are considered advanced; the default values are almost always adequate. You should not have to perform these tasks unless you need to customize your particular SVC connection.
•
•
•
•
•
•
•
•
•
•
•
Note
Configuring Communication with the ILMI
In an SVC environment, you must configure a PVC for communication with the Integrated Local Management Interface (ILMI) so the router can receive SNMP traps and new network prefixes. The recommended vpi and vci values for the ILMI PVC are 0 and 16, respectively. To configure ILMI communication, use the following command in interface configuration mode:
Note
Once you have configured an ILMI PVC, you can optionally enable the ILMI keepalive function by using the following command in interface configuration mode:
atm ilmi-keepalive [seconds]
Optionally, enable ILMI keepalives and set the interval between keepalives.
No other configuration steps are required.
ILMI address registration for receipt of SNMP traps and new network prefixes is enabled by default. The ILMI keepalive function is disabled by default; when enabled, the default interval between keepalives is 3 seconds.
For an example of configuring ILMI, see the section "Configuring Communication with the ILMI Example" within the "ATM Configuration Examples" at the end of this chapter.
Configuring the PVC that Performs SVC Call Setup
Unlike X.25 service, which uses in-band signalling (connection establishment done on the same circuit as data transfer), ATM uses out-of-band signalling. One dedicated PVC exists between the router and the ATM switch, over which all SVC call establishment and call termination requests flow. After the call is established, data transfer occurs over the SVC, from router to router. The signalling that accomplishes the call setup and teardown is called Layer 3 signaling or the Q.2931 protocol.
For out-of-band signalling, a signalling PVC must be configured before any SVCs can be set up. Figure 2 illustrates that a signalling PVC from the source router to the ATM switch is used to set up two SVCs. This is a fully meshed network; workstations A, B, and C all can communicate with each other.

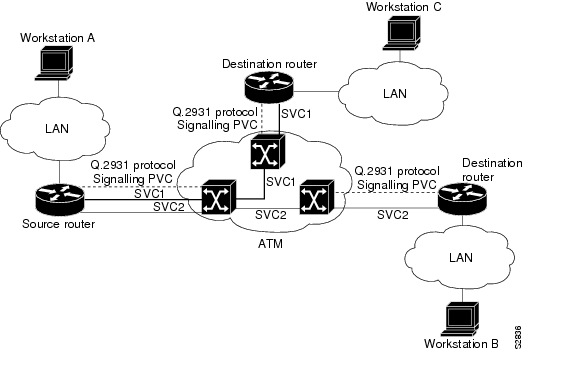

Figure 2 One or More SVCs Require a Signalling PVC
To configure the signalling PVC for all SVC connections, use the following command in interface configuration mode:
pvc [name] vpi/vci qsaal
Configure the signalling PVC for an ATM main interface that uses SVCs.
Note
The VPI and VCI values must be configured consistently with the local switch. The standard value for VPI and VCI are 0 and 5, respectively.
See the section "SVCs in a Fully Meshed Network Example" at the end of this chapter for a sample ATM signalling configuration.
Configuring the NSAP Address
Every ATM interface involved with signalling must be configured with a network service access point (NSAP) address. The NSAP address is the ATM address of the interface and must be unique across the network.
To configure an NSAP address, complete the tasks described in one of the following sections:
•
•
Configuring the ESI and Selector Fields
If the switch is capable of delivering the NSAP address prefix to the router by using ILMI, and the router is configured with a PVC for communication with the switch via ILMI, you can configure the endstation ID (ESI) and selector fields using the atm esi-address command. The atm esi-address command allows you to configure the ATM address by entering the ESI (12 hexadecimal characters) and the selector byte (2 hexadecimal characters). The NSAP prefix (26 hexadecimal characters) is provided by the ATM switch.
To configure the router to get the NSAP prefix from the switch and use locally entered values for the remaining fields of the address, use the following commands beginning in interface configuration mode:
The recommended vpi and vci values for the ILMI PVC are 0 and 16, respectively.
You can also specify a keepalive interval for the ILMI PVC. See the "Configuring Communication with the ILMI" section earlier in this chapter for more information.
To see an example of setting up the ILMI PVC and assigning the ESI and selector fields of an NSAP address, see the section "SVCs with Multipoint Signalling Example" at the end of this chapter.
Configuring the Complete NSAP Address
When you configure the ATM NSAP address manually, you must enter the entire address in hexadecimal format because each digit entered represents a hexadecimal digit. To represent the complete NSAP address, you must enter 40 hexadecimal digits in the following format:
XX.XXXX.XX.XXXXXX.XXXX.XXXX.XXXX.XXXX.XXXX.XXXX.XX
Note
Because the interface has no default NSAP address, you must configure the NSAP address for SVCs. To set the ATM interface's source NSAP address, use the following command in interface configuration mode:
The atm nsap-address and atm esi-address commands are mutually exclusive. Configuring the router with the atm nsap-address command negates the atm esi-address setting, and vice versa. For information about using the atm esi-address command, see the preceding section "Configuring the ESI and Selector Fields."
See an example of assigning an NSAP address to an ATM interface in the section "ATM NSAP Address Example" at the end of this chapter.
Creating an SVC
To create an SVC, use the following commands beginning in interface configuration mode:
Once you specify a name for an SVC, you can reenter interface-ATM-VC configuration mode by simply entering the svc name command; you can remove an SVC configuration by entering the no svc name command.
For a list of AAL types and encapsulations supported for the aal-encap argument, refer to the encapsulation aal5 command in the "ATM Commands" chapter of the Cisco IOS Wide-Area Networking Command Reference. The default is AAL5 with SNAP encapsulation.
Configuring ATM UNI Version Override
Normally, when ILMI link autodetermination is enabled on the interface and is successful, the router takes the user-network interface (UNI) version returned by ILMI. If the ILMI link autodetermination process is unsuccessful or ILMI is disabled, the UNI version defaults to 3.0. You can override this default by using the atm uni-version command. The no form of the command sets the UNI version to the one returned by ILMI if ILMI is enabled and the link autodetermination is successful. Otherwise, the UNI version will revert to 3.0. To override the ATM UNI version used by the router, use the following command in interface configuration mode:
No other configuration steps are required.
Configuring the Idle Timeout Interval
You can specify an interval of inactivity after which any idle SVC on an interface is torn down. This timeout interval might help control costs and free router memory and other resources for other uses.
To change the idle timeout interval, use the following command in interface-ATM-VC configuration mode:
idle-timeout seconds [minimum-rate]
Configure the interval of inactivity after which an idle SVC will be torn down.
In addition to configuring the interval of inactivity, you can optionally specify the minimum-rate in kilobits per second (kbps). This is the minimum traffic rate required on an ATM SVC to maintain the connection.
Configuring Point-to-Multipoint Signalling
Point-to-multipoint signalling (or multicasting) allows the router to send one packet to the ATM switch and have the switch replicate the packet to the destinations. It replaces pseudobroadcasting on specified virtual circuits for protocols configured for broadcasting.
You can configure multipoint signalling on an ATM interface after you have mapped protocol addresses to NSAPs and configured one or more protocols for broadcasting.
After multipoint signalling is set, the router uses the SVC configurations that have the broadcast keyword set to establish multipoint calls. The call is established to the first destination with a Setup message. Additional parties are added to the call with AddParty messages each time a multicast packet is sent. One multipoint call will be established for each logical subnet of each protocol that has the broadcast keyword set.
To configure multipoint signalling on an ATM interface, use the following commands beginning in global configuration mode:
Step 1
interface atm slot/0
or
interface atm slot/port-adapter/0
or
interface atm number
Specify the ATM interface using the appropriate format of the interface atm command.1
Step 2
pvc [name] 0/5 qsaal
Configure the signalling PVC for an ATM main interface that uses SVCs.
Step 3
exit
Return to interface configuration mode.
Step 4
pvc [name] 0/16 ilmi
and
exit
(Optional) Configure an ILMI PVC on an ATM main interface and return to interface configuration mode. This task is required if you configure the ATM NSAP address in Step 5 by configuring the ESI and selector fields.
Step 5
atm nsap-address nsap-address
or
atm esi-address esi.selector
Configure the complete NSAP address manually.
or
Configure the ESI and selector fields. To use this method, you must configure Step 4 first.
Step 6
svc [name] nsap address
Create an SVC and specify the destination NSAP address. Enter interface-ATM-VC mode.
Step 7
protocol protocol protocol-address broadcast
Provide a protocol address for the interface and enable broadcasting.
Step 8
exit
Return to interface configuration mode.
Step 9
atm multipoint-signalling
Enable multipoint signalling to the ATM switch.
Step 10
atm multipoint-interval interval
(Optional) Limit the frequency of sending AddParty messages.
.1 To determine the correct form of the interface atm command, consult your ATM network module, port adapter, or router documentation.
If multipoint virtual circuits are closed, they are reopened with the next multicast packet. Once the call is established, additional parties are added to the call when additional multicast packets are sent. If a destination never comes up, the router constantly attempts to add it to the call by means of multipoint signalling.
For an example of configuring multipoint signalling on an interface that is configured for SVCs, see the section "SVCs with Multipoint Signalling Example" at the end of this chapter.
Configuring IP Multicast over ATM Point-to-Multipoint Virtual Circuits
This task is documented in the "Configuring IP Multicast Routing" chapter of the Cisco IOS IP and IP Routing Configuration Guide.
Configuring SVC Traffic Parameters
The tasks in this section are optional and advanced. The ATM signalling software can specify to the ATM interface on the router and the switch a limit on how much traffic the source router will be sending. It provides this information in the form of traffic parameters. (These parameters have default values.) The ATM switch in turn sends these values as requested by the source to the ATM destination node. If the destination cannot provide such capacity levels, the call may fail. (For Cisco router series behavior, see the per-interface atm sig-traffic-shaping strict command in the Cisco IOS Wide-Area Networking Command Reference.) There is a single attempt to match traffic values.
The supported traffic parameters are part of the following service categories: Unspecified Bit Rate (UBR), UBR+, and Variable Bit Rate Non Real-Time (VBR-NRT). Only one of these categories can be specified per SVC connection so if a new one is entered, it will replace the existing one. The commands used to specify the service category and traffic values are identical to those used when you create a PVC.
To configure traffic parameters on an SVC, use the following commands beginning in global configuration mode:
Step 1
interface atm slot/0[.subinterface-number
{multipoint | point-to-point}]or
interface atm slot/port-adapter/0[.subinterface-number {multipoint | point-to-point}]
or
interface atm number[.subinterface-number {multipoint | point-to-point}]
Specify the ATM interface using the appropriate format of the interface atm command.1
Step 2
svc [name] nsap address
Create an SVC and specify the destination NSAP address.
Step 3
protocol protocol protocol-address [[no] broadcast]
Map a destination protocol address to an SVC.
Step 4
ubr output-pcr [input-pcr]
or
ubr+ output-pcr output-mcr [input-pcr] [input-mcr]
or
vbr-nrt output-pcr output-scr output-mbs [input-pcr] [input-scr] [input-mbs]
Configure the UBR
or
Configure the UBR and a minimum guaranteed rate
or
Configure the VBR-NRT QOS.
Step 5
exit
Return to interface configuration mode and enable the traffic parameters on the SVC.
.1 To determine the correct form of the interface atm command, consult your ATM network module, port adapter, or router documentation.
Note
The -pcr and -mcr arguments are the peak cell rate and minimum cell rate, respectively. The -scr and -mbs arguments are the sustainable cell rate and maximum burst size, respectively.
For an example of configuring traffic parameters on an SVC, see the section "Configuring SVC Traffic Parameters Example" at the end of this chapter.
For a description of how to configure traffic parameters in a VC class and apply the VC class to an ATM interface or subinterface, refer to the section "Configuring VC Classes."
Configuring Strict Traffic Shaping
You can configure strict traffic shaping on an ATM interface to specify that an SVC be established using only signaled traffic parameters. If such shaping cannot be provided, the SVC is released.
To specify that an SVC be established on an ATM interface using only signaled traffic parameters, use the following command in interface configuration mode:
atm sig-traffic-shaping strict
Specify that an SVC be established on an ATM interface using only signaled traffic parameters.
If you do not configure strict traffic shaping on the router ATM interface, an attempt is made to establish an SVC with traffic shaping for the transmit cell flow per the signaled traffic parameters. If such shaping cannot be provided, the SVC is installed with default shaping parameters; that is, it behaves as though a PVC were created without specifying traffic parameters.
Configuring Generation of End-to-End F5 OAM Loopback Cells to Verify Connectivity
You can optionally configure the SVC to generate end-to-end F5 OAM loopback cells to verify connectivity on the virtual circuit. The remote end must respond by echoing back such cells. If OAM response cells are missed (indicating the lack of connectivity), the SVC is torn down. For more information, refer to the "Configuring OAM Management" section later in this chapter.
To configure transmission of end-to-end F5 OAM loopback cells on an SVC, use the following commands in interface-ATM-VC configuration mode:
The up-count argument does not apply to SVCs, but it must be specified in order to configure the down-count and retry-frequency. Use the down-count argument to specify the number of consecutive end-to-end F5 OAM loopback cell responses that are not received in order to tear down an SVC. Use the retry-frequency argument to specify the frequency (in seconds) that end-to-end F5 OAM loopback cells should be transmitted when a change in UP/DOWN state is being verified. For example, if an SVC is up and a loopback cell response is not received after the frequency (in seconds) specified using the oam-svc command, then loopback cells are sent at the retry-frequency to verify whether or not the SVC is down.
Note
Configuring Broadcast on an SVC
To send duplicate broadcast packets or send a single broadcast packet using multipoint signalling for all protocols configured on an SVC, use the following command in interface-ATM-VC configuration mode:
Note
Assigning a VC Class to an SVC
By creating a VC class, you can preconfigure a set of default parameters that you may apply to an SVC. To create a VC class, refer to the section "Configuring VC Classes" later in this chapter.
Once you have created a VC class, use the following command in interface-ATM-VC configuration mode to apply the VC class to an SVC:
The vc-class-name argument is the same as the name argument you specified when you created a VC class using the vc-class atm command. Refer to the section "Configuring VC Classes" later in this chapter for a description of how to create a VC class.
Configuring SSCOP
The Service-Specific Connection-Oriented Protocol (SSCOP) resides in the service-specific convergence sublayer (SSCS) of the ATM adaptation layer (AAL). SSCOP is used to transfer variable-length service data units (SDUs) between users of SSCOP. SSCOP provides for the recovery of lost or corrupted SDUs.
Note
Setting the Poll Timer
The poll timer controls the maximum time between transmission of a POLL PDU when sequential data (SD) or SDP PDUs are queued for transmission or are outstanding pending acknowledgments. To change the poll timer from the default value of 100 seconds, use the following command in interface configuration mode:
Setting the Keepalive Timer
The keepalive timer controls the maximum time between transmission of a POLL PDU when no SD or SDP PDUs are queued for transmission or are outstanding pending acknowledgments. To change the keepalive timer from the default value of 5 seconds, use the following command in interface configuration mode:
Setting the Connection Control Timer
The connection control timer determines the time between transmission of BGN, END, or RS (resynchronization) PDUs as long as an acknowledgment has not been received. Connection control performs the establishment, release, and resynchronization of an SSCOP connection.
To change the connection control timer from the default value of 1 seconds, use the following command in interface configuration mode:
To change the retry count of the connection control timer from the default value of 10, use the following command in interface configuration mode:
sscop max-cc retries
Set the number of times that SSCOP will retry to transmit BGN, END, or RS PDUs when they have not been acknowledged.
Setting the Transmitter and Receiver Windows
A transmitter window controls how many packets can be transmitted before an acknowledgment is required. To change the transmitter's window from the default value of 7, use the following command in interface configuration mode:
A receiver window controls how many packets can be received before an acknowledgment is required. To change the receiver's window from the default value of 7, use the following command in interface configuration mode:
Closing an SVC
You can disconnect an idle SVC by using the following command in EXEC mode:
Configuring VC Classes
A VC class is a set of preconfigured VC parameters that you configure and apply to a particular VC or ATM interface. You may apply a VC class to an ATM main interface, subinterface, PVC, or SVC. For example, you can create a VC class that contains VC parameter configurations that you will apply to a particular PVC or SVC. You might create another VC class that contains VC parameter configurations that you will apply to all VCs configured on a particular ATM main interface or subinterface. Refer to the "ATM Configuration Examples" section later in this chapter for examples of VC class configurations.
To create and use a VC class, complete the tasks in the following sections:
Creating a VC Class
To create a VC class, use the following command in global configuration mode:
For examples of creating VC classes, see the section "Creating a VC Class Examples" at the end of this chapter.
Configuring VC Parameters
After you create a VC class and enter vc-class configuration mode, configure VC parameters using one or more of the following commands:
•
•
•
•
•
•
•
•
•
•
•
•
•
Refer to the sections "Configuring PVCs" and "Configuring PVC Trap Support" for descriptions of how to configure these commands for PVCs and SVCs.
If an SVC command (for example, idle-timeout or oam-svc) is configured in a VC class, but the VC class is applied on a PVC, the SVC command is ignored. This is also true if a PVC command is applied to an SVC.
For examples of creating VC classes, see the section "Creating a VC Class Examples" at the end of this chapter.
Applying a VC Class
Once you have created and configured a VC class, you can apply it directly on an ATM PVC or SVC, or you can apply it on an ATM interface or subinterface.
To apply a VC class directly on an ATM PVC or SVC use the following commands beginning in interface configuration mode:
Step 1
pvc [name] vpi/vci
or
svc [name] nsap address
Specify an ATM PVC,
or
specify an ATM SVC.
Step 2
class-vc vc-class-name
Apply a VC class directly on the PVC or SVC.
To apply a VC class on an ATM main interface or subinterface, use the following commands beginning in global configuration mode:
Step 1
interface atm slot/0[.subinterface-number {multipoint | point-to-point}]
or
interface atm slot/port-adapter/0[.subinterface-number {multipoint | point-to-point}]
or
interface atm number[.subinterface-number
{multipoint | point-to-point}]Specify the ATM interface using the appropriate format of the interface atm command.1
Step 2
class-int vc-class-name
Apply a VC class on an the ATM main interface or subinterface.
.1 To determine the correct form of the interface atm command, consult your ATM network module, port adapter, or router documentation.
For examples of applying a VC class to an ATM interface, see the section "Applying a VC Class Examples" later in this chapter.
Configuring VC Management
When you configure VC management, you enable the router to detect VC connections and disconnections automatically. This notifies protocols to reroute packets immediately, preventing protocols from waiting for unpredictable and relatively long timeout periods.
You may use Integrated Local Management Interface (ILMI) or operation, administration, and maintenance (OAM) or both for managing your PVCs, and OAM for managing your SVCs. For PVCs, you must decide which method is reliable in your particular network.
When ILMI and OAM management methods are both configured to manage a PVC, both must indicate that a PVC is up in order for that PVC to be determined as up. If either ILMI or OAM is not configured, a PVC will be managed by the method that is configured.
When a PVC goes down, route caches for protocols configured on that PVC are cleared (or flushed) so that new routes may be learned. The route cache flush is applied on the PVC's interface. When all PVCs on a subinterface go down, VC management shuts down the subinterface in addition to flushing route caches. ATM hardware must keep the PVC active, however, so that OAM and ILMI cells may flow. When any PVC on a subinterface comes up, the subinterface is brought up.
VC management using ILMI is referred to as ILMI management. VC management using OAM is referred to as OAM management. To configure either management method or both, perform the tasks in one or both of the following sections:
Configuring ILMI Management
ILMI management applies to PVCs only. To configure ILMI management, use the following commands beginning in global configuration mode:
Step 1
interface atm slot/0[.subinterface-number
{multipoint | point-to-point}]or
interface atm slot/port-adapter/0[.subinterface-number {multipoint | point-to-point}]
or
interface atm number[.subinterface-number {multipoint | point-to-point}]
Specify the ATM interface using the appropriate format of the interface atm command.1
Step 2
pvc [name] 0/16 ilmi
Configure a PVC for communication with the ILMI.
Step 3
interface atm slot/0.subinterface-number multipoint
or
interface atm slot/port-adapter/0.subinterface-number multipoint
or
interface atm number.subinterface-number multipoint
(Optional) Specify the ATM subinterface of the PVC you want to manage.
Step 4
pvc [name] vpi/vci
Specify the PVC to be managed.
Step 5
ilmi manage
Enable ILMI management on the PVC.
.1 To determine the correct form of the interface atm command, consult your ATM network module, port adapter, or router documentation.
Repeat Steps 4 and 5 for each PVC you want to manage. Step 3 is necessary only if you want to configure a PVC on a subinterface and not just on the main ATM interface.
The PVC comes up only if ILMI indicates the PVC is up. The PVC comes down when ILMI indicates that the PVC is down. If OAM management is also configured for the same PVC, the PVC comes up only if both ILMI and OAM indicate that the PVC is up.
For an example of configuring ILMI management on a PVC, see the section "ILMI Management on an ATM PVC Example" at the end of this chapter.
Configuring OAM Management
OAM management may be enabled for both PVCs and SVCs. To configure OAM management, perform the tasks in one or both of the following sections:
•
•
Configuring OAM Management for PVCs
To configure OAM management for an ATM PVC, use the following commands beginning in global configuration mode:
Step 1
interface atm slot/0[.subinterface-number {multipoint | point-to-point}]
or
interface atm slot/port-adapter/0[.subinterface-number {multipoint | point-to-point}]
or
interface atm number[.subinterface-number {multipoint | point-to-point}]
Specify the ATM interface using the appropriate format of the interface atm command.1
Step 2
pvc [name] vpi/vci
Specify the ATM PVC.
Step 3
oam-pvc manage [frequency]
Enable OAM management on the PVC.
Step 4
oam retry up-count down-count retry-frequency
(Optional) Specify OAM management parameters for re-establishing and removing a PVC connection.
.1 To determine the correct form of the interface atm command, consult your ATM network module, port adapter, or router documentation.
Use the up-count argument to specify the number of consecutive end-to-end F5 OAM loopback cell responses that must be received in order to change a PVC connection state to up. Use the down-count argument to specify the number of consecutive end-to-end F5 OAM loopback cell responses that are not received in order to tear down a PVC. Use the retry-frequency argument to specify the frequency (in seconds) that end-to-end F5 OAM loopback cells should be transmitted when a change in UP/DOWN state is being verified. For example, if a PVC is up and a loopback cell response is not received after the frequency (in seconds) specified using the oam-pvc command, then loopback cells are sent at the retry-frequency to verify whether or not the PVC is down.
By default, end-to-end F5 OAM loopback cell generation is turned off for each PVC. A PVC is determined as down when any of the following is true on that PVC:
•
•
•
A PVC is determined as up when all of the following are true on that PVC:
•
•
•
For an example of configuring OAM management on a PVC, see the section "OAM Management on an ATM SVC Example" at the end of this chapter.
Configuring OAM Management for SVCs
To configure OAM management for an ATM SVC, use the following commands beginning in global configuration mode:
Step 1
interface atm slot/0[.subinterface-number {multipoint | point-to-point}]
or
interface atm slot/port-adapter/0[.subinterface-number {multipoint | point-to-point}]
or
interface atm number[.subinterface-number {multipoint | point-to-point}]
Specify the ATM interface using the appropriate format of the interface atm command.1
Step 2
svc [name] nsap address
Specify the ATM SVC.
Step 3
oam-svc manage [frequency]
Enable OAM management on the SVC.
Step 4
oam retry up-count down-count retry-frequency
(Optional) Specify OAM management parameters for re-establishing and removing an SVC connection.
.1 To determine the correct form of the interface atm command, consult your ATM network module, port adapter, or router documentation.
If OAM management is enabled on SVCs and detects disconnection on an SVC, that SVC is torn down.
The up-count argument does not apply to SVCs, but it must be specified in order to configure the down-count and retry-frequency. Use the down-count argument to specify the number of consecutive end-to-end F5 OAM loopback cell responses that are not received in order to tear down an SVC. Use the retry-frequency argument to specify the frequency (in seconds) that end-to-end F5 OAM loopback cells should be transmitted when a change in UP/DOWN state is being verified. For example, if an SVC is up and a loopback cell response is not received after the frequency (in seconds) specified using the oam-svc command, then loopback cells are sent at the retry-frequency to verify whether or not the SVC is down.
For an example of configuring OAM management on an SVC, see the section "OAM Management on an ATM SVC Example" at the end of this chapter.
Configuring Classical IP and ARP over ATM
Cisco implements both the ATM Address Resolution Protocol (ARP) server and ATM ARP client functions described in RFC 1577. RFC 1577 models an ATM network as a logical IP subnetwork on a LAN.
The tasks required to configure classical IP and ARP over ATM depend on whether the environment uses SVCs or PVCs.
Configuring Classical IP and ARP in an SVC Environment
The ATM ARP mechanism is applicable to networks that use SVCs. It requires a network administrator to configure only the device's own ATM address and that of a single ATM ARP server into each client device. When the client makes a connection to the ATM ARP server, the server sends ATM Inverse ARP requests to learn the IP network address and ATM address of the client on the network. It uses the addresses to resolve future ATM ARP requests from clients. Static configuration of the server is not required or needed.
In Cisco's implementation, the ATM ARP client tries to maintain a connection to the ATM ARP server. The ATM ARP server can tear down the connection, but the client attempts once each minute to bring the connection back up. No error messages are generated for a failed connection, but the client will not route packets until the ATM ARP server is connected and translates IP network addresses.
For each packet with an unknown IP address, the client sends an ATM ARP request to the server. Until that address is resolved, any IP packet routed to the ATM interface will cause the client to send another ATM ARP request. When the ARP server responds, the client opens a connection to the new destination so that any additional packets can be routed to it.
Cisco routers may be configured as ATM ARP clients to work with any ATM ARP server conforming to RFC 1577. Alternatively, one of the Cisco routers in a logical IP subnet (LIS) may be configured to act as the ATM ARP server itself. In this case, it automatically acts as a client as well. To configure classical IP and ARP in an SVC environment, perform the tasks in one of the following sections:
•
•
Configuring the Router as an ATM ARP Client
In an SVC environment, configure the ATM ARP mechanism on the interface by using the following commands beginning in global configuration mode:
Step 1
Router(config)# interface atm slot/0
or
Router(config)# interface atm slot/port-adapter/0
or
Router(config)# interface atm number
Specifies the ATM interface using the appropriate format of the interface atm command.1
Step 2
Router(config-if)# atm esi-address esi.selector
Specifies the ATM address of the interface.
Step 3
Router(config-if)# ip address address mask
Specifies the IP address of the interface.
Step 4
Router(config-if)# atm classic-ip-extensions BFI
(Optional) Enables redundant ATM ARP servers.
Step 5
Router(config-if)# atm arp-server nsap nsap-address
Specifies the ATM address of the ATM ARP server. Enter this command twice to specify two ATM ARP servers.
Step 6
Router(config-if)# no shutdown
Enables the ATM interface.
1 To determine the correct form of the interface atm command, consult your ATM network module, port adapter, or router documentation.
You can designate the current router interface as the ATM ARP server in Step 4 by typing self in place of nsap nsap-address.
To configure the ESI and selector fields in Step 2, the switch must be capable of delivering the NSAP address prefix to the router via ILMI and the router must be configured with a PVC for communication with the switch via ILMI. For a description of how to configure an ILMI PVC, refer to the section "Configuring Communication with the ILMI" earlier in this chapter.
For an example of configuring the ATM ARP client, see the section "Configuring ATM ARP Client in an SVC Environment Example" at the end of this chapter.
Configuring the Router as an ATM ARP Server
Cisco's implementation of the ATM ARP server supports rendundant ATM ARP servers on a single logical IP subnetwork (LIS). In order for redundant ATM ARP server support to work, all of the devices on the LIS must be Cisco devices and must have the atm classic-ip-extensions BFI command configured.
To configure the ATM ARP server, use the following commands beginning in global configuration mode:
Step 1
Router(config)# interface atm slot/0
or
Router(config)# interface atm slot/port-adapter/0
or
Router(config)# interface atm number
Specifies the ATM interface using the appropriate format of the interface atm command.1
Step 2
Router(config-if)# atm esi-address esi.selector
Specifies the ATM address of the interface.
Step 3
Router(config-if)# ip address address mask
Specifies the IP address of the interface.
Step 4
Router(config-if)# atm classic-ip-extensions BFI
(Optional) Enables redundant ATM ARP servers.
Step 5
Router(config-if)# atm arp-server self
Identifies the ATM ARP server for the IP subnetwork network.
Step 6
Router(config-if)# no shutdown
Enables the ATM interface.
1 To determine the correct form of the interface atm command, consult your ATM network module, port adapter, or router documentation.
To configure the ESI and selector fields in Step 2, the switch must be capable of delivering the NSAP address prefix to the router via ILMI and the router must be configured with a PVC for communication with the switch via ILMI. For a description of how to configure an ILMI PVC, refer to the section "Configuring Communication with the ILMI" earlier in this chapter.
For an example of configuring the ATM ARP server, see the section "Configuring ATM ARP Client in an SVC Environment Example" at the end of this chapter.
Configuring Classical IP and Inverse ARP in a PVC Environment
The ATM Inverse ARP mechanism is applicable to networks that use PVCs, where connections are established but the network addresses of the remote ends are not known. A server function is not used in this mode of operation.
In a PVC environment, the ATM Inverse ARP mechanism is enabled by default for IP and IPX when you use the following commands beginning in global configuration mode:
Step 1
interface atm slot/0
or
interface atm slot/port-adapter/0
or
interface atm number
Specify the ATM interface using the appropriate format of the interface atm command.1
Step 2
ip address address mask
Specify the IP address of the interface.
Step 3
pvc [name] vpi/vci
Create a PVC.
Step 4
no shutdown
Enable the ATM interface.
.1 To determine the correct form of the interface atm command, consult your ATM network module, port adapter, or router documentation.
Repeat Step 3 for each PVC you want to create.
By default, Inverse ARP datagrams will be sent on this virtual circuit every 15 minutes. To adjust the Inverse ARP time period, use the inarp minutes command in interface-ATM-VC configuration mode.
Note
For an example of configuring the ATM Inverse ARP mechanism, see the section "Configuring ATM Inverse ARP in a PVC Environment Example" at the end of this chapter.
Customizing the ATM Interface
You can customize the ATM interface. The features you can customize have default values that will most likely suit your environment and probably need not be changed. However, you might need to enter configuration commands, depending upon the requirements for your system configuration and the protocols you plan to route on the interface. To customize the ATM interface, perform the tasks in the following sections:
•
•
•
•
Configuring the Rate Queue
A rate queue defines the speed at which individual virtual circuits will transmit data to the remote end. You can configure permanent rate queues, allow the software to set up dynamic rate queues, or perform some combination of the two. The software dynamically creates rate queues when you create a VC with a peak rate that does not match any user-configured rate queue. The software dynamically creates all rate queues if you have not configured any.
Note
Using Dynamic Rate Queues
The Cisco IOS software automatically creates rate queues as necessary when you create a VC. If you do not configure traffic shaping on a VC, the peak rate of the VC is set to the UBR at the maximum peak rate that the physical layer interface module (PLIM) will allow. A rate queue is then dynamically created for the peak rate of that VC.
If dynamic rate queues do not satisfy your traffic shaping needs, you can configure permanent rate queues. Refer to the section "Configuring a Permanent Rate Queue" for more information.
See the section "Dynamic Rate Queue Examples" for example configurations of different rate queues.
Configuring Rate Queue Tolerance
To improve rate queue usage, you can configure a peak cell rate tolerance range for dynamically created rate queues. A PVC or SVC requesting a particular rate queue speed will be assigned to a rate queue that is within the range of the peak cell rate tolerance. If no such rate queue exists, a new rate queue is dynamically created on the ATM interface.
To configure a rate queue tolerance range for VCs on an ATM interface, use the following commands beginning in global configuration mode:
Step 1
interface atm slot/0
or
interface atm slot/port-adapter/0
or
interface atm number
Specify the ATM interface using the appropriate format of the interface atm command.1
Step 2
atm rate-queue tolerance svc [pvc] tolerance-value [strict]
Configure a rate queue tolerance.
.1 To determine the correct form of the interface atm command, consult your ATM network module, port adapter, or router documentation.
The value for the tolerance-value argument is expressed as a percentage used for assigning rate queues for each VC with a requested peak rate. This value is applied to SVCs, discovered VCs, and PVCs (when the pvc keyword is used). This value can be 0 or 5 through 99. For SVCs and discovered VCs, the default value is 10. If the pvc keyword is not specified, the rate queue tolerance for PVCs will default to 0.
Configuring a Permanent Rate Queue
The supports up to eight different peak rates. The peak rate is the maximum rate, in kilobits per second, at which a virtual circuit can transmit. Once attached to this rate queue, the virtual circuit is assumed to have its peak rate set to that of the rate queue. The rate queues are broken into a high-priority (0 through 3) and low-priority (4 through 7) bank.
You can configure each permanent rate queue independently to a portion of the overall bandwidth available on the ATM link. The combined bandwidths of all rate queues should not exceed the total bandwidth available. The total bandwidth depends on the PLIM (see the "Interface Types" section in the "Wide-Area Networking Overview" chapter.)
To set a permanent rate queue, use the following command in interface configuration mode:
atm rate-queue queue-number speed
Configure a permanent rate queue, which defines the maximum speed at which an individual virtual circuit transmits data to a remote ATM host.
Configuring MTU Size
Each interface has a default maximum packet size or maximum transmission unit (MTU) size. For ATM interfaces, this number defaults to 4470 bytes. The maximum is 9188 bytes for the AIP and NPM, 17969 for the ATM port adapter, and 17998 for the ATM-CES port adapter. The MTU can be set on a per-sub-interface basis as long as the interface MTU is as large or larger than the largest subinterface MTU.
To set the maximum MTU size, use the following command in interface configuration mode:
Setting the SONET PLIM
The default SONET PLIM is STS-3C. To set the SONET PLIM to STM-1 or to set the PLIM framing for E3 or DS3, use one of the following commands in interface configuration mode:
The default for DS3 is C-Bit ADM framing; the default for E3 is G.751 with PLCP framing.
Setting Loopback Mode
To loop all packets back to your ATM interface instead of the network, use the following command in interface configuration mode:
To loop the incoming network packets back to the ATM network, use the following command in interface configuration mode:
Setting the Exception Queue Length
The exception queue is used for reporting ATM events, such as CRC errors. By default, it holds 32 entries; the range is 8 to 256. It is unlikely that you will need to configure the exception queue length; if you do, use the following command in interface configuration mode:
Note
Configuring the Maximum Number of Channels
The atm max-channels command, available if you are using the ATM-CES port adapter, can be used to divide the available number (fixed) of transmit descriptors across the configured number of transmit channels. Typically, you think of a one-to-one association between a transmit channel and a VC; however, the ATM-CES port adapter supports types of VCs other than data VCs (for example CES VCs). Also, the ATM-CES port adapter can multiplex one or more VCs over a single virtual path (VP) that is shaped, and the VP only requires a single transmit channel. Therefore, the term transmit channel is used rather than virtual circuit.
The maximum burst of packets that are allowed per VC is limited by the number of transmit descriptors allocated per VC. Because the total number of transmit descriptors available is limited by the available SRAM space, configuration of the number of transmit channels for the interface determines the number of transmit descriptors for each transmit channel. Hence the burst size for each transmit channel is determined by the atm max-channels command. For example, for 64 (default) numbers of transmit channels for the interface, 255 transmit descriptors are associated per transmit channel and for 512 numbers of transmit channels for the interface, 31 transmit descriptors are associated per transmit channel.
To configure the maximum number of transmit channels for the interface, use the following command in interface configuration mode:
Note
Limiting the Number of Virtual Circuits
By default, the ATM interface allows the maximum of 2048 virtual circuits. However, you can configure a lower number, thereby limiting the number of virtual circuits on which your ATM interface allows segmentation and reassembly to occur. Limiting the number of virtual circuits does not affect the VPI-VCI pair of each virtual circuit.
To set the maximum number of virtual circuits supported (including PVCs and SVCs), use the following command in interface configuration mode:
Note
Setting the Raw-Queue Size
The raw queue is used for raw ATM cells, which include operation, administration, and maintenance (OAM) and Interim Local Management Interface (ILMI) cells. ILMI is a means of passing information to the router, including information about virtual connections and addresses.The raw-queue size is in the range of 8 to 256 cells; the default is 32 cells.
To set the raw-queue size, use the following command in interface configuration mode:
Note
Configuring Buffer Size
The number of receive buffers determines the maximum number of reassemblies that your ATM interface can perform simultaneously. The number of buffers defaults to 256, although it can be in the range from 0 to 512.
To set the number of receive buffers, use the following command in interface configuration mode:
The number of transmit buffers determines the maximum number of fragmentations that your ATM interface can perform simultaneously. The number of buffers defaults to 256, although it can be in the range from 0 to 512.
To set the number of transmit buffers, use the following command in interface configuration mode:
Note
Setting the VCI-to-VPI Ratio
By default, the ATM interface supports 1024 VCIs per VPI. Depending on what ATM interface card or port adapter you are using, this value can be any power of 2 in the range of 16 to 8192. (See the atm vc-per-vp command in the Cisco IOS Wide-Area Networking Command Reference for the exact values that apply to your configuration.) This value controls the memory allocation on your ATM interface that deals with the VCI table. It defines only the maximum number of VCIs to support per VPI.
To set the maximum number of VCIs to support per VPI and limit the highest VCI accordingly, use the following command in interface configuration mode:
Setting the Source of the Transmit Clock
By default, your ATM interface expects the ATM switch to provide transmit clocking. To specify that the ATM interface generates the transmit clock internally for SONET and E3 PLIM operation, use the following command in interface configuration mode:
Configuring ATM Subinterfaces for SMDS Networks
An ATM adaptation layer (AAL) defines the conversion of user information into cells by segmenting upper-layer information into cells at the transmitter and reassembling them at the receiver. AAL1 and AAL2 handle isochronous traffic, such as voice and video, and are not relevant to the router. AAL3/4 and AAL5 support data communications by segmenting and reassembling packets. Beginning in Cisco IOS Release 10.2, we support both AAL3/4 and AAL5.
Our implementation of the AAL3/4 encapsulates each AAL3/4 packet in a Switched Multimegabit Data Service (SMDS) header and trailer. This feature supports both unicast and multicast addressing, and provides subinterfaces for multiple AAL3/4 connections over the same physical interface.
Note
Support for AAL3/4 on an ATM interface requires static mapping of all protocols except IP. However, dynamic routing of IP can coexist with static mapping of other protocols on the same ATM interface.
To configure an ATM interface for SMDS networks, use the following commands in interface configuration mode:
Note
The virtual path filter provides a mechanism for specifying which VPIs (or a range of VPIs) will be used for AAL3/4 processing during datagram reassembly. All other VPIs are mapped to AAL5 processing. For more information about the way the atm vp-filter command works and the effect of selecting specific values, refer to the Cisco IOS Wide-Area Networking Command Reference.
After configuring the ATM interface for SMDS networks, configure the interface for standard protocol configurations, as needed. For more information about protocol configuration, refer to the relevant chapters of the Cisco IOS IP and IP Routing Configuration Guide, the Cisco IOS Appletalk and Novell IPX Configuration Guide, and the Cisco IOS Apollo Domain, Banyan VINES, DECnet, ISO CLNS, and XNS Configuration Guide, for Cisco IOS Release 12.1.
For examples of configuring an ATM interface for AAL3/4 support, see the section "PVC with AAL3/4 and SMDS Encapsulation Examples" at the end of this chapter.
Limiting the Message Identifiers Allowed on Virtual Circuits
Message identifier (MID) numbers are used by receiving devices to reassemble cells from multiple sources into packets.
To ensure that the message identifiers are unique at the receiving end and, therefore, that messages can be reassembled correctly, you can limit the number of message identifiers allowed on a virtual circuit and assign different ranges of message identifiers to different PVCs.
To limit the number of message identifier numbers allowed on each virtual circuit and to assign different ranges of message identifiers to different PVCs, use the following commands beginning in interface configuration mode:
The maximum number of message identifiers per virtual circuit is set at 16 by default; valid values are 16, 32, 64, 128, 256, 512, or 1024.
The default value for both the midlow and the midhigh arguments is zero.
Setting the Virtual Path Filter Register
The virtual path filter allows you to specify which VPI or range of VPIs will be used for AAL3/4 processing. The default value of the's virtual path filter register is 0x7B. To set the virtual path filter register, use the following command in interface configuration mode:
Configuring Fast-Switched Transparent Bridging for SNAP PVCs
The implementation of transparent bridging over ATM allows the spanning tree for an interface to support virtual circuit descriptors (VCDs) for AAL5-LLC Subnetwork Access Protocol (SNAP) encapsulations.
If the relevant interface or subinterface is explicitly put into a bridge group, as described in the task table below, AAL5-SNAP encapsulated bridge packets on a PVC are fast-switched.
The bridging implementation supports IEEE 802.3 frame formats, IEEE 802.10 frame formats, and Ethernet DIX frames. The router can accept IEEE 802.3 frames with or without frame check sequence (FCS). When the router receives frames with FCS (RFC 1483 bridge frame formats with 0x0001 in the PID field of the SNAP header), it strips off the FCS and forwards the frame as necessary. All IEEE 802.3 frames that originate at or are forwarded by the router are sent as 802.3 bridge frames without FCS (bridge frame formats with 0x0007 in the PID field of the SNAP header).
Note
To configure transparent bridging for LLC/SNAP PVCs, use the following commands beginning in global configuration mode:
Step 1
interface atm slot/0[.subinterface-number {multipoint | point-to-point}
or
interface atm slot/port-adapter/0[.subinterface-number {multipoint | point-to-point}]
or
interface atm number[.subinterface-number {multipoint | point-to-point}]
Specify the ATM interface using the appropriate format of the interface atm command.1
Step 2
pvc [name] vpi/vci
Create one or more PVCs using AAL5-SNAP encapsulation. Repeat this command as needed.
Step 3
exit
Return to interface configuration mode.
Step 4
bridge-group group
Assign the interface to a bridge group.
Step 5
exit
Return to global configuration mode.
Step 6
bridge group protocol dec
Define the type of spanning tree protocol as DEC.
.1 To determine the correct form of the interface atm command, consult your ATM network module, port adapter, or router documentation.
No other configuration is required. Spanning tree updates are broadcast to all AAL5-SNAP virtual circuits that exist on the ATM interface. Only the AAL5-SNAP virtual circuits on the specific subinterface receive the updates. The router does not send spanning tree updates to AAL5-MUX and AAL5-NLPID virtual circuits.
For an example of transparent bridging for an AAL5-SNAP PVC, see the section "Transparent Bridging on an AAL5-SNAP PVC Example" at the end of this chapter.
Configuring Inverse Multiplexing over ATM
Inverse multiplexing provides the capability to transmit and receive a single high-speed data stream over multiple slower-speed physical links. In inverse multiplexing over ATM (IMA), the originating stream of ATM cells is divided so that complete ATM cells are transmitted in round-robin order across the set of ATM links.
ATM T1 and E1 IMA network modules provide four or eight T1 or E1 ports with inverse multiplexing capability. These modules allow wide-area networking (WAN) uplinks at speeds ranging from 1.536 Mbps to 12.288 Mbps for T1, and from 1.92 Mbps to 15.36 Mbps for E1. See the "Bandwidth Considerations".
Cisco's scalable ATM IMA solution means that you can deploy just the bandwidth you need by using multiple E1 or T1 connections instead of a more expensive E3, T3, or OC-3 to bridge between LANs and ATM WAN applications. Enterprises and branch offices can aggregate traffic from multiple low-bandwidth digital physical transmission media, such as T1 pipes, to transmit voice and data at high-bandwidth connection speeds. For example, Figure 3 illustrates a scenario where an organization must transport a mission-critical application among headquarters and branch offices at 6 Mbps.
Figure 3 LAN-to-WAN Application Connectivity with T1 and IMA
The following sections provide more specific information about IMA and how to configure it:
•
IMA Protocol Overview
In the transmit direction, IMA takes cells from the ATM layer and sends them in a round-robin order over the individual links that make up a logical link group called an IMA group (links can also be used individually instead of being the member or a group). The IMA group performance is approximately the sum of the links, although some overhead is required for ATM control cells. At the receiving end, the cells are recombined to form the original cell stream and are passed up to the ATM layer.
Filler cells are used to ensure a steady stream on the receiving side. IMA control protocol (ICP) cells control the operation of the inverse multiplexing function. Using a frame length of 128, one out of every 128 cells on each link is an ICP cell. The inverse multiplexing operation is transparent to the ATM layer protocols; therefore, the ATM layer can operate normally as if only a single physical interface were being used.
Figure 4 illustrates inverse multiplexing and demultiplexing with four bundled links, providing 6.144 Mbps of bandwidth for T1s and 7.68 Mbps of bandwidth for E1 for packet traffic. The transmit side, where cells are distributed across the links, is referred to as Tx, and the receive side, where cells are recombined, is called Rx.
Figure 4 Inverse Multiplexing and Demultiplexing
General Description of ATM T1/E1 IMA
ATM networks were designed to handle the demanding performance needs of voice, video, and data at broadband speeds of 34 Mbps and above. However, the high cost and spotty availability of long-distance broadband links limits broadband ATM WANs, preventing many organizations from taking advantage of ATM's power. In response to these issues, the ATM Forum defined lower-speed ATM interface options for T1 and E1. However, this was not a complete solution because a single T1 or E1 link often does not provide enough bandwidth to support either traffic among different router and switch locations or heavy end-user demand.
For this reason, many organizations find themselves caught between the bandwidth limitations of a narrowband T1 or E1 line and the much higher costs of moving to broadband links. In response to this dilemma, the ATM Forum, with Cisco as an active member, defined Inverse Multiplexing for ATM (IMA). Using Cisco 2600 and 3600 series routers to provide ATM access gives branch offices and enterprises an affordable LAN-to-ATM interface.
For a list of ATM features that are supported on the Cisco 2600 and 3600 series routers when you use IMA, see the "Cisco ATM Features" section of the "Wide-Area Networking Overview" chapter in this book.
Configuring IMA
The following sections describe the configuration and verification tasks required to set up ATM IMA groups. You can also configure ATM links individually, but these sections only include the steps for configuring IMA groups. To configure and verify IMA groups on an ATM interface, complete the tasks described in the following sections:
•
•
•
Configuring an ATM Interface for IMA Operation
To configure an ATM interface for IMA operation, use the following commands beginning in global configuration mode:
Verifying an ATM Interface Configured for IMA Operation
Follow the steps below to verify the configuration of an ATM interface.
Step 1
router# show interface atm 0/1ATM0/1 is up, line protocol is upHardware is ATM T1Internet address is 21.1.1.2/8MTU 4470 bytes, sub MTU 4470, BW 1500 Kbit, DLY 20000 usec,reliability 0/255, txload 1/255, rxload 1/255Encapsulation ATM, loopback not setKeepalive not supportedEncapsulation(s): AAL5256 maximum active VCs, 3 current VCCsVC idle disconnect time: 300 secondsLast input never, output never, output hang neverLast clearing of "show interface" counters neverQueueing strategy: fifoOutput queue 0/40, 0 drops; input queue 0/75, 0 drops5 minute input rate 0 bits/sec, 0 packets/sec5 minute output rate 0 bits/sec, 0 packets/sec0 packets input, 0 bytes, 0 no bufferReceived 0 broadcasts, 0 runts, 0 giants, 0 throttles0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort0 packets output, 0 bytes, 0 underruns0 output errors, 0 collisions, 3 interface resets0 output buffer failures, 0 output buffers swapped outStep 2
router# show controller atm0/2Interface ATM0/2 is administratively downHardware is ATM T1LANE client MAC address is 0050.0f0c.1482hwidb=0x617BEE9C, ds=0x617D498Cslot 0, unit 2, subunit 2rs8234 base 0x3C000000, slave base 0x3C000000rs8234 ds 0x617D498CSBDs - avail 2048, guaranteed 2, unguaranteed 2046, starved 0Seg VCC table 3C00B800, Shadow Seg VCC Table 617EF76C, VCD Table 61805798Schedule table 3C016800, Shadow Schedule table 618087C4, Size 63DRSM VCC Table 3C02ED80, Shadow RSM VCC Table 6180C994VPI Index Table 3C02C300, VCI Index Table 3C02E980Bucket2 Table 3C01E500, Shadow Bucket2 Table 6180A0E4MCR Limit Table 3C01E900, Shadow MCR Table 617D2160ABR template 3C01EB00, Shadow template 614DEEACRM Cell RS Queue 3C02C980Queue TXQ Addr Pos StQ Addr Pos0 UBR CHN0 3C028B00 0 03118540 01 UBR CHN1 3C028F00 0 03118D40 02 UBR CHN2 3C029300 0 03119540 03 UBR CHN3 3C029700 0 03119D40 04 VBR/ABR CHN0 3C029B00 0 0311A540 05 VBR/ABR CHN1 3C029F00 0 0311AD40 06 VBR/ABR CHN2 3C02A300 0 0311B540 07 VBR/ABR CHN3 3C02A700 0 0311BD40 08 VBR-RT CHN0 3C02AB00 0 0311C540 09 VBR-RT CHN1 3C02AF00 0 0311CD40 010 VBR-RT CHN2 3C02B300 0 0311D540 011 VBR-RT CHN3 3C02B700 0 0311DD40 012 SIG 3C02BB00 0 0311E540 013 VPD 3C02BF00 0 0311ED40 0Queue FBQ Addr Pos RSQ Addr Pos0 OAM 3C0EED80 255 0311F600 01 UBR CHN0 3C0EFD80 0 03120600 02 UBR CHN1 3C0F0D80 0 03121600 03 UBR CHN2 3C0F1D80 0 03122600 04 UBR CHN3 3C0F2D80 0 03123600 05 VBR/ABR CHN0 3C0F3D80 0 03124600 06 VBR/ABR CHN1 3C0F4D80 0 03125600 07 VBR/ABR CHN2 3C0F5D80 0 03126600 08 VBR/ABR CHN3 3C0F6D80 0 03127600 09 VBR-RT CHN0 3C0F7D80 0 03128600 010 VBR-RT CHN1 3C0F8D80 0 03129600 011 VBR-RT CHN2 3C0F9D80 0 0312A600 012 VBR-RT CHN3 3C0FAD80 0 0312B600 013 SIG 3C0FBD80 255 0312C600 0SAR Scheduling channels: -1 -1 -1 -1 -1 -1 -1 -1Part of IMA group 3Link 2 IMA Info:group index is 1Tx link id is 2, Tx link state is unusableNoGivenReasonRx link id is 99, Rx link state is unusableFaultRx link failure status is fault,0 tx failures, 3 rx failuresLink 2 Framer Info:framing is ESF, line code is B8ZS, fdl is ANSIcable-length is long, Rcv gain is 26db and Tx gain is 0db,clock src is line, payload-scrambling is disabled, no loopbackline status is 0x1064; or Tx RAI, Rx LOF, Rx LOS, Rx LCD.port is active, link is unavailable0 idle rx, 0 correctable hec rx, 0 uncorrectable hec rx0 cells rx, 599708004 cells tx, 0 rx fifo overrun.Link (2):DS1 MIB DATA:Data in current interval (518 seconds elapsed):0 Line Code Violations, 0 Path Code Violations0 Slip Secs, 518 Fr Loss Secs, 0 Line Err Secs, 0 Degraded Mins0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 519 Unavail SecsTotal Data (last 24 hours)0 Line Code Violations, 0 Path Code Violations,0 Slip Secs, 86400 Fr Loss Secs, 0 Line Err Secs, 0 Degraded Mins,0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 86400 Unavail SecsSAR counter totals across all links and groups:0 cells output, 0 cells stripped0 cells input, 0 cells discarded, 0 AAL5 frames discarded0 pci bus err, 0 dma fifo full err, 0 rsm parity err0 rsm syn err, 0 rsm/seg q full err, 0 rsm overflow err0 hs q full err, 0 no free buff q err, 0 seg underflow err0 host seg stat q full err
Configuring IMA Groups
As shown in the previous section, the ima-group command configures links on an ATM interface as IMA group members. When IMA groups have been set up in this way, you can configure settings for each group. To configure IMA groups and settings for each group, use the following commands beginning in global configuration mode:
For examples of configuring IMA groups, see the sections "E1 Inverse Multiplexing over ATM Example" and "T1 Inverse Multiplexing over ATM Example" at the end of this chapter.
Verifying IMA Group Configuration
Step 1
Router# show ima interface atm2/ima2Interface ATM2/IMA2 is upGroup index is 2Ne state is operational, failure status is noFailureactive links bitmap 0x30IMA Group Current Configuration:Tx/Rx configured links bitmap 0x30/0x30Tx/Rx minimum required links 1/1Maximum allowed diff delay is 25ms, Tx frame length 128Ne Tx clock mode CTC, configured timing reference link ATM2/4Test pattern procedure is disabledIMA Group Current Counters (time elapsed 12 seconds):3 Ne Failures, 3 Fe Failures, 4 Unavail SecsIMA Group Total Counters (last 0 15 minute intervals):0 Ne Failures, 0 Fe Failures, 0 Unavail SecsIMA link Information:Link Physical Status NearEnd Rx Status Test Status---- --------------- ----------------- -----------ATM2/4 up active disabledATM2/5 up active disabledrouter# show ima interface atm2/ima2 detailInterface ATM2/IMA2 is upGroup index is 2Ne state is operational, failure status is noFailureactive links bitmap 0x30IMA Group Current Configuration:Tx/Rx configured links bitmap 0x30/0x30Tx/Rx minimum required links 1/1Maximum allowed diff delay is 25ms, Tx frame length 128Ne Tx clock mode CTC, configured timing reference link ATM2/4Test pattern procedure is disabledDetailed group Information:Tx/Rx Ima_id 0x22/0x40, symmetry symmetricOperationNumber of Tx/Rx configured links 2/2Number of Tx/Rx active links 2/2Fe Tx clock mode ctc, Rx frame length 128Tx/Rx timing reference link 4/4Maximum observed diff delay 0ms, least delayed link 5Running seconds 32GTSM last changed 10:14:41 UTC Wed Jun 16 1999IMA Group Current Counters (time elapsed 33 seconds):3 Ne Failures, 3 Fe Failures, 4 Unavail SecsIMA Group Total Counters (last 0 15 minute intervals):0 Ne Failures, 0 Fe Failures, 0 Unavail SecsDetailed IMA link Information:Interface ATM2/4 is upifIndex 13, Group Index 2, Row Status is activeTx/Rx Lid 4/4, relative delay 0msNe Tx/Rx state active/activeFe Tx/Rx state active/activeNe Rx failure status is noFailureFe Rx failure status is noFailureRx test pattern 0x41, test procedure disabledIMA Link Current Counters (time elapsed 35 seconds):1 Ima Violations, 0 Oif Anomalies1 Ne Severely Err Secs, 2 Fe Severely Err Secs0 Ne Unavail Secs, 0 Fe Unavail Secs2 Ne Tx Unusable Secs, 2 Ne Rx Unusable Secs0 Fe Tx Unusable Secs, 2 Fe Rx Unusable Secs0 Ne Tx Failures, 0 Ne Rx Failures0 Fe Tx Failures, 0 Fe Rx FailuresIMA Link Total Counters (last 0 15 minute intervals):0 Ima Violations, 0 Oif Anomalies0 Ne Severely Err Secs, 0 Fe Severely Err Secs0 Ne Unavail Secs, 0 Fe Unavail Secs0 Ne Tx Unusable Secs, 0 Ne Rx Unusable Secs0 Fe Tx Unusable Secs, 0 Fe Rx Unusable Secs0 Ne Tx Failures, 0 Ne Rx Failures0 Fe Tx Failures, 0 Fe Rx FailuresInterface ATM2/5 is upifIndex 14, Group Index 2, Row Status is activeTx/Rx Lid 5/5, relative delay 0msNe Tx/Rx state active/activeFe Tx/Rx state active/activeNe Rx failure status is noFailureFe Rx failure status is noFailureRx test pattern 0x41, test procedure disabledIMA Link Current Counters (time elapsed 46 seconds):1 Ima Violations, 0 Oif Anomalies1 Ne Severely Err Secs, 2 Fe Severely Err Secs0 Ne Unavail Secs, 0 Fe Unavail Secs2 Ne Tx Unusable Secs, 2 Ne Rx Unusable Secs0 Fe Tx Unusable Secs, 2 Fe Rx Unusable Secs0 Ne Tx Failures, 0 Ne Rx Failures0 Fe Tx Failures, 0 Fe Rx FailuresIMA Link Total Counters (last 0 15 minute intervals):0 Ima Violations, 0 Oif Anomalies0 Ne Severely Err Secs, 0 Fe Severely Err Secs0 Ne Unavail Secs, 0 Fe Unavail Secs0 Ne Tx Unusable Secs, 0 Ne Rx Unusable Secs0 Fe Tx Unusable Secs, 0 Fe Rx Unusable Secs0 Ne Tx Failures, 0 Ne Rx Failures0 Fe Tx Failures, 0 Fe Rx FailuresStep 2
router# show controllers atm0/ima3Interface ATM0/IMA3 is upHardware is ATM IMALANE client MAC address is 0050.0f0c.148bhwidb=0x61C2E990, ds=0x617D498Cslot 0, unit 3, subunit 3rs8234 base 0x3C000000, slave base 0x3C000000rs8234 ds 0x617D498CSBDs - avail 2048, guaranteed 3, unguaranteed 2045, starved 0Seg VCC table 3C00B800, Shadow Seg VCC Table 617EF76C, VCD Table 61805798Schedule table 3C016800, Shadow Schedule table 618087C4, Size 63DRSM VCC Table 3C02ED80, Shadow RSM VCC Table 6180C994VPI Index Table 3C02C300, VCI Index Table 3C02E980Bucket2 Table 3C01E500, Shadow Bucket2 Table 6180A0E4MCR Limit Table 3C01E900, Shadow MCR Table 617D2160ABR template 3C01EB00, Shadow template 614DEEACRM Cell RS Queue 3C02C980Queue TXQ Addr Pos StQ Addr Pos0 UBR CHN0 3C028B00 0 03118540 01 UBR CHN1 3C028F00 0 03118D40 02 UBR CHN2 3C029300 0 03119540 03 UBR CHN3 3C029700 0 03119D40 04 VBR/ABR CHN0 3C029B00 0 0311A540 05 VBR/ABR CHN1 3C029F00 0 0311AD40 06 VBR/ABR CHN2 3C02A300 0 0311B540 07 VBR/ABR CHN3 3C02A700 0 0311BD40 08 VBR-RT CHN0 3C02AB00 0 0311C540 09 VBR-RT CHN1 3C02AF00 0 0311CD40 010 VBR-RT CHN2 3C02B300 0 0311D540 011 VBR-RT CHN3 3C02B700 0 0311DD40 012 SIG 3C02BB00 0 0311E540 013 VPD 3C02BF00 0 0311ED40 0Queue FBQ Addr Pos RSQ Addr Pos0 OAM 3C0EED80 255 0311F600 01 UBR CHN0 3C0EFD80 0 03120600 02 UBR CHN1 3C0F0D80 0 03121600 03 UBR CHN2 3C0F1D80 0 03122600 04 UBR CHN3 3C0F2D80 0 03123600 05 VBR/ABR CHN0 3C0F3D80 0 03124600 06 VBR/ABR CHN1 3C0F4D80 0 03125600 07 VBR/ABR CHN2 3C0F5D80 0 03126600 08 VBR/ABR CHN3 3C0F6D80 0 03127600 09 VBR-RT CHN0 3C0F7D80 0 03128600 010 VBR-RT CHN1 3C0F8D80 255 03129600 011 VBR-RT CHN2 3C0F9D80 0 0312A600 012 VBR-RT CHN3 3C0FAD80 0 0312B600 013 SIG 3C0FBD80 255 0312C600 0SAR Scheduling channels: -1 -1 -1 -1 -1 -1 -1 -1ATM channel number is 1link members are 0x7, active links are 0x0Group status is blockedNe, 3 links configured,Group Info: Configured links bitmap 0x7, Active links bitmap 0x0,Tx/Rx IMA_id 0x3/0x63,NE Group status is startUp,frame length 0x80, Max Diff Delay 0,1 min links, clock mode ctc, symmetry symmetricOperation, trl 0,Group Failure status is startUpNe.Test pattern procedure is disabledSAR counter totals across all links and groups:0 cells output, 0 cells stripped0 cells input, 0 cells discarded, 0 AAL5 frames discarded0 pci bus err, 0 dma fifo full err, 0 rsm parity err0 rsm syn err, 0 rsm/seg q full err, 0 rsm overflow err0 hs q full err, 0 no free buff q err, 0 seg underflow err0 host seg stat q full errStep 3
VCD / Peak Avg/Min BurstInterface Name VPI VCI Type Encaps SC Kbps Kbps Cells Sts0/1 1 0 50 PVC SNAP UBR 1000 INAC0/IMA3 2 0 5 PVC SAAL UBR 4000 UP0/IMA3 3 0 16 PVC ILMI UBR 4000 UP0/IMA3 first 1 13 PVC MUX VBR 640 320 80 UP0/IMA3 4 0 34 SVC SNAP VBR-RT 768 768 UP
Troubleshooting Tips
To troubleshoot the ATM and IMA group configuration, enter the ping command that checks host reachability and network connectivity. This command can confirm basic network connectivity on AppleTalk, ISO CLNS, IP, Novell, Apollo, VINES, DECnet, or XNS networks.
For IP, the ping command sends ICMP (Internet Control Message Protocol) Echo messages. If a station receives an ICMP Echo message, it sends an ICMP Echo Reply message back to the source.
The extended command mode of the ping command permits you to specify the supported IP header options, so that the router can perform a more extensive range of test options. To enter ping extended command mode, enter yes at the extended commands prompt of the ping command.
For detailed information on using the ping and extended ping commands, see the Cisco IOS Configuration Fundamentals Command Reference.
If a ping command fails, check the following possible reasons for the connectivity problem:
•
•
•
Tips
If a communication session is closing when it should not be, an end-to-end connection problem can be the cause. The debug ip packet command is useful for analyzing the messages traveling between the local and remote hosts. IP debugging information includes packets received, generated, and forwarded. Because the debug ip packet command generates a significant amount of output, use it only when traffic on the IP network is low, so other activity on the system is not adversely affected.
Bandwidth Considerations
When planning IMA groups and payload bandwidth requirements, consider the overhead required for ATM cell headers, service-layer encapsulation such as RFC 1483, AAL5 encapsulation, and ICP cells. Table 3 and Table 4 show approximate values for T1 and E1 IMA groups, respectively with a frame length of 128, estimating ATM overhead at about 10 percent. The effective payload bandwidth varies based on packet size because the packets must be divided into an integer number of ATM cells leaving the last cell padded with filler bytes.
Note
Related Documents
For information about the physical characteristics of the ATM T1/E1 IMA network modules, or for instructions on how to install the network or modem modules, either see the Cisco 2600 or 3600 series Network Module Hardware Installation Guide that came with your ATM T1/E1 IMA network module or view the up-to-date information on CCO.
Configuring PPP over ATM
All forms of PPP over ATM can be configured on all platforms running Cisco IOS Release 12.1, except for the IETF-compliant LLC encapsulated version, which is not available for the Cisco MC3810 series platform. Figure 5 shows a typical scenario for using Cisco proprietary PPP over ATM.
Note
Figure 5 PPP-over-ATM Network Environment
Note
When you configure PPP over ATM, a logical interface known as a virtual access interface associates each PPP connection to an ATM permanent virtual circuit (PVC). You can create this logical interface by configuring an ATM PVC. This configuration encapsulates each PPP connection in a separate PVC, allowing each PPP connection to terminate at the router ATM interface as if received from a typical PPP serial interface.
The virtual access interface for each PVC obtains its configuration from a virtual interface template (virtual template) when the PVC is created. Before creating the ATM PVC, it is recommended that you create and configure a virtual template as described in the "Creating and Configuring a Virtual Template" section.
Once you have configured the router for PPP over ATM, the PPP subsystem starts and the router attempts to send a PPP configure request to the remote peer. If the peer does not respond, the router periodically goes into a "listen" state and waits for a configuration request from the peer. After a timeout (typically 45 seconds), the router again attempts to reach the remote router by sending configuration requests.
The virtual access interface remains associated with a PVC as long as the PVC is configured. If you deconfigure the PVC, the virtual access interface is marked as deleted. If you shut down the associated ATM interface, you will also cause the virtual access interface to be marked as down (within 10 seconds), and you will bring the PPP connection down. If you set a keepalive timer of the virtual template on the interface, the virtual access interface uses the PPP echo mechanism to verify the existence of the remote peer.
The following three types of PPP over ATM connections are supported:
•
•
•
To configure PPP over ATM, complete the tasks described in the following sections. The tasks in the first section are optional, but recommended. The tasks in the last three sections are specific to the type of PPP over ATM that you are configuring:
•
•
•
•
Creating and Configuring a Virtual Template
Prior to configuring the ATM PVC for PPP over ATM, you typically create and configure a virtual template. To create and configure a virtual template, use the following commands beginning in global configuration mode:
Other optional configuration commands can be added to the virtual template configuration. For example, you can enable the PPP authentication on the virtual template using the ppp authentication chap command. Refer to the "Configuring Virtual Template Interfaces" chapter in the Cisco IOS Dial Services Configuration Guide: Network Services for additional information about configuring the virtual template.
All PPP parameters are managed within the virtual template configuration. Configuration changes made to the virtual template are automatically propagated to the individual virtual access interfaces. Multiple virtual access interfaces can originate from a single virtual template; therefore, multiple PVCs can use a single virtual template.
Cisco IOS software supports up to 25 virtual template configurations. If greater numbers of tailored configurations are required, an authentication, authorization, and accounting (AAA) server may be employed. Refer to the "Configuring Per-User Configuration" chapter in the Cisco IOS Dial Services Configuration Guide: Network Services for additional information on configuring an AAA server.
If the parameters of the virtual template are not explicitly defined before configuring the ATM PVC, the PPP interface is brought up using default values from the virtual template identified. Some parameters (such as an IP address) take effect only if specified before the PPP interface comes up. Therefore, it is recommended that you explicitly create and configure the virtual template before configuring the ATM PVC to ensure such parameters take effect. Alternatively, if parameters are specified after the ATM PVC has already been configured, use the shutdown command followed by a no shutdown command on the ATM subinterface to restart the interface; this restart will cause the newly configured parameters (such as an IP address) to take effect.
Network addresses for the PPP-over-ATM connections are not configured on the main ATM interface or subinterface. Instead, these are configured on the appropriate virtual template or obtained via AAA.
The virtual templates support all standard PPP configuration commands; however, not all configurations are supported by the PPP-over-ATM virtual access interfaces. These restrictions are enforced at the time the virtual template configuration is applied (cloned) to the virtual access interface. These restrictions are described in the following paragraphs.
Only standard first-in, first-out (FIFO) queuing is supported when applied to PPP-over-ATM virtual access interfaces. Other types of queuing which are typically configured on the main interface are not (for example, fair-queuing). If configured, these configuration lines are ignored when applied to a PPP-over-ATM interface.
While fast switching is supported, flow and optimum switching are not; these configurations are ignored on the PPP-over-ATM virtual access interface. Fast switching is enabled by default for the virtual template configuration. If fast switching is not desired, use the no ip route-cache command to disable it.
The PPP reliable link that uses Link Access Procedure, Balanced (LAPB) is not supported.
Because an ATM PVC is configured for this feature, the following standard PPP features are not applicable and should not be configured:
•
•
•
Configuring IETF-Compliant MUX Encapsulated PPP over ATM
IETF-compliant MUX encapsulated PPP over ATM allows you to configure PPP over ATM using a VC multiplexed encapsulation mode. This feature complies with IETF RF 2364 entitled PPP over AAL5.
You can configure ATM PVCs for IETF-compliant MUX encapsulated PPP over ATM on either point-to-point or multipoint subinterfaces. Multiple PVCs on multipoint subinterfaces significantly increase the maximum number of PPP-over-ATM sessions running on a router.
To configure IETF-compliant MUX PPP over ATM, also known as null encapsulation, that supports VC multiplexed PPP payloads, use the following commands starting in global configuration mode:
Step 1
interface atm slot/0.subinterface-number point-to-point
or
interface atm number.subinterface-number point-to-point
or
interface atm slot/0.subinterface-number multipoint
or
interface atm number.subinterface-number multipoint
Specify an ATM point-to-point or multipoint subinterface using the appropriate format of the interface atm command.1
Step 2
pvc [name] vpi/vci
Configure the PVC.
Step 3
encapsulation aal5mux ppp virtual-template number
Configure VC multiplexed encapsulation.
.1 To determine the correct form of the interface atm command, consult your ATM network module, port adapter, or router documentation.
IETF-Compliant PPP over ATM is not supported on ATM SVCs and can only be applied to PVCs.
The IETF-Compliant PPP over ATM feature was designed to support installations with ADSL circuits. For an example of using ADSL termination, see the section "ADSL Termination Example" at the end of this chapter.
Configuring IETF-Compliant LLC Encapsulated PPP Over ATM
IETF-compliant LLC encapsulated PPP over ATM LLC Encapsulation allows you to configure PPP over ATM with LLC encapsulation. It accommodates Frame Relay-to-ATM service interworking (Frame Relay forum standard FRF.8). There is no equivalent VC multiplexed encapsulation mode for Frame Relay; therefore, LLC encapsulation is required for Frame Relay-to-ATM networking. This version of OOO over ATM also enables you to carry multiprotocol traffic. For example, a VC will carry both PPP and IPX traffic.
Figure 6 illustrates Frame Relay-to-ATM interworking.
Figure 6 Frame Relay-to-ATM Interworking
You can configure ATM PVCs for IETF-compliant LLC encapsulated PPP over ATM on either point-to-point or multipoint subinterfaces. Multiple PVCs on multipoint subinterfaces significantly increase the maximum number of PPP-over-ATM sessions running on a router. To configure IETF-compliant LLC encapsulated PPP over ATM, use the following commands starting in global configuration mode:
Step 1
interface atm slot/0.subinterface-number point-to-point
or
interface atm number.subinterface-number point-to-point
or
interface atm slot/0.subinterface-number multipoint
or
interface atm number.subinterface-number multipoint
Specify an ATM point-to-point or multipoint subinterface using the appropriate format of the interface atm command.1
Step 2
pvc [name] vpi/vci
Configure the PVC.
Step 3
encapsulation aal5snap2
Configure LLC SNAP encapsulation.
Step 4
protocol ppp virtual-template number
Configure IETF PPP over ATM LLC Encapsulation.
.1 To determine the correct form of the interface atm command, consult your ATM network module, port adapter, or router documentation.
.2 The snap encapsulation is a misnomer here, since this encapsulation configures both LLC and SNAP encapsulation on the VC. If snap encapsulation is not configured at a lower inheritance level, or another type of encapsulation is configured at a lower inheritance level, you will have to configure both snap and the protocol ppp command to ensure that PPP over ATM with LLC encapsulation is configured on your VC.
You can also configure IETF-compliant LLC encapsulated PPP over ATM in a VC class and apply this VC class to an ATM VC, subinterface, or interface. For information about configuring a VC class, refer to the section "Configuring VC Classes" earlier in this chapter.
Note
Configuring Cisco Proprietary PPP over ATM
You can configure ATM PVCs for Cisco proprietary PPP over ATM on either point-to-point or multipoint subinterfaces. Multiple PVCs on multiple subinterfaces significantly increases the maximum number of PPP-over-ATM sessions running on a router. Remote branch offices must have Cisco proprietary PPP over ATM configured on PPP-compatible devices interconnecting directly to Cisco's ATM Switch Interface Shelf (AXIS) equipment through a leased-line connection. The shelves provide frame forwarding encapsulation and are terminated on BPX cores prior to connecting to a Cisco 7500 series router.
To configure Cisco proprietary PPP over ATM, use the following commands starting in global configuration mode:
Step 1
interface atm slot/0.subinterface-number point-to-point
or
interface atm number.subinterface-number point-to-point
or
interface atm slot/0.subinterface-number multipoint
or
interface atm number.subinterface-number multipoint
Specify an ATM point-to-point or multipoint subinterface using the appropriate format of the interface atm command.1
Step 2
pvc [name] vpi/vci
Configure the PVC.
Step 3
encapsulation aal5ciscoppp virtual-template number
Configure Cisco Proprietary PPP over ATM encapsulation.
.1 To determine the correct form of the interface atm command, consult your ATM network module, port adapter, or router documentation.

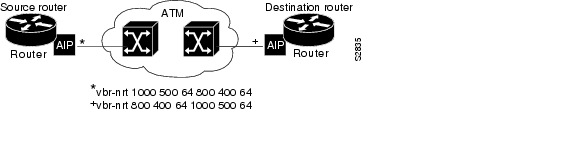

The peak rate value is typically identical to the average rate or some suitable multiple thereof (up to 64 times for the Cisco 7500 series routers).
The average rate value should be set to the line rate available at the remote site, because the remote line rate will typically have the lowest speed of the connection. For example, if the remote site has a T1 link, set the line rate to 1.536 Mbps. Because the average rate calculation on the ATM PVC includes the cell headers, a line rate value plus 10 or 15 percent may result in better remote line utilization.
The burst size depends on the number of cells that can be buffered by receiving ATM switches and is coordinated with the ATM network connection provider. If this value is not specified, the default, which is the equivalent to one maximum length frame on the interface, is used.
Operations, administration, and maintenance (OAM) F5 cell loopback is provided by the remote AXIS shelf so OAM may be enabled. However, Cisco Proprietary PPP over ATM is not typically an end-to-end ATM connection, and therefore enabling OAM is not recommended.
For an example of configuring Cisco proprietary PPP over ATM, see the section "Cisco Proprietary PPP-over-ATM Example" at the end of this chapter.
Configuring ATM E.164 Auto Conversion
E.164 is an International Telecommunications Union (ITU) specification for the ISDN international telephone numbering plan, which has traditionally only been used in telephone networks. The ATM Forum has defined three different 20-byte ATM End System Address (AESA) formats, along with the native E.164 format, for use in ATM networks. One of these 20-byte formats is the embedded E.164 AESA (E164_AESA) format.
With ATM E.164 auto conversion enabled, networks that operate based on ATM addressing formats can internetwork with networks based on E.164 addressing formats. The conversion requires components from addressing, routing, and signalling to perform properly.
For more information about E.164 and ATM address formats, see ATM Forum UNI 3.0, 3.1, and 4.0, and ITU E.164. Table 5 lists the ATM and E.164 address formats supported by ATM E.164 auto conversion.
When ATM E.164 auto conversion is enabled, a Cisco router sets up ATM SVC connections based on E.164 addresses. The router uses ATM E164_AESA addresses to set up E.164 calls in a way similar to using ATM AESA addresses to set up ATM SVCs. The ATM AESA address on an interface and the ATM AESA address of a static map must be in E164_AESA format.
To configure ATM E.164 auto conversion, you must configure the ATM interface using E164_AESA or E164_ZDSP format. To enable E.164 auto conversion, use the following commands beginning in interface configuration mode:
Step 1
interface atm slot/0
or
interface atm slot/port-adapter/0
or
interface atm number
Specify the ATM interface using the appropriate format of the interface atm command.1
Step 2
ip address ip-address mask
If IP routing is enabled on the system, optionally assign a source IP address and subnet mask to the interface.
Step 3
pvc 0/5 qsaal
Configure the signalling PVC for the ATM main interface that uses SVCs.
Step 4
exit
Return to interface configuration mode.
Step 5
atm nsap-address nsap-address
Set the AESA address for the ATM interface using E164_AESA or E164_ZDSP address format.
Step 6
atm e164 auto-conversion
Enable E.164 auto conversion on the interface.
Step 7
exit
Return to interface configuration mode.
Step 8
svc [name] nsap address
Specify the destination NSAP address using E164_AESA or E164_ZDSP address format.
Step 9
protocol ip protocol-address
Specify the destination IP address of the SVC.
.1 To determine the correct form of the interface atm command, consult your ATM network module, port adapter, or router documentation.
Use the show interfaces atm command to verify that ATM E.164 auto conversion is running.
For an example of configuring ATM E.164 auto conversion, refer to the section "Configuring ATM E.164 Auto Conversion Example" at the end of this chapter.
Configuring Circuit Emulation Services
This section includes an overview of Circuit Emulation Services (CES) for ATM and a description of the configuration tasks.
CES Overview
Circuit emulation service internetworking function (CES-IWF) is a service based on ATM Forum standards that allows communications to occur between CBR and ATM UNI interfaces, that is, between non-ATM telephony devices (such as classic PBXs or TDMs) and ATM devices (such as Cisco 7200 series routers). Thus, a Cisco 7200 series router equipped with an ATM-CES port adapter offers a migration path from classic T1/E1 CBR data communications services to emulated CES T1/E1 unstructured (clear channel) services or structured (N x 64) services in an ATM network.
Figure 7 shows a simplified representation of CES-IWF functions in an ATM network.
Figure 7 Typical CES-IWF Operations in an ATM Network
Voice and video services (circuit emulation) allow you to interconnect existing T1 or E1 interfaces and other kinds of constant bit rate (CBR) equipment. CBR services include such features as PBX interconnect, consolidated voice and data traffic, and video conferencing.
With circuit emulation, data received from an external device at the edge of an ATM network is converted to ATM cells, sent through the network, reassembled into a bit stream, and passed out of the ATM network to its destination. T1/E1 circuit emulation does not interpret the contents of the data stream. All the bits flowing into the input edge port of the ATM network are reproduced at one corresponding output edge port.
An emulated circuit is carried across the ATM network on a PVC, which is configured through the network management system.
The ATM-CES port adapter offers two types of services:
•
•
The target application of the ATM-CES port adapter is access to a broadband public or private ATM network where multiservice consolidation of voice, video, and data traffic over a single ATM link is a requirement.
CES Configuration Task List
To configure the T1/E1 interfaces on the ATM-CES port adapter for unstructured CES services, use the commands described in the first section listed below. To configure structured CES services, use the commands described in the second section. The third section is optional if structured CES services are already configured.
•
•
•
Note
For an example of configuring CES, see the section "Configuring Circuit Emulation Services Example" at the end of this chapter.
Configuring Unstructured (Clear Channel) CES Services
A circuit that you set up on a CBR port for unstructured service is always identified as "circuit 0", because only one such circuit can be established on any given CBR port. Such a circuit consumes the entire bandwidth of the port, which is provisioned manually at the time you set up the unstructured circuit and remains dedicated to that port, whether that port is actively transmitting CBR data or not.
A CES module converts CBR traffic into ATM cells for propagation through an ATM network. The ATM cell stream is directed to an outgoing ATM port or CBR port. If the outgoing port is an ATM port on the same Cisco 7200 series router, the PVC is called a "hard PVC". As a general rule when setting up a hard PVC, you must interconnect a CBR port and the ATM port in the same ATM-CES port adapter. Only hard PVCs are supported in the Cisco 7200 series router.
To configure the T1/E1 port on the ATM-CES port adapter for unstructured (clear channel) CES services, use the following commands beginning in global configuration mode:
Configuring Structured (N x 64) CES Services
Structured (N x 64 kbps) CES services differ from unstructured CES services in that the structured services allow you to allocate the bandwidth in a highly flexible and efficient manner. With the structured services, you use only the bandwidth actually required to support the active structured circuit that you configure.
For example, in configuring an ATM-CES port adapter for structured service, you can define multiple hard PVCs for any given ATM-CES port adapter's T1/E1 port. The ATM-CES port adapter provides up to 24 time slots per T1 port and up to 31 time slots per E1 for defining structured CES circuits. To see the bandwidth that is required on an ATM link for this particular circuit, use the show ces circuit command.
Note
For simplicity in demonstrating configuration tasks for structured CES services, the procedures in this section are directed primarily at setting up a single CES circuit per T1/E1 port. However, these procedures outline the essential steps and command syntax that you would use if you were to set up multiple CES circuits on a T1/E1 port.
Structured CES services require network clock synchronization by means of the synchronous clocking mode. You must select the clock source and define its priority locally for each Cisco 7200 series router in your network. You do this by means of the network-clock-select command.
To configure the T1/E1 port on the ATM-CES port adapter for structured (N x 64 kbps) CES services without CAS, use the following commands beginning in global configuration mode:
Note
Configuring Channel-Associated Signalling (for Structured CES Services Only)
Because the ATM-CES port adapter emulates constant bit rate services over ATM networks, it must be capable of providing support for handling channel-associated signalling (CAS) information introduced into structured CES circuits by PBXs and time-division multiplexing (TDM) devices. The ces circuit cas interface command provides this feature.
With respect to the CAS information carried in a CBR bit stream, an ATM-CES port adapter can be configured to operate as follows:
•
In this case, the ATM-CES port adapter does not sense the CAS information (carried as so-called "ABCD" bits in the CBR bit stream) and provides no support for CAS functions.
•
In this case, in addition to packaging incoming CBR data into ATM AAL1 cells in the usual manner for transport through the network, the ATM-CES port adapter in the ingress node senses the ABCD bit patterns in the incoming data, incorporates these patterns in the ATM cell stream, and propagates the cells to the next node in the network. The ATM cells are transported across the network from link to link until the egress node is reached.
At the egress node, the ATM-CES port adapter strips off the ABCD bit patterns carried by the ATM cells, reassembles the CAS ABCD bits and the user's CBR data into original form, and passes the frames out of the ATM network in the proper DS0 time slot.
All these processes occur transparently without user intervention.
•
In this case, the CAS and on-hook detection features work together to enable an ingress node in an ATM network to monitor on-hook and off-hook conditions for a specified 1 x 64 structured CES circuit. As implied by the notation "1 x 64," the on-hook detection (or bandwidth-release) feature is supported only in a structured CES circuit that involves a single time slot at each end of the connection.
The time slot configured for the structured CES circuit at the ingress node (time slot 2) can be different from the DS0 time slot configured at the egress node (time slot 4). Only one such time slot can be configured at each end of the circuit when the on-hook detection feature is used.
When you invoke this feature, the ingress ATM-CES port adapter monitors the ABCD bits in the incoming CBR bit stream to detect on-hook and off-hook conditions in the circuit. In an "off-hook" condition, all the bandwidth provisioned for the specified CES circuit is used for transporting ATM AAL1 cells across the network from the ingress node to the egress node.
In an on-hook condition, the network periodically sends dummy ATM cells from the ingress node to the egress node to maintain the connection. However, these dummy cells consume only a fraction of the circuit's reserved bandwidth, leaving the rest of the bandwidth available for use by other AAL5 network traffic. This bandwidth-release feature enables the network to make more efficient use of its resources.
When the CAS feature is enabled for a CES circuit, the bandwidth of the DS0 channel is limited to 56 kbps for user data, because CAS functions consume 8 kbps of channel bandwidth for transporting the ABCD signalling bits. These signalling bits are passed transparently from the ingress node to the egress node as part of the ATM AAL1 cell stream.
In summary, when the optional CAS and on-hook detection features are enabled, the following conditions apply:
•
•
•
To configure the T1/E1 port on the ATM-CES port adapter for channel associated signalling, first use the commands in the "Configuring Structured (N x 64) CES Services" section and then use the following commands beginning in global configuration mode:
Configuring Network Clock Source and Priorities
You can specify up to four network clock sources for a Cisco 7200 series router. The highest priority active port in the chassis supplies primary reference source to all other chassis interfaces that require network clock synchronization services. The fifth network clock source is always the local oscillator on the ATM-CES port adapter.
To direct a CBR port to use the network-derived clock, you must configure the CBR port with the ces dsx1 clock source network-derived interface command. For information on configuring the CBR port, refer to the section "Configuring Unstructured (Clear Channel) CES Services" earlier in this chapter.
To establish the sources and priorities of the requisite clocking signals for an ATM-CES port adapter in a Cisco 7200 series router, use the following commands beginning in global configuration mode:
To verify the clock signal sources and priorities that you established in the previous procedure for your ATM-CES port adapter, use the show network-clocks privileged EXEC command.
Note
For an example of configuring the network clock source and priority, see the section "Configuring Network Clock Source Priority Example" at the end of this chapter.
Configuring Virtual Path Shaping
The ATM-CES port adapter supports multiplexing of one or more PVCs over a virtual path (VP) that is shaped at a constant bandwidth. To use this feature, you configure a permanent virtual path (PVP) with a specific virtual path identifier (VPI). Any PVCs that are created subsequently with the same VPI are multiplexed onto this VP; the traffic parameters of individual PVCs are ignored.
The traffic shaping conforms to the peak rate that is specified when you create the VP. Any number of data PVCs can be multiplexed onto a VP.
Note
To create a PVP, use the following commands beginning in interface configuration mode:
Note
The value of the vpi argument is the virtual path identifier to be associated with the PVP (valid values are in the range 0 to 255 inclusive). The peak-rate argument is the maximum rate (in kbps) at which the PVP is allowed to transmit data. Valid values are in the range 84 kbps to line rate. The default peak rate is the line rate.
When you create a PVP, two PVCs are created (with VCI 3 and 4) by default. These PVCs are created for VP end-to-end loopback and segment loopback OAM support.
The pvc command is rejected if a non-multiplexed PVC with the specified VPI value already exists. This could happen if you first create a PVC with a given VPI value and then you subsequently enter this command.
To display information about the PVP, use the show atm vp EXEC command.
Note
For an example of virtual path shaping, see the section "Configuring Virtual Path Shaping Example" at the end of this chapter.
Configuring ATM Access over a Serial Interface
This section describes how to configure routers that use a serial interface for ATM access through an ATM data service unit (ADSU). The configuration tasks include the steps necessary to enable Asynchronous Transfer Mode-Data Exchange Interface (ATM-DXI) encapsulation, select a multiprotocol encapsulation method using ATM-DXI, and set up a PVC for the selected encapsulation.
In routers with a serial interface, an ADSU is required to provide the ATM interface to the network, convert outgoing packets into ATM cells, and reassemble incoming ATM cells into packets.
Any serial interface can be configured for multiprotocol encapsulation over ATM-DXI, as specified by RFC 1483. At the ADSU, the DXI header is stripped off, and the protocol data is segmented into cells for transport over the ATM network.
RFC 1483 describes two methods of transporting multiprotocol connectionless network interconnect traffic over an ATM network. One method allows multiplexing of multiple protocols over a single PVC. The other method uses different virtual circuits to carry different protocols. Cisco's implementation of RFC 1483 supports both methods and supports transport of Apollo Domain, AppleTalk, Banyan VINES, DECnet, IP, Novell IPX, ISO CLNS, and XNS traffic.
To configure ATM access over a serial interface, complete the tasks in the following sections. The first four tasks are required.
•
•
•
•
•
For an example of configuring ATM access over a serial interface, see the section "ATM Access over a Serial Interface Example" at the end of this chapter.
Enabling the Serial Interface
To configure the serial interface for ATM access, enable the serial interface by using the following commands beginning in global configuration mode:
The supported protocols are Apollo Domain, AppleTalk, Banyan VINES, DECnet, IP, Novell IPX, ISO CLNS, and XNS.
For information about the addressing requirements of a protocol, see the relevant protocol configuration chapter in the Cisco IOS IP and IP Routing Configuration Guide, the Cisco IOS Appletalk and Novell IPX Configuration Guide, or the Cisco IOS Apollo Domain, Banyan VINES, DECnet, ISO CLNS, and XNS Configuration Guide, for Cisco IOS Release 12.1.
Enabling ATM-DXI Encapsulation
To enable ATM-DXI encapsulation on a serial or High-Speed Serial Interface (HSSI), use the following command in interface configuration mode:
Setting Up the ATM-DXI PVC
An ATM-DXI PVC can be defined to carry one or more protocols as described by RFC 1483, or multiple protocols as described by RFC 1490.
To set up the ATM-DXI PVC and select an encapsulation method, use the following command in interface configuration mode:
dxi pvc vpi vci [snap | nlpid | mux]
Define the ATM-DXI PVC and the encapsulation method.
The multiplex (MUX) option defines the PVC to carry one protocol only; each protocol must be carried over a different PVC. The Subnetwork Access Protocol (SNAP) option is LLC/SNAP multiprotocol encapsulation, compatible with RFC 1483; SNAP is the current default option. The network layer protocol identification (NLPID) option is multiprotocol encapsulation, compatible with RFC 1490; this option is provided for backward compatibility with the default setting in earlier versions in the Cisco IOS software.
Note
Mapping Protocol Addresses to the ATM-DXI PVC
This section describes how to map protocol addresses to the VCI and the VPI of a PVC that can carry multiprotocol traffic. The protocol addresses belong to the host at the other end of the link. To map a protocol address to an ATM-DXI PVC, use the following command in interface configuration mode:
dxi map protocol protocol-address vpi vci [broadcast]
Map a protocol address to the ATM-DXI PVC's VPI and VCI.
Repeat this task for each protocol to be carried on the PVC.
The supported protocols are Apollo Domain, AppleTalk, Banyan VINES, DECnet, IP, Novell IPX, ISO CLNS, and XNS.
For an example of configuring a serial interface for ATM, see the section "ATM Access over a Serial Interface Example" later in this chapter.
Monitoring and Maintaining the ATM-DXI Serial Interface
After configuring the serial interface for ATM, you can display the status of the interface, the ATM-DXI PVC, or the ATM-DXI map. To display interface, PVC, or map information, use the following commands in EXEC mode:
show interfaces atm [slot/port]
Display the serial ATM interface status.
show dxi pvc
Display the ATM-DXI PVC information.
show dxi map
Display the ATM-DXI map information.
Troubleshooting the ATM Interface
The atm oam flush command is a diagnostic tool that drops all OAM cells that are received on an ATM interface. To drop all incoming OAM cells on an ATM interface, use the following commands beginning in global configuration mode:
Step 1
interface atm slot/0
or
interface atm slot/port-adapter/0
or
interface atm number
Specify the ATM interface using the appropriate format of the interface atm command.1
Step 2
atm oam flush
Specify that incoming OAM cells be dropped on the ATM interface.
.1 To determine the correct form of the interface atm command, consult your ATM network module, port adapter, or router documentation.
Monitoring and Maintaining the ATM Interface
After configuring an ATM interface, you can display its status. You can also display the current state of the ATM network and connected virtual circuits. To show current virtual circuits and traffic information, use the following commands in EXEC mode:
show arp
Display entries in the ARP table.
show atm class-links {vpi/vci | name}
Display PVC and SVC parameter configurations and where the parameter values are inherited from.
show atm interface atm slot/0
show atm interface atm slot/port-adapter/0
show atm interface atm number
Display ATM-specific information about the ATM interface using the appropriate format of the show atm interface atm command.1
show atm map
Display the list of all configured ATM static maps to remote hosts on an ATM network.
show atm pvc [vpi/vci | name | interface atm interface_number]
Display all active ATM PVCs and traffic information.
show atm svc [vpi/vci | name | interface atm interface_number]
Display all active ATM SVCs and traffic information.
show atm traffic
Display global traffic information to and from all ATM networks connected to the router, OAM statistics, and a list of counters of all ATM traffic on this router.
show atm vc [vcd]
Display all active ATM virtual circuits (PVCs and SVCs) and traffic information.
show controllers atm [slot/ima group-number]
Display information about current settings and performance at the physical level.
show ima interface atm [slot]/ima [group-number] [detail]
Display general or detailed information about IMA groups and the links in those groups.
show interfaces atm
show interfaces atm slot/0
show interfaces atm slot/port-adapter/0
Display statistics for the ATM interface using the appropriate format of the show interfaces atm command.
show network-clocks
Display the clock signal sources and priorities that you established on the router.
show sscop
Display SSCOP details for the ATM interface.
1 To determine the correct form of the interface atm command, consult your ATM network module, port adapter, or router documentation.
ATM Configuration Examples
The examples in the following sections illustrate how to configure ATM for the features described in this chapter. The examples below are presented in the same order as the corresponding configuration task sections presented earlier in this chapter:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Creating a PVC Example
The following example shows how to create a PVC on an ATM main interface with AAL5/MUX encapsulation configured and a VBR-NRT QOS specified. For further information, refer to the sections "Creating a PVC" and "Configuring PVC Traffic Parameters" earlier in this chapter.
interface 2/0pvc cisco 1/40encapsulation aal5mux ipvbr-nrt 100000 50000 20exitPVC with AAL5 and LLC/SNAP Encapsulation Examples
The following example shows how to create a PVC 0/50 on ATM interface 3/0. It uses the global default LLC/SNAP encapsulation over AAL5. The interface is at IP address 1.1.1.1 with 1.1.1.5 at the other end of the connection. For further information, refer to the sections "Creating a PVC" and "Mapping a Protocol Address to a PVC" earlier in this chapter.
interface atm 3/0ip address 1.1.1.1 255.255.255.0pvc 0/50protocol ip 1.1.1.5 broadcastexit!ip route-cache cbusThe following example is a typical ATM configuration for a PVC:
interface atm 4/0ip address 172.21.168.112 255.255.255.0atm maxvc 512pvc 1/51protocol ip 171.21.168.110exit!pvc 2/52protocol decnet 10.1 broadcastexit!pvc 3/53protocol clns 47.004.001.0000.0c00.6e26.00 broadcastexit!decnet cost 1clns router iso-igrp cometexit!router iso-igrp cometnet 47.0004.0001.0000.0c00.6666.00exit!router igrp 109network 172.21.0.0exit!ip domain-name CISCO.COMPVCs in a Fully Meshed Network Example
Figure 8 illustrates a fully meshed network. The configurations for Routers A, B, and C follow the figure. In this example, the routers are configured to use PVCs. Fully meshed indicates that any workstation can communicate with any other workstation. Note that the two protocol statements configured in Router A identify the ATM addresses of Routers B and C. The two protocol statements in Router B identify the ATM addresses of Routers A and C. The two protocol statements in Router C identify the ATM addresses of Routers A and B. For further information, refer to the sections "Creating a PVC" and "Mapping a Protocol Address to a PVC" earlier in this chapter.
Figure 8 Fully Meshed ATM Configuration Example
Router A
ip routing!interface atm 4/0ip address 131.108.168.1 255.255.255.0pvc 0/32protocol ip 131.108.168.2 broadcastexit!pvc 0/33protocol ip 131.108.168.3 broadcastexitRouter B
ip routing!interface atm 2/0ip address 131.108.168.2 255.255.255.0pvc test-b-1 0/32protocol ip 131.108.168.1 broadcastexit!pvc test-b-2 0/34protocol ip 131.108.168.3 broadcastexitRouter C
ip routing!interface atm 4/0ip address 131.108.168.3 255.255.255.0pvc 0/33protocol ip 131.108.168.1 broadcastexit!pvc 0/34protocol ip 131.108.168.2 broadcastexitConfiguring an ABR PVC Example
The following example shows a typical ABR PVC configuration for the ATM-CES port adapter on a Cisco 7200 series router. In this example, the default peak cell rate and minimum cell rate is used (default PCR is the line rate and MCR is 0), and the ABR rate increase and decrease factor is set to 32. For further information, refer to the section "Configuring PVC Traffic Parameters" earlier in this chapter.
interface atm 4/0ip address 1.1.1.1 255.255.255.0pvc 0/34atm abr rate-factor 32 32no shutdownexitConfiguring PVC Discovery Example
The following example shows how to enable PVC Discovery on an ATM main interface 2/0. The keyword subinterface is used so that all discovered PVCs with a VPI value of 1 will be assigned to the subinterface 2/0.1. For further information, refer to the section "Configuring PVC Discovery" earlier in this chapter.
interface atm 2/0pvc RouterA 0/16 ilmiexitatm ilmi-pvc-discovery subinterfaceexit!interface atm 2/0.1 multipointip address 172.21.51.5 255.255.255.0Enabling Inverse ARP Example
The following example shows how to enable Inverse ARP on an ATM interface and specifies an Inverse ARP time period of 10 minutes. For further information, refer to the section "Enabling Inverse ARP" earlier in this chapter.
interface atm 2/0pvc 1/32inarp 10exitConfiguring Generation of End-to-End F5 OAM Loopback Cells Example
The following example shows how to enable OAM management on an ATM PVC. The PVC is assigned the name routerA and the VPI and VCI are 0 and 32, respectively. OAM management is enabled with a frequency of 3 seconds between OAM cell transmissions. For further information, refer to the section "Configuring Generation of End-to-End F5 OAM Loopback Cells to Verify Connectivity" earlier in this chapter.
interface atm 2/0pvc routerA 0/32oam-pvc manage 3oam retry 5 5 10Configuring PVC Trap Support Example
The following example shows how to configure PVC trap support on your Cisco router:
!For PVC trap support to work on your router, you must first have SNMP support and !an IP routing protocol configured on your router:Router(config)# snmp-server community public roRouter(config)# snmp-server host 171.69.61.90 publicRouter(config)# ip routingRouter(config)# router igrp 109Router(config-router)# network 172.21.0.0!!Enable PVC trap support and OAM management:Router(config)# snmp-server enable traps atm pvc interval 40 fail-interval 10Router(config)# interface atm 1/0.1Router(config-if)# pvc 0/1Router(config-if-atm-vc)# oam-pvc manage!! Now if PVC 0/1 goes down, host 171.69.61.90 will receive traps.For further information, refer to the "Configuring PVC Trap Support" section earlier in this chapter.
Configuring Communication with the ILMI Example
The following example shows how to configure the ILMI protocol on an ATM main interface. For further information, refer to the section "Configuring Communication with the ILMI" earlier in this chapter.
interface 2/0pvc cisco 0/16 ilmiexitSVCs in a Fully Meshed Network Example
The following example is also a configuration for the fully meshed network shown in Figure 8, but this example uses SVCs. PVC 0/5 is the signaling PVC.
Note
For further information, see the following sections earlier in this chapter:
•
Router A
interface atm 4/0ip address 172.16.168.1 255.255.255.0atm nsap-address AB.CDEF.01.234567.890A.BCDE.F012.3456.7890.1234.12atm maxvc 1024pvc 0/5 qsaalexit!svc svc-1 nsap BC.CDEF.01.234567.890A.BCDE.F012.3456.7890.1334.13protocol ip 172.16.168.2exit!svc svc-2 nsap CA.CDEF.01.234567.890A.BCDE.F012.3456.7890.1334.12protocol ip 172.16.168.3exitRouter B
interface atm 2/0ip address 172.16.168.2 255.255.255.0atm nsap-address BC.CDEF.01.234567.890A.BCDE.F012.3456.7890.1334.13atm maxvc 1024pvc 0/5 qsaalexit!svc svc-1 nsap AB.CDEF.01.234567.890A.BCDE.F012.3456.7890.1234.12protocol ip 172.16.168.1exit!svc svc-2 nsap CA.CDEF.01.234567.890A.BCDE.F012.3456.7890.1334.12protocol ip 172.16.168.3exitRouter C
interface atm 4/0ip address 172.16.168.3 255.255.255.0atm nsap-address CA.CDEF.01.234567.890A.BCDE.F012.3456.7890.1334.12atm maxvc 1024pvc 0/5 qsaalexit!svc nsap AB.CDEF.01.234567.890A.BCDE.F012.3456.7890.1234.12protocol ip 172.16.168.1exit!svc nsap BC.CDEF.01.234567.890A.BCDE.F012.3456.7890.1334.13protocol ip 172.16.168.2exitATM ESI Address Example
The following example shows how to set up the ILMI PVC and how to assign the ESI and selector field values on a Cisco 7500 series router. For further information, refer to the section "Configuring the ESI and Selector Fields" earlier in this chapter.
interface atm 4/0pvc 0/16 ilmiatm esi-address 345678901234.12ATM NSAP Address Example
The following example shows how to assign NSAP address AB.CDEF.01.234567.890A.BCDE.F012.3456.7890.1234.12 to ATM interface 4/0. For further information, refer to the section "Configuring the Complete NSAP Address" earlier in this chapter.
interface atm 4/0atm nsap-address AB.CDEF.01.234567.890A.BCDE.F012.3456.7890.1234.12You can display the ATM address for the interface by executing the show interface atm command.
SVCs with Multipoint Signalling Example
The following example shows how to configure an ATM interface for SVCs using multipoint signalling. For further information, refer to the section "Configuring Point-to-Multipoint Signalling" earlier in this chapter.
interface atm 2/0ip address 4.4.4.6 255.255.255.0pvc 0/5 qsaalexit!pvc 0/16 ilmiexit!atm esi-address 3456.7890.1234.12!svc mcast-1 nsap cd.cdef.01.234566.890a.bcde.f012.3456.7890.1234.12 broadcastprotocol ip 4.4.4.4 broadcastexit!svc mcast-2 nsap 31.3233.34.352637.3839.3031.3233.3435.3637.3839.30 broadcastprotocol ip 4.4.4.7 broadcastexit!atm multipoint-signallingatm maxvc 1024Configuring SVC Traffic Parameters Example
Figure 9 illustrates a source and destination router implementing traffic settings that correspond end-to-end. The output values for the source router correspond to the input values for the destination router. The following example shows how to specify VBR-NRT traffic parameters on the source router. For further information, refer to the section "Configuring SVC Traffic Parameters" earlier in this chapter.
interface atm 4/0svc svc-1 nsap 47.0091.81.000000.0041.0B0A.1581.0040.0B0A.1585.00vbr-nrt 1000 500 64 800 400 64exitFigure 9 Source and Destination Routers with Corresponding Traffic Settings
Creating a VC Class Examples
The following example shows how to create a VC class named main and how to configure UBR and encapsulation parameters. For further information, refer to the sections "Creating a VC Class" and "Configuring VC Parameters" earlier in this chapter.
vc-class atm mainubr 10000encapsulation aal5mux ipThe following example shows how to create a VC class named sub and how to configure UBR and PVC management parameters. For further information, refer to the sections "Creating a VC Class" and "Configuring VC Parameters" earlier in this chapter.
vc-class atm sububr 15000oam-pvc manage 3The following example shows how to create a VC class named pvc and how to configure VBR-NRT and encapsulation parameters. For further information, refer to the sections "Creating a VC Class" and "Configuring VC Parameters" earlier in this chapter.
vc-class atm pvcvbr-nrt 10000 5000 64encapsulation aal5snapApplying a VC Class Examples
The following example shows how to apply the VC class named main to the ATM main interface 4/0. For further information, refer to the section "Applying a VC Class" earlier in this chapter.
interface atm 4/0class-int mainexitThe following example shows how to apply the VC class named sub to the ATM subinterface 4/0.5:
interface atm 4/0.5 multipointclass-int subexitThe following example shows how to apply the VC class named pvc directly on the PVC 0/56:
interface atm 4/0.5 multipointpvc 0/56class-vc pvcexitILMI Management on an ATM PVC Example
The following example first shows how to configure an ILMI PVC on the main ATM interface 0/0. ILMI management is then configured on the ATM subinterface 0/0.1. For further information, refer to the section "Configuring ILMI Management" earlier in this chapter.
interface atm 0/0pvc routerA 0/16 ilmiexit!interface atm 0/0.1 multipointpvc 0/60ilmi manageOAM Management on an ATM PVC Example
The following example shows how to enable OAM management on an ATM PVC. The PVC is assigned the name routerA and the VPI and VCI are 0 and 32, respectively. OAM management is enabled with a frequency of 3 seconds between OAM cell transmissions. For further information, refer to the section "Configuring OAM Management for PVCs" earlier in this chapter.
interface atm 2/0pvc routerA 0/32oam-pvc manage 3oam retry 5 5 10OAM Management on an ATM SVC Example
The following example shows how to enable OAM management on an ATM SVC. The SVC is assigned the name routerZ and the destination NSAP address is specified. OAM management is enabled with a frequency of 3 seconds between OAM cell transmissions. For further information, refer to the section "Configuring OAM Management for SVCs" earlier in this chapter.
interface atm 1/0svc routerZ nsap 47.0091.81.000000.0040.0B0A.2501.ABC1.3333.3333.05oam-svc manage 3oam retry 5 5 10Classical IP and ARP Examples
This section provides three examples of classical IP and ARP configuration, one each for a client and a server in an SVC environment, and one for ATM Inverse ARP in a PVC environment.
Configuring ATM ARP Client in an SVC Environment Example
This example shows how to configure an ATM ARP client in an SVC environment. Note that the client in this example and the ATM ARP server in the next example are configured to be on the same IP network. For further information, refer to the section "Configuring the Router as an ATM ARP Client" earlier in this chapter.
interface atm 2/0.5atm nsap-address ac.2456.78.040000.0000.0000.0000.0000.0000.0000.00ip address 10.0.0.2 255.0.0.0pvc 0/5 qsaalatm arp-server nsap ac.1533.66.020000.0000.0000.0000.0000.0000.0000.00Configuring ATM ARP Server in an SVC Environment Example
The following example shows how to configure ATM on an interface and configures the interface to function as the ATM ARP server for the IP subnetwork. For further information, refer to the section "Configuring the Router as an ATM ARP Server" earlier in this chapter.
interface atm 0/0ip address 10.0.0.1 255.0.0.0atm nsap-address ac.1533.66.020000.0000.0000.0000.0000.0000.0000.00atm rate-queue 1 100atm maxvc 1024pvc 0/5 qsaalatm arp-server selfConfiguring ATM Inverse ARP in a PVC Environment Example
The following example shows how to configure ATM on an interface and then configures the ATM Inverse ARP mechanism on the PVCs on the interface, with Inverse ARP datagrams sent every 5 minutes on three of the PVCs. The fourth PVC will not send Inverse ATM ARP datagrams, but will receive and respond to Inverse ATM ARP requests. For further information, refer to the section "Configuring Classical IP and ARP in an SVC Environment" earlier in this chapter.
interface atm 4/0ip address 172.21.1.111 255.255.255.0pvc 0/32inarp 5exit!pvc 0/33inarp 5exit!pvc 0/34inarp 5exit!interface atm 4/0.1 point-to-pointpvc 0/35exitNo map-group and map-list commands are needed for IP.
Dynamic Rate Queue Examples
The following examples assume that no permanent rate queues have been configured. The software dynamically creates rate queues when a pvc command creates a new PVC that does not match any user-configured rate queue. For further information, refer to the section "Using Dynamic Rate Queues" earlier in this chapter.
The following example shows how to set the peak rate to the maximum that the PLIM will allow. Then it creates a rate queue for the peak rate of this VC.
interface 2/0pvc 1/41exitThe following example shows how to create a 100-Mbps rate queue with an average rate of 50 Mbps and a burst size of 64 cells:
interface 2/0pvc 2/42vbr-nrt 100000 50000 64exitThe following example shows how to create a 15-Mbps rate queue and set the average rate to the peak rate:
interface 2/0pvc 3/43ubr 15000exitThe following example shows how to configure a rate queue tolerance on the ATM interface with slot 2 and port 0. A tolerance-value of 20 is specified, which will apply to SVCs, discovered VCs, and PVCs.
interface atm 2/0atm rate-queue tolerance svc pvc 20PVC with AAL3/4 and SMDS Encapsulation Examples
The following example shows how to create a minimal configuration of an ATM interface to support AAL3/4 and SMDS encapsulation; no protocol configuration is shown. For further information, refer to the section "Configuring ATM Subinterfaces for SMDS Networks" earlier in this chapter.
interface atm 3/0atm aal aal3/4atm smds-address c140.888.9999atm vp-filter 0atm multicast e180.0999.9999atm pvc 30 0 30 aal34smdsThe following example shows how IP dynamic routing might coexist with static routing of another protocol:
interface atm 3/0ip address 172.21.168.112 255.255.255.0atm aal aal3/4atm smds-address c140.888.9999atm multicast e180.0999.9999atm vp-filter 0atm pvc 30 0 30 aal34smdsmap-group atmappletalk address 10.1appletalk zone atm!map-group atmatalk 10.2 smds c140.8111.1111 broadcastThis example shows that IP configured is dynamically routed, but that AppleTalk is statically routed. An AppleTalk remote host is configured at address 10.2 and is associated with SMDS address c140.8111.1111.
AAL3/4 associates a protocol address with an SMDS address, as shown in the last line of this example. In contrast, AAL5 static maps associate a protocol address with a PVC number.
Transparent Bridging on an AAL5-SNAP PVC Example
In the following example, three AAL5-SNAP PVCs are created on the same ATM interface. The router will broadcast all spanning tree updates to these AAL5-SNAP PVCs. No other virtual circuits will receive spanning tree updates. For further information, refer to the section "Configuring Fast-Switched Transparent Bridging for SNAP PVCs" earlier in this chapter.
interface atm 4/0ip address 1.1.1.1 255.0.0.0pvc 1/33pvc 1/34pvc 1/35bridge-group 1!bridge 1 protocol decE1 Inverse Multiplexing over ATM Example
The following example shows the setup of ATM interfaces, IMA groups, PVCs, and SVCs for E1 IMA.
version 12.0service timestamps debug uptimeservice timestamps log uptimeno service password-encryption!hostname IMARouter!logging buffered 4096 debugging!ip subnet-zerono ip domain-lookupip host 10.11.16.2ip host 10.11.16.3ip host 10.11.55.192ip host 10.11.55.193ip host 10.11.55.195ip host 10.11.55.196!!!!interface Ethernet0/0ip address 10.17.12.100 255.255.255.192no ip directed-broadcast!ATM interface 1/0 includes a PVC, but the specified link is not included in an IMA group. In this example, impedance and scrambling are set at their default values for E1 links and must match the far-end setting. The broadcast setting on the PVC takes precedence (addresses are fictional).
interface ATM1/0ip address 10.1.1.26 255.255.255.1no ip directed-broadcastno atm oversubscribepvc 1/40protocol ip 10.10.10.10 broadcast!scrambling-payloadimpedance 120-ohmno fair-queue!The eight-port ATM IMA E1 network module is in slot 1, and the interface commands below specify three links as members of IMA group 0.
interface ATM1/1no ip addressno ip directed-broadcastno atm oversubscribeima-group 0scrambling-payloadimpedance 120-ohmno fair-queue!interface ATM1/2no ip addressno ip directed-broadcastno atm oversubscribeima-group 0scrambling-payloadimpedance 120-ohmno fair-queue!interface ATM1/3no ip addressno ip directed-broadcastno atm oversubscribeima-group 0scrambling-payloadimpedance 120-ohmno fair-queue!Four links are members of IMA group 1.
interface ATM1/4no ip addressno ip directed-broadcastno atm oversubscribeima-group 1scrambling-payloadimpedance 120-ohmno fair-queue!interface ATM1/5no ip addressno ip directed-broadcastno atm oversubscribeima-group 1scrambling-payloadimpedance 120-ohmno fair-queue!interface ATM1/6no ip addressno ip directed-broadcastno atm oversubscribeima-group 1scrambling-payloadimpedance 120-ohmno fair-queue!interface ATM1/7no ip addressno ip directed-broadcastno atm oversubscribeima-group 1scrambling-payloadimpedance 120-ohmno fair-queue!The following commands specify parameters for the two IMA groups. For each group, a PVC is created and assigned an IP address.
interface ATM1/IMA0ip address 10.18.16.123 255.255.255.192no ip directed-broadcastima clock-mode common port 2no atm oversubscribepvc 1/42protocol ip 10.10.10.10 broadcast!!interface ATM1/IMA1ip address 10.19.16.123 255.255.255.192no ip directed-broadcastno atm oversubscribeima active-links-minimum 3pvc 1/99protocol ip 10.10.10.10 broadcast!!ip classlessip route 0.0.0.0 0.0.0.0 10.18.16.193ip route 10.91.0.1 255.255.255.255 10.1.0.2no ip http server!!!line con 0exec-timeout 0 0history size 100transport input noneline aux 0line vty 0 4exec-timeout 0 0password labloginhistory size 100!endT1 Inverse Multiplexing over ATM Example
The following example shows the setup of ATM interfaces, IMA groups, PVCs, and SVCs for T1 IMA.
version 12.0service timestamps debug uptimeservice timestamps log uptimeno service password-encryptionno service dhcp!hostname router!ip subnet-zero!There are four links in IMA group 3. The no scrambling-payload command is actually unnecessary, because this is the default for T1 links. The T1 automatic B8ZS line encoding is normally sufficient for proper cell delineation, so no scrambling-payload is the usual setting for T1 links, The scrambling setting must match the far end.
interface ATM0/0no ip addressno ip directed-broadcastno atm ilmi-keepaliveima-group 3no scrambling-payloadno fair-queue!interface ATM0/1ip address 10.18.16.121 255.255.255.192no ip directed-broadcastno atm ilmi-keepalive!ima-group 3no scrambling-payloadno fair-queue!interface ATM0/2no ip addressno ip directed-broadcastno atm ilmi-keepaliveima-group 3no scrambling-payloadno fair-queue!interface ATM0/3no ip addressno ip directed-broadcastno atm ilmi-keepaliveima-group 3no scrambling-payloadno fair-queue!!IMA group 3 has PVCs that are set up for SVC management and signalling. Two SVCs and a communications PVC are also set up on the group interface.
interface ATM0/IMA3no ip addressno ip directed-broadcastno atm ilmi-keepalivepvc 0/16 ilmi!pvc 0/5 qsaal!!pvc first 1/43vbr-rt 640 320 80encapsulation aal5mux ip!!svc second nsap 47.0091810000000050E201B101.00107B09C6ED.FEabr 4000 3000!!svc nsap 47.0091810000000002F26D4901.444444444444.01!The IMA subcommands below specify that three links must be active in order for the group to be operational. The common clock source is the first link, ATM 0/1, and ATM 0/2 is the test link. The differential delay maximum is set to 50 milliseconds.
ima active-links-minimum 3ima clock-mode common 1ima differential-delay-maximum 50ima test link 2!interface Ethernet1/0no ip addressno ip directed-broadcastshutdown!interface Ethernet1/1no ip addressno ip directed-broadcastshutdown!ip classlessno ip http server!!!line con 0exec-timeout 0 0transport input noneline aux 0line vty 0 4login!!endIETF-Compliant MUX Encapsulated PPP over ATM Configuration Examples
This section provides the following examples for configuring IETF-compliant PPP over ATM:
•
•
•
IETF-Compliant PPP over ATM with Different Traffic Shaping Parameters Example
PVCs with different PPP-over-ATM traffic shaping parameters can be configured on the same subinterface. In the following example, three PVCs are configured for PPP over ATM on subinterface ATM 2/0.1. PVC 0/60 is configured with IETF-Compliant PPP over ATM encapsulation. Its traffic shaping parameter is an unspecified bit rate with peak cell rate at 500 kbps. PVC 0/70 is also configured with IETF-Compliant PPP over ATM encapsulation, but its traffic shaping parameter is non-real-time variable bit rate, with peak cell rate at 1 Mbps, sustainable cell rate at 500 kbps, and burst cell size of 64 cells. PVC 0/80 is configured with the Cisco's proprietary PPP over ATM encapsulation. Its traffic shaping parameter is an unspecified bit rate with peak cell rate at 700 kbps. For further information, refer to the section "Configuring IETF-Compliant MUX Encapsulated PPP over ATM" earlier in this chapter.
Router(config)# interface atm 2/0.1 multipointRouter(config-if)# pvc 0/60Router(config-if-atm-vc)# encapsulation aal5mux ppp virtual-template 3Router(config-if-atm-vc)# ubr 500Router(config-if-atm-vc)# exitRouter(config-if)# pvc 0/70Router(config-if-atm-vc)# encapsulation aal5mux ppp virtual-template 3Router(config-if-atm-vc)# vbr-nrt 1000 500 64Router(config-if-atm-vc)# exitRouter(config-if)# pvc 0/80Router(config-if-atm-vc)# encapsulation aal5ciscoppp virtual-template 3Router(config-if-atm-vc)# ubr 700Router(config-if-atm-vc)# exitRouter(config-if)#ADSL Termination Example
The IETF-Compliant PPP over ATM feature was designed to support installations with ADSL circuits. Figure 9 illustrates a topology for ADSL termination. This topology allows you to establish a PPP connection to a Cisco 7200 series router.
The example also illustrates the use of PPP tunneling using L2TP to provide VPDN services, in this case for the domain cisco.com. Thus, a user who logs in as bob@cisco.com is automatically tunneled to IP address 10.1.2.3. (See the chapter "Configuring Virtual Private Networks" in the Cisco IOS Release 12.0 Cisco IOS Dial Services Configuration Guide: Network Services for details about setting up VPDN services.)
An example of the commands that you might enter for the user_router, dsl7200, and cisco-gateway (as shown in Figure 10) are described below. For further information, refer to the section "Configuring IETF-Compliant MUX Encapsulated PPP over ATM" earlier in this chapter.
Figure 10 ADSL Termination
user_router Configuration
user_router(config)# interface virtual-template 1user_router(config-if)# ip address negotiateduser_router(config-if)# ppp chap hostname user_router@cisco.comuser_router(config-if)# ppp chap password 0 ciscouser_router(config-if)# exituser_router(config)# interface atm 0user_router(config-if)# pvc 0/40user_router(config-if-atm-vc)# encapsulation aal5mux ppp virtual-template 1user_router(config-if-atm-vc)# exituser_router(config-if)# exituser_router(config)#dsl7200 Configuration
dsl7200(config)# username user_router@cisco.com password 0 ciscodsl7200(config)# username dsl7200 password 0 ciscodsl7200(config)# vpdn enabledsl7200(config)# vpdn-group 1dsl7200(config)# request dialin l2tp ip 10.2.1.1 domain cisco.comdsl7200(config)# interface virtual-template 1dsl7200(config-if)# ppp authentication chapdsl7200(config-if)# exitdsl7200(config)# interface atm 2/0dsl7200(config-if)# pvc 0/40dsl7200(config-if-atm-vc)# encapsulation aal5mux ppp virtual-template 1dsl7200(config-if-atm-vc)# exitdsl7200(config-if)# exitdsl7200(config)#cisco-gateway Configuration
cisco_gateway(config)# username cisco_gateway password 0 ciscocisco_gateway(config)# username user_router@cisco.com password 0 ciscocisco_gateway(config)# vpdn enablecisco_gateway(config)# vpdn-group 1cisco_gateway(config)# accept dialin l2tp virtual-template 1 remote dsl7200cisco_gateway(config)# interface loopback 0cisco_gateway(config-if)# ip address 10.0.1.1 255.255.255.0cisco_gateway(config-if)# exitcisco_gateway(config)# interface virtual-template 1cisco_gateway(config-if)# ip unnumbered loopback 0cisco_gateway(config-if)# peer default ip address pool pool-1cisco_gateway(config-if)# exitcisco_gateway(config)# ip local pool pool-1 10.1.2.1 10.1.2.254Two Routers with Back-to-Back PVCs Example
Figure 11 illustrates an ATM interface with two PPP sessions over two PVC session connections. (See the chapter "PPP Configuration" in the Cisco IOS Dial Solutions Configuration Guide: Terminal Services for details on PPP configuration.) The sample commands following Figure 11 establish the back-to-back router configuration. For further information, refer to the section "Configuring IETF-Compliant MUX Encapsulated PPP over ATM" earlier in this chapter.
Figure 11 Two Routers with Back-to-Back PVCs
R1 Configuration
Router1(config)# interface atm 2/0Router1(config-if)# atm clock internalRouter1(config-if)# pvc 0/60Router1(config-if-atm-vc)# encapsulation aal5mux ppp virtual-template 1Router1(config-if-atm-vc)# ubr 90Router1(config-if-atm-vc)# exitRouter1(config-if)# pvc 0/70Router1(config-if-atm-vc)# encapsulation aal5mux ppp virtual-template 2Router1(config-if-atm-vc)# vbr-nrt 90 50 1024Router1(config-if-atm-vc)# exitRouter1(config-if)# interface virtual-template 1Router1(config-if)# ip address 10.0.1.1 255.255.255.0Router1(config-if)# interface virtual-template 2Router1(config-if)# ip address 10.0.2.1 255.255.255.0Router1(config-if)# exitRouter1(config)#R2 Configuration
Router2(config)# interface atm 2/0.1 multipointRouter2(config-if)# pvc 0/60Router2(config-if-atm-vc)# encapsulation aal5mux ppp virtual-template 1Router2(config-if-atm-vc)# ubr 90Router2(config-if-atm-vc)# exitRouter2(config-if)# pvc 0/70Router2(config-if-atm-vc)# encapsulation aal5mux ppp virtual-template 2Router2(config-if-atm-vc)# vbr-nrt 90 50 1024Router2(config-if-atm-vc)# exitRouter2(config-if)# exitRouter2(config)# interface virtual-template 1Router2(config-if)# ip address 10.0.1.2 255.255.255.0Router2(config-if)# exitRouter2(config)# interface virtual-template 2
