Multipoint Wireless Support for the Cisco uBR7200 Series Universal Broadband Router

The Cisco broadband fixed wireless multipoint system is an integrated solution consisting of a headend, or base station, and multiple subscriber units. This document describes the fixed wireless multipoint feature (headend) support for the Cisco uBR7200 series universal broadband router. This document includes the following sections:

•Feature Overview

•Supported Platforms

•Supported Standards, MIBs, and RFCs

•Prerequisites

•Configuration Tasks

•Monitoring and Maintaining Multipoint Wireless Configurations

•Configuration Examples

•Command Reference

•Debug Commands

•Glossary

Feature Overview

This document describes the multipoint headend system. For a description of the subscriber unit system, refer to the Multipoint Wireless Support for the Cisco 2600 and 3600 Series Routers document.

Multipoint Headend System

The Cisco broadband fixed wireless multipoint headend system is designed to use antennas that transmit the RF signal in a portion of a complete circle, or directionally, in what is called a sector. Each headend site can be designed and configured to broadcast in a single sector, or in multiple sectors, depending on the requirements of the network.

For each sector, the components of a multipoint headend system (see Figure 1) consist of the necessary cables and:

•One Cisco uBR7200 series universal broadband router

•One wireless modem card installed in the router

•One power feed panel

•One or two antennas (second antenna for diversity reception is optional)

•One or two wireless transverters containing the RF amplifier (one for each antenna)

•One or two duplexers (one for each wireless transverter)

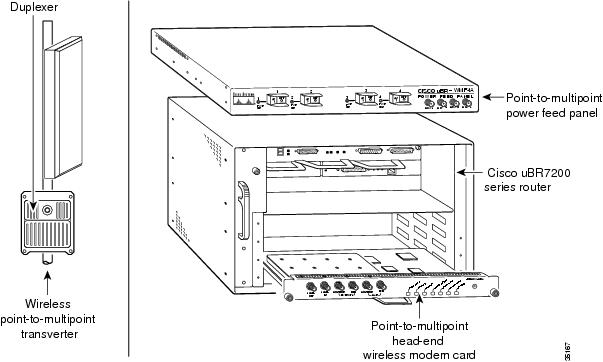

Figure 1 Components of the Multipoint Headend System (transverter hail shield not shown)

Multipoint Headend Components

Router

The Cisco uBR7200 series are designed for two-way transmission of digital data using either coaxial cable or broadband fixed wireless signals. These routers support IP routing with a wide variety of protocols and any combination of Ethernet, Fast Ethernet, High-Speed Serial Interface (HSSI), serial, and Asynchronous Transfer Mode (ATM) media. Network interfaces reside on port adapters that provide the connection between the router and external networks. Cable or wireless interfaces reside on modem cards and provide the connection to cable or wireless networks.

Other features include:

•Online insertion and removal (OIR)—Add, replace, or remove a port adapter and modem cards without interrupting the system or entering any console commands

•Downloadable software—Load new images into Flash memory remotely, without having to physically access the router

For further information regarding the Cisco uBR7200 series, including detailed installation and configuration instructions, refer to the Cisco uBR7200 Series Universal Broadband Router Installation and Configuration Guide.

Wireless Modem Card

The wireless modem card installs in a modem card slot of a Cisco uBR7200 series. It is configured through the router's system console or via the CiscoView network management system. The wireless modem card provides the control and data interface to the system's digital motherboard and the radio frequency (RF) subsystem in the wireless transverter. It also provides the up/down conversion from baseband to intermediate frequency (IF).

The wireless modem card consists of the following components:

•Digital motherboard

•IF analog board

•10-MHz input connection for external reference clock signal (external reference clock is optional)

•10-MHz output connection for forwarding optional external reference clock signal to another wireless modem card

•Monitor connections for monitoring the power feed panel connections (main and diversity)

•Power feed panel connections (main and diversity)

•Light-emitting diodes (LEDs) that provide a visual indication of the state of the modem card

For further information regarding the wireless modem card, including detailed installation and configuration information, refer to the Cisco uBR7200 Series Router Multipoint Wireless Modem Card and Subsystem Installation document.

Power Feed Panel

The power feed panel serves as an interconnection device between the wireless modem card, the wireless transverter, and a -48 VDC power supply. The main purpose of this unit is to provide DC power to the system, provide control signals to the wireless transverter, and transmit and receive IF signals to and from the transverters. In addition, the unit contains circuit breakers for the DC power.

The power feed panel consists of the following components:

•Coaxial cable connection ports to the wireless modem card on the front panel

•Power ON/OFF switches on the front panel, with LED power indicators

•Coaxial cable connection ports to the wireless transverter on the rear panel, with LED power indicators

•DC power supply terminal blocks on the rear panel

At least one power feed panel is required for each installation. Each power feed panel supports a maximum of four wireless transverters.

For further information regarding the power feed panel, including detailed installation information, refer to the Cisco uBR7200 Series Router Multipoint Wireless Modem Card and Subsystem Installation document.

Wireless Transverter

The ruggedized wireless transverter is the outdoor data interface to the indoor subsystems. It provides up/down conversion from IF to RF frequencies.

The wireless transverter consists of the following components:

•RF head

•Connector port for IF input, power, and control signal

•Duplexer assembly with antenna connection

For further information regarding the wireless transverter, including detailed installation information, refer to the Cisco uBR7200 Series Router Multipoint Wireless Modem Card and Subsystem Installation document.

Benefits

The broadband fixed wireless multipoint system provides:

•Fast, easy deployment

•Flexibility—Various interfaces to the host routers and numerous network deployment plans

•End-to-end Cisco IOS network, enabling multiservice security, multimedia, and management support

•Scalable network growth through the addition of more cells or sectors

•Full-duplex data rates of up to 22 Mbps

•Non-line-of-sight (Non-LOS) Vector Orthogonal Frequency Division Multiplexing (VOFDM) technology, enabling greater service coverage

Related Features and Technologies

The point-to-point wireless router system.

Related Documents

Headend documents:

•Cisco uBR7200 Series Multipoint Wireless Modem Card & Subsystem Installation

•Cisco Multipoint Headend Wireless Transverter Duplexer Replacement Instructions

•Cisco Multipoint Headend Power Feed Panel Replacement Instructions

•Cisco Multipoint Headend Wireless Transverter Replacement Instructions

•Cisco Wireless Transverter Hail Shield Installation Instructions

Subscriber-unit documents:

•Multipoint Wireless Support for the Cisco 2600 and 3600 Series Routers

•Cisco 2600 Series Hardware Installation Guide

•Software Configuration Guide (for Cisco 3600 series and Cisco 2600 series routers)

•Cisco Network Modules Hardware Installation Guide (for Cisco 3600 series and Cisco 2600 series routers)

Supported Platforms

uBR7200 series

Supported Standards, MIBs, and RFCs

Standards

DOCSIS 1.0 and 1.0+. The DOCSIS 1.0+ implementation is DOCSIS 1.0 with quality-of-service (QoS) support.

MIBs

This feature is supported by Cisco uBR7200 series MIBs and DOCSIS MIBs enhancing the manageability of customer infrastructures.

To obtain lists of MIBs supported by platform and Cisco IOS release and to download MIB modules, go to the Cisco MIB web site on Cisco Connection Online (CCO) at http://www.cisco.com/public/sw-center/netmgmt/cmtk/mibs.shtml.

RFCs

No new or modified RFCs are supported by this feature.

Prerequisites

Multipoint wireless support

Configuration Tasks

This section discusses the following configuration tasks for the multipoint fixed wireless feature:

•Multipoint CLI Commands Classification

•Overriding the Default Microcode Path

•Configuring IF Loopback (Optional)

•Configuring RF Loopback (Optional)

•Setting the Power Levels and Frequencies

•Configuring the Automatic Level Control (ALC)

•Configuring the Modulation Profile for a Wireless Link

Multipoint CLI Commands Classification

The multipoint headend system CLI commands are classified as follows. Click on the link to go to the list of commands under each class.

•Startup Commands

•Installation and Configuration Commands

•Verification Commands

•Operating Commands

•Monitoring Commands

•Troubleshooting Commands

Note This classification is made to help the user in chunking the commands. Some of the commands can be listed under any of these groups.

Overriding the Default Microcode Path

The wireless line card requires external microcode images in order to operate. The Cisco IOS software has a default file path where it looks to find the microcode and the microcode version. For routers that are configured with line cards at the factory, the path and version of the microcode image in flash memory matches the default setting and allows the line card to come up without any additional configuration. However, you may want to override the default microcode path, for example, to upgrade your software to the latest release. Use the following steps to change the path for the microcode.

Command

Purpose

Step 1

Router# dir flash

Displays the content of the Flash memory.

Step 2

Router# show microcode

Displays the default path for the microcode.

Step 3

Router# config t

Enters the global configuration mode.

Step 4

Router(config)# microcode cwrhe bundle-path

Specifies the a new path for the headend microcode bundle.

Step 5

Router(config)# end

Exits the global configuration mode and enters the EXEC mode.

Step 6

Router# show microcode

Displays the specified path for the microcode.

Step 7

Router# microcode reload cwrhe

Loads the microcode onto the line card.

Step 8

Router# copy running-config startup-config

Saves the path for the microcode so that the microcode is loaded from the new path the next time the router is rebooted.

Configuring IF Loopback (Optional)

An IF loopback confirms that the hardware is seated properly in the chassis and that the analog and signal processing portions of the wireless modem card are functioning as expected. Loopback does not test forward error corrections (FEC) and MAC-layer interface of the line card; other tests must be done for these portions of the line card. Each receive path must be tested individually when there are two antennas employed.

Use the following commands to execute an IF loopback. Specifying these commands shuts down the radio link and initiates the IF loopback.

Command

Purpose

Step 1

Router(config-if)# shut

Stops the interface.

Step 2

Router(config-if)# loopback local if main 2

Configures the IF to loop the lower half of the channel.

Step 3

Router(config-if)# no shut

Brings up the loopback mode.

Step 4

Router(config-if)# shut

Stops the interface.

Step 5

Router(config-if)# loopback local if main 3

Configures the IF to loop the upper half of the channel.

Step 6

Router(config-if)# no shut

Brings up the loopback mode.

Step 7

Router(config-if)# shut

Stops the interface.

Step 8

Router(config-if)# no loopback

Removes the loopback commands used up to this point.

Step 9

Router(config-if)# no shut

Establishes link.

If a second antenna is employed, its receive path must also be tested. Use the following commands to configure the second antenna. Issue the show running-configuration command to see the IF configuration.

Command

Purpose

Step 1

Router(config-if)# shut

Stops the interface.

Step 2

Router(config-if)# loopback local if diversity 2

Configures the IF to loop the lower half of the channel for antenna 2.

Step 3

Router(config-if)# no shut

Brings up the loopback mode.

Step 4

Router(config-if)# shut

Stops the interface.

Step 5

Router(config-if)# loopback local if diversity 3

Configures the IF to loop the upper half of the channel for antenna 2.

Step 6

Router(config-if)# no shut

Brings up the loopback mode.

Step 7

Router(config-if)# shut

Stops the interface.

Step 8

Router(config-if)# no loopback

Removes the loopback commands used up to this point.

Step 9

Router(config-if)# no shut

Establishes link.

Configuring RF Loopback (Optional)

An RF loopback confirms that the wiring to the transverter is correct, that communication has been established from the line card to the transverter, and that the transverter is operating correctly. (It does not test the duplexer, which is the final stage before the signal is sent to the antenna.) Also, loopback does not test forward error corrections (FEC) and MAC-layer interface of the line card; other tests must be done for these portions of the line card. Because there is only one transmit path, the path to each transverter must be tested separately. Use the following commands to configure the RF loopback.

Command

Purpose

Step 1

Router(config-if)# shut

Stops the interface.

Step 2

Router(config-if)# loopback local rf main 2

Configures the RF to loop the lower half of the channel.

Step 3

Router(config-if)# no shut

Brings up the loopback mode.

Step 4

Router(config-if)# shut

Stops the interface.

Step 5

Router(config-if)# loopback local rf main 3

Configures the RF to loop the upper half of the channel.

Step 6

Router(config-if)# no shut

Brings up the loopback mode.

Step 7

Router(config-if)# shut

Stops the interface.

Step 8

Router(config-if)# loopback local rf diversity 2

Configures the RF to loop the lower half of the channel for antenna 2. Note that this command is issued only if a second antenna is used.

Step 9

Router(config-if)# loopback local rf diversity 3

Configures the RF to loop the upper half of the channel for antenna 2. Note that this command is issued only if a second antenna is used.

Step 10

Router(config-if)# no shut

Brings up in loopback mode.

Step 11

Router(config-if)# shut

Stops the interface.

Step 12

Router(config-if)# no loopback

Removes any loopback commands used up to this point.

Step 13

Router(config-if)# no shut

Establishes link.

Issue the show running-configuration command to see the RF configuration.

Configuring the Modulation Profile for a Wireless Link

The modulation profile describes the physical layer configuration of a wireless channel. The correct settings to use are the result of extensive site planning and quality-of-service models. The specified settings are stored in the router as profiles. These profile settings are entered in the router only once, but can be applied to multiple line cards in the router.

Command

Purpose

Step 1

Router# show radio capability modulation-profile int radio slot/port

Displays the modulation profiles supported by the radio card installed in a particular slot/port.

Step 2

Router# configure terminal

Enables the global interface configuration mode.

Step 3

Router(config)# radio modulation-profile p bandwidth width throughput x.y mulipath-robust high burst-length medium

Creates a modulation profile.

Step 4

Router(config)# end

Exits the interface configuration mode and enters the EXEC mode.

Step 5

Router# show radio modulation-profile

Displays the modulation-profile configuration settings that the user specified.

Step 6

Router# configure terminal

Enables the global interface configuration mode.

Step 7

Router(config)# interface radio slot/port

Enters radio interface configuration mode.

Step 8

Router(config-if)# radio upstream usport subchannel sn modulation-profile p

Applies the modulation profile to an upstream port.

Setting the Power Levels and Frequencies

The power levels must be set correctly to ensure correct operation and compliance with the governing regulatory bodies (such as the FCC). After the power settings have been determined, use the following commands to configure the router.Refer to the following subchannel map as a reference for the subchannel assignments:

Downstream Channel

Command

Purpose

Step 1

Router(config-if)# radio transmit-power power-level

Sets the upstream transmit-power to power in dBm.

Step 2

Router(config-if)# radio downstream frequency freq width width

Sets frequency and bandwidth for the downstream channel.

Step 3

Router(config-if)# radio downstream subchannel sc modulation-profile p

Sets the subchannel and modulation-profile assignment for the downstream channel.

Note This command specifies the center frequency and width of the basic hardware channel. The downstream channel itself can be full, one-half, or one-quarter of this bandwidth. For example, the only basic channel bandwidth that is supported by the initial hardware release is 6.0 MHz.

Upstream Channel

Command

Purpose

Step 1

Router(config)# radio upstream frequency freq width width

Sets the upstream frequency and bandwidth.

Note The width parameter specifies the bandwith for the upstream channel group (the basic hardware channel). The freq parameter specifies the center frequency for this group of upstream channels. For example, the only basic channel width that is supported by the initial hardware release is 6.0 MHz.

Step 2

Router(config-if)# radio upstream usportnum subchannel sn modulation-profile p

Sets the subchannel and modulation-profile assignment for the upstream channel.

Note The bandwidth of the subchannel must match the bandwidth of the modulation-profile.

Step 3

Router(config)# radio transmit-power power-level

Sets the downstream transmit power to power in dBm.

Step 4

Router(config-if)# radio upstream usportnum target-receive-power power-level

Sets the target receive power in dBm for the upstream port. The usportnum field specifies the upstream port number. The target receive power must be set for each upstream port.

Step 5

Router(config-if)# radio upstream usportnum shutdown

Shuts down the upstream channel.

Configuring the Automatic Level Control (ALC)

The automatic level control (ALC) module governs the individual transmit power levels of all the subscriber units. The purpose of ALC is to ensure that the target receive power at the headend is maintained over time by taking power measurements of all the subscribers many times per second. Taking power measurements in small intervals results in better resilience to the fading environment, but it consumes more upstream bandwidth. ALC can be disabled, but this is not recommended because it results in poor upstream link performance. The current system allows only one interval setting for an entire sector. The default interval is 96 ms.

Command

Purpose

Step 1

Router# configure terminal

Enables the global interface configuration mode.

Step 2

Router(config)# interface radio slot/port

Specifies the line card to be configured. In this example, the line card installed in a specific slot/port number.

Step 3

Router(config-if)# radio alc interval interval

Configures the ALC interval for the sector at a specified interval value.

Step 4

Router(config-if)# end

Exits the interface configuration mode and get to the EXEC mode.

Step 5

Router# show interface radio slot/port alc

Displays the ALC setting that you specified.

Verifying the Wireless Modem Card Configuration

Step 1 Enter the show running-configuration command in privileged EXEC mode to display the configuration currently in effect on the Cisco uBR7200 series.

Step 2 Enter the show startup-configuration command in privileged EXEC mode to display the system startup configuration.

For a complete list of commands to verify the installation and configuration of your fixed wireless multipoint system, see the "Verification Commands"section.

Monitoring and Maintaining Multipoint Wireless Configurations

This section describes the clear and show commands that are used to monitor and maintain the multipoint fixed wireless system. For a complete list of commands to monitor and maintain your fixed wireless multipoint system, see "Monitoring Commands" under the command reference section. For the syntax and description of a command, refer to the "Command Reference" section of this document.

Command

Purpose

Router# clear radio flap-list

Clears the current radio flap-list entries for a specific subscriber unit or for all subscriber units.

Router# clear radio link-metrics

Clears the link metrics settings.

Router# clear radio subscriber counters

Clears the counters for a radio modem or all radio modems in the Station Maintenance List.

Router# clear radio subscriber reset

Resets the radio modem or all radio modems on the network.

Router# show controllers radio downstream

Displays downstream port information for a wireless modem card.

Router# show controllers radio if

Displays the IF hardware information for the specified radio interface.

Router# show controllers radio rf

Displays the RF hardware information for the specified radio interface.

Router# show controllers radio upstream

Displays upstream port information for a wireless modem card.

Router# show interfaces radio metrics

Displays the parameters measured during the operation of the radio link.

Router# show interface radio accounting

Displays radio accounting information for a wireless modem card.

Router# show interface radio alc

Displays the automatic level control (ALC) and power ranging configuration information for the downstream.

Router# show interface radio downstream

Displays downstream port information for a wireless modem card.

Router# show interface radio hist-data

Displays histogram data.

Router# show interface radio hist-spec

Displays histogram specifications.

Router# show interface radio led

Displays the status of light-emitting diodes (LEDs) on the wireless modem card and the events related to the major and minor LEDs.

Router# show interface radio ranging

Displays ranging information.

Router# show interface radio rf-meas-interval

Displays the intervals of the ambient noise and the calibration noise measurements of the radio card for the specified slot and downstream port numbers.

Router# show interface radio sid

Displays information by service identifier (SID) about each subscriber unit on the network.

Router# show interface radio snap-data

Displays the data captured for the snapshot specification.

Router# show interface radio snap-spec

Displays the configured snapshot information.

Router# show interface radio thresholds

Displays the set of currently configured thresholds on the radio modem card.

Router# show interface radio tl-data

Displays the timelines data collected for the identified specifications.

Router# show interface radio tl-spec

Displays the details of the currently configured timeline specifications.

Router# show interface radio upstream

Displays upstream port information for a wireless modem card.

Router# show interface radio zero-burst

Displays zero-burst information for the downstream port of a wireless modem card.

Router# show radio device

Displays the access group information for the subscriber unit or the host behind the subscriber unit.

Router# show radio errors

Displays error details for the radio interface.

Router# show radio flap-list

Displays the radio flap-list of a wireless modem card.

Router# show radio capability modulation-profile

Displays the modulation profiles supported by the radio linecard.

Router# show radio modulation-profile

Displays modulation profile information for a wireless modem card that the user specified.

Router# show radio privacy kek

Displays the key encryption life-time and grace-time values that have been set.

Router# show radio privacy tek

Displays the traffic encryption life-time and grace-time values that have been set.

Router# show radio qos profile

Displays quality-of-service (QoS) profile and the configuration information for the profile.

Router# show radio subscriber

Displays information about a wireless modem card that is on the network.

Configuration Examples

This section provides the following examples for configuring the multipoint headend wireless modem car:

•RF-RF Link Configuration

•Downstream Channel Configuration

•Upstream Channel Configuration

•Modulation Profiles Configurations

RF-RF Link Configuration

The following is an example of RF-RF link configuration:
interface Radio3/0 multipoint
ip address 7.7.7.1 255.255.255.0
radio cable-loss auto
radio transmit-power 34
radio upstream frequency 2503000 width 6.0
radio upstream 0 subchannel 2 modulation-profile 8
no radio upstream 0 shutdown
radio upstream 1 shutdown
radio upstream 2 shutdown
radio upstream 3 shutdown
radio downstream frequency 2545000 width 6.0
radio downstream subchannel 2 modulation-profile 1
Downstream Channel Configuration

The following is an example of downstream channel configuration:
radio transmit-power 31
radio downstream frequency 2653000 width 6.0
radio downstream subchannel 4 modulation-profile 10
Upstream Channel Configuration

The following is an example of upstream channel configuration:
radio upstream frequency 2587000 width 6.0
radio upstream 0 subchannel 4 modulation-profile 14
radio upstream 0 target-receive-power -72
no radio upstream 0 shutdown
radio upstream 1 subchannel 5 modulation-profile 14
radio upstream 1 target-receive-power -72
no radio upstream 1 shutdown
radio upstream 2 subchannel 6 modulation-profile 14
radio upstream 2 target-receive-power -72
no radio upstream 2 shutdown
radio upstream 3 subchannel 7 modulation-profile 14
radio upstream 3 target-receive-power -72
no radio upstream 3 shutdown
Splitting an upstream channel

The following steps show how to split an upstream channel into two smaller upstream channels. In this example, a 3-MHz upstream (upstream 0, subchannel 2) is split into two 1.5-MHz upstreams, using the following commands. Refer to the following subchannel map as a reference for the subchannel assignments:

Command

Purpose

Router(config-if)# no radio upstream 0 subchannel

Removes the subchannel assignment from upstream port 0.

Router(config-if)# radio upstream 0 subchannel 4 modulation-profile 7

Assigns upstream port 0 to subchannel 4 using modulation profile 7, which must be a 1.5-MHz modulation profile.

Router(config-if)# radio upstream 1 subchannel 5 modulation-profile 7

Assigns upstream 1 to subchannel 5, using modulation profile 7.

Router(config-if)# no radio upstream 0 shutdown

Enables upstream 0.

Router(config-if)# no radio upstream 1 shutdown

Enables upstream 1.

Modulation Profiles Configurations

The following are examples of modulation profiles:
radio modulation-profile 1 bandwidth 3.0 throughput 6.6 multipath-robustness high
burst-length medium
radio modulation-profile 2 bandwidth 3.0 throughput 8.6 multipath-robustness high
burst-length medium
radio modulation-profile 3 bandwidth 3.0 throughput 4.4 multipath-robustness high
burst-length medium
Command Reference

This section documents the new commands associated with the fixed wireless multipoint feature. All other commands used with this feature are documented in the Cisco IOS Release 12.1 command reference publications. The commands are classified into the following groups:

•Startup Commands

•Installation and Configuration Commands

•Verification Commands

•Operating Commands

•Monitoring Commands

•Troubleshooting Commands

Note This classification is created to help the user in chunking the commands. Some of the commands can be listed under any of these groups.

Startup Commands

Use the following commands to startup your fixed wireless multipoint headend system. Note that these commands are not specific to this feature; they are Cisco IOS generic commands, and their syntax can be found in the command reference documentation for Cisco IOS Release 12.1, available on CCO and the Documentation CD-ROM.

•show running-configuration

•show start-up configuration

•shut

•write

Installation and Configuration Commands

Use the following commands to install and configure your fixed wireless multipoint headend system:

•loopback

•microcode reload

•radio arp

•radio cable-loss

•radio downstream annex B

•radio downstream frequency

•radio downstream subchannel modulation-profile

•radio helper-address

•radio insertion-interval

•radio interface radio rf-update duplexer

•radio modulation-profile

•radio receive-antennas

•radio self-test

•radio source-verify

•radio transmit-power

•radio upstream data-backoff

•radio upstream description

•radio upstream frequency

•radio upstream range-backoff

•radio upstream shutdown

•radio upstream subchannel

•radio upstream target-receive-power

Verification Commands

Use the following commands to verify your installation and configuration of the fixed wireless multipoint headend system:

•show controllers radio downstream

•show controllers radio if

•show controllers radio rf

•show controllers radio upstream

•show interface radio alc

•show interface radio downstream

•show interface radio ranging

•show interface radio upstream

•show radio capability modulation-profile

•show radio modulation-profile

Operating Commands

After you have installed, configured, and verified your fixed wireless multipoint headend system, use the following commands to operate your system:

•clear radio flap-list

•clear radio link-metrics

•clear radio subscriber counters

•clear radio subscriber reset

•pppoe enable

•radio alc

•radio alc

•radio alc

•radio alc

•radio alc

•radio alc

•radio downstream rate-limit

•radio ip-broadcast-echo

•radio ip-multicast-echo

•radio privacy kek grace-time

•radio privacy kek life-time

•radio privacy mandatory

•radio privacy tek grace-time

•radio privacy tek life-time

•radio proxy-arp

•radio qos permission

•radio qos profile

•radio ra-backoff

•radio relay-agent-option

•radio rf-meas-interval ambient

•radio rf-meas-interval calibration

•radio shared-secret

•radio upstream admission-control

•radio upstream rate-limit

•show interface radio rf-meas-interval

•show interface radio zero-burst

•show radio privacy kek

•show radio privacy tek

•show radio qos profile

Monitoring Commands

Use the following commands to monitor and maintain your fixed wireless multipoint headend system:

•radio flap-list aging

•radio flap-list insertion-time

•radio flap-list miss-threshold

•radio flap-list size

•radio metrics-threshold-channel

•radio metrics-threshold-su

•radio threshold

•show interfaces radio metrics

•show interface radio accounting

•show interface radio led

•show interface radio sid

•show interface radio thresholds

•show radio device

•show radio errors

•show radio flap-list

•show radio subscriber

Troubleshooting Commands

Use the following commands to troubleshoot your fixed wireless multipoint headend system:

•ping docsis

•radio hist-display

•radio histogram

•radio interface radio hist-clear

•radio interface radio hist-start

•radio interface radio hist-stop

•radio interface radio tl-clear

•radio interface radio tl-start

•radio interface radio tl-stop

•radio snapshot

•radio timeline

•show controllers radio

•show interface radio hist-data

•show interface radio hist-spec

•show interface radio snap-data

•show interface radio snap-spec

•show interface radio tl-data

•show interface radio tl-spec

clear radio flap-list

To clear the current radio flap list entries for a specific subscriber unit or for all subscriber units, use the clear radio flap-list EXEC command.

clear radio flap-list [MAC-address | all]
Syntax Description

MAC-address

Specifies the MAC address to clear the flap-list entries for a specific wireless modem card.

all

Clears the entries for all the wireless modems in the flap-list.

Defaults

No default behavior or values.

Command Modes

EXEC

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Usage Guidelines

When using this command, make sure that:

•You are in global configuration mode when you enter this command.

•You have recorded and analyzed all of the flapping activity on the radio modem before you clear the flap list.

Examples

The following example shows how to clear the entries in the radio flap list for the subscriber unit with a specific MAC address:
CMTS01(config)# clear radio flap-list 0010.7b6b.5d1d
Related Commands

Command

Description

radio flap-list aging

Specifies the number of days to record and retain flapping activity on a radio subscriber unit in the flap list table.

radio flap-list insertion-time

Sets the radio flap-list insertion time.

radio flap-list miss-threshold

Sets the miss-threshold for recording a flap-list event.

radio flap-list size

Specifies the maximum number of radio subscriber units to be reported in the radio flap-list table.

show radio flap-list

Displays the radio flap-list of a wireless modem card.

clear radio link-metrics

To clear link metrics settings, use the clear radio link-metrics EXEC command.

clear radio slot/port link-metrics
Syntax Description

slot/port

The slot and port address.

Defaults

No default behavior or values.

Command Modes

EXEC

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Usage Guidelines

Make sure that you record and analyze the link-metrics data before executing this command.

Examples

The following example shows how to clear all radio link-metrics details:
Router# clear radio 6/0 link-metrics
Related Commands

Command

Description

show interfaces radio metrics

Displays the parameters measured during the operation of the radio link.

show interface radio metrics-threshold

Displays the current link-metrics configuration thresholds for a radio modem.

clear radio subscriber counters

To clear the counters for a radio modem or all radio modems in the Station Maintenance List, use the clear radio subscriber counters EXEC command.

clear radio subscriber [address | all] counters
Syntax Description

address

Clears the counters in the Station Maintenance List for the subscriber unit with a specific IP address or MAC address.

all

Clears the counters in the Station Maintenace List for all subscriber units.

Defaults

No default behavior or values.

Command Modes

EXEC

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Usage Guidelines

Make sure that you record and analyze the data before executing this command.

Examples

The following example shows how to clear the flapping counters for all the subscribers that are on the network:
Router# clear radio subscriber all counter
Related Commands

Command

Description

clear radio subscriber reset

Removes subscribers from the Station Maintenance List.

show radio subscriber

Displays information about a wireless modem card that is on the network.

clear radio subscriber reset

To remove a radio modem or all radio modems from the Station Maintenance List and reset the radio modem or all radio modems on the network, use the clear radio subscriber reset EXEC command.

clear radio [address | all]
Syntax Description

address

Removes the subscriber unit with a specific IP or MAC address from the Station Maintenance List.

all

Removes all subscriber units from the Station Maintenance List.

Defaults

No default behavior or values.

Command Modes

EXEC

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Usage Guidelines

Make sure that you record and analyze the data before you execute this command.

Examples

The following example shows how to remove all the subscribers from the Station Maintenance List:
Router# clear radio subscriber all reset
Related Commands

Command

Description

clear radio subscriber counter

Clears flapping counters for the subscribers.

loopback

To place the specified module in loopback mode, use the loopback interface configuration command. To remove the loopback specification use the no form of this command.

loopback local [module] [main | diversity] subchannel
no loopback [local module]
Syntax Description

local

(Optional) Specifies that the module is local.

module

Specifies the type of module:
{fir | if | rf}

main | diversity

Specifies the main or the diversity (backup) antenna.

subchannel

[2 | 3] Specifies the subchannel numbers.

Defaults

no loopback

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Usage Guidelines

If you perform a loopback of the RF module while the transverter is attached to an antenna, some transmit power is radiated. Therefore, it is extremely important that you set the transmit frequency to your assigned and licensed band frequency. If the transverter is not attached to an antenna, attach an RF termination device to the duplexer port.

Examples

The following example shows how to initiate a local RF loopback on the main antenna with the lower half of the subchannel:
Router(config-if)# loopback local rf main 2
Related Commands

Command

Description

show running-configuration

Displays loopback configuration settings.

microcode reload

To configure the system to load its microcode from the specified slot number, use the microcode reload privileged EXEC command.

microcode reload {all | cwrhe [slot slot]}
Syntax Description

all

Specifies to reload all hardware types that support downloadable microcode.

cwrhe

Specifies to reload the microcode for the wireless headend port adapter.

slot slot

Specifies the slot number where to reload the microcode. Valid values are 0 to 6.

Defaults

No default behaviors or values.

Command Modes

Privileged EXEC

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Usage Guidelines

The microcode command is not normally needed when using the factory installed images.

Examples

The following example shows how to reload a microcode in slot 6:
Router# microcode reload cwrhe slot 6
ping docsis

To determine whether a subscriber unit is on the network, use the ping docsis privileged EXEC command. To disable this function, use the no form of this command.

ping docsis [MAC-address | ip-address]
no ping docsis
Syntax Description

MAC-address

Specifies radio modem MAC address.

ip-address

Specifies radio modem IP address.

Defaults

No default behavior or values.

Command Modes

Privileged EXEC

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Usage Guidelines

Make sure that you are using a valid MAC or IP address for the radio modem that you want to ping.

Examples

The following example shows how to verify if a subscriber unit is on the network:
Router# ping docsis 172.19.0.0
pppoe enable

To enable Point-to-Point Protocol over Ethernet (PPPoE) termination on the radio interface, use the pppoe enable interface configuration command. To disable, use the no form of this command.

pppoe enable
no pppoe enable
Syntax Description

This command has no arguments or keywords.

Defaults

By default PPPoE is disabled.

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced on the fixed wireless multipoint product.

Examples

The following example shows how to enable PPPoE on the radio interface:
Router(config-if)# pppoe enable
Related Commands

Command

Description

show interface

Displays information about whether or not PPPoE termination is enabled.

radio alc

To enable the automatic level control (ALC) and the power ranging, and to set the ALC attributes at the headend, use the radio alc interface configuration command. To turn off the ALC and power ranging, use the no form of this command.

radio alc [interval interval [if-mode standard | robust] [rf-mode very-fast | fast | slow | very-slow]]
no radio alc
Syntax Description

interval

(Optional) if | rf-mode. If one of the these optional modes is not specified, the radio interface assumes the values specified prior to ALC and power ranging being off. Otherwise, the default values of 96 ms, standard, and fast are used for interval, if-mode, and rf-mode, respectively. Valid range is 32 ms to 1024 ms, in multiples of 32 ms.

interval

Scheduling interval is the regular interval at which the ALC grant in MAP is transmitted to the subscriber units. Valid range is 50 to 200 ms.

if-mode

standard | robust (standard is the default).

rf-mode

very-fast | fast | slow | very-slow (fast is the default).

Defaults

The ALC and power ranging are on.

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Usage Guidelines

The radio alc command enables the ALC and power ranging, and sets the scheduling interval of all the powers for the subscriber IDs of the current radio interface. It also sets the IF and RF modes when the ALC is on. The scheduling interval is the regular interval at which the ALC enables MAPs to be transmitted to the subscribers.

Examples

The following example shows how to specify the ALC scheduling interval to 64 ms and set the if-mode and rf-mode to default values:
Router (config-if)# radio alc interval 64 if-mode standard rf-mode fast
Related Commands

Command

Description

show interface radio slot/port alc

Displays the radio ALC settings.

radio arp

The Reverse Address Resolution Protocol (RARP) is an Internet protocol that is used to map IP addresses to MAC addresses on computers and other equipment installed on the wireless network. To activate RARP requests so that the Cisco uBR7200 series can perform IP address resolution on the downstream path, use the radio arp interface configuration command. To disable, use the no form of this command.

radio arp
no radio arp
Syntax Description

This command has no arguments or keywords.

Defaults

ARP is activated by default.

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to activate ARP requests:
Router(config-if)# radio arp
Related Commands

Command

Description

show running-config

Shows if RARP has been activated or deactivated.

radio cable-loss

To specify the effective cable loss (measured in dB) of the cable between the wireless card and the specified wireless transverter, including the power feed panel, connectors, and lightning protection, use the radio cable-loss interface configuration command. To remove the setting, use the no form of this command.

radio cable-loss {auto | antenna_num tx_loss rx_loss}
no radio cable-loss
Syntax Description

auto

The radio modem automatically determines the cable loss compensation for the specified antenna.

antenna_num

Enter 1 for the main antenna or 2 for the diversity antenna.

tx_loss

Positive number (less than or equal to 15 dB) that reflects the effective transmit cable loss at 330 MHz.

rx_loss

Positive number (less than or equal to 13 dB) that reflects the effective receive cable loss at 426 MHz.

Note The cable loss parameter cannot be set to a value greater than 13 dB for rx-loss and 15 dB for tx_loss. The exact cable-loss value is determined by the transverter. The system compares this value to the value when a no shut command is entered. To display the current cable loss setting, use the show running-configuration interface radio command.

Defaults

No default behaviors or values.

Command Modes

Interface configuration

Command History

Release

Modification

12.0(1)XR

This command was introduced.

12.1(3)XQ1

Support for multipoint was added.

Usage Guidelines

The following table provides an example of estimated cable, connector, and equipment loss for a typical installation.

Table 1 Estimated Cable Loss Between Wireless Modem Card and Transverter

Item

Wireless Modem Card to Power Feed Panel

Power Feed Panel to Primary Lightning Supression

Primary Lightning Suppresion to Transverter

Cable length (feet)

4

250

50

Cable type

RG 142

LMR400

LMR400

Loss per 100 feet (decibel)

8 dB at 400 MHz

2.7 dB at 400 MHz

2.7 dB at 400 MHz

Connectors

2

2

2

Loss per connector

.25 dB

.25 dB

.25 dB

Equipment loss

1.2 dB (power feed panel)

0.2 dB (Lightning Supression)

--

Loss per segment (decibel)

2.02 dB

7.45 dB

1.85 dB

Total loss = 11.32 dB

Examples

In the following example, the headend Tx cable loss was measured to be 11 dB, and the headend Rx cable-loss was measured to be 12 dB:
UBR04(config-if)# radio cable-loss 1 11 12
Headend ODU Tx Attenuation Setting = 15 dB - 11 dB = 4 dB
Headend IDU Tx Attenuation Setting = 13 dB - 12 dB = 1 dB
Related Commands

Command

Description

show running-configuration interface radio

Displays the current configuration settings, including cable loss.

radio downstream annex B

To enable the MPEG framing format for a downstream port on a radio card to annex B, use the radio downstream annex B interface configuration command. To disable, use the no form of this command.

radio downstream annex B
no radio downstream annex B
Syntax Description

This command has no arguments or keywords.

Defaults

No default behavior or values.

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Usage Guidelines

Annex B is the MCS MPEG framing format standard. The radio card downstream port and the subscriber units on the radio network connected through these ports must be set to the same MPEG framing format.

Examples

The following example sets the MPEG framing format to annex B:
Router# radio downstream annex B
Related Commands

Command

Description

show controllers radio slot/port downstream

Displays the MPEG framing format for the downstream port that has been configured.

radio downstream frequency

To specify the downstream center frequency for a radio modem, use the radio downstream frequency interface configuration command. To disable, use the no form of this command.

radio downstream frequency [freq] width [width]
no radio downstream frequency
Syntax Description

freq

Specifies the center frequency in kHz (decimal values are allowed). Valid range is 0 to 50000000 kHz.

width

Specifies the bandwidth.

width

Specifies the bandwidth value of the channel in MHz. Valid range is 1 to 12 MHz.

Defaults

The center frequency is not specified by default.

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Usage Guidelines

The radio interface cannot be enabled unless a center frequency is specified. Specify the center frequency and the badwidth for the whole downstream channel group. The frequency group must be positioned within the transmit passband of the RF duplexer. Make sure to specify the center frequency that you are licensed to use.

The following is a pictorial representation of the center frequency:

Examples

The following example shows how to set the downstream center frequency for modem card in slot 6, port 0:
Router(config-if)# interface radio 6/0 radio downstream frequency 96000000
Related Commands

Command

Description

show controllers radio slot/port downstream

Displays the specified center frequency for the downstream port that has been configured.

show controllers radio slot/port rf

Displays the allowed ranges of frequency.

radio downstream rate-limit

To enable downstream rate limiting for downstream traffic, use the radio downstream rate-limit interface configuration mode command. To disable rate limiting on downstream traffic, use the no form of this command.

radio downstream rate-limit [token-bucket [shaping] | weighted-discard exp-weight]
no radio downstream rate-limit
Syntax Description

token-bucket

(Optional) Specifies the token bucket filter algorithm.

shaping

Enables shaping with default parameters. To change the defaults, you can specify granularity (which is the traffic-shaping granularity in msec), or you can specify max-delay (which is the maximum traffic-shaping buffering delay in msec).

weighted-discard

(Optional) Specifies the weighted discard algorithm.

exp-weight

Specifies the weight for the exponential moving average of the loss rate. Valid values are 1 to 4.

Defaults

Rate-limit is enabled by default.

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to use the token bucket filter algorithm:
Router(config-if)# radio downstream rate-limit token-bucket
Usage Guidelines

Cisco recommends that you keep the default setting of radio downstream rate-limit in order to use the shaping option.

Related Commands

Command

Description

radio upstream rate-limit

Enables rate limiting for an upstream port on an upstream channel.

radio downstream subchannel modulation-profile

To create a radio downstream in a subchannel configuration to use a specific modulation profile, use the radio downstream subchannel modulation-profile interface configuration command. To disable the specified modulation profile, use the no form of this command.

radio downstream subchannel sc modulation-profile p
no radio downstream subchannel sc modulation-profile p
Syntax Description

sc

Identifies the subchannel number. Valid values are 1 to 7.

p

Profile index defined by the radio modulation-profile command. Valid values are 1 to 32.

Note The width specified by the radio modulation-profile command must match the width of the subchannel where the downstream is being assigned.

Defaults

No default behavior or values.

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Usage Guidelines

The sc field corresponds to the following subchannel numbering scheme. The center frequency and the width for the downstream is inferred from this subchannel assignment.

Examples

The following example shows how to set the modulation profile index to 3 for subchannel 1:
Router# radio downstream subchannel 1 modulation-profile 3
Related Commands

Command

Description

radio modulation-profile

Creates modulation profile for downstream or upstream channels.

radio flap-list aging

To specify the number of days to record and retain flapping activity on a radio subscriber unit in the flap-list table, use the radio flap-list aging global configuration command. To disable the flap-list recording, use the no form of this command.

radio flap-list aging days
no radio flap-list aging
Syntax Description

days

Specifies the number of days to record and retain flapping activity on a flap-list table. The valid range is 1 to 60 days.

Defaults

No default behavior or values.

Command Modes

Global configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to set the age of the flap list to 30 days:
CMTS01(config)# radio flap-list aging 30
Related Commands

Command

Description

clear radio flap-list

Clears the current radio flap-list entries for a specific subscriber unit or all subscriber units.

radio flap-list insertion-time

Used for setting the radio flap-list insertion time.

radio flap-list miss-threshold

Used for setting the miss-threshold for recording a flap-list event.

radio flap-list size

Used for specifying the maximum number of the radio subscriber units to be reported in the radio flap-list table.

show radio flap-list

Displays the radio flap-list of a wireless modem card.

radio flap-list insertion-time

To set the radio flap list insertion time, use the radio flap-list insertion-time global configuration command. To disable, use the no form of this command.

radio flap-list insertion-time seconds
no radio flap-list insertion-time
Syntax Description

seconds

Specifies the frequency for the flap list insertion request. The valid range is 60 to 86400 seconds. When a radio subscriber unit makes an insertion request more frequently than the amount of time defined by this command, the radio subscriber unit is placed in the flat list for activity recording.

Defaults

No default behavior or values.

Command Modes

Global configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to set the insertion time to 62 seconds:
Router(config)# radio flap-list insertion-time 62
Related Commands

Command

Description

clear radio flap-list

Clears the current radio flap-list entries for a specific subscriber unit or all subscriber units.

radio flap-list aging

Specifies the number of days to record and retain flapping activity on a radio subscriber unit in the flap-list table.

radio flap-list miss-threshold

Sets the miss-threshold for recording a flap-list event.

radio flap-list size

Specifies the maximum number of the radio subscriber units to be reported in the radio flap-list table.

show radio flap-list

Displays the radio flap list of a wireless modem card.

radio flap-list miss-threshold

To specify the miss threshold for recording a flap-list event, use the radio flap-list miss-threshold global configuration command. A miss is the number of times a radio subscriber does not acknowledge a MAC layer keep-alive message from a subscriber unit. When the number of misses exceeds the threshold, the radio subscriber unit is placed in the flap list. To disable the miss threshold as a criterion for adding a radio subscriber unit to the flap list, use the no form of this command.

radio flap-list miss-threshold threshold-num
no radio flap-list miss-threshold
Syntax Description

threshold-num

The miss threshold value specified by the user. Any subscriber that misses more than the specified number is placed in the flap list.

Defaults

No default behavior or values.

Command Modes

Global configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to set the miss threshold to 50:
CMTS01(config)# radio flap-list miss-threshold 50
Related Commands

Command

Description

clear radio flap-list

Clears the current radio flap-list entries for a specific subscriber unit or all subscriber units.

radio flap-list aging

Specifies the number of days to record and retain flapping activity on a radio subscriber unit in the flap-list table.

radio flap-list insertion-time

Sets the radio flap list insertion time.

radio flap-list size

Specifies the maximum number of the radio subscriber units to be reported in the radio flap-list table.

show radio flap-list

Displays the radio flap list of a wireless modem card.

radio flap-list size

To specify the maximum number of the radio subscriber units to be reported in the radio flap list tables, use the radio flap-list size global configuration command. To set the flap list table size to the default value, use the no form of this command.

radio flap-list size size
no radio flap-list
Syntax Description

size

The flap-list table size that is specified by the user. Valid values are 1 to 8191.

Defaults

No default behaviors or values.

Command Modes

Global configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example specifies the flap-list size to 10:
Router(config)# radio flap-list 10
Related Commands

Command

Description

clear radio flap-list

Clears the current radio flap-list entries for a specific subscriber unit or all subscriber units.

radio flap-list aging

Specifies the number of days to record and retain flapping activity on a radio subscriber unit in the flap-list table.

radio flap-list insertion-time

Sets the radio flap list insertion time.

radio flap-list miss-threshold

Sets the miss-threshold for recording a flap-list event.

show radio flap-list

Displays the radio flap list of a wireless modem card.

radio helper-address

To specify an IP address of a Dynamic Host Configuration Protocol (DHCP) server where User Datagram Protocol (UDP) broadcast packets are sent, use the radio helper-address interface configuration command. You can specify a DHCP server for UDP broadcast packets from subscriber units and a DHCP server for UDP broadcast packets from hosts. To disable the helper address for the subscriber units, use the no form of this command.

radio helper-address ip-address subscriber | host
no radio helper-address ip-address subscriber | host
Syntax Description

ip-address

IP address for the DHCP server.

subscriber

Sets the downstream helper address to the DHCP server for UDP broadcast packets from the subscriber units.

host

Sets the downstream helper address to the DHCP server for UDP broadcast packets from hosts.

Defaults

No default behavior or values.

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The first of the following examples sets the downstream helper address to the DHCP server at IP address 10.x.x.x for UDP broadcast packets from the subscriber units, and the second example sets the downstream helper address to the DHCP server at IP address 172.56.x.x for UDP broadcast packets from hosts.
UBR(config-if)# radio helper 10.x.x.x subscriber
UBR(config-if)# radio helper 172.56.x.x host
radio hist-display

To control the display of histogram data, use the radio hist-display interface configuration command.

radio histogram {[all] | {statsParams MAC-address | chan-id} on | off}
Syntax Description

all

Controls the display of all the histograms in the system.

statsParams

{sinr-ant1 | sinr-ant2 | sinr-total | timingOffset | rf-rx-power-ant1 | rf-rx-power-ant2 | chan-delay-spread-ant1 | chan-delay-spread-ant2 | power-amb}

sinr-ant1

Signal to interference plus noise ratio for antenna 1.

sinr-ant2

Signal to interference plus noise ratio for antenna 2.

sinr-total

Signal to interference plus noise ratio for antennas 1 and 2.

timingOffset

Represents the timing delay variations detected in the radio link.

rf-rx-power-ant1

Represents the receive power at the main RF headend (antenna gain is not included).

rf-rx-power-ant2

Represents the receive power at the diversity RF headend (antenna gain is not included).

chan-delay-spread-ant1

The offset for channel delay spread on antenna 1.

chan-delay-spread-ant2

The offset for channel delay spread on antenna 2.

power-amb

Represents the noise floor of the ambient environment, in decibels.

MAC-address

Specifies a particular subscriber unit.

chan-id

Specifies an upstream channel ID. Valid values are 0 to 3.

on | off

Specifies whether to turn the display of the histogram data on or off.

Defaults

By default the histogram display is on.

Command Modes

Interface configuration

Command History

Release

Modification

12.0(7)XR

This command was introduced.

12.1(3)XQ1

Support for multipoint radio modem was added.

Examples

The following example shows how to set the display of histogram data for sinr-ant1 on channel 0 to OFF:
UBR04(config-if)# radio hist-display sinr-ant1 0 off
Related Commands

Command

Description

radio histogram

Configures a histogram collection specification.

radio interface hist-clear

Clears histogram data.

radio histogram

To configure a histogram collection specification, use the radio histogram interface configuration command. To delete existing histogram collections, use the no form of this command.

radio histogram statsParams {MAC-address | chan-id} [bin-range {start end}] [duration interval] [tone {circular | average | number toneVal}] [update interval sum {true | false}]
[width {coarse | fine}]
no radio histogram statsParams {MAC-address | chan-id}
Syntax Description

statsParams

{sinr-ant1 | sinr-ant2 | sinr-total | timingOffset | rf-rx-power-ant1 | rf-rx-power-ant2 | chan-delay-spread-ant1 | chan-delay-spread-ant2 | power-amb}

sinr-ant1

Signal to interference plus noise ratio for antenna 1.

sinr-ant2

Signal to interference plus noise ratio for antenna 2.

sinr-total

Signal to interference plus noise ratio for antennas 1 and 2.

timingOffset

Represents the timing delay variations detected in the radio link.

rf-rx-power-ant1

Represents the receive power at the main RF headend (antenna gain is not included).

rf-rx-power-ant2

Represents the receive power at the diversity RF headend (antenna gain is not included).

chan-delay-spread-ant1

The offset for channel delay spread on antenna 1.

chan-delay-spread-ant2

The offset for channel delay spread on antenna 2.

power-amb

Represents the noise floor of the ambient environment, in decibels.

MAC-address

Specifies a particular subscriber unit.

chan-id

Specifies an upstream channel ID. Valid values are 0 to 3.

bin-range start end

Specifies the start and end bin values. Values below the start bin values are assigned to the first bin in the histogram. Values above this value are assinged to the last bin in the histogram. Start and end bin values range -5000 to 5000. The following values are default start and end bin range values:

sinr-ant1: {10, 49}
sinr-ant2: {10, 49}
sinr-total: {10, 49}
timingOffset: {-10, 10}
rf-rx-power-ant1: {-86, -43}
rf-rx-power-ant2: {-86, -43}
chan-delay-spread-ant1: {0, 4}
chan-delay-spread-ant2: {0, 4}
power-amb: {-101, -21}

duration interval

Specifies, in seconds, the duration in which histogram data is collected.

tone

{circular | average | number} are applicable only to sinr-ant1, sinr-ant2, and sinr-total.

circular

Specifies histogram samples that use successive frequency tones.

average

Specifies histogram samples that should be the average of the burst data over all the frequencies.

number toneVal

Specifies that a particular tone in the burst should be used to report the histogram data.

update interval

Specifies how often, in seconds, the collected data is printed on the screen.

sum

Specifies whether to add the data at every update.

width coarse | fine

Specifies the histogram resolution. Coarse is 50 bins and fine is 12 bins.

Defaults

No default behavior or values.

Command Modes

Interface configuration

Command History

Release

Modification

12.0(7)XR

This command was introduced.

12.1(3)XQ1

Support for multipoint radio modem was added.

Usage Guidelines

A histogram is a collection of statistics sampled over time on a burst-by-burst basis and presented as a function of bins.

The data for the histogram is collected as soon as the command succeeds and continues until either the specification is deleted using the no option, or the specified duration expires. The collected data is printed out to the console at user-specified intervals.

A histogram statistic is created when data is sampled for every burst. For each sampled burst, the count in a specific bin is incremented.

Note There should be no measurable impact or degradation of router performance from running histograms. Cisco recommends that you keep the number of histograms that you are running simultaneously to a minimum, and that you terminate any histograms no longer needed.

Note Histograms and timelines share the same DSP memory. A total of 10 histograms and timelines can be created on a single DSP. There are a total of 8 locations for fine histograms and timelines and 5 locations for coarse histograms. The combination of histograms and timelines must be less than 10.

Examples

The following example shows how to configure a histogram specification. The histogram collection starts as soon as the command succeeds. A histogram is collected for signal-to-interference plus noise ratio on channel 3. The remaining of the parameters are optional, and the system picks default values.
UBR04(config-if)# radio histogram sinr-ant1 3
Related Commands

Command

Description

radio hist-display

Displays radio histograms.

radio interface hist-clear

Clears histogram data.

radio insertion-interval

To control the frequency at which the headend schedules opportunities for the subscriber-unit to join the network, use the radio insertion-interval interface configuration command. A subscriber unit's request to join the network for the first time is called initial ranging. The default insertion interval setting configures the Cisco uBR7200 series to automatically vary the initial ranging times that are available to the new subscriber unit that attempts to join the network. To use the automatic (default) setting, use the no form of this command.

radio insertion-interval [fixed-value | automatic] [millisecond]
no radio insertion-interval
Syntax Description

fixed-value

Specifies fixed period between initial ranging slots in milliseconds (ms). Valid range is 100 to 2000 ms.

automatic

The automatic (default) insertion interval setting configures the Cisco uBR7200 series to automatically vary the initial ranging times that are available to the new subscriber unit that attempts to join the network. Optionally, you can set the lower bound on period between initial ranging slots. The range for this value is 20 to 120 ms.

Defaults

Automatic

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Usage Guidelines

Use the default setting if a large number of subscriber units attempt to perform initial ranging at the same time (for example, after a major power failure).

Examples

The following example shows how to set the insertion interval to 1500 milliseconds.
Router(config-if)# radio insertion-interval 1500
radio interface radio hist-clear

To clear historgram data, use the radio interface radio hist-clear EXEC command.

radio interface radio slot/port hist-clear statsParams {MAC-address | chan-id}
Syntax Description

slot/port

Specifies the slot and port numbers.

statsParams

{sinr-ant1 | sinr-ant2 | sinr-total | timingOffset | rf-rx-power-ant1 | rf-rx-power-ant2 | chan-delay-spread-ant1 | chan-delay-spread-ant2 | power-amb}

sinr-ant1

Signal-to-interference plus noise ratio for antenna 1.

sinr-ant2

Signal-to-interference plus noise ratio for antenna 2.

sinr-total

Signal-to-interference plus noise ratio for antennas 1 and 2.

timingOffset

Represents the timing delay variations detected in the radio link.

rf-rx-power-ant1

Represents the receive power at the main RF headend (antenna gain is not included).

rf-rx-power-ant2

Represents the receive power at the diversity RF headend (antenna gain is not included).

chan-delay-spread-ant1

The offset for channel delay spread on antenna 1.

chan-delay-spread-ant2

The offset for channel delay spread on antenna 2.

power-amb

Represents the noise floor of the ambient environment, in decibels.

MAC-address

Specifies a particular subscriber unit.

chan-id

Specifies an upstream channel ID. Valid values are 0 to 3.

Defaults

No default behavior or values.

Command Modes

EXEC

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to clear the histogram data for sinr-ant1 on channel 0:
Router# radio int r6/0 hist-clear sinr-ant1 0
Related Commands

Command

Description

radio histogram

Configures a histogram collection specification.

radio interface radio slot/port hist-start

Starts a stopped histogram specification.

radio interface radio slot/port hist-stop

Stops a running histogram specification.

radio interface radio hist-start

To start a stopped histogram specification, use the radio interface radio hist-start EXEC command. To disable this function, use the no form of this command.

radio interface radio slot/port hist-start statsParams {MAC-address | chan-id}
Syntax Description

slot/port

Specifies the slot and port numbers.

statsParams

{sinr-ant1 | sinr-ant2 | sinr-total | timingOffset | rf-rx-power-ant1 | rf-rx-power-ant2 | chan-delay-spread-ant1 | chan-delay-spread-ant2 | power-amb}

sinr-ant1

Signal-to-interference plus noise ratio for antenna 1.

sinr-ant2

Signal-to-interference plus noise ratio for antenna 2.

sinr-total

Signal-to-interference plus noise ratio for antennas 1 and 2.

timingOffset

Represents the timing delay variations detected in the radio link.

rf-rx-power-ant1

Represents the receive power at the main RF headend (antenna gain is not included).

rf-rx-power-ant2

Represents the receive power at the diversity RF headend (antenna gain is not included).

chan-delay-spread-ant1

The offset for channel delay spread on antenna 1.

chan-delay-spread-ant2

The offset for channel delay spread on antenna 2.

power-amb

Represents the noise floor of the ambient environment, in decibels.

MAC-address

Specifies a particular subscriber unit.

chan-id

Specifies an upstream channel ID. Valid values are 0 to 3.

Defaults

No default behavior or values.

Command Modes

EXEC

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to start the stopped histogram specification for sinr-ant1 on channel 0:
Router# radio int r6/0 hist-start sinr-ant 0
Related Commands

Command

Description

radio histogram

Configures a histogram collection specification.

radio interface radio slot/port hist-clear

Clears histogram data.

radio interface radio slot/port hist-stop

Stops a running histogram specification.

radio interface radio hist-stop

To stop a running histogram specification, use the radio interface radio hist-stop EXEC command.

radio interface radio slot/port hist-stop statsParams {MAC-address | chan-id}
Syntax Description

slot/port

Specifies the slot and port numbers.

statsParams

{sinr-ant1 | sinr-ant2 | sinr-total | timingOffset | rf-rx-power-ant1 | rf-rx-power-ant2 | chan-delay-spread-ant1 | chan-delay-spread-ant2 | power-amb}

sinr-ant1

Signal-to-interference plus noise ratio for antenna 1.

sinr-ant2

Signal-to-interference plus noise ratio for antenna 2.

sinr-total

Signal-to-interference plus noise ratio for antennas 1 and 2.

timingOffset

Represents the timing delay variations detected in the radio link.

rf-rx-power-ant1

Represents the receive power at the main RF headend (antenna gain is not included).

rf-rx-power-ant2

Represents the receive power at the diversity RF headend (antenna gain is not included).

chan-delay-spread-ant1

The offset for channel delay spread on antenna 1.

chan-delay-spread-ant2

The offset for channel delay spread on antenna 2.

power-amb

Represents the noise floor of the ambient environment, in decibels.

MAC-address

Specifies a particular subscriber unit.

chan-id

Specifies an upstream channel ID. Valid values are 0 to 3.

Defaults

No default behavior or values.

Command Modes

EXEC

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to stop a running histogram specification for sinr-ant1 on channel 0:
Router# radio int r6/0 hist-stop sinr-ant 0
Related Commands

Command

Description

radio histogram

Configures a histogram collection specification.

radio interface radio slot/port hist-start

Starts a stopped histogram specification.

radio interface radio slot/port hist-clear

Clears the histogram data.

radio interface radio rf-update duplexer

To set or update the radio frequency or wireless transverter duplexer information stored in the hardware, use the radio interface radio rf-update duplexer privileged EXEC command.

radio interface radio slot/port rf-update duplexer {1 | 2} code-date Lo-bandStart Lo-bandEnd Hi-bandStart Hi-bandEnd Tx-insertion-loss [Tx-lo | Tx-hi]
Syntax Description

slot/port

Identifies the slot and port numbers.

1 | 2

Enter 1 for the main antenna or 2 for the diversity antenna.

code-date

Identifies the date the duplexer information was last updated or reset. The date must be specified in the mmddyyyy format. For single digit month and date values, you need to zero-fill them. For example, for August 3, 2000, you enter 08032000.

Lo-bandStart

Identifies the duplexer's start low-frequency range. Valid start low-band pass is 0 to 65535 MHz. When setting the start low-frequency range for the duplexer, this range of values must be lower than the range specified for the Hi-bandStart parameter.

Lo-bandEnd

Identifies the duplexer's end low-frequency range. Valid end low-band pass is 0 to 65535 MHz. When setting the end low-frequency range for the duplexer, this range of values must be lower than the range specified for the Hi-bandEnd parameter.

Hi-bandStart

Identifies the duplexer's start high-frequency range. Valid start high-band pass is 0 to 65535 MHz. When setting start high-frequency range for the duplexer, this range of values must be higher than the range specified in the Lo-bandStart parameter.

Hi-bandEnd

Identifies the duplexer's end hi-frequency range. Valid end high-band pass is 0 to 65535 MHz. When setting end hi-frequency range for the duplexer, this range of values must be higher than the range specified in the Lo-bandEnd parameter.

Tx-insertion-loss

Specifies the transmit insertion loss for the duplexer, in dB. The insertion loss of the duplexer is the degree to which it attenuates the signal passing through its pass-bands. Valid range is 0 255 dB.

Tx-lo

Indicates that the low-frequency range is used for transmission, which implies that the high-band frequency range is used for reception. Valid frequency range is 0 to 65535 MHz.

Tx-hi

Indicates that the high-frequency range is used for transmission, which implies that the low-band frequency range is used for reception. Valid frequency range is 0 to 65535 MHz.

Defaults

No default behaviors and values.

Command Modes

Privileged EXEC

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Usage Guidelines

You must specify the antenna, either 1 or 2, for which you want to update the duplexer settings. If no parameter is specified after 1 or 2, the existing duplexer settings will be removed. Although the valid frequency ranges for the high-band and low-band are the same, the frequency range for hi-band start and end values must be set higher than the frequency range for low-band start and end values. Overlapping is not allowed between the bands.

Note This command can be entered only when the radio link is down (shut), and takes effect when the link becomes active again (no shut).

Examples

The following example shows how to set the radio frequency for the duplexer:
Router# radio int radio 6/0 rf-update duplexer 1 08232000 2550 2600 2650 2700 10 tx-lo
Related Commands

Command

Description

show controllers radio slot/port rf

Displays the current settings for the duplexer.

radio interface radio tl-clear

To clear timeline data, use the radio interface radio tl-clear privileged EXEC command.

radio interface radio slot/port tl-clear statsParams {MAC-address | chan-id}
Syntax Description

slot/port

Specifies the slot and port numbers.

statsParams

{sinr-ant1 | sinr-ant2 | sinr-total | timingOffset | rf-rx-power-ant1 | rf-rx-power-ant2 | chan-delay-spread-ant1 | chan-delay-spread-ant2 | power-amb}

sinr-ant1

Signal-to-interference plus noise ratio for antenna 1.

sinr-ant2

Signal-to-interference plus noise ratio for antenna 2.

sinr-total

Signal-to-interference plus noise ratio for antennas 1 and 2.

timingOffset

Represents the timing delay variations detected in the radio link.

rf-rx-power-ant1

Represents the receive power at the main RF headend (antenna gain is not included).

rf-rx-power-ant2

Represents the receive power at the diversity RF headend (antenna gain is not included).

chan-delay-spread-ant1

The offset for channel delay spread on antenna 1.

chan-delay-spread-ant2

The offset for channel delay spread on antenna 2.

power-amb

Represents the noise floor of the ambient environment, in decibels.

MAC-address

Specifies a particular subscriber unit.

chan-id

Specifies an upstream channel ID. Valid values are 0 to 3.

Defaults

No default behavior or values.

Command Modes

Privileged EXEC

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to clear timeline data for sinr-ant1 on channel 0:
Router# radio int r 6/0 tl-clear sinr-ant1 0
Related Commands

Command

Description

radio timeline

Configures a timeline collection specification.

radio interface radio slot/port tl-start

Starts a stopped timeline specification.

radio interface radio slot/port tl-stop

Stops a running timeline specification.

radio interface radio tl-start

To start a stopped timeline specification, use the radio interface radio tl-start privileged EXEC command.

radio interface radio slot/port tl-start statsParams {MAC-address | chan-id}
Syntax Description

slot/port

Specifies the slot and port numbers.

statsParams

{sinr-ant1 | sinr-ant2 | sinr-total | timingOffset | rf-rx-power-ant1 | rf-rx-power-ant2 | chan-delay-spread-ant1 | chan-delay-spread-ant2 | power-amb}

sinr-ant1

Signal-to-interference plus noise ratio for antenna 1.

sinr-ant2

Signal-to-interference plus noise ratio for antenna 2.

sinr-total

Signal-to-interference plus noise ratio for antennas 1 and 2.

timingOffset

Represents the timing delay variations detected in the radio link.

rf-rx-power-ant1

Represents the receive power at the main RF headend (antenna gain is not included).

rf-rx-power-ant2

Represents the receive power at the diversity RF headend (antenna gain is not included).

chan-delay-spread-ant1

The offset for channel delay spread on antenna 1.

chan-delay-spread-ant2

The offset for channel delay spread on antenna 2.

power-amb

Represents the noise floor of the ambient environment, in decibels.

MAC-address

Specifies a particular subscriber unit.

chan-id

Specifies an upstream channel ID. Valid values are 0 to 3.

Defaults

No default behavior or values.

Command Modes

Privileged EXEC

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to start a stopped timeline specification for sinr-ant1 on channel 0:
Router# radio int r 6/0 tl-start sinr-ant1 0
Related Commands

Command

Description

radio timeline

Configures a timeline collection specification.

radio interface radio slot/port hist-clear

Clears timeline data.

radio interface radio slot/port tl-stop

Stops a running timeline specification.

radio interface radio tl-stop

To stop a running timeline specification, use the radio interface radio tl-stop privileged EXEC command.

radio interface radio slot/port tl-stop statsParams {MAC-address | chan-id}
Syntax Description

slot/port

Specifies the slot and port numbers.

statsParams

{sinr-ant1 | sinr-ant2 | sinr-total | timingOffset | rf-rx-power-ant1 | rf-rx-power-ant2 | chan-delay-spread-ant1 | chan-delay-spread-ant2 | power-amb}

sinr-ant1

Signal-to-interference plus noise ratio for antenna 1.

sinr-ant2

Signal-to-interference plus noise ratio for antenna 2.

sinr-total

Signal-to-interference plus noise ratio for antennas 1 and 2.

timingOffset

Represents the timing delay variations detected in the radio link.

rf-rx-power-ant1

Represents the receive power at the main RF headend (antenna gain is not included).

rf-rx-power-ant2

Represents the receive power at the diversity RF headend (antenna gain is not included).

chan-delay-spread-ant1

The offset for channel delay spread on antenna 1.

chan-delay-spread-ant2

The offset for channel delay spread on antenna 2.

power-amb

Represents the noise floor of the ambient environment, in decibels.

MAC-address

Specifies a particular subscriber unit.

chan-id

Specifies an upstream channel ID. Valid values are 0 to 3.

Defaults

No default behavior or values.

Command Modes

Privileged EXEC

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to stop a running timeline specification for sinr-ant1 on channel 0:
Router# radio int r 6/0 tl-stop sinr-ant1 0
Related Commands

Command

Description

radio timeline

Configures a timeline collection specification.

radio interface radio slot/port hist-clear

Clears timeline data.

radio interface radio slot/port tl-start

Starts a stopped timeline specification.

radio ip-broadcast-echo

To activate the upstream IP broadcast echo so that the Cisco uBR7200 series can echo broadcast packets back to the subscriber, use the radio ip-broadcast-echo interface configuration command. To disable the IP broadcast echo, use the no form of this command.

radio ip-broadcast-echo
no radio ip-broadcast-echo
Syntax Description

This command has no arguments or keywords.

Defaults

IP broadcast echo is disabled.

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to enable IP broadcast echo:
Router(config-if)# radio ip-broadcast echo
radio ip-multicast-echo

To activate the upstream radio IP multicast echo so that the Cisco uBR7200 series can echo multicast packets, use the radio ip-multicast-echo interface configuration command. To disable the IP multicast echo, use the no form of this command.

radio ip-multicast-echo
no radio ip-multicast-echo
Syntax Description

This command has no arguments or keywords.

Defaults

IP multicast echo is enabled.

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to activate the upstream IP multicast echo:
Router(config-if)# radio ip-multicast-echo
radio metrics-threshold-channel

To configure a limit on the percentage of error codewords threshold, use the radio metrics-threshold-channel interface configuration command. When this limit is exceeded in a 1-hour period, alarms are generated to notify the user. Minor alarms are generated and displayed on the console when the specified 1-hour threshold is exceeded. To force the thresholds back to the default values, use the no form of this command.

radio metrics-threshold-channel channel CERThresh |
no radio metrics-threshold-channel channel CERThresh | MINCodeword
Syntax Description

channel

Specifies the channel ID numbers, which are 0 to 3.

CERThresh

Specifies the percentage of error codewords threshold.

MINCodeword

Specifies the minimum number of codewords to be received by subscriber unit.

Defaults

No default behaviors or values.

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Usage Guidelines

All link metrics are measured in codewords, where a codeword is a unit (228 bytes) of data transmission over the radio link. The codeword contains user data, error counts, and collation information so that successive codewords can be reconstructed at the receiving end of the transmitted data.

Examples

The following example shows how to configure threshold for channel 2, such that if more than 10.05 percent of the received codewords in an hour are error codewords, the minor alarm is generated:
UBR04(config-if)# radio metrics-threshold-channel 1hour 2 999
Related Commands

Command

Description

show interfaces radio slot/port metrics-threshold-channel

Displays the codeword thresholds set for link metrics.

show interfaces radio slot/port 1sec-metrics-channel

Displays a table of values for the last 60 seconds. Values are cumulative—every successive row is the sum of the corresponding values in the previous row plus the values determined for the 1-second period represented by that row.

show interfaces radio slot/port 1min-metrics-channel

Displays a table of values for the last 60 minutes. Values are cumulative—every successive row is the sum of the corresponding values in the previous row plus the values determined for the 1-minute period represented by that row. The displayed values are identical to those displayed by the 1hour-metrics-channel option, except that the period is 1 minute.

show interfaces radio slot/port 1hour-metrics-channel

Displays a table of values for the last 60 minutes. Values are cumulative—every successive row is the sum of the corresponding values in the previous row plus the values determined for the 1-minute period represented by that row. The displayed values are identical to those displayed by the 1min-metrics-channel option, except that the period is 1 hour.

radio metrics-threshold-su

To set threshold values for the radio link to evaluate the performance of the radio link over time, use the radio metrics-threshold-su interface configuration command. To force the thresholds back to the default values, use the no form of this command.

radio metrics-threshold-su CERThresh MINCodeword
no radio metrics-threshold-su CERThresh MINCodeword
Syntax Description

CERThresh

Specifies the percentage of error codewords threshold.

MINCodeword

Specifies the minimum number of codewords to be received by the subscriber unit.

Defaults

CERThresh has a default value of 10.00 percent, and MINCodeword has a default value of 100.

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to configure the subscriber unit (SU) threshold, such that if more than 1000 codewords are received and 10.05percent of them are error codewords, the SU is added to the threshold crossed list:
UBR04(config-if)# radio metrics-threshold-su 1005 1000
Related Commands

Command

Description

show interfaces radio slot/port metrics-threshold-bad-su

Displays the subscriber units that crossed the specified threshold.

show interfaces radio slot/port metrics-threshold-su

Displays the metrics for the subscriber unit.

radio modulation-profile

To create or modify modulation profiles, use the radio modulation-profile global configuration command. To delete modulation profiles, use the no form of this command.

radio modulation-profile n [bandwidth bandwith | throughput throughput | multipath-robustness | burst-length]
no radio modulation-profile
Syntax Description

n

The modulation profile index number. The maximum profile number is 32. Valid range is 1 to 32.

bandwidth bandwith

Specifies the bandwidth in MHz. Valid entries are decimal numbers in the range 0.0 to 100.0. The default value is 6.0 MHz.

throughput throughput

Specifies the physical layer throughput in Mbps. Valid entries are integer numbers 0 to 500. The default value is 10 Mbps.

multipath-robustness

Specifies the multipath robustness level (delay spread tolerance). The valid setting are standard | high. The default setting is high.

burst-length

Specifies the duration of OFDM burst. Valid settings are short | medium | long | very-short. The default setting is medium.

Defaults

See the syntax description above for the default settings.

Command Modes

Global configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Usage Guidelines

Use the show radio modulation-profile command to verify the modulation-profile settings that you specified. You can apply modulation profiles to one or more upstream or downstream channels.

Examples

The following example shows how to add a modulation profile:
Router(config)# radio modulation-profile 1 bandwidth 3.0 throughput 6.6
multipath-robustness high burst-length medium
Related Commands

Command

Description

show radio capability modulation-profile

Displays all the profiles that the radio modem card supports.

show radio modulation-profile

Displays the modulation-profile settings that you have specified.

radio privacy kek grace-time

To configure key encryption key (KEK) grace-time data privacy on the wireless network, use the radio privacy kek grace-time interface configuration command. To set to the default value, use the no form of this command.

radio privacy kek grace-time seconds
no radio privacy kek grace-time
Syntax Description

seconds

Specifies the user-input time in seconds. The default value of 600 seconds is used if you do not specify the grace-time value. Valid range is 300 to 1800 seconds.

Defaults

600 seconds

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to set the privacy KEK grace-time to 800 seconds:
UBR(config-if)# radio privacy kek grace-time 800
Related Commands

Command

Description

radio privacy enable

Activates radio privacy on the wireless link.

radio privacy mandatory

Activates radio privacy and disallows access for any unencrypted wireless subscriber units.

radio privacy kek life-time

Sets the radio privacy KEK life-time.

radio privacy tek grace-time

Sets the radio privacy TEK grace-time.

radio privacy tek life-time

Sets the radio privacy TEK life-time.

show radio privacy kek

Displays the KEK life-time and grace-time values that have been set.

show radio privacy tek

Displays the TEK life-time and grace-time values that have been set.

radio privacy kek life-time

To configure key encryption key (KEK) life-time data privacy on the wireless network, use the radio privacy kek life-time interface configuration command. To set to the default value, use the no form of this command.

radio privacy kek life-time seconds
no radio privacy kek life-time
Syntax Description

seconds

Specifies the user-input time in seconds. The default value of 604800 seconds is used if you do not specify the KEK life-time. Valid range is 86,400 to 6,048,000 seconds.

Defaults

604,800 seconds

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to set the privacy KEK life-time to 750,000 seconds:
UBR(config-if)# radio privacy kek life-time 750000
Related Commands

Command

Description

radio privacy enable

Activates radio privacy on the wireless link.

radio privacy mandatory

Activates radio privacy and disallows access for any unencrypted wireless subscriber units.

radio privacy kek grace-time

Sets the radio privacy KEK grace-time.

radio privacy tek grace-time

Sets the radio privacy TEK grace-time.

radio privacy tek life-time

Sets the radio privacy TEK life-time. display the traffic encryption key (TEK) life-time and grace-time values that have been set

show radio privacy kek

Displays the KEK life-time and grace-time values that have been set.

show radio privacy tek

Displays the TEK life-time and grace-time values that have been set.

radio privacy mandatory

To activate radio privacy and disallow access for any unencrypted wireless subscriber units on the wireless network, use the radio privacy mandatory interface configuration command. Use this command after setting KEK and TEK. To deactivate radio privacy, use the no form of this command.

radio privacy mandatory
no radio privacy mandatory
Syntax Description

This command has no arguments or keywords.

Defaults

Deactivated

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to activate radio privacy and disallow access for any unencrypted wireless subscriber units:
Router(config-if)# radio privacy mandatory
Related Commands

Command

Description

radio privacy enable

Activates radio privacy on the wireless link.

radio privacy kek grace-time

Sets the radio privacy KEK grace-time.

radio privacy kek life-time

Sets the radio privacy KEK life-time.

radio privacy tek grace-time

Sets the radio privacy TEK grace-time.

radio privacy tek life-time

Sets the radio privacy TEK life-time.

show radio privacy kek

Displays the KEK life-time and grace-time values that have been set.

show radio privacy tek

Displays the TEK life-time and grace-time values that have been set.

radio privacy tek grace-time

To configure traffic encryption key (TEK) grace-time data privacy on the wireless network, use the radio privacy tek grace-time interface configuration command. To deactivate radio privacy, use the no form of this command.

radio privacy tek grace-time seconds
no radio privacy tek grace-time
Syntax Description

seconds

Specifies the privacy TEK grace-time in seconds. The valid TEK grace-time entries are 300 to 1800.

Defaults

600 seconds

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to set the privacy TEK grace-time to 800 seconds:
UBR(config-if)# radio privacy tek grace-time 800
Related Commands

Command

Description

radio privacy enable

Activates radio privacy on the wireless link.

radio privacy mandatory

Activates radio privacy and disallows access for any unencrypted wireless subscriber units.

radio privacy kek grace-time

Sets the radio privacy KEK grace-time.

radio privacy kek life-time

Sets the radio privacy KEK life-time.

radio privacy tek life-time

Sets the radio privacy TEK life-time.

show radio privacy kek

Displays the KEK life-time and grace-time values that have been set.

show radio privacy tek

Displays the TEK life-time and grace-time values that have been set.

radio privacy tek life-time

To configure TEK life-time data privacy on the wireless network, use the radio privacy tek life-time interface configuration command. To force the default setting, use the no form of this command.

radio privacy tek life-time seconds
no radio privacy tek life-time
Syntax Description

seconds

Specifies the TEK life-time in seconds. The valid entries are 1800 to 604,800.

Defaults

43,200 seconds

Command Modes

Interface configuration

Command History

Release

Modification

12-2(3)T

This command was introduced.

Examples

The following example shows how to set the privacy TEK life-time to 56000:
UBR(config-if)# radio privacy tek life-time 56000
Related Commands

Command

Description

radio privacy enable

Activates radio privacy on the wireless link.

radio privacy mandatory

Activates radio privacy and disallows access for any unencrypted wireless subscriber units.

radio privacy kek grace-time

Sets the radio privacy KEK grace-time.

radio privacy kek life-time

Sets the radio privacy KEK life-time.

radio privacy tek grace-time

Sets the radio privacy TEK grace-time.

show radio privacy kek

Displays the KEK life-time and grace-time values that have been set.

show radio privacy tek

Displays the TEK life-time and grace-time values that have been set.

radio proxy-arp

To activate the radio proxy Address Resolution Protocol (ARP) for host-to-host communications, use the radio proxy-arp interface configuration command. The radio proxy ARP enables the Cisco uBR7200 series to issue ARP requests on behalf of the subscriber units on the same wireless network subnet. To disable this feature, use the no form of this command.

radio proxy-arp
no radio proxy-arp
Syntax Description

This command has no arguments or keywords.

Defaults

Enabled

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Usage Guidelines

To verify if radio proxy ARP has been activated or deactivated, enter the show running-config command and look for the interface configuration information. If radio proxy ARP has been activated, it does not appear in this output. If radio proxy ARP has been deactivated, it appears in the output as no radio proxy-arp. If you are having trouble, make sure that you entered the correct port and radio modem card slot number when you activated radio proxy ARP.

Examples

The following example shows how to activate proxy ARP for host-to-host communications:
CMTS01(config-if)# radio proxy-arp
radio qos permission

To specify permission for creating and updating the quality-of-servie (QoS) table, use the radio qos permission global configuration command. To remove a previously enabled permission, use the no form of this command.

radio qos permission {create | enforce | subscribers | update}
no radio qos permission
Syntax Description

create

Permits creation of QoS table entries by Simple Network Management Protocol (SNMP).

enforce

Enforces SNMP specified in the QoS profile.

subscribers

Permits subscribers to create QoS table entries.

update

Permits dynamic update of QoS table entries by SNMP.

Defaults

No default behaviors or values.

Command Modes

Global configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to enable SNMP access to create entries in the QoS tables:
CMTS01(config)# radio qos permission create
Related Commands

Command

Description

radio qos profile

Creates radio QoS profiles.

show radio qos profile

Verifies whether a QoS profile has been created and to see how it is configured.

radio qos profile

To configure a QoS profile, use the radio qos profile global configuration command. To set default values for profile group numbers 1 and 2, and to remove the QoS profile if no specific parameters remain, use the no form of this command.

radio qos profile {groupnum | guaranteed-upstream | max-burst | max-upstream |
max-downstream priority | privacy | tos-overwrite | value}
no radio qos profile {groupnum | guaranteed-upstream | max-burst | max-downstream | priority | tos-overwrite | value}
Syntax Description

groupnum

QoS profile group number. QoS profiles 1 and 2 are required by the system. QoS profile 1 is used during registration, and QoS profile 2 is the default QoS profile. Both profiles are preconfigured and cannot be removed; however, you can modify these profiles.

guaranteed-upstream

Guaranteed minimum upstream rate in kilobytes per second. Valid values are from 0 to 100,000. Default value is 0 (no reserved rate).

max-burst

Maximum upstream transmit burst size in bytes that the modem can send for any single transmit burst. Default value is 0 (no limit).

max-upstream

Maximum upstream data rate in kilobytes per second that a modem using this QoS profile can receive. Valid values are 0 to 255 minislots. Default value is 0 (no upstream rate limit).

max-downstream

Maximum downstream data rate in kilobytes per second that a modem using this QoS profile can receive. Valid values are 0 to 255 minislots. Default value is 0 (no downstream rate limit).

priority

Relative priority number assigned to upstream traffic by this QoS profile. Valid values are from 0 to 7, with 7 being the highest priority. Default value is 0.

privacy

Enables radio baseline privacy.

tos-overwrite

Overwrite of the type of service (ToS) field in the IP datagrams received on the upstream before forwarding them downstream (or IP backbone). This parameter sets the mask-hex (hexadecimal mask) bits to value hex (hexadecimal value). This helps the headend identify datagrams for QoS on the backbone.

value

The value substituted for the ToS value.

Defaults

See the previous syntax description for default values.

Command Modes

Global configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following examples show how to configure QoS profile 4 with guaranteed upstream of 2 kbps, maximum transmission burst of 2, maximum downstream rate of 3 kbps, a priority of 4, DOCSIS baseline privacy set, and a tos-overwrite mask and value byte (in hex) of 0x2:
Router(config)# radio qos profile 4 guaranteed-upstream 2
Router(config)# radio qos profile 4 max-burst 2
Router(config)# radio qos profile 4 max-downstream 3
Router(config)# radio qos profile 4 priority 4
Router(config)# radio qos profile 4 privacy
Router(config)# radio qos profile 4 tos-overwrite 0x2
Related Commands

Command

Description

radio qos permission

Specifies permission for creating and updating the QoS table.

show radio qos profile

Verifies whether a QoS profile has been created and to see how it is configured.

radio ra-backoff

To turn on the request access (RA) backoff, use the radio ra-backoff interface configuration command. The RA power control loop is used for minimizing interference on the upstream channels upon RA collisions. To turn off the RA backoff at the headend, use the no form of this command.

radio ra-backoff
no radio ra-backoff
Syntax Description

This command has no arguments or keywords.

Defaults

RA is off by default.

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Usage Guidelines

When the RA backoff is turned on at the headend, the RA power for each subscriber unit is reduced to 3 dB. This is a one-time power reduction. When the RA backoff is turned off (default), all subscriber units restore their RA power to the highest setting.

Examples

The following example shows how to turn on the RA power:
Router(config-if)# radio ra-backoff
Related Commands

Command

Description

show interface radio slot/port alc

Displays the current RA setting.

radio receive-antennas

To configure the wireless modem card to use a specified number of receive antennas, use the radio receive-antennas interface configuration command. To set the antenna number to 1, use the no form of this command.

radio receive-antennas {1 | 2}

no radio receive-antennas

Syntax Description

1 | 2

Specifies whether antenna 1 (main) or antenna 2 (diversity) is used.

Defaults

1

Command Modes

Interface configuration

Command History

Release

Modification

12.0(7)XR

This command was introduced.

12.1(3)XQ1

Support for multipoint radio modem was added.

Usage Guidelines

You can enter this command only when the radio link is down (shut). The command takes effect when the link is again active (no shut).

Note Before this command can take effect, the receive antennas and wireless transverters must be available.

Examples

The following example shows how to configure the wireless modem card to use two receive antennas:
Router(config-if)# radio receive-antennas 2
Related Commands

Command

Description

show running-configuration interfaces radio

Displays the current setting.

radio relay-agent-option

To configure the Cisco uBR7200 series so that it inserts the subscriber unit MAC-address into a DHCP packet when a packet is received from a subscriber unit or another host, use the radio relay-agent-option interface configuration command. The Cisco uBR7200 series then forwards the packet to a DHCP server. To disable the insertion, use the no form of this command.

radio relay-agent-option
no radio relay-agent-option
Syntax Description

This command has no arguments or keywords.

Defaults

Disabled

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Usage Guidelines

If you are having trouble, make sure that you entered the correct port and subscriber unit card slot number when you activate radio relay-agent-option. A DOCSIS-compliant DHCP server is required. The DHCP server verifies that the fixed IP address, if any, returned to the host is valid for the IP subnet on that downstream interface. The IP address must be unique and valid in the subnet for the user to obtain connectivity.

Examples

The following example enables the insertion of DHCP relay-agent information into DHCP packets:
Router(config-if)# radio relay-agent-option
radio rf-meas-interval ambient

To set the measurement interval of the ambient noise for performing noise floor statistics (NFS) functions, use the radio rf-meas-interval ambient interface configuration command. The NFS functions allow the user to determine the noise floor of the radio link and make adjustments to the system, (for example, adjust the target receive-power level of the upstream port). To set the interval to the default value, use the no form of this command.

radio rf-meas-interval ambient aint-seconds
no radio rf-meas-interval ambient
Syntax Description

aint-seconds

Specifies the ambient measurement interval in seconds. Valid values are 1 3600 seconds. The default value is 300 seconds.

Defaults

300 seconds.

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to set the ambient noise measurement interval to 400 seconds:
Router(config-if)# radio rf-meas-interval ambient 400
Related Commands

Command

Description

radio rf-meas-interval calibration

Sets the measurement interval of a calibrated noise source.

show interface slot/dsport rf-meas-interval

Displays the intervals of the ambient noise and the calibration noise measurements of the radio card for the specified slot and downstream port numbers.

radio rf-meas-interval calibration

To set the measurement interval of a calibrated noise source for performing the headend gain control (HGC) function, use the radio rf-meas-interval calibration interface configuration command. To set the interval to the default value, use the no form of this command.

radio rf-meas-interval calibration cint-seconds
no radio rf-meas-interval calibration
Syntax Description

cint-seconds

Specifies the interval for the calibration measurement. Valid values are 1 to 3600 seconds. The default value is 300 seconds.

Defaults

300 seconds

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Usage Guidelines

The HGC function, which is automatically performed by the headend, ensures that the headend accurately measures the power levels of the subscriber units and the noise floor. The HGC function is obtained by taking measurements of a calibrated noise source in the transverter. The radio rf-meas-interval calibration command is used to set the interval at which these measurements are taken.

Examples

The following example shows how to set the calibration noise measurement interval to 500 seconds:
Router(config-if)# radio rf-meas-interval calibration 500
Related Commands

Command

Description

radio rf-meas-interval ambient

Used for setting the measurement interval of the ambient noise for performing Noise Floor Statistics functions.

show interface slot/dsport rf-meas-interval

Displays the intervals of the ambient noise and the calibration noise measurements of the radio card for the specified slot and downstream port numbers.

radio self-test

To test the memory and hardware integrity of the wireless modem card, use the radio self-test interface configuration command. To configure a link without a self-test, use the no form of this command.

radio self-test
no radio self-test
Syntax Description

enable

(Optional) Causes execution of self-tests each time the card is initiated.

Defaults

Self-test is disabled by default.

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Usage Guidelines

Self-test is executed when microcodes are loaded in each of the field-programmable gate arrays (FPGAs) and digital signal processes (DSPs) when the router loads, or after a microcode reload command is executed. Self-test is not executed on each no shut command.

Examples

The following example shows how to download and execute self-tests each time the modem card is enabled:
UBR04(config-if)# radio self-test
Related Commands

Command

Description

show running-configuration interface radio

Displays the current settings.

radio shared-secret

To activate authentication so that all subscriber units must return a known text string to register with the Cisco headend for access to the network, use the radio shared-secret interface configuration command. To disable the authentication, use the no form of this command.

radio shared-secret [0 | 7 |] authen-key
no radio shared-secret
Syntax Description

0

Specifies that an unencrypted password will follow.

7

Specifies that an encrypted password will follow.

authen-key

Specifies that the unencrypted is a shared-secret string. Valid authentication key range is 1 to 80 characters.

Defaults

no radio shared-secret

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to activate authentication of a shared-secret key, and indicates that an encrypted message will follow:
Router(config-if)# radio shared-secret 7 555533344cisco
radio snapshot

To create a snapshot specification on the radio modem card, use the radio snapshot interface configuration command. To delete a specification and its associated data, use the no form of this command.

radio snapshot dspNum snapshotType [burstType]
no radio snapshot dspNum
Syntax Description

dspNum

Specifies the digital signal process (DSP) number (dsprx0, dsprx1. dsprx 2, or dsprx3).

snapshotType

Specifies the snapshot type. You can specify the bitwise OR operation value of as many as four of the following values in hexdecimal:

0x1—raw burst data received from a subscriber through antenna 1

0x2—raw burst data received from a subscriber through antenna 2

0x4—frequency spectrum received from antenna 1

0x8—frequency spectrum received from antenna 2

0x10—channel inpulse response for antenna 1 (what the physical channel looks like between the headend and the subscriber end)

0x20—channel inpulse response for antenna 2 (what the physical channel looks like between the headend and the subscriber end)

0x40—frequency domain of the channel-inpulse response for antenna 1 (for a group of subscriber units on an upstream channel)

0x80—frequecy domain of the channel-inpulse response for antenna 2 (for a group of subscriber units on an upstream channel)

0x100—frequency domain of the channel-inpulse response for antenna 1 (for a specific subscriber ID)

0x200—frequency domain channel-inpulse response for antenna 2 (for a specific subscriber ID)

0x400—Codec data

0x800—interference estimate for antenna 1

0x1000—interference estimate for antenna 2

0x200000—TSID power array for power data burst or received power wavelength for the up synchronization process. Shows a snapshot of subscribers on an automatic level control (ALC) window.

0x400000—correlation of power vector and power mask of the upstream ranging signal (power for initial ranging)

0x800000—initial ranging time domain channel for antenna 1

0x1000000—initial ranging time domain channel for antenna 2

0x2000000— initial ranging time domain channel for antenna 1 and antenna 2 combined

0x4000000—ranging smoothed time domain channel power

burstType

{initial-ranging | maint-range | sm-data| ra | power | null | short-data | long-data | inr-data | cable-pad}

initial-ranging

The range where a subscriber can register. Snapshot is taken when initial ranging burst is received.

maint-range

Keeps the link between a subscriber unit and headend "alive" even if data is not being transmitted. Snapshot is taken when a stationary range burst is received.

sm-data

Keeps the link between a subscriber unit and headend "alive" even if data is not being transmitted. Snapshot is taken when a stationary ranging data burst is received.

ra

Snapshot is taken when request access burst is received.

power

Snapshot is taken when automatic level control (ALC) burst is received.

null

Snapshot is taken when NULL burst is received. It measures ambient and calibration noise.

short-data

Snapshot is taken when data burst is received. It measures the actual traffic burst.

long-data

Snapshot is taken when data burst is received. It measures the actual traffic burst.

inr-data

Snapshot is taken when initial range data burst is received.

cable-pad

Snapshot is taken when cable-pad burst is received.

Defaults

No default behavior or values.

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Usage Guidelines

A snapshot is a specified amount of data captured from the wireless modem card.

When you issue a snapshot request, as many as four simultaneous radio signal attributes can be captured. The four attributes are specified by the bitwise OR operation data of as many as four of the snapshot types.

Examples

The following example shows how to create a snapshot specification for dsprx0:
Router(config-if)# radio snapshot dsprx0 1 initial-ranging
Related Commands

Command

Description

show interface radio snap-data

Displays the data captured for the snapshot specification.

show interface radio snap-spec

Displays the configured snapshot information.

radio source-verify

To verify that only hosts that have received DHCP leases through the Cisco headend can access the network, use the radio source-verify interface configuration command. The headend discards all packets received from hosts that have not received DHCP-assigned addresses. To deactivate upstream verification, use the no form of this command.

radio source-verify
no radio source-verify
Syntax Description

This command has no arguments or keywords.

Defaults

No default behavior or values.

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example activates upstream verification:
UBR(config-if)# radio source-verify
radio threshold

To configure a threshold specification, use the radio threshold interface configuration command. To delete a threshold specification, use the no form of this command.

radio threshold statsParams {MAC-address | chan-id} threshType threshValue [repeat-time] [clear-time] [dsp dspNum]
no radio threshold statsParams threshType
Syntax Description

statsParams

{sinr-ant1 | sinr-ant2 | sinr-total | timingOffset | rf-rx-power-ant1 | rf-rx-power-ant2 | chan-delay-spread-ant1 | chan-delay-spread-ant2 | power-amb}

sinr-ant1

Signal-to-interference plus noise ratio for antenna 1.

sinr-ant2

Signal-to-interference plus noise ratio for antenna 2.

sinr-total

Signal-to-interference plus noise ratio for antennas 1 and 2.

timingOffset

Represents the timing delay variations detected in the radio link.

rf-rx-power-ant1

Represents the receive power at the main RF headend (antenna gain is not included).

rf-rx-power-ant2

Represents the receive power at the diversity RF headend (antenna gain is not included).

chan-delay-spread-ant1

The offset for channel delay spread on antenna 1.

chan-delay-spread-ant2

The offset for channel delay spread on antenna 2.

power-amb

Represents the noise floor of the ambient environment, in decibels.

MAC-address

Specifies a particular subscriber unit.

chan-id

Specifies an upstream channel ID. Valid values are 0 to 3.

threshType

{high-thresh | low-thresh | up-change | down-change | pos-crossing | neg-crossing}

high-thresh

Specifies that the threshold condition is met when the value being monitored is above threshValue.

low-thresh

Specifies that the threshold condition is met when the value being monitored is below threshValue.

up-change

Specifies that the threshold condition is met when the positive change of the value being monitored is greater than threshValue.

down-change

Specifies that the threshold condition is met when the negative change of the value being monitored is greater than the threshValue.

pos-crossing

Specifies that the threshold condition is met when the value being monitored does a positive crossing (positive increase) of the threshValue.

neg-crossing

Specifies that the threshold condition is met when the value being monitored does a negative crossing (negative increase) of the threshValue.

threshValue

A 32-bit integer value.

repeat-time

Identifies how much time is left before another event of the same type is generated when oscillating across a threshold.

clear-time

Identifies how long the signal stays below a threshold before another event is generated.

dsp

Specifies one of the following digital signal process (DSP) numbers (dspNum): dsprx0, dsprx1, dsprx2, or dsprx3.

Defaults

No default behavior or values.

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Usage Guidelines

The following describes how clear-time and repeat-time work for the three scenarios:

1. If clear-time is any value and repeat-time is 0, the user is notified whenever one of the following threshold conditions are met: {high-thresh | low-thresh | up-change | down-change | pos-crossing | neg-crossing}.

2. If clear-time is greater than 0 and repeat-time is 0, the following occurs:

a. When a threshold condition is met for the first time, the user is notified.

b. When a threshold condition does not occur for the length of clear-time, the user is notified and the cycle continues with Step 2a.

3. If both clear-time and repeat-time are greater than 0, the following occurs:

a. When one of the threshold conditions occurs for the first time, the user is notified. After the first notification, no more notifications are sent for the length of repeat-time. At the end of repeat-time, the user is notified indicating how many times the user was not notified when the threshold condition occurred.

b. When a threshold condition stops being met for the length of clear-time period, the user is notified then the cycle starts with Step 3a.

Examples

The following example configures threshold specification for sinr-ant1 on channel 0:
Router(config-if)# radio threshold sinr-ant1 0 high 30
Related Commands

Command

Description

show interface radio thresholds

Displays the set of currently configured thresholds on the radio card.

radio timeline

To configure a timeline collection specification, use the radio timeline interface configuration command. To delete a timeline, use the no form of this command.

radio timeline statsParams {MAC-address | chan-id} size [dsp dspNum] [print-options {on | off}] [sampling-period] [tone {circular | average | number toneVal}]
[Trigger threshParams threshType postTrigBufmgt]
no radio timeline statsParams {MAC-address | chan-id}
Syntax Description

statsParams

{sinr-ant1 | sinr-ant2 | sinr-total | timingOffset | rf-rx-power-ant1 | rf-rx-power-ant2 | chan-delay-spread-ant1 | chan-delay-spread-ant2 | power-amb}

The data for the radio attribute is collected as a histogram.

sinr-ant1

Signal-to-interference plus noise ratio for antenna 1.

sinr-ant2

Signal-to-interference plus noise ratio for antenna 2.

sinr-total

Signal-to-interference plus noise ratio for antennas 1 and 2.

timingOffset

Represents the timing delay variations detected in the radio link.

rf-rx-power-ant1

Represents the receive power at the main RF headend (antenna gain is not included).

rf-rx-power-ant2

Represents the receive power at the diversity RF headend (antenna gain is not included).

chan-delay-spread-ant1

The offset for channel delay spread on antenna 1.

chan-delay-spread-ant2

The offset for channel delay spread on antenna 2.

power-amb

Represents the noise floor of the ambient environment, in decibels.

MAC-address

Specifies a particular subscriber unit.

chan-id

Specifies an upstream channel ID. Valid values are 0 to 3.

size

Specifies the number of values to be collected.

dsp

Specifies one of the following digital signal process (DSP) dspNum values: dsprx0, dsprx1, dsprx2, or dsprx3.

print-options

on or off.

sampling-period

Specifies, in seconds, the frequency of data collection.

Trigger

Specifies when the collection of data must stop. Trigger identifies a threshold specification. When the threshold is reached, the timeline collection is stopped.

threshParams

Has same attributes as statsParams.

threshType

{high-thresh | low-thresh | up-change | down-change | pos-crossing | neg-crossing}

high-thresh

Specifies that the threshold condition is met when the value being monitored is above threshValue.

low-thresh

Specifies that the threshold condition is met when the value being monitored is below threshValue.

up-change

Specifies that the threshold condition is met when the positive change of the value being monitored is greater than threshValue.

down-change

Specifies that the threshold condition is met when the negative change of the value being monitored is greater than the threshValue.

pos-crossing

Specifies that the threshold condition is met when the value being monitored does a positive crossing (positive increase) of the threshValue.

neg-crossing

Specifies that the threshold condition is met when the value being monitored does a negative crossing (negative increase) of the threshValue.

postTrigBufMgt

Specifies the position (position 1 or 2) of the trigger in the data collected. If the trigger position is 1, then most of the data collected before the trigger is returned. If the trigger position is 2, most of the data returned is captured after the occurrence of the trigger.

Defaults

No default behavior or values.

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Usage Guidelines

A timeline is a sequence of data values collected for a specified attribute. The amount of data collected is controlled by the size parameter. The maximum size is 1000 points.

Collection starts as soon as the command succeeds, and continues until the Trigger option occurs or the radio interface radio tl-stop command is entered.

Note Histograms and timelines share the same digital signal process (DSP) memory. A total of 10 histograms and timelines can be created on a single DSP. There are a total of 8 locations for fine histograms and timelines and 5 locations for coarse histograms. The combination of histograms and timelines must be less than 10.

Examples

The following example shows how to configure a timeline specification. The collection process starts as soon as the command succeeds. It collects a timeline for sirn-ant1. The timeline is collected on channel 3. The timeline size is 600 points. The rest of the parameters are optional and the system picks default values.
UBR04# radio timeline sinr-ant1 3 600
Related Commands

Command

Description

radio interface radio tl-start

Starts a stopped timeline specification.

radio interface radio tl-stop

Stops a running timeline specification.

show interface radio tl-data

Displays timeline data for the specified card.

show interface radio tl-spec

Displays the details of the timeline specification.

radio transmit-power

To set the transverter to transmit the specified amount of power (in dBm) when in operation, use the radio transmit-power interface configuration command. To disable this function, use the no form of this command.

radio transmit-power power-level
no radio transmit-power
Syntax Description

power-level

Positive number representing power stated in dBm. Transmit power range is between 4 and 33 dBm.

Defaults

No default behavior or values.

Command Modes

Interface configuration

Command History

Release

Modification

12.0(7)XR

This command was introduced.

12.1(1)T

Transmit power range was modified.

12.1(3)XQ1

Supported on the fixed wireless multipoint product.

Usage Guidelines

Maximum transmission power is limited by the capabilities of the transverter. In addition, your country's telecommunications authority (the FCC in the United States) regulates the maximum power. It is the responsibility of the installer and operator to comply with the relevant regulations.

To support the maximum number of users in an area, keep the power as low as possible while maintaining sufficient margin and performance. Refer to the Cisco Broadband Fixed Wireless Site Planning Guide for additional information.

Note The command takes effect on the next no shut.

Examples

The following example shows how to set the transmit power to +25 dBm:
UBR04(config-if)# radio transmit-power 25
Related Commands

Command

Description

show controllers radio rf

Displays the current transmit power settings.

radio upstream admission-control

To specify the percentage of the overbooking rate, use the radio upstream admission-control interface configuration command. To disable upstream admission control, use the no form of this command.

radio upstream portnum admission-control percentage
no radio upstream portnum admission-control
Syntax Description

portnum

Specifies the upstream port.

percentage

The admission control is set as a percentage of the specified upstream channel capacity. Percentage limits overbooking. Valid values are from 100 to 10000 percent.

Defaults

Disabled

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to limit overbooking on upstream port 4 to 1000 percent:
Router(config-if)# radio upstream 4 admission-control 1000
radio upstream data-backoff

To set fixed start and stop values for initial ranging backoff on the upstream port, use the radio upstream data-backoff interface configuration command. To set the initial ranging backoff values to the default start and end values, use the no form of this command.

radio upstream n data-backoff start-value end-value [auto]
no radio upstream n data-backoff
Syntax Description

n

Specifies the upstream port number.

start-value

Specifies the initial ranging start backoff value. Valid start values are 0 to 15; 0 is the default start value.

end-value

Specifies the initial ranging end backoff value. Valid end values are 0 to 15; 4 is the default end value.

auto

Specifies the automatic changed data backoff value.

Defaults

The default initial ranging value is auto.

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to set the initial ranging start and end backoff values to 2 and 4, respectively, for upstream port 2:
UBR(config-if)# radio upstream 2 data-backoff 2 4
Related Commands

Command

Description

radio upstream range-backoff

Sets the start and end ranging backoff values.

radio upstream description

To store a string description about a particular upstream channel, use the radio upstream description interface configuration command. To disable this function, use the no form of this command.

radio upstream usport description [string]
no radio upstream description
Syntax Description

usport

Specifies the upstream port number. Valid values are o to 3.

string

User-defined string that the router retains in the configuration file that describes the specified port number. Valid values are 1 to 80 characters.

Defaults

No default behavior or values.

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to set a description for upstream port 2:
Router(config-if)# radio upstream 2 description sampledescription
radio upstream frequency

To specify the upstream radio frequency, use the radio upstream frequency command. To disable this function, use the no form of this command.

radio upstream frequency [freq] width [width]
no radio upstream frequency
Syntax Description

freq

The frequency in kHz (dBs are allowed). Valid range is 0 to 50000000 kHz.

width

The keyword used for specifying the bandwidth.

width

The bandwidth in MHz. The width must be supported by the RF/IF modules.

Defaults

The default bandwidth will depend on the band that your multipoint system uses.

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Usage Guidelines

The radio interface cannot be enabled unless a center frequency is specified. Specify the center frequency and the badwidth for the whole upstream channel group. The following is a pictorial representation of the center frequency:

Examples

The following example shows how to set the upstream center frequency for the radio mode in slot 6, port 0:

UBR(config-if)# interface radio 6/0 radio upstream 0 frequency 5700000

Related Commands

Command

Description

show controllers radio slot/port upstream

Displays the specified center frequency for the upstream port that has been configured.

show controllers radio slot/port rf

Displays the allowed ranges of frequency.

radio upstream range-backoff

To set fixed start and stop values for ranging backoff on the upstream ports, use the radio upstream range-backoff interface configuration command. To set the ranging backoff values to the default start and end values, use the no form of this command.

radio upstream n range-backoff start-value end-value[auto]
no radio upstream n range-backoff
Syntax Description

n

Specifies the upstream port number.

start-value

Specifies the start ranging backoff value. Valid start values are 0 to 15. The default start value is 0.

end-value

Specifies the end ranging backoff value. Valid end values are 0 to 15. The default end value is 4.

auto

Specifies the automatic change data backoff value.

Defaults

The default initial ranging value is auto.

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to set the start and end ranging backoff values to 2 and 4, respectively, for upstream port 2:
UBR(config-if)# radio upstream 2 range-backoff 2 4
Related Commands

Command

Description

radio upstream data-backoff

Sets the initial ranging start and end backoff values.

radio upstream rate-limit

To set the upstream rate limiting for an upstream port on an upstream channel, use the radio upstream rate-limit interface configuration command. To disable the upstream rate limiting, use the no form of this command.

radio upstream portnum rate-limit [token-bucket [shaping]]
no radio upstream portnum rate-limit
Syntax Description

portnum

Specifies the upstream port number. Valid values are 0 to 3.

token-bucket

This optional keyword applies the token bucket algorithm.

shaping

This optional keyword applies the token bucket policing with grant shaping.

Defaults

The rate-limit token-bucket is the default setting.

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to use the token bucket filter algorithm for upstream port 4:
Router(config-if)# radio upstream 4 rate-limit token-bucket
Related Commands

Command

Description

radio downstream rate-limit

Controls downstream rate limiting.

radio upstream shutdown

To activate the radio frequency carrier on the upstream ports, use the radio upstream shutdown command. Each upstream port must be activated to enable upstream data from the subscriber units to the Cisco uBR7200 series. To enable upstream data traffic, use the no form of this command.

radio upstream portnum shutdown
no radio upstream portnum shutdown
Syntax Description

portnum

Specifies the upstream port number. Valid values are o to 3.

Defaults

The upstream data traffic is disabled.

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Examples

The following example shows how to activate upstream port 2 to enable upstream data flow from the subscriber unit to the headend:
Router(config-if)# radio upstream 2 shutdown
radio upstream subchannel

To create a radio upstream in a subchannel configuration to use a specific modulation profile, use the radio upstream subchannel interface configurtion command. To disable this function, use the no form of this command.

radio upstream n subchannel sc modulation-profile p
no radio upstream subchannel sc modulation-profile p
Syntax Description

n

User-specified logical index number. Valid range is 1 to 255.

sc

Specifies the subchannel assignment. Valid range is 1 to 7.

p

Specifies the modulation profile to use. Valid range is 1 to 32. The modulation profiles are created with the radio modulation-profile command.

Note The width specified by the radio modulation-profile command must match the width of the subchannel to which this upstream is assigned. Also, note that the upstream must not overlap spectra with any other existing upstreams (for example, upstream 1 and upstream 4 should not be created because their spectra overlap).

modulation-profile

Creates modulation profiles for upstream and downstream channels.

Defaults

No default behavior or values.

Command Modes

Interface configuration

Command History

Release

Modification

12.1(3)XQ1

This command was introduced.

Hierarchical Navigation

Cisco WT2700 Wireless Suite

Multipoint Wireless Support for the Cisco uBR7200 Series Universal Broadband Router

Downloads

Table Of Contents

Multipoint Wireless Support for the Cisco uBR7200 Series Universal Broadband Router

Feature Overview

Multipoint Headend System

Multipoint Headend Components

Router

Wireless Modem Card

Power Feed Panel

Wireless Transverter

Benefits

Related Features and Technologies

Related Documents

Supported Platforms

Supported Standards, MIBs, and RFCs

Prerequisites

Configuration Tasks

Multipoint CLI Commands Classification

Overriding the Default Microcode Path

Configuring IF Loopback (Optional)

Configuring RF Loopback (Optional)

Configuring the Modulation Profile for a Wireless Link

Setting the Power Levels and Frequencies

Downstream Channel

Upstream Channel

Configuring the Automatic Level Control (ALC)

Verifying the Wireless Modem Card Configuration

Monitoring and Maintaining Multipoint Wireless Configurations

Configuration Examples

RF-RF Link Configuration

Downstream Channel Configuration

Upstream Channel Configuration

Splitting an upstream channel

Modulation Profiles Configurations

Command Reference

Startup Commands

Installation and Configuration Commands

Verification Commands

Operating Commands

Monitoring Commands

Troubleshooting Commands

clear radio flap-list

Syntax Description

Defaults

Command Modes

Command History

Usage Guidelines

Examples

Related Commands

clear radio link-metrics

Syntax Description

Defaults

Command Modes

Command History

Usage Guidelines

Examples

Related Commands

clear radio subscriber counters

Syntax Description

Defaults

Command Modes

Command History

Usage Guidelines

Examples

Related Commands

clear radio subscriber reset

Syntax Description

Defaults

Command Modes

Command History

Usage Guidelines

Examples

Related Commands

loopback

Syntax Description

Defaults

Command Modes
