Multihop VPDN
Feature Summary
Multihop Virtual Private Dialup Network (VPDN) solves two problems for users. They are described below.
•
It enables Multichassis Multilink PPP in multiple home gateways. It allows packets generated by the same remote host and received by two different home gateways in a multichassis stack group to be recombined successfully on the initial home gateway contacted.
Multihop VPDN solves the problem of multilink packets generated from the same remote host being unable to recombine once they arrive at the target home gateway in the corporate network. To arrive at the proper router, packets can traverse two tunnels en route to the first router contacted, generally called the bundle owner. Hopping over two tunnels is ordinarily not allowed, but with Multihop VPDN, multiple-tunnel hops are possible. For a detailed breakdown of the Multihop VPDN process, see the example in the "Functional Description" section.
•
Benefits
With Multihop VPDN, packets generated from a remote host can traverse more than one tunnel. Ordinarily, packets cannot hop through more than one tunnels. Packets received by different home gateways in a multiple home gateway stack must be recombined and resequenced on the bundle owner. Some instances require packets to be rerouted to the bundle owner in another home gateway, traversing more than two tunnels. Before even reaching the corporate network, the packets have already crossed a tunnel created by the VPDN, connecting the Network Access Server (NAS) to the corporate network. Once they arrive at the corporate network, the packets may have to traverse more than another tunnel, crossing home gateways to arrive at the bundle owner. This number of tunnel crossings would violate the multiple-tunnel rule, preventing the packets from successfully arriving at the bundle owner.
Multihop VPDN allows packets to pass through multiple tunnels using both L2F and L2TP protocols in a VPDN environment.
List of Terms
The following terms are useful in understanding Multihop VPDN functionality.
Basic Rate Interface (BRI). An ISDN interface that contains two B links and one D link of circuit switched communication of voice, video, and data.
bundle owner—Typically, the device that terminates the PPP connection of the call from the remote client. Once this device has terminated the connection, then it owns all connections generated by the client. As soon as the client hangs up, the terminating device is no longer the bundle owner.
Challenge Handshake Authentication Protocol (CHAP)—Security feature supported on lines using PPP encapsulation that prevents unauthorized access. CHAP does not itself prevent unauthorized access, it merely identifies the remote end. The router or access server then determines whether that user is allowed access.
hop—Term describing the passage of a packet between two network nodes (for example, two routers).
home gateway—A router which terminates an L2F/L2TP tunnel orginating from a network access server.
L2F—A tunneling protocol that allows an Internet service provider (ISP) or other access service to create a virtual tunnel to link a customer's remote site or remote users with corporate home networks.
L2TP—An extension to PPP merges features of two tunneling protocols: Layer 2 Forwarding (L2F) from Cisco Systems and Point-to-Point Tunneling (PPTP) from Microsoft. L2TP is an Internet Engineering Task Force (IETF) emerging standard, currently under codevelopment and endorsed by Cisco Systems, and other networking industry leaders.
L2TP Access Concentrator (LAC)—A device attached to a switched network fabric (such as, PSTN or ISDN) or colocated with a PPP end system capable of handling the L2TP protocol. A LAC device implements the media, over which L2TP passes traffic to one or more LNSs. The LAC may tunnel any protocol carried within PPP. LAC is the initiator of incoming calls and the receiver of outgoing calls. LAC is also known as NAS in Layer 2 Forwarding (L2F) terminology.
L2TP Network Server (LNS)---A device operating on any platform capable of PPP termination that handles the server side of the L2TP protocol. Since L2TP relies on the single media over which L2TP tunnels arrive, an LNS may have only a single LAN or WAN interface, yet still be able to terminate calls arriving at any of the LACs' full range of PPP interfaces. LNS is the initiator of outgoing calls and the receiver of incoming calls.
Multilink PPP—A protocol that provides the capability of fragmenting and reassembling packets to a single end-system across a logical pipe (also called a bundle) formed by multiple links. Multilink PPP provides bandwidth on demand.
Multichassis Multilink PPP—Multilink PPP with the additional capability for links to terminate at multiple routers with different remote addresses. This protocol is intended for situations with large pools of dial-in users, where a single chassis cannot provide enough dial-in ports.
Network Access Server (NAS)—A communications processor that connects asynchronous devices to a LAN or WAN through network and terminal emulation software. Performs both synchronous and asynchronous routing of supported protocols.
Password Authentication Protocol (PAP)—Authentication protocol that allows PPP peers to authenticate one another. The remote router attempting to connect to the local router is required to send an authentication request. Unlike CHAP, PAP passes the password and host name or username in the clear (unencrypted). PAP does not itself prevent unauthorized access, but merely identifies the remote end. The router or access server then determines if that user is allowed access. PAP is supported only on PPP lines.
Primary Rate Interface (PRI)—An ISDN interface that contains 23 B links and one D link of circuit switched communication of voice, video, and data. Also, it can be an E1 interface with 30 data channels.
stack group—A group of peer routers comprising a home gateway stack.
Stack Group Bidding Protocol (SGBP)—A protocol that determines the proper bundle owner for a packet after the packet is received from another home gateway.
stack group peer—Any router in a given home gateway stack. Stack groups do not need a lead router.
tunneling—Architecture that is designed to provide the services necessary to implement any standard point-to-point encapsulation scheme.
Virtual Private Dialup Network (VPDN)—A network that allows separate and autonomous protocol domains to share common access infrastructure, including modems, access servers, and ISDN routers. A VPDN enables users to configure secure networks that take advantage of ISPs that tunnel the company's remote access traffic through the ISP cloud.
Platforms
This feature is supported on the following routers and access servers:
•
•
•
•
•
•
•
•
•
•
•
•
Prerequisites
To use the VPDN Multihop feature, you need to configure the following entities on your network:
•
•
•
•
•
•
Supported MIBs and RFCs
There are no new MIBs or RFCs supported for this feature.
Functional Description
Multihop VPDN is useful in enabling packets to traverse up to four tunnels. Packet traversal of more than one tunnel is not permitted without the Multihop VPDN feature. Two scenarios are common where four tunnels need to be traversed by file packets.
•
•
The following process describes a common Multihop VPDN scenario where packets need to traverse multiple home gateways at a corporate network:
1
2
•
•
•
•
3
4
5
6
7
8
9
10
Figure 1 illustrates the Multihop VPDN process for traversing multiple home gateways. Figure 2 illustrates the Multihop VPDN process for traversing two consecutive home gateways (wholesale dial service).

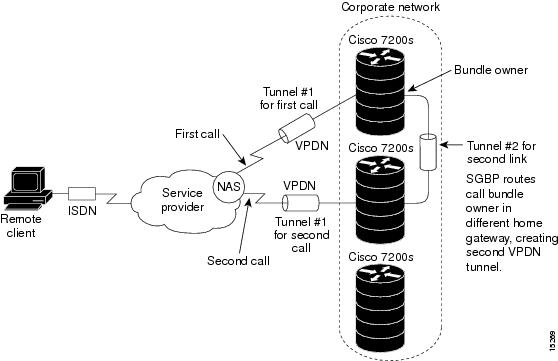

Figure 1 Multihop VPDN Enabling Traversal of Two Tunnels in Multiple Home Gateways
Figure 2 Multihop VPDN Enabling Traversal of Two Consecutive Home Gateways
Configuration Tasks
Connect your remote host to a service provider via either an ISDN line or pair of asynchronous lines. Make sure the service provider connects you to the destination network you are interested in reaching.
Use the following commands in Interface Configuration Mode:
Configuration Examples
The following example shows the scenario detailed in the "Functional Description" section and shown in Figure 1 where a packet traverses a VPDN tunnel over a service provider link and then a second tunnel by traversing a hop between home gateways on the corporate network. The bundle owner is Home-Gateway1 and the stack group peer, Home-Gateway2, is specified as a peer (1.1.1.2).
vpdn multihopusername stack password hellotheremultilink virtual-template 1sgbp group stacksgbp member Home-Gateway2 1.1.1.2interface virtual-template 1ip unnum e0ppp multilinkppp auth chapStack Group Bidding Protocol (SGBP) is initiated using the SGBP commands. SGBP identifies the proper bundle owner of the packets from a second call. Challenge Handshake Authentication Protocol (CHAP) is initiated using the command line ppp auth chap. CHAP is an authentication protocol that validates receipt of packets and ensures they are reassembled correctly upon receipt at a corporate network.
The following example shows code that specifies the home gateway as the next hop to another home gateway as shown in Figure 2:
vpdn incoming isp hp-gw virtual-template 1vpdn outgoing hp.com hp-gw ip 1.1.1.4Command Reference
This section documents the new vpdn multihop command.
vpdn multihop
To enable Multihop VPDN, use the vpdn multihop interface configuration command.
vpdn multihop
Syntax Description
This command has no arguments or keywords.
Default
Multihop is not enabled
Command Mode
Global configuration
Usage Guidelines
This command first appeared in Cisco IOS Release 11.3(5)T.
Before using the vpdn multihop command, refer to the Dial Solutions Configuration Guide to learn more about Multilink PPP and Multichassis Multilink PPP.
Example
The following example enables Multihop VPDN:
vpdn multihopWhat to Do Next
For more information, see sections on Multilink PPP and Multichassis Multilink PPP in the Dial Solutions Configuration Guide.
