Configuring Terminal Lines and Modem Support
This chapter explains how to configure lines and terminal settings. The router has three types of terminal lines: one console line, one auxiliary line, and five virtual (network) lines. Most line setup is the same for all types of lines, but certain commands, such as those having to do with modem control and Serial Line Internet Protocol (SLIP)/Point-to-Point Protocol (PPP) support, apply to the auxiliary port only.
For a complete description of the commands mentioned in this chapter, refer to the "Terminal Lines and Modem Commands" chapter in the Router Products Command Reference publication. To set terminal line characteristics for the duration of a session only, see the terminal EXEC commands in the Cisco Access Connection Guide.
Line Configuration Task List
You can perform one or more of the tasks in the following sections to configure your line:
•
Configure Automatic Baud Detection
•
•
•
•
•
•
•
•
•
•
•
•
See the "Configuration Examples" section at the end of this chapter for configuration examples.
Prepare to Configure Lines
Line configuration mode is used to set the terminal-specific parameters. From line configuration mode, you can enter special commands called line configuration commands that affect the auxiliary, console port, or virtual terminal line you have specified. To enter line configuration mode, complete the following task:
Step 1
configure1
[terminal]Step 2
line [aux | console | vty] line-number [ending-line-number]
1 This command is documented in the "System Image, Microcode Image, and Configuration File Load Commands" chapter in the Router Products Command Reference publication.
For example, to configure line parameters for the auxiliary port, at Step 2 in the preceding task, you would enter the following:
Router(config)# line aux 0The auxiliary relative line number must be 0. See the modem line configuration commands in the section "Set Up Modem Control on the Auxiliary Port" later in this chapter to set up modem support on the auxiliary port.
The terminal from which you locally configure the router is attached to the console port. To configure line parameters for the console port, at Step 2 in the preceding task you would enter the following:
Router(config)# line con 0The console relative line number must be 0.
Virtual terminal lines are used to allow remote access to the router. A virtual terminal line is not associated with either the auxiliary or console port. You can address either a single line or a consecutive range of lines. The router has five virtual terminal lines by default. However, you can create additional virtual terminal lines as described in the next section.
To configure virtual terminal line parameters, at Step 2 in the preceding task you would enter the following:
Router(config)# line vty line-number [ending-line-number]Configuring the console port or virtual terminal lines allows you to perform such tasks as setting communication parameters, specifying autobaud connections, and configuring terminal operating parameters for the terminal you are using. These tasks are described later in this chapter.
See the section "Line Configuration Example" at the end of this chapter for an example of how to configure a console line, virtual terminal lines, and an auxiliary line.
Create Additional Virtual Terminal Lines
The line vty command accepts a line number larger than 5 (up to the maximum allowed on that router with its current configuration). The router dynamically creates all the new virtual terminal lines between the current highest-numbered line and the number you specify. You can then configure those lines with additional line configuration commands.
See the section "Creating Additional Virtual Terminal Lines Example" at the end of this chapter for an example of how to add virtual terminal lines.
Eliminate Virtual Terminal Lines
To delete virtual terminal lines, perform the following task:
Step 1
configure1
[terminal]Step 2
no line vty line-number
1 This command is documented in the "System Image, Microcode Image, and Configuration File Load Commands" chapter in the Router Products Command Reference publication.
The router deletes the line number and all virtual terminal line numbers above that number.
You cannot delete virtual terminal lines that are in use; attempting to do so results in a warning message. Virtual terminal lines should be deleted on an idle system only. See the section "Eliminating Virtual Terminal Lines Example" at the end of this chapter for an example of how to eliminate virtual terminal lines.
Absolute versus Relative Line Numbers
Entering the line command with the optional type keyword (aux, con, or vty) designates the line number as a relative line number. You also can enter the line command without the optional type keyword. In this case, the line number is treated as an absolute line number. Absolute line numbers increment consecutively and can be difficult to manage on large systems. Relative line numbers are a shorthand process used in configuration. Internally, the router uses absolute line numbers. You cannot use relative line numbers everywhere, but you can use absolute line numbers everywhere.
The software keeps a table of absolute and relative line numbers that you can display with the EXEC command show users all. A sample display follows:
Line User Host(s) Idle Location0 con 01 aux 02 vty 0 incoming 0 SERVER.COMPANY.COM3 vty 14 vty 25 vty 36 vty 4Absolute line numbers are listed at the far left in the preceding example. Relative line numbers are in the third column, after the line type. In this example, the second virtual terminal line, line vty 1, is absolute line number 3.
To leave line configuration mode, enter another global configuration command or press Ctrl-Z.
Set Communication Parameters
The router supplies default serial communication parameters for terminal and other serial device operation. You can change these parameters as necessary to meet the requirements of the terminal or host to which you are attached. To do so, perform one or more of the following tasks in line configuration mode:
Configure Automatic Baud Detection
You can configure a terminal to automatically detect the baud rate being used over an asynchronous serial line. This command applies to the auxiliary port only. To set up automatic baud detection, perform the following task in line configuration mode:
To start communications using automatic baud detection, press Returns multiple times at the terminal. A 600-, 1800-, or 19200-baud line requires three Returns to detect the baud rate. A line at any other baud rate requires only two Returns. If you press Return after the baud rate is detected, the EXEC simply displays another system prompt.
Change the Default Privilege Level for Lines
To change the default privilege level for a given line or a group of lines, perform the following task in line configuration mode:
Specify a default privilege level for a line.
privilege level level 1
1 This command is documented in the "System Management Commands" chapter of the Router Products Command Reference publication.
Configure Flow Control for Communications
On the auxiliary port, you can set both hardware and software flow control between the router and devices attached to it. Both types of flow control are bidirectional. When you specify software flow control, an additional keyword specifies the direction: in causes the router to listen to flow control from the attached device, and out causes the router to send flow control information to the attached device. If you do not specify a direction, the router enables software flow control in both directions.
For software flow control, the default stop and start characters are Ctrl-S and Ctrl-Q (XOFF and XON), respectively. However, you can define characters or character sequences that signal the start and end of data transmission when software flow control is in effect. This capability is useful for providing control of data over the serial line.
You can also specify hardware flow control. For information about setting up the RS-232 line, see the hardware installation and maintenance manual for your product.
To configure flow control between the router and attached device, perform one or more of the following tasks in line configuration mode:
Define a Command String for Automatic Execution
You can set up a command that will automatically execute upon connection to another host. Any appropriate EXEC command and any switch or host name that occurs with the EXEC command is allowed. To do so, perform the following task in line configuration mode:
Create Packet Dispatch Sequences
The router supports configuration of dispatch sequences. You can set up dispatch characters that allow packets to be buffered, then transmitted upon receipt of a character. These characters are useful on an auxiliary port only, and then only if you have some special-purpose device hooked up.
To configure a dispatch sequence, perform one or both of the following tasks as needed for your particular system in line configuration mode:
Specify the Transport Protocol for a Specific Line
You can selectively specify the protocols allowed on individual lines. You can set the protocol for incoming and outgoing connections and change the default (preferred) protocol for a line. The default transport protocol is Telnet.
Selecting which command to use is determined by whether it is for incoming or outgoing connections or is being used as a default (preferred) selection.
Perform one or more of the following tasks in line configuration mode to specify transport protocols:
The system accepts a host name entry at the EXEC system prompt as a Telnet command. If you mistype the host name, the system interprets the entry as an incorrect Telnet command and provides an error message indicating that the host does not exist. The transport preferred none command disables this option so that if you mistype a command at the EXEC prompt, the system will not attempt to make a Telnet connection.
Establish Terminal Session Limits
You might need to control terminal sessions in high-traffic areas to provide resources for all users. You can define these limitations for terminal sessions:
•
•
To control terminal sessions, perform one or more of the following tasks in line configuration mode:
Note
Set Up Modem Control on the Auxiliary Port
You can configure modem control on the auxiliary port of the router. The auxiliary port is a standard RS-232-C DB-25 connector. Its output signals are Transmit Data (TXDATA), Data Terminal Ready (DTR), and Request To Send (RTS). The input signals are Receive Data (RXDATA), Clear to Send (CTS), RING, and Carrier Detect (CD).
You can perform the following modem control procedures on the router:
•
•
•
•
•
•
State diagrams accompany some of the tasks in the following sections to illustrate how the modem control works. The diagrams show two processes:
•
•
Figures 4-1 through 4-6.)In the diagrams, the current signal state and the signal the line is watching are listed inside each box. The state of the line (as displayed by the EXEC command show line) is listed next to the box. Events that change that state appear in italics along the event path, with actions that the software takes described within the ovals.

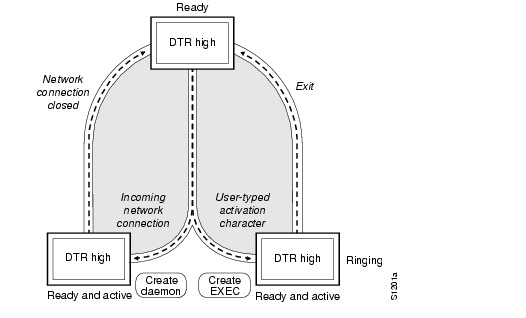

Figure 4-1 illustrates line behavior when no modem control is set. The DTR output is always high, and CTS and RING are completely ignored. The router creates an EXEC when the user types the activation character. Incoming TCP connections occur instantly if the line is not in use and can be closed only by the remote host.
Figure 4-1 EXEC and Daemon Creation on a Line with No Modem Control
Configure Automatic Dialing
With the dial-up capability, you can set a modem to automatically dial the phone number of a remote router. This feature offers cost savings because phone line connections are made as needed. You only pay for using the phone line when there is data to be received or sent. To configure a line for automatic dialing, perform the following task in line configuration mode:
Close Modem Connections
You can configure a line to close connections from a user's terminal when the terminal is turned off, and prevent inbound connections to devices that are out of service. To do so, perform the following task in line configuration mode:

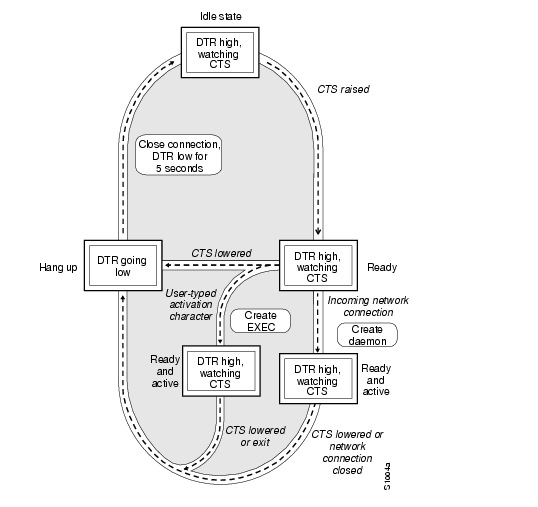

Figure 4-2 illustrates the modem cts-required process. This form of modem control requires that CTS be high throughout the use of the line. If CTS is not high, the user's typed input is ignored and incoming connections are refused (or step to the next line in a rotary group).
Note
Figure 4-2 EXEC and Daemon Creation on a Line Configured for Continuous CTS
Automatically Answer a Modem
You can configure a line to automatically answer a modem. You would also configure the modem to answer the telephone on its own as long as DTR is high, drop connections when DTR is low, and use its Carrier Detect (CD) signal to accurately reflect the presence of carrier (configuring the modem is a modem-dependent process). Wire the modem's CD signal (generally pin-8) to the router's RING input (pin-22), and perform the following task in line configuration mode:
You can turn on the modem's hardware flow control independently to act on the status of the router's CTS input. Wire CTS to whatever signal the modem uses for hardware flow control. If the modem expects to control hardware flow in both directions, you might also need to wire the modem's flow control input to some other signal that the router always has high (such as DTR).

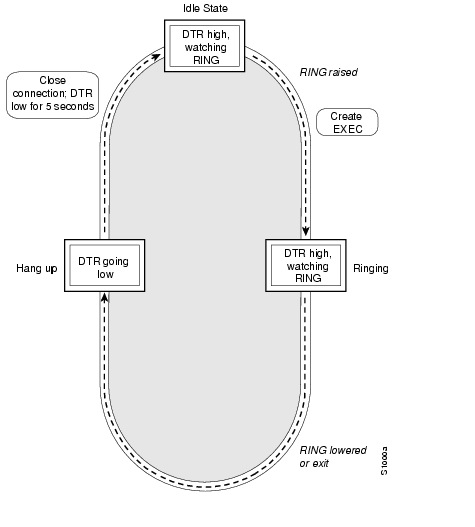

Figure 4-3 illustrates the modem ri-is-cd process. When the router detects a signal on the RING input of an idle line, it starts an EXEC or autobaud process on that line. If the RING signal disappears on an active line, the router closes any open network connections and terminates the EXEC. If the user exits the EXEC or the router terminates it because of no user input, the line hangs up the modem by lowering the DTR signal for five seconds. After five seconds, the modem is ready to accept another call.
Figure 4-3 EXEC Creation on a Line Configured for a High-Speed Dial-up Modem
Support a Dial-In Modem
The router supports dial-in modems that use DTR to control the off-hook status of the telephone line. Perform the following task in line configuration mode to configure the line to support this feature:

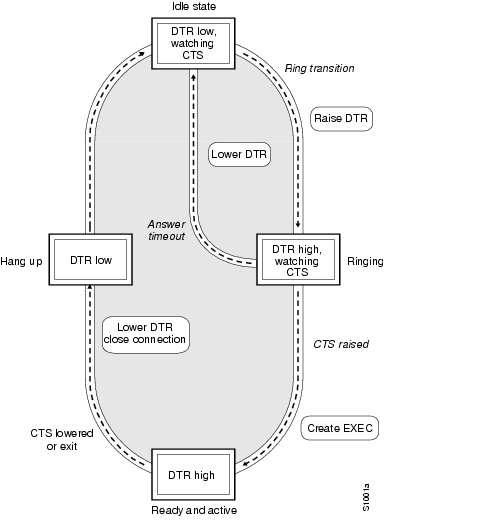

Figure 4-4 illustrates the modem callin process. When a modem dialing line is idle, it has DTR in a low state and waits for a transition to occur on the RING input. This transition causes the line to raise DTR and start watching the CTS signal from the modem. After the modem raises CTS, the router creates an EXEC on the line. If the timeout interval (set with the modem answer-timeout command) passes before the modem raises CTS, the line lowers DTR and returns to the idle state.
Figure 4-4 EXEC Creation on a Line Configured for Modem Callin
Note
Although you can use the modem callin line configuration command with newer modems, the modem ri-is-cd line configuration command described earlier in this section is more appropriate. The modem ri-is-cd command frees up CTS for hardware flow control. Modern modems do not require the assertion of DTR to take a phone line off-hook.
Support Reverse Modem Connections and Prevent Incoming Calls
The router supports ports connected to computers that are to be connected to modems. You can configure the router to behave somewhat like a modem by performing the following task in line configuration mode. This command also prevents incoming calls.

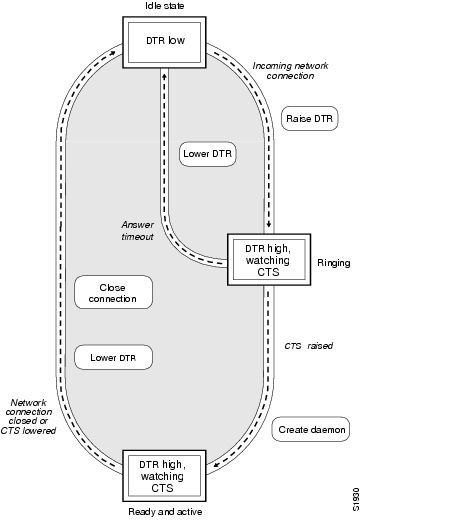

Figure 4-5 illustrates the modem callout process. When the router receives an incoming connection, it raises DTR and waits to see if the CTS becomes high as an indication that the host has noticed its signal. If the host does not respond within the interval set with the modem answer-timeout subcommand, the router lowers DTR and drops the connection.
Figure 4-5 Daemon Creation on a Line Configured for Modem Callout
Support Dial-In and Dial-Out Modems
You can configure a line for both incoming and outgoing calls by performing the following task in line configuration mode:

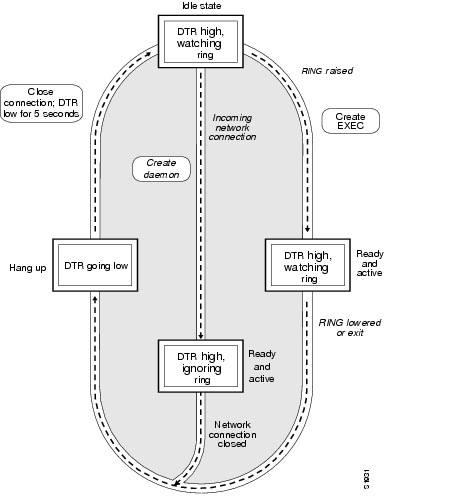

Figure 4-6 illustrates the modem in-out process. If the line is activated by raising RING, it behaves exactly as a line configured with the modem ri-is-cd subcommand described earlier. If the line is activated by an incoming TCP connection, the line behaves similarly to a nonmodem line.
Figure 4-6 EXEC and Daemon Creation on a Line Configured for Incoming and Outgoing Calls
Note
Configure a Line Timeout Interval
You can change the interval that the router waits for CTS after raising DTR in response to RING from the default of 15 seconds. To do so, perform the following task in line configuration mode. The timeout applies to the modem callin command only.
Configure Rotary Groups
Connections can be made to the next free line in a group of lines, also called a rotary or hunt group. A line can be in only one rotary group; a rotary group can consist of a single line or several contiguous lines. The console line (line 0) cannot be in a rotary group.
You might want to assign the rotary with the single auxiliary port line, because the auxiliary port is not necessarily the same line number on all hardware. By putting it in a rotary group, you do not have to track the actual line number. Another reason to use a rotary group is that if the device supports LAT, an inbound service can only be bound to a rotary group; it cannot be bound to a port number.
To configure a rotary group, perform the following task in line configuration mode:
Configure Automatic Line Disconnect
You can configure automatic line disconnect by performing the following task in line configuration mode:
The command causes the EXEC to issue the exit command when the last connection closes. This feature is useful for UNIX-to-UNIX Copy Program (UUCP) applications that require this behavior, because UUCP scripts cannot issue the command that hangs up the telephone.
Configure High-Speed Modem Support
Dial-up modems that operate over normal dial-up telephone lines at speeds of 9600 bits per second (bps) and higher are now available. These modems do not operate at a guaranteed throughput; instead, they operate at a speed dependent on the quality of the line, the effectiveness of data compression algorithms on the data being transmitted, and other variables. These modems use hardware flow control to stop the data from reaching the host by toggling an RS-232 signal when they cannot accept any more.
In addition to hardware flow control, dial-up modems require special software handling. For example, they must be configured to create an EXEC when a user dials in and to hang up when the user exits the EXEC. These modems must also be configured to close any existing network connections if the telephone line hangs up in the middle of a session.
Your router supports hardware flow control on its CTS input, which is also used by the normal modem handshake.
Perform the following tasks to configure and use a high-speed modem:
Step 1
flowcontrol hardware
Step 2
debug modem1
Step 3
show line2
Step 4
clear line
1 This command is documented in the Debug Command Reference publication.
2 This command is documented in the "User Interface Commands" chapter in the Router Products Command Reference publication.
Configure Chat Scripts for Asynchronous Lines
Chat scripts are strings of text used to send commands for modem dialing, for logging onto remote systems, and for initializing asynchronous devices connected to the line. On a router, chat scripts can be configured on the auxiliary port only. A chat script must be defined for dialing out on asynchronous lines.
You can configure chat scripts manually, or you can configure a line to activate a chat script in response to one of the following events on a line:
•
•
•
•
•
To use a chat script, perform the following steps:
Step 1
Step 2
Create a Chat Script
To define a chat script, perform the following task in global configuration mode:
Create a script that will place a call on a modem, log on to a remote system, or initialize an asynchronous device on a line.
chat-script script-name expect-send1
1 This command is documented in the "DDR Commands" chapter of the Router Products Command Reference publication.
A limited list of keywords is supported along with expect/send pairs. Send strings can have special escape modifiers.
For an example of how to write scripts, refer to configuration examples in the "Configuring DDR" chapter.
We recommend that you write two chat scripts: one "modem" chat script for placing a call and another "system" or "login" chat script to log on to remote systems, where required.
When you create a script name, include the modem vendor, type, and modulation separated by hyphens (-). For example, if you have a Telebit t3000 modem that uses V.32bis modulation, your script name would be telebit-t3000-v32bis.
Configure the Line to Activate Chat Scripts
Chat scripts can be activated by any of five events, each corresponding to a different version of the script line configuration command. To start a chat script manually at any point, refer to the section "Start a Chat Script Manually."
To define a chat script to start automatically when a specific event occurs, perform the following tasks in line configuration mode:
Start a chat script on a line when the line is activated (every time a command EXEC is started on the line).
script activation regexp1
Start a chat script on a line when a network connection is made to the line.
script connection regexp
Specify a modem script for DDR on a line.
script dialer regexp2
Start a chat script on a line whenever the line is reset.
script reset regexp
Start a chat script on a line whenever the system is started up.
script startup regexp
1 The argument regexp is a regular expression matched to a script name that has already been defined with the chat-script command.
2 To use a chat script for dial-on-demand routing (DDR), refer to information on specifying chat scripts for DDR in the chapter "Configuring DDR."
Start a Chat Script Manually
You can start a chat script manually on any line that is currently not active by performing the following task in privileged EXEC mode:
Start a chat script manually on any asynchronous line.
start-chat regexp [aux 0 [dialer-string]]
If you do not specify the line number, the script runs on the current line. If the line specified is already in use, you cannot start the chat script. A message appears indicating that the line is already in use.
LPD Protocol Support
We support a subset of the Berkeley UNIX Line Printer Daemon (LPD) protocol used to send print jobs between UNIX systems. This subset of the LPD protocol permits:
•
•
•
•
The Cisco implementation of LPD permits you to configure a printer to allow several types of data to be sent as print jobs (for example, PostScript or raw text).
Configure a Printer
To configure a printer for the LPD protocol, perform the following task in global configuration mode:
Configure printer and specify a tty line (or lines) for the device.
printer printername {line number | rotary number} [newline-convert]
If you use the printer command, you will also have to modify the /etc/printcap file on the UNIX system to include the definition of the remote printer on the access server. Use the optional newline-convert keyword on UNIX systems that do not handle single character line terminators to convert a newline to a carriage-return, linefeed sequence.
The following example includes the configuration of the printer Saturn on the host Memphis:
commlpt|Printer on cisco AccessServer:\:rm+memphis:rp+saturn:\:sd+/usr/spool/lpd/comm1pt:\:lf=?var/log/lpd/commlpt:The content of the actual file may differ depending on the configuration of your system.
Support Reverse TCP Connections
In addition to initiating connections, the router can receive incoming connections on the auxiliary port. This capability allows you to attach serial printers, modems, and other shared peripherals to the router and drive them remotely from other systems. The router supports reverse TCP connections.
The specific TCP port or socket to which you attach the peripheral device determines the type of service the router provides on that line. When you attach the serial lines of a computer system or a data terminal switch to the auxiliary port of the router, the router acts as a network front end for a host that does not support the TCP/IP protocols. This arrangement is sometimes called front-ending or reverse connection mode.
To connect the auxiliary port, the remote host or terminal must specify a particular TCP port on the router. If Telnet protocols are required, that port is 2000 (decimal) plus the decimal value of the line number.
If a raw TCP stream is required, the port is 4000 (decimal) plus the decimal line number. The raw TCP stream is usually the required mode for sending data to a printer.
The Telnet protocol requires that carriage return characters be translated into carriage return and linefeed character pairs. You can turn this translation off by specifying the Telnet binary mode option. To specify this option, connect to port 6000 (decimal) plus the decimal line number.
Define Terminal Operation Characteristics
In line configuration mode, you can set terminal operation characteristics that will be in operation for that line until the next time you change the line parameters.
Alternatively, you can temporarily change the line settings with the terminal EXEC commands provided in the Cisco Access Connection Guide.
You can define the following terminal operation characteristics:
•
•
•
•
•
•
•
•
•
Specify the Terminal Type
You can specify the type of terminal connected to a line. This feature has two benefits: it provides a record of the type of terminal attached to a line, and it can be used in Telnet terminal negotiations to inform the remote host of the terminal type for display management. To specify the terminal type, perform the following task in line configuration mode:
Set the Terminal Screen Length and Width
By default, the router provides a screen display of 24 lines by 80 characters. You can reconfigure these values if they do not meet the needs of your terminal by performing the following tasks in line configuration mode:
The values set can be learned by some host systems that use this type of information in terminal negotiation. Set a value of zero for the screen length to disable pausing between screens of output.
Define Escape Character and Other Key Sequences
You can define or modify the default key sequences to execute functions for system escape, terminal activation, disconnect, and terminal pause. To define or change the default sequence, perform one or more of the following tasks in line configuration mode:
You can reinstate the default value for the escape character or activation character by using the no form of the command. For example, issuing the no escape-character line configuration command returns the escape character to Ctrl-^.
Note
Specify the International Character Display
You can use a 7-bit character set (such as ASCII) or you can enable a full 8-bit international character set (such as ISO 8859) to allow special graphical and international characters for use in banners and prompts, and to add special characters such as software flow control. These settings can be configured globally by interface or locally at the user level. Use the following criteria for determining the configuration mode to use to set up this feature:
•
•
Note
To specify a character set on a global basis, perform one or both of the following tasks in global configuration mode:
To specify a character set based on hardware or software, or on a per-line basis, perform the appropriate task in line configuration mode, as follows:
Note
Set Character Padding
You can change the character padding on a specific output character. Character padding adds a number of null bytes to the end of the string and can be used to make a string an expected length for conformity. To set character padding, perform the following task in line configuration mode:
Set padding on a specific output character for the specified line.
padding ascii-number count
Disable Enhanced Editing Mode
To disable enhanced editing mode and revert to the editing mode of previous software releases, perform the following task in line configuration mode:
Disable the enhanced editing features for a particular line.
no editing1
1 This command is documented in the "User Interface Commands" chapter of the Router Products Command Reference publication.
You might disable enhanced editing if you have prebuilt scripts, for example, that do not interact well when enhanced editing is enabled. You can reenable enhanced editing mode with the editing command.
Set a Terminal-Locking Mechanism
You can enable a terminal-locking mechanism that allows a terminal to be temporarily locked by performing the following task in global configuration mode:
After you configure the line as lockable, you must still issue the lock EXEC command to lock the keyboard.
Dedicate a Line to a Particular User
By default, user-set terminal parameters are cleared with the EXEC command exit or when the interval set with the exec-timeout line configuration command has passed. However, you can configure a line so that user-set terminal parameters are saved between sessions by performing the following task in line configuration mode:
Configure a line so that the terminal parameters the user sets remain in effect between terminal sessions.
private
Provide Line Connection Information after the Login Prompt
You can provide the host name, line number, and location each time an EXEC is started or an incoming connection is made. The line number banner appears immediately after the EXEC banner or incoming banner. It is useful for tracking problems with modems because it lists the host and line for the modem connection. Modem type information is also included if applicable.
To provide service line number information, perform the following task in global configuration mode:
Provide service line number information after the EXEC or incoming banner.
service linenumber
Enable Password Checking at Login
You can enable password checking on a particular line so that the user is prompted to enter a password at the system login screen. You must then also specify a password. Perform the following tasks in line configuration mode:
Step 1
login
Step 2
password password
You can enable password checking on a per-user basis, in which case authentication is based on the username specified with the username global configuration command, as described in the "Managing the System" chapter. To enable this type of password checking, perform one of the following tasks in line configuration mode:
Use the login tacacs command with TACACS and extended TACACS. Use the login authentication command with AAA/TACACS+.
By default, virtual terminals require passwords. If you do not set a password for a virtual terminal, it responds to attempted connections by displaying an error message and closing the connection. Use the no login command to disable this behavior and allow connections without a password.
See the section "Password Checking Examples" at the end of this chapter for examples.
For other access control tasks and password restrictions, including the enable password global configuration command that restricts access to privileged mode, see the "Managing the System" chapter.
Create Packet Dispatch Sequences
The router supports configuration of dispatch sequences. You can set up dispatch characters that allow packets to be buffered, then transmitted upon receipt of a character. These characters are useful on an auxiliary port only, and then only if you have some special-purpose device hooked up.
Perform the following tasks in line configuration mode, as needed for your particular system needs:
Configure Automatic Protocol Startup
To configure the router to allow an AppleTalk Remote Access (ARA), PPP, or SLIP session to start automatically, perform the following task in line configuration mode:
Configure a line to automatically start an ARA, PPP, or SLIP session.
autoselect {arap | ppp | slip} | during login
The autoselect command enables the router to start an appropriate process automatically when it receives a starting character. The router detects either a Return character, which is the start character for an EXEC session, or the start character for the ARA protocol. Using the optional during login argument enables the user to receive the username or password prompt without pressing the Return key. While the username or password is presented, you can choose to answer these prompts or to start sending packets from an autoselected protocol. Refer to the end of this chapter for configuration examples.
Note
Configure Terminal Banner Messages
You can configure the following types of messages that will be displayed to users of terminals connected to the router:
•
•
•
•
The following sections explain how to configure these messages and how to suppress display of message-of-the-day (MOTD) and line activation banners.
Configure a MOTD Banner
You can configure a message of the day (MOTD) to be displayed on all connected terminals. This message is displayed at login and is useful for sending messages that affect all network users, such as impending system shutdowns. To do so, perform the following task in global configuration mode:
Configure a Line Activation Message
You can configure a line activation message to be displayed when an EXEC process such as line activation or an incoming connection to a virtual terminal is created. To do so, perform the following task in global configuration mode:
Configure a message to be displayed on terminals with an interactive EXEC.
banner exec d message d
Configure an Incoming Message Banner
You can configure a message to be displayed on terminals connected to reverse Telnet lines. This message is useful for providing instructions to users of these types of connections. Reverse Telnet connections are described in more detail in the section "Support Reverse TCP Connections" earlier in this chapter.
To configure the message that will be sent on incoming connections, perform the following task in global configuration mode:
Configure messages to display on terminals connected to reverse Telnet lines.
banner incoming d message d
Configure an Idle Terminal Message
You can configure messages to be displayed on a console or terminal not in use. Also called a vacant message, this message is different from the banner message displayed when an EXEC process is activated. To configure an idle terminal message, perform the following task in line configuration mode:
Enable or Disable the Display of Messages
You can control display of the MOTD and line activation banners. By default, these banners are displayed on all lines. To suppress or reinstate the display of such messages, perform one of the following tasks in line configuration mode:
Suppress banner display.
no exec-banner
Reinstate the display of the EXEC or MOTD banners.
exec-banner
For an example of how to use the banner global configuration command and no exec-banner configuration command to notify users of an event, see the section "Banner Message Example" at the end of this chapter.
Configure Telnet Capabilities
Telnet, a virtual terminal protocol that is part of the Transmission Control Protocol/Internet Protocol (TCP/IP) protocol suite, allows for connections to hosts. You can configure a line to support the Telnet capabilities described in the following sections:
•
•
•
•
•
•
•
