Configuring DDR
This chapter describes how to configure your router for dial-on-demand routing (DDR) and dial backup. For a complete description of the commands mentioned in this chapter, refer to the "DDR Commands" chapter in the Router Products Command Reference publication.
Cisco's Implementation of Dial Backup and DDR
Dial backup provides protection against WAN downtime by allowing you to configure a backup serial line circuit-switched connection. Dial backup software keeps the secondary line inactive (DTR inactive) until one of the following conditions is met:
•
The primary line goes down.
•
When the software detects a lost Carrier Detect signal from the primary line device or finds that the line protocol is down, it activates DTR on the secondary line. At that time, the DCE must be set to dial the remote site. When the connection is made, the routing protocol defined for the serial line will take over the task of transmitting traffic over the dialup line.
DDR provides network connections across the Public Switched Telephone Network (PSTN). Traditionally, networks have been interconnected using dedicated lines for wide-area network (WAN) connections. With DDR, you can use modems, Integrated Service Data Network (ISDN) terminal adapters (TAs), or integrated ISDN capabilities to establish low-volume, periodic network connections over public circuit-switched networks. You can also establish dial-up connections over X.25 or Frame Relay packet-switched networks by using LAPB, X.25, or Frame Relay encapsulations.
The following protocols can be routed over DDR: AppleTalk, Banyan VINES, CLNS, DECnet, IP, IPX, and XNS. For more information see the appropriate protocol configuration chapters.
Synchronous and asynchronous interfaces can be configured for DDR connections to one or more destination networks. When a packet is received for a remote network, the router uses dialing commands to send the phone number of the destination network to a modem. The modem (DCE device) then dials the destination DCE device and establishes a connection.

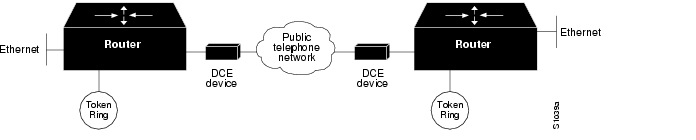

illustrates a typical DDR interconnection configuration.
Figure 8-1 DDR Interconnection
Fast Call Rerouting for ISDN
When DDR calls using an ISDN interface are not accepted, dialer is able to place the call again or proceed to other calls almost immediately, and does not have to wait for the dialer wait-for-carrier timer to expire. The ISDN software learns within a few seconds that a call was not accepted and always informs the dialer software, thus greatly reducing delays.
This feature is automatically enabled for all ISDN interfaces when the router software begins to run.
You can still modify the dialer wait-for-carrier timer for DDR interfaces, and the show dialer command still shows the destination number, if connected.
DDR Fast Switching
In the past, only process switching was available on interfaces configured for DDR. Process switching provided an acceptable level of performance because DDR was used on low-speed lines. Now, however, fast switching is required to take advantage of ISDN PRI and multiple BRI platforms.
Fast switching is enabled by default on DDR interfaces. It is enabled for two routed protocols, IP and IPX, and for two encapsulations, HDLC and PPP.
Fast-switching can be disabled and reenabled on a protocol-by-protocol basis on a DDR interface. For information on disabling and reenabling fast switching of protocols, see the "Disable and Reenable DDR Fast Switching" section later in this chapter.
Placing Calls Using DDR
On the router, DDR places calls using the following methods:
•
•
•
Chat Scripts on the Auxiliary Port
A chat script is a string of text that defines the login "conversation" that occurs between two systems. It consists of expect-send pairs that define the string that the local system expects to receive from the remote system and what the local system should send as a reply.
On asynchronous lines, our routers support chat scripts used to send commands for modem dialing and logging on to remote systems. To dial a call on an asynchronous line, a chat script must be defined. If multiple chat scripts are defined, regular expressions are used for powerful pattern matching to select between many scripts. See the "Regular Expressions" appendix in the Router Products Command Reference publication for information about regular expressions.
Note
V.25bis over Synchronous Interfaces
Our routers support connections from the synchronous serial interface to any DCE device that supports V.25bis. These devices include ISDN TAs for ISDN B-channel connections. V.25bis is an International Telecommunication Union Telecommunication Standardization Sector (ITU-T) recommendation for initiating calls using in-band signaling. Depending on the type of modem or CSU/DSU you are using, ITU-T V.25bis options might be supported.
Note
The V.25bis specification describes two modes of establishing or receiving calls: the direct call mode and the addressed call mode. Routers support connections using the addressed call mode and synchronous, bit-oriented operation. The addressed call mode allows control signals and commands to be sent over the DCE data interface to establish and terminate calls. These commands are packaged in High-Level Data Link Control (HDLC) synchronous data frames.
Devices used by the router for dialing out must support certain hardware signals in addition to V.25bis. When the router drops DTR, the device must disconnect any calls that are currently connected. When the device connects to the remote end, Data Carrier Detect (DCD) must be automatically asserted.
Note
lists V.25bis options. The V.25bis options are supported in the dial string (telephone number) only if you have enabled DDR using the dialer in-band command. These options are not supported in the dial string for native ISDN Basic Rate Interfaces (BRIs). The functions of these options are nation-specific, and they might have different implementations in your country. Refer to your modem or ISDN TA manual for a list of supported options.
Table 8-1 ITU-T V.25bis Options
DTR Dialing for Synchronous Interfaces
Our routers also support connections from synchronous serial lines through non-V.25bis modems. Routers connected by non-V.25bis modems must use data terminal ready (DTR) EIA signaling only.
For more information about configuring the router to support DTR dialing, see the "Configure Calls to a Single Site" section later in this chapter.
Controlling Access for DDR
DDR supports a variety of security and access control methods including the following:
•
Packets that are permitted entry according to the access list are identified as "interesting" or "packets of interest." Packets that are not permitted entry or are denied entry by an access list are deemed "uninteresting."
A router activates the dial-on-demand feature when it receives an interesting packet destined for a location that can be reached over a dialed connection through a PSTN. After the router dials the destination phone number and establishes a connection, packets can be transmitted. When the transmission is complete, after a configured period of line time during which there is no interesting traffic on the line, the line is automatically disconnected.
Note
•
•
Note
Dial Backup Configuration Task List
When you configure dial backup, you must first decide whether you want to back up when the primary line goes down, when traffic load on the primary line exceeds the defined threshold, or both. The tasks you perform depend on your decision. Perform one or more of the tasks in the following sections to configure dial backup:
•
Select Backup Line
To configure dial backup, set a secondary serial interface as a backup to a primary serial interface. An external data communications equipment (DCE) device, such as a modem attached to a circuit-switched service, must be connected to the secondary serial interface. The external device must be capable of responding to a DTR signal (DTR active) by auto-dialing a connection to a preconfigured remote site. To select a backup line, perform the following task in interface configuration mode:
Select a backup line.
backup interface serial number
or
backup interface slot/port
(For the Cisco 7000 series)
Note
The interface specified in the backup interface command can only back up one interface. For examples of selecting a backup line, see the "Dial Backup Using the Auxiliary Port Example" and the "Dial Backup Using DDR and ISDN Example" sections later in this chapter.
Define the Traffic Load Threshold
You can configure dial backup to activate the secondary line based on the traffic load on the primary line. The software monitors the traffic load and computes a five-minute moving average. If this average exceeds the value you set for the line, the secondary line is activated and, depending upon how the line is configured, some or all of the traffic will flow onto the secondary dialup line.
To define how much traffic should be handled at one time on an interface, perform the following task in interface configuration mode:
Define the traffic load threshold as a percentage of the primary line's available bandwidth.
backup load {enable-threshold | never}
{disable-load | never}
Define Backup Line Delays
You can configure a value that defines how much time should elapse before a secondary line status changes after a primary line status has changed. This means that you can define two delays:
•
•
To define these delays, perform the following task in interface configuration mode:
For examples of how to define backup line delays, see the sections "Dial Backup Using the Auxiliary Port Example" and "Dial Backup Using DDR and ISDN Example" later in this chapter.
DDR Configuration Task Overview
Before you configure the asynchronous interface on the auxiliary port to support DDR, configure the line as follows:
•
•
•
To configure your router for dial-on-demand routing, you must perform one of the tasks in the following sections:
•
•
•
You can also optionally customize, enhance, and monitor DDR by performing the tasks in the following sections:
•
•
•
•
See the "DDR Configuration Examples" section later in this chapter for examples of how to configure DDR on your network.
Configure an Interface to Place Calls
To configure a single interface, multiple interfaces, or dialer rotary groups to place calls, perform the following tasks:
Step 1
Step 2
Step 3
Step 4
The following sections describe these tasks.
Create Chat Scripts for Asynchronous Interfaces
You must define a chat script for dialing out on asynchronous lines, specifically the asynchronous interface on the auxiliary port. Chat scripts are used to send commands for modem dialing and logging on to remote systems.
To create a chat script, perform the following task in global configuration mode:
Create a script that will place a call on a modem and/or log on to a remote system.
chat-script script-name expect send
It is recommended that you write one chat script (a "modem" chat script) for placing a call and another one (a "system" or "login" chat script) to log onto remote systems, where required.
For an example of how to use chat scripts, see "Using Chat Scripts Example" later in this chapter.
Suggested Chat Script Naming Conventions
A suggested chat script naming convention is as follows:
vendor-type-modulation
In other words, the syntax of the chat-script command becomes the following:
chat-script vendor-type-modulation expect send...
For example, if you have a Telebit t3000 modem that uses V.32bis modulation, you would name your chat script as follows:
telebit-t3000-v32bis
The chat-script command could become the following:
Router(config)# chat-script telebit-t3000-v32bis ABORT ERROR ABORT BUSY ABORT "NO ANSWER" "" "AT H" OK "AT DT \T" DIALING \c TIMEOUT 30 CONNECT \cAdhering to this naming convention allows you to specify a range of chat scripts using partial chat script names with regular expressions. This is particularly useful for dialer rotary groups and is explained further in the "Configure an Interface to Receive Calls" section later in this chapter.
Specify Chat Scripts for DDR
After a chat script has been defined as described in the "Configuring Terminal Lines and Modem Support" chapter of this publication, it must be applied to a line or an interface before it can be used. To specify a chat script for a line, perform the following task in line configuration mode:
A maximum of one script dialer command can be configured per line. The chat script naming convention described in the "Configuring Terminal Lines and Modem Support" chapter of this publication allows you to specify a chat script by the type of the modem attached to that line as follows:
script dialer modem-type*
It is recommended that one chat script (a "dialer" chat script) be written for placing a call and another chat script (a "system" or "login" chat script) be written to log in to remote systems, where required.
UNIX-style regular expressions are used to match patterns and select between many scripts. This will be useful if you specify modem scripts on an interface that is used to dial multiple destinations. Dialing multiple destinations is described in the "Configure Calls to Multiple Sites" section. Regular expressions are described in the "Regular Expressions" appendix of the Router Products Command Reference publication.
You can also assign chat scripts to asynchronous interfaces for purposes other than DDR. For more information, refer to the chapter "Configuring Terminal Lines and Modem Support" in this publication.
Configure Calls to a Single Site
The modem chat script becomes the default chat script for an interface. This means that it becomes the default chat script for the dialer string and dialer map commands presented in this section.
To configure an interface to call a single site, perform the following steps:
Step 1
Step 2
For asynchronous interfaces, specify chat scripts and dial strings.To enable DDR and specify either DTR dialing or in-band dialing, perform one of the following tasks in interface configuration mode:
Configure a serial interface to use DTR dialing.
dialer dtr
Configure a serial interface to use in-band dialing.
dialer in-band [odd-parity | no-parity]
To call a single site over serial lines connected by non-V.25bis modems using EIA signaling only (specifically, the Data Terminal Ready [DTR] signal), you enable DDR using the dialer dtr command. A serial interface configured for DTR dialing can place calls only; it cannot accept them. Dialer rotary group leaders cannot be configured for DTR dialing.
For information about configuring the router that will receive the DTR calls, see the "Configure an Interface to Receive Calls from a Single Site" section.
To call a single site over serial lines connected by asynchronous interfaces or by V.25bis modems on synchronous interfaces, you enable DDR using the dialer in-band command. If using V.25bis modems, you can optionally specify parity. The 1984 version of the V.25bis specification states that characters must have odd parity. However, the default is no parity.
For an example of configuring an interface to support DTR dialing, see the section "DTR Dialing Configuration Example" later in this chapter.
For ISDN interfaces, the dialer in-band command is not required. The software automatically configures these interfaces to be dialer type ISDN.
Note
To place a call to a single site on an asynchronous line for which a modem script has not been assigned or a system script must be specified, perform the following task in interface configuration mode:
Specify chat scripts and a dial string.
dialer map protocol next-hop-address [modem-script
modem-regexp] [system-script system-regexp] dial-string
[isdn-subaddress]
Use the dialer map command to specify a chat script if no modem script is specified for the line or an additional (system) chat script is required to log in to the remote system.
You do not need to specify a system script if one of the following is true:
•
•
If you want to call only one remote system per interface, the dialer string command is useful. You do not need to use the dialer map command for authentication. Dialers pass the string you have defined to the external DCE. ISDN devices call the number specified in the string.
To specify the string (telephone number) to be called on serial interfaces (asynchronous or synchronous), perform the following task in interface configuration mode:
Configure Calls to Multiple Sites
You can configure your router to call multiple sites from a single line, from multiple lines, or from a dialer rotary group.
Calling on a Single Line or Multiple Lines
To configure your router to call multiple sites on a single line or on multiple lines, perform the following tasks:
Step 1
Step 2
To enable DDR on an interface, perform the following task in interface configuration mode:
Enable DDR on a serial interface. Set parity on synchronous serial interfaces only.
dialer in-band [no-parity | odd-parity]
To define dialing destinations, perform one of the following tasks:
Note
If you adhered to the chat script naming convention described earlier in this chapter, use the form [modem-script *modulation-type] in the dialer map command, as in ".*-v32bis." This allows you to specify the modulation type that is best for the system you are calling, and allows the modem type for the line to be specified by the modem chat-script command.
The period (.) is a wildcard that matches any character, and the asterisk (*) indicates that the preceding character can be duplicated multiple times. For more information about regular expressions, see the "Regular Expressions" appendix in the Router Products Command Reference publication.
If there is a modem script specified in the interface configuration command (dialer map) and a modem script specified in the line configuration command (modem chat-script), the first chat script that matches both will be used. If no script matches both, an error message is logged and the connection is not established. If there is no modem chat script specified for the line, the first chat script (chat-script global configuration command) that matches the modem script regular expression will be used. If there is a system script specified in the interface configuration command, the first chat script to match the regular expression will be used.
Configure a dialer map command for each remote destination for that interface.
Calling from Dialer Rotary Groups
Perform the following steps to configure your router to place multiple calls using a dialer rotary group.
Step 1
Step 2
Step 3
Step 4

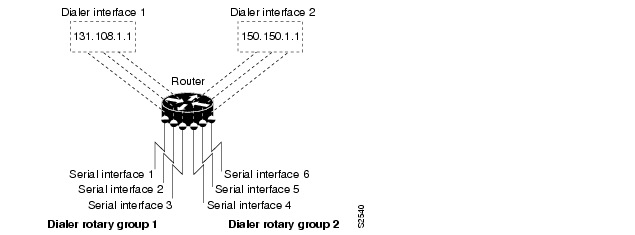

Dialer rotary groups allow you to apply a single interface configuration to a set of physical interfaces. Dialer rotary groups are useful in environments that have multiple callers and calling destinations. Configure a dialer interface unless you are only using a single line for dialing out or have a single line dedicated to each destination.
Note
A dialer rotary group is defined by specifying a "dialer interface." The dialer interface is not a physical interface; it is an entity that allows you to propagate an interface configuration to multiple interfaces. After the dialer interface is defined by a number, interface parameters are configured for the dialer interface. Finally, physical interfaces are assigned to the dialer rotary group. Physical interfaces inherit the interface dialer configuration parameters.
After an interface configuration is propagated to a set of physical interfaces, those interfaces can be used to place calls using standard DDR criteria. When many destinations are configured, any of the physical interfaces in a rotary group can be used for outgoing calls. When traffic arrives, an interface from the rotary group is dialed. When more traffic for a different host arrives, another interface is dialed. Using the dialer interface allows you to specify one set of dialer maps that can apply to multiple physical lines.
You can define up to 9 dialer interfaces. Perform the following tasks for each dialer rotary group.
To define a rotary group, perform the following task in global configuration mode:
To enable DDR for the dialer rotary group, perform the following task in interface configuration mode:
Enable DDR on a serial interface. Set parity on synchronous serial interfaces only.
dialer in-band [no-parity | odd-parity]
To define multiple dialing destinations for the dialer rotary group, perform one of the following tasks in interface configuration mode:
To assign a physical interface to a dialer rotary group, perform the following task in interface configuration mode:
Include the specified physical interface in a dialer rotary group in interface configuration mode.
dialer rotary-group number
Interfaces in a dialer rotary group do not have individual addresses; when the interface is being used for dialing, it inherits the parameters configured for the dialer interface. However, if the individual interface is configured with an address and it is subsequently used to establish a connection from the user EXEC level, the individual interface address again applies.
An ISDN BRI is a rotary group of B channels. An ISDN interface can be part of a rotary group comprising other interfaces (synchronous, asynchronous, ISDN BRI, or ISDN PRI). However, Cisco supports at most one level of recursion; that is, a rotary of rotaries is acceptable, but a rotary of rotaries of rotaries is not supported.
Note
illustrates how dialer interfaces work. In this example configuration, serial interfaces 1, 2, and 3 are assigned to dialer rotary group 1. This means that these three interfaces take on the parameters configured for dialer interface 1. For example, when it is being used for dialing, the IP address of serial interface 2 is the same as the address of the dialer interface, 131.108.1.1.
Figure 8-2 Sample Dialer Interface Configuration
Configure an Interface to Receive Calls
You can configure an interface or dialer rotary group to receive calls from a single site or from multiple sites. To configure a single line or multiple lines to receive calls from single or multiple sites, simply enable DDR. To receive calls from multiple sites on a dialer rotary group, configure the dialer rotary group to authenticate the caller.
Perform one of the following tasks to configure an interface to receive calls:
•
•
Note
Configure an Interface to Receive Calls from a Single Site
To configure an interface to receive a call from a single site, enable DDR using the dialer-in-band command. Dialers specified by this command use chat scripts for asynchronous interfaces and V.25bis on synchronous interfaces. Parity is not needed to enable DDR to receive calls only.
To receive calls from an interface that is using DTR dialing, an interface can be configured for in-band dialing or not configured for anything but encapsulation, depending on the desired behavior. If the receiving interface is expected to terminate a call when no traffic is received for some time, in-band dialing must be configured (along with access lists and a dummy dialer string). If the receiving interface is purely passive, no additional configuration is necessary.
To enable DDR and thus configure an interface to receive calls from a single site, perform the following task in interface configuration mode:
You cannot set up an ISDN interface to receive calls from a single site.
Configure an Interface to Receive Calls from Multiple Sites
You can configure your router to receive calls from multiple sites on a single line, on multiple lines, or on a dialer rotary group.
Configure an Interface to Receive Calls on a Single Line or Multiple Lines
No special configuration is required to receive calls on individual lines.
Configure an Interface to Receive Calls on a Dialer Rotary Group
To configure your router to receive calls on a dialer rotary group, follow these steps:
Step 1
Step 2
Step 3
Step 4
Assign a Rotary Group Leader
Dialer rotary groups allow you to apply a single interface configuration to a set of physical interfaces. Dialer rotary groups are useful in environments that have multiple callers and calling destinations. Configure a dialer interface unless you are only using a single line for dialing out.
A dialer rotary group is defined by specifying a "dialer interface." The dialer interface is not a physical interface; it is an entity that allows you to propagate an interface configuration to multiple interfaces. After you define the dialer interface by assigning it a number, you configure interface parameters for the dialer interface. Then, you assign physical interfaces to the dialer rotary group. Physical interfaces inherit the interface dialer configuration parameters.
After an interface configuration is propagated to a set of physical interfaces, those interfaces can be used to place calls using standard DDR criteria. When many destinations are configured, any of the physical interfaces in a rotary group can be used for outgoing calls. When traffic arrives, an interface from the rotary group is dialed. When more traffic for a different host arrives, another interface is dialed. Using the dialer interface allows you to specify one set of dialer maps that can apply to multiple physical lines.
Note
You can define up to nine dialer interfaces. For each dialer rotary group, perform the following task in global configuration mode:
Enable DDR on the Rotary Interface
To receive a call from multiple sites, you enable DDR using the dialer-in-band command. Dialers specified by this command use chat scripts for asynchronous interfaces and V.25bis on synchronous interfaces. Parity is not needed to enable DDR to receive calls only. To enable DDR, perform the following task in interface configuration mode:
Configure and Configure CHAP or PAP Authentication
The Point-to-Point Protocol (PPP) with Challenge Handshake Authentication Protocol (CHAP) authentication or Password Authentication Protocol (PAP) is often used to inform the central site about which remote routers are connected to it.
With this authentication information, if another packet is received for a destination to which the router is already connected, an additional call will not be placed. However, if using rotaries, the packet will be sent out the correct port.
CHAP and PAP are specified in RFC 1334. These protocols are supported on synchronous and asynchronous serial interfaces. When using CHAP or PAP authentication, each router identifies itself by a name, which informs the other router what routers are currently connected to it. This identification process prevents a router from placing a call to another router if it is already connected to that router and prevents unauthorized access. See the "Configuring Interfaces" chapter in this manual for more information about CHAP and PAP.
Note
When CHAP is enabled, a remote device (a PC, workstation, or router) attempting to connect to the local router is requested, or challenged, to respond. The challenge consists of a random number and the host name of the local router. This challenge is transmitted to the remote device. The required response is an encrypted version of a secret password, or secret, plus a random value and the name of the remote device.
The remote device finds the secret by looking up the host name that was received in the challenge. When the local router receives the challenge response, it verifies the response by looking up the name of the remote device given in the response. The secret passwords must be identical on the remote device and the local router. These names and secret passwords are configured using the username command.
By transmitting this response, the secret is never transmitted, preventing other devices from stealing it and gaining illegal access to the system. Without the proper response, the remote device cannot connect to the local router.
CHAP transactions occur only at the time a link is established. The local router does not issue a challenge during the rest of the call. (The local router can, however, respond to such requests from other devices during a call.)
When PAP is enabled, the remote router attempting to connect to the local router is required to send an authentication request. If the username and password specified in the authentication request are accepted, the router sends an authentication acknowledgment.
To use CHAP or PAP, you must perform the following tasks:
Step 1
Step 2
Step 3
To enable PPP encapsulation, perform the following task in interface configuration mode:
Enable PPP on an interface.
encapsulation ppp1
1 This command is documented in the "Interface Commands" chapter of the Router Products Command Reference publication.
To enable CHAP or PAP on an interface configured for PPP encapsulation, perform one of the following tasks in interface configuration mode:
Enable CHAP on an interface.
ppp authentication chap [if-needed]
Enable PAP on an interface.
ppp authentication pap
After you have enabled CHAP or PAP, the local router requires authentication from remote devices that are calling in. If the remote device does not support the authentication protocol, no traffic will be passed to that device.
To specify the password to be used in CHAP caller identification, perform the following task in global configuration mode:
Add a username entry for each remote system from which the local router requires authentication.
The host name of each site calling in to the local router needs to be mapped to its address. To map a next hop address to a host name (case-sensitive), perform the following task in interface configuration mode:
Configure a serial interface to map host names to next hop addresses (for rotary groups only).
dialer map protocol next-hop-address name hostname
Assign an Interface to a Dialer Rotary Group
To assign a physical interface to a dialer rotary group, perform the following task in interface configuration mode:
Include the specified physical interface in a dialer rotary group.
dialer rotary-group number
Interfaces in a dialer rotary group do not have individual addresses; when the interface is being used for dialing, it inherits the parameters configured for the dialer interface. However, if the individual interface is configured with an address and it is subsequently used to establish a connection from the user EXEC level, the individual interface address again applies.
Configure an Interface to Place and Receive Calls
Perform tasks in one of the following sections to configure an interface to place and receive calls:
•
•
You can configure an interface or dialer rotary group to both place and receive calls. If the interface is calling and being called by a single site, simply enable DDR and specify a dialer string. For calling and receiving calls from multiple sites, an interface or dialer rotary group must be configured to authenticate callers and to map next hop addresses to phone numbers or dial strings.
Place and Receive Calls from a Single Site
To configure your router to place calls to and receive calls from a single site, perform the following tasks in interface configuration mode:
Step 1
Step 2
When a dialer string is configured on an interface and CHAP is not, any incoming call is assumed to be from the configured dialer string.
To call and receive a call from a single site, you enable DDR using the dialer-in-band command. Dialers specified by this command use chat scripts on asynchronous interfaces and V.25bis on synchronous interfaces. If using V.25bis, you can optionally specify parity. The 1984 version of the V.25bis specification states that characters must have odd parity. However, the default is no parity. To enable DDR, perform the following task in interface configuration mode:
Enable DDR on a serial interface. Set parity on synchronous serial interfaces only.
dialer in-band [no-parity | odd-parity]
To specify a dial-string destination for an interface, perform the following task in interface configuration mode:
Note
Place and Receive Calls from Multiple Sites
To configure a single line, multiple lines, or a rotary group to place calls to and receive calls from multiple sites, perform the following tasks in interface configuration mode:
Step 1
Step 2
Step 3
To call and receive calls from multiple sites, you enable DDR using the dialer-in-band command. Dialers specified by this command use chat scripts on asynchronous interfaces and V.25bis on synchronous interfaces. If using V.25bis, you can optionally specify parity. The 1984 version of the V.25bis specification states that characters must have odd parity. However, the default is no parity. To enable DDR, perform the following task in interface configuration mode:
Enable DDR on a serial interface. Set parity on synchronous serial interfaces only.
dialer in-band [no-parity | odd-parity]
To specify one destination dial string per interface, perform the following task in interface configuration mode:
Specify a string of numbers to dial (to configure one phone number on multiple lines only).
dialer string dial-string[:isdn-subaddress]
Calls from the multiple sites will need to be authenticated. Authentication can be done through CHAP. To enable CHAP on an interface and authenticate sites that are calling in, perform the following tasks in interface configuration mode:
Configure an interface for PPP encapsulation.
encapsulation ppp1
Enable CHAP.
or
Enable PAP.ppp authentication chap
or
ppp authentication papMap the next hop to host name and phone number.
dialer map protocol next-hop-address [modem-script modem-regexp] [system-script system-regexp] name hostname dial-string[:isdn-subaddress]
1 This command is documented in the "Interface Commands" chapter of the Router Products Command Reference publication.
See the "Create Chat Scripts for Asynchronous Interfaces" section and the "Specify Chat Scripts for DDR" section for an explanation of assigning chat scripts to an interface or dialer rotary group.

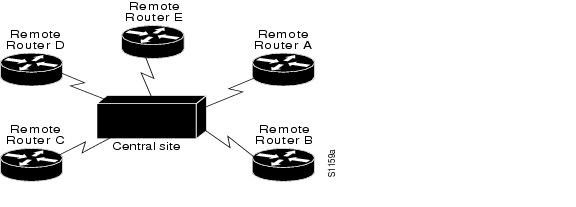

shows a configuration in which the central site is calling and receiving calls from multiple sites. In this configuration, multiple sites are calling in to a central site, and the central site is calling out to the remote sites.
Figure 8-3 Hub-and-Spoke Configuration Using Dial-on-Demand Routing
Configure Multilink PPP
Multilink PPP allows packets to be fragmented and the fragments to be sent at the same time over multiple point-to-point links to the same remote address. The multiple links come up in response to a dialer load threshold that you define. The load can be calculated on inbound traffic, outbound traffic, or on either, as needed for the traffic between the specific sites.
Multilink PPP is designed to work over single or multiple interfaces of the following types that are configured to support both dial-on-demand rotary groups and PPP encapsulation:
•
•
•
Configure Multilink PPP on Asynchronous Interfaces
To configure Multilink PPP on asynchronous interfaces, you configure the asynchronous interfaces to support DDR and PPP encapsulation, then you configure a dialer interface to support PPP encapsulation, bandwidth on demand, and Multilink PPP.
To configure an asynchronous interface to support DDR and PPP encapsulation, complete the following tasks beginning in global configuration mode:
Repeat this step for additional asynchronous interfaces, as needed.
At some point, adding more asynchronous interfaces does not improve performance, With the default MTU size, Multilink PPP should support three asynchronous interfaces using V.34 modems. However, packets might be dropped occasionally if the MTU is small or large bursts of short frames occur.
To configure a dialer interface to support PPP encapsulation and Multilink PPP, complete the following tasks beginning in global configuration mode:
Configure Multilink PPP on a Single ISDN BRI Interface
To enable multilink PPP on a single Integrated Services Digital Network (ISDN) BRI interface, you are not required to define a dialer rotary group separately because ISDN interfaces are dialer rotary groups by default. To enable PPP on an ISDN BRI interface, perform the following tasks beginning in global configuration mode:
If you do not use PPP authentication procedures (Step 8), your telephone service must pass caller ID information.
Configure Multilink PPP on Multiple ISDN BRI Interfaces
To enable multilink PPP on multiple ISDN BRI interfaces, you configure the BRIs separately and add them each to the same rotary group. Then you set up a the dialer rotary interface and configure it for multilink PPP.
To configure each of the BRIs to belong to the same rotary group, perform the following tasks beginning in global configuration mode:
Repeat Steps 1 through 7, above, for each BRI you want to belong to the same dialer rotary group.
To set up the dialer rotary interface for the BRI interfaces, perform the following tasks beginning in global configuration mode:
If you do not use PPP authentication procedures (Step 10), your telephone service must pass caller ID information.
Configure PPP Callback
PPP callback provides a client-server relationship between the end points of a point-to-point connection. PPP callback allows a router to request that a dial-up peer router call back. The callback feature can be used to control access and toll costs between the routers.
When PPP callback is configured on the participating routers, the calling router (the callback client) passes authentication information to the remote router (the callback server), which uses the host name and dialstring authentication information to determine whether to place a return call. If the authentication is successful, the callback server disconnects and then places a return call. The remote username of the return call is used to associate it with the initial call so that packets can be transmitted.
Both routers on a point-to-point link must be configured for PPP callback. The callback client must be configured to initiate PPP callback and the callback server must be configured to accept PPP callback.
This feature implements the following callback specifications of RFC 1570:
•
•
Return calls are made using the same dialer rotary group but not necessarily the same line as the initial call.
Note
Configure a Router as a Callback Client
To configure a router interface as a callback client, complete the following tasks beginning in global configuration mode:
Configure a Router as a Callback Server
To configure a router as a callback server, complete the following tasks beginning in global configuration mode:
Step 1
interface serial number
Step 2
dialer in-band [no-parity | odd-parity]
Step 3
encapsulation ppp
Step 4
ppp authentication {chap | pap}
Step 5
dialer map protocol address name hostname class classname dialstring
Step 6
dialer hold-queue number timeout seconds
Step 7
dialer enable-timeout seconds
Step 8
ppp callback accept
Step 9
dialer callback-secure
Step 10
exit
Step 11
map-class dialer classname
Step 12
dialer callback-server [username] [dialstring]
1 Serial interfaces can accept the default timeout of 15 seconds. ISDN interfaces should set a shorter timeout (because of switch latency, the timeout period should be longer than 1 second).
Note
Configure Snapshot Routing
Snapshot routing, which is available on serial and ISDN lines, is a method of learning remote routes dynamically and then keeping the routes available for a period of time while regular routing updates are not being exchanged. This might be during periods when a remote site is not dialed into the local site or when a remote site has a dedicated connection to the local site but wishes to avoid the overhead of exchanging routing updates. Snapshot routing allows you to avoid configuring static routes when using dial-on-demand routing. It also eliminates the overhead required for sending periodic updates over dedicated serial lines.
When configuring snapshot routing, you choose one router on the interface to be the client router and one or more other routers to be server routers. The client router determines the frequency at which routing information is exchanged between routers.
Routing information is exchanged during an active period. During the active period a client router dials all the remote server routers for which it has a snapshot dialer map defined in order to get routes from all the remote locations. The server router provides information about routes to each client router that calls.
At the end of the active period, the router takes a snapshot of the entries in the routing table. These entries remain frozen during a quiet period. At the end of the quiet period, another active period starts during which routing information is again exchanged. See .

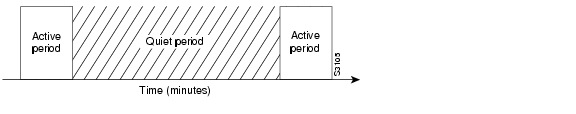

Figure 8-4 Active and Quiet Periods in Snapshot Routing
When the router transitions from the quiet period to the active period, the line might not be available for a variety of reasons. For example, the line might be down or busy, or the PVC might be down. If this happens, the router has to wait through another entire quiet period before it can update its routing table entries. This might be a problem if the quiet period is very long, for example, around 12 hours.
Snapshot routing is useful in two command situations:
•
•
The following routing protocols support snapshot routing. Note that these are all distance-vector protocols.
•
•
•
•
To configure snapshot routing, perform the tasks described in the following sections:
To monitor and maintain snapshot routing, see the "Monitor DDR Connections and Snapshot Routing" section.
Configure the Client Router
To configure snapshot routing on the client router that is connected to a dedicated serial line, perform the following steps starting in global configuration mode:
Step 1
interface serial number1
Step 2
snapshot client active-time quiet-time [suppress-statechange-updates] [dialer]
1 This command is documented in the "Interface Commands" chapter of the Router Products Command Reference publication.
To configure snapshot routing on the client router connected to an interface configured for DDR, perform the following steps starting in global configuration mode:
Step 1
interface serial number1
Step 2
dialer rotary-group number
Step 3
interface dialer number
Step 4
snapshot client active-time quiet-time [suppress-statechange-updates] [dialer]
Step 5
dialer map snapshot sequence-number dial-string
1 This command is documented in the "Interface Commands" chapter of the Router Products Command Reference publication.
Repeat Step 5 for each map you want to define. Maps must be provided for all the remote server routers this client router is to call during each active period.
ISDN BRI and PRI automatically have rotary groups, so you do not need to define a rotary group when configuring snapshot routing. To configure snapshot routing on the client router over an interface configured for BRI or PRI, perform the following steps:
Step 1
interface bri number 1
Step 2
snapshot client active-time quiet-time [suppress-statechange-updates] [dialer]
Step 3
dialer map snapshot sequence-number dial-string
1 This command is documented in the "Interface Commands" chapter of the Router Products Command Reference publication.
Repeat Step 3 for each map you want to define.
Configure the Server Router
To configure snapshot routing on the server router that is connected to a dedicated serial line, perform the following steps starting in global configuration mode:
Step 1
interface serial number1
Step 2
snapshot server active-time [dialer]
1 This command is documented in the "Interface Commands" chapter of the Router Products Command Reference publication.
To configure snapshot routing on the associated server router connected to an interface configured for DDR or over a BRI or PRI interface, perform the following steps beginning in global configuration mode:
Step 1
interface serial number1
Step 2
interface dialer number
Step 3
snapshot server active-time [dialer]
1 This command is documented in the "Interface Commands" chapter of the Router Products Command Reference publication.
The active period for the client router and its associated server routers should be the same.
Configure DDR over LAPB
Dial-on-demand routing over serial lines now supports LAPB encapsulation, in addition to the previously supported PPP, HDLC, and X.25 encapsulations.
LAPB encapsulation is supported on synchronous serial, ISDN, and dialer rotary group interfaces, but not on asynchronous dialers.
Because the default encapsulation is HDLC, you must explicitly configure LAPB encapsulation. To configure an interface to support LAPB encapsulation, perform the following task in interface configuration mode and also complete the DDR configuration of the interface:
Specify LAPB encapsulation.
encapsulation lapb [dte | dce] [multi | protocol]1
1 This command is documented in the "X.25 and LAPB Commands" chapter of the Router Products Command Reference publication.
For more information about the serial connections on which LAPB encapsulation is appropriate, see the encapsulation lapb command in the "X.25 and LAPB Commands" chapter of the Router Products Command Reference publication.
For an example of configuring an interface for DDR over LAPB, see the "LAPB Support Configuration Example" section later in this chapter.
Configure DDR over X.25
X.25 interfaces can now be configured to support DDR. Synchronous serial and ISDN interfaces on our routers can be configured for X.25 addresses, X.25 encapsulation, and mapping of protocol addresses to a remote host's X.25 address. In-band, DTR, and ISDN dialers can be configured to support X.25 encapsulation, but rotary groups cannot be configured to support X.25 encapsulation. On ISDN dialers configured for X.25 encapsulation, only one B channel can be used.
To configure an interface to support X.25, perform the following X.25-specific tasks in interface configuration mode and also complete the DDR configuration of the interface:
Step 1
encapsulation x25 [dte | dce] [ietf]1
Step 2
x25 address x.121-address11
Step 3
x25 map protocol address [protocol2 address2 [...[protocol9 address9] x.121-address [option]1
1 This command is documented in the "X.25 and LAPB Commands" chapter of the Router Products Command Reference publication.
The order of DDR and X.25 configuration tasks is not critical; you can configure DDR before or after X.25, and you can even mix the DDR and X.25 commands.
For an example of configuring an interface for X.25 encapsulation and then completing the DDR configuration, see the section "X.25 Support Configuration Example."
Configure DDR over Frame Relay
Access to Frame Relay networks is now available through dial-up connections as well as leased lines. Dial-up connectivity allows Frame Relay networks to be extended to sites that do not generate enough traffic to justify leased lines and also allows a Frame Relay network to back up another network or point-to-point line.
DDR over Frame Relay is supported for synchronous serial and ISDN interfaces and for rotary groups, and is available for in-band, DTR, and ISDN dialers.
Frame Relay supports multiple connections (PVCs) over the same serial interface or ISDN B-channel, but only one physical interface can be used (dialed, connected, and active) in a rotary group or with ISDN.
Configuration Restrictions
The following restrictions apply to DDR over Frame Relay:
•
•
•
Note
Configuration Overview
No new commands are required to support DDR over Frame Relay. In general, you configure Frame Relay and configure DDR. In general, complete the following steps to configure an interface for DDR over Frame Relay:
•
•
For example, enter the IP address and mask, the IPX network number, and the AppleTalk cable range and zone.
•
As a minimum, you must enable Frame Relay encapsulation and decide whether you need to do static or dynamic address mapping. If you decide to do dynamic mapping, you do not need to enter a command because Inverse ARP is enabled by default. If you decide to do static mapping, you must enter Frame Relay mapping commands.
You can then configure various options as needed for your Frame Relay network topology.
•
At a minimum, you must decide and configure the interface for outgoing calls only, incoming calls only, or both outgoing and incoming calls.
You can also configure DDR for your routed protocols (as specified in the "Configure DDR for Routed Protocols" section of this chapter) and for snapshot routing (as specified in the "Configure Snapshot Routing" section of this chapter). You can also customize DDR on your router (as described in the "Customize the DDR Network" section later in this chapter).
For examples of configuring various interfaces for DDR over Frame Relay, see the "Configure DDR over Frame Relay" section of this chapter.
Configure DDR for Routed Protocols
DDR supports the following routed protocols: AppleTalk, Banyan VINES, DECnet, IP, Novell IPX, ISO CLNS, and XNS.
To configure DDR for a routed protocol, perform the tasks in the relevant section:
•
Configure DDR for AppleTalk
To configure DDR for AppleTalk, you specify AppleTalk access lists and then define DDR dialer lists. Use the dialer-list protocol command to define permit or deny conditions for the entire protocol; for a finer granularity, use the dialer-list protocol command with the list keyword.
See the "Control Access to a DDR Interface" section for more information about defining dialer lists. For an example of configuring DDR for AppleTalk, see the "AppleTalk Configuration Example" section.
Configure DDR for Banyan VINES
To configure DDR for Banyan VINES, perform one of the following tasks in global configuration mode:
Specify a VINES standard access list.
orSpecify a VINES extended access list.
vines access-list access-list-number {permit | deny} source source-mask
vines access-list access-list-number {permit | deny} source source-mask [destination] [destination-mask] 1
1 This command is documented in the "Banyan Vines Commands" chapter of the Router Products Command Reference publication.
After you specify VINES standard or extended access lists, define DDR dialer lists as described in the "Control Access to a DDR Interface" section. Use the dialer-list protocol command to define permit or deny conditions for the entire protocol; for a finer granularity, use the dialer-list protocol command with the list keyword.
You can configure Banyan VINES on DDR synchronous and ISDN interfaces, as well as dialer rotary groups.
Note
See the "Control Access to a DDR Interface" section for more information about defining dialer lists.
For an example of configuring Banyan VINES over DDR, see the "Banyan VINES Configuration Example" section.
Configure DDR for DECnet
To configure DDR for DECnet, perform one of the following tasks in global configuration mode:
Specify a DECnet standard access list.
orSpecify a DEcnet extended access list.
access-list access-list-number {permit | deny} source source-mask
access-list access-list-number {permit | deny} source source-mask [destination] [destination-mask]1
1 This command is documented in the "DECnet Commands" chapter of the Router Products Command Reference publication.
After you specify DECnet standard or extended access lists, define DDR dialer lists as described in the "Control Access to a DDR Interface" section. Use the dialer-list protocol command to define permit or deny conditions for the entire protocol; for a finer granularity, use the dialer-list protocol command with the list keyword.
DECnet control packets, including hello packets and routing updates, are classified using one or more of the following commands: dialer-list protocol decnet_router-L1 permit, dialer-list protocol decnet_router-L2 permit, and dialer-list protocol decnet_node permit.
You can configure DECnet on DDR synchronous and ISDN interfaces, and dialer rotary groups.
See the "Control Access to a DDR Interface" section for more information about defining dialer lists.
For an example of configuring DECnet over DDR, see the "DECnet Configuration Example" section in this chapter.
Configure DDR for IP
To configure DDR for IP, perform one of the following tasks in global configuration mode:
Specify an IP standard access list.
orSpecify an IP extended access list.
access-list access-list-number {deny | permit} source [source-mask]
access-list access-list-number {deny | permit} protocol source source-mask destination destination-mask [operator operand]1
1 This command is documented in the "IP Commands" chapter of the Router Products Command Reference publication.
You can now also use simplified IP access lists that use the abbreviation any instead of the numeric forms of source and destination addresses and masks. Other forms of IP access lists are also available. For more information, see the "IP Commands" chapter of the Router Products Command Reference publication.
To use dynamic routing where multiple remote sites communicate with each other through a central site, you might need to disable the IP split horizon feature. See the "Configuring IP Routing Protocols" chapter for more information.
For an example of configuring DDR for IP, see the "Configure DDR for IP" section.
Configure ISO CLNS over DDR
To configure ISO CLNS for DDR, perform the following tasks, beginning in global configuration mode:
Step 1
clns filter-set sname [permit | deny] template1
Step 2
interface type number2
Step 3
clns access-group name out1
1 This command is documented in the "ISO CLNS Commands" chapter of the Router Products Command Reference publication.
2 This command is documented in the "Interface Commands" chapter of the Router Products Command Reference publication.
After you complete the CLNS-specific steps listed above, define a dialer list for CLNS, as described in the "Control Access to a DDR Interface" section. Use the dialer-list protocol command to define permit or deny conditions for the entire protocol; for a finer granularity, use the dialer-list protocol command with the list keyword. Use the access-group argument with this command, because ISO CLNS uses access groups but does not use access lists
CLNS control packets, including hello packets and routing updates, are classified using the dialer-list protocol clns_is permit and/or dialer-list protocol clns_es permit commands.
You can configure ISO CLNS on DDR serial synchronous and ISDN interfaces, as well as dialer rotary groups.
See the "Control Access to a DDR Interface" section for more information about defining dialer lists.
For an example of configuring ISO CLNS over DDR, see the "ISO CLNS Configuration Example" section.
Configure DDR for Novell IPX
On DDR links for Novell IPX, the link may come up often even when all client sessions are idle because the server sends watchdog/keepalive packets to all the clients approximately every five minutes. A local router with the DDR link can be configured to idle out the link and still make the server believe the clients are active by responding to the watchdog packets on behalf of the clients. To do so, perform the following tasks in interface configuration mode:
Step 1
Step 2
Step 3
You enable DDR using the dialer-in-band command. Dialers specified by this command use chat scripts on asynchronous interfaces and V.25bis on synchronous interfaces. If using V.25bis, you can optionally specify parity. The 1984 version of the V.25bis specification states that characters must have odd parity. However, the default is no parity. To enable DDR, perform the following task in interface configuration mode:
You must also disable IPX fast switching. To disable fast switching, perform the following task in interface configuration mode:
Disable fast switching for IPX.
no ipx route-cache1
1 This command is documented in the "Novell IPX Commands" chapter in the Router Products Command Reference publication.
After enabling DDR and disabling IPX fast switching for the interface, you can enable either IPX watchdog spoofing or SPX keepalive spoofing.
To enable IPX watchdog spoofing, perform the following task in interface configuration mode:
Enable IPX watchdog spoofing.
or
Enable SPX watchdog spoofing.
ipx watchdog-spoof1
1 This command is documented in the "Novell IPX Commands" chapter in the Router Products Command Reference publication.
To enable SPX keepalive spoofing, perform the following tasks in interface configuration mode:
Enable SPX keepalive spoofing.
ipx spx-spoof1
Set the idle time after which spoofing begins.
ipx spx-idle-time delay-in-seconds1
1 This command is documented in the "Novell IPX Commands" chapter in the Router Products Command Reference publication.
For a detailed DDR for IPX configuration example, see the "IPX over DDR Example" section in the "Configuring Novell IPX" chapter.
Configure XNS over DDR
To configure XNS for DDR, perform one of the following tasks in global configuration mode:
Specify a standard XNS access list.
or
Specify an extended XNS access list.
access-list access-list-number {deny | permit}
source-network[.source-address [source-address-mask]]
[destination-network[.destination-address
[destination-address-mask]]]or
access-list access-list-number {deny | permit} protocol [source-network[.source-host
[source-network-mask.]source-host-mask] source-socket [destination-network [.destination-host [destination-network-mask.destination-host-mask] destination-socket[/pep]]] 1
1 This command is documented in the "XNS Commands" chapter of the Router Products Command Reference publication.
After you specify an XNS access list, define a DDR dialer list, as described in the "Control Access to a DDR Interface" section. Use the dialer-list protocol command to define permit or deny conditions for the entire protocol; for a finer granularity, use the dialer-list protocol command with the list keyword.
You can configure XNS on DDR serial synchronous and ISDN interfaces, as well as dialer rotary groups.
See the "Control Access to a DDR Interface" section for more information about defining dialer lists.
For an example of configuring XNS over DDR, see the "XNS Configuration Example" section.
Configure DDR for Transparent Bridging
Our routers support transparent bridging over DDR and provide you some flexibility in controlling access and in configuring the interface.
To configure DDR for bridging, complete the tasks in the following sections:
•
•
•
Define the Protocols to Bridge
IP packets are routed by default unless they are explicitly bridged; all others are bridged by default unless they are explicitly routed.
To bridge IP packets, complete the following task in global configuration mode:
Disable IP routing.
no ip routing 1
1 This command is documented in the "IP Commands" chapter of the Router Products Command Reference publication.
If you choose not to bridge another protocol, use the relevant command to enable routing of that protocol. For more information about tasks and commands, refer to the relevant protocol chapter.
Specify the Bridging Protocol
You must specify the type of spanning tree bridging protocol to use and also identify a bridge group. To specify the spanning tree protocol and a bridge-group number, complete the following task in global configuration mode:
Define the type of spanning tree protocol and identify a bridge group.
bridge bridge-group protocol {ieee | dec}1
1 This command is documented in the "Transparent Bridging Commands" chapter of the Router Products Command Reference publication.
The bridge-group number is used when you configure the interface and assign it to a bridge group. Packets are bridged only among members of the same bridge group.
Control Access for Bridging
You can control access by defining any transparent bridge packet as interesting, or you can use the finer granularity of controlling access by Ethernet type codes. To control access for DDR bridging, complete one of the following tasks in global configuration mode:
•
Note
Permit All Bridge Packets
To identify all transparent bridge packets as interesting, complete the following task in global configuration mode:
Define a dialer list that treats all transparent bridge packets as interesting.
dialer-list dialer-group protocol bridge permit
Control Bridging Access by Ethernet Type Codes
To control access by Ethernet type codes, complete the following tasks in global configuration mode:
Identify interesting packets by Ethernet type codes (access list numbers must be in the range 200-299).
access-list access-list-number {permit | deny} type-code [mask]1
Define a dialer list for the specified access list.
dialer-list dialer-group protocol bridge list access-list-number
1 This command is documented in the "Transparent Bridging Commands" chapter of the Router Products Command Reference publication.
For a table of some common Ethernet types codes, see the "Ethernet Types Codes" appendix in the Router Products Command Reference publication.
Configure an Interface for Bridging
You can configure serial interfaces or ISDN interfaces for DDR bridging. To configure an interface for DDR bridging, complete all the tasks in the following sections:
•
Specify the Interface
To specify the interface and thus enter interface configuration mode, complete the following task, starting in global configuration mode:
Specify the serial or ISDN interface and enter interface configuration mode.
interface type number1
1 This command is documented in the "Interface Commands" chapter of the Router Products Command Reference publication.
Configure the Destination
You can configure the destination by specifying a dial string for unauthenticated calls to a single site, or by specifying a dialer bridge map when you want to use authentication.
To configure the destination for bridging over a specified interface, complete the following task in interface configuration mode:
Configure the dial string to call.
or
Configure a dialer bridge map.dialer string dial-string
dialer map bridge [name hostname] [broadcast] dial-string[:isdn-subaddress]
Note
Assign the Interface to a Bridge Group
Packets are bridged only among interfaces that belong to the same bridge group. To assign an interface to a bridge group, complete the following task in interface configuration mode:
Assign the specified interface to a bridge group.
bridge-group bridge-group1
1 This command is documented in the "Transparent Bridging Commands" chapter of the Router Products Command Reference publication.
Customize the DDR Network
Perform the tasks in the following sections to customize DDR in your network:
•
•
•
•
•
•
Set Line-Idle Time
To specify the amount of time a line will stay idle before it is disconnected, perform the following task in interface configuration mode:
Set Idle Time for Busy Interfaces
The fast-idle timer is activated if there is contention for a line. In other words, if a line is in use and a packet for a different next hop address is received, and the busy line is required to send the competing packet, the dialer fast-idle timer is activated.
If the line has been idle for the configured amount of time, the current call is disconnected immediately and the new call is placed. If the line has not yet been idle as long as the fast idle timer, the packet is dropped because there is no way to get through to the destination. (After the packet is dropped, the fast-idle timer remains active and the current call is disconnected as soon as it has been idle for as long as the fast idle timeout). If, in the meantime, there is another packet transmitted to the currently connected destination, and it is classified as interesting, the fast-idle timer is restarted.
To specify the amount of time a line for which there is contention will stay idle before the line is disconnected and the competing call is placed, perform the following task in interface configuration mode:
This command applies both to inbound and outbound calls.
Set Line-Down Time
To set the length of time an interface stays down before it is available to dial again after a line is disconnected or fails, perform the following task in interface configuration mode:
This command applies both to inbound and outbound calls.
Set Carrier-Wait Time
To set how long to wait for the telephone service (carrier), perform the following task in interface configuration mode:
Set how long to wait for the carrier to come up when a call is placed.
dialer wait-for-carrier-time seconds
For asynchronous interfaces, this command sets the total time to wait for a call to connect. This time is set to allow for running the chat script.
Control Access to a DDR Interface
Protocol access lists and dialer access lists are central to the operation of DDR. In general, access lists are used as the screening criteria for determining when to initiate DDR calls. All packets are tested against the dialer access list. Packets that match a permit entry are deemed interesting or packets of interest. Packets that do not match a permit entry or that do match a deny entry are deemed uninteresting. When a packet is found to be interesting, either the dialer idle timer is reset (if the line is active) or a connection is attempted (assuming the line available but not active). If a tested packet is deemed uninteresting, it will be forwarded if it is intended for a destination known to be on a specific interface and the link is active. However, such a packet will not initiate a DDR call and will not reset the idle timer.
Note
Acceptable access list protocols include various routing protocols, plus bridging. With the dialer-list protocol list command form, you can also specify Banyan VINES, ISO CLNS, and XNS access lists. See the dialer-list protocol command in the Router Products Command Reference publication for detailed information.
Before you perform the tasks outlined in this section, see the appropriate chapters for information about defining Banyan VINES, DECnet, IP, IPX, ISO CLNS, and XNS access lists. Define access lists if you want to control access on DDR interfaces by access lists rather than by protocols.
Step 1
Step 2
You can permit or deny access to an entire protocol or you can specify an access list for more refined control. To associate a protocol or access list with a dialer group, perform one of the following tasks in global configuration mode:
Note
For the dialer-list protocol list command form, acceptable access list numbers are Banyan VINES, DECnet, IP, and XNS standard and extended access list numbers; Novell IPX standard, extended, and SAP access list numbers; AppleTalk access lists numbers; and bridge type codes. ISO CLNS does not use access lists, but does allow filters and access groups to be specified. For the dialer-list list command, Banyan VINES and ISO CLNS are not available.
An interface can be associated only with a single dialer access group; multiple dialer access group assignments are not allowed.To specify the dialer access group to which you want to assign an access list, perform the following task in interface configuration mode:
Specify the number of the dialer access group to which the specific interface belongs.
dialer-group group-number
Set Dialer Interface Priority
You can assign dialer priority to an interface. Priority indicates which interface in a dialer rotary group will get used first. Perform the following task in interface configuration mode.
For example, you might give one interface in a dialer rotary group higher priority than another if it is attached to faster, more reliable modem. In this way, the higher-priority interface will be used as often as possible.
The range of values for n is 0 through 255. Zero is the default value and lowest priority; 255 is the highest priority. This command applies to outgoing calls only.
Configure a Dialer Hold Queue
Sometimes packets destined for a remote router are discarded because no connection exists. Establishing a connection using an analog modem can take time, during which packets are discarded. However, configuring a dialer hold queue will allow "interesting" outgoing packets to be queued and sent as soon as the modem connection is established.
A dialer hold queue can be configured on any type of dialer, including in-band synchronous, asynchronous, DTR, and ISDN dialers. Also, hunt group leaders can be configured with a dialer hold queue. If a hunt group leader (of a rotary dialing group) is configured with a hold queue, all members of the group will be configured with a dialer hold queue and no individual member's hold queue can be altered.
To establish a dialer hold queue, perform the following task in interface configuration mode:
Create a dialer hold queue and specify the number of packets to be held in it.
dialer hold-queue packets
As many as 100 packets can be held in an outgoing dialer hold queue.
Configure Bandwidth on Demand
You can configure a dialer rotary group to use additional bandwidth, by placing additional calls to a single destination if the load for the interface exceeds a specified weighted value. Parallel communication server links are established based on traffic load. The number of parallel links that can be established to one location is not limited.
To set the dialer load threshold for bandwidth on demand, perform the following task in interface configuration mode:
Configure the dialer rotary group to place additional calls to a single destination, as indicated by interface load.
dialer load-threshold load
Disable and Reenable DDR Fast Switching
Fast switching is enabled by default on all DDR interfaces. When fast switching is enabled or disabled on an ISDN D-channel, it is enabled or disabled on all B-channels. When fast switching is enabled or disabled on a dialer interface, it is enabled or disabled on all rotary group members but cannot be enabled or disabled on serial interfaces individually.
Fast switching can be disabled and reenabled on a protocol-by-protocol basis. To disable fast switching and reenable it, complete one of the following protocol-specific tasks:
Monitor DDR Connections and Snapshot Routing
To monitor DDR connections and snapshot routing, perform the following tasks in privileged EXEC mode:
Display general diagnostics about the DDR interface.
show dialer [interface type number]
Display information about the ISDN interface.
show interfaces bri 01
Terminate the snapshot routing quiet period on the client router within two minutes.
clear snapshot quiet-time interface
Display information about snapshot routing parameters.
show snapshot interface
Display status about the IPX interface.
show ipx interface [type number]2
Display information about the IPX packets transmitted by the router, including watchdog counters.
show ipx traffic2
Display information about the AppleTalk packets transmitted by the router.
show appletalk traffic3
Display information about the Banyan VINES packets transmitted by the router.
show vines traffic4
Display information about the DECnet packets transmitted by the router.
show decnet traffic 5
Display information about the XNS packets transmitted by the router.
show xns traffic6
Clear the values of the general diagnostic statistics.
clear dialer
1 This command is documented in the "ISDN Commands" chapter of the Router Products Command Reference publication.
2 This command is documented in the "Novell IPX Commands" chapter of the Router Products Command Reference publication.
3 This command is documented in the "AppleTalk Commands" chapter of the Router Products Command Reference publication
4 This command is documented in the "Banyan VINES Commands" chapter of the Router Products Command Reference publication
5 This command is documented in the "DECnet Commands" chapter of the Router Products Command Reference publication
6 This command is documented in the "XNS Commands" chapter of the Router Products Command Reference publication
DDR Configuration Examples
The examples provided in this section show various DDR configurations as follows:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Dial Backup Using the Auxiliary Port Example
The following is an example for dial backup using the auxiliary port (async 1):
interface serial 0ip address 1.2.3.4 255.255.255.0backup interface async1backup delay 10 10!interface async 1ip address 1.2.3.5 255.255.255.0dialer in-banddialer string 5551212dialer-group 1async dynamic routing!dialer-list 1 protocol ip permit!chat-script foo "" "atdt 5551212" TIMEOUT 60 "CONNECT"!line aux 0modem chat-script foomodem inoutspeed 9600Dial Backup Using DDR and ISDN Example
The following is an example for dial backup using DDR and ISDN:
interface serial 1backup delay 0 0backup interface bri 0ip address 1.2.3.4 255.255.255.0!interface bri 0ip address 1.2.3.5 255.255.255.0dialer string 5551212dialer-group 1!dialer-list 1 protocol ip permit
Note
Note
Configuring DDR in an IP Environment Example
The following example illustrates how to use DDR on an asynchronous interface in an IP environment. You could use the same configuration on an asynchronous serial interface by changing "interface serial 1" to specify an asynchronous interface (for example, "interface async 0").
interface serial 1ip address 131.108.126.1 255.255.255.0dialer in-band! The next command sets the dialer idle time-out to 10 minutesdialer idle-timeout 600! The next command inserts the phone numberdialer string 5551234! The next command gives the modem enough time to recognize that! DTR has dropped so the modem disconnects the callpulse-time 1! The next command adds this interface to the dialer access group defined with! the dialer-list commanddialer-group 1!! The first access list statement, below, specifies that IGRP updates are not ! interesting packets. The second access-list statement specifies that all ! other IP traffic such as Ping, Telnet, or any other IP packet are interesting ! packets. The dialer-list command then creates dialer access group 1 and ! states that access list 101 is to be used to classify packets as interesting ! or uninteresting. The ip route commands! specify that there is a route to network 131.108.29.0 and to network! 131.108.1.0 via 131.108.126.2. This means that several destination networks! are available through a router that is dialed from interface async 1.!access-list 101 deny igrp 0.0.0.0 255.255.255.255 255.255.255.255 0.0.0.0access-list 101 permit ip 0.0.0.0 255.255.255.255 0.0.0.0 255.255.255.255dialer-list 1 list 101ip route 131.108.29.0 131.108.126.2ip route 131.108.1.0 131.108.126.2With many modems, the pulse-time command must be used so that DTR is dropped for sufficient time to allow the modem to disconnect.
The redistribute static command can be used to advertise static route information for DDR applications. See the redistribute static ip command, described in the "IP Routing Commands" chapter of the Router Products Command Reference publication. Without this command, static routes to the hosts or network that the router can access with DDR will not be advertised to other routers with which the router is communicating. This can block communication because some routes will not be known.
Configuring Multiple Destination Dial Strings Example
The following example demonstrates how to specify multiple destination dial strings (phone numbers):
interface serial 1ip address 131.108.126.1 255.255.255.0dialer in-banddialer wait-for-carrier-time 100pulse-time 1dialer-group 1dialer map ip 131.108.126.10 5558899dialer map ip 131.108.126.15 5555555!access-list 101 deny igrp 0.0.0.0 255.255.255.255 255.255.255.255 0.0.0.0access-list 101 permit ip 0.0.0.0 255.255.255.255 0.0.0.0 255.255.255.255dialer-list 1 LIST 101As in the "Configuring DDR in an IP Environment Example" section, a pulse time is assigned and a dialer access group specified.
The first dialer map command specifies that the number 555-8899 is to be dialed for IP packets with a next-hop-address of 131.108.126.10. The second dialer map then specifies that the number 5555555 will be called when an IP packet with a next-hop-address of 131.108.126.15 is detected.
Configuring Dialer Rotary Groups Example
The following configuration places interfaces serial 1 and 2 into dialer rotary group 1, defined by the interface dialer 1 command:
! PPP encapsulation is enabled for interface dialer 1.interface dialer 1encapsulation pppdialer in-bandip address 131.108.2.1 255.255.255.0ip address 131.126.2.1 255.255.255.0 secondary! The first dialer map command allows remote site YYY and the ! central site to call each other. The second dialer map command, with no ! dialer string, allows remote site ZZZ to call the central site but ! the central site can not call remote site ZZZ (no phone number).dialer map ip 131.108.2.5 name YYY 1415553434dialer map ip 131.126.2.55 name ZZZ! The DTR pulse signals for three seconds on the interfaces in dialer ! group 1. This holds the DTR low so the modem can recognize that DTR has been ! dropped.pulse-time 3! Interfaces serial 1 and 2 are placed in dialer rotary group 1. All of ! the interface configuration commands (the encapsulation and dialer map commands ! shown earlier in this example) applied to interface dialer 1 apply to ! these interfaces.interface serial 1dialer rotary-group 1interface serial 2dialer rotary-group 1Dialing a Single Site or Multiple Sites Example

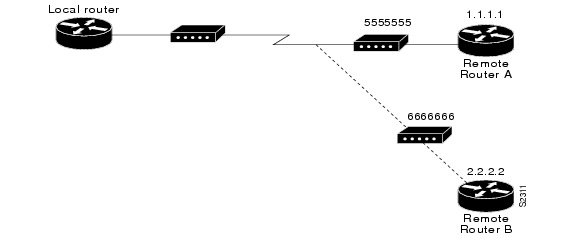

Assume that your configuration is as shown in and your router receives a packet with a next hop address of 1.1.1.1.
Figure 8-5 Sample Dialer String or Dialer Map Configuration
If the interface on your router is configured to call a single site with phone number 5555555, it will send the packet to that site, assuming that the next hop address 1.1.1.1 indicates the same remote device as phone number 5555555. The dialer string command is used to specify the string (telephone number) to be called.
interface serial 1dialer in-banddialer string 5555555If the interface is configured to dial multiple sites, the interface or dialer rotary group must be configured so that the correct phone number, 5555555, is mapped to the address 1.1.1.1. If this mapping is not configured, the interface or dialer rotary group would not know what phone number to call to deliver the packet to its correct destination, which is the address 1.1.1.1. In this way, a packet with a destination of 2.2.2.2 will not be sent to 5555555. The dialer map command is used to map next-hop addresses to phone numbers.
interface serial 1dialer in-banddialer map ip 1.1.1.1 5555555dialer map ip 2.2.2.2 6666666Using Chat Scripts Example
shows the following configuration:
•
•
•
•
•
Figure 8-6 Chat Script Configuration and Function
chat-script dial ABORT ERROR "" "AT Z" OK "ATDT \T" TIMEOUT 30 CONNECT \cchat-script login ABORT invalid TIMEOUT 15 name: billw word: wewpass ">" "slip default"interface async 10dialer in-banddialer map ip 10.55.0.1 modem-script dial system-scriptlogin 96837890Writing and Implementing Chat Scripts Example
In the following example chat script, " " means expect anything and \r means send a return:
" " \r "name:" "myname" "ord":" "mypassword" ">" "slip default"The following example shows a configuration in which, when there is traffic, a random line will be used. The dialer code will try to find a script that matches both the modem script .*-v32 and the system script cisco. If there is no match for both the modem script and the system script, you will see a "no matching chat script found" message.
interface dialer 1! v.32 rotaries are in rotary 1dialer rotary-group 1! Use v.32 generic scriptdialer map ip 1.0.0.1 modem-script .*-v32 system-script cisco 1234The following example shows line chat scripts being specified for lines connected to Telebit and
US Robotics modems.! Some lines have telebit modemsline 1 6modem chat-script telebit.*! Some lines have US robotics modemsline 7 12modem chat-script usr.*Chat Scripts and Dialer Mapping Example
The following example shows a dialing chat script and a login chat script. The dialer in-band command enables DDR on asynchronous interface 10 and the dialer map command dials 96837890 after finding the specified dialing and the login scripts.
chat-script dial ABORT ERROR "" "AT Z" OK "ATDT \T" TIMEOUT 30 CONNECT \cchat-script login ABORT invalid TIMEOUT 15 name: myname word: mypassword ">""slip default"interface async 10dialer in-banddialer map ip 10.55.0.1 modem-script dial system-script login 96837890When a packet is received for 10.55.0.1, the first thing that happens is that the modem script is implemented. shows the functions that are implemented with each expect-send pair in the modem script called "dial."
Table 8-2 Modem Script Execution
After the modem script is successfully executed, the login script is executed. shows the functions that are executed with each expect-send pair in the system script login.
Table 8-3 System Script Execution
System Scripts and Modem Scripts Example
The following example shows the use of chat scripts, implemented with the system-script and modem-script options of the dialer map command.
If there is traffic for IP address 1.2.3.4, the router will dial the 91800 number using the usrobotics-v32 script, matching the regular expression in the modem chat script. Then the router will run the unix-slip chat script as the system script to log in.
If there is traffic for 4.3.2.1, the router will dial 8899 using usrobotics-v32, matching both the modem script and modem chat script regular expressions. The router will then log in using the cisco-compressed script.
! script for dialing a usr v.32 modem:chat-script usrobotics-v32 ABORT ERROR "" "AT Z" OK "ATDT \T" TIMEOUT 30CONNECT \c!! Script for logging into a unix system and starting up slip:chat-script unix-slip ABORT invalid TIMEOUT 15 name: billw word: wewpass ">""slip default"!! Script for logging into a cisco comm server and starting up TCP header ! compressionchat-script cisco-compressed...!Line 15modem chat-script usrobotics-*!Interface async 15dialer map ip 1.2.3.4 system-script unix-slip 918005551212dialer map ip 4.3.2.1 modem-script *-v32 system-script cisco-compressed 8899Dial-on-Demand PPP Configuration Example

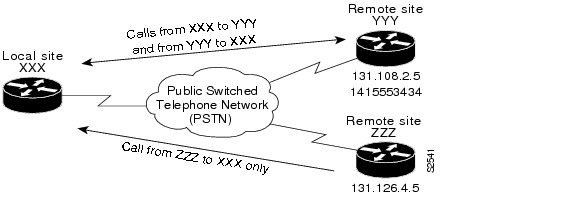

The following example shows a configuration for XXX, the local router shown in Figure 10.6 on the next page in which several aspects of DDR are used to provide DDR capabilities between local and remote routers. The following features are shown in this example:
•
•
•
•
•
See the "Interfaces Commands" chapter in the Router Products Command Reference publication for a description of the pulse-time command.
! Enable PPP encapsulation and CHAP on interface dialer 1.interface dialer 1ip address 131.108.2.1 255.255.255.0ip address 131.126.4.1 255.255.255.0 secondaryencapsulation pppppp authentication chap! Specify dial-on-demand routing supported on a line and ! assign a set of access-list expressions.dialer in-banddialer group 1! The first dialer map command indicates that calls between the remote site ! YYY and the central site will be placed at either end. The second dialer ! map command, with no dialer string, indicates that remote site ZZZ will call ! the central site but the central site will not call out.dialer map ip 131.108.2.5 name YYY 1415553434dialer map ip 131.126.4.5 name ZZZ! The DTR pulse holds the DTR low for three seconds, so the modem can recognize ! that DTR has been dropped.pulse-time 3! Place asynchronous serial interfaces 1 and 2 in dialer rotary group 1. The ! interface commands applied to dialer rotary group 1 (for example, ! PPP encapsulation and CHAP) apply to these interfaces.interface async 1dialer rotary-group 1interface async 2dialer rotary-group 1! CHAP passwords are specified for remote servers.username YYY password theirsystemusername ZZZ password thatsystemshows a configuration in which local Router XXX and remote Routers YYY and ZZZ are using dial-on-demand routing, as configured in the previous example. In this configuration, remote Routers YYY and ZZZ can call Router XXX. Router XXX has dialer string information only for Router YYY and cannot call Router ZZZ.
Figure 8-7 Dial-on-Demand Routing Configuration
DTR Dialing Configuration Example
In the following example, Router A and Router B are connected to a public switched telephone network (PSTN). Router A is configured for DTR dialing. Remote Router B is configured for in-band dialing so it can disconnect an idle call. (See .)
Figure 8-8 DTR Dialing through a PSTN
Configuration for Router A
interface serial 0ip address 131.108.170.19 255.255.255.0dialer dtrdialer-group 1!access-list 101 deny igrp 0.0.0.0 255.255.255.255 0.0.0.0 255.255.255.255access-list 101 permit ip 0.0.0.0 255.255.255.255 0.0.0.0 255.255.255.255!dialer-list 1 list 101Configuration for Router B
interface serial 0ip address 131.108.170.20 255.255.255.0dialer in-banddialer string 9876543pulse-time 1!access-list 101 deny igrp 0.0.0.0 255.255.255.255 0.0.0.0 255.255.255.255access-list 101 permit ip 0.0.0.0 255.255.255.255 0.0.0.0 255.255.255.255!dialer-list 1 list 101Multilink PPP Examples
The examples in the following sections illustrate the configuration of one or multiple ISDN interfaces for multilink PPP. The second example shows that you can configure multiple ISDN interfaces to belong to the same dialer rotary group.
One ISDN Interface Configured for Multilink PPP Example
The following example enables multilink PPP on the BRI 0 interface. Because an ISDN interface is a rotary group by default, when one BRI is configured, no dialer rotary group configuration is required.
interface bri 0description connected to ntt 81012345678902ip address 7.1.1.7 255.255.255.0encapsulation pppdialer idle-timeout 30dialer load-threshold 40 eitherdialer map ip 7.1.1.8 name atlanta 81012345678901dialer-group 1ppp authentication papppp multilinkMultiple ISDN Interfaces Configured for Multilink PPP Example
The following example configures multiple ISDN BRIs to belong to the same dialer rotary group for multilink PPP. The dialer rotary-group command is used to assign each of the ISDN BRIs to that dialer rotary group.
interface BRI0no ip addressencapsulation pppno keepalivedialer idle-timeout 500dialer rotary-group 0dialer load-threshold 255 balanced!interface BRI1no ip addressencapsulation pppno keepalivedialer idle-timeout 500dialer rotary-group 0dialer load-threshold 255 balanced!interface BRI2no ip addressencapsulation pppno keepalivedialer idle-timeout 500dialer rotary-group 0dialer load-threshold 255 balanced!interface Dialer0ip address 99.0.0.2 255.0.0.0encapsulation pppno keepalivedialer in-banddialer idle-timeout 500dialer map ip 99.0.0.1 name atlanta broadcast 81012345678901dialer load-threshold 255 balanceddialer-group 1ppp authentication chapppp multilinkPPP Callback Example
The following example configures a PPP callback server with a client.
The PPP callback server is configured on an ISDN BRI interface on a router in Atlanta. The callback server requires an enable timeout and a map-class to be defined.
The PPP callback client is configured on an ISDN BRI interface on a router in Dallas. The callback client does not require an enable timeout and a map-class to be defined.
PPP Callback Server
interface BRI0ip address 7.1.1.7 255.255.255.0encapsulation pppdialer callback-securedialer enable-timeout 2dialer map ip 7.1.1.8 name atlanta class dial1 81012345678901dialer-group 1ppp callback acceptppp authentication chap!map-class dialer dial1dialer callback-server usernamePPP Callback Client
interface BRI0ip address 7.1.1.8 255.255.255.0encapsulation pppdialer map ip 7.1.1.7 name dallas 81012345678902dialer-group 1ppp callback requestppp authentication chapSnapshot Routing Examples
The following example configures snapshot routing on a DDR interface on the client router. In this configuration, a single client router can call multiple server routers. It dials to all different locations during each active period to get routes from all those remote locations.
The absence of the suppress-statechange-updates keyword means that routing updates will be exchanged each time the line protocol goes from "down" to "up" or from "dialer spoofing" to "fully up." The dialer keyword on the snapshot client command allows the client router to dial the server router in the absence of regular traffic if the active period time expires.
interface serial 0dialer rotary-group 3!interface dialer 3dialer in-bandsnapshot client 5 360 dialersnapshot retry-interval 5dialer map snapshot 2 4155556734dialer map snapshot 3 7075558990The following commands configure the server router:
interface serial 2snapshot server 5 dialerLAPB Support Configuration Example
In the following example, the router is configured for LAPB encapsulation and in-band dialing:
interface serial 0ip address 131.108.170.19 255.255.255.0encapsulation lapbdialer in-banddialer string 4155551212dialer-group 1!access-list 101 deny igrp 0.0.0.0 255.255.255.255 0.0.0.0 255.255.255.255access-list 101 permit ip 0.0.0.0 255.255.255.255 0.0.0.0 255.255.255.255!dialer-list 1 protocol ip list 101X.25 Support Configuration Example
In the following example, a router is configured to support X.25 and DTR dialing:
interface serial 0ip address 131.108.170.19 255.255.255.0encapsulation x25x25 address 12345x25 map ip 131.108.171.20 67890 broadcastdialer dtrdialer-group 1!access-list 101 deny igrp 0.0.0.0 255.255.255.255 0.0.0.0 255.255.255.255access-list 101 permit ip 0.0.0.0 255.255.255.255 0.0.0.0 255.255.255.255!dialer-list 1 list 101Frame Relay Support Examples
The examples in this section present various combinations of interfaces, Frame Relay features, and DDR features.
In-Band Dialing (V.25bis) and Static Map
In the following example, a router is configured for IP over Frame Relay using in-band dialing. A Frame Relay static map is used to associate the next-hop protocol address to the DLCI. The dialer string allows dialing to only one destination.
interface Serial0ip address 1.1.1.1 255.255.255.0encapsulation frame-relayframe-relay map ip 1.1.1.2 100 broadcastdialer in-banddialer string 4155551212dialer-group 1!access-list 101 deny igrp any host 255.255.255.255access-list 101 permit ip any any!dialer-list 1 protocol ip list 101ISDN Dialing and Dynamic Maps
The following example shows a BRI interface configured for Frame Relay and for IP, IPX, and AppleTalk routing. No static maps are defined because this setup relies on Frame Relay local management interface (LMI) signaling and Inverse ARP to determine the network addresses-to-DLCI mappings dynamically. (Because Inverse ARP is enabled by default, no command is required.)
interface BRI0ip address 1.1.1.1 255.255.255.0ipx network 100appletalk cable-range 100-100 100.1appletalk zone ISDNno appletalk send-rtmpsencapsulation frame-relay IETFdialer map ip 1.1.1.2 broadcast 4155551212dialer map apple 100.2 broadcast 4155551212dialer map ipx 100.0000.0c05.33ed broadcast 4085551234dialer-group 1!access-list 101 deny igrp any host 255.255.255.255access-list 101 permit ip any anyaccess-list 901 deny -1 FFFFFFFF 452access-list 901 deny -1 FFFFFFFF 453access-list 901 deny -1 FFFFFFFF 457access-list 901 deny -1 FFFFFFFF 0 FFFFFFFF 452access-list 901 deny -1 FFFFFFFF 0 FFFFFFFF 453access-list 901 deny -1 FFFFFFFF 0 FFFFFFFF 457access-list 901 permit -1access-list 601 permit cable-range 100-100 broadcast-denyaccess-list 601 deny other-access!dialer-list 1 protocol ip list 101dialer-list 1 protocol novell list 901dialer-list 1 protocol apple list 601ISDN Dialing and Subinterfaces
The following example shows a BRI interface configured for Frame Relay and for IP, IPX, and AppleTalk routing. Two logical subnets are used; a point-to-point subinterface and a multipoint subinterface are configured. Frame Relay Annex A (LMI type Q933a) and Inverse ARP are used.
interface BRI0no ip addressencapsulation frame-relaydialer string 4155551212dialer-group 1frame-relay lmi-type q933a!interface BRI0.1 multipointip address 1.1.100.1 255.255.255.0ipx network 100appletalk cable-range 100-100 100.1appletalk zone ISDNno appletalk send-rtmpsframe-relay interface-dlci 100frame-relay interface-dlci 110frame-relay interface-dlci 120!interface BRI0.2 point-to-pointip address 1.1.200.1 255.255.255.0ipx network 200appletalk cable-range 200-200 200.1appletalk zone ISDNno appletalk send-rtmpsframe-relay interface-dlci 200 broadcast IETF!access-list 101 deny igrp any host 255.255.255.255access-list 101 permit ip any anyaccess-list 901 deny -1 FFFFFFFF 452access-list 901 deny -1 FFFFFFFF 453access-list 901 deny -1 FFFFFFFF 457access-list 901 deny -1 FFFFFFFF 0 FFFFFFFF 452access-list 901 deny -1 FFFFFFFF 0 FFFFFFFF 453access-list 901 deny -1 FFFFFFFF 0 FFFFFFFF 457access-list 901 permit -1access-list 601 permit cable-range 100-100 broadcast-denyaccess-list 601 permit cable-range 200-200 broadcast-denyaccess-list 601 deny other-accessdialer-list 1 protocol ip list 101dialer-list 1 protocol novell list 901dialer-list 1 protocol apple list 601AppleTalk Configuration Example
In the following example, DDR is configured for AppleTalk access using an ISDN BRI. Two access lists are defined: one for IP and IGRP, and one for AppleTalk. AppleTalk packets from network 2141 only (except broadcast packets) can initiate calls.
interface BRI0ip address 130.1.20.107 255.255.255.0encapsulation pppappletalk cable-range 2141-2141 2141.65appletalk zone SCruz-Engno appletalk send-rtmpsdialer map ip 130.1.20.106 broadcast 1879dialer map appletalk 2141.66 broadcast 1879dialer-group 1!access-list 101 deny igrp 0.0.0.0 255.255.255.255 255.255.255.255 0.0.0.0access-list 101 permit ip 0.0.0.0 255.255.255.255 0.0.0.0 255.255.255.255access-list 601 permit cable-range 2141-2141 broadcast-denyaccess-list 601 deny other-access!dialer-list 1 list 101dialer-list 1 list 601Banyan VINES Configuration Example
In the following example, a router is configured for VINES and IP DDR with in-band dialing. The VINES access list does not allow RTP routing updates to place a call, but any other data packet is interesting.
vines routing BBBBBBBB:0001!hostname RouterA!username RouterB password 7 030752180500username RouterC password 7 00071A150754!interface serial 0ip address 131.108.170.19 255.255.255.0encapsulation pppvines metrics 10vines neighbor AAAAAAAA:0001 0dialer in-banddialer map ip 131.108.170.151 name RouterB broadcast 4155551234dialer map vines AAAAAAAA:0001 name RouterC broadcast 4155551212dialer-group 1ppp authentication chappulse-time 1!access-list 101 deny igrp 0.0.0.0 255.255.255.255 0.0.0.0 255.255.255.255access-list 101 permit ip 0.0.0.0 255.255.255.255 0.0.0.0 255.255.255.255!vines access-list 107 deny RTP 00000000:0000 FFFFFFFF:FFFF 00000000:0000 FFFFFFFF:FFFFvines access-list 107 permit IP 00000000:0000 FFFFFFFF:FFFF 00000000:0000 FFFFFFFF:FFFF!dialer-list 1 protocol ip list 101dialer-list 1 protocol vines list 107Although it is not used in this example, the dialer-list 1 list 101 command is still acceptable for IP.
DECnet Configuration Example
In the following example, a router is configured for DECnet DDR with in-band dialing:
decnet routing 10.19!username RouterB password 7 030752180531!interface serial 0no ip addressdecnet cost 10encapsulation pppdialer in-banddialer map decnet 10.151 name RouterB broadcast 4155551212dialer-group 1ppp authentication chappulse-time 1!access-list 301 permit 10.0 0.1023 0.0 63.1023!dialer-list 1 protocol decnet list 301ISO CLNS Configuration Example
In the following example, a router is configured for CLNS DDR with in-band dialing:
username RouterB password 7 111C140B0Eclns net 47.0004.0001.0000.0c00.2222.00clns routingclns filter-set ddrline permit 47.0004.0001....!interface serial 0no ip addressencapsulation pppdialer in-banddialer map clns 47.0004.0001.0000.0c00.1111.00 name RouterB broadcast 1212dialer-group 1ppp authentication chapclns enablepulse-time 1!clns route default serial 0dialer-list 1 protocol clns list ddrlineXNS Configuration Example
In the following example, a router is configured for XNS DDR with in-band dialing. The access lists deny broadcast traffic to any host on any network, but allow all other traffic.
xns routing 0000.0c01.d8ddusername RouterB password 7 111B210A0Finterface serial 0no ip addressencapsulation pppxns network 10dialer in-banddialer map xns 10.0000.0c01.d877 name RouterB broadcast 4155551212dialer-group 1ppp authentication chappulse-time 1!access-list 400 deny -1 -1.ffff.ffff.ffff 0000.0000.0000access-list 400 permit -1 10!dialer-list 1 protocol xns list 400DDR for Transparent Bridging Examples
The following two examples differ only in the packets that cause calls to be placed. The first example specifies by protocol (any bridge packet is permitted to cause a call to be made); the second example allows a finer granularity by specifying Ethernet type codes of bridge packets.
The first example configures the serial 1 interface for DDR bridging. Any bridge packet is permitted to cause a call to be placed.
no ip routing!interface Serial1no ip addressencapsulation pppdialer in-banddialer enable-timeout 3dialer map bridge name urk broadcast 8985dialer hold-queue 10dialer-group 1ppp authentication chapbridge-group 1pulse-time 1!dialer-list 1 protocol bridge permitbridge 1 protocol ieeebridge 1 hello 10The second example also configures the serial 1 interface for DDR bridging. However, this example includes an access-list command that specifies the Ethernet type codes that can cause calls to be placed and a dialer list protocol list command that refers to the specified access list.
no ip routing!interface Serial1no ip addressencapsulation pppdialer in-banddialer enable-timeout 3dialer map bridge name urk broadcast 8985dialer hold-queue 10dialer-group 1ppp authentication chapbridge-group 1pulse-time 1!access-list 200 permit 0x0800 0xFFF8!dialer-list 1 protocol bridge list 200bridge 1 protocol ieeebridge 1 hello 10
