Any Transport over MPLS

This module describes how to configure Any Transport over MPLS (AToM) transports data link layer (Layer 2) packets over a Multiprotocol Label Switching (MPLS) backbone. AToM enables service providers to connect customer sites with existing Layer 2 networks by using a single, integrated, packet-based network infrastructure--a Cisco MPLS network. Instead of using separate networks with network management environments, service providers can deliver Layer 2 connections over an MPLS backbone. AToM provides a common framework to encapsulate and transport supported Layer 2 traffic types over an MPLS network core.

AToM supports the following like-to-like transport types:

  • ATM Adaptation Layer Type-5 (AAL5) over MPLS
  • ATM Cell Relay over MPLS
  • Ethernet over MPLS (VLAN and port modes)
  • Frame Relay over MPLS
  • PPP over MPLS
  • High-Level Data Link Control (HDLC) over MPLS

Finding Feature Information

Your software release may not support all the features documented in this module. For the latest caveats and feature information, see Bug Search Tool and the release notes for your platform and software release. To find information about the features documented in this module, and to see a list of the releases in which each feature is supported, see the feature information table at the end of this module.

Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/​go/​cfn. An account on Cisco.com is not required.

Prerequisites for Any Transport over MPLS

  • IP routing must be configured in the core so that the provider edge (PE) routers can reach each other via IP.
  • MPLS must be configured in the core so that a label-switched path (LSP) exists between the PE routers.
  • Cisco Express Forwarding must be enabled before you configure any Layer 2 circuits.
  • A loopback interface must be configured for originating and terminating Layer 2 traffic. Ensure that the PE routers can access the other router’s loopback interface. Note that the loopback interface is not needed in all cases. For example, tunnel selection does not need a loopback interface when AToM is directly mapped to a traffic engineering (TE) tunnel.
  • Before converting an interface with L2TPv3 xconnect to AToM xconnect, remove the L2TPv3 configuration from the interface and then configure AToM.
  • Before configuring Ethernet over MLS in VLAN mode, you must configure Ethernet over MPLS on the subinterfaces.

Restrictions for Any Transport over MPLS

General Restrictions

The following general restrictions pertain to all transport types under AToM:

  • Address format: Configure the Label Distribution Protocol (LDP) router ID on all PE routers to be a loopback address with a /32 mask. Otherwise, some configurations might not function properly.
  • Layer 2 virtual private networks (L2VPN) features (AToM and Layer 2 Tunnel Protocol Version 3 (L2TPv3)) are not supported on an ATM interface.
  • Distributed Cisco Express Forwarding is the only forwarding model supported on the Cisco 12000 series routers and is enabled by default. Disabling distributed Cisco Express Forwarding on the Cisco 12000 series routers disables forwarding.
  • Distributed Cisco Express Forwarding mode is supported on the Cisco 7500 series routers for Frame Relay, HDLC, and PPP. In distributed Cisco Express Forwarding mode, the switching process occurs on the Versatile Interface Processors (VIPs) that support switching. When distributed Cisco Express Forwarding is enabled, VIP port adapters maintain identical copies of the Forwarding Information Base (FIB) and adjacency tables. The port adapters perform the express forwarding between port adapters, relieving the Route Switch Processor (RSP) from performing the switching. Distributed Cisco Express Forwarding uses an interprocess communications (IPC) mechanism to ensure synchronization of FIBs and adjacency tables between the RSP and port adapters.
  • To convert an interface with L2TPv3 xconnect to AToM xconnect, remove the L2TPv3 configuration from the interface and then configure AToM. Some features may not work if AToM is configured when L2TPv3 configuration is not removed properly.

ATM Cell Relay over MPLS Restrictions

The following restrictions pertain to ATM Cell Relay over MPLS:

  • For ATM Cell Relay over MPLS,if you have TE tunnels running between the PE routers, you must enable LDP on the tunnel interfaces.
  • Configuring ATM Relay over MPLS with the Cisco 12000 Series Router engine 2 8-port OC-3 STM-1 ATM line card: In Cisco IOS Release 12.0(25)S, there were special instructions for configuring ATM cell relay on the Cisco 12000 series router with an engine 2 8-port OC-3 STM-1 ATM line card. The special configuration instructions do not apply to releases later than Cisco IOS Release 12.0(25)S and you do not need to use the atm mode cell-relay command.

In Cisco IOS Release 12.0(25)S, when you configured the Cisco 12000 series 8-port OC-3 STM-1 ATM line card for ATM Cell Relay over MPLS, two ports were reserved. In releases later than Cisco IOS Release 12.0(25)S, only one port is reserved.

In addition, in Cisco IOS Release 12.0(25)S, if you configured an 8-port OC-3 STM-1 ATM port for ATM Adaptation Layer 5 (AAL5) over MPLS and then configured ATM single cell relay over MPLS on that port, the Virtual Circuits (VCs) and Virtual Paths (VPs) for AAL5 on the port and its corresponding port were removed. Starting in Cisco IOS Release 12.0(26)S, this behavior no longer occurs. ATM AAL5 over MPLS and ATM single cell relay over MPLS are supported on the same port. The Cisco 12000 series 8-port OC-3 STM-1 ATM line cards now support, by default, the ATM single cell relay over MPLS feature in both VP and VC modes and ATM AAL5 over MPLS on the same port.

  • The F4 end-to-end Operation, Administration, and Maintenance (OAM) cells are transparently transported along with the ATM cells. When a permanent virtual path (PVP) or Permanent Virtual Circuit (PVC) is down on one PE router, the label associated with that PVP or PVC is withdrawn. Subsequently, the peer PE router detects the label withdrawal and sends an F4 AIS/RDI signal to its corresponding customer edge (CE) router. The PVP or PVC on the peer PE router remains in the up state.

Ethernet over MPLS (EoMPLS) Restrictions

The following restrictions pertain to the Ethernet over MPLS feature:

  • Ethernet over MPLS supports VLAN packets that conform to the IEEE 802.1Q standard. The 802.1Q specification establishes a standard method for inserting VLAN membership information into Ethernet frames. The Inter-Switch Link (ISL) protocol is not supported between the PE and CE routers.
  • The AToM control word is supported. However, if the peer PE does not support a control word, the control word is disabled. This negotiation is done by LDP label binding.
  • Ethernet packets with hardware-level cyclic redundancy check (CRC) errors, framing errors, and runt packets are discarded on input.
  • In Cisco IOS Release 12.2(25)S, the behavior of the mpls mtu command changed. If the interface MTU is less than 1524 bytes, you can set the maximum MPLS MTU to 24 bytes more than the interface MTU. For example, if the interface MTU is set to 1510 bytes, then you can set the maximum MPLS MTU to 1534 bytes (1510 + 24).

Caution

Although you can set the MPLS MTU to a value greater than the interface MTU, you must set the MPLS MTU to a value less than or equal to the interface MTU to prevent data corruption, dropped packets, and high CPU rates.

If the interface MTU is greater than or equal to 1524 bytes, then you can set the maximum MPLS MTU as high as the interface MTU. For example, if the interface MTU is set to 1600 bytes, then you can set the MPLS MTU to a maximum of 1600 bytes. If you set the MPLS MTU to a value higher than the interface MTU, traffic is dropped.

For interfaces that do not allow you to configure the interface MTU value and for interfaces where the interface MTU is 1500 bytes, the MPLS MTU range is 64 to 1524 bytes.

If you upgrade to Cisco IOS Release 12.2(25)S from an earlier release and you have an MPLS MTU setting that does not conform to these guidelines, the command is rejected. See the Maximum Transmission Unit Guidelines for Estimating Packet Size for more information.

Per-Subinterface MTU for Ethernet over MPLS Restrictions

  • The following features do not support MTU values in xconnect subinterface configuration mode:
    • Layer 2 Tunnel Protocol Version 3 (L2TPv3)
    • Virtual Private LAN services (VPLS)
    • L2VPN Pseudowire Switching

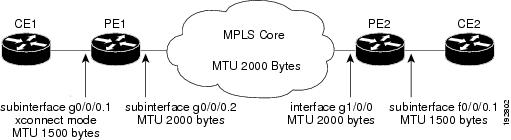

  • The MTU value can be configured in xconnect subinterface configuration mode only on the following interfaces and subinterfaces:
    • Fast Ethernet
    • Gigabit Ethernet
  • The router uses an MTU validation process for remote VCs established through LDP, which compares the MTU value configured in xconnect subinterface configuration mode to the MTU value of the remote customer interface. If an MTU value has not been configured in xconnect subinterface configuration mode, then the validation process compares the MTU value of the local customer interface to the MTU value of the remote xconnect, either explicitly configured or inherited from the underlying interface or subinterface.
  • When you configure the MTU value in xconnect subinterface configuration mode, the specified MTU value is not enforced by the dataplane. The dataplane enforces the MTU values of the interface (port mode) or subinterface (VLAN mode).
  • Ensure that the interface MTU is larger than the MTU value configured in xconnect subinterface configuration mode. If the MTU value of the customer-facing subinterface is larger than the MTU value of the core-facing interface, traffic may not be able to travel across the pseudowire.

Frame Relay over MPLS Restrictions

The following restrictions pertain to the Frame Relay over MPLS feature:

  • Frame Relay traffic shaping is not supported with AToM switched VCs.
  • If you configure Frame Relay over MPLS on the Cisco 12000 series router and the core-facing interface is an engine 4 or 4+ line card and the edge-facing interface is an engine 0 or 2 line card, then the BECN, FECN, control word (CW), and DE bit information is stripped from the PVC.

General Restrictions

  • Address format--Configure the Label Distribution Protocol (LDP) router ID on all PE routers to be a loopback address with a /32 mask. Otherwise, some configurations might not function properly.
  • Layer 2 virtual private networks (L2VPN) features (AToM and Layer 2 Tunnel Protocol Version 3 (L2TPv3) are not supported on an ATM interface.
  • Some features may not work if AToM is configured and L2TPv3 configuration is not removed properly.

ATM AAL5 over MPLS Restrictions

  • AAL5 over MPLS is supported only in SDU mode.

ATM Cell Relay over MPLS Restrictions

  • If you have TE tunnels running between the PE routers, you must enable LDP on the tunnel interfaces.
  • The F4 end-to-end OAM cells are transparently transported along with the ATM cells. When a permanent virtual path (PVP) or permanent virtual circuit (PVC) is down on one PE router, the label associated with that PVP or PVC is withdrawn. Subsequently, the peer PE router detects the label withdrawal and sends an F4 AIS/RDI signal to its corresponding CE router. The PVP or PVC on the peer PE router remains in the up state.
  • VC class configuration mode is not supported in port mode.
  • The AToM control word is supported. However, if a peer PE does not support the control word, it is disabled.

For configuring ATM cell relay over MPLS in VP mode, the following restrictions apply:

  • If a VPI is configured for VP cell relay, you cannot configure a PVC using the same VPI.
  • VP trunking (mapping multiple VPs to one emulated VC label) is not supported. Each VP is mapped to one emulated VC.
  • VP mode and VC mode drop idle cells.

Ethernet over MPLS (EoMPLS) Restrictions

  • The subinterfaces between the CE and PE routers that are running Ethernet over MPLS must be in the same subnet.
  • The subinterface on the adjoining CE router must be on the same VLAN as the PE router.
  • Ethernet over MPLS supports VLAN packets that conform to the IEEE 802.1Q standard. The 802.1Q specification establishes a standard method for inserting VLAN membership information into Ethernet frames. The Inter-Switch Link (ISL) protocol is not supported between the PE and CE routers.
  • The AToM control word is supported. However, if the peer PE does not support a control word, the control word is disabled.
  • Ethernet packets with hardware-level cyclic redundancy check (CRC) errors, framing errors, and runt packets are discarded on input.

Per-Subinterface MTU for Ethernet over MPLS Restrictions

  • The following features do not support MTU values in xconnect subinterface configuration mode:
    • Layer 2 Tunnel Protocol Version 3 (L2TPv3)
    • Virtual Private LAN services (VPLS)
    • L2VPN Pseudowire Switching
  • The MTU value can be configured in xconnect subinterface configuration mode only on the following interfaces and subinterfaces:
    • Fast Ethernet
    • Gigabit Ethernet
  • The router uses an MTU validation process for remote VCs established through LDP, which compares the MTU value configured in xconnect subinterface configuration mode to the MTU value of the remote customer interface. If an MTU value has not been configured in xconnect subinterface configuration mode, then the validation process compares the MTU value of the local customer interface to the MTU value of the remote xconnect, either explicitly configured or inherited from the underlying interface or subinterface.
  • When you configure the MTU value in xconnect subinterface configuration mode, the specified MTU value is not enforced by the dataplane. The dataplane enforces the MTU values of the interface (port mode) or subinterface (VLAN mode).
  • Ensure that the interface MTU is larger than the MTU value configured in xconnect subinterface configuration mode. If the MTU value of the customer-facing subinterface is larger than the MTU value of the core-facing interface, traffic may not be able to travel across the pseudowire.

Frame Relay over MPLS Restrictions

Frame Relay traffic shaping is not supported with AToM switched VCs.

HDLC over MPLS Restrictions

  • Asynchronous interfaces are not supported.
  • You must configure HDLC over MPLS on router interfaces only. You cannot configure HDLC over MPLS on subinterfaces.

PPP over MPLS Restrictions

  • Zero hops on one router is not supported. However, you can have back-to-back PE routers.
  • Asynchronous interfaces are not supported. The connections between the CE and PE routers on both ends of the backbone must have similar link layer characteristics. The connections between the CE and PE routers must both be synchronous.
  • Multilink PPP (MLP) is not supported.
  • You must configure PPP on router interfaces only. You cannot configure PPP on subinterfaces.

Tunnel Selection Restrictions

  • The selected path should be an LSP destined to the peer PE router.
  • The selected tunnel must be an MPLS TE tunnel.
  • If you select a tunnel, the tunnel tailend must be on the remote PE router.
  • If you specify an IP address, that address must be the IP address of the loopback interface on the remote PE router. The address must have a /32 mask. There must be an LSP destined to that selected address. The LSP need not be a TE tunnel.

Experimental Bits with AToM Restrictions

  • You must statically set the experimental (EXP) bits in both the VC label and the LSP tunnel label, because the LSP tunnel label might be removed at the penultimate router.
  • For EXP bits and ATM AAL5 over MPLS and for EXP bits and Frame Relay over MPLS, if you do not assign values to the experimental bits, the priority bits in the header’s “tag control information” field are set to zero.
  • For EXP bits and ATM Cell Relay over MPLS in VC mode, if you do not assign values to the experimental bits, the priority bits in the header’s “tag control information” field are set to zero.
  • For EXP bits and HDLC over MPLS and PPP over MPLS, if you do not assign values to the experimental bits, zeros are written into the experimental bit fields.

Remote Ethernet Port Shutdown Restrictions

This feature is not symmetrical if the remote PE router is running an older version image or is on another platform that does not support the EoMPLS remote Ethernet port shutdown feature and the local PE is running an image which supports this feature.

Information About Any Transport over MPLS

To configure AToM, you must understand the following concepts:

How AToM Transports Layer 2 Packets

AToM encapsulates Layer 2 frames at the ingress PE and sends them to a corresponding PE at the other end of a pseudowire, which is a connection between the two PE routers. The egress PE removes the encapsulation and sends out the Layer 2 frame.

The successful transmission of the Layer 2 frames between PE routers is due to the configuration of the PE routers. You set up the connection, called a pseudowire, between the routers. You specify the following information on each PE router:

  • The type of Layer 2 data that will be transported across the pseudowire, such as Ethernet, Frame Relay, or ATM
  • The IP address of the loopback interface of the peer PE router, which enables the PE routers to communicate
  • A unique combination of peer PE IP address and VC ID that identifies the pseudowire

The following example shows the basic configuration steps on a PE router that enable the transport of Layer 2 packets. Each transport type has slightly different steps.

Step 1 defines the interface or subinterface on the PE router:

Router# interface
interface-type interface-number

Step 2 specifies the encapsulation type for the interface, such as dot1q:

Router(config-if)# encapsulation
encapsulation-type

Step 3 does the following:

  • Makes a connection to the peer PE router by specifying the LDP router ID of the peer PE router.
  • Specifies a 32-bit unique identifier, called the VC ID, which is shared between the two PE routers.

The combination of the peer router ID and the VC ID must be unique on the router. Two circuits cannot use the same combination of peer router ID and VC ID.

  • Specifies the tunneling method used to encapsulate data in the pseudowire. AToM uses MPLS as the tunneling method.
Router(config-if)# xconnect
peer-router-id vcid
encapsulation mpls

As an alternative, you can set up a pseudowire class to specify the tunneling method and other characteristics. For more information, see the Configuring the Pseudowire Class.

How AToM Transports Layer 2 Packets using the commands associated with the L2VPN Protocol-Based CLIs feature

AToM encapsulates Layer 2 frames at the ingress PE and sends them to a corresponding PE at the other end of a pseudowire, which is a connection between the two PE routers. The egress PE removes the encapsulation and sends out the Layer 2 frame.

The successful transmission of the Layer 2 frames between PE routers is due to the configuration of the PE routers. You set up the connection, called a pseudowire, between the routers. You specify the following information on each PE router:

  • The type of Layer 2 data that will be transported across the pseudowire, such as Ethernet, Frame Relay, or ATM
  • The IP address of the loopback interface of the peer PE router, which enables the PE routers to communicate
  • A unique combination of peer PE IP address and VC ID that identifies the pseudowire

The following example shows the basic configuration steps on a PE router that enable the transport of Layer 2 packets. Each transport type has slightly different steps.

Step 1 defines the interface or subinterface on the PE router:

Router# interface
interface-type interface-number

Step 2 specifies the encapsulation type for the interface, such as dot1q:

Router(config-if)# encapsulation
encapsulation-type

Step 3 does the following:

  • Makes a connection to the peer PE router by specifying the LDP router ID of the peer PE router.
  • Specifies a 32-bit unique identifier, called the VC ID, which is shared between the two PE routers.

The combination of the peer router ID and the VC ID must be unique on the router. Two circuits cannot use the same combination of peer router ID and VC ID.

  • Specifies the tunneling method used to encapsulate data in the pseudowire. AToM uses MPLS as the tunneling method.
Router(config)# interface pseudowire 100
Router(config-if)# encapsulation mpls
Router(config-if)# neighbor 10.0.0.1 123
Router(config-if)# exit
!
Router(config)# l2vpn xconnect context A
Router(config-xconnect)# member pseudowire 100
Router(config-xconnect)# member gigabitethernet0/0/0.1
Router(config-xconnect)# exit

As an alternative, you can set up a pseudowire class to specify the tunneling method and other characteristics. For more information, see the Configuring the Pseudowire Class.

Benefits of AToM

The following list explains some of the benefits of enabling Layer 2 packets to be sent in the MPLS network:

  • The AToM product set accommodates many types of Layer 2 packets, including Ethernet and Frame Relay, across multiple Cisco router platforms. This enables the service provider to transport all types of traffic over the backbone and accommodate all types of customers.
  • AToM adheres to the standards developed for transporting Layer 2 packets over MPLS. This benefits the service provider that wants to incorporate industry-standard methodologies in the network. Other Layer 2 solutions are proprietary, which can limit the service provider’s ability to expand the network and can force the service provider to use only one vendor’s equipment.
  • Upgrading to AToM is transparent to the customer. Because the service provider network is separate from the customer network, the service provider can upgrade to AToM without disruption of service to the customer. The customers assume that they are using a traditional Layer 2 backbone.

MPLS Traffic Engineering Fast Reroute

AToM can use MPLS traffic engineering (TE) tunnels with fast reroute (FRR) support. AToM VCs can be rerouted around a failed link or node at the same time as MPLS and IP prefixes.

Enabling fast reroute on AToM does not require any special commands; you can use standard fast reroute commands. At the ingress PE, an AToM tunnel is protected by fast reroute when it is routed to an FRR-protected TE tunnel. Both link and node protection are supported for AToM VCs at the ingress PE.

In the following example, the primary link is disabled, which causes the backup tunnel (Tunnel 1) to become the primary path. The output in boldface font shows the status of the tunnel:

Router# execute-on slot 3 debug mpls l2transport fast-reroute
========= Line Card (Slot 3) =========
AToM fast reroute debugging is on
SLOT 3:Sep 16 17:58:56.346: AToM SMGR: Processing TFIB FRR event for 10.4.0.1
SLOT 3:Sep 16 17:58:56.346: AToM SMGR: Finished processing TFIB FRR event for 10.4.0.1
SLOT 3:Sep 16 17:58:56.346: AToM SMGR: Processing TFIB FRR event for Tunnel41
SLOT 3:Sep 16 17:58:56.346: AToM SMGR: Finished processing TFIB FRR event for Tunnel41
Sep 16 17:58:58.342: %LINK-3-UPDOWN: Interface POS0/0/0, changed state to down
Sep 16 17:58:58.342: %OSPF-5-ADJCHG: Process 1, Nbr 10.0.0.1 on POS0/0 from FULL to DOWN, Neighbor Down: Interface down or detached
Sep 16 17:58:59.342: %LINEPROTO-5-UPDOWN: Line protocol on Interface POS0/0/0, changed state to down

Maximum Transmission Unit Guidelines for Estimating Packet Size

The following calculation helps you determine the size of the packets traveling through the core network. You set the maximum transmission unit (MTU) on the core-facing interfaces of the P and PE routers to accommodate packets of this size. The MTU should be greater than or equal to the total bytes of the items in the following equation:

Core MTU >= (Edge MTU + Transport header + AToM header + (MPLS label stack * MPLS label size))

The following sections describe the variables used in the equation.

Edge MTU

The edge MTU is the MTU for the customer-facing interfaces.

Transport Header

The Transport header depends on the transport type. The table below lists the specific sizes of the headers.

Table 1 Header Size of Packets

Transport Type

Packet Size

AAL5

0-32 bytes

Ethernet VLAN

18 bytes

Ethernet Port

14 bytes

Frame Relay DLCI

2 bytes for Cisco encapsulation, 8 bytes for Internet Engineering Task Force (IETF) encapsulation

HDLC

4 bytes

PPP

4 bytes

AToM Header

The AToM header is 4 bytes (control word). The control word is optional for Ethernet, PPP, HDLC, and cell relay transport types. The control word is required for Frame Relay and ATM AAL5 transport types.

MPLS Label Stack

The MPLS label stack size depends on the configuration of the core MPLS network:

  • AToM uses one MPLS label to identify the AToM VCs (VC label). Therefore, the minimum MPLS label stack is one for directly connected AToM PEs, which are PE routers that do not have a P router between them.
  • If LDP is used in the MPLS network, the label stack size is two (the LDP label and the VC label).
  • If a TE tunnel instead of LDP is used between PE routers in the MPLS network, the label stack size is two (the TE label and the VC label).
  • If a TE tunnel and LDP are used in the MPLS network (for example, a TE tunnel between P routers or between P and PE routers, with LDP on the tunnel), the label stack is three (TE label, LDP label, VC label).
  • If you use MPLS fast reroute in the MPLS network, you add a label to the stack. The maximum MPLS label stack in this case is four (FRR label, TE label, LDP label, VC label).
  • If AToM is used by the customer carrier in an MPLS VPN Carrier Supporting Carrier environment, you add a label to the stack. The maximum MPLS label stack in the provider carrier network is five (FRR label, TE label, LDP label, VPN label, VC label).
  • If an AToM tunnel spans different service providers that exchange MPLS labels using IPv4 Border Gateway Protocol (BGP) (RFC 3107), you add a label to the stack. The maximum MPLS label stack is five (FRR label, TE label, Border Gateway Protocol (BGP) label, LDP label, VC label).

Other circumstances can increase the MPLS label stack size. Therefore, analyze the complete data path between the AToM tunnel endpoints and determine the maximum MPLS label stack size for your network. Then multiply the label stack size by the size of the MPLS label.

Estimating Packet Size Example

The estimated packet size in the following example is 1526 bytes, based on the following assumptions:

  • The edge MTU is 1500 bytes.
  • The transport type is Ethernet VLAN, which designates 18 bytes for the transport header.
  • The AToM header is 0, because the control word is not used.
  • The MPLS label stack is 2, because LDP is used. The MPLS label is 4 bytes.
Edge MTU + Transport header + AToM header + (MPLS label stack * MPLS label) = Core MTU
1500     + 18                    + 0      + (2                * 4         ) = 1526

You must configure the P and PE routers in the core to accept packets of 1526 bytes.

Per-Subinterface MTU for Ethernet over MPLS

MTU values can be specified in xconnect subinterface configuration mode. When you use xconnect subinterface configuration mode to set the MTU value, you establish a pseudowire connection for situations where the interfaces have different MTU values that cannot be changed.

If you specify an MTU value in xconnect subinterface configuration mode that is outside the range of supported MTU values (64 bytes to the maximum number of bytes supported by the interface), the command might be rejected. If you specify an MTU value that is out of range in xconnect subinterface configuration mode, the router enters the command in subinterface configuration mode.

For example, if you specify an MTU of 1501 in xconnect subinterface configuration mode, and that value is out of range, the router enters the command in subinterface configuration mode, where it is accepted:

Router# configure terminal
Router(config)# interface gigabitethernet0/0/2.1
Router(config-subif)# xconnect 10.10.10.1 100 encapsulation mpls
Router(config-subif-xconn)# mtu ?
<64 - 1500> MTU size in bytes
Router(config-subif-xconn)# mtu 1501 <<================
Router(config-subif)# mtu ?
<64 - 17940> MTU size in bytes

If the MTU value is not accepted in either xconnect subinterface configuration mode or subinterface configuration mode, then the command is rejected.

Per-Subinterface MTU for Ethernet over MPLS using the commands associated with the L2VPN Protocol-Based CLIs feature

MTU values can be specified in xconnect configuration mode. When you use xconnect configuration mode to set the MTU value, you establish a pseudowire connection for situations where the interfaces have different MTU values that cannot be changed.

If you specify an MTU value in xconnect configuration mode that is outside the range of supported MTU values (64 bytes to the maximum number of bytes supported by the interface), the command might be rejected. If you specify an MTU value that is out of range in xconnect configuration mode, the router enters the command in subinterface configuration mode.

For example, if you specify an MTU of 1501 in xconnect configuration mode, and that value is out of range, the router enters the command in subinterface configuration mode, where it is accepted:

Router# configure terminal
Router(config)# interface gigabitethernet0/0/2.1
Router(config)# interface pseudowire 100
Router(config-if)# encapsulation mpls
Router(config-if)# neighbor 10.10.10.1 100
Router(config-if)# mtu ?
<64 - 1500> MTU size in bytes
Router(config-if)# mtu 1501 <<================
Router(config-if)# mtu ?
<64 - 17940> MTU size in bytes
Router(config-if)# exit
!
Router(config)# l2vpn xconnect context A
Router(config-xconnect)# member pseudowire 100 Router
Router(config-xconnect)# member gigabitethernet0/0/2.1
Router(config-xconnect)# exit

If the MTU value is not accepted in either xconnect configuration mode or subinterface configuration mode, then the command is rejected.

Frame Relay over MPLS and DTE DCE and NNI Connections

You can configure an interface as a DTE device or a DCE switch, or as a switch connected to a switch with network-to-network interface (NNI) connections. Use the following command in interface configuration mode:

frame-relay intf-type [dce | dte | nni]

The keywords are explained in the table below.

Table 2 frame-relay intf-type Command Keywords

Keyword

Description

dce

Enables the router or access server to function as a switch connected to a router.

dte

Enables the router or access server to function as a DTE device. DTE is the default.

nni

Enables the router or access server to function as a switch connected to a switch.

Local Management Interface and Frame Relay over MPLS

Local Management Interface (LMI) is a protocol that communicates status information about PVCs. When a PVC is added, deleted, or changed, the LMI notifies the endpoint of the status change. LMI also provides a polling mechanism that verifies that a link is up.

How LMI Works

To determine the PVC status, LMI checks that a PVC is available from the reporting device to the Frame Relay end-user device. If a PVC is available, LMI reports that the status is “Active,” which means that all interfaces, line protocols, and core segments are operational between the reporting device and the Frame Relay end-user device. If any of those components is not available, the LMI reports a status of “Inactive.”


Note

Only the DCE and NNI interface types can report the LMI status.

The figure below is a sample topology that helps illustrate how LMI works.

Figure 1. Sample Topology

In the figure above, note the following:

  • CE1 and PE1 and PE2 and CE2 are Frame Relay LMI peers.
  • CE1 and CE2 can be Frame Relay switches or end-user devices.
  • Each Frame Relay PVC comprises multiple segments.
  • The DLCI value is local to each segment and is changed as traffic is switched from segment to segment. Two Frame Relay PVC segments exist in the figure; one is between PE1 and CE1 and the other is between PE2 and CE2.

The LMI protocol behavior depends on whether you have DLCI-to-DLCI or port-to-port connections.

DLCI-to-DLCI Connections

If you have DLCI-to-DLCI connections, LMI runs locally on the Frame Relay ports between the PE and CE devices:

  • CE1 sends an active status to PE1 if the PVC for CE1 is available. If CE1 is a switch, LMI checks that the PVC is available from CE1 to the user device attached to CE1.
  • PE1 sends an active status to CE1 if the following conditions are met:
    • A PVC for PE1 is available.
    • PE1 received an MPLS label from the remote PE router.
    • An MPLS tunnel label exists between PE1 and the remote PE.

For DTE or DCE configurations, the following LMI behavior exists: The Frame Relay device accessing the network (DTE) does not report the PVC status. Only the network device (DCE) or NNI can report the status. Therefore, if a problem exists on the DTE side, the DCE is not aware of the problem.

Port-to-Port Connections

If you have port-to-port connections, the PE routers do not participate in the LMI status-checking procedures. LMI operates only between the CE routers. The CE routers must be configured as DCE-DTE or NNI-NNI.

For information about LMI, including configuration instructions, see the “Configuring the LMI” section of the Configuring Frame Relay document.

QoS Features Supported with AToM

The tables below list the QoS features supported by AToM.

Table 3 QoS Features Supported with Ethernet over MPLS

QoS Feature

Ethernet over MPLS

Service policy

Can be applied to:

  • Interface (input and output)
  • Subinterface (input and output)

Classification

Supports the following commands:

  • match cos (on interfaces and subinterfaces)
  • match mpls experimental (on interfaces and subinterfaces)
  • match qos-group (on interfaces) (output policy)

Marking

Supports the following commands:

  • set cos (output policy)
  • set discard-class (input policy)
  • set mpls experimental (input policy) (on interfaces and subinterfaces)
  • set qos-group (input policy)

Policing

Supports the following:

  • Color-aware policing
  • Multiple-action policing
  • Single-rate policing
  • Two-rate policing

Queueing and shaping

Supports the following:

  • Byte-based WRED
  • Low Latency Queueing (LLQ)
  • Weighted Random Early Detection (WRED)
Table 4 QoS Features Supported with Frame Relay over MPLS

QoS Feature

Frame Relay over MPLS

Service policy

Can be applied to:

  • Interface (input and output)
  • PVC (input and output)

Classification

Supports the following commands:

  • match fr-de (on interfaces and VCs)
  • match fr-dlci (on interfaces)
  • match qos-group

Marking

Supports the following commands:

  • frame-relay congestion management (output)
  • set discard-class
  • set fr-de (output policy)
  • set fr-fecn-becn (output)
  • set mpls experimental
  • set qos-group
  • threshold ecn (output)

Policing

Supports the following:

  • Color-aware policing
  • Multiple-action policing
  • Single-rate policing
  • Two-rate policing

Queueing and shaping

Supports the following:

  • Byte-based WRED
  • Class-based weighted fair queueing (CBWFQ)
  • LLQ
  • random-detect discard-class-based command
  • Traffic shaping
  • WRED
Table 5 QoS Features Supported with ATM Cell Relay and AAL5 over MPLS

QoS Feature

ATM Cell Relay and AAL5 over MPLS

Service policy

Can be applied to:

  • Interface (input and output)
  • PVC (input and output)
  • Subinterface (input and output)

Classification

Supports the following commands:

  • match mpls experimental (on VCs)
  • match qos-group (output)

Marking

Supports the following commands:

  • random-detect discard-class-based (input)
  • set clp (output) (on interfaces, subinterfaces, and VCs)
  • set discard-class (input)
  • set mpls experimenta l (input) (on interfaces, subinterfaces, and VCs)
  • set qos-group (input)

Policing

Supports the following:

  • Color-aware policing
  • Multiple-action policing
  • Single-rate policing
  • Two-rate policing

Queueing and shaping

Supports the following:

  • Byte-based WRED
  • CBWFQ
  • Class-based shaping support on ATM PVCs
  • LLQ
  • random-detect discard-class-based command
  • WRED

OAM Cell Emulation for ATM AAL5 over MPLS

If a PE router does not support the transport of Operation, Administration, and Maintenance (OAM) cells across a label switched path (LSP), you can use OAM cell emulation to locally terminate or loop back the OAM cells. You configure OAM cell emulation on both PE routers, which emulates a VC by forming two unidirectional LSPs. You use Cisco software commands on both PE routers to enable OAM cell emulation.

After you enable OAM cell emulation on a router, you can configure and manage the ATM VC in the same manner as you would a terminated VC. A VC that has been configured with OAM cell emulation can send loopback cells at configured intervals toward the local CE router. The endpoint can be either of the following:

  • End-to-end loopback, which sends OAM cells to the local CE router.
  • Segment loopback, which responds to OAM cells to a device along the path between the PE and CE routers.

The OAM cells include the following cells:

  • Alarm indication signal (AIS)
  • Remote defect indication (RDI)

These cells identify and report defects along a VC. When a physical link or interface failure occurs, intermediate nodes insert OAM AIS cells into all the downstream devices affected by the failure. When a router receives an AIS cell, it marks the ATM VC down and sends an RDI cell to let the remote end know about the failure.

OAM Cell Emulation for ATM AAL5 over MPLS in VC Class Configuration Mode

You can configure OAM cell emulation as part of a VC class and then apply the VC class to an interface, a subinterface, or a VC. When you configure OAM cell emulation in VC class configuration mode and then apply the VC class to an interface, the settings in the VC class apply to all the VCs on the interface, unless you specify a different OAM cell emulation value at a lower level, such as the subinterface or VC level. For example, you can create a VC class that specifies OAM cell emulation and sets the rate of AIS cells to every 30 seconds. You can apply the VC class to an interface. Then, for one PVC, you can enable OAM cell emulation and set the rate of AIS cells to every 15 seconds. All the PVCs on the interface use the cell rate of 30 seconds, except for the one PVC that was set to 15 seconds.

Any Transport over MPLS (AToM) Remote Ethernet Port Shutdown

This Cisco IOS XE feature allows a service provider edge (PE) router on the local end of an Ethernet over MPLS (EoMPLS) pseudowire to detect a remote link failure and cause the shutdown of the Ethernet port on the local customer edge (CE) router. Because the Ethernet port on the local CE router is shut down, the router does not lose data by continuously sending traffic to the failed remote link. This is beneficial if the link is configured as a static IP route.

The figure below illustrates a condition in an EoMPLS WAN, with a down Layer 2 tunnel link between a CE router (Customer Edge 1) and the PE router (Provider Edge 1). A CE router on the far side of the Layer 2 tunnel (Customer Edge 2), continues to forward traffic to Customer Edge 1 through the L2 tunnel.

Figure 2. Remote Link Outage in EoMPLS WAN

Previous to this feature, the Provider Edge 2 router could not detect a failed remote link. Traffic forwarded from Customer Edge 2 to Customer Edge 1 would be lost until routing or spanning tree protocols detected the down remote link. If the link was configured with static routing, the remote link outage would be even more difficult to detect.

With this feature, the Provider Edge 2 router detects the remote link failure and causes a shutdown of the local Customer Edge 2 Ethernet port. When the remote L2 tunnel link is restored, the local interface is automatically restored as well. The possibility of data loss is thus diminished.

With reference to the figure above, the Remote Ethernet Shutdown sequence is generally described as follows:

  1. The remote link between Customer Edge 1 and Provider Edge 1 fails.
  2. Provider Edge 2 detects the remote link failure and disables the transmit laser on the line card interface connected to Customer Edge 2.
  3. An RX_LOS error alarm is received by Customer Edge 2 causing Customer Edge 2 to bring down the interface.
  4. Provider Edge 2 maintains its interface with Customer Edge 2 in an up state.
  5. When the remote link and EoMPLS connection is restored, the Provider Edge 2 router enables the transmit laser.
  6. The Customer Edge 2 router brings up its downed interface.

This feature is enabled by default for Ethernet over MPLS (EoMPLS). You can also enable this feature by using the remote link failure notification command in xconnect configuration mode as shown in the following example:

pseudowire-class eompls
 encapsulation mpls
!
interface GigabitEthernet1/0/0
 xconnect 10.13.13.13 1 pw-class eompls
  remote link failure notification
!

This feature can be disabled using the no remote link failure notification command in xconnect configuration mode. Use the show ip interface brief privileged EXEC command to display the status of all remote L2 tunnel links. Use the show interfaceprivileged EXEC command to show the status of the L2 tunnel on a specific interface.


Note

The no remote link failure notificationcommand will not give notification to clients for remote attachment circuit status down.

Any Transport over MPLS (AToM) Remote Ethernet Port Shutdown using the commands associated with the L2VPN Protocol-Based CLIs feature

This Cisco IOS XE feature allows a service provider edge (PE) router on the local end of an Ethernet over MPLS (EoMPLS) pseudowire to detect a remote link failure and cause the shutdown of the Ethernet port on the local customer edge (CE) router. Because the Ethernet port on the local CE router is shut down, the router does not lose data by continuously sending traffic to the failed remote link. This is beneficial if the link is configured as a static IP route.

The figure below illustrates a condition in an EoMPLS WAN, with a down Layer 2 tunnel link between a CE router (Customer Edge 1) and the PE router (Provider Edge 1). A CE router on the far side of the Layer 2 tunnel (Customer Edge 2), continues to forward traffic to Customer Edge 1 through the L2 tunnel.

Figure 3. Remote Link Outage in EoMPLS WAN

Previous to this feature, the Provider Edge 2 router could not detect a failed remote link. Traffic forwarded from Customer Edge 2 to Customer Edge 1 would be lost until routing or spanning tree protocols detected the down remote link. If the link was configured with static routing, the remote link outage would be even more difficult to detect.

With this feature, the Provider Edge 2 router detects the remote link failure and causes a shutdown of the local Customer Edge 2 Ethernet port. When the remote L2 tunnel link is restored, the local interface is automatically restored as well. The possibility of data loss is thus diminished.

With reference to the figure above, the Remote Ethernet Shutdown sequence is generally described as follows:

  1. The remote link between Customer Edge 1 and Provider Edge 1 fails.
  2. Provider Edge 2 detects the remote link failure and disables the transmit laser on the line card interface connected to Customer Edge 2.
  3. An RX_LOS error alarm is received by Customer Edge 2 causing Customer Edge 2 to bring down the interface.
  4. Provider Edge 2 maintains its interface with Customer Edge 2 in an up state.
  5. When the remote link and EoMPLS connection is restored, the Provider Edge 2 router enables the transmit laser.
  6. The Customer Edge 2 router brings up its downed interface.

This feature is enabled by default for Ethernet over MPLS (EoMPLS). You can also enable this feature by using the remote link failure notification command in xconnect configuration mode as shown in the following example:

template type pseudowire eompls
 encapsulation mpls
!
interface Pseudowire 100
 source template type pseudowire test
 neighbor 10.13.13.13 1
interface GigabitEthernet1/0/0
	service instance 300 ethernet
 remote link failure notification
l2vpn xconnect context con1
 member GigabitEthernet1/0/0 service-instance 300
 member Pseudowire 100
!

This feature can be disabled using the no remote link failure notification command in xconnect configuration mode. Use the show ip interface brief privileged EXEC command to display the status of all remote L2 tunnel links. Use the show interfaceprivileged EXEC command to show the status of the L2 tunnel on a specific interface.


Note

The no remote link failure notificationcommand will not give notification to clients for remote attachment circuit status down.

AToM Load Balancing with Single PW

Prior to Cisco IOS XE Release 3.4S, the Cisco ASR 1000 Series Aggregation Services Router did not perform load balancing for packets within the same pseudowire (PW) at the Provide Edge (PE) even if Equal Cost Multiple Paths (ECMPs) were available between PEs in an MPLS cloud. Only one of the routing options from the table would be used, and the other paths would be left unused. The AToM Load Balancing with Single PW feature enables load balancing for packets within the same pseudowire by further classifying packets within the same pseudowire into different flows based on certain fields in the packet received on an attachment circuit. For example, for Ethernet this load balancing is based on the source MAC address in the incoming packets.

In Cisco IOS XE Release 3.4S, this feature is available only for the Ethernet family of attachment circuits (ACs); so the flow-identification logic is based on source MAC address. All packets with the same source MAC address follow one path and are identified as flows.

How to Configure Any Transport over MPLS

This section explains how to perform a basic AToM configuration and includes the following procedures:

Configuring the Pseudowire Class


Note

In simple configurations, this task is optional. You need not specify a pseudowire class if you specify the tunneling method as part of the xconnect command.

  • You must specify the encapsulation mpls command as part of the pseudowire class or as part of the xconnect command for the AToM VCs to work properly. If you omit the encapsulation mpls command as part of the xconnectcommand, you receive the following error:
% Incomplete command.
SUMMARY STEPS

    1.    enable

    2.    configure terminal

    3.    pseudowire-class name

    4.    encapsulation mpls


DETAILED STEPS
     Command or ActionPurpose
    Step 1 enable


    Example:
    Router> enable


    Enables privileged EXEC mode.

    • Enter your password if prompted.

    Step 2 configure terminal


    Example:
    Router# configure terminal


    Enters global configuration mode.


    Step 3 pseudowire-class name


    Example:
    Router(config)# pseudowire-class atom


    Establishes a pseudowire class with a name that you specify and enters pseudowire class configuration mode.


    Step 4 encapsulation mpls


    Example:
    Router(config-pw)# encapsulation mpls


    Specifies the tunneling encapsulation.



    Configuring the Pseudowire Class using the commands associated with the L2VPN Protocol-Based CLIs feature


    Note

    In simple configurations, this task is optional. You need not specify a pseudowire class if you specify the tunneling method as part of the l2vpn xconnect context command.

    • You must specify the encapsulation mpls command as part of the pseudowire class or as part of the l2vpn xconnect context command for the AToM VCs to work properly. If you omit the encapsulation mpls command as part of the l2vpn xconnect contextcommand, you receive the following error:
    % Incomplete command.
    SUMMARY STEPS

      1.    enable

      2.    configure terminal

      3.    interface pseudowire name

      4.    encapsulation mpls

      5.    neighbor peer-address vcid-value


    DETAILED STEPS
       Command or ActionPurpose
      Step 1 enable


      Example:
      Router> enable


      Enables privileged EXEC mode.

      • Enter your password if prompted.

      Step 2 configure terminal


      Example:
      Router# configure terminal


      Enters global configuration mode.


      Step 3 interface pseudowire name


      Example:
      Router(config)# interface pseudowire atom


      Establishes an interface pseudowire with a name that you specify and enters pseudowire class configuration mode.


      Step 4 encapsulation mpls


      Example:
      Router(config-pw-class)# encapsulation mpls


      Specifies the tunneling encapsulation.


      Step 5 neighbor peer-address vcid-value


      Example:
      Router(config-pw-class)#  neighbor 33.33.33.33 1


      Specifies the peer IP address and virtual circuit (VC) ID value of a Layer 2 VPN (L2VPN) pseudowire.



      Changing the Encapsulation Type and Removing a Pseudowire

      Once you specify the encapsulation mpls command, you cannot remove it using the no encapsulation mplscommand. Nor can you change the command's setting using the encapsulation l2tpv3 command. Those methods result in the following error message:

      Encapsulation changes are not allowed on an existing pw-class.

      To remove the encapsulation mpls command, you must delete the pseudowire with the no pseudowire-class command.

      To change the type of encapsulation, remove the pseudowire using the no pseudowire-class command and reconfigure the pseudowire to specify the new encapsulation type.

      Changing the Encapsulation Type and Removing a Pseudowire using the commands associated with the L2VPN Protocol-Based CLIs feature

      Once you specify the encapsulation mpls command, you cannot remove it using the no encapsulation mplscommand. Nor can you change the command's setting using the encapsulation l2tpv3 command. Those methods result in the following error message:

      Encapsulation changes are not allowed on an existing pw-class.

      To remove the encapsulation mpls command, you must delete the pseudowire with the no template type pseudowire command.

      To change the type of encapsulation, remove the pseudowire using the no template type pseudowire command and reconfigure the pseudowire to specify the new encapsulation type.

      Configuring ATM AAL5 over MPLS

      Configuring ATM AAL5 over MPLS on PVCs

      SUMMARY STEPS

        1.    enable

        2.    configure terminal

        3.    interface type slot / subslot / port [. subinterface]

        4.    pvc [name] vpi / vci l2transport

        5.    encapsulation aal5

        6.    xconnect peer-router-id vcid encapsulation mpls

        7.    end

        8.    show mpls l2transport vc


      DETAILED STEPS
         Command or ActionPurpose
        Step 1 enable


        Example:
        Router> enable


        Enables privileged EXEC mode.

        • Enter your password if prompted.

        Step 2 configure terminal


        Example:
        Router# configure terminal


        Enters global configuration mode.


        Step 3 interface type slot / subslot / port [. subinterface]


        Example:
        Router(config)# interface atm1/0/0


        Specifies the interface type and enters interface configuration mode.


        Step 4 pvc [name] vpi / vci l2transport


        Example:
        Router(config-if)# pvc 1/200 l2transport


        Creates or assigns a name to an ATM PVC and enters L2transport PVC configuration mode.

        • The l2transportkeyword indicates that the PVC is a switched PVC instead of a terminated PVC.

        Step 5 encapsulation aal5


        Example:
        Router(config-if-atm-l2trans-pvc)# encapsulation aal5


        Specifies ATM AAL5 encapsulation for the PVC. Make sure you specify the same encapsulation type on the PE and customer edge (CE) routers.


        Step 6 xconnect peer-router-id vcid encapsulation mpls


        Example:
        Router(config-if-atm-l2trans-pvc)# xconnect 10.13.13.13 100 encapsulation mpls


        Binds the attachment circuit to a pseudowire VC.


        Step 7 end


        Example:
        Router(config-if-atm-l2trans-pvc)# end


        Exits to privileged EXEC mode.


        Step 8 show mpls l2transport vc


        Example:
        Router# show mpls l2transport vc


        Displays output that shows ATM AAL5 over MPLS is configured on a PVC.


        Examples

        The following is sample output from the show mpls l2transport vccommand that shows that ATM AAL5 over MPLS is configured on a PVC:

        Router# show mpls l2transport vc
Local intf   Local circuit          Dest address      VC ID      Status
---------    -------------          ------------      -----      ------
ATM1/0       ATM AAL5 1/100         10.4.4.4           100        UP

        Configuring ATM AAL5 over MPLS on PVCs using the commands associated with the L2VPN Protocol-Based CLIs feature

        SUMMARY STEPS

          1.    enable

          2.    configure terminal

          3.    interface type slot / subslot / port[. subinterface]

          4.    pvc [name] vpi / vci l2transport

          5.    encapsulation aal5

          6.    end

          7.    interface pseudowire number

          8.    encapsulation mpls

          9.    neighbor peer-address vcid-value

          10.    exit

          11.    l2vpn xconnect context context-name

          12.    member pseudowire interface-number

          13.    member atm interface-number pvc vpi / vci

          14.    end

          15.    show l2vpn atom vc


        DETAILED STEPS
           Command or ActionPurpose
          Step 1 enable


          Example:
          Device> enable


          Enables privileged EXEC mode.

          • Enter your password if prompted.

          Step 2 configure terminal


          Example:
          Device# configure terminal


          Enters global configuration mode.


          Step 3 interface type slot / subslot / port[. subinterface]


          Example:
          Device(config)# interface atm1/0/0


          Specifies the interface type and enters interface configuration mode.


          Step 4 pvc [name] vpi / vci l2transport


          Example:
          Device(config-if)# pvc 1/200 l2transport


          Creates or assigns a name to an ATM PVC and enters L2transport PVC configuration mode.

          • The l2transport keyword indicates that the PVC is a switched PVC instead of a terminated PVC.

          Step 5 encapsulation aal5


          Example:
          Device(config-if-atm-l2trans-pvc)# encapsulation aal5


          Specifies ATM AAL5 encapsulation for the PVC. Make sure you specify the same encapsulation type on the PE and customer edge (CE) routers.


          Step 6 end


          Example:
          Device(config-if-atm-l2trans-pvc)# end


          Exits to privileged EXEC mode.


          Step 7 interface pseudowire number


          Example:
          Device(config)# interface pseudowire 100


          Specifies the pseudowire interface and enters interface configuration mode.


          Step 8 encapsulation mpls


          Example:
          Device(config-if)# encapsulation mpls


          Specifies that Multiprotocol Label Switching (MPLS) is used as the data encapsulation method.


          Step 9 neighbor peer-address vcid-value


          Example:
          Device(config-if)# neighbor 10.13.13.13 100


          Specifies the peer IP address and virtual circuit (VC) ID value of the Layer 2 VPN (L2VPN) pseudowire.


          Step 10 exit


          Example:
          Device(config-if)# exit


          Exits interface configuration mode.


          Step 11 l2vpn xconnect context context-name


          Example:
          Device(config)# l2vpn xconnect context con1


          Creates a Layer 2 VPN (L2VPN) cross connect context and enters xconnect configuration mode.


          Step 12 member pseudowire interface-number


          Example:
          Device(config-xconnect)# member pseudowire 100


          Specifies a member pseudowire to form a Layer 2 VPN (L2VPN) cross connect.


          Step 13 member atm interface-number pvc vpi / vci


          Example:
          Device(config-xconnect)# member atm 100 pvc 1/200


          Specifies the location of the ATM member interface.


          Step 14 end


          Example:
          Device(config-xconnect)# end


          Exits to privileged EXEC mode.


          Step 15 show l2vpn atom vc


          Example:
          Device# show l2vpn atom vc


          Displays output that shows ATM AAL5 over MPLS is configured on a PVC.


          Examples

          The following is sample output from the show l2vpn atom vc command that shows that ATM AAL5 over MPLS is configured on a PVC:

          Device# show l2vpn atom vc
Local intf   Local circuit          Dest address      VC ID      Status
---------    -------------          ------------      -----      ------
ATM1/0       ATM AAL5 1/100         10.4.4.4           100        UP

          Configuring ATM AAL5 over MPLS in VC Class Configuration Mode

          SUMMARY STEPS

            1.    enable

            2.    configure terminal

            3.    vc-class atm vc-class-name

            4.    encapsulation layer-type

            5.    exit

            6.    interface type slot / subslot / port [. subinterface]

            7.    class-int vc-class-name

            8.    pvc [name] vpi / vci l2transport

            9.    xconnect peer-router-id vcid encapsulation mpls

            10.    end

            11.    show atm class-links


          DETAILED STEPS
             Command or ActionPurpose
            Step 1 enable


            Example:
            Router> enable


            Enables privileged EXEC mode.

            • Enter your password if prompted.

            Step 2 configure terminal


            Example:
            Router# configure terminal


            Enters global configuration mode.


            Step 3 vc-class atm vc-class-name


            Example:
            Router(config)# vc-class atm aal5class


            Creates a VC class and enters VC class configuration mode.


            Step 4 encapsulation layer-type


            Example:
            Router(config-vc-class)# encapsulation aal5


            Configures the AAL and encapsulation type.


            Step 5 exit


            Example:
            Router(config-vc-class)# exit


            Exits VC class configuration mode.


            Step 6 interface type slot / subslot / port [. subinterface]


            Example:
            Router(config)# interface atm1/0/0


            Specifies the interface type enters interface configuration mode.


            Step 7 class-int vc-class-name


            Example:
            Router(config-if)# class-int aal5class


            Applies a VC class to the ATM main interface or subinterface.

            Note

            You can also apply a VC class to a PVC.


            Step 8 pvc [name] vpi / vci l2transport


            Example:
            Router(config-if)# pvc 1/200 l2transport


            Creates or assigns a name to an ATM PVC and enters L2transport PVC configuration mode.

            • The l2transportkeyword indicates that the PVC is a switched PVC instead of a terminated PVC.

            Step 9 xconnect peer-router-id vcid encapsulation mpls


            Example:
            Router(config-if-atm-l2trans-pvc)# xconnect 10.13.13.13 100 encapsulation mpls


            Binds the attachment circuit to a pseudowire VC.


            Step 10 end


            Example:
            Router(config-if-atm-l2trans-pvc)# end


            Exits to privileged EXEC mode.


            Step 11 show atm class-links


            Example:
            Router# show atm class-links


            Displays the type of encapsulation and that the VC class was applied to an interface.


            Examples

            In the following example, the command output from the show atm class-linkscommand verifies that ATM AAL5 over MPLS is configured as part of a VC class. The command output shows the type of encapsulation and that the VC class was applied to an interface.

            Router# show atm class-links 1/100
Displaying vc-class inheritance for ATM1/0/0.0, vc 1/100:
no broadcast - Not configured - using default
encapsulation aal5 - VC-class configured on main interface

            Configuring ATM AAL5 over MPLS in VC Class Configuration Mode using the commands associated with the L2VPN Protocol-Based CLIs feature

            SUMMARY STEPS

              1.    enable

              2.    configure terminal

              3.    vc-class atm vc-class-name

              4.    encapsulation layer-type

              5.    exit

              6.    interface type slot / subslot / port [. subinterface]

              7.    class-int vc-class-name

              8.    pvc [name] vpi / vci l2transport

              9.    exit

              10.    interface pseudowire number

              11.    encapsulation mpls

              12.    neighbor peer-address vcid-value

              13.    exit

              14.    l2vpn xconnect context context-name

              15.    member pseudowire interface-number

              16.    member atm interface-number

              17.    end

              18.    show atm class-links


            DETAILED STEPS
               Command or ActionPurpose
              Step 1 enable


              Example:
              Router> enable


              Enables privileged EXEC mode.

              • Enter your password if prompted.

              Step 2 configure terminal


              Example:
              Router# configure terminal


              Enters global configuration mode.


              Step 3 vc-class atm vc-class-name


              Example:
              Router(config)# vc-class atm aal5class


              Creates a VC class and enters VC class configuration mode.


              Step 4 encapsulation layer-type


              Example:
              Router(config-vc-class)# encapsulation aal5


              Configures the AAL and encapsulation type.


              Step 5 exit


              Example:
              Router(config-vc-class)# exit


              Exits VC class configuration mode.


              Step 6 interface type slot / subslot / port [. subinterface]


              Example:
              Router(config)# interface atm1/0/0


              Specifies the interface type enters interface configuration mode.


              Step 7 class-int vc-class-name


              Example:
              Router(config-if)# class-int aal5class


              Applies a VC class to the ATM main interface or subinterface.

              Note

              You can also apply a VC class to a PVC.


              Step 8 pvc [name] vpi / vci l2transport


              Example:
              Router(config-if)# pvc 1/200 l2transport


              Creates or assigns a name to an ATM PVC and enters L2transport PVC configuration mode.

              • The l2transportkeyword indicates that the PVC is a switched PVC instead of a terminated PVC.

              Step 9 exit


              Example:
              Router(config-if)# exit


              Exits interface configuration mode.


              Step 10 interface pseudowire number


              Example:
              Router(config)# interface pseudowire 100


              Specifies the pseudowire interface and enters interface configuration mode.


              Step 11 encapsulation mpls


              Example:
              Router(config-if)# encapsulation mpls


              Specifies that Multiprotocol Label Switching (MPLS) is used as the data encapsulation method.


              Step 12 neighbor peer-address vcid-value


              Example:
              Router(config-if)# neighbor 10.0.0.1 123


              Specifies the peer IP address and virtual circuit (VC) ID value of the Layer 2 VPN (L2VPN) pseudowire.


              Step 13 exit


              Example:
              Router(config-if)# exit


              Exits interface configuration mode.


              Step 14 l2vpn xconnect context context-name


              Example:
              Router(config)# l2vpn xconnect context con1


              Creates a Layer 2 VPN (L2VPN) cross connect context and enters xconnect configuration mode.


              Step 15 member pseudowire interface-number


              Example:
              Router(config-xconnect)# member pseudowire 100


              Specifies a member pseudowire to form a Layer 2 VPN (L2VPN) cross connect.


              Step 16 member atm interface-number


              Example:
              Device(config-xconnect)# member atm 100


              Specifies the location of the ATM member interface.


              Step 17 end


              Example:
              Router(config-if-atm-l2trans-pvc)# end


              Exits to privileged EXEC mode.


              Step 18 show atm class-links


              Example:
              Router# show atm class-links


              Displays the type of encapsulation and that the VC class was applied to an interface.


              Examples

              In the following example, the command output from the show atm class-linkscommand verifies that ATM AAL5 over MPLS is configured as part of a VC class. The command output shows the type of encapsulation and that the VC class was applied to an interface.

              Router# show atm class-links 1/100
Displaying vc-class inheritance for ATM1/0/0.0, vc 1/100:
no broadcast - Not configured - using default
encapsulation aal5 - VC-class configured on main interface

              Configuring OAM Cell Emulation for ATM AAL5 over MPLS

              Configuring OAM Cell Emulation for ATM AAL5 over MPLS on PVCs

              SUMMARY STEPS

                1.    enable

                2.    configure terminal

                3.    interface type slot / subslot / port [. subinterface]

                4.    pvc [name] vpi / vci l2transport

                5.    encapsulation aal5

                6.    xconnect peer-router-id vcid encapsulation mpls

                7.    oam-ac emulation-enable [ais-rate]

                8.    oam-pvc manage [frequency]

                9.    end

                10.    show atm pvc


              DETAILED STEPS
                 Command or ActionPurpose
                Step 1 enable


                Example:
                Router> enable


                Enables privileged EXEC mode.

                • Enter your password if prompted.

                Step 2 configure terminal


                Example:
                Router# configure terminal


                Enters global configuration mode.


                Step 3 interface type slot / subslot / port [. subinterface]


                Example:
                Router(config)# interface atm1/0/0


                Specifies the interface type enters interface configuration mode.


                Step 4 pvc [name] vpi / vci l2transport


                Example:
                Router(config-if)# pvc 1/200 l2transport


                Creates or assigns a name to an ATM PVC and enters L2transport PVC configuration mode.

                • The l2transportkeyword indicates that the PVC is a switched PVC instead of a terminated PVC.

                Step 5 encapsulation aal5


                Example:
                Router(config-if-atm-l2trans-pvc)# encapsulation aal5


                Specifies ATM AAL5 encapsulation for the PVC.

                • Specify the same encapsulation type on the PE and CE routers.

                Step 6 xconnect peer-router-id vcid encapsulation mpls


                Example:
                Router(config-if-atm-l2trans-pvc)# xconnect 10.13.13.13 100 encapsulation mpls


                Binds the attachment circuit to a pseudowire VC.


                Step 7 oam-ac emulation-enable [ais-rate]


                Example:
                Router(config-if-atm-l2trans-pvc)# oam-ac emulation-enable 30


                Enables OAM cell emulation for AAL5 over MPLS. The ais-rate argument lets you specify the rate at which AIS cells are sent. The default is one cell every second. The range is 0 to 60 seconds.


                Step 8 oam-pvc manage [frequency]


                Example:
                Router(config-if-atm-l2trans-pvc)# oam-pvc manage


                Enables the PVC to generate end-to-end OAM loopback cells that verify connectivity on the virtual circuit.

                The optional frequency argument is the interval between transmission of loopback cells and ranges from 0 to 600 seconds. The default value is 10 seconds.


                Step 9 end


                Example:
                Router(config-if-atm-l2trans-pvc)# end


                Exits to privileged EXEC mode.


                Step 10 show atm pvc


                Example:
                Router# show atm pvc


                Displays output that shows OAM cell emulation is enabled on the ATM PVC.


                Examples

                The following output from the show atm pvc command shows that OAM cell emulation is enabled on the ATM PVC:

                Router# show atm pvc 5/500
ATM4/1/0.200: VCD: 6, VPI: 5, VCI: 500
UBR, PeakRate: 1
AAL5-LLC/SNAP, etype:0x0, Flags: 0x34000C20, VCmode: 0x0
OAM Cell Emulation: enabled, F5 End2end AIS Xmit frequency: 1 second(s)
OAM frequency: 0 second(s), OAM retry frequency: 1 second(s)
OAM up retry count: 3, OAM down retry count: 5
OAM Loopback status: OAM Disabled
OAM VC state: Not ManagedVerified
ILMI VC state: Not Managed
InPkts: 564, OutPkts: 560, InBytes: 19792, OutBytes: 19680
InPRoc: 0, OutPRoc: 0
InFast: 4, OutFast: 0, InAS: 560, OutAS: 560
InPktDrops: 0, OutPktDrops: 0
CrcErrors: 0, SarTimeOuts: 0, OverSizedSDUs: 0
Out CLP=1 Pkts: 0
OAM cells received: 26
F5 InEndloop: 0, F5 InSegloop: 0, F5 InAIS: 0, F5 InRDI: 26
OAM cells sent: 77
F5 OutEndloop: 0, F5 OutSegloop: 0, F5 OutAIS: 77, F5 OutRDI: 0
OAM cell drops: 0
Status: UP

                Configuring OAM Cell Emulation for ATM AAL5 over MPLS on PVCs using the commands associated with the L2VPN Protocol-Based CLIs feature

                SUMMARY STEPS

                  1.    enable

                  2.    configure terminal

                  3.    interface type slot / subslot / port [. subinterface]

                  4.    pvc [name] vpi / vci l2transport

                  5.    encapsulation aal5

                  6.    exit

                  7.    interface pseudowire number

                  8.    encapsulation mpls

                  9.    neighbor peer-address vcid-value

                  10.    exit

                  11.    l2vpn xconnect context context-name

                  12.    member pseudowire interface-number

                  13.    member atm interface-number pvc vpi / vci

                  14.    exit

                  15.    pvc [name] vpi / vci l2transport

                  16.    oam-ac emulation-enable [ais-rate]

                  17.    oam-pvc manage [frequency]

                  18.    end

                  19.    show atm pvc


                DETAILED STEPS
                   Command or ActionPurpose
                  Step 1 enable


                  Example:
                  Router> enable


                  Enables privileged EXEC mode.

                  • Enter your password if prompted.

                  Step 2 configure terminal


                  Example:
                  Router# configure terminal


                  Enters global configuration mode.


                  Step 3 interface type slot / subslot / port [. subinterface]


                  Example:
                  Router(config)# interface atm1/0/0


                  Specifies the interface type enters interface configuration mode.


                  Step 4 pvc [name] vpi / vci l2transport


                  Example:
                  Router(config-if)# pvc 1/200 l2transport


                  Creates or assigns a name to an ATM PVC and enters L2transport PVC configuration mode.

                  • The l2transportkeyword indicates that the PVC is a switched PVC instead of a terminated PVC.

                  Step 5 encapsulation aal5


                  Example:
                  Router(config-if-atm-l2trans-pvc)# encapsulation aal5


                  Specifies ATM AAL5 encapsulation for the PVC.

                  • Specify the same encapsulation type on the PE and CE routers.

                  Step 6 exit


                  Example:
                  Router(config-if-atm-l2trans-pvc)# exit


                  Exits L2transport PVC configuration mode.


                  Step 7 interface pseudowire number


                  Example:
                  Router(config)# interface pseudowire 100


                  Specifies the pseudowire interface and enters interface configuration mode.


                  Step 8 encapsulation mpls


                  Example:
                  Router(config-if)# encapsulation mpls


                  Specifies that Multiprotocol Label Switching (MPLS) is used as the data encapsulation method.


                  Step 9 neighbor peer-address vcid-value


                  Example:
                  Router(config-if)# neighbor 10.0.0.1 123


                  Specifies the peer IP address and virtual circuit (VC) ID value of the Layer 2 VPN (L2VPN) pseudowire.


                  Step 10 exit


                  Example:
                  Router(config-if)# exit


                  Exits interface configuration mode.


                  Step 11 l2vpn xconnect context context-name


                  Example:
                  Router(config)# l2vpn xconnect context con1


                  Creates a Layer 2 VPN (L2VPN) cross connect context and enters xconnect configuration mode.


                  Step 12 member pseudowire interface-number


                  Example:
                  Router(config-xconnect)# member pseudowire 100


                  Specifies a member pseudowire to form a Layer 2 VPN (L2VPN) cross connect.


                  Step 13 member atm interface-number pvc vpi / vci


                  Example:
                  Device(config-xconnect)# member atm 100 pvc 1/200


                  Specifies the location of the ATM member interface.


                  Step 14 exit


                  Example:
                  Router(config-xconnect)# exit


                  Exits xconnect configuration mode.


                  Step 15 pvc [name] vpi / vci l2transport


                  Example:
                  Router(config-if)# pvc 1/200 l2transport


                  Creates or assigns a name to an ATM PVC and enters L2transport PVC configuration mode.


                  Step 16 oam-ac emulation-enable [ais-rate]


                  Example:
                  Router(config-if-atm-l2trans-pvc)# oam-ac emulation-enable 30


                  Enables OAM cell emulation for AAL5 over MPLS. The ais-rate argument lets you specify the rate at which AIS cells are sent. The default is one cell every second. The range is 0 to 60 seconds.


                  Step 17 oam-pvc manage [frequency]


                  Example:
                  Router(config-if-atm-l2trans-pvc)# oam-pvc manage


                  Enables the PVC to generate end-to-end OAM loopback cells that verify connectivity on the virtual circuit.

                  The optional frequency argument is the interval between transmission of loopback cells and ranges from 0 to 600 seconds. The default value is 10 seconds.


                  Step 18 end


                  Example:
                  Router(config-if-atm-l2trans-pvc)# end


                  Exits to privileged EXEC mode.


                  Step 19 show atm pvc


                  Example:
                  Router# show atm pvc


                  Displays output that shows OAM cell emulation is enabled on the ATM PVC.


                  Examples

                  The following output from the show atm pvc command shows that OAM cell emulation is enabled on the ATM PVC:

                  Router# show atm pvc 5/500
ATM4/1/0.200: VCD: 6, VPI: 5, VCI: 500
UBR, PeakRate: 1
AAL5-LLC/SNAP, etype:0x0, Flags: 0x34000C20, VCmode: 0x0
OAM Cell Emulation: enabled, F5 End2end AIS Xmit frequency: 1 second(s)
OAM frequency: 0 second(s), OAM retry frequency: 1 second(s)
OAM up retry count: 3, OAM down retry count: 5
OAM Loopback status: OAM Disabled
OAM VC state: Not ManagedVerified
ILMI VC state: Not Managed
InPkts: 564, OutPkts: 560, InBytes: 19792, OutBytes: 19680
InPRoc: 0, OutPRoc: 0
InFast: 4, OutFast: 0, InAS: 560, OutAS: 560
InPktDrops: 0, OutPktDrops: 0
CrcErrors: 0, SarTimeOuts: 0, OverSizedSDUs: 0
Out CLP=1 Pkts: 0
OAM cells received: 26
F5 InEndloop: 0, F5 InSegloop: 0, F5 InAIS: 0, F5 InRDI: 26
OAM cells sent: 77
F5 OutEndloop: 0, F5 OutSegloop: 0, F5 OutAIS: 77, F5 OutRDI: 0
OAM cell drops: 0
Status: UP

                  Configuring OAM Cell Emulation for ATM AAL5 over MPLS in VC Class Configuration Mode

                  SUMMARY STEPS

                    1.    enable

                    2.    configure terminal

                    3.    vc-class atm name

                    4.    encapsulation layer-type

                    5.    oam-ac emulation-enable [ais-rate]

                    6.    oam-pvc manage [frequency]

                    7.    exit

                    8.    interface type slot / subslot / port [. subinterface]

                    9.    class-int vc-class-name

                    10.    pvc [name] vpi / vci l2transport

                    11.    xconnect peer-router-id vcid encapsulation mpls


                  DETAILED STEPS
                     Command or ActionPurpose
                    Step 1 enable


                    Example:
                    Router> enable


                    Enables privileged EXEC mode.

                    • Enter your password if prompted.

                    Step 2 configure terminal


                    Example:
                    Router# configure terminal


                    Enters global configuration mode.


                    Step 3 vc-class atm name


                    Example:
                    Router(config)# vc-class atm oamclass


                    Creates a VC class and enters VC class configuration mode.


                    Step 4 encapsulation layer-type


                    Example:
                    Router(config-vc-class)# encapsulation aal5


                    Configures the AAL and encapsulation type.


                    Step 5 oam-ac emulation-enable [ais-rate]


                    Example:
                    Router(config-vc-class)# oam-ac emulation-enable 30


                    Enables OAM cell emulation for AAL5 over MPLS and specifies the rate at which AIS cells are sent.


                    Step 6 oam-pvc manage [frequency]


                    Example:
                    Router(config-vc-class)# oam-pvc manage


                    Enables the PVC to generate end-to-end OAM loopback cells that verify connectivity on the virtual circuit.


                    Step 7 exit


                    Example:
                    Router(config-vc-class)# exit


                    Exits VC class configuration mode.


                    Step 8 interface type slot / subslot / port [. subinterface]


                    Example:
                    Router(config)# interface atm1/0/0


                    Specifies the interface type and enters interface configuration mode.


                    Step 9 class-int vc-class-name


                    Example:
                    Router(config-if)# class-int oamclass


                    Applies a VC class to the ATM main interface or subinterface.

                    Note

                    You can also apply a VC class to a PVC.


                    Step 10 pvc [name] vpi / vci l2transport


                    Example:
                    Router(config-if)# pvc 1/200 l2transport


                    Creates or assigns a name to an ATM PVC and enters L2transport PVC configuration mode.

                    • The l2transportkeyword indicates that the PVC is a switched PVC instead of a terminated PVC.

                    Step 11 xconnect peer-router-id vcid encapsulation mpls


                    Example:
                    Router(config-if-atm-l2trans-pvc)# xconnect 10.13.13.13 100 encapsulation mpls


                    Binds the attachment circuit to a pseudowire VC.



                    Configuring OAM Cell Emulation for ATM AAL5 over MPLS in VC Class Configuration Mode using the commands associated with the L2VPN Protocol-Based CLIs feature

                    SUMMARY STEPS

                      1.    enable

                      2.    configure terminal

                      3.    vc-class atm name

                      4.    encapsulation layer-type

                      5.    oam-ac emulation-enable [ais-rate]

                      6.    oam-pvc manage [frequency]

                      7.    exit

                      8.    interface type slot / subslot / port [. subinterface]

                      9.    class-int vc-class-name

                      10.    pvc [name] vpi / vci l2transport

                      11.    end

                      12.    interface pseudowire number

                      13.    encapsulation mpls

                      14.    neighbor peer-address vcid-value

                      15.    exit

                      16.    l2vpn xconnect context context-name

                      17.    member pseudowire interface-number

                      18.    member atm interface-number

                      19.    end


                    DETAILED STEPS
                       Command or ActionPurpose
                      Step 1 enable


                      Example:
                      Router> enable


                      Enables privileged EXEC mode.

                      • Enter your password if prompted.

                      Step 2 configure terminal


                      Example:
                      Router# configure terminal


                      Enters global configuration mode.


                      Step 3 vc-class atm name


                      Example:
                      Router(config)# vc-class atm oamclass


                      Creates a VC class and enters VC class configuration mode.


                      Step 4 encapsulation layer-type


                      Example:
                      Router(config-vc-class)# encapsulation aal5


                      Configures the AAL and encapsulation type.


                      Step 5 oam-ac emulation-enable [ais-rate]


                      Example:
                      Router(config-vc-class)# oam-ac emulation-enable 30


                      Enables OAM cell emulation for AAL5 over MPLS and specifies the rate at which AIS cells are sent.


                      Step 6 oam-pvc manage [frequency]


                      Example:
                      Router(config-vc-class)# oam-pvc manage


                      Enables the PVC to generate end-to-end OAM loopback cells that verify connectivity on the virtual circuit.


                      Step 7 exit


                      Example:
                      Router(config-vc-class)# exit


                      Exits VC class configuration mode.


                      Step 8 interface type slot / subslot / port [. subinterface]


                      Example:
                      Router(config)# interface atm1/0/0


                      Specifies the interface type and enters interface configuration mode.


                      Step 9 class-int vc-class-name


                      Example:
                      Router(config-if)# class-int oamclass


                      Applies a VC class to the ATM main interface or subinterface.

                      Note

                      You can also apply a VC class to a PVC.


                      Step 10 pvc [name] vpi / vci l2transport


                      Example:
                      Router(config-if)# pvc 1/200 l2transport


                      Creates or assigns a name to an ATM PVC and enters L2transport PVC configuration mode.

                      • The l2transportkeyword indicates that the PVC is a switched PVC instead of a terminated PVC.

                      Step 11 end


                      Example:
                      Router(config-if-atm-l2trans-pvc)# end


                      Exits to privileged EXEC mode.


                      Step 12 interface pseudowire number


                      Example:
                      Router(config)# interface pseudowire 100


                      Specifies the pseudowire interface and enters interface configuration mode.


                      Step 13 encapsulation mpls


                      Example:
                      Router(config-if)# encapsulation mpls


                      Specifies that Multiprotocol Label Switching (MPLS) is used as the data encapsulation method.


                      Step 14 neighbor peer-address vcid-value


                      Example:
                      Router(config-if)# neighbor 10.0.0.1 123


                      Specifies the peer IP address and virtual circuit (VC) ID value of the Layer 2 VPN (L2VPN) pseudowire.


                      Step 15 exit


                      Example:
                      Router(config-if)# exit


                      Exits interface configuration mode.


                      Step 16 l2vpn xconnect context context-name


                      Example:
                      Router(config)# l2vpn xconnect context con1


                      Creates a Layer 2 VPN (L2VPN) cross connect context and enters xconnect configuration mode.


                      Step 17 member pseudowire interface-number


                      Example:
                      Router(config-xconnect)# member pseudowire 100


                      Specifies a member pseudowire to form a Layer 2 VPN (L2VPN) cross connect.


                      Step 18 member atm interface-number


                      Example:
                      Device(config-xconnect)# member atm 100


                      Specifies the location of the ATM member interface.


                      Step 19 end


                      Example:
                      Router(config-xconnect)# end


                      Exits to privileged EXEC mode.



                      Configuring ATM Cell Relay over MPLS

                      Configuring ATM Cell Relay over MPLS in VC Mode

                      SUMMARY STEPS

                        1.    enable

                        2.    configure terminal

                        3.    interface atm slot / subslot / port [. subinterface]

                        4.    pvc vpi / vci l2transport

                        5.    encapsulation aal0

                        6.    xconnect peer-router-id vcid encapsulation mpls

                        7.    end

                        8.    show atm vc


                      DETAILED STEPS
                         Command or ActionPurpose
                        Step 1 enable


                        Example:
                        Router> enable


                        Enables privileged EXEC mode.

                        • Enter your password if prompted.

                        Step 2 configure terminal


                        Example:
                        Router# configure terminal


                        Enters global configuration mode.


                        Step 3 interface atm slot / subslot / port [. subinterface]


                        Example:
                        Router(config)# interface atm1/0/0


                        Specifies an ATM interface and enters interface configuration mode.


                        Step 4 pvc vpi / vci l2transport


                        Example:
                        Router(config-if)# pvc 0/100 l2transport


                        Assigns a virtual path identifier (VPI) and virtual circuit identifier (VCI) and enters L2transport VC configuration mode.


                        Step 5 encapsulation aal0


                        Example:
                        Router(config-if-atm-l2trans-pvc)# encapsulation aal0


                        For ATM cell relay, specifies raw cell encapsulation for the interface.

                        • Make sure you specify the same encapsulation type on the PE and CE routers.

                        Step 6 xconnect peer-router-id vcid encapsulation mpls


                        Example:
                        Router(config-if-atm-l2trans-pvc)# xconnect 10.13.13.13 100 encapsulation mpls


                        Binds the attachment circuit to a pseudowire VC.


                        Step 7 end


                        Example:
                        Router(config-if-atm-l2trans-pvc)# end


                        Exits to privileged EXEC mode.


                        Step 8 show atm vc


                        Example:
                        Router# show atm vc


                        Verifies that OAM cell emulation is enabled on the ATM VC.


                        Example

                        The following sample output from the show atm vc command shows that the interface is configured for VC mode cell relay:

                        Router# show atm vc 7
ATM3/0: VCD: 7, VPI: 23, VCI: 100
UBR, PeakRate: 149760
AAL0-Cell Relay, etype:0x10, Flags: 0x10000C2D, VCmode: 0x0
OAM Cell Emulation: not configured
InBytes: 0, OutBytes: 0
Status: UP

                        Configuring ATM Cell Relay over MPLS in VC Mode using the commands associated with the L2VPN Protocol-Based CLIs feature

                        SUMMARY STEPS

                          1.    enable

                          2.    configure terminal

                          3.    interface atm slot / subslot / port [. subinterface]

                          4.    pvc vpi / vci l2transport

                          5.    encapsulation aal0

                          6.    end

                          7.    interface pseudowire number

                          8.    encapsulation mpls

                          9.    neighbor peer-address vcid-value

                          10.    exit

                          11.    l2vpn xconnect context context-name

                          12.    member pseudowire interface-number

                          13.    member atm interface-number

                          14.    end

                          15.    show atm vc


                        DETAILED STEPS
                           Command or ActionPurpose
                          Step 1 enable


                          Example:
                          Router> enable


                          Enables privileged EXEC mode.

                          • Enter your password if prompted.

                          Step 2 configure terminal


                          Example:
                          Router# configure terminal


                          Enters global configuration mode.


                          Step 3 interface atm slot / subslot / port [. subinterface]


                          Example:
                          Router(config)# interface atm1/0/0


                          Specifies an ATM interface and enters interface configuration mode.


                          Step 4 pvc vpi / vci l2transport


                          Example:
                          Router(config-if)# pvc 0/100 l2transport


                          Assigns a virtual path identifier (VPI) and virtual circuit identifier (VCI) and enters L2transport VC configuration mode.


                          Step 5 encapsulation aal0


                          Example:
                          Router(config-if-atm-l2trans-pvc)# encapsulation aal0


                          For ATM cell relay, specifies raw cell encapsulation for the interface.

                          • Make sure you specify the same encapsulation type on the PE and CE routers.

                          Step 6 end


                          Example:
                          Router(config-if-atm-l2trans-pvc)# end


                          Exits to privileged EXEC mode.


                          Step 7 interface pseudowire number


                          Example:
                          Router(config)# interface pseudowire 100


                          Specifies the pseudowire interface and enters interface configuration mode.


                          Step 8 encapsulation mpls


                          Example:
                          Router(config-if)# encapsulation mpls


                          Specifies that Multiprotocol Label Switching (MPLS) is used as the data encapsulation method.


                          Step 9 neighbor peer-address vcid-value


                          Example:
                          Router(config-if)# neighbor 10.0.0.1 123


                          Specifies the peer IP address and virtual circuit (VC) ID value of the Layer 2 VPN (L2VPN) pseudowire.


                          Step 10 exit


                          Example:
                          Router(config-if)# exit


                          Exits interface configuration mode.


                          Step 11 l2vpn xconnect context context-name


                          Example:
                          Router(config)# l2vpn xconnect context con1


                          Creates a Layer 2 VPN (L2VPN) cross connect context and enters xconnect configuration mode.


                          Step 12 member pseudowire interface-number


                          Example:
                          Router(config-xconnect)# member pseudowire 100


                          Specifies a member pseudowire to form a Layer 2 VPN (L2VPN) cross connect.


                          Step 13 member atm interface-number


                          Example:
                          Device(config-xconnect)# member atm 100


                          Specifies the location of the ATM member interface.


                          Step 14 end


                          Example:
                          Router(config-xconnect)# end


                          Exits to privileged EXEC mode.


                          Step 15 show atm vc


                          Example:
                          Router# show atm vc


                          Verifies that OAM cell emulation is enabled on the ATM VC.


                          Example

                          The following sample output from the show atm vc command shows that the interface is configured for VC mode cell relay:

                          Router# show atm vc 7
ATM3/0: VCD: 7, VPI: 23, VCI: 100
UBR, PeakRate: 149760
AAL0-Cell Relay, etype:0x10, Flags: 0x10000C2D, VCmode: 0x0
OAM Cell Emulation: not configured
InBytes: 0, OutBytes: 0
Status: UP

                          Configuring ATM Cell Relay over MPLS in VC Mode Using VC Class Configuration Mode

                          SUMMARY STEPS

                            1.    enable

                            2.    configure terminal

                            3.    vc-class atm name

                            4.    encapsulation layer-type

                            5.    exit

                            6.    interface type slot / subslot / port [. subinterface]

                            7.    class-int vc-class-name

                            8.    pvc [name] vpi / vci l2transport

                            9.    xconnect peer-router-id vcid encapsulation mpls


                          DETAILED STEPS
                             Command or ActionPurpose
                            Step 1 enable


                            Example:
                            Router> enable


                            Enables privileged EXEC mode.

                            • Enter your password if prompted.

                            Step 2 configure terminal


                            Example:
                            Router# configure terminal


                            Enters global configuration mode.


                            Step 3 vc-class atm name


                            Example:
                            Router(config)# vc-class atm cellrelay


                            Creates a VC class and enters VC class configuration mode.


                            Step 4 encapsulation layer-type


                            Example:
                            Router(config-vc-class)# encapsulation aal0


                            Configures the AAL and encapsulation type.


                            Step 5 exit


                            Example:
                            Router(config-vc-class)# exit


                            Exits VC class configuration mode.


                            Step 6 interface type slot / subslot / port [. subinterface]


                            Example:
                            Router(config)# interface atm1/0/0


                            Specifies the interface type and enters interface configuration mode.


                            Step 7 class-int vc-class-name


                            Example:
                            Router(config-if)# class-int cellrelay


                            Applies a VC class to the ATM main interface or subinterface.

                            Note

                            You can also apply a VC class to a PVC.


                            Step 8 pvc [name] vpi / vci l2transport


                            Example:
                            Router(config-if)# pvc 1/200 l2transport


                            Creates or assigns a name to an ATM PVC and enters L2transport PVC configuration mode.


                            Step 9 xconnect peer-router-id vcid encapsulation mpls


                            Example:
                            Router(config-if-atm-l2trans-pvc)# xconnect 10.13.13.13 100 encapsulation mpls


                            Binds the attachment circuit to a pseudowire VC.



                            Configuring ATM Cell Relay over MPLS in VC Mode Using VC Class Configuration Mode using the commands associated with the L2VPN Protocol-Based CLIs feature

                            SUMMARY STEPS

                              1.    enable

                              2.    configure terminal

                              3.    vc-class atm name

                              4.    encapsulation layer-type

                              5.    exit

                              6.    interface type slot / subslot / port [. subinterface]

                              7.    class-int vc-class-name

                              8.    pvc [name] vpi / vci l2transport

                              9.    end

                              10.    interface pseudowire number

                              11.    encapsulation mpls

                              12.    neighbor peer-address vcid-value

                              13.    exit

                              14.    l2vpn xconnect context context-name

                              15.    member pseudowire interface-number

                              16.    member atm interface-number

                              17.    end


                            DETAILED STEPS
                               Command or ActionPurpose
                              Step 1 enable


                              Example:
                              Router> enable


                              Enables privileged EXEC mode.

                              • Enter your password if prompted.

                              Step 2 configure terminal


                              Example:
                              Router# configure terminal


                              Enters global configuration mode.


                              Step 3 vc-class atm name


                              Example:
                              Router(config)# vc-class atm cellrelay


                              Creates a VC class and enters VC class configuration mode.


                              Step 4 encapsulation layer-type


                              Example:
                              Router(config-vc-class)# encapsulation aal0


                              Configures the AAL and encapsulation type.


                              Step 5 exit


                              Example:
                              Router(config-vc-class)# exit


                              Exits VC class configuration mode.


                              Step 6 interface type slot / subslot / port [. subinterface]


                              Example:
                              Router(config)# interface atm1/0/0


                              Specifies the interface type and enters interface configuration mode.


                              Step 7 class-int vc-class-name


                              Example:
                              Router(config-if)# class-int cellrelay


                              Applies a VC class to the ATM main interface or subinterface.

                              Note

                              You can also apply a VC class to a PVC.


                              Step 8 pvc [name] vpi / vci l2transport


                              Example:
                              Router(config-if)# pvc 1/200 l2transport


                              Creates or assigns a name to an ATM PVC and enters L2transport PVC configuration mode.


                              Step 9 end


                              Example:
                              Router(config-if-atm-l2trans-pvc)# end


                              Exits to privileged EXEC mode.


                              Step 10 interface pseudowire number


                              Example:
                              Router(config)# interface pseudowire 100


                              Specifies the pseudowire interface and enters interface configuration mode.


                              Step 11 encapsulation mpls


                              Example:
                              Router(config-if)# encapsulation mpls


                              Specifies that Multiprotocol Label Switching (MPLS) is used as the data encapsulation method.


                              Step 12 neighbor peer-address vcid-value


                              Example:
                              Router(config-if)# neighbor 10.0.0.1 123


                              Specifies the peer IP address and virtual circuit (VC) ID value of the Layer 2 VPN (L2VPN) pseudowire.


                              Step 13 exit


                              Example:
                              Router(config-if)# exit


                              Exits interface configuration mode.


                              Step 14 l2vpn xconnect context context-name


                              Example:
                              Router(config)# l2vpn xconnect context con1


                              Creates a Layer 2 VPN (L2VPN) cross connect context and enters xconnect configuration mode.


                              Step 15 member pseudowire interface-number


                              Example:
                              Router(config-xconnect)# member pseudowire 100


                              Specifies a member pseudowire to form a Layer 2 VPN (L2VPN) cross connect.


                              Step 16 member atm interface-number


                              Example:
                              Device(config-xconnect)# member atm 100


                              Specifies the location of the ATM member interface.


                              Step 17 end


                              Example:
                              Router(config-xconnect)# end


                              Exits to privileged EXEC mode.



                              Configuring ATM Cell Relay over MPLS in PVP Mode

                              SUMMARY STEPS

                                1.    enable

                                2.    configure terminal

                                3.    interface atm slot / subslot / port [. subinterface]

                                4.    atm pvp vpi l2transport

                                5.    xconnect peer-router-id vcid encapsulation mpls

                                6.    end

                                7.    show atm vp


                              DETAILED STEPS
                                 Command or ActionPurpose
                                Step 1 enable


                                Example:
                                Router> enable


                                Enables privileged EXEC mode.

                                • Enter your password if prompted.

                                Step 2 configure terminal


                                Example:
                                Router# configure terminal


                                Enters global configuration mode.


                                Step 3 interface atm slot / subslot / port [. subinterface]


                                Example:
                                Router(config)# interface atm1/0/0


                                Defines the interface and enters interface configuration mode.


                                Step 4 atm pvp vpi l2transport


                                Example:
                                Router(config-if)# atm pvp 1 l2transport


                                Specifies that the PVP is dedicated to transporting ATM cells and enters L2transport PVP configuration mode.

                                • The l2transportkeyword indicates that the PVP is for cell relay. This mode is for Layer 2 transport only; it is not for regular PVPs.

                                Step 5 xconnect peer-router-id vcid encapsulation mpls


                                Example:
                                Router(config-if-atm-l2trans-pvp)# xconnect 10.0.0.1 123 encapsulation mpls


                                Binds the attachment circuit to a pseudowire VC. The syntax for this command is the same as for all other Layer 2 transports.


                                Step 6 end


                                Example:
                                Router(config-if-atm-l2trans-pvp)# end


                                Exits to privileged EXEC mode.


                                Step 7 show atm vp


                                Example:
                                Router# show atm vp


                                Displays output that shows OAM cell emulation is enabled on the ATM VP.


                                Examples

                                The following output from the show atm vp command shows that the interface is configured for VP mode cell relay:

                                Router# show atm vp 1
ATM5/0  VPI: 1, Cell Relay, PeakRate: 149760, CesRate: 0, DataVCs: 1, CesVCs: 0, Status: ACTIVE
  VCD    VCI   Type   InPkts   OutPkts   AAL/Encap     Status
  6      3     PVC    0        0         F4 OAM        ACTIVE
  7      4     PVC    0        0         F4 OAM        ACTIVE
TotalInPkts: 0, TotalOutPkts: 0, TotalInFast: 0, TotalOutFast: 0,
TotalBroadcasts: 0 TotalInPktDrops: 0, TotalOutPktDrops: 0

                                Configuring ATM Cell Relay over MPLS in PVP Mode using the commands associated with the L2VPN Protocol-Based CLIs feature

                                SUMMARY STEPS

                                  1.    enable

                                  2.    configure terminal

                                  3.    interface atm slot / subslot / port [. subinterface]

                                  4.    atm pvp vpi l2transport

                                  5.    end

                                  6.    interface pseudowire number

                                  7.    encapsulation mpls

                                  8.    neighbor peer-address vcid-value

                                  9.    exit

                                  10.    l2vpn xconnect context context-name

                                  11.    member pseudowire interface-number

                                  12.    member atm interface-number pvp vpi

                                  13.    end

                                  14.    show atm vp


                                DETAILED STEPS
                                   Command or ActionPurpose
                                  Step 1 enable


                                  Example:
                                  Router> enable


                                  Enables privileged EXEC mode.

                                  • Enter your password if prompted.

                                  Step 2 configure terminal


                                  Example:
                                  Router# configure terminal


                                  Enters global configuration mode.


                                  Step 3 interface atm slot / subslot / port [. subinterface]


                                  Example:
                                  Router(config)# interface atm1/0/0


                                  Defines the interface and enters interface configuration mode.


                                  Step 4 atm pvp vpi l2transport


                                  Example:
                                  Router(config-if)# atm pvp 1 l2transport


                                  Specifies that the PVP is dedicated to transporting ATM cells and enters L2transport PVP configuration mode.

                                  • The l2transportkeyword indicates that the PVP is for cell relay. This mode is for Layer 2 transport only; it is not for regular PVPs.

                                  Step 5 end


                                  Example:
                                  Router(config-if-atm-l2trans-pvc)# end


                                  Exits to privileged EXEC mode.


                                  Step 6 interface pseudowire number


                                  Example:
                                  Router(config)# interface pseudowire 100


                                  Specifies the pseudowire interface and enters interface configuration mode.


                                  Step 7 encapsulation mpls


                                  Example:
                                  Router(config-if)# encapsulation mpls


                                  Specifies that Multiprotocol Label Switching (MPLS) is used as the data encapsulation method.


                                  Step 8 neighbor peer-address vcid-value


                                  Example:
                                  Router(config-if)# neighbor 10.0.0.1 123


                                  Specifies the peer IP address and virtual circuit (VC) ID value of the Layer 2 VPN (L2VPN) pseudowire.


                                  Step 9 exit


                                  Example:
                                  Router(config-if)# exit


                                  Exits interface configuration mode.


                                  Step 10 l2vpn xconnect context context-name


                                  Example:
                                  Router(config)# l2vpn xconnect context con1


                                  Creates a Layer 2 VPN (L2VPN) cross connect context and enters xconnect configuration mode.


                                  Step 11 member pseudowire interface-number


                                  Example:
                                  Router(config-xconnect)# member pseudowire 100


                                  Specifies a member pseudowire to form a Layer 2 VPN (L2VPN) cross connect.


                                  Step 12 member atm interface-number pvp vpi


                                  Example:
                                  Device(config-xconnect)# member atm 100 pvp 1


                                  Specifies the location of the ATM member interface.


                                  Step 13 end


                                  Example:
                                  Router(config-xconnect)# end


                                  Exits to privileged EXEC mode.


                                  Step 14 show atm vp


                                  Example:
                                  Router# show atm vp


                                  Displays output that shows OAM cell emulation is enabled on the ATM VP.


                                  Examples

                                  The following output from the show atm vp command shows that the interface is configured for VP mode cell relay:

                                  Router# show atm vp 1
ATM5/0  VPI: 1, Cell Relay, PeakRate: 149760, CesRate: 0, DataVCs: 1, CesVCs: 0, Status: ACTIVE
  VCD    VCI   Type   InPkts   OutPkts   AAL/Encap     Status
  6      3     PVC    0        0         F4 OAM        ACTIVE
  7      4     PVC    0        0         F4 OAM        ACTIVE
TotalInPkts: 0, TotalOutPkts: 0, TotalInFast: 0, TotalOutFast: 0,
TotalBroadcasts: 0 TotalInPktDrops: 0, TotalOutPktDrops: 0

                                  Configuring Ethernet over MPLS

                                  Configuring Ethernet over MPLS in VLAN Mode to Connect Two VLAN Networks That Are in Different Locations.

                                  SUMMARY STEPS

                                    1.    enable

                                    2.    configure terminal

                                    3.    interface gigabitethernet slot / subslot / port [. subinterface]

                                    4.    encapsulation dot1q vlan-id

                                    5.    xconnect peer-router-id vcid encapsulation mpls


                                  DETAILED STEPS
                                     Command or ActionPurpose
                                    Step 1 enable


                                    Example:
                                    Router> enable


                                    Enables privileged EXEC mode.

                                    • Enter your password if prompted.

                                    Step 2 configure terminal


                                    Example:
                                    Router# configure terminal


                                    Enters global configuration mode.


                                    Step 3 interface gigabitethernet slot / subslot / port [. subinterface]


                                    Example:
                                    Router(config)# interface gigabitethernet4/0/0.1


                                    Specifies the Gigabit Ethernet subinterface and enters subinterface configuration mode.

                                    • Make sure the subinterface on the adjoining CE router is on the same VLAN as this PE router.

                                    Step 4 encapsulation dot1q vlan-id


                                    Example:
                                    Router(config-subif)# encapsulation dot1q 100


                                    Enables the subinterface to accept 802.1Q VLAN packets.


                                    Step 5 xconnect peer-router-id vcid encapsulation mpls


                                    Example:
                                    Router(config-subif)# xconnect 10.0.0.1 123 encapsulation mpls


                                    Binds the attachment circuit to a pseudowire VC.



                                    Configuring Ethernet over MPLS in VLAN Mode to Connect Two VLAN Networks That Are in Different Locations using the commands associated with the L2VPN Protocol-Based CLIs feature

                                    SUMMARY STEPS

                                      1.    enable

                                      2.    configure terminal

                                      3.    interface gigabitethernet slot / subslot / port [. subinterface]

                                      4.    encapsulation dot1q vlan-id

                                      5.    end

                                      6.    interface pseudowire number

                                      7.    encapsulation mpls

                                      8.    neighbor peer-address vcid-value

                                      9.    exit

                                      10.    l2vpn xconnect context context-name

                                      11.    member pseudowire interface-number

                                      12.    member gigabitethernet interface-number

                                      13.    end


                                    DETAILED STEPS
                                       Command or ActionPurpose
                                      Step 1 enable


                                      Example:
                                      Router> enable


                                      Enables privileged EXEC mode.

                                      • Enter your password if prompted.

                                      Step 2 configure terminal


                                      Example:
                                      Router# configure terminal


                                      Enters global configuration mode.


                                      Step 3 interface gigabitethernet slot / subslot / port [. subinterface]


                                      Example:
                                      Router(config)# interface gigabitethernet4/0/0.1


                                      Specifies the Gigabit Ethernet subinterface and enters subinterface configuration mode.

                                      • Make sure the subinterface on the adjoining CE router is on the same VLAN as this PE router.

                                      Step 4 encapsulation dot1q vlan-id


                                      Example:
                                      Router(config-subif)# encapsulation dot1q 100


                                      Enables the subinterface to accept 802.1Q VLAN packets.


                                      Step 5 end


                                      Example:
                                      Router(config-subif)# end


                                      Exits to privileged EXEC mode.


                                      Step 6 interface pseudowire number


                                      Example:
                                      Router(config)# interface pseudowire 100


                                      Specifies the pseudowire interface and enters interface configuration mode.


                                      Step 7 encapsulation mpls


                                      Example:
                                      Router(config-if)# encapsulation mpls


                                      Specifies that Multiprotocol Label Switching (MPLS) is used as the data encapsulation method.


                                      Step 8 neighbor peer-address vcid-value


                                      Example:
                                      Router(config-if)# neighbor 10.0.0.1 123


                                      Specifies the peer IP address and virtual circuit (VC) ID value of the Layer 2 VPN (L2VPN) pseudowire.


                                      Step 9 exit


                                      Example:
                                      Router(config-if)# exit


                                      Exits interface configuration mode.


                                      Step 10 l2vpn xconnect context context-name


                                      Example:
                                      Router(config)# l2vpn xconnect context con1


                                      Creates a Layer 2 VPN (L2VPN) cross connect context and enters xconnect configuration mode.


                                      Step 11 member pseudowire interface-number


                                      Example:
                                      Router(config-xconnect)# member pseudowire 100


                                      Specifies a member pseudowire to form a Layer 2 VPN (L2VPN) cross connect.


                                      Step 12 member gigabitethernet interface-number


                                      Example:
                                      Router(config-xconnect)# member GigabitEthernet0/0/0.1


                                      Specifies the location of the Gigabit Ethernet member interface.


                                      Step 13 end


                                      Example:
                                      Router(config-xconnect)# end


                                      Exits to privileged EXEC mode.



                                      Configuring Ethernet over MPLS in Port Mode

                                      SUMMARY STEPS

                                        1.    enable

                                        2.    configure terminal

                                        3.    interface gigabitethernet slot / subslot / port [. subinterface]

                                        4.    xconnect peer-router-id vcid encapsulation mpls

                                        5.    end

                                        6.    show mpls l2transport vc


                                      DETAILED STEPS
                                         Command or ActionPurpose
                                        Step 1 enable


                                        Example:
                                        Router> enable


                                        Enables privileged EXEC mode.

                                        • Enter your password if prompted.

                                        Step 2 configure terminal


                                        Example:
                                        Router# configure terminal


                                        Enters global configuration mode.


                                        Step 3 interface gigabitethernet slot / subslot / port [. subinterface]


                                        Example:
                                        Router(config)# interface gigabitethernet4/0/0


                                        Specifies the Gigabit Ethernet interface and enters interface configuration mode.

                                        • Make sure the interface on the adjoining CE router is on the same VLAN as this PE router.

                                        Step 4 xconnect peer-router-id vcid encapsulation mpls


                                        Example:
                                        Router(config-if)# xconnect 10.0.0.1 123 encapsulation mpls


                                        Binds the attachment circuit to a pseudowire VC.


                                        Step 5 end


                                        Example:
                                        Router(config-if)# end


                                        Exits to privileged EXEC mode.


                                        Step 6 show mpls l2transport vc


                                        Example:
                                        Router# show mpls l2transport vc


                                        Displays information about Ethernet over MPLS port mode.


                                        Examples

                                        The sample output in the following example shows two VCs for Ethernet over MPLS:

                                        • VC 2 is in Ethernet VLAN mode.
                                        • VC 8 is in Ethernet port mode.
                                        Router# show mpls l2transport vc
Local intf     Local circuit        Dest address    VC ID      Status
-------------  -------------------- --------------- ---------- ----------
Gi4/0/0.1      Eth VLAN 2           10.1.1.1        2          UP
Gi8/0/1        Ethernet             10.1.1.1        8          UP

                                        The sample output from the show mpls l2transport vc detailcommand displays the same information in a different format:

                                        Router# show mpls l2transport vc detail
Local interface: Gi4/0/0.1 up, line protocol up, Eth VLAN 2 up
Destination address: 10.1.1.1, VC ID: 2, VC status: up
.
.
.
Local interface: Gi8/0/1 up, line protocol up, Ethernet up
  Destination address: 10.1.1.1, VC ID: 8, VC status: up

                                        Configuring Ethernet over MPLS in Port Mode using the commands associated with the L2VPN Protocol-Based CLIs feature

                                        SUMMARY STEPS

                                          1.    enable

                                          2.    configure terminal

                                          3.    interface gigabitethernet slot / subslot / port[. subinterface]

                                          4.    end

                                          5.    interface pseudowire number

                                          6.    encapsulation mpls

                                          7.    neighbor peer-address vcid-value

                                          8.    exit

                                          9.    l2vpn xconnect context context-name

                                          10.    member pseudowire interface-number

                                          11.    member gigabitethernet interface-number

                                          12.    end

                                          13.    end

                                          14.    show l2vpn atom vc


                                        DETAILED STEPS
                                           Command or ActionPurpose
                                          Step 1 enable


                                          Example:
                                          Device> enable


                                          Enables privileged EXEC mode.

                                          • Enter your password if prompted.

                                          Step 2 configure terminal


                                          Example:
                                          Device# configure terminal


                                          Enters global configuration mode.


                                          Step 3 interface gigabitethernet slot / subslot / port[. subinterface]


                                          Example:
                                          Device(config)# interface gigabitethernet4/0/0


                                          Specifies the Gigabit Ethernet interface and enters interface configuration mode.

                                          • Make sure the interface on the adjoining CE router is on the same VLAN as this PE router.

                                          Step 4 end


                                          Example:
                                          Device(config-if)# end


                                          Exits to privileged EXEC mode.


                                          Step 5 interface pseudowire number


                                          Example:
                                          Device(config)# interface pseudowire 100


                                          Specifies the pseudowire interface and enters interface configuration mode.


                                          Step 6 encapsulation mpls


                                          Example:
                                          Device(config-if)# encapsulation mpls


                                          Specifies that Multiprotocol Label Switching (MPLS) is used as the data encapsulation method.


                                          Step 7 neighbor peer-address vcid-value


                                          Example:
                                          Device(config-if)# neighbor 10.0.0.1 123


                                          Specifies the peer IP address and virtual circuit (VC) ID value of the Layer 2 VPN (L2VPN) pseudowire.


                                          Step 8 exit


                                          Example:
                                          Device(config-if)# exit


                                          Exits interface configuration mode.


                                          Step 9 l2vpn xconnect context context-name


                                          Example:
                                          Device(config)# l2vpn xconnect context con1


                                          Creates a Layer 2 VPN (L2VPN) cross connect context and enters xconnect configuration mode.


                                          Step 10 member pseudowire interface-number


                                          Example:
                                          Device(config-xconnect)# member pseudowire 100


                                          Specifies a member pseudowire to form a Layer 2 VPN (L2VPN) cross connect.


                                          Step 11 member gigabitethernet interface-number


                                          Example:
                                          Device(config-xconnect)# member GigabitEthernet0/0/0.1


                                          Specifies the location of the Gigabit Ethernet member interface.


                                          Step 12 end


                                          Example:
                                          Device(config-xconnect)# end


                                          Exits to privileged EXEC mode.


                                          Step 13 end


                                          Example:
                                          Device(config-if)# end


                                          Exits to privileged EXEC mode.


                                          Step 14 show l2vpn atom vc


                                          Example:
                                          Device# show l2vpn atom vc


                                          Displays information about Ethernet over MPLS port mode.


                                          Examples

                                          The sample output in the following example shows two VCs for Ethernet over MPLS:

                                          • VC 2 is in Ethernet VLAN mode.
                                          • VC 8 is in Ethernet port mode.
                                          Device# show l2vpn atom vc
Service Interface    Dest Address   VC ID  Type  Name    Status
-----------------    ------------  ------  ----  ----   ------
pw100                 10.1.1.1        2          FOO     UP
pw200                 10.1.1.1        8    p2p   FOO     UP

                                          Configuring Ethernet over MPLS with VLAN ID Rewrite

                                          SUMMARY STEPS

                                            1.    enable

                                            2.    configure terminal

                                            3.    interface gigabitethernet slot / subslot / port [. subinterface]

                                            4.    encapsulation dot1q vlan-id

                                            5.    xconnect peer-router-id vcid encapsulation mpls

                                            6.    remote circuit id remote-vlan-id

                                            7.    end

                                            8.    show controllers eompls forwarding-table


                                          DETAILED STEPS
                                             Command or ActionPurpose
                                            Step 1 enable


                                            Example:
                                            Router> enable


                                            Enables privileged EXEC mode.

                                            • Enter your password if prompted.

                                            Step 2 configure terminal


                                            Example:
                                            Router# configure terminal


                                            Enters global configuration mode.


                                            Step 3 interface gigabitethernet slot / subslot / port [. subinterface]


                                            Example:
                                            Router(config)# interface gigabitethernet4/0/0.1


                                            Specifies the Gigabit Ethernet subinterface and enters subinterface configuration mode.


                                            Step 4 encapsulation dot1q vlan-id


                                            Example:
                                            Router(config-subif)# encapsulation dot1q 100


                                            Enables the subinterface to accept 802.1Q VLAN packets.


                                            Step 5 xconnect peer-router-id vcid encapsulation mpls


                                            Example:
                                            Router(config-subif)# xconnect 10.0.0.1 123 encapsulation mpls


                                            Binds the attachment circuit to a pseudowire VC and enters xconnect configuration mode.


                                            Step 6 remote circuit id remote-vlan-id


                                            Example:
                                            Router(config-subif-xconn)# remote circuit id 101


                                            (Optional) Enables you to use VLAN interfaces with different VLAN IDs at both ends of the tunnel.


                                            Step 7 end


                                            Example:
                                            Router(config-subif-xconn)# end


                                            Exits to privileged EXEC mode.


                                            Step 8 show controllers eompls forwarding-table


                                            Example:
                                            Router# show controllers eompls forwarding-table


                                            Displays information about VLAN ID rewrite.


                                            Examples

                                            The following sample output from the show controllers eompls forwarding-tablecommand shows VLAN ID rewrite configured on a router with an engine 2 3-port Gigabit Ethernet line card. In this example, the output in boldface font shows the VLAN ID rewrite information.

                                            Router# execute slot 0 show controllers eompls forwarding-table 0 2
Port # 0, VLAN-ID # 2, Table-index 2
EoMPLS configured: 1
tag_rew_ptr             = D001BB58
Leaf entry?     = 1
FCR index       = 20
           **tagrew_psa_addr    = 0006ED60
           **tagrew_vir_addr    = 7006ED60
           **tagrew_phy_addr    = F006ED60
        [0-7] loq 8800 mtu 4458  oq 4000 ai 3 oi 04019110 (encaps size 4)
        cw-size 4 vlanid-rew 3
        gather A30 (bufhdr size 32 EoMPLS (Control Word) Imposition profile 81)
        2 tag: 18 18
        counters 1182, 10 reported 1182, 10.
    Local OutputQ (Unicast):    Slot:2  Port:0  RED queue:0  COS queue:0
    Output Q (Unicast):         Port:0          RED queue:0  COS queue:0
                                            Router# execute slot 0 show controllers eompls forwarding-table 0 3
Port # 0, VLAN-ID # 3, Table-index 3
EoMPLS configured: 1
tag_rew_ptr             = D0027B90
Leaf entry?     = 1
FCR index       = 20
           **tagrew_psa_addr    = 0009EE40
           **tagrew_vir_addr    = 7009EE40
           **tagrew_phy_addr    = F009EE40
        [0-7] loq 9400 mtu 4458  oq 4000 ai 8 oi 84000002 (encaps size 4)
        cw-size 4 vlanid-rew 2
        gather A30 (bufhdr size 32 EoMPLS (Control Word) Imposition profile 81)
        2 tag: 17 18
        counters 1182, 10 reported 1182, 10.
    Local OutputQ (Unicast):    Slot:5  Port:0  RED queue:0  COS queue:0
    Output Q (Unicast):         Port:0          RED queue:0  COS queue:0

                                            Configuring Ethernet over MPLS with VLAN ID Rewrite using the commands associated with the L2VPN Protocol-Based CLIs feature

                                            SUMMARY STEPS

                                              1.    enable

                                              2.    configure terminal

                                              3.    interface gigabitethernet slot / subslot / port [. subinterface]

                                              4.    encapsulation dot1q vlan-id

                                              5.    end

                                              6.    interface pseudowire number

                                              7.    encapsulation mpls

                                              8.    neighbor peer-address vcid-value

                                              9.    exit

                                              10.    l2vpn xconnect context context-name

                                              11.    member pseudowire interface-number

                                              12.    member gigabitethernet interface-number

                                              13.    remote circuit id remote-vlan-id

                                              14.    end

                                              15.    show controllers eompls forwarding-table


                                            DETAILED STEPS
                                               Command or ActionPurpose
                                              Step 1 enable


                                              Example:
                                              Router> enable


                                              Enables privileged EXEC mode.

                                              • Enter your password if prompted.

                                              Step 2 configure terminal


                                              Example:
                                              Router# configure terminal


                                              Enters global configuration mode.


                                              Step 3 interface gigabitethernet slot / subslot / port [. subinterface]


                                              Example:
                                              Router(config)# interface gigabitethernet4/0/0.1


                                              Specifies the Gigabit Ethernet subinterface and enters subinterface configuration mode.


                                              Step 4 encapsulation dot1q vlan-id


                                              Example:
                                              Router(config-subif)# encapsulation dot1q 100


                                              Enables the subinterface to accept 802.1Q VLAN packets.


                                              Step 5 end


                                              Example:
                                              Router(config-subif)# end


                                              Exits to privileged EXEC mode.


                                              Step 6 interface pseudowire number


                                              Example:
                                              Router(config)# interface pseudowire 100


                                              Specifies the pseudowire interface and enters interface configuration mode.


                                              Step 7 encapsulation mpls


                                              Example:
                                              Router(config-if)# encapsulation mpls


                                              Specifies that Multiprotocol Label Switching (MPLS) is used as the data encapsulation method.


                                              Step 8 neighbor peer-address vcid-value


                                              Example:
                                              Router(config-if)# neighbor 10.0.0.1 123


                                              Specifies the peer IP address and virtual circuit (VC) ID value of the Layer 2 VPN (L2VPN) pseudowire.


                                              Step 9 exit


                                              Example:
                                              Router(config-if)# exit


                                              Exits interface configuration mode.


                                              Step 10 l2vpn xconnect context context-name


                                              Example:
                                              Router(config)# l2vpn xconnect context con1


                                              Creates a Layer 2 VPN (L2VPN) cross connect context and enters xconnect configuration mode.


                                              Step 11 member pseudowire interface-number


                                              Example:
                                              Router(config-xconnect)# member pseudowire 100


                                              Specifies a member pseudowire to form a Layer 2 VPN (L2VPN) cross connect.


                                              Step 12 member gigabitethernet interface-number


                                              Example:
                                              Router(config-xconnect)# member GigabitEthernet0/0/0.1


                                              Specifies the location of the Gigabit Ethernet member interface.


                                              Step 13 remote circuit id remote-vlan-id


                                              Example:
                                              Router(config-xconnect)# remote circuit id 101


                                              (Optional) Enables you to use VLAN interfaces with different VLAN IDs at both ends of the tunnel.


                                              Step 14 end


                                              Example:
                                              Router(config-xconnect)# end


                                              Exits to privileged EXEC mode.


                                              Step 15 show controllers eompls forwarding-table


                                              Example:
                                              Router# show controllers eompls forwarding-table


                                              Displays information about VLAN ID rewrite.


                                              Examples

                                              The following sample output from the show controllers eompls forwarding-tablecommand shows VLAN ID rewrite configured on a router with an engine 2 3-port Gigabit Ethernet line card. In this example, the output in boldface font shows the VLAN ID rewrite information.

                                              Router# execute slot 0 show controllers eompls forwarding-table 0 2
Port # 0, VLAN-ID # 2, Table-index 2
EoMPLS configured: 1
tag_rew_ptr             = D001BB58
Leaf entry?     = 1
FCR index       = 20
           **tagrew_psa_addr    = 0006ED60
           **tagrew_vir_addr    = 7006ED60
           **tagrew_phy_addr    = F006ED60
        [0-7] loq 8800 mtu 4458  oq 4000 ai 3 oi 04019110 (encaps size 4)
        cw-size 4 vlanid-rew 3
        gather A30 (bufhdr size 32 EoMPLS (Control Word) Imposition profile 81)
        2 tag: 18 18
        counters 1182, 10 reported 1182, 10.
    Local OutputQ (Unicast):    Slot:2  Port:0  RED queue:0  COS queue:0
    Output Q (Unicast):         Port:0          RED queue:0  COS queue:0
                                              Router# execute slot 0 show controllers eompls forwarding-table 0 3
Port # 0, VLAN-ID # 3, Table-index 3
EoMPLS configured: 1
tag_rew_ptr             = D0027B90
Leaf entry?     = 1
FCR index       = 20
           **tagrew_psa_addr    = 0009EE40
           **tagrew_vir_addr    = 7009EE40
           **tagrew_phy_addr    = F009EE40
        [0-7] loq 9400 mtu 4458  oq 4000 ai 8 oi 84000002 (encaps size 4)
        cw-size 4 vlanid-rew 2
        gather A30 (bufhdr size 32 EoMPLS (Control Word) Imposition profile 81)
        2 tag: 17 18
        counters 1182, 10 reported 1182, 10.
    Local OutputQ (Unicast):    Slot:5  Port:0  RED queue:0  COS queue:0
    Output Q (Unicast):         Port:0          RED queue:0  COS queue:0

                                              Configuring per-Subinterface MTU for Ethernet over MPLS

                                              SUMMARY STEPS

                                                1.    enable

                                                2.    configure terminal

                                                3.    interface gigabitethernet slot / subslot / port [. subinterface]

                                                4.    mtu mtu-value

                                                5.    interface gigabitethernet slot / subslot / port [. subinterface]

                                                6.    encapsulation dot1q vlan-id

                                                7.    xconnect peer-router-id vcid encapsulation mpls

                                                8.    mtu mtu-value

                                                9.    end

                                                10.    show mpls l2transport binding


                                              DETAILED STEPS
                                                 Command or ActionPurpose
                                                Step 1 enable


                                                Example:
                                                Router> enable


                                                Enables privileged EXEC mode.

                                                • Enter your password if prompted.

                                                Step 2 configure terminal


                                                Example:
                                                Router# configure terminal


                                                Enters global configuration mode.


                                                Step 3 interface gigabitethernet slot / subslot / port [. subinterface]


                                                Example:
                                                Router(config)# interface gigabitethernet4/0/0


                                                Specifies the Gigabit Ethernet interface and enters interface configuration mode.


                                                Step 4 mtu mtu-value


                                                Example:
                                                Router(config-if)# mtu 2000


                                                Specifies the MTU value for the interface. The MTU value specified at the interface level can be inherited by a subinterface.


                                                Step 5 interface gigabitethernet slot / subslot / port [. subinterface]


                                                Example:
                                                Router(config-if)# interface gigabitethernet4/0/0.1


                                                Specifies the Gigabit Ethernet subinterface and enters subinterface configuration mode.

                                                Make sure the subinterface on the adjoining CE router is on the same VLAN as this PE router.


                                                Step 6 encapsulation dot1q vlan-id


                                                Example:
                                                Router(config-subif)# encapsulation dot1q 100


                                                Enables the subinterface to accept 802.1Q VLAN packets.

                                                The subinterfaces between the CE and PE routers that are running Ethernet over MPLS must be in the same subnet. All other subinterfaces and backbone routers need not be.


                                                Step 7 xconnect peer-router-id vcid encapsulation mpls


                                                Example:
                                                Router(config-subif)# xconnect 10.0.0.1 123 encapsulation mpls


                                                Binds the attachment circuit to a pseudowire VC.

                                                The syntax for this command is the same as for all other Layer 2 transports. Enters xconnect subinterface configuration mode.


                                                Step 8 mtu mtu-value


                                                Example:
                                                Router(config-if-xconn)# mtu 1400


                                                Specifies the MTU for the VC.


                                                Step 9 end


                                                Example:
                                                Router(config-if-xconn)# end


                                                Exits to privileged EXEC mode.


                                                Step 10 show mpls l2transport binding


                                                Example:
                                                Router# show mpls l2transport binding


                                                Displays the MTU values assigned to the local and remote interfaces.



                                                Configuring per-Subinterface MTU for Ethernet over MPLS using the commands associated with the L2VPN Protocol-Based CLIs feature

                                                SUMMARY STEPS

                                                  1.    enable

                                                  2.    configure terminal

                                                  3.    interface gigabitethernet slot / subslot / port[. subinterface]

                                                  4.    mtu mtu-value

                                                  5.    interface gigabitethernet slot / subslot / port[. subinterface]

                                                  6.    encapsulation dot1q vlan-id

                                                  7.    end

                                                  8.    interface pseudowire number

                                                  9.    encapsulation mpls

                                                  10.    neighbor peer-address vcid-value

                                                  11.    mtu mtu-value

                                                  12.    exit

                                                  13.    l2vpn xconnect context context-name

                                                  14.    member pseudowire interface-number

                                                  15.    member gigabitethernet interface-number

                                                  16.    end

                                                  17.    show l2vpn atom binding


                                                DETAILED STEPS
                                                   Command or ActionPurpose
                                                  Step 1 enable


                                                  Example:
                                                  Device> enable


                                                  Enables privileged EXEC mode.

                                                  • Enter your password if prompted.

                                                  Step 2 configure terminal


                                                  Example:
                                                  Device# configure terminal


                                                  Enters global configuration mode.


                                                  Step 3 interface gigabitethernet slot / subslot / port[. subinterface]


                                                  Example:
                                                  Device(config)# interface gigabitethernet4/0/0


                                                  Specifies the Gigabit Ethernet interface and enters interface configuration mode.


                                                  Step 4 mtu mtu-value


                                                  Example:
                                                  Device(config-if)# mtu 2000


                                                  Specifies the MTU value for the interface. The MTU value specified at the interface level can be inherited by a subinterface.


                                                  Step 5 interface gigabitethernet slot / subslot / port[. subinterface]


                                                  Example:
                                                  Device(config-if)# interface gigabitethernet4/0/0.1


                                                  Specifies the Gigabit Ethernet subinterface and enters subinterface configuration mode.

                                                  Make sure the subinterface on the adjoining CE router is on the same VLAN as this PE router.


                                                  Step 6 encapsulation dot1q vlan-id


                                                  Example:
                                                  Device(config-subif)# encapsulation dot1q 100


                                                  Enables the subinterface to accept 802.1Q VLAN packets.

                                                  The subinterfaces between the CE and PE routers that are running Ethernet over MPLS must be in the same subnet. All other subinterfaces and backbone routers need not be.


                                                  Step 7 end


                                                  Example:
                                                  Device(config-subif)# end


                                                  Exits to privileged EXEC mode.


                                                  Step 8 interface pseudowire number


                                                  Example:
                                                  Device(config)# interface pseudowire 100


                                                  Specifies the pseudowire interface and enters interface configuration mode.


                                                  Step 9 encapsulation mpls


                                                  Example:
                                                  Device(config-if)# encapsulation mpls


                                                  Specifies that Multiprotocol Label Switching (MPLS) is used as the data encapsulation method.


                                                  Step 10 neighbor peer-address vcid-value


                                                  Example:
                                                  Device(config-if)# neighbor 10.0.0.1 123


                                                  Specifies the peer IP address and virtual circuit (VC) ID value of the Layer 2 VPN (L2VPN) pseudowire.


                                                  Step 11 mtu mtu-value


                                                  Example:
                                                  Device(config-if)# mtu 1400


                                                  Specifies the MTU for the VC.


                                                  Step 12 exit


                                                  Example:
                                                  Device(config-if)# exit


                                                  Exits interface configuration mode.


                                                  Step 13 l2vpn xconnect context context-name


                                                  Example:
                                                  Device(config)# l2vpn xconnect context con1


                                                  Creates a Layer 2 VPN (L2VPN) cross connect context and enters xconnect configuration mode.


                                                  Step 14 member pseudowire interface-number


                                                  Example:
                                                  Device(config-xconnect)# member pseudowire 100


                                                  Specifies a member pseudowire to form a Layer 2 VPN (L2VPN) cross connect.


                                                  Step 15 member gigabitethernet interface-number


                                                  Example:
                                                  Device(config-xconnect)# member GigabitEthernet0/0/0.1


                                                  Specifies the location of the Gigabit Ethernet member interface.


                                                  Step 16 end


                                                  Example:
                                                  Device(config-xconnect)# end


                                                  Exits to privileged EXEC mode.


                                                  Step 17 show l2vpn atom binding


                                                  Example:
                                                  Device# show l2vpn atom binding


                                                  Displays Layer 2 VPN (L2VPN) Any Transport over MPLS (AToM) label binding information.



                                                  Configuring Frame Relay over MPLS

                                                  Configuring Frame Relay over MPLS with DLCI-to-DLCI Connections

                                                  SUMMARY STEPS

                                                    1.    enable

                                                    2.    configure terminal

                                                    3.    frame-relay switching

                                                    4.    interface serial slot / subslot / port [. subinterface]

                                                    5.    encapsulation frame-relay [cisco | ietf]

                                                    6.    frame-relay intf-type dce

                                                    7.    exit

                                                    8.    connect connection-name interface dlci l2transport

                                                    9.    xconnect peer-router-id vcid encapsulation mpls


                                                  DETAILED STEPS
                                                     Command or ActionPurpose
                                                    Step 1 enable


                                                    Example:
                                                    Router> enable


                                                    Enables privileged EXEC mode.

                                                    • Enter your password if prompted.

                                                    Step 2 configure terminal


                                                    Example:
                                                    Router# configure terminal


                                                    Enters global configuration mode.


                                                    Step 3 frame-relay switching


                                                    Example:
                                                    Router(config)# frame-relay switching


                                                    Enables PVC switching on a Frame Relay device.


                                                    Step 4 interface serial slot / subslot / port [. subinterface]


                                                    Example:
                                                    Router(config)# interface serial3/1/0


                                                    Specifies a serial interface and enters interface configuration mode.


                                                    Step 5 encapsulation frame-relay [cisco | ietf]


                                                    Example:
                                                    Router(config-if)# encapsulation frame-relay ietf


                                                    Specifies Frame Relay encapsulation for the interface. You can specify different types of encapsulations. You can set one interface to Cisco encapsulation and the other interface to IETF encapsulation.


                                                    Step 6 frame-relay intf-type dce


                                                    Example:
                                                    Router(config-if)# frame-relay intf-type dce


                                                    Specifies that the interface is a DCE switch. You can also specify the interface to support Network-to-Network Interface (NNI) and DTE connections.


                                                    Step 7 exit


                                                    Example:
                                                    Router(config-if)# exit


                                                    Exits from interface configuration mode.


                                                    Step 8 connect connection-name interface dlci l2transport


                                                    Example:
                                                    Router(config)# connect fr1 serial5/0 1000 l2transport


                                                    Defines connections between Frame Relay PVCs and enters connect configuration mode. Using the l2transportkeyword specifies that the PVC will not be a locally switched PVC, but will be tunneled over the backbone network.

                                                    The connection-nameargument is a text string that you provide.

                                                    The interfaceargument is the interface on which a PVC connection will be defined.

                                                    The dlciargument is the DLCI number of the PVC that will be connected.


                                                    Step 9 xconnect peer-router-id vcid encapsulation mpls


                                                    Example:
                                                    Router(config-fr-pw-switching)# xconnect 10.0.0.1 123 encapsulation mpls


                                                    Creates the VC to transport the Layer 2 packets. In a DLCI-to DLCI connection type, Frame Relay over MPLS uses the xconnectcommand in connect configuration mode.



                                                    Configuring Frame Relay over MPLS with DLCI-to-DLCI Connections using the commands associated with the L2VPN Protocol-Based CLIs feature

                                                    SUMMARY STEPS

                                                      1.    enable

                                                      2.    configure terminal

                                                      3.    frame-relay switching

                                                      4.    interface serial slot / subslot / port [. subinterface]

                                                      5.    encapsulation frame-relay [cisco | ietf]

                                                      6.    frame-relay intf-type dce

                                                      7.    exit

                                                      8.    connect connection-name interface dlci l2transport

                                                      9.    end

                                                      10.    interface pseudowire number

                                                      11.    encapsulation mpls

                                                      12.    neighbor peer-address vcid-value

                                                      13.    exit

                                                      14.    l2vpn xconnect context context-name

                                                      15.    member pseudowire interface-number

                                                      16.    member ip-address vc-id encapsulation mpls

                                                      17.    end


                                                    DETAILED STEPS
                                                       Command or ActionPurpose
                                                      Step 1 enable


                                                      Example:
                                                      Router> enable


                                                      Enables privileged EXEC mode.

                                                      • Enter your password if prompted.

                                                      Step 2 configure terminal


                                                      Example:
                                                      Router# configure terminal


                                                      Enters global configuration mode.


                                                      Step 3 frame-relay switching


                                                      Example:
                                                      Router(config)# frame-relay switching


                                                      Enables PVC switching on a Frame Relay device.


                                                      Step 4 interface serial slot / subslot / port [. subinterface]


                                                      Example:
                                                      Router(config)# interface serial3/1/0


                                                      Specifies a serial interface and enters interface configuration mode.


                                                      Step 5 encapsulation frame-relay [cisco | ietf]


                                                      Example:
                                                      Router(config-if)# encapsulation frame-relay ietf


                                                      Specifies Frame Relay encapsulation for the interface. You can specify different types of encapsulations. You can set one interface to Cisco encapsulation and the other interface to IETF encapsulation.


                                                      Step 6 frame-relay intf-type dce


                                                      Example:
                                                      Router(config-if)# frame-relay intf-type dce


                                                      Specifies that the interface is a DCE switch. You can also specify the interface to support Network-to-Network Interface (NNI) and DTE connections.


                                                      Step 7 exit


                                                      Example:
                                                      Router(config-if)# exit


                                                      Exits from interface configuration mode.


                                                      Step 8 connect connection-name interface dlci l2transport


                                                      Example:
                                                      Router(config)# connect fr1 serial5/0 1000 l2transport


                                                      Defines connections between Frame Relay PVCs and enters connect configuration mode. Using the l2transportkeyword specifies that the PVC will not be a locally switched PVC, but will be tunneled over the backbone network.

                                                      The connection-nameargument is a text string that you provide.

                                                      The interfaceargument is the interface on which a PVC connection will be defined.

                                                      The dlciargument is the DLCI number of the PVC that will be connected.


                                                      Step 9 end


                                                      Example:
                                                      Router(config-xconnect-conn-config)# end


                                                      Exits to privileged EXEC mode.


                                                      Step 10 interface pseudowire number


                                                      Example:
                                                      Router(config)# interface pseudowire 100


                                                      Specifies the pseudowire interface and enters interface configuration mode.


                                                      Step 11 encapsulation mpls


                                                      Example:
                                                      Router(config-if)# encapsulation mpls


                                                      Specifies that Multiprotocol Label Switching (MPLS) is used as the data encapsulation method.


                                                      Step 12 neighbor peer-address vcid-value


                                                      Example:
                                                      Router(config-if)# neighbor 10.0.0.1 123


                                                      Specifies the peer IP address and virtual circuit (VC) ID value of the Layer 2 VPN (L2VPN) pseudowire.


                                                      Step 13 exit


                                                      Example:
                                                      Router(config-if)# exit


                                                      Exits interface configuration mode.


                                                      Step 14 l2vpn xconnect context context-name


                                                      Example:
                                                      Router(config)# l2vpn xconnect context con1


                                                      Creates a Layer 2 VPN (L2VPN) cross connect context and enters xconnect configuration mode.


                                                      Step 15 member pseudowire interface-number


                                                      Example:
                                                      Router(config-xconnect)# member pseudowire 100


                                                      Specifies a member pseudowire to form a Layer 2 VPN (L2VPN) cross connect.


                                                      Step 16 member ip-address vc-id encapsulation mpls


                                                      Example:
                                                      Router(config-xconnect)# member 10.0.0.1 123 encapsulation mpls


                                                      Creates the VC to transport the Layer 2 packets.


                                                      Step 17 end


                                                      Example:
                                                      Router(config-xconnect)# end


                                                      Exits to privileged EXEC mode.



                                                      Configuring Frame Relay over MPLS with Port-to-Port Connections

                                                      SUMMARY STEPS

                                                        1.    enable

                                                        2.    configure terminal

                                                        3.    interface serial slot / subslot / port [. subinterface]

                                                        4.    encapsulation hdlc

                                                        5.    xconnect peer-router-id vcid encapsulation mpls


                                                      DETAILED STEPS
                                                         Command or ActionPurpose
                                                        Step 1 enable


                                                        Example:
                                                        Router> enable


                                                        Enables privileged EXEC mode.

                                                        • Enter your password if prompted.

                                                        Step 2 configure terminal


                                                        Example:
                                                        Router# configure terminal


                                                        Enters global configuration mode.


                                                        Step 3 interface serial slot / subslot / port [. subinterface]


                                                        Example:
                                                        Router(config)# interface serial5/0/0


                                                        Specifies a serial interface and enters interface configuration mode.


                                                        Step 4 encapsulation hdlc


                                                        Example:
                                                        Router(config-if)# encapsulation hdlc


                                                        Specifies that Frame Relay PDUs will be encapsulated in HDLC packets.


                                                        Step 5 xconnect peer-router-id vcid encapsulation mpls


                                                        Example:
                                                        Router(config-if)# xconnect 10.0.0.1 123 encapsulation mpls


                                                        Creates the VC to transport the Layer 2 packets.



                                                        Configuring Frame Relay over MPLS with Port-to-Port Connections using the commands associated with the L2VPN Protocol-Based CLIs feature

                                                        SUMMARY STEPS

                                                          1.    enable

                                                          2.    configure terminal

                                                          3.    interface serial slot / subslot / port [. subinterface]

                                                          4.    encapsulation hdlc

                                                          5.    end

                                                          6.    interface pseudowire number

                                                          7.    encapsulation mpls

                                                          8.    neighbor peer-address vcid-value

                                                          9.    exit

                                                          10.    l2vpn xconnect context context-name

                                                          11.    member pseudowire interface-number

                                                          12.    member ip-address vc-id encapsulation mpls

                                                          13.    end


                                                        DETAILED STEPS
                                                           Command or ActionPurpose
                                                          Step 1 enable


                                                          Example:
                                                          Router> enable


                                                          Enables privileged EXEC mode.

                                                          • Enter your password if prompted.

                                                          Step 2 configure terminal


                                                          Example:
                                                          Router# configure terminal


                                                          Enters global configuration mode.


                                                          Step 3 interface serial slot / subslot / port [. subinterface]


                                                          Example:
                                                          Router(config)# interface serial5/0/0


                                                          Specifies a serial interface and enters interface configuration mode.


                                                          Step 4 encapsulation hdlc


                                                          Example:
                                                          Router(config-if)# encapsulation hdlc


                                                          Specifies that Frame Relay PDUs will be encapsulated in HDLC packets.


                                                          Step 5 end


                                                          Example:
                                                          Router(config-if)# end


                                                          Exits to privileged EXEC mode.


                                                          Step 6 interface pseudowire number


                                                          Example:
                                                          Router(config)# interface pseudowire 100


                                                          Specifies the pseudowire interface and enters interface configuration mode.


                                                          Step 7 encapsulation mpls


                                                          Example:
                                                          Router(config-if)# encapsulation mpls


                                                          Specifies that Multiprotocol Label Switching (MPLS) is used as the data encapsulation method.


                                                          Step 8 neighbor peer-address vcid-value


                                                          Example:
                                                          Router(config-if)# neighbor 10.0.0.1 123


                                                          Specifies the peer IP address and virtual circuit (VC) ID value of the Layer 2 VPN (L2VPN) pseudowire.


                                                          Step 9 exit


                                                          Example:
                                                          Router(config-if)# exit


                                                          Exits interface configuration mode.


                                                          Step 10 l2vpn xconnect context context-name


                                                          Example:
                                                          Router(config)# l2vpn xconnect context con1


                                                          Creates a Layer 2 VPN (L2VPN) cross connect context and enters xconnect configuration mode.


                                                          Step 11 member pseudowire interface-number


                                                          Example:
                                                          Router(config-xconnect)# member pseudowire 100


                                                          Specifies a member pseudowire to form a Layer 2 VPN (L2VPN) cross connect.


                                                          Step 12 member ip-address vc-id encapsulation mpls


                                                          Example:
                                                          Router(config-xconnect)# member 10.0.0.1 123 encapsulation mpls


                                                          Creates the VC to transport the Layer 2 packets.


                                                          Step 13 end


                                                          Example:
                                                          Router(config-xconnect)# end


                                                          Exits to privileged EXEC mode.



                                                          Configuring HDLC or PPP over MPLS

                                                          SUMMARY STEPS

                                                            1.    enable

                                                            2.    configure terminal

                                                            3.    interface serial slot / subslot / port [. subinterface]

                                                            4.    Do one of the following:

                                                            • encapsulation ppp
                                                            • encapsulation hdlc

                                                            5.    xconnect peer-router-id vcid encapsulation mpls


                                                          DETAILED STEPS
                                                             Command or ActionPurpose
                                                            Step 1 enable


                                                            Example:
                                                            Router> enable


                                                            Enables privileged EXEC mode.

                                                            • Enter your password if prompted.

                                                            Step 2 configure terminal


                                                            Example:
                                                            Router# configure terminal


                                                            Enters global configuration mode.


                                                            Step 3 interface serial slot / subslot / port [. subinterface]


                                                            Example:
                                                            Router(config)# interface serial5/0/0


                                                            Specifies a serial interface and enters interface configuration mode.


                                                            Step 4Do one of the following:
                                                            • encapsulation ppp
                                                            • encapsulation hdlc


                                                            Example:
                                                            Router(config-if)# encapsulation ppp


                                                            Example:
                                                            or


                                                            Example:


                                                            Example:
                                                            Router(config-if)# encapsulation hdlc


                                                            Specifies HDLC or PPP encapsulation and enters connect configuration mode.


                                                            Step 5 xconnect peer-router-id vcid encapsulation mpls


                                                            Example:
                                                            Router(config-fr-pw-switching)# xconnect 10.0.0.1 123 encapsulation mpls


                                                            Creates the VC to transport the Layer 2 packets.



                                                            Configuring HDLC or PPP over MPLS using the commands associated with the L2VPN Protocol-Based CLIs feature

                                                            SUMMARY STEPS

                                                              1.    enable

                                                              2.    configure terminal

                                                              3.    interface serial slot / subslot / port [. subinterface]

                                                              4.    Do one of the following:

                                                              • encapsulation ppp
                                                              • encapsulation hdlc

                                                              5.    end

                                                              6.    interface pseudowire number

                                                              7.    encapsulation mpls

                                                              8.    neighbor peer-address vcid-value

                                                              9.    exit

                                                              10.    l2vpn xconnect context context-name

                                                              11.    member pseudowire interface-number

                                                              12.    member ip-address vc-id encapsulation mpls

                                                              13.    end


                                                            DETAILED STEPS
                                                               Command or ActionPurpose
                                                              Step 1 enable


                                                              Example:
                                                              Router> enable


                                                              Enables privileged EXEC mode.

                                                              • Enter your password if prompted.

                                                              Step 2 configure terminal


                                                              Example:
                                                              Router# configure terminal


                                                              Enters global configuration mode.


                                                              Step 3 interface serial slot / subslot / port [. subinterface]


                                                              Example:
                                                              Router(config)# interface serial5/0/0


                                                              Specifies a serial interface and enters interface configuration mode.


                                                              Step 4Do one of the following:
                                                              • encapsulation ppp
                                                              • encapsulation hdlc


                                                              Example:
                                                              Router(config-if)# encapsulation ppp


                                                              Example:
                                                              Router(config-if)# encapsulation hdlc


                                                              Specifies HDLC or PPP encapsulation and enters connect configuration mode.


                                                              Step 5 end


                                                              Example:
                                                              Router(config-xconnect-conn-config)# end


                                                              Exits to privileged EXEC mode.


                                                              Step 6 interface pseudowire number


                                                              Example:
                                                              Router(config)# interface pseudowire 100


                                                              Specifies the pseudowire interface and enters interface configuration mode.


                                                              Step 7 encapsulation mpls


                                                              Example:
                                                              Router(config-if)# encapsulation mpls


                                                              Specifies that Multiprotocol Label Switching (MPLS) is used as the data encapsulation method.


                                                              Step 8 neighbor peer-address vcid-value


                                                              Example:
                                                              Router(config-if)# neighbor 10.0.0.1 123


                                                              Specifies the peer IP address and virtual circuit (VC) ID value of the Layer 2 VPN (L2VPN) pseudowire.


                                                              Step 9 exit


                                                              Example:
                                                              Router(config-if)# exit


                                                              Exits interface configuration mode.


                                                              Step 10 l2vpn xconnect context context-name


                                                              Example:
                                                              Router(config)# l2vpn xconnect context con1


                                                              Creates a Layer 2 VPN (L2VPN) cross connect context and enters xconnect configuration mode.


                                                              Step 11 member pseudowire interface-number


                                                              Example:
                                                              Router(config-xconnect)# member pseudowire 100


                                                              Specifies a member pseudowire to form a Layer 2 VPN (L2VPN) cross connect.


                                                              Step 12 member ip-address vc-id encapsulation mpls


                                                              Example:
                                                              Router(config-xconnect)# member 10.0.0.1 123 encapsulation mpls


                                                              Creates the VC to transport the Layer 2 packets.


                                                              Step 13 end


                                                              Example:
                                                              Router(config-xconnect)# end


                                                              Exits to privileged EXEC mode.



                                                              Configuring Tunnel Selection

                                                              SUMMARY STEPS

                                                                1.    enable

                                                                2.    configure terminal

                                                                3.    pseudowire-class name

                                                                4.    encapsulation mpls

                                                                5.    preferred-path {interface tunnel tunnel-number | peer{ip-address | host-name}} [disable-fallback]

                                                                6.    exit

                                                                7.    interface type slot / subslot / port [. subinterface]

                                                                8.    encapsulation encapsulation-type

                                                                9.    xconnect peer-router-id vcid pw-class name


                                                              DETAILED STEPS
                                                                 Command or ActionPurpose
                                                                Step 1 enable


                                                                Example:
                                                                Router> enable


                                                                Enables privileged EXEC mode.

                                                                • Enter your password if prompted.

                                                                Step 2 configure terminal


                                                                Example:
                                                                Router# configure terminal


                                                                Enters global configuration mode.


                                                                Step 3 pseudowire-class name


                                                                Example:
                                                                Router(config)# pseudowire-class ts1


                                                                Establishes a pseudowire class with a name that you specify and enters pseudowire configuration mode.


                                                                Step 4 encapsulation mpls


                                                                Example:
                                                                Router(config-pw)# encapsulation mpls


                                                                Specifies the tunneling encapsulation. For AToM, the encapsulation type is mpls.


                                                                Step 5 preferred-path {interface tunnel tunnel-number | peer{ip-address | host-name}} [disable-fallback]


                                                                Example:
                                                                Router(config-pw)# preferred path peer 10.18.18.18


                                                                Specifies the MPLS traffic engineering tunnel or IP address or hostname to be used as the preferred path.


                                                                Step 6 exit


                                                                Example:
                                                                Router(config-pw)# exit


                                                                Exits from pseudowire configuration mode and enables the Tunnel Selection feature.


                                                                Step 7 interface type slot / subslot / port [. subinterface]


                                                                Example:
                                                                Router(config)# interface atm1/1/0


                                                                Specifies an interface type and enters interface configuration mode.


                                                                Step 8 encapsulation encapsulation-type


                                                                Example:
                                                                Router(config-if)# encapsulation aal5


                                                                Specifies the encapsulation for the interface.


                                                                Step 9 xconnect peer-router-id vcid pw-class name


                                                                Example:
                                                                Router(config-if)# xconnect 10.0.0.1 123 pw-class ts1


                                                                Binds the attachment circuit to a pseudowire VC.



                                                                Examples

                                                                In the following sample output from the show mpls l2transport vc command incudes the following information about the VCs:

                                                                • VC 101 has been assigned a preferred path called Tunnel1. The default path is disabled, because the preferred path specified that the default path should not be used if the preferred path fails.
                                                                • VC 150 has been assigned an IP address of a loopback address on PE2. The default path can be used if the preferred path fails.

                                                                Command output that is in boldface font shows the preferred path information.

                                                                Router# show mpls l2transport vc detail
Local interface: Gi0/0/0.1 up, line protocol up, Eth VLAN 222 up
  Destination address: 10.16.16.16, VC ID: 101, VC status: up
    Preferred path: Tunnel1,  active
    Default path: disabled
    Tunnel label: 3, next hop point2point
    Output interface: Tu1, imposed label stack {17 16}
  Create time: 00:27:31, last status change time: 00:27:31
  Signaling protocol: LDP, peer 10.16.16.16:0 up
    MPLS VC labels: local 25, remote 16
    Group ID: local 0, remote 6
    MTU: local 1500, remote 1500
    Remote interface description:
  Sequencing: receive disabled, send disabled
  VC statistics:
    packet totals: receive 10, send 10
    byte totals:   receive 1260, send 1300
    packet drops:  receive 0, send 0
Local interface: ATM1/0/0 up, line protocol up, ATM AAL5 0/50 up
  Destination address: 10.16.16.16, VC ID: 150, VC status: up
    Preferred path: 10.18.18.18, active
    Default path: ready
    Tunnel label: 3, next hop point2point
    Output interface: Tu2, imposed label stack {18 24}
  Create time: 00:15:08, last status change time: 00:07:37
  Signaling protocol: LDP, peer 10.16.16.16:0 up
    MPLS VC labels: local 26, remote 24
    Group ID: local 2, remote 0
    MTU: local 4470, remote 4470
    Remote interface description:
  Sequencing: receive disabled, send disabled
  VC statistics:
    packet totals: receive 0, send 0
    byte totals:   receive 0, send 0
    packet drops:  receive 0, send 0

                                                                Troubleshooting Tips

                                                                To debug ATM cell packing, issue the debug atm cell-packing command.

                                                                Configuring Tunnel Selection using the commands associated with the L2VPN Protocol-Based CLIs feature

                                                                SUMMARY STEPS

                                                                  1.    enable

                                                                  2.    configure terminal

                                                                  3.    template type pseudowire name

                                                                  4.    encapsulation mpls

                                                                  5.    preferred-path {interface tunnel tunnel-number | peer {ip-address | hostname}} [disable-fallback]

                                                                  6.    exit

                                                                  7.    interface type slot / subslot / port[. subinterface]

                                                                  8.    encapsulation encapsulation-type

                                                                  9.    end

                                                                  10.    interface pseudowire number

                                                                  11.    source template type pseudowire name

                                                                  12.    neighbor peer-address vcid-value

                                                                  13.    end

                                                                  14.    l2vpn xconnect context context-name

                                                                  15.    member pseudowire interface-number

                                                                  16.    member ip-address vc-id encapsulation mpls

                                                                  17.    end


                                                                DETAILED STEPS
                                                                   Command or ActionPurpose
                                                                  Step 1 enable


                                                                  Example:
                                                                  Router> enable


                                                                  Enables privileged EXEC mode.

                                                                  • Enter your password if prompted.

                                                                  Step 2 configure terminal


                                                                  Example:
                                                                  Router# configure terminal


                                                                  Enters global configuration mode.


                                                                  Step 3 template type pseudowire name


                                                                  Example:
                                                                  Router(config)# template type pseudowire ts1


                                                                  Creates a template pseudowire with a name that you specify and enters pseudowire configuration mode.


                                                                  Step 4 encapsulation mpls


                                                                  Example:
                                                                  Router(config-pw)# encapsulation mpls


                                                                  Specifies the tunneling encapsulation. For AToM, the encapsulation type is mpls.


                                                                  Step 5 preferred-path {interface tunnel tunnel-number | peer {ip-address | hostname}} [disable-fallback]


                                                                  Example:
                                                                  Router(config-pw)# preferred path peer 10.18.18.18


                                                                  Specifies the MPLS traffic engineering tunnel or IP address or hostname to be used as the preferred path.


                                                                  Step 6 exit


                                                                  Example:
                                                                  Router(config-pw)# exit


                                                                  Exits from pseudowire configuration mode and enables the Tunnel Selection feature.


                                                                  Step 7 interface type slot / subslot / port[. subinterface]


                                                                  Example:
                                                                  Router(config)# interface atm1/1/0


                                                                  Specifies an interface type and enters interface configuration mode.


                                                                  Step 8 encapsulation encapsulation-type


                                                                  Example:
                                                                  Router(config-if)# encapsulation aal5


                                                                  Specifies the encapsulation for the interface.


                                                                  Step 9 end


                                                                  Example:
                                                                  Router(config-if)# end


                                                                  Exits to privileged EXEC mode.


                                                                  Step 10 interface pseudowire number


                                                                  Example:
                                                                  Router(config)# interface pseudowire 100


                                                                  Specifies the pseudowire interface and enters interface configuration mode.


                                                                  Step 11 source template type pseudowire name


                                                                  Example:
                                                                  Router(config-if)# source template type pseudowire ts1


                                                                  Configures the source template of type pseudowire named ts1.


                                                                  Step 12 neighbor peer-address vcid-value


                                                                  Example:
                                                                  Router(config-if)#  neighbor 10.0.0.1 123


                                                                  Specifies the peer IP address and virtual circuit (VC) ID value of a Layer 2 VPN (L2VPN) pseudowire.


                                                                  Step 13 end


                                                                  Example:
                                                                  Router(config-if)# end


                                                                  Exits to privileged EXEC mode.


                                                                  Step 14 l2vpn xconnect context context-name


                                                                  Example:
                                                                  Router(config)# l2vpn xconnect context con1


                                                                  Creates a Layer 2 VPN (L2VPN) cross connect context and enters xconnect configuration mode.


                                                                  Step 15 member pseudowire interface-number


                                                                  Example:
                                                                  Router(config-xconnect)# member pseudowire 100


                                                                  Specifies a member pseudowire to form a Layer 2 VPN (L2VPN) cross connect.


                                                                  Step 16 member ip-address vc-id encapsulation mpls


                                                                  Example:
                                                                  Router(config-xconnect)# member 10.0.0.1 123 encapsulation mpls


                                                                  Creates the VC to transport the Layer 2 packets.


                                                                  Step 17 end


                                                                  Example:
                                                                  Router(config-xconnect)# end


                                                                  Exits to privileged EXEC mode.



                                                                  Troubleshooting Tips using the commands associated with the L2VPN Protocol-Based CLIs feature

                                                                  You can use the debug l2vpn atom vc event command to troubleshoot tunnel selection. For example, if the tunnel interface that is used for the preferred path is shut down, the default path is enabled. The debug l2vpn atom vc event command provides the following output:

                                                                  AToM SMGR [10.2.2.2, 101]: Processing imposition update, vc_handle 62091860, update_action 3, remote_vc_label 16
AToM SMGR [10.2.2.2, 101]: selected route no parent rewrite: tunnel not up
AToM SMGR [10.2.2.2, 101]: Imposition Programmed, Output Interface: Et3/2

                                                                  Setting Experimental Bits with AToM

                                                                  SUMMARY STEPS

                                                                    1.    enable

                                                                    2.    configure terminal

                                                                    3.    class-map class-name

                                                                    4.    match any

                                                                    5.    policy-map policy-name

                                                                    6.    class class-name

                                                                    7.    set mpls experimental value

                                                                    8.    exit

                                                                    9.    exit

                                                                    10.    interface type slot / subslot / port [. subinterface]

                                                                    11.    service-policy input policy-name

                                                                    12.    end

                                                                    13.    show policy-map interface interface-name [vc [vpi /] vci] [dlci dlci] [input | output]


                                                                  DETAILED STEPS
                                                                     Command or ActionPurpose
                                                                    Step 1 enable


                                                                    Example:
                                                                    Router> enable


                                                                    Enables privileged EXEC mode.

                                                                    • Enter your password if prompted.

                                                                    Step 2 configure terminal


                                                                    Example:
                                                                    Router# configure terminal


                                                                    Enters global configuration mode.


                                                                    Step 3 class-map class-name


                                                                    Example:
                                                                    Router(config)# class-map class1


                                                                    Specifies the user-defined name of the traffic class and enters class map configuration mode.


                                                                    Step 4 match any


                                                                    Example:
                                                                    Router(config-cmap)# match any


                                                                    Specifies that all packets will be matched. Use only the any keyword. Other keywords might cause unexpected results.


                                                                    Step 5 policy-map policy-name


                                                                    Example:
                                                                    Router(config-cmap)# policy-map policy1


                                                                    Specifies the name of the traffic policy to configure and enters policy-map configuration mode.


                                                                    Step 6 class class-name


                                                                    Example:
                                                                    Router(config-pmap)# class class1


                                                                    Specifies the name of a predefined traffic class, which was configured with the class-map command, used to classify traffic to the traffic policy and enters policy-map class configuration mode.


                                                                    Step 7 set mpls experimental value


                                                                    Example:
                                                                    Router(config-pmap-c)# set mpls experimental 7


                                                                    Designates the value to which the MPLS bits are set if the packets match the specified policy map.


                                                                    Step 8 exit


                                                                    Example:
                                                                    Router(config-pmap-c)# exit


                                                                    Exits policy-map class configuration mode.


                                                                    Step 9 exit


                                                                    Example:
                                                                    Router(config-pmap)# exit


                                                                    Exits policy-map configuration mode.


                                                                    Step 10 interface type slot / subslot / port [. subinterface]


                                                                    Example:
                                                                    Router(config)# interface atm1/0/0


                                                                    Specifies the interface type and enters interface configuration mode.


                                                                    Step 11 service-policy input policy-name


                                                                    Example:
                                                                    Router(config-if)# service-policy input policy1


                                                                    Attaches a traffic policy to an interface.


                                                                    Step 12 end


                                                                    Example:
                                                                    Router(config-if)# end


                                                                    Exits to privileged EXEC mode.


                                                                    Step 13 show policy-map interface interface-name [vc [vpi /] vci] [dlci dlci] [input | output]


                                                                    Example:
                                                                    Router# show policy-map interface serial3/0/0


                                                                    Displays the traffic policy attached to an interface.



                                                                    Enabling the Control Word

                                                                    SUMMARY STEPS

                                                                      1.    enable

                                                                      2.    configure terminal

                                                                      3.    pseudowire-class cw_enable

                                                                      4.    encapsulation mpls

                                                                      5.    control-word

                                                                      6.    end


                                                                    DETAILED STEPS
                                                                       Command or ActionPurpose
                                                                      Step 1 enable


                                                                      Example:
                                                                      Router> enable


                                                                      Enables privileged EXEC mode.

                                                                      • Enter your password if prompted.

                                                                      Step 2 configure terminal


                                                                      Example:
                                                                      Router# configure terminal


                                                                      Enters global configuration mode.


                                                                      Step 3 pseudowire-class cw_enable

                                                                      Example:
                                                                      Router(config)# pseudowire-class cw_enable


                                                                      Enters pseudowire class configuration mode.


                                                                      Step 4 encapsulation mpls


                                                                      Example:
                                                                      Router(config-pw-class)# encapsulation mpls


                                                                      Specifies the tunneling encapsulation.

                                                                      • For AToM, the encapsulation type is mpls.

                                                                      Step 5 control-word


                                                                      Example:
                                                                      Router(config-pw-class)# control-word


                                                                      Enables the control word.


                                                                      Step 6 end


                                                                      Example:
                                                                      Router(config-pw-class)# end


                                                                      Exits to privileged EXEC mode.



                                                                      Enabling the Control Word using the commands associated with the L2VPN Protocol-Based CLIs feature

                                                                      SUMMARY STEPS

                                                                        1.    enable

                                                                        2.    configure terminal

                                                                        3.    interface pseudowire number

                                                                        4.    encapsulation mpls

                                                                        5.    control-word include

                                                                        6.    neighbor peer-address vcid-value

                                                                        7.    end


                                                                      DETAILED STEPS
                                                                         Command or ActionPurpose
                                                                        Step 1 enable


                                                                        Example:
                                                                        Router> enable


                                                                        Enables privileged EXEC mode.

                                                                        • Enter your password if prompted.

                                                                        Step 2 configure terminal


                                                                        Example:
                                                                        Router# configure terminal


                                                                        Enters global configuration mode.


                                                                        Step 3 interface pseudowire number


                                                                        Example:
                                                                        Router(config)# interface pseudowire 1


                                                                        Creates an interface pseudowire with a value that you specify and enters pseudowire configuration mode.


                                                                        Step 4 encapsulation mpls


                                                                        Example:
                                                                        Router(config-pw)# encapsulation mpls


                                                                        Specifies the tunneling encapsulation.

                                                                        • For AToM, the encapsulation type is mpls.

                                                                        Step 5 control-word include


                                                                        Example:
                                                                        Router(config-pw)# control-word include


                                                                        Enables the control word.


                                                                        Step 6 neighbor peer-address vcid-value


                                                                        Example:
                                                                        Router(config-pw)#  neighbor 10.0.0.1 123


                                                                        Specifies the peer IP address and virtual circuit (VC) ID value of a Layer 2 VPN (L2VPN) pseudowire.


                                                                        Step 7 end


                                                                        Example:
                                                                        Router(config-pw)# end


                                                                        Exits to privileged EXEC mode.



                                                                        Configuring MPLS AToM Remote Ethernet Port Shutdown


                                                                        Note

                                                                        The Any Transport over MPLS (AToM): Remote Ethernet Port Shutdown feature is automatically enabled by default when an image with the feature supported is loaded on the router.

                                                                        SUMMARY STEPS

                                                                          1.    enable

                                                                          2.    configure terminal

                                                                          3.    pseudowire-class [pw-class-name]

                                                                          4.    encapsulation mpls

                                                                          5.    exit

                                                                          6.    interface type slot / subslot / port [. subinterface]

                                                                          7.    xconnect peer-ip-address vc-id pw-class pw-class-name

                                                                          8.    no remote link failure notification

                                                                          9.    remote link failure notification

                                                                          10.    end


                                                                        DETAILED STEPS
                                                                           Command or ActionPurpose
                                                                          Step 1 enable


                                                                          Example:
                                                                          Router> enable


                                                                          Enables privileged EXEC mode.

                                                                          • Enter your password if prompted.

                                                                          Step 2 configure terminal


                                                                          Example:
                                                                          Router# configure terminal


                                                                          Enters global configuration mode.


                                                                          Step 3 pseudowire-class [pw-class-name]


                                                                          Example:
                                                                          Router(config)# pseudowire-class eompls


                                                                          Specifies the name of a Layer 2 pseudowire class and enters pseudowire class configuration mode.


                                                                          Step 4 encapsulation mpls


                                                                          Example:
                                                                          Router(config-pw)# encapsulation mpls


                                                                          Specifies that MPLS is used as the data encapsulation method for tunneling Layer 2 traffic over the pseudowire.


                                                                          Step 5 exit


                                                                          Example:
                                                                          Router(config-pw)# exit


                                                                          Exits to global configuration mode.


                                                                          Step 6 interface type slot / subslot / port [. subinterface]


                                                                          Example:
                                                                          Router (config)# interface GigabitEthernet1/0/0


                                                                          Configures an interface type and enters interface configuration mode.


                                                                          Step 7 xconnect peer-ip-address vc-id pw-class pw-class-name


                                                                          Example:
                                                                          Router(config-if)# xconnect 10.1.1.1 1 pw-class eompls


                                                                          Binds an attachment circuit to a pseudowire, and configures an Any Transport over MPLS (AToM) static pseudowire.


                                                                          Step 8 no remote link failure notification


                                                                          Example:
                                                                          Router(config-if-xconn)# remote link failure notification


                                                                          Disables MPLS AToM remote link failure notification and shutdown.


                                                                          Step 9 remote link failure notification


                                                                          Example:
                                                                          Router(config-if-xconn)# remote link failure notification


                                                                          Enables MPLS AToM remote link failure notification and shutdown.


                                                                          Step 10 end


                                                                          Example:
                                                                          Router(config-if-xconn)# end


                                                                          Exits to privileged EXEC mode.



                                                                          Configuring MPLS AToM Remote Ethernet Port Shutdown using the commands associated with the L2VPN Protocol-Based CLIs feature


                                                                          Note

                                                                          The Any Transport over MPLS (AToM): Remote Ethernet Port Shutdown feature is automatically enabled by default when an image with the feature supported is loaded on the router.

                                                                          SUMMARY STEPS

                                                                            1.    enable

                                                                            2.    configure terminal

                                                                            3.    template type pseudowire [pseudowire-name]

                                                                            4.    encapsulation mpls

                                                                            5.    exit

                                                                            6.    interface type slot / subslot / port[. subinterface]

                                                                            7.    interface pseudowire number

                                                                            8.    source template type pseudowire

                                                                            9.    neighbor peer-address vcid-value

                                                                            10.    end

                                                                            11.    l2vpn xconnect context context-name

                                                                            12.    no remote link failure notification

                                                                            13.    remote link failure notification

                                                                            14.    end


                                                                          DETAILED STEPS
                                                                             Command or ActionPurpose
                                                                            Step 1 enable


                                                                            Example:
                                                                            Device> enable


                                                                            Enables privileged EXEC mode.

                                                                            • Enter your password if prompted.

                                                                            Step 2 configure terminal


                                                                            Example:
                                                                            Device# configure terminal


                                                                            Enters global configuration mode.


                                                                            Step 3 template type pseudowire [pseudowire-name]


                                                                            Example:
                                                                            Device(config)# template type pseudowire eompls


                                                                            Specifies the name of a Layer 2 pseudowire class and enters pseudowire class configuration mode.


                                                                            Step 4 encapsulation mpls


                                                                            Example:
                                                                            Device(config-pw)# encapsulation mpls


                                                                            Specifies that MPLS is used as the data encapsulation method for tunneling Layer 2 traffic over the pseudowire.


                                                                            Step 5 exit


                                                                            Example:
                                                                            Device(config-pw)# exit


                                                                            Exits to global configuration mode.


                                                                            Step 6 interface type slot / subslot / port[. subinterface]


                                                                            Example:
                                                                            Device(config)# interface GigabitEthernet1/0/0


                                                                            Configures an interface type and enters interface configuration mode.


                                                                            Step 7 interface pseudowire number


                                                                            Example:
                                                                            Device(config-if)# interface pseudowire 100


                                                                            Specifies the pseudowire interface.


                                                                            Step 8 source template type pseudowire


                                                                            Example:
                                                                            Device(config-if)# source template type pseudowire eompls


                                                                            Configures the source template of type pseudowire named eompls.


                                                                            Step 9 neighbor peer-address vcid-value


                                                                            Example:
                                                                            Device(config-if)#  neighbor 10.1.1.1 1


                                                                            Specifies the peer IP address and virtual circuit (VC) ID value of a Layer 2 VPN (L2VPN) pseudowire.


                                                                            Step 10 end


                                                                            Example:
                                                                            Device(config-if)# end


                                                                            Exits to privileged EXEC mode.


                                                                            Step 11 l2vpn xconnect context context-name


                                                                            Example:
                                                                            Device(config)# l2vpn xconnect context con1


                                                                            Creates a Layer 2 VPN (L2VPN) cross connect context and enters xconnect configuration mode.


                                                                            Step 12 no remote link failure notification


                                                                            Example:
                                                                            Device(config-xconnect)# no remote link failure notification


                                                                            Disables MPLS AToM remote link failure notification and shutdown.


                                                                            Step 13 remote link failure notification


                                                                            Example:
                                                                            Device(config-xconnect)# remote link failure notification


                                                                            Enables MPLS AToM remote link failure notification and shutdown.


                                                                            Step 14 end


                                                                            Example:
                                                                            Device(config-xconnect)# end


                                                                            Exits to privileged EXEC mode.



                                                                            Configuring AToM Load Balancing with Single PW

                                                                            SUMMARY STEPS

                                                                              1.    enable

                                                                              2.    configure terminal

                                                                              3.    pseudowire-class pw-class-name

                                                                              4.    encapsulation mpls

                                                                              5.    load-balance flow

                                                                              6.    xconnect url pw-class pw-class-name


                                                                            DETAILED STEPS
                                                                               Command or ActionPurpose
                                                                              Step 1 enable


                                                                              Example:
                                                                              Router> enable


                                                                              Enables privileged EXEC mode.

                                                                              • Enter your password if prompted.

                                                                              Step 2 configure terminal


                                                                              Example:
                                                                              Router# configure terminal


                                                                              Enters global configuration mode.


                                                                              Step 3 pseudowire-class pw-class-name


                                                                              Example:
                                                                              Router(config)# pseudowire-class ecmp-class


                                                                              Establishes a pseudowire class with a name that you specify, and enters pseudowire class configuration mode.


                                                                              Step 4 encapsulation mpls


                                                                              Example:
                                                                              Router(config-pw-class)# encapsulation mpls

                                                                              Specifies the tunneling encapsulation.
                                                                              • For AToM, the encapsulation type is mpls.

                                                                              Step 5 load-balance flow


                                                                              Example:
                                                                              Router(config-pw-class)# load-balance flow


                                                                              Enables the AToM Load Balancing with Single PW feature so that load balancing is done on a per-flow basis.


                                                                              Step 6 xconnect url pw-class pw-class-name


                                                                              Example:
                                                                              Router(config-pw-class)# xconnect 10.0.0.1 pw-class ecmp-class

                                                                              Binds the attachment circuit to a pseudowire virtual circuit, and enters xconnect configuration mode.
                                                                              • The syntax for this command is the same as for all other Layer 2 transports.


                                                                              Configuring AToM Load Balancing with Single PW using the commands associated with the L2VPN Protocol-Based CLIs feature

                                                                              SUMMARY STEPS

                                                                                1.    enable

                                                                                2.    configure terminal

                                                                                3.    template type pseudowire [pseudowire-name]

                                                                                4.    encapsulation mpls

                                                                                5.    load-balance flow

                                                                                6.    end

                                                                                7.    interface pseudowire number

                                                                                8.    source template type pseudowire

                                                                                9.    neighbor peer-address vcid-value

                                                                                10.    end

                                                                                11.    l2vpn xconnect context context-name

                                                                                12.    member pseudowire interface-number

                                                                                13.    member ip-address vc-id encapsulation mpls

                                                                                14.    end


                                                                              DETAILED STEPS
                                                                                 Command or ActionPurpose
                                                                                Step 1 enable


                                                                                Example:
                                                                                Router> enable


                                                                                Enables privileged EXEC mode.

                                                                                • Enter your password if prompted.

                                                                                Step 2 configure terminal


                                                                                Example:
                                                                                Router# configure terminal


                                                                                Enters global configuration mode.


                                                                                Step 3 template type pseudowire [pseudowire-name]


                                                                                Example:
                                                                                Router(config)# template type pseudowire eompls


                                                                                Specifies the name of a Layer 2 pseudowire class and enters pseudowire class configuration mode.


                                                                                Step 4 encapsulation mpls


                                                                                Example:
                                                                                Router(config-pw-class)# encapsulation mpls

                                                                                Specifies the tunneling encapsulation.
                                                                                • For AToM, the encapsulation type is mpls.

                                                                                Step 5 load-balance flow


                                                                                Example:
                                                                                Router(config-pw-class)# load-balance flow


                                                                                Enables the AToM Load Balancing with Single PW feature so that load balancing is done on a per-flow basis.


                                                                                Step 6 end


                                                                                Example:
                                                                                Router(config-pw-class)# end


                                                                                Exits to privileged EXEC mode.


                                                                                Step 7 interface pseudowire number


                                                                                Example:
                                                                                Router(config)# interface pseudowire 100


                                                                                Specifies the pseudowire interface and enters interface configuration mode.


                                                                                Step 8 source template type pseudowire


                                                                                Example:
                                                                                Router(config-if)# source template type pseudowire ether-pw


                                                                                Configures the source template of type pseudowire named ether-pw.


                                                                                Step 9 neighbor peer-address vcid-value


                                                                                Example:
                                                                                Router(config-if)#  neighbor 10.1.1.1 1


                                                                                Specifies the peer IP address and virtual circuit (VC) ID value of a Layer 2 VPN (L2VPN) pseudowire.


                                                                                Step 10 end


                                                                                Example:
                                                                                Router(config-if)# end


                                                                                Exits to privileged EXEC mode.


                                                                                Step 11 l2vpn xconnect context context-name


                                                                                Example:
                                                                                Router(config)# l2vpn xconnect context con1


                                                                                Creates a Layer 2 VPN (L2VPN) cross connect context and enters xconnect configuration mode.


                                                                                Step 12 member pseudowire interface-number


                                                                                Example:
                                                                                Router(config-xconnect)# member pseudowire 100


                                                                                Specifies a member pseudowire to form a Layer 2 VPN (L2VPN) cross connect.


                                                                                Step 13 member ip-address vc-id encapsulation mpls


                                                                                Example:
                                                                                Router(config-xconnect)# member 10.0.0.1 123 encapsulation mpls


                                                                                Creates the VC to transport the Layer 2 packets.


                                                                                Step 14 end


                                                                                Example:
                                                                                Router(config-xconnect)# end


                                                                                Exits to privileged EXEC mode.



                                                                                Configuration Examples for Any Transport over MPLS

                                                                                Example ATM over MPLS

                                                                                The table below shows the configuration of ATM over MPLS on two PE routers.

                                                                                Table 6 ATM over MPLS Configuration Example

                                                                                PE1

                                                                                PE2

                                                                                mpls label protocol ldp
                                                                                 mpls ldp router-id Loopback0 force
                                                                                !
                                                                                interface Loopback0
                                                                                 ip address 10.16.12.12 255.255.255.255
                                                                                !
                                                                                interface ATM4/0/0
                                                                                 pvc 0/100 l2transport
                                                                                   encapsulation aal0
                                                                                   xconnect 10.13.13.13 100 encapsulation mpls
                                                                                !
                                                                                interface ATM4/0/0.300 point-to-point
                                                                                 no ip directed-broadcast
                                                                                 no atm enable-ilmi-trap
                                                                                 pvc 0/300 l2transport
                                                                                   encapsulation aal0
                                                                                   xconnect 10.13.13.13 300 encapsulation mpls

                                                                                mpls label protocol ldp
                                                                                 mpls ldp router-id Loopback0 force
                                                                                !
                                                                                interface Loopback0
                                                                                 ip address 10.13.13.13 255.255.255.255

                                                                                interface ATM4/0/0
                                                                                  pvc 0/100 l2transport
                                                                                    encapsulation aal0
                                                                                    xconnect 10.16.12.12 100 encapsulation mpls
                                                                                !
                                                                                interface ATM4/0/0.300 point-to-point
                                                                                 no ip directed-broadcast
                                                                                 no atm enable-ilmi-trap
                                                                                 pvc 0/300 l2transport
                                                                                   encapsulation aal0
                                                                                   xconnect 10.16.12.12 300 encapsulation mpls

                                                                                Example ATM over MPLS using the commands associated with the L2VPN Protocol-Based CLIs feature

                                                                                The table below shows the configuration of ATM over MPLS on two PE routers.

                                                                                Table 7 ATM over MPLS Configuration Example

                                                                                PE1

                                                                                PE2

                                                                                mpls label protocol ldp
                                                                                 mpls ldp router-id Loopback0 force
                                                                                !
                                                                                interface Loopback0
                                                                                 ip address 10.16.12.12 255.255.255.255
                                                                                !
                                                                                interface ATM4/0/0
                                                                                 pvc 0/100 l2transport
                                                                                   encapsulation aal0
                                                                                   interface pseudowire 100
                                                                                   encapsulation mpls
                                                                                   neighbor 10.0.0.1 123
                                                                                !
                                                                                   l2vpn xconnect context A
                                                                                   member pseudowire 100
                                                                                   member atm 100
                                                                                   !
                                                                                interface ATM4/0/0.300 point-to-point
                                                                                 no atm enable-ilmi-trap
                                                                                 pvc 0/300 l2transport
                                                                                   encapsulation aal0
                                                                                   interface pseudowire 300
                                                                                   encapsulation mpls
                                                                                   neighbor 10.0.0.1 123
                                                                                !
                                                                                   l2vpn xconnect context A
                                                                                   member pseudowire 300
                                                                                   member atm 300

                                                                                mpls label protocol ldp
                                                                                 mpls ldp router-id Loopback0 force
                                                                                !
                                                                                interface Loopback0
                                                                                 ip address 10.13.13.13 255.255.255.255

                                                                                interface ATM4/0/0
                                                                                  pvc 0/100 l2transport
                                                                                    encapsulation aal0
                                                                                   interface pseudowire 100
                                                                                   encapsulation mpls
                                                                                   neighbor 10.0.0.1 123
                                                                                !
                                                                                   l2vpn xconnect context A
                                                                                   member pseudowire 100
                                                                                   member atm 100
                                                                                !
                                                                                interface ATM4/0/0.300 point-to-point
                                                                                 no ip directed-broadcast
                                                                                 no atm enable-ilmi-trap
                                                                                 pvc 0/300 l2transport
                                                                                   encapsulation aal0
                                                                                   interface pseudowire 300
                                                                                   encapsulation mpls
                                                                                   neighbor 10.0.0.1 123
                                                                                !
                                                                                   l2vpn xconnect context A
                                                                                   member pseudowire 300
                                                                                   member atm 300

                                                                                Example Configuring ATM AAL5 over MPLS in VC Class Configuration Mode

                                                                                The following example configures ATM AAL5 over MPLS in VC class configuration mode. The VC class is then applied to an interface.

                                                                                enable
configure terminal
vc-class atm aal5class
encapsulation aal5
interface atm1/0/0
class-int aal5class
pvc 1/200 l2transport
xconnect 10.13.13.13 100 encapsulation mpls

                                                                                The following example configures ATM AAL5 over MPLS in VC class configuration mode. The VC class is then applied to a PVC.

                                                                                enable
configure terminal
vc-class atm aal5class
encapsulation aal5
interface atm1/0/0
pvc 1/200 l2transport
class-vc aal5class
xconnect 10.13.13.13 100 encapsulation mpls

                                                                                Example Configuring ATM AAL5 over MPLS in VC Class Configuration Mode using the commands associated with the L2VPN Protocol-Based CLIs feature

                                                                                The following example configures ATM AAL5 over MPLS in VC class configuration mode. The VC class is then applied to an interface.

                                                                                enable
configure terminal
vc-class atm aal5class
encapsulation aal5
interface atm1/0/0
class-int aal5class
pvc 1/200 l2transport
interface pseudowire 100
encapsulation mpls
neighbor 10.0.0.1 123
exit
l2vpn xconnect context A
member pseudowire 100
member atm 100
exit

                                                                                Example Ethernet over MPLS with MPLS Traffic Engineering Fast Reroute

                                                                                The following configuration example and the figure show the configuration of Ethernet over MPLS with fast reroute on AToM PE routers.

                                                                                Routers PE1 and PE2 have the following characteristics:

                                                                                • A TE tunnel called Tunnel41 is configured between PE1and PE2, using an explicit path through a link called L1. AToM VCs are configured to travel through the FRR-protected tunnel Tunnel41.
                                                                                • The link L1 is protected by FRR, the backup tunnel is Tunnel1.
                                                                                • PE2 is configured to forward the AToM traffic back to PE1 through the L2 link.
                                                                                Figure 4. Fast Reroute Configuration

                                                                                PE1 Configuration

                                                                                mpls label protocol ldp
mpls traffic-eng tunnels
mpls ldp router-id Loopback1 force
!
pseudowire-class T41
 encapsulation mpls
 preferred-path interface Tunnel41 disable-fallback
!
pseudowire-class IP1
 encapsulation mpls
 preferred-path peer 10.4.0.1 disable-fallback
!
interface Loopback1
 ip address 10.0.0.27 255.255.255.255
!
interface Tunnel1
 ip unnumbered Loopback1
 tunnel destination 10.0.0.1
 tunnel mode mpls traffic-eng
 tunnel mpls traffic-eng priority 1 1
 tunnel mpls traffic-eng bandwidth 10000
 tunnel mpls traffic-eng path-option 1 explicit name FRR
!
interface Tunnel41
 ip unnumbered Loopback1
 tunnel destination 10.0.0.4
 tunnel mode mpls traffic-eng
 tunnel mpls traffic-eng priority 1 1
 tunnel mpls traffic-eng bandwidth 1000
 tunnel mpls traffic-eng path-option 1 explicit name name-1
 tunnel mpls traffic-eng fast-reroute
!
interface POS0/0/0
 description pe1name POS8/0/0
 ip address 10.1.0.2 255.255.255.252
 mpls traffic-eng tunnels
 mpls traffic-eng backup-path Tunnel1
 crc 16
 clock source internal
 pos ais-shut
 pos report lrdi
 ip rsvp bandwidth 155000 155000
!
interface POS0/3/0
 description pe1name POS10/1/0
 ip address 10.1.0.14 255.255.255.252
 mpls traffic-eng tunnels
 crc 16
 clock source internal
 ip rsvp bandwidth 155000 155000
!
interface gigabitethernet3/0/0.1
 encapsulation dot1Q 203
 xconnect 10.0.0.4 2 pw-class IP1
!
interface gigabitethernet3/0/0.2
 encapsulation dot1Q 204
 xconnect 10.0.0.4 4 pw-class T41
!
router ospf 1
 network 10.0.0.0 0.255.255.255 area 0
 mpls traffic-eng router-id Loopback1
 mpls traffic-eng area 0
!
ip classless
ip route 10.4.0.1 255.255.255.255 Tunnel41
!
ip explicit-path name xxxx-1 enable
 next-address 10.4.1.2
 next-address 10.1.0.10

                                                                                P Configuration

                                                                                ip cef
mpls traffic-eng tunnels
!
interface Loopback1
 ip address 10.0.0.1 255.255.255.255
!
interface FastEthernet1/0/0
 ip address 10.4.1.2 255.255.255.0
 mpls traffic-eng tunnels
 ip rsvp bandwidth 10000 10000
!
interface POS8/0/0
 description xxxx POS0/0
 ip address 10.1.0.1 255.255.255.252
 mpls traffic-eng tunnels
 pos ais-shut
 pos report lrdi
 ip rsvp bandwidth 155000 155000
!
interface POS10/1/0
 description xxxx POS0/3
 ip address 10.1.0.13 255.255.255.252
 mpls traffic-eng tunnels
 ip rsvp bandwidth 155000 155000
!
router ospf 1
 network 10.0.0.0 0.255.255.255 area 0
 mpls traffic-eng router-id Loopback1
 mpls traffic-eng area 0

                                                                                PE2 Configuration

                                                                                ip cef
mpls label protocol ldp
mpls traffic-eng tunnels
mpls ldp router-id Loopback1 force
!
interface Loopback1
 ip address 10.0.0.4 255.255.255.255
!
interface loopback 2
ip address 10.4.0.1 255.255.255.255
!
interface Tunnel27
 ip unnumbered Loopback1
 tunnel destination 10.0.0.27
 tunnel mode mpls traffic-eng
 tunnel mpls traffic-eng autoroute announce
 tunnel mpls traffic-eng priority 1 1
 tunnel mpls traffic-eng bandwidth 1000
 tunnel mpls traffic-eng path-option 1 explicit name xxxx-1
!
interface FastEthernet0/0/0.2
 encapsulation dot1Q 203
 xconnect 10.0.0.27 2 encapsulation mpls
!
interface FastEthernet0/0/0.3
 encapsulation dot1Q 204
 xconnect 10.0.0.27 4 encapsulation mpls
!
interface FastEthernet1/1/0
 ip address 10.4.1.1 255.255.255.0
 mpls traffic-eng tunnels
 ip rsvp bandwidth 10000 10000
!
router ospf 1
 network 10.0.0.0 0.255.255.255 area 0
 mpls traffic-eng router-id Loopback1
 mpls traffic-eng area 0
!
ip explicit-path name xxxx-1 enable
 next-address 10.4.1.2
 next-address 10.1.0.10

                                                                                Example Ethernet over MPLS with MPLS Traffic Engineering Fast Reroute using the commands associated with the L2VPN Protocol-Based CLIs feature

                                                                                The following configuration example and the figure show the configuration of Ethernet over MPLS with fast reroute on AToM PE routers.

                                                                                Routers PE1 and PE2 have the following characteristics:

                                                                                • A TE tunnel called Tunnel41 is configured between PE1and PE2, using an explicit path through a link called L1. AToM VCs are configured to travel through the FRR-protected tunnel Tunnel41.
                                                                                • The link L1 is protected by FRR, the backup tunnel is Tunnel1.
                                                                                • PE2 is configured to forward the AToM traffic back to PE1 through the L2 link.
                                                                                Figure 5. Fast Reroute Configuration

                                                                                PE1 Configuration

                                                                                mpls label protocol ldp
mpls traffic-eng tunnels
mpls ldp router-id Loopback1 force
!
template type pseudowire T41
 encapsulation mpls
 preferred-path interface Tunnel41 disable-fallback
!
template type pseudowire IP1
 encapsulation mpls
 preferred-path peer 10.4.0.1 disable-fallback
!
interface Loopback1
 ip address 10.0.0.27 255.255.255.255
!
interface Tunnel1
 ip unnumbered Loopback1
 tunnel destination 10.0.0.1
 tunnel mode mpls traffic-eng
 tunnel mpls traffic-eng priority 1 1
 tunnel mpls traffic-eng bandwidth 10000
 tunnel mpls traffic-eng path-option 1 explicit name FRR
!
interface Tunnel41
 ip unnumbered Loopback1
 tunnel destination 10.0.0.4
 tunnel mode mpls traffic-eng
 tunnel mpls traffic-eng priority 1 1
 tunnel mpls traffic-eng bandwidth 1000
 tunnel mpls traffic-eng path-option 1 explicit name name-1
 tunnel mpls traffic-eng fast-reroute
!
interface POS0/0/0
 description pe1name POS8/0/0
 ip address 10.1.0.2 255.255.255.252
 mpls traffic-eng tunnels
 mpls traffic-eng backup-path Tunnel1
 crc 16
 clock source internal
 pos ais-shut
 pos report lrdi
 ip rsvp bandwidth 155000 155000
!
interface POS0/3/0
 description pe1name POS10/1/0
 ip address 10.1.0.14 255.255.255.252
 mpls traffic-eng tunnels
 crc 16
 clock source internal
 ip rsvp bandwidth 155000 155000
!
interface gigabitethernet3/0/0.1
 encapsulation dot1Q 203
 interface pseudowire 100
 source template type pseudowire T41
 neighbor 10.0.0.4 2
!
l2vpn xconnect context con1
!
interface gigabitethernet3/0/0.2
 encapsulation dot1Q 204
 interface pseudowire 100
 source template type pseudowire IP1
 neighbor 10.0.0.4 4
!
l2vpn xconnect context con2
!
router ospf 1
 network 10.0.0.0 0.255.255.255 area 0
 mpls traffic-eng router-id Loopback1
 mpls traffic-eng area 0
!
ip classless
ip route 10.4.0.1 255.255.255.255 Tunnel41
!
ip explicit-path name xxxx-1 enable
 next-address 10.4.1.2
 next-address 10.1.0.10

                                                                                P Configuration

                                                                                ip cef
mpls traffic-eng tunnels
!
interface Loopback1
 ip address 10.0.0.1 255.255.255.255
!
interface FastEthernet1/0/0
 ip address 10.4.1.2 255.255.255.0
 mpls traffic-eng tunnels
 ip rsvp bandwidth 10000 10000
!
interface POS8/0/0
 description xxxx POS0/0
 ip address 10.1.0.1 255.255.255.252
 mpls traffic-eng tunnels
 pos ais-shut
 pos report lrdi
 ip rsvp bandwidth 155000 155000
!
interface POS10/1/0
 description xxxx POS0/3
 ip address 10.1.0.13 255.255.255.252
 mpls traffic-eng tunnels
 ip rsvp bandwidth 155000 155000
!
router ospf 1
 network 10.0.0.0 0.255.255.255 area 0
 mpls traffic-eng router-id Loopback1
 mpls traffic-eng area 0

                                                                                PE2 Configuration

                                                                                ip cef
mpls label protocol ldp
mpls traffic-eng tunnels
mpls ldp router-id Loopback1 force
!
interface Loopback1
 ip address 10.0.0.4 255.255.255.255
!
interface loopback 2
ip address 10.4.0.1 255.255.255.255
!
interface Tunnel27
 ip unnumbered Loopback1
 tunnel destination 10.0.0.27
 tunnel mode mpls traffic-eng
 tunnel mpls traffic-eng autoroute announce
 tunnel mpls traffic-eng priority 1 1
 tunnel mpls traffic-eng bandwidth 1000
 tunnel mpls traffic-eng path-option 1 explicit name xxxx-1
!
interface FastEthernet0/0/0.2
 encapsulation dot1Q 203
 interface pseudowire 100
 encapsulation mpls
 neighbor 10.0.0.1 123
!
l2vpn xconnect context A
 member pseudowire 100
 member gigabitethernet 0/0/0.1
!
interface FastEthernet0/0/0.3
 encapsulation dot1Q 204
 interface pseudowire 100
 encapsulation mpls
 neighbor 10.0.0.1 123
!
l2vpn xconnect context A
 member pseudowire 100
 member gigabitethernet 0/0/0.1
!
interface FastEthernet1/1/0
 ip address 10.4.1.1 255.255.255.0
 mpls traffic-eng tunnels
 ip rsvp bandwidth 10000 10000
!
router ospf 1
 network 10.0.0.0 0.255.255.255 area 0
 mpls traffic-eng router-id Loopback1
 mpls traffic-eng area 0
!
ip explicit-path name xxxx-1 enable
 next-address 10.4.1.2
 next-address 10.1.0.10

                                                                                Example Configuring OAM Cell Emulation

                                                                                The following example shows how to enable OAM cell emulation on an ATM PVC:

                                                                                interface ATM 1/0/0
pvc 1/200 l2transport
encapsulation aal5
xconnect 10.13.13.13 100 encapsulation mpls
oam-ac emulation-enable
oam-pvc manage

                                                                                The following example shows how to set the rate at which an AIS cell is sent every 30 seconds:

                                                                                interface ATM 1/0/0
pvc 1/200 l2transport
encapsulation aal5
xconnect 10.13.13.13 100 encapsulation mpls
oam-ac emulation-enable 30
oam-pvc manage

                                                                                The following example shows how to configure OAM cell emulation for ATM AAL5 over MPLS in VC class configuration mode. The VC class is then applied to an interface.

                                                                                enable
configure terminal
vc-class atm oamclass
encapsulation aal5
oam-ac emulation-enable 30
oam-pvc manage
interface atm1/0/0
class-int oamclass
pvc 1/200 l2transport
xconnect 10.13.13.13 100 encapsulation mpls

                                                                                The following example shows how to configure OAM cell emulation for ATM AAL5 over MPLS in VC class configuration mode. The VC class is then applied to a PVC.

                                                                                enable
configure terminal
vc-class atm oamclass
encapsulation aal5
oam-ac emulation-enable 30
oam-pvc manage
interface atm1/0/0
pvc 1/200 l2transport
class-vc oamclass
xconnect 10.13.13.13 100 encapsulation mpls

                                                                                The following example shows how to configure OAM cell emulation for ATM AAL5 over MPLS in VC class configuration mode. The VC class is then applied to an interface. One PVC is configured with OAM cell emulation at an AIS rate of 10. That PVC uses the AIS rate of 10 instead of 30.

                                                                                enable
configure terminal
vc-class atm oamclass
encapsulation aal5
oam-ac emulation-enable 30
oam-pvc manage
interface atm1/0/0
class-int oamclass
pvc 1/200 l2transport
oam-ac emulation-enable 10
xconnect 10.13.13.13 100 encapsulation mpls

                                                                                Example Configuring OAM Cell Emulation using the commands associated with the L2VPN Protocol-Based CLIs feature

                                                                                The following example shows how to enable OAM cell emulation on an ATM PVC:

                                                                                interface ATM 1/0/0
pvc 1/200 l2transport
encapsulation aal5
interface pseudowire 100
encapsulation mpls
neighbor 10.0.0.1 123
!
l2vpn xconnect context A
member pseudowire 100
member gigabitethernet 0/0/0.1
!
oam-ac emulation-enable
oam-pvc manage

                                                                                The following example shows how to set the rate at which an AIS cell is sent every 30 seconds:

                                                                                interface ATM 1/0/0
pvc 1/200 l2transport
encapsulation aal5
interface pseudowire 100
encapsulation mpls
neighbor 10.0.0.1 123
!
l2vpn xconnect context A
member pseudowire 100
member gigabitethernet 0/0/0.1
!
oam-ac emulation-enable 30
oam-pvc manage

                                                                                The following example shows how to configure OAM cell emulation for ATM AAL5 over MPLS in VC class configuration mode. The VC class is then applied to an interface.

                                                                                enable
configure terminal
vc-class atm oamclass
encapsulation aal5
oam-ac emulation-enable 30
oam-pvc manage
interface atm1/0/0
class-int oamclass
pvc 1/200 l2transport
interface pseudowire 100
encapsulation mpls
neighbor 10.0.0.1 123
!
l2vpn xconnect context A
member pseudowire 100
member gigabitethernet 0/0/0.1

The following example shows how to configure OAM cell emulation for ATM AAL5 over MPLS in VC class configuration mode. The VC class is then applied to a PVC.
                                                                                enable
configure terminal
vc-class atm oamclass
encapsulation aal5
oam-ac emulation-enable 30
oam-pvc manage
interface atm1/0/0
pvc 1/200 l2transport
class-vc oamclass
interface pseudowire 100
encapsulation mpls
neighbor 10.0.0.1 123
!
l2vpn xconnect context A
member pseudowire 100
member gigabitethernet 0/0/0.1

                                                                                The following example shows how to configure OAM cell emulation for ATM AAL5 over MPLS in VC class configuration mode. The VC class is then applied to an interface. One PVC is configured with OAM cell emulation at an AIS rate of 10. That PVC uses the AIS rate of 10 instead of 30.

                                                                                enable
configure terminal
vc-class atm oamclass
encapsulation aal5
oam-ac emulation-enable 30
oam-pvc manage
interface atm1/0/0
class-int oamclass
pvc 1/200 l2transport
oam-ac emulation-enable 10
interface pseudowire 100
encapsulation mpls
neighbor 10.0.0.1 123
!
l2vpn xconnect context A
member pseudowire 100
member gigabitethernet 0/0/0.1

                                                                                Example Configuring ATM Cell Relay over MPLS

                                                                                The following example shows how to configure ATM cell relay over MPLS in VC class configuration mode. The VC class is then applied to an interface.

                                                                                enable
configure terminal
vc-class atm cellrelay
encapsulation aal0
interface atm1/0/0
class-int cellrelay
pvc 1/200 l2transport
xconnect 10.13.13.13 100 encapsulation mpls

                                                                                The following example shows how to configure ATM cell relay over MPLS in VC class configuration mode. The VC class is then applied to a PVC.

                                                                                enable
configure terminal
vc-class atm cellrelay
encapsulation aal0
interface atm1/0/0
pvc 1/200 l2transport
class-vc cellrelay
xconnect 10.13.13.13 100 encapsulation mpls

                                                                                The following example shows how to configure a pseudowire class to transport single ATM cells over a virtual path:

                                                                                pseudowire-class vp-cell-relay
encapsulation mpls
interface atm 5/0
atm pvp 1 l2transport
xconnect 10.0.0.1 123 pw-class vp-cell-relay

                                                                                Example Configuring ATM Cell Relay over MPLS using the commands associated with the L2VPN Protocol-Based CLIs feature

                                                                                The following example shows how to configure ATM cell relay over MPLS in VC class configuration mode. The VC class is then applied to an interface.

                                                                                enable
configure terminal
vc-class atm cellrelay
encapsulation aal0
interface atm1/0/0
class-int cellrelay
pvc 1/200 l2transport
interface pseudowire 100
encapsulation mpls
neighbor 10.13.13.13 100
!
l2vpn xconnect context A
member pseudowire 100
member gigabitethernet 0/0/0.1

                                                                                The following example shows how to configure ATM cell relay over MPLS in VC class configuration mode. The VC class is then applied to a PVC.

                                                                                enable
configure terminal
vc-class atm cellrelay
encapsulation aal0
interface atm1/0/0
pvc 1/200 l2transport
class-vc cellrelay
interface pseudowire 100
encapsulation mpls
neighbor 10.13.13.13 100
!
l2vpn xconnect context A
member pseudowire 100
member gigabitethernet 0/0/0.1

                                                                                The following example shows how to configure a pseudowire class to transport single ATM cells over a virtual path:

                                                                                template type pseudowire vp-cell-relay
encapsulation mpls
interface atm 5/0
atm pvp 1 l2transport
interface pseudowire 100
 source template type pseudowire ether-pw
 neighbor 10.0.0.1 123
!
l2vpn xconnect context con1

                                                                                Example Configuring per-Subinterface MTU for Ethernet over MPLS

                                                                                The figure below shows a configuration that enables matching MTU values between VC endpoints.

                                                                                As shown in the figure, PE1 is configured in xconnect subinterface configuration mode with an MTU value of 1500 bytes in order to establish an end-to-end VC with PE2, which also has an MTU value of 1500 bytes. If PE1 was not set with an MTU value of 1500 bytes, in xconnect subinterface configuration mode, the subinterface would inherit the MTU value of 2000 bytes set on the interface. This would cause a mismatch in MTU values between the VC endpoints, and the VC would not come up.

                                                                                Figure 6. Configuring MTU Values in xconnect Subinterface Configuration Mode

                                                                                The following examples show the router configurations in the figure above:

                                                                                CE1 Configuration

                                                                                interface gigabitethernet0/0/0
 mtu 1500
 no ip address
!
interface gigabitethernet0/0/0.1
 encapsulation dot1Q 100
 ip address 10.181.182.1 255.255.255.0

                                                                                PE1 Configuration

                                                                                interface gigabitethernet0/0/0
 mtu 2000
 no ip address
!
interface gigabitethernet0/0/0.1
 encapsulation dot1Q 100
 xconnect 10.1.1.152 100 encapsulation mpls
  mtu 1500
!
interface gigabitethernet0/0/0.2
 encapsulation dot1Q 200
 ip address 10.151.100.1 255.255.255.0
 mpls ip

                                                                                PE2 Configuration

                                                                                interface gigabitethernet1/0/0
 mtu 2000
 no ip address
!
interface gigabitethernet1/0/0.2
 encapsulation dot1Q 200
 ip address 10.100.152.2 255.255.255.0
 mpls ip
!
interface fastethernet0/0/0
 no ip address
!
interface fastethernet0/0/0.1
 description default MTU of 1500 for FastEthernet
 encapsulation dot1Q 100
 xconnect 10.1.1.151 100 encapsulation mpls

                                                                                CE2 Configuration

                                                                                interface fastethernet0/0/0
 no ip address
interface fastethernet0/0/0.1
 encapsulation dot1Q 100
 ip address 10.181.182.2 255.255.255.0

                                                                                The show mpls l2transport bindingcommand, issued from router PE1, shows a matching MTU value of 1500 bytes on both the local and remote routers:

                                                                                Router# show mpls l2transport binding
Destination Address: 10.1.1.152,  VC ID: 100
    Local Label: 100
        Cbit: 1,    VC Type: FastEthernet,    GroupID: 0
        MTU: 1500,   Interface Desc: n/a
        VCCV: CC Type: CW [1], RA [2]
              CV Type: LSPV [2]
    Remote Label: 202
        Cbit: 1,    VC Type: FastEthernet,    GroupID: 0
        MTU: 1500,   Interface Desc: n/a
        VCCV: CC Type: RA [2]
              CV Type: LSPV [2]

                                                                                Router# show mpls l2transport vc detail
Local interface: Gi0/0/0.1 up, line protocol up, Eth VLAN 100 up
  Destination address: 10.1.1.152, VC ID: 100, VC status: up
    Output interface: Gi0/0/0.2, imposed label stack {202}
    Preferred path: not configured
    Default path: active
    Next hop: 10.151.152.2
  Create time: 1d11h, last status change time: 1d11h
  Signaling protocol: LDP, peer 10.1.1.152:0 up
    Targeted Hello: 10.1.1.151(LDP Id) -> 10.1.1.152
    MPLS VC labels: local 100, remote 202
    Group ID: local 0, remote 0
    MTU: local 1500, remote 1500
    Remote interface description:
  Sequencing: receive disabled, send disabled
  VC statistics:
    packet totals: receive 41, send 39
    byte totals:   receive 4460, send 5346
    packet drops:  receive 0, send 0

                                                                                Example Configuring per-Subinterface MTU for Ethernet over MPLS using the commands associated with the L2VPN Protocol-Based CLIs feature

                                                                                The figure below shows a configuration that enables matching MTU values between VC endpoints.

                                                                                As shown in the figure, PE1 is configured in xconnect subinterface configuration mode with an MTU value of 1500 bytes in order to establish an end-to-end VC with PE2, which also has an MTU value of 1500 bytes. If PE1 was not set with an MTU value of 1500 bytes, in xconnect subinterface configuration mode, the subinterface would inherit the MTU value of 2000 bytes set on the interface. This would cause a mismatch in MTU values between the VC endpoints, and the VC would not come up.

                                                                                Figure 7. Configuring MTU Values in xconnect Subinterface Configuration Mode

                                                                                The following examples show the router configurations in the figure above:

                                                                                CE1 Configuration

                                                                                interface gigabitethernet0/0/0
 mtu 1500
 no ip address
!
interface gigabitethernet0/0/0.1
 encapsulation dot1Q 100
 ip address 10.181.182.1 255.255.255.0

                                                                                PE1 Configuration

                                                                                interface gigabitethernet0/0/0
 mtu 2000
 no ip address
!
interface gigabitethernet0/0/0.1
 encapsulation dot1Q 100
 interface pseudowire 100
encapsulation mpls
neighbor 10.0.0.1 123
mtu 1500
!
l2vpn xconnect context A
member pseudowire 100
member gigabitethernet 0/0/0.1
!
interface gigabitethernet0/0/0.2
 encapsulation dot1Q 200
 ip address 10.151.100.1 255.255.255.0
 mpls ip

                                                                                PE2 Configuration

                                                                                interface gigabitethernet1/0/0
 mtu 2000
 no ip address
!
interface gigabitethernet1/0/0.2
 encapsulation dot1Q 200
 ip address 10.100.152.2 255.255.255.0
 mpls ip
!
interface fastethernet0/0/0
 no ip address
!
interface fastethernet0/0/0.1
 description default MTU of 1500 for FastEthernet
 encapsulation dot1Q 100
 interface pseudowire 100
 encapsulation mpls
 neighbor 10.0.0.1 123
mtu 1500
!
l2vpn xconnect context A
 member pseudowire 100
 member gigabitethernet 0/0/0.1

                                                                                CE2 Configuration

                                                                                interface fastethernet0/0/0
 no ip address
interface fastethernet0/0/0.1
 encapsulation dot1Q 100
 ip address 10.181.182.2 255.255.255.0

                                                                                The show l2vpn atom binding command, issued from router PE1, shows a matching MTU value of 1500 bytes on both the local and remote routers:

                                                                                Device# show l2vpn atom binding
Destination Address: 10.1.1.152,  VC ID: 100
    Local Label: 100
        Cbit: 1,    VC Type: FastEthernet,    GroupID: 0
        MTU: 1500,   Interface Desc: n/a
        VCCV: CC Type: CW [1], RA [2]
              CV Type: LSPV [2]
    Remote Label: 202
        Cbit: 1,    VC Type: FastEthernet,    GroupID: 0
        MTU: 1500,   Interface Desc: n/a
        VCCV: CC Type: RA [2]
              CV Type: LSPV [2]

                                                                                Configuring Tunnel Selection

                                                                                The following example shows how to set up two preferred paths for PE1. One preferred path specifies an MPLS traffic engineering tunnel. The other preferred path specifies an IP address of a loopback address on PE2. There is a static route configured on PE1 that uses a TE tunnel to reach the IP address on PE2.

                                                                                PE1 Configuration

                                                                                mpls label protocol ldp
mpls traffic-eng tunnels
tag-switching tdp router-id Loopback0
pseudowire-class pw1
 encapsulation mpls
 preferred-path interface Tunnel1 disable-fallback
!
pseudowire-class pw2
 encapsulation mpls
 preferred-path peer 10.18.18.18
!
interface Loopback0
 ip address 10.2.2.2 255.255.255.255
 no ip directed-broadcast
 no ip mroute-cache
!
interface Tunnel1
 ip unnumbered Loopback0
 no ip directed-broadcast
 tunnel destination 10.16.16.16
 tunnel mode mpls traffic-eng
 tunnel mpls traffic-eng priority 7 7
 tunnel mpls traffic-eng bandwidth 1500
 tunnel mpls traffic-eng path-option 1 explicit name path-tu1
!
interface Tunnel2
 ip unnumbered Loopback0
 no ip directed-broadcast
 tunnel destination 10.16.16.16
 tunnel mode mpls traffic-eng
 tunnel mpls traffic-eng priority 7 7
 tunnel mpls traffic-eng bandwidth 1500
 tunnel mpls traffic-eng path-option 1 dynamic
!
interface gigabitethernet0/0/0
 no ip address
 no ip directed-broadcast
 no negotiation auto
!
interface gigabitethernet0/0/0.1
 encapsulation dot1Q 222
 no ip directed-broadcast
 xconnect 10.16.16.16 101 pw-class pw1
!
interface ATM1/0/0
 no ip address
 no ip directed-broadcast
 no atm enable-ilmi-trap
 no atm ilmi-keepalive
 pvc 0/50 l2transport
  encapsulation aal5
  xconnect 10.16.16.16 150 pw-class pw2
!
interface FastEthernet2/0/1
 ip address 10.0.0.1 255.255.255.0
 no ip directed-broadcast
 tag-switching ip
 mpls traffic-eng tunnels
 ip rsvp bandwidth 15000 15000
!
router ospf 1
 log-adjacency-changes
 network 10.0.0.0 0.0.0.255 area 0
 network 10.2.2.2 0.0.0.0 area 0
 mpls traffic-eng router-id Loopback0
 mpls traffic-eng area 0
!
ip route 10.18.18.18 255.255.255.255 Tunnel2
!
ip explicit-path name path-tu1 enable
 next-address 10.0.0.1
 index 3 next-address 10.0.0.1

                                                                                PE2 Configuration

                                                                                mpls label protocol ldp
mpls traffic-eng tunnels
mpls ldp router-id Loopback0
interface Loopback0
 ip address 10.16.16.16 255.255.255.255
 no ip directed-broadcast
 no ip mroute-cache
!
interface Loopback2
 ip address 10.18.18.18 255.255.255.255
 no ip directed-broadcast
!
interface FastEthernet1/1/0
 ip address 10.0.0.2 255.255.255.0
 no ip directed-broadcast
 mpls traffic-eng tunnels
 mpls ip
 no cdp enable
 ip rsvp bandwidth 15000 15000
!
interface FastEthernet1/1/1
 no ip address
 no ip directed-broadcast
 no cdp enable
!
interface FastEthernet1/1/1.1
 encapsulation dot1Q 222
 no ip directed-broadcast
 no cdp enable
 mpls l2transport route 10.2.2.2 101
!
interface ATM5/0/0
 no ip address
 no ip directed-broadcast
 no atm enable-ilmi-trap
 no atm ilmi-keepalive
 pvc 0/50 l2transport
  encapsulation aal5
  xconnect 10.2.2.2 150 encapsulation mpls
!
router ospf 1
 log-adjacency-changes
 network 10.0.0.0 0.0.0.255 area 0
 network 10.16.16.16 0.0.0.0 area 0
 mpls traffic-eng router-id Loopback0
 mpls traffic-eng area 0

                                                                                Configuring Tunnel Selection using the commands associated with the L2VPN Protocol-Based CLIs feature

                                                                                The following example shows how to set up two preferred paths for PE1. One preferred path specifies an MPLS traffic engineering tunnel. The other preferred path specifies an IP address of a loopback address on PE2. There is a static route configured on PE1 that uses a TE tunnel to reach the IP address on PE2.

                                                                                PE1 Configuration

                                                                                mpls label protocol ldp
mpls traffic-eng tunnels
tag-switching tdp router-id Loopback0
template type pseudowire pw1
 encapsulation mpls
 preferred-path interface Tunnel1 disable-fallback
!
template type pseudowire pw2
 encapsulation mpls
 preferred-path peer 10.18.18.18
!
interface Loopback0
 ip address 10.2.2.2 255.255.255.255
 no ip directed-broadcast
 no ip mroute-cache
!
interface Tunnel1
 ip unnumbered Loopback0
 no ip directed-broadcast
 tunnel destination 10.16.16.16
 tunnel mode mpls traffic-eng
 tunnel mpls traffic-eng priority 7 7
 tunnel mpls traffic-eng bandwidth 1500
 tunnel mpls traffic-eng path-option 1 explicit name path-tu1
!
interface Tunnel2
 ip unnumbered Loopback0
 no ip directed-broadcast
 tunnel destination 10.16.16.16
 tunnel mode mpls traffic-eng
 tunnel mpls traffic-eng priority 7 7
 tunnel mpls traffic-eng bandwidth 1500
 tunnel mpls traffic-eng path-option 1 dynamic
!
interface gigabitethernet0/0/0
 no ip address
 no ip directed-broadcast
 no negotiation auto
!
interface gigabitethernet0/0/0.1
 encapsulation dot1Q 222
 no ip directed-broadcast
 interface pseudowire 100
 source template type pseudowire pw1
  neighbor 10.16.16.16 101
!
l2vpn xconnect context con1
!
interface ATM1/0/0
 no ip address
 no ip directed-broadcast
 no atm enable-ilmi-trap
 no atm ilmi-keepalive
 pvc 0/50 l2transport
  encapsulation aal5
 interface pseudowire 100
 source template type pseudowire pw2
 neighbor 10.16.16.16 150
!
l2vpn xconnect context con1
!
interface FastEthernet2/0/1
 ip address 10.0.0.1 255.255.255.0
 no ip directed-broadcast
 tag-switching ip
 mpls traffic-eng tunnels
 ip rsvp bandwidth 15000 15000
!
router ospf 1
 log-adjacency-changes
 network 10.0.0.0 0.0.0.255 area 0
 network 10.2.2.2 0.0.0.0 area 0
 mpls traffic-eng router-id Loopback0
 mpls traffic-eng area 0
!
ip route 10.18.18.18 255.255.255.255 Tunnel2
!
ip explicit-path name path-tu1 enable
 next-address 10.0.0.1
 index 3 next-address 10.0.0.1

                                                                                PE2 Configuration

                                                                                mpls label protocol ldp
mpls traffic-eng tunnels
mpls ldp router-id Loopback0
interface Loopback0
 ip address 10.16.16.16 255.255.255.255
 no ip directed-broadcast
 no ip mroute-cache
!
interface Loopback2
 ip address 10.18.18.18 255.255.255.255
 no ip directed-broadcast
!
interface FastEthernet1/1/0
 ip address 10.0.0.2 255.255.255.0
 no ip directed-broadcast
 mpls traffic-eng tunnels
 mpls ip
 no cdp enable
 ip rsvp bandwidth 15000 15000
!
interface FastEthernet1/1/1
 no ip address
 no ip directed-broadcast
 no cdp enable
!
interface FastEthernet1/1/1.1
 encapsulation dot1Q 222
 no ip directed-broadcast
 no cdp enable
 mpls l2transport route 10.2.2.2 101
!
interface ATM5/0/0
 no ip address
 no ip directed-broadcast
 no atm enable-ilmi-trap
 no atm ilmi-keepalive
 pvc 0/50 l2transport
  encapsulation aal5
  interface pseudowire 100
   encapsulation mpls
   neighbor 10.2.2.2 150
!
l2vpn xconnect context A
  member pseudowire 100
  member GigabitEthernet0/0/0.1
!
router ospf 1
 log-adjacency-changes
 network 10.0.0.0 0.0.0.255 area 0
 network 10.16.16.16 0.0.0.0 area 0
 mpls traffic-eng router-id Loopback0
 mpls traffic-eng area 0

                                                                                Example Configuring MTU Values in xconnect Configuration Mode for L2VPN Interworking

                                                                                The following example shows an L2VPN Interworking example. The PE1 router has a serial interface configured with an MTU value of 1492 bytes. The PE2 router uses xconnect configuration mode to set a matching MTU of 1492 bytes, which allows the two routers to form an interworking VC. If the PE2 router did not set the MTU value in xconnect configuration mode, the interface would be set to 1500 bytes by default and the VC would not come up.

                                                                                PE1 Configuration

                                                                                pseudowire-class atom-ipiw
 encapsulation mpls
 interworking ip
!
interface Loopback0
 ip address 10.1.1.151 255.255.255.255
!
interface Serial2/0/0
 mtu 1492
 no ip address
 encapsulation ppp
 no fair-queue
 serial restart-delay 0
 xconnect 10.1.1.152 123 pw-class atom-ipiw
!
interface Serial4/0/0
 ip address 10.151.100.1 255.255.255.252
 encapsulation ppp
 mpls ip
 serial restart-delay 0
!
router ospf 1
 log-adjacency-changes
 network 10.1.1.151 0.0.0.0 area 0
 network 10.151.100.0 0.0.0.3 area 0
!
mpls ldp router-id Loopback0

                                                                                PE2 Configuration

                                                                                pseudowire-class atom-ipiw
 encapsulation mpls
 interworking ip
!
interface Loopback0
 ip address 10.1.1.152 255.255.255.255
!
interface FastEthernet0/0/0
 no ip address
 xconnect 10.1.1.151 123 pw-class atom-ipiw
  mtu 1492
!
interface Serial4/0/0
 ip address 10.100.152.2 255.255.255.252
 encapsulation ppp
 mpls ip
 serial restart-delay 0
!
router ospf 1
 log-adjacency-changes
 network 10.1.1.152 0.0.0.0 area 0
 network 10.100.152.0 0.0.0.3 area 0
!
mpls ldp router-id Loopback0

                                                                                The show mpls l2transport bindingcommand shows that the MTU value for the local and remote routers is 1492 bytes.

                                                                                PE1

                                                                                Router# show mpls l2transport binding
Destination Address: 10.1.1.152,  VC ID: 123
    Local Label: 105
        Cbit: 1,    VC Type: PPP,    GroupID: 0
        MTU: 1492,   Interface Desc: n/a
        VCCV: CC Type: CW [1], RA [2]
              CV Type: LSPV [2]
    Remote Label: 205
        Cbit: 1,    VC Type: FastEthernet,    GroupID: 0
        MTU: 1492,   Interface Desc: n/a
        VCCV: CC Type: RA [2]
              CV Type: LSPV [2]
Router# show mpls l2transport vc detail
Local interface: Serial2/0/0 up, line protocol up, PPP up
  MPLS VC type is PPP, interworking type is IP
  Destination address: 10.1.1.152, VC ID: 123, VC status: up
    Output interface: Serial4/0/0, imposed label stack {1003 205}
    Preferred path: not configured
    Default path: active
    Next hop: point2point
  Create time: 00:25:29, last status change time: 00:24:54
  Signaling protocol: LDP, peer 10.1.1.152:0 up
    Targeted Hello: 10.1.1.151(LDP Id) -> 10.1.1.152
    Status TLV support (local/remote)   : enabled/supported
      Label/status state machine        : established, LruRru
      Last local dataplane   status rcvd: no fault
      Last local SSS circuit status rcvd: no fault
      Last local SSS circuit status sent: no fault
      Last local  LDP TLV    status sent: no fault
      Last remote LDP TLV    status rcvd: no fault
    MPLS VC labels: local 105, remote 205
    Group ID: local n/a, remote 0
    MTU: local 1492, remote 1492
    Remote interface description:
  Sequencing: receive disabled, send disabled
  VC statistics:
    packet totals: receive 30, send 29
    byte totals:   receive 2946, send 3364
    packet drops:  receive 0, send 0

                                                                                PE2

                                                                                Router# show mpls l2transport binding
Destination Address: 10.1.1.151,  VC ID: 123
    Local Label: 205
        Cbit: 1,    VC Type: FastEthernet,    GroupID: 0
        MTU: 1492,   Interface Desc: n/a
        VCCV: CC Type: RA [2]
              CV Type: LSPV [2]
    Remote Label: 105
        Cbit: 1,    VC Type: FastEthernet,    GroupID: 0
        MTU: 1492,   Interface Desc: n/a
        VCCV: CC Type: CW [1], RA [2]
              CV Type: LSPV [2]
Router# show mpls l2transport vc detail
Local interface: Fe0/0/0 up, line protocol up, FastEthernet up
  MPLS VC type is FastEthernet, interworking type is IP
  Destination address: 10.1.1.151, VC ID: 123, VC status: up
    Output interface: Se4/0/0, imposed label stack {1002 105}
    Preferred path: not configured
    Default path: active
    Next hop: point2point
  Create time: 00:25:19, last status change time: 00:25:19
  Signaling protocol: LDP, peer 10.1.1.151:0 up
    Targeted Hello: 10.1.1.152(LDP Id) -> 10.1.1.151
    Status TLV support (local/remote)   : enabled/supported
      Label/status state machine        : established, LruRru
      Last local dataplane   status rcvd: no fault
      Last local SSS circuit status rcvd: no fault
      Last local SSS circuit status sent: no fault
      Last local  LDP TLV    status sent: no fault
      Last remote LDP TLV    status rcvd: no fault
    MPLS VC labels: local 205, remote 105
    Group ID: local n/a, remote 0
    MTU: local 1492, remote 1492
    Remote interface description:
  Sequencing: receive disabled, send disabled
  VC statistics:
    packet totals: receive 29, send 30
    byte totals:   receive 2900, send 3426
    packet drops:  receive 0, send 0

                                                                                Example Configuring MTU Values in xconnect Configuration Mode for L2VPN Interworking using the commands associated with the L2VPN Protocol-Based CLIs feature

                                                                                The following example shows an L2VPN Interworking example. The PE1 router has a serial interface configured with an MTU value of 1492 bytes. The PE2 router uses xconnect configuration mode to set a matching MTU of 1492 bytes, which allows the two routers to form an interworking VC. If the PE2 router did not set the MTU value in xconnect configuration mode, the interface would be set to 1500 bytes by default and the VC would not come up.

                                                                                PE1 Configuration

                                                                                template type pseudowire atom-ipiw
 encapsulation mpls
 interworking ip
!
interface Loopback0
 ip address 10.1.1.151 255.255.255.255
!
interface Serial2/0/0
 mtu 1492
 no ip address
 encapsulation ppp
 no fair-queue
 serial restart-delay 0
interface pseudowire 100
 source template type pseudowire atom-ipiw
 neighbor 10.1.1.152 123
!
l2vpn xconnect context con1
 member <ac_int>
 member pseudowire 100
!
interface Serial4/0/0
 ip address 10.151.100.1 255.255.255.252
 encapsulation ppp
 mpls ip
 serial restart-delay 0
!
router ospf 1
 log-adjacency-changes
 network 10.1.1.151 0.0.0.0 area 0
 network 10.151.100.0 0.0.0.3 area 0
!
mpls ldp router-id Loopback0

                                                                                PE2 Configuration

                                                                                template type pseudowire atom-ipiw
 encapsulation mpls
 interworking ip
!
interface Loopback0
 ip address 10.1.1.152 255.255.255.255
!
interface FastEthernet0/0/0
 no ip address
 interface pseudowire 100
 source template type pseudowire atom-ipiw
 neighbor 10.1.1.151 123
!
l2vpn xconnect context con1
 member <ac_int>
 member pseudowire1
!
interface Serial4/0/0
 ip address 10.100.152.2 255.255.255.252
 encapsulation ppp
 mpls ip
 serial restart-delay 0
!
router ospf 1
 log-adjacency-changes
 network 10.1.1.152 0.0.0.0 area 0
 network 10.100.152.0 0.0.0.3 area 0
!
mpls ldp router-id Loopback0

                                                                                The show l2vpn atom binding command shows that the MTU value for the local and remote routers is 1492 bytes.

                                                                                PE1

                                                                                Device# show l2vpn atom binding
Destination Address: 10.1.1.152,  VC ID: 123
    Local Label: 105
        Cbit: 1,    VC Type: PPP,    GroupID: 0
        MTU: 1492,   Interface Desc: n/a
        VCCV: CC Type: CW [1], RA [2]
              CV Type: LSPV [2]
    Remote Label: 205
        Cbit: 1,    VC Type: FastEthernet,    GroupID: 0
        MTU: 1492,   Interface Desc: n/a
        VCCV: CC Type: RA [2]
              CV Type: LSPV [2]
Device# show l2vpn atom vc detail
Local interface: Serial2/0/0 up, line protocol up, PPP up
  MPLS VC type is PPP, interworking type is IP
  Destination address: 10.1.1.152, VC ID: 123, VC status: up
    Output interface: Serial4/0/0, imposed label stack {1003 205}
    Preferred path: not configured
    Default path: active
    Next hop: point2point
  Create time: 00:25:29, last status change time: 00:24:54
  Signaling protocol: LDP, peer 10.1.1.152:0 up
    Targeted Hello: 10.1.1.151(LDP Id) -> 10.1.1.152
    Status TLV support (local/remote)   : enabled/supported
      Label/status state machine        : established, LruRru
      Last local dataplane   status rcvd: no fault
      Last local SSS circuit status rcvd: no fault
      Last local SSS circuit status sent: no fault
      Last local  LDP TLV    status sent: no fault
      Last remote LDP TLV    status rcvd: no fault
    MPLS VC labels: local 105, remote 205
    Group ID: local n/a, remote 0
    MTU: local 1492, remote 1492
    Remote interface description:
  Sequencing: receive disabled, send disabled
  VC statistics:
    packet totals: receive 30, send 29
    byte totals:   receive 2946, send 3364
    packet drops:  receive 0, send 0

                                                                                PE2

                                                                                Device# show l2vpn atom binding
Destination Address: 10.1.1.151,  VC ID: 123
    Local Label: 205
        Cbit: 1,    VC Type: FastEthernet,    GroupID: 0
        MTU: 1492,   Interface Desc: n/a
        VCCV: CC Type: RA [2]
              CV Type: LSPV [2]
    Remote Label: 105
        Cbit: 1,    VC Type: FastEthernet,    GroupID: 0
        MTU: 1492,   Interface Desc: n/a
        VCCV: CC Type: CW [1], RA [2]
              CV Type: LSPV [2]
Device# show l2vpn atom vc detail
Local interface: Fe0/0/0 up, line protocol up, FastEthernet up
  MPLS VC type is FastEthernet, interworking type is IP
  Destination address: 10.1.1.151, VC ID: 123, VC status: up
    Output interface: Se4/0/0, imposed label stack {1002 105}
    Preferred path: not configured
    Default path: active
    Next hop: point2point
  Create time: 00:25:19, last status change time: 00:25:19
  Signaling protocol: LDP, peer 10.1.1.151:0 up
    Targeted Hello: 10.1.1.152(LDP Id) -> 10.1.1.151
    Status TLV support (local/remote)   : enabled/supported
      Label/status state machine        : established, LruRru
      Last local dataplane   status rcvd: no fault
      Last local SSS circuit status rcvd: no fault
      Last local SSS circuit status sent: no fault
      Last local  LDP TLV    status sent: no fault
      Last remote LDP TLV    status rcvd: no fault
    MPLS VC labels: local 205, remote 105
    Group ID: local n/a, remote 0
    MTU: local 1492, remote 1492
    Remote interface description:
  Sequencing: receive disabled, send disabled
  VC statistics:
    packet totals: receive 29, send 30
    byte totals:   receive 2900, send 3426
    packet drops:  receive 0, send 0

                                                                                Examples Configuring Any Transport over MPLS (AToM) Remote Ethernet Port Shutdown

                                                                                The following example shows how to enable remote Ethernet port shutdown:

                                                                                configure terminal
!
pseudowire-class eompls
 encapsulation mpls
!
interface GigabitEthernet1/0/0
 xconnect 10.1.1.1 1 pw-class eompls
  remote link failure notification

                                                                                The following example shows how to disable remote Ethernet port shutdown:

                                                                                configure terminal
!
pseudowire-class eompls
 encapsulation mpls
!
interface GigabitEthernet1/0/0
 xconnect 10.1.1.1 1 pw-class eompls
  no remote link failure notification

                                                                                The related show command output reports operational status for all remote L2 Tunnels by interface.

                                                                                Router# show interface G1/0/0
GigabitEthernet1/0/0 is L2 Tunnel remote down, line protocol is up
Hardware is GigMac 4 Port GigabitEthernet, address is 0003.ff4e.12a8 (bia 0003.ff4e.12a8)
  Internet address is 10.9.9.2/16
  MTU 1500 bytes, BW 1000000 Kbit, DLY 10 usec, rely 255/255, load 1/255
Router# show ip interface brief
Interface              IP-Address      OK? Method Status Protocol
GigabitEthernet2/0/0 unassigned      YES NVRAM  L2 Tunnel remote down up
GigabitEthernet2/1/0 unassigned      YES NVRAM  administratively down down

                                                                                Examples Configuring Any Transport over MPLS (AToM) Remote Ethernet Port Shutdown using the commands associated with the L2VPN Protocol-Based CLIs feature

                                                                                The following example shows how to enable remote Ethernet port shutdown:

                                                                                configure terminal
!
template type pseudowire eompls
 encapsulation mpls
!
interface GigabitEthernet1/0/0
interface pseudowire 100
 source template type pseudowire eompls
 neighbor 10.1.1.1 1
!
l2vpn xconnect context con1
 remote link failure notification

                                                                                The following example shows how to disable remote Ethernet port shutdown:

                                                                                configure terminal
!
template type pseudowire eompls
 encapsulation mpls
!
interface GigabitEthernet1/0/0
 interface pseudowire 100
 source template type pseudowire eompls
 neighbor 10.1.1.1 1
!
l2vpn xconnect context con1
 no remote link failure notification

                                                                                The related show command output reports operational status for all remote L2 Tunnels by interface.

                                                                                Router# show interface G1/0/0
GigabitEthernet1/0/0 is L2 Tunnel remote down, line protocol is up
Hardware is GigMac 4 Port GigabitEthernet, address is 0003.ff4e.12a8 (bia 0003.ff4e.12a8)
  Internet address is 10.9.9.2/16
  MTU 1500 bytes, BW 1000000 Kbit, DLY 10 usec, rely 255/255, load 1/255
Router# show ip interface brief
Interface              IP-Address      OK? Method Status Protocol
GigabitEthernet2/0/0 unassigned      YES NVRAM  L2 Tunnel remote down up
GigabitEthernet2/1/0 unassigned      YES NVRAM  administratively down down

                                                                                Additional References

                                                                                Related Documents

                                                                                Related Topic

                                                                                Document Title

                                                                                Cisco IOS commands

                                                                                Cisco IOS Master Command List, All Releases

                                                                                MPLS commands

                                                                                Cisco IOS Multiprotocol Label Switching Command Reference

                                                                                Technical Assistance

                                                                                Description

                                                                                Link

                                                                                The Cisco Support and Documentation website provides online resources to download documentation, software, and tools. Use these resources to install and configure the software and to troubleshoot and resolve technical issues with Cisco products and technologies. Access to most tools on the Cisco Support and Documentation website requires a Cisco.com user ID and password.

                                                                                http:/​/​www.cisco.com/​cisco/​web/​support/​index.html

                                                                                Feature Information for Any Transport over MPLS

                                                                                The following table provides release information about the feature or features described in this module. This table lists only the software release that introduced support for a given feature in a given software release train. Unless noted otherwise, subsequent releases of that software release train also support that feature.

                                                                                Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/​go/​cfn. An account on Cisco.com is not required.

                                                                                Table 8 Feature Information for Any Transport over MPLS

                                                                                Feature Name

                                                                                Releases

                                                                                Feature Information

                                                                                Any Transport over MPLS (AToM): ATM AAL5 over MPLS (AAL5oMPLS)

                                                                                Cisco IOS XE Release 3.2S

                                                                                Cisco IOS XE Release 3.6S

                                                                                In Cisco IOS XE Release 3.2S, this feature was introduced on the Cisco ASR 1000 Series Aggregation Services Routers.

                                                                                In Cisco IOS XE Release 3.6S, support was added for the Cisco ASR 903 Router.

                                                                                This feature introduced no new or modified commands.

                                                                                Any Transport over MPLS (AToM): ATM Cell Relay over MPLS: Packed Cell Relay

                                                                                Cisco IOS XE Release 3.5S

                                                                                In Cisco IOS XE Release 3.5S, this feature was introduced on the Cisco ASR 1000 Series Aggregation Services Routers.

                                                                                In Cisco IOS XE Release 3.5S, support was added for the Cisco ASR 903 Router.

                                                                                Any Transport over MPLS (AToM): ATM OAM Emulation

                                                                                Cisco IOS XE Release 3.2S

                                                                                In Cisco IOS XE Release 3.2S, this feature was introduced on the Cisco ASR 1000 Series Aggregation Services Routers.

                                                                                This feature introduced no new or modified commands.

                                                                                Any Transport over MPLS (AToM): Sequencing Support

                                                                                Cisco IOS XE Release 2.5

                                                                                Cisco IOS XE Release 3.8S

                                                                                This feature provides capability to support sequencing of AToM) data plane packets.

                                                                                In Cisco IOS XE Release 3.8S, support was added for the Cisco ISR 4400 Series Routers.

                                                                                Any Transport over MPLS (AToM): Ethernet over MPLS (EoMPLS)

                                                                                Cisco IOS XE Release 2.4

                                                                                Cisco IOS XE Release 3.5S

                                                                                Cisco IOS XE Release 3.8S

                                                                                Cisco IOS XE Release 3.9S

                                                                                This feature allows you to transport Layer 2 Ethernet VLAN packets from various sources over an MPLS backbone. Ethernet over MPLS extends the usability of the MPLS backbone by enabling it to offer Layer 2 services in addition to already existing Layer 3 services. You can enable the MPLS backbone network to accept Layer 2 VLAN packets by configuring the PE routers at the both ends of the MPLS backbone.

                                                                                In Cisco IOS XE Release 2.4, this feature was introduced on the Cisco ASR 1000 Series Routers.

                                                                                In Cisco IOS XE Release 3.5S, support was added for the Cisco ASR 903 Router.

                                                                                In Cisco IOS XE Release 3.8S, support was added for the Cisco ISR 4400 Series Router.

                                                                                In Cisco IOS XE Release 3.9S, support was added for the Cisco CSR 1000V.

                                                                                Any Transport over MPLS (AToM): Ethernet over MPLS: Port Mode (EoMPLS)

                                                                                Cisco IOS XE Release 2.4

                                                                                Cisco IOS XE Release 3.8S

                                                                                Cisco IOS XE Release 3.9S

                                                                                Ethernet over MPLS (EoMPLS) is the transport of Ethernet frames across an MPLS core. It transports all frames received on a particular Ethernet or virtual LAN (VLAN) segment, regardless of the destination Media Access Control (MAC) information. It does not perform MAC learning or MAC look up for forwarding packets from the Ethernet interface. Port mode allows a frame coming into an interface to be packed into an MPLS packet and transported over the MPLS backbone to an egress interface.

                                                                                In Cisco IOS XE Release 2.4, this feature was introduced on the Cisco ASR 1000 Series Routers.

                                                                                In Cisco IOS XE Release 3.8S, support was added for the Cisco ISR 4400 Series Router.

                                                                                In Cisco IOS XE Release 3.9S, support was added for the Cisco CSR 1000V.

                                                                                Any Transport over MPLS-Ethernet over MPLS Enhancements: Fast Reroute

                                                                                Cisco IOS XE Release 2.4

                                                                                Cisco IOS XE Release 3.8S

                                                                                AToM can use MPLS traffic engineering (TE) tunnels with fast reroute (FRR) support. This features enhances FRR functionality for Ethernet over MPLS (EoMPLS).

                                                                                In Cisco IOS XE Release 2.4, this feature was introduced on the Cisco ASR 1000 Series Routers.

                                                                                In Cisco IOS XE Release 3.8S, support was added for the Cisco ISR 4400 Series Router.

                                                                                Any Transport over MPLS (AToM): Frame Relay over MPLS (FRoMPLS)

                                                                                Cisco IOS XE Release 3.2.1S

                                                                                Cisco IOS XE Release 3.9S

                                                                                In Cisco IOS XE Release 3.2.1S, this feature was introduced on the Cisco ASR 1000 Series Aggregation Services Routers.

                                                                                In Cisco IOS XE Release 3.9S, support was added for the Cisco ISR 4400 Series Routers.

                                                                                This feature introduced no new or modified commands.

                                                                                Any Transport over MPLS (AToM): HDLC over MPLS (HDLCoMPLS)

                                                                                Cisco IOS XE Release 3.2S

                                                                                In Cisco IOS XE Release 3.2S, this feature was introduced on the Cisco ASR 1000 Series Aggregation Services Routers.

                                                                                This feature introduced no new or modified commands.

                                                                                Any Transport over MPLS (AToM): Layer 2 Quality of Service (QoS)

                                                                                Cisco IOS XE Release 2.3

                                                                                This feature provides support for quality of service (QoS) features such as traffic policing, traffic shaping, packet marking, and mapping of the packets.

                                                                                In Cisco IOS XE Release 2.3, this feature was introduced on the Cisco ASR 1000 Series Routers.

                                                                                Any Transport over MPLS (AToM): PPP over MPLS (PPPoMPLS)

                                                                                Cisco IOS XE Release 3.2S

                                                                                In Cisco IOS XE Release 3.2S, this feature was introduced on the Cisco ASR 1000 Series Aggregation Services Routers.

                                                                                This feature introduced no new or modified commands.

                                                                                Any Transport over MPLS (AToM): Remote Ethernet Port Shutdown

                                                                                Cisco IOS XE Release 2.4

                                                                                Cisco IOS XE Release 3.8S

                                                                                Cisco IOS XE Release 3.9S

                                                                                This feature allows a service provider edge (PE) router on the local end of an Ethernet over MPLS (EoMPLS) pseudowire to detect a remote link failure and cause the shutdown of the Ethernet port on the local customer edge (CE) router. Because the Ethernet port on the local CE router is shut down, the router does not lose data by continuously sending traffic to the failed remote link. This is beneficial if the link is configured as a static IP route.

                                                                                In Cisco IOS XE Release 2.4, this feature was introduced on the Cisco ASR 1000 Series Routers.

                                                                                In Cisco IOS XE Release 3.8S, support was added for the Cisco ISR 4400 Series Routers.

                                                                                In Cisco IOS XE Release 3.9S, support was added for the Cisco CSR 1000V.

                                                                                ATM Port Mode Packed Cell Relay over MPLS

                                                                                Cisco IOS XE Release 3.5S

                                                                                In Cisco IOS XE Release 3.5S, this feature was introduced on the Cisco ASR 1000 Series Aggregation Services Routers.

                                                                                ATM VC Class Support

                                                                                Cisco IOS XE Release 2.3

                                                                                The ATM VC Class Support feature allows you to specify AAL5 and AAL0 encapsulations as part of a VC class.

                                                                                In Cisco IOS XE Release 2.3, this feature was introduced on the Cisco ASR 1000 Series Routers.

                                                                                AToM Tunnel Selection

                                                                                Cisco IOS XE Release 2.3

                                                                                The AToM Tunnel Selection feature allows you to specify the path that traffic uses. You can specify either an MPLS TE tunnel or destination IP address or domain name server (DNS) name.

                                                                                You also have the option of specifying whether the VCs should use the default path (the path LDP uses for signaling) if the preferred path is unreachable. This option is enabled by default; you must explicitly disable it.

                                                                                In Cisco IOS XE Release 2.3, this feature was introduced on the Cisco ASR 1000 Series Aggregation Services Routers.

                                                                                AToM: ATM Cell Relay over MPLS: VP Mode

                                                                                Cisco IOS XE Release 2.3

                                                                                The AToM: ATM Cell Relay over MPLS: VP Mode feature allows you to insert one ATM cell in each MPLS packet in VP mode.

                                                                                In Cisco IOS XE Release 2.3, this feature was introduced on the Cisco ASR 1000 Series Routers.

                                                                                AToM: Single Cell Relay-VC Mode

                                                                                Cisco IOS XE Release 2.3

                                                                                The AToM Single Cell Relay-VC Mode feature allows you to insert one ATM cell in each MPLS packet in VC mode.

                                                                                In Cisco IOS XE Release 2.3, this feature was introduced on the Cisco ASR 1000 Series Routers.

                                                                                MPLS MTU Command for GRE Tunnels

                                                                                Cisco IOS XE Release 2.6

                                                                                This feature allows you to set the MPLS MTU size in GRE tunnels to the maximum size besides the current default size.

                                                                                The following command was modified for this release: mpls mtu.

                                                                                MPLS L2VPN Clear Xconnect Command

                                                                                Cisco IOS XE Release 3.1S

                                                                                Cisco IOS XE Release 3.8S

                                                                                These features enable you to:

                                                                                • Reset a VC associated with an interface, a peer address, or on all the configured xconnect circuit attachments
                                                                                • Set the control word on dynamic pseudowires (L2VPN pseudowire control word configuration
                                                                                • Enable ATM cell packing for static pseudowires.

                                                                                In Cisco IOS XE Release 3.8S, support was added for the Cisco ISR 4400 Series Routers.

                                                                                The following commands were introduced or modified by these features: cell-packing, clear xconnect, control-word, encapsulation(Any Transport over MPLS), oam-ac emulation-enable.

                                                                                Per-Subinterface MTU for Ethernet over MPLS (EoMPLS)

                                                                                Cisco IOS XE Release 2.4

                                                                                Cisco IOS XE Release 3.8S

                                                                                This feature provides you with the ability to specify maximum transmission unit (MTU) values in xconnect subinterface configuration mode. When you use xconnect subinterface configuration mode to set the MTU value, you establish a pseudowire connection for situations where the interfaces have different MTU values that cannot be changed.

                                                                                In Cisco IOS XE Release 2.4, this feature was introduced on the Cisco ASR 1000 Series Aggregation Services Routers.

                                                                                In Cisco IOS XE Release 3.8S, support was added for the Cisco ISR 4400 Series Routers.

                                                                                No commands were new or modified for this release.

                                                                                VLAN ID Rewrite

                                                                                Cisco IOS XE Release 2.4

                                                                                Cisco IOS XE Release 3.8S

                                                                                Cisco IOS XE Release 3.9S

                                                                                The VLAN ID rewrite feature enables you to use VLAN interfaces with different VLAN IDs at both ends of the tunnel.

                                                                                In Cisco IOS XE Release 2.4, this feature was introduced on the Cisco ASR 1000 Series Routers.

                                                                                In Cisco IOS XE Release 3.8S, support was added for the Cisco ISR 4400 Series Routers.

                                                                                In Cisco IOS XE Release 3.9S, support was added for the Cisco CSR 1000V.

                                                                                AToM Load Balancing with Single PW

                                                                                Cisco IOS XE Release 3.4S

                                                                                The AToM Load Balancing with Single PW feature enables load balancing for packets within the same pseudowire by further classifying packets within the same pseudowire into different flows based on some field in the packet received on attachment circuit.

                                                                                In Cisco IOS XE Release 3.4S, this feature was introduced on the Cisco ASR 1000 Series Aggregation Services Routers.
