Cisco uBR10012 Universal Broadband Router Overview
Cisco uBR10012 Router Features
Comparisons with Other Cisco CMTS Platforms
Cisco uBR10012 Router Functional Overview
Cisco uBR10012 Router and Cisco IOS Software
DOCSIS and EuroDOCSIS Data Rates and Modulation Schemes
Cisco uBR10012 Universal Broadband Router Hardware
Cisco uBR10012 Router Slot Numbering
Cisco uBR10012 Universal Broadband Router Modules
PRE LED Indicators and Buttons
Timing, Communication, and Control Plus Card
Cisco uBR10-LCP2-MC16x (C, E, S) Cable Interface Line Cards

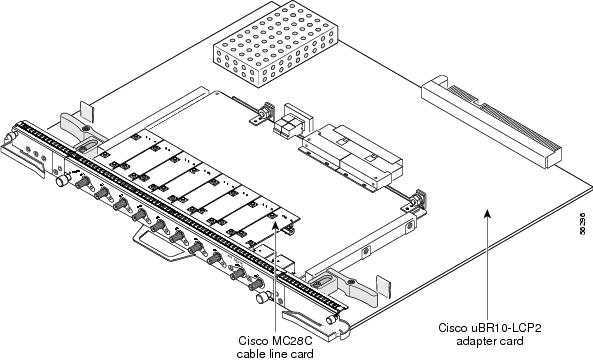

Cisco uBR10-LCP2-MC28C Cable Interface Line Card
Cisco uBR-MC5X20S/U Cable Interface Card
Cisco UBR-MC20X20V Cable Interface Line Card
Cisco Single Port Gigabit Ethernet Line Card
Cisco Gigabit Ethernet Line Card LEDs
Cisco Half-Height Gigabit Ethernet Line Card
SFP Gigabit Ethernet Interface Converter Modules and Cable Specifications
Cisco OC-12 POS Line Card LEDs
Cisco uBR10-SRP-OC12SML DPT WAN Line Card

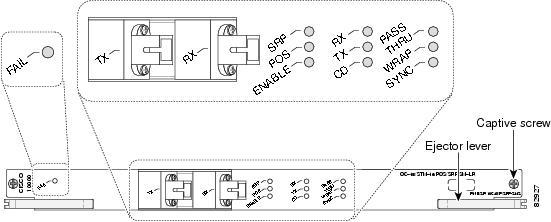

Cisco uBR10-SRP-OC12SML DPT WAN Line Card LEDs
Cisco uBR10012 OC-48 DPT/POS Interface Module
Cisco uBR10012 Router FRU Resources
Cisco uBR10012 Universal Broadband Router Overview
The Cisco uBR10012 universal broadband router provides a high-end, high-performance, high-capacity Cable Modem Termination System (CMTS) solution. The Cisco uBR10012 router is an aggregation platform that places a new level of intelligence and performance at the edge of the network, enabling cable service providers to maximize their revenues by delivering more feature-rich services to their customers. The system can provide high-speed data, broadband entertainment, and IP telephony services to residential and commercial subscribers using cable modems or digital set-top boxes (STBs).
The Cisco uBR10012 router is based on the Data-over-Cable Service Interface Specifications (DOCSIS), which were developed by a cable industry initiative to ensure the reliable and secure operation of cable data networks. The router can interoperate with cable modems or STBs that support the DOCSIS 1.0, DOCSIS 1.0+, DOCSIS 1.1, EuroDOCSIS 1.1, DOCSIS 2.0, and EuroDOCSIS 2.0 versions of the DOCSIS specification.
DOCSIS supports the 6 MHz North American channel plans using the ITU J.83 Annex B RF standard. The downstream uses a 6 MHz channel width in the 85 to 860 MHz frequency range, and the upstream supports the 5 to 42 MHz frequency range. Each chassis can support multiple standards and multiple interfaces, allowing operators to choose the appropriate services and devices that optimize their capital investment with a single CMTS platform.
The Cisco uBR10012 router supports data and digitized voice connectivity over a bidirectional cable television and IP backbone network, using advanced quality of service (QoS) techniques to ensure that real-time traffic such as voice can be reliably delivered, while still transmitting other traffic on a best-effort basis. The Cisco uBR10012 router concentrates traffic from two-way DOCSIS-based cable modems and STBs that is transmitted over the coaxial cable television (CATV) network, and presents that traffic to local and remote Internet Protocol (IP) hosts over its high-speed network uplink interfaces.
The Cisco uBR10012 universal broadband router uses the same Parallel Express Forwarding (PXF) technology used by the Cisco ESR10000 edge services router. The combination of PXF technology with Cisco's CMTS solutions creates a cost-effective, scalable, and industry-proven CMTS that provides consistent, high-performance throughput that is optimized for high-volume traffic over a cable network.
Based on the Cisco IOS networking software, the router supports the most advanced networking and routing options. Also, with access to current and future software enhancements, the router ensures investment protection as standards and customer needs continue to evolve.
Warning
Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030.
Cisco uBR10012 Router Features
The Cisco uBR10012 router has the following features:
•
•
•
–
–
•
•
–
–
–
Note
http://www.cisco.com/en/US/docs/cable/cmts/ubr10012/installation/field_replaceable_units/pre2gkit.html•
–
–
–
•
•
•
–
–
–
–
Comparisons with Other Cisco CMTS Platforms
The Cisco uBR10012 router is a next-generation CMTS platform with the following significant differences from the other Cisco CMTS platforms (Cisco uBR7100 series and Cisco uBR7200 series universal broadband routers):
•
•
•
•
•
Cisco uBR10012 Router Functional Overview
The Cisco uBR10012 router is a cable modem termination system (CMTS) that provides Internet, LAN, and WAN access for cable modems and set-top-boxes (STBs) over a coaxial cable connection. The router enables high-speed data services to be packaged like they are in basic cable television service or video programming.
The path from the CMTS to the cable modem or STB is the downstream, which carries the majority of traffic over the cable interface. The path from the cable modem or STB to the CMTS is the upstream, and it typically carries approximately 10 percent of the traffic that is sent over the downstream. A large number of users can be assigned to the same downstream, and for efficient use of bandwidth, those users can be split among several different upstreams.
For example, users who are connecting to the Cisco uBR10012 router through the Cisco uBR10-LCP2-MC28C cable interface line card are typically divided between the two separate downstreams. Each group of users is then divided between the four separate upstreams.
The following sections provide a high-level overview of the data path over the upstream and the downstream.
Upstream Data Path
The following example describes the upstream data path.
1.
2.
3.
a.
b.
c.
4.
5.
6.
7.
Downstream Data Path
The following example describes the downstream data path.
1.
2.
3.
4.
5.
a.
b.
c.
6.
7.
a.
b.
8.
Cisco uBR10012 Router and Cisco IOS Software
The Cisco uBR10012 router runs the Cisco IOS software, which is stored on the Type II PCMCIA flash memory disks stored in the two PCMCIA slots in the primary PRE module. A PCMCIA flash memory disk in either slot can store a Cisco IOS image or configuration file.
In addition to the flash memory disks, each PRE module contains onboard flash memory that is used to store a boot loader. The loader executes following a system reset to reload and execute the Cisco IOS software on the flash memory disks.
The PRE module also stores the system configuration in the onboard flash memory. The configuration information read from the flash memory is buffered in operational memory following initialization, and is written to the flash memory device when the configuration is saved.
Each line card also contains onboard flash memory that is used to store a boot loader, similar in function to that used on the PRE module. However, the line card loader executes following a system reset, line card reset, or line card insertion to reload and execute any code that must run on the line card.
Software images may also be stored on an external TFTP server. If the Cisco uBR10012 router is so configured, it then downloads the proper image from the TFTP server and executes it.
DOCSIS and EuroDOCSIS Data Rates and Modulation Schemes
Cisco cable interface line cards can be configured in a number of different upstream combinations based on the card used, your cable network, and the anticipated subscription and service levels. Table 1-1 lists the data rates and modulation schemes for both DOCSIS1.1 and EuroDOCSIS 1.1 standards. Table 1-2 lists the data rates and modulation schemes for DOCSIS 2.0 and EuroDOCSIS 2.0 standards. Table 1-3 lists the downstream data rates.
NEBS Level 3 Compliance
The Cisco uBR10012 router is Network Equipment Building System (NEBS) Level 3 compliant. This includes the following categories:
•
•
•
•
•
•
•
•
•
•
Cisco uBR10012 Universal Broadband Router Hardware
This section describes the Cisco uBR10012 router and router components.
Cisco uBR10012 Router
The Cisco uBR10012 router is installed in a standard 19-inch equipment or telco rack. A rack-mount kit ships from the Cisco factory with each router. The rack-mount kit includes the hardware needed to mount the router in a standard 19-inch equipment rack or telco-type rack. Mounting in 23-inch equipment racks is possible with optional third-party mounting hardware.
The Cisco uBR10012 chassis is designed for front and rear access. The two AC or DC PEMs, two PREs, the LCD panel, and the fan assembly module are accessed from the front of the chassis, see Figure 1-2. The eight slots for cable interface line cards, four full-slots for network uplink line cards, and two slots for the TCC+ cards are accessed from the rear of the chassis, see Figure 1-3.
Note
http://www.cisco.com/en/US/docs/cable/cmts/ubr10012/installation/field_replaceable_units/ub10acsh.htmlFigure 1-1 shows the front of the Cisco uBR10012 router with the front cover installed.

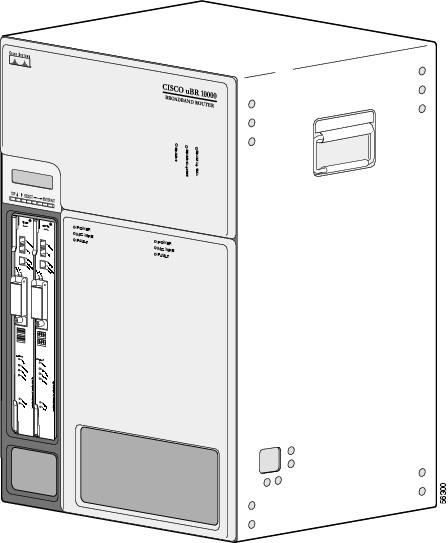

Figure 1-1 Cisco uBR10012 Universal Broadband Router—Front View with Front Cover
Figure 1-2 shows the front of a fully loaded chassis without the front cover.
Figure 1-2 Cisco uBR10012 Router Chassis—Front View without the Front Cover
Fan assembly module
Two Performance Routing Engine (PRE) processor modules
LCD module
Two DC Power Entry Modules (DC PEMs)
Figure 1-3 shows the rear of a fully-loaded Cisco uBR10012 router.
Figure 1-3 Cisco uBR10012 Router Chassis—Rear View
Two Timing, Communication, and Control Plus (TCC+) cards
Eight cable interface line cards
Four high-speed, high-performance network uplink line cards (HHGE line cards not shown)
Caution
Cisco uBR10012 Router Slot Numbering

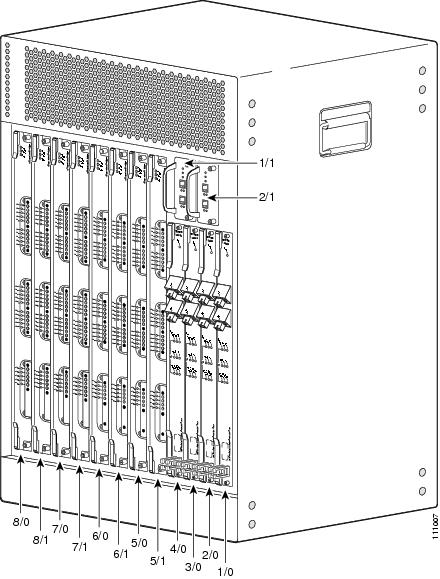

Figure 1-4 shows the slot numbering for the line cards and TCC+ cards in the rear of the chassis. The Cisco uBR5X20S/U cable interface line cards are used in this example.
Figure 1-4 Cisco uBR10012 Chassis Slot Numbering—Rear View
Note
Caution

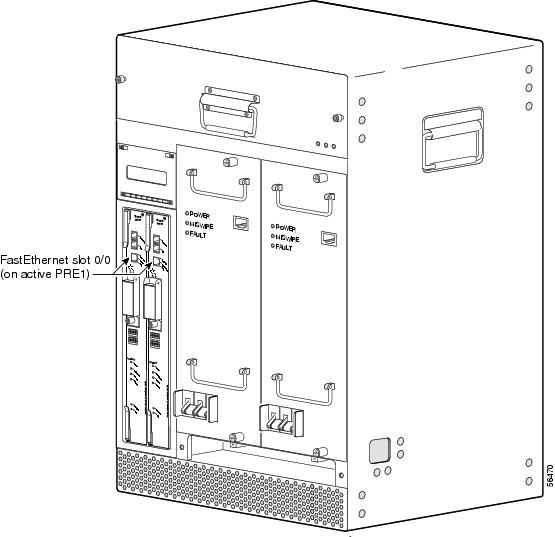

Figure 1-5 shows the slot numbering for the Fast Ethernet interface on the active PRE module.
Figure 1-5 Cisco uBR10012 Chassis Slot Numbering—Front View
Tip
Note
Warning
Cisco uBR10012 Universal Broadband Router Modules
The following section describes the modules used in the Cisco uBR10012 router. For a list of field replaceable units (FRUs) used in this chassis, see "Cisco uBR10012 Router FRU Resources".
Fan Assembly Module

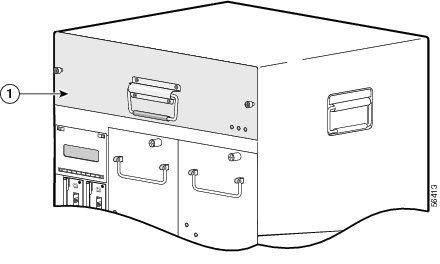

The Cisco uBR10012 router uses a fan assembly module (see Figure 1-6) containing four fans to supply cooling air to the chassis. The fan assembly connects to the chassis through a blind mate connector that plugs into a cable assembly and then into the chassis backplane.
Four internal fans draw cooling air into the front of the chassis and direct it across the internal components. The air is exhausted through openings in the rear of the chassis. The fan assembly module works at two speeds:
•
•
The operating speed is determined by the temperature of the fan module at the module air outlet. If the temperature at the fan's outlet reaches 40×C then the blower starts to increase speed. It does not reach high speed, however, until the temperature at the outlet reaches 50×C. Three LEDs indicate the status of the fan assembly. See Table 1-4.
Figure 1-6 Fan Assembly Module
Caution
Fan Assembly Cable
The fan assembly cable connects the fan assembly to the backplane. The cable is located inside the chassis, underneath the fan assembly. Ordinarily the cable is not removed when a fan assembly module is removed from the chassis.
Note
Figure 1-7 Fan Cable
LCD Module
The LCD module provides real-time operating status and configuration information for the chassis and line cards. The buttons below the screen provide a menu system that allows you to display different parts of the system configuration without using a terminal. Figure 1-8 shows the Cisco LCD module without the chassis front cover.
Figure 1-8 LCD Module Display Panel
Note
LCD Cable
The LCD ribbon cable connects the LCD module to the backplane. The folded end is connected to the LCD module. See Figure 1-9.
Figure 1-9 LCD Cable
Performance Routing Engine
There are four models of PREs, the original PRE module that was initially shipped with the Cisco uBR10012 router, the PRE1 module that began shipping with Cisco IOS Release 12.2(4)XF, the PRE2 module that is shipping with Cisco IOS Release 12.3(9)BC, and the PRE4 module that is shipping with Cisco IOS Release 12.2(33)SB.
•
•
•
You can use the CLI show version command to determine whether a PRE, PRE1, PRE2, or PRE4 module is installed in your system.
Note
The PRE is a single-slot module used with the Cisco uBR10012 routers. The PRE performs all Layer 2 and Layer 3 packet routing and forwarding using an advanced parallel processing architecture called Parallel eXpress Forwarding (PXF). This process separates the control plane from the data plane. The PXF architecture supports high-performance throughput with IP services enabled on every port.
Note
http://www.cisco.com/en/US/docs/cable/cmts/ubr10012/installation/field_replaceable_units/pre2gkit.html
PRE Modules and PRE1 Modules
PRE1 modules support error checking and correction (ECC) for all onboard memory, replacing the simpler parity error algorithm of the original PRE module. A general-purpose RISC processor (262-300 MHz MIPS RISCMark RM7000) support highperformance Layer 3 forwarding of traffic. The combination of a general purpose RISC processor with advanced programmable PXF network processors provides the capacity to support the aggregation of thousands of active connections in a single Cisco uBR10012 chassis when supporting IP applications such as access policy filtering, rate-based queuing, and QoS.
PRE2 Modules
PRE2 modules are designed to address Internet service provider (ISP) requirements. The PRE2 has four PFX network processors (containing 64 individual processors) with two independent 32-MB SDRAM control memories on each processor set. The PRE2 provides 6.2 Mpps of processing power and has a 500-MHz RM 7000 mips processor with integrated 16-KB data and 16-KB instruction Level 1 caches, an integrated 256-KB Level 2 cache, and a 4-MB Level 3 cache.
Cisco IOS Release 12.3(9a)BC automatically enables the following features:
•
•
•
–
–
–
PRE4 Modules
The Performance Routing Engine 4 (PRE4) is the fifth-generation Parallel Express Forwarding (PXF) packet processing and scheduling engine for the Cisco uBR10012 router.
PRE4 enhances the performance capability of the Cisco uBR10012 router to 10 Mpps by providing increased density Gigabit Ethernet (GE) and higher throughput of the 10GE SPA interface.
The PRE4 runs Cisco IOS Release 12.2(33)SCB and later releases. Benefits of the PRE4 include:
•
•
•
•
•
•
•
•
•
•
Note
Redundant PRE Modules
The PRE module supports redundant operation (two PRE modules in a Cisco uBR10012 chassis). If the primary PRE fails, the secondary PRE automatically takes over operation of the chassis. Because all Cisco uBR10012 line cards are physically connected to both the primary and secondary PRE modules, a switchover of PRE modules does not require human intervention to reset the line cards, as they automatically fail over to the redundant PRE. The PRE module is hot-swappable if there is a redundant PRE module in the chassis.
Caution
PRE Module Description
The PRE1 contains two PC media card two slots and 64 MB of onboard flash memory. Figure 1-10 shows the PRE 1 faceplate.
Figure 1-10 PRE1 Faceplate
The PRE2 contains two PC media card slots and 128 MB of onboard flash memory. Figure 1-11 shows the PRE2 faceplate.
Figure 1-11 PRE2 Faceplate
The PRE4 contains a CompactFlash Disk slot (disk0) and 128 MB of onboard flash memory. Figure 1-12 shows the PRE4 faceplate.

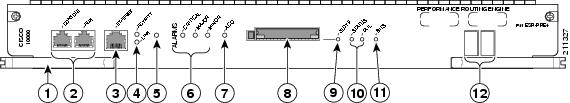

Figure 1-12 PRE4 Faceplate
Connector Ports
The faceplate on the PRE contains three ports with RJ-45 connectors:
•
•
•
Note
PC Media Card Slots
Two PC media card slots (one CompactFlash Disk slot for the PRE4) can store the Cisco IOS image or a system configuration file on a PC media card or CompactFlash Disk. The system can also boot from the software stored on the PC media card or CompactFlash Disk. The PC media card slots support Type I or Type II cards. See the "Removing and Installing a PC Media Card" section on page 33 for more information about inserting and removing PC media cards from the PRE.
LCD Screens
The two LCD screens below the PC media card slots display alphanumeric information about the status of the of the PRE module.
PRE LED Indicators and Buttons
LEDs on the faceplate of the PRE provide a visual indication of the status of PRE operation (see Figure 1-10). The LEDs are separated into three categories: alarms, status, and failure.
•
•
•
Table 1-5 describes the LEDs and switch on the PRE.
Table 1-5 Cisco PRE LEDs and Cutoff Switch
ACTIVITY
Green
Packets are being transmitted and received.
Off
No packet activity.
LINK
Green
Carrier detected; the port is able to pass traffic.
Off
No carrier detected; the port is not passing traffic.
Reset button
-
Resets the PRE4.
Alarm cutoff (ACO) button
-
Pressing this button disables an audible alarm.
CRITICAL, MAJOR, and MINOR LEDs
Off
No alarm.
Yellow
Alarm condition.
STATUS
Green
PRE is ready and active as the primary PRE.
Off
No power to the PRE or the PRE is acting as the secondary PRE.
Flashing Yellow
System is booting.
Flashing Green
PRE4 is standby.
FAIL
Off
PRE is operating properly.
Yellow
A major failure has disabled the PRE.
CompactFlash slot 0
Green
Disk0 is active.
PC media card slot 0
Green
Flash card in Slot 0 is active1 .
PC media card slot 1
Green
Flash card in Slot 1 is active.
BITS
Green
BITS input to the PRE is configured and functioning normally.
Yellow
BITS input to the PRE is configured, but not functional. For example, the framer may have detected a Loss of Signal (LOS).
Off
BITS input to the PRE4 is not configured.
1 The Cisco uBR10012 router supports PCMCIA flash memory cards of 64 MB or above.
PRE Module Disposal
The PRE module contains a small lithium battery. Some jurisdictions restrict the ways in which you can dispose of items containing lithium batteries. In particular, never dispose of lithium batteries or products containing lithium batteries in an unregulated fire. Other restrictions might apply in your area.
Warning
SIP and SPA Compatibility
The Cisco uBR10012 router currently supports the following SIPs:
•
•
The Cisco Wideband SIP can support up to two Cisco Wideband SPAs. The Cisco uBR10012 router can support up to six SPAs. For more information about the introduction of support for different SIPs and SPAs, refer to the Cisco uBR10012 Universal Broadband Router SIP and SPA Software Configuration Guide at the following location:
http://www.cisco.com/en/US/docs/interfaces_modules/shared_port_adapters/configuration/ubr10012/12.3_23_bc/sipsp_d3.html
DC Power Entry Modules
The Cisco uBR10012 router ships with two DC power entry modules (DC PEMs) The PEMs receive -48/-60 VDC power through separate terminal blocks underneath each PEM. The two DC PEMs provide filtered, redundant, and loadshared DC power to the Cisco uBR10012 chassis. If one DC PEM fails, the other PEM immediately begins providing the required power to the system.
Although one DC PEM can provide sufficient power for a fully configured Cisco uBR10012 chassis, the system should not be run for an extended period time with only one DC PEM. If a DC PEM fails, install a replacement DC PEM as soon as possible.

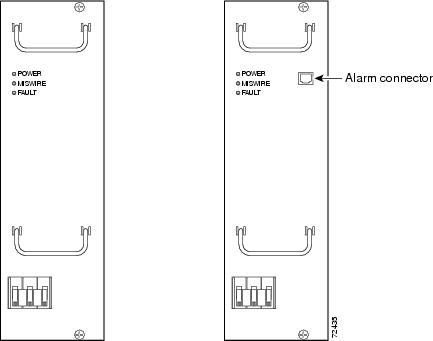

There are two models of the DC PEM. Figure 1-13 shows the DC PEM with the original faceplate (on the left) and the DC PEM with the connector used for the power supply monitoring cables (on the right). The power supply monitoring cables connect to the optional 2400W AC-input power shelf.

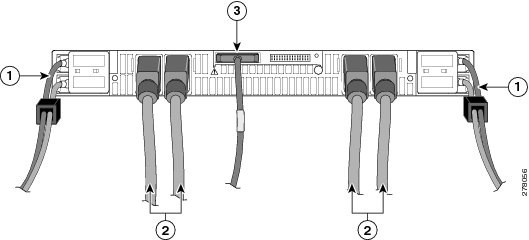

The optional AC-input power shelf provides DC power to the Cisco uBR10012 router when a DC power outlet is unavailable or where AC power is desired. For information about the AC-input power shelf, refer to 2400W AC-Input Power Shelf for the Cisco uBR10012 Universal Broadband Router at the following URL:
Figure 1-13 DC PEM Faceplate (Original Model) and DC PEM Faceplate with Alarm Connector
Caution
Tip
If you are not using the optional 2400W AC-input power shelf, the two models of DC PEM are identical.
Note
DC PEM LEDs
Table 1-6 describes the LEDs on the DC PEM.
Table 1-6 Cisco DC PEM LEDs
POWER
Green
The DC PEM is powered on, receiving power from the external DC power source, and is providing power to the Cisco uBR10012 chassis (normal operation).
FAULT
Yellow
External DC power is being received by the DC PEM but that the PEM is not supplying power to the chassis, typically because the PEM's power switch is turned off.
If the power switch is in the ON position, and the Fault LED lights, the PEM is not operating correctly
MISWIRE
Yellow
-48/-60 VDC and RTN (+) wires are reversed (see the "Powering On the System" section on page 3-59).
AC Power Entry Modules
The Cisco uBR10012 router ships with two AC power entry modules (AC PEMs) that provide a redundant power supply to the system. One AC PEM can provide sufficient power for a fully configured chassis, so that if one AC PEM fails, the other automatically begins providing power for the entire router, without impacting system operations.
Note
Caution
The AC PEMs use standard 200-240 VAC (50/60 Hz) input power obtained through power receptacles on the front panel of each PEM. The two AC PEMs convert the AC power to provide filtered, redundant, and load shared DC power to the Cisco uBR10012 chassis.
Caution
Tip
Although one AC PEM can provide sufficient power for a fully configured Cisco uBR10012 chassis, the system should not be run for an extended period of time with only one AC PEM. If an AC PEM fails, install a replacement AC PEM as soon as possible. For proper airflow (see Figure 1-15), cooling, and safety, do not remove the failed unit until the replacement unit is available for installation.
Tip
Figure 1-14 shows the front panel of the AC PEM.
Figure 1-14 AC PEM Faceplate
Caution
AC PEM LEDs
Table 1-7 describes the LEDs on the AC PEM.
Power Supply Cables
The AC PEM requires different power supply cables, depending on the country of operation. Table 1-8 lists the product order numbers for the power supply cables that are available for the AC PEM for the Cisco uBR10012 universal broadband router.
Airflow
The PEMs (both AC and DC) work together with the fan assembly module to ensure that the Cisco uBR10012 chassis is properly cooled during normal operation.

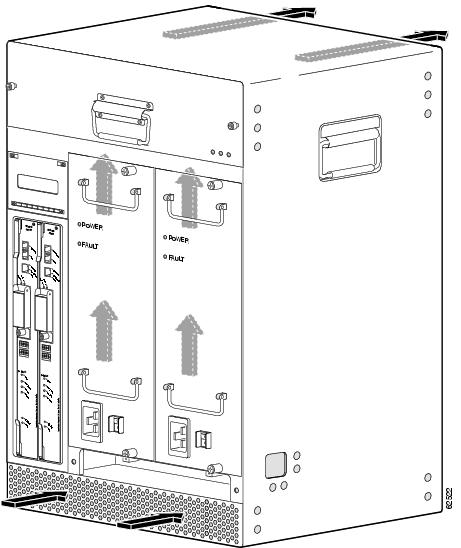

Figure 1-15 shows the airflow through the Cisco uBR10012 chassis when dual PEMs are installed.
Note
Figure 1-15 Airflow Through the Cisco uBR10012 Chassis with Dual AC PEMs
Timing, Communication, and Control Plus Card
On the Cisco uBR10012 router, the Timing, Communication, and Control Plus (TCC+) card acts as a secondary processor that performs the following functions:
•
•
•
•
•
•
When two TCC+ cards are installed, they are configured as active and backup (redundant). If the TCC+ card in the first slot is working at system power-up, it automatically becomes the active card and the TCC+ card in the second slot becomes the backup card. The TCC+ cards monitor each other's priority information so that if the active card fails, the active card role is transferred to the redundant backup card without lose of data.
Each TCC+ card contains two RJ-45 connectors on its faceplate labeled Primary and Secondary. These connectors are for a primary and secondary (redundant) Stratum 3 external clock reference source that is traceable to a Stratum 1 clock source. The external reference source allows the Cisco uBR10012 reference clock to be synchronized to the Stratum 1 clock source, providing a free-running DOCSIS-quality clock reference and time stamp to the cable interface line cards.
Caution
If present, the primary external clock reference on the active TCC+ card is used. If it is lost, the secondary clock reference on the active TCC+ card is used. If the active TCC+ card stops functioning, control is transferred to the backup TCC+ card, which then uses its primary and secondary clock reference sources. If neither card has a valid clock reference source, the active TCC+ card uses its own internal clock to provide the DOCSIS-quality clock reference and time stamp.
Note
Figure 1-23 shows the faceplate of the TCC+ card. The handle provides for the insertion and removal of the card from the chassis.
Caution
Figure 1-16 TCC+ Card Faceplate
TCC+ Card LEDs
The faceplate on the TCC+ card has seven LEDs labeled POWER, STATUS, MAINT, PRESENT, and ACTIVE. Separate PRESENT and ACTIVE LEDs are associated with the primary and secondary external clock reference inputs.
Table 1-9 describes the LEDs on the TCC+ card.
Cable Interface Line Cards
The following section describes the cable interface line cards used in the Cisco uBR10012 universal broadband router.
•
•
•
•
Cisco uBR10-LCP2-MC16x (C, E, S) Cable Interface Line Cards
Note
The Cisco uBR10-LCP2-MC16x cable interface line cards together with external IF-to-RF upconverters, serve as the RF interface between the cable headend and DOCSIS/EuroDOCSIS-based cable modems.
The Cisco uBR10-LCP2-MC16x cable interface line cards are a combination of two components:
•
–
Note
–
•
Note
http://www-tac.cisco.com/Support_Library/field_alerts/fn18103.htmlThe Cisco uBR10-LCP2 adapter card and the Cisco uBR10-MC16x cable interface line cards (MC16C, MC16E, and MC16S) are mechanically connected to each other by means of brackets and power connectors (see Figure 1-17). The Cisco uBR10-LCP2 not only adapts the cable interface line card to the form factor of the Cisco uBR10012 series chassis, but also provides the following:
•
•
•
The cards are inserted into and removed from the Cisco uBR10012 series chassis as a single logical and physical unit. All Cisco uBR10-LCP2-MC16x cable interface line cards support Online Insertion and Removal (OIR). OIR uses the MAC address assigned to the Cisco uBR10-LCP2 adapter card, allowing you to replace any Cisco uBR10-MC16x cable interface line card installed on the adapter card without losing the configuration information.
Caution

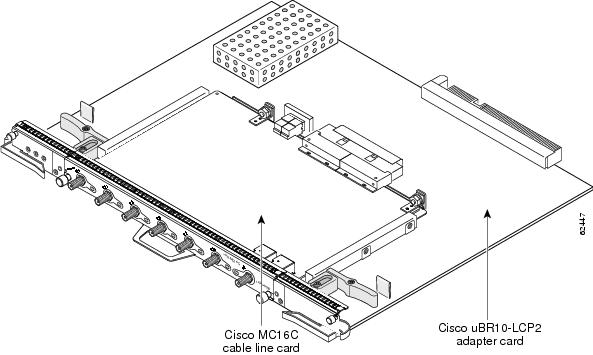

Figure 1-17 shows the Cisco uBR10-LCP2 adapter card with the Cisco uBR-MC16C cable interface line card installed.
Figure 1-17 Cisco uBR10-LCP2 Adapter Card with Cisco uBR-MC16x Installed
The one downstream port and six upstream ports support the modulation schemes shown in Table 1-10:
Table 1-10 Modulation and Output Specifications for the Cisco uBR MC16xx Cable Interface Line Card
Cisco uBR10-LCP2-MC16C1
64 QAM, 256 QAM
QPSK, 16 QAM
+42 dBmV +/- 3dB
Cisco uBR10-LCP2-MC16E1
64 QAM, 256 QAM
QPSK, 16 QAM
+40 dBmV +/- 3dB
Cisco uBR10-LCP2-MC16S1
64 QAM, 256 QAM
QPSK, 16 QAM
+42 dBmV +/- 2dB
1 The Cisco uBR10-LCP2-MC16x cards support industry-standard F-connectors for the coaxial cable connections.
Default modulations:
•
•
Figure 1-18 shows the faceplate for the Cisco uBR10-LCP2-MC16C cable interface line card.
Figure 1-18 Cisco uBR10-LCP2-MC16C Faceplate
The Cisco uBR10-LCP2-MC16C cable interface line card has one downstream port and six upstream ports. The upstream ports are labeled US0 through US5. The downstream port is labeled DS. See Table 1-11 for a description of the adapter card LEDs and Table 1-12 for descriptions of the cable interface line card LEDs and their functions.
Figure 1-19 shows the faceplate for the Cisco uBR10-LCP2-MC16E cable interface line card.
Figure 1-19 Cisco uBR10-LCP2-MC16E Faceplate
The Cisco uBR10-LCP2-MC16E cable interface line card has one downstream port and six upstream ports. The upstream ports are labeled US0 through US5. The downstream port is labeled DS. See Table 1-11 for a description of the adapter card LEDs and Table 1-12 for descriptions of the cable interface line card LEDs and their functions.
Figure 1-20 shows the faceplate for the Cisco uBR10-LCP2-MC16S cable interface line card.
Figure 1-20 Cisco uBR10-LCP2-MC16S Faceplate
The Cisco uBR10-LCP2-MC16S cable interface line card has one downstream port and six upstream ports. The upstream ports are labeled US0 through US5. The downstream port is labeled DS. There are six LEDs labeled MGR ACT (manager active) next to each upstream port. See Table 1-11 for a description of the LCP2 adapter card LEDs and Table 1-12 for descriptions of the cable interface line card LEDs and their functions.
Cisco uBR10-LCP2-MC16x LEDs
The Cisco uBR10-LCP2 adapter card and the cable interface line card each have their own set of status LEDs on the front of the module. The adapter card LEDs are described in Table 1-11. The Cisco uBR10-MC16x cable interface line card LEDs are described in Table 1-12.
Table 1-11 describes the adapter card LEDs and their functions.
Table 1-12 describes the cable interface line card LEDs and their functions.
Cisco uBR10-LCP2-MC28C Cable Interface Line Card
The Cisco uBR10-LCP2-MC28C cable interface line card is a combination of two components:
•
•
Note
The Cisco uBR10-LCP2 adapter card and the Cisco uBR-MC28C line card are mechanically connected to each other by means of brackets and a bus connector. The LCP not only adapts the Cisco uBR-MC28C line card to the form factor of the Cisco uBR10012 chassis, but also provides the proper voltage conversion for the card and chassis, the boot code required to use the Cisco uBR-MC28C, and SDRAM for buffering packets as they are transferred between the line card and PRE.
The two cards are inserted into and removed from the Cisco uBR10012 chassis as a single logical and physical unit. The Cisco uBR10-LCP2-MC28C cable interface line card supports Online Insertion and Removal (OIR). The OIR uses the MAC address assigned to the adapter card, allowing you to replace a Cisco uBR-MC28C on a LCP2 adapter card without losing any configuration information.
Caution
The Cisco uBR10-LCP2-MC28C cable interface line cards, together with external IF/RF upconverters, serve as the RF interface between the cable headend and DOCSIS-based cable modems and set-top boxes (STBs). The Cisco uBR10-LCP2-MC28C cable interface line card supports 6 MHz National Television Systems Committee (NTSC) channel operation, using standard (STD), Harmonic Related Carrier (HRC), or Incremental Related Carrier (IRC) frequency plans conforming to EIA-S542. The card supports downstream channels in the 54 to 860 MHz range with upstream ranges of 5 to 42 MHz.
The cards' two downstream ports and eight upstream ports support the modulations shown in Table 1-13:
Default modulations:
•
•
The 256 QAM modulation can be used for the downstream and the 16 QAM modulation for the upstream only if the cable plant can support the higher carrier-to-noise ratio (CNR) thresholds required for these modulations.
The Cisco uBR10-LCP2-MC28C cable interface line card is configured identically to the Cisco uBR-MC28C cable interface line card. For information about configuring the Cisco uBR-MC28C cable interface line card, refer to chapter three of the Cisco uBR10012 Universal Broadband Router Software Configuration Guide, available on Cisco.com or at the following URL:
http://www.cisco.com/en/US/docs/cable/cmts/ubr10012/configuration/guide/scg.html
Caution
Figure 1-21 shows the Cisco uBR10-LCP2 adapter card with the Cisco uBR-MC28C card installed.
Figure 1-21 Cisco uBR10-LCP2 Adapter Card with Cisco uBR-MC28C Installed
Figure 1-22 shows the faceplate for the Cisco uBR10-LCP2-MC28C cable interface line card.
Figure 1-22 Cisco uBR10-LCP2-MC28C Faceplate
The cable interface card has two downstream ports and eight upstream ports. Each downstream port is associated with four upstream ports in a DOCSIS domain. Each domain runs independently of the other. The Cisco uBR10-LCP2-MC28C cable interface line card uses a color-coded label to identify and group the two downstream domains (DS0 and DS1). Their corresponding upstream ports are labeled U0 through U3.
Cisco uBR10-LCP2-MC28C LEDs
The LCP adapter card and the cable interface line card each have their own set of status LEDs on the front of the module. The Cisco uBR10-LCP2 adapter card LEDs are described in Table 1-14. The Cisco uBR-MC28C cable interface line cards LEDs are described in Table 1-15.
Table 1-14 describes the LCP2 adapter card LEDs and their functions.
The Cisco uBR-MC28C cable interface line card has its own set of LEDs. Table 1-15 describes the LEDs and their functions:
Cisco uBR-MC5X20S/U Cable Interface Card
The Cisco uBR10-MC5X20S/U cable interface line card is a 20 by 16 inch card designed specifically for the Cisco uBR10012 router. This card transmits and receives RF signals between the subscriber and the headend over hybrid fiber/coax (HFC) system.
The Cisco uBR10-MC5X20S/U cable interface line card supports downstream and upstream traffic over a Data-Over-Cable Service Interface Specification (DOCSIS)-based cable modem network. The card supports 6-MHz National Television Systems Committee (NTSC) channel operation, using standard (STD), Harmonic Related Carrier (HRC), or Incremental Related Carrier (IRC) frequency plans conforming to EIA-S542. The card supports downstream channels in the 88 to 860 MHz range, and upstream channels in the 5 to 61 MHz range.
Upstream data from the subscriber, comes through the upstream ports (US0- US19) on the Cisco uBR10-MC5X20S/U cable interface line card. The line card processes and configures the data and sends it across the backplane to the WAN/backhaul card and out to the Internet.
Downstream data to the subscriber, comes from the Internet through the WAN/backhaul card, and across the backplane to the Cisco uBR10-MC5X20S/U cable interface line card.
The Cisco uBR10-MC5X20S/U card processes and configures the data and sends it out through the appropriate downstream port (DS0 - DS4) to be combined with the rest of the downstream signals in the headend. Each downstream port includes an inboard integrated upconverter.
The Cisco uBR10-MC5X20S/U cable interface line card supports all DOCSIS 1.1-specified Annex B radio frequency (RF) data rates, channel widths, and modulation schemes and has DOCSIS MAC management and spectrum management capabilities.

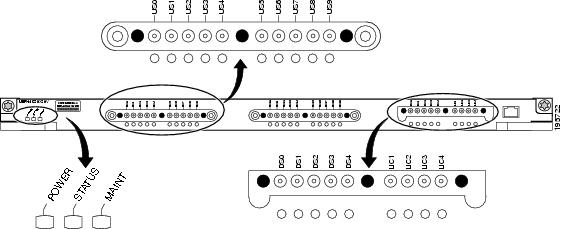

Figure 1-23 shows the faceplate of the Cisco uBR10-MC5X20S/U cable interface line card with the dense connector configuration.
Figure 1-23 Cisco uBR10-MC5X20S/U Cable Interface Line Card with a Dense Connector Configuration
Table 1-16 describes the LEDs on the Cisco uBR10-MC5X20S/U cable interface line card.
Table 1-16 Cisco uBR10-MC5X20S/U Card LEDs and Their Functions
POWER
Green
Off
Card is powered on.
Card is not powered on.
STATUS
Green
Blinking Green
Yellow
Off
Processor has booted and passed diagnostics
Protect mode when the card is the redundant card in the system
In bootup mode
No power to the line card, see the "Troubleshooting the Power Subsystem" section on page 4-7
MAINT
Yellow
Off
It is OK to remove the line card
No action necessary
US0 through US19
Green
Off
Upstream enabled-path is configured and able to pass traffic
Upstream port is not enabled
DS0 through DS4
Green
Off
RF enabled-downstream path is configured and able to pass traffic out through the upconverter at RF frequencies
RF is not enabled
Cisco UBR-MC20X20V Cable Interface Line Card
The Cisco UBR-MC20X20V cable interface line card is a 20 by 16 inch card designed specifically for the Cisco uBR10012 universal broadband router. This card transmits and receives RF signals between the subscriber and the headend over hybrid fiber-coaxial (HFC) system. It has five downstream (DS) ports and twenty upstream (US) ports. The line card supports five cable MAC domains (cable interfaces), and the 20 DS and 20 US channels are dynamically associated with any of these five MAC domains. The card has twenty US spigots and five DS spigots. Each of the US spigots supports either two-frequency stacked US channels across ten ports or a single US channel across twenty ports. Each of the DS spigots supports four-frequency stacked channels across five ports.
Note

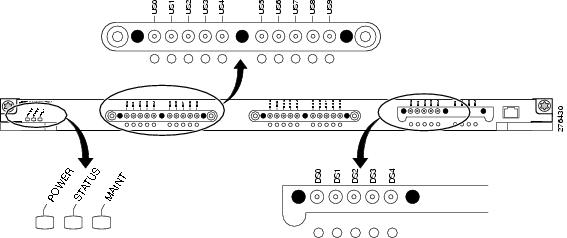

Figure 1-24 shows the Cisco UBR-MC20X20V cable interface line card faceplate with Configured as UBR-MC20X20V-20D bar code label printed on it to indicate that the software license installed on the card supports 20 DS channels. The product ID (PID) of this card is UBR-MC20X20V-20D.
Figure 1-24 Cisco UBR-MC20X20V-20D Cable Interface Line Card
Figure 1-25 shows the Cisco UBR-MC20X20V cable interface line card faceplate with Configured as UBR-MC20X20V-5D bar code label printed on it to indicate that the software license installed on the card supports five DS channels. The PID of this card is UBR-MC20X20V-5D.
Figure 1-25 Cisco UBR-MC20X20V-5D Cable Interface Line Card
Figure 1-26 shows the Cisco UBR-MC20X20V cable interface line card faceplate with Configured as UBR-MC20X20V-0D bar code label printed on it to indicate that the software license installed on the card does not support DS channels. The PID of this card is UBR-MC20X20V-0D.
Figure 1-26 Cisco UBR-MC20X20V-0D Cable Interface Line Card
Table 1-17 describes the license information. The four license LEDs on the line card faceplate indicate the license status (see Figure 1-24).
Table 1-17 License Information
Table 1-18 describes the LEDs on the Cisco UBR-MC20X20V cable interface line card.
For detailed information, refer to Cisco UBR-MC20X20V Cable Interface Line Card Hardware Installation Guide.
Network Uplink Cards
The following sections describe the network uplink cards used in the Cisco uBR10012 universal broadband router:
•
•
•
•
Cisco Single Port Gigabit Ethernet Line Card
The single-port Gigabit Ethernet (GE) line card provides a trunk uplink to devices such as GSRs, as well as connections to content servers and Web caches. The GE line card provides the Cisco uBR10012 router with an IEEE 802.3z compliant Ethernet interface running at 1 Gbps in full duplex mode.
The port uses a Gigabit Interface Converter (GBIC) that supports Gigabit Ethernet rates on a variety of Gigabit Ethernet interface types (SX, LX/LH, ZX) which can be changed or upgraded at any time (see Table 1-20). The Cisco uBR10012 router supports multiple GE line cards to support connectivity to multiple destinations and to provide network layer redundancy.
Warning
Warning
Warning
Warning Statement for Sweden
Warning
Warning Statement for Finland
Warning
Figure 1-27 shows the faceplate for the Gigabit Ethernet line card.
Figure 1-27 Gigabit Ethernet Line Card Faceplate
Cisco Gigabit Ethernet Line Card LEDs
Table 1-19 describes the LEDs on the Gigabit Ethernet line card.
GBIC Specifications
Table 1-20 lists the GE line card GBICs and their respective cable types and lengths.
Table 1-20 GBIC Port Cabling Specifications
1000Base-SX
ESR-GBIC-SX850
MMF
62.5
62.5
50.0
50.0160
200
400
500722 ft (220 m)
902 ft (275 m)
1640 ft (500 m)
1804 ft (550 m)1000Base-LX/LH
ESR-GBIC-LH1300
MMF1
SMF62.5
50.0
50.0
8 to 10500
400
500
—1804 ft (550 m)
1804 ft (550 m)
1804 ft (550 m)
32,808 ft (10 km)1000Base-ZX
ESR-GBIC-ZX1550
SMF
Not conditional
N/A
43.5 miles (70 km) to
62 miles (100 km)2
1 Mode-conditioning patch cord (CAB-GELX-625 or equivalent) is required. If you use an ordinary patch cord with MMF, 1000Base-LX/LH GBICs, and a short link distance (tens of meters), this can cause transceiver saturation, resulting in a elevated bit error rate (BER). In addition, when you use the LX/LH GBIC with 62.5-micron diameter MMF, you must install a mode-conditioning patch cord between the GBIC and the MMF cable on both the transmit and receive ends of the link. The mode-conditioning patch cord is required for link distances greater than 984 ft (300 m).
2 100 km over premium single-mode fiber or dispersion shifted singe-mode fiber.
Cisco Half-Height Gigabit Ethernet Line Card
The Cisco HHGE line card (Figure 1-28) contains a single Gigabit Ethernet port that provides a trunk uplink to switches and core routers. The Cisco HHGE line card provides an IEEE 802.3z compliant Ethernet interface that can run up to 1 Gbps in full duplex mode. The line card uses a Small Form-factor Pluggable (SFP) Gigabit interface converter (GBIC) module that supports a variety of Gigabit Ethernet interface types (SX LX/LH, and ZX), which you can change or upgrade at any time.
Note
Figure 1-28 shows the faceplate for the Gigabit Ethernet line card.
Figure 1-28 Half-Height Gigabit Ethernet Line Card Faceplate
Ejector Levers
SFP Gigabit Ethernet Interface Converter
FAIL LED (yellow)
Link Status (green)
Receive Packet (green)
Transmit Packet (green)
Warning
LEDs
This line card faceplate contains the following LEDs that continuously indicate line card status as well as the status of the port during operation (see Figure 1-28):
FAIL (yellow)—This LED lights during portions of the POST (Power-On Self Test), but remains off after the POST on a properly working line card. If the line card fails during operation, this LED lights and an alarm event occurs.
The FAIL LED blinks during the following SFP faults:
–
–
–
•
Note
When off, this LED indicates that no carrier signal is detected, negotiation failed, or the port is administratively down.
–
–
Note
For additional information about using the faceplate LEDs to troubleshoot the line card, see the "Troubleshooting the Line Cards" section on page 4-12.
SFP Gigabit Ethernet Interface Converter Modules and Cable Specifications
The HHGE line card supports single Ethernet interfaces based on SFP GBIC technology. The following SFPs are supported by this line card:
•
•
•
When shorter distances of single-mode fiber are used, it may be necessary to insert an inline optical attenuator in the link, to avoid overloading the receiver. A 5-decibel (dB) or 10-dB inline optical attenuator should be inserted between the fiber optic cable plant and the receiving port on the GLC-ZX-SM at each end of the link whenever the fiber optic cable span is less than 25 km.
•
The Cisco GLC-T, 1000Base-T SFP module connects a Cisco Gigabit Interface Converter (GBIC) port to Category 5 wiring via a standard RJ-45 interface. The maximum Category 5 wiring distance is 100 m. The module provides with an option of connecting to a backhaul network interface. For more information on the Cisco GLC-T 1000Base-T SFP, see http://www.cisco.com/en/US/docs/routers/7200/install_and_upgrade/gbic_sfp_modules_install/5067g.html
Note
Table 1-21 lists the interface types supported by the Gigabit Ethernet line card.
Table 1-21 GBIC Port Cabling Specifications
1000Base-SX
SFP-GE-S850
MMF
62.5
62.5
50.0
50.0160
200
400
500722 ft (220 m)
902 ft (275 m)
1640 ft (500 m)
1804 ft (550 m)1000Base-LX/LH
SFP-GE-L1300
MMF1
SMF62.5
50.0
50.0
8 to 10500
400
500
—1804 ft (550 m)
1804 ft (550 m)
1804 ft (550 m)
32,808 ft (10 km)1000Base-ZX
GLC-ZX-SM1550
SMF
9, 10
—
43.4 to 62 miles
(70 to 100 km)21000Base-T SFP
NA
NA
NA
NA
328 ft (100 m)
1 Mode-conditioning patch cord is required. Using an ordinary patch cord with MMF, 1000Base-LX/LH SFPs, and a short link distance (10s of meters) can cause transceiver saturation resulting in an elevated bit error rate (BER). In addition, when using the LX/LH SFP with 62.5-micron diameter MMF, you must install a mode-conditioning patch cord between the SFP and the MMF cable on both the transmit and receive ends of the link. The mode-conditioning patch cord is required for link distances greater than 984 ft (300 m).
2 1000Base-ZX SFP can reach up to 100 km by using dispersion-shifted SMF or low attenuation SMF; the distance depends on fiber quality, number of splices, and connectors.
For more information about the SFPs, see the following URL: http://www.cisco.com/en/US/products/hw/modules/ps5000/tsd_products_support_series_home.html
Cisco OC-12 POS Line Card
The OC-12 POS card provides a trunk uplink that supports up to 622 Mbps over a standard SONET/SDH interface using a single-mode fiber intermediate reach SC connector.
Warning
Warning
Warning
Warning Statement for Sweden
Warning
Warning Statement for Finland
Warning
Figure 1-29 shows the faceplate for the Cisco OC-12 POS line card.
Figure 1-29 Cisco OC-12 POS Line Card Faceplate
Table 1-22 lists the cable specifications for the Cisco OC12 POS card.
Table 1-22 Cisco OC-12 POS Line Card Cable Specifications
Single Mode Fiber
1300
8 to 10
49,213 ft (15 km)
Cisco OC-12 POS Line Card LEDs
Table 1-23 describes the LEDs and their functions on the Cisco OC-12 POS line card.
Cisco uBR10-SRP-OC12SML DPT WAN Line Card
The Cisco uBR10 Spatial Reuse Protocol (SRP) OC12 single-mode fiber, long-reach (SML) dynamic packet transport (DPT) WAN line card provides shared IP over SONET capability for the Cisco uBR10012 router platform.
Warning
Warning
Warning
Warning Statement for Sweden
Warning
Warning Statement for Finland
Warning
Note
Figure 1-30 shows the faceplate. The part number of the card (UBR10-SRP-OC12SML) is next to the CLEI code label. The label (2xOC-12/STM-4/SRP SM-LR) above the transmit and receive port connections defines the optical carrier specifications for this card.
Figure 1-30 Cisco uBR10-SRP-OC12SML DPT Faceplate
Figure 1-31 shows the Cisco uBR10-SRP-OC12SML DPT WAN line card.
Figure 1-31 Cisco uBR10-SRP-OC12SML DPT WAN Line Card
Cisco uBR10-SRP-OC12SML DPT WAN Line Card LEDs
Table 1-24 describes the LEDs and their functions on the Cisco uBR10-SRP-OC12SML DPT WAN line card.
Attenuation
The Cisco uBR10-SRP-OC12SML DPT WAN line card is designed to be used at any distance between 15 and 40 kilometers (km). For short-distance operations (less than 15 km), use a 10 dBm optical attenuator on the link between the two nodes to prevent clipping and oversaturating of the optical receiver. The attenuator should be made of a non metallic or plastic material.
The exact attenuation value is based on the real cable length or the number of couplers and splicers on the link. For example, 5 dBm attenuator could be used in a 7 km link.
Table 1-25 Cable Specification
Single-mode fiber
1310
8 to 10
49,213 - 131,234 ft.
(15 - 40 km)
Note
Cisco recommends the use of a SC/PC female to SC/PC male optical attenuator for the Cisco uBR10-SRP-OC12SML DPT WAN line card.
Tip
Caution
See Optical Connectors and Cables.
Cisco uBR10012 OC-48 DPT/POS Interface Module
The Cisco uBR10012 OC-48 dynamic packet transport (DPT) and packet-over-SONET interface module is a full-height line card for the Cisco uBR10012 universal broadband router. This card provides trunk uplink capabilities that support up to 1.4 Gbps full duplex throughput over a standard SONET/ITU-T Synchronous Digital Hierarchy (SDH) interface, using a single mode fiber with SC connectors.
Two versions of the Cisco uBR10012 OC-48 DPT/POS interface module are available— short reach (SR) or long reach (LR). Both versions work with the performance routing engine (PRE).
The Cisco uBR10012 OC-48 DPT/POS interface module provides a point-to-point connection to a backbone router and encapsulates IP Packets with byte-wise HDLC framing, placing them directly into the OC-48 SONET (or SDH) payload.
The Cisco uBR10012 OC-48 DPT/POS interface module is a standard implementation of packet over SONET switching, and supports the following features:
•
•
•
•
Note
Figure 1-32 shows the faceplate of the Cisco uBR10012 OC-48 DPT/POS interface module.
Figure 1-32 Cisco uBR10012 OC-48 DPT/POS Interface Module Faceplate
Table 1-26 describes the status of the LEDs.
Optical Connectors and Cables
For single-mode optical fiber connections, use one duplex SC-type cable (see Figure 1-33), or two simplex SC-type cables (see Figure 1-34), one for transmit (Tx) and one for receive (Rx).
For optical connector and cable cleaning information, go to the following URL: http://www.cisco.com/en/US/tech/tk482/tk876/technologies_white_paper09186a0080254eba.shtml
Figure 1-33 Duplex SC-Type Cable and Connector
Figure 1-34 Simplex SC-Type Cable and Connector
These tables list the proper single-mode or multimode optical fiber cables to use to connect your router to a network:
•
•
•
Cisco uBR10012 Router FRU Resources
The following section lists the field-replaceable units (FRUs), FRU product order numbers, and provides links to specific FRU documentation.
FRU Modules and Order Numbers
Table 1-27 lists the major FRUs used in the Cisco uBR10012 router.
Table 1-27 Cisco uBR10012 Field-Replaceable Units and Product Order Numbers
Performance routing engine (PRE) with 512 MB DRAM
End of life (EOL), replace with ESR-PRE
PRE 512 MB DRAM (spare)
EOL, replace with ESR-PRE/R
PRE1 (primary and redundant)
ESR-PRE1
PRE1 (spare)
ESR-PRE1/R=
PRE2 (primary and redundant)
ESR-PRE2/R
PRE2 (spare)
ESR-PRE2=
PRE4 (primary and redundant)
ESR-PRE4
PRE4 (spare)
ESR-PRE4/R=
PRE PC media card—64 MB (default)
10000-PREMEMFD64=
PRE PCM media card—128 MB
ESR-PRE-MEM-FD128=
Blank PRE1 slot cover
ESR-PRE-Cover=
TCC+ card
UBR10-TCC+-T1=
Blank TCC+ card slot cover
UBR10-TCC+-COVER=
DC power entry module (DCPEM)
UBR10-PWR-DC=
AC power entry module (ACPEM)
UBR10-PWR-AC=
Fan assembly module (spare)
UBR10-FAN-ASSY=
Fan assembly filter (spare)
UBR10-FAN-FILTER=
Front cover (spare)
UBR10-CHAS-COVER=
Power supply monitoring cable for the AC power shelf alarm
UB10-PWR-MON-CAB=
AC power cables for different countries
Line Card Processor (spare)
UBR10-LCP2=
Cisco uBR10-LCP2-MC16C line card processor bundle
UBR10-LCP2-MC16C=
Cisco uBR10-LCP2-MC16E line card processor bundle
UBR10-LCP2-MC16E=
Cisco uBR10-LCP2-MC16S line card processor bundle
UBR10-LCP2-MC16S=
Cisco uBR10-LCP2-MC28C line card processor bundle
UBR10-LCP2-MC28C=
Cisco uBR10-MC5X20S cable interface line card
UBR10-MC5X20S=
Cisco uBR10-MC5X20U cable interface line card
UBR10-MC5X20U=
Cisco UBR-MC20X20V cable interface line card
UBR-MC20X20V-20D=, UBR-MC20X20V-5D=, UBR-MC20X20V-0D=
Blank cable interface line card cover
UBR10-MC-COVER=
Cisco Single Port Gigabit Ethernet line card (GigE)
1000Base-SX—pluggable transceiver
1000Base-LX/LH—pluggable transceiver
1000Base-ZX— pluggable transceiver
UBR10-1GE, UBR10-1GE=
ESR-GBIC-SX
ESR-GBIC-LH
ESR-GBIC-ZX
Cisco Half-Height Gigabit Ethernet line card
Slot splitter card
Half height slot blank cover
Full height slot blank cover
1000Base-SX—pluggable transceiver
1000Base-LX/LH—pluggable transceiver
1000Base-ZX— pluggable transceiver
ESR-HH-1GE
ESR-HH-CARRIER
ESR-HH-COVER
ESR-COVER
SFP-GE-S
SFP-GE-L
GLC-ZX-SM
Cisco OC12/STS12c/STM4 POS, single mode, intermediate reach line card
UBR10-OC12/P-SMI=
Cisco uBR10-SRP-OC12SML DPT WAN adapter card
UBR-SRP-OC12SML=
Cisco uBR10012 OC-48 DPT/POS Interface Module
Single mode1 , short reach modules
Single spare2Single mode1, long reach modules
Single spare2UBR10-SRP-OC48SMS
ESR1OC48/P/SRPSMS=UBR10-SRP-OC48SML=
ESR1OC48/P/SRPSML=Blank network line card cover
ESR-LC-COVER=
1 Use this number to order the dual interface modules.
2 Use this number to order a single interface module.
FRU Documentation
Table 1-28 lists the Cisco field replaceable unit (FRU) documentation for the modules and interface line cards that are used in the Cisco uBR10012 router and the corresponding URL where that documentation can be found. Refer to the FRU documentation for more detailed information and installation instructions for each module or card.
Table 1-28 Cisco FRU Document Title and URL
Document title
URL
2400W AC-Input Power Shelf for the Cisco uBR10012 Universal Broadband Router
Document title
URL
AC Power Entry Module for the Cisco uBR10012 Universal Broadband Router
Document title
URL
DC Power Entry Module for the Cisco uBR10012 Universal Broadband Router
Document title
URL
Cisco uBR10012 Universal Broadband Router Fan Assembly Module
Document title
URL
Cisco LCD Module for the Cisco uBR10012 Universal Broadband Router
Document title
URL
Cisco uBR10012 Universal Broadband Router TCC+ Card
http://www.cisco.com/en/US/docs/interfaces_modules/cable/installation/tcc5094.html
Document title
URL
Cisco uBR10-SRP-OC12SML DPT WAN Line Card for the Cisco uBR10012 Router
Document title
URL
Performance Routing Engine Module for the Cisco uBR10012 Universal Broadband Router
Document title
URL
Installing EMI Gaskets and RF Absorber Material on the Cisco uBR10012 Universal Broadband Router
Document title
URL
Cisco uBR10-LCP-MC16C/MC16E/MC16S Cable Interface Card for the Cisco uBR10012 Router
Document title
URL
Cisco uBR10-LCP2-MC28C Cable Interface Line Card for the Cisco uBR10012 Router
Document title
URL
Cisco uBR10-MC5X20S/U Cable Interface Line Card
Document title
URL
Cisco UBR-MC20X20V Cable Interface Line Card Hardware Installation Guide
http://www.cisco.com/en/US/docs/interfaces_modules/cable/broadband_processing_engines/ubr10_mc20x20v/installation/guide/mc20x20v_hig.html
Document title
URL
Cisco Half-Height Gigabit Ethernet Line Card
Document title
URL
Inspection and Cleaning Procedures for Fiber-Optic Connections
http://www.cisco.com/en/US/tech/tk482/tk876/technologies_white_paper09186a0080254eba.shtml
