Cisco Aironet 2.4-Ghz Articulated Dipole Antenna (AIR-ANT2422DW-R)


Overview

This document outlines the specifications and description of the 2.2-dBi articulating dipole antenna. This antenna operates in the 2.4- 2.5-GHz band and is designed for use with Cisco Aironet radio products utilizing an RP-TNC connector.

Technical Specifications

Antenna type

Dipole

Operating frequency range

2402-2495 MHz

Nominal input impedance

50 W

2:l VSWR bandwidth

2385 - 2515 Mhz

Peak gain

2 dBi

Polarization

Linear, vertical

E-Plane 3-dB beamwidth

70o

H-Plane 3-dB beamwidth

Omnidirectional

Dimensions

5.5 in. (13 cm)

Weight

1 oz.

Connector type

RP-TNC plug

Environment

Indoor

Operating temperature range

32oF to 140oF
(0oC to 60oC)


E-Plane Pattern

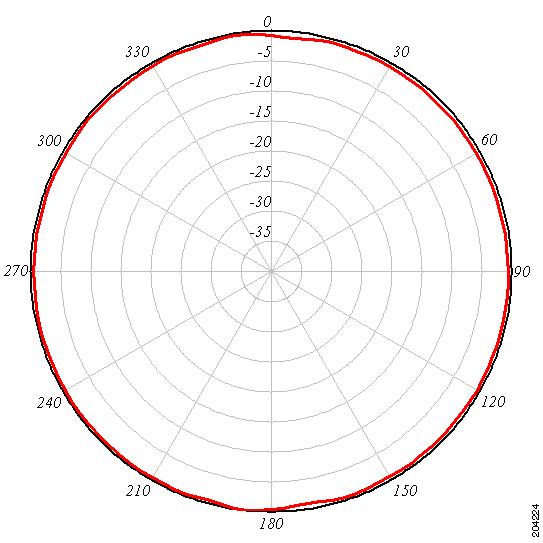

H-Plane Pattern


System Requirements

This antenna is compatible with any 2.4-GHz Cisco Aironet device with an RP-TNC connector.

Features

The antenna has an articulated base that can be rotated 360 degrees at the connection point and from 0 to 90 degrees at its knuckle. The articulated base is shown in the following illustration.

Installing the Antenna


Caution This antenna operates in the 2.4-GHz frequency range. Do not connect it to 5-GHz antenna connectors, which are identified by a blue dot. Connecting this antenna to a 5-GHz connector will degrade radio performance and could damage the radio.

Follow these steps to connect the antenna to an access point.


Step 1 Align the antenna connector with the RP-TNC connector on the access point.

Step 2 Engage the antenna connector threads with the RP-TNC connector.

Step 3 Tighten the antenna hand tight.

Step 4 Adjust the antenna's articulated mount to the desired position.
