Managing VDCs


This chapter describes how to manage virtual device contexts (VDCs) on Cisco Data Center Network Manager (DCNM).

After you create a VDC, you can change the interface allocation, VDC resource limits, and the high availability (HA) policies. You can also save the VDC configuration on the physical device to the startup configuration or to a bootflash file.

This chapter includes the following sections:

Information About Managing VDCs

Licensing Requirements for Managing VDCs

Platform Support

Managing VDCs

Field Descriptions for VDC Management

Additional References for Managing VDCs

Feature History for Managing VDCs

Information About Managing VDCs

After you create a VDC, you can change the interface allocation, VDC resource limits, and the single-supervisor and dual-supervisor high availability (HA) policies. You can also save the VDC configuration of the physical device to the startup configuration or to a bootflash file.

This section includes the following topics:

Interface Allocation

VDC Resource Limits

HA Policies

Saving VDC Configurations

MAC Addresses

Shared Interfaces

M1/F1 Separation

FCoE VDC Enhancements

Interface Allocation

When you create a VDC, you can allocate I/O interfaces to the VDC. Later, the deployment of your physical device might change and you can reallocate the interfaces as necessary.


Note Beginning with Cisco Release 5.2(1) for Nexus 7000 Series devices, all members of a port group are automatically allocated to the VDC when you allocate an interface.


The following Cisco Nexus 7000 Series Ethernet modules have four port groups that consist of 2, 4, 8, or 12 interfaces each, depending on the module: N7K-M148GS-11L, N7K-M148GT-11, N7K-M148GS-11, N7K-M132XP-12, or N7K-M108X2-12L. You must assign all interfaces in the corresponding port group to the same VDC. See the example for module N7K-M132XP-12 in Figure 4-1.

Figure 4-1 Example Interface Allocation for Port Groups on a Cisco Nexus 7000 Series 10-Gbps Ethernet Module (N7K-M132XP-12)

Table 4-1 shows the port numbering for the port groups.

Table 4-1 Port Numbers for Port Groups on the Cisco Nexus 7000 Series 32-Port, 10-Gbps Ethernet Module (N7K-M132XP-12)

Port Group
Port Numbers

Group 1

1, 3, 5, 7

Group 2

2, 4, 6, 8

Group 3

9, 11, 13, 15

Group 4

10, 12, 14, 16

Group 5

17, 19, 21, 23

Group 6

18, 20, 22, 24

Group 7

25, 27, 29, 31

Group 8

26, 28, 30, 32


On the Cisco Nexus 7000 Series 32-port, 10-Gbps Ethernet module (N7K-F132XP-15), you must allocate the interfaces on your physical device in the specified combination. This module has 16 port groups that consist of 2 ports each. You must assign the specified port pairs in the same VDC (see Figure 4-2).


Note You can configure the limit-resource line-card type command only from the VDC configuration mode and not from a VDC resource template.


Figure 4-2 Example Interface Allocation for Port Groups on a Cisco 7000 Series 10-Gbps Ethernet Module (N7K-F132XP-15)

Table 4-2 shows the port numbering for the port groups.

Table 4-2 Port Numbers for Port Groups on the Cisco Nexus 7000 Series 32-Port, 10-Gbps Ethernet Module (N7K-F132XP-15)

Port Group
Port Numbers

Group 1

1 and 2

Group 2

3 and 4

Group 3

5 and 6

Group 4

7 and 8

Group 5

9 and 10

Group 6

11 and 12

Group 7

13 and 14

Group 8

15 and 16

Group 9

17 and 18

Group 10

19 and 20

Group 11

21 and 22

Group 12

23 and 24

Group 13

25 and 26

Group 14

27 and 28

Group 15

29 and 30

Group 16

31 and 32


For more information on port groups on the Cisco Nexus 7000 Series 10-Gbps Ethernet modules, see the Cisco Nexus 7000 Series Hardware Installation and Reference Guide.


Note When you add or delete interfaces, the Cisco NX-OS software removes the configuration and disables the interfaces.


VDC Resource Limits

You can change the resource limits for your VDC individually as your needs change. You can change the following limits for the following resources:

IPv4 multicast route memory

IPv6 multicast route memory

IPv4 unicast route memory

IPv6 unicast route memory

Port channels

Switched Port Analyzer (SPAN) monitor sessions

VLANs

Virtual routing and forwarding instances (VRFs)

HA Policies

The HA policy determines the action that the physical device takes when the VDC encounters an unrecoverable field. You can change the HA policy for the VDC that was specified when you created the VDC.


Note You cannot change the HA policies for the default VDC.


Saving VDC Configurations

A user with the vdc-admin or network-admin role can save the running configuration of all VDCs on the physical device to the startup configuration or can save the running configuration of a single VDC to a file in the bootflash directory.

MAC Addresses

The default VDC has a management MAC address. Beginning with Cisco Release 5.2(1) for the Nexus 7000 Series devices, subsequent nondefault VDCs that you create are assigned MAC addresses automatically as part of the bootup process.

You will see a syslog message if there are not sufficient MAC addresses to supply all the VDCs on the device.

Shared Interfaces

In the current Cisco NX-OS VDC model, you can move interfaces to a given VDC. The interface that is moved is dedicated to that VDC and carries all control and data traffic. VDCs are not aware of the interfaces present in the other VDCs, which gives complete administrative fault-isolation to the user.

With FCoE technology, both Ethernet and FCoE traffic are carried on the same physical Ethernet interface. In the FCoE VDC, the physical layer protocols (except for CDP, LACP and UDLD, which are LAN protocols) are not enabled. If an FCoE-capable interface is moved to the FCoE VDC, carrying pure Ethernet traffic on that interface is not possible because the LAN protocols are not enabled. In order to carry both LAN and SAN traffic, a shared interface between the LAN and SAN VDCs is required.

M1/F1 Separation

The module-type (line card) based VDCs are supported in Cisco Nexus 7000 Series devices. Beginning with Cisco NX-OS Release 5.2(1), all modules are categorized into three types — M1, F1, and M1XL. By default, all three line card types are allowed in a VDC.

You can restrict the allocated ports based on the module-type configuration. When changing the module type for a VDC, the unsupported ports are moved to the unallocated pool. You cannot move a port to a VDC if the port type is not supported for that VDC.

Cisco DCNM supports the configuration of M1/F1 line cards on the VDC. When changing the allowed types on a VDC, Cisco DCNM removes the ports that are no longer supported and moves them to an unallocated pool.

Cisco DCNM enables users to manage unallocated ports and bind the unallocated ports to any other VDCs that support this port type. When a user tries to move a port to a new VDC, Cisco DCNM checks whether ports of that type are allowed inside the VDC.

FCoE VDC Enhancements

You can assign an interface to be a shared interface only on the F Series module and not on the M Series module. For more information about FCoE VDCs, see the Cisco Nexus 7000 Series NX-OS Virtual Device Context Configuration Guide, Release 5.x.

Beginning with Cisco NX-OS Release 5.2 (1), the following components have been added to the Virtual Device screen to support shared interfaces:

Summary Table

VDC Setup Wizard

Details Pane

Interface Association Pane

Licensing Requirements for Managing VDCs

The following table shows the licensing requirements for this feature:

Product
License Requirement

Cisco DCNM

Managing nondefault VDCs requires an Advanced Services license. Managing the default VDC requires no license. For an explanation of the Cisco DCNM licensing scheme, see the Cisco DCNM Installation and Licensing Guide, Release 5.x.

Cisco NX-OS

Managing nondefault VDCs requires an Advanced Services license. Managing the default VDC requires no license. For an explanation of the Cisco NX-OS licensing scheme for your platform, see the licensing guide for your platform.

Note The Cisco DCNM and Cisco NX-OS software allow a grace period of 120 days to use VDCs without an Advanced Services license. If the grace period expires before you obtain a license, all nondefault VDC configuration is removed from the physical device.


Platform Support

The following platform supports this feature. For platform-specific information, including guidelines and limitations, system defaults, and configuration limits, see the corresponding documentation.

Platform
Documentation

Cisco Nexus 7000 Series Switches

Cisco Nexus 7000 Series Switches Documentation


Managing VDCs

Figure 4-3 displays the VDC Summary dialog box.

Figure 4-3 VDC Summary Dialog Box

This section includes the following topics:

Allocating Interfaces to a VDC

Selecting a VDC Type

Administrator VDC Support

Creating an Ethernet VDC

Creating an Storage VDC

Allocating a Storage VLAN on the Ethernet VDC

Choosing Storage-Capable Interfaces

Associating an Interface to an Storage VDC

Changing VDC Resource Limits

Changing the HA Policies

Saving All VDC Configurations to the Startup Configuration

Saving the VDC Configuration to a Bootflash File

Discovering VDCs

Deleting a VDC

Allocating Interfaces to a VDC

You can allocate one or more interfaces to a VDC. When you allocate an interface, you move it from one VDC to another VDC. The interfaces are in the down state after you move them.


Note When you allocate an interface, all configuration on the interface is lost.


BEFORE YOU BEGIN

Ensure that you have discovered the physical device using a username that has the network-admin role.

DETAILED STEPS


Step 1 From the Feature Selector pane, choose Virtual Devices.

Step 2 From the Summary pane, double-click the device to display the list of VDCs.

Step 3 Click the VDC to change.

The Details tab appears in the Details pane.

Step 4 From the Details pane, click Interfaces.

Step 5 Right-click in the Interfaces area and choose Add Interface from the drop-down list.

A new row appears.

Step 6 From the cell under Interface Name in the new row, click the down arrow to display the interfaces dialog box (see Figure 4-4).

Figure 4-4 Interfaces Dialog Box

Step 7 From the dialog box, you can enter the range of interfaces or select specific interfaces to allocate.

Step 8 Click OK.

Step 9 From the menu bar, choose File > Deploy to apply your changes to the device.

Step 10 (Optional) To change the configuration of an interface in the VDC, click the interface, then right-click, and choose Manage in the drop-down list.


Selecting a VDC Type

You can select a VDC type.

BEFORE YOU BEGIN

Log in to the default VDC with a username that has the network-admin user role.

DETAILED STEPS


Step 1 From the Feature Selector pane, choose Virtual Devices.

Step 2 From the Summary pane, double-click the device to display the list of VDCs.

In the Virtual Devices screen, the Summary Table component is enhanced to support shared interfaces.

The Summary Table contains a new column Type to display the VDC type. This column is not editable.

Step 3 The following VDC types are displayed:

Ethernet

Storage

The default VDC type is Ethernet.


Administrator VDC Support

Administrator VDC is the VDC which enables you to perform switch wide administrative functions. There are no ports, port operations, or protocols associated with the administrator VDC. Unlike the default VDC, the only function of administrator VDC is to enable administrative operations on the switch and the customized VDCs. Therefore in the DCNM all the screen operations, port, and port related oprations will be disabled for Administrator VDC.


Note The administrator VDC feature is applicable only to the Cisco Nexus 7000 series switches with supervisor-2 line cards.


You can migrate from default VDC to administrator VDC using CLI commands.

Use the system admin-vdc command to migrate the default VDC to administrator VDC and to move all the ports to unallocated pool and to remove any other additional configuration.

You can use the system admin-vdc migrate migrated vdc command to migrate the default VDC to administrator VDC and move all the ports and port related configurations to the newly created migrated VDC.

DCNM will trigger a rediscovery immediateky after a default VDC is migrated to an administrator VDC, and all the administrator VDCs will be displayed in the topology with the `A' icon to identify them.

If no migration is performed then the default VDC is automatically turned into administraotr VDC and any additional confifuration is removed.


Note Administrtor VDC and Default VDC cannot exist together in a switch.


You can click on the Copy Run to Start and Copy Run to Start for All VDCs buttons to perform the respective actions.

Creating an Ethernet VDC

The VDC wizard can be used to create a Ethernet VDC.

BEFORE YOU BEGIN

Log in to the default VDC with a username that has the network-admin user role.

DETAILED STEPS


Step 1 From the Feature Selector pane, choose Virtual Devices.

Step 2 From the Summary pane, double-click Virtual Devices.

The VDC Summary Table screen is displayed.

Step 3 Right-click on the Summary Table. The context menu appears.

Step 4 In the context menu, choose Create VDC. The VDC wizard appears.

Step 5 Specify the VDC name, VDC type, single supervisor HA policy, dual supervisor HA policy and the module type (see Figure 4-5).

Figure 4-5 VDC General Parameters Screen

Step 6 Click Next.

The Membership Interfaces screen appears.

Step 7 Specify the network interfaces (dedicated interfaces membership) to be allocated to the VDC (see Figure 4-6).

Figure 4-6 Interface Membership Screen

Step 8 Click Next.

The Resource Limits screen appears.

Step 9 (Optional) Specify the resource limits for the VDC (see Figure 4-7).

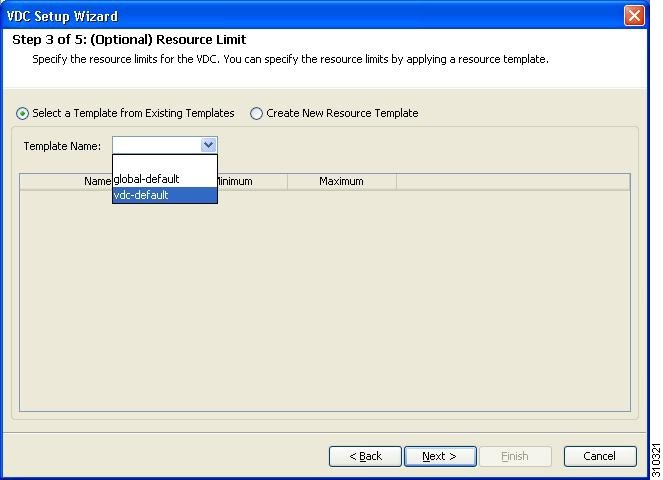

Figure 4-7 Resource Limit Screen

Step 10 Click Next.

The Authentication screen appears.

Step 11 Specify the authentication method for login (see Figure 4-8).

Figure 4-8 Authentication Screen

Step 12 Click Next.

The VDC Management screen appears.

Step 13 Specify the parameters to enable management of the VDC (see Figure 4-9).

Figure 4-9 Management of VDC Screen

Step 14 Click Finish to complete the Ethernet VDC setup wizard.


Creating an Storage VDC

You can create an storage VDC. In storage VDC, you can allocate storage VLANs on Ethernet VDCs. The allocated storage VDC creates VLANs in the dedicated VLAN range. Shared interfaces uses storage VLANs to carry both Ethernet and storage traffic. It is required that the VLANs should be mutually exclusive between Ethernet and storage VDCs.


NoteStarting with the Cisco DCNM Release 6.1(1), if you donot have the license for storage VDC you can only add and delete storage VDCs. If you need to access the complete functionalities then it is mandatory that you procure a license.

Starting with the Cisco DCNM Release 6.1(1), the storage VDCs can be discovered and managed.


BEFORE YOU BEGIN

Log in to the default VDC with a username that has the network-admin user role.

DETAILED STEPS


Step 1 From the Feature Selector pane, choose Virtual Devices.

Step 2 From the Summary pane, double-click Virtual Devices.

The VDC Summary Table screen appears.

Step 3 Right-click the Summary Table. The context menu appears.

Step 4 In the context menu, choose Create VDC. The VDC wizard appears.

Step 5 Specify the VDC name, VDC type, single supervisor HA policy, dual supervisor HA policy, and the module type (see Figure 4-10).

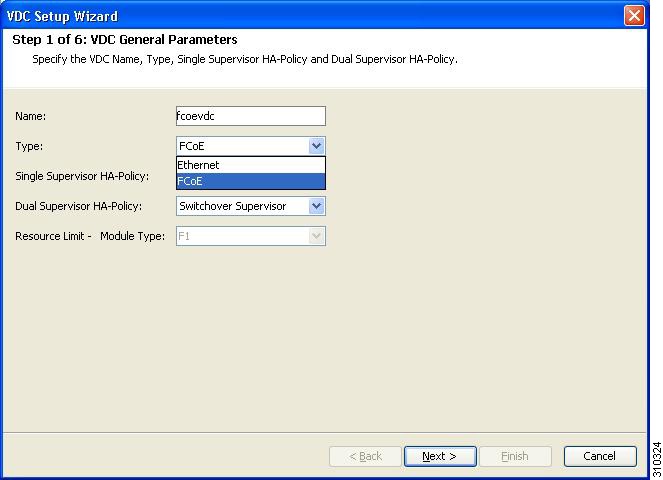

Figure 4-10 VDC General Parameters Screen

Step 6 Click Next.

The Storage VLAN Allocation screen appears.

Step 7 Specify the Storage VLANs to be allocated on the Ethernet VDC (see Figure 4-11).

Step 8 Click Next.

The Interface Membership screen appears.

Step 9 Add the dedicated and shared interfaces to the Storage VDC (see Figure 4-11).


Note The dedicated interface carries only Storage traffic and the shared interface carries both the Ethernet and the Storage traffic.


Figure 4-11 Interface Membership Screen

Step 10 Click Next.

The Resource Limit screen appears.

Step 11 (Optional) Specify the resource limits for the VDC (see Figure 4-12).

Figure 4-12 Resource Limit Screen

Step 12 Click Next.

The Authentication screen appears.

Step 13 Specify the authentication method for login (see Figure 4-13).

Figure 4-13 Authentication Screen

Step 14 Click Next.

The VDC Management screen appears.

Step 15 Specify the parameters to enable the management of the VDC (see Figure 4-14).

Figure 4-14 Management of VDC Screen

Step 16 Click Finish to complete the Storage VDC setup wizard.


Allocating a Storage VLAN on the Ethernet VDC

You can allocate an storage VLAN on an Ethernet VDC using the VDC details pane. For information on storage, see the Cisco NX-OS FCoE Configuration Guide for Cisco Nexus 7000 and Cisco MDS 9500.

BEFORE YOU BEGIN

Log in to the default VDC with a username that has the network-admin user role.

DETAILED STEPS


Step 1 From the Feature Selector pane, choose Virtual Devices.

Step 2 From the Summary pane, double-click on Virtual Devices.

The Summary Table screen is displayed.

Step 3 In the Summary Table, choose the Storage VDC.

Step 4 In the Details pane, expand the Storage VLAN Allocation.

Step 5 Right-click on the table. The context menu is displayed.

Step 6 In the context menu, choose Add Row. A dialog box is displayed.

Step 7 From the dialog box, choose the Ethernet VDC and click OK.


Note You can associate only one Ethernet VDC with an Storage VDC for interface sharing.


Step 8 Specify the Storage VLANs in the newly added rows for the selected VDC.

Step 9 From the menu bar, choose File > Deploy to apply your changes to the device.

The specified VLANs will be allocated on an Ethernet VDC that is created only in an Storage VDC.


Choosing Storage-Capable Interfaces

Beginning with Cisco NX-OS Release 5.2 (1), the interface table in details pane will have a new column "Shared". This column will show whether the interface is dedicated (or) shared. For information on Storage, see the Cisco NX-OS FCoE Configuration Guide for Cisco Nexus 7000 and Cisco MDS 9500.

BEFORE YOU BEGIN

Log in to the default VDC with a username that has the network-admin user role.

DETAILED STEPS


Step 1 From the Feature Selector pane, choose Virtual Devices.

Step 2 From the Summary pane, double-click the device to display the list of VDCs.

The Summary Table screen is displayed.

Step 3 In the Summary Table, select the Storage VDC.

Step 4 In the Details pane, expand Interfaces.

Step 5 Right-click on the interfaces table. The context menu is displayed.

Step 6 In the context menu, select Add Interface. A dialog box is displayed.

Step 7 From the dialog box, select the interfaces that you want to dedicate or share.

The dedicated interfaces will carry only the Storage traffic and the shared interfaces will carry both the Storage and the Ethernet traffic.

The Available Interfaces table shows the Storage capable interfaces in the Ethernet VDC.


Associating an Interface to an Storage VDC

You can add dedicated or shared Storage-capable interfaces with Storage VDC using the Interface association screen. For information on Storage, see the Cisco NX-OS FCoE Configuration Guide for Cisco Nexus 7000 and Cisco MDS 9500.

BEFORE YOU BEGIN

Log in to the default VDC with a username that has the network-admin user role.

DETAILED STEPS


Step 1 From the Feature Selector pane, choose Virtual Devices.

Step 2 From the Summary pane, double-click the device to display the list of VDCs.

The Summary Table screen appears.

Step 3 In the Summary Table, choose the Storage VDC.

Step 4 In the Details pane, expand Interfaces.

Step 5 Choose a desired interface in the association pane and right-click on the context menu.

Step 6 In the context menu, choose Add as Dedicated/Share Interface to add the selected interfaces as dedicated or shared interfaces to the Storage VDC.


Changing VDC Resource Limits

You can change the limits on the VDC resources. Changes to the limits take effect immediately except for the IPv4 and IPv6 routing table memory limits, which take effect after the next VDC reset, physical device reload, or physical device stateful switchover.


Note You can have a maximum of two SPAN monitoring session on your physical device.


BEFORE YOU BEGIN

Ensure that you have discovered the physical device using a username that has the network-admin role.

DETAILED STEPS


Step 1 From the Feature Selector pane, choose Virtual Devices.

Step 2 From the Summary pane, double-click the device to display the list of VDCs.

Step 3 Click the VDC to change.

The Details tab appears in the Details pane.

Step 4 From the Details pane, click Resources.

Step 5 Double-click the limit to change and enter the new value.

Step 6 From the menu bar, choose File > Deploy to apply your changes to the device.


Changing the HA Policies

You can change the HA policies for a VDC. The VDC HA policies are as follows:

Dual supervisor modules:

Bringdown—Puts the VDC in the failed state. To recover from the failed state, you must reload the physical device.

Restart—Restarts the VDC. This process includes shutting down all the interfaces within that VDC and stopping all the virtualized services processes. The Cisco NX-OS software restarts all the virtualized services saved in the startup configuration and brings the interfaces back up with the configuration saved in the startup configuration. Any configuration that you did not save in the startup configuration prior to the restart is lost.

Switchover—Initiates a supervisor module switchover.

Single supervisor modules:

Bringdown—Puts the VDC in the failed state. To recover from the failed state, you must reload the physical device.

Reload—Reloads the supervisor module.


Caution With the reload action, any configuration that you did not save in the startup configuration prior to the reload is lost.

Note The reload action affects all interfaces and all VDCs on the physical device.


Restart—Restarts the VDC. This process includes shutting down all the interfaces within that VDC and stopping all the virtualized services processes. The Cisco NX-OS software restarts all the virtualized services saved in the startup configuration and brings the interfaces back up with the configuration saved in the startup configuration. Any configuration that you did not save in the startup configuration prior to the restart is lost.


Caution With the reload action, any configuration that you did not save in the startup configuration prior to the reload is lost.

Note You cannot change the HA policies for the default VDC.


BEFORE YOU BEGIN

Ensure that you have discovered the physical device using a username that has the network-admin role.

DETAILED STEPS


Step 1 From the Feature Selector pane, choose Virtual Devices.

Step 2 From the Summary pane, double-click the device to display the list of VDCs.

Step 3 Click the VDC to change.

The Details tab appears in the Details pane.

Step 4 From the Single Supervisor HA-Policy field, click the down arrow and choose an HA policy from the drop-down list.

Step 5 From the Dual Supervisor HA-Policy field, click the down arrow and choose an HA policy from the drop-down list.

Step 6 From the menu bar, choose File > Deploy to apply your changes to the device.


Saving All VDC Configurations to the Startup Configuration

You can save the running configuration of all the VDCs on the physical device to the startup configuration.

BEFORE YOU BEGIN

Ensure that you have discovered the physical device using a username that has the vdc-admin or network-admin role.

DETAILED STEPS


Step 1 From the Feature Selector pane, choose Virtual Devices.

Step 2 From the Summary pane, double-click the device to display the list of VDCs.

Step 3 Right-click the device with the VDC configurations that you want to save.

Step 4 Choose Copy Run to Start for All Vdc(s).

Step 5 Click the icon in the bottom left corner of the screen.

The Status pane appears and shows whether the VDC configurations were copied successfully to the startup configuration.


Saving the VDC Configuration to a Bootflash File

You can save the running configuration for an individual VDC to a file in the bootflash directory.

BEFORE YOU BEGIN

Ensure that you have discovered the physical device using a username that has the vdc-admin or network-admin role.

DETAILED STEPS


Step 1 From the Feature Selector pane, choose Virtual Devices.

Step 2 From the Summary pane, double-click the device to display the list of VDCs.

Step 3 Right-click the VDC with the configuration that you want to save.

Step 4 Choose Copy Run to Bootflash file.

The Enter Bootflash File Name window appears.

Step 5 In the Bootflash File Name field, enter the name of the file to which the running configuration will be copied and click OK.

Step 6 Click the icon in the bottom left corner of the screen.

The Status pane appears and shows whether the VDC configuration was copied successfully to the bootflash file.


Discovering VDCs

You can discover a nondefault VDC with user credentials that are different from the default VDC.

BEFORE YOU BEGIN

Ensure that you have set the correct logging severity levels in the VDC using the Cisco NX-OS device command-line interface (CLI) (see the Cisco DCNM Fundamentals Configuration Guide, Release 5.x).

DETAILED STEPS


Step 1 From the Feature Selector pane, choose DCNM Server Administration > Devices and Credentials.

Step 2 From the menu bar, choose Devices and Credentials > New Device.

A new line appears in the Devices list.

Step 3 Click the cell under IP Address in the new line and enter the IP address of the VDC to discover.

Step 4 Double click the cell under User Credentials in the new line and click the down arrow to display the user credentials dialog. Enter the user credentials information and click OK.

Step 5 From the menu bar, choose Devices and Credentials > Discover.


Deleting a VDC

When you delete a VDC, the Cisco NX-OS software removes the configuration for all interfaces allocated to the VDC and returns the interfaces to the default VDC. Deleting a VDC stops all virtualized services and removes any configuration within that VDC.


Note You cannot delete the default VDC (VDC 1).



Caution Deleting a VDC disrupts all traffic on the VDC.

BEFORE YOU BEGIN

Ensure that you have discovered the physical device using a username that has the network-admin role.

DETAILED STEPS


Step 1 From the Feature Selector pane, choose Virtual Devices.

Step 2 From the Summary pane, double-click the device to display the list of VDCs.

Step 3 Click the VDC to delete.

Step 4 From the menu bar, choose Virtual Devices > Delete VDC.

The VDC disappears from the list in the Summary pane.


Field Descriptions for VDC Management

This section includes the following topics:

Field Description: Virtual Devices: Summary Pane

Field Description: Virtual Devices: virtual device: Details Tab: General Section

Field Description: Virtual Devices: virtual device: Details Tab: Interfaces Section

Field Description: Virtual Devices: virtual device: Details Tab: Resources Section

Field Description: Virtual Devices: Create VDC: VDC General Parameters

Field Description: Virtual Devices: Create VDC: Authentication

Field Description: Virtual Devices: Create VDC: Management of VDC

Field Description: Virtual Devices: Summary Pane

Table 4-3 Field Description: Virtual Devices: Summary Pane

Element
Description

Name

Name of the physical or VDC device.

Status

Status of the VDC.

Single Supervisor HA Policy

Single supervisor HA policy for the virtual device.

Dual Supervisor HA Policy

Dual supervisor HA policy for the virtual device.

MAC Address

MAC address for the virtual device.

Management Interface IP Address Prefix

IP address and prefix for the VDC management interface.

Management Interface Status

Status of the VDC management interface.

SSH

SSH status.


Field Description: Virtual Devices: virtual device: Details Tab: General Section

Table 4-4 Field Description: Virtual Devices: virtual device: Details Tab: General Section

Element
Description

Switch Name

Name of the physical device.

VDC Name

Name of the virtual device.

Single Supervisor HA Policy

Single supervisor HA policy for the virtual device.

Dual Supervisor HA Policy

Dual supervisor HA policy for the virtual device.

Status

Status of the virtual device.

MAC Address

MAC address for the virtual device.


Field Description: Virtual Devices: virtual device: Details Tab: Interfaces Section

Table 4-5 Field Description: Virtual Devices: virtual device: Details Tab: Interfaces Section

Element
Description

Interface Name

Name of the Ethernet interfaces allocated to the virtual device.

Mode

Mode for the interface.

Admin Status

Administrative status for the interface.

Operational Status

Operational status for the interface.

Description

Description for the interface.


Field Description: Virtual Devices: virtual device: Details Tab: Resources Section

Table 4-6 Field Description: Virtual Devices: virtual device: Details Tab: Resource Section

Element
Description

Name

Name of the resource.

Allocation

Minimum

Minimum guarantee limit for a resource.

Maximum

Maximum limit for a resource on an as-available basis.

Current Usage

Used

Amount of a resource currently in use.

Available

Amount of the resource currently not used.

Used Percent

Percent of the total resource for the virtual device.


Field Description: Virtual Devices: Create VDC: VDC General Parameters

Table 4-7 Field Description: Virtual Devices: Create VDC: VDC General Parameters

Element
Description

VDC Name

Name of the VDC.

HA Policy

HA policy of the selected VDC.


Field Description: Virtual Devices: Create VDC: Authentication

Table 4-8 Field Description: Virtual Devices: Create VDC: Authentication

Element
Description

Local User Database

User Name—Name of the user.

Password—Password Field.

Expiry Date.

AAA Server Groups

Group Name—Name of the group.

Type—Server type.

Servers—Disables the authentication.

No Authentication

Disable Authentication.


Field Description: Virtual Devices: Create VDC: Management of VDC

Table 4-9 Field Description: Virtual Devices: Create VDC: Authentication

Element
Description

Management Interface

IPv4 address.

Prefix Length—IPv4 Prefix Length.

Netmask—IPv4 Netmask.

IPv6 address.

SSH

Enable SSH server—Enable or disable SSH server.

SSH key length.

SSH key type.

XML Agent

Enable XML agent.


Additional References for Managing VDCs

For additional information related to managing VDCs, see the following sections:

Related Documents for Managing VDCs

Related Documents for Managing VDCs

Related Topic
Document Title

Cisco DCNM Licensing

Cisco DCNM Installation and Licensing Guide, Release 5.x

Cisco NX-OS Licensing

Cisco NX-OS Licensing Guide

Cisco Nexus 7000 Series 32-port 10-Gbps Ethernet module

Cisco Nexus 7000 Series Hardware Installation and Reference Guide

Command reference

Cisco Nexus 7000 Series NX-OS Virtual Device Context Command Reference, Release 5.x


Feature History for Managing VDCs

Table 4-10 lists the release history for this feature.

Table 4-10 Feature History for Managing VDC

Feature Name
Releases
Feature Information

Administrator VDC Support

6.1.(1)

Added administrator VDC support managing VDC.

Storage VDC Support

6.1.(1)

Added Storage VDC information for VDC wizard.

Support for F2 module-type

5.2(2a)

Added F2 module-type support for creating a VDC wizard.

FCoE VDC enhancements

5.2(1)

Added FCoE support for creating a VDC wizard.

Support for N7K-F132XP-15 module

5.1(1)

VDC supports the N7K-F132XP-15 module. This module has 16 port groups that consist of 2 ports each.

Saving VDC configurations

5.1(1)

You can save the VDC configuration of the physical device to the startup configuration or to a bootflash file.

Managing VDCs

5.0(2)

No change from Release 4.2.

Restarting VDCs

4.2(1)

You can restart active nondefault VDCs and nondefault VDCs in the failed state.

VDC prompt format

4.2(1)

You can change the format of the command-line interface (CLI) prompt for nondefault VDCs.
