Cisco Single-Port Antenna Stand for Multiband TNC Male-Terminated Portable Antenna (Cisco 4G-AE015-R, Cisco 4G-AE010-R)

---

This document outlines the specifications and describes the Cisco 4G-AE015-R and Cisco 4G-AE010-R single-port antenna stand for multiband TNC male-terminated portable antenna. This document contains the following sections:

•Cisco 90-Day Limited Hardware Warranty Terms

•Overview

•Technical Specifications

•System Requirements

•Installation Notes

•Safety Instructions

•Obtaining Documentation and Submitting a Service Request

Cisco 90-Day Limited Hardware Warranty Terms

There are special terms applicable to your hardware warranty and various services that you can use during the warranty period. Your formal Warranty Statement, including the warranties and license agreements applicable to Cisco software, is available on Cisco.com. Follow these steps to access and download the Cisco Information Packet and your warranty and license agreements from Cisco.com.

1. Launch your browser, and go to:

http://www.cisco.com/univercd/cc/td/doc/es_inpck/cetrans.htm

The Warranties and License Agreements page appears.

To read the Cisco Information Packet, follow these steps:

a. Click the Information Packet Number field, and make sure that the part number 78-5235-03A0 is highlighted.

b. Select the language in which you would like to read the document.

c. Click Go.

The Cisco Limited Warranty and Software License page from the Information Packet appears.

d. Read the document online, or click the PDF icon to download and print the document in Adobe PDF.

---

Note You must have Adobe Acrobat Reader to view and print PDF files. You can download the reader from Adobe's website: http://www.adobe.com

---

2. To read translated and localized warranty information about your product, follow these steps:

a. Enter this part number in the Warranty Document Number field:

78-5236-01C0

b. Select the language in which you would like to read the document.

c. Click Go.

The Cisco warranty page appears.

d. Review the document online, or click the PDF icon to download and print the document in Adobe Portable Document Format (PDF).

You can also contact the Cisco service and support website for assistance:

http://www.cisco.com/public/Support_root.shtml.

Duration of Hardware Warranty

Ninety (90) days.

Replacement, Repair, or Refund Policy for Hardware

Cisco or its service center will use commercially reasonable efforts to ship a replacement part within ten (10) working days after receipt of a Return Materials Authorization (RMA) request. Actual delivery times can vary, depending on the customer location.

Cisco reserves the right to refund the purchase price as its exclusive warranty remedy.

To Receive a RMA Number

Contact the company from whom you purchased the product. If you purchased the product directly from Cisco, contact your Cisco Sales and Service Representative.

Complete the information below, and keep it for reference:

Company product purchased from
Company telephone number
Product model number
Product serial number
Maintenance contract number

Overview

The Cisco 4G-AE015-R single-port antenna base is designed for use with portable antennas operating at frequencies up to 6 GHz that connect to 4G wireless enhanced high-speed WAN interface cards (EHWICs) using a threaded Neill-Concelman (TNC) male connector. This antenna base unit, ordered separately, has 15 feet of plenum LMR-195 cable and can be used with antennas listed in Table 1.

The antenna base can be wall-mounted or placed on a rack or desktop, and has the following features:

•Multiple band coverage supporting cellular backhaul installations and wireless LAN (WLAN) and wi-fi networks

•Ergonomic design

Figure 1 shows the Cisco 4G-AE015-R antenna base.

Figure 1 Cisco 4G-AE015-R Antenna Base

Figure 2 shows the Cisco 4G-AE015-R antenna base connected to the Cisco 3G-ANTM-1919D multiband swivel-mount dipole antenna recommended for use with this product.

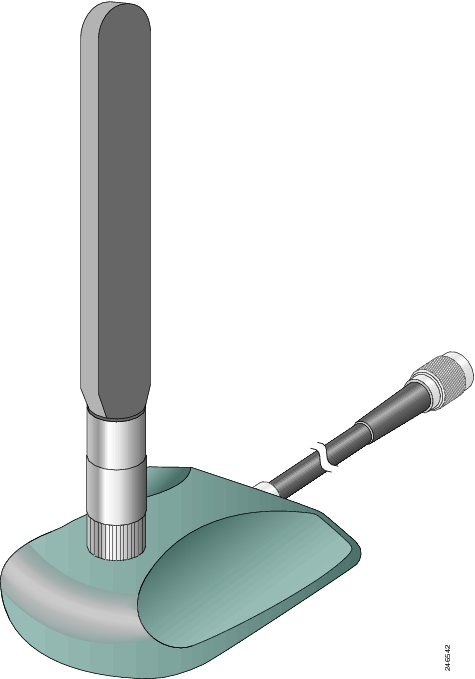

Figure 2 Cisco 4G-AE015-R Antenna Base Connected to the Cisco 3G-ANTM1919D Antenna

Technical Specifications

The following table lists the technical specifications for the Cisco 4G-AE015-R antenna base.

Product type	Single-port antenna base
Operating frequency range	6 GHz
Attenuation	< 3 dB at or below 2.5 GHz
Antenna base connector	TNC female
Pigtail connector	TNC male
VSWR1	< 2.0
Maximum input power	25 Watts
Base material	Cisco grey UL94 V0 PC/ABS plastic
Cable	15 ft (4.6 m)
Environment	Indoor only

1 VSWR = voltage standing-wave radio.

System Requirements

The Cisco 4G-AE015-R antenna base is a remote antenna solution for the Cisco 4G wireless WAN EHWICs and should be connected using the 20-ft or 50-ft ultra-low-loss (ULL) cables recommended for this product. It requires an antenna that uses a TNC (male) connector.

For proper use of the antenna base in conjunction with the antenna, see the antenna document on Cisco.com.

Installation Notes

Table 1 lists the Cisco antennas that are supported for use with the antenna extension base.

Table 1 Cisco Antennas Supported on the 4G Wireless EHWIC

Cisco Part Number	Antenna Type	Maximum Gain and Frequency Range	Description
4G-LTE-ANTM-D	Indoor 4G dipole omnidirectional	2 dBi •698-806 MHz •824-894 MHz •925-960 MHz •1710-1885 MHz •1920-1980 MHz •2110-2170 MHz •2500-2690 MHz	Multiband dipole antenna. For more information, see Cisco 4G/3G Omnidirectional Dipole Antenna (4G-LTE-ANTM-D).
4G-ANTM-OM-CM	Indoor ceiling-mount omnidirectional	698 MHz-2690 MHz	Multiband omnidirectional ceiling-mount antenna. For more information, see Cisco 4G Indoor Ceiling-Mount Omnidirectional Antenna (4G-ANTM-OM-CM)

Warning This equipment must be connected to an indoor antenna only. Statement 373

---

Caution Install the EHWIC and any antennas away from appliances that share the same frequency bands. Microwave ovens, cordless telephones, and security monitors can temporarily interfere with wireless performance.

---

---

Caution We recommend avoiding installing wireless antennas in or near rack-mounted equipment that include networking equipment and computer servers whose radiated noise emissions can severely degrade radio performance.

---

To extend the coaxial cable included with your antenna base, we recommend a ULL coaxial cable for flexibility of installation without significant loss of range.

Table 2 provides insertion loss information for ULL extension coaxial cables available from Cisco.

Table 2 Insertion Loss

Cisco Product Number	Cable Length	Frequency Range	Insertion Loss
4G-CAB-ULL-20	20 ft (6 m)	500-2000 MHz	-1.50 dB maximum
4G-CAB-ULL-50	50 ft (15 m)	500-2000 MHz	-3.50 dB maximum

Figure 3 shows the ULL cable recommended for Cisco 4G Wireless WAN EHWICs.

Figure 3 ULL Cable Recommended for Cisco 4G Wireless WAN EHWICs

1	TNC Male RA1	3	Heat Shrink Tube
2	TNC Female Straight

1 RA = Right angle.

Safety Instructions

Follow these safety instructions when installing your antenna.

Warning In order to comply with FCC radio frequency (RF) exposure limits, antennas should be located at a minimum of 7.9 inches (20 cm) or more from the body of all persons. Statement 332

Warning This equipment must be connected to an indoor antenna only. Statement 373

•Plan your installation procedure carefully and completely before you begin.

•If you are installing an antenna for the first time, for your own safety as well as that of others, seek professional assistance. Consult your dealer, who can explain which mounting method to use for the location where you plan to install the antenna.

•Choose your installation site with both safety and performance in mind. Remember that electric power cables and telephone lines look alike.

---

Caution For your safety, assume that any line is an electric power line until determined otherwise.

---

•Call your local power company or building maintenance organization if you are unsure about cables close to your mounting location.

•When installing your antenna, do not use a metal ladder. Do dress properly: wear shoes with rubber soles and heels, rubber gloves, and a long-sleeved shirt or jacket.

•If an accident or emergency occurs with the power lines, call for qualified emergency help immediately.

Obtaining Documentation and Submitting a Service Request

For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:

http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html

---
